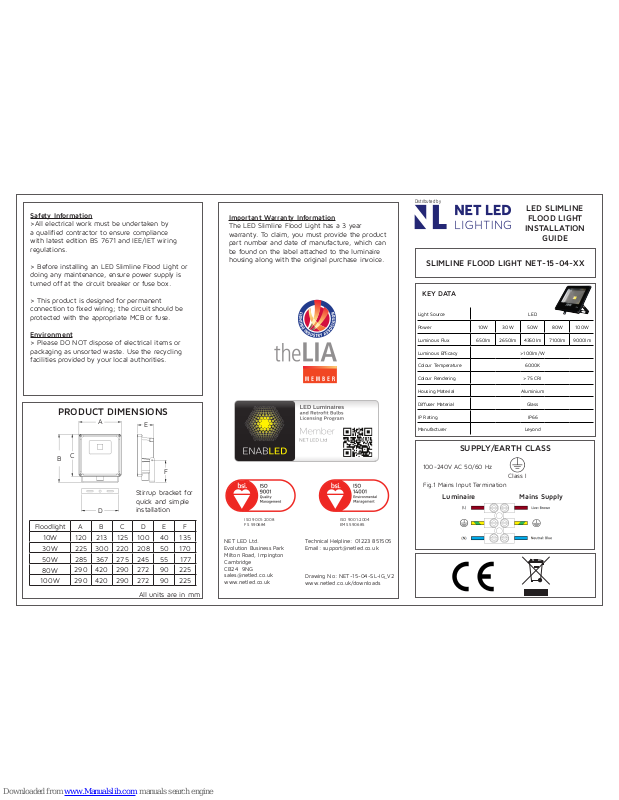

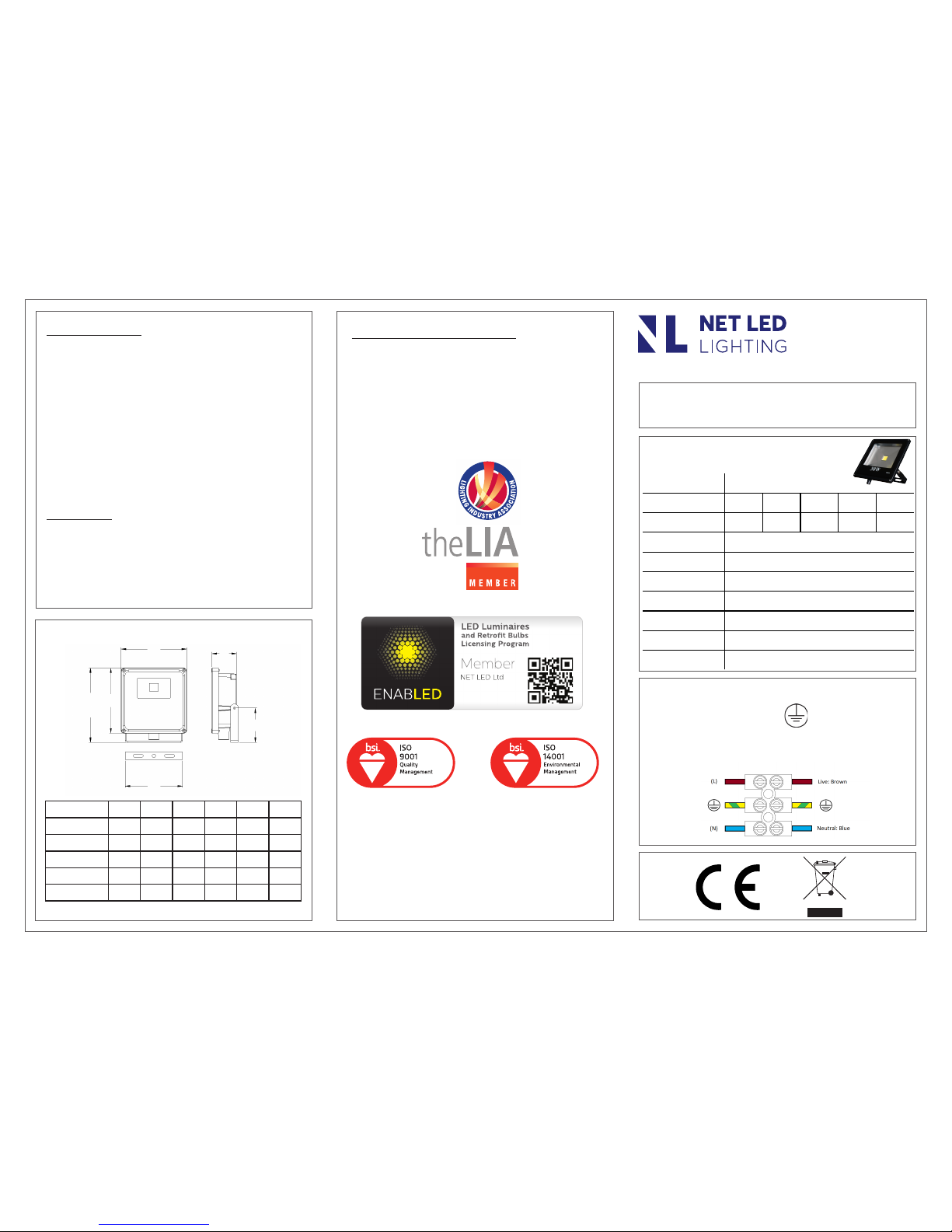

Page 1
LED SLIMLINE
FLOOD LIGHT
IN STALLATION
GUIDE
SLIMLINE FLOOD LIGHT NET-15-04-XX
KE Y DATA
Important Warranty Information
The LED Slimline Flood Light has a 3 year
warranty. To claim, you must provide the product
part number and date of manufacture, which can
be found on the label attached to the luminaire
housing along with the original purchase invoice.
NET LED Ltd.
Evolution Business Park
Milton Road, Impington
Cambridge
CB24 9NG
[email protected]
www.netled.co.uk
Technical Helpline: 01223 851505
Email: [email protected]
Safety Information
>All electrical work must be undertaken by
a qualied contractor to ensure compliance
with latest edition BS 7671 and IEE/IET wiring
regulations.
> Before installing an LED Slimline Flood Light or
doing any maintenance, ensure power supply is
turned off at the circuit breaker or fuse box.
> This product is designed for permanent
connection to xed wiring; the circuit should be
protected with the appropriate MCB or fuse.
Environment
> Please DO NOT dispose of electrical items or
packaging as unsorted waste. Use the recycling
facilities provided by your local authorities.
PRODUCT DIMENSIONS
ISO 9001:2008
FS 590684
ISO 9001:2004
EMS 590685
Floodlight
A B C D E F
10W
120 213 125 100 40 135
30W
225 300 220 208 50 170
50W
285 367 275 245 55 177
80W
290 420 290 272 90 225
100W
290 420 290 272 90 225
Drawing No: NET-15-04-SL-IG_V2
www.netled.co.uk/downloads
SUPPLY/EARTH CLASS
Fig.1 Mains Input Termination
100-240V AC 50/60 Hz
Class I
Luminaire Mains Supply
Stirrup bracket for
quick and simple
installation
B
A
D
C
Distributed by
E
F
Light Sourc e LED
Power 10W 30W 50W 80W 10 0W
Luminous Flux 650lm 2650lm 4350lm 7100lm 9000lm
Luminous Ecacy >100lm/W
Colour Temperature 6000K
Colour Rendering >75 CRI
Housing Material Aluminium
Diffuser Material Glass
IP Rating IP66
Manufac turer Leyond
All units are in mm

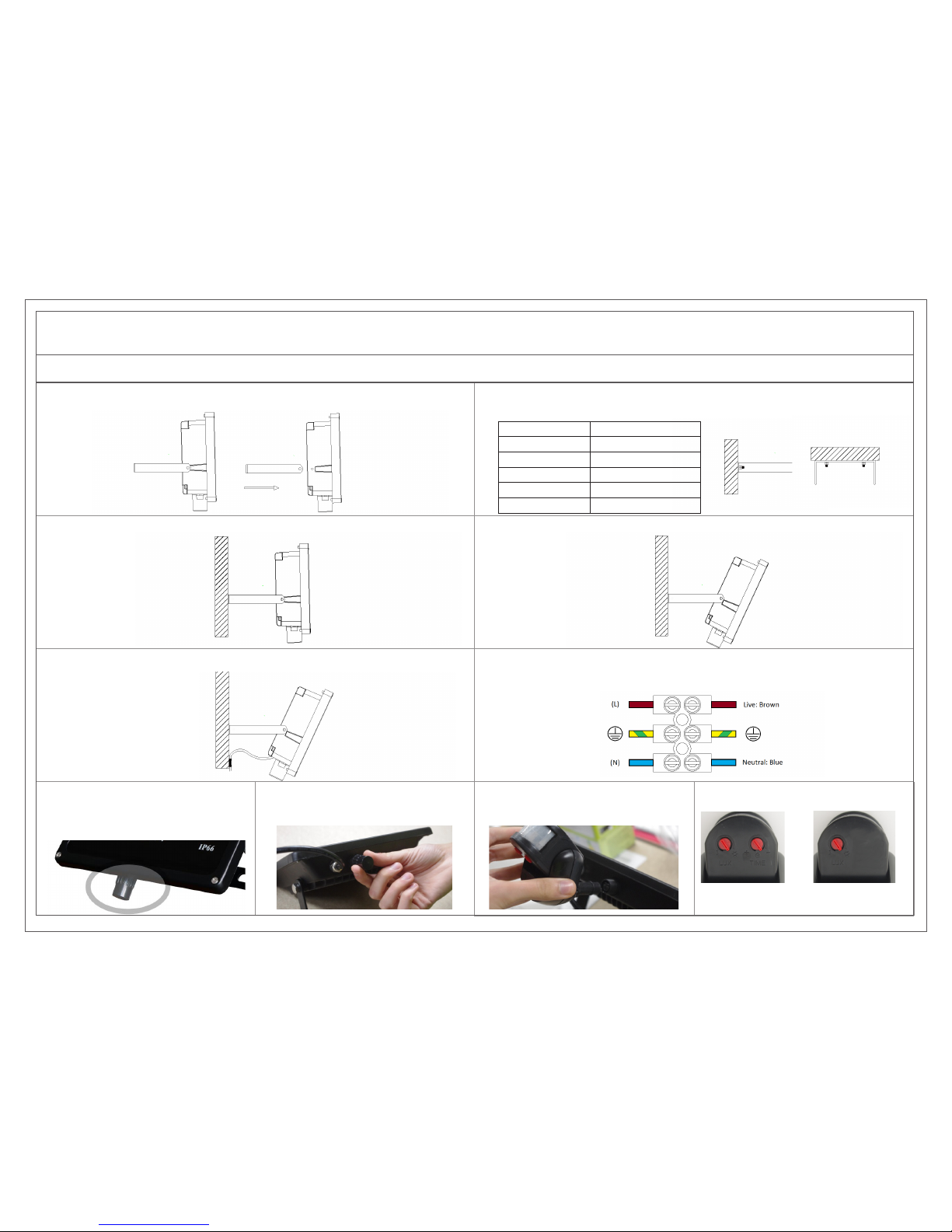

Page 2
Step 1: Carefully remove the Slimline Flood Light from the packaging. Loosen the bolts on each side of the
Slimline Flood Light and remove the mounting bracket.
Step 2: Select a suitable mounting position and refer to the table below for the minimum recommended
mounting height. Drill into the mounting surface and screw the bracket onto the mounting surface using
suitable wall plugs and screws.
Step 3: Re-attach the Slimline Flood Light to the bracket. Step 4: Tilt the Slimline Flood Light to adjust it as required and tighten the bolts to lock the Slimline Flood
Light in position.
Step 5: Secure the supply cable to the wall using suitable clips. Ensure that the cable is not touching the
body of the Slimline Flood Light.
Step 6: Connect the cable to the mains as per the illustration below and test the LED Slimline Flood Light
for correct operation.
PIR/Photocell Connection: The LED Slimline Flood
Light is compatible with the NET LED supplied PIR
and Photocell attachments. It comes with an integral port to which the PIR or the Photocell can be
plugged in to.
Step 1: Unscrew the plastic dust cap at the base of
the Flood Light and remove the internal connector.
Keep the dust cap and internal connector in a secure
place
Step 2: Insert the PIR or the Photocell sensor into
the base and engage the twist-lock connector to
hold it securely.
Step 3: Adjust the PIR or the Photocell settings as
required.
Installation procedure: Carefully read the installation instructions and ensure the mains supply is isolated before installation. Please read the safety information overleaf
before carrying out any installation. Please retain this leaet for future reference.
Flood Light Installation:
Luminaire Mains Supply
PIR
Lux Levels: 2 - 2000 Lux
Duration: 8 sec - 15min
Phot ocell
Lux Levels: 3-100 lux
Power Minimum Mounting Height
10W 2m
30W 2m
50W 2m
80W 2.5m
100W
3m
