NETIS SYSTEMS WF2120R User Manual

WF2120
netis 150Mbps NANO Wireless-N USB
Adapter
Quick Installation Guide
V1.2
2011-03-04
Wireless-N USB Adapter Quick Installation Guide
Check Your Package Contents
The following items should be found in your package:
¾ Wireless-N USB Adapter ¾ Quick Installation Guide ¾ CD-ROM
Make sure that the package contains above items. If any of the above items is missing or damaged, please contact the store you bought this product from.
Before You Begin
Minimum Requirements:
¾ Available USB 1.1 or USB 2.0 port ¾ 300 MHz processor and 32 MB of memory ¾ CD-ROM drive ¾ An 802.11b/g/n access point (for Infrastructure Mode) or another 802.11b/g/n wireless
adapter (for Ad-Hoc; Peer-to-Peer networking mode.)
¾ Microsoft® Windows® 7, V i sta™, XP, 2000 SP4
Insert the CD
Turn on the computer and insert the included CD in the CD-ROM drive. The install screen will appearas figure 1. If not, click the Start button and choose Run and enter D:\install.exe (if ‘D’ is your CD-ROM drive)
Click “Install Driver,” choose your product model, click “Install” and follow the software instructions. The following is the step-by-step instructions in Windows XP. The steps and screens are similar for the other Windows operating systems.
Wireless-N USB Adapter Quick Installation Guide
Figure 1
¾ Step 1 Select language and then click “Next ”,if no such option, go to Step 2
¾ Step 2 Click “Next
Figure 2
Figure 3
¾ Step 3 Select setup type and then click “Next
Wireless-N USB Adapter Quick Installation Guide
¾ Driver is being installed, please wait.
Figure 4
Wireless-N USB Adapter Quick Installation Guide
Figure 5

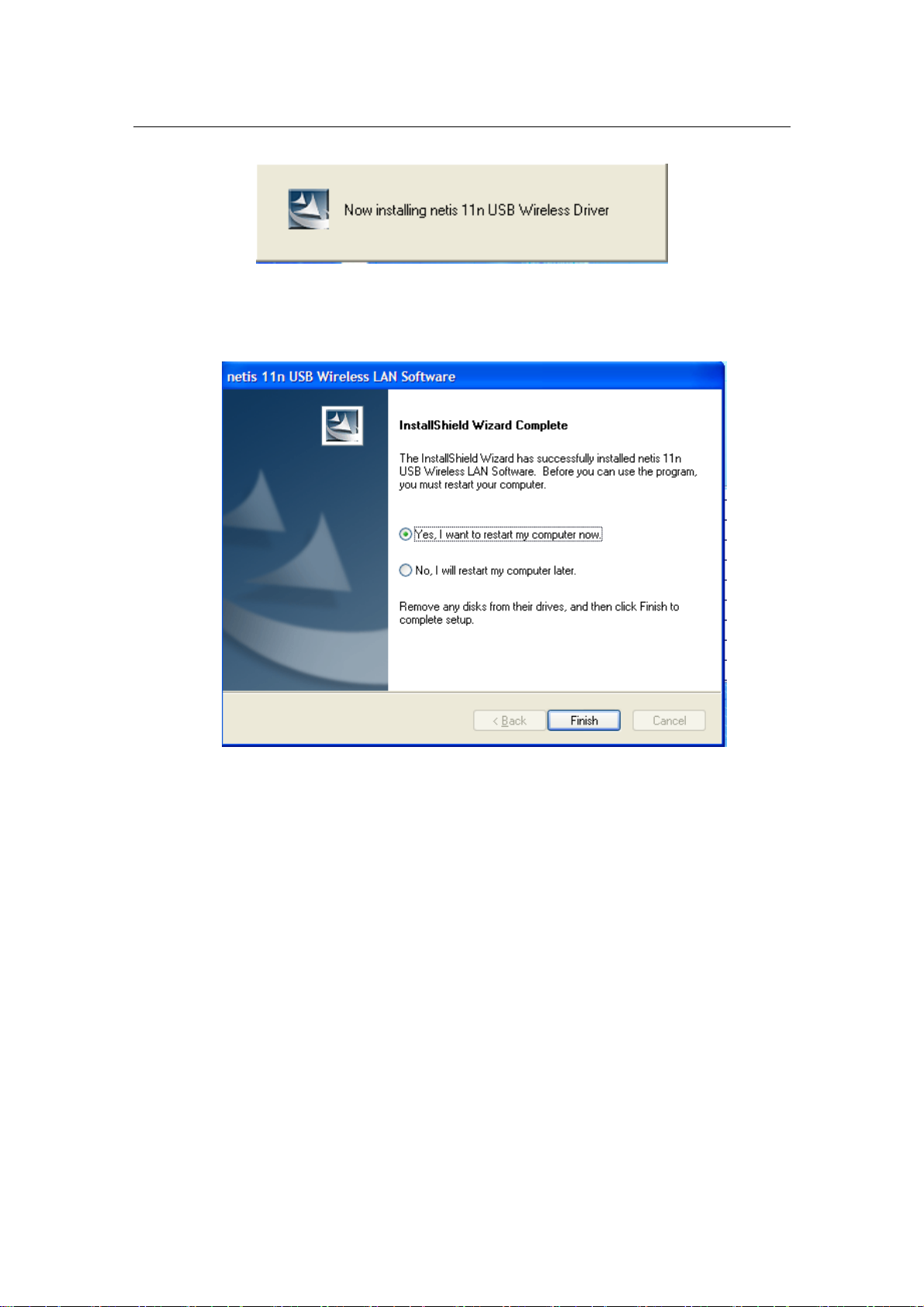

¾ Step 4 After installation is complete, if you are asked to restar t you may do so immedia tely,
or you may choose to do so later, after closing and saving work in other programs. If no such option, go to Step 5
¾ Step 5 Click “Finish
Figure 6
Figure 7
Wireless-N USB Adapter Quick Installation Guide
Insert the Wireless-N USB Adapter
Plug the Wireless-N USB Adapter into an available USB port on your computer, and the Found New Hardware Wizard (windows XP) screen will appear: ¾ Select Install the software automatically (Recommended) and then click “Next”
Figure 8
¾ Click “Finish” to finish the hardware installation
Figure 9
Wireless-N USB Adapter Quick Installation Guide
Connecting to a wireless network
You can double-click the icon on your desk top to run it. Another w ay to start the utility is to click
Start>Programs> netis 11n USB Wireless LAN Utility> netis 11n USB W i reless LAN Utility. Note: If you are using Windows XP, you can use either the Windows Zero Configuration Utility
or the netis software, but netis Wireless LAN Utility is recommended . ¾ Double click the icon as Figure 10 on the desk-top,
Figure 10
You can use the following methods to connect to a wireless network. Method 1(This method is only suitable for installed unity of users, see Step 3):
¾ Click on the Available Network tab and available wireless networks will be display ed. You
can then double click on the network that you wish to connect to.
Wireless-N USB Adapter Quick Installation Guide
Figure 11
¾ If the network you are connecting to is encrypted, y ou will need to enter and confirm the
network key/password, then click “OK”.
Figure 12
Wireless-N USB Adapter Quick Installation Guide
Method 2:
You can follow steps below to connect to wireless network if you only insta ll Drive without Un ity in Step 3. Double click “My Network Places”, then click “View network connections” and right click Wireless network connections” to select “Available wireless network connections”, and available wireless networks will be displayed, you can then double click on the n etwork that you wish to connect to.
FCC IDT58WF2120R
FCC Statement
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not ins talled and use d in accordance with th e instructions, may cause harmful interference to radio communic ations. However, there is no guar antee that interference will not occur in a particular installation. If this equipment does cause harmful in terference t o radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:
-Reorient or relocate the receiving antenna.
-Increase the separation b etween the equipment and receiver.
-Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
-Consult the dealer or an experienced radio/TV technician for help. To assure continued compliance, any cha nges or modifications not expressly approved by the par ty responsible for compliance could void the user’s authority to operate this equipment. (Example- use only shielded interface cables when connecting to computer or peripheral devices)
FCC Radiation Exposure Statement
This equipment complies with FCC RF radiation exposure limits set forth for an uncontrolled environment. This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter. This equipment complies with Part 15 of the FCC Rules. Operatio n is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any inter ference r eceiv ed, i ncl uding int erferen ce that may cause undesire d operation.
Caution!
The manufacturer is not responsible for any radio or TV interference caused by unauthorized modifications to this equipment. Such modifications could void the user authority to operate the equipment.
