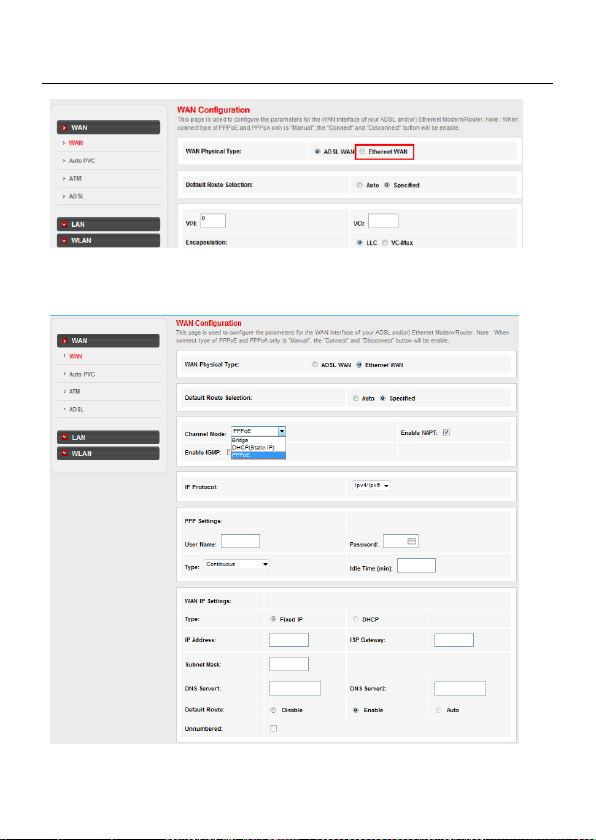

NETIS SYSTEMS DL4311R2 User Manual

150Mbps Wireless N ADSL2+ Modem

Router

Wireless N ADSL2+ Modem Router Quick Installation Guide

1. Hardware Installation

Step 1: Connect the ADSL Line.
Method one: Plug one end of the twisted-pair ADSL cable into the

ADSL LINE port on the rear panel of the modem router, and insert
the other end into the wall socket.
Method two: You can use a separate splitter. The external splitter
has three ports:

• Line: Connect to the wall jack

• Phone: Connect to the phone sets

• Modem: Connect to the ADSL LINE port of the modem router
Step 2: Connect the Ethernet cable. Attach one end of a network
cable to your computer's Ethernet port or a regular hub/switch port,
and the other end to the LAN port on the modem router.

Step 3: Power on the computers and modem router.
Step 4: Attach the power adapter. Connect the power adapter to the

power connector on the rear of the device and plug in the adapter to
a wall outlet or power extension.

1

Wireless N ADSL2+ Modem Router Quick Installation Guide

Name Status Indication

PWR On Power is on.

Off Power is off.

ADSL

Flash The ADSL negotiation is in progress.
On The LINE port is linked up.
Off The LINE port is linked down.

Internet

Flashing Data is being transferred over the

Internet.

On The modem router is initializing in the

first 10 seconds when power is up.
Or a successful PPP connection has been
built.
There is no successful PPP connection or

Off

the modem router works on Bridge mode.

WLAN

Flash There is wireless data being transmitted.
On The wireless function is enabled but no

data is being transmitted.

Off The wireless function is disabled.

WPS Off WPS connection process is not activated.

There's no wireless device trying to
connect to the network by WPS function.

Flash WPS function is activated. The modem

router's waiting for the WPS connection
from a wireless device. This process will
last in the first 2 minutes.

2

Wireless N ADSL2+ Modem Router Quick Installation Guide

LAN(1-4) Flash Data is being transferred over the 1-4

(LAN) port.

On

Off

There is a successful connection on the
corresponding 1-4 (LAN) port but no
activity.
There is no connection on the
corresponding 1-4 (LAN) port or the
connection is abnormal.

2. Configure PC

For Windows 7 as an example, other OS refer to set up.

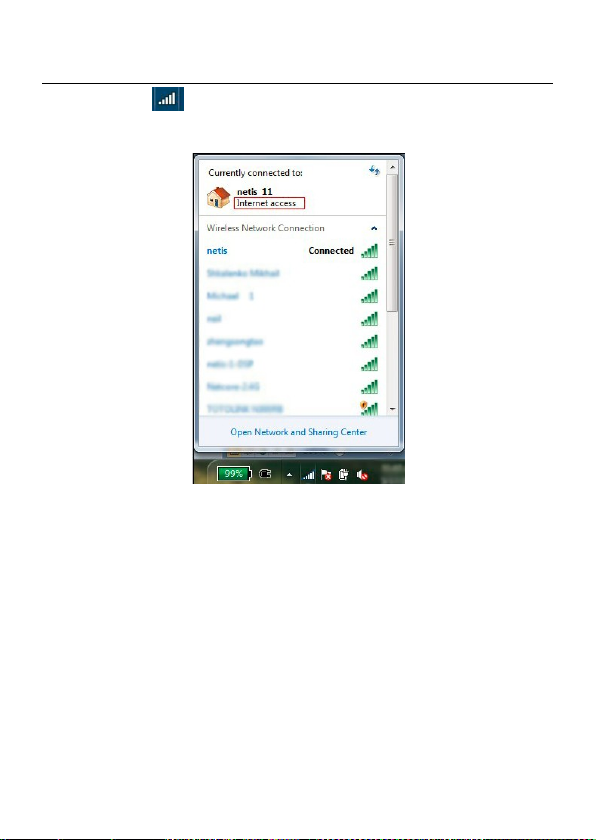

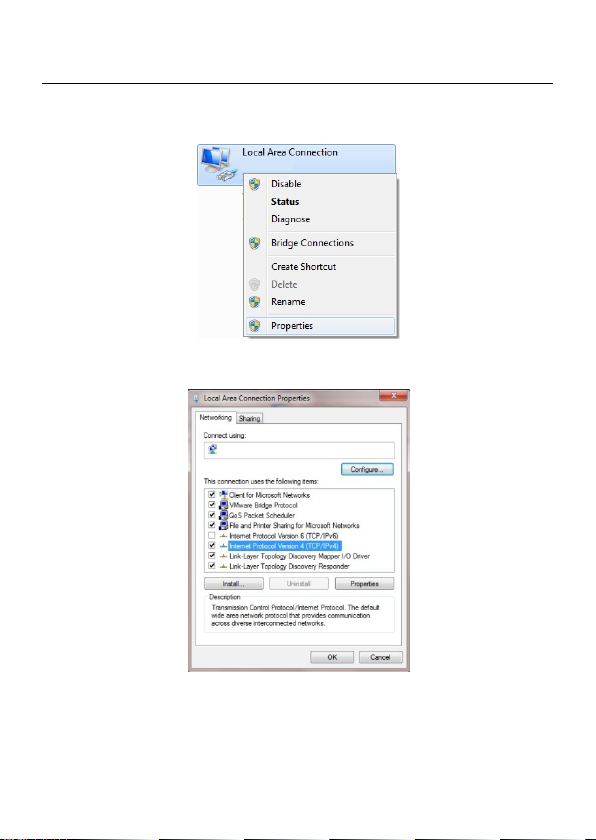

Step 1: Click , then select the Open Network and Sharing

Center.

Step 2: Click the Change adapter settings.
