Netis WF-2406 User Manual

WF-2406

User Manual

Netis 300Mbps Wireless-N

Gigabit Router

V1.1

2011-06-21

WF-2406 User Manual

1

Certification

FCC CE

FCC Statement

This equipment has been tested and found to comply with the limits for a Class B digital device,
pursuant to part 15 of the FCC rules. These limits are designed to provide reasonable protection
against harmful interference in a residential installation. This equipment generates, uses and can
radiate radio frequency energy and, if not installed and used in accordance with the instructions,
may cause harmful interference to radio communications. However, there is no guarantee that
interference will not occur in a particular installation. If this equipment does cause harmful
interference to radio or television reception, which can be determined by turning the equipment off
and on, the user is encouraged to try to correct the interference by one or more of the following
measures:

-Reorient or relocate the receiving antenna.

-Increase the separation between the equipment and receiver.

-Connect the equipment into an outlet on a circuit different from that to which the receiver is
connected.

-Consult the dealer or an experienced radio/TV technician for help.
To assure continued compliance, any changes or modifications not expressly approved by the party
responsible for compliance could void the user‟s authority to operate this equipment. (Example- use
only shielded interface cables when connecting to computer or peripheral devices)

FCC Radiation Exposure Statement

This equipment complies with FCC RF radiation exposure limits set forth for an uncontrolled
environment. This transmitter must not be co-located or operating in conjunction with any other
antenna or transmitter.
This equipment complies with Part 15 of the FCC Rules. Operation is subject to the following two
conditions:
(1) This device may not cause harmful interference, and
(2) This device must accept any interference received, including interference that may cause
undesired operation.

Caution!

The manufacturer is not responsible for any radio or TV interference caused by unauthorized
modifications to this equipment. Such modifications could void the user authority to operate the
equipment

WF-2406 User Manual

2

Package Contents
The following items should be found in your package:

 300Mbps Wireless-N Gigabit Router
 Power adapter
 Quick Installation Guide
 CD-Rom
 Ethernet cable

Make sure that the package contains above items. If any of the above items is missing or
damaged, please contact the store you bought this product from.

Brand and Copyright Announcement

Copyright © 2010 Netis Corporation.
All rights reserved

is a registered trademark of Netis Corporation. Other trademarks and trade
names may be used in this document to refer to either the entities claiming the marks and
names or their products.
Reproduction in any manner without the permission of Netis Corporation is strictly
forbidden

All the information in this document is subject to change without notice.

USA/Canada Technical Support
Phone: 1-866-71-network or 1-866-716-3896 (free in USA & Canada)
E-mail: [e-mail]

WF-2406 User Manual

3

Contents

CONTENTS .............................................................................................................................................................3

1. INTRODUCTION ........................................................................................................................................5

1.1. PRODUCT OVERVIEW ............................................................................................................................5

1.2. MAIN FEATURES.....................................................................................................................................5

1.3. SUPPORTING STANDARD AND PROTOCOL...........................................................................................6

1.4. WORKING ENVIRONMENT ....................................................................................................................6

2. HARDWARE INSTALLATION ...............................................................................................................7

2.1. SYSTEM REQUIREMENT ........................................................................................................................7

2.2. PANEL ......................................................................................................................................................7

2.3. RESTORE T O FACTORY CONFIGURATION..............................................................................................8

2.4. HARDWARE INSTALLATION PROCEDURES ..........................................................................................8

3. LOGIN ...........................................................................................................................................................10

3.1. CONFIGURE COMPUTER.......................................................................................................................10

3.1.1. Windows 98/Me..........................................................................................................................10

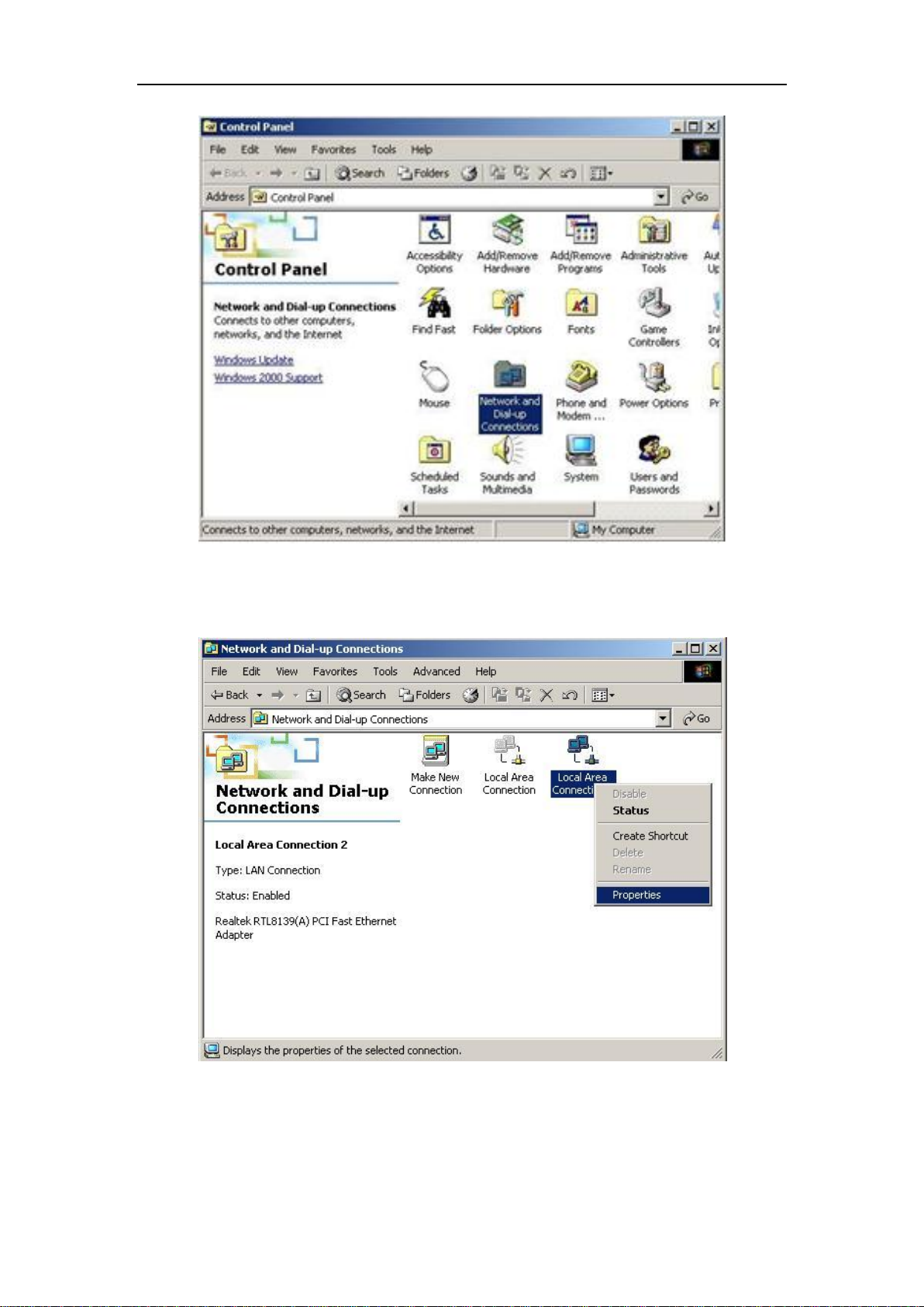

3.1.2. Windows 2000 ............................................................................................................................10

3.1.3. Windows XP................................................................................................................................13

3.1.4. Windows Vista ............................................................................................................................16

3.1.5. Windows 7 ...................................................................................................................................20

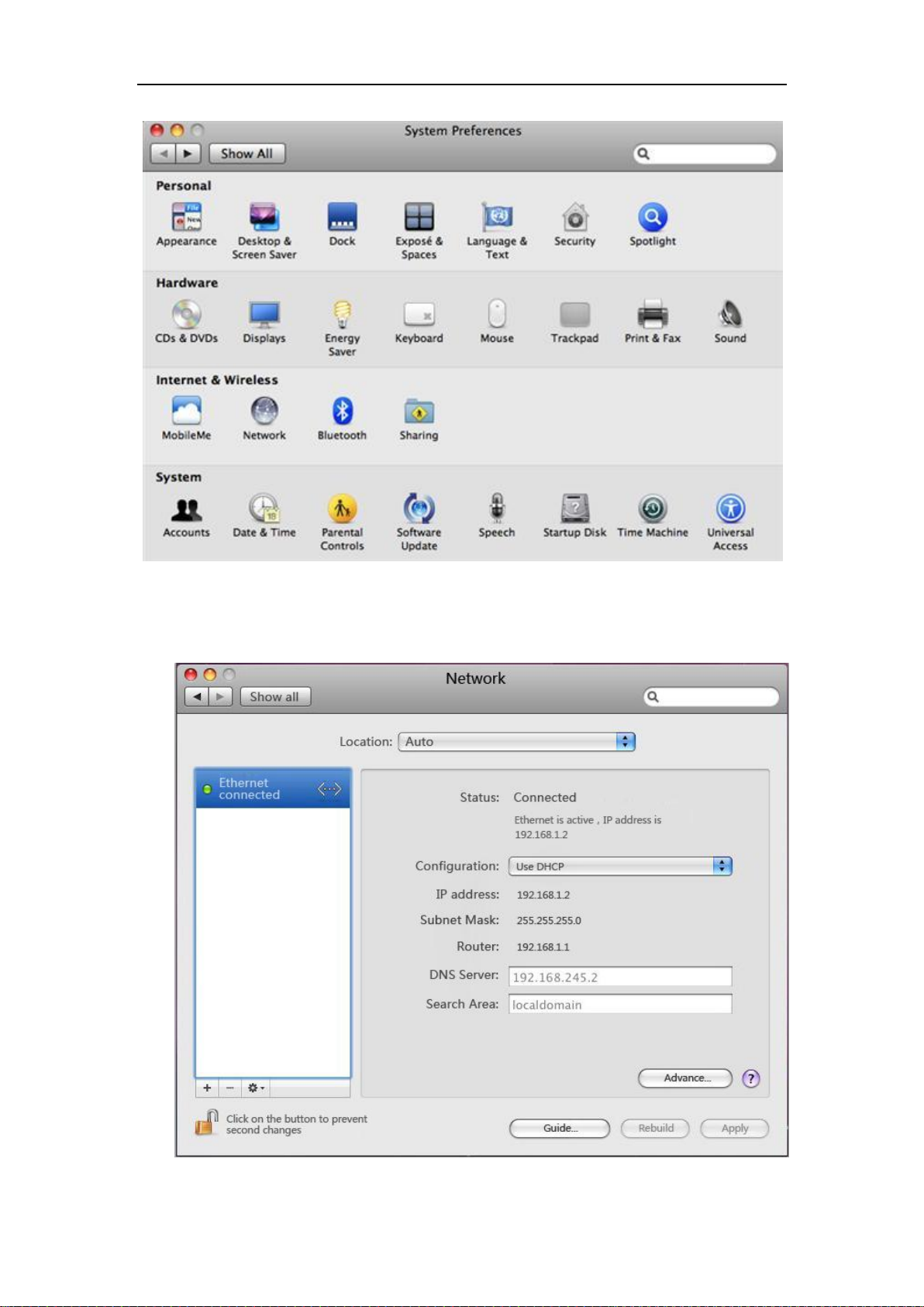

3.1.6. MAC OS ......................................................................................................................................22

3.2. CHECKING CONNECTION WITH THE ROUTER ...................................................................................24

3.3. LOGIN ....................................................................................................................................................25

4. ROUTER SETUP........................................................................................................................................27

4.1. SYSTEM INFORMATION........................................................................................................................27

4.1.1. System ..........................................................................................................................................27

4.1.2. Internet Access ...........................................................................................................................27

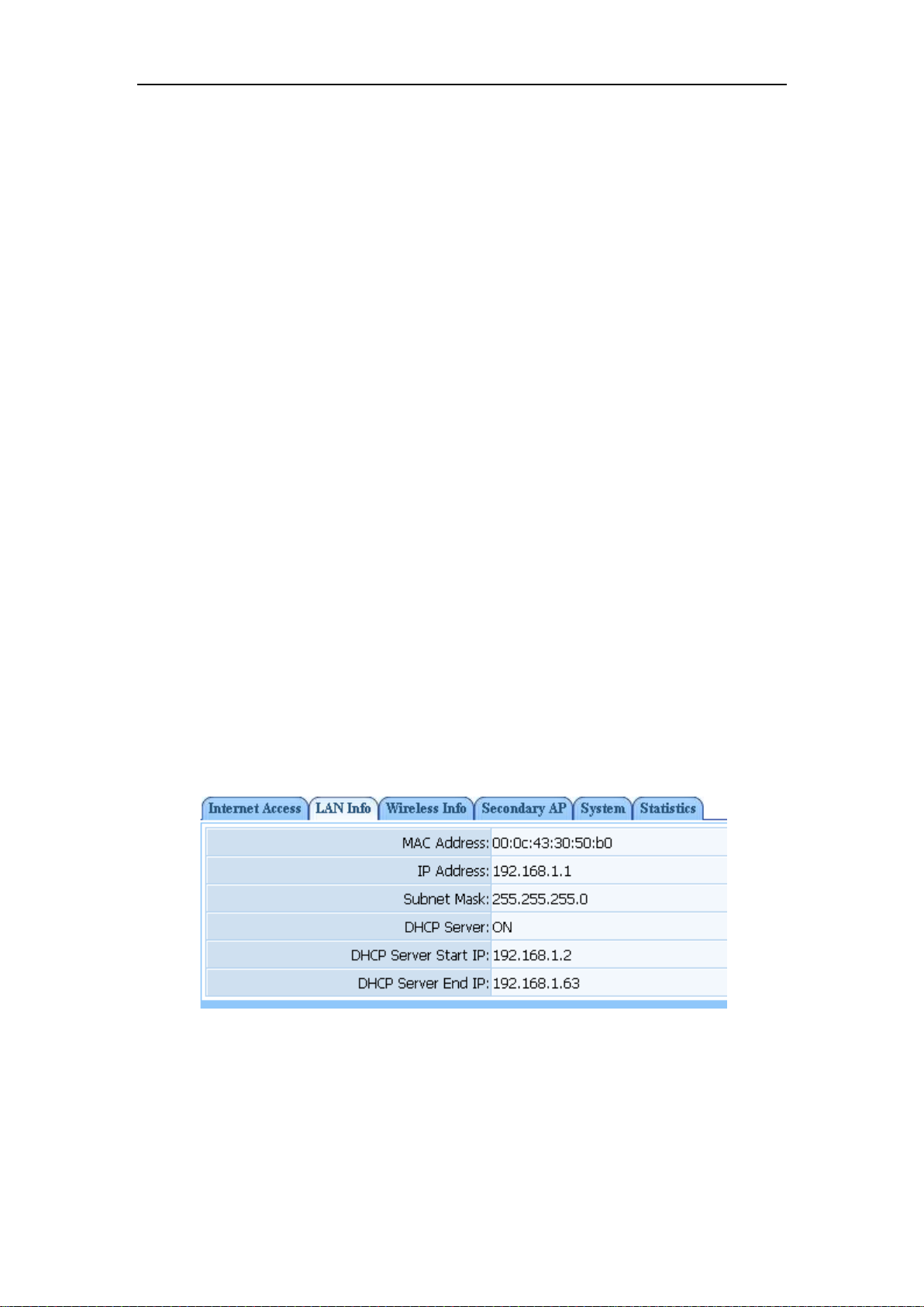

4.1.3. LAN Info ......................................................................................................................................28

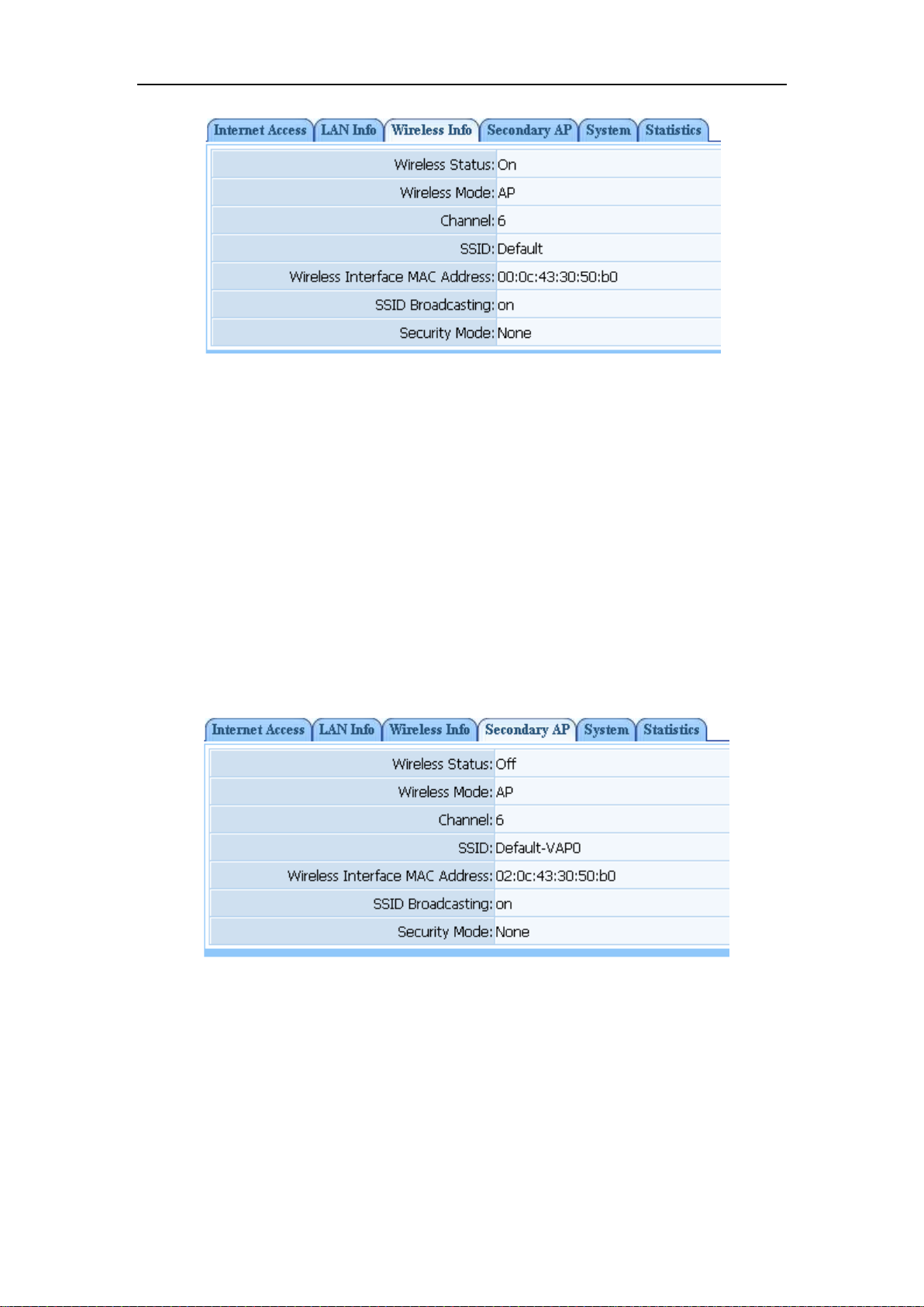

4.1.4. Wireless Info ...............................................................................................................................28

4.1.5. Secondary AP .............................................................................................................................29

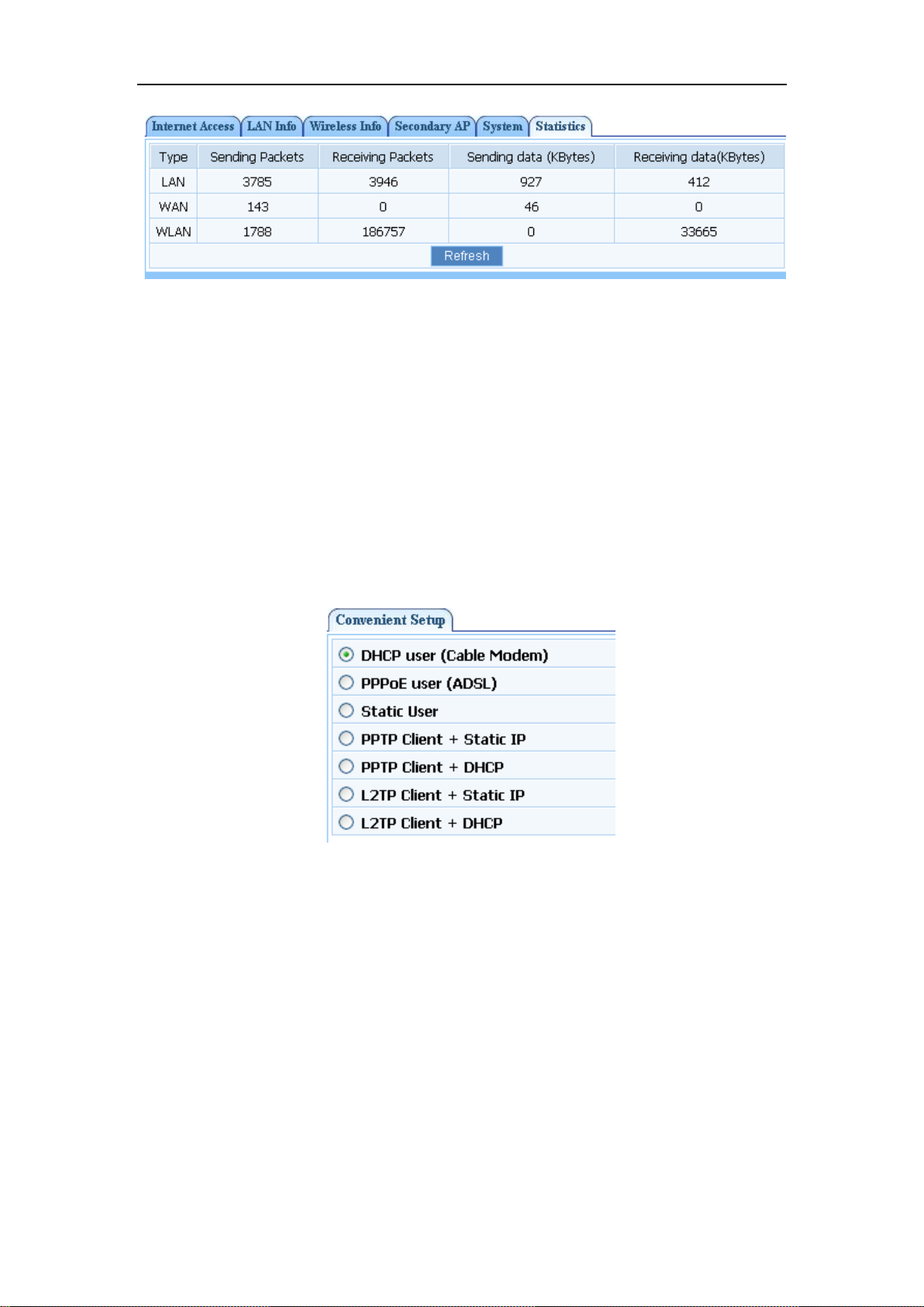

4.1.6. Statistics ......................................................................................................................................29

4.2. CONVENIENT SETUP ............................................................................................................................30

4.2.1. DHCP (dynamic) .......................................................................................................................30

4.2.2. PPPoE .........................................................................................................................................31

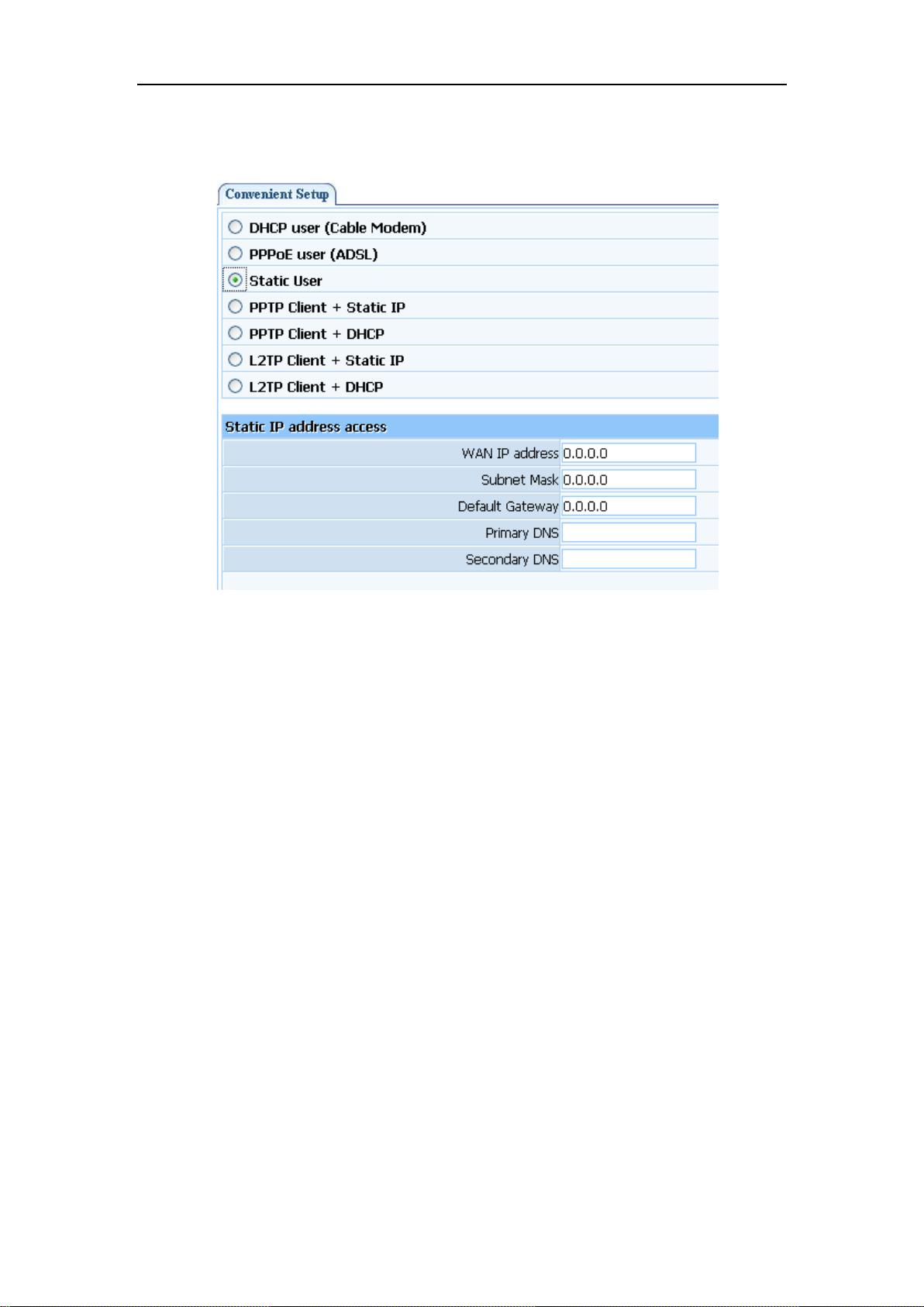

4.2.3. Static User ..................................................................................................................................32

4.2.1. PPTP Client + Static IP ...........................................................................................................33

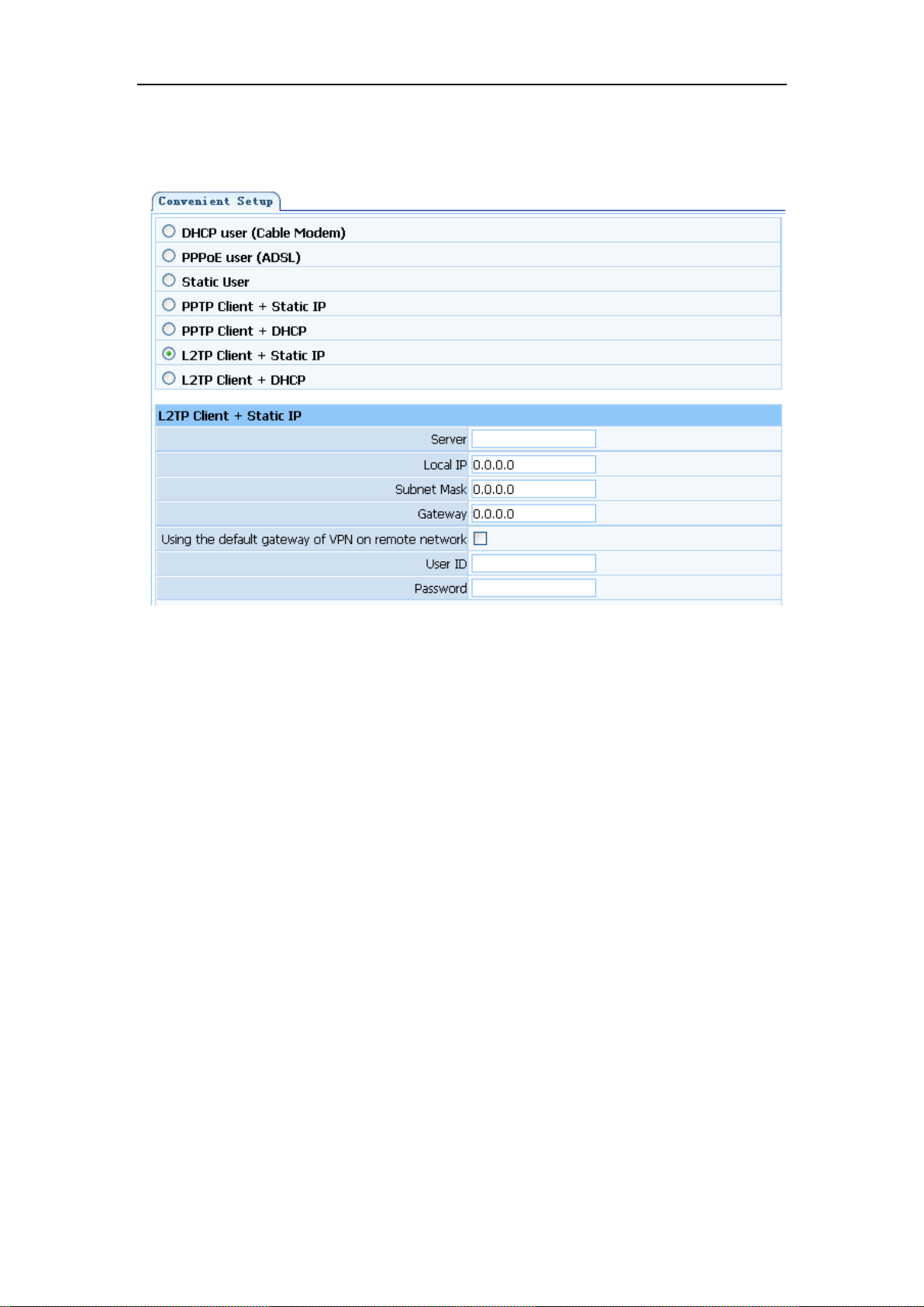

4.2.2. L2TP Client + Static IP ............................................................................................................34

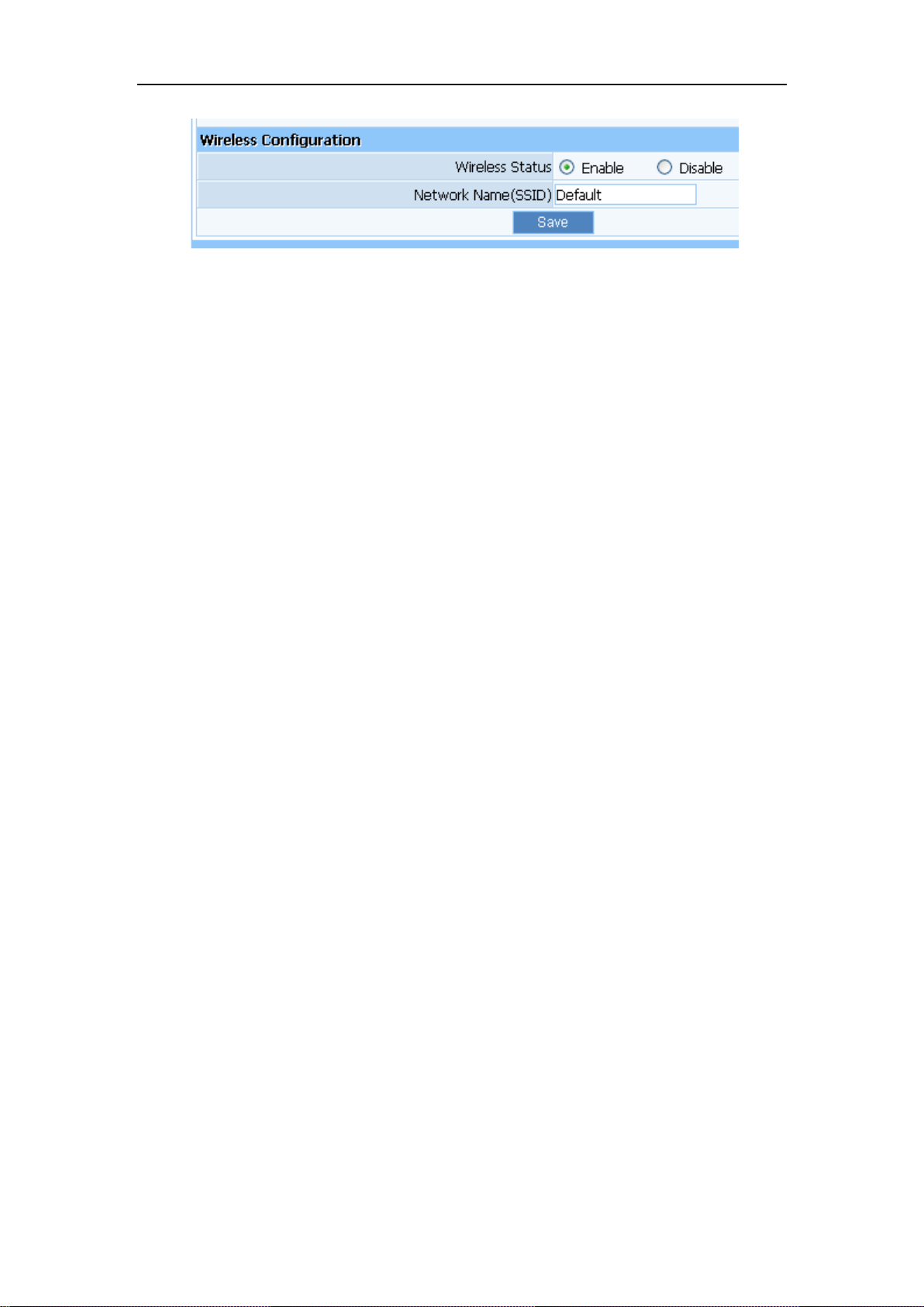

4.2.3. Wireless Configuration .............................................................................................................34

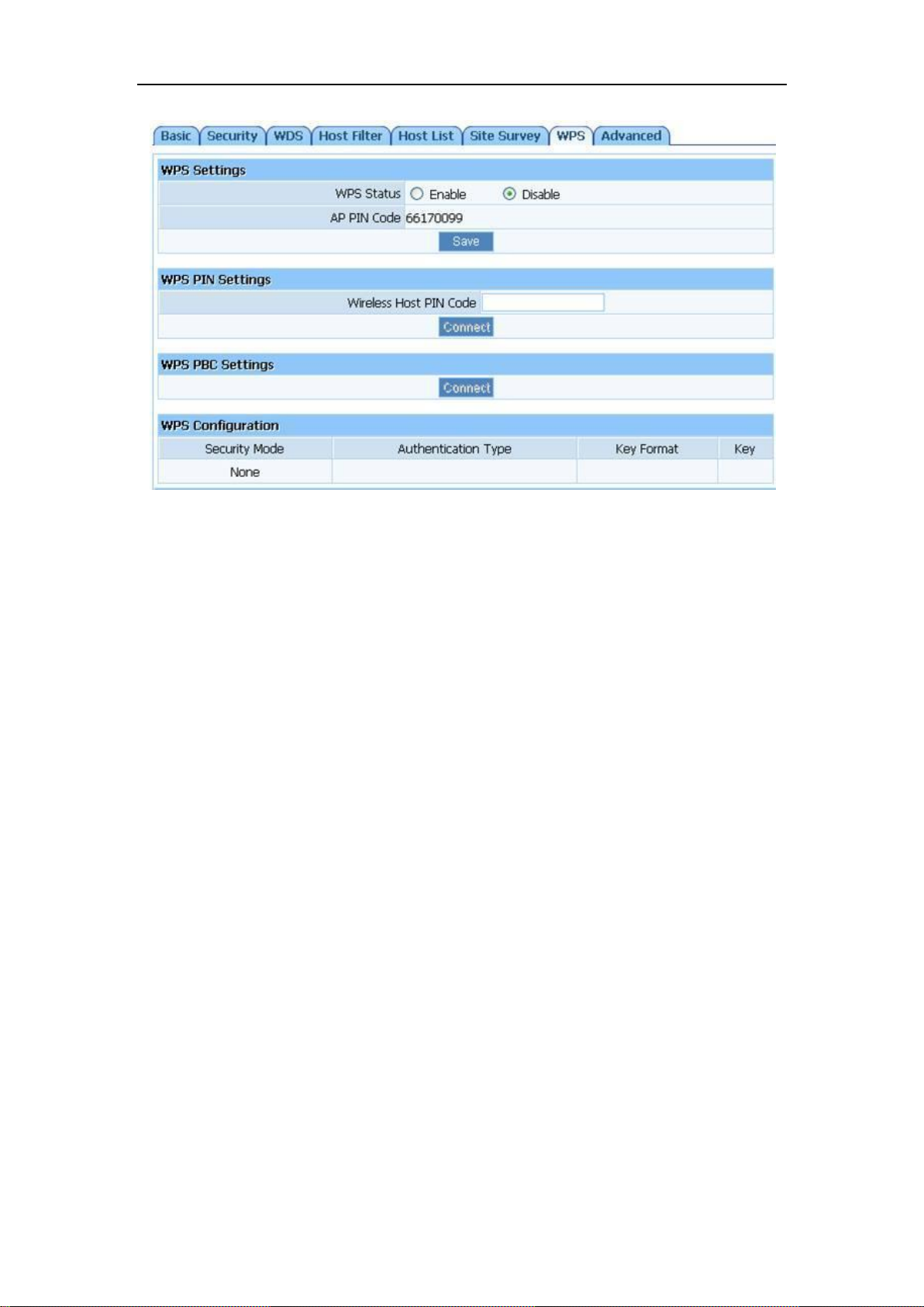

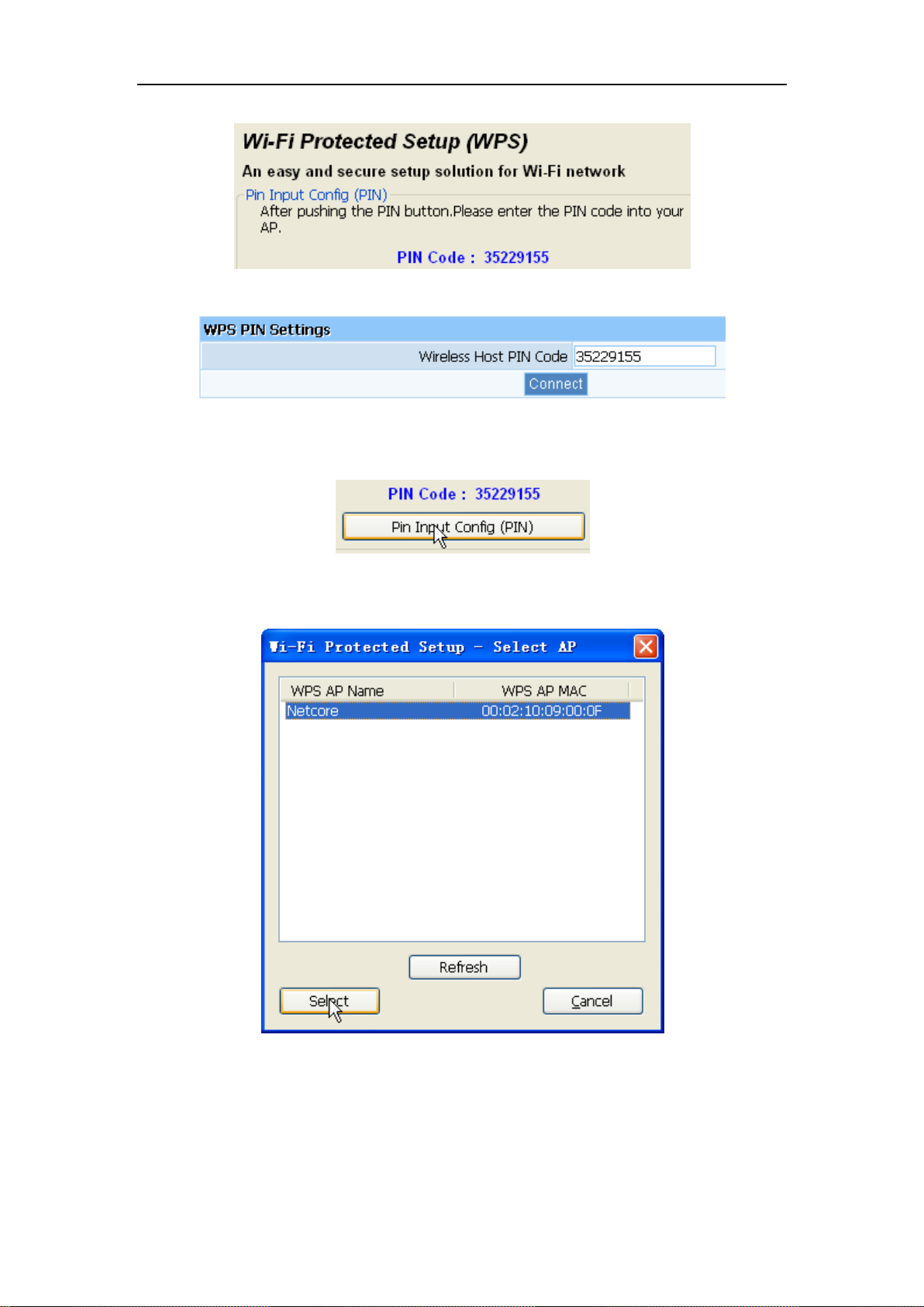

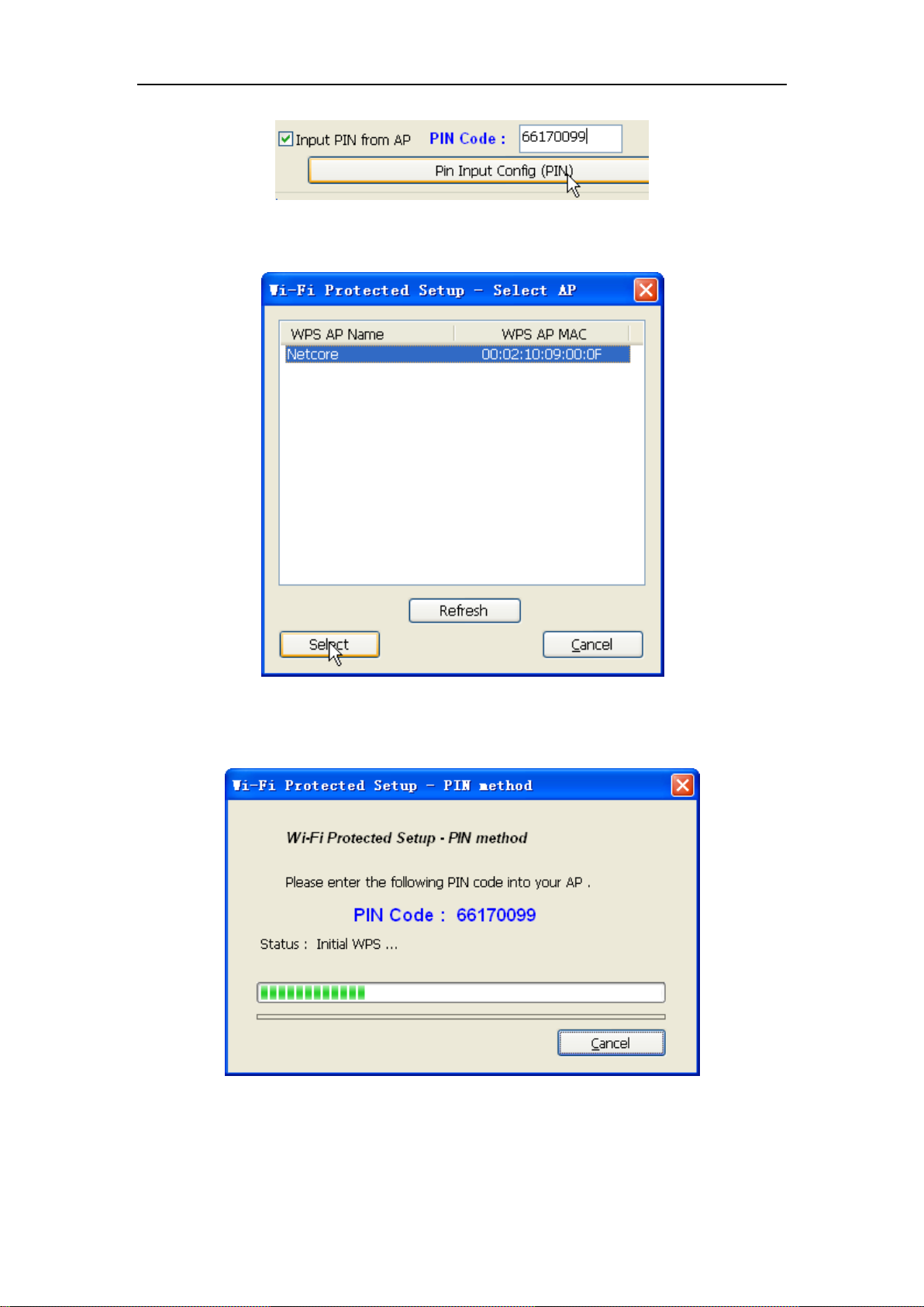

4.3. WPS SETTINGS.....................................................................................................................................35

4.4. INERNET SETUP ....................................................................................................................................41

4.4.1. WAN .............................................................................................................................................41

WF-2406 User Manual

4

4.4.1.1. Wired Access ........................................................................................................................... 41

4.4.1.2. Wireless Access ....................................................................................................................... 42

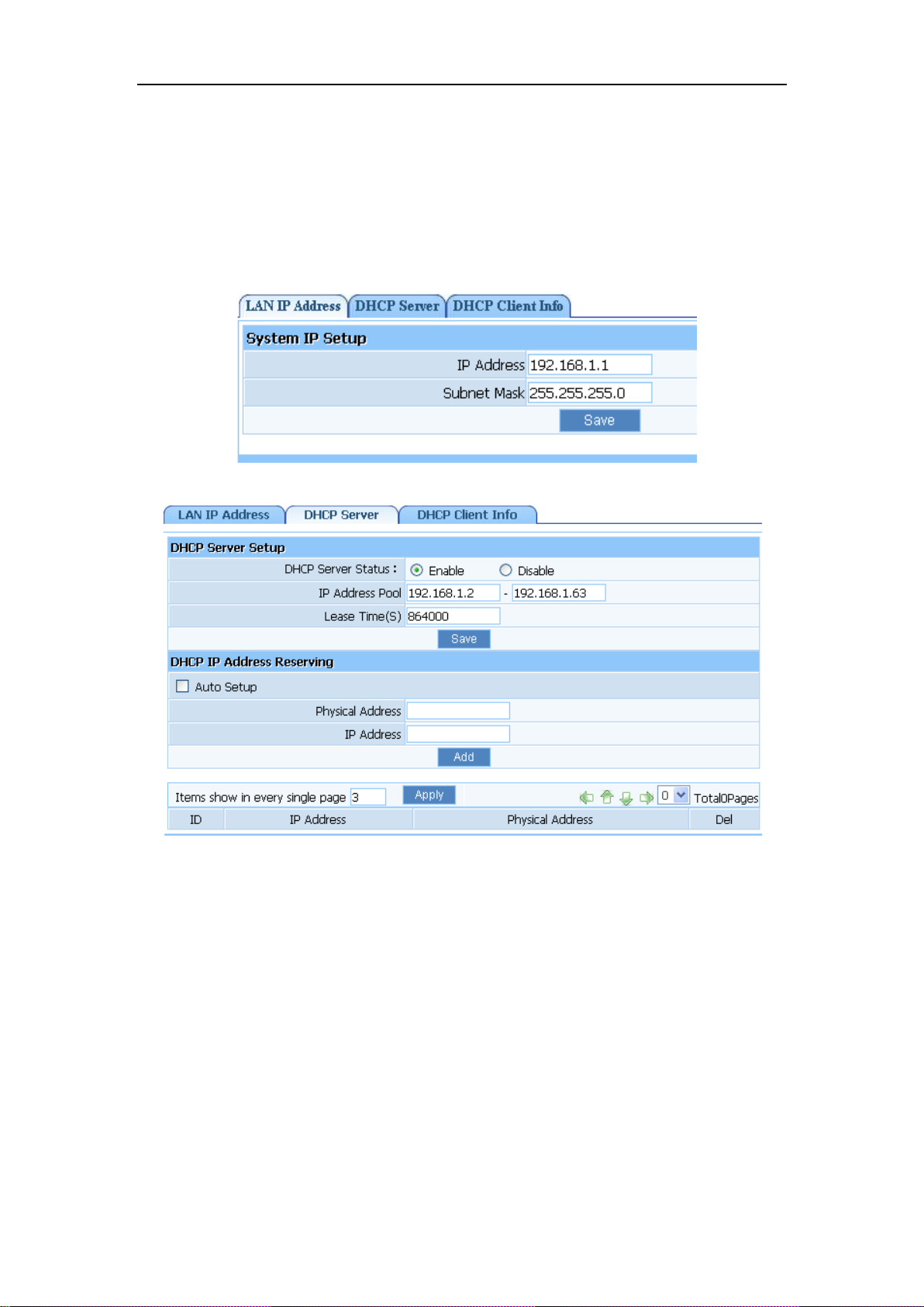

4.4.2. LAN ..............................................................................................................................................43

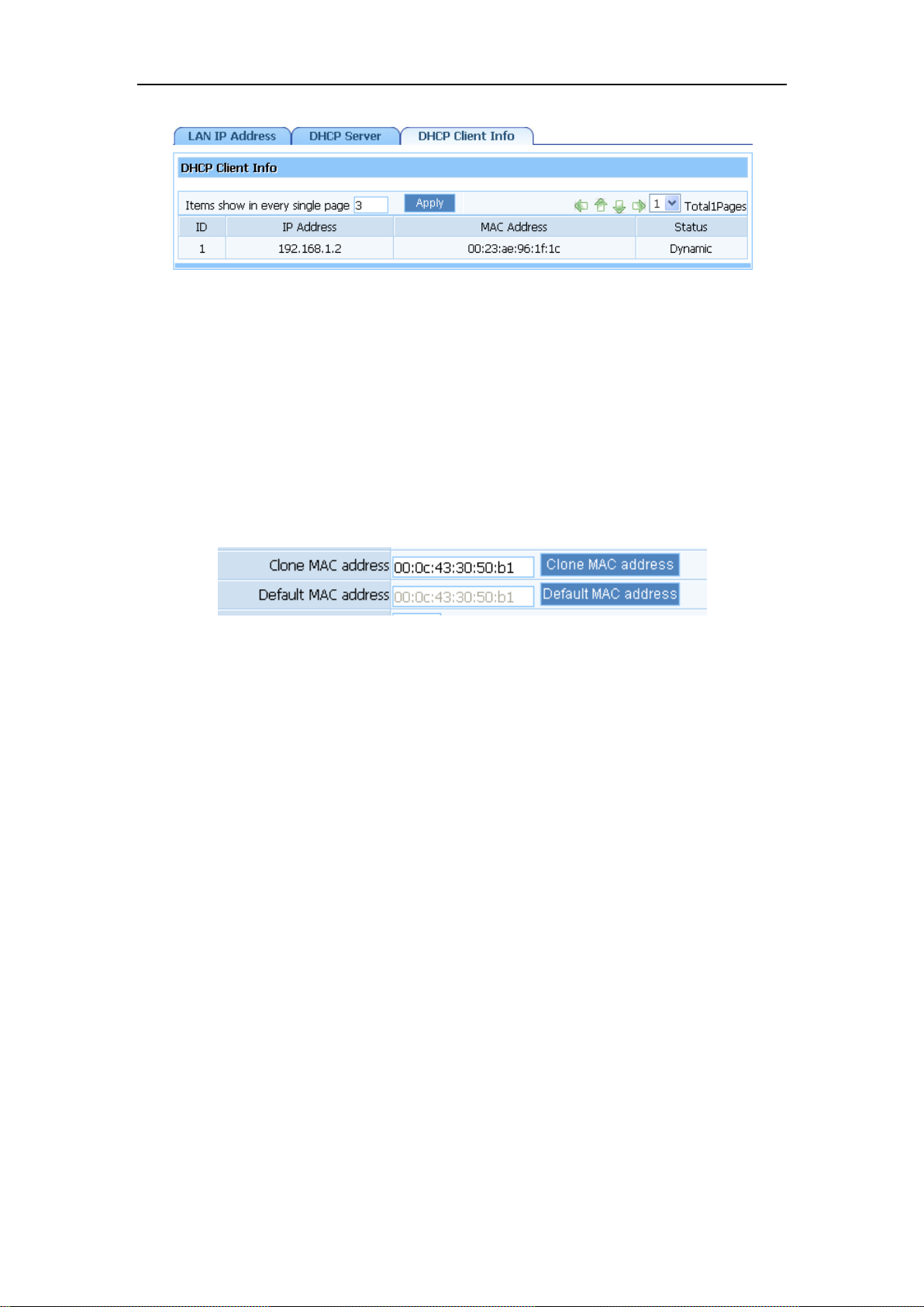

4.4.3. MAC Clone .................................................................................................................................44

4.5. WIRELESS MANAGEMENT ..................................................................................................................44

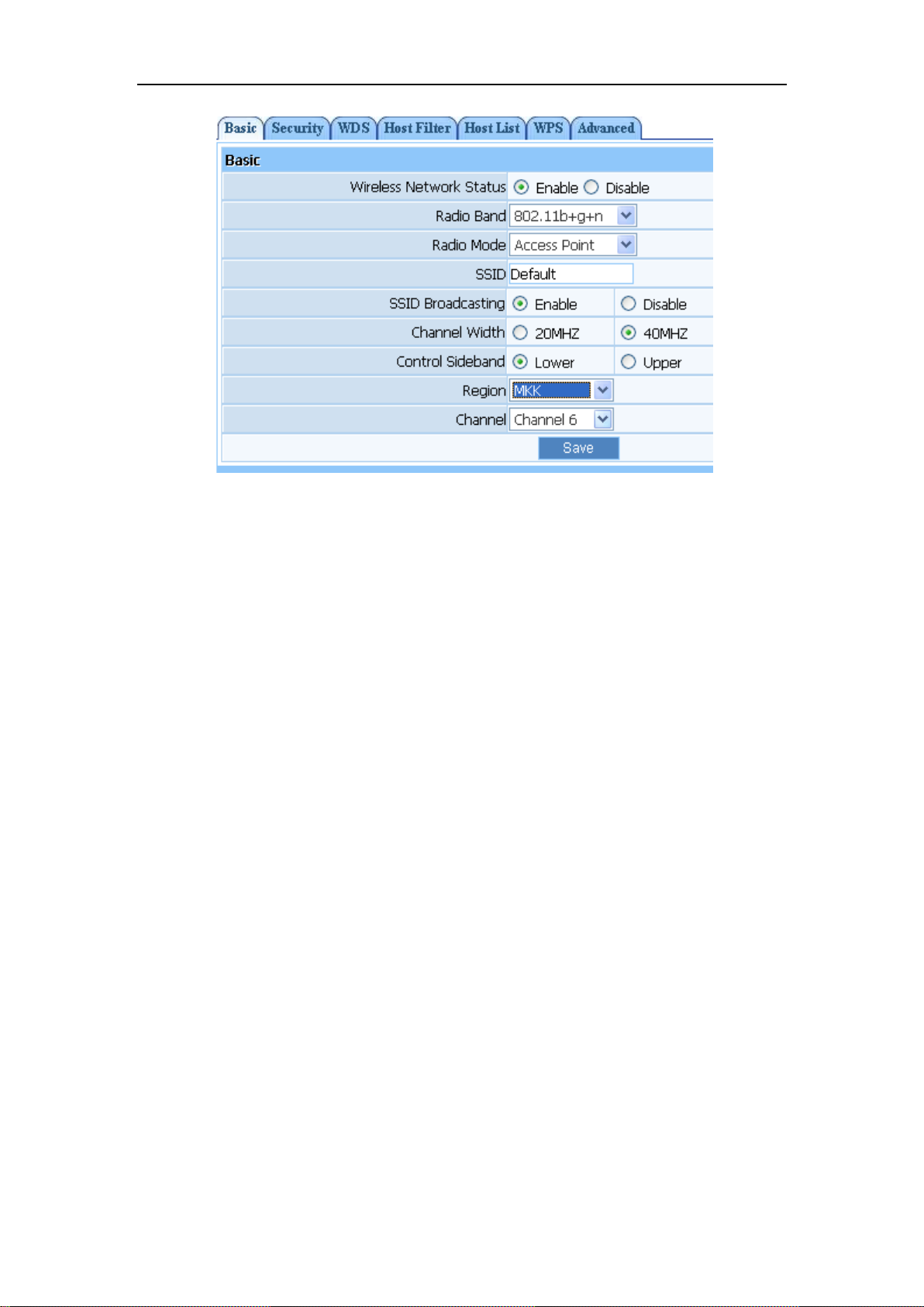

4.5.1. Wireless Setup Basic .................................................................................................................44

4.5.2. Wireless Security........................................................................................................................45

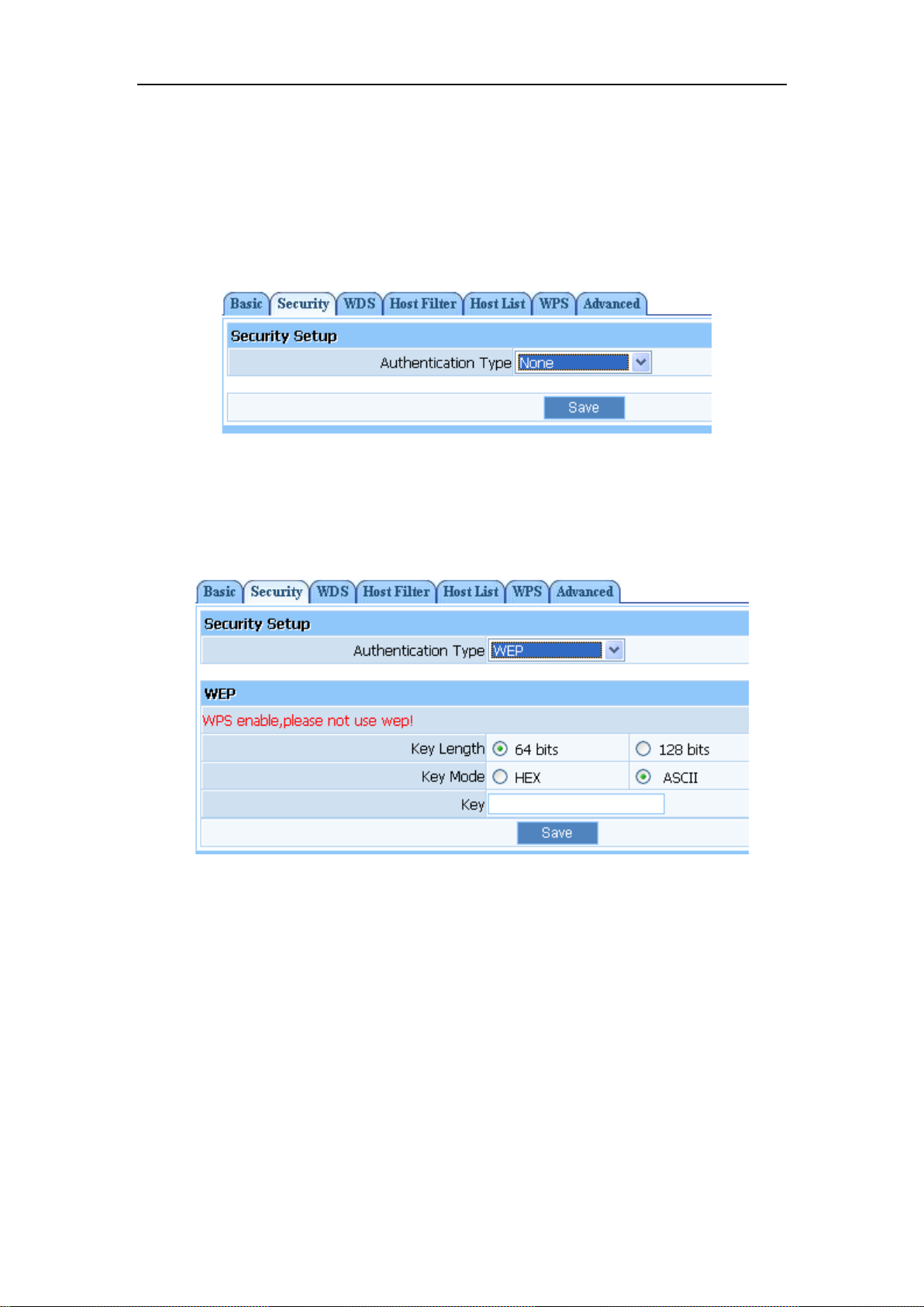

4.5.2.1. None......................................................................................................................................... 46

4.5.2.2. WEP ......................................................................................................................................... 46

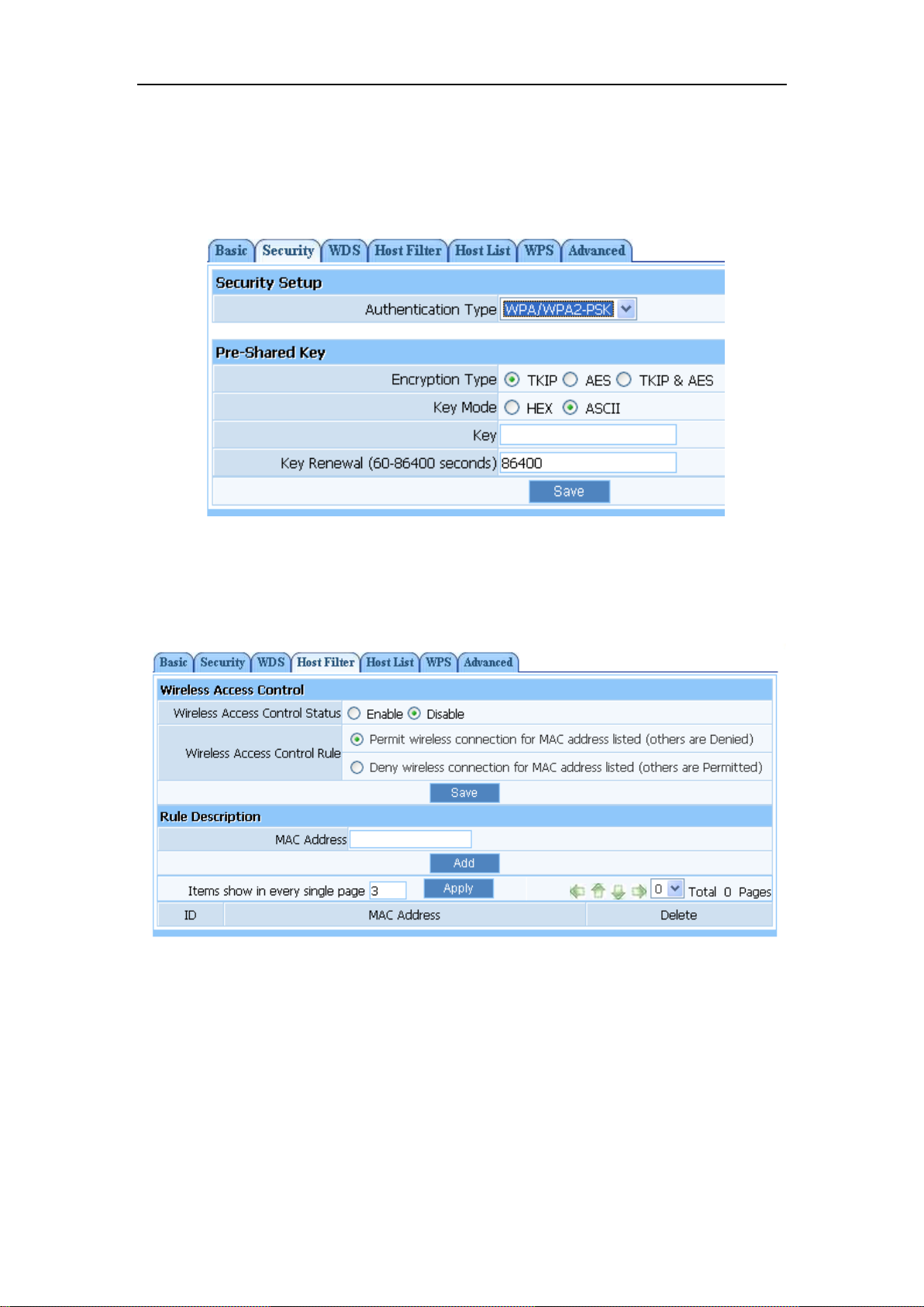

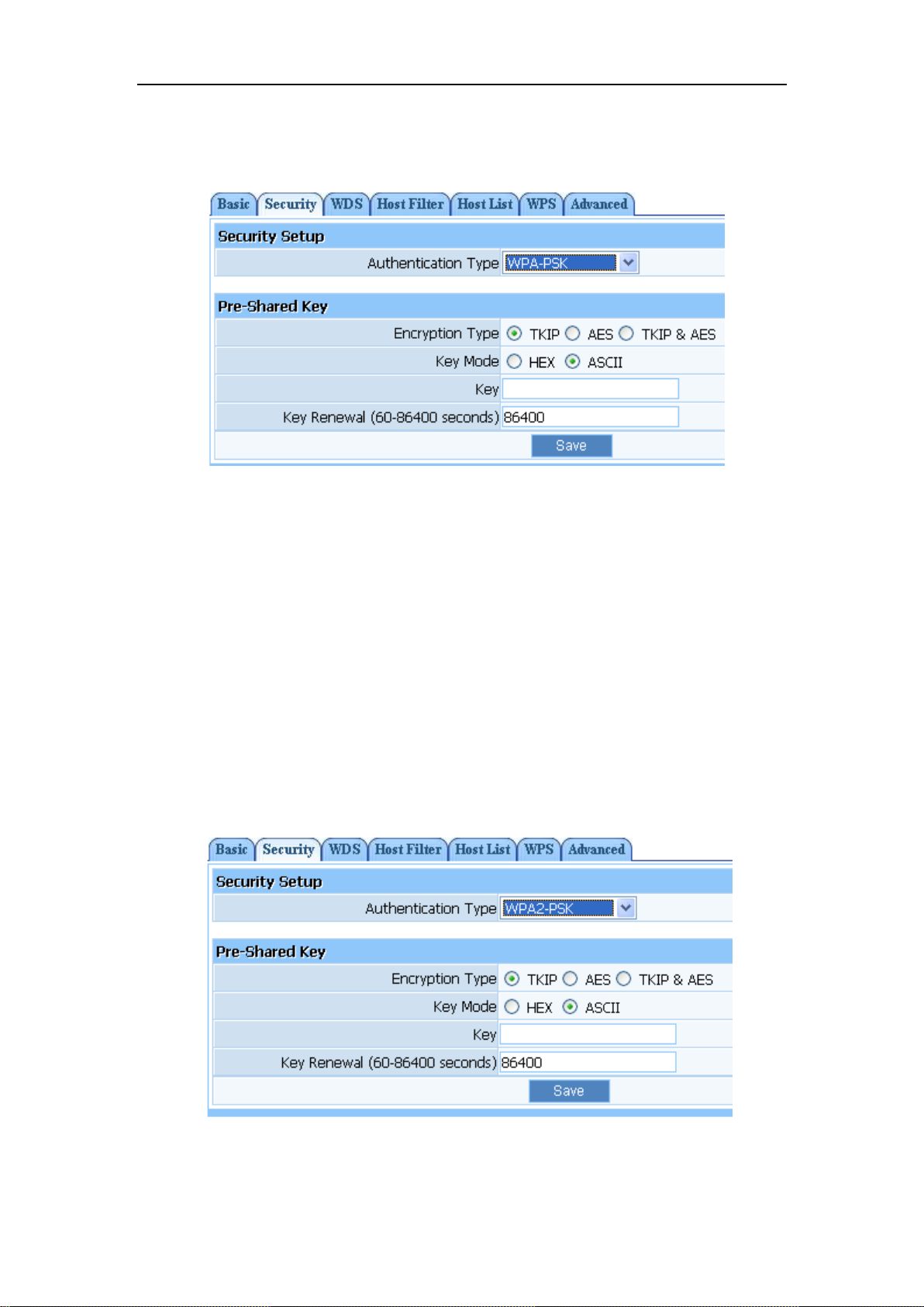

4.5.2.3. WPA-PSK ................................................................................................................................ 47

4.5.2.4. WPA2-PSK .............................................................................................................................. 47

4.5.2.5. WPA/WPA2-PSK .................................................................................................................... 48

4.5.3. Host Filter...................................................................................................................................48

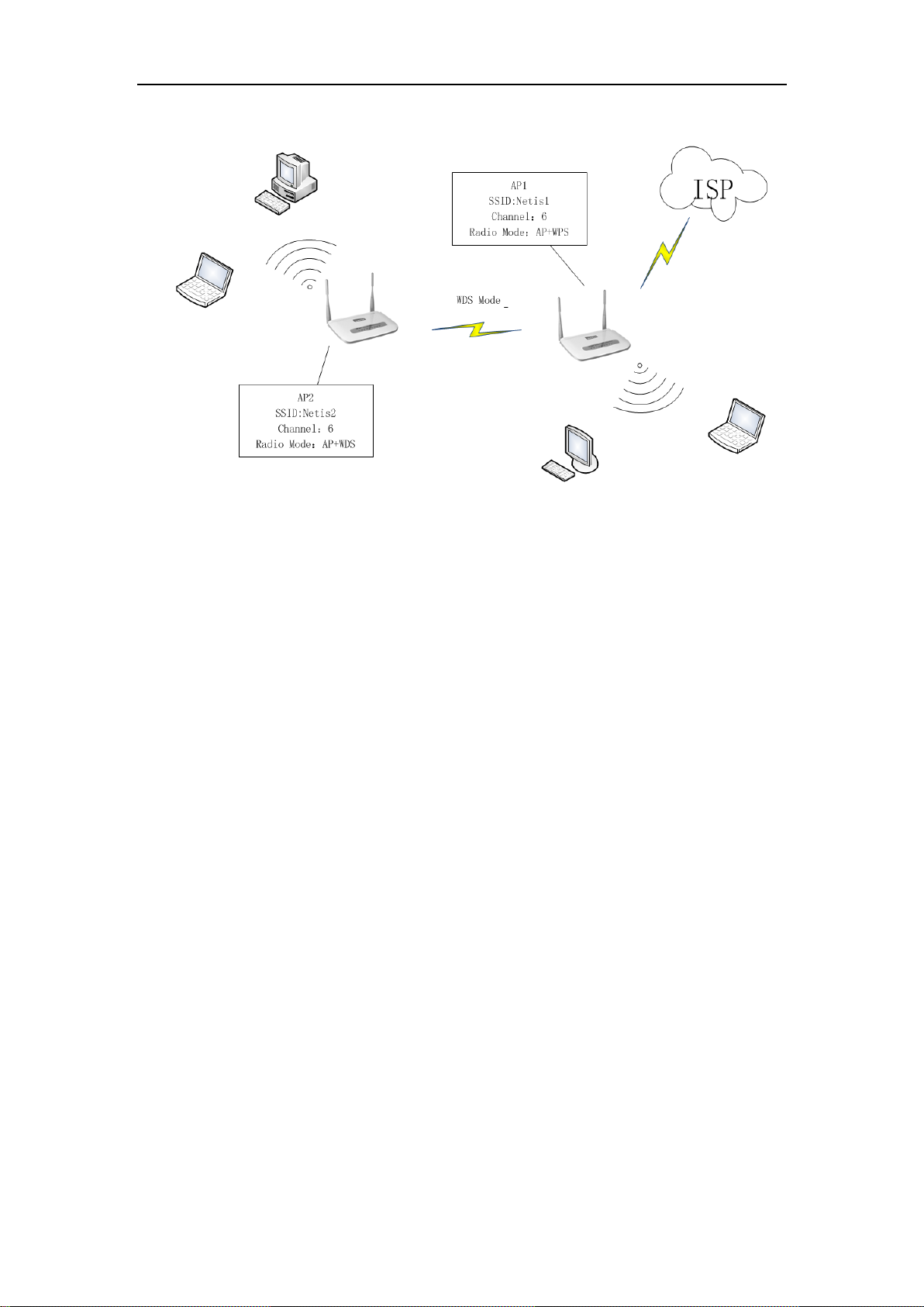

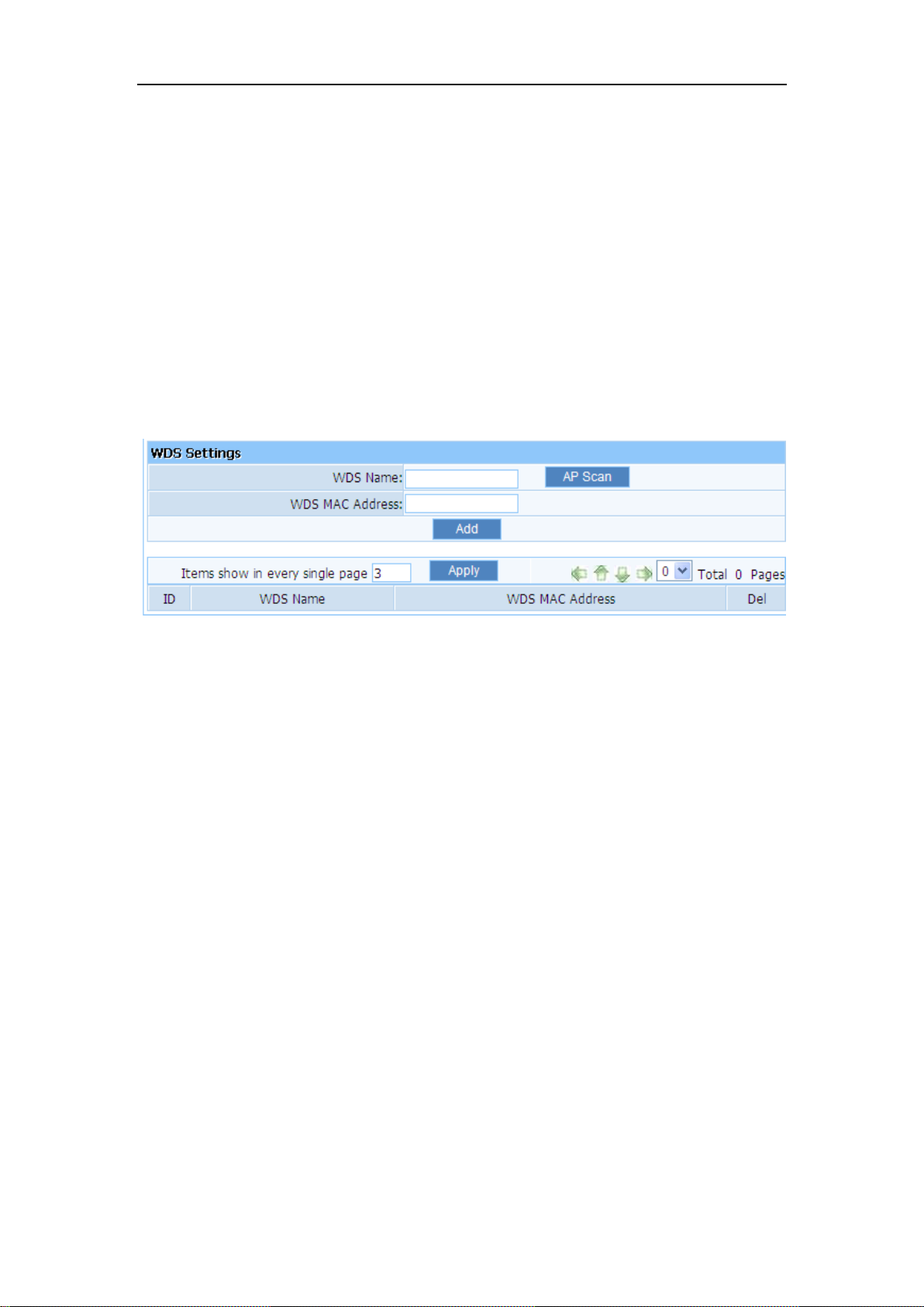

4.5.4. WDS Settings ..............................................................................................................................49

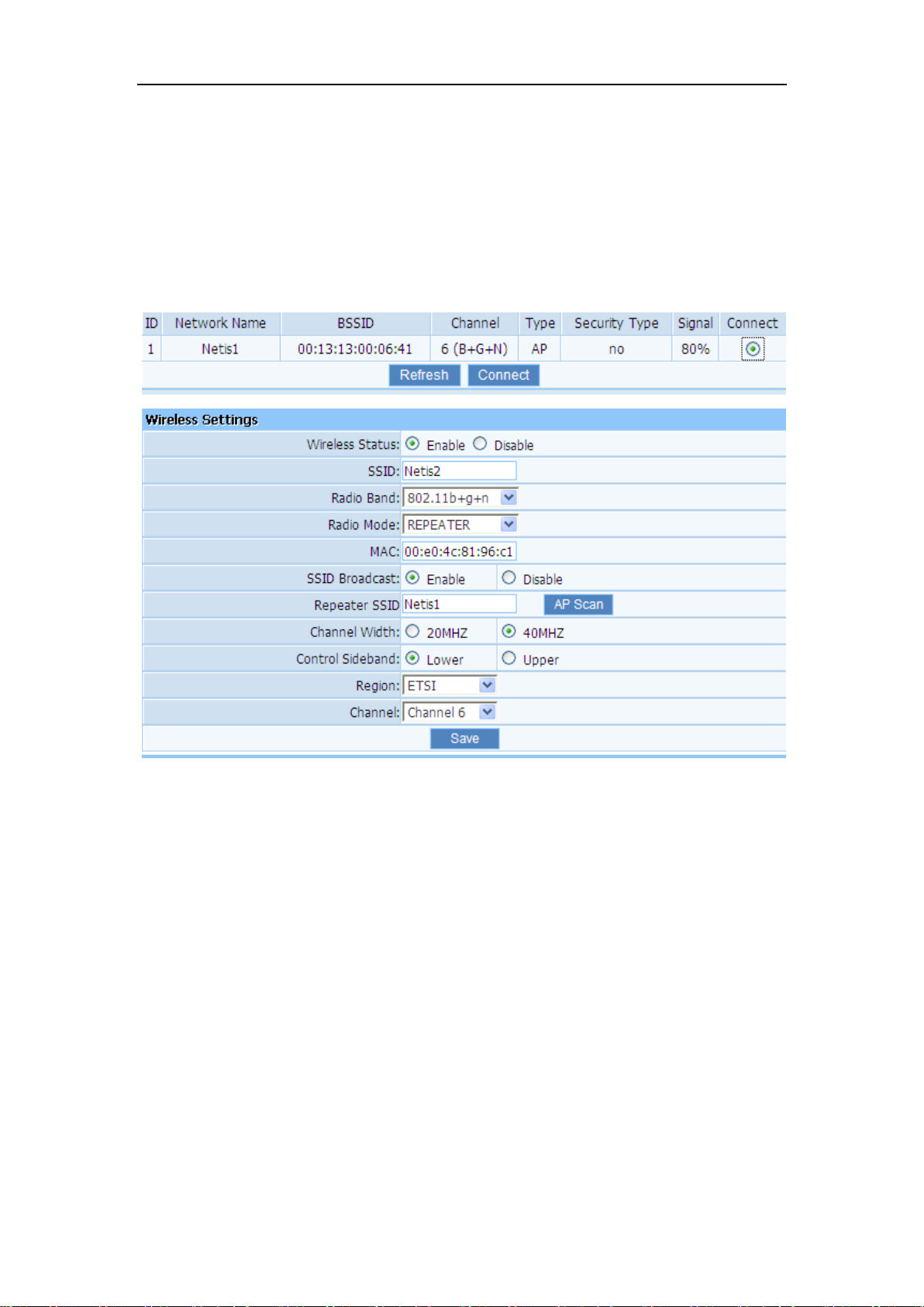

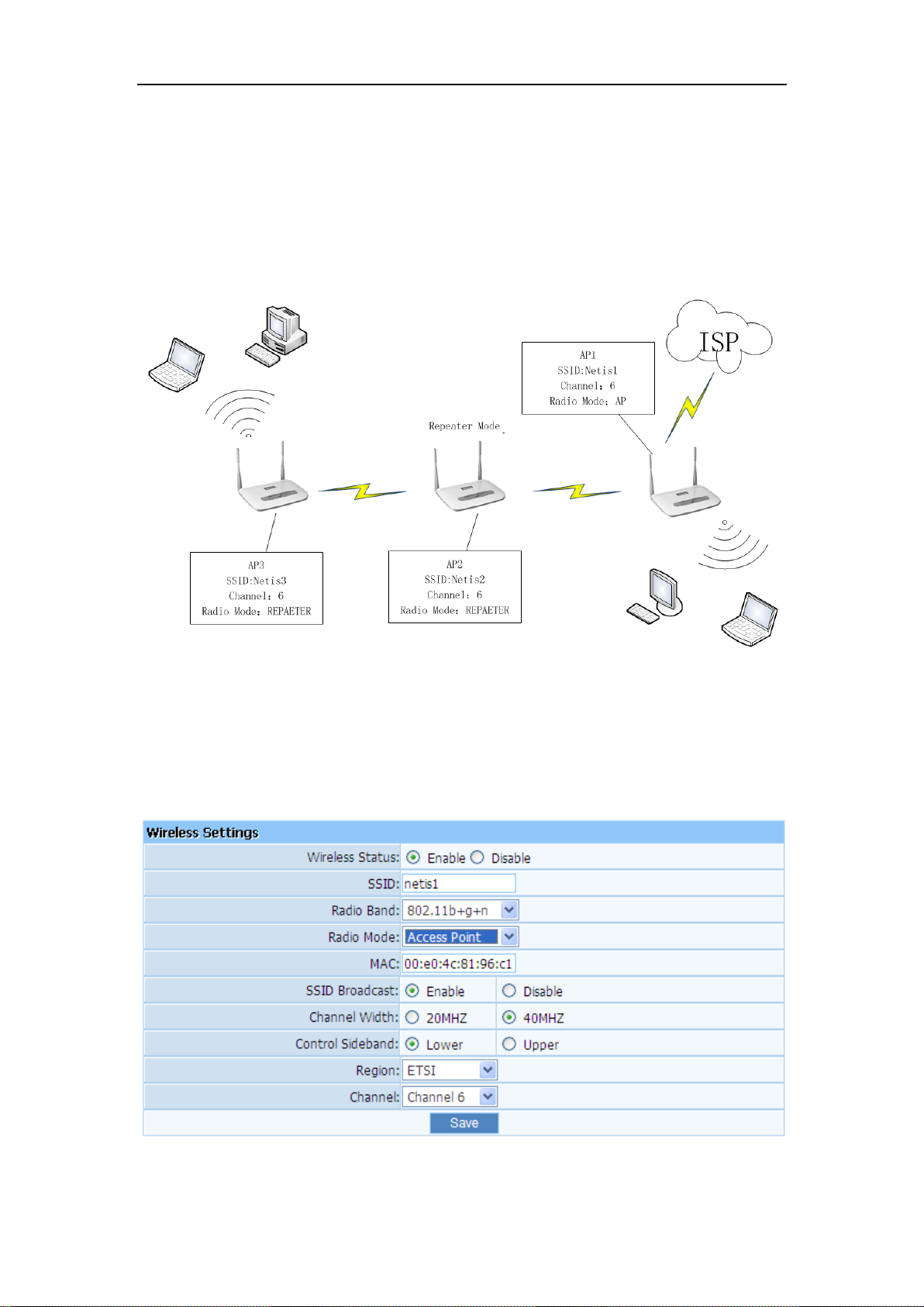

4.5.5. Repeater Settings .......................................................................................................................51

4.5.6. Wireless Advanced .....................................................................................................................52

4.5.7. Multiple AP Settings..................................................................................................................54

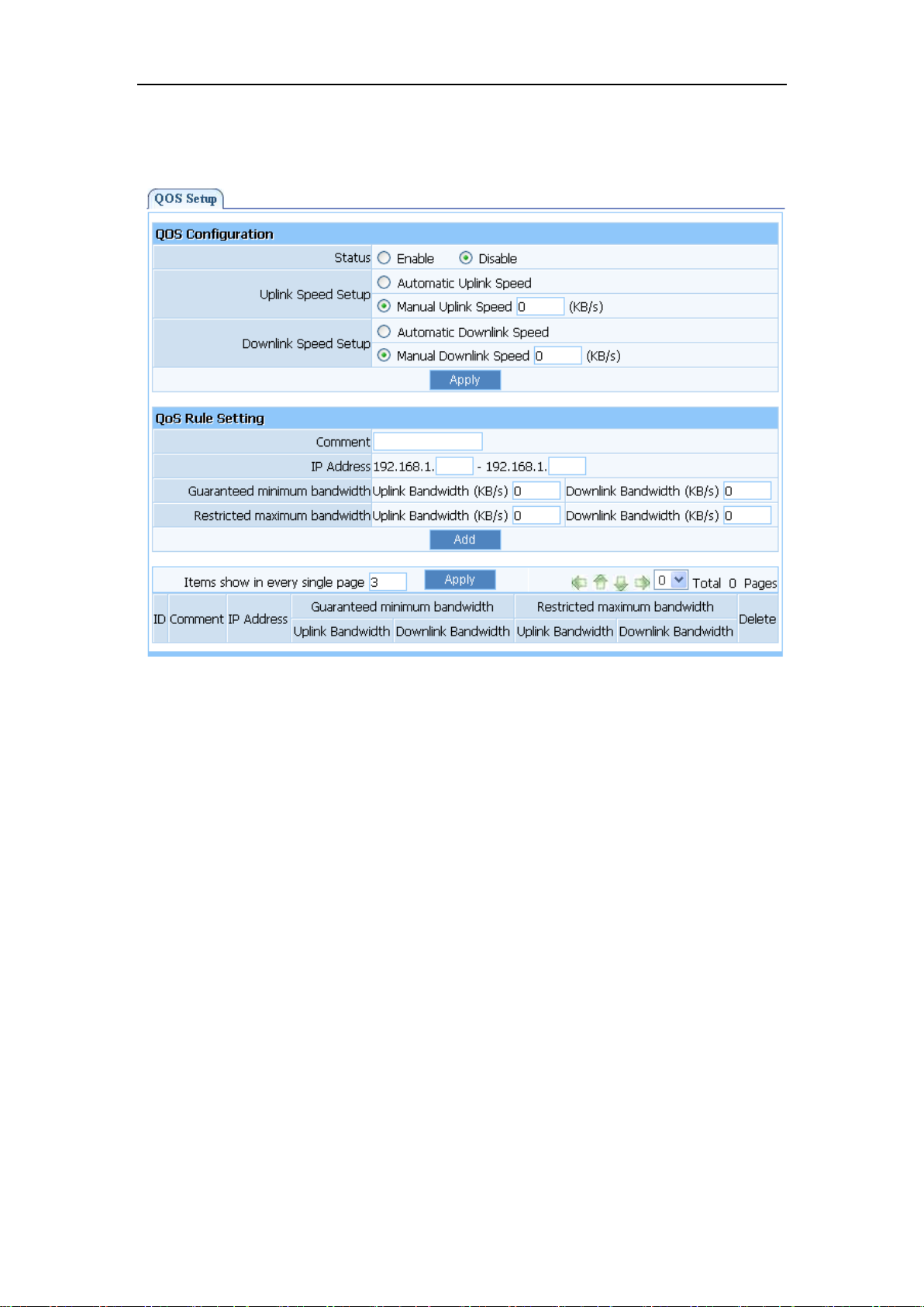

4.6. QOS SETUP ...........................................................................................................................................55

4.7. APPLICATIONS&GAME ........................................................................................................................56

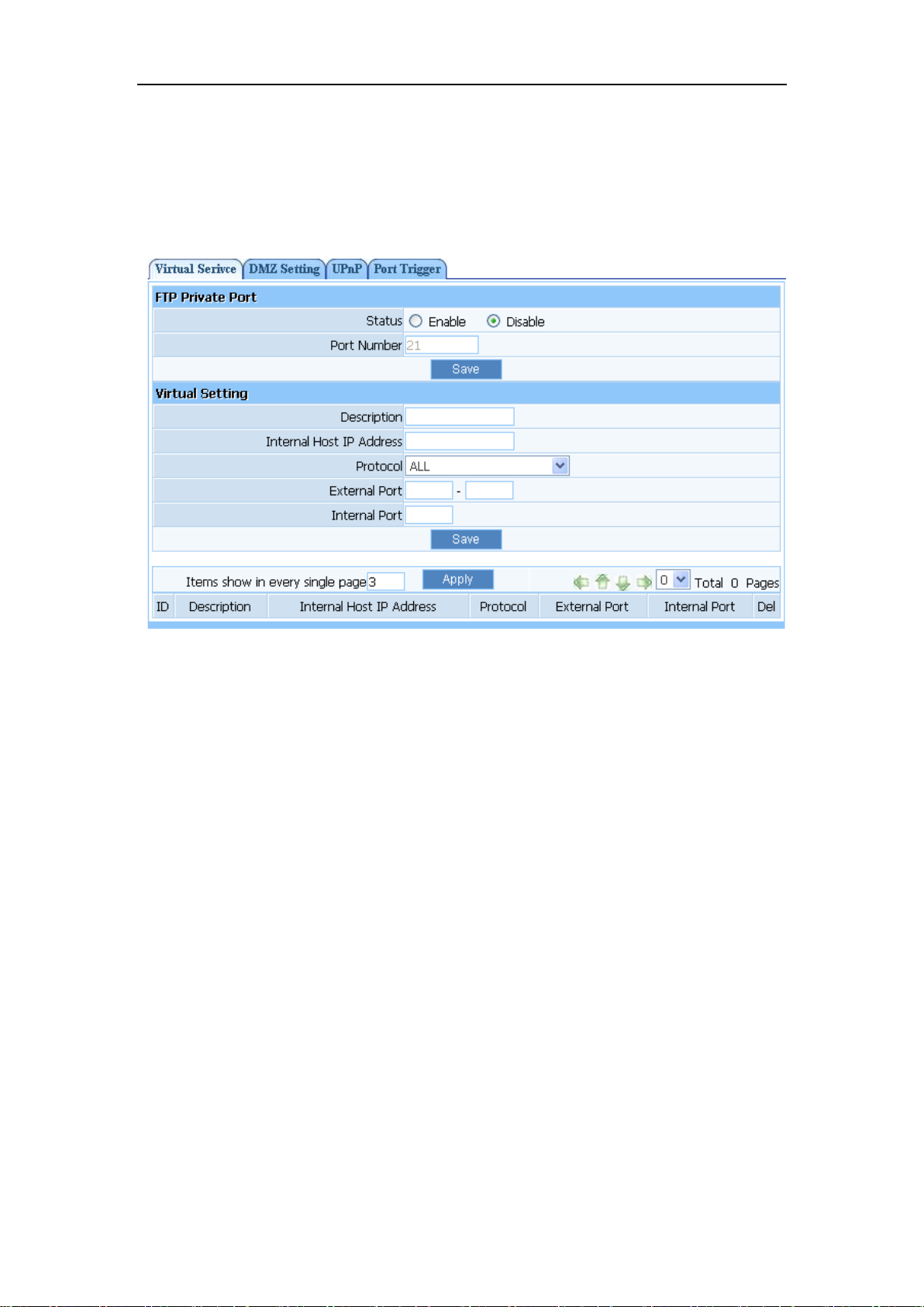

4.7.1. Virtual Servers............................................................................................................................56

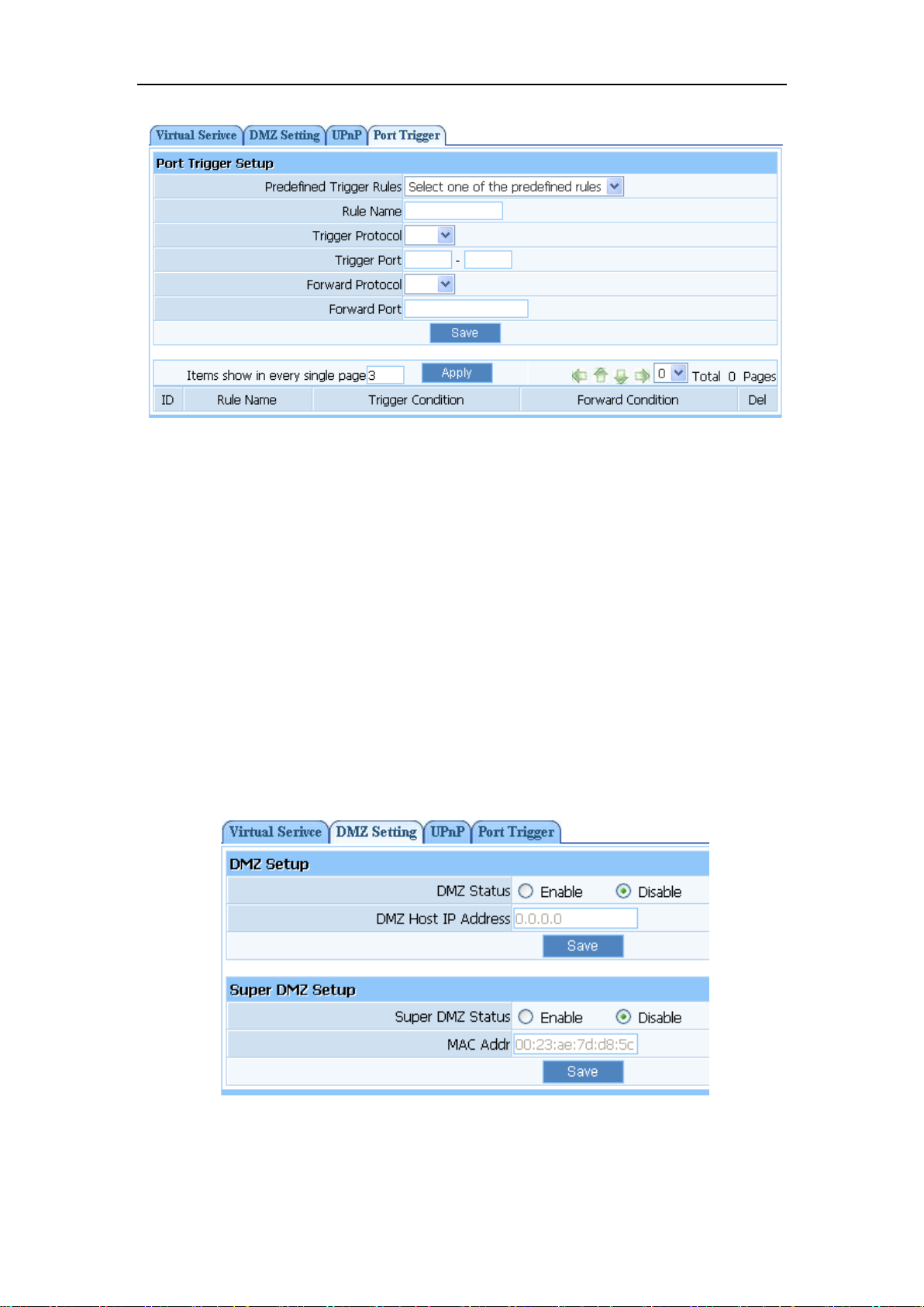

4.7.2. Port Trigger ................................................................................................................................56

4.7.3. DMZ Setting ...............................................................................................................................57

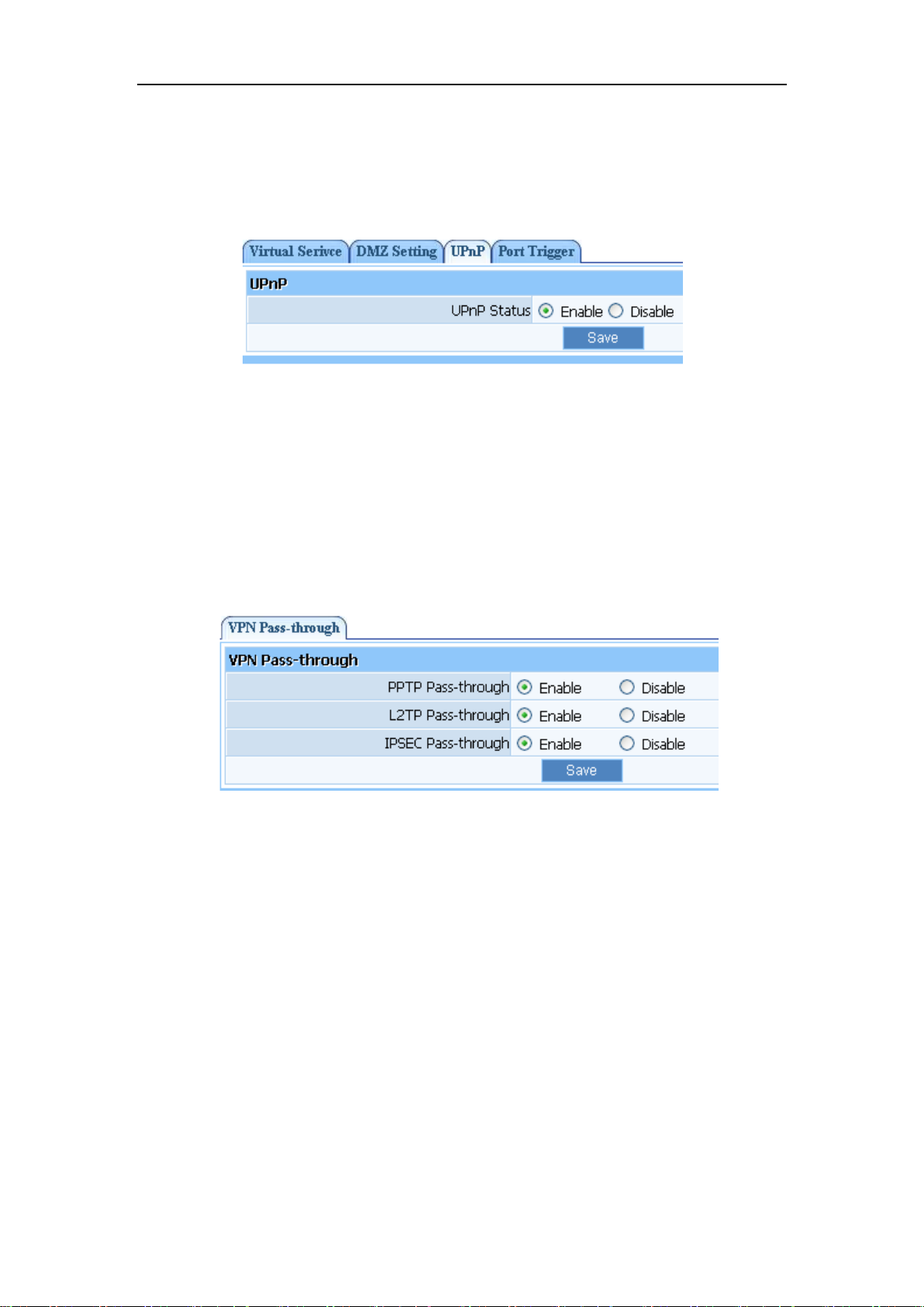

4.7.4. UPnP ...........................................................................................................................................58

4.8. SECURITY SETUP ..................................................................................................................................58

4.8.1. VPN Pass-through .....................................................................................................................58

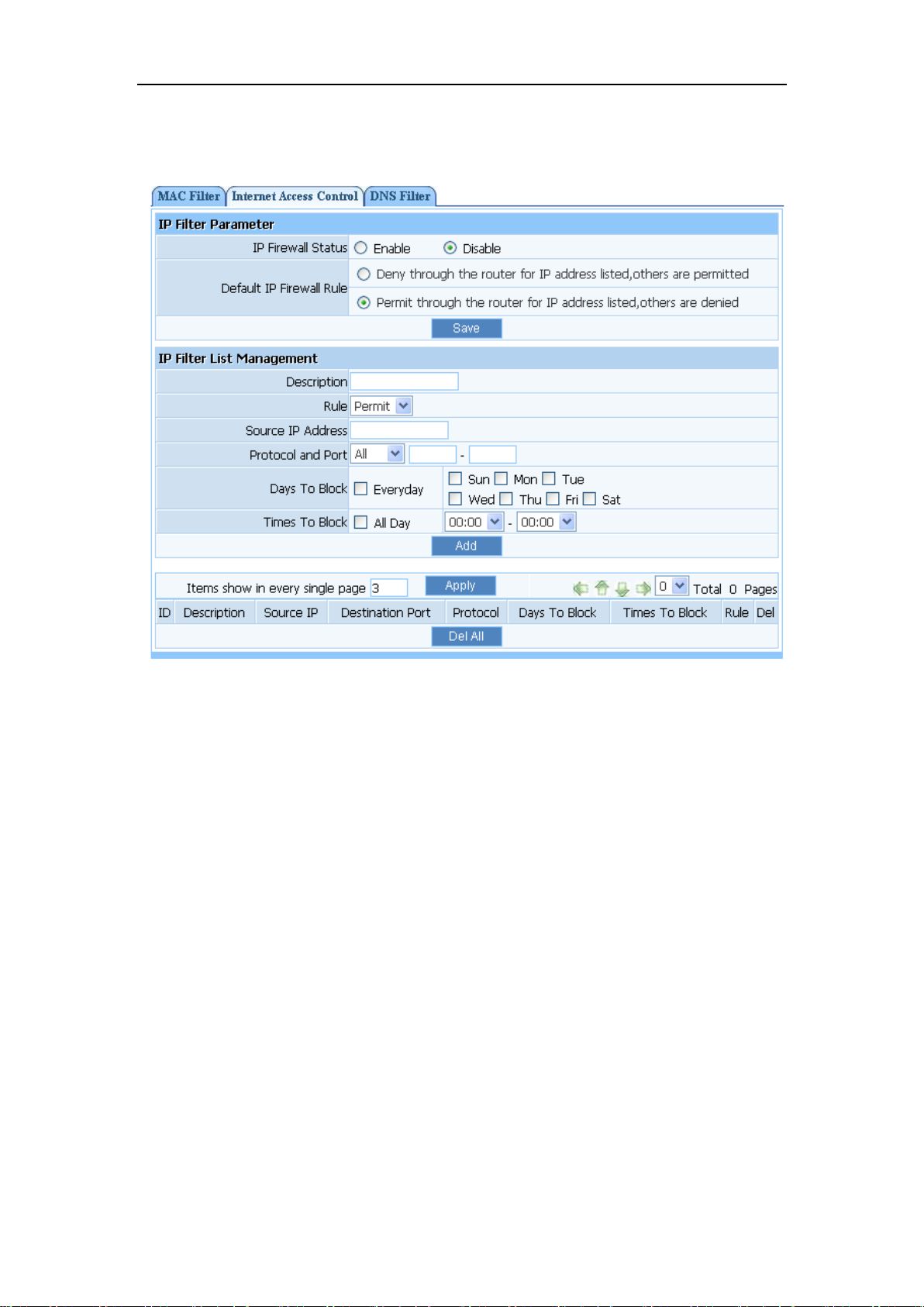

4.8.2. Internet Access Filtering ..........................................................................................................59

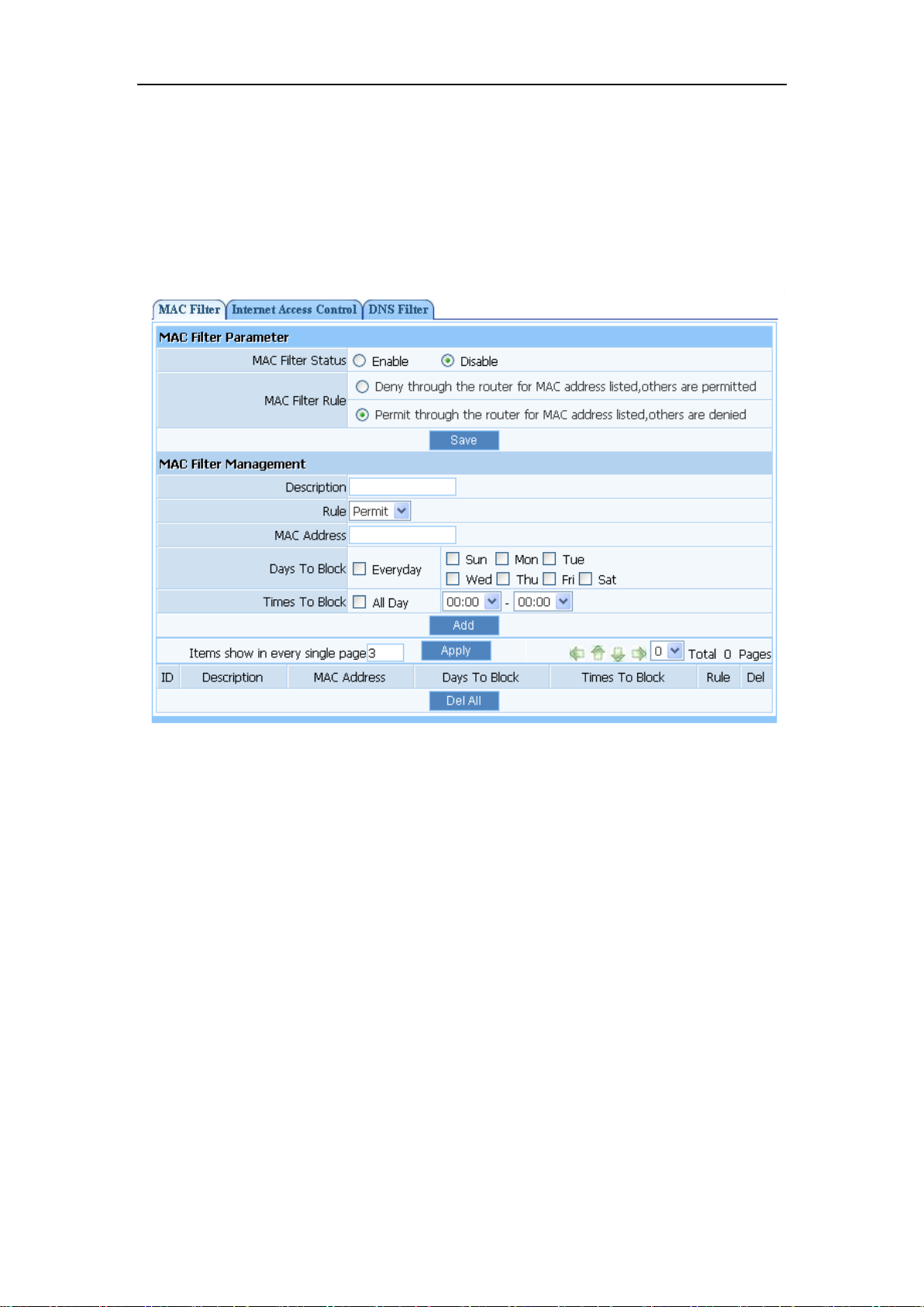

4.8.3. MAC Filtering ............................................................................................................................60

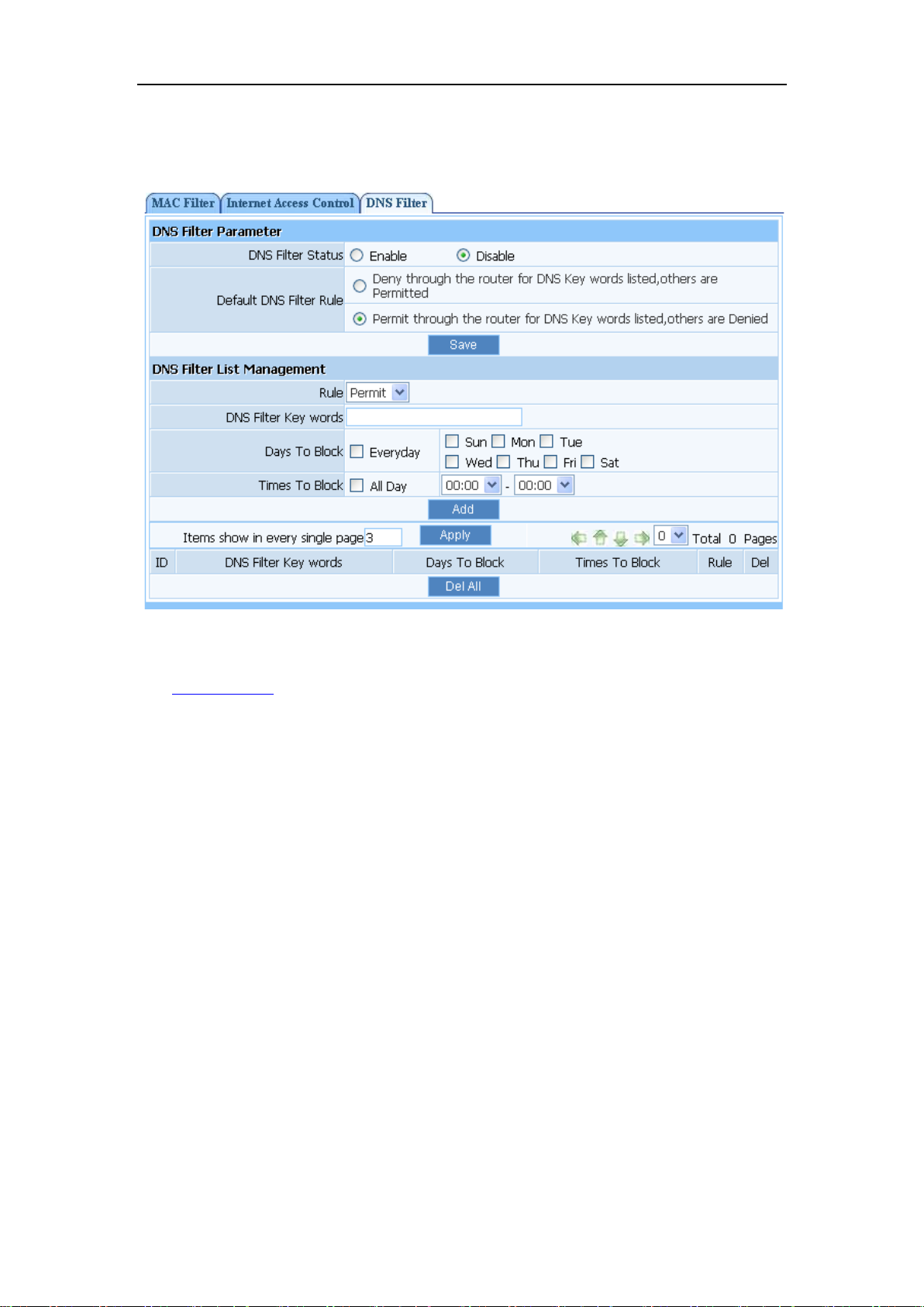

4.8.4. DNS Filtering .............................................................................................................................61

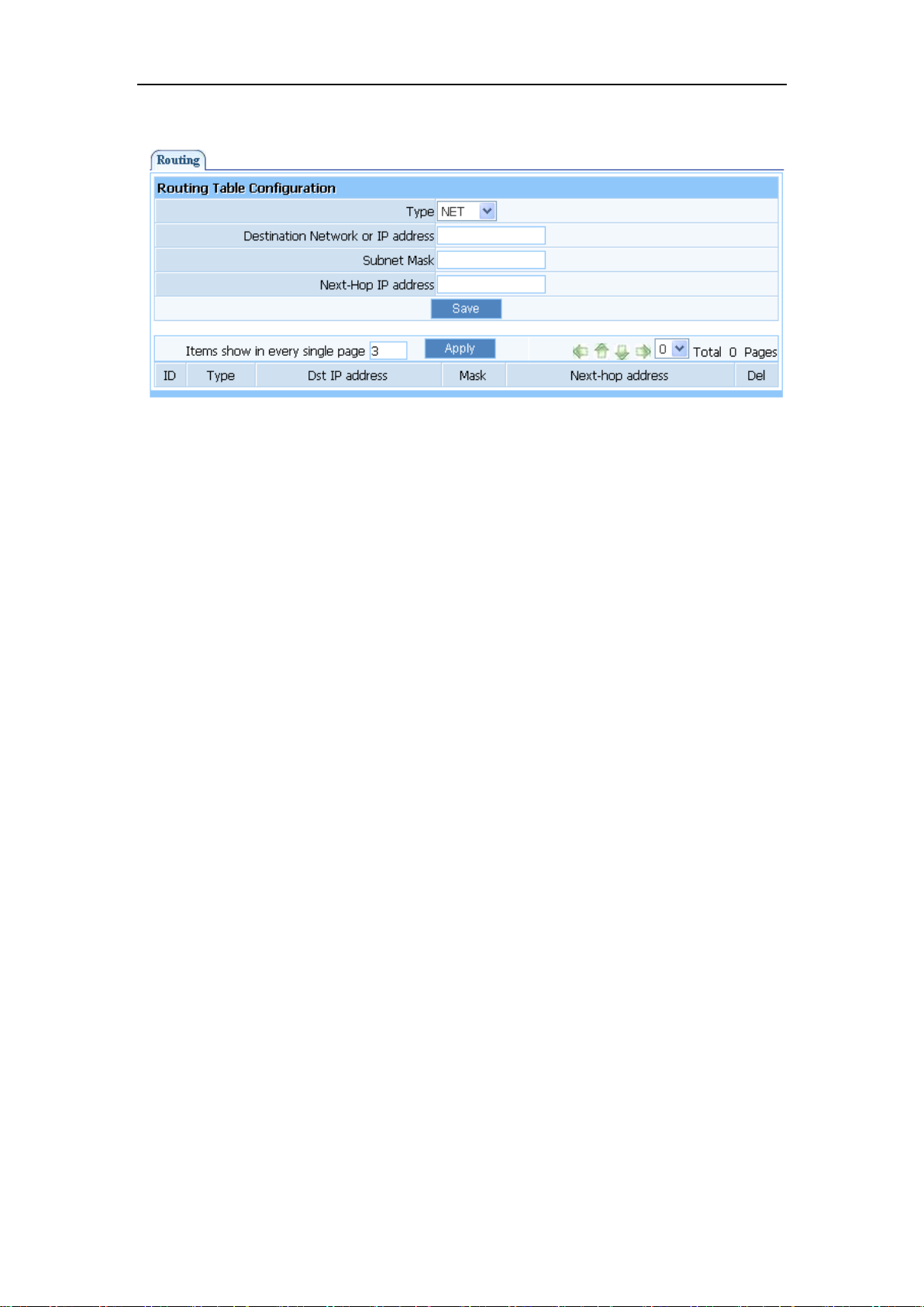

4.9. ROUTING ...............................................................................................................................................61

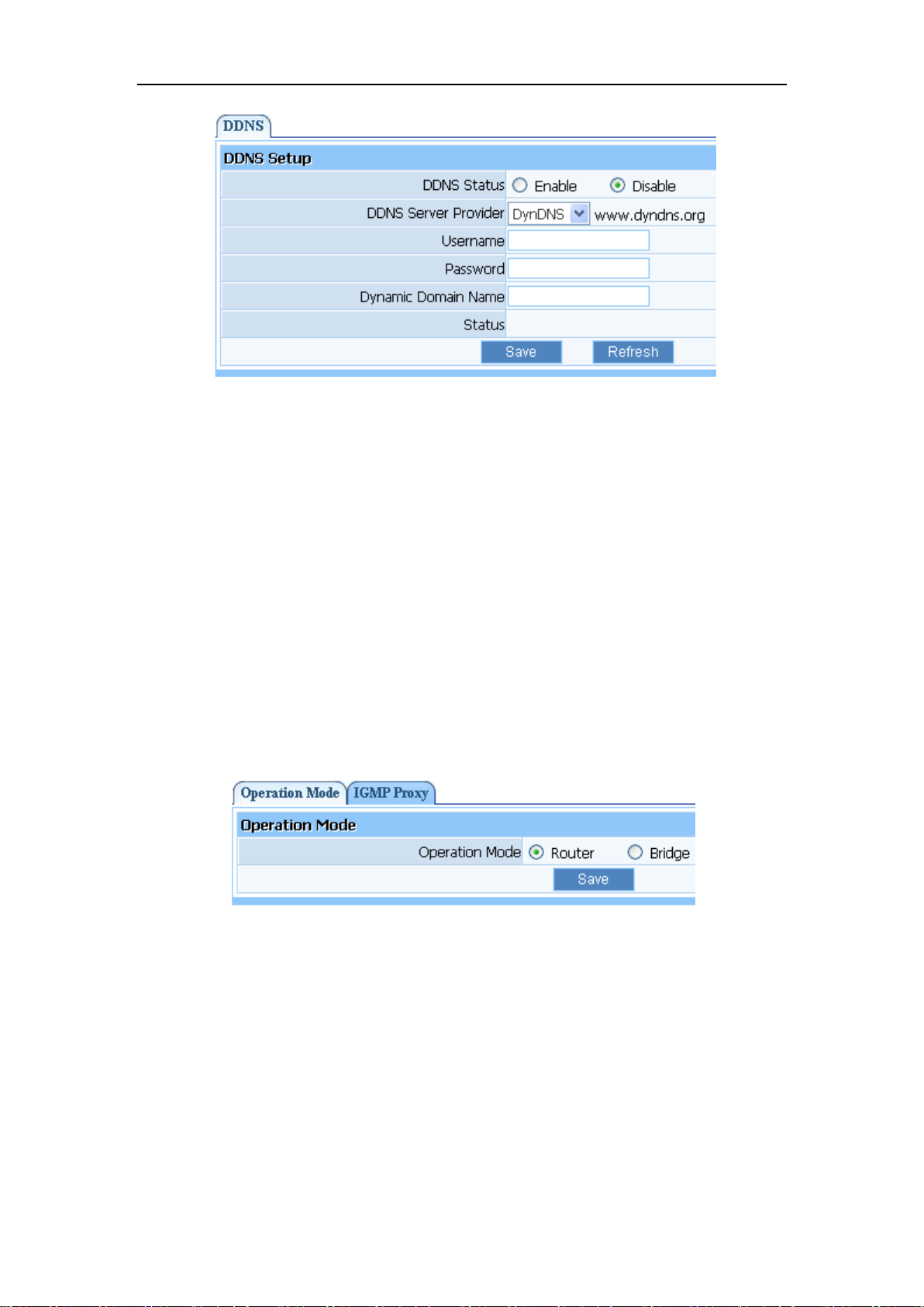

4.10. DYNAMIC DNS.....................................................................................................................................62

4.11. ADVANCED SETUP................................................................................................................................63

4.11.1. Operation Mode.........................................................................................................................63

4.11.2. IGMP Proxy................................................................................................................................63

4.12. SYSTEM MANAGEMENT ......................................................................................................................64

4.12.1. Upgrade.......................................................................................................................................64

4.12.2. System Time ................................................................................................................................64

4.12.3. Password Setup ..........................................................................................................................64

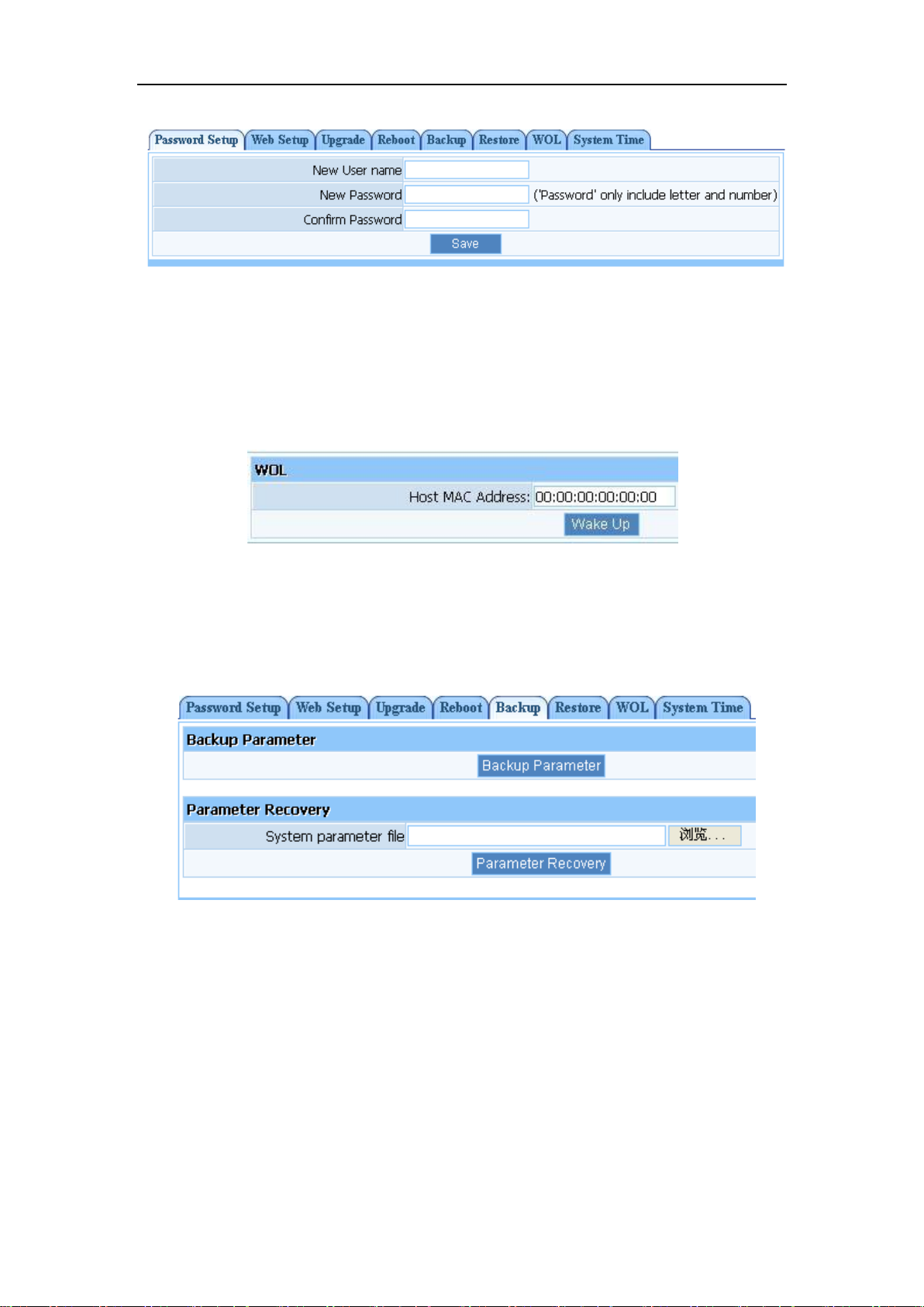

4.12.4. WOL .............................................................................................................................................65

4.12.5. Backup .........................................................................................................................................65

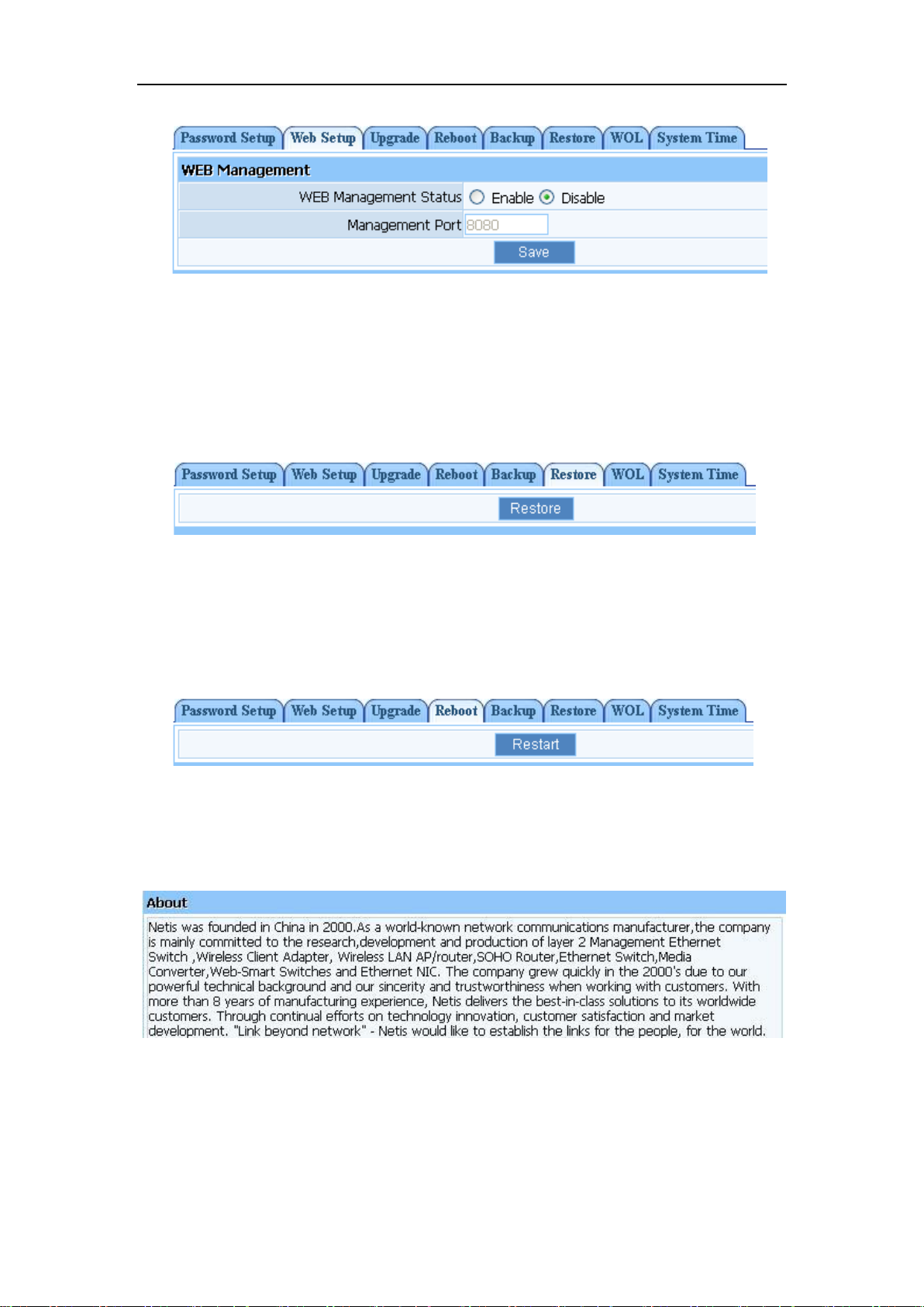

4.12.6. WEB Management .....................................................................................................................65

4.12.7. Factory Defaults ........................................................................................................................66

4.12.8. Reboot..........................................................................................................................................66

4.13. ABOUT ...................................................................................................................................................66

5. TROUBLESHOOTING ............................................................................................................................67

WF-2406 User Manual

5

1. Introduction

1.1. Product Overview

The 300Mbps Wireless-N Gigabit Router is dedicated to Small Office/Home Office (SOHO)
Wireless network solution. It is 4 in 1 network device, which combines wireless access point,
firewall, 4-port Switch and the NAT-Router. It provides up to 300Mbps data transmission rate
in 2.4GHz frequency, complies with IEEE 802.11n, IEEE 802.11g and IEEE802.11b and
backwards compatible with all IEEE 802.11n/g/b devices. Its Gigabit port delivers wired
speeds that are 10 times faster than 10/100 "Fast Ethernet" connections. And the router also
supports wireless LAN up to 128-bit WEP, WPA/WPA2 encryption security. The 300Mbps
Wireless-N Gigabit Router also provides WEB and Remote Management and system log so
that network administrators can manage and monitor the network in real time.
The 300Mbps Wireless-N Gigabit Router also provides a hardware WPS (Wi-Fi protected
setup) button, which helps you setup a secure wireless network in a snap. The button lets you
activate the wireless protection easily

1.2. Main Features

 Comply with IEEE802.11n/g/b, IEEE802.3 10Base-T, IEEE802.3u 100Base-TX

standards

 Support MIMO technology with 2 transmit and 2 receive, up to 300Mbps wireless LAN

data transfer rates

 4-port Gigabit switch delivers wired speeds that are 10 times faster than 10/100 "Fast

Ethernet" connections

 Support DHCP Client, PPPoE Client, Static IP, L2TP, PPTP
 Support multi-wireless mode: AP, WDS, AP+WDS, repeater, client, etc.
 Support static ARP, MAC filtering, IP access control, DNS filter
 Support FTP, PPTP and L2TP pass through
 Support UPNP (universal plug and play)
 Upgradeable firmware for future functions
 WPS button can easily setup a secure network
 Support WMM

6

 Support data encryption mode: WEP, WPA, WPA2
 Support DMZ

1.3. Supporting Standard and Protocol

 IEEE 802.11b/g/n
 IEEE 802.11e
 IEEE 802.11h
 IEEE 802.11k
 IEEE 802.11i
 IEEE 802.3 10Base-T
 IEEE 802.3u 100Base-TX
 IEEE802.3ab 1000 Base-T

WF-2406 User Manual

1.4. Working Environment

Temperature

 0° to 40° C (operating)
 -40° to 70° C (storage)

Humidity

 10% to 90 % non-condensing (operating)
 5% to 90% non-condensing (storage)

Power
 DC 9V

WF-2406 User Manual

7

LED

Function

PWR

ON

Power on

Off

Power off

WPS

Flashing

slowly

WPS is running

OFF

WPS is not running

SYS

ON and Off

Abnormal

Flashing

Normal

WLAN

Flashing

Wireless data transmitting

Off

Wireless off

WAN

On

WAN Connection normal

Flashing

Data transmitting

Off

WAN Connection abnormal

LAN

On

LAN Connection normal

Flashing

Data transmitting

2. Hardware Installation

2.1. System Requirement

Minimum Requirements:

 Broadband (DSL/Cable) modem and service with Ethernet port
 802.11n b/g/n wireless adapter or Ethernet adapter and cable for each computer
 Internet Explorer® 5.0, Firefox® 2.0 or Safari® 1.4 or higher

2.2. Panel

Front panel

Figure 2-1

8

Off

LAN Connection abnormal

Rear panel

Description

Function

PWR

Connect to Power adapter, please don‟t use the unknown

power adapter, otherwise your device may be damaged.

LAN

Connect with computer NIC or Ethernet device

WAN

Internet access

Reset

Restore settings

WPS

WPS settings

WF-2406 User Manual

Figure 2-2

2.3. Restore to factory configuration

If the router ever freezes in a setting change process or if you can‟t access it because you can‟t
remember the IP you have given it or other problem, you may have to utilize the reset button on
the back of the router to put it back to factory settings. You have to press and hole this button
for a few seconds (2-6s) with a pencil when it is working, then release and it will restore
settings to the factory configuration.
The other way to restore factory settings is through the same user interface used in setup.
Click on „System management‟- „Restore‟, and click on the „Restore‟ button.

2.4. Hardware Installation Procedures

The procedures to install the 300Mbps Wireless-N Gigabit Router please refers to the following

WF-2406 User Manual

9

Figure 2-3

 Attach one end of an Ethernet cable to your computer‟s Ethernet port, and the other end to

one of the LAN ports of your router.
 Connect another Ethernet cable from your Cable/DSL modem to the WAN port of your
router.
 Connect the single DC output connector of the power adapter to the power jack on the back
of the router and plug the Power Adapter into an AC outlet.

WF-2406 User Manual

10

3. Login

You can manage the 300Mbps Wireless-N Gigabit Router through the Web browser-based
configuration utility. To configure the device via Web browser, at least one properly configured
computer must be connected to the device via Ethernet or wireless network. The 300Mbps
Wireless-N Gigabit Router is configured with the default IP address of 192.168.1.1 and
subnet mask of 255.255.255.0 and its DHCP server is enabled by default. Before setting up
the Router, make sure your PCs are configured to obtain an IP address automatically from the
Router by the steps below.

3.1. Configure computer

3.1.1. Windows 98/Me

1. Go to Start  Settings  Control Panel.

2. Find and double-click the Network icon. The Network dialog box appears.

3. Click the Configuration label and ensure that you have network card.

4. Select TCP/IP. If TCP/IP appears more than once, please select the item that has an arrow “”
pointing to the network card installed on your computer. DO NOT choose the instance of
TCP/IP with the words “Dial Up Adapter” beside it.

5. Click Properties. The TCP/IP Properties dialog box appears.

6. Ensure the Obtain IP Address Automatically is checked.

7. From the WINS Configuration dialog box, Ensure that Disable WINS Resolution is checked.

8. From the Gateway dialog box, remove all entries from the Installed gateways by selecting
them and clicking Remove.

9. From the DNS Configuration dialog box, remove all entries from the DNS Server Search
Order box by selecting them and clicking Remove. Remove all entries from the Domain Suffix
Search Order box by selecting them and clicking Remove. Click Disable DNS.

10. Click OK, back to Network Configuration dialog box

11. Click OK, if prompted to restart, click YES.

3.1.2. Windows 2000

Please follow the steps below to setup your computer:

1. Go to Start  Settings  Control Panel

WF-2406 User Manual

11

Figure 3-1

2. Double click the icon Network and Dial-up Connections

3. Highlight the icon Local Area Connection, right click your mouse, and click Properties

Figure 3-2

4. Highlight Internet Protocol (TCP/IP), and then press Properties button

WF-2406 User Manual

12

Figure 3-3

5. Choose Obtain an IP address automatically and Obtain DNS server address automatically,
and then press OK to close the Internet Protocol (TCP/IP) Properties window

Figure 3-4

6. Press OK to close the Local Area Connection Properties window

WF-2406 User Manual

13

Figure 3-5

3.1.3. Windows XP

Please follow the steps below to setup your computer:

1. Go to Start  Settings  Control Panel

2. Click Network and Internet Connections

Figure 3-6

3. Click Network Connections

WF-2406 User Manual

14

Figure 3-7

4. Highlight the icon Local Area Connection, right click your mouse, and click Properties

Figure 3-8

5. Highlight Internet Protocol (TCP/IP), and then press Properties button

WF-2406 User Manual

15

Figure 3-9

6. Choose Obtain an IP address automatically and Obtain DNS server address automatically,
and then press OK to close the Internet Protocol (TCP/IP) Properties window

Figure 3-10

7. Press OK to close the Local Area Connection Properties window

WF-2406 User Manual

16

Figure 3-11

3.1.4. Windows Vista

Please follow the steps below to setup your computer:

1. Go to Start  Settings  Control Panel

2. Click Network and Sharing Center

Figure 3-12

3. Click Manage Network Connections

17

Figure 3-13

WF-2406 User Manual

4. Highlight the icon Local Area Connection, right click your mouse, and click Properties

Figure 3-14

5. Highlight Internet Protocol Version 4 (TCP/IP) and then press Properties button

WF-2406 User Manual

18

Figure 3-15

6. Choose Obtain an IP address automatically and Obtain DNS server address automatically,
and then press OK to close the Internet Protocol (TCP/IP) Properties window

WF-2406 User Manual

19

Figure 3-16

7. Press OK to close the Local Area Connection Properties window.

WF-2406 User Manual

20

Figure 3-17

3.1.5. Windows 7

Please follow the steps blow to setup your computer:

1. Go to Start→ Control Panel→ Network and Internet.

2. Click Network and Sharing Center→ Change adapter settings.

3. Highlight the icon Local Area Connection, right click your mouse, and click Properties.

Highlight Internet Protocol version 4 (TCP/IPv4).

WF-2406 User Manual

21

Figure 3-18

Figure 3-19

4. Choose Obtain an IP address automatically and Obtain DNS server address automatically,

22

and then press the OK to close the window.

WF-2406 User Manual

Figure 3-20

5. Press OK to close the Local Area Connection Properties window.

3.1.6. MAC OS

Please follow the steps blow to setup your computer:

1. Go to Start→ System preference Settings→ Network.

WF-2406 User Manual

23

Figure 3-21

2. Click Network, Select Use DHCP at the Configuration bar, the system will get the IP

address automatically.

Figure 3-22

WF-2406 User Manual

24

C:\Documents and Settings\admin>ping 192.168.1.1

Pinging 192.168.1.1 with 32 bytes of data:

Reply from 192.168.1.1: bytes=32 time=1ms TTL=64
Reply from 192.168.1.1: bytes=32 time=1ms TTL=64
Reply from 192.168.1.1: bytes=32 time=1ms TTL=64
Reply from 192.168.1.1: bytes=32 time=1ms TTL=64

Ping statistics for 192.168.1.1:
Packets: Sent = 4, Received = 4, Lost = 0 (0% loss),
Approximate round trip times in milli-seconds:

Minimum = 1ms, Maximum = 1ms, Average = 1ms

C:\Documents and Settings\admin>ping 192.168.1.1

Pinging 192.168.1.1 with 32 bytes of data:

3. Press Apply to complete this operation and close the window.

3.2. Checking Connection with the Router

After configuring the TCP/IP protocol, use the ping command to verify if the computer can
communicate with the Router. To execute the ping command, open the DOS window and Ping
the IP address of the 300Mbps Wireless-N Gigabit Router at the DOS prompt:

 For Windows 98/Me: Start → Run. Type command and click OK.
 For Windows 2000/XP: Start → Run. Type cmd and click OK.
 For Windows Vista/7:Start→ Type cmd at the start search bar and press the Enter.
 For MAC OS→ The system will complete this operation automatically.

At the DOS prompt, type the following command:
If the Command window returns something similar to the following:

Then the connection between the router and your computer has been successfully established.
If the computer fails to connect to the router, the Command window will return the following:

WF-2406 User Manual

25

Request timed out.
Request timed out.
Request timed out.
Request timed out.

Ping statistics for 192.168.1.1:

Packets: Sent = 4, Received = 0, Lost = 4 (100% loss),

Verify your computer's network settings are correct and check the cable connection between the
router and the computer.
In order to make the whole network operate successfully, it is necessary to configure the
300Mbps Wireless-N Gigabit Router through your computer has a WEB browser installed.
Please follow up the steps listed below.

3.3. Login

 Open a web browser (Safari, Internet Explorer, etc.) on the computer you have just
connected to the router, type http://192.168.1.1 in the address bar, and press enter

 In the pop-up window, enter the user name guest and password guest and then click OK

Figure 3-18

WF-2406 User Manual

26

Figure 3-19

 After you have logged in, the router's user interface will be displayed. The left menu shows
the main options to configure the system, and the right screen is the summary information for
viewing and adjusting the configurations.

Figure 3-20

WF-2406 User Manual

27

4. Router Setup

4.1. System Information

This feature provides running status information and detailed information about router.

4.1.1. System

Show current running information of System.

Figure 4-1

4.1.2. Internet Access

This feature provides running status information of the WAN port (the port connect to the
Internet)

Figure 4-2

 Connection Type: Display router‟s current connection type , It should be one of “PPPoE”,

WF-2406 User Manual

28

“DHCP”, “Static IP”, depending on what kind of connection type your ISP provides.

 Physical Address: The physical address of WAN port, this is a unique address assigned by

manufacturer.

 IP Address: The IP address you obtained after connect to the Internet, if you haven‟t

connected to the Internet yet, this field is 0.0.0.0.

 Subnet Mask: The Subnet mask you obta ined after connect to the Internet, if you haven‟t

connected to Internet yet, this field is 0.0.0.0

 Default Gateway: The IP address of Default gateway you obtained after connect to the

Internet, if you haven‟t connected to Internet yet, this fie ld is 0.0.0.0.

 Primary DNS: The DNS server translates domain or website names into IP address, input

the most common DNS server address you used or provided by your ISP.

 Secondary DNS: Input IP address of a backup DNS server or you can leave this field blank
 MTU: The MTU (Maximum Transmission Unit) setting specifies the largest packet size

permitted for network transmission. Most DSL users should use the value 1492.You can
set MTU manually, and you should leave this value in the 1200 to 1500 range. If the value
you set is not in accord with the value ISP provide, it may causes some problems, such as
fail to send Email, or fail to browse website. So if that happen, you can contact your ISP for
more information and correct your router‟s MTU value.

4.1.3. LAN Info

This item provides information about router ‟s LAN port, display LAN port‟s physical address,
IP address and current situation of DHCP server.

Figure 4-3

4.1.4. Wireless Info

This item provides current running information of wireless.

WF-2406 User Manual

29

Figure 4-4

 Wireless status: Display wireless interface status is enabled or not
 SSID: SSID (Service Set Identifier) is your wireless network's name shared among all

points in a wireless network.

 Wireless Mode: Current wireless mode of wireless router
 Channel: Display current channel of your wireless router.
 MAC Address: The MAC address is used for wireless communication
 WPS Status: Display WPS (Wi-Fi Protected Setup) status is enabled or not.

4.1.5. Secondary AP

This item provides current running information of Secondary AP.

Figure 4-5

4.1.6. Statistics

This item provides statistics information about the bits router sends and received.

WF-2406 User Manual

30

Figure 4-6

4.2. Convenient Setup

Providing you the convenient and simplest method for configure the router, the purpose of this
item is to provide an easy way for you to use it and configure your router to access the Internet
quickly; including „DHCP（dynamic）‟, „PPPoE‟, „Static‟ and „Wireless Configuration‟. This
is the most convenient tool for you to configure router.

4.2.1. DHCP (dynamic)

Figure 4-7

After select this item, you will obtain an IP address from your ISP automatically, those ISP who
supply Cable modem always use DHCP technology.

31

4.2.2. PPPoE

WF-2406 User Manual

Figure 4-8

If your ISP provides you the PPPoE service (all ISP with DSL transaction will supply this
service, such as the most popular ADSL technique), please select this item. In the “Convenient
configuration” You can input your PPPoE username and password to access the Internet.

 PPPoE Username: Input PPPoE username provided by ISP
 PPPoE Password: Input PPPoE password provided by ISP.

32

4.2.3. Static User

WF-2406 User Manual

Figure 4-9

This item should only be used when users use a static IP address to access Internet, you should

input your “WAN IP address”, ”subnet mask”,” default gateway” and “DNS server (domain

name server)” according to the information provided by your ISP. And every IP address should

be input in appropriate IP field, a IP address only divided into four IP octets by sign“.” is
acceptable.

 WAN IP address: The IP address that your Internet access into
 Subnet mask: Specify a Subnet Mask for your WAN segment
 Default gateway: It is provided by your ISP
 Primary DNS: DNS server is used for resolve domain name. Your ISP will provides you

with at least one DNS IP address, input IP address of your DNS server in this field

 Secondary DNS: Input IP address of backup DNS server, or you can leave this field blank.

33

4.2.1. PPTP Client + Static IP

WF-2406 User Manual

Figure 4-10
If your ISP provides you the Static PPTP service, please select this item. In the “Convenient
configuration” You can input your PPTP Server, username and password to access the Internet.
 Server
The Server IP address that your Internet access into
 Local IP
The Local IP address that your Internet access into Subnet mask
 Subnet mask
Specify a Subnet Mask for your WAN segment
 Default gateway
It is provided by your ISP
 User ID
Iput User name your ISP provides
 Password
It is provided by your ISP

34

4.2.2. L2TP Client + Static IP

WF-2406 User Manual

Figure 4-11
If your ISP provides you the Static L2TP service, please select this item. In the “Convenient
configuration” You can input your L2TP Server, username and password to access the Internet.
 Server
The Server IP address that your Internet access into
 Local IP
The Local IP address that your Internet access into Subnet mask
 Subnet mask
Specify a Subnet Mask for your WAN segment
 Default gateway
It is provided by your ISP
 User ID
Iput User name your ISP provides
 Password
It is provided by your ISP

4.2.3. Wireless Configuration

You can choose “Enable” or “Disable” to enable or disable the wireless function. The default
setting is “enable”. If you chose the “Disable” status, the router will become a wired Gigabit
router without wireless function, so be careful when you choose this status.

WF-2406 User Manual

35

Figure 4-12

You can choose “Enable” or “Disable” to enable or disable the wireless function. The default
setting is ”enable”. If you chose the “Disable” status, the router will become a wired broadband

router without wireless function, so be careful when you choose this status.
 SSID
SSID (Service Set Identifier) is your wireless network's name shared among all points in a
wireless network. The SSID must be identical for all devices in the wireless network. It is
case-sensitive and must not exceed 32 characters. Make sure all points in the wireless network
have the same SSID. For added security, you should change the default SSID to a unique name

4.3. WPS Settings

Wi-Fi Protect Setup (WPS) function can let you create a safety network easily. You can through
„PIN Input Config (PIN)‟ or ‟Push Button (PBC)‟to encrypt your network. This router also
provides WPS button, you only need to push the WPS button in this router and the wireless
network card that support WPS function, then the router will be encrypted to WPA2-AES mode
automatically

Note:

If you have configured encryption mode in your router, then when you use this WPS function,
please configure the authentication type to none, and then it will be encrypted to WPA2-AES
mode automatically. If you don‟t want to change your authentication type, then when you use
this function, the router will be encrypted to the mode that you have configured.

36

Figure 4-13

WF-2406 User Manual

 WPS Status: you can use this function to setup the wireless connection between this router

and wireless network card. The default is disable.

 AP PIN Code: this code can mark a wireless product
 Wireless Host PIN Code: input the PIN of wireless network card that support WPS

function. Click connect, when it connect successfully, it will be encrypted to WPA2-PSK

 WPS PBC settings: Click connect, when it connect successfully, it will be encrypted to

WPA2-PSK

 WPS Configuration: display the encryption information
WPS can connect the wireless adapter and the router in a safe way. If you have a wireless
network card which has WPS button, you may set up a safe network via the following methods

Method 1:

1. Push the WPS button in the Router until the LED is flashing

2. Push the WPS button in the wireless network card until the following window appears

WF-2406 User Manual

37

Figure 4-14

3. The next is the safe connection between the adapter and the router, please wait

4. The connect between the adapter and the router is success

Method 2:

1. Push the WPS button in the Router until the LED is flashing

2. Push the „Push button Config (PBC)‟ in the Wi-Fi protect setup of the adapter until the
following picture appears

Figure 4-15

3. The next is the safe connection between the adapter and the router, please wait

4. The connect between the adapter and the router is success

Method 3:

1. Input the PIN code of the adapter‟s WPS page into the router‟s WPS configure page, then
click ‟connect‟

WF-2406 User Manual

38

Figure 4-1

Figure 4-16

2. Push the „PIN Input Config (PIN)‟ in the Wi-Fi protect setup of the adapter

Figure 4-2

3. Select this router in the pop-up window, then click „Select‟

Figure 4-18

4. Please wait until the following window appears, the connect between the adapter and the
router will connect automatically

39

Figure 4-19

Method 4:

1. Click „connect‟ in the router‟s WPS PBC configure page

WF-2406 User Manual

Figure 4-3

2. Push the „Push button Config (PBC)‟ in the Wi-Fi protect setup of the adapter until the
following picture appears

Figure 4-4

3. The next is the safe connection between the adapter and the router, please wait

4. The connect between the adapter and the router is success

Method 5:

1. Select „Input PIN from AP‟ in WI-FI protect setup page, input PIN of the router, then click
„PIN Input Config (PIN)‟

40

Figure 4-22

2. Select this router in the pop-up window, then click „Select‟

WF-2406 User Manual

Figure 4-23

3. Please wait until the following window appears, the connect between the adapter and the
router will connect automatically

Figure 4-24

Remark

If there is more than one AP in the PBC mode when you use the method 1/2/4, there will be
session overlap. Please using method 3/5 or wait for a while push the button again.

WF-2406 User Manual

41

4.4. Inernet Setup

4.4.1. WAN

This item provides two access types for you to configure the WAN parameters. They are
wired access and wireless access.

4.4.1.1. Wired Access

Figure 4-25

 Access Type: Ask for your ISP to get the correct access type.
 WAN IP address: The IP address you obtained after connect to the Internet, if you haven‟t

connected to the Internet yet, this field is 0.0.0.0.

 Subnet Mask: The Subnet mask you obtained after connect to the Internet, if you haven‟t

WF-2406 User Manual

42

connected to Internet yet, this field is 0.0.0.0.

 Default Gateway: The IP address of Default gateway you obtained after connect to the

Internet, if you haven‟t connected to Internet yet, this fie ld is 0.0.0.0.

 MTU: The MTU (Maximum Transmission Unit) setting specifies the largest packet size

permitted for network transmission. Most DSL users should use the value 1492.You can
set MTU manually, and you should leave this value in the 1200 to 1500 range. If the value
you set is not in accord with the value ISP provide, it may causes some problems, such as
fail to send Email, or fail to browse website. So if that happen, you can contact your ISP for
more information and correct your router‟s MTU value.

 Primary DNS: The DNS server translates domain or website names into IP address, input

the most common DNS server address you used or provided by your ISP.

 Secondary DNS: Input IP address of a backup DNS server or you can leave this field

blank.

4.4.1.2. Wireless Access

Figure 4-26

 SSID: SSID: SSID (Service Set Identifier) is your wireless network's name shared among

all points in a wireless network. The SSID must be identical for all devices in the wireless
network. It is case-sensitive and must not exceed 32 characters. Make sure all points in the
wireless network have the same SSID. For added security, you should change the default
SSID to a unique name.

 Authentication Type: “None” means do not encrypt wireless data.

WF-2406 User Manual

43

4.4.2. LAN

The IP address of LAN port is used for access router itself by computers that connect to the
router directly; here you can set IP address you need. The IP address format is like
***.***.***.***, and default IP address is 192.168.1.1, the default subnet mask is

255.255.255.0.

Figure 4-27

Figure 4-28

 DHCP Server Status: Keep the default setting “Enable”, so router is able to use DHCP

function. If a DHCP server has already existed in the network, please select “Disable”.

 IP Address Pool: The IP Address pool is used for allocate IP address by DHCP server; The

IP Address pool range is also changeable

 DHCP IP Address Reserving: reserve IP address for designed physical address host. If

you want to configure a fixed IP address for some host, please input physical address and
IP address, then click add

WF-2406 User Manual

44

Figure 4-29

Display the state of assigned IP by DHCP Server

4.4.3. MAC Clone

The WAN port of router has a unique MAC address assigned by manufacturer; it called as

“Default MAC”. The “Clone MAC” is used for some special situations; For example, ISP only

allows certain MAC address to access the Internet, thus you can modify your WAN port‟s MAC

address in accord with the requirement of ISP, avoiding ISP‟s detection.

Figure 4-30

4.5. Wireless Management

4.5.1. Wireless Setup Basic

Providing basic configuration items for wireless router users, including “wireless network
status”, “SSID”, “Radio Band”, “Radio Mode”, “MAC”, “SSID broadcasting”, “Channel
width” , “Channel sideband”, “Region” and “Channel” several basic configuration items.

WF-2406 User Manual

45

Figure 4-31

 Wireless network status: You can choose “enable” or “disable” to enable or disable the

“Wireless Network Status”, if what you choose is “Disable”, the AP function of wireless

router will be turned off.

 SSID: The default is trst1.
 Radio band: You can select the wireless standards running on your network, if you have

Wireless-N, and Wireless-B/G devices in your network, keep the default setting,

802.11b+g+n

 Radio mode: You can select radio mode of wireless router, it contains Access Point, Client,

AP+WDS and WDS. The default setting is AP mode.

 MAC: Wireless router‟s physical address.
 SSID Broadcasting: You can select “enable” or “disable” to enable or disable the broadcast

SSID function, If the setting of this field is disable, wireless client can‟t obtain this SSID to
login in, then user have to input the SSID value manually.

 Channel width: This switch allows you to set Router's wireless bandwidth. 20MHz: In this

mode you can get low bandwidth, little interference and slow rate. 40MHz: In this mode
you can get high bandwidth, high interference and rapid rate. Use only when you have a
pure router, draft 802.11n wireless network.

 Channel sideband: It controls your wireless router use higher or lower channel when

working on 40MHz.

 Region: please select the region where you live in.
 Channel: In 20MHz, you can select one channel from 1 to 13 manually, and in 40MHz,

you can select one channel from 1 to 9 or 5 to 13, which provides a choice of avoiding
interference.

4.5.2. Wireless Security

The item allows you to encrypt your wireless communication, and you can also protect your

WF-2406 User Manual

46

wireless network from unauthorized user access. It supplies “None”, “WEP”, “WPA-PSK”,
“WPA2-PSK” and “WPA/WPA2-PSK” five different encryption modes.

4.5.2.1. None

“None” means do not encrypt wireless data.

Figure 4-32

4.5.2.2. WEP

Figure 4-33

 Key Length: There are two basic levels of WEP encryption, 64 bits and 128 bits, the

more bits password have, the better security wireless network is, at the same time the
speed of wireless is more slower.

 Key Mode: If you select WEP to encrypt your data, choose the bits of password, it should

be 64 bits or 128 bits. Then choose the format of password; it should be HEX or ASCII.
The valid character for HEX format should be numbers from 0 to 9 and letters from A to
F. HEX support mixed letter and number mode. And ASCII supports all characters that in
keyboard.

 Key Length description: when you select 64bits, you need to input 10 chars for HEX and

5 chars for ASCII, and when you select 128bits, you need to input 26 chars for HEX and
13 chars for ASCII.
Note: when the WPS is enabled, please not use WEP.

WF-2406 User Manual

47

4.5.2.3. WPA-PSK

Figure 4-34

 Encryption type: You can select the algorithm you want to use, TKIP, AES or

TKIP&AES. TKIP means “Temporal Key Integrity Protocol”, which incorporates
Message Integrity Code (MIC) to provide protection against hackers. AES, means
“Advanced Encryption System”, which utilizes a symmetric 128-Bit block data.

 Key Renewal: you can configure the renewal time between 60 to 86400 seconds.
 Key Length description: you need to input 8 to 63 ASCII characters no matter which type

you select.

4.5.2.4. WPA2-PSK

The WPA2-PSK is similar to WPA-PSK and with stronger encryption method than WPA-PSK,
using WPA2-PSK; you should input password (leave this value in the range of 8 to 63
characters) and key renewal time (leave this value in the range of 60 to 86400 seconds).

Figure 4-35

WF-2406 User Manual

48

4.5.2.5. WPA/WPA2-PSK

This item mixed WPA-PSK and WPA2-PSK mode, which provides higher security level; you
can configure it according with WPA-PSK or WPA2-PSK.

Figure 4-36

4.5.3. Host Filter

Figure 4-37

 Wireless Access Control Status: the default is disable. You can filter wireless users by

enabling this function; thus unauthorized users can not access the network.

 Rule: you can select permit or deny. The default is permit.
 MAC address: input the MAC address that you want to control. The default format is

**-**-**-**-**-**（e.g.: 00-22-33-da-cc-bb）.

Follow the following steps to set Wireless Access Control:

1. Enable Wireless Access Control, then select save.

WF-2406 User Manual

49

2. Add MAC address you want to control in the “MAC address” field (the format is

**-**-**-**-**-**), then click “Add” button, and you will see the MAC address has displayed
in the MAC list.

3. There are two items supplied, “Permit wire less connection for MAC address listed (others

are Denied)” and “Deny wireless connection for MAC address listed (others are Permitted)”,

Select the item you want, and click “Save” button.

4.5.4. WDS Settings

If you have selected WDS or AP+WDS mode in Wireless Basic-Radio Mode, please do the
following configurations.

Figure 4-38

 WDS Name: Give a description of your wireless bridge to tell apart.
 WDS MAC Address: If the current working mode is “WDS” or “AP+WDS”, then you

need to configure wireless bridge configuration. Enter MAC address of remote access
point, at the same time the remote access point also need to configure to “WDS”
or ”AP+WDS” mode.

 Current WDS Information: It illustrates basic information of all wireless bridge that in

connection status, you may delete unnecessary bridge.

50

Figure 4-39

WF-2406 User Manual

AP1:

 Select radio mode is WDS or AP+WDS in wireless management-basic of AP1.
 Click on „Wireless Management‟- „AP Setup‟- „Security‟ and select and save None as

authentication type.

 Click on „Wireless Management‟- „AP Setup‟- „Security‟ and select and save None as

WDS authentication type or select a WDS security type, enter key and save.

 Input WDS name (e.g.: default), input MAC address of AP2 (00-22-4f-bc-af-5d), click add,

then the record named default will appears in WDS list.

 Select Channel is „Channel 6‟in wireless management-basic of AP2.

AP2:

 Select radio mode is WDS or AP+WDS in wireless management-basic of AP2.
 The IP address of AP2 should be 192.168.1.x (1<x<255,e.g.: x=8).

 Select „LAN setup‟-„DHCP server‟ ,select disable DHCP server.
 4. Input WDS name (e.g.: Default), input MAC address of AP1 (00-22-4f-cc-ae-f5), click

add, then the record named Default will appears in WDS list.

 Select Channel is „Channel 6‟in wireless management-basic of AP2.

Note: Before you setup WDS connection, please make sure that AP1 and AP2 is in the same
network, that is if the IP address of AP1 is 192.168.1.1, then the IP address of AP2 should be

192.168.1.x (1<x<255,e.g.: x=8).

WF-2406 User Manual

51

4.5.5. Repeater Settings

Wireless Repeater mode, is used to relay the wireless signal from a relay point to the next
point, relay and amplify the signals and form a new wireless coverage area.

Figure 4-40

AP1:

 Select radio mode is „Access Point‟ in wireless management-basic of AP1.
 Select Channel is „Channel 6‟ in wireless management-basic of AP1.

Figure 4-41

WF-2406 User Manual

52

AP2:

 Select radio mode is „REPEATER‟ in wireless management-basic of AP2.
 Click „AP Scan‟ in wireless management-basic of AP2 ,and select „Netis1‟ and Connect ,

then the „Repeater SSID‟ and „Channel‟ become same as AP1.

 The IP address of AP2 should be 192.168.1.x (1<x<255,e.g.: x=8).
 Select „LAN setup‟-„DHCP server‟ ,select disable DHCP server.

Figure 4-42

AP3:

 Select radio mode is „REPEATER‟in wireless management-basic of AP3.
 Click „AP Scan‟ in wireless management-basic of AP3 ,and select „Netis1‟ and Connect ,

then the „Repeater SSID‟ and „Channel‟ become same as AP2.

 The IP address of AP3 should be 192.168.1.x (1<x<255),but different from AP2.
 Select „LAN setup‟-„DHCP server‟ ,select disable DHCP server.

4.5.6. Wireless Advanced

These settings are only for more technically advanced users who have a sufficient knowledge
about wireless LAN. These settings should not be changed unless you know what effect the
change will have on your AP.

53

Figure 4-43

WF-2406 User Manual

 Authentications type: The default is set to “Auto”, which allows “Open System” or

“Shared Key” authentication to be used. Select “Shared Key” if you only want to use

“Shared Key” authentication (the sender and recipient use a WEP key for authentication).

 Beacon Interval: The interval time of this 150Mbps Wireless-N Gigabit Router broadcast

a beacon. Beacon is used to synchronize the wireless network. The valid interval is
20-1000, the default is 100.

 RTS Threshold: You can set RTS Threshold value in this field, the valid range should be

256-2347 and default value is 2347. If a network packet is smaller than the preset RTS
threshold size, the RTS/CTS mechanism will not be enabled.

 Aggregation: You can accelerate the wireless transmission speed by enabling the

aggregation function. The default is AMPDU＋AMSDU.

 Fragmentation Threshold: It specifies the maximum size of packet during the

fragmentation of data to be transmitted.

 Transmission Rate: Transmit rate indicates the transmission speed of wireless LAN

access .The default setting is “Auto” and you can set this value between 1-54Mbps range.

 ShortGi: You can select “Enable” or “disable” for shortgi.
 Protection: Using 802.11b and 802.11g mixed mode may result in poor network

performance. By enabling 802.11 protection, it will ameliorate performance of 802.11g
devices in your wireless network.

 Preamble Type: "Short Preamble" is suitable for heavy traffic wireless network. "Long

Preamble" provides much communication reliability; the default setting is "Long
Preamble”.

WF-2406 User Manual

54

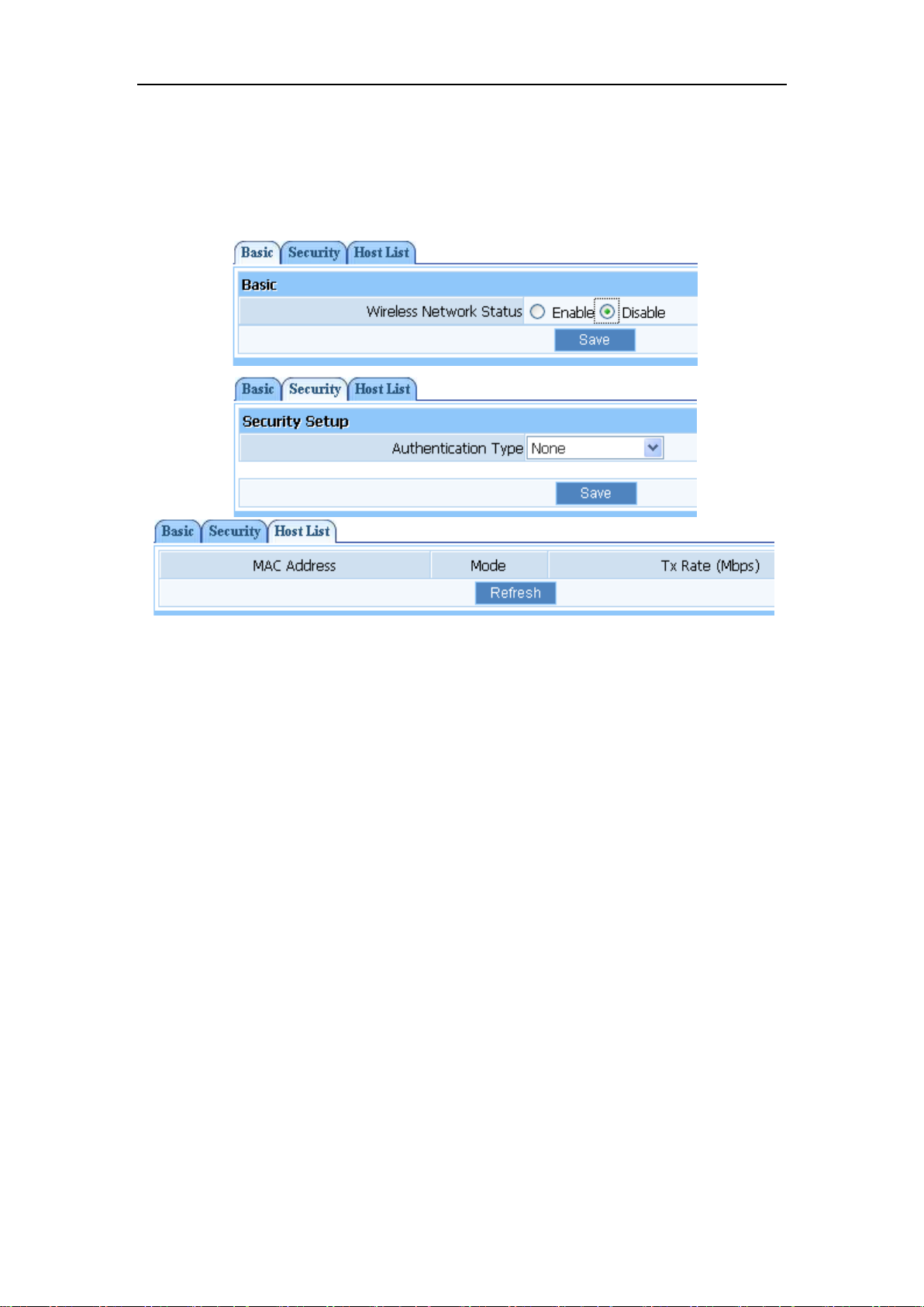

4.5.7. Multiple AP Settings

The default status of secondary AP is disable, you can select enable to enable the secondary
AP. Please refer to “Convenient Setup” and “Wireless Security” for details.

Figure 4-44

55

4.6. QOS Setup

WF-2406 User Manual

Figure 4-45

 Status: QOS switch.
 Automatic Uplink Speed: Router adjusts uplink bandwidth automatically.
 Manual Uplink Speed (Kbps): User configures uplink bandwidth manually.
 IP Address: Set the IP address range for restricted hosts.
 Minimum bandwidth: setup uplink and downlink bandwidth.
 Maximum bandwidth: setup uplink and downlink bandwidth.

56

4.7. Applications&Game

4.7.1. Virtual Servers

WF-2406 User Manual

Figure 4-46

 FTP Private Port: Some games, servers, and applications (such as BT, QQ video, Edunkey,

Web server) are no longer effect when behind the NAT router, so this item provides
function of port mapping from LAN to WAN.

 Description: Describe current virtual server item
 Internal Host IP Address: The “Internal Host IP Address” indicates IP address of the

internal host using virtual server.

 Protocol: The protocol item supplies several protocols. For example, if you have web

server within LAN, you can select the HTTP template then the router will input port
number 80 automatically.

 External Port: Input an extranet port number (the users in Internet can see these ports).
 Internal Port: Input an intranet port number.

4.7.2. Port Trigger

Port trigger module dynamically registers virtual server rules when any IP host generates the
packet from the specified trigger protocol and port. Port trigger module use forward protocol
type and port number and use the IP address of host that generates the trigger packet when it
registers a rule.

57

Figure 4-47

 Predefined Trigger Rules: select one of the Predefined Rules.
 Rule Name: describe one Predefined Trigger that you will configure.

WF-2406 User Manual

 Trigger Protocol: you can select TCP/UDP.
 Trigger Port: you can select a part of ports.
 Forward Protocol: you can select TCP/UDP.

 Forward Port: you can select a part of ports.

4.7.3. DMZ Setting

DMZ opens all the ports of one computer, exposing the computer to the Internet. So it should
only be used for some special-purpose, especial for Internet online games. Using this function
you can select “DMZ” item and input IP address of DMZ host, then click “Save”. For the
purpose of security, we suggested that using “Virtual servicer” instead of “DMZ”.

Figure 4-48

WF-2406 User Manual

58

4.7.4. UPnP

The UPnP function supports load Application‟s port forward record automatically. Select
“Enable” to enable this function.

Figure 4-49

4.8. Security Setup

4.8.1. VPN Pass-through

VPN is commonly used for encapsulate and encrypt data across the public network. For VPN
tunnel, the router supports IPSEC pass-through, PPTP pass-through and L2TP pass-through.

Figure 4-50

59

4.8.2. Internet Access Filtering

WF-2406 User Manual

Figure 4-51

 Status: the default is disable. The rules of “Internet access control” based on source IP,

port number and protocol.

 Description: describe IP Firewall list to tell from different IP Firewall lists.
 Rule: you can select permit or deny. The default is permit.
 Source IP address: input the source IP address that you want to control. The default

format is ***.***.***.***(e.g: 192.168.2.3).

 Protocol and Port: If the rule has already existed in “Protocol Template”. You can select

appropriate item and apply it. Or you can input protocol type and port number manually,
click “add” button, then the item will displayed in the list.

Follow the following steps to set Internet Access Control:

1. You can select “enable” and click “Save” to enable “IP Firewall” function. This is only the
first step, you should continued to create appropriate rules for “IP Firewall”.

2. Input description information for current access control rule in the “Description” field. Input

IP address of host you want to restrict.

3. There are two items supplied, “Permit through the router for IP address listed, others are
denied” and “Deny through the router for IP address listed, others are permitted”, Select the

WF-2406 User Manual

60

item you want, and click “Save” button.

4. If you want to delete certain item on the list, select appropriate item on the list, click “delete”
to delete it.

4.8.3. MAC Filtering

Figure 4-52

 Status: the default is disable. You can filter wired users by enabling this function; thus

unauthorized users can not access the network.

 Description: describe MAC Filter list to tell from different MAC Filter lists
 Rule: you can select permit or deny. The default is permit
 MAC address: input the MAC address that you want to control. The default format is

**-**-**-**-**-**（e.g.: 00-22-33-da-cc-bb）

Follow the following steps to set MAC filter:

1. Enable MAC Filter, then select save.

2. Add MAC address you want to control in the “MAC address” field (the format is

**-**-**-**-**-**), then click “Add” button, and you will see the MAC address has displayed
in the MAC list.

3. There are two items supplied, “Permit wireless connection for MAC address listed (others

are Denied)” and “Deny wireless connection for MAC address listed (others are Permitted)”,

Select the item you want, and click “Save” button.

61

4.8.4. DNS Filtering

WF-2406 User Manual

Figure 4-53

 Status: the default is disable. “DNS filter” is able to filter certain domain name such as

www.sina.com.

 Rule: you can select permit or deny. The default is permit.
 DNS Filter Key words: Input website name or Domain name in the “DNS Key Words”

field, such as www.163.com.

Follow these steps to set DNS filter:

1. You can select “enable” and click “Save” to enable “DNS Filter” function. This is only the
first step, you should continued to create appropriate rules for “DNS Filter”.

2. Input DNS Filter Key words.

3. There are two items supplied, “Permit through the router for DNS Key words listed, others
are denied” and “Deny through the router for DNS Key words listed, others are permitted”,
Select the item you want, and click “Save” button.

4. If you want to delete certain item on the list, select appropriate item on the list, click “delete”
to delete it.

4.9. Routing

Most of router and wireless router are using NAT mode, so this feature is designed for most

WF-2406 User Manual

62

common network environment.

Figure 4-54

 Destination Network or IP Address: Specify a certain destination Network or IP address

which static route forward to.

 Subnet Mask: Subnet mask is used for distinguish Network portion and Host portion for an

IP address.

 Next-hop IP Address: This is an IP address of the next-hop device (and also is the gateway

address for local host) that allows forwarding data between router and remote network or

host.
Routing Table: You can check out all current route items, c lick “delete” button to delete an
route item existed in routing table.

4.10. Dynamic DNS

The DDNS feature allows you using domain name (not IP address) to access Internet. Before
you can use this feature, you need to register an account for DDNS service at DDNS service
providers, such as “roay.cn”, ”TZO.com”, ”DynDNS”. For more information, you can visit
http://www.oray.net/Help.

WF-2406 User Manual

63

Figure 4-55

 DDNS Status: Current status of DDNS server.
 DDNS Server Provider: For example, if you want to use service of “roay.cn”, you have to

first register and accounts for it. Other DDNS service providers as the same.
 Username, Password, Dynamic Domain Name: After register an DDNS account from

DDNS service providers, you will get “User Name”, “Password”, ”Dynamic Domain

Name”, Input information in appropriate field.

4.11. Advanced Setup

4.11.1. Operation Mode

Here you can set the router „s operation mode as „Router‟ and „Bridge‟.

Figure 4-56

4.11.2. IGMP Proxy

Here you can set the IGMP Proxy „Enabled‟ and „Disabled‟.

WF-2406 User Manual

64

Figure 4-57

4.12. System Management

System management includes password setup, web Setup, upgrade, reboot, restore, WOL and
System time

4.12.1. Upgrade

Click "Browse..."button and select a File to upgrade, after you have selected the appropriate file,
click "Upgrade" button to execute upgrade procedure. Do not cut off the power supply during
the process of upgrading.

Figure 4-58

4.12.2. System Time

You can choose the time server and the time zone for the system time.

Figure 4-59

4.12.3. Password Setup

The default username/password is guest/guest. To ensure the Router‟s security, it is suggested
that you change the default password to one of your choice, here enter a new password and then
Re-enter it again to confirm your new password. Click “Save” button to save settings.

WF-2406 User Manual

65

Figure 4-60

4.12.4. WOL

Input host MAC address, and then click button of "Wake up" to wake up the target host which in
the LAN.

Figure 4-61

4.12.5. Backup

Here you can Backup and Recovery system Configuration Parameter

Figure 4-62

4.12.6. WEB Management

WEB Management Status: the default is disable. Router can be accessed on the remote site

using “Web setup”. Check the “Management Port” and enter the port number and then press
“save” button to enable web management.

WF-2406 User Manual

66

Figure 4-63

4.12.7. Factory Defaults

Click "Restore" button, the Router will erase all of your settings and replace them with the
factory defaults, make sure you have backup current settings before click this button.

Figure 4-64

4.12.8. Reboot

Click “Restart” button to restart the router.

Figure 4-65

4.13. About

Figure 4-66

Thank you for your support.

WF-2406 User Manual

67

5. Troubleshooting

1. I cannot access the Web-based Configuration Utility from the Ethernet computer used
to configure the router.

 Check that the LAN LED is on. If the LED is not on, verify that the cable for the LAN

connection is firmly connected.

 Check whether the computer resides on the same subnet with the router‟s LAN IP address.
 If the computer acts as a DHCP client, check whether the computer has been assigned an

IP address from the DHCP server. If not, you will need to renew the IP address.

 Use the ping command to ping the router‟s LAN IP address to verify the connection.
 Make sure your browser is not configured to use a proxy server.
 Check that the IP address you entered is correct. If the router‟s LAN IP address has been

changed, you should enter the reassigned IP address instead.

2. I forget Password (Reset the Router without Login)

 Use a pencil to press the button for about 2-6 seconds when it is working, then leave your

hands, it will restore settings to the factory configuration. The default password is guest.

3. I have some problems related to Connection with Cable Modem

Please follow the following steps to check the problems:
 Check whether the DSL modem works well or the signal is stable. Normally there will be

some indicator lights on the modem, users can check whether the signal is ok or the

modem works well from those lights. If not, please contact the ISP.
 Check the front panel of the Router, there are also some indicator lights there. When the

physical connection is correct, the Power light and the CPU light should be solid; the

WAN light should be blinking. If you use your computer, the corresponding LAN port

light should be blinking too. If not, please check whether the cables work or not.

 Repeat the steps in WAN Setup Connect with Internet through DSL Modem.

4. I can browse the route r’s We b-based Configuration Utility but cannot access the
Internet.

 Check if the WAN LED is ON. If not, verify that the physical connection between the

router and the DSL/Cable modem is firmly connected. Also ensure the DSL/Cable modem

is working properly.
 If WAN LED is ON, open the System Overview page of the Web configuration utility and

check the status group to see if the router‟ s WAN port has successfully obtained an IP

address.
 Make sure you are using the correction method (Dynamic IP Address, PPPoE, or Static IP)

WF-2406 User Manual

68

as required by the ISP. Also ensure you have entered the correct settings provided by the

ISP.
 For cable users, if your ISP requires a registered Ethernet card MAC address, make sure

you have cloned the network adapter‟ s MAC address to the WAN port of the router. (See

the MAC Address field in WAN Setup.)

5. My wireless client cannot communicate with another Ethernet computer.

 Ensure the wireless adapter functions properly. You may open the Device Manager in

Windows to see if the adapter is properly installed.
 Make sure the wireless client uses the same SSID and security settings (if enabled) as the

300Mbps Wireless-N Gigabit Router.

 Ensure that the wireless adapter‟s TCP/IP settings are correct as required by your network

administrator.

 If you are using a 802.11b wireless adapter, and check that the 802.11G Mode item in

Wireless Basic Setting page, is not configured to use 802.11G Performance.

 Use the ping command to verify that the wireless client is able to communicate with the

router‟s LAN port and with the remote computer. If the wireless client can successfully

ping the router‟ s LAN port but fails to ping the remote computer, then verify the TCP/IP

settings of the remote computer.
