Netis WF-2402 User Manual

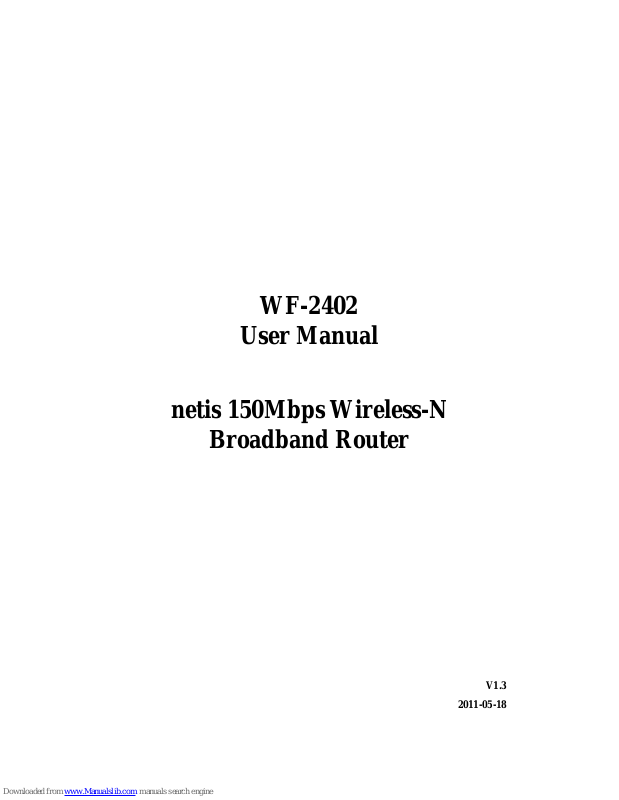

WF-2402
User Manual
netis 150Mbps Wireless-N
Broadband Router
V1.3
2011-05-18
150Mbps Wireless-N Broadband Router User Manual
1
Certification
FCC CE
FCC Statement
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:
-Reorient or relocate the receiving antenna.
-Increase the separation between the equipment and receiver.
-Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
-Consult the dealer or an experienced radio/TV technician for help. T o assure co ntinued compliance, any changes or modifications not expressly appr ov e d by the party responsible for compliance could void the user’ s authority to operate this equipment. ( Example- use only shielded interface cables when connecting to computer or peripheral devices)
FCC Radiation Exposure Statem ent
This equipment complies with FCC RF radiation exposure limits set forth for an uncontrolled environment. This transmitter must not be co-located or operating in conjunction with an y other antenna or transmitter. This equipment complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation.
Caution!
The manufacturer is not responsible for any radio or TV interference caused by unauthorized modifications to this equipment. Such modifications could void the user authority to operate the equipment
150Mbps Wireless-N Broadband Router User Manual
2
Package Contents The following items should be found in your package:
150Mbps Wireless-N Broadband Router Power adapterQuick Installation Guide CD-Rom Ethernet cable
Make sure that the package contains above items. If any of the above items is missing or damaged, please contact the store you bought this product from.
Brand and Copyright Announcement
Copyright © 2010 Netis Corporation. All rights reserved
is a registered trademark of Netis Corporation. Other trademarks and trade names may be used in this document to refer to either the entities claiming the marks and names or their products. Reproduction in any manner without the permission of Netis Corporation is strictly forbidden
All the information in this document is subject to change without notice.
USA/Canada Technical Support Phone: 1-866-71-network or 1-866-716-3896 (free in USA & Canada) E-mail:
usa_support@netis-systems.com
150Mbps Wireless-N Broadband Router User Manual
3
Contents
CONTENTS ............................................................................................................................................ 3
1. INTRODUCTION ......................................................................................................................... 6
1.1. PRODUCT OVERVIEW ............................................................................................................... 6
1.2. MAIN FEATURES ...................................................................................................................... 6
1.3. SUPPORTING ST ANDARD AND PROTOCOL ................................................................................. 7
1.4. WORKING ENVIRONMENT ........................................................................................................ 7
HUMIDITY ............................................................................................................................................. 7
POWER ................................................................................................................................................... 7
2. HARDWARE INSTALLATION ................................................................................................... 8
2.1. SYSTEM REQUIREMENT ........................................................................................................... 8
2.2. PANEL ...................................................................................................................................... 8
FRONT P ANEL ...................................................................................................................................... 8
2.3. RESTORE TO FACTORY CONFIGURATION ................................................................................... 9
2.4. HARDWARE INSTALLATION PROCEDURES ................................................................................ 9
3. LOGIN .......................................................................................................................................... 11
3.1. CONFIGURE COMPUTER .......................................................................................................... 11
3.1.1. Windows 98/Me ............................................................................................................ 11
3.1.2. Windows 2000 .............................................................................................................. 11
3.1.3. Windows XP ................................................................................................................. 14
3.1.4. Windows Vista .............................................................................................................. 17
3.1.5. Windows 7 .................................................................................................................... 20
3.1.6. MAC OS ....................................................................................................................... 22
3.2. CHECKING CONNECTION WITH THE ROUTER.......................................................................... 24
3.3. LOGIN .................................................................................................................................... 25
4. ROUTER SETUP ........................................................................................................................ 27
4.1. STATUS ................................................................................................................................... 27
4.1.1. Version .......................................................................................................................... 27
4.1.2. WAN.............................................................................................................................. 27
4.1.3. LAN .............................................................................................................................. 28
4.1.4. Wireless ........................................................................................................................ 28
4.1.5. Router Status ................................................................................................................ 29
4.1.6. Traffic Statistics ............................................................................................................ 29
4.2. QUICK SETUP ......................................................................................................................... 29
4.2.1. DHCP (dynamic) .......................................................................................................... 29
4.2.2. PPPoE .......................................................................................................................... 30
4.2.3. Static ............................................................................................................................. 30
4.2.4. Wireless Configuration ................................................................................................. 31
150Mbps Wireless-N Broadband Router User Manual
4
4.2.5. MAC Clone ................................................................................................................... 31
4.3. WPS SETTINGS ...................................................................................................................... 32
4.3.1. WPS Settings ................................................................................................................ 32
4.3.2. Add a New Device ........................................................................................................ 32
4.3.3. WPS Configuration ...................................................................................................... 33
4.4. NETWORK .............................................................................................................................. 34
4.4.1. WAN.............................................................................................................................. 34
4.4.1.1. Wired Access .......................................................................................................................... 34
4.4.1.2. Wireless Access ...................................................................................................................... 35
4.4.2. LAN .............................................................................................................................. 36
4.4.3. MAC Clone ................................................................................................................... 36
4.4.4. Port Settings ................................................................................................................. 36
4.4.5. IGMP Proxy ................................................................................................................. 37
4.5. WIRELESS .............................................................................................................................. 37
4.5.1. Wireless Settings ........................................................................................................... 37
4.5.2. Wireless Security .......................................................................................................... 38
4.5.2.1. None ....................................................................................................................................... 39
4.5.2.2. WEP ....................................................................................................................................... 39
4.5.2.3. WPA-PSK .............................................................................................................................. 40
4.5.2.4. WPA2-PSK ............................................................................................................................ 40
4.5.2.5. WPA/WPA2-PSK ................................................................................................................... 40
4.5.3. Wireless MAC Filtering ................................................................................................ 41
4.5.4. WDS ............................................................................................................................. 41
4.5.4.1. WDS Settings ......................................................................................................................... 41
4.5.4.2. Repeater Settings .................................................................................................................... 43
4.5.5. Wireless Advanced ........................................................................................................ 45
4.5.6. Wireless Statistics ......................................................................................................... 46
4.5.7. Multiple AP Settings ..................................................................................................... 46
4.6. DHCP .................................................................................................................................... 47
4.6.1. DHCP Settings ............................................................................................................. 47
4.6.2. DHCP Clients List ........................................................................................................ 47
4.6.3. Address Reservation ..................................................................................................... 48
4.7. FORWARDING ......................................................................................................................... 48
4.7.1. Vi rtual Servers .............................................................................................................. 48
4.7.2. Port Triggering ............................................................................................................. 49
4.7.3. DMZ ............................................................................................................................. 49
4.7.4. UPnP ............................................................................................................................ 50
4.7.5. FTP Private Port .......................................................................................................... 50
4.8. SECURITY .............................................................................................................................. 50
4.8.1. Security Settings ........................................................................................................... 50
4.8.2. IP Address Filtering ..................................................................................................... 51
FOLLOW THE FOLLOWING STEPS TO SET INTERNET ACCESS CONTROL: ................. 52
4.8.3. MAC Filtering .............................................................................................................. 52
150Mbps Wireless-N Broadband Router User Manual
5
FOLLOW THE FOLLOWING STEPS TO SET MAC FILTER: .................................................. 52
4.8.4. Domain Filtering .......................................................................................................... 53
FOLLOW THESE STEPS TO SET DNS FILTER: .......................................................................... 53
1. YOU CAN SELECT “ENABLE” AND CLICK “SAVE” TO ENABLE “DNS FILTER” FUNCTION. THIS IS ONLY THE FIRST STEP, YOU SHOULD CONTINUED TO CREATE
APPROPRIATE RULES FOR “ DNS FILTER”. ............................................................................... 53
2. INPUT DNS FILTER KEY WORDS. ............................................................................................. 53
3. THERE ARE TWO ITEMS SUPPLIED, “PERMIT THROUGH THE ROUTER FOR DNS KEY WORDS LISTED, OTHERS ARE DENIED” AND “DENY THROUGH THE ROUTER FOR DNS KEY WORDS LISTED, OTHERS ARE PERMITTED”, SELECT THE ITEM YOU
W ANT, AN D CLICK “SAVE” BUTTON. .......................................................................................... 53
4. IF YOU WANT TO DELETE CERTAIN ITEM ON THE LIST, SELECT APPROPRIATE
ITEM ON THE LIST, CLICK “DELETE” TO DELETE IT. .......................................................... 53
4.9. STATIC ROUTING .................................................................................................................... 54
4.10. QOS SETTINGS ...................................................................................................................... 55
4.11. DYNAMIC DNS ...................................................................................................................... 55
4.12. SYSTEM TOOLS ...................................................................................................................... 56
4.12.1. Firmware ...................................................................................................................... 56
4.12.2. Time Settings ................................................................................................................ 56
4.12.3. Password ...................................................................................................................... 57
4.12.4. WOL ............................................................................................................................. 57
4.12.5. System Logs .................................................................................................................. 57
4.12.6. Remote Management .................................................................................................... 58
4.12.7. Factory Defaults ........................................................................................................... 58
4.12.8. Reboot .......................................................................................................................... 58
4.13. ABOUT ................................................................................................................................... 58
5. TROUBLESHOOTING .............................................................................................................. 59
1. I CANNOT ACCESS THE WEB-BASED CONFIGURATION UTILITY FROM THE
ETHERNET COMPUTER USED TO CONFIGURE THE ROUTER. .......................................... 59
2. I FORGET PASSWORD (RESET THE ROUTER WITHOUT LOGIN) .................................. 59
3. I HAVE SOME PROBLEMS RELATED TO CONNECTION WITH CABLE MODEM ....... 59
4. I CAN BROWSE THE ROUTER’S WEB-BASED CONFIGURATION UTILITY BUT
CANNOT ACCESS THE INTERNET. .............................................................................................. 59
5. MY WIRELESS CLIENT CAN NO T COMMUNICATE WITH ANOTHER ETHERNET
COMPUTER. ........................................................................................................................................ 60
150Mbps Wireless-N Broadband Router User Manual
6
1. Introduction
1.1. Product Overview
The 150Mbps Wireless-N Broadband Router is dedicated to Small Office/Home Office (SOHO) Wireless network solution. It is 4 in 1 network device, which combines wireless access point, firewall, 4-port Switch and the NAT-Router. It provides up to 150Mbps data transmission rate in 2.4GHz frequency, complies with IEEE 802.11n, IEEE 802.11g and IEEE802.11b and backwards compatible with all IEEE 802.11n/g/b devices. And the router also supports wireless LAN up to 128-bit WEP, WPA/WPA2 encryption security. The 150Mbps Wireless-N Broadband Router also provides WEB and Remote Management and system log so that network administrators can manage and monitor the network in real time.
The 150Mbps Wireless-N Broadband Router also provides a hardware WPS (Wi-Fi protected setup) button, which helps you setup a secure wireless network in a snap. The button lets you activate the wireless protection easily.
1.2. Main Features
Comply with IEEE802.11n/g/b, IEEE802.3 10Base-T, IEEE802.3u 100Base-TX
standards
Support MIMO technology with 1 transmit and 1 receive, up to 150Mbps wireless LAN
data transfer rates
Support DHCP Client, PPPoE Client, Static IP, L2TP, PPTP Support multi-wireless mode: AP, WDS, AP+WDS, repeater, client, etc. Support static ARP, MAC fil tering, IP access control, DNS filter Support FTP, PPTP and L2TP pass through Support UPNP (universal plug and play) Upgradeable firmware for future functions WPS button can easily setup a secure networkSupport WMM Support data encryption mode: WEP, W PA, WPA2 Support DMZ
150Mbps Wireless-N Broadband Router User Manual
7
1.3. Supporting Standard and Protoc o l
IEEE 802.11b/g/nIEEE 802.11eIEEE 802.11hIEEE 802.11kIEEE 802.11iIEEE 802.3 10Base-T IEEE 802.3u 100Base-TX
1.4. Working Environment
Temperature
0° to 40° C (operating) -40° to 70° C (storage)
Humidity
10% to 90 % non-condensing (operating) 5% to 90% non-condensing (storage)
Power DC 9V
150Mbps Wireless-N Broadband Router User Manual
8
2. Hardware Installation
2.1. System Requirement
Minimum Requirements:
Broadband (DSL/Cable) modem and service with Ethernet port 802.11n b/g/n wireless adapter or Ethernet adapter and cable for each co mpu terInternet Explorer® 5.0, Firefox® 2.0 or Safari® 1.4 or higher
2.2. Panel
Front panel
Figure 2-1
LED Function
PWR
ON Power on Off Power off
WPS
Flashing
slowly
WPS is running
OFF WPS is not running
SYS
ON and Off Abnormal
Flashing Normal
WLAN
Flashing Wireless data transmitting
Off Wireless off
WAN
On WAN Connection normal
Flashing Data transmitting
Off WAN Connection abnormal
LAN
On LAN Connection normal
Flashing Data transmitting
150Mbps Wireless-N Broadband Router User Manual
9
Off LAN Connection abnormal
Rear panel
Figure 2-2
Description Function
PWR
Connect to Power adapter, please don’t use the unknown power adapter, otherwise your device may be damaged.
LAN Connect with computer NIC or Ethernet device WAN Internet access Reset Restore settings
2.3. Restore to factory configuration
If the router ever freezes in a setting change process or if you can’t access it because y ou can’t remember the IP you have given it or oth er problem , you may have to utilize the reset button on the back of the router to put it back to factory settings. You have to press and ho le this button for a few seconds (2-6s) with a p encil when it is working, then release and it will restore settings to the factory configuration. The other way to restore factory settings is through the same user interface used in setup. Click on ‘System management’- ‘Restore’, and click on the ‘Restore’ button.
2.4. Hardware Installation Procedures
The procedures to install the 150Mbps Wireless-N Broadband Router please refers to the following picture
150Mbps Wireless-N Broadband Router User Manual
10
Figure 2-3
Attach one end of an Ethernet cable to your c omput er’ s Ethe rnet p ort, and the ot her end to
one of the LAN ports of your router. Connect another Ethernet cable from your Cable/DSL modem to the WAN port of your router. Connect the single DC output connector of the pow er adapter to the power jac k on the back of the router and plug the Power Adapter into an AC outlet.
150Mbps Wireless-N Broadband Router User Manual
11
3. Login
You can manage the 150Mbps Wireless-N Broadband Router through the Web browser-based configuration utility. To configure the device via Web brow ser , at least one prope rly configure d computer must be connected to the device via Ethernet or wireless net work. The 150Mbps Wireless-N Broadband Router is configured with the default IP address of 192.168.1.1 and subnet mask of 255.255.255.0 and its DHCP server is enabled by default. Before setting up the Router, make sure your PCs are configured to obtain an IP address automatically fro m the Router by the steps below.
3.1. Configure computer
3.1.1. Windows 98/Me
1. Go to Start Settings Control Panel.
2. Find and double-click the Network icon. The Network dialog box appears.
3. Click the Configuration label and ensure that you have network card.
4. Select TCP/IP . If TCP/IP appears more than once, please select the item that has an arrow “” pointing to the network card installed on your computer. DO NOT choose the instance of TCP/IP with the words “Dial Up Adapter” beside it.
5. Click Properties. The TCP/IP Properties dialog box appears.
6. Ensure the Obtain IP Address Automatically is checked.
7. From the WINS Configuration dialog box, Ens ure that Disable WINS R esolution is checked.
8. From the Gateway dialog box, remove all entr ies from the Installed gateways by selecti ng them and clicking Remove.
9. From the DNS Configuration dialog box, remove all entries from the DNS Server Search Order box by selecting them and clickin g Rem ove. Rem ove a ll entri es from the D omain Suffix Search Order box by selecting them and clicking Remove. Click Disable DNS.
10. Click OK, back to Network Configuration dialog box
11. Click OK, if prompted to restart, click YES.
3.1.2. Windows 2000
Please follow the steps below to setup your computer:
1. Go to Start Settings  Control Panel
150Mbps Wireless-N Broadband Router User Manual
12
Figure 3-1
2. Double click the icon Network and Dial-up Connections
3. Highlight the icon Local Area Connection, right click your mouse, and click Properties
Figure 3-2
4. Highlight Internet Protocol (TCP/IP), and then press Properties button
150Mbps Wireless-N Broadband Router User Manual
13
Figure 3-3
5. Choose Obtain an IP address automatically and Obtain DNS server address automatically, and then press OK to close the Internet Protocol (TCP/IP) Properties window
Figure 3-4
6. Press OK to close the Local Area Connection Properties window
150Mbps Wireless-N Broadband Router User Manual
14
Figure 3-5
3.1.3. Windows XP
Please follow the steps below to setup your computer:
1. Go to Start Settings  Control Panel
2. Click Network and Internet Connections
Figure 3-6
3. Click Network Connections
150Mbps Wireless-N Broadband Router User Manual
15
Figure 3-7
4. Highlight the icon Local Area Connection, right click your mouse, and click Properties
Figure 3-8
5. Highlight Internet Protocol (TCP/IP), and then press Properties button
150Mbps Wireless-N Broadband Router User Manual
16
Figure 3-9
6. Choose Obtain an IP address automatically and Obtain DNS server address automatically, and then press OK to close the Internet Protocol (TCP/IP) Properties window
Figure 3-10
7. Press OK to close the Local Area Connection Properties window
150Mbps Wireless-N Broadband Router User Manual
17
Figure 3-11
3.1.4. Windows Vista
Please follow the steps below to setup your computer:
1. Go to Start Settings  Control Panel
2. Click Network and Sharing Center
Figure 3-12
3. Click Manage Network Connections
150Mbps Wireless-N Broadband Router User Manual
18

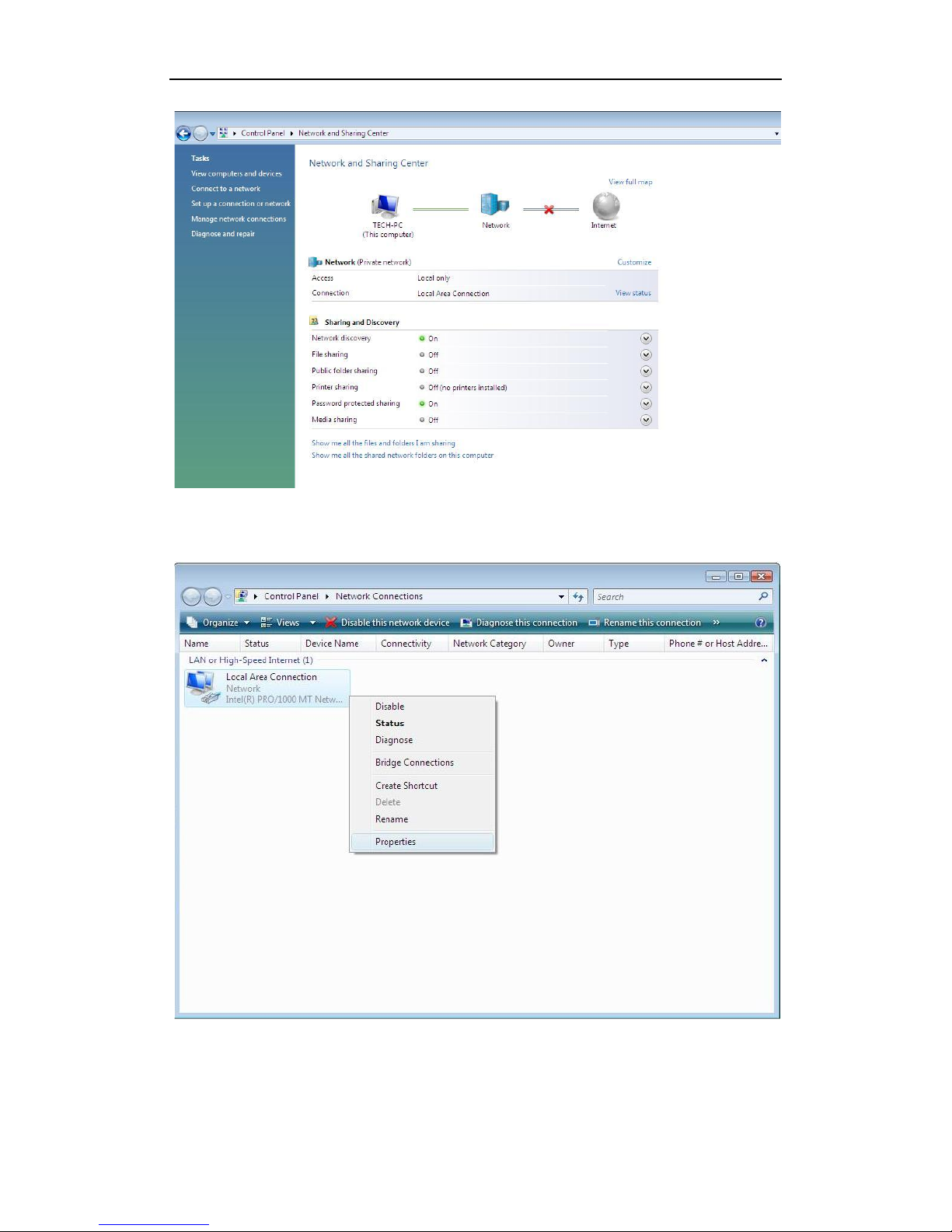

Figure 3-13
4. Highlight the icon Local Area Connection, right click your mouse, and click Properties
Figure 3-14
5. Highlight Internet Protocol Version 4 (TCP/IP) and then press Properties button
Loading...
+ 42 hidden pages
Buy Points How it Works FAQ Contact Us Questions and Suggestions Privacy Policy Cookie Policy Terms of Use
