Netis WF2322 Quick Installation Manual

netis Wireless High Power Outdoor AP Router

Quick Installation Guide

R

Model No. WF2322

1.Package Contents

Please make sure that the package contains above items, if any of the listed items are damaged
or missing, please contact your distributor.

Outdoo rAPRouter

netis Wireless High Power Outdoor AP Router

Quick Installation Guide

netis Wir eless High Power O utdoor AP Route r Quick Installa tion Guide

1

2.Hardware Connection

The following items should be found in your package:

PoE Inj ector Powe r Adapter Quick Installation Guide Mo unting Tie x2 Slip-proo f Pad x2

* This QIG is for all netis Wireless High Power Outdoor AP Router, including models- WF2322,
WF2375, WF2370, etc.
* The product model shown in this QIG is WF2322, as an example.

The outdoor AP work in pairs, and work best when they are face to face like below, please try
to adjust their direction and get the best singal:

Please put the slip-proof pads and mounting ties as below:

When device works in Client or WISP mode,

1. Connection Step
A) Remove the small cover of device.
B) Connect one end of the Ethernet cable into the WAN/LAN ( ) port of the device and the

other end to the PoE port of the PoE injector.

C) Connect the Power Adapter to DC-in port of the PoE injector and plug the other end to wall outlet.

D) Connect the Ethernet cable into LAN/WAN port of PoE injector and the other end to the Ethernet

port of the PC or AP/switch.

E) Re-place the small cover back to the device.

2

For step A)

For step B) to E)

2. The connection will be similar to the figure below after the above steps are finished.

Compute r

TO Switch or PC

Ethernet Cable

Main Electrical Supply

INDOOR

Power Cable

PoE Injector

POWER

netis Wir eless High Power O utdoor AP Route r Quick Installa tion Guide

LAN/WAN

LAN/WAN

LAN/WAN

Client

3

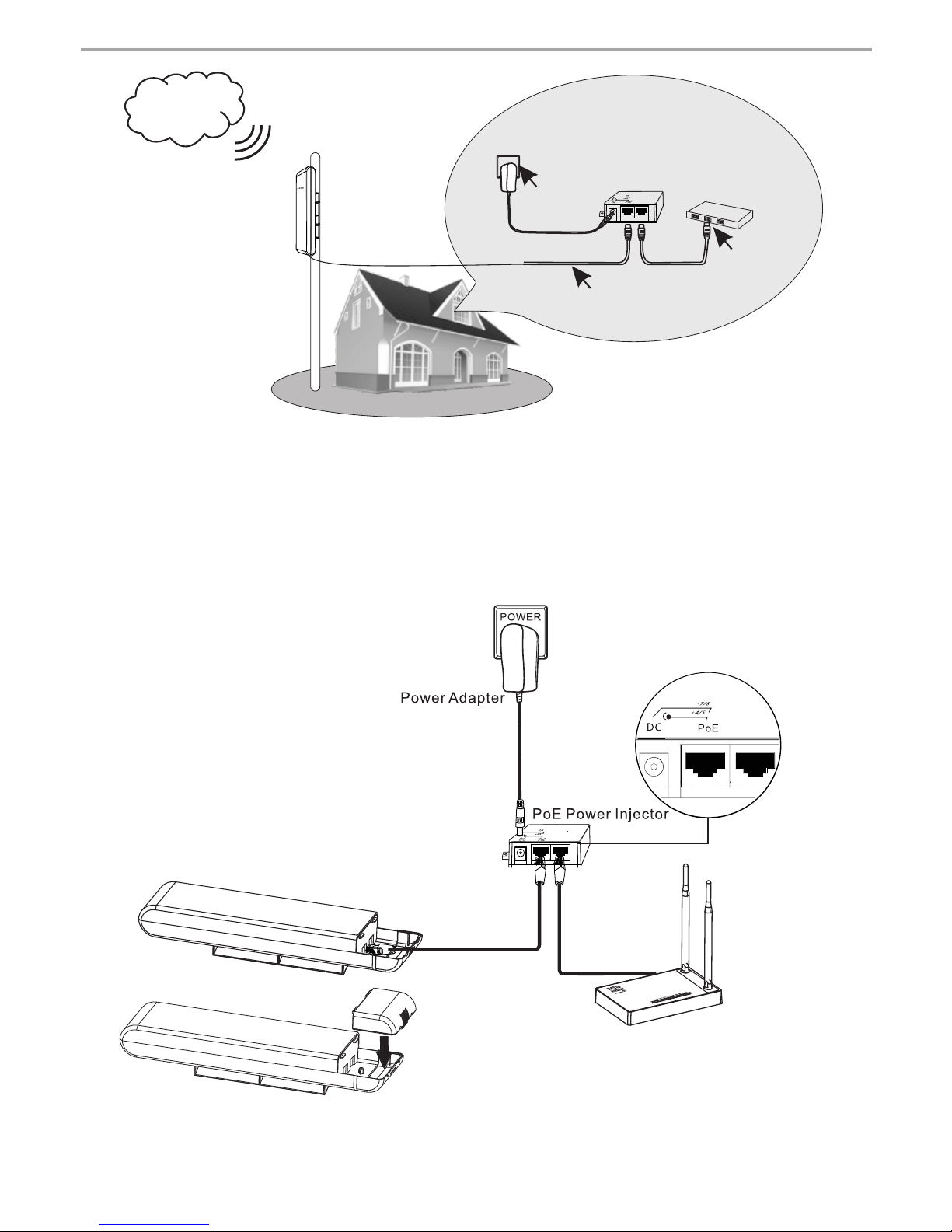

When device works in AP/AP Router mode,

1. Connection step
A) ~ C) is same as above
D) Connect the Ethernet cable into LAN/WAN port of PoE injector and the other end to the Ethernet port

of xDSL or Cable modem/router.

E) Re-place the small cover back to the device

For step B) to E)

netis Wir eless High Power O utdoor AP Route r Quick Installa tion Guide

LAN/WAN

LAN/WAN

TO Switch or PC

Ethernet Cable

Main Electrical Supply

INDOOR

Power Cable

PoE Injector

POWER

LAN/WAN

WISP Mode

ISP

3. Configure the AP Router via Web Management Page

This device works in AP mode by default, so if you are intend to change the working mode or
any settings, please connect your computer to or Port of AP and set a static IP for
you computer as below steps:

3.1 Set a Static IP for PC

Manually set the IP address of the wired network adapter on your computer as below.

IP Address/ IPv4 Address: 192.168.1.x (1<x<255)
Subnet Mask: 255.255.255.0
Default Gateway/ Router: 192.168.1.1

For Windows 8/ 7/Vista

1) Go to “Settings” (for Windows 8)/“Start” (for Windows 7/Vista) > “Control Panel”.

2) Left-click on “Network and Internet” > “Network and Sharing Center” > “Change
adapter settings” (for Windows 8/ 7)/”Manage network connections” (for Windows Vista).

3) Right-click on “Local Area Connection” and left-click on “Properties”.

4) Double-click on “Internet Protocol Version 4 (TCP/IPv4)”.

5) Select “Use the following IP address” then left-click on “OK”.

For Windows XP/2000

1) Go to “Start” > “Control Panel”.

2) Left-click on “Network and Internet Connections” > “Network Connections”.

3) Right-click on “Local Area Connection” and left-click on “Properties”.

4) Double-click on “Internet Protocol (TCP/IP)”.

5) Select “Use the following IP address” then left-click on “OK”.

For MAC OS

1) Click on the “Apple” menu > “System Preferences”.

2) Click on the “Network” icon.

3) Click on “Ethernet” in the left side box and click on “Advanced” in the lower right corner.

4) In the top options, select “TCP/IP”.

5) In the pull-down menu next to “Configure IPv4” select “Manually”.

6) Fill in the “IPv4 Address/Subnet Mask/Router” parameters, and click “OK” then “Apply”.

4

netis Wir eless High Power O utdoor AP Route r Quick Installa tion Guide

2. The connection will be similar to the figure below after the above steps are finished.

connect to xDSL or
Cable modem/router

Ethernet Cable

Main Electrical Supply

INDOOR

Power Cable

PoE Injector

POWER

Internet

LAN/WAN

AP/AP Router

5

3.3 A dialog box will prompt as below, please enter User name and Password, both default values
are guest and click OK.

Note: The configuration includes “Internet settings” and “Wireless settings”, if you choose “AP”,
please go to Wireless Settings directly.

AP Router Mode:

Select the cor rect Connection Type.

PPPoE Select “PPPo E” when：

1. WF2322 is con nected to a DSL or Ca ble pure modem.

2. Got usernam e &password from IS P

.

3. Broadband c onnection is need ed on PC wh en bypassi ng
WF2322.

Type in the Username &

Password provided by the

ISP.

DHCP Select “DHCP ” when:

1. WF2322 is con nected to a Cable/D SL modem router.

2. Internet wo rks directly on PC wh en bypassing WF23 22.

(Dynamic IP)

Static IP Select “S tatic IP

” when:

1. Got IP Address, Sub net Mas k, Default G atewa y, DNS

Server from IS P.

Type in all the IP Info.

netis Wir eless High Power O utdoor AP Route r Quick Installa tion Guide

3.2 Open your browser and type http://192.168.1.1 in the address field to visit router's web
management page.

WISP Mode :

Selec t tar get network and C onnection Type.

1. Clic k “AP Scan ” button to selec t you r target networ k and c lick “Connect ” button.

2. Type in the wi rel ess security in fo of t he target netwo rk.

3. Sele ct co nnection type . (Please refer t o “In ternet Settin gs” →“ AP Ro uter Mode”)

6

Note: The DHCP Server will be disabled after switching to “AP” mode successfully, so you will have
to set a static IP address for your PC first if you need to login to the web-based management page again.

3.4 The web management page will display after login successfully. Select the language as you need
on the top box, default is in English.

Wireless Settings

Setup a wireless network name in “SSID” box, it is recommended to use WPA-PSK/WPA2-PSK for
“Security” and set a wireless network key in the “Password” box, then click “Save” button.

3.5 When you completed the configuration,please remember to change the settings on your computer
back to to 'obtain an IP address automatically' in the the same window as step 3.1.

netis Wir eless High Power O utdoor AP Route r Quick Installa tion Guide

4.Troubleshooting

Q How do I restore my netis WF2322 to default settings?
A With the router powered on, holding “Reset” button on the PoE injector for 8s~10s with a pin to

restore it to factory defaults.

Q What can I do if my Internet cannot be accessed?
A 1) Check to verify the hardware connections are correct. Please refer to the “Hardware Connection” step.

2) Refer to 3.1) to set a Static IP address for your PC and connect the WF2322 to your PC.

3) Open a web browser and login to http://192.168.1.1

4) Re-check your setting

5) Reboot the modem first and then netis device. Wait for one minute before you check the Internet again.

6) If Internet access is not available, please connect your computer directly to your modem and try
the Internet again.

If the Internet is still not working, please contact your ISP for further help.

Federal Communication Commission Interference Statement

This equi pment has been tes ted and found to com ply with the limit s for a Class B digita l device, pursua nt
to Part 15 of t he FCC Rules. Th ese limits are designed to provide reasonable protection against harmful
interfe rence in a residen tial installat ion. This equipment gen erates, uses and c an radiate radio
frequen cy energy and, if no t installed and us ed in accordance w ith the instruct ions, may cause ha rmful
interfe rence to radio com munications. H owever, there is no g uarantee that in terference wil l not occur in
a particu lar installati on. If this equipm ent does cause har mful interfere nce to radio or tele vision
recepti on, which can be det ermined by turni ng the equipment o ff and on , the user is encour aged to try to
correct t he interferenc e by one of the follow ing measures:

·Reorien t or relocate the re ceiving antenn a.

·Increas e the separation b etween the equip ment and receive r.

·Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.

·Consult t he dealer or an expe rienced radio/ TV technician fo r help.

FCC RF Radiation Exposure Statement:

1. The equipment complies with RF exposure limits set forth for an uncontrolled environment. The antenna(s)
used for th is transmitter m ust not be co-loca ted or operating i n conjunction wi th any other anten na or
transmi tter.

2. This equipment complies with FCC RF radiation exposure limits set forth for an uncontrolled environment.

3. This equipment should be installed and operated with a minimum dist ance of 20 centime ters between
the radia tor and your body.

FCC Cauti on: Any ch anges or modific ations not expre ssly approved by t he party respons ible for
complia nce could void the u ser's authorit y to operate this eq uipment.

This devi ce complies with P art 15 of the FCC Rule s. Operation is su bject to the follo wing two conditi ons:
(1) this de vice may not cause h armful interfe rence and
(2) this de vice must accept a ny interferenc e received, incl uding interfer ence that may caus e undesired
operati on
