Netis WF-2301 User Manual
150Mbps Wireless-N Outdoor AP User Manual
Netis WF-2301 150Mbps Wireless N
Outdoor AP
User Manual
1095 Budapest, Mester u. 34.
Tel.: *218-5542, 215-9771, 215-7550,
216-7017, 216-7018 Fax: 218-5542
Mobil: 30 940-1970, 20 949-2688
1141 Budapest, Fogarasi út 77.
Tel.: *220-7940, 220-7814, 220-7959,
220-8881, 364-3428 Fax: 220-7940
E-mail: info@delton.hu Web: www.delton.hu
www.netis-systems.hu
Mobil: 30 531-5454, 30 939-9989
150Mbps Wireless-N Outdoor AP User Manual
Certification
FCC CE
FCC Statement
This equipment has been tested and found to comply with the limits for a Class B digital device,
pursuant to part 15 of the FCC rules. These limits are designed to provide reasonable protection
against harmful interference in a residential installation. This equipment generates, uses and can
radiate radio frequency energy and, if not installed and used in accordance with the instructions,
may cause harmful interference to radio communications. However, there is no guarantee that
interference will not occur in a particular installation. If this equipment does cause harmful
interference to radio or television reception, which can be determined by turning the equipment
off and on, the user is encouraged to try to correct the interference by one or more of the
following measures:
-Reorient or relocate the receiving antenna.
-Increase the separation between the equipment and receiver.
-Connect the equipment into an outlet on a circuit different from that to which the receiver is
connected.
-Consult the dealer or an experienced radio/TV technician for help.
To assure continued compliance, any changes or modifications not expressly approved by the
party responsible for compliance could void the user’s authority to operate this equipment.
(Example- use only shielded interface cables when connecting to computer or peripheral devices)
FCC Radiation Exposure Statement
This equipment complies with FCC RF radiation exposure limits set forth for an uncontrolled
environment. This transmitter must not be co-located or operating in conjunction with any other
antenna or transmitter.
This equipment complies with Part 15 of the FCC Rules. Operation is subject to the following
two conditions:
(1) This device may not cause harmful interference, and
(2) This device must accept any interference received, including interference that may cause
undesired operation.
Caution!
The manufacturer is not responsible for any radio or TV interference caused by unauthorized
modifications to this equipment. Such modifications could void the user authority to operate the
equipment
150Mbps Wireless-N Outdoor AP User Manual
Package Contents
The following items should be found in your package
Ø 150Mbps Wireless-N Outdoor AP
Ø Power adapter
Ø Quick Installation Guide
Ø User Manual
Ø CD-Rom
Please make sure that the package contains the above items, if any of the listed items are damaged
or missing, please contact with your distributor.
Before Installing
This manual is designed to help you correctly use this outdoor AP, before you install the outdoor
AP, please read the manual.
Brand and Copyright Announcement
Copyright © 2010 Netis Corporation.
All rights reserved
is a registered trademark of Netis Corporation. Other trademarks and trade
names may be used in this document to refer to either the entities claiming the marks and
names or their products.
Reproduction in any manner without the permission of Netis Corporation is strictly
forbidden
All the information in this document is subject to change without notice.
150Mbps Wireless-N Outdoor AP User Manual
Contents
1 INTRODUCTION .................................................................................................................... 6
1.1 P
RODUCT OVERVIEW
........................................................................................................... 6
1.2 M
AIN FEATURES
.................................................................................................................. 6
1.3 S
UPPORTING STANDARD AND PROTOCOL
.............................................................................. 7
1.4 W
ORKING ENVIRONMENT
.................................................................................................... 7
2 HARDWARE INSTALLATION .............................................................................................. 8
2.1 S
YSTEM REQUIREMENT
....................................................................................................... 8
2.2 P
ANEL
................................................................................................................................. 8
2.3 R
ESTORE TO FACTORY CONFIGURATION
............................................................................... 9
2.4 H
ARDWARE INSTALLATION PROCEDURES
........................................................................... 10
3 LOGIN ................................................................................................................................... 11
3.1 C
ONFIGURE COMPUTER
..................................................................................................... 11
3.1.1 Windows 98/Me ........................................................................................................ 11
3.1.2 Windows 2000 .......................................................................................................... 12
3.1.3 Windows XP ............................................................................................................. 14

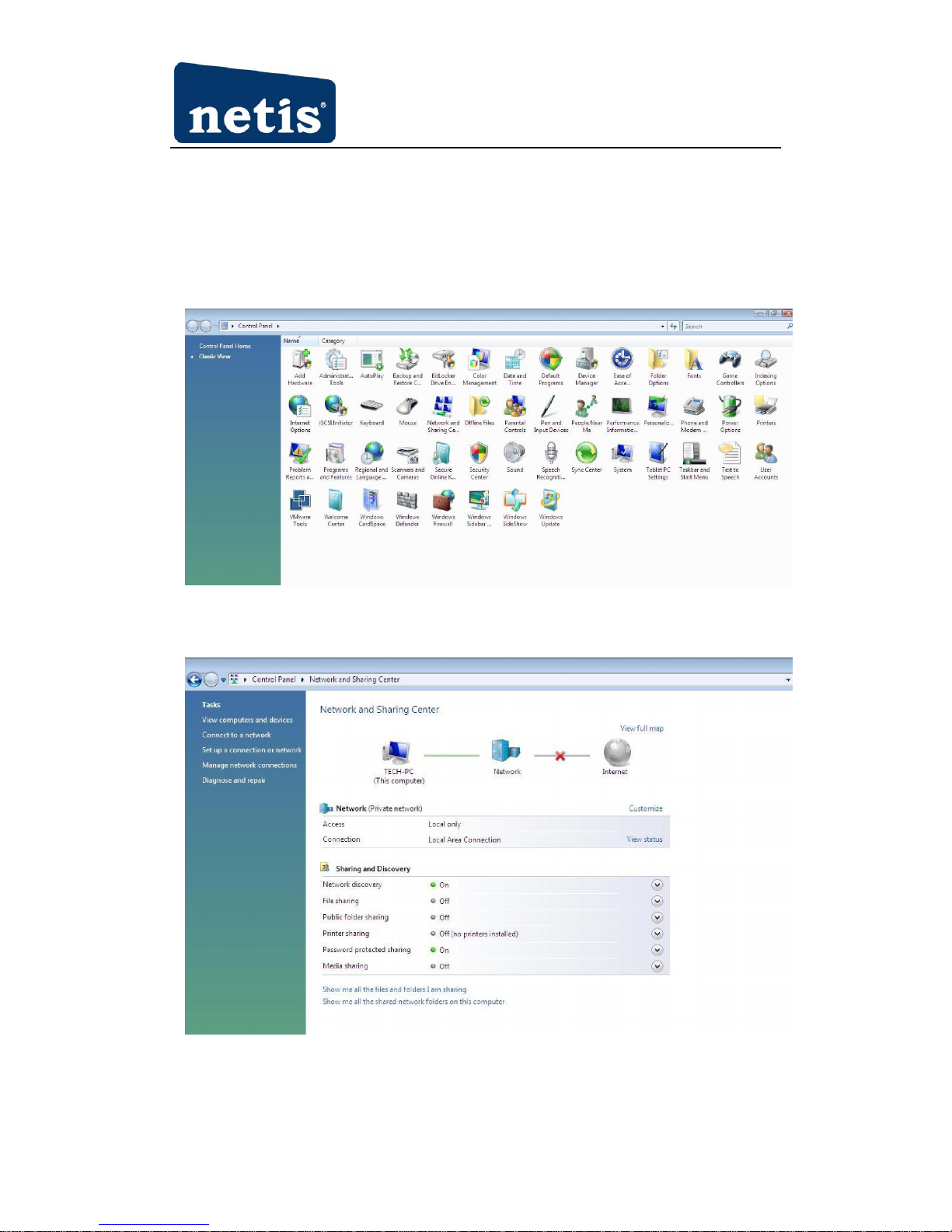

3.1.4 Windows Vista .......................................................................................................... 18

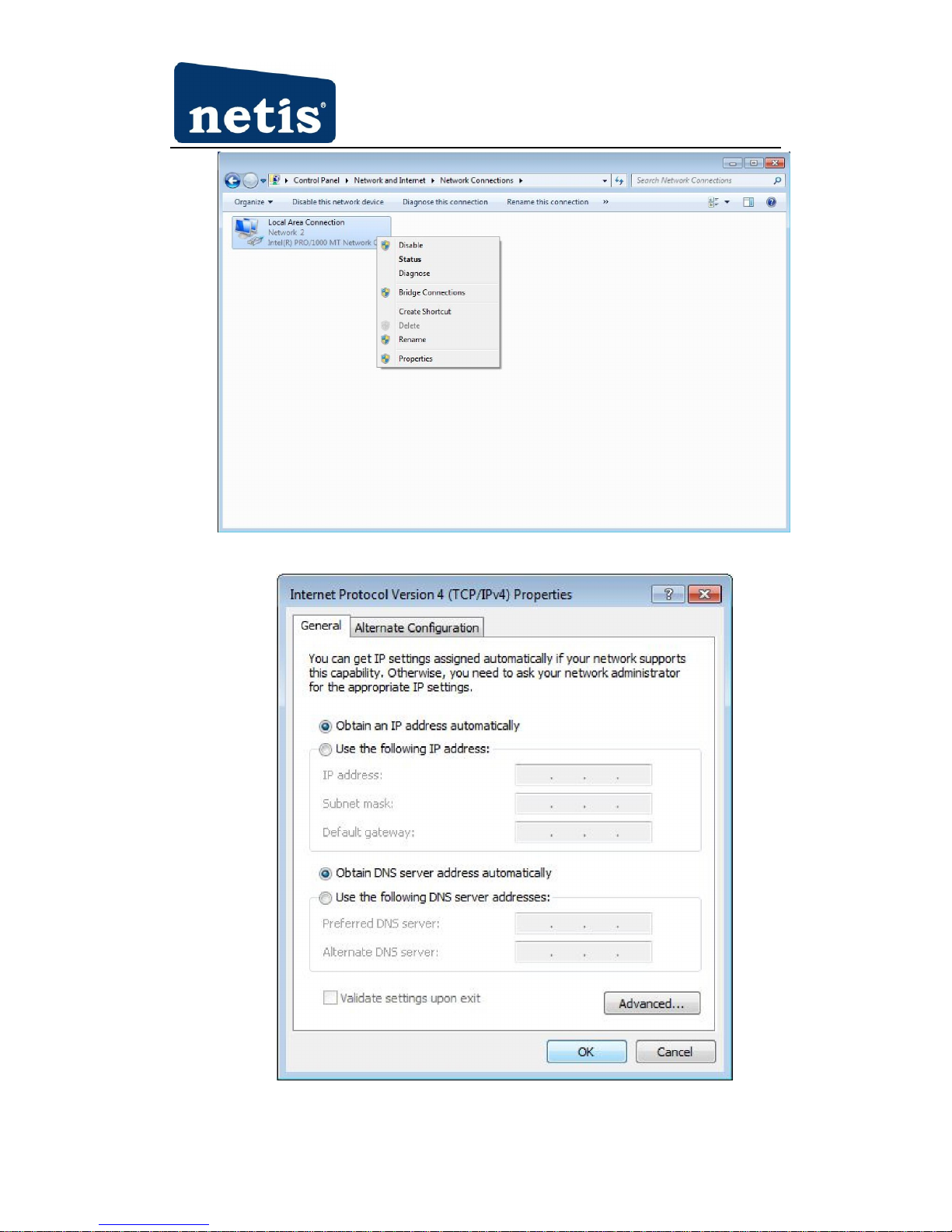

3.1.5 Windows 7 ................................................................................................................ 22

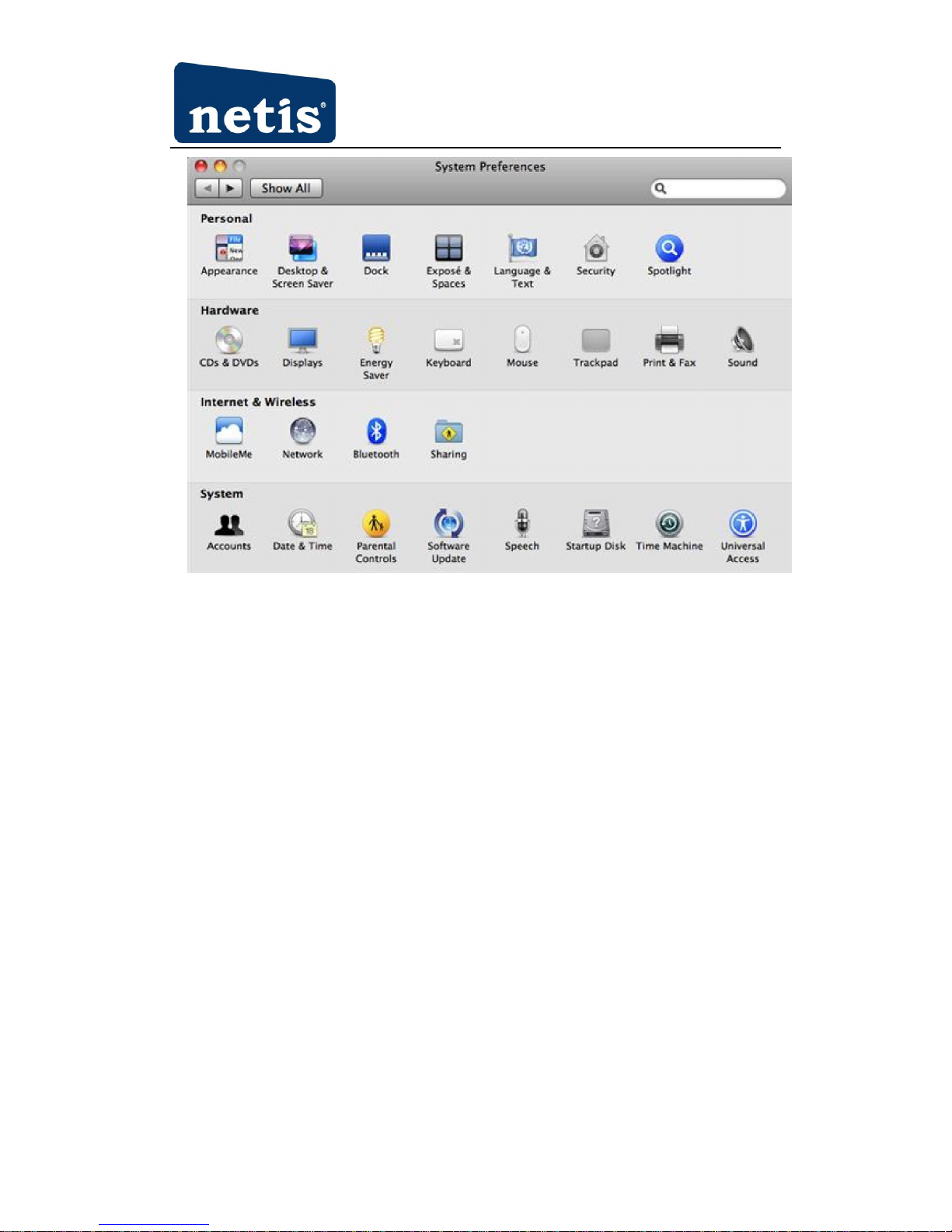

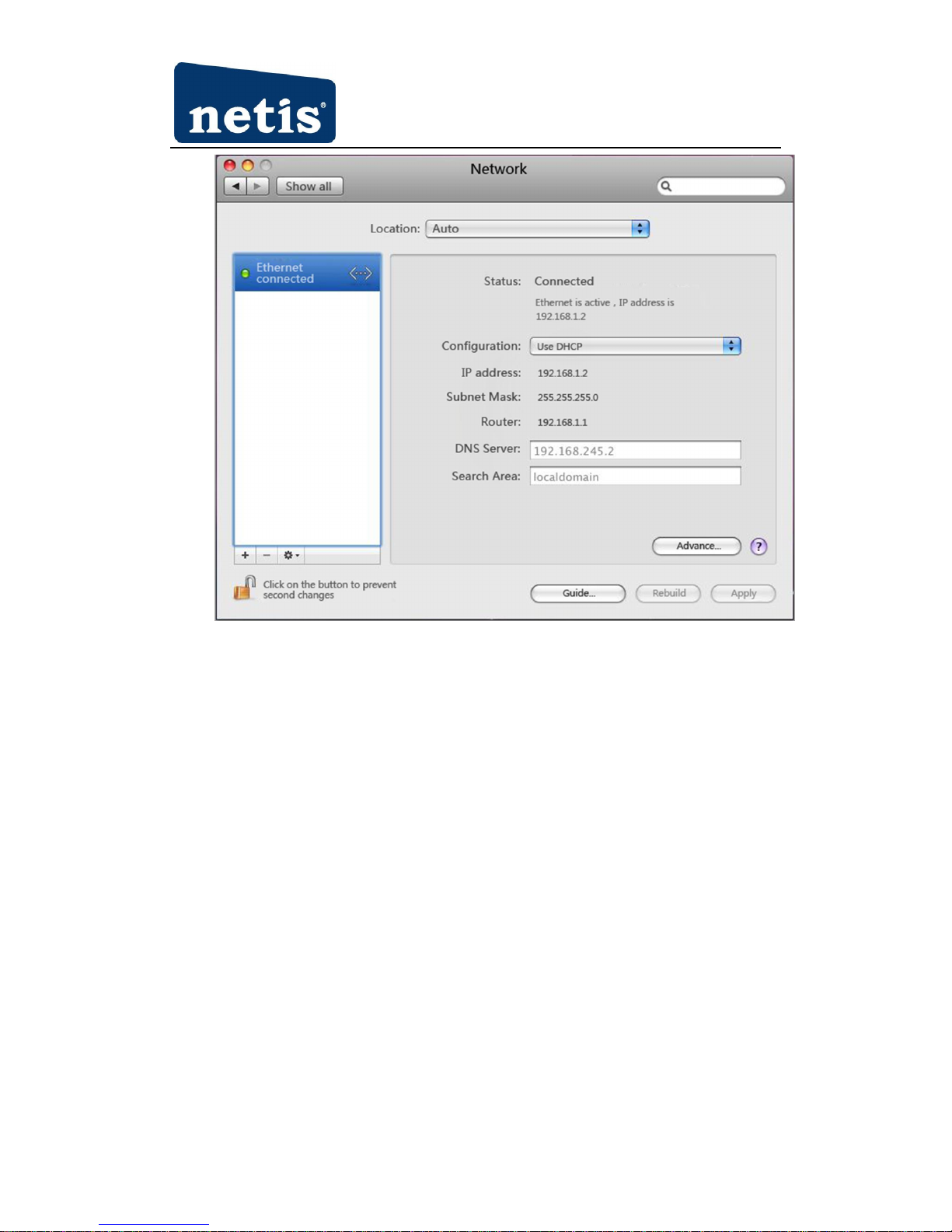

3.1.6 MAC OS ................................................................................................................... 24
3.2 C
HECKING CONNECTION WITH THE ADAPTER
..................................................................... 26

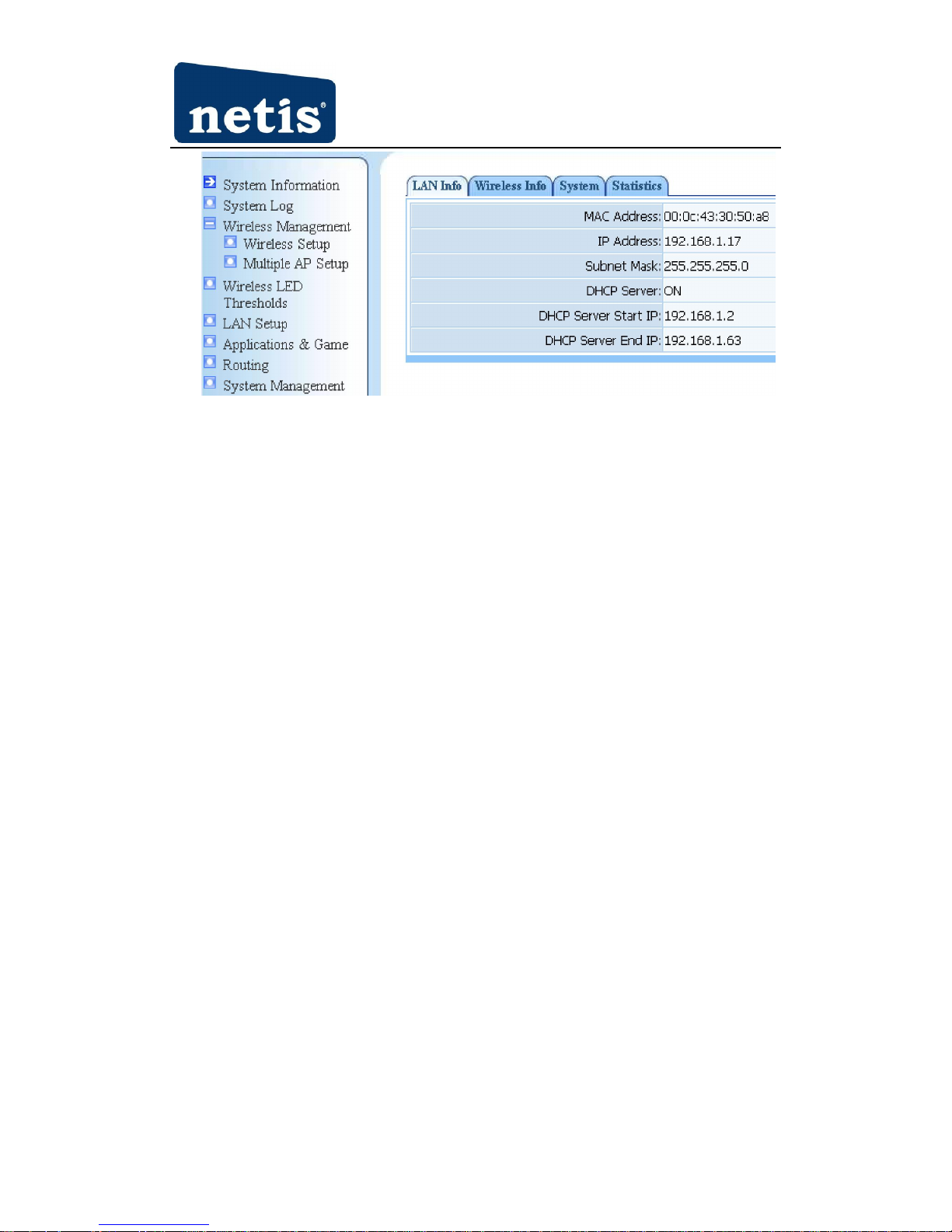

3.3 L
OGIN
............................................................................................................................... 28
4 SYSTEM SETTING ............................................................................................................... 30
4.1 S
YSTEM INFORMATION
...................................................................................................... 30

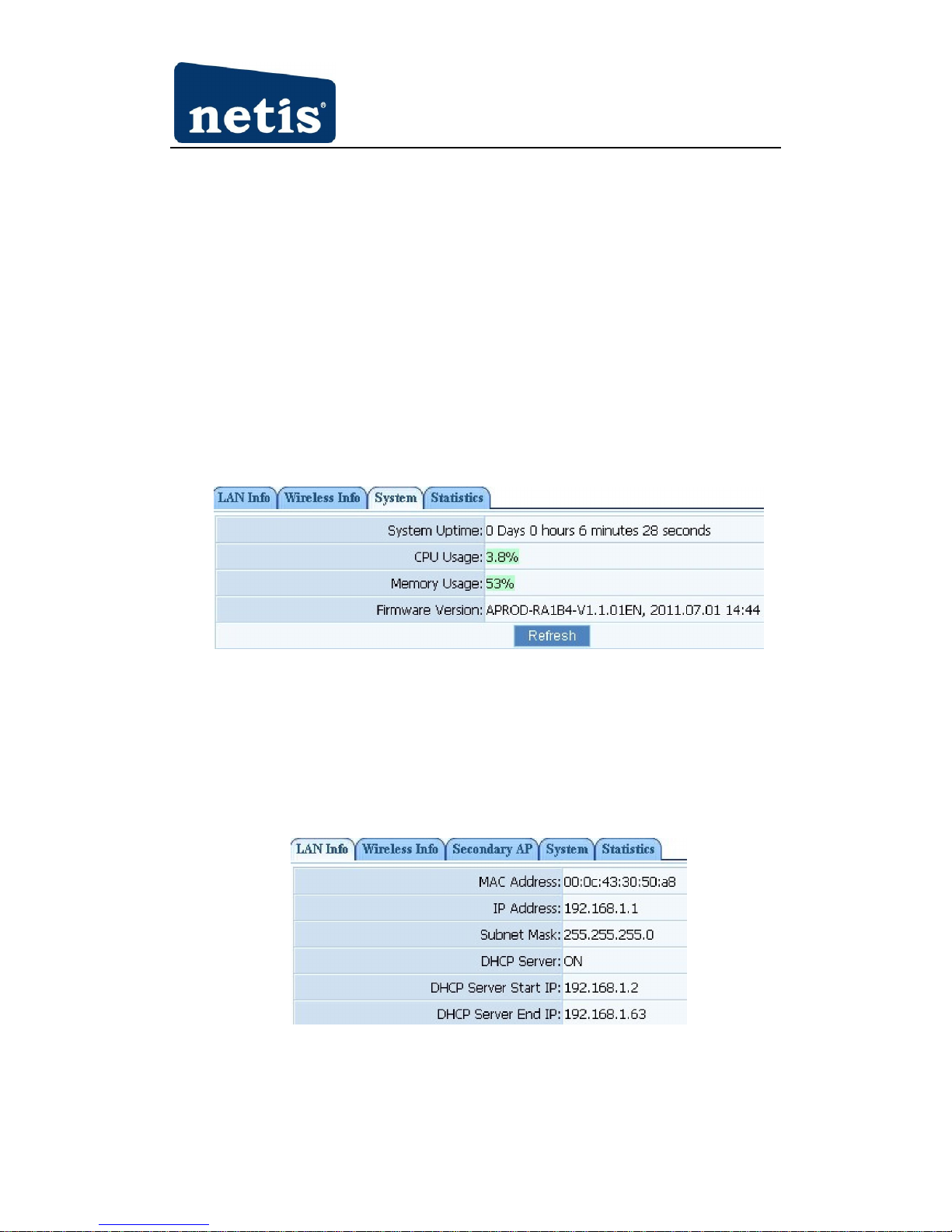

4.1.1 System ...................................................................................................................... 30
4.1.2 LAN Info................................................................................................................... 30
4.1.3 Wireless Info ............................................................................................................. 31
4.1.4 Secondary AP ........................................................................................................... 31
4.1.5 Statistics ................................................................................................................... 32
4.2 S
YSTEM LOG
..................................................................................................................... 32
4.3 W
IRELESS MANAGEMENT
.................................................................................................. 33
4.3.1 Wireless Setup .......................................................................................................... 33

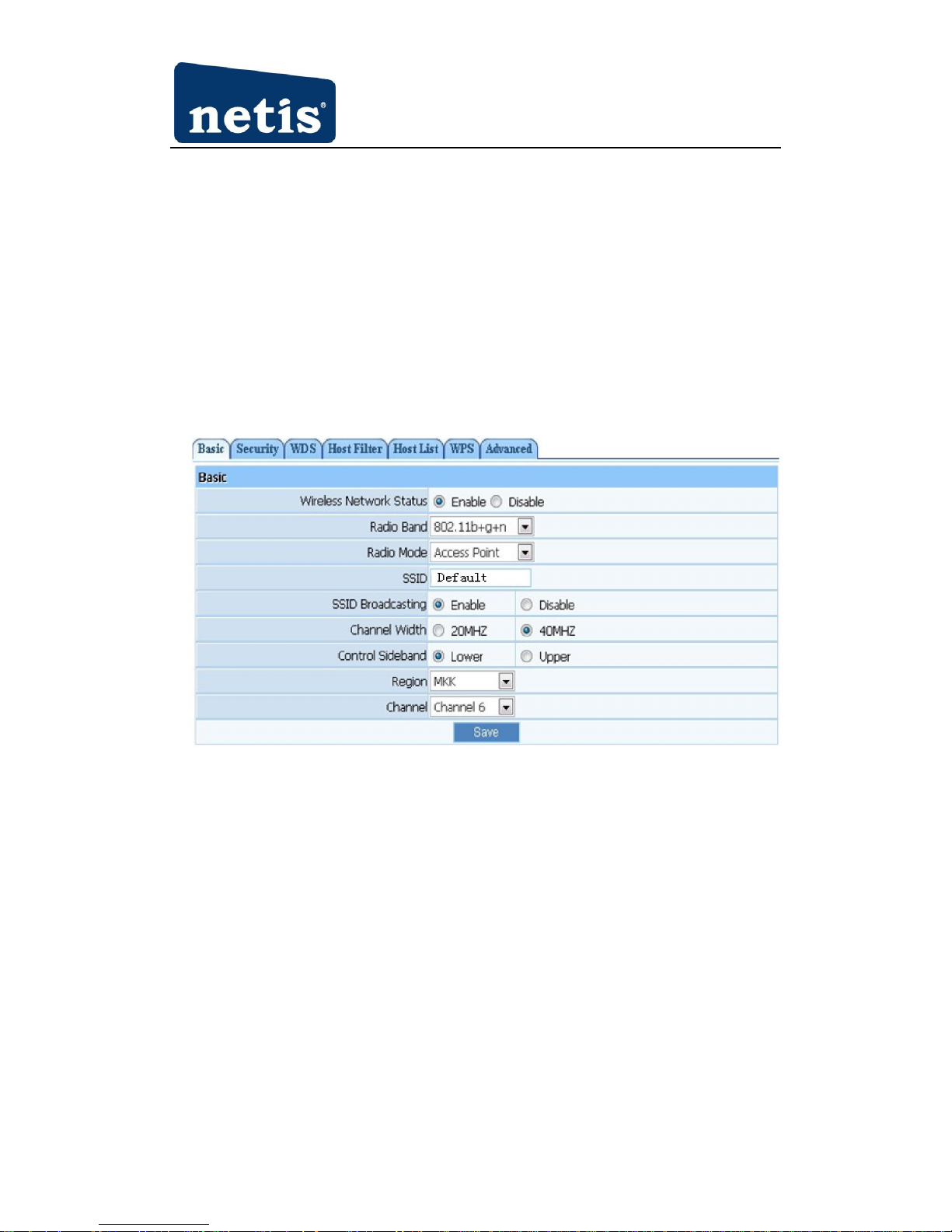

4.3.1.1 Basic ................................................................................................................................. 33

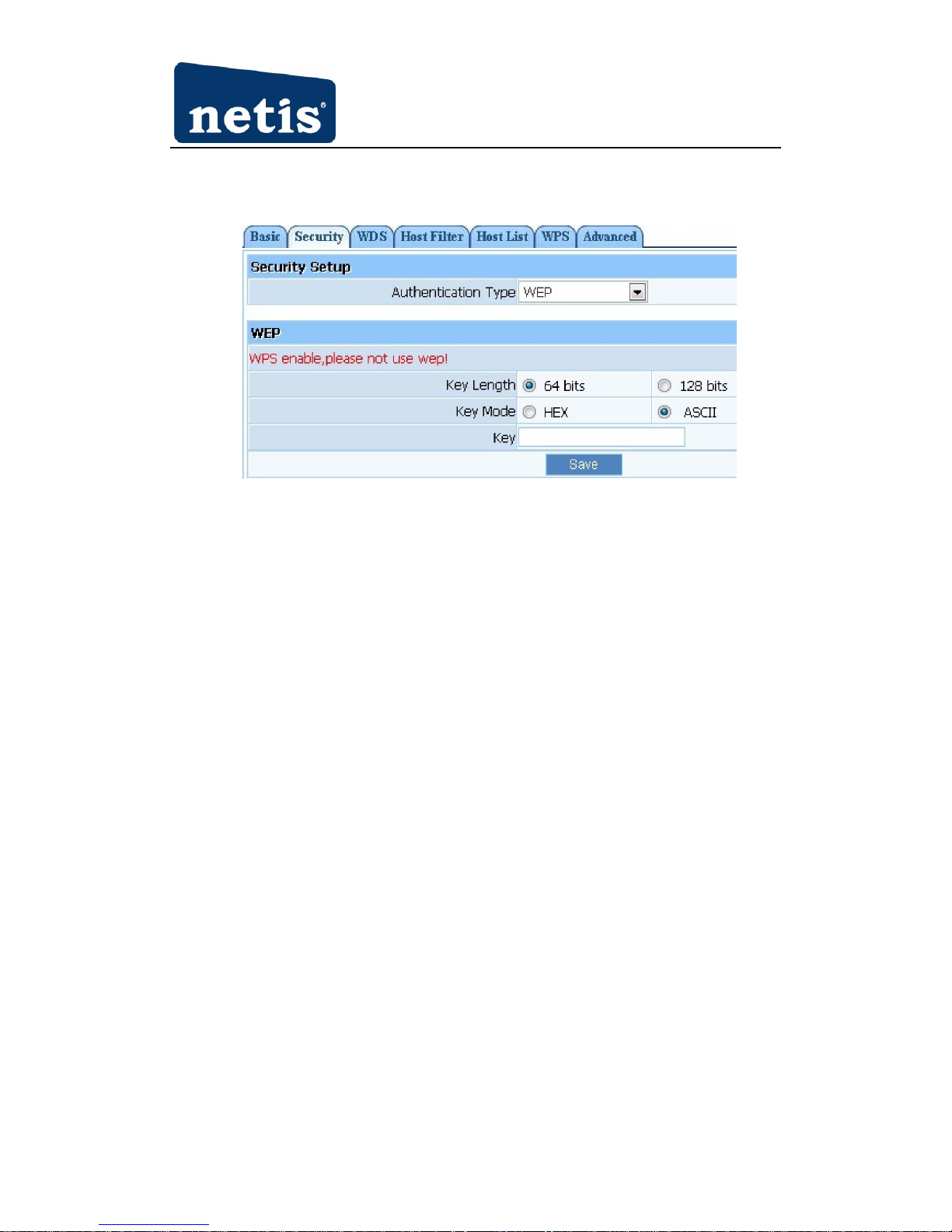

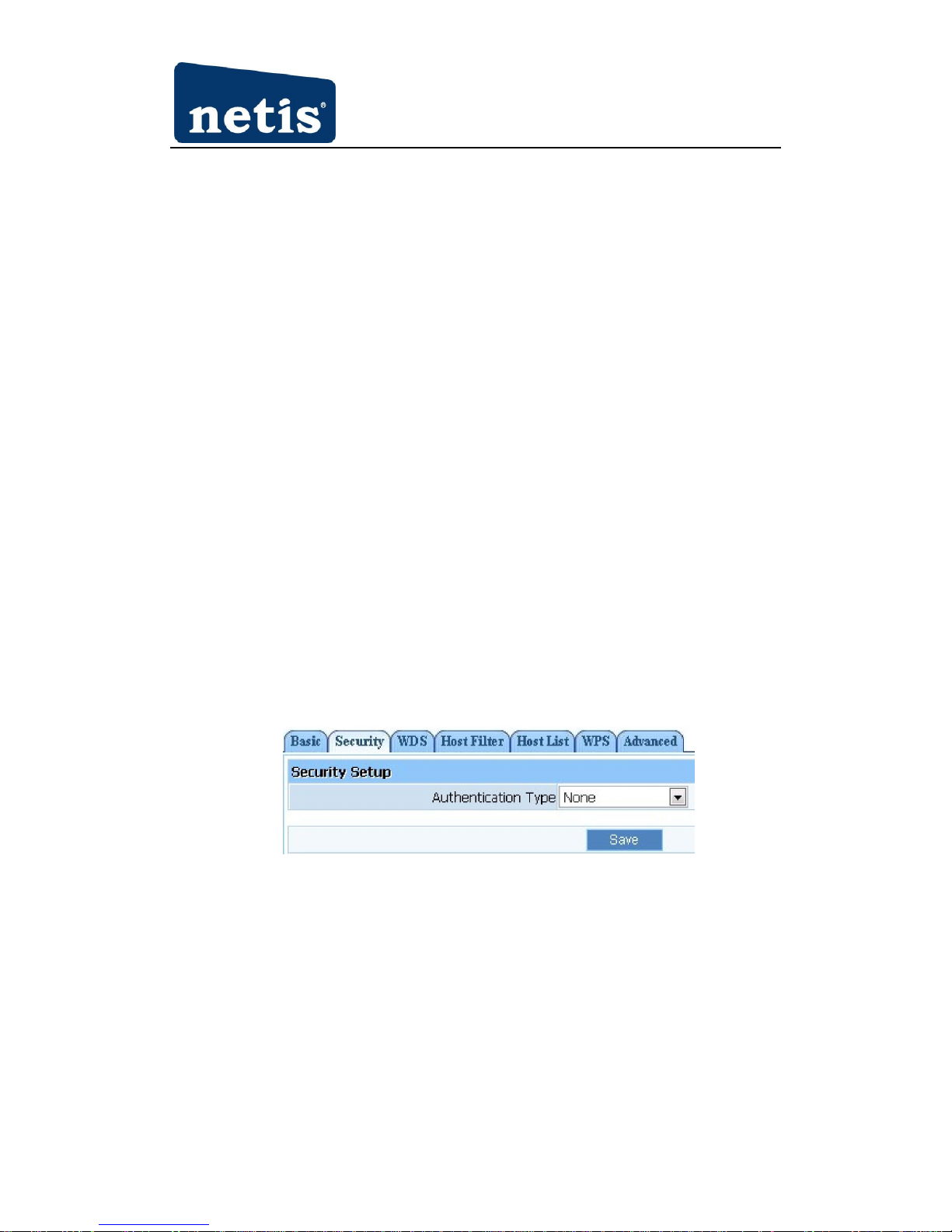

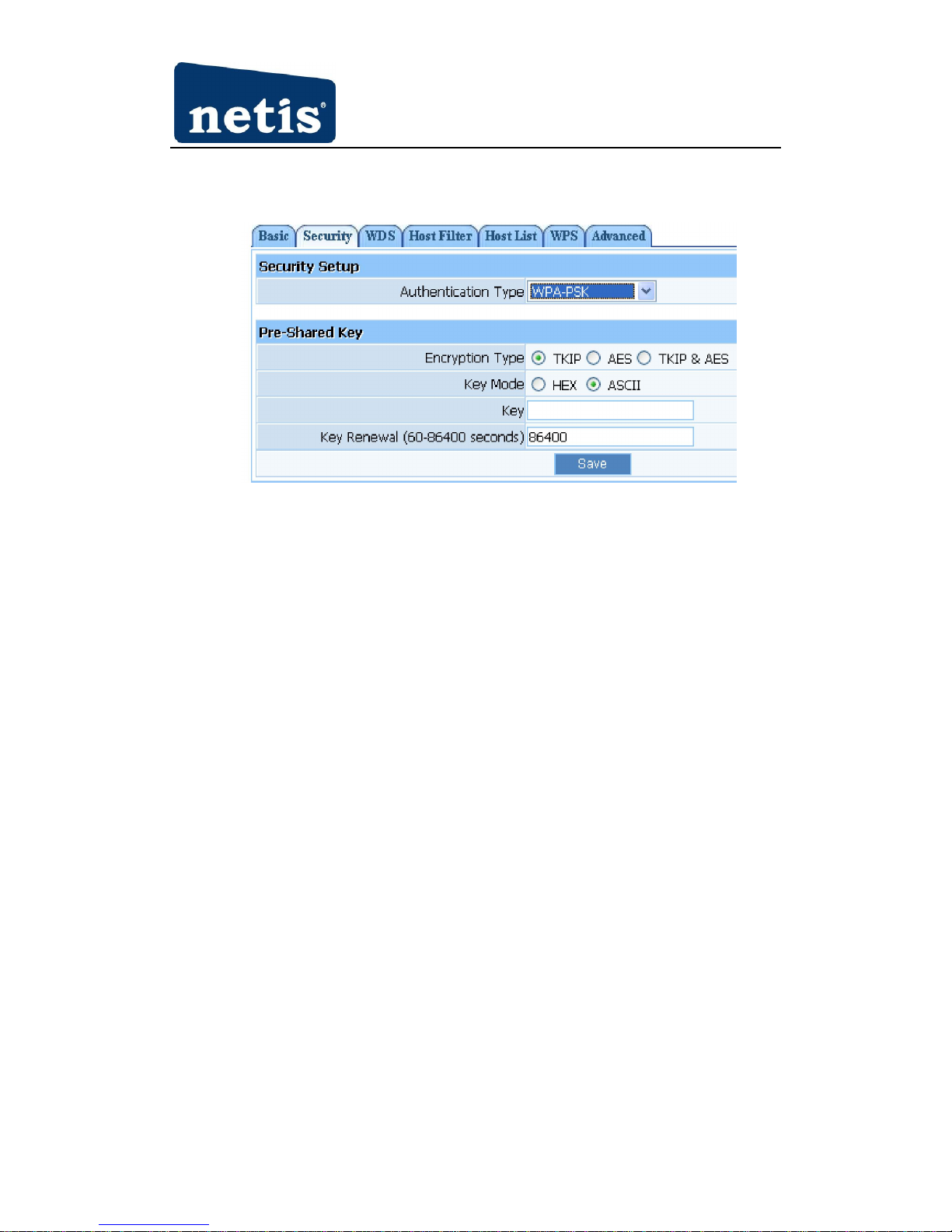

4.3.1.2 Security ............................................................................................................................. 34
4.3.1.3 WDS ................................................................................................................................. 37

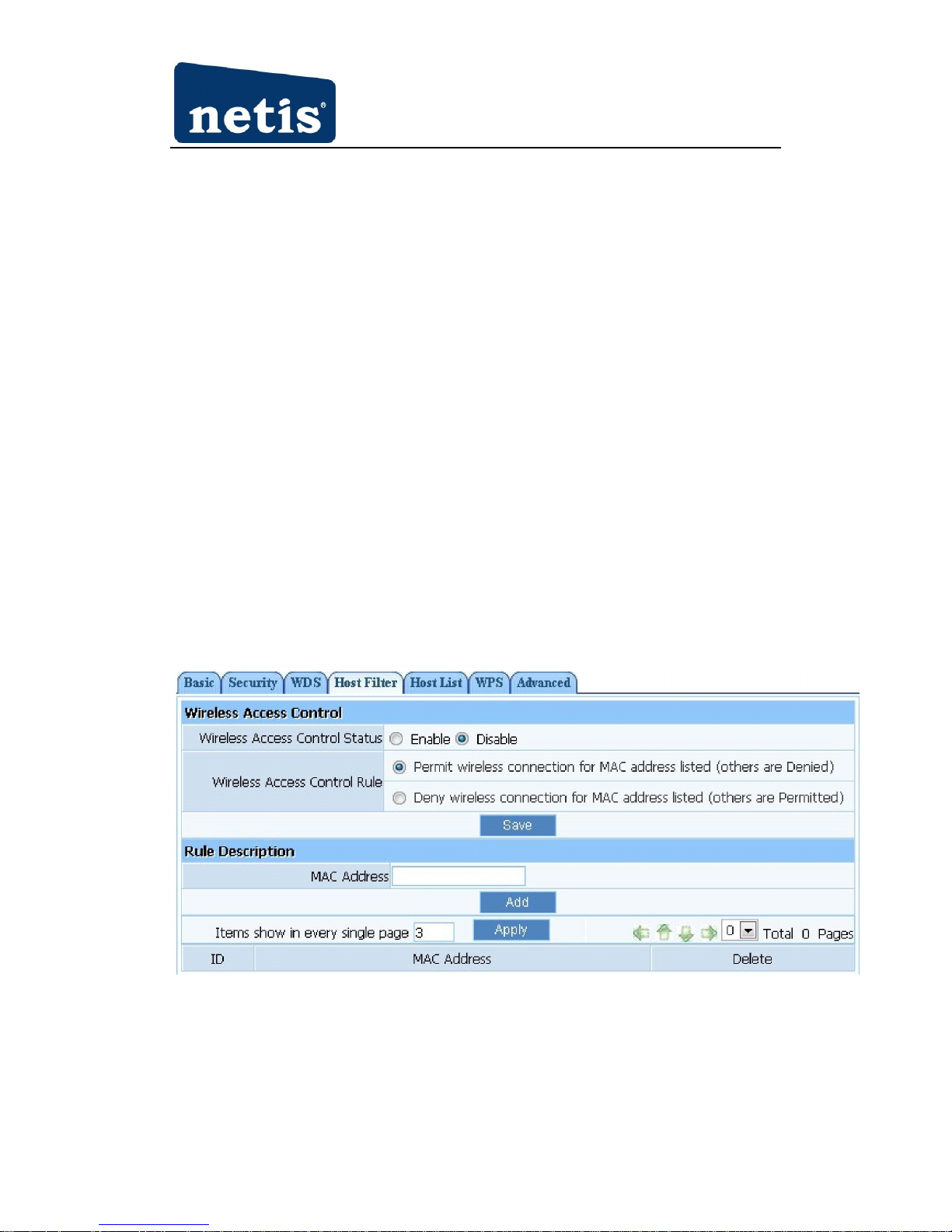

4.3.1.4 Host Filter ......................................................................................................................... 39
4.3.1.5 Host List............................................................................................................................ 40

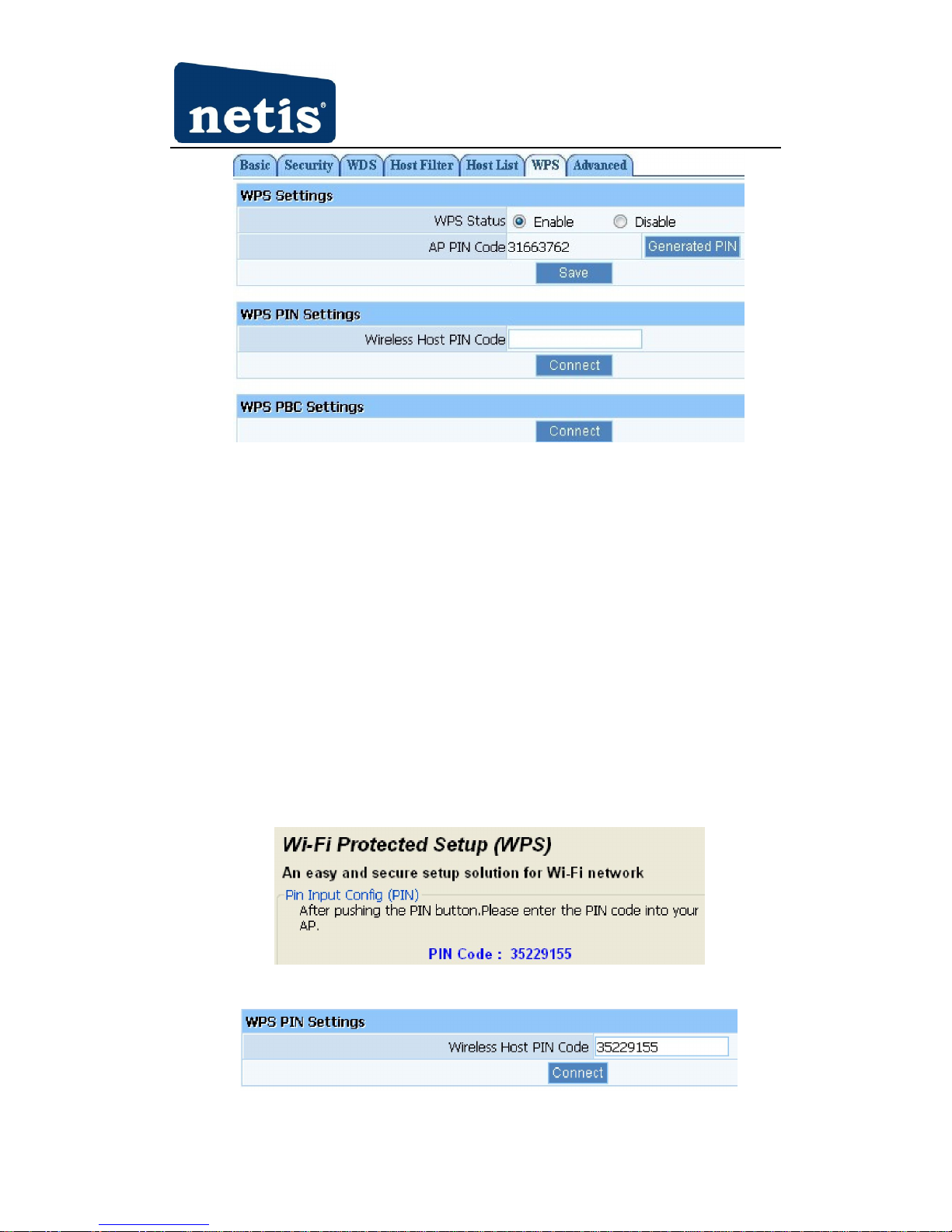

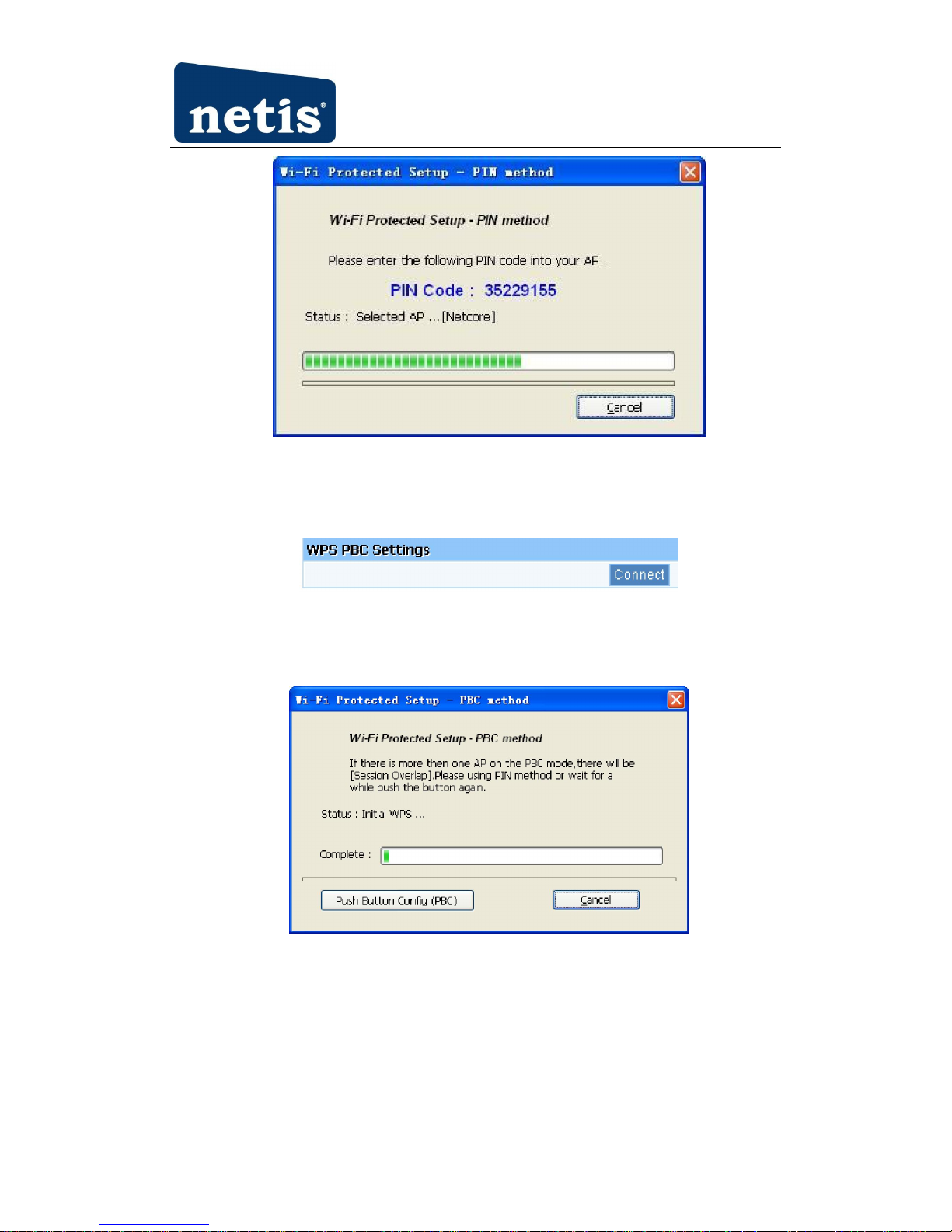

4.3.1.6 WPS .................................................................................................................................. 40
150Mbps Wireless-N Outdoor AP User Manual
4.3.1.7 Advanced .......................................................................................................................... 44
4.3.2 Multiple AP Setup ..................................................................................................... 45
4.4 W
IRELESS
LED T
HRESHOLDS
............................................................................................ 46
4.5 LAN S
ETUP
...................................................................................................................... 46
4.5.1 LAN IP Address ........................................................................................................ 46
4.5.2 DHCP Server ........................................................................................................... 47
4.5.3 DHCP Client Info ..................................................................................................... 47
4.6 A
PPLICATIONS & GAME
..................................................................................................... 48

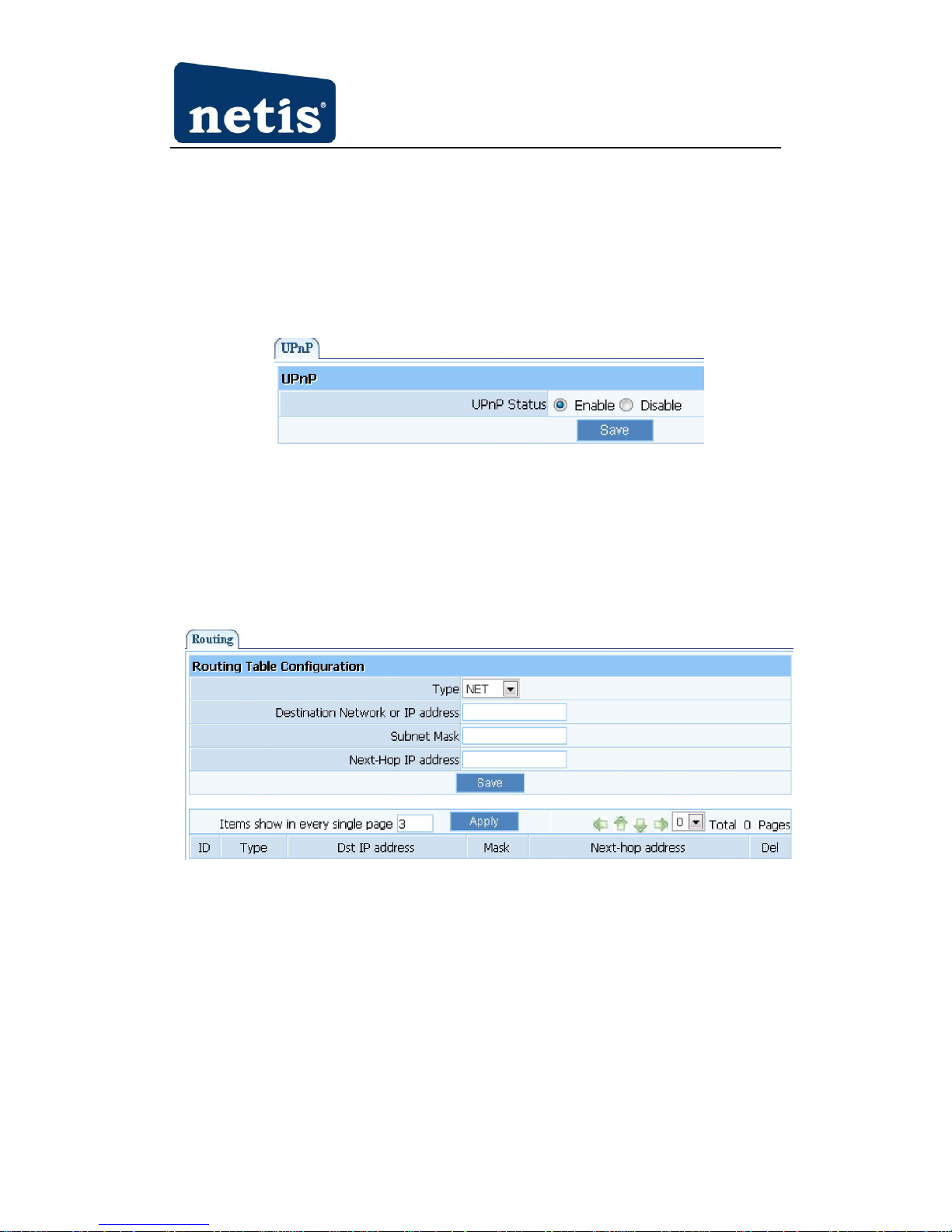

4.6.1 UPnP ....................................................................................................................... 48
4.7 R
OUTING
.......................................................................................................................... 48
4.8 S
YSTEM MANAGEMENT
..................................................................................................... 49

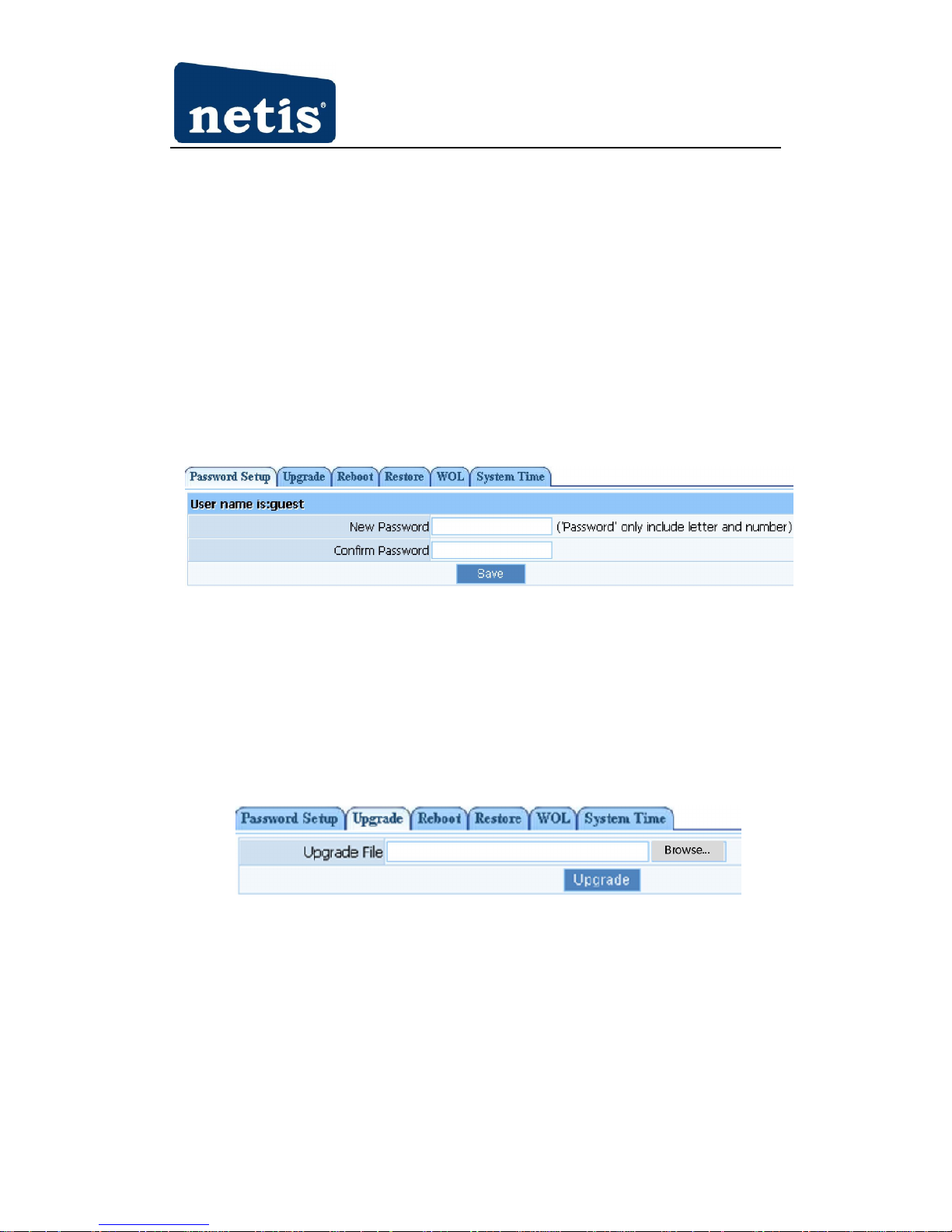

4.8.1 Password Setup ........................................................................................................ 49
4.8.2 Upgrade ................................................................................................................... 49
4.8.3 Reboot ...................................................................................................................... 49
4.8.4 Restore ..................................................................................................................... 50
4.8.5 WOL......................................................................................................................... 50
4.8.6 System Time .............................................................................................................. 50
5 TROUBLESHOOTING ......................................................................................................... 51
150Mbps Wireless-N Outdoor AP User Manual
1 Introduction
1.1 Product Overview
Outdoor AP is dedicated to district Wireless network solution , operating in the 2.4GHz frequency
band, complies with IEEE802.11n technical standards, data transfer rate up to 150Mbps, the
output power of up to 500mA. With all kinds of outdoor antenna for use, cover range, the
Long-distance transmission. It is easy to installation outdoor, hanging, and could use in cold, heat
and other environmental, designed for outdoor environments. Support WEP, WPA, WPA2,
WPA/WPA2 wireless encryption modes, improve security and prevent loiter network. WEB
management and remote management of your real-time monitoring for network management and
provides convenience.
1.2 Main Features
Ø Comply with to IEEE802.11n/g/b、IEEE802.3 10 Base-T、IEEE802.3u 100 Base-TX
standards
Ø Support firmware upgrade
Ø Support WEP，WPA，WPA2 、WPA/WPA2 encryption security
Ø Support basic DHCP server Settings
Ø Support wireless modes: AP, WDS, AP + WDS, client, repeater,Lazy
Ø Support UPnP Settings
Ø Output power up to 27dB, high-gain antenna
Ø Suitable interface with the N-type antenna.
Ø Suitable for outdoor cold, hot environment.
Ø Install simply
150Mbps Wireless-N Outdoor AP User Manual
1.3 Supporting Standard and Protocol
Ø IEEE 802.11b/g/n
Ø IEEE 802.11e
Ø IEEE 802.11h
Ø IEEE 802.11k
Ø IEEE 802.11i
Ø IEEE 802.3 10Base-T
Ø IEEE 802.3u 100Base-TX
1.4 Working Environment
Temperature
Ø -10° to 70° C (operating)
Ø -30° to 80° C (storage)
Humidity
Ø 10% to 90 % non-condensing (operating)
Ø 5% to 90% non-condensing (storage)
Power
Ø DC 18V 0.7A
150Mbps Wireless-N Outdoor AP User Manual
2 Hardware Installation
2.1 System Requirement
Minimum Requirements:
Ø Broadband Internet access service (DSL / Cable / Ethernet)
Ø Internet Explorer® 5.0, Firefox® 2.0 or Safari® 1.4 or higher for Web configuration
Ø 802.11n，802.11g or 802.11b compliant wireless adapters (for wireless connection)
Ø Windows 98/2000/XP/2003/Vista or higher operating system
2.2 Panel
Figure 2-1 Power Adapter
Figure 2-2 Outdoor AP Ethernet port
150Mbps Wireless-N Outdoor AP User Manual
Figure 2-3
LED
Function
ON Power on
Off Power off
On Connection normal
Off Abnormal
Flashing Data transmitting
POE
On Power supply normal
Off Abnormal
Flashing
4 light signal strength above 75%
3 light signal strength medium
Less than 2
light signal strength is
weak.
Off No signal
2.3 Restore to Factory Configuration
If the AP ever freezes in a setting change process or if you can’t access it because you can’t
remember the IP you have given it or other problem, you may have to utilize the reset button on
the back of the AP Power to put it back to factory settings. You have to press this button for a few
seconds (2-6s) when it is working, then release and it will restore settings to the factory
configuration.
The other way to restore factory settings is through the same user interface used in setup. Click on
‘System management’- ‘Restore’, and click on the ‘Restore’ button.
150Mbps Wireless-N Outdoor AP User Manual
2.4 Hardware Installation Procedures
The procedures to install the 150Mbps outdoor AP please refer to
Figure 2-
Figure 2-4
Ø Step 1 connecting Cable/ADSL Modem to the WAN port.
Attach one end of an Ethernet cable to your modem’s Ethernet port, and the other end to one
of the WAN ports of your router.
Ø Step 2 connecting the power adapter.
Attach one end of an Ethernet cable to the Internet access router LAN port, the other end to
the Internet port of power adapter. Then plug the Power Adapter into an AC outlet.
Ø Step 3 connecting the 150Mpbs outdoor adapter.
Connect one side of your Ethernet cable to the POE port of your power adapter, the other
side to the LAN port of the 150Mbps outdoor AP
Ø Step 4 Power on the following devices in this order:
Cable/ADSL modem, Router, AP and PCs
150Mbps Wireless-N Outdoor AP User Manual
3 Login
You can manage the 150Mbps AP through the Web browser-based configuration utility. To
configure the device via Web browser, at least one properly configured computer must be
connected to the device via Ethernet or wireless network. The 150Mbps AP is configured with the
default IP address of 192.168.1.1 and subnet mask of 255.255.255.0 and its DHCP server is
enabled by default. Before setting up the Router, make sure your PCs are configured to obtain an
IP address automatically from the Router by the steps below.
3.1 Configure Computer
3.1.1 Windows 98/Me
1. Go to Start à Settings à Control Panel.
2. Find and double-click the Network icon. The Network dialog box appears.
3. Click the Configuration label and ensure that you have network card.
4. Select TCP/IP. If TCP/IP appears more than once, please select the item that has an arrow “à”
pointing to the network card installed on your computer. DO NOT choose the instance of TCP/IP
with the words “Dial Up Adapter” beside it.
5. Click Properties. The TCP/IP Properties dialog box appears.
6. Ensure the Obtain IP Address Automatically is checked.
7. From the WINS Configuration dialog box, Ensure that Disable WINS Resolution is checked.
8. From the Gateway dialog box, remove all entries from the Installed gateways by selecting them
and clicking Remove.
9. From the DNS Configuration dialog box, remove all entries from the DNS Server Search Order
box by selecting them and clicking Remove. Remove all entries from the Domain Suffix Search
Order box by selecting them and clicking Remove. Click Disable DNS.
10. Click OK, back to Network Configuration dialog box
11. Click OK, if prompted to restart, click YES.
150Mbps Wireless-N Outdoor AP User Manual
3.1.2 Windows 2000
Please follow the steps below to setup your computer:
1. Go to Start à Settings à Control Panel
Figure 3-1
2. Double click the icon Network and Dial-up Connections

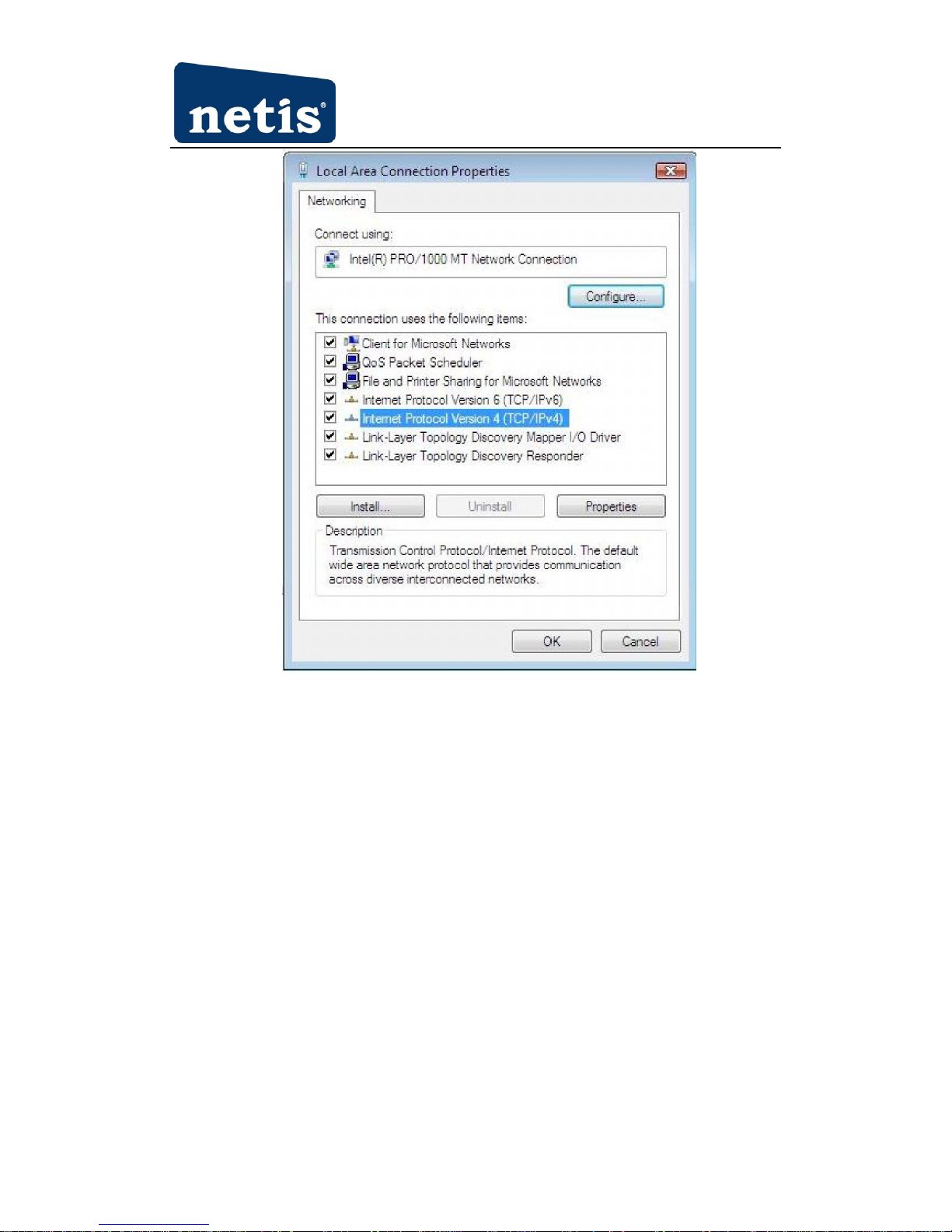

3. Highlight the icon Local Area Connection, right click your mouse, and click Properties
150Mbps Wireless-N Outdoor AP User Manual
Figure 3-2
4. Highlight Internet Protocol (TCP/IP), and then press Properties button
Figure 3-3

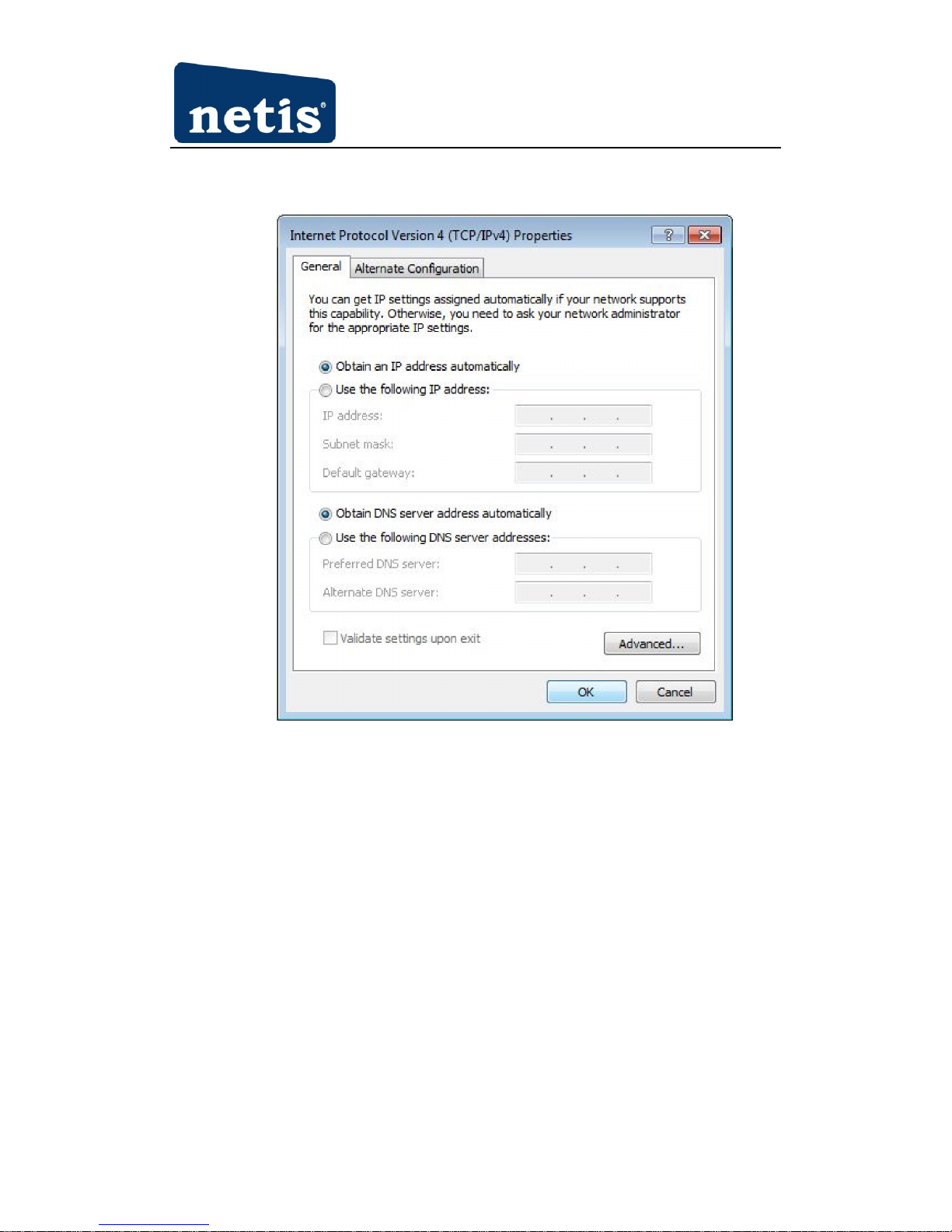

5. Choose Obtain an IP address automatically and Obtain DNS server address automatically, and
then press OK to close the Internet Protocol (TCP/IP) Properties window
150Mbps Wireless-N Outdoor AP User Manual
Figure 3-4
6. Press OK to close the Local Area Connection Properties window
Figure 3-5
3.1.3 Windows XP
Please follow the steps below to setup your computer:
1. Go to Start à Settings à Control Panel
150Mbps Wireless-N Outdoor AP User Manual
2. Click Network and Internet Connections
Figure 3-6
3. Click Network Connections
Figure 3-7

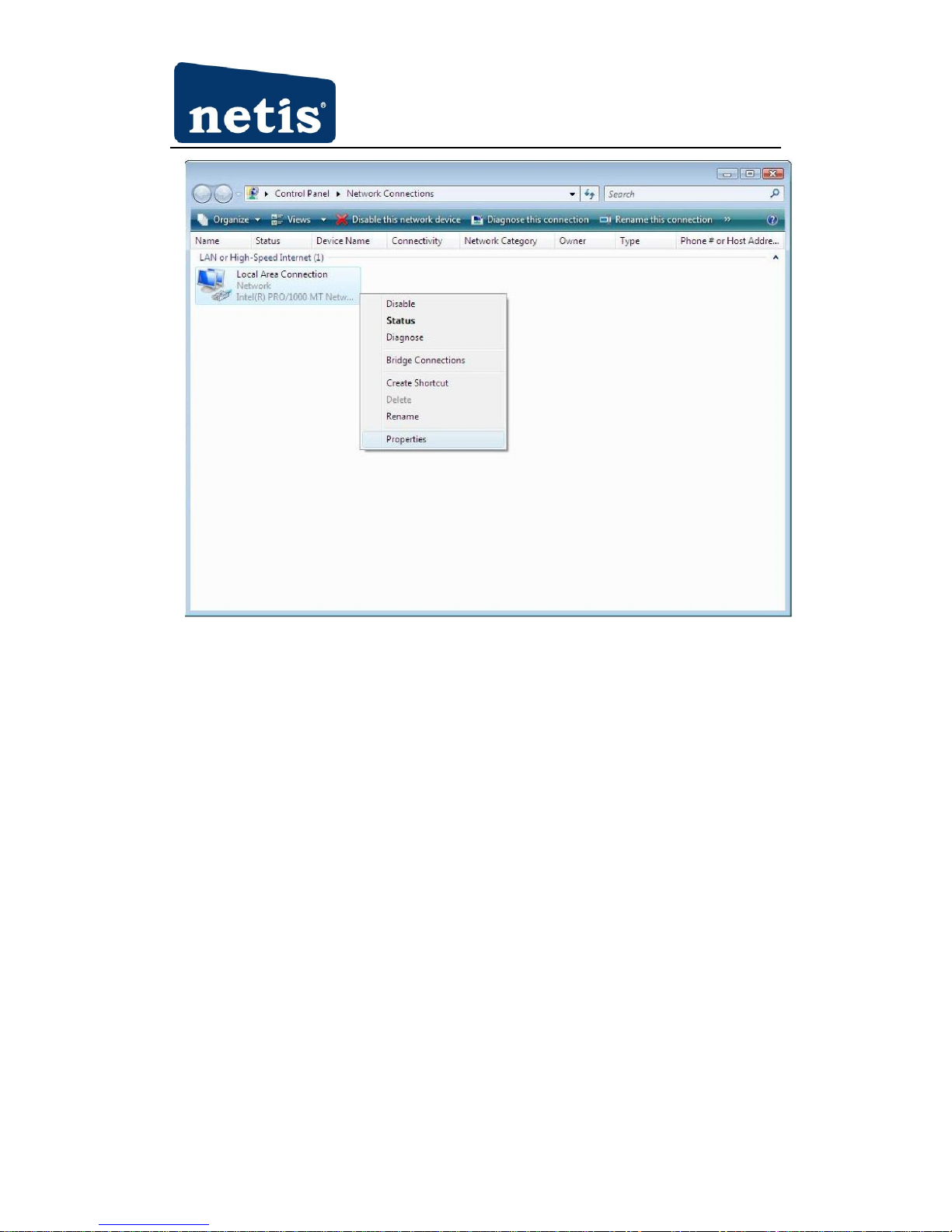

4. Highlight the icon Local Area Connection, right click your mouse, and click Properties
150Mbps Wireless-N Outdoor AP User Manual
Figure 3-8

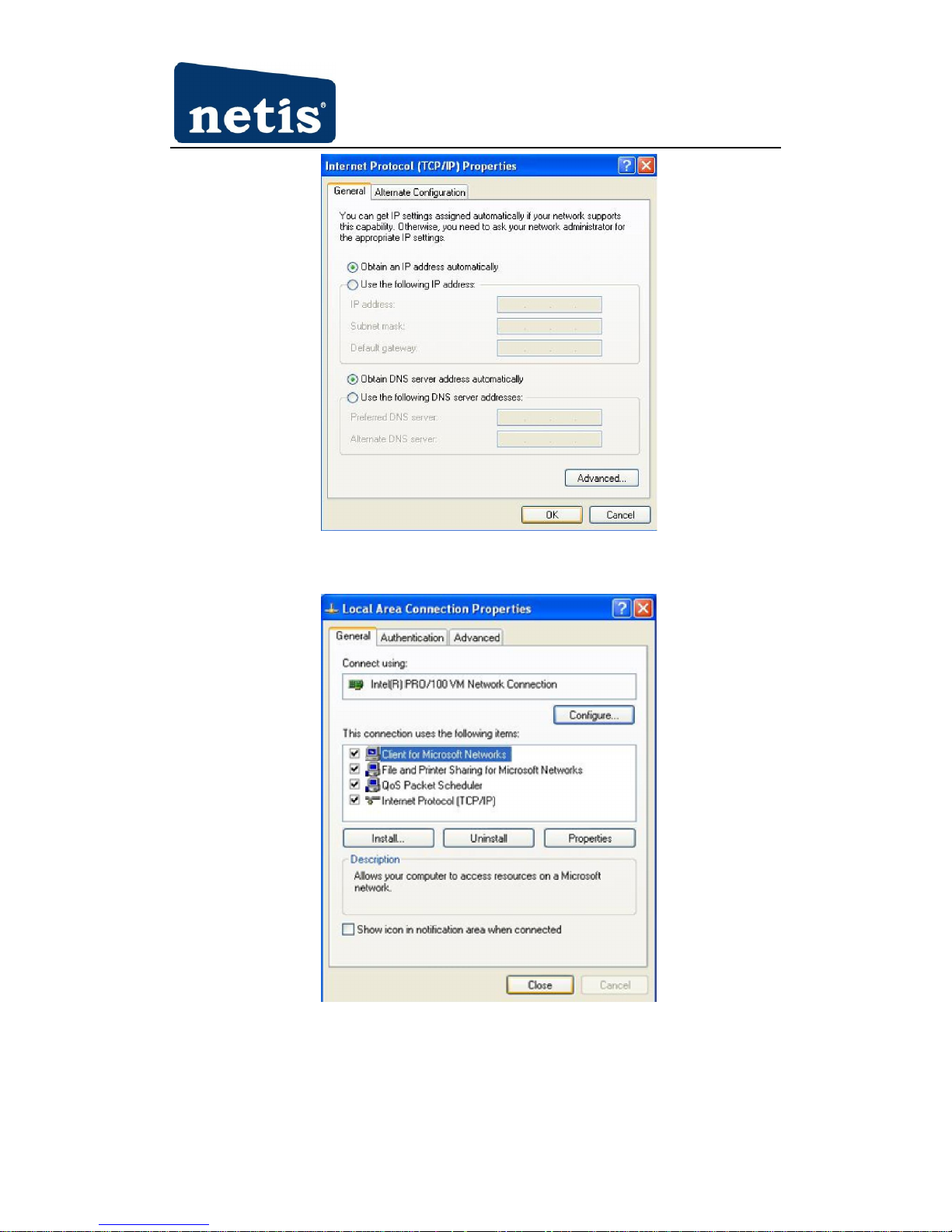

5. Highlight Internet Protocol (TCP/IP), and then press Properties button
Figure 3-9

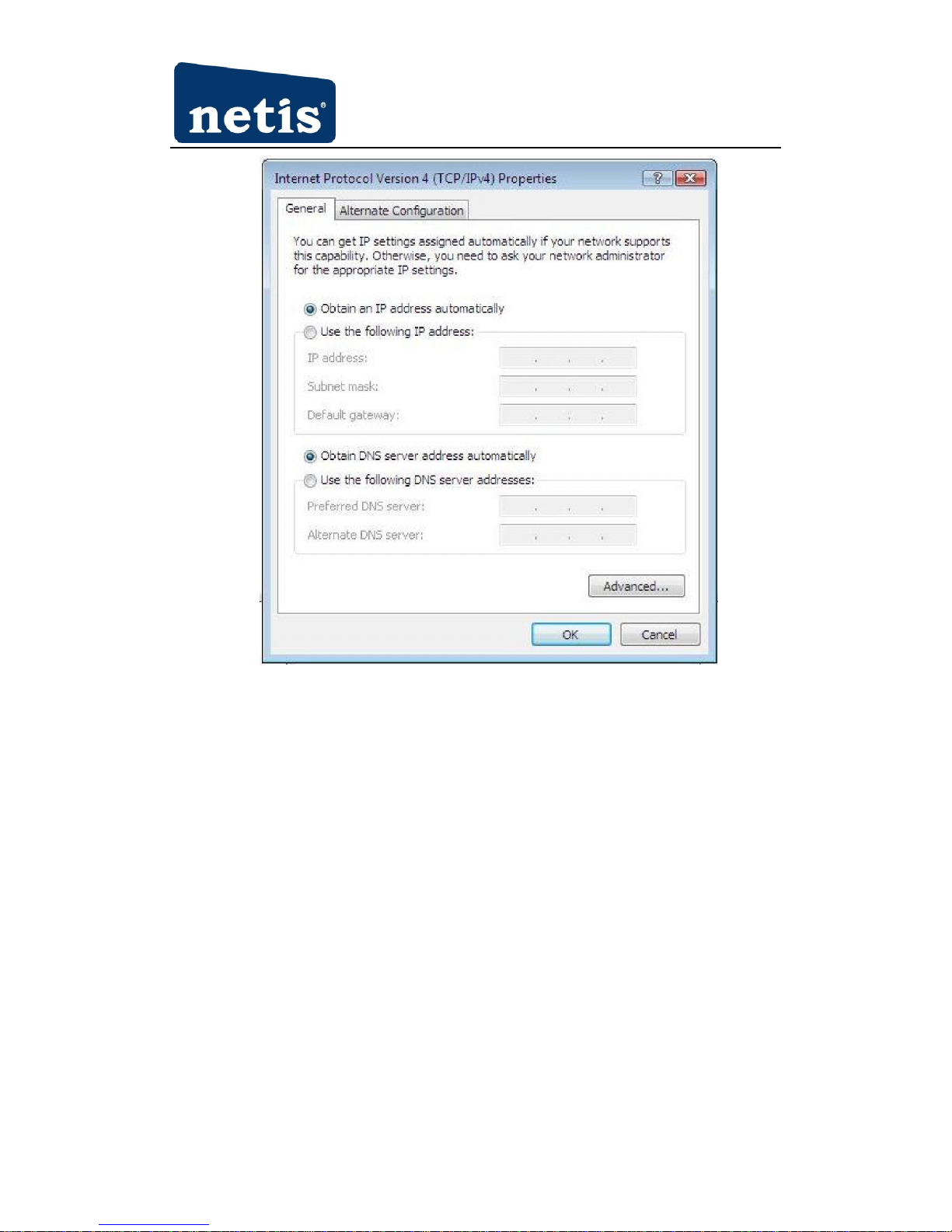

6. Choose Obtain an IP address automatically and Obtain DNS server address automatically, and
then press OK to close the Internet Protocol (TCP/IP) Properties window
Loading...
