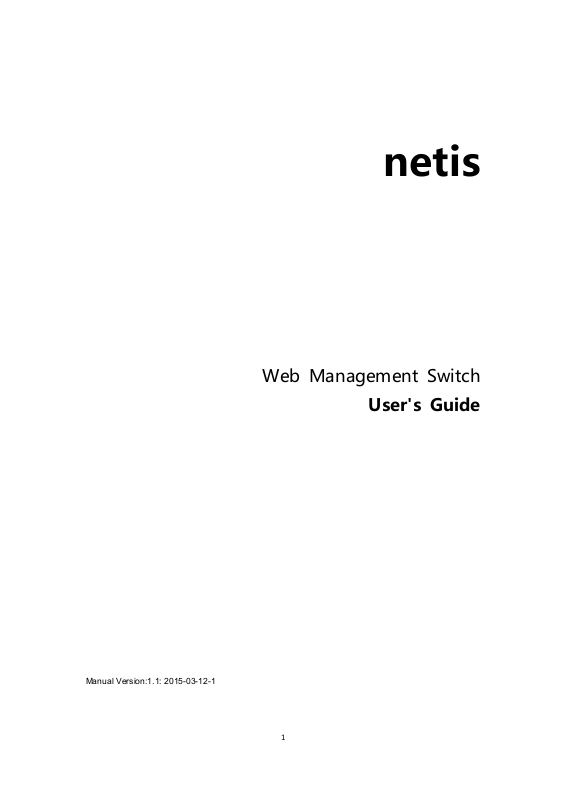

netis
Web Management Switch
User's Guide
Manual Version:1.1: 2015-03-12-1
1
COPYRIGHT & TRADEMARKS
Specifications are subject to change without notice. NETIS is a registered trademark of NETCORE
Technologies Co., Ltd. Other brands and product names are trademarks or registered trademarks
of their respective holders.
No part of the specifications may be reproduced in any form or by any means or used to make
any derivative such as translation, transformation, or adaptation without permission from
NETCORE Technologies Co. Ltd. Copyright, All Rights Reserved.
FCC STATEMENT
Manual Description
This user guide is provided for using this type of switch. The manual includes the switch
performance and function. Please read this manual before managing the device:
Intended Audience
This guide is intended for network administrators familiar with IT concepts and network
terminology.
SAFETY NOTICES
Do not use this product near water, for example, in a wet basement or near a swimming pool.
Avoid using this product during an electrical storm. There may be a remote risk of electric shock
from lightning.
2
TABLE OF CONTENTS
Chapter 1: Introduction ............................................................................................................. 4
1.1 Features .............................................................................................................................. 4
Technical Specifications ............................................................................................................ 4
Chapter 2: Mounting Device ..................................................................................................... 5
2.1 Installation Precautions....................................................................................................... 5
2.2 AC POWER ........................................................................................................................... 5
Chapter3: Login The Device ....................................................................................................... 5
3.1 configure the computer ...................................................................................................... 6
3.1.1 Windows XP ............................................................................................................. 6
3.1.2 Windows 7/Windows Vista ...................................................................................... 9
3.2 Check the connection ........................................................................................................ 12
3.3 Login the device ................................................................................................................ 13
3.4 Functional Overview ......................................................................................................... 14
Chapter4: System .................................................................................................................... 15
4.1 The Home page ................................................................................................................. 15
4.2 System Information ........................................................................................................... 15
4.2.1 IP Address ............................................................................................................... 16
4.2.2 User Account .......................................................................................................... 17
4.2.3 Port Setting ............................................................................................................ 18
4.3 Configuration .................................................................................................................... 18
4.3.1 Link Aggregation ..................................................................................................... 18
4.3.2 VLAN ....................................................................................................................... 19
4.3.3 QoS ......................................................................................................................... 23
4.3.4 Loop Prevention ..................................................................................................... 26
4.3.5 Port-based Mirroring.............................................................................................. 27
4.3.6 Port Isolation .......................................................................................................... 27
4.3.7 Bandwidth Control ................................................................................................. 28
4.3.8 Jumbo Frame .......................................................................................................... 29
4.3.9 MAC Constraint ...................................................................................................... 30
4.3.10 IGMP Snooping ..................................................................................................... 31
4.3.11 EEE ........................................................................................................................ 32
4.4 Security.............................................................................................................................. 33
4.4.1 MAC Address .......................................................................................................... 33
4.4.2 Storm Control Setting ............................................................................................. 35
4.5 Monitoring ........................................................................................................................ 36
4.5.1 Port Statistics ......................................................................................................... 36
3
4.6 Tools .................................................................................................................................. 37
4.6.1 Backup Configuration ............................................................................................. 37
4.6.2 Reboot .................................................................................................................... 38
4.6.3 Save Configuration ................................................................................................. 39
4.6.4 Load Factory Default .............................................................................................. 40
4.6.5 Load Factory Default .............................................................................................. 41
Chapter 1: Introduction
1.1 Features
Support link aggregation.
Support port VLAN and IEEE 802.1Q VLAN.
Support rate limit, port statistics.
Support port mirroring.
Support QoS, providing strict priority.
Support Loop Prevention.
Support MAC Address binding.
Support storm control.
Support the port Isolation.
Support IGMP snooping, multicast probe.
Support WEB-based management.
Support WEB-based firmware upgrade.
Support parameter backup and recovery.
Technical Specifications
For simplicity, we take ST3208 as an example of the product images below.
The ST3208 front panel has 8 10/100M adaptive UTP ports, and the LED indicator. The 8 ports
support 10/100Mbps bandwidth connection device, auto-negotiation capability. Each port
corresponds to a set of indicator, LNK / ACT.
4
Chapter 2: Mounting Device
2.1 Installation Precautions
Ensure the surface on which the device is placed is adequately secured to prevent it from
becoming unstable Ensure the power outlet is placed within 1.8m (6feet) of the device. Ensure
the device is connected safely to the power outlet with the AC power cable. Ensure the device
around good ventilation and heat dissipation
Do not place heavy objects on the device
2.2 AC POWER
The switch can be used with AC power supply 100 to 240V AC, 50 to 60Hz. Switch built-in power
supply system can be the actual input voltage automatically adjusts its operating voltage. The
power connector is located on the rear panel switch.
Disconnect the power cord is a plug on the power switch on the rear panel interface, the other
end plugged into a power outlet.
Chapter3: Login The Device
You can use the web browser-based configuration to manage ST3208. ST3208 to be configured
through a web browser, at least a reasonable allocation of computer through an Ethernet
connection to ST3208.
Figure 3-1
The machine-default IP address is 192.168.2.11, subnet mask is 255.255.255.0. So when you log
on to the switch, make sure the IP address of the computer network card and the IP of the switch
5
in the same network segment: 192.168.2. *** (1 <*** <255, *** is not equal to 11). Reference to
the following steps to set up:
3.1 configure the computer
The Management switch is managed via WEB pages. The smart and friendly interfaces make the
switch management an easy job. Due to the difference of Operating system, the WEB page
display may differ between variable Operating System
3.1.1 Windows XP
Follow these steps to configure your computer:
1.Start-Control Panel
Figure 3-1-1
2. Click ”Network and Internet Connection”.
6
Figure 3-1-2
3.Click ”network connections”.
Figure 3-1-3
4.click right-hand button on the adapter icon and click “Properties”.
7
Figure 3-1-4
5.Double-click “Internet Protocol (TCP/IP)”.
Figure 3-1-5
6.Use the following IP address: enter the IP address 192.168.2. *** (1 <*** <255, *** does not
equal 11,because the default IP address of the switch is 192.168.2.11) , subnetmask
255.255.255.0, default gateway and preferred DNS server is optional and then click OK to close
the Internet Protocol (TCP / IP) properties window.
8
Figure 3-1-6
7.Click “OK” and Close the Local Area Connection Properties window.
Figure 3-1-7
3.1.2 Windows 7/Windows Vista
Follow these steps to configure your computer
1、Start-Control Panel
9
2、Click “Network and Internet ”
3、Click “Change adapter settings”
Figure 3-1-8
Figure 3-1-9
10
Figure 3-1-10
4. Click right-hand button on the adapter icon and click “Properties”
Figure 3-1-11
5.Double click “Internet protocol Version 4(TCP/IPv4)”
Figure 3-1-12
5、Use the following IP address: enter the IP address 192.168.2. *** (1 <*** <255, *** does not
equal 11, because the default IP address of the switch is
192.168.2.11) , subnetmask 255.255.255.0, default gateway and preferred DNS server is optional
and then click OK to close the Internet Protocol (TCP / IP) properties window.
11
Figure 3-1-13
6、Click “OK” and Close the Local Area Connection Properties window
Figure 3-1-14
Notes：
Visa system configuration please refer to 3.1.4.
3.2 Check the connection
After setting the TCP / IP protocol, you can use the Ping command to verify whether the
computer can communicate with ST3208. To perform a ping command, open a command
window, the IP address in the command prompt where the Ping ST3208
12
Windows XP，START-Control，type cmd in the search bar and press Enter
Windows 7，click Start, type cmd in the search bar and press Enter
where the DOS prompt, enter the following command
If the command window return to something like the following:
Figure 3-2-1
Then Connection between ST3208 and computer is successful
If the computer failed to connect on of ST3208, the command window will return the following
content.
Figure 3-2-2
Then make sure that your computer's network settings are correct and the cable is intact.
Caution:
YOU need to use a twisted pair to connect the port of your computer's network card to the
switch port before entering the above command
3.3 Login the device
1、Open IE browser, enter http://192.168.2.11 in the address bar, then return.
13
