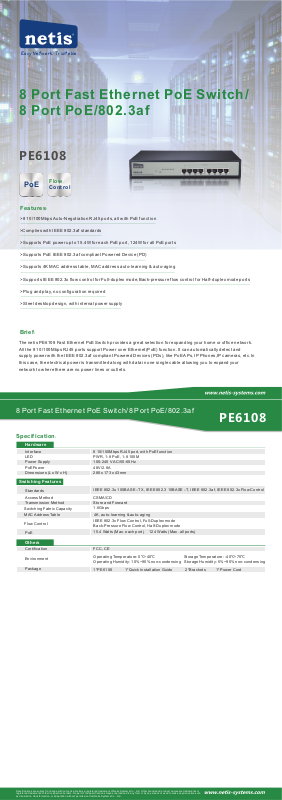

netis PE6108 User Manual

Easy Net work, Trustab le

8 Port Fast Ethernet PoE Switch/
8 Port PoE/802.3af

PE6108

PoE

Flow

Control

Features:

>8 10/100Mbps Auto-Negotiation RJ45 ports, all with PoE f uncti on

>Complies with IEEE 802.3af standards

>Supports PoE power up to 15.4W for each PoE port, 124W f or all Po E ports

>Supports PoE IEEE 802.3af compliant Powered De vice (P D)

>Supports 4K MAC address table, MAC address auto- learn ing & aut o-agi ng

>Supports IEEE 802.3x flow control for Full-dup lex mod e,Bac k-pre ssure f low con trol fo r Half- duple x mode ports




>Plug and play, no c onfig urati on requ ired



>Steel desktop design, with internal power supply

Brief:

The netis PE6108 Fast Ethernet PoE Switch provide s a great s elect ion for e xpand ing you r home or o ffi ce netw ork.

All the 8 10/100Mbps RJ45 ports support Power over Et herne t(PoE ) funct ion. It c an auto matic ally de tect and

supply power with the IEEE 802.3af compliant Powe red Dev ices (P Ds), li ke PoE APs , IP Phones,IP cameras, etc.In

this case, the electrical power is transmitted al ong wit h data in o ne sing le cabl e allow ing you t o expan d your

network to where there are no power lines or outlets.

8 Port Fast Ethernet PoE Switch/8 Port PoE/802.3af

PE6108

Specification:

Hardware

Inter fac e
LED
Power S upp ly

PoEPo wer
Dimen sio ns (L x W x H )

8 10/10 0Mb ps RJ45 port, with PoE f unc tion

PWR, 1- 8 PoE , 1-8 100M
100-2 40 V AC/ 50-60Hz

48V/2 .8A
280 x 173 x 4 3mm

Switching Features

Stand ard s

Acces s Met hod
Tra nsmission Method

Switc hin g Fabric Capacity

MAC Addre ss Table

Flow Co ntr ol

PoE

Others

Certi fic ation

Envir onm ent

Packa ge

IEEE 80 2.3 u 100BASE –TX, IEEE 80 2.3 1 0BASE –T, IEEE 802.3af, I EEE 8 02.3x Flow Control

CSMA/ CD
Store a nd Fo rward

1.6Gb ps

4K, aut o-l earning & auto-agi ng

IEEE 80 2.3 x Flow Control, Full -Du plex mode
Back- Pre ssure Flow Control , Hal f-Duplex mode

15.4 Watts (Max. each por t) 12 4 Watts (Max. a ll po rts)

FCC, CE

Opera tin g Temper atu re: 0℃~40℃ Storage Temperature: - 40℃~7 0℃

Opera tin g Humidity: 10%~90 % non -condensing Stor age H umidity: 5%~9 0% no n-c ondensing

1*PE6 108 1 *Qu ick Installat ion G uide 2*Brackets 1* Pow er Cord

Spe cific ation s are sub ject to c hange w ithou t notic e. Neti sis a reg ister ed trad emark o f Netis S ystem s Co., Lt d. Othe r brand s and pro duct na mes are t radem arks or
reg ister ed trad emark s of thei r respe ctive h older s. No par t of the sp ecifi catio ns mayb e repro duced i n any for m or by any m eans or u sed to ma ke any de rivat ive suc h
as tr ansla tion, t ransf ormat ion, or a dapta tion wi thout p ermis sion fr omNet is Syst ems Co. , Ltd.
