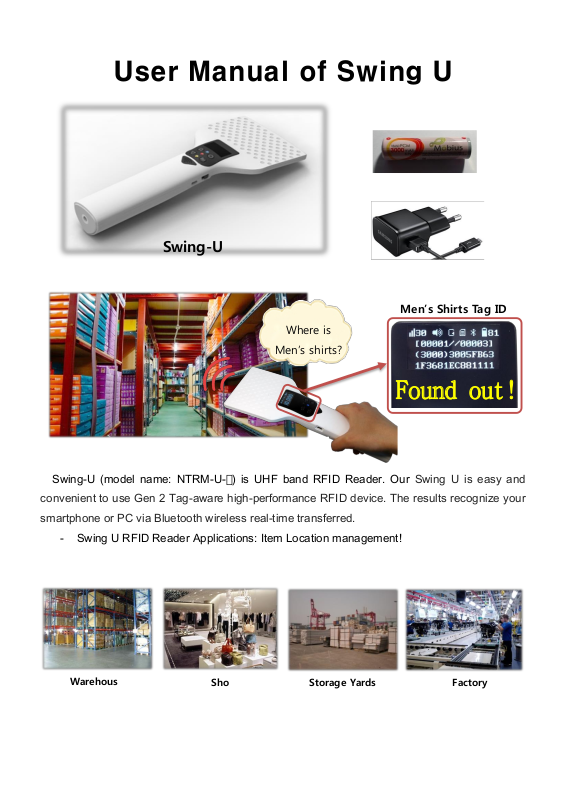

Page 1
User Manual of Swing U
Swing-U
Where is
Men’s shirts?
Men’s Shirts Tag ID
Found out!
Sho
Warehous
Storage Yards
Factory
Swing-U (model name: NTRM-U-) is UHF band RFID Reader. Our Swing U is easy and
convenient to use Gen 2 Tag-aware high-performance RFID device. The results recognize your
smartphone or PC via Bluetooth wireless real-time transferred.
- Swing U RFID Reader Applications: Item Location management!
Page 2
Page 3
Swing-U User Manual 3 / 4
- LCD Display: each function icon, Tag count
- Function:
Menu-Up(△)/Down(▽) Button: Move function of Buzzer, Buzzer event, Reading method, Bluetooth
condition.
Menu-Select/Exit(○) Button: Select function of the menu
F1 Button: Reset Tag counts for 2 sec. push
3. Power On/Off
- push power button for 2 sec. until power on & power off.
4. Tags Reading
- Push reading button then tag reading start.
- During tag reading, push reading button after then working stop.
5. Control Function
- Buzzer Volume up/down and mute, vibrator on/off
- Bluetooth Address check for Bluetooth pairing
- RF Power control
Page 4
Page 5
This equipment has been tested and found to comply with the limits for a Class B digital device,
pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable
protection against harmful interference in a residential installation.
This equipment generates uses and can radiate radio frequency energy and, if not installed and
used in accordance with the instructions, may cause harmful interference to radio
communications.
However, there is no guarantee that interference will not occur in a particular installation. If this
equipment does cause harmful interference to radio or television reception, which can be
determined by turning the equipment off and on, the user is encouraged to try to correct the
interference by one or more of the following measures:
–
Reorient or relocate the receiving antenna.
–
Increase the separation between the equipment and receiver.
–
Connect the equipment into an outlet on a circuit different from that to which the
receiver is connected.
–
Consult the dealer or an experienced radio/TV technical for help.
–
Reorient or relocate the receiving antenna.
–
Increase the separation between the equipment and receiver.
–
Connect the equipment into an outlet on a circuit different from that to which the
receiver is connected.
–
Consult the dealer or an experienced radio/TV technical for help.
WARNING: This equipment may generate or use radio frequency energy. Changes or
modifications to this equipment may cause harmful interference unless the modifications are
expressly approved in the instruction manual. The user could lose the authority to operate this
equipment if an unauthorized change or modification is made.
This device complies with Part 15 of the FCC`s Rules. Operation is subject to the following two
Conditions:
1. This device may not cause harmful interference, and
2. This device must accept ant interference received, including interference that may
cause undesirable operation.
Hereby, NetHom Co.,Ltd. declares that this NTRM-U-2 is in compliance with the essential
requirements and other relevant provisions of directive 1999/5/EC.
CAUTION : RISK OF EXPLOSION IF BATTERY IS REPLACED BY AN INCORRECT TYPE. DISPOSE OF
USED BATTERIES ACCORDING TO THE INSTRUCTIONS.
