Netgear orporated 09400127 User Manual

WNHD3004 User Manual

NETGEAR, Inc.

350 East Plumeria Drive
San Jose, CA 95134, USA

© 2010 by NETGEAR, Inc. All rights reserved.

Cesky
[Czech]

NETGEAR Inc. tímto prohlašuje, že tento Radiolan je ve shode se základními
požadavky a dalšími príslušnými ustanoveními smernice 1999/5/ES.

Dansk
[Danish]

Undertegnede NETGEAR Inc. erklærer herved, at følgende udstyr Radiolan overholder
de væsentlige krav og øvrige relevante krav i direktiv 1999/5/EF.

Deutsch
[German]

Hiermit erklärt NETGEAR Inc., dass sich das Gerät Radiolan in Übereinstimmung mit
den grundlegenden Anforderungen und den übrigen einschlägigen Bestimmungen der
Richtlinie 1999/5/EG befindet.

Product Registration, Support, and Documentation

Register your product at http://www.netgear.com/register. Registration is required before you can use our telephone
support service. Product updates and Web support are always available at http://www.netgear.com/support.
Setup documentation is available on the support website, and on the documentation website. When the wireless
bridge is connected to the Internet, click the Knowledge Base or the Documentation link under Web Support on the
main menu to view support information.

Trademarks

NETGEAR and the NETGEAR logo are registered trademarks of NETGEAR Inc. in the United States and/or other
countries. Microsoft, Windows, and Windows NT are registered trademarks and Windows Vista is a trademark of
Microsoft Corporation. Other brand and product names are registered trademarks or trademarks of their respective
holders.

Statement of Conditions

In the interest of improving internal design, operational function, and/or reliability, NETGEAR reserves the right to
make changes to the products described in this document without notice.
NETGEAR does not assume any liability that may occur due to the use or application of the product(s) or circuit
layout(s) described herein.

Certificate of the Manufacturer/Importer

It is hereby certified that the 5 GHz Wireless-N HD Access Point/Bridge WNHD3004 has been suppressed in
accordance with the conditions set out in the BMPT-AmtsblVfg 243/1991 and Vfg 46/1992. The operation of some
equipment (for example, test transmitters) in accordance with the regulations may, however, be subject to certain
restrictions. Please refer to the notes in the operating instructions.
Federal Office for Telecommunications Approvals has been notified of the placing of this equipment on the market
and has been granted the right to test the series for compliance with the regulations.

Bestätigung des Herstellers/Importeurs

Es wird hiermit bestätigt, daß das 5 GHz Wireless-N HD Access Point/Bridge WNHDE111 gemäß der im
BMPTAmtsblVfg 243/1991 und Vfg 46/1992 aufgeführten Bestimmungen entstört ist. Das vorschriftsmäßige
Betreiben einiger Geräte (z.B. Testsender) kann jedoch gewissen Beschränkungen unterliegen. Lesen Sie dazu bitte
die Anmerkungen in der Betriebsanleitung.as Bundesamt für Zulassungen in der Telekommunikation wurde davon
unterrichtet, daß dieses Gerät auf den Markt gebracht wurde und es ist berechtigt, die Serie auf die Erfüllung der
Vorschriften hin zu überprüfen.

Regulatory Compliance Information

This section includes user requirements for operating this product in accordance with National laws for usage of radio
spectrum and operation of radio devices. Failure of the end-user to comply with the applicable requirements may
result
in unlawful operation and adverse action against the end-user by the applicable National regulatory authority.

Europe – EU Declaration of Conformity

Marking by the above symbol indicates compliance with the Essential Requirements of the R&TTE Directive of the
European Union (1999/5/EC). This equipment meets the following conformance standards:
EN300 328, EN301 489-17, EN60950

A printed copy of the EU Declaration of Conformity certificate for this product is provided in the
WNHD3004 product package.

Europe – Declaration of Conformity in Languages of the European Community

© 2010 by NETGEAR, Inc. All rights reserved.

Eesti
[Estonian]

Käesolevaga kinnitab NETGEAR Inc. seadme Radiolan vastavust direktiivi 1999/5/EÜ
põhinõuetele ja nimetatud direktiivist tulenevatele teistele asjakohastele sätetele.
English Hereby, NETGEAR Inc., declares that this Radiolan is in compliance with the essential
requirements and other relevant provisions of Directive 1999/5/EC.

Español
[Spanish]

Por medio de la presente NETGEAR Inc. declara que el Radiolan cumple con los
requisitos esenciales y cualesquiera otras disposiciones aplicables o exigibles de la
Directiva 1999/5/CE.

English

Hereby, NETGEAR Inc., declares that this Radiolan is in compliance with the essential
requirements and other relevant provisions of Directive 1999/5/EC.

Ελληνική
[Greek]

ΜΕ ΣΗΝ ΠΑΡΟΤ΢Α NETGEAR Inc. ΔΗΛΩΝΕΙ ΟΣΙ Radiolan ΢ΤΜΜΟΡΦΩΝΕΣΑΙ
ΠΡΟ΢ ΣΙ΢ ΟΤ΢ΙΩΔΕΙ΢ ΑΠΑΙΣΗ΢ΕΙ΢ ΚΑΙ ΣΙ΢ ΛΟΙΠΕ΢ ΢ΥΕΣΙΚΕ΢ ΔΙΑΣΑΞΕΙ΢ ΣΗ΢
ΟΔΗΓΙΑ΢ 1999/5/ΕΚ.

Français
[French]

Par la présente NETGEAR Inc. déclare que l'appareil Radiolan est conforme aux
exigences essentielles et aux autres dispositions pertinentes de la directive 1999/5/CE.
Italiano [Italian] Con la presente NETGEAR Inc. dichiara che questo Radiolan è conforme ai
requisiti essenziali ed alle altre disposizioni pertinenti stabilite dalla direttiva 1999/5/CE.

Italiano
[Italian]

Con la presente NETGEAR Inc. dichiara che questo Radiolan è conforme ai requisiti
essenziali ed alle altre disposizioni pertinenti stabilite dalla direttiva 1999/5/CE.

Latviski
[Latvian]

Ar šo NETGEAR Inc. deklarē, ka Radiolan atbilst Direktīvas 1999/5/EK būtiskajām
prasībām un citiem ar to saistītajiem noteikumiem.

Lietuvių

[Lithuanian]

Šiuo NETGEAR Inc. deklaruoja, kad šis Radiolan atitinka esminius reikalavimus ir kitas
1999/5/EB Direktyvos nuostatas.

Nederlands
[Dutch]

Hierbij verklaart NETGEAR Inc. dat het toestel Radiolan in overeenstemming is met de
essentiële eisen en de andere relevante bepalingen van richtlijn 1999/5/EG.
Malti [Maltese] Hawnhekk, NETGEAR Inc., jiddikjara li dan Radiolan jikkonforma mal-htigijiet
essenzjali u ma provvedimenti ohrajn relevanti li hemm fid-Dirrettiva 1999/5/EC.

Magyar
[Hungarian]

Alulírott, NETGEAR Inc. nyilatkozom, hogy a Radiolan megfelel a vonatkozó alapvetõ
követelményeknek és az 1999/5/EC irányelv egyéb elõírásainak.

Polski [Polish] Niniejszym NETGEAR Inc. oświadcza, że Radiolan jest zgodny z zasadniczymi
wymogami oraz pozostałymi stosownymi postanowieniami Dyrektywy 1999/5/EC.

Português

Português
[Portuguese]

NETGEAR Inc. declara que este Radiolan está conforme com os requisitos essenciais
e outras disposições da Directiva 1999/5/CE.

Slovensko
[Slovenian]

NETGEAR Inc. izjavlja, da je ta Radiolan v skladu z bistvenimi zahtevami in ostalimi
relevantnimi določili direktive 1999/5/ES.

Slovensky
[Slovak]

NETGEAR Inc. týmto vyhlasuje, _e Radiolan spĺňa základné po_iadavky a všetky
príslušné ustanovenia Smernice 1999/5/ES.

Suomi
[Finnish]

NETGEAR Inc. vakuuttaa täten että Radiolan tyyppinen laite on direktiivin 1999/5/EY
oleellisten vaatimusten ja sitä koskevien direktiivin muiden ehtojen mukainen.

Svenska
[Swedish]

Härmed intygar NETGEAR Inc. att denna Radiolan står I överensstämmelse med de
väsentliga egenskapskrav och övriga relevanta bestämmelser som framgår av direktiv
1999/5/EG.

Íslenska
[Icelandic]

Hér með lýsir NETGEAR Inc. yfir því að Radiolan er í samræmi við grunnkröfur og aðrar
kröfur, sem gerðar eru í tilskipun 1999/5/EC.

Norsk
[Norwegian]

NETGEAR Inc. erklærer herved at utstyret Radiolan er i samsvar med de
grunnleggende krav og øvrige relevante krav i direktiv 1999/5/EF.

FCC Requirements for Operation in the United States

FCC Information to User

This product does not contain any user serviceable components and is to be used with approved antennas only. Any
product changes or modifications will invalidate all applicable regulatory certifications and approvals.

FCC Guidelines for Human Exposure

This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This
equipment should be installed and operated with minimum distance of 20 cm between the radiator and your body.

© 2010 by NETGEAR, Inc. All rights reserved.

This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter.

FCC Declaration Of Conformity

We NETGEAR, Inc., 4500 Great America Parkway, Santa Clara, CA 95054, declare under our sole responsibility that
the model WNHDE111 5 GHz Wireless-N HD Access Point/Bridge WNHDE111 complies with Part 15 of FCC Rules.
Operation is subject to the following two conditions:

• This device may not cause harmful interference, and

• This device must accept any interference received, including interference that may cause undesired operation.

FCC Radio Frequency Interference Warnings & Instructions

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15
of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a
residential installation. This equipment uses and can radiate radio frequency energy and, if not installed and used in
accordance with the instructions, may cause harmful interference to radio communications. However, there is no
guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference
to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged
to try to correct the interference by one or more of the following methods:

• Reorient or relocate the receiving antenna.

• Increase the separation between the equipment and the receiver.

• Connect the equipment into an electrical outlet on a circuit different from that which the radio receiver is connected.

• Consult the dealer or an experienced radio/TV technician for help.

Modifications made to the product, unless expressly approved by NETGEAR, Inc., could void the user's right to
operate the equipment.

Caution to Canada users

High power radars are allocated as primary users (meaning they have priority) of 5250-5350 MHz and 5650-5850
MHz and these radars could cause interference and/or damage to LELAN devices.

Operation is subject to the following two conditions:

1) This device may not cause interference and

2) This device must accept any interference, including interference that may cause undesired operation of the device.

IMPORTANT NOTE:

IC Radiation Exposure Statement:

This equipment complies with IC radiation exposure limits set forth for an uncontrolled environment. End users must
follow the specific operating instructions for satisfying RF exposure compliance. This equipment should be installed
and operated with minimum distance 20cm between the radiator & your body.

This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter.

Maximum Wireless Signal Rate Derived from IEEE Standard 802.11 Specifications

Actual data throughput will vary. Network conditions and environmental factors, including volume of network traffic,
building materials and construction, and network overhead, lower actual data throughput rate.

© 2010 by NETGEAR, Inc. All rights reserved.

TABLE OF CONTENTS

OPERATION OVERVIEW .....................................................................................5

LED DEFINITION ..................................................................................................5

3-WAY SWITCH ON THE BACK PANEL .............................................................6

GUI FUNCTIONS ..................................................................................................7

TROUBLESHOOTING TIPS ............................................................................... 21

APPENDIX A ...................................................................................................... 22

TECHNICAL SPECIFICATIONS ........................................................................ 22

INDEX ................................................................................................................. 22

Operation Overview

The AP/Bridge by default runs “Auto” mode, in this mode, it will detect if it’s wired connected to

a router (with DHCP server), if so, it will automatically set itself to “Access Point” (the GUI will
show AP banner), this will take about 30~60 seconds. If no DHCP is detected through wired
connection, it will set itself to “Bridge” (Station) mode (the GUI will show Bridge banner), this
takes about 60~90 seconds.

In Auto mode, if no DHCP server is detected, it runs in Bridge mode, but if DHCP server is later
detected, and this bridge is not connected to any Access Point, it will automatically switch to
Access Point mode.

By default, the units run in DHCP client mode, that means AP and Bridge (if connected to the
AP) will both get DHCP IPs from the router.

The device has a built-in web server, accessible through PC browsers.
If the PC is directly connected to the device, the PC can access http://www.mywifiext.net to

access the device GUI.

If the PC is directly connected to the router, then the user needs to log in the router’s

configuration GUI, finds out what DHCP IPs the devices (both AP and STA) get, then connect to
their GUIs by browsing to their IP addresses.

LED Definition

There are 3 LEDs on the front of the unit, from top to bottom:

© 2010 by NETGEAR, Inc. All rights reserved.

Power LED
Wireless Speed LED
WPS LED
Their behaviors are:
Power LED:

- flashing green(quick, 0.2 sec) > unit booting with normal firmware

- flashing green(slow, 0.8 sec) > unit ready, but no STA associated for AP, or STA not

associated with AP

- Solid green: AP and STA associated.

Wireless Speed LED:
AP:

- Solid green: At least 1 client is associated with the AP

- OFF if AP has no STA associated with it.

STA:

- solid red when strength is very weak

- solid orange when speed is less than 50Mbps

- solid green when speed is more than 50Mbps

- OFF if STA is not associated with any AP

WPS LED:
Blinking: WPS in progress

3-way Switch on the back panel

Auto/Access Point/Station

© 2010 by NETGEAR, Inc. All rights reserved.

In Auto mode, it will set itself dynamically to AP or Station mode, depending on if it’s

wired to a DHCP server/Router.

If set to “Access Point” or “Station”, the unit will only run always as AP or STA mode then.

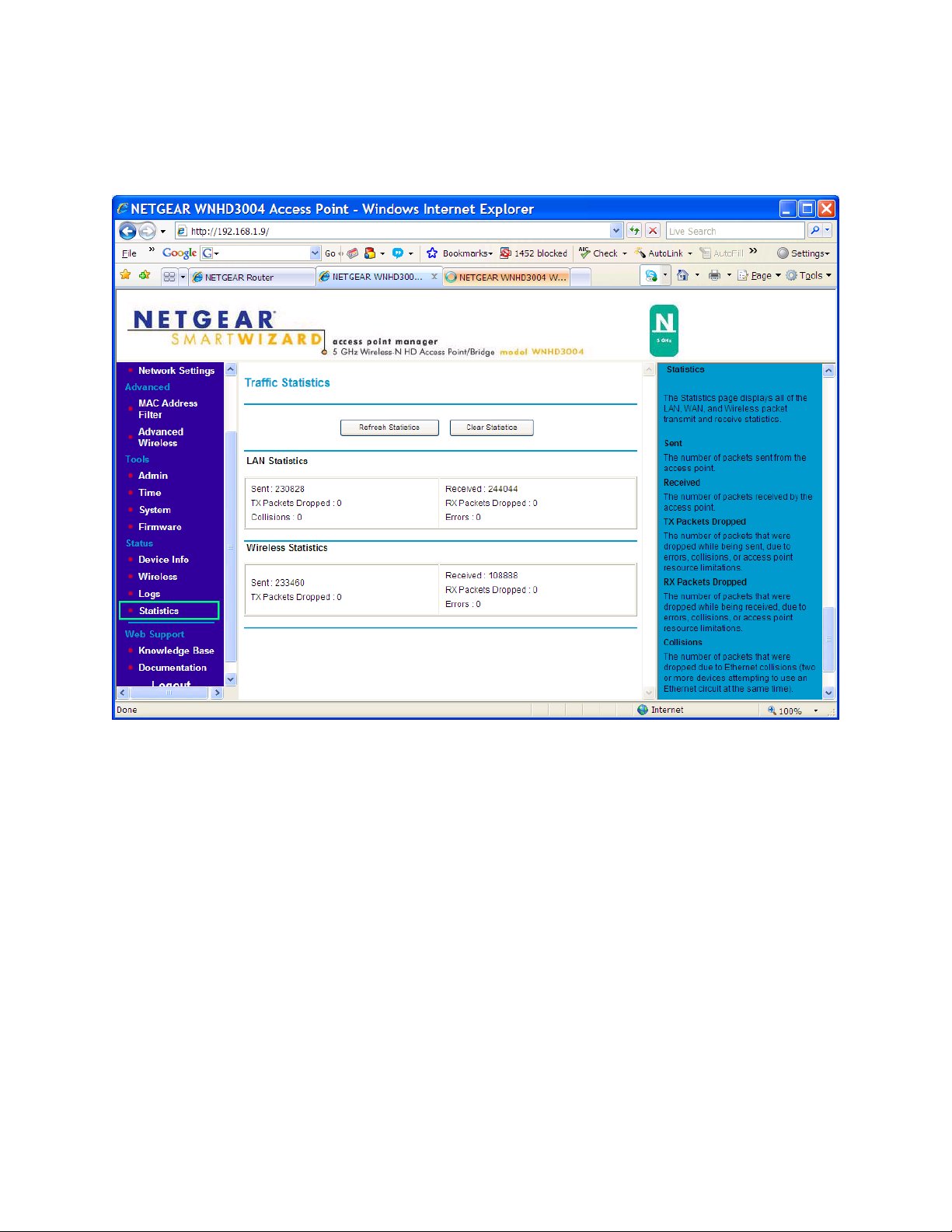

GUI Functions

“Setup Wizard”

On AP side, it includes two functions: Method to add a new wireless client (either WPS, or

manually), and method to set AP’s wireless settings.

“Setup Wizard” for STA/Bridge only has one function, to setup its wireless settings to match it on

AP side, either through WPS, or through manual settings.

© 2010 by NETGEAR, Inc. All rights reserved.
