Data Sheet | XR700
XR700 Nighthawk® Pro Gaming Router
Advanced Gaming & Streaming
XR700 Nighthawk® Pro Gaming
WiFi Router uses state-of-the-art
software to optimize your internet
connection by stabilizing ping,
reducing lag spikes, and keeping
you in the game with reliable
wired and wireless connectivity
for fast-paced gaming. Personalize
your gaming dashboard to view
real-time bandwidth utilization
by device, ping and many other
parameters. Limit lag and get a
guaranteed local connection with
Geo Filter or enable Quality of
Service to ensure gaming trafc
is always prioritized and gets
maximum bandwidth.
PAGE 1 of 12
Hybrid VPN
Set Distance
Select which trafc to protect for privacy
and which to pass through directly to avoid
any lag or data charges with this exible
VPN client.
Data Sheet | XR700
XR700 Nighthawk® Pro Gaming Router
Guarantee Local Game Hosts
Geo-Filter lets you x your gaming lag by
limiting distance to servers or other players.
You can get a guaranteed local connection
and create a blacklist or whitelist of your
preferred servers.
Geo-Filter Map
mi
PROFILES
900
PAGE 2 of 12
Data Sheet | XR700
25
15
15
15
15
15
Set Distance
Host Type
ID
Domain Name
Name
0/20
Download
Upload
Geo-Filter
QoS
Device Manager
Network Monitor
System Information
Settings
XR700 Nighthawk® Pro Gaming Router
Best-in-Class Quality of Service
(QoS)
Prioritize gaming devices and allocate
bandwidth by device to eliminate lag due to
queuing at the ISP network with Quality of
Service (QoS). Control the maximum upload
and download speeds per device on the
network to minimize sudden lag spikes
while gaming.
Interactive and Intuitive Dashboard
View real-time bandwidth utilization by
device, ping and your favorite features.
Bandwidth Allocation - Download
Gaming PC
®
One
®
4
®
PlayStation
Xbox
Iphone
Macbook
®
Ipad
XR700 GAMING ROUTER
Dashboard
Anti-Bufferbloat
Apply: Always When High Priority Traffic Detected Never
Geo-Filter Map
Dashboard
Download Upload
Ping
13ms
km
1500
ALLOW DENY
20
10
0
Network Snapshot
Total Usage
Gaming PC
Macbook
100 %
200
56 %
112
Peer
df34fb7d17c252a
1-1-1-1.ccsleeds.co.uk
Download Upload
0 2.5 5 7.5 10 12.5 15 17.5 20 22.5 25
Bandwidth used per second (Mbps)
Mb
Mb
PAGE 3 of 12
Speed
Data Sheet | XR700
XR700 Nighthawk® Pro Gaming Router
Get blazing fast WiFi and high-speed Gigabit
Ethernet ports for all your gaming needs.
Pro Gaming
Stay in the game with reliable connectivity for
fast-paced gaming. Optimize your Internet
connection by stabilizing ping and reducing
lag spikes.
60GHZ 802.11AD WIFI—Ultra-fast WiFi technology for instant
downloads and backup
AD7200 QUAD STREAM WAVE2 WIFI—Up to 4600 (60GHz)+1733
(5GHz)+800 (2.4GHz) Mbps† wireless speed
MU-MIMO—Multi-user MIMO enables simultaneous streaming
to mobile devices
QUAD-CORE PROCESSOR—1.7GHz processor boosts wireless,
1.7GHz
Quad-Core
Processor
wired & WAN-to-LAN performance
10-GIGABIT WAN/LAN PORT WITH SFP+—Up to 10 Gigabit Internet
speeds & lower latency gaming
GIGABIT WIRED—Ideal for HD gaming & streaming
LINK AGGREGATION—Ability to aggregate two Gigabit LAN ports
for faster le transfers
GAMING DASHBOARD—View real-time Internet & bandwidth usage,
network map, & easily personalize settings for your gaming needs
GEO-FILTER—Get the best connection for your game with guaranteed
nearby servers & players
BANDWIDTH PRIORITIZATION—QoS engine with bandwidth
reservation allows you to allocate bandwidth by device to eliminate
congestion
NETWORK MONITOR—Check bandwidth-hogging devices and
identify what causes lag
GIGABIT ETHERNET TO WIFI—Gigabit Ethernet to WiFi-7 ports
7
(1 WAN & 6 LAN)
PAGE 4 of 12
WiFi Range
Data Sheet | XR700
XR700 Nighthawk® Pro Gaming Router
Got range? Homes come in all shapes and sizes
and the XR700 Nighthawk® Pro Gaming Router
provides WiFi coverage for ultimate coverage.
Sharing
With NETGEAR, sharing across your network is fun
and easy, anything from accessing stored photos &
music to wireless printing. And make sure you keep
it safe by using the included ReadySHARE Vault
application for backing up Windows-based PCs.
ULTIMATE RANGE—WiFi coverage throughout very large homes
FOUR ENHANCED ACTIVE ANTENNAS—Enhance weak signal and
reduce interference with a patent pending design
QUAD STREAM—Improve range for mobile devices with
more antennas
READYSHARE® USB ACCESS—Wirelessly access & share
USB hard drive & printer via two (2) USB ports
TWO USB 3.0 PORTS—Faster streaming, backup and easy access
to your stored media
ReadySHARE® Vault—Free software for automatic PC backup to a
USB hard drive connected to the router
PLEX MEDIA SERVER—All your movie, TV show, music, and photo
collections, on the devices you love
AMAZON CLOUD BACKUP—Automatically backup your precious
data on cloud
Reliable Connections
There’s nothing more frustrating than lost
connections! With NETGEAR’s advanced
features & best-in-class technology, you’ll
reduce interference & enjoy more reliable
WiFi connectivity.
BEAMFORMING+—Improve range and performance for both 2.4
and 5GHz devices
SIMULTANEOUS DUAL BAND WIFI—Supports two WiFi bands
simultaneously to double the available bandwidth and provide
a reliable, dedicated WiFi network for smooth online gaming
without any network congestion
ADDITIONAL DFS CHANNELS—15 more channels in 5GHz for
interference free gaming experience
SMART ROAMING—One WiFi name with any WiFi router or gateway
PAGE 5 of 12
Ease of Use
Data Sheet | XR700
XR700 Nighthawk® Pro Gaming Router
Start enjoying your new device faster than ever.
NETGEAR wants to make sure installation and
management is simple & easy, so you can connect
quickly & make sure you stay that way!
Security
Maintain high security across your network to
ensure your privacy & family is safe while online.
Whether it’s preventing phishing & spyware or
just limiting access for kids & guests, NETGEAR
has you covered.
PUSH ‘N’ CONNECT —Easy push button WiFi connections (WPS)
POWER ON/OFF —Convenient power savings
LED ON/OFF SWITCH—Easily turn LEDs on or off
HYBRID VPN— Protect your connection. Anonymize select gaming
devices without slowing all your devices
SECURE WIFI CONNECTIONS— Standards-based WiFi Security
(802.11i, 128-bit AES encryption with PSK)
PAGE 6 of 12
XR700 Nighthawk® Pro Gaming Router

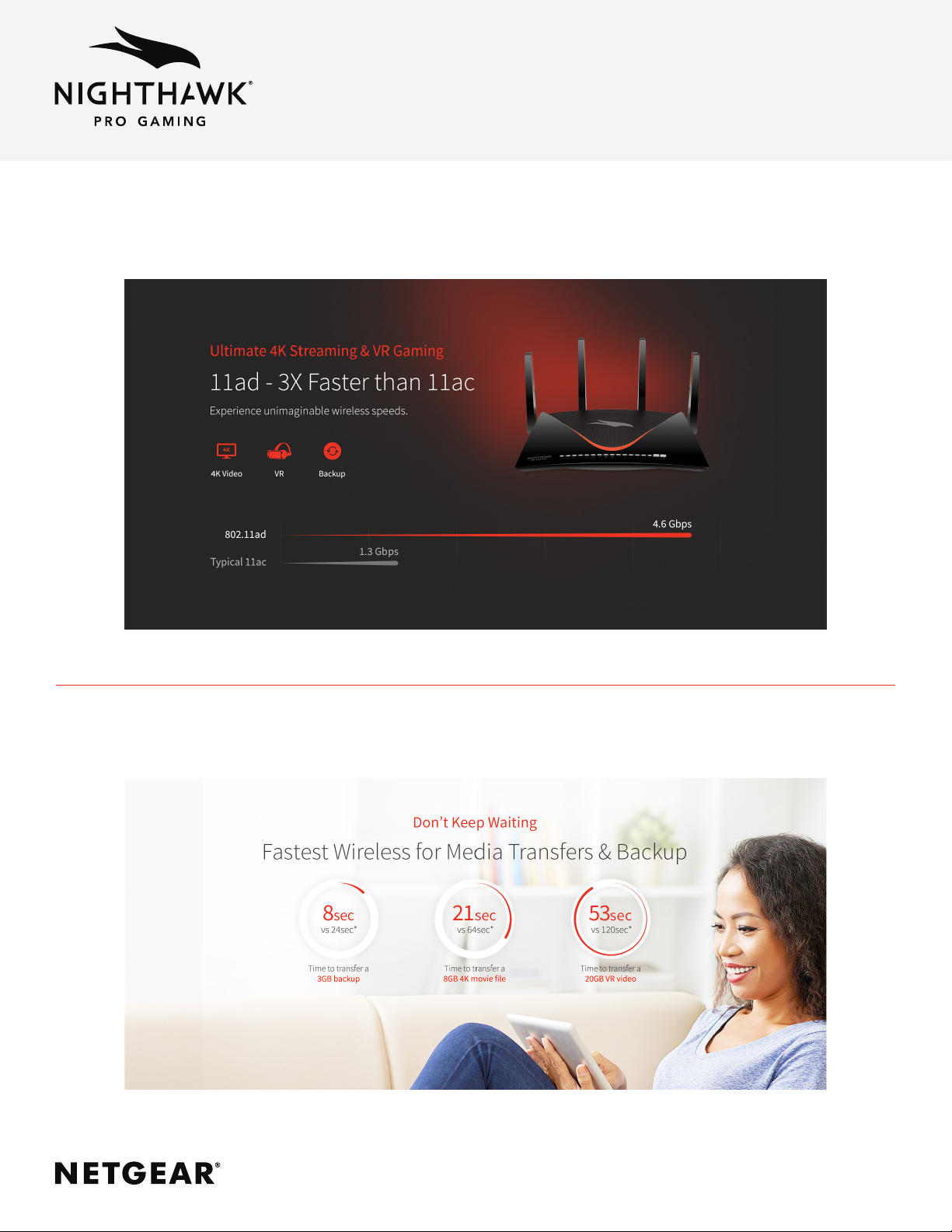

Nighthawk Soars Ahead with the Latest 802.11ad Wireless Technology
Speeds of up to 4.6 Gbps—that’s 3 times faster than 802.11ac. It’s the fastest Nighthawk yet.
Data Sheet | XR700
Fastest Wireless for Media Transfers and Backup
Don’t wait to watch! Ultra-smooth 4K streaming, VR gaming, instant downloads and backup.
PAGE 7 of 12
Data Sheet | XR700
XR700 Nighthawk® Pro Gaming Router
Industry’s First Gaming Router with Plex Media Server
Plex. All your movie, TV show, music, video, and photo collections at your ngertips. Anywhere, anytime. Serve all your media with Plex
Media Server on your XR700 Nighthawk® Pro Gaming WiFi Router, without need for a computer.
Powerful Quad-Core 1.7GHz Processor
Wired or wireless, the 1.7GHz Quad-Core processor boosts your network performance up to 7.2Gbps*.
PAGE 8 of 12
Enhanced Active Antennas
Data Sheet | XR700
XR700 Nighthawk® Pro Gaming Router
Each new generation of routers grows
more powerful than the last, delivering
stronger WiFi signals with greater range.
At the same time, the WiFi signals on
mobile devices are not getting more
powerful. This difference in WiFi
performance – a strong WiFi signal from
the router and weaker ones from mobile
devices – reduces overall WiFi range
and speed.
To meet this challenge, NETGEAR
developed the industry’s rst Active
Antennas technology. NETGEAR moved
the WiFi ampliers from their usual
location, on the router’s motherboard, up
to the top of the antennas.
Active antennas help improve WiFi
performance by amplifying signals in the
antenna itself. Thereby avoiding any signal
loss during transmission between antenna
Weak signal strength
and router board, as well as avoiding any
noise insertion from the router board
components. This provides cleaner and
stronger receive signals for amplication
from your mobile devices.
In the XR700, enhanced Active antennas
also amplify the signals as they are sent
to the devices thereby increasing overall
range and throughput.
Traditional WiFi router has harder time receiving weaker mobile device signals.
Effective signal strength
XR700 Nighthawk
weaker mobile device signals and effectively improve signal strength.
®
Pro Gaming WiFi Router Active antennas compensate for
PAGE 9 of 12
Data Sheet | XR700
XR700 Nighthawk® Pro Gaming Router
Multi-User MIMO (MU-MIMO)
Traditional WiFi routers can stream data to only one device in the home at a time. When multiple devices are connected to the router,
each device needs to take its turn, and then wait before receiving more data. This can lead to slower network and Internet speeds.
Using Multi-User MIMO technology, NETGEAR routers can stream data to multiple devices simultaneously. With MU-MIMO, your WiFi
network can deliver faster throughput to every MU-MIMO connected device. That means faster downloads and smoother streaming
for your devices.
Enjoy simultaneous streaming with MU-MIMO
Data sent to one device at a time Data sent to multiple devices simultaneously
Traditional WiFi MU-MIMO WiFi
The 10G Setup You’ve Been Waiting For
Now a router that you can use to create a perfect 10G gaming setup. Speed up the link between your router and gaming PC by running
at up to 10 times faster while playing online. Go ahead and stream your gameplay in 4K on Twitch as you always wanted to. Paired with
the Nighthawk Pro Gaming SX10 Multi-Gig Ethernet Switch, you'll have a 10G-capable network for all your gaming and streaming trafc.
(Requires compatible SFP+ module such as AXM765 to convert SFP+ into 10GBase-T or DAC (not included)).
PAGE 10 of 12
Data Sheet | XR700
XR700 Nighthawk® Pro Gaming Router
ReadySHARE® Vault—Automatic backup for Window PCs
ReadySHARE Vault is a free app that provides automatic, continuous backup of Windows PCs to the USB hard drive connected to the
XR700 Nighthawk® Pro Gaming WiFi Router. The app has a wonderfully simple interface with intuitive backup settings—simply setup and
forget and be assured that all your data on various home PCs in the home network is being continuously backed up. Never worry about
losing your data again. Easy single click setup to back up the Window PCs on the home network.
• Automatic, continuous incremental backup of all the changes
• Easily restore deleted les by going back to older snapshots
• Safeguard all your precious data, photos, videos
Connection Diagram
Connect more wired devices with 6 Gigabit
Ethernet LAN ports
Link Aggregation—
Faster file transfer
10-Gigabit WAN/LAN Port with
SFP+—Up to 10 Gigabit Internet
speeds & lower latency gaming
PAGE 11 of 12
Data Sheet | XR700
XR700 Nighthawk® Pro Gaming Router
Package Contents
• XR700 Nighthawk Pro Gaming Router
(XR700)
• Ethernet cable
• Quick star t guide
• Power adapter
Physical Specifications
• Dimensions: 12.7 x 9.6 x 2.5 in
(321.9 x 243.7 x 64.5 mm)
• Weight: 4.11lb (1865g)
Standards
• Two (2) USB 3.0 ports
• IEEE® 802.11 b/g/n 2.4GHz +
256 QAM support
• IEEE® 802.11 a/n/ac 5.0GHz
• Seven (7) 10/100/1000Mbps—(1 WAN &
6 LAN) Gigabit Ethernet ports
Technical Specifications
• AD7200 WiFi
- Band 1: 800Mbps @2.4GHz — 256QAM
- Band 2: 1733Mbps @5GHz — 256QAM
- Band 3: 4600Mbps @60GHz — SC
• Powerful Quad-Core 1.7GHz processor
• Memory: 512MB NAND Flash and 1GB
DDR3 SDRAM
• Enhanced Active Antennas with high
powered amplifiers
• Explicit Beamforming for 2.4 &
5GHz bands
• Seven (7) 10/100/1000Mbps Gigabit
Ethernet ports
- 1 WAN & 6 LAN
- Dual Gigabit Ethernet Port Aggregation
• 10-Gigabit WAN/LAN Port with SFP+—Up
to 10 Gigabit Internet speeds & lower
latency gaming
• Two (2) USB 3.0 ports
• IPv6 Support (Internet Protocol Version 6)
• On/Off LED light switch
Key Features
• Gaming Dashboard—View real-time
Internet & bandwidth usage, network
map, & easily personalize settings for
your gaming needs
• Geo-Filter—Get the best connec tion
for your game with guaranteed nearby
servers & players
• Network Monitor—Check bandwidth-
hogging devices and identify what
causes lag
• Quad Stream & 160MHz for faster speeds
• Bandwidth Prioritization—QoS engine
with bandwidth reservation allows you
to allocate bandwidth by device to
eliminate congestion
• Beamforming+ for more
reliable connections
• ReadySHARE® USB to share your USB
hard drive & printer
• ReadySHARE® Vault—PC software for
automatic backup to USB hard drive
connected to the router
• 10-Gigabit WAN/LAN SFP+ Port—
Connect to NETGEAR SX10 gaming
switch for lower latency wired gaming, or
use for up to 10Gig Internet connectivity.
Requires compatible SFP+ module or
DAC (not included)
• Plex Media Server—All your movie, TV
show, music, video, and photo collections
at your fingertips. Anywhere you go, on
the devices you love
• Nighthawk App—The Nighthawk App
makes it easy to set up your router and
get more out of your WiFi
• Amazon Cloud Backup
• MU-MIMO—Simultaneous streaming of
data for up to three devices
System Requirements
• Microsoft® Windows 7, 8, 10, Vista®, XP®,
2000, Mac OS®, UNIX®, or Linux
• Microsoft® Internet Explorer® 11 or higher,
Microsoft Edge, Google Chrome® 55 or
higher, Firefox® 45 or higher, Safari® 10
or higher
®
Security
• Hybrid VPN—Select which traffic to protect
for privacy and which to pass through
directly to avoid any lag or data charges
with this flexible VPN client
• Standards-based WiFi Security
(802.11i, 128-bit AES encryption with PSK)
• Double firewall protection (SPI and NAT)
• Denial-of-service (DoS) attack prevention
Support
• 90-day complimentary technical support
following purchase from a NETGEAR
authorized reseller.
• Join the NETGEAR Community Forum.
Visit http://community.netgear.com
Warranty
• www.netgear.com/warranty/
• Extend your warranty & technical support
within 90 days of product purchase [US
only]. Visit: prosupport.netgear.com/home
This product comes with a limited warranty that is valid only if purchased from a NETGEAR authorized reseller.
†
M aximum wir el es s signal rate de ri ved fr om IEEE 802.11 speci c ations. A c tu al data throu ghpu t a nd wireles s cov er age wi ll var y and may be low er ed by net wor k and env ir onment al
conditions, including network trafc volume and building cons truc tion. NETGEAR makes no representations or warranties about this product's compatibilit y with future
standards.
‡
MU-MIMO capabilit y requires both router and client device to suppor t MU-MIMO.
NETGEAR, the NE TGEAR Logo, and ReadySHARE are trademarks of NETGEAR, Inc. Mac, iPad, iPhone, and the Mac logo are trademarks of Apple Inc. Any other trademarks
mentioned herein are for reference purposes only. ©2019 NETGE AR, Inc.
NETGE AR, Inc. 350 E. Plumeria Drive, San Jose, CA 95134-1911 USA , www.NETGEAR.com/support XR700-1
PAGE 12 of 12
Loading...
