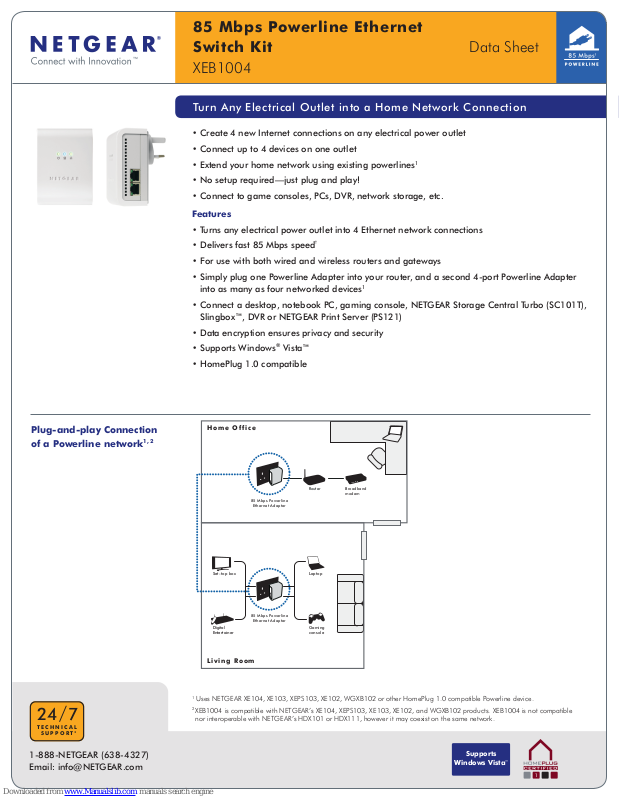

NETGEAR XEB1004 Datasheet

85 Mbps Powerline Ethernet

24/7

T E C H NI C A L

S U P P O RT *

Broad band
modem

Router

85 Mb ps Power line

Ether net Ada pter

85 Mb ps Power line

Ether net Ada pter

Hom e O ff i ce

Liv in g R oo m

Lapto p

Gamin g
conso le

Digital
Entertainer

Set-t op box

Switch Kit Data Sheet
XEB1004

Turn Any Electrical Outlet into a Home Network Connection

• Create 4 new Internet connections on any electrical power outlet

• Connect up to 4 devices on one outlet

• Extend your home network using existing powerlines

• No setup required—just plug and play!

• Connect to game consoles, PCs, DVR, network storage, etc.

Features

• Turns any electrical power outlet into 4 Ethernet network connections

†

• Delivers fast 85 Mbps speed

• For use with both wired and wireless routers and gateways

• Simply plug one Powerline Adapter into your router, and a second 4-port Powerline Adapter
into as many as four networked devices

1

• Connect a desktop, notebook PC, gaming console, NETGEAR Storage Central Turbo (SC101T),
Slingbox™, DVR or NETGEAR Print Server (PS121)

• Data encryption ensures privacy and security

• Supports Windows® Vista™

• HomePlug 1.0 compatible

1

Plug-and-play Connection
of a Powerline network

1, 2

1

Uses NETGEAR XE104, XE103, XEPS103, XE102, WGXB102 or other HomePlug 1.0 compatible Powerline device.

2

XEB1004 is compatible with NETGEAR’s XE104, XEPS103, XE103, XE102, and WGXB102 products. XEB1004 is not compatible
nor interoperable with NETGEAR’s HDX101 or HDX111, however it may coexist on the same network.

1-888-NETGEAR (638-4327)
Email: [e-mail]

Supports

Windows Vist

™

a

85 Mbps Powerline Ethernet Switch Kit XEB1004

Extend your home network

System Requirements

For device connection: Available RJ-45

–

Ethernet port
To enable encryption: Windows® Vista,™

–

XP, 2000

Network Ports

4 10/100 Mbps Ethernet ports

–

One 85 Mbps PowerLine port

–

PowerLine Standards

HomePlug 1.0 compatible

–

Power Supply

100-240V @ 50-60 Hz

–

LEDs

Unit: Power

–

PowerLine: Link

–

Ethernet: Link/Activity

–

Environmental Specifications

Operating temperature: 0 - 40º C

–

(32 - 104º F)
Operating relative humidity: 10% to

–

90% non-condensing

Electromagnetic Emissions

FCC Part 15 Class B

–

Power and Safety Regulations

UL Certified

–

Typical Coverage

Up to 5000 square foot home

–

NETGEAR’s 85 Mbps Powerline Ethernet Switch Kit (XEB1004) is a convenient solution for ex-

tending your home network by using standard electrical outlets. This kit delivers the

devices you need to set up an Internet connection in any room without running new wires.

The XEB1004 connects multiple devices to your network:

• Game Consoles • Storage Central

• Desktop PCs • Slingbox™

• Notebook PCs • Internet Routers

Warranty

NETGEAR 1-year warranty

–

Package Contents

Two (2) 85 Mbps Powerline Ethernet

–

Adapters

1.52 m (5 ft) Ethernet cable

–

Installation guide

–

Setup CD

–

Warranty card

–

Support and information card

–

NETGEAR Related Products

Network

RangeMax Wireless-N Cable Router

–

(WNR834B)
RangeMax Wireless Cable Router

–

(WPN824)
Super-G® Wireless Firewall Router

–

(WGT624)
Wireless-G Cable Router (WGR614)

–

RangeMax Wireless Access Point

–

ProSafe® 802.11 Wireless Access Point

–

(WG102)
85 Mbps Powerline Network Switch

–

(XE104)
85 Mbps Powerline Network Adapter

–

(XE103)
14 Mbps Powerline Network Adapter

–

(XE102)
Space-Saving Powerline Network

–

Extender (XEPS103)
14 Mbps Powerline Wireless Range

–

Extender (WGXB102)

Printer

USB Print Server (PS121)

–

54 Mbps Wireless USB Print Server
(WGPS606)

Storage

Storage Central Turbo (SC101T)

–

Multimedia Player

Digital Entertainer HD (EVA8000) Player

–

(WPN802)
Open Source Wireless-G Router

–

(KWGR614)
8-Port Gigabit Desktop Switch (GS608)

–

5-Port Gigabit Desktop Switch (GS605)

–

ProSafe® 5-Port Gigabit Desktop Switch

–

(GS105)
ProSafe® VPN Firewall 8 w/8-Port

–

10/100 Mbps Switch (FVS318)

© 2008 NETGEAR, Inc., the NETGEAR logo, Connect with Innovation, Everybody’s connecting, FrontView, the Gear Guy logo,
IntelliFi, ProSafe, ReadyNAS, RAIDar, RAIDiator, X-RAID, and Smart Wizard are trademarks of NETGEAR, Inc. and/or its subsidiaries in the
United States and/or other countries. Microsoft and Windows are trademarks of Microsoft Corporation in the United States and/or other
countries. Other brand and product names are trademarks or registered trademarks of their respective holders. Information is subject to

4500 Great America Parkway
Santa Clara, CA 95054 USA
1-888-NETGEAR (638-4327)
E-mail: [e-mail]
www.NETGEAR.com

change without notice. All rights reserved.
This product has been tested for quality assurance and this product or its components may have been recycled.
Outlets must be electrically connected in order for Powerline devices to provide a network connection between them.
†Actual data throughput will vary. Network conditions and environmental factors, including volume of network traffic, building material

and construction, and network overhead, lower actual data throughput rate.
*Free basic installation support provided for 90 days from date of purchase. Advanced product features and

configurations are not included in free basic installation support; optional premium support available. D-XEB1004-0
