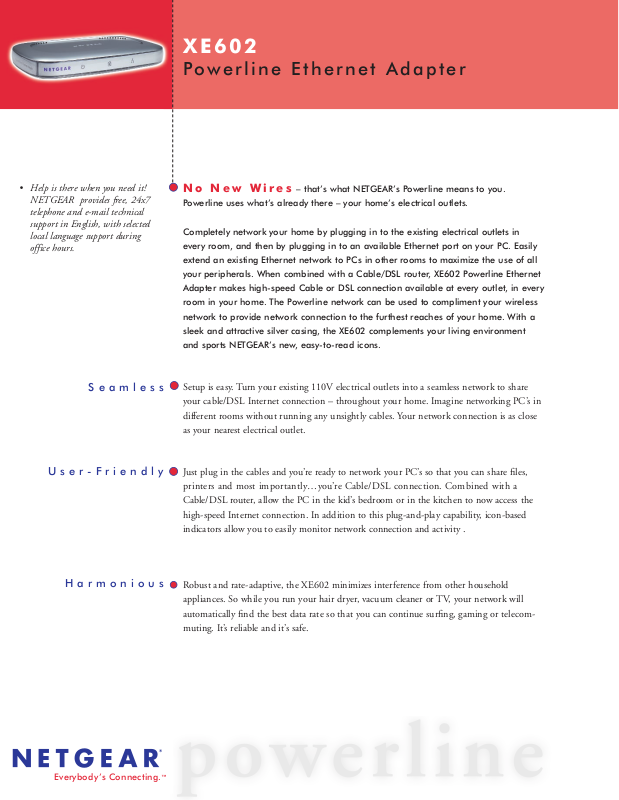

Netgear XE602 DATASHEET
XE602
Powerline Ethernet Adapter
No New Wires – that’s what NETGEAR’s Powerline means to you.
Powerline uses what’s already there – your home’s electrical outlets.
Completely network your home by plugging in to the existing electrical outlets in
every room, and then by plugging in to an available Ethernet port on your PC. Easily
extend an existing Ethernet network to PCs in other rooms to maximize the use of all
your peripherals. When combined with a Cable/DSL router, XE602 Powerline Ethernet
Adapter makes high-speed Cable or DSL connection available at every outlet, in every
room in your home. The Powerline network can be used to compliment your wireless
network to provide network connection to the furthest reaches of your home. With a
sleek and attractive silver casing, the XE602 complements your living environment
and sports NETGEAR’s new, easy-to-read icons.
Setup is easy. Turn your existing 110V electrical outlets into a seamless network to share
your cable/DSL Internet connection – throughout your home. Imagine networking PC’s in
different rooms without running any unsightly cables. Your network connection is as close
as your nearest electrical outlet.
Just plug in the cables and you’re ready to network your PC’s so that you can share files,
printers and most importantly…you’re Cable/DSL connection. Combined with a
Cable/DSL router, allow the PC in the kid’s bedroom or in the kitchen to now access the
high-speed Internet connection. In addition to this plug-and-play capability, icon-based
indicators allow you to easily monitor network connection and activity .
Robust and rate-adaptive, the XE602 minimizes interference from other household
appliances. So while you run your hair dryer, vacuum cleaner or TV, your network will
automatically find the best data rate so that you can continue surfing, gaming or telecommuting. It’s reliable and it’s safe.
Seamless
User-Friendly
Harmonious
• Help is there when you need it!
NETGEAR provides free, 24x7
telephone and e-mail technical
support in English, with selected
local language support during
office hours.
Everybody’s Connecting.™
Cable/DSL
Modem
PC
home
office
kids’
room
PC 1
home
office
kids’
room
patio
or deck
N
E
T
G
E
A
R
3
patio
or deck
N
E
T
G
E
A
R
3
Router
Powerline
N
E
T
G
E
A
R
3
N
E
TG
E
A
R
3
• Network Ports One 10BASE-T Ethernet port
One 14Mbps PowerLine port
• Network Interface RJ-45 (10BASE-T Ethernet)
Electrical Plug (Powerline Ethernet)
• Performance 10 Mbps 10BASE-T
Standards 14 Mbps HomePlug 1.0 Compatible
• Powerline Standards HomePlug
• Ethernet Standards IEEE 802.3 10BASE-T Ethernet
Compliance
• Modulation
OFDM Symbol Modulation
Schemes DQPSK, DBPSK, ROBO
Carrier Modulation
• Frequency Band 4.3 MHZ – 20.9 MHZ
• Additional Protocols Forward Error Correction (FEC)
Automatic Channel Adaptation
• Power Supply 85 to 135v @ 60Hz Internal
• LEDs Unit: Power
Powerline: Activity
Ethernet: Link/Activity
• Dimensions W-175 mm (6.9")
D-118 mm (4.6")
H-28 mm (1.1")
• Weight 0.4 kg (0.87 lb)
• Environmental Operating temperature:
Specifications 0º C to 40ºC (32 to 104°F)
Operating relative humidity:
10% to 90% noncondensing
• Electromagnetic FCC Part 15 Class B
Emissions
• Power and Safety
U/L Certified
Regulations
• Typical Coverage
Up to 5000 square foot home
• Warranty 2 years
