Package Contents

Ethernet cables (2)

XAV1301

XAVN2001

2

Hardware Features

Powerline AV 200 Adapter

(XAV1301)

Powerline
LED

Power
LED

Ethernet
LED

Power
LED

Wireless
LED

Powerline
LED

Ethernet
LED

Security
button

Factory
Reset
button

Factory
Reset
button

Ethernet
port

Security
button

On/Off
switch

Powerline 200 WiFi Range Extender

(XAVN2001)

3

LED Descriptions

The LEDs indicate the status of your Powerline devices.

• Wh

• T

• T

• The Powerline

en you plug in the Powerline device, the Power LED

lights and turns green.

he Ethernet LED lights and turns green when you connect
a powered-on Ethernet device to at least one Ethernet port. If the
LE

D is off, there is no Ethernet connection.

he Wireless LED lights and turns green when the wireless
radio is on.

LED lights when the Powerline device detects at

least one other compatible Powerline device.

The Pick A Plug feature lets you pick the ele
fastest link rate.

-

-

-

Green: Link rate > 80 Mbps (Fast)

Amber: Link rate > 50 and < 80 Mbps (Medium)

Red: Link rate < 50 Mbps (Slow)

ctrical outlet with the

4

Button Descriptions

The buttons on your Powerline devices let you do the following:

• Factory Reset button: Use the Factory Reset button to return your

Powerline device to its default factory settings. Press the Factory
Reset button for 2 seconds, and then release it.

• Power On/Off switch: Use the On/Off switch to turn the device on

and off.

• Security button: The Security button has three functions:

- Secure the Powerline network.

- Create a WiFi access point on the XAVN2001 that has the

same wireless settings as your router or gateway.

- Automatically connect your wireless client to the XAVN2001

WiFi access point.

5

Install the Adapters and Surf the Web with WiFi

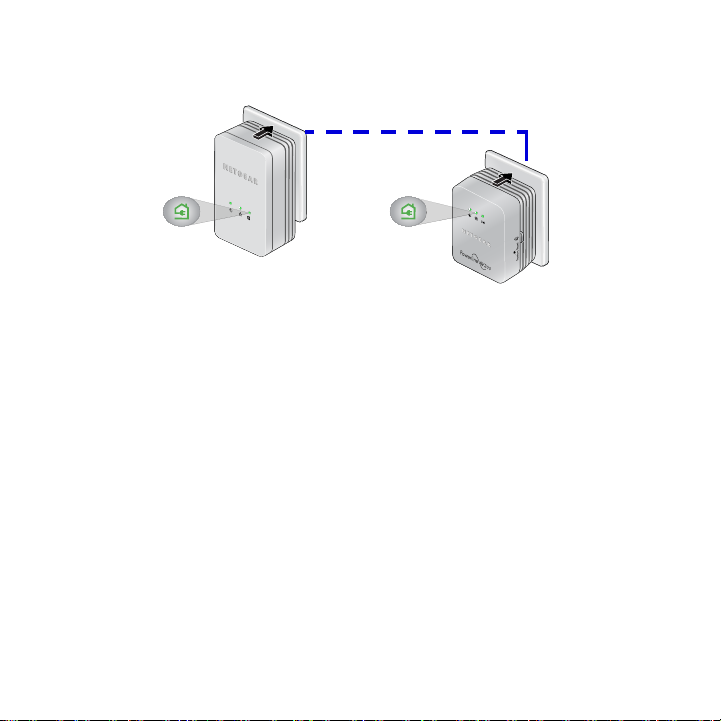

1. Secure your Powerline network.

a. Make

b. On the

c. Within 2 minu

d. After a few seconds, the security is set and the Power LED

sure that the Power LED is solid green on each

Powerline device.

XAV1301 adapter, press its Security button for 2
seconds, and then release the button. The Power LED
blinks green while the adapter is setting up security.

tes, go to the XAVN2001 extender and press
its Security button for 2 seconds, and then release the
button.

turns solid green.

6

The Powerline devices can communicate over the Powerline
network in a secure way.

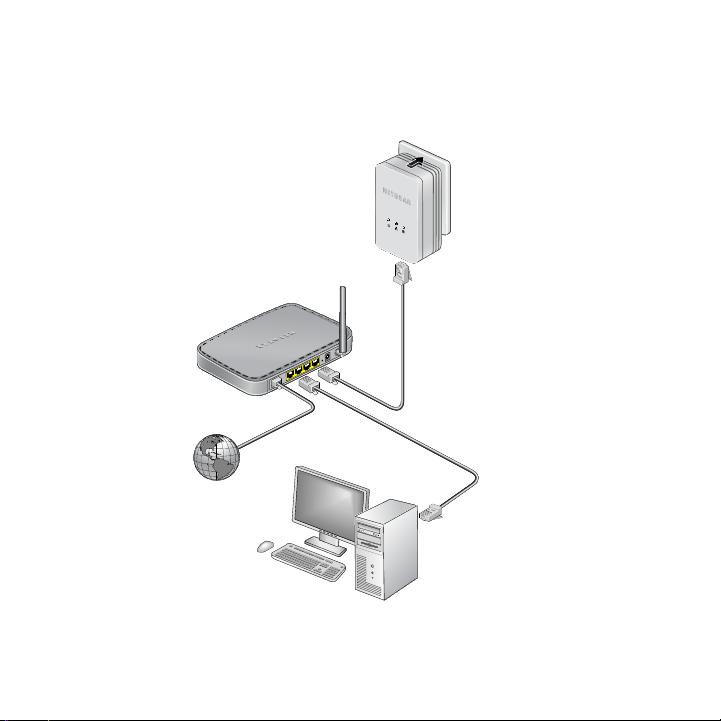

2. Plug the XAV1301 into a wall outlet near your router or gateway.

3. Con

nect the XAV1301 through the LAN port with an Ethernet

cable.

7

If you want to share Internet access across your home, make
sure to connect the XAV1301 to your Internet gateway with an
Ethernet cable.

8

4. Plug the WiFi Range Extender (XAVN2001) into a wall outlet

where you need WiFi coverage.

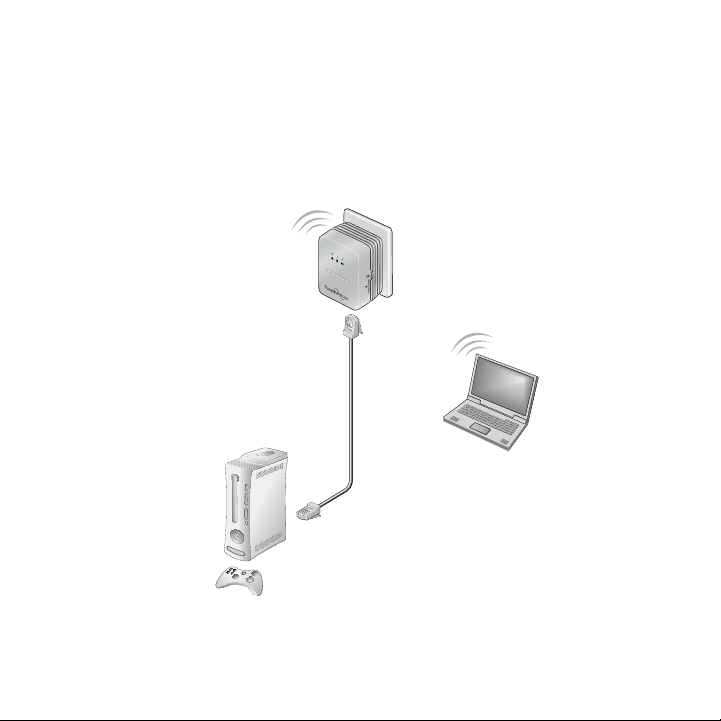

Note: You can connect an Ethernet-based device (like a game console,

set-top box, or Blu-ray player) to the Internet and the home network with
the additional Ethernet port on the XAVN2001.

9

5. Set up WiFi access on your XAVN2001 extender.

You can set up WiFi access on your XAVN2001 extender in one
of three ways:

• Option 1: Use the WPS button on your wireless router or

gateway to clone your existing wireless network.

a. Press and hold the Security button on the XAVN2001

(about 10 seconds) and release it.

The Wireless LED starts to blink.

b. Press the WPS button on the wireless router or

gateway.

When the Wireless LED stops blinking, the cloning is
finalized. The WiFi range extender (XAVN2001)
re-creates a WiFi access point with the same SSID and
password as your router or gateway.

You now have two wireless networks with the same
settings (SSID and password). When you are roaming in
your house, your wireless client (laptop, tablet, or
smartphone) switches from one network (router or
gateway) to the other (XAVN2001), depending on the
signal quality.

10

• Option 2: Use NETGEAR genie to manually configure the

wireless settings of your XAVN2001 extender.

a. Inst

all NETGEAR genie. (See Install NETGEAR genie on

page 19.)

emporarily connect your computer directly to the

b. T

XAVN2001 through the Ethernet port.

aunch NETGEAR genie on your computer and click

c. L

Network Map or select it from the menu.

11

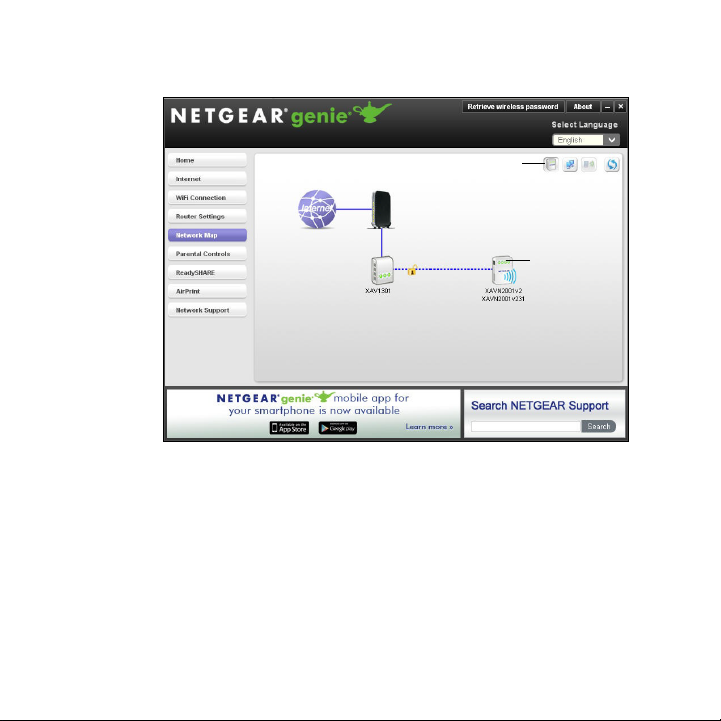

d. Click the Powerline icon on the Network Map screen.

Powerline
icon

XAVN2001
icon

The Powerline Utility screen displays:

e. On the Powerline Utility screen, right-click the

XAVN2001 icon.

12

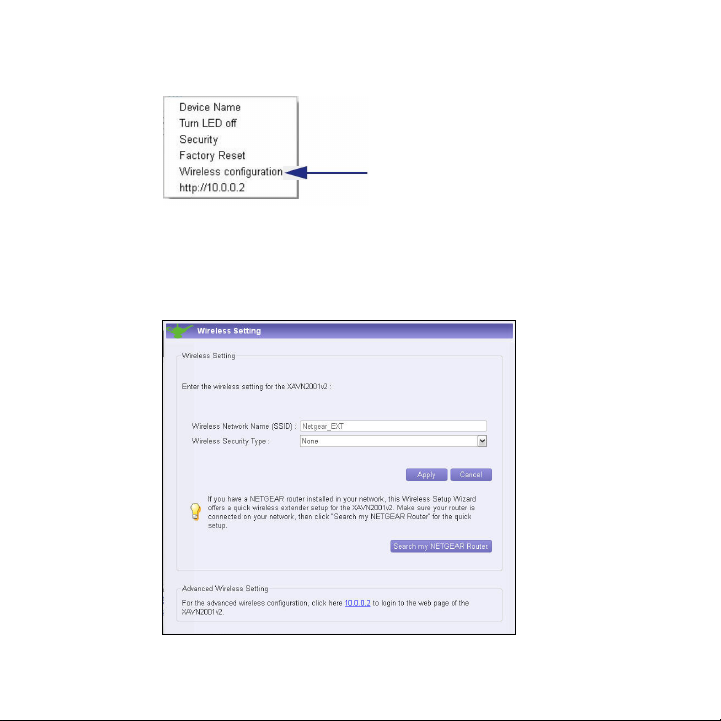

f. From the pop-up menu that displays, select Wireless

configuration.

g. Enter the following wireless settings:

• Wireless N

• Wireless S

• Pa

ssphrase

etwork Name (SSID)

ecurity Type

13

If you want to clone your existing wireless network, enter
the same wireless settings that your router or gateway
uses. When you are roaming in your house, your wireless
client (laptop, tablet, or smartphone) switches from one
network (router or gateway) to the other (XAVN2001),
depending on the signal quality.

If you want to create a new wireless network, enter new
wireless settings. Creating a new wireless network lets
you have a second network in another zone of your
house.

h. Click Apply to save your changes.
i. When you are finished with the wireless settings,

disconnect the Ethernet cable from the XAVN2001.

Note: You can access advanced wireless

settings by right-clicking the device
icon and selecting the IP address on
the pop-up menu. The login and
password are admin and password.

14

• Option 3: Use the web browser setup guide to manually

configure the wireless settings of your XAVN2001 extender.

On your computer or wireless device (tablet, smartphone):

a. Open

the software that manages
your wireless network connections
and connect to the XAVN2001
network.

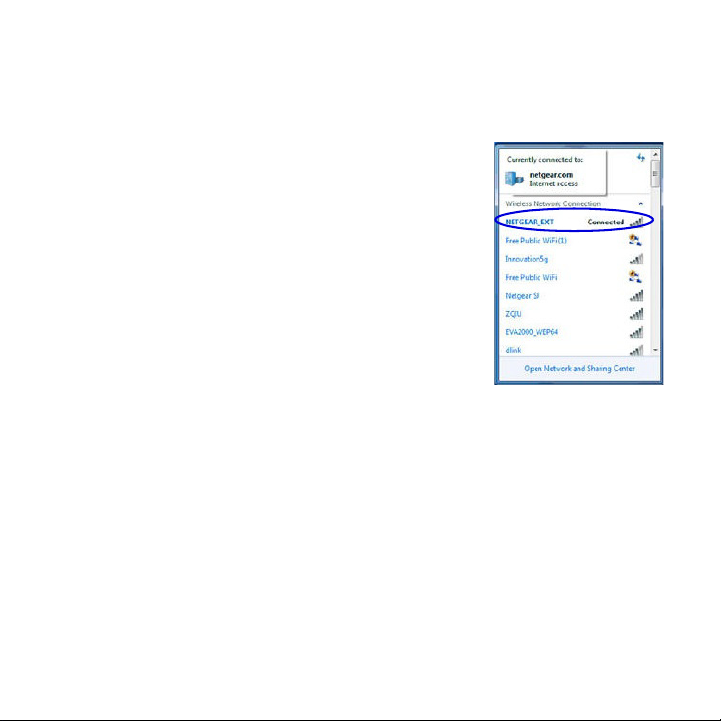

Tip: The default wireless network name (SSID)

of the XAVN2001 is NETGEAR_EXT. 
The default network key (wireless security

assword) is printed on the back of the

p
XAVN2001.

15

b. On the same computer or wireless device, open a web

browser window.

The browser takes you directly to the onscreen setup
guide. If it does not, enter one of the following into the
browser address bar:

www.mywifiext.net

www.netgearextender.net

c. When prompted to log in, enter:

• User name: admin

• Password: password

The web browser setup guide helps you configure the
wireless settings of the XAVN2001.

16

If you want to clone your existing wireless network, enter
the same wireless settings that your router or gateway
uses.

If you want to create a new wireless network, enter new
wireless settings. Creating a new wireless network lets
you have a second network in another zone of your
house.

Record the new wireless settings here:

Wireless network name (SSID)

Network key (Passphrase)

17

6. Connect your wireless client (laptop, tablet, or smartphone) to

the XAVN2001 for Internet access.

• Option 1: Use the WPS button on your wireless client to

automatically connect to the XAVN2001 access point.

a. Press and hold the Security button on the XAVN2001 for

2 seconds and release it.

The Wireless LED starts to blink.

b. Press the WPS button on your wireless client for 2

seconds and release it.

When the Wireless LED stops blinking, your wireless
client is automatically connected to the XAVN2001
access point and you can surf the web.

• Option 2: Manually connect to the XAVN2001 access point.

On your computer or wireless client (tablet, smartphone):

a. Open the software that manages your wireless network

connections.

b. Connect to the XAVN2001 wireless network (SSID).
c. Enter the network key (passphrase).

Your wireless device is now connected to the XAVN2001
access point and you can surf the web.

18

Install NETGEAR genie

Follow these instructions to download and install NETGEAR genie on
your computer.

1. Typ e http://support.netgear.com into your browser address

bar.

2. Click the For Home button.

3. In the search box, type xavn2001.

4. Download the NETGEAR genie that corresponds to your OS

environment (Windows or Mac).

5. Run the file that you downloaded and follow the onscreen

instructions to install NETGEAR genie.

19

Compatible NETGEAR Powerline Devices

Your Powerline devices can share a Powerline network with
these compatible NETGEAR devices: XAVB1301, XAVB1401,
XAVB2101, XAVB2602, XAVNB2001, XAVB5601, XAVB5101,
XAVB5201, XAVB5602, XAUB2511, XAVB5004, XAVB1004,
XWNB5602, XWNB5201, and XWNB1601.

For a complete list of HomePlug AV certified devices, visit

www.homeplug.org/certified_products.

20
