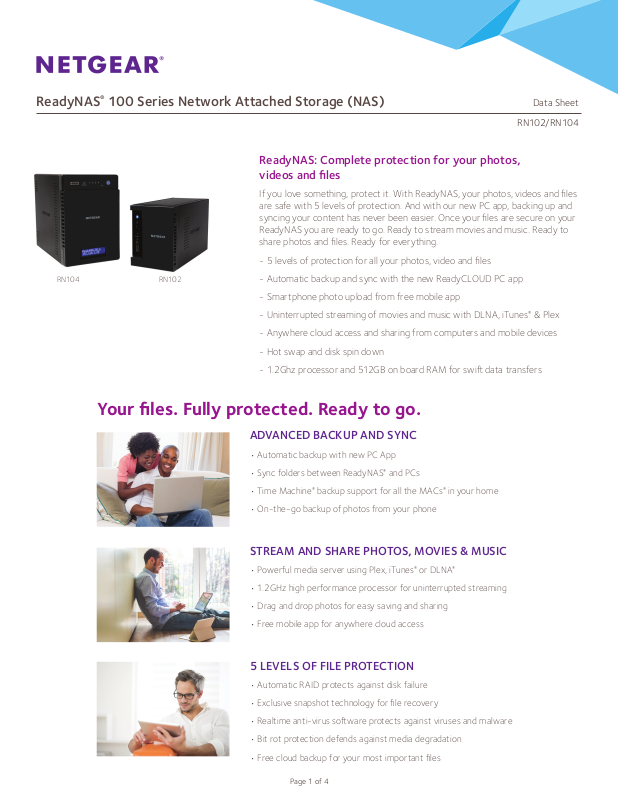

Page 1
ReadyNAS® 100 Series Network Attached Storage (NAS) Data Sheet
RN102/RN104
ReadyNAS: Complete protection for your photos,
videos and files
If you love something, protect it. With ReadyNAS, your photos, videos and files
are safe with 5 levels of protection. And with our new PC app, backing up and
syncing your content has never been easier. Once your files are secure on your
ReadyNAS you are ready to go. Ready to stream movies and music. Ready to
share photos and files. Ready for everything.
- 5 levels of protection for all your photos, video and files
RN102RN104
- Automatic backup and sync with the new ReadyCLOUD PC app
- Smartphone photo upload from free mobile app
- Uninterrupted streaming of movies and music with DLNA, iTunes® & Plex
- Anywhere cloud access and sharing from computers and mobile devices
- Hot swap and disk spin down
- 1.2Ghz processor and 512GB on board RAM for swi data transfers
Your files. Fully protected. Ready to go.
ADVANCED BACKUP AND SYNC
• Automatic backup with new PC App
®
• Sync folders between ReadyNAS
®
• Time Machine
• On-the-go backup of photos from your phone
backup support for all the MACs® in your home
STREAM AND SHARE PHOTOS, MOVIES & MUSIC
• Powerful media server using Plex, iTunes
and PCs
®
or DLNA
®
• 1.2GHz high performance processor for uninterrupted streaming
• Drag and drop photos for easy saving and sharing
• Free mobile app for anywhere cloud access
5 LEVELS OF FILE PROTECTION
• Automatic RAID protects against disk failure
• Exclusive snapshot technology for file recovery
• Realtime anti-virus soware protects against viruses and malware
• Bit rot protection defends against media degradation
• Free cloud backup for your most important files
Page 1 of 4
Page 2
ReadyNAS® 100 Series Network Attached Storage (NAS) Data Sheet
RN102/RN104
ReadyNAS Desktop Model Comparison - 100 Series
ReadyNA S 102 ReadyNA S 104
CPU
Memory
Drive Bays
Drive Types Supported
Hot Swappable Drives
Tool-less 3.5” Disk Installation
eSATA Por ts
Total Solution Capacity Internal
Gigabit LAN Ports
USB Ports
Power Supply
BTU at Full Power Supply Utilization
Power Consumption: Operation
Power Consumption (Wake on LAN)
Power Consumption: Power O
Chassis Warranty*
2-Line LCD Display
Fan (mm)
Dimensions DxWxH (mm)
Weight (kg)
ProSUPPORT Service Packs Available
OnCall 24x7
XPressHW Replacement
Marvell® Armada 370 1.2GHz Marvell® Armada 370 1.2GHz
512MB 512MB
2 4
SATA/SSD 2.5” or 3.5” SATA/SSD 2.5” or 3.5”
Yes Yes
Yes Yes
1 1
8TB 16T B
1 2
One (1) USB 2.0, Two (2) USB 3.0 One (1) USB 2.0, Two (2) USB 3.0
12V, 5A External 60W: input 100-240V AC,
50/60Hz
31.7W 47W
31W 45.6W
1.0W 1.4W
210mW 440mW
3 years 3 years
No Yes
92 92
220 x 101 x 142 223 x 134 x 205
2.03 4.02
100 Series
1-ye ar : P MB03 11
3-year: PMB0331
3-year: PRR0331
12V, 7A External 90W; input 100-240V AC,
50-60Hz
Page 2 of 4
Page 3
ReadyNAS® 100 Series Network Attached Storage (NAS) Data Sheet
RN102/RN104
Technical Specifications
Media
• ReadyDLNA (UPnP DLNA Media Server)
• ReadyDLNA streams to any compliant
device including PS3/Xbox 360
• ReadyDLNA mobile clients for remote
media streaming (iOS, Android)
• ReadyDLNA supported music formats
(wav, wma, pcm, ogg, mp3, m4a, flac,
aac)
• ReadyDLNA supported photo formats
(jpg, jpeg)
• ReadyDLNA supported video formats
(3gp, mp4, wmv, xvid, vob, ts, tivo, mts,
mpeg, mpg, mp4, mov, mkv, m4v, m4p,
m2t, m2ts, flv,flc, fla, divx, avi, asf, flv)
• ReadyDLNA supported playlist formats
(pls, m3u)
• ReadyNAS Surveillance (1-camera license
included) supports over 85 brands and
2000 models of IP cameras
• ReadyNAS Surveillance supports up to 8
cameras (optional licenses required)
• RNNVR01L (Optional 1-camera license)
• RNNVR02L (Optional 2-camera license)
• RNNVR04L (Optional 4-camera license)
• iTunes Server
• iTunes supported audio formats (mp3,
m4a, m4p, wav, aif)
• iTunes supported video formats (m4v,
mov, mp4)
• iTunes supported playlist formats (m3u,
wpl)
• TiVo Archiving
• Plex Media Server streams to DLNA and
Plex clients (mobile, desktop, Google TV,
Roku, Samsung & LG TVs)
• ReadyCLOUD (cloud access to
ReadyNAS)
• ReadyCLOUD portal based data access and
management
• VPN quality remote data transfer and
management
• Share data with friends & co-workers
directly from portal
• Share files via email link
• Hardware
• Floating Point CPU
• Flash: 128MB for OS
• Dual Gigabit Ethernet ports with link
aggregation and failover (RN104 only)
• Programmable One-Touch USB Backup
button
• Kensington Security Lock Feature
• LEDs: Power, Activity, Disk, Backup, LAN
• Power cord localized to country of sale
• Mean Time Between Failure (MTBF) Hours@
40C: ReadyNAS 102 532,141
• Mean Time Between Failure (MTBF) Hours
@ 40C: ReadyNAS 104 267,265
ReadyCLOUD Client Applications
• ReadyCLOUD client applications available
for Apple Mac OS X, Microso Windows,
Android, and Apple iOS
• VPN quality remote data transfer and
management
• Simple and secure remote access through
ReadyCLOUD client (no firewall or router
configuration needed
• Sync files/folders between PC (Mac/
Windows) & ReadyNAS
• Sync files/folders between multiple PCs &
ReadyNAS
• Sync files/folders between multiple users &
ReadyNAS
• Backup files/folders from PC to ReadyNAS
Data Protection (Backup & Replication)
• Unlimited block-based snapshots for
continuous data protection
• Restore Snapshots to any point in time
• Restore Snapshot data from local admin
GUI, ReadyCLOUD, or native Windows File
Explorer
• Scheduled and manual snapshots
• Rsync (File Synchronization)
• Encrypted Remote Replication
• Data compression
• Cloud managed Remote Replication
(ReadyNAS to ReadyNAS). No licenses
required for ReadyNAS OS 6 devices
• AES 256-bit volume based encryption
• X-RAID2 (automatic single volume online
expansion)
• Single Disk, JBOD
• RAID Levels: 0, 1, 5, 6, 10 (RAID level
support depends on number of drives/bays)
• RAID Global Hot Spare
• Backup to external storage (USB/eSATA)
• USB One-Touch Copy
• Apple Time Machine support
• Create virtual Time Machine targets per user
• Manage & monitor Time Machine usage
per user
• Remote Apple Time Machine backup and
restore (using ReadyCLOUD Mac client)
• ReadyNAS Vault Cloud backup. Free service
tier with optional capacity upgrades
• DropBox file synchronization (requires
DropBox account)
• Real-time Anti-Virus scanning using
signature and heuristic algorithms. (No
end-user licenses required) Protection for
viruses, malware, worms, and Trojans
• Automatic protection & correction for
degraded media
File System & Transfer Protocols
• ReadyNAS OS 6.2 or later
• Linux 3.x
• Internal File System: BTRFS
• External File System: EXT3, EXT4, NTFS,
FAT32, H FS+
• Copy-on-write filesystem
• Microso Network (CIFS/SMB)
• Apple OS X (AFP 3.3)
• Linux/Unix (NFS v3)
• Internet (HTTP)
• Secure Internet (HTTPS)
• File Transfer Protocol (FTP)
• FTP over SSL / TLS (explicit)
• FTP Passive mode with port range setup
• FTP Bandwidth control
• FTP Anonymous
• FTP Transfer Log
• Secure Shell (SSH)
• Web Authoring (WebDAV)
• Storage Array Network (iSCSI)
• File Synchronization (rsync)
• Local web file manager
• Single volume size limit: 16TB
• Supported Web Browsers (Microso
Internet Exploer 9+, Mozilla Firefox 14+,
Google Chrome 20+, Apple Safari 5+)
Users/Groups
• Max # Users: 8192
• Max # User Groups: 8192
• Max # Share Folder: 1024
• Max # Concurrent Connections: 1024
• Share Folder Level ACL Support
• Advanced Folder Permissions with Subfolder
ACL support for CIFS/SMB, AFP, FTP
• Microso Active Directory (AD) Domain
Controller Authentication
• Local access list
• ReadyCLOUD based ACL
• Domain user login via CIFS/SMB, AFP, FTP
Page 3 of 4
Page 4
ReadyNAS® 100 Series Network Attached Storage (NAS) Data Sheet
RN102/RN104
Technical Specifications
Networking Protocols
• TCP/ IP
• IPv4
• Next-generation Internet Protocol (IPv6)
• Static IP Address
• Dynamic IP Address
• Multiple IP Settings
• DHCP Client
• UPnP Discovery
• Bonjour Discovery
• Link Aggregation IEEE 802.3ad
• Port Trunking (balanced round robin, active
backup, balance xor, broadcast, 802.3ad
link aggregation LACP, transmit load
balancing, adaptive load balancing)
• Hash Types IEEE 802.3ad LACP or XOR
(Layer 2, Layer3, Layer 4)
• Jumbo Frames
• Virtual LAN (VLAN)
• SSH
• SNMP v2, v3
• Network Time Protocol (NTP)
Storage Area Networks (SAN),
Virtualization
• Unlimited iSCSI LUN Snapshot
• Thin or Thick provision LUNs
• Multi-LUN per target
• LUN mapping
• LUN masking
• SPC-3 Persistent Reservation (iSCSI)
• MPIO (iSCSI)
• MC/S (iSCSI)
• Max # iSCSI Target: 256
• Max # iSCSI LUN: 256
• Max iSCSI LUN capacity 8TB
• VMware vSphere 5
• Citrix XenServer 6
• Windows Server 2008 Hyper-V
• Windows Server 2008 Failover Clustering
• Windows Server 2012
Management
• ReadyCLOUD cloud based discovery and
management
• RAIDar local discovery agent (Windows/
Mac)
• Save and restore system configuration
(clone devices)
• Local event log
• Connection reporting (SMB)
• Local Graphical User Interface (GUI)
Languages: English, German, French,
Japanese, Chinese, Russian, Swedish,
Portuguese, Italian, Spanish, Polish, Czech,
Dutch, Korean
• Unicode support
• Volume Management
• Thin provision Shares and LUNs
• Instant Provisioning/Expansion with data
protection
• Restore to factory default
• Supported Operating Systems (Microso
Windows Vista (32/64-bit), 7 (32/64-bit),
8/8.1 (32/64-bit), Microso Windows
Server 2008 R2/2012, Apple OS X, Linux/
Unix, Solaris, Apple iOS, Google Android)
• Supported Web Browsers (Microso
Internet Exploer 9+, Mozilla Firefox 14+,
Google Chrome 20+, Apple Safari 5+)
Accessories
• RTRAY05: Replacement/additional 3.5” or
2.5” disk drive tray
Add-on Applications
• One click installation of add-on applications
directly through local GUI
• Applications available for productivity,
media, backup, surveillance, and many
others
• NETGEAR applications include Surveillance,
Photo Sharing, Advanced configuration
tools
• Partner applications include BitTorrent
Sync, Plex, Memeo, DVBlink
• Community applications include
Transmission, ownCloud, Qbittorrent,
mySQL, VPN server, Syslog, Wordpress,
joomla, Media Wiki, and others.
• Application availability subject to change.
• Applications may impact overall
performance
• Soware Development Kit available for 3rd
party developers
System Monitoring
• Device capacity, performance, resource and
health monitoring
• Bad block scan
• Hard Drive S.M.A.R.T.
• File System Check
• Disk Scrubbing
• Disk Defragment
• Alerts (SMTP email, LCD, SNMP, syslog,
local log)
• Auto-shutdown (hard drive, fan, UPS)
• Auto-restart on power recovery
Compliance
• ENGR 10049 EST Environmental Stress
Test Guideline
• ENGR 10045 EVT Engineering Validation
Test Guideline
• ENGR 10048 CVT Compliance Validation
Test Guideline
• ENGR 10046 SVT System Validation Test
Guideline
• ENGR 10023 HALT Highly Accelerated Life
Test Guideline
• ENGR 10036 CDG Component Derating
Guideline
Environment
• Noise levels: <25dBA
• Operating Temperature: 0°-40° C
• Operating Humidity: 5-95% relative
humidity, non-condensing
• Smart Fan
• Scheduled power on/o
• UPS Support
• Network UPS with SNMP Management
• Wake on LAN
• Hard drive disk spin down
• Auto-power on (aer shutdown)
• AC Input Power Voltage 100V to 240V
• Power Frequency: 50Hz to 60Hz, Single
Phase
• Certification: FCC Class B, CE Class B, RoHS,
VCCI Class B
*The 3-Year Limited Warranty covers hardware, fans, and internal power supplies - not soware or external power supplies. Warranty is only valid for the original purchaser, and modifications to
product may void the warranty. See http://www.netgear.com/about/warranty/ for details. Warranty for included drives is 3 years.
NETGEAR, the NETGEAR Logo, ProSUPPORT, ReadyNAS, ReadyCLOUD, ReadyNAS Vault, and X-RAID are trademarks of NETGEAR, Inc. in the United States and/or other countries. Other brand
names mentioned herein are for identification purposes only and may be trademarks of their respective holder(s). Information is subject to change without notice.
© 2014 NETGEAR, Inc. All rights reserved.
D-RN102/RN104-4
Page 4 of 4
Loading...
