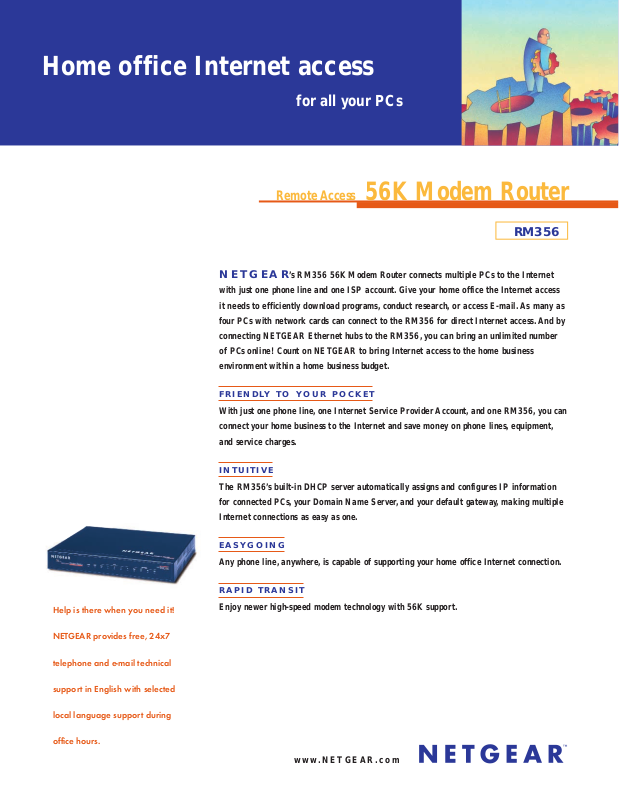

Netgear RM356 BROCHURE
NETGEAR’s RM356 56K Modem Router conn ects multiple PCs to the Intern et
with just one phone line and on e ISP account. Give your home office the Internet access
it needs to efficiently download programs,conduct research, or access E-mail. As many as
four PCs with network cards can connect to the RM356 for direct Internet access.And by
connecting NETGEAR Ethernet hubs to the RM356, you can bring an unlimited number
of PCs online! Count on NETGEAR to bring Internet access to the home business
environment within a home business budget.
FRIENDLY TO YOUR POCKET
With just one phone line, on e Intern et Service Provider Account, and one RM356, you can
connect your home business to the Internet and save money on phone lin es, equipment,
and service charges.
INTUITIVE
The RM356’s built-in DHCP server automatically assigns and configures IP information
for connected PCs, your Domain Name Server, and your default gateway, m aking m ultiple
Internet connections as easy as one.
EASYGOING
Any phone line, anywhere, is capable of supporting your home office Internet connection.
RAPID TRANSIT
Enjoy newer high-speed modem technology with 56K support.
Home office Internet access
for all your PCs
RM356
56K Modem Router
Help is there when you need it!
NETGEAR provides free, 24x7
telephone and e-mail technical
support in English with selected
local language support during
office hours.
www.NETGEAR.com
Remote Access
NETGEAR Inc.
4500 Great America Parkway
Santa Clara, CA 95054
USA
Phone: 1-888-NETGEAR
E-mail: support@NETGEAR.com
www.NETGEAR.com
In-Country Phone Support
(24x7 phone support in English, local language support during office hours.)
NETGEAR™ is a trademark of
NETGEAR, Inc.Windows® is
a registered trademark of
Microsoft Corporation. Other
brand and product names are
trademarks or registered
trademarks of their respective
holders. Information is subject
to change without notice.
All rights reserved.
October 2000
www.NETGEAR.com
TECHNICAL SPECIFICATIONS
Routing Protocols
TCP/IP, RIP-1, RIP-2, Filtering
WAN Protocols
PPP
IP Address Protocols
Dynamic NAT+, DHCP
Security
PAP, CHAP, Caller ID, call back
Data Compression
Hi/fn (Stac LZS) Compression with CCP
Upgradability
Flash program memory
Status LEDs
power, test
Modem: Off-hook, Carrier detect, TXD, RXD
LAN: link/activity per port, collisions
Ethernet Interfaces
Four 10BASE-T (UTP)
Modem Standards
V.90
Dimensions
W 253 mm (9.95”)
D 181 mm (7.1”)
H 35 mm (1.40”)
Weight
1.3kg (44.5oz)
Power Adapter
16VAC, 1A (22W max)
UL/CSA (North America)
CE/TUV (Europe)
T-mark (Japan)
Environmental Specifications
Operating temperature: 0 to 40°C
Operating humidity: 90% maximum relative
humidity, noncondensing
Electromagnetic Compliance
FCC Part 15 Class B
EN 55 022 (CISPR 22), Class B
Warranty
Five years
PACKAGE CONTENTS
RM356 56K router
AC power supply
Ethernet cable, norm al wiring
RM356 management cable
(RJ45-to-25 pin serial cable)
9-pin to 25-pin serial cable adapter
Reference manual
Quick Start FirstGear manual
FirstGear installation diskette
Warranty/registration
Korea 00308-11-0319
Netherlands 0800-023-0981
New Zealand 00800-1233-4566
Norway 800-12041
Singapore 001-800-1233-4566
Sweden 0200-298-298
Switzerland 00800-0638-4327
(00800-0-NETGEAR)
United Kingdom 020-7216-0014
United States 1-888-NETGEAR
All Other Countries +1 801-236-8499
Australia 1800-787-638
Austria 00800-06384327
(00800-0-NETGEAR)
Denmark 808-82179
Canada 1-888-NETGEAR
Finland 0800-111-036
France 0800-77-17-53
Germany 00800-06384327
(00800-0-NETGEAR)
Hong Kong 001-800-1233-4566
Japan 0120-66-5402
D-RM356-001
