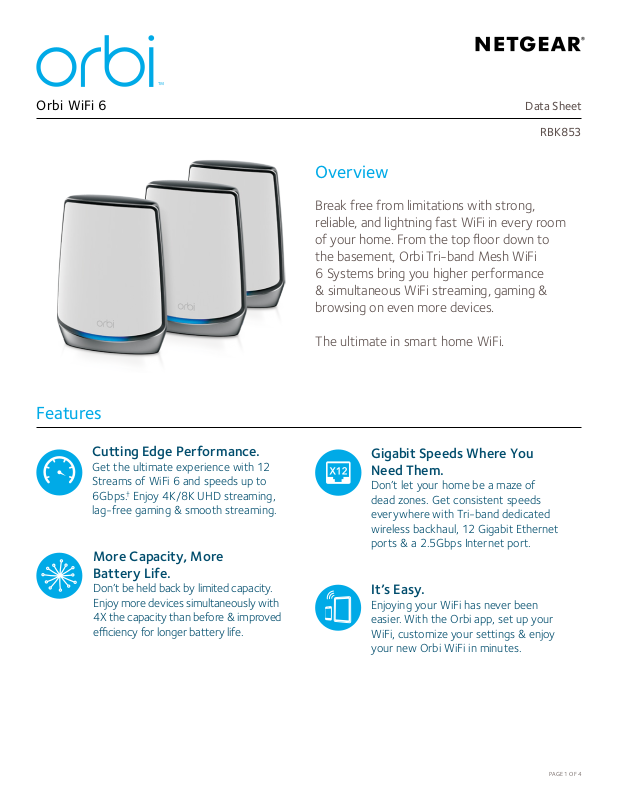

Orbi WiFi 6
Data Sheet
RBK853
Overview
Break free from limitations with strong,
reliable, and lightning fast WiFi in every room
of your home. From the top floor down to
the basement, Orbi Tri-band Mesh WiFi
6 Systems bring you higher performance
& simultaneous WiFi streaming, gaming &
browsing on even more devices.
The ultimate in smart home WiFi.
Features
Cutting Edge Performance.
Get the ultimate experience with 12
Streams of WiFi 6 and speeds up to
6Gbps.
lag-free gaming & smooth streaming.
More Capacity, More
Battery Life.
Don’t be held back by limited capacity.
Enjoy more devices simultaneously with
4X the capacity than before & improved
eciency for longer battery life.
†
Enjoy 4K/8K UHD streaming,
Gigabit Speeds Where You
Need Them.
Don’t let your home be a maze of
dead zones. Get consistent speeds
everywhere with Tri-band dedicated
wireless backhaul, 12 Gigabit Ethernet
ports & a 2.5Gbps Internet port.
It’s Easy.
Enjoying your WiFi has never been
easier. With the Orbi app, set up your
WiFi, customize your settings & enjoy
your new Orbi WiFi in minutes.
PAGE 1 OF 4
Orbi WiFi 6
House Diagram
Ultimate
Smart Home
Experience
Orbi WiFi 6
Satellite
DE DI CA TE D WI FI 6 CO NN EC TI ON
Orbi WiFi 6
Satellite
DE DI CA TE D WI FI 6 CO NN EC TI ON
Blockbuster WiFi
Stream ultra-high definition to EVERY
screen simultaneously without delay.
+
8
ROOMS
(Up to 7,500sq ft)
Data Sheet
RBK853
Built for Gigabit Internet
Speeds Everywhere
You’ve paid for the fas test
Internet speeds, now experience
it everywhere in your home.
Use the Orbi app to setup
and manage your Orbi WiFi.
Orbi App
Performance Leadership
in Mesh WiFi 6
Ultra-fast connections for all your
smart home, streaming, mobile
& gaming need s.
68
Capacity Beyond Belief
Next-generation WiFi 6 provides faster
speeds & sup ports more devic es for today
& tomorrow.
Orbi WiFi 6
Router
PAGE 2 OF 4
Orbi WiFi 6
Data Sheet
RBK853
Orbi Router (RBR850)
Orbi Satellite (RBS850)
Sync
Internet
Router
Gigabit Ethernet ports
Satellite
Sync
Gigabit Ethernet ports
PAGE 3 OF 4
Orbi WiFi 6
Data Sheet
RBK853
What’s In the Box?
• One (1) Orbi Router (RBR850)
• Two (2) Orbi Satellites (RBS850)
• One (1) 2m Ethernet cable
• Three (3) 12V/3.5A power adapters
• Quick start guide
What Do I Need for Orbi to Work?
• High-speed Internet connection
• Connect to existing modem or gateway
Soware Features
• Orbi Mobile App
Physical Specifications
• Dimensions: 10 x 7.5 x 2.8 in each
• Weight: 2.87 lb each
Technical Specifications
• Orbi AX6000 Router and AX6000 Satellites
(2400 + 2400 + 1200Mbps)
• Simultaneous Tri-band WiFi
- Radio 1: IEEE
®
802.11b/g/n/ax
2.4GHz—1024-QAM support
- Radio 2: IEEE
®
802.11a/n/ac/ax
5GHz—1024-QAM support
- Radio 3: IEEE
®
802.11a/n/ac/ax
5GHz—1024-QAM support
†
• MU-MIMO capable for simultaneous data streaming
• Implicit & Explicit Beamforming for 2.4GHz &
5GHz bands
• Processor - Router & Satellites
- Powerful quad-core 2.2GHz processor
• Memory – Router
- 512MB NAND flash and 1GB RAM
• Antenna – Router & Satellites (each)
- Eight (8) high-performance internal antennas
with high-power amplifiers
• Ports – Orbi Router
- Four (4) 10/100/1000Mbps Gigabit Ethernet
LAN ports
- One (1) 2.5Gbps multi-Gigabit Ethernet WAN port
- WAN link aggregation by using 1Gbps LAN port
together with 2.5Gbps WAN port
• Ports – Orbi Satellites (each)
- Four (4) 10/100/1000Mbps Gigabit Ethernet
LAN ports
• Security
- Standards-based WiFi Security
(802.11i, 128-bit AES encryption with PSK)
- Guest WiFi Network is easy to setup separate &
secure Internet access for guests
• Voice Control
- Amazon Alexa
™
- The Google© Assistant
This product comes with a limited warranty that is valid only if purchased from a NETGEAR authorized reseller. www.netgear.com/warranty
*90-day complimentary technical support following purchase from a NETGEAR authorized reseller.
‡
Maximum wireless signal rate derived from IEEE standard 802.11 specifications. Network conditions and environmental factors, including volume of network traffic, building
construction, and network overhead may decrease actual data throughput rate.
For regulatory compliance information, visit http://www.NETGEAR.com/about/regulatory
The country settings must be set to the country where the device is operating.
For indoor use only.
NETGEAR, the NETGEAR Logo, NETGEAR Armor, and Orbi are trademarks of NETGEAR, Inc. Apple and the Apple logo are trademarks of Apple Inc., registered in the U.S. and other
countries. App Store is a service mark of Apple Inc., registered in the U.S. and other countries. Google Play and the Google Play logo are trademarks of Google LLC. Any other
trademarks mentioned herein are for reference purposes only. © 2019 NETGEAR, Inc.
NETGEAR, Inc. 350 E. Plumeria Drive, San Jose, CA 95134-1911 USA, www.NETGEAR.com/support D-NA-RBK853-0
PAGE 4 OF 4
