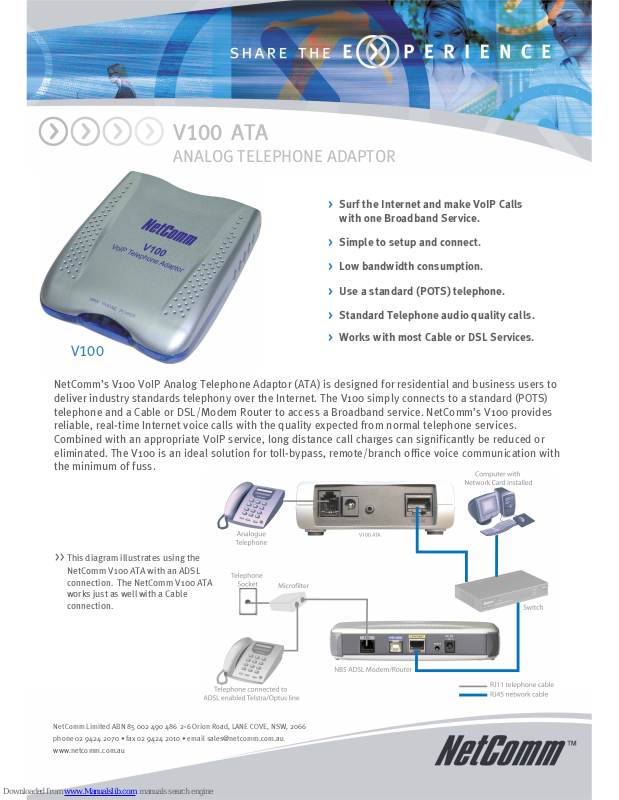

NetComm’s V100 VoIP Analog Telephone Adaptor (ATA) is designed for residential and business users to
deliver industry standards telephony over the Internet. The V100 simply connects to a standard (POTS)
telephone and a Cable or DSL/Modem Router to access a Broadband service. NetComm’s V100 provides
reliable, real-time Internet voice calls with the quality expected from normal telephone services.
Combined with an appropriate VoIP service, long distance call charges can significantly be reduced or
eliminated. The V100 is an ideal solution for toll-bypass, remote/branch office voice communication with
the minimum of fuss.
> Surf the Internet and make VoIP Calls
with one Broadband Service.
> Simple to setup and connect.
> Low bandwidth consumption.
> Use a standard (POTS) telephone.
> Standard Telephone audio quality calls.
> Works with most Cable or DSL Services.
V100
V100 ATA
ANALOG TELEPHONE ADAPTOR
NetComm Limited ABN 85 002 490 486 2-6 Orion Road, LANE COVE, NSW, 2066
phone 02 9424 2070 • fax 02 9424 2010 • email sales@netcomm.com.au
www.netcomm.com.au
>> This diagram illustrates using the
NetComm V100 ATA with an ADSL
connection. The NetComm V100 ATA
works just as well with a Cable
connection.
Technical Specifications
WAN / LAN Interface
> Ethernet x 1 IEEE 802.3 10/100 Base-T,Auto-crossing
Analog Interface
> FXS x 1
Management
> SNMP, Telnet, Configuration backup and restoration,
Software upgrade via TFTP client or FTP server
Security Functions
> PPPoE Authentication protocols PAP, CHAP
> SIP Authentication method MD5
Supporting Protocols
> IP, TCP, UDP, PPPoE, DHCP, FTP, TFTP, SNMP, Telnet, DNS
NAT Traversal
> STUN (RFC 3489)
Voice Functions
> SIP RFC 3261
> Codec G.711, G.729ab*
* Note: G.729ab Codec can be replaced with G.723.1 upon
special request.
> RTP(RFC1889) Yes
> SDP(RFC2327) Yes
> On/Off hook Caller ID ETSI based*
* Caller ID is dependant display information sent by caller.
> AEC(Acoustic Echo cancellation) G.168
> VAD/Silence suppression Yes
> DTMF detection/generation Yes
> CNG(Comfort Noise Generation) Yes
> Out-band DTMF(RFC2833) Yes
> Jitter Buffer Yes
> Outbound Proxy(SIP) Yes
> Caller ID Presentation Yes
> Caller ID Restriction Yes
> Call Transfer Yes
> Direct IP Peer-to-Peer Call Yes
> Call Waiting Yes
> Call Hold/Resume Yes
> Call Forward Yes
> CFU (Call Forward Unconditional) Yes
> CFB (Call Forward Busy) Yes
> Phone Book Yes
> Call Switch Yes
> Ring Back Tone Yes
> Busy Tone/ Dial Tone Yes
LED
> Power, WAN, PHONE
Power Supply
> External power adapter 100 VAC~ 240 VAC 12VDC/1A
Environmental Conditions
> Operating temperature 0 ~ 50 degrees Celsius
> Relative humidity 5 ~ 90% (non-condensing)
Dimensions
> 96 mm (W) x 30 mm(H) x 115 mm (D)
NetComm is Australia’s dynamic data communications and
networking solutions provider. For more information on this
and other NetComm products, please visit
www.netcomm.com.au
NetComm Limited ABN 85 002 490 486
PO Box 1200, Lane Cove NSW 2066 Australia.
Phone (02) 9424 2070 • Fax (02) 9424 2010
www.netcomm.com.au • Email sales@netcomm.com.au
Trademarks and registered trademarks are the property of NetComm Limited
or their respective owners. Specifications are subject to change without
notice. Images shown may vary slightly from the product.
Product Code: V100
1 Year Warranty
1 year warranty out of the box. Conditions apply.
Please see your warranty card for more details.
