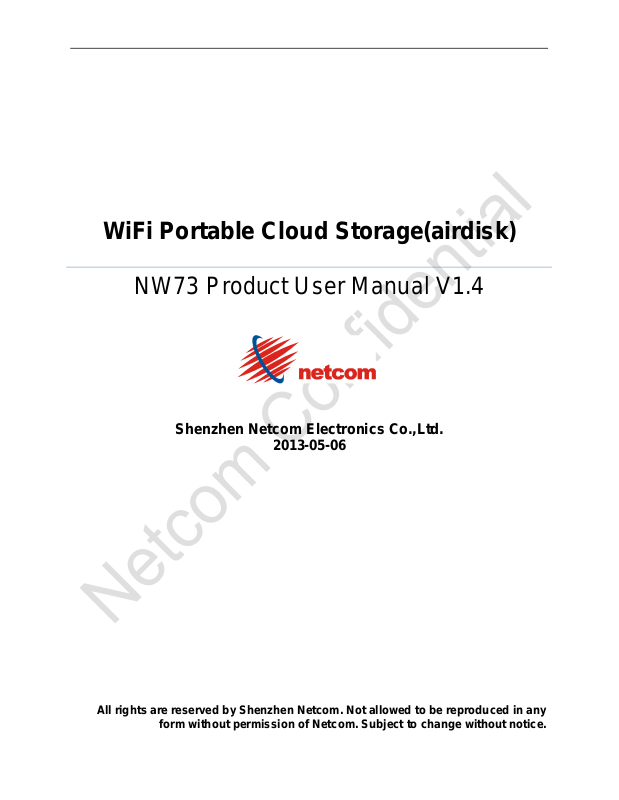

Netcom Electronics NW73 User Manual

WiFi Portable Cloud Storage(airdisk)

NW73 Product User Manual V1.4

Shenzhen Netcom Electronics Co.,Ltd.

2013-05-06

All rights are reserved by Shenzhen Netcom. Not allowed to be reproduced in any

form without permission of Netcom. Subject to change without notice.

NW73 Product User Manual

2

Version

No.

Revised

Date

Revised

By

Description

Notes

V1.0

2012-06-21

Preliminary user manual draft

V1.1

2012-10-22

Modify the interface and add additional

V1.2

2012-12-10

Add new solution and function

V1.3

2013-1-3

Modify the App usage

V1.4

2013-5-6

Modify the battery capacity

1. Product Revision History

Shenzhen Netcom Confidential

NW73 Product User Manual

3

Content

1. Product Revision History ....................................................... 2

2. Product Description ............................................................. 4

2.1 Introduction ............................................................................................................................................. 4

2.2 Package Contents ................................................................................................................................. 4

3. Key Features ......................................................................... 4

3.1 Supported File Types ............................................................................................................................ 5

3.2 System Requirements ........................................................................................................................... 5

3.3 airdisk interface introduction .............................................................................................................. 6

3.4 Charge/Discharge introduction ........................................................................................................... 6

3.5 Connecting to a Computer ............................................................................................................... 67

4. Installing the airdisk App ........................................................ 7

4.1 Installing the App on iOS/Android devices ........................................................................................ 7

4.2 [A+Disk] App connect to airdisk ........................................................................................................ 7

4.3 Using [A+Disk] App .......................................................................................................................... 8

5. Additional Information .......................................................... 14

Shenzhen Netcom Confidential

NW73 Product User Manual

4

2. Product Description

2.1 Introduction

airdisk is a wireless portable cloud storage device that wirelessly streams HD videos, music,
pictures and documents to multiple devices simultaneously (iPhone, iPad, iPod touch, Android
devices). airdisk is able to access to Internet through WiFi or RJ45 interface.

The NW73 can also be used as the power bank. Its internal 5600mAh polymer Li-ion battery
is able to either charges your mobile device through its USB 5V/DC interface or supports 20hrs
playback and 26hrs standby.

The airdisk NW73 is designed in a 100mm x 59.81mm x 19.54mm ROHS compliant 100%
lead (pb) free form factor.

2.2 Package Contents

Main unit，USB Cable, AC adapter, Ethernet Cable,User Manual

3. Key Features

 Qualcomm solution
 Compliant IEEE802.11b/g/n standard（Max 150Mbps）
 WiFi encryption by WPA,WPA2,WPA2 Mixed

 Supports router function through RJ45 interface
 Supports photos, files, music, video and document etc. through WiFi
 Supports 3 users share content and access external Internet simultaneously
 Free App for iOS and Android devices
 Built-in Capacity: 16GB, 32GB, 64GB, 128GB, 256GB
 Supports sharing the content of external USB Drive and SD card

 Supports sharing the data of external 3G dongle through WiFi (MiFi function）
 Built-in 5600mAh rechargeable lithium polymer battery

 Support power bank function
 Supports 20hrs playback and 26hrs standby
 Micro USB interface for fast file transfers and charge



Supports NTFS, FAT32, exFAT, ext2, ext3 file system

Shenzhen Netcom Confidential

NW73 Product User Manual

5

3.1 Supported File Types

iOS:
Document: .pdf, .txt, .doc, .docx, .xls, .xlsx, .rtf, .ppt, .pptx

Photos: .jpg, .png
Music: .mp3, .wav, .aif
Video: .mp4, .mov

Android:
Document: .pdf, .txt, .doc, .docx, .xls, .xlsx, .ppt, pptx

Photos: .jpg, .png, bmp, .gif
Music:.mp3, .mp4, .3gp, .wav, .ogg, .imy, .aif
Video:.mp4, .3gp

3.2 System Requirements

System requirements via USB transferring data



Microsoft Windows® XP



Microsoft Windows Vista®



Microsoft Windows® 7



Mac OSX 10.5 or later
Linux Kernel 2.4 or later











iOS device requirements:
iPhone, iPad, iPod touch and Mac(iOS5.0 or later)

Android device requirements：
Android 2.2 or later device

Shenzhen Netcom Confidential
