Netcom Electronics NW21 User Manual

airdisk - WiFi USB Drive

NW21 Product User Manual V1.1

Shenzhen Netcom Electronics Co.,Ltd.

2013-04-24

All rights are reserved by Shenzhen Netcom. Not allowed to be reproduced in any

form without permission of Netcom. Subject to change without notice.

NW21 Product User Manual

2

Version

No.

Revised

Date

Revised

By

Description

Notes

V1.0

2013-01-03

Preliminary user manual draft

V1.1

2013-04-24

Update photo

1. Product Revision History

Shenzhen Netcom Confidential

NW21 Product User Manual

3

Content

1. Product Revision History ....................................................... 2

2. Product Description ................................................................ 4

2.1 Introduction ............................................................................................................................................. 4

2.2 Package Contents .................................................................................................................................... 4

3. Key Features ............................................................................ 4

3.1 Supported File Types ............................................................................................................................... 5

3.2 System Requirements .............................................................................................................................. 5

3.3 airdisk interface introduction ................................................................................................................... 6

3.4 Charge introduction ................................................................................................................................. 6

3.5 Connecting to a Computer ....................................................................................................................... 6

4. Installing the airdisk App ........................................................ 6

4.1 Installing the App on iOS/Android devices ............................................................................................. 7

4.2 [A+Disk] App connect to airdisk ............................................................................................................. 7

4.3 Using [A+Disk] App ............................................................................................................................... 8

5. Additional Information .......................................................... 13

Shenzhen Netcom Confidential

NW21 Product User Manual

4

2. Product Description

2.1 Introduction

WiFi USB Drive is a wireless portable cloud storage device that wirelessly streams HD
videos, music, pictures and documents to multiple devices simultaneously (iPhone, iPad, iPod
touch, Android devices).

The NW21 built-in 1050mAh polymer Li-ion battery and supports 4.5hrs playback and 6hrs

standby.

The WiFi USB Drive NW21 is designed in a 104mm x 34mm x 11.8mm RoHS compliant

100% lead (pb) free form factor.

2.2 Package Contents

Main unit, User Manual

3. Key Features

• Qualcomm solution

• Compliant IEEE802.11b/g/n standard（Max 150Mbps）

• WiFi encryption by WPA,WPA2,WPA2 Mixed

• Supports view photos, view files, playback music, playback video via WiFi

• Supports 3 users share content and access external Internet simultaneously

• Free App for iOS and Android system devices

• Capacity:16GB, 32GB, 64GB, 128GB

• Built-in rechargeable lithium polymer battery 1050mAh

• Supports 4.5hrs playback and 6hrs standby

• USB3.0 interface for fast file transfers and charge

• Supports NTFS, FAT32, exFAT, ext2, ext3 file system

• USB average Write/Read speed: 15MB/50MB

 Supports encrpytion function

•

Shenzhen Netcom Confidential

NW21 Product User Manual

5

3.1 Supported File Types

iOS:

• Document: .pdf, .txt, .doc, .docx, .xls, .xlsx, .rtf, .ppt, .pptx

• Photos: .jpg, .png

• Music: .mp3, .wav, .aif

• Video: .mp4, .mov

Android:

• Document: .pdf, .txt, .doc, .docx, .xls, .xlsx, .ppt, pptx

• Photos: .jpg, .png, bmp, .gif

• Music:.mp3, .mp4, .3gp, .wav, .ogg, .imy, .aif

• Video:.mp4, .3gp

The video formats supported by iOS and Android OS are limited. You are suggested use 3rd
party players to play the video format which is not supported by iOS/Android OS. Such as AVI,
RMVB, MKV etc, so you can install a third-party App to play it.
3rd party players in App Store and Google Play for

- Android OS: QQ video, MoboPlayer, RockPlayer

- iOS OS: OPlayer, GoodPlayer

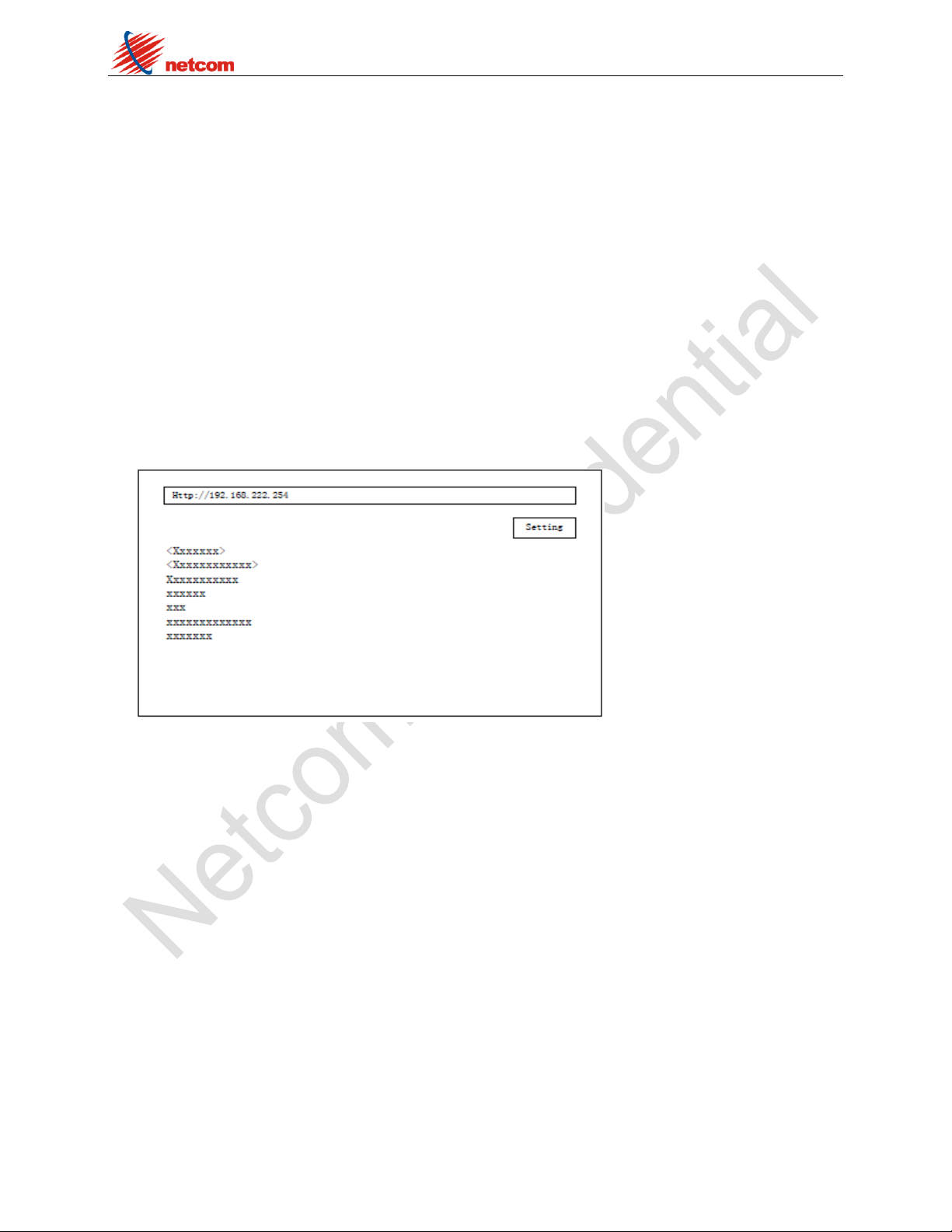

More than that, input the website address of “192.168.222.254” can directly access the airdisk.

3.2 System Requirements

System requirements via USB transferring data




Microsoft Windows® XP




Microsoft Windows Vista®




Microsoft Windows® 7




Mac OSX 10.5 or later



Linux Kernel 2.4 or later

iOS device requirements:
iPhone, iPad, iPod touch and Mac(iOS5.0 or later)

Android device requirements：
Android 2.2 or later device











Shenzhen Netcom Confidential
