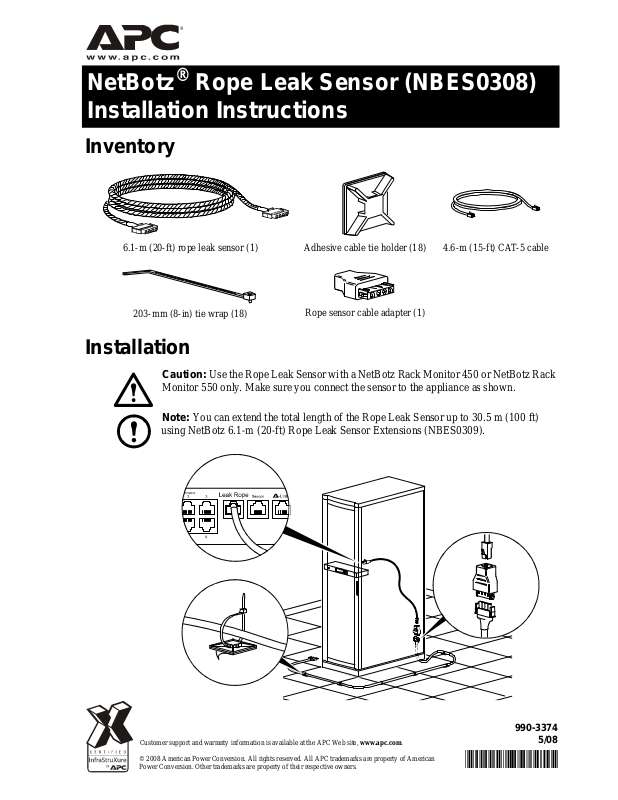

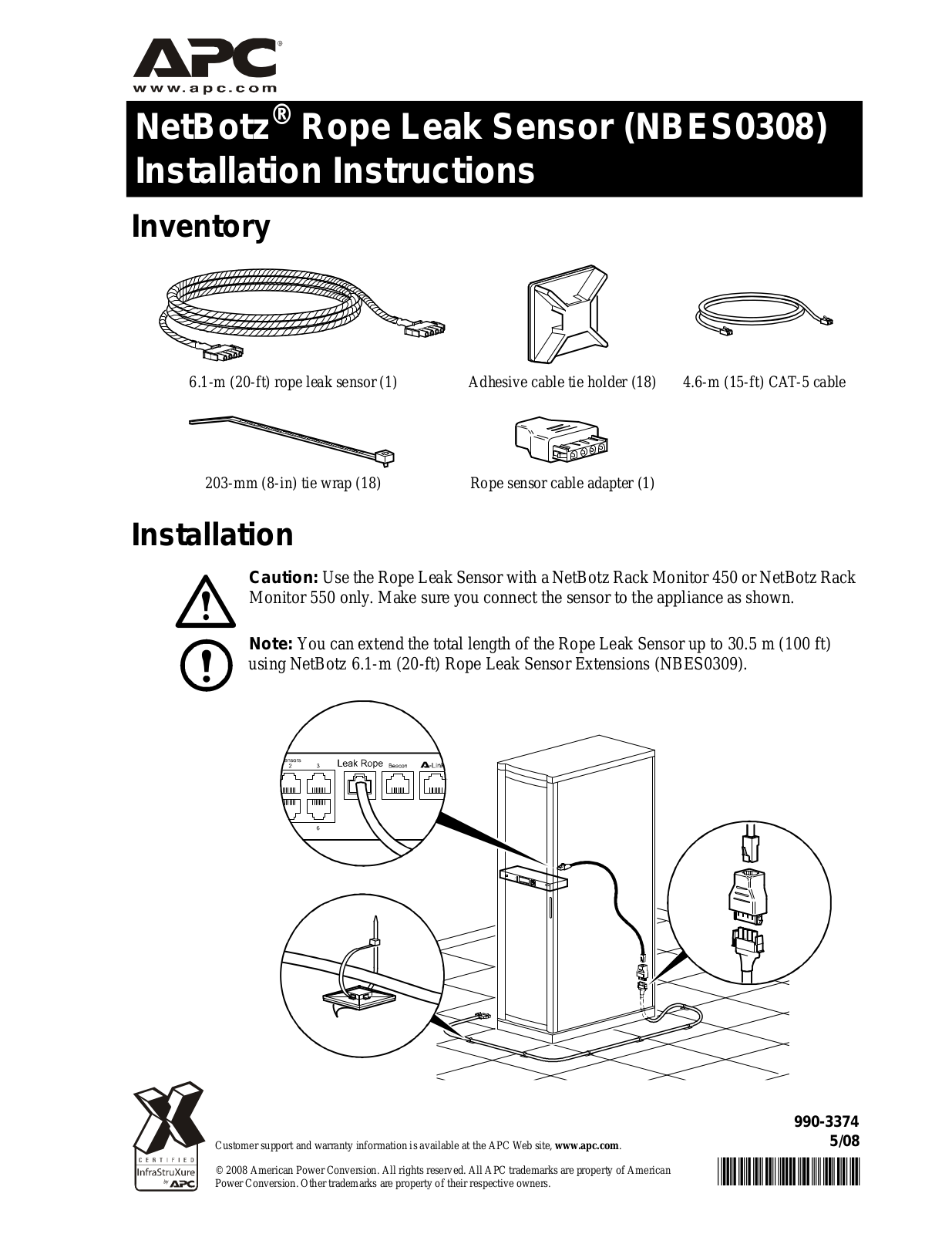

NetBotz® Rope Leak Sensor (NBE S0 308 )
Installation Instruction s

Inventory

6.1-m (20-ft) rope leak sensor (1) Adhesive cable tie holder (18)

203-mm (8-in) tie wrap (18)

Installation

Caution: Use the Rope Leak Sensor with a NetBotz Rack Monito r 450 or NetBotz Rack

Monitor 550 only. Make sure you connect the sensor to the appliance as shown.

Note: You can extend the total length of the Rope Leak Sensor up to 30.5 m (100 ft)
using NetBotz 6.1-m (20-ft) Rope Leak Sensor Extensions (NBES0309).

4.6-m (15-ft) CAT-5 cable

Rope sensor cable adapter (1)

Customer support and warranty information is available at the APC Web site, www .apc.com.

© 2008 American Power Conversion. All rights reserved. All APC trademarks are property of American
Power Conversion. Other trademarks are property of their respective owners.

990-3374

5/08

*990-3374*
