1
Connect devices
Proceed to step 2
2
Connect to Network
Network
connecƟ on
Insert SIM card and
mount antenna
(SMA connector)
WAN (enabled by default)
2G/3G (EC350 only)
For further informaƟ on, see
hƩ p://www.netbiter.com/support
If not using a Netbiter SIM card: make
sure that the SIM card has a mobile data
plan and allows text messaging, and that
PIN code security has been disabled.
3
LED descripƟ ons
Apply Power
Apply power
12–48 VDC
Only!
For StaƟ c IP address or 2G/3G: go to step 4
Otherwise: see secƟ on B on reverse
LED Name Color Indication Possible actions
RS485/RS232 OFF Port disabled.
Steady red Port failure. Contact support.
Steady green Port enabled from Netbiter Argos.
Uplink/WAN Steady green Connected to Netbiter Argos.
Steady red Incorrect IP seƫ ngs. Dynamic IP address - check for DHCP server on network.
Fixed IP address - check the seƫ ngs for IP address, gateway and DNS servers.
Flashing red Unable to connect to Internet/Netbiter Argos. Check network seƫ ngs and fi rewalls.
Modem (EC350 only) OFF Modem disabled.
Steady red Modem failure. Contact support.
Flashing red SIM card failure. Check that the SIM card is correctly inserted and not damaged.
Steady orange PIN code enabled on SIM card. Disable PIN code on the SIM card.
Flashing orange No APN server specifi ed. The APN (Access Point Name) Server must be set from Netbiter Argos.
See secƟ on B.
Steady green Modem registered on mobile network.
Flashing green Modem is searching for mobile network.
Gateway OFF Unit has no power, or is starƟ ng up.
Steady green Normal operaƟ on.
Flashing green Firmware update in progress.
Steady red Hardware failure - contact support.
Flashing red ApplicaƟ on failure - contact support.
Power OFF No power.
Steady green Unit has power.
Ethernet Link
(located on RJ-45 ports)
OFF No network detected.
Orange fl icker AcƟ vity on 10 Mbps Ethernet network.
Green fl icker AcƟ vity on 100 Mbps Ethernet network.
A
For further informaƟ on on serial
connecƟ ons, see secƟ on D on
reverse.
SIM card slot
WAN
RS-232
RS-485
LAN
Connect Serial
Devices
Connect
Ethernet
Devices
Proceed to step 3
4
Setup
Network
connecƟ on
Check that there is a
good connecƟ on to
the mobile network.
See secƟ on A below.
Connect 12–48 VDC to pin +
Connect Ground to pin -
StaƟ c IP addess
2G/3G connecƟ on
AcƟ vate the product: see secƟ on B on reverse
To set up the IP
address, see secƟ on
C on reverse.
To check the mobile signal strength on EC350:
Press and release the Mode buƩ on (see secƟ on D). The
top 5 LEDs will now show the signal strength:
• 1 Flashing Red LED: No/unknown signal
• 1 Flashing Orange LED: Poor signal
• 1 Flashing Green LED: OK signal
• 2-5 Flashing Green LEDs: Good to opƟ mum signal
The LEDs will automaƟ cally return to showing the
standard indicaƟ ons aŌ er 60 seconds.

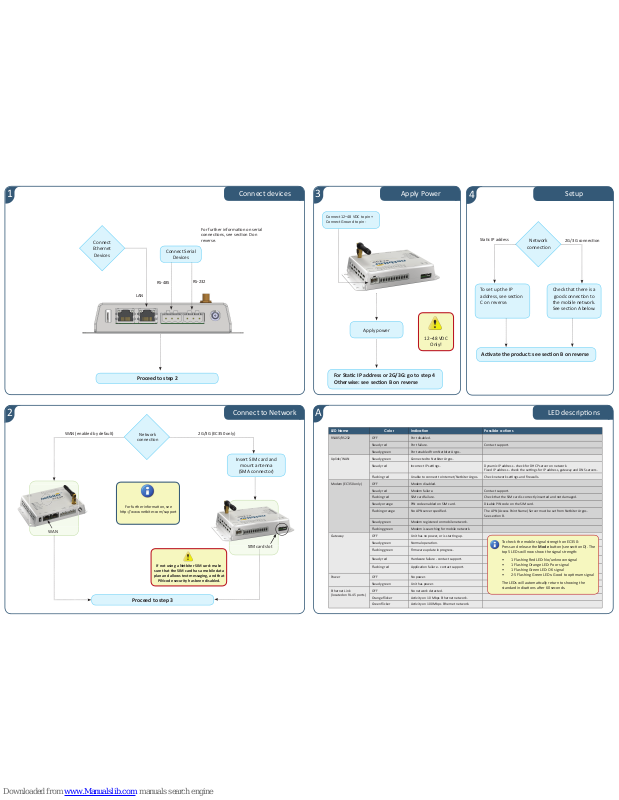

Netbiter EasyConnect EC310
Netbiter EasyConnect EC350
InstallaƟ on Guide
SP1829, Rev. 1.40, July 2015
compatible
Field wiring terminals shall be connected with minimum wire size 24 AWG
Use the IPconfi g tool to set up a staƟ c IP address, gateway or DNS server for the
WAN port on the Netbiter EasyConnect.
About the IPconfi g UƟ lity
The Windows-based IPconfi g uƟ lity is used for making TCP/IP network seƫ ngs
in the Netbiter. The uƟ lity scans the Ethernet network for connected Netbiter
devices and allows the user to set the IP address, net mask, gateway, DNS and
hostname for each unit.
InstallaƟ on Procedure
Download and run the self-extracƟ ng installaƟ on package IPconfi g from
hƩ p://www.netbiter.com/support
Scanning for connected devices
Ensure that the Netbiter units to be installed are connected on the same
Ethernet network as the PC running IPconfi g. Use standard Ethernet cables,
straight-through or crossover.
When IPconfi g is started it will scan the Ethernet network for Netbiter devices. All
detected devices will be presented
in a list in the main window. To start
a new scan for devices, click the
Scan buƩ on.
Changing IP seƫ ngs
To change the IP seƫ ngs for a
detected device, double-click the
device in the list. This opens a
dialog from which the required IP
confi guraƟ on can be made.
The default password for
authenƟ caƟ on of the new seƫ ngs is the AcƟ vaƟ on Code. Clicking Set will cause
the Netbiter device to reboot, aŌ er which the new seƫ ngs will be enabled.
Before communicaƟ ng with Netbiter Argos, the Netbiter EasyConnect must be
acƟ vated. This requires the System ID and AcƟ vaƟ on Code, both of which are
provided on a printed sheet together with the Netbiter.
To open a new account on Netbiter Argos:
1. Go www.netbiter.net and click on the
Create an account link.
2. Follow the instrucƟ ons and log in to the new account.
3. Select the primary use for the unit and click on the AcƟ vate buƩ on.
To use an exisƟ ng Netbiter Argos account:
1. Go to www.netbiter.net and log in to your account.
2. Go to the menu Management >> All Systems >> Add system
See the online help if required.
Requirements for Mobile CommunicaƟ on
The informaƟ on listed below should be entered at Netbiter Argos, at the Mobile
Network confi guraƟ on page, under the management tab for the system.
• The phone number for the SIM card.
• For a SIM card supplied by another operator, the access point name (APN)
for the SIM card is also required. Enter the username and password if
required by the operator.
The phone number and APN informaƟ on should be supplied with the SIM card. If
not, please contact the operator for the correct informaƟ on.
Note that for a SIM card from another operator, the PIN code must be disabled.
Online Help
The online help is accessed by clicking on
the icon in the upper right corner, as shown
here.
Order Code
EC310: NB1007
EC350: NB1005
EC350 (no antenna): NB1008
Mobile communicaƟ on (EC350 only)
5-band 3G/UMTS (WCDMA/FDD):
800/850, 900, 1900, 2100 MHz
Quad-band GSM/GPRS: 850, 900, 1800,
1900 MHz
1 Relay Output
2 Digital Inputs (dry contact type)
4 Analog Inputs
All 4 with support for V, mA
2 with support for Pt100
Serial Port #1
RS-232 (Tx, Rx, GND)
Serial Port #2
RS-485
Antenna Connector Mobile (EC350 only)
SMA female
Antenna Connector GPS (EC350 only)
SMA female (acƟ ve or passive antenna)
USB Interface
Micro USB, USB 2.0
Protocols
Modbus RTU
MounƟ ng
DIN rail (EN 50022)
Wall mounƟ ng
Dimensions (H x W x D)
25.6 x 135 x 92 mm
Temperature
OperaƟ ng: -40 °C to +65 °C
Storage: -45 °C to +85 °C
Humidity range
5-95 % RH, non-condensing
Power Supply
12-48 VDC, 6 W, LPS
Power ConsumpƟ on, typical
EC310: 2.5 W
EC350: 4.5 W
CerƟ fi caƟ ons
EC310: CE, ROHS,
CULUS
EC350: CE, ROHS, Telec
JATE, CUL
US,
FCC, IC, PTCRB, RCM
CerƟ fi caƟ ons Pending
EC310: ATEX/Haz.Loc
EC350: ATEX/Haz.Loc
Technical Specifi caƟ ons
HMS Industrial Networks AB
Box 4126
300 04 Halmstad
Sweden
Phone +46 (0)35 - 17 29 00
Fax +46 (0)35 - 17 29 09
E-mail info@hms.se
Web www.hms.se
Support
+46 (0)35 - 17 29 20
Web www.netbiter.com/support
Save time, save energy, save resources!
©2014 HMS Industrial Networks - All rights reserved - HMS reserves the right to make modifi caƟ ons without prior noƟ ce.
For a Netbiter SIM card, the APN seƫ ngs are pre-confi gured on
Netbiter Argos and the PIN code is disabled upon delivery.
Connectors and I/O’s - Top
Power connector SIM card slot *
I/O Terminal
block
(see table)
NOTE: The new seƫ ngs can be tested by opening a web browser
and entering the IP address as confi gured above. To discover the
device’s IP address when using DHCP - start a new scan with the IP
Confi g uƟ lity to view the new network confi guraƟ on informaƟ on.
Connectors - BoƩ om
RS-232
RS-485
GPS antenna
connector
*
WAN
Pin Description
Rx Rx Recieve Input RS-232
Tx Tx Transmit Output RS-232
GND Signal ground
3-pin RS-232 Connector
Pin Description
A RS-485 Line A (+)
B RS-485 Line B (-)
COM ISO GND (Isolated ground)
3-pin RS-485 Connector
D
E
Manual WAN Confi guraƟ on
C
Micro USB
connector
ProtecƟ ve Earth
(for Ethernet ports)
Pin Label Description
1 (Relay) NO Relay Output, NO, Isolated
2 (Relay) COM Relay Output, COM, Isolated
3 (DI/Pulse In) DI1+ Digital input 1 current source
4 (DI/Pulse In) DI1- Digital input 1
5 (DI/Pulse In) DI2+ Digital input 2 current source
6 (DI/Pulse In) DI2- Digital input 2
7 (Analog In) AI1 Analog Input 1
8 (Analog In) AI2 Analog Input 2
9 (Analog In) AI3 Analog Input 3
10 (Analog In) AI4 Analog Input 4
11 (Analog In) COM Analog Ground
ConnecƟ ons on I/O Terminal Block
IMPORTANT! Do not select the DHCP opƟ on if there is no DHCP
server available on the network.
Package Contents
Item DescripƟ on
NB1005 or
NB1008 or
NB1007
EC350
EC350 (no antenna)
EC310
Connectors Screw connectors for I/O, RS-232 and RS-485 teminals
System ID/AcƟ vaƟ on code Printed document with ID and code required to install product
InstallaƟ on Guide This document
Stub antenna (NB1005 only) Female SMA connector
AcƟ vate the Netbiter EasyConnect
B
11 1
LAN
2G/3G antenna
connector
*
* Netbiter EC350 only
• Do not connect power to digital inputs!
• Relay max 24V AC/DC, 1A
Once the Netbiter is online at Netbiter Argos, please check
that the unit is running the latest fi rmware.
Mode buƩ on *
Ethernet link indicators
