Deciding whether to use this guide

This guide is intended for hardware installers and system administrators who are installing an E2700 controller-drive tray and the related drive trays.

This guide does not provide extensive conceptual background or information about how to install and configure the SANtricity® Storage Manager software. Refer to the appropriate SANtricity documentation to learn how to install and configure the storage management software.

This guide is based on the following assumptions:

• You have consulted the cabinet.

• You have all the necessary hardware required to install the controller-drive tray and drive trays for the storage array.

Where to find the latest information about the product

You can find links to documentation and information about the latest version of the product at the

NetApp E-Series and EF-Series Systems Documentation Center

Site Preparation Guide

to plan the installation of this hardware in a

Page 7

Step 1 - Preparing to install a controller-drive tray

Storage arrays consist of an E2700 controller-drive tray model and can have one or more drive trays in a cabinet.

Use this document to install one of the following E2700 controller-drive tray models and all necessary drive trays for your configuration:

• E2712 controller-drive tray

• E2724 controller-drive tray

• E2760 controller-drive tray

The E2700 controller is available with or without a host interface card (HIC). When HICs are not used, the host connection on the E2700 controller are through two 12-Gb/s SFF-8644 mini SAS-HD connectors integrated into the controller circuit board. When HICs are used, the 12-Gb/s SFF-8644 mini SAS-HD connectors also can be used for host input.

The following tables show the various configuration options.

Table 1: E2712 controller-drive tray and E2724 controller-drive tray options

Configuration

• Simplex E2712 controller-drive tray with no HIC

• Simplex E2724 controller-drive tray with no HIC

Options

An E2712 controller-drive tray or E2724 controller-drive tray attached to DE1600 drive trays, DE5600 drive trays, or DE6600 drive trays not to exceed a maximum of 192 drive slots or 16 total trays in the storage array. You can mix all three types of drive trays or have the following number of drive trays in a storage array:

• 15 DE1600 drive trays with an E2712

• 14 DE1600 drive trays with an E2724

• Seven DE5600 drive trays

• Three DE6600 drive trays with an E2712 controller-drive tray

• Two DE6600 drive trays with an E2724 controller-drive tray One 4-GB or one 8-GB DIMM memory for a maximum of 8-GB

capacity in the controller. One 4-GB DIMM memory requires one 16-GB mSATA module for

controller cache backup. One 8-GB DIMM memory requires two 16GB mSATA modules for controller cache backup.

Page 8

8 | E2700 Controller-Drive Tray and Related Drive Trays Installation Guide

Configuration Options

• Simplex E2712 controller-drive tray with a HIC

• Simplex E2724 controller-drive tray with a HIC

An E2712 controller-drive tray or E2724 controller-drive tray attached to DE1600 drive trays, DE5600 drive trays, or DE6600 drive trays not to exceed a maximum of 192 drive slots or 16 total trays in the storage array. You can mix three types of drive trays or have the following number of drive trays in a storage array:

• 15 DE1600 drive trays with an E2712

• 14 DE1600 drive trays with an E2724

• Seven DE5600 drive trays

• Three DE6600 drive trays with an E2712 controller-drive tray

• Two DE6600 drive trays with an E2724 controller-drive tray One of the following HICs in the controller:

• Two or four 12-Gb/s SFF-8644 mini SAS-HD connectors

• Two 10-Gb/s iSCSI RJ45 connectors

• Two or four 10-Gb/s iSCSI SFP connectors

• Two or four 16-Gb/s Fibre Channel SFP connectors One 4-GB or one 8-GB DIMM memory for a maximum of 8-GB

capacity in the controller. One 4-GB DIMM memory requires one 16-GB mSATA module for

controller cache backup. One 8-GB DIMM memory requires two 16GB mSATA modules for controller cache backup.

• Duplex E2712 controller-drive tray with no HIC

• Duplex E2724 controller-drive tray with no HIC

Any combination of E2700 controller-drive trays attached to DE1600 drive trays, DE5600 drive trays, or DE6600 drive trays not to exceed a maximum of 192 drive slots or 16 total trays in the storage array. You can mix all three types of drive trays or have the following number of drive trays in a storage array:

• 15 DE1600 drive trays with an E2712

• 14 DE1600 drive trays with an E2724

• Seven DE5600 drive trays

• Three DE6600 drive trays with an E2712 controller-drive tray

• Two DE6600 drive trays with an E2724 controller-drive tray One 4-GB or one 8-GB DIMM memory for a maximum of 8-GB

capacity in each controller. One 4-GB DIMM memory requires one 16-GB mSATA module for

controller cache backup in each controller. One 8-GB DIMM memory requires two 16-GB mSATA modules for controller cache backup in each controller.

Page 9

Configuration Options

Step 1 - Preparing to install a controller-drive tray | 9

• Duplex E2712 controller-drive tray with a HIC

• Duplex E2724 controller-drive tray with a HIC

Any combination of E2700 controller-drive trays attached to DE1600 drive trays, DE5600 drive trays, or DE6600 drive trays not to exceed a maximum of 192 drive slots or 16 total trays in the storage array. You can mix all three types of drive trays, or have the following number of drive trays in a storage array:

• 15 DE1600 drive trays with an E2712

• 14 DE1600 drive trays with an E2724

• Seven DE5600 drive trays

• Three DE6600 drive trays with an E2712 controller-drive tray

• Two DE6600 drive trays with an E2724 controller-drive tray One of the following HICs (per controller):

• Two or four 12-Gb/s SFF-8644 mini SAS-HD connectors

• Two 10-Gb/s iSCSI RJ45 connectors

• Two or four 10-Gb/s iSCSI SFP connectors

• Two or four 16-Gb/s Fibre Channel SFP connectors One 4-GB or one 8-GB DIMM memory for a maximum of 8-GB

capacity in each controller. One 4-GB DIMM memory requires one 16-GB mSATA module for

controller cache backup in each controller. One 8-GB DIMM memory requires two 16-GB mSATA modules for controller cache backup in each controller.

Table 2: E2760 controller-drive tray options

Configuration

Duplex E2760 controller-drive tray with no HIC

Options

Any combination of E2760 controller-drive trays attached to DE1600 drive trays, DE5600 drive trays, or DE6600 drive trays not to exceed a maximum of 192 drive slots or 16 total trays in the storage array. You can mix all three types of drive trays, or have the following number of drive trays in a storage array:

• 11 DE1600 drive trays

• Five DE5600 drive trays

• Two DE6600 drive trays One 4-GB or one 8-GB DIMM memory for a maximum of 8-GB

capacity in each controller. One 4-GB DIMM memory requires one 16-GB mSATA module for

controller cache backup in each controller. One 8-GB DIMM memory requires two 16-GB mSATA modules for controller cache backup in each controller.

Page 10

| E2700 Controller-Drive Tray and Related Drive Trays Installation Guide

Configuration Options

Duplex E2760 controller-drive tray with a HIC

• 11 DE1600 drive trays

• Five DE5600 drive trays

• Two DE6600 drive trays One of the following HICs (per controller):

• Two or four 12-Gb/s SFF-8644 mini SAS-HD connectors

• Two 10-Gb/s iSCSI RJ45 connectors

• Two or four 10-Gb/s iSCSI SFP connectors

• Two or four 16-Gb/s Fibre Channel SFP connectors One 4-GB or one 8-GB DIMM memory for a maximum of 8-GB

capacity in each controller. One 4-GB DIMM memory requires one 16-GB mSATA module for

controller cache backup in each controller. One 8-GB DIMM memory requires two 16-GB mSATA modules for controller cache backup in each controller.

Attention: Possible hardware damage – To prevent electrostatic discharge damage to the tray,

use proper antistatic protection when handling tray components.

Key terms

Storage array

A collection of both physical components and logical components for storing data. Physical components include drives, controllers, fans, and power supplies. Logical components include disk pools, volume groups, and volumes. These components are managed by the storage management software. Also known as RAID tray.

Controller-drive tray

One tray with drives, one or two controllers, fans, and power supplies. The controller-drive tray provides the interface between a host and a storage array.

Controller

A circuit board and firmware that is located within a controller-drive tray. A controller manages the input/output (I/O) between the host system and data volumes.

Drive tray

One tray with drives, two environmental services modules (ESMs), fans, and power supplies. A drive tray does not contain controllers.

Page 11

Step 1 - Preparing to install a controller-drive tray | 11

Environmental services module (ESM)

A canister in the drive tray that monitors the status of the components. An ESM also serves as the connection point to transfer data between the drive tray and the controller.

Gathering items

Before you start installing the controller-drive tray, you must have installed the cabinet in which it will be mounted.

Use the tables in this section to verify that you have all of the necessary items to install the controllerdrive tray.

Attention: Possible hardware damage – To prevent electrostatic discharge damage to the tray,

use proper antistatic protection when handling tray components.

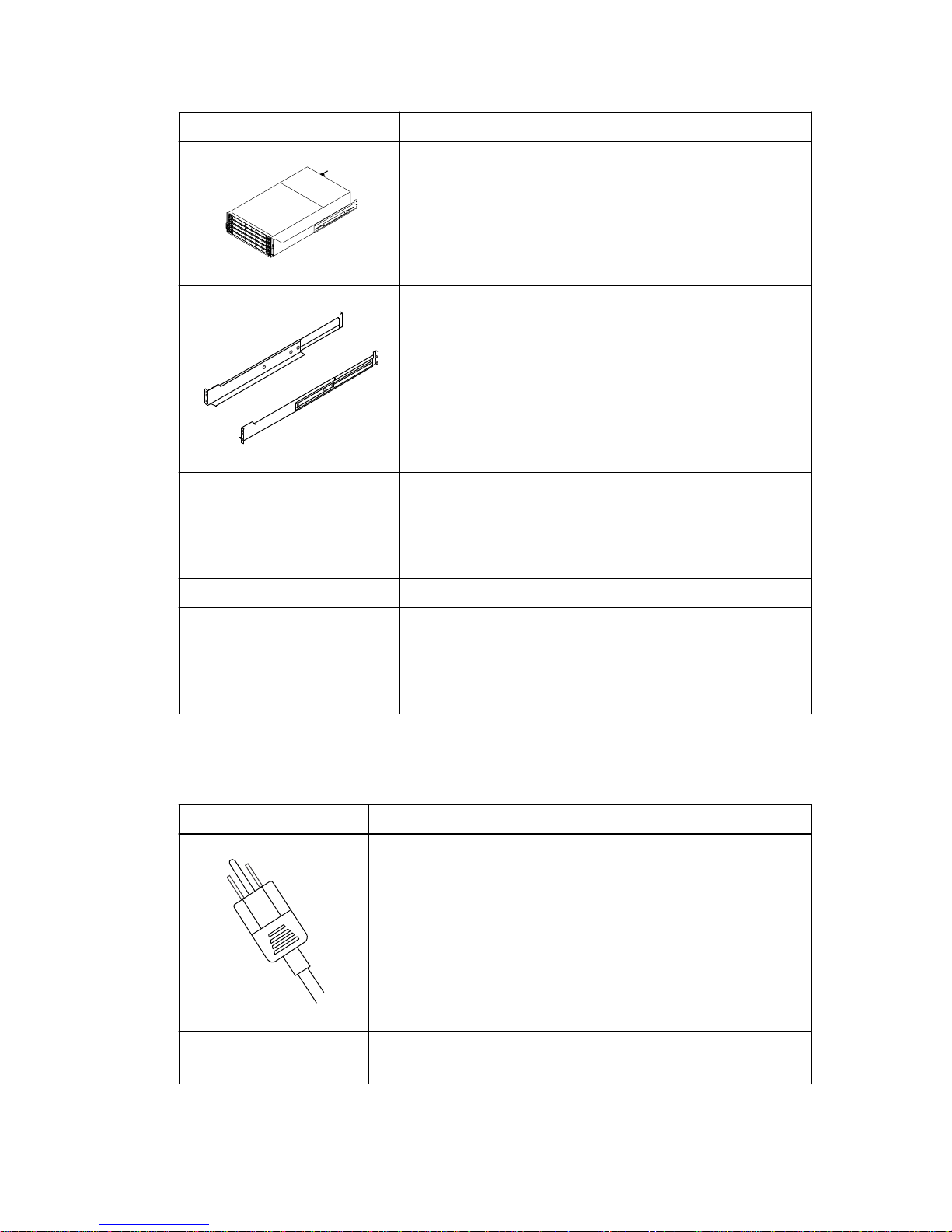

Basic hardware

Table 3: Basic hardware

Item

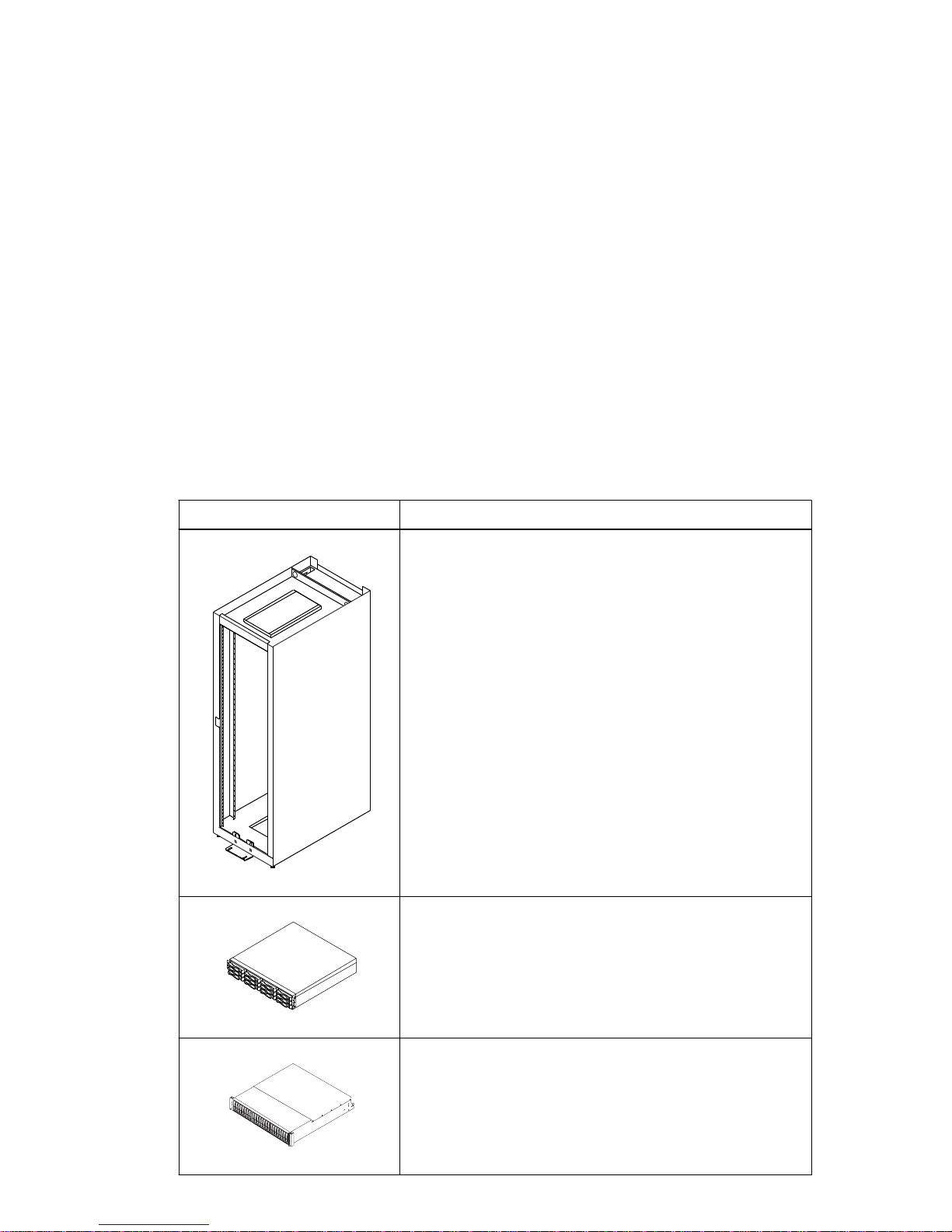

Cabinet

• Ensure that your cabinet meets the installation site specifications of the various storage array components. Refer to the

• Depending on the power supply limitations of your cabinet, you might need to install more than one cabinet to accommodate the different components of the storage array. Refer to the installation guide for your cabinet for instructions on installing the cabinet.

DE1600 drive tray with end caps that are packaged separately. This drive tray ships with the drives installed and can be used with all variations of the controller-drive tray.

Site Preparation Guide

for more information.

DE5600 drive tray with end caps that are packaged separately. This drive tray ships with the drives installed and can be used with all variations of the controller-drive tray.

Page 12

12 | E2700 Controller-Drive Tray and Related Drive Trays Installation Guide

Item

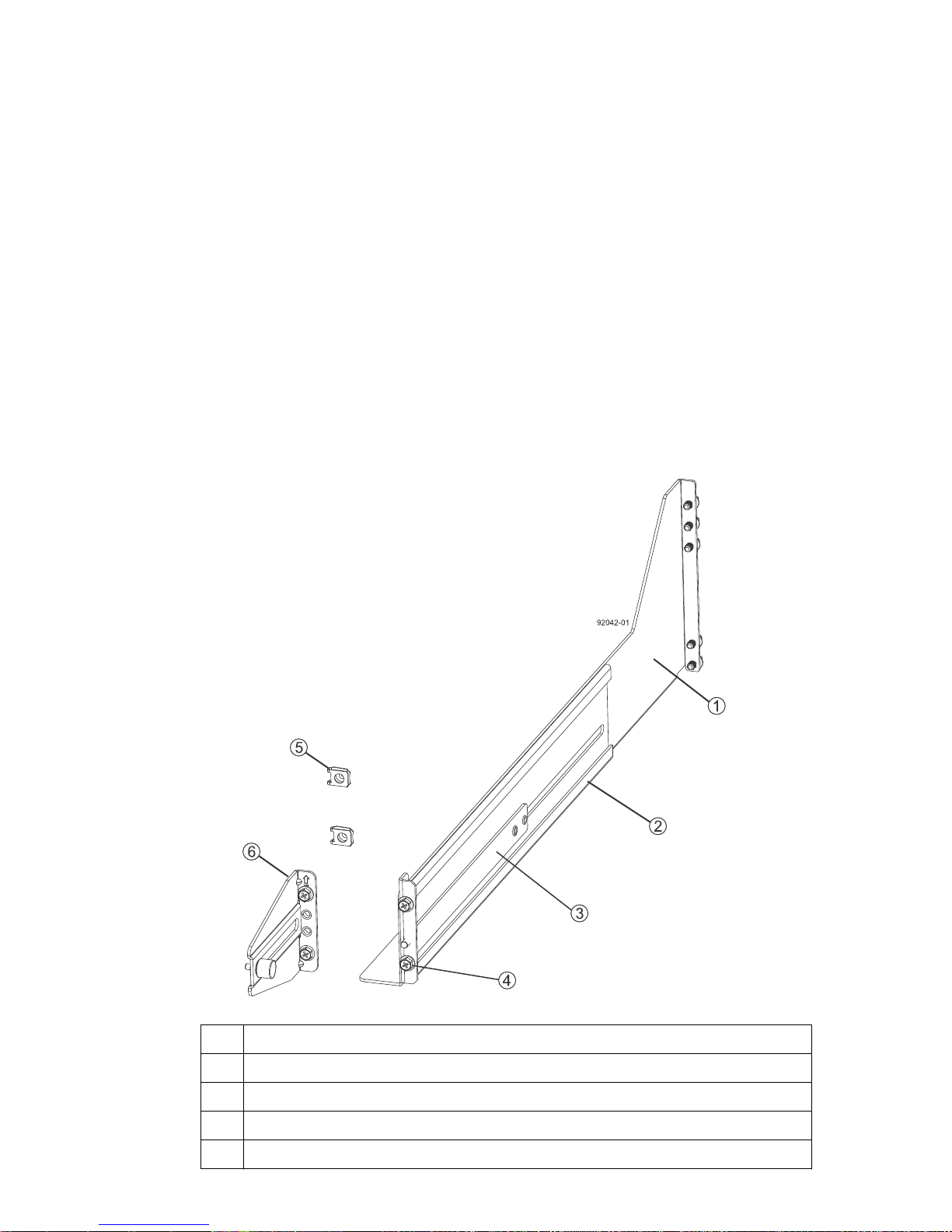

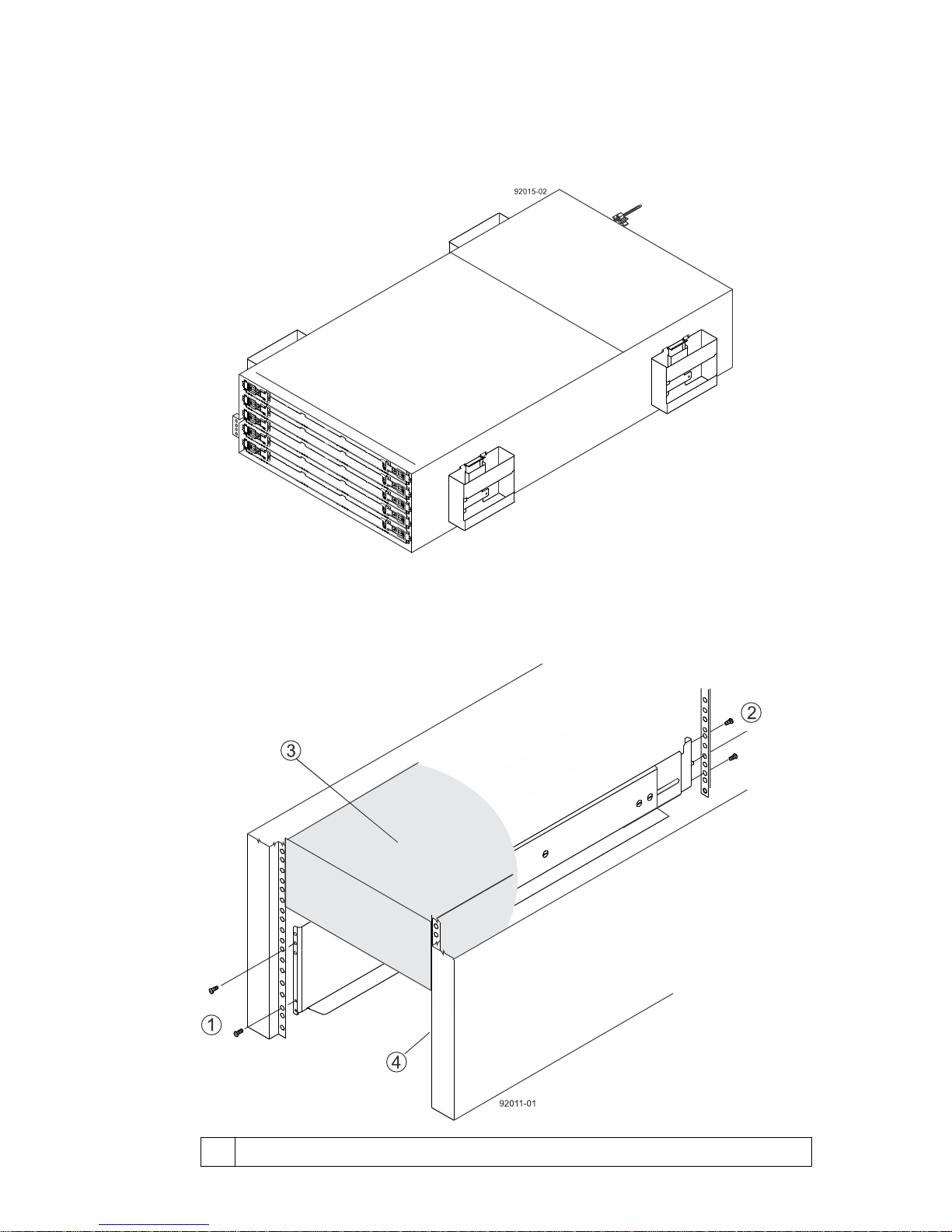

DE6600 drive tray (shown with the separately packaged mounting rails attached). This drive tray can be used with all variations of the controller-drive tray. The DE6600 drive tray ships empty so you must install the drives when you install the drive tray into the cabinet.

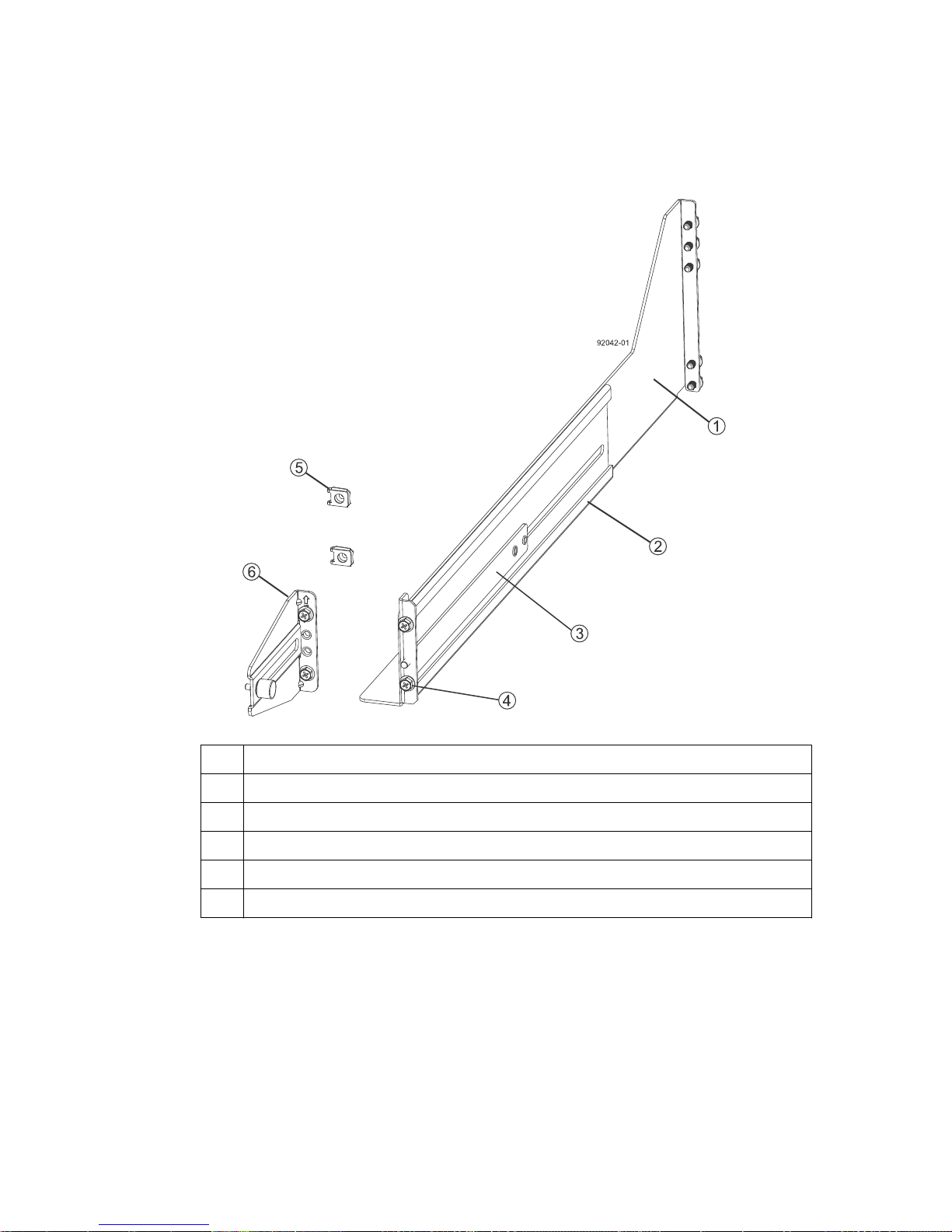

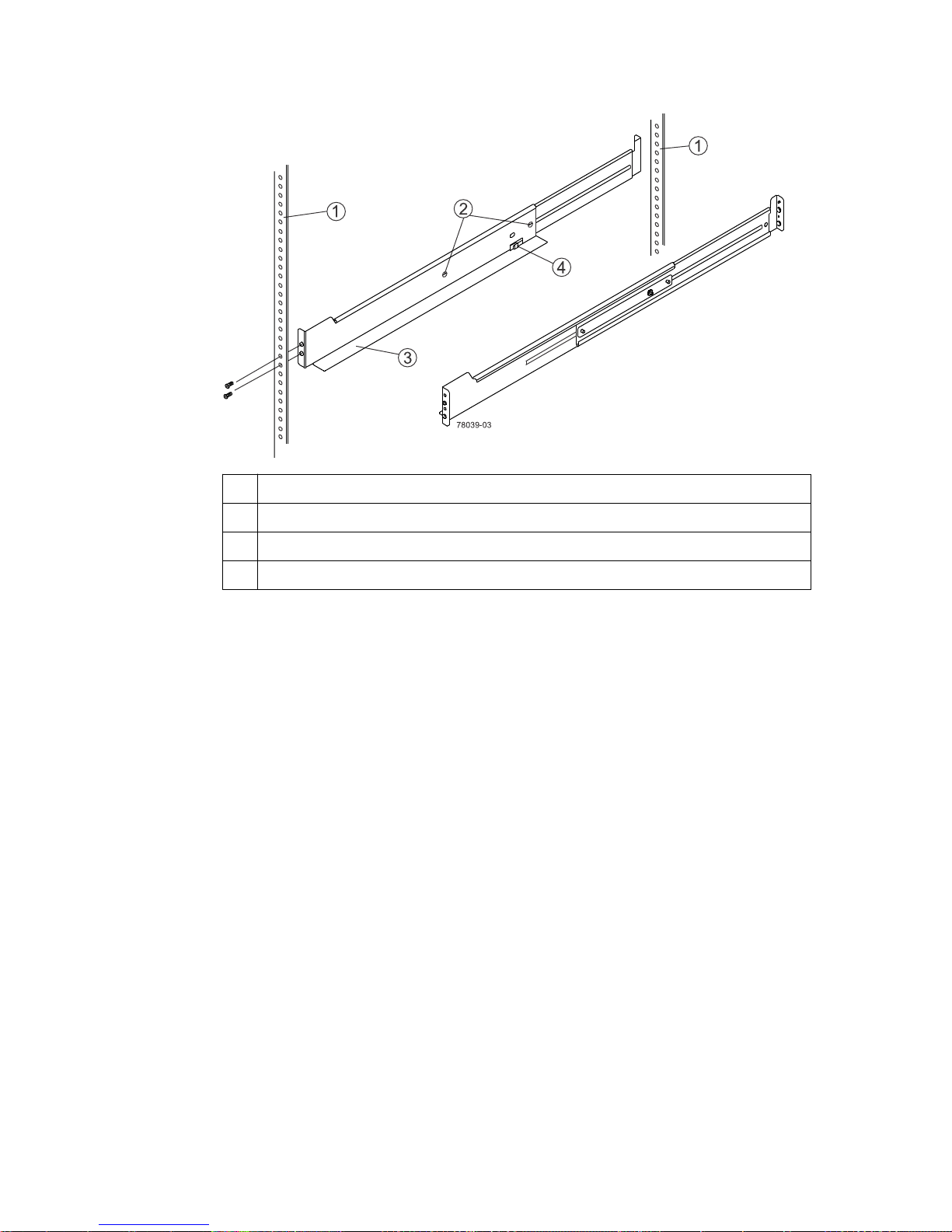

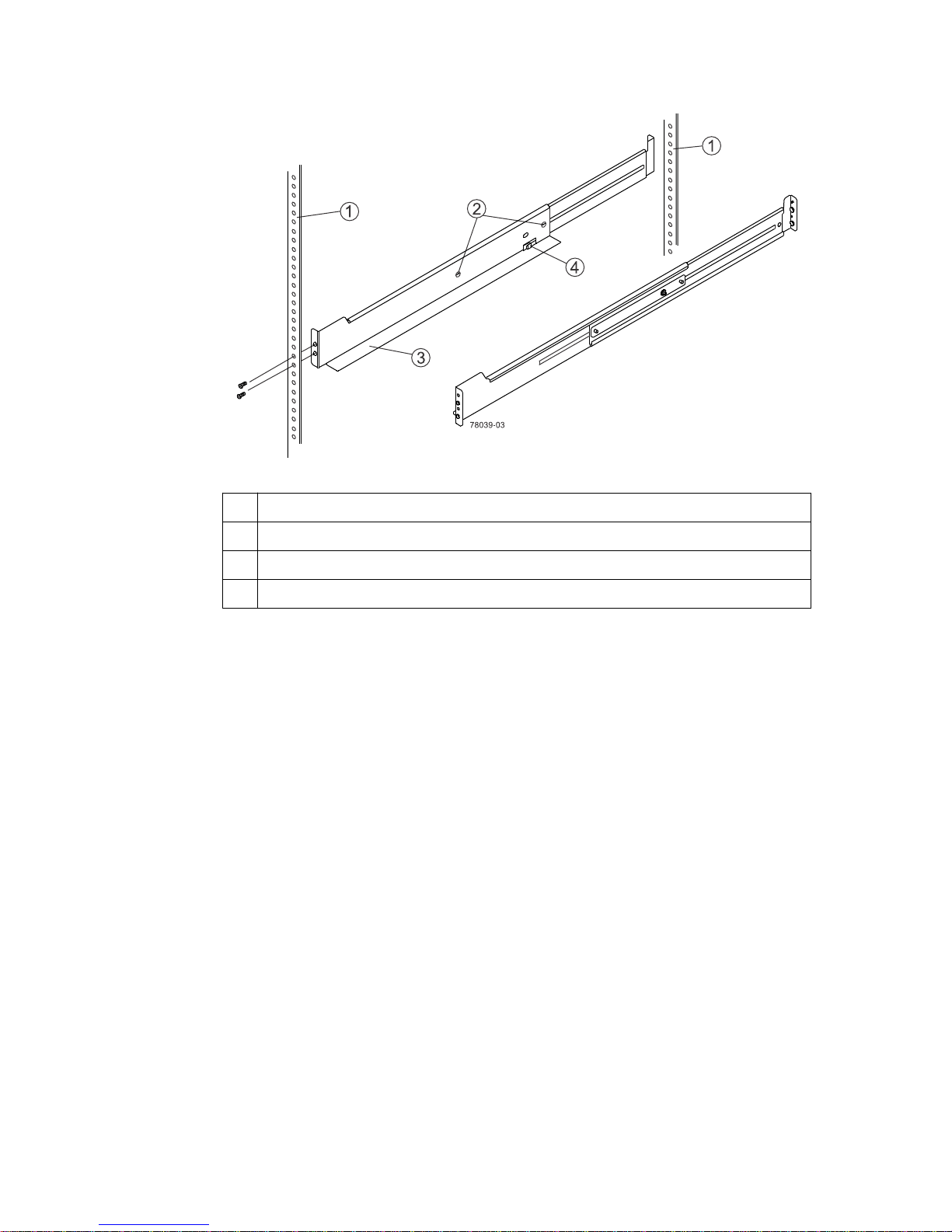

Mounting rails and screws The mounting rails that are available with the drive tray are

designed for an industry-standard cabinet.

• SAS switch (optional)

• iSCSI switch (optional)

• Fibre Channel switch (optional)

Gigabit Ethernet switch for Management (optional)

• Host with SAS HBAs (optional)

• Host with Fibre Channel HBAs (optional)

• Host with iSCSI HBAs (optional)

Configuration cables and connectors

Table 4: Configuration cables and connectors

Item

AC power cords. The controller-drive tray and the drive trays ship with power cords

for connecting to an external power source, such as a wall plug. Your cabinet might have special power cords that you use instead of the power cords that ship with the controller-drive tray and the drive trays.

RJ-45 Ethernet cable This cable is used for 10-Gb/s iSCSI connections.

Page 13

Step 1 - Preparing to install a controller-drive tray | 13

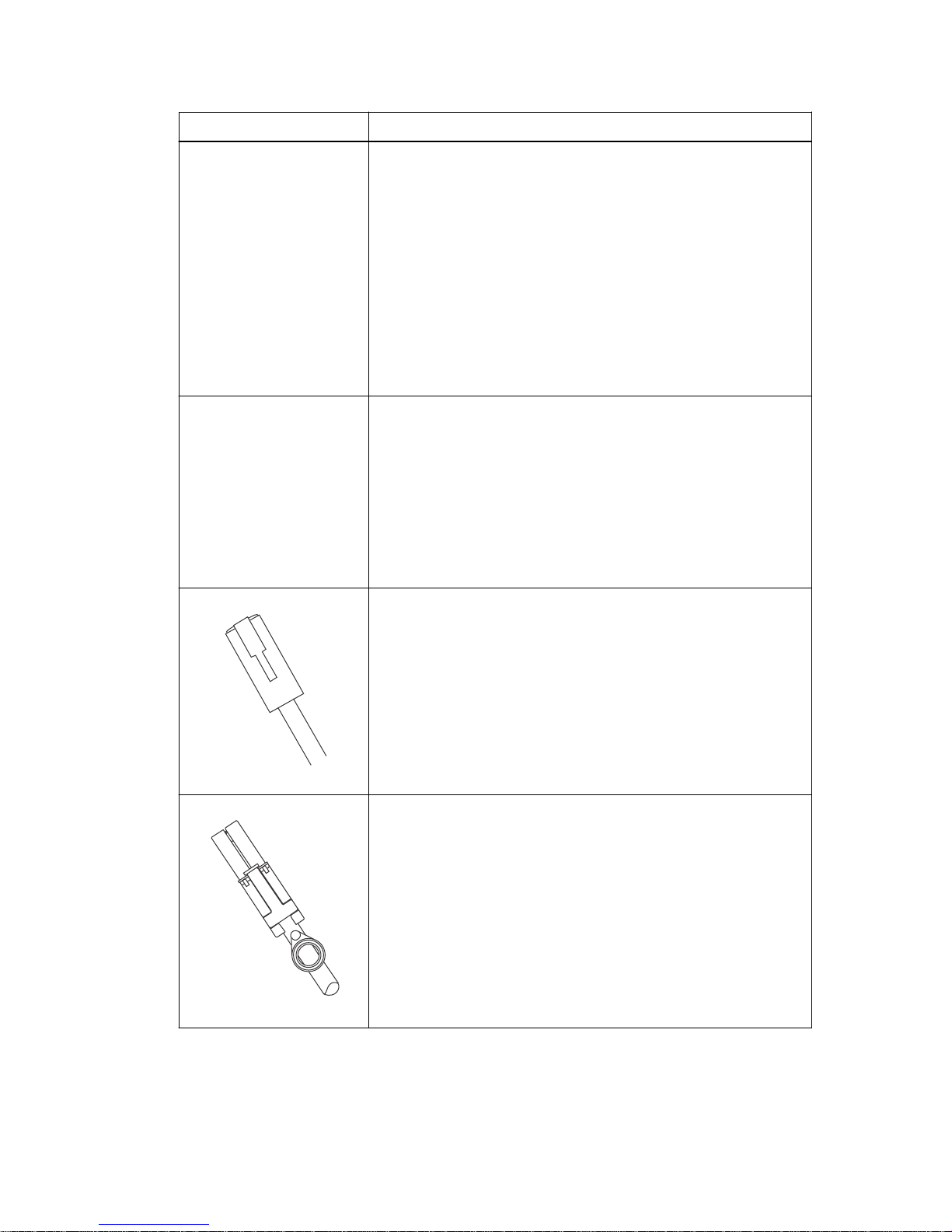

Item

Small Form-factor Pluggable (SFP) transceivers

• SFP transceivers connect fiber-optic cables to host ports and drive ports.

• SFP transceivers are only included with the controller-drive tray when a fibre channel HIC is ordered or an iSCSI HIC is ordered.

• Depending on your connection requirements, you may need to purchase SFP transceivers (two SFP transceivers for each fiberoptic cable).

• You must purchase

only

Restriction of Hazardous Substances

(RoHS)-compliant SFP transceivers.

iSCSI with SFP+ transceivers

• 2m-to-7m twin-ax passive copper cables

• Cat5 2m-to-7m RJ-45 passive cables

• 2m-to-7m RJ-45 passive cables

• 2, 3, 5, 10, or 25m OM2 cables

• 25m-to-300m OM3 cables

Ethernet cable For information about out-of-band storage array management, see

the description for “Deciding on the management method” in the

SANtricity Storage Manager Software Installation Reference

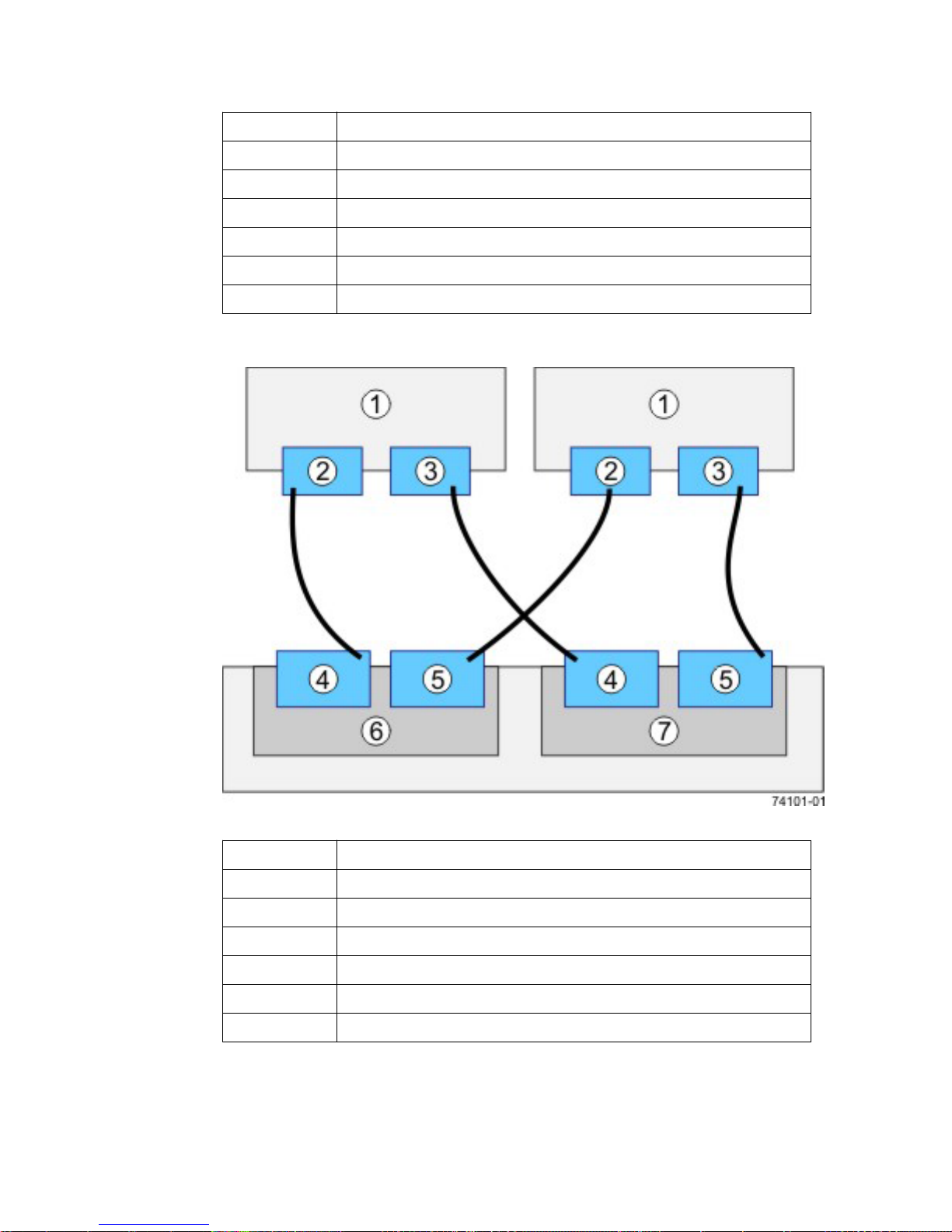

SAS cables The HD Mini-SAS (SFF-8644) to Mini-SAS (SFF-8088) SAS

cables connect each controller expansion port to the drive tray(s). HD Mini-SAS (SFF-8644) cables for connecting to the native SAS

ports on a E2700 controller or the SAS HIC ports, to a 12-Gb/s SAS HBA on a server.

External Mini-SAS (SFF-8088) cables for connecting between drive tray ESMs that use a mini-SAS connection.

Page 14

14 | E2700 Controller-Drive Tray and Related Drive Trays Installation Guide

Item

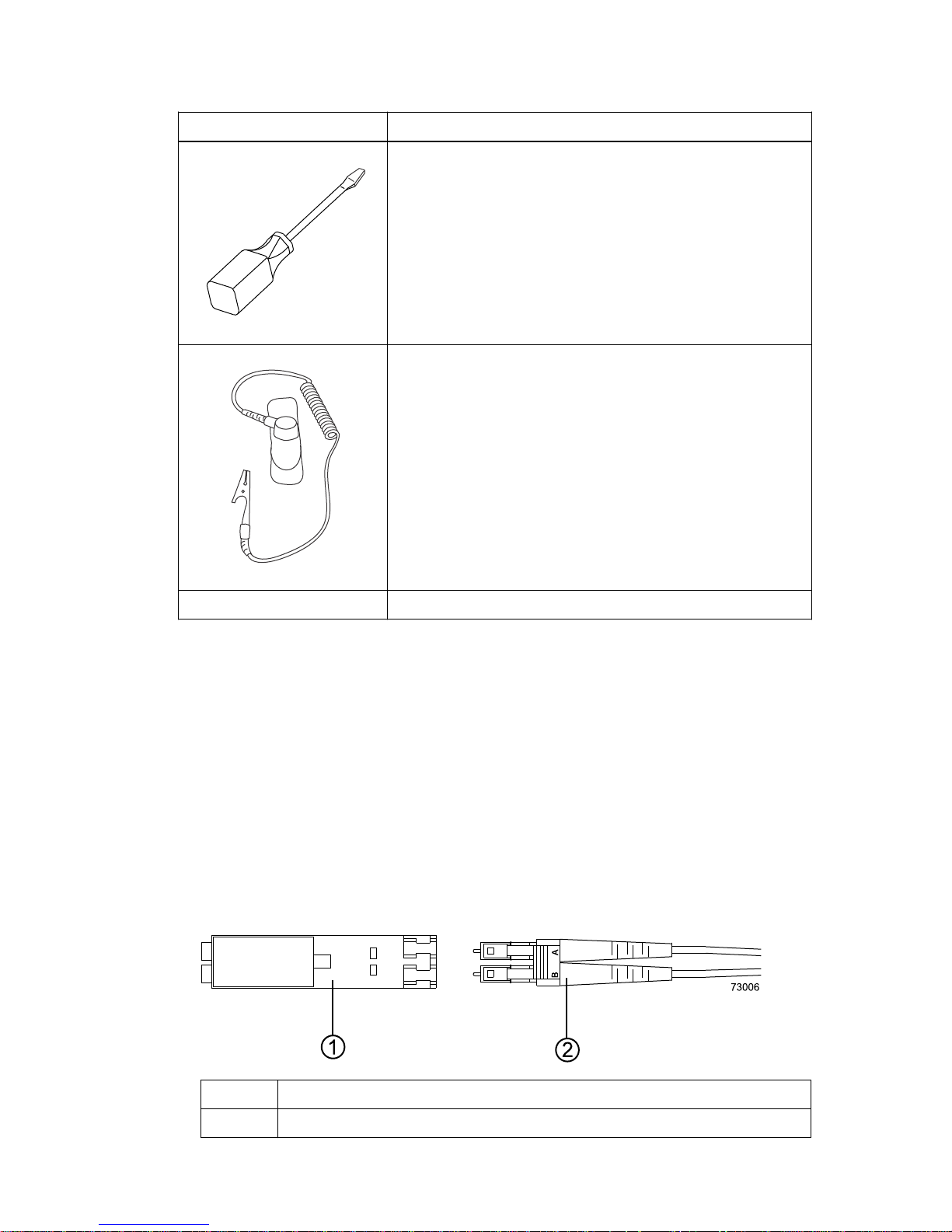

Tools and other items

Table 5: Tools and other items

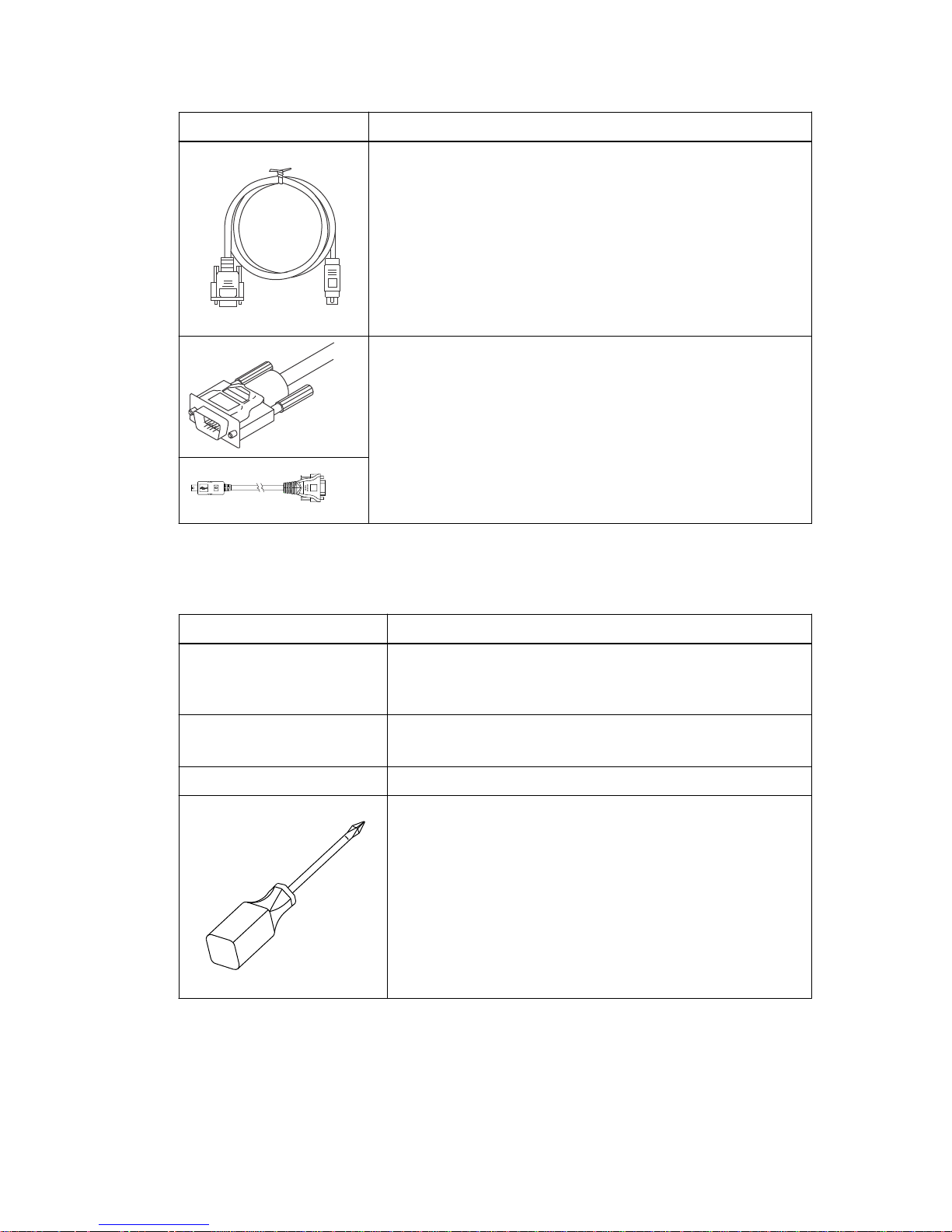

DB9-to-PS2 adapter cable This cable adapts the DB9 connector on commercially available

serial cables to the PS2 connector on the ESM for drive trays in the storage array.

This cable is used for support only. You do not need to connect it during installation.

Serial Port cable This 2-m cable adapts the DB9 connector on commercially available

serial cables to the mini-USB port on the controller. This cable is used for support only. You do not need to connect it

during initial installation.

Item

Labels Help you to identify cable connections and lets you more easily

trace cables from one tray to another A cart

Holds the tray and components A mechanical lift (optional) A Phillips screwdriver

Page 15

Item

Step 1 - Preparing to install a controller-drive tray |

A flat-blade screwdriver

Anti-static protection

A flashlight

Things to know - More details about cables and SFPs

The figures in this topic display the fiber-optic cables, copper cables, SFP transceivers, SAS cables with a SFF-8644 connection, and SAS cables with a SFF-8088 connector. The table references the SFP transceivers that apply if you are using Fibre Channel host connections.

Note: Your SFP transceivers and cables might look slightly different from the ones shown. The

differences do not affect the performance of the SFP transceivers.

The controller-drive tray supports SAS drive connections and SAS, Fibre Channel, or iSCSI host connections.

Warning: (W03) Risk of exposure to laser radiation – Do not disassemble or remove any part of

a Small Form-factor Pluggable (SFP) transceiver because you might be exposed to laser radiation.

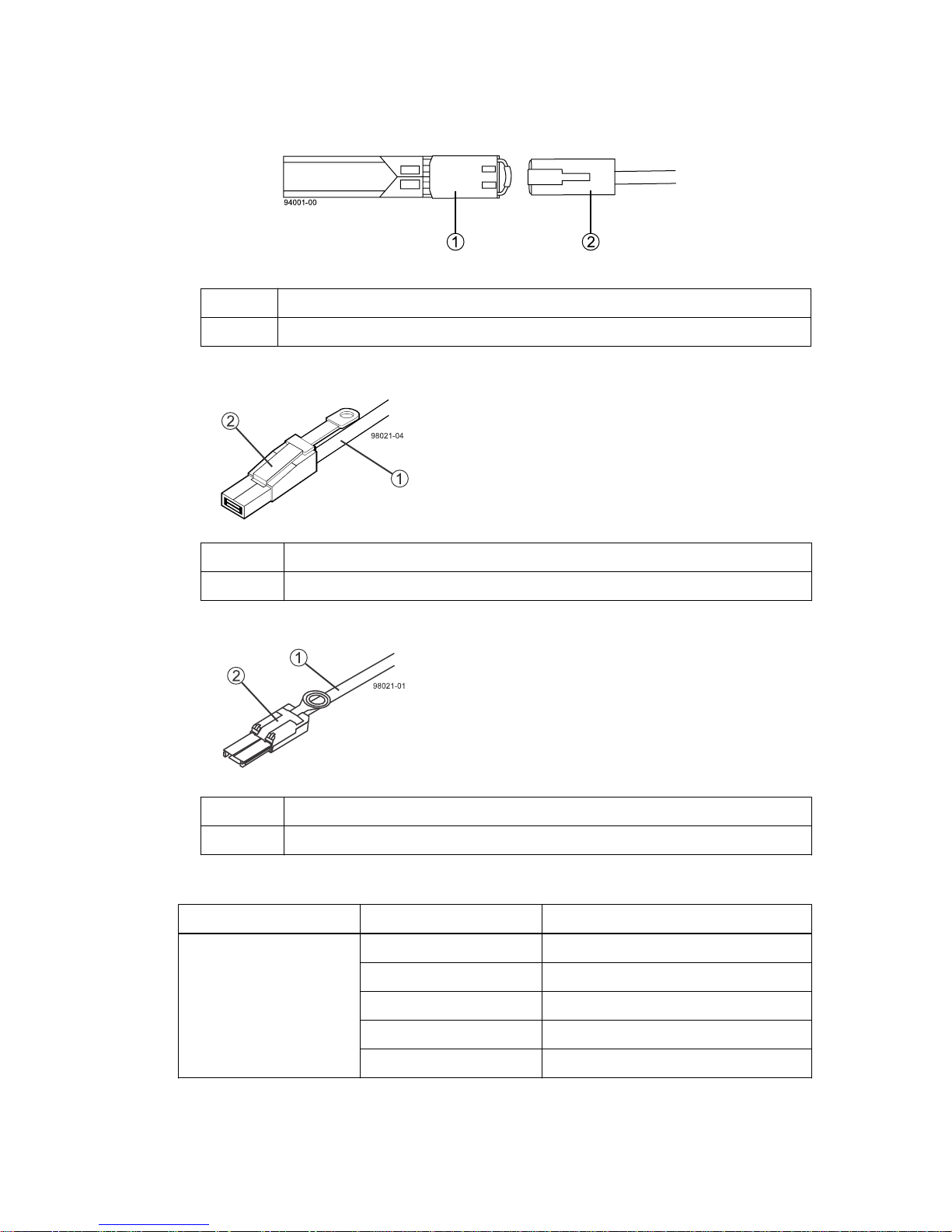

• Fiber-optic cable connection

1 2 Fiber-optic cable

Active SFP transceiver

• 10-Gb/s iSCSI cable connection

Page 16

16 | E2700 Controller-Drive Tray and Related Drive Trays Installation Guide

1 Active SFP transceiver 2 Copper cable

•

SAS cable connection

SAS cable

2 SFF-8644 connector

• SAS cable connection

SAS cable

2 SFF-8088 connector

Table 6: Supported SFP transceivers*

Vendor

Model Version/Data Rate*

Avago AF57D7APZ 8 Gb/s

AFBR-57D9AMZ 8 Gb/s AF7303SDZ 10 Gb/s

AFBR-709SMZ 10 GbE/s AFBR-57F5UMZ-NA2 16 Gb/s or 10 GbE/s

Page 17

Step 1 - Preparing to install a controller-drive tray | 17

Vendor Model Version/Data Rate*

Finisar FTLF 8521-3 1 Gb/s

FTLF8528P2BCV-LS 8 Gb/s FTLX8571D3BCL-LS 10 Gb/s FTLF1429P3BNV 16 Gb/s

JDSU PLRXPL-VC-SH4-23-NA 8 Gb/s

PLRXPL-VC-SH4-23-N 8 Gb/s PLRXPL-SC-S43-22-N 10 Gb/s

PLRXPL-SC-S43-NAe 10 GbE Molex 74741-0005 1 Gb/s Opnext TRS2001EN-001 10 Gb/s *All SFP transceivers can connect and run at lower speeds, even though this is not optimal.

Things to know - Taking a quick glance at the hardware in a controller-drive tray configuration

Each 12-drive or 24-drive tray in a storage array must have a minimum of two drives for proper operation, while each 60 drive tray must have a minimum of 20 drives with four drives across the front row of each drawer for proper operation.

All 60-drive trays have a limit of five solid state drives (SSDs) per drawer. If you exceed this limit for SSDs in a particular drawer, the power source in the drawer is likely to receive too much current and could fail.

This section provides an overview of hardware described in this document. For specific details about how LEDs operate, see

drive tray

• The top of the controller-drive tray is the side with labels.

• The configuration of the host ports might appear different on your system depending on which

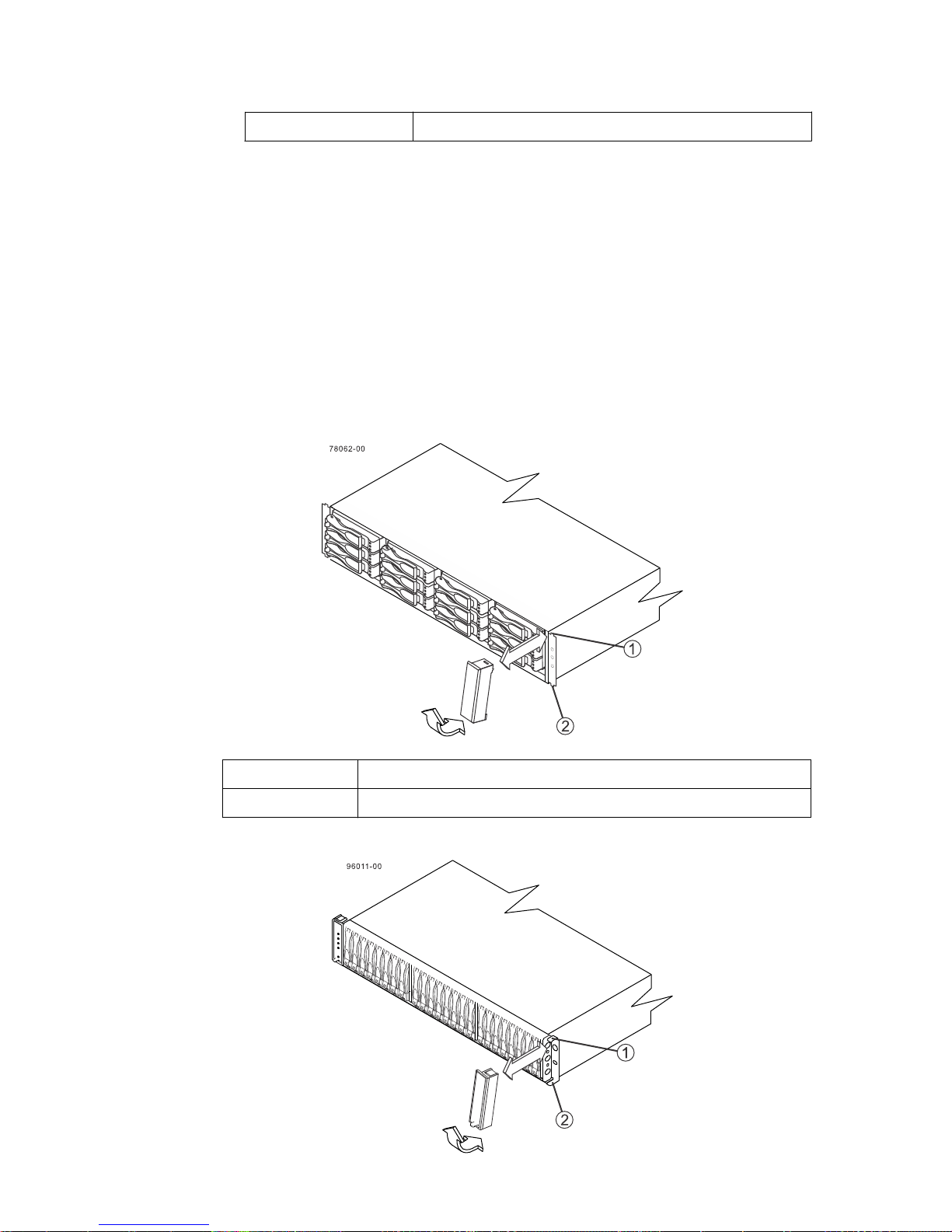

• E2712 controller-drive tray – Front view

on page 97.

host interface card configuration is installed.

Step 10 - Turning on the power and checking for problems in a controller-

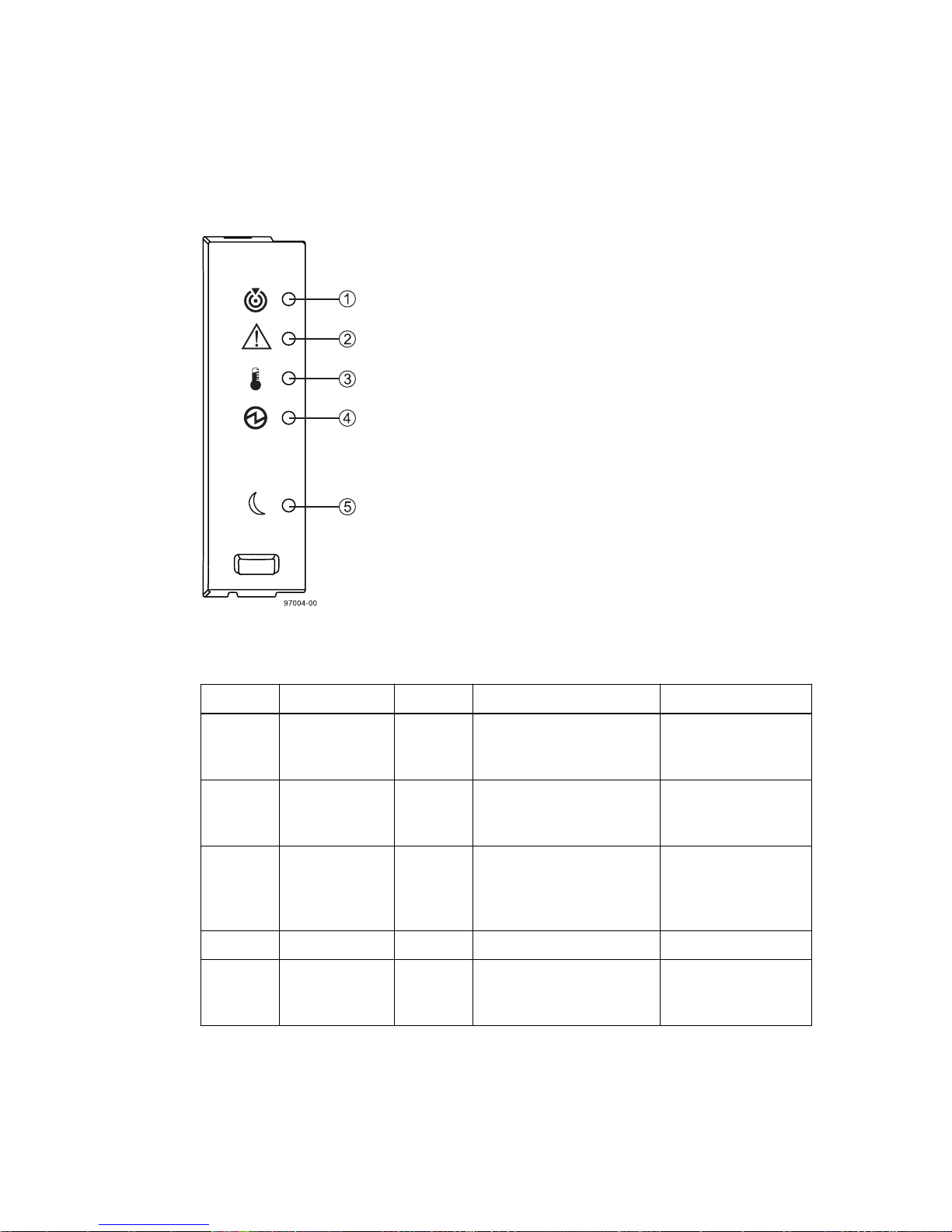

1 2 End Cap Service Action Required LED 3 End Cap Over-Temperature LED 4 End Cap Power LED

End Cap Locate LED

Page 18

18 | E2700 Controller-Drive Tray and Related Drive Trays Installation Guide

5 End Cap Standby Power LED 6 Drive canister

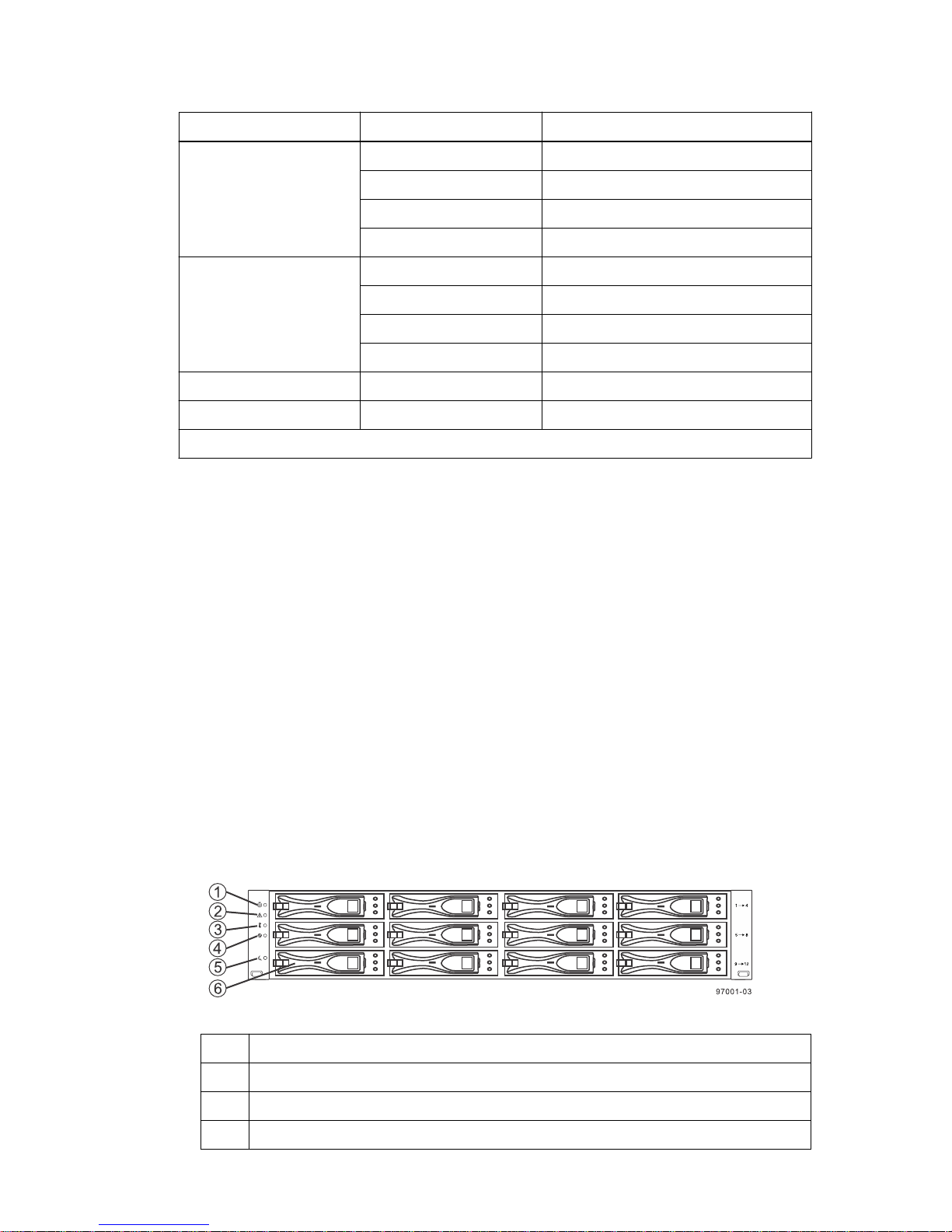

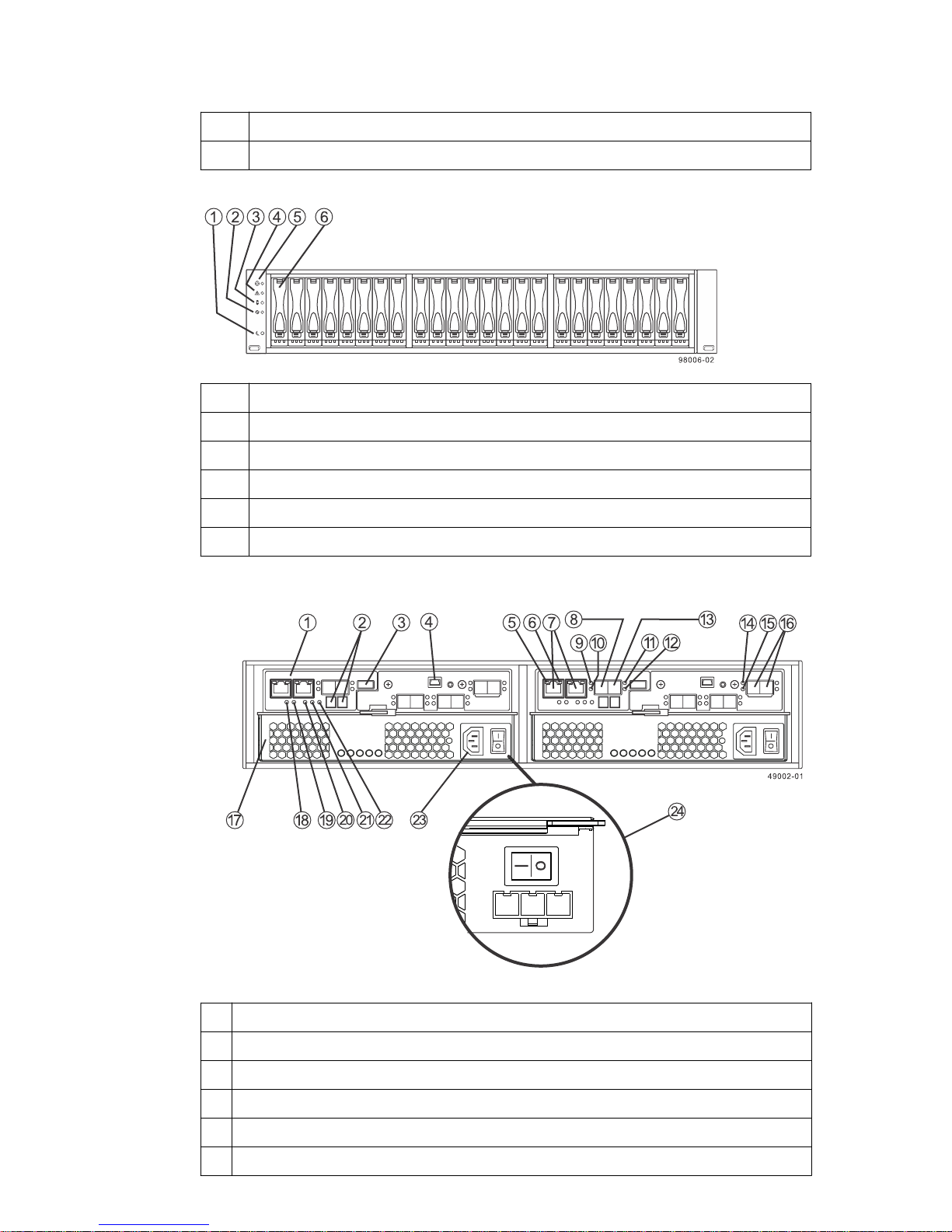

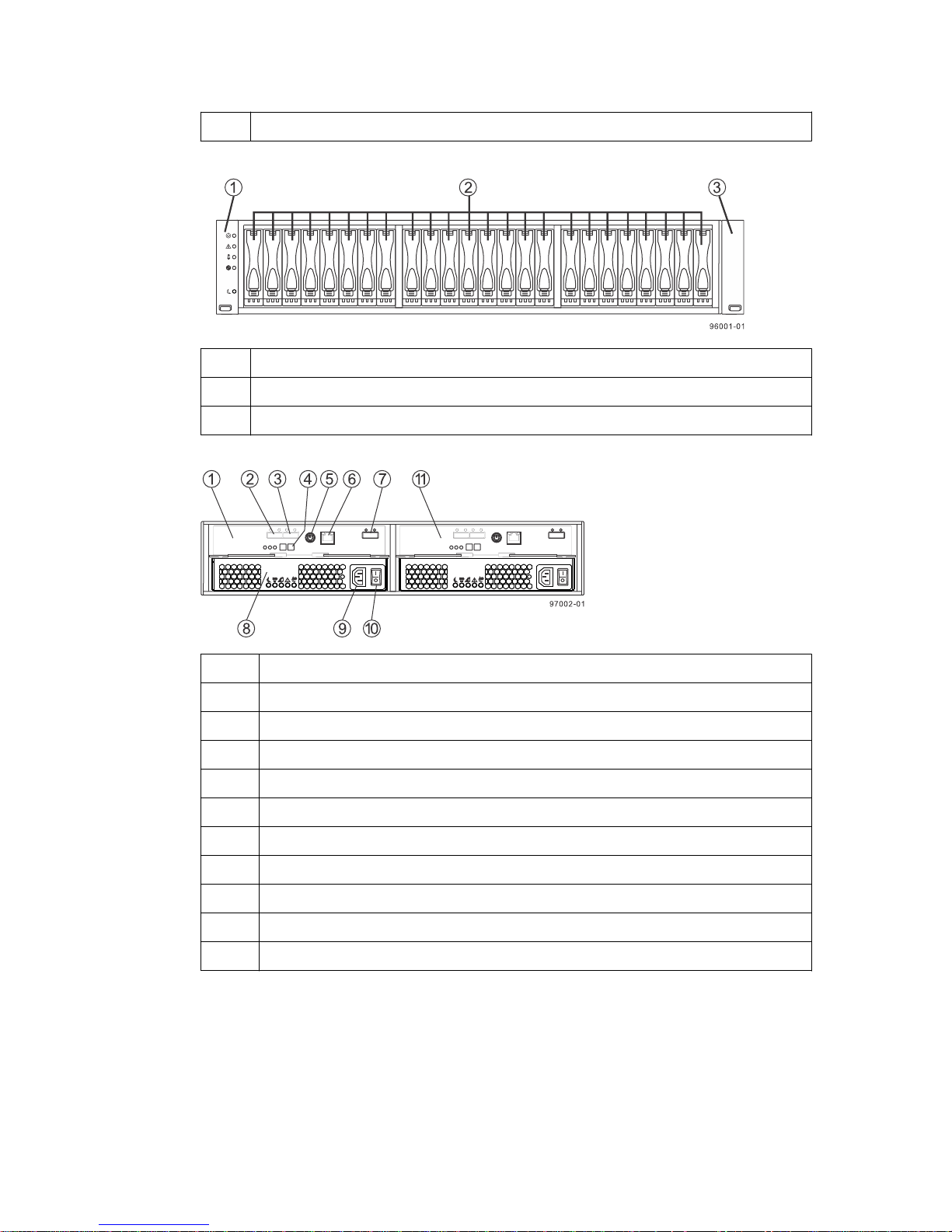

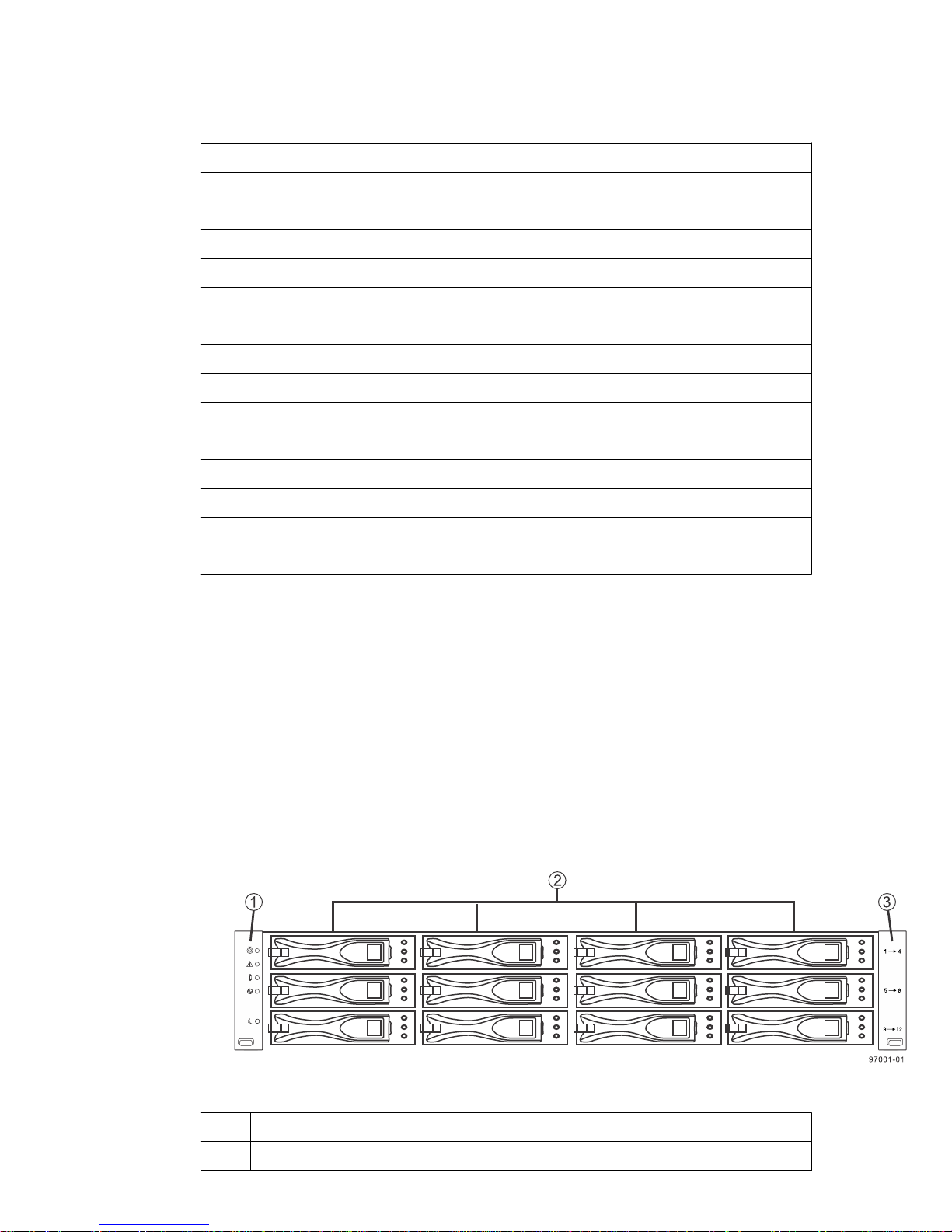

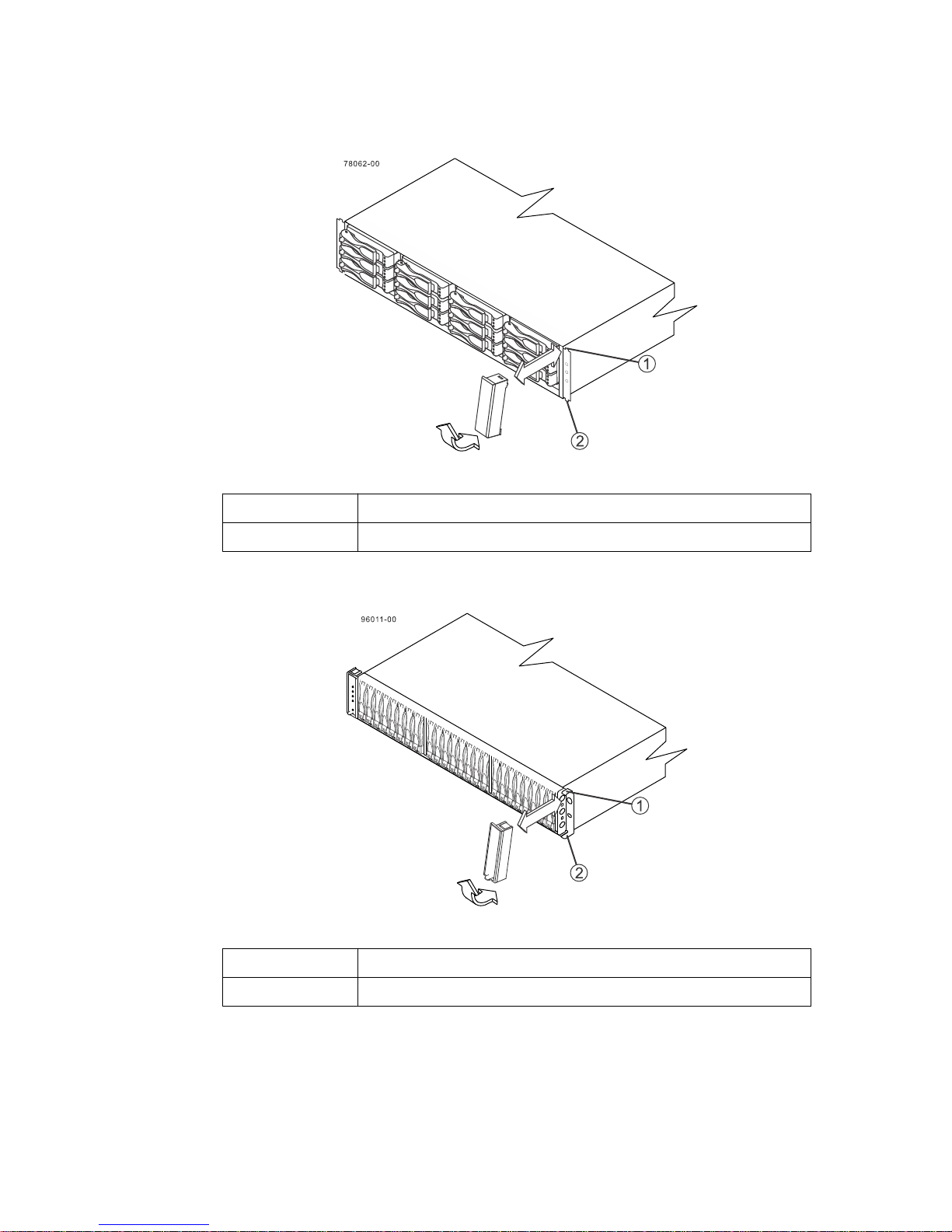

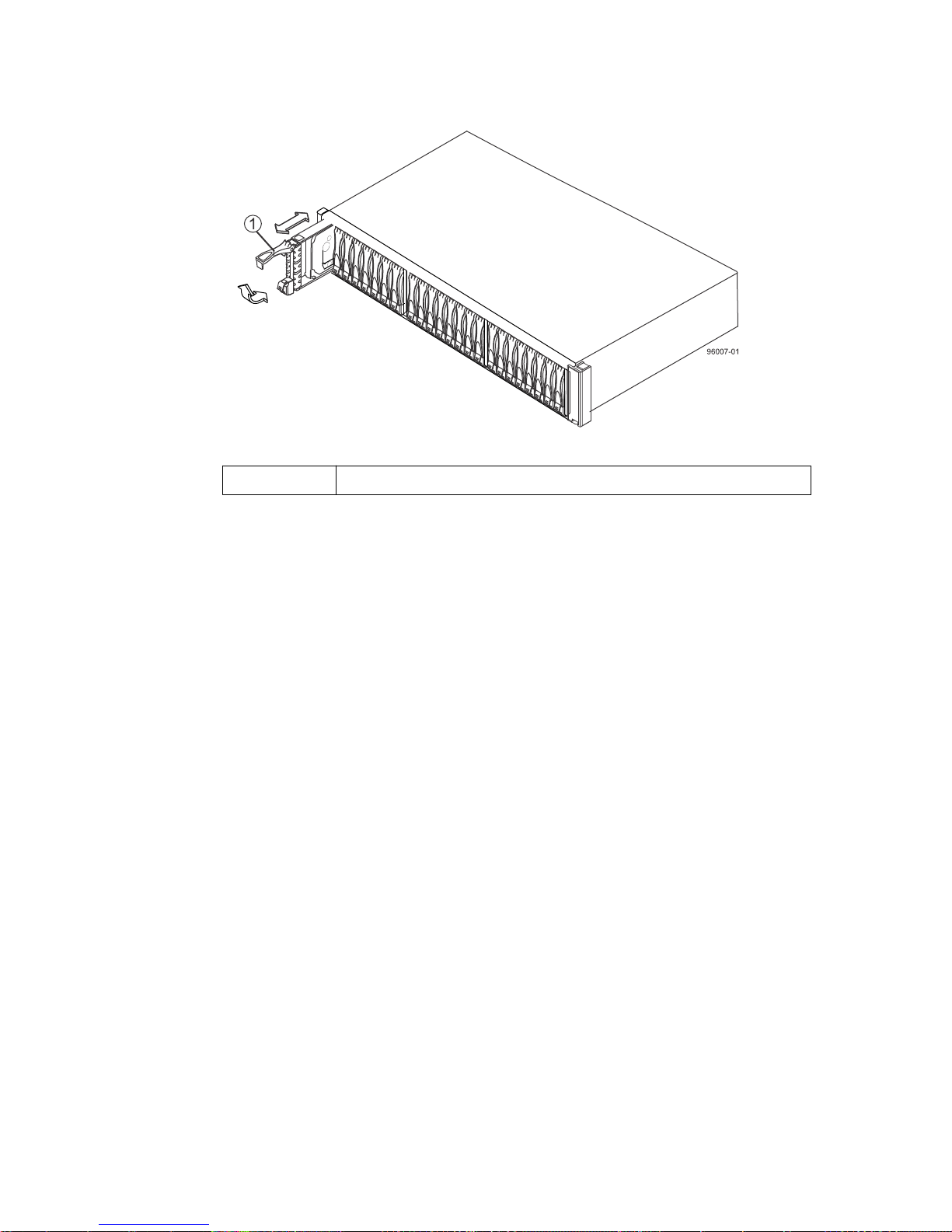

• E2724 controller-drive tray – Front view

1 End Cap Standby Power LED 2 End Cap Power LED 3 End Cap Over-Temperature LED 4 End Cap Service Action Required LED 5 End Cap Locate LED 6 Drive canister

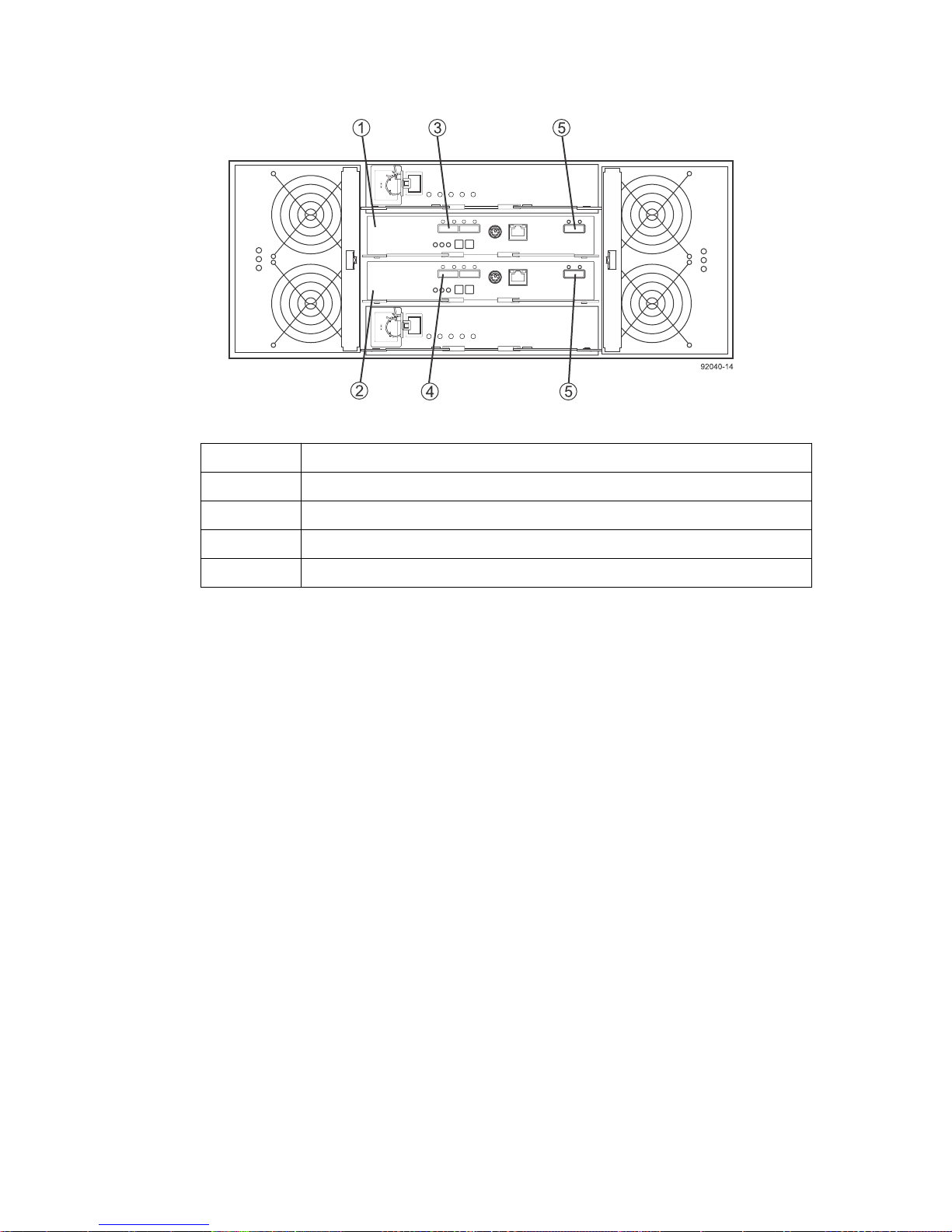

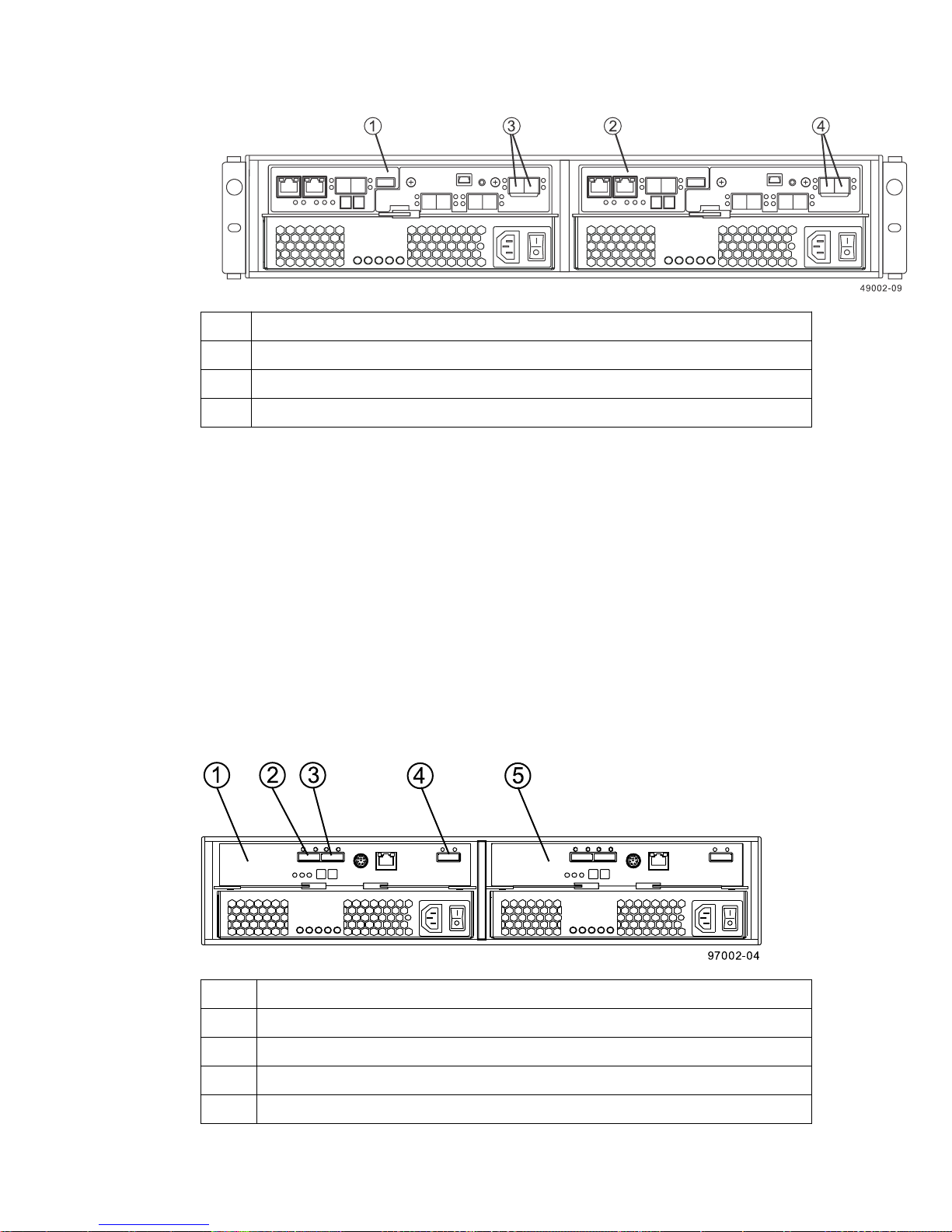

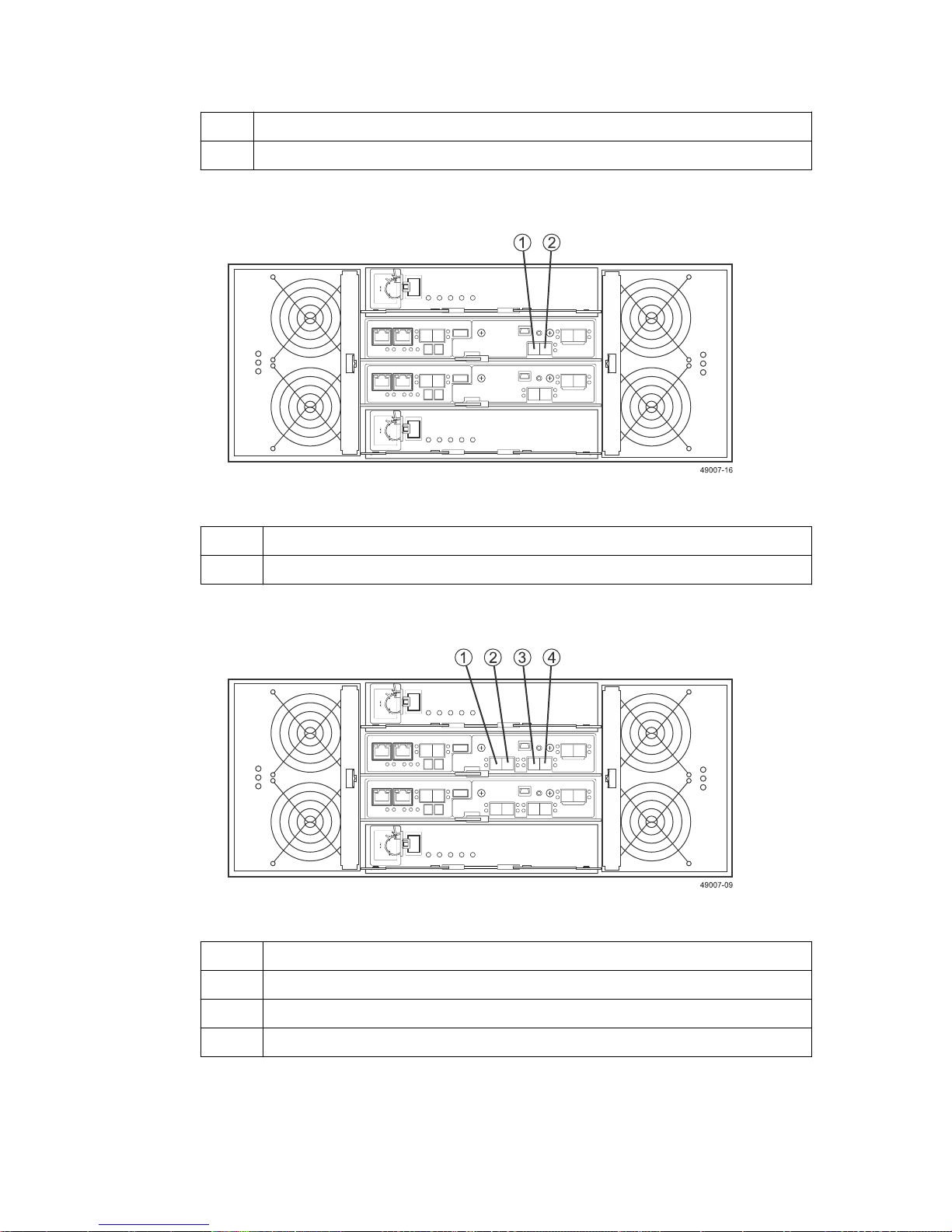

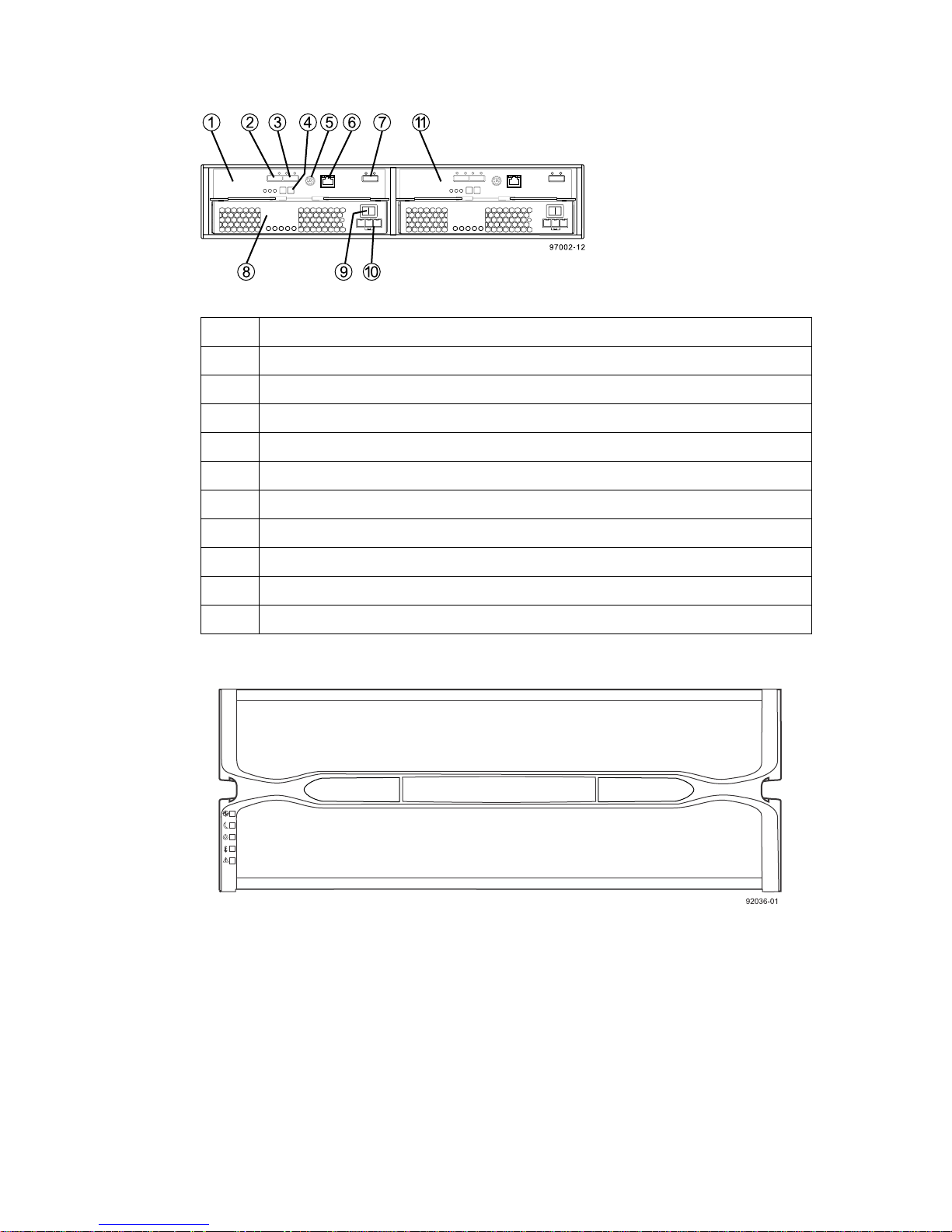

• E2712 controller-drive tray or E2724 controller-drive tray – Rear view

Controller canister

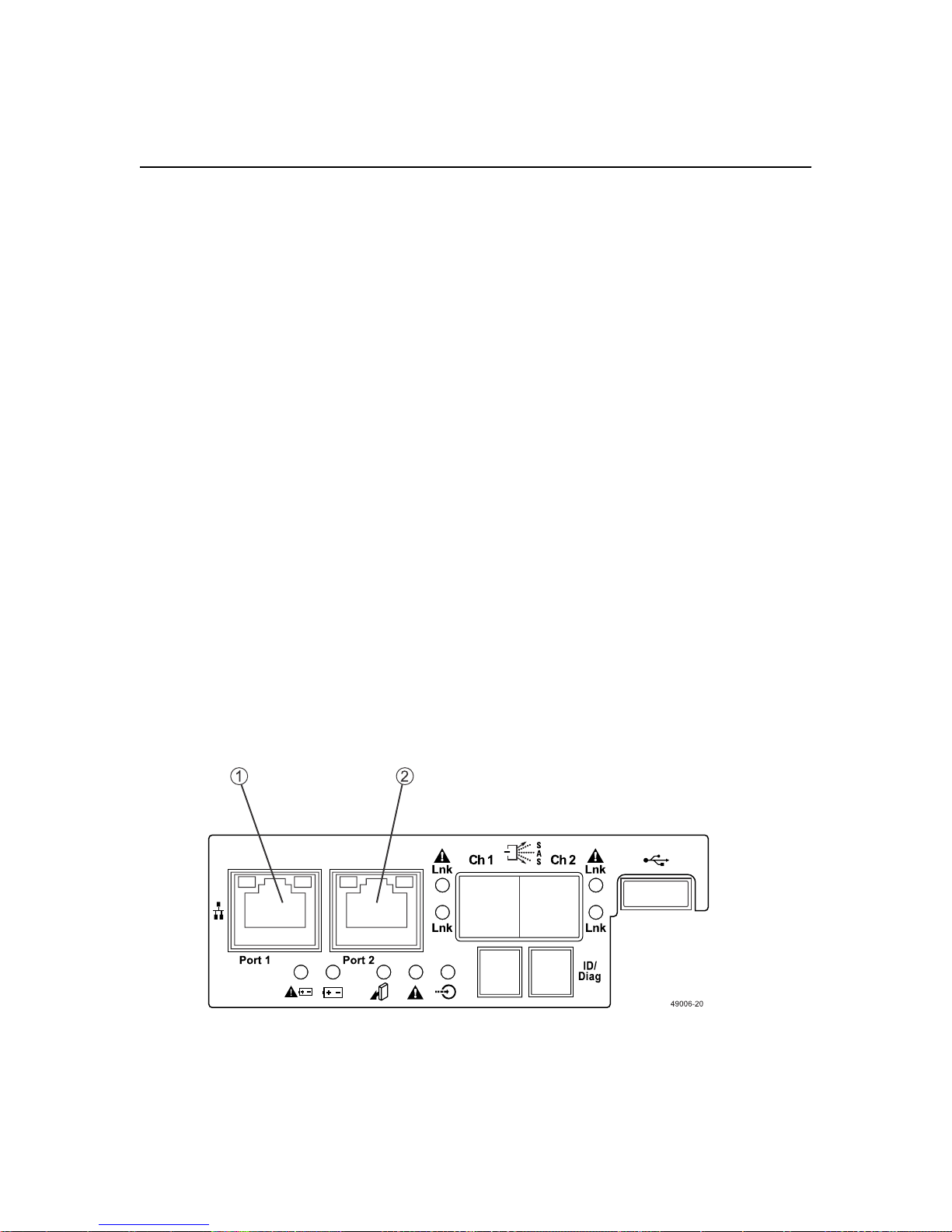

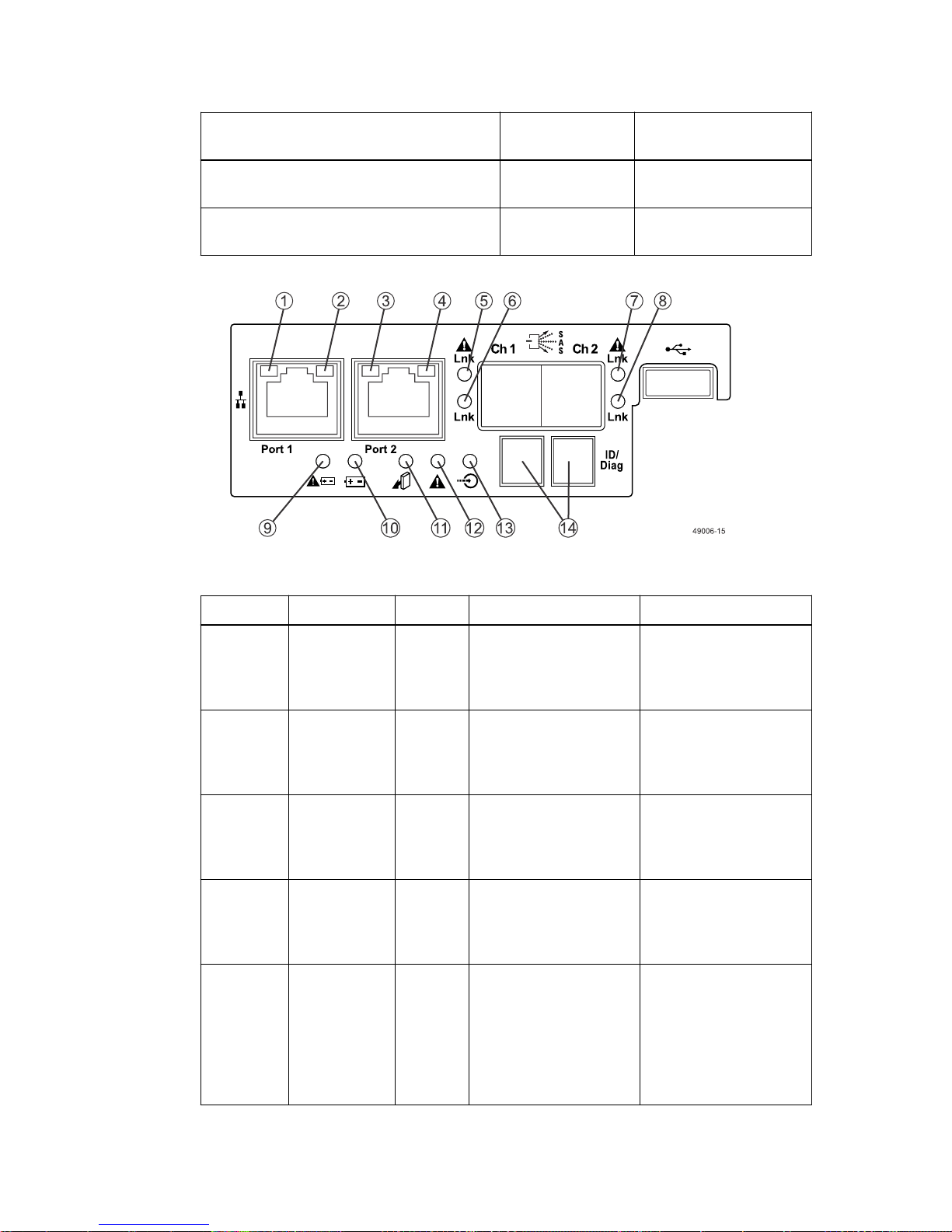

1 2 Seven-segment display 3 USB port 4 Serial port 5 1GbE Ethernet Management Port 1 Link Rate LED 6 1GbE Ethernet Management Port 2 Link Active LED

Page 19

Step 1 - Preparing to install a controller-drive tray | 19

7 1GbE Ethernet Management Port 1 and Port 2 (Port 2 is reserved for technical support) 8 SFF-8644 SAS Host Channel 1 (Ch1) 9 SAS Host 1 Link Up LED 10 SAS Host 1 Link Fault LED 11 SAS Host 2 Link Up LED 12 SAS Host 2 Link Fault LED 13 SFF-8644 SAS Host Channel 2 (Ch2) 14 SAS Expansion Link 1 Fault LED 15 SAS Expansion Link 1 Up LED 16 SFF-8644 SAS Drive Expansion Port 1 and Port 2 17 Power-fan canister 18 Battery Service Action Required LED 19 Battery Charging LED 20 Controller Service Action Allowed LED 21 Controller Service Action Required LED 22 Cache Active LED 23 AC power connector and switch 24 DC power connector and switch

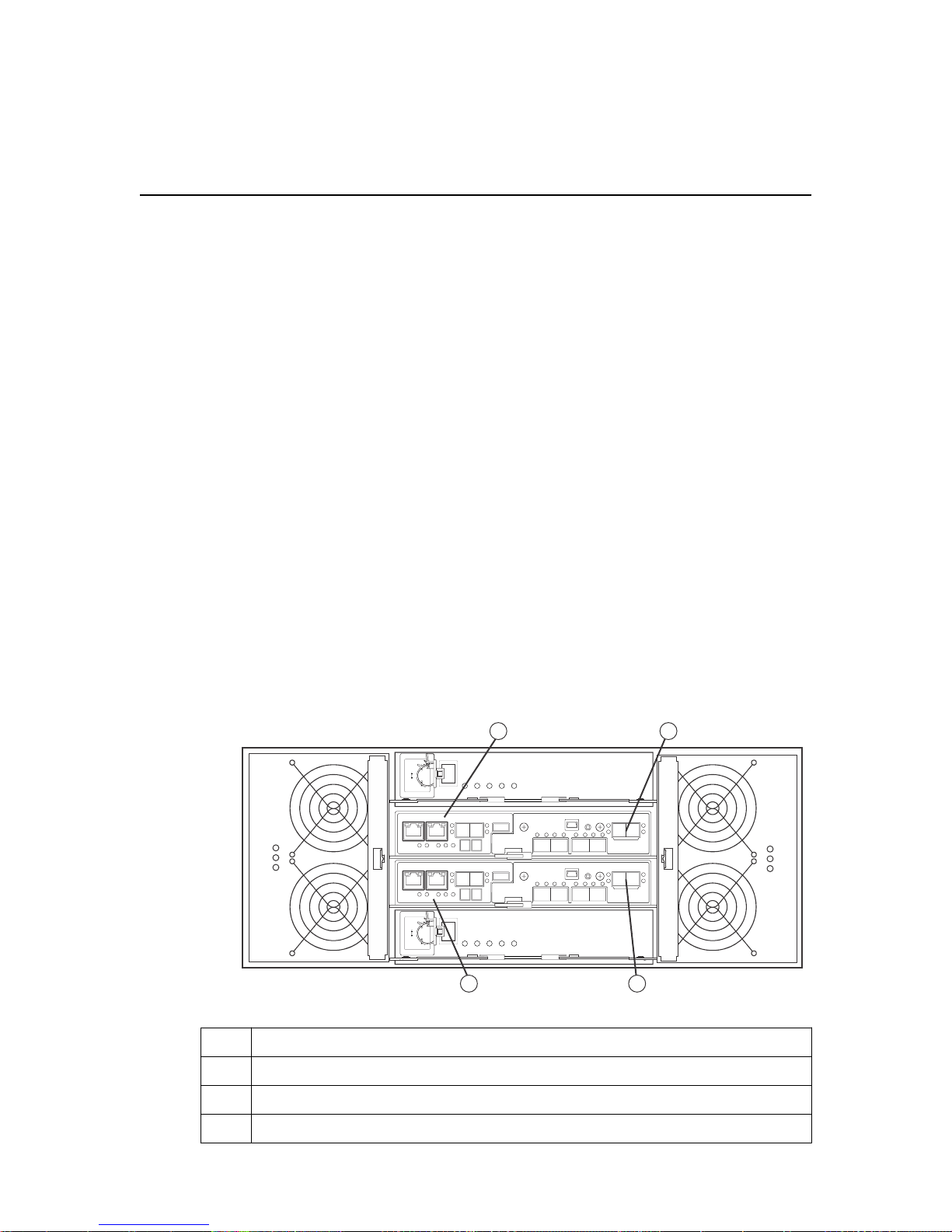

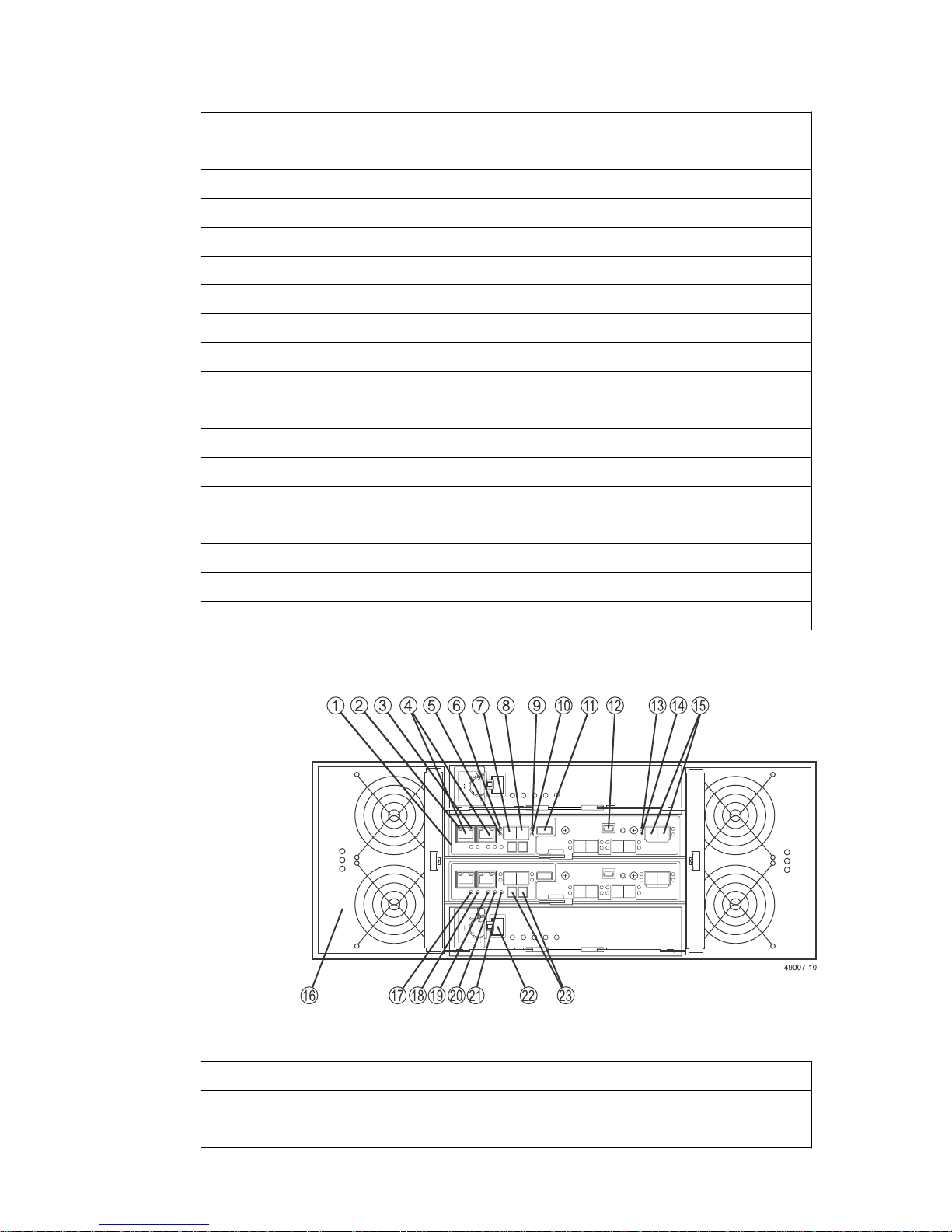

• E2760 controller-drive tray – Rear view

Controller canister 2 1GbE Ethernet Management Port 1 Link Rate LED 3 1GbE Ethernet Management Port 2 Link Active LED

Page 20

20 | E2700 Controller-Drive Tray and Related Drive Trays Installation Guide

4 1GbE Ethernet Management Port 1 and Port 2 (Port 2 is reserved for technical support) 5 SAS Host 1 Link Up LED 6 SAS Host 1 Link Fault LED 7 SFF-8644 SAS Host Channel 1 8 SFF-8644 SAS Host Channel 2 9 SAS Host 2 Link Fault LED 10 SAS Host 2 Link Up LED 11 USB port 12 Serial port 13 SAS Expansion Link 1 Fault LED 14 SAS Expansion Link 1 Up LED 15 SFF-8644 SAS Drive Expansion Port 1 and Port 2 16 Fan canister 17 Battery Service Action Required LED 18 Battery Charging LED 19 Controller Service Action Allowed LED 20 Controller Service Action Required LED 21 Cache Active LED 22 Power canister switch 23 Seven-segment display

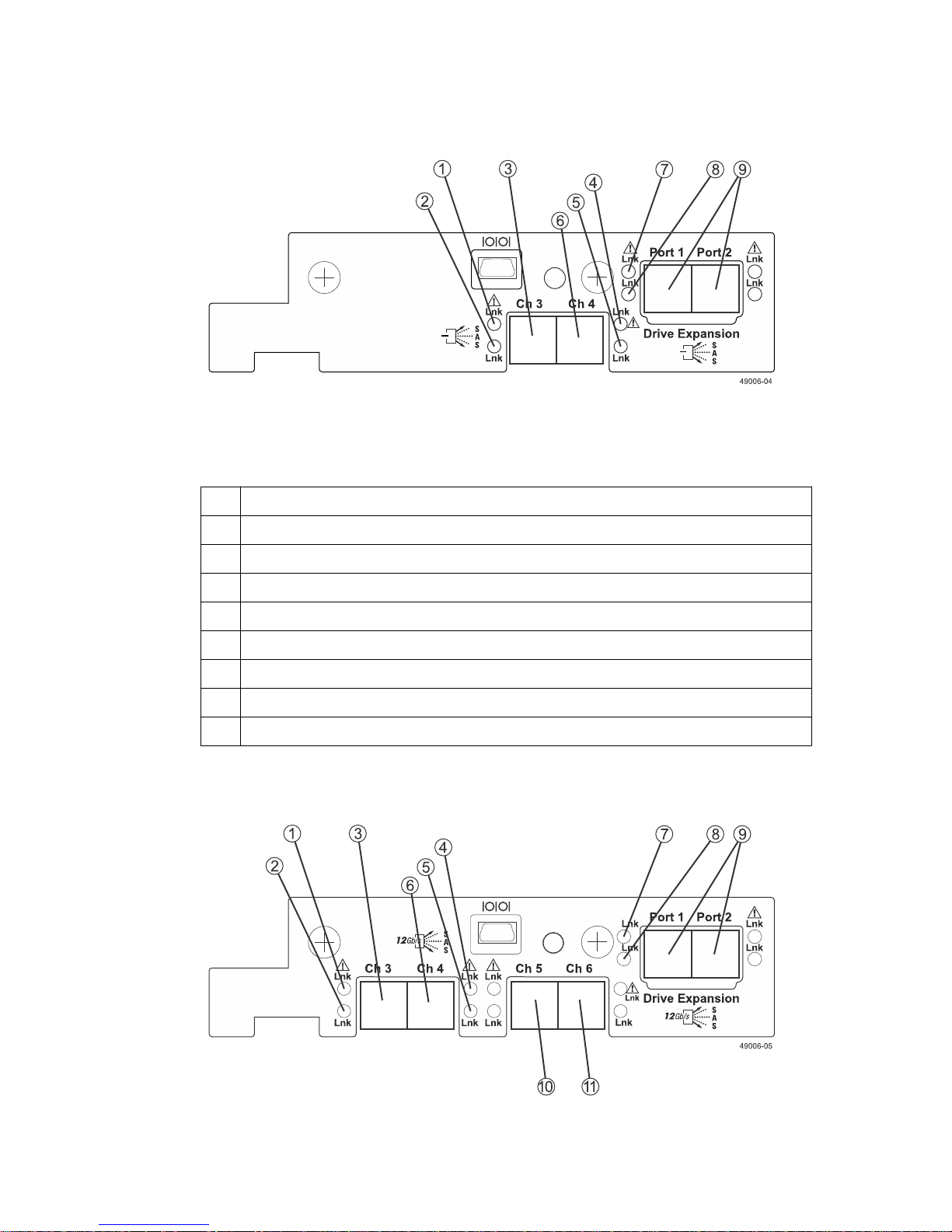

• Right rear subplate with no host interface card (HIC)

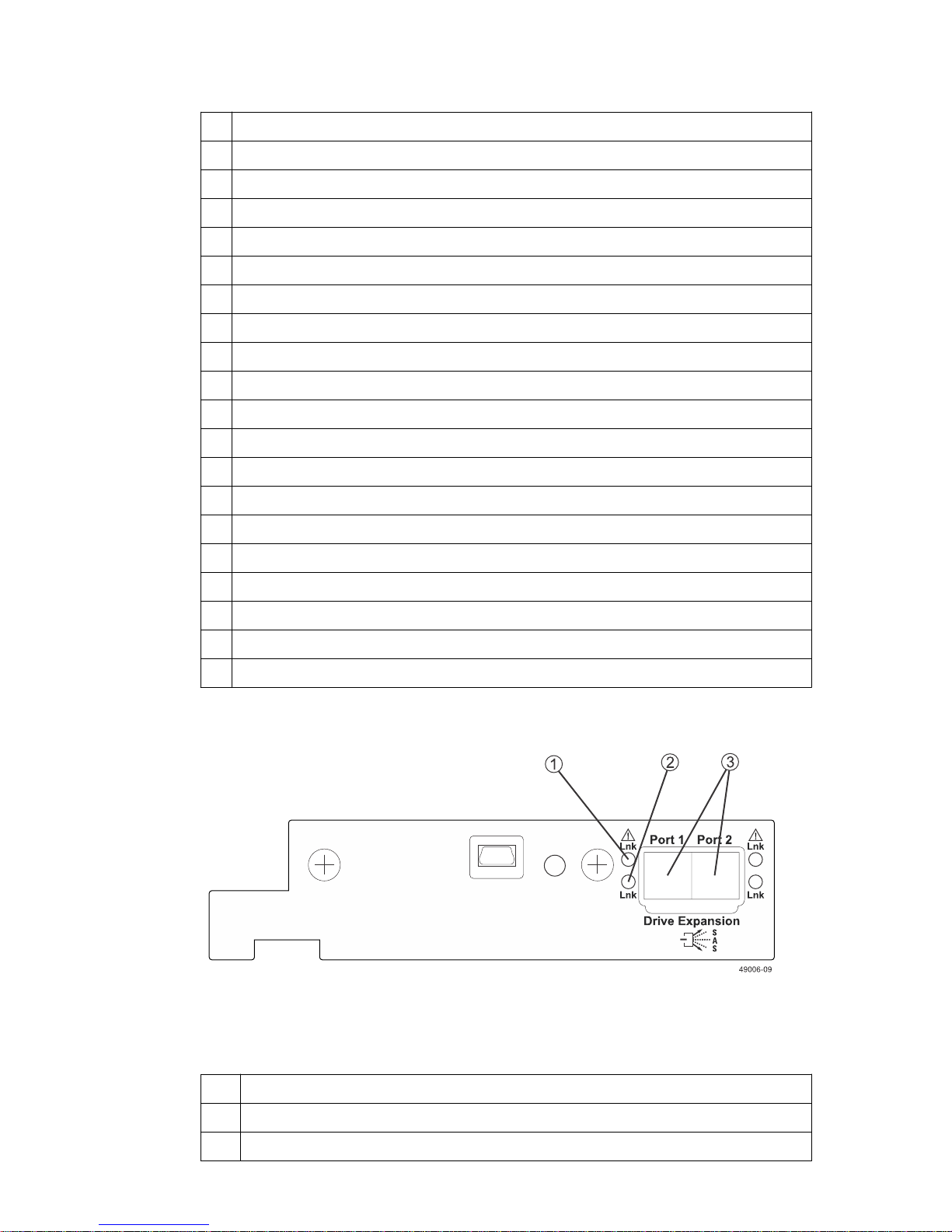

SAS Expansion Link 1 Up LED 2 SAS Expansion Link 1 Fault LED 3 SFF-8644 SAS Drive Expansion Port 1 and Port 2

Page 21

Step 1 - Preparing to install a controller-drive tray |

• Right-rear subplate with a two-port 12 Gb/s SAS HIC

1 Host Interface Card Channel 3 Fault LED

2 Host Interface Card Channel 3 Link Up LED 3 SFF-8644 SAS Host Interface Card Channel 3 4 Host Interface Card Channel 4 Fault LED 5 Host Interface Card Channel 4 Link Up LED 6 SFF-8644 SAS Host Interface Card Channel 4 7 SAS Expansion Port 1 Fault LED 8 SAS Expansion Port 1 Link Up LED 9 SFF-8644 SAS Drive Expansion Port 1 and Port 2

• Right-rear subplate with a four-port 12 Gb/s SAS HIC

Page 22

| E2700 Controller-Drive Tray and Related Drive Trays Installation Guide

1 Host Interface Card Channel 3 Fault LED 2 Host Interface Card Channel 3 Link Up LED 3 SFF-8644 SAS Host Interface Card Channel 3 4 Host Interface Card Channel 4 Fault LED 5 Host Interface Card Channel 4 Link Up LED 6 SFF-8644 SAS Host Interface Card Channel 4 7 SAS Expansion Port 1 Fault LED 8 SAS Expansion Port 1 Link Up LED 9 SFF-8644 SAS Drive Expansion Port 1 and Port 2 10 SFF-8644 SAS Host Interface Card Channel 5 11 SFF-8644 SAS Host Interface Card Channel 6

•

Right-rear subplate with a two-port 1 Gb/s or 10 Gb/s iSCSI HIC

Host Interface Card Channel 3 Fault LED 2 Host Interface Card Channel 3 Link Up LED 3 iSCSI Host Interface Card Channel 3 4 iSCSI Host Interface Card Channel 4 Fault LED 5 Host Interface Card Channel 4 Link Up LED 6 iSCSI Host Interface Card Channel 4 7 SAS Expansion Port 1 Fault LED 8 SAS Expansion Port 1 Link Up LED 9 SFF-8644 SAS Drive Expansion Port 1 and Port 2

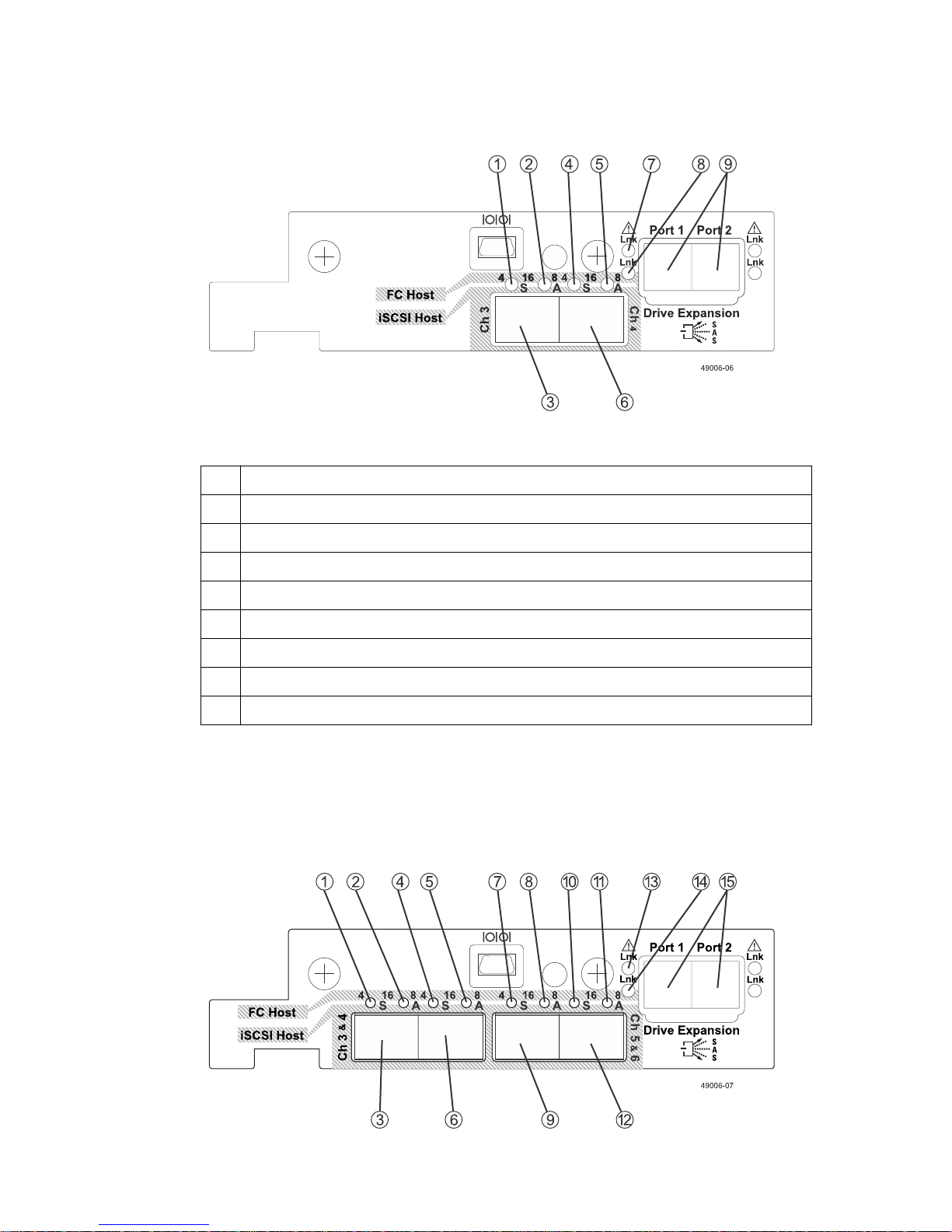

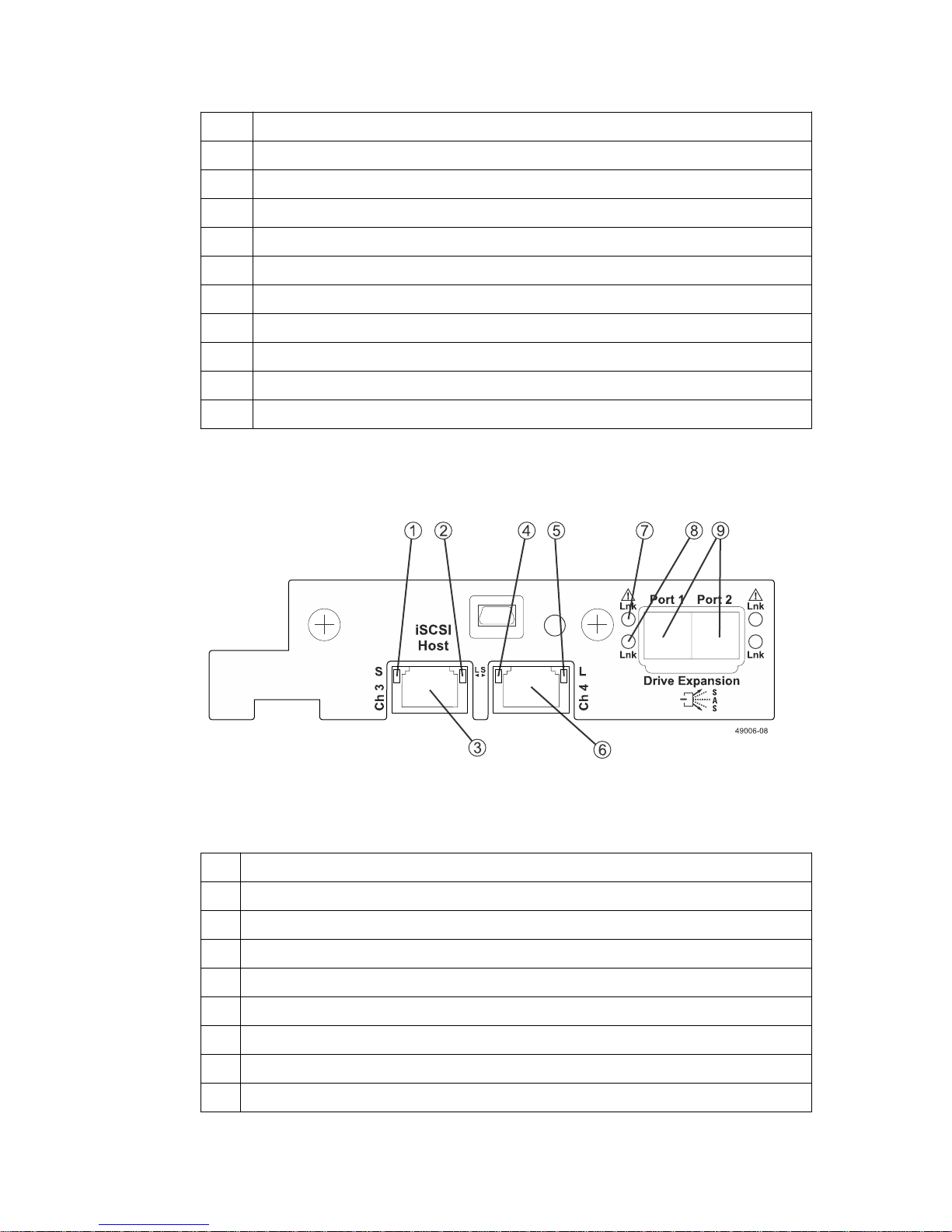

• Right-rear subplate with a two-port 16 Gb/s Fibre Channel HIC

Page 23

Step 1 - Preparing to install a controller-drive tray |

1 FC Channel 3 - 4-Gb Link Rate LED* 2 FC Channel 3 - 8-Gb Link Rate LED*

3 FC Host Interface Card Channel 3 4 FC Channel 4 - 4-Gb Link Rate LED* 5 FC Channel 4 - 8-Gb Link Rate LED* 6 FC Host Interface Card Channel 4 7 SAS Expansion Port 1 Fault LED 8 SAS Expansion Port 1 Link Up LED 9 SFF-8644 SAS Drive Expansion Port 1 and Port 2

* When both LEDs for a channel are on, the link rate is 16 Gb. The “A” and “L” labels refer to Activity and Link, respectively, when an iSCSI HIC is used.

• Right-rear subplate with a four-port 16 Gb/s Fibre Channel HIC

Page 24

24 | E2700 Controller-Drive Tray and Related Drive Trays Installation Guide

1 FC Channel 3 - 4-Gb Link Rate LED* 2 FC Channel 3 - 8-Gb Link Rate LED* 3 FC Host Interface Card Channel 3 4 FC Channel 4 - 4-Gb Link Rate LED* 5 FC Channel 4 - 8-Gb Link Rate LED* 6 FC Host Interface Card Channel 4 7 FC Channel 5 - 4-Gb Link Rate LED* 8 FC Channel 5 - 8-Gb Link Rate LED* 9 FC Host Interface Card Channel 5 10 FC Channel 6 - 4-Gb Link Rate LED* 11 FC Channel 6 - 8-Gb Link Rate LED* 12 FC Host Interface Card Channel 6 13 SAS Expansion Port 1 Fault LED 14 SAS Expansion Port 1 Link Up LED 15 SFF-8644 SAS Drive Expansion Port 1 and Port 2

* When both LEDs for a channel are on, the link rate is 16 Gb. The “A” and “L” labels refer to Activity and Link, respectively, when an iSCSI HIC is used.

Drive trays

Attention: Possible equipment damage – You must use the supported drives in the drive tray to

ensure proper operation. For information about supported drives, contact technical support.

Attention: Risk of equipment malfunction –To avoid exceeding the functional and

environmental limits, install only drives that have been provided or approved by NetApp, Inc. Not all controller-drive trays are shipped with pre-populated drives. System integrators, resellers, system administrators, or users of the controller-drive tray can install the drives.

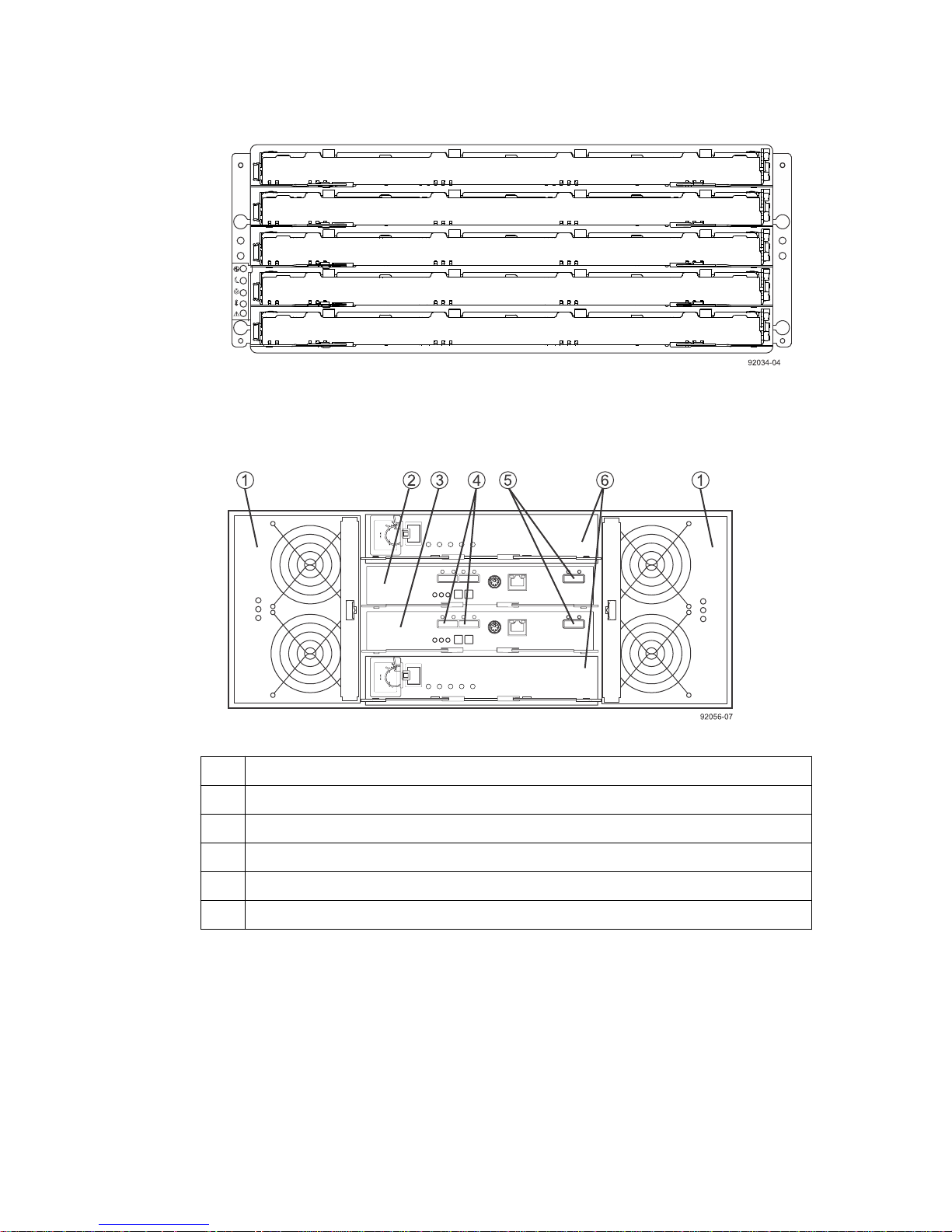

• DE1600 drive tray – Front view

Left end cap (has the drive tray LEDs)

2 Drives

Page 25

Step 1 - Preparing to install a controller-drive tray |

3 Right end cap

• DE5600 drive tray – Front view

1 Left end cap (has the drive tray LEDs) 2 Drives 3 Right end cap

•

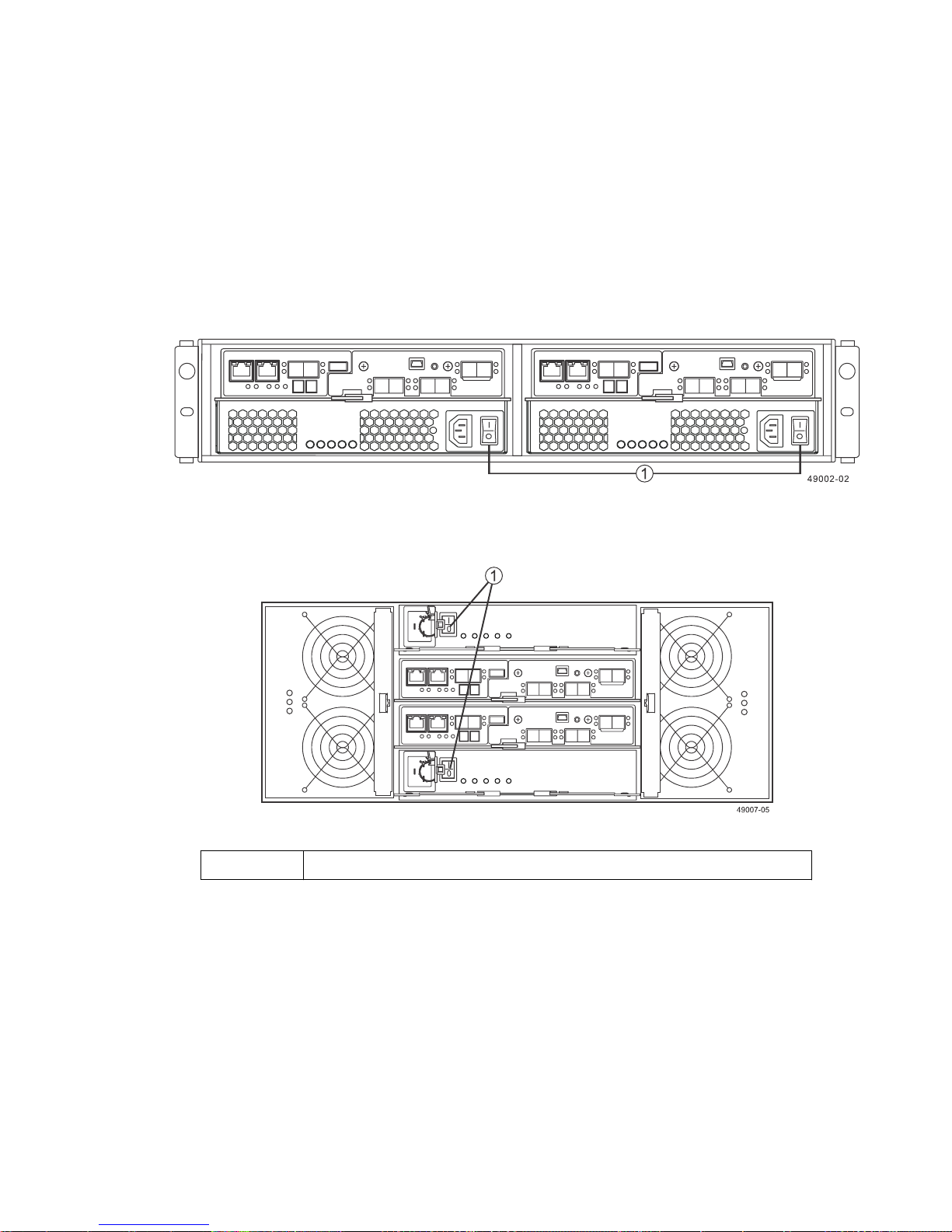

DE1600 or DE5600 drive tray with AC power option – Rear view

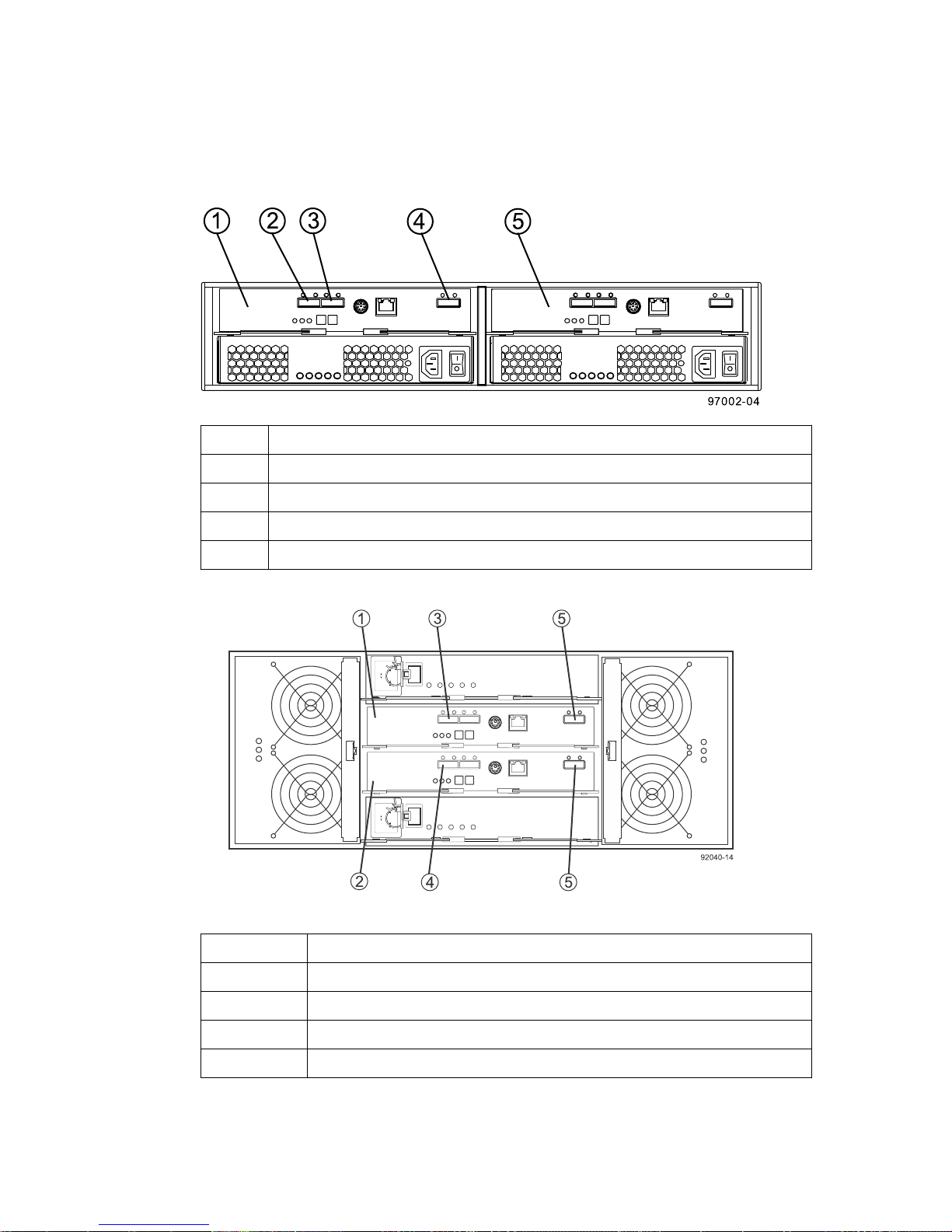

ESM A canister 2 Expansion port SFF-8088 connector 1 (IN) 3 Expansion port SFF-8088 connector 2 (IN) 4 Seven-segment display 5 Serial port 6 Ethernet connector 7 Expansion port SFF-8088 connector (OUT) 8 Power-fan canister 9 Power connector 10 Power switch 11 ESM B canister

• DE1600 or DE5600 drive tray with DC power option – Rear view

Page 26

26 | E2700 Controller-Drive Tray and Related Drive Trays Installation Guide

1 ESM A canister 2 Expansion port SFF-8088 connector 1 (IN) 3 Expansion port SFF-8088 connector 2 (IN) 4 Seven-segment display 5 Serial port 6 Ethernet connector 7 Expansion port SFF-8088 connector (OUT) 8 Power-fan canister 9 Power connector 10 Power switch 11 ESM B canister

• DE6600 drive tray – Front view with bezel

• DE6600 drive tray – Front view with bezel removed

Page 27

•

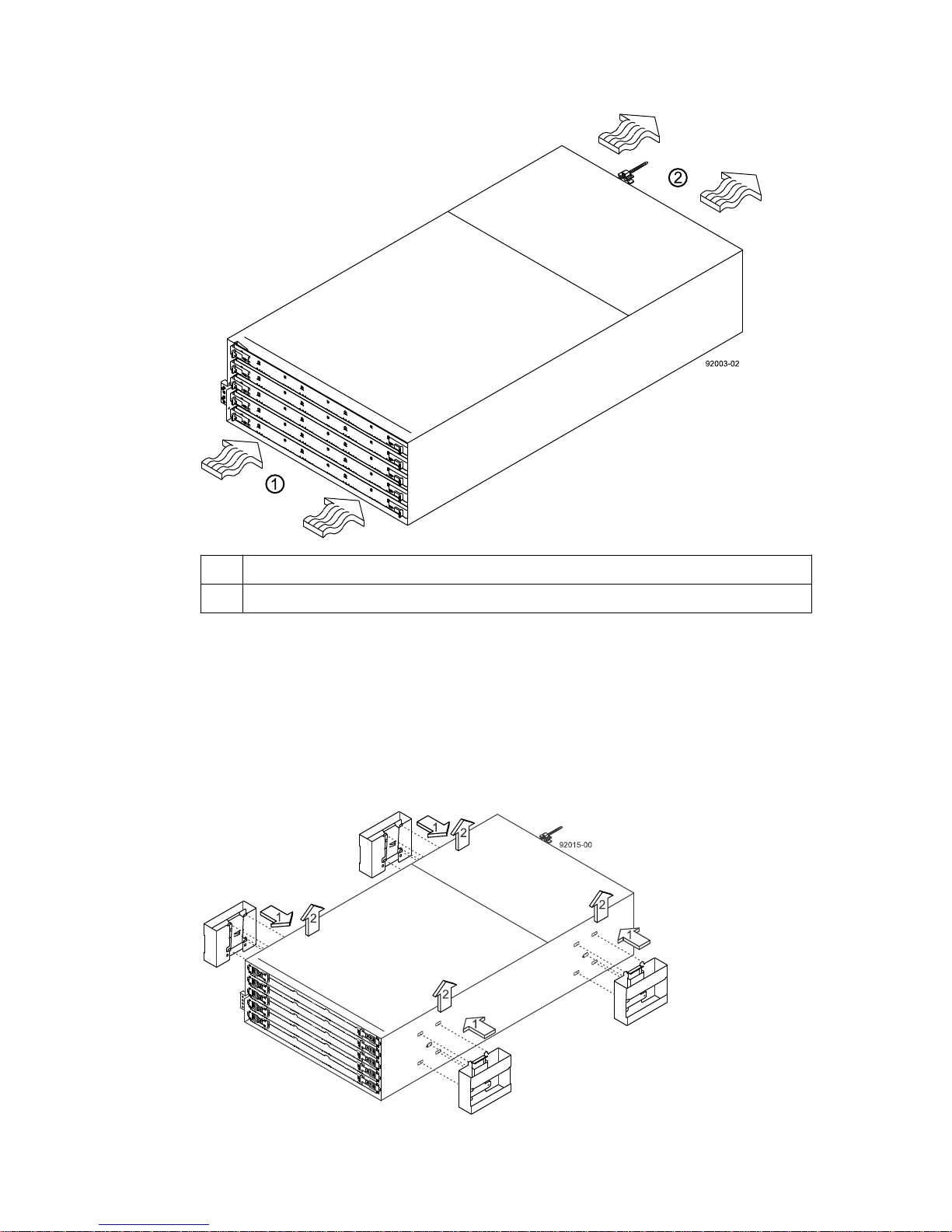

DE6600 drive tray – Rear view

Step 1 - Preparing to install a controller-drive tray |

Fan canister 2 ESM A 3 ESM B 4 Expansion port SFF-8088 connectors (IN) 5 Expansion port SFF-8088 connector (OUT) 6 Power canister

You can order an optional DC power supply connection and connector cables for the drive tray. A

qualified service person is required to make the DC power connection per NEC and CEC guidelines . A two-pole 30-amp circuit breaker is required between the DC power source and the

drive tray for over-current and short-circuit protection. Before turning off any power switches on a DC-powered drive tray, you must disconnect the two-pole 30-amp circuit breaker.

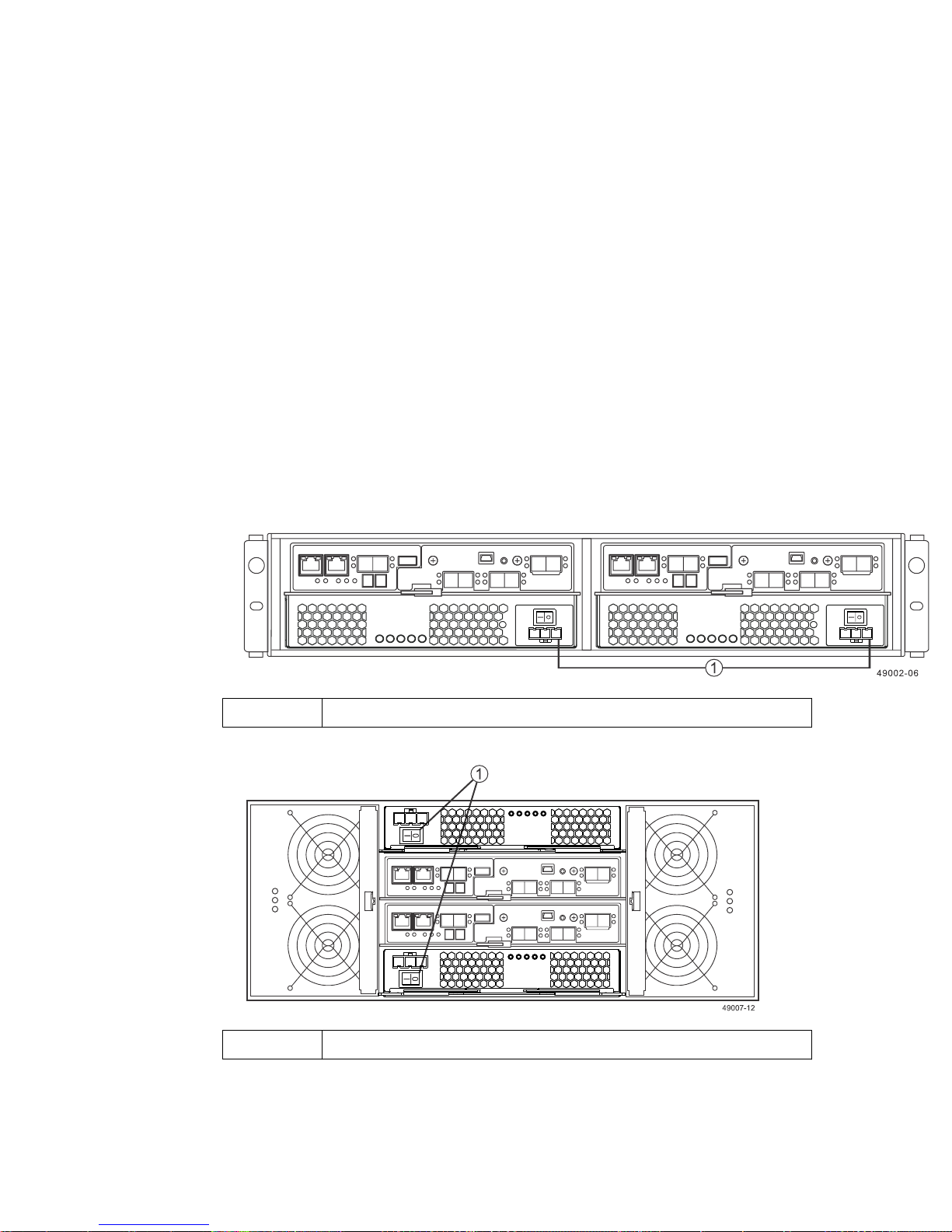

Warning: (W12) Risk of electrical shock –This unit has more than one power source. To remove

all power from the unit, all DC MAINS must be disconnected by removing all power connectors (item 4 below) from the power supplies.

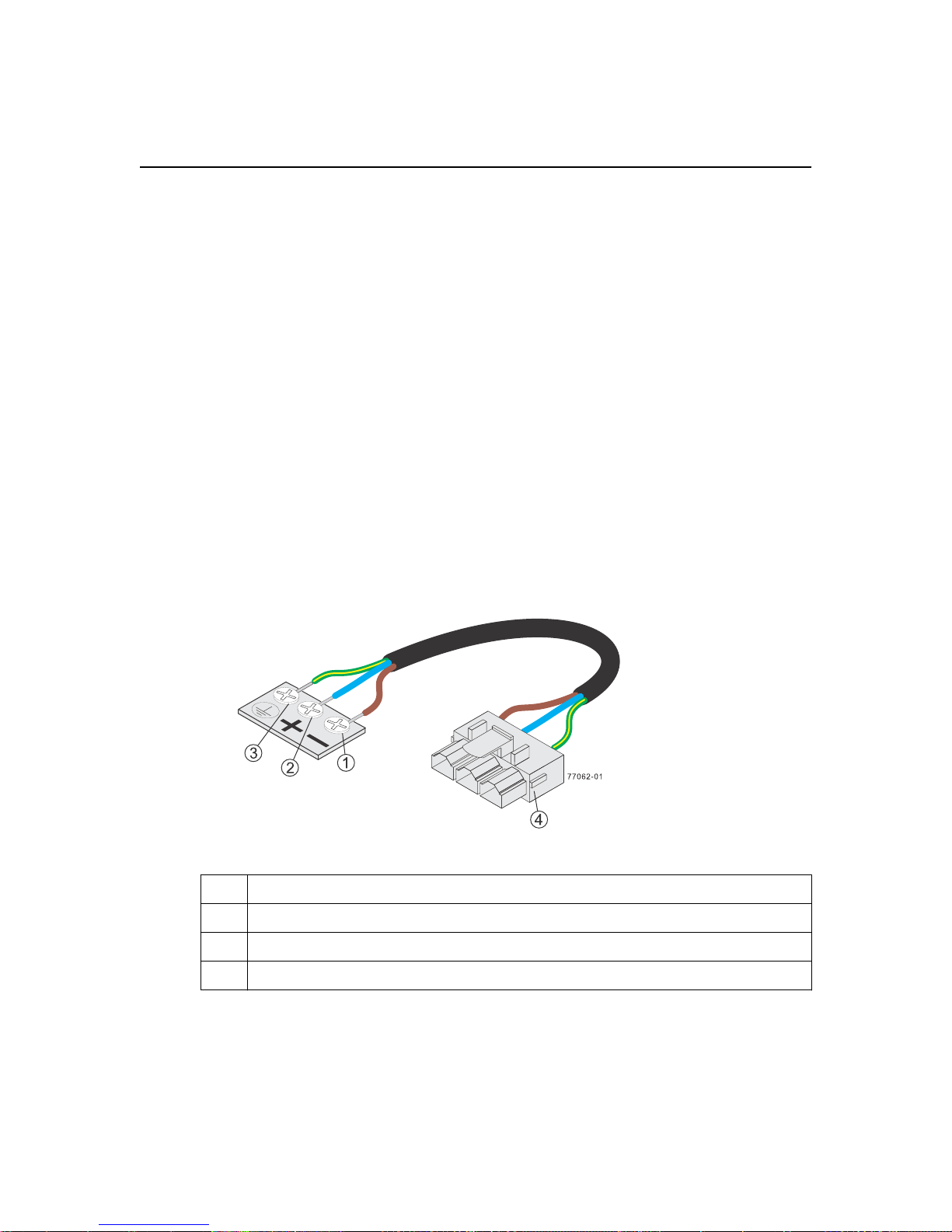

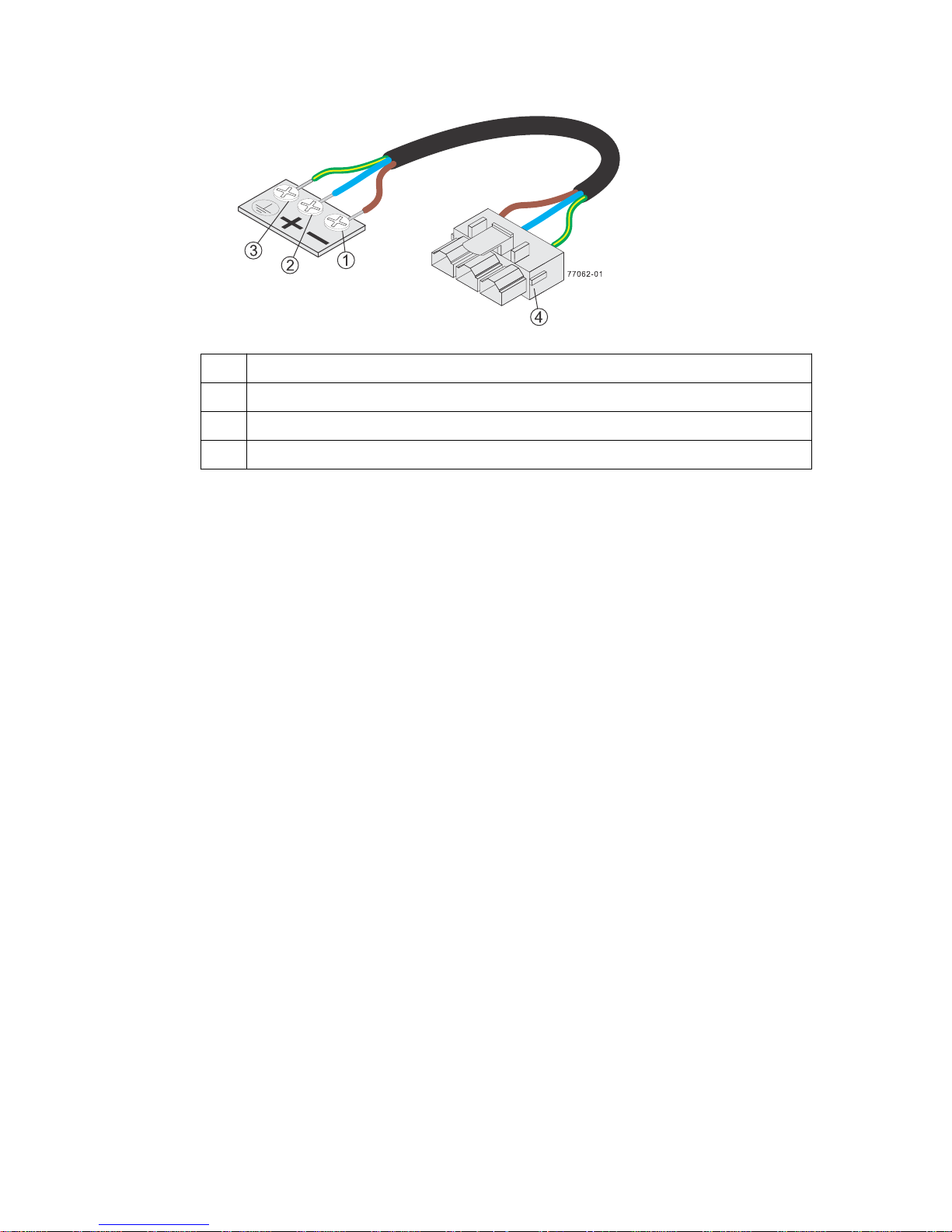

• DC power cable

Page 28

28 | E2700 Controller-Drive Tray and Related Drive Trays Installation Guide

1 Supply (Negative), Brown wire, -48 VDC 2 Return (Positive), Blue wire 3 Ground, Green/Yellow wire 4 DC power connector

See the

Storage System Site Preparation Guide

for information about the installation requirements

of the various controller-drive tray storage array components.

Page 29

Step 2 - Installing and configuring the switches

Things to know - Switches and routers

Note: Most of the switches and routers, as shipped from the vendor, require an update to either

their firmware or their settings to work correctly with the storage array.

The switches and routers in the following tables are certified for use with an E2712 storage array, an E2724 storage array, and an E2760 storage array using SANtricity Storage Manager Version 11.20.

If required, make the appropriate configuration changes for the storage array.

See the switch’s documentation for information about how to install the switch or router and how to use the configuration utilities that are supplied with the switch or router.

Table 7: Supported FC switches

Vendor

Brocade 300 8 Gb/s

Model Version/Data Rate

5100 8 Gb/s 5300 8 Gb/s 8000 8 Gb/s DCX 8 Gb/s DCX-4S 8 Gb/s 7800 EXT 8 Gb/s 6505 16 Gb/s 6510 16 Gb/s 6520 16 Gb/s

each

switch or router that is connected to

Qlogic SANbox 9000 8 Gb/s

Cisco 9148 8 Gb/s

Cisco Nexus 5010 8 Gb/s

HP Blade Center AW564A: Cisco MDS 8 Gb/s

DCX8510-x 16 Gb/s

5800 8 Gb/s 3800 8 Gb/s

9509 8 Gb/s 9513 8 Gb/s

5020 8 Gb/s

AJ821B: HP B-Series 8/24c

8 Gb/s

Page 30

30 | E2700 Controller-Drive Tray and Related Drive Trays Installation Guide

Table 8: Supported routers

Vendor Model Speed

Cisco 9222i 8Gb Brocade 7800 8Gb Qlogic 6240 8Gb FC

10 Gb iSCSI 6250 10 GbE iSCSI 6260 8Gb FC

10 Gb iSCSI

Contact technical support for the latest information about new switches that are tested and certified to work with various hardware and software combinations.

Procedure - Installing and configuring switches

Steps

1. Install your switch according to the vendor’s documentation.

2. Contact technical support to obtain this information:

• The latest hardware compatibility information

• The models of the switches that are supported

• The firmware requirements and the software requirements for the switches

3. Update the switch’s firmware from the

This update might require that you cycle power to the switch.

NetApp Interoperability

site.

Page 31

Step 3 - Installing the host bus adapters for the controller-drive tray

Key terms

Host bus adapter (HBA)

A physical board that resides in the host. The HBA provides for data transfer between the host and the controllers in the storage array over the I/O host interface. Each HBA contains one or more physical ports.

HBA host port

The physical and electrical interface on the host board adapter (HBA) that provides for the connection between the host and the controller. Most HBAs have either one or two host ports. The HBA has a unique World Wide Identifier (WWID) and each HBA host port has a unique WWID.

HBA host port world wide name (WWN)

A 16-character unique name that is provided for each port on the host bus adapter (HBA).

Network interface card (NIC)

A hardware component that connects the host to the controller.

Things to know - Host bus adapters and Ethernet Network Interface Cards

• The E2700 controller-drive tray supports two native SAS host ports and the following host interface cards (HICs):

◦ ⁃ A two-port or a four-port 12-Gb/s SAS HIC

⁃ A two-port 10-Gb/s iSCSI Base-T HIC (RJ-45) ⁃ A two-port or a four-port 10-Gb/s iSCSI ⁃ A two-port or a four-port 16-Gb/s Fibre Channel HIC

• The HBAs, HCAs, or NICs on a host must support the type of port (SAS, iSCSI, or Fibre Channel) to which they connect on the controller-drive tray. For the best performance, HBAs, HCAs, and NICs should support the highest data rate supported by the HICs to which they connect.

Note: Some servers have GEN2 and GEN3 slots for HBAs. For the best performance, make

sure that GEN3 HBAs are installed in the GEN3 slots on the server.

• For maximum hardware redundancy, you must install a minimum of two HBAs, HCAs, or NICs in each host. Using both ports of a dual-port HBA provides two paths to the storage array but does not ensure redundancy if an HBA fails.

• You should not attach one host running two different protocols to one storage array at the same time.

Page 32

| E2700 Controller-Drive Tray and Related Drive Trays Installation Guide

Note: Contact technical support to obtain information about the supported models of the HBAs,

HCAs, or NICs and their requirements to ensure that you have an acceptable configuration.

• Most of the HBAs, HCAs, and NICs, require updated firmware and software drivers to work correctly with the storage array. For information about the updates, go to

NetApp Interoperability

Procedure - Installing host bus adapters

Steps

Check with technical support to make sure you have an acceptable configuration. Before

installing an HBA, you must have the following information:

• The latest hardware compatibility information

• The models of the HBAs that are supported

• The firmware requirements and the software requirements for the HBAs

Refer to

3. Install the latest version of the firmware and software drivers for the HBA. You can find the latest

version of the firmware for the HBA at

4. Check to see if the SMagent application is installed on all of your hosts:

• If Yes, you have completed this procedure.

• If No, continue with step 5 to obtain the HBA host port world wide name from the HBA BIOS

5. Reboot or start your host.

6. While your host is booting, look for the prompt to access the HBA BIOS utility.

7. Select each HBA to view its HBA host port world wide name.

8. Record the following information for each host and for each HBA connected to the storage array:

• The name of each host

• The HBAs in each host

NetApp Interoperability

Note: If your operating system is either Windows Server 2008 Server Core, or Windows 2012

Sever, you might have additional installation requirements. Refer to the Microsoft Developers Network (MSDN) for more information about Windows Server 2008 Server Core. You can access these resources from

utility.

for more information about installing the HBA.

msdn.microsoft.com

NetApp Interoperability

• The HBA host port world wide name of each port on the HBA The following table shows examples of the host and HBA information that you must record.

Page 33

Step 3 - Installing the host bus adapters for the controller-drive tray | 33

Host name Associated HBA HBA host port world wide

name

ENGINEERING Vendor x, Model y (dual port)

• 37:38:39:30:31:32:33:32

• 37:38:39:30:31:32:33:33

Vendor a, Model y (dual port)

• 42:38:39:30:31:32:33:42

• 42:38:39:30:31:32:33:44

FINANCE Vendor a, Model b (single port) 57:38:39:30:31:32:33:52

Vendor x, Model b (single port) 57:38:39:30:31:32:33:53

Page 34

Step 4 - Installing the controller-drive tray

Things to know - General installation

The power supplies meet standard voltage requirements for both domestic and worldwide operation.

Note: Ensure that the combined power requirements of your trays do not exceed the power

capacity of your cabinet. For power ratings on the and its related drive trays, refer to the

Preparation Guide

Procedure - Installing the E2712 or E2724 controller-drive tray

About this task

Warning: (W08) Risk of bodily injury – Two persons are required to safely lift the component.

Site

Warning: (W05) Risk of bodily injury – If the bottom half of the cabinet is empty, do not install

components in the top half of the cabinet. If the top half of the cabinet is too heavy for the bottom half, the cabinet might fall and cause bodily injury. Always install a component in the lowest available position in the cabinet.

You can install the controller-drive tray into an industry-standard cabinet. This procedure describes how to install the mounting rails into an industry-standard cabinet.

Attention: Possible hardware damage – To prevent electrostatic discharge damage to the tray,

use proper antistatic protection when handling tray components.

Steps

1. Ensure that the cabinet is in the final location and the cabinet installation site meets the clearance

requirements for air flow as shown in the figures.

Note: Fans pull air through the tray from front to back across the drives.

Page 35

Step 4 - Installing the controller-drive tray |

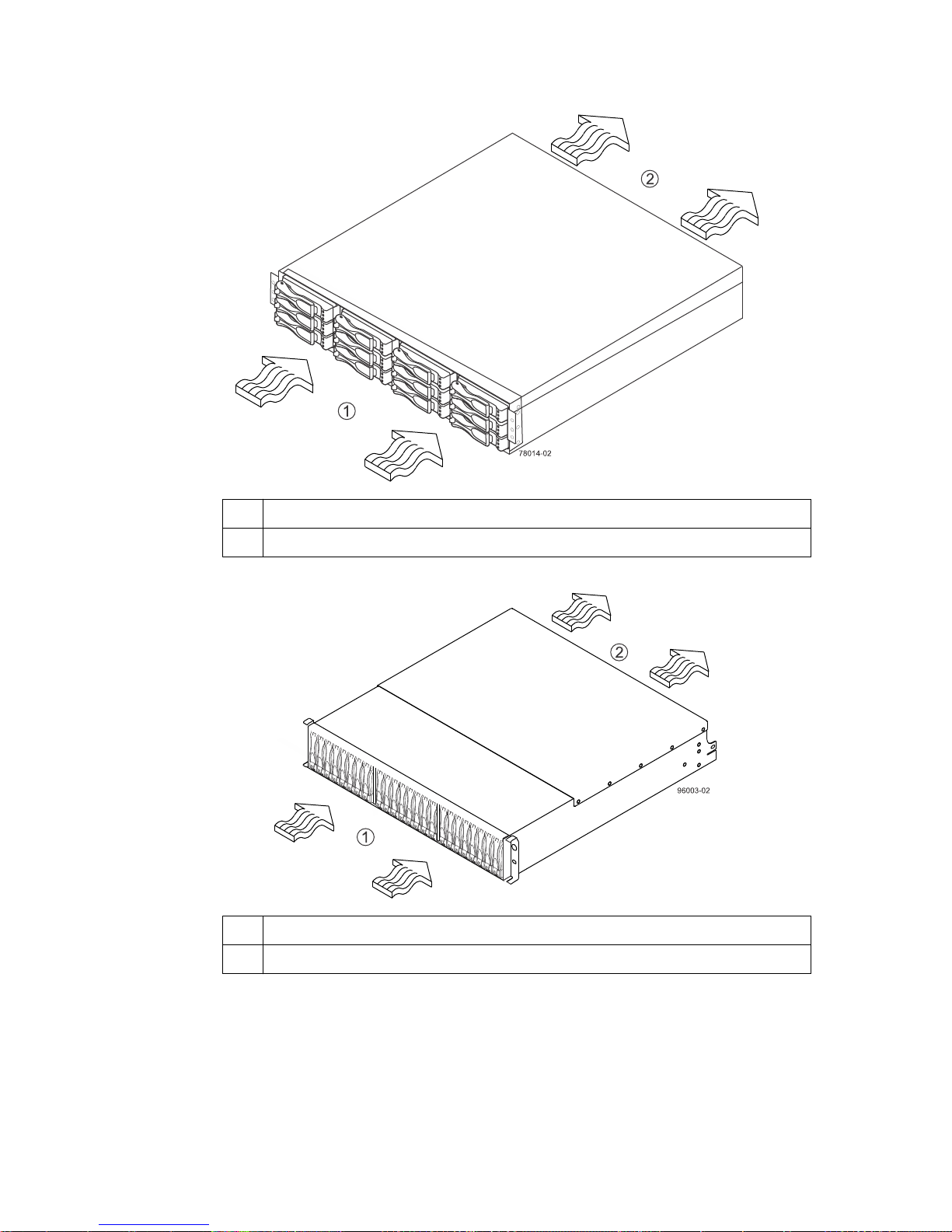

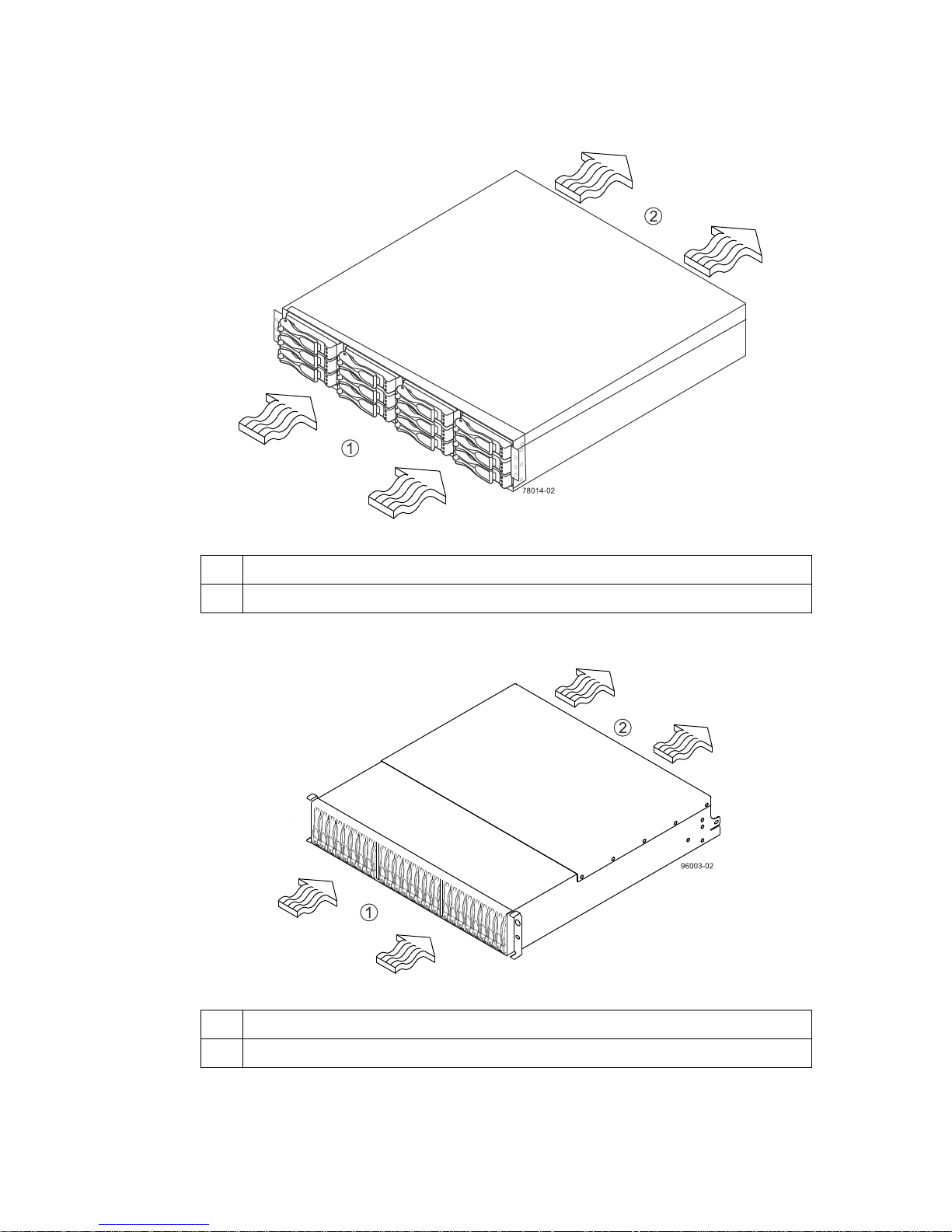

E2712 controller-drive tray – Airflow and clearance requirements

76 cm (30 in.) clearance in front of the cabinet

2 61 cm (24 in.) clearance behind the cabinet

E2724 controller-drive tray – Airflow and clearance requirements

76 cm (30 in.) clearance in front of the cabinet

1 2 61 cm (24 in.) clearance behind the cabinet

2. Lower the feet on the cabinet, if required, to keep it from moving.

3. Remove the controller-drive tray and all contents from the shipping carton.

Page 36

| E2700 Controller-Drive Tray and Related Drive Trays Installation Guide

4. Position the mounting rails in the cabinet. For more information, refer to the installation

instructions that are included with your mounting rails.

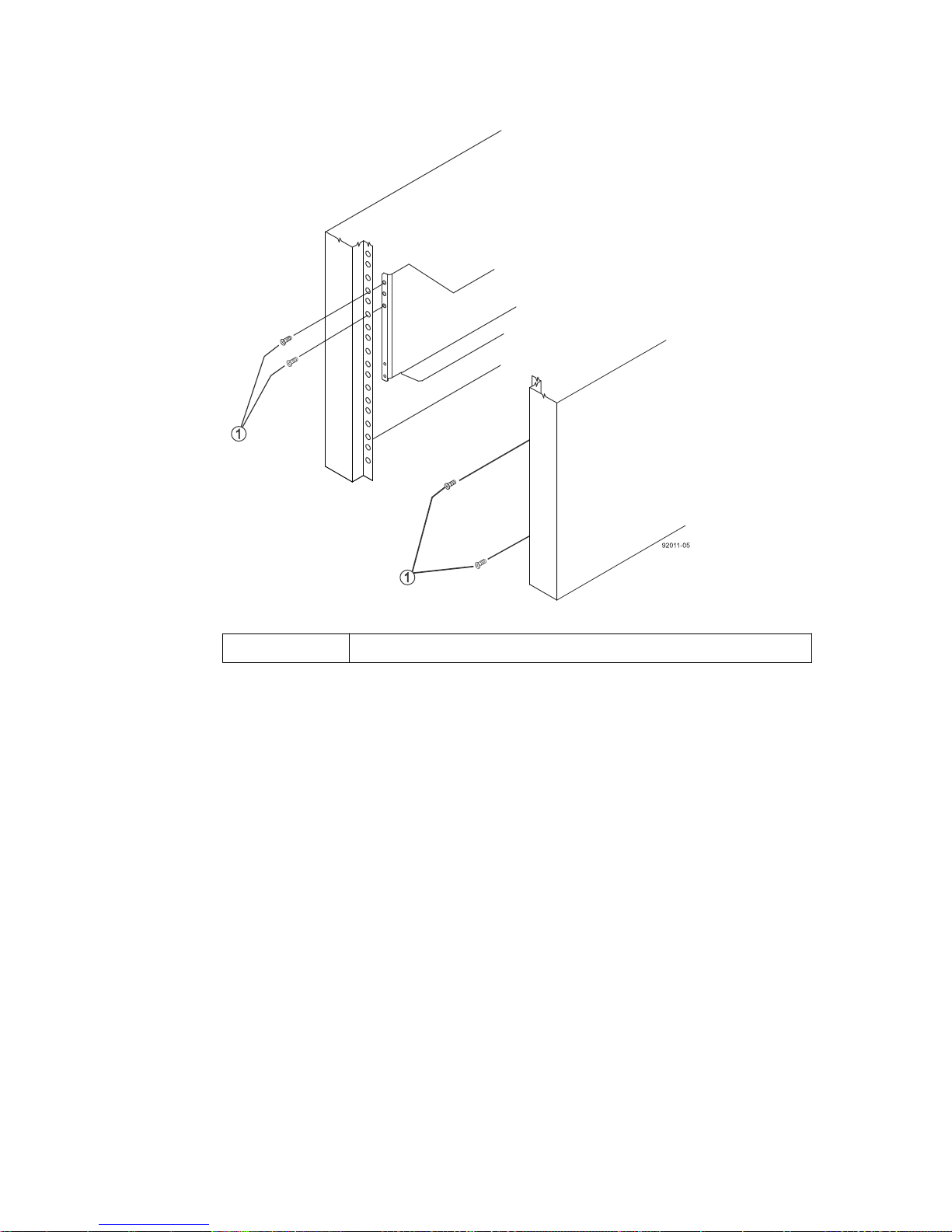

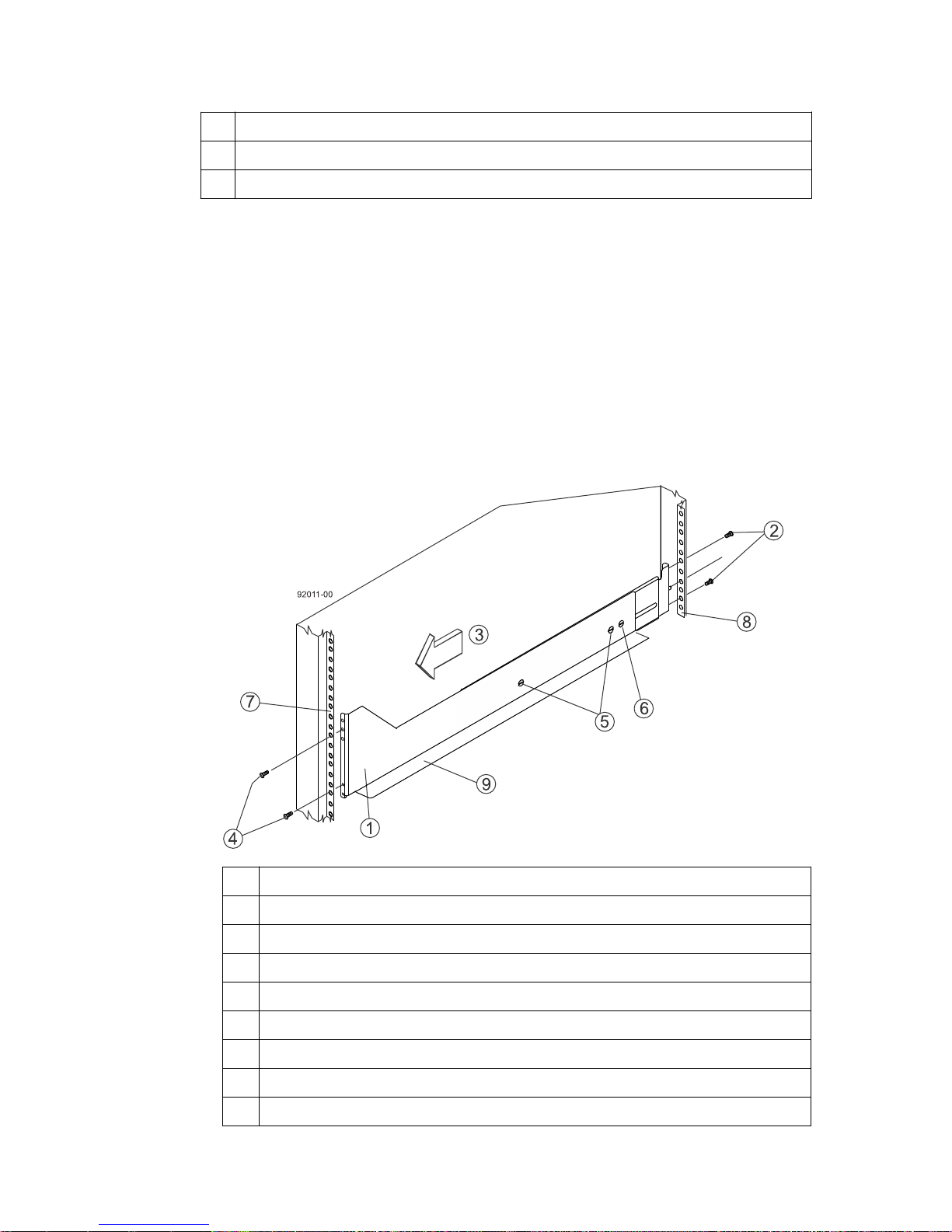

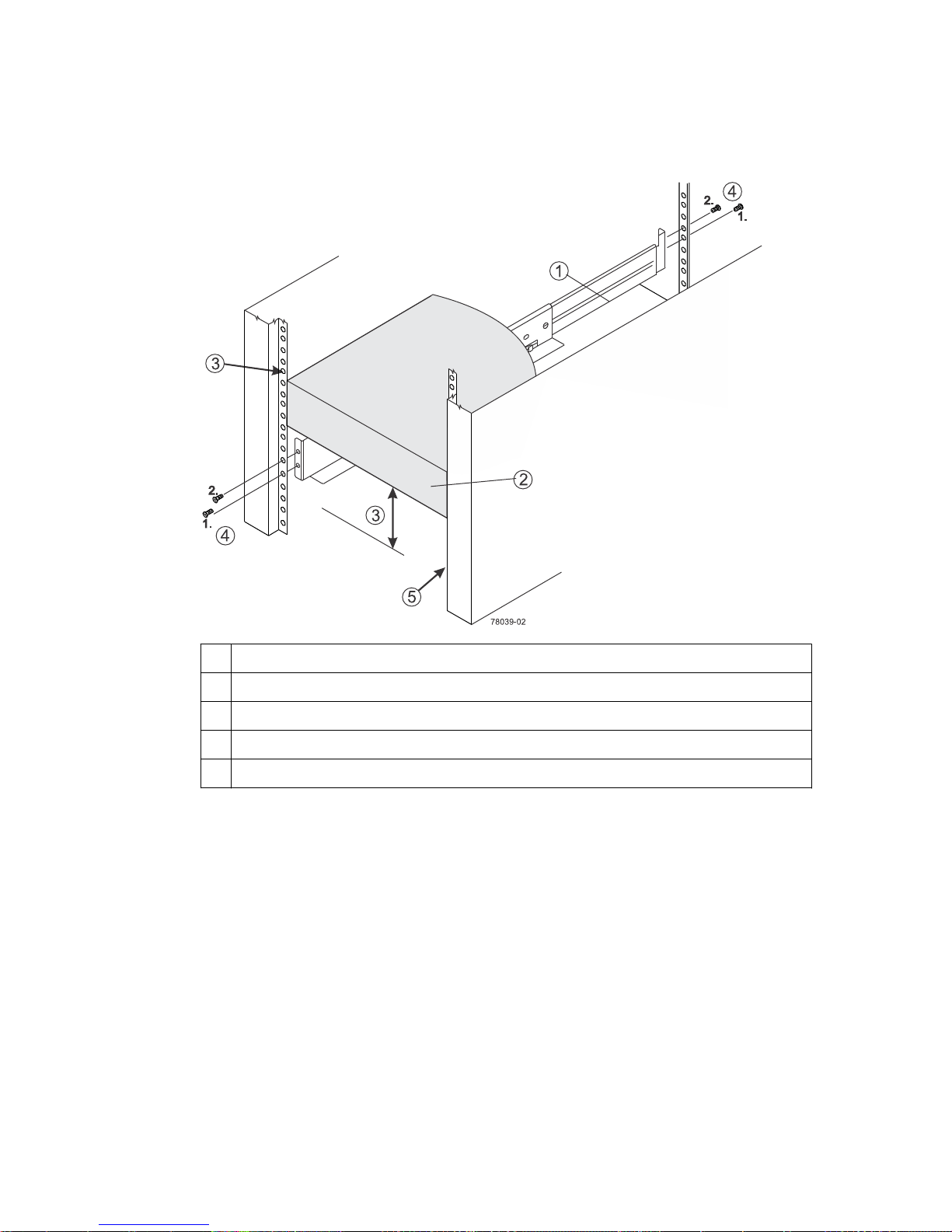

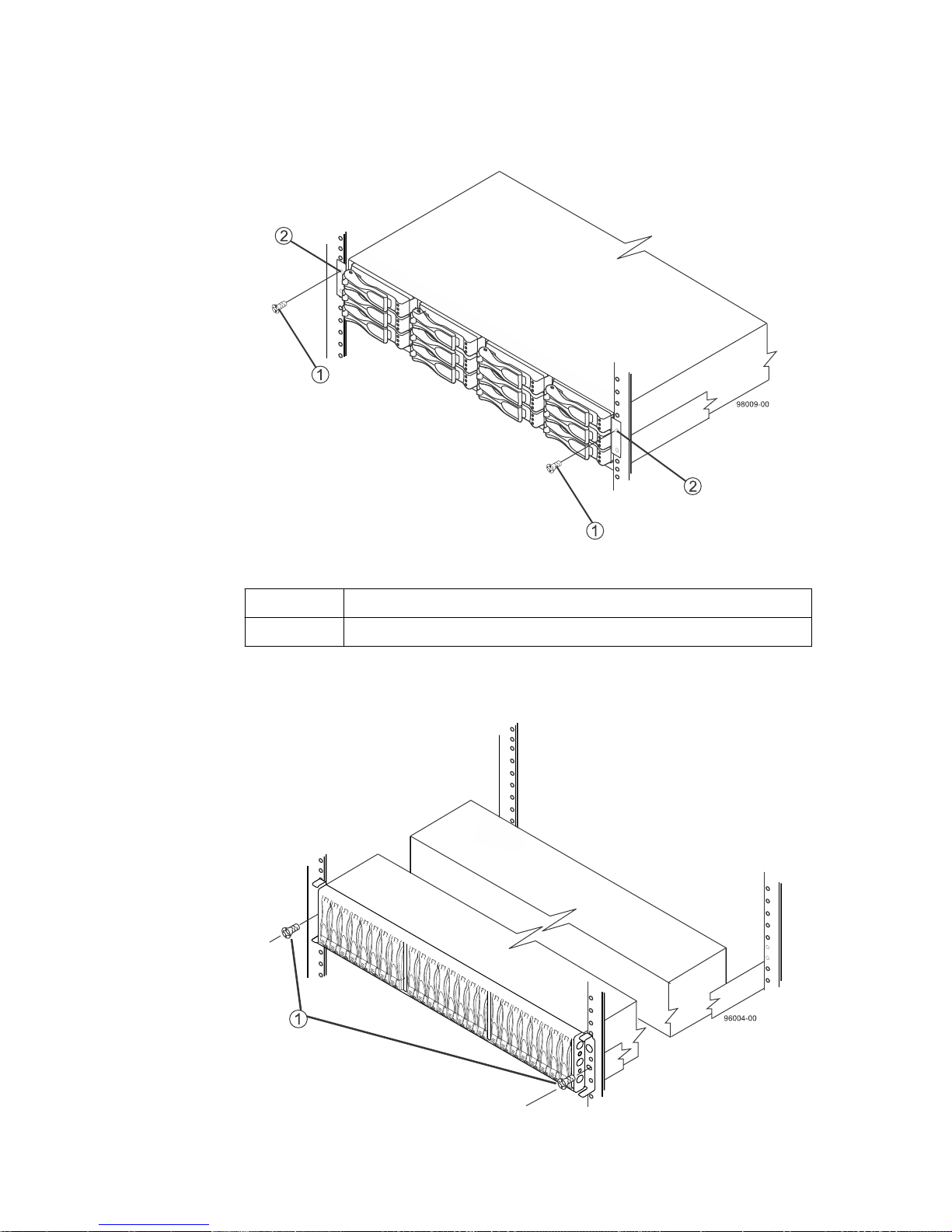

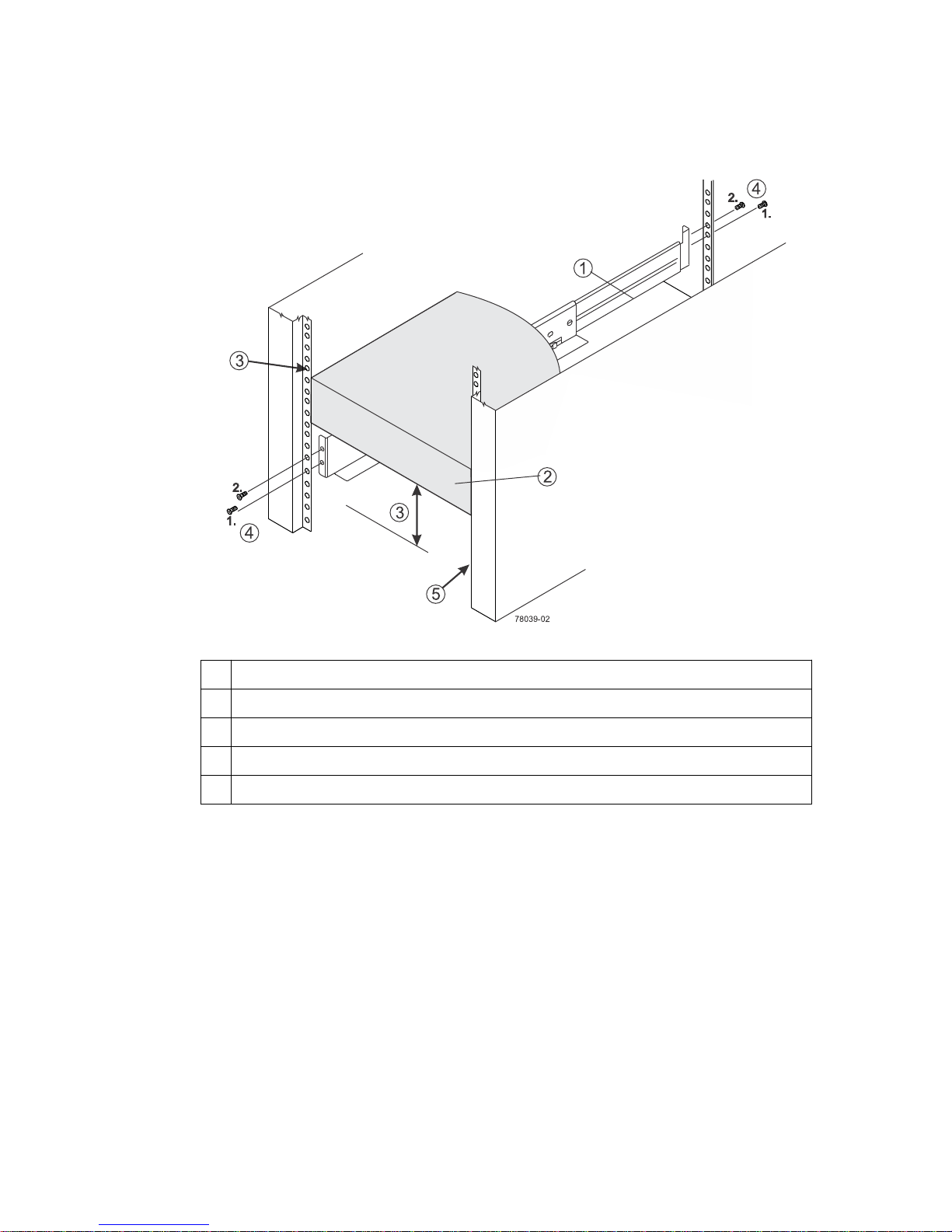

Mounting rail 2 Existing tray 3 Clearance above and below the existing tray 4 Screws for securing the mounting rail to the cabinet (front and rear) 5 Industry-standard cabinet

• If you are installing the mounting rails above an existing tray, position the mounting rails directly above the existing tray.

• If you are installing the mounting rails below an existing tray, allow 8.7-cm (3.4 in.) clearance below the existing tray for the E2712 controller-drive trays and 8.9-cm (3.5 in.) for the E2724 controller-drive trays.

Attention: Risk of equipment malfunction – To avoid exceeding the functional and

5. Attach the mounting rails to the cabinet.

a. Ensure that the adjustment screws on the mounting rail are loose so that the mounting rail can

extend or contract as needed.

Page 37

Cabinet mounting holes

Step 4 - Installing the controller-drive tray |

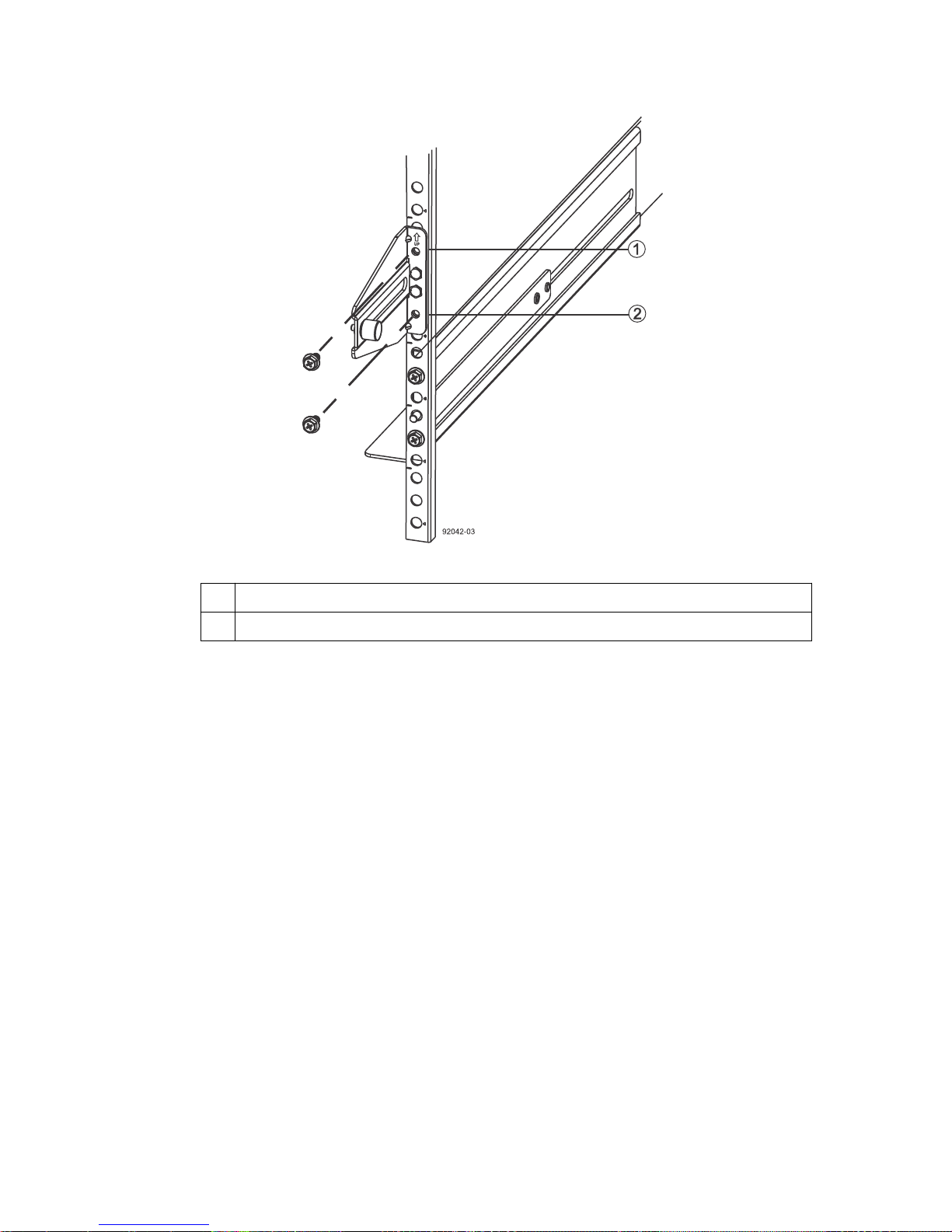

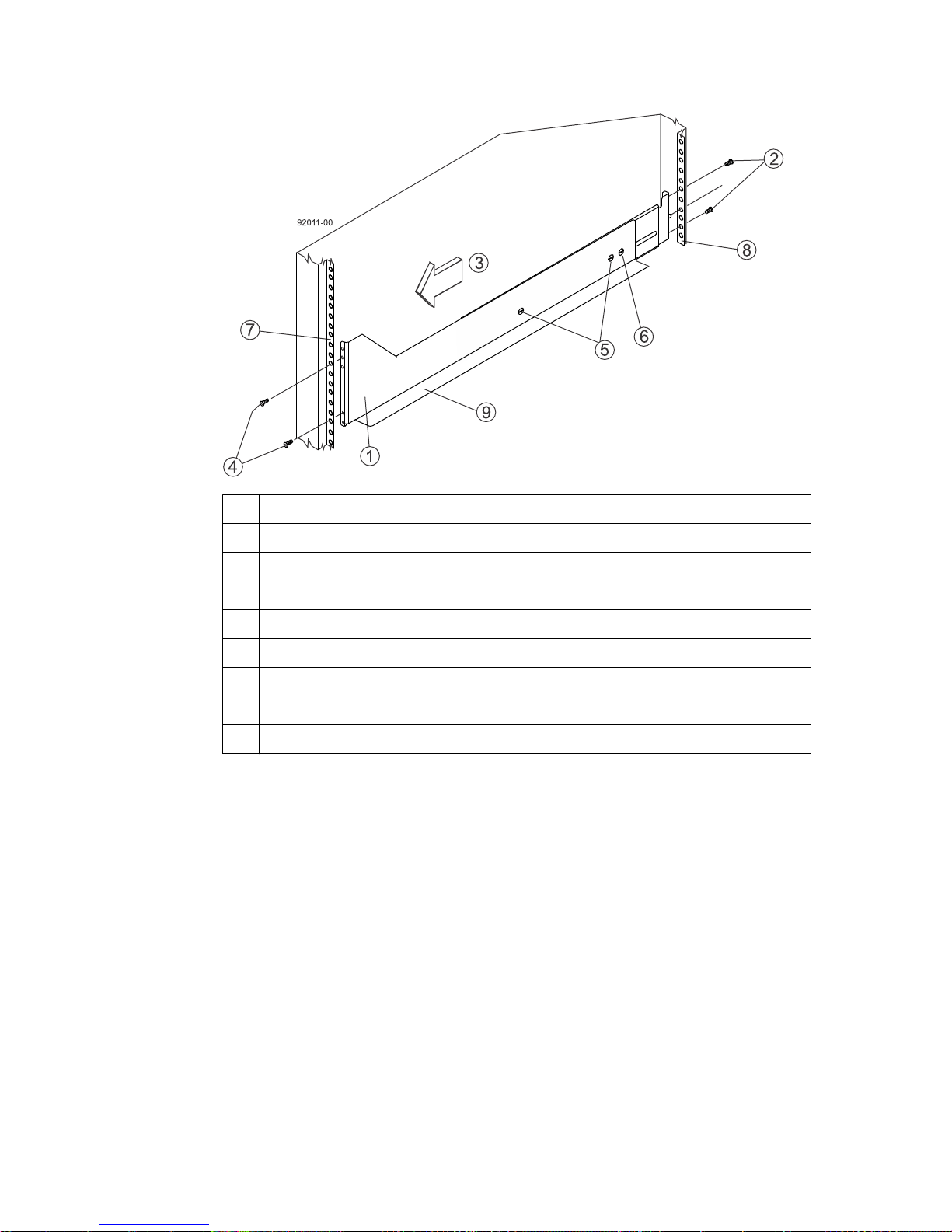

2 Adjustment screws for locking the mounting rail length 3 Mounting rails 4 Clip for securing the rear of the controller-drive tray

b. Place the mounting rail inside the cabinet, and extend the mounting rail until the flanges on

the mounting rail touch the inside of the cabinet.

c. Ensure that the alignment spacers on the front flange of the mounting rail fit into the mounting

holes in the cabinet. The front flange of each mounting rail has two alignment spacers. The alignment spacers are

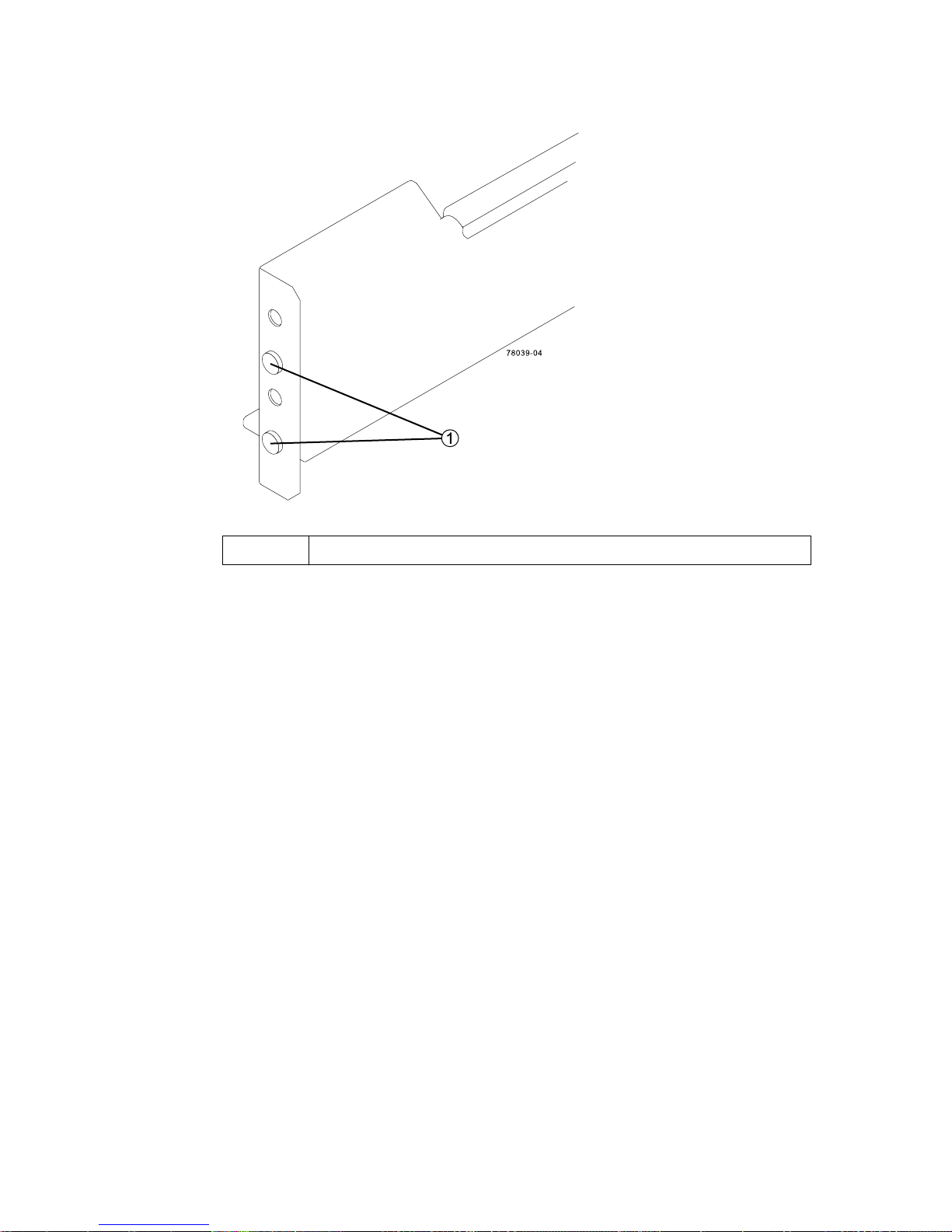

designed to fit into the mounting holes in the cabinet. The alignment spacers help position and hold the mounting rail.

Note: If the cabinet in which you are installing this tray has square holes, insert the

shoulder washers into the square holes when mounting the rail.

Page 38

38 | E2700 Controller-Drive Tray and Related Drive Trays Installation Guide

Alignment spacers

d. Insert one M5 screw through the front of the cabinet and into the top captured nut in the

mounting rail. Tighten the screw.

e. Insert two M5 screws through the rear of the cabinet and into the captured nuts in the rear

flange in the mounting rail. Tighten the screws.

f. Tighten the adjustment screws on the mounting rail.

g. Repeat these steps to install the second mounting rail.

6. With the help of one other person, slide the rear of the controller-drive tray onto the mounting

rails. The rear edge of the controller-drive tray must fit into the clip on the mounting rail. The controller-drive tray is correctly aligned when these conditions are met:

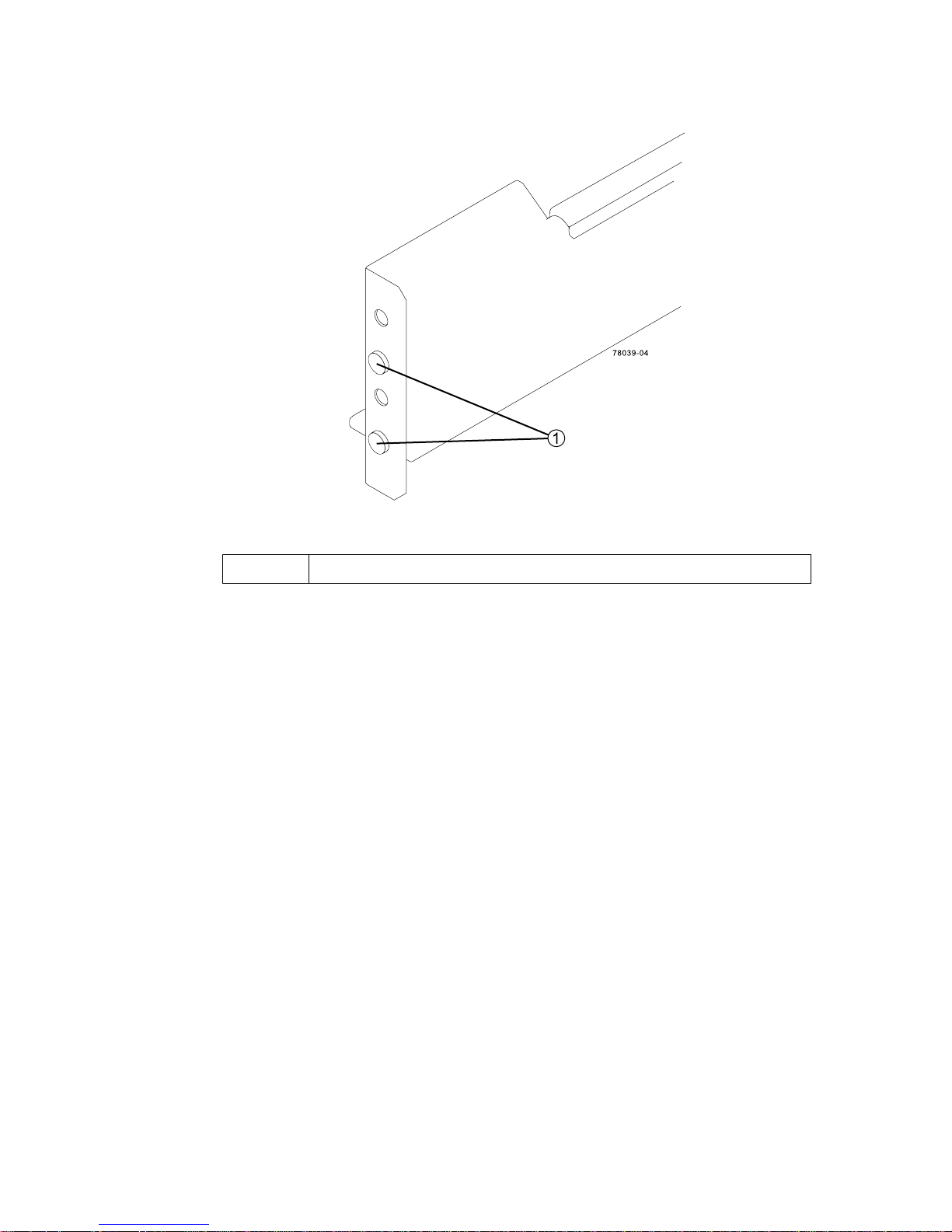

• The mounting holes on the front flanges of the drive tray align with the mounting holes on the front of the mounting rails. See item 4 in the following figure.

• The rear edge of the controller-drive tray sheet metal fits into the clip on the mounting rail.

• The holes in the controller-drive tray sheet metal for the rear hold-down screws align with the captured nuts in the side of the mounting rails.

Page 39

Step 4 - Installing the controller-drive tray |

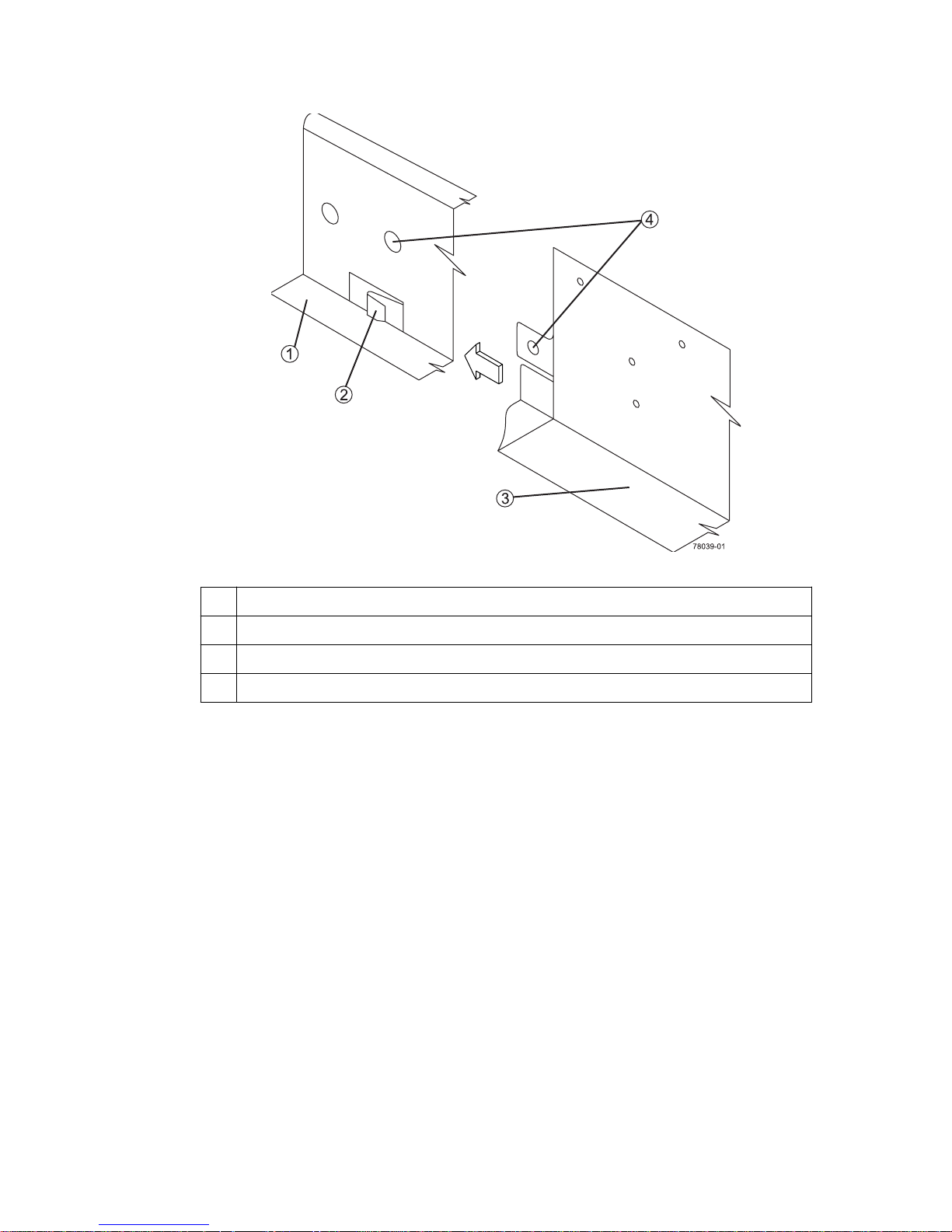

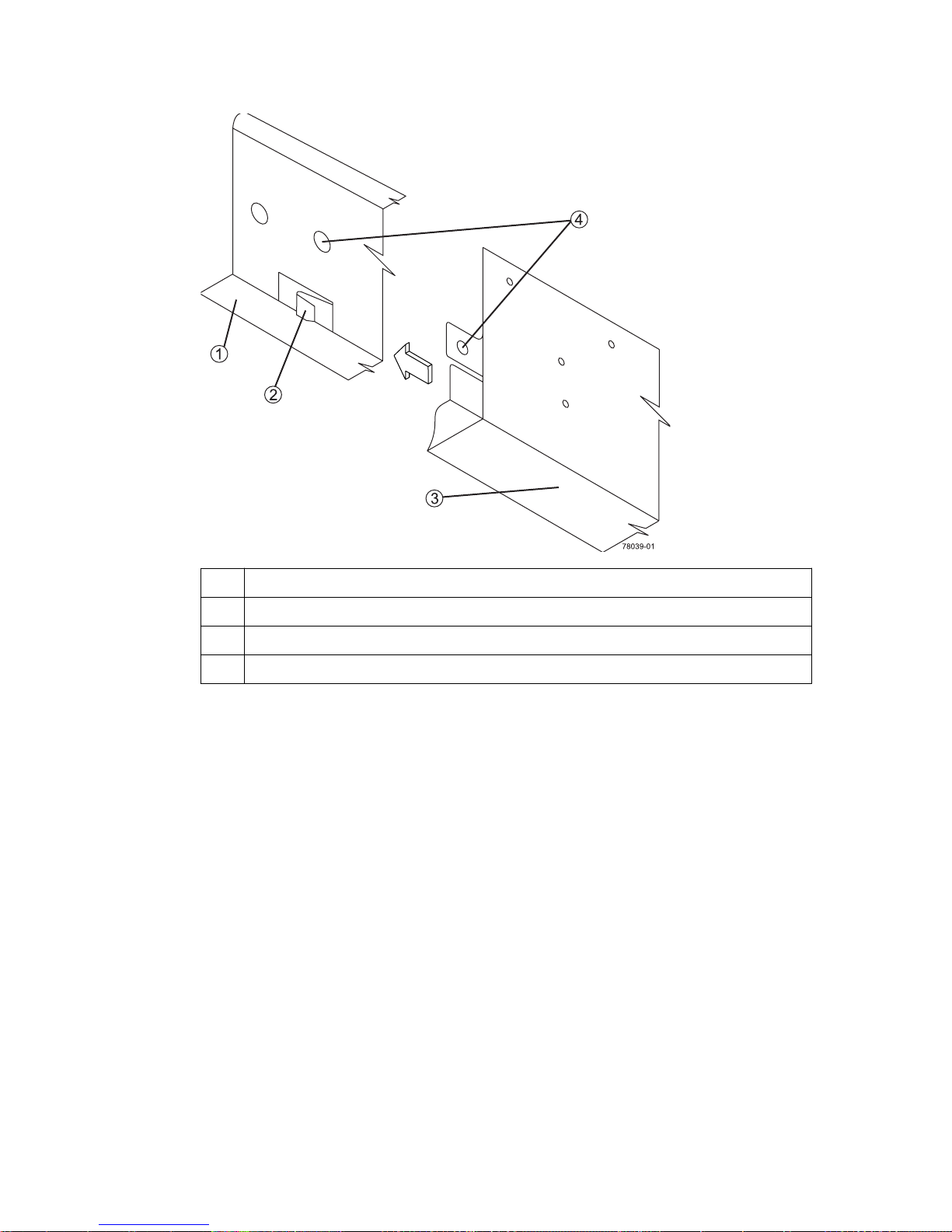

Mounting rail 2 Clip 3 Partial view of the controller-drive tray rear sheet metal 4 Mounting holes

7. Secure the front of the controller-drive tray to the cabinet. Use the two screws to attach the flange

on each side of the front of the controller-drive tray to the mounting rails.

a. Insert one M5 screw through the bottom hole of a flange on the controller-drive tray so that

the screw goes through the cabinet rail and engages the bottom captured nut in the mounting rail. Tighten the screw.

b. Repeat the step for the second flange.

Note: The rear of the controller-drive tray contains two controllers. The top of the

controller-drive tray is the side with the labels.

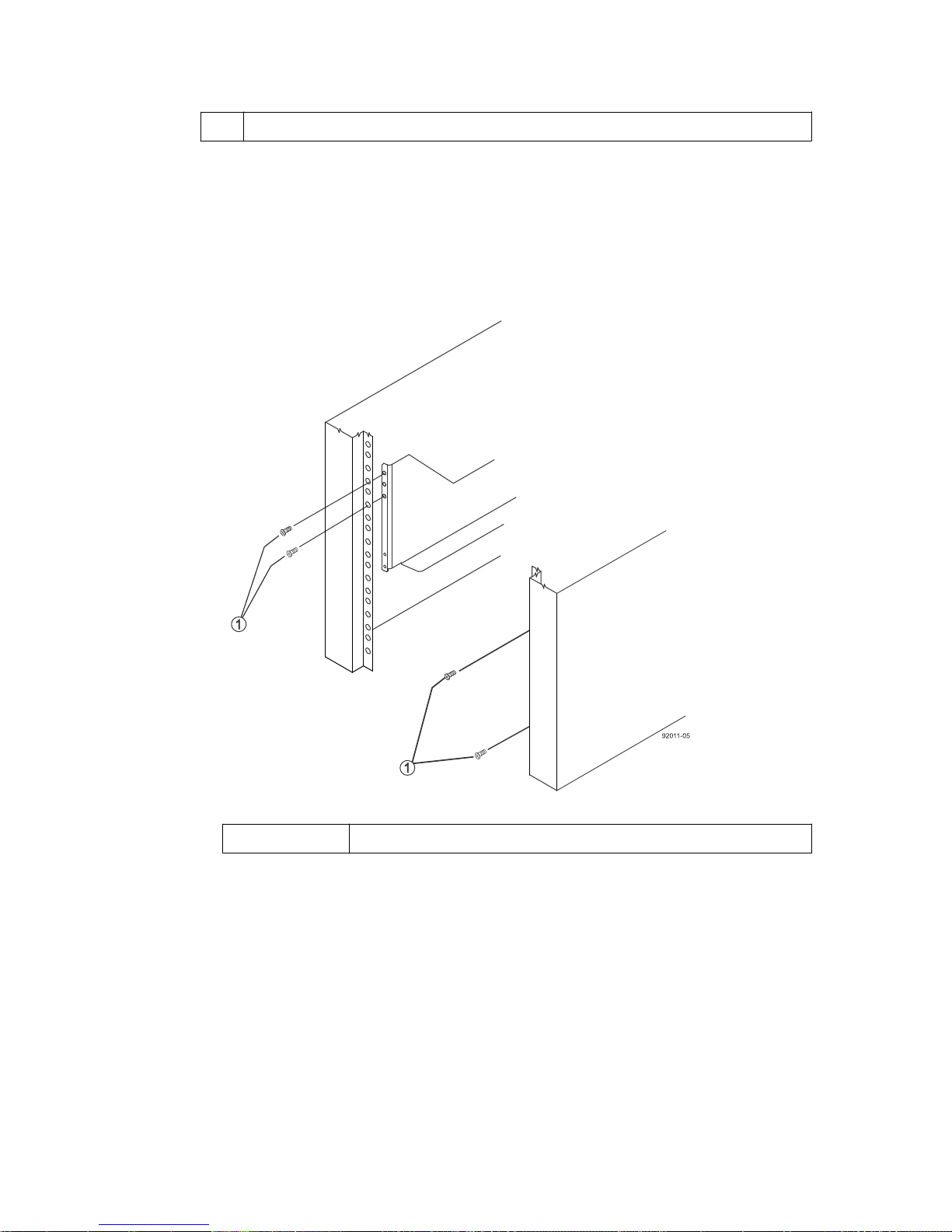

8. Secure the side of the controller-drive tray to the mounting rails by performing these steps:

a. Insert one M4 screw through the side sheet metal of the controller-drive tray into the captured

nut on the side of the mounting rail. Tighten the screw.

b. Repeat the step for the other side.

9. Attach the plastic end caps onto the front of the controller-drive tray.

a. Put the top of the end cap on the hinge tab that is part of the controller-drive tray mounting

flange.

b. Gently press on the bottom of the end cap until it snaps into place over the retainer on the

bottom of the controller-drive tray mounting flange.

Page 40

| E2700 Controller-Drive Tray and Related Drive Trays Installation Guide

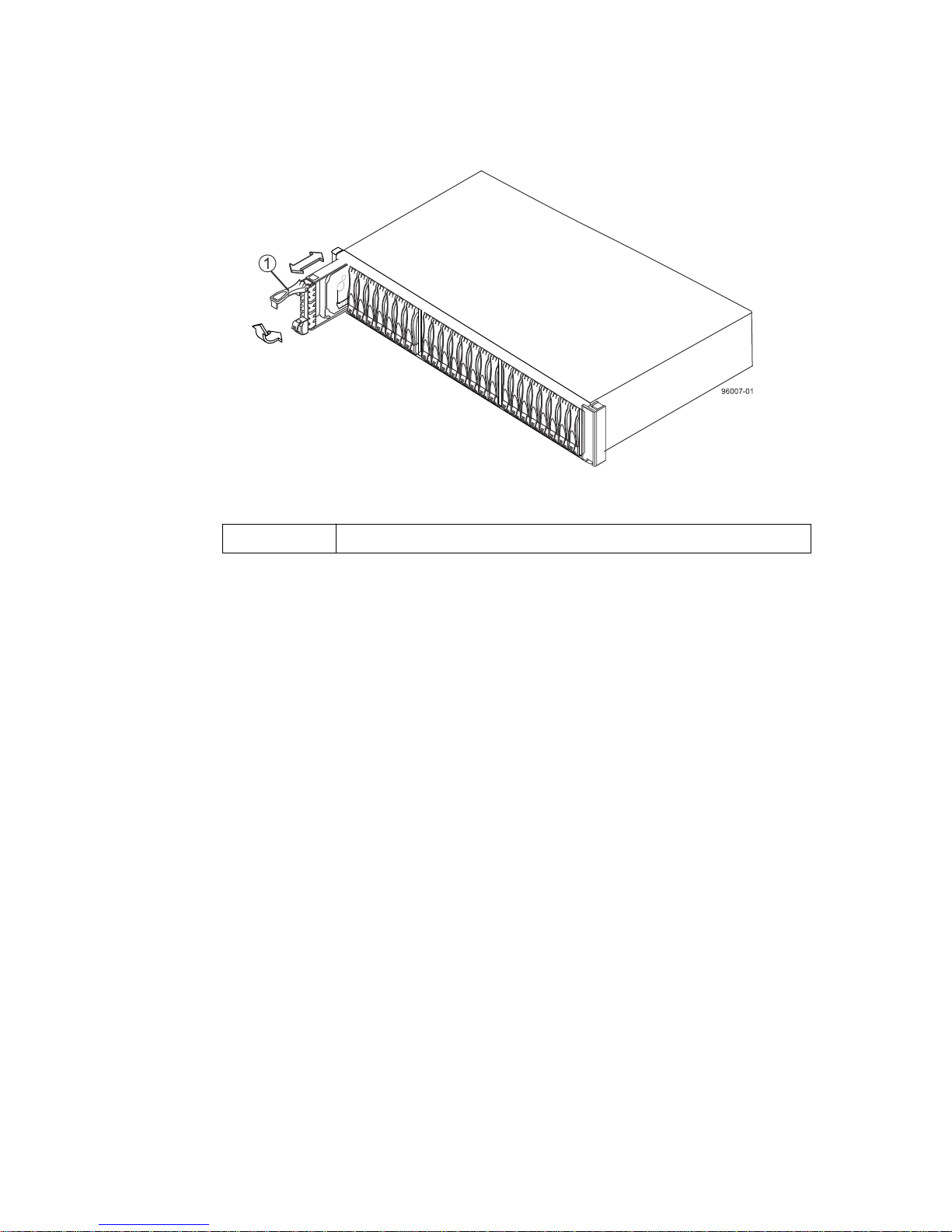

Attaching the end caps to the E2712 controller-drive tray

Hinge tab

2 Retainer

Attaching the end caps to the E2724 controller-drive tray

1 2 Retainer

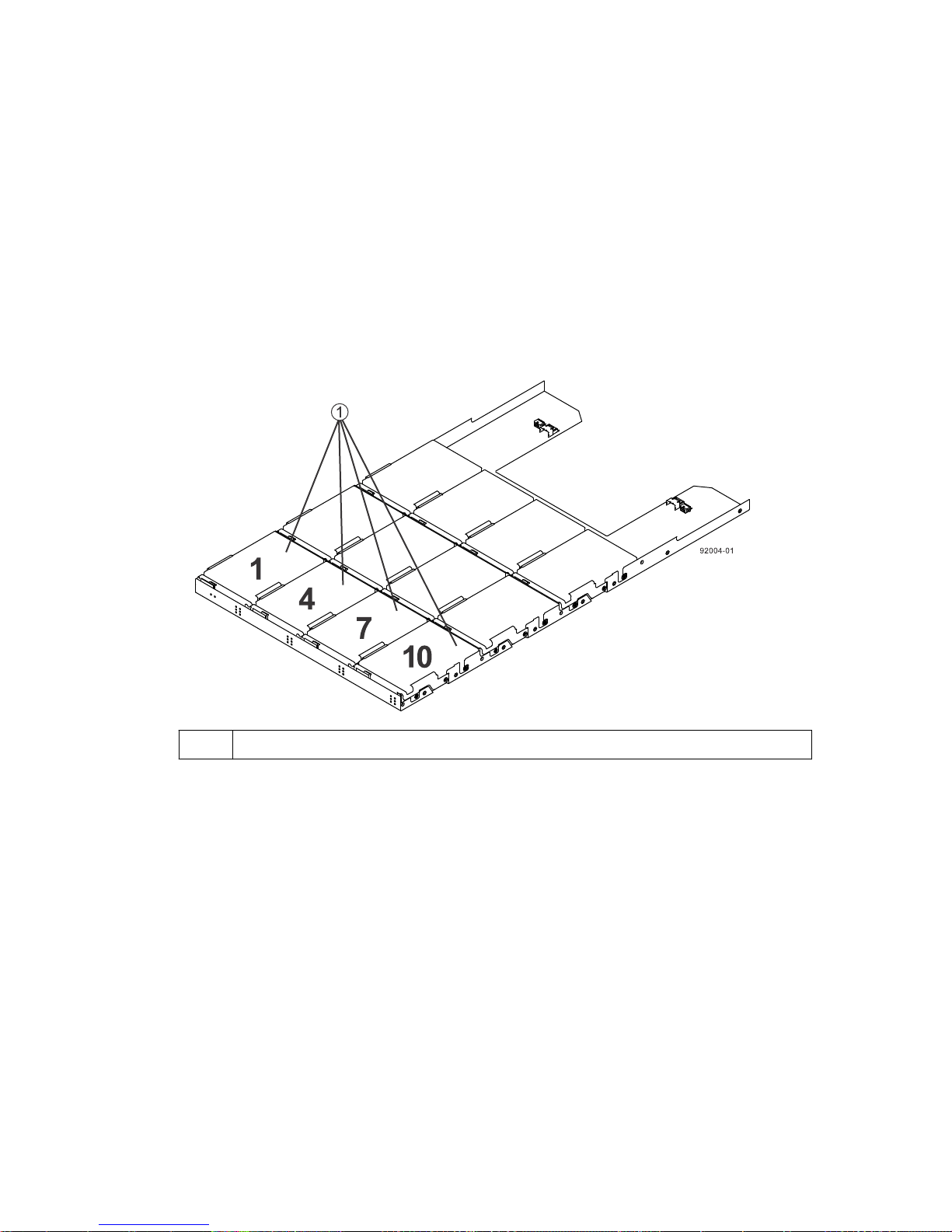

10. Install the drive trays.

Hinge tab

Page 41

Step 4 - Installing the controller-drive tray | 41

Procedure - Installing drives in the E2712 or E2724 controller-drive tray

About this task

In some situations, the controller-drive tray might be delivered without the drives installed. Follow the steps in this procedure to install the drives. If your controller-drive tray already has drives installed, you can skip this step and go to page 54.

Attention: Risk of equipment malfunction – To avoid exceeding the functional and

environmental limits, install only drives that have been provided or approved by NetApp, Inc. Drives might be shipped but not installed. System integrators, resellers, system administrators, or users can install the drives.

Note: The installation order is from top to bottom and from left to right.The installation order is

important because the drives might already contain configuration information that depends upon the correct sequence of the drives in the tray.

Step 5 - Connecting the controller-drive tray to the hosts

Steps

1. Beginning with the first drive slot (the upper-left slot), place the drive in the slot guides, and slide

the drive all the way into the slot.

2. Push the drive handle to the right (in E2712) or down (in E2724) to lock the drive securely in

place.

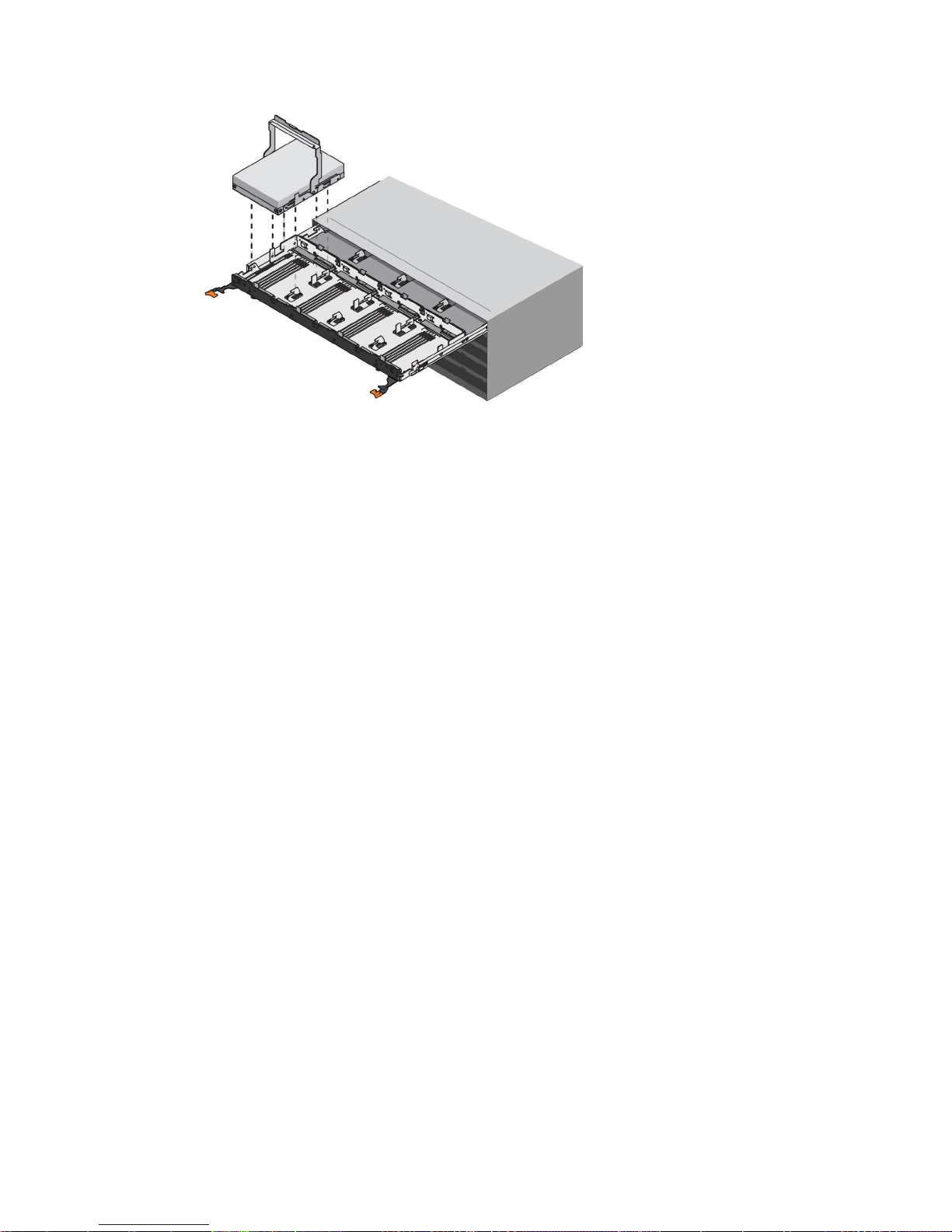

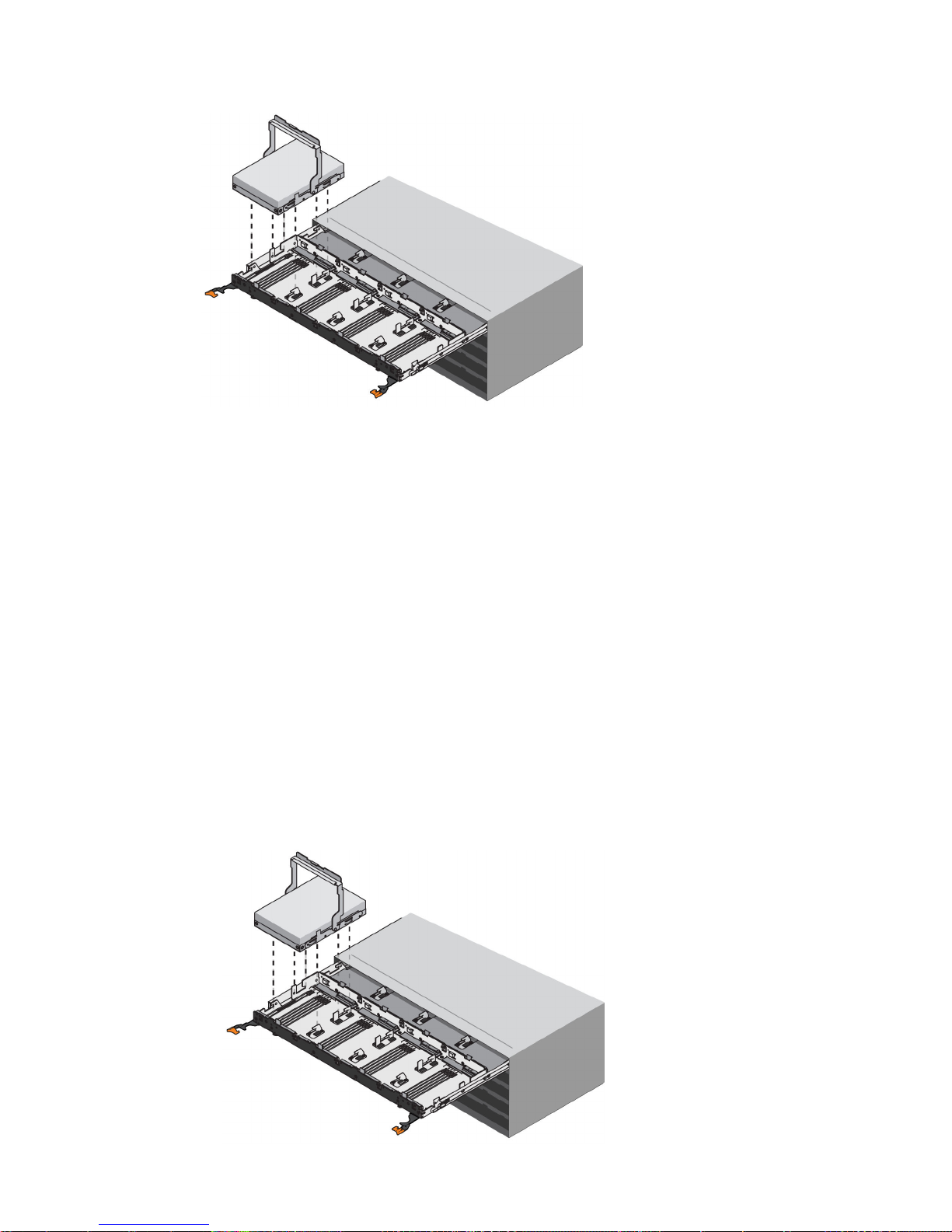

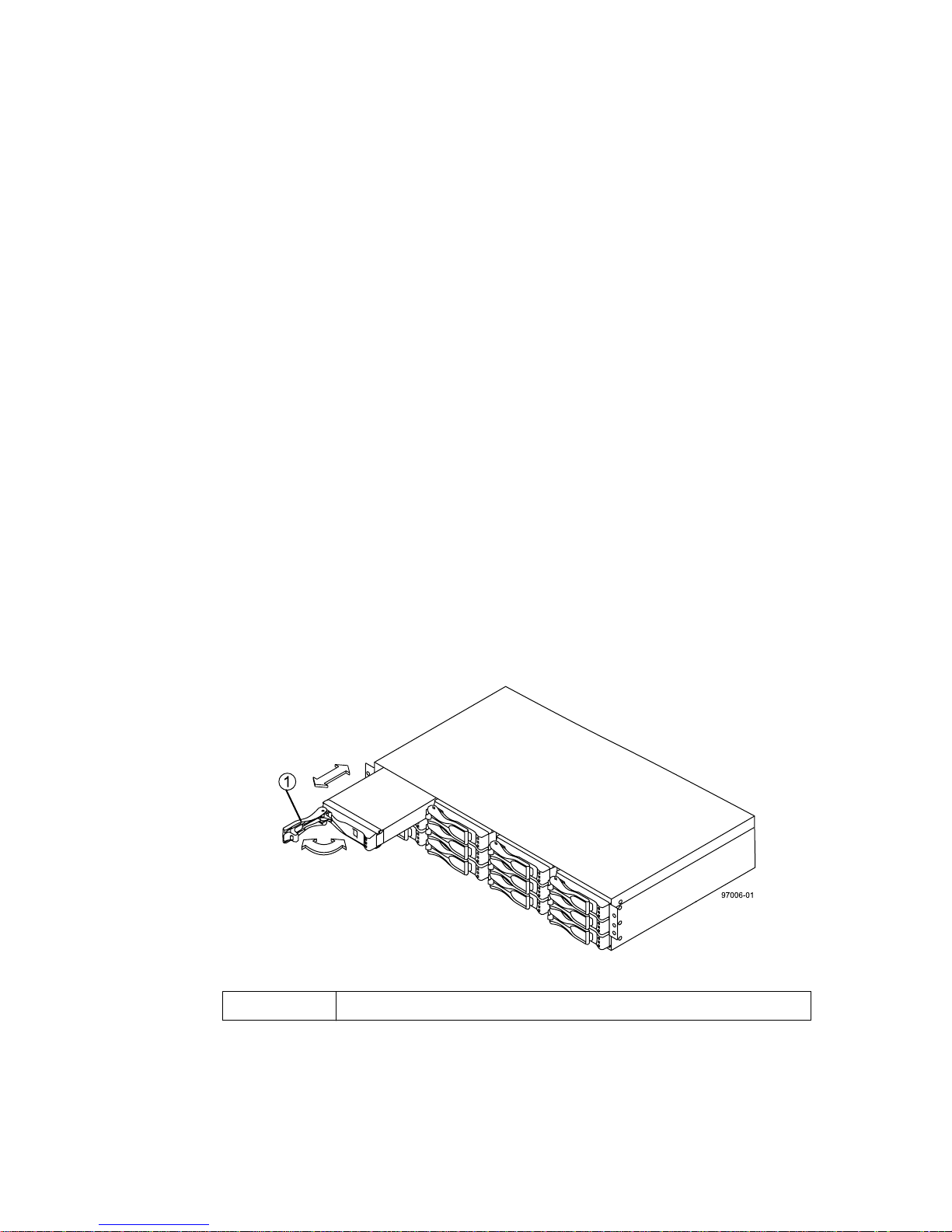

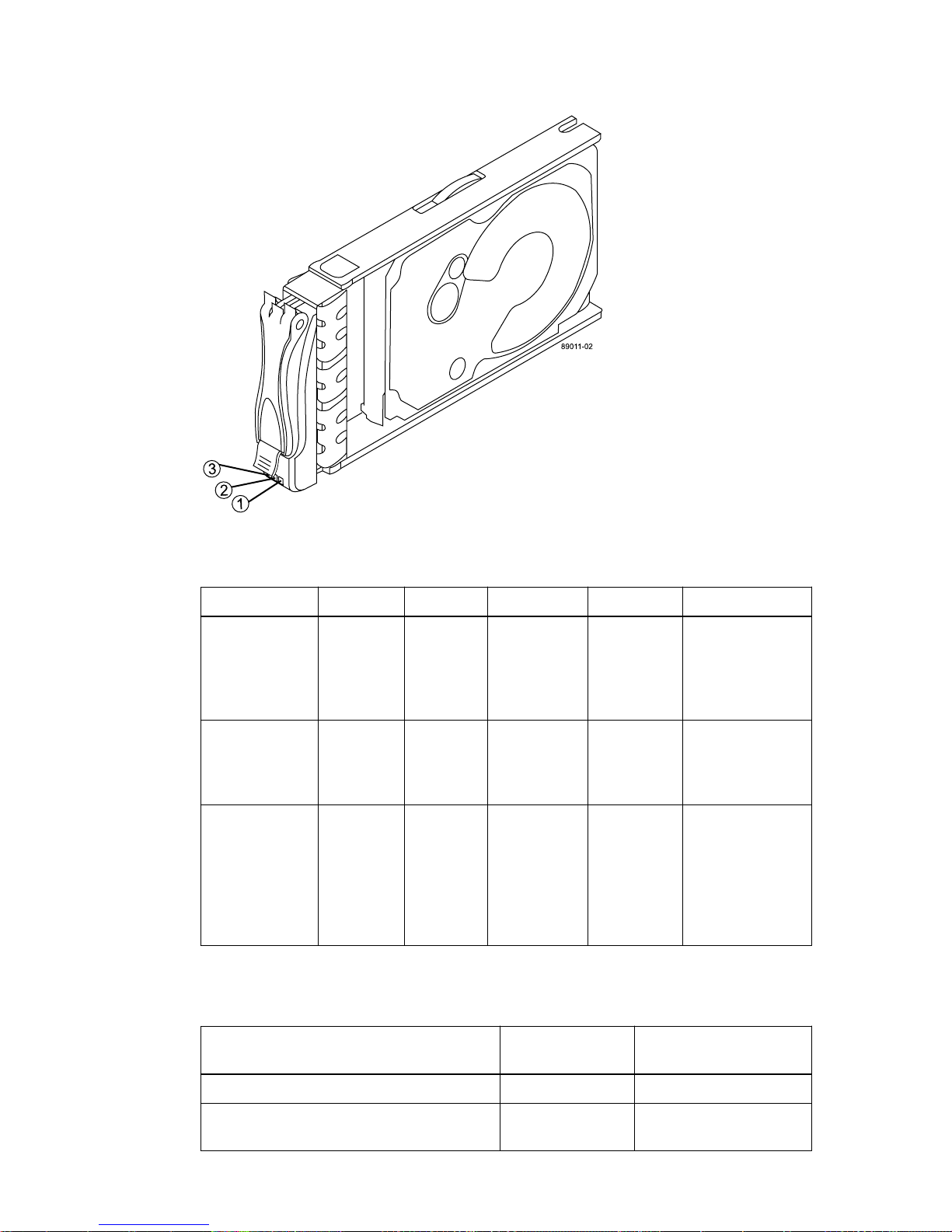

• Installing a drive in the E2712 controller-drive tray

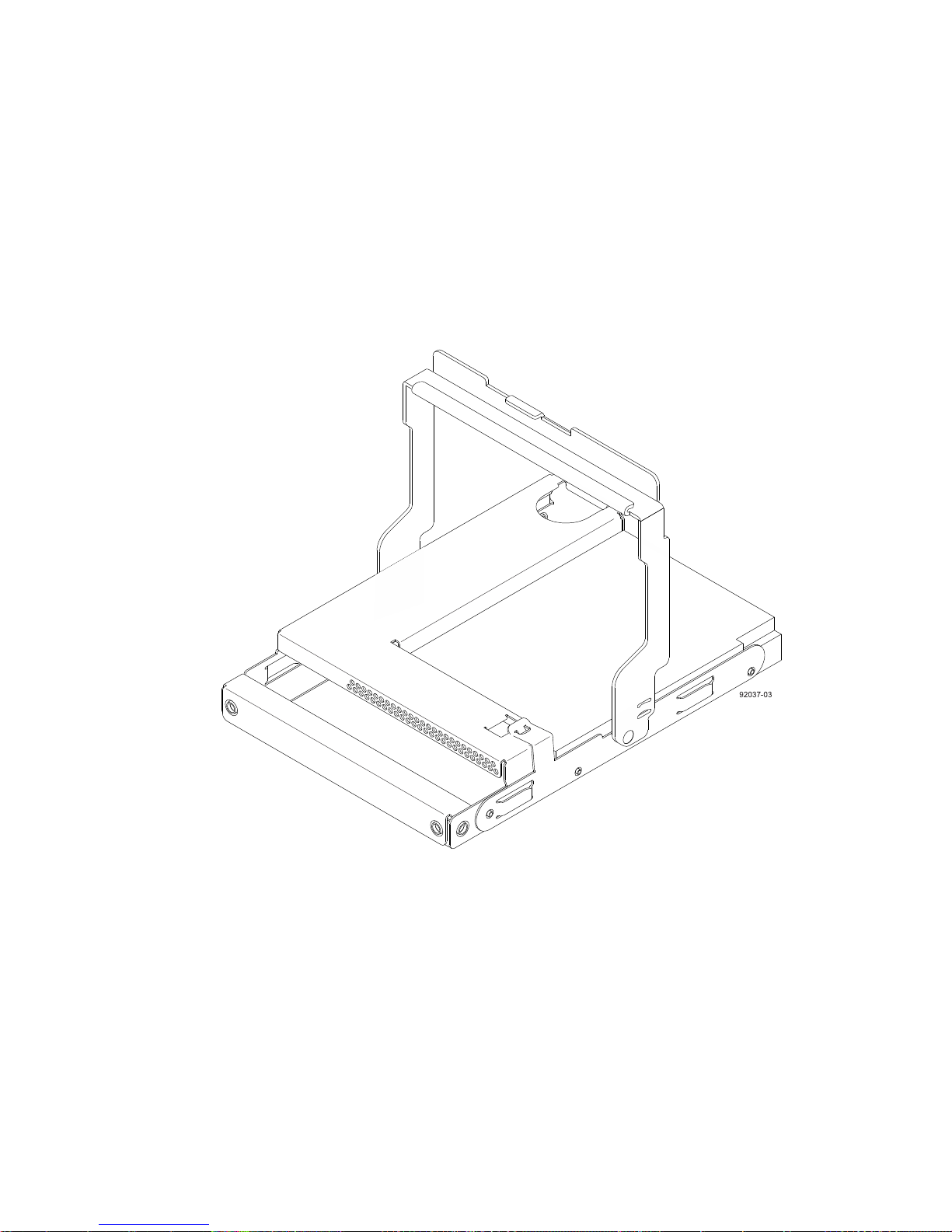

Drive handle

Page 42

| E2700 Controller-Drive Tray and Related Drive Trays Installation Guide

• Installing a drive in the E2724 controller-drive tray

Note: In some applications, the drive handle might have the hinge on the right.

Drive handle

3. Install the second drive beneath the first drive (E2712 controller-drive tray) or to the right of the

first drive (E2724 controller-drive tray).

4. Install the other drives from top to bottom and then from left to right (E2712 controller-drive tray)

or to the right (E2724 controller-drive tray).

Procedure - Installing the E2760 controller-drive tray

About this task

Attention: Risk of equipment malfunction – To avoid possible equipment damage and ensure

safe and efficient servicing of the equipment, install the 60-drive trays toward the bottom of a cabinet.

You can install the controller-drive tray into an industry-standard cabinet, provided it has a depth of 100 cm (40 in.). A minimum depth of 76 cm (30 in.) between the front EIA support rails and the rear EIA support rails is required.

Note: If you are installing the controller-drive tray in a cabinet with square holes, use the eight

conical washers in the rail kit to align the screws in the holes (see step

through step 7).

Steps

1. Ensure that the cabinet is in the final location and you meet the clearance requirements shown in

the following figure.

Page 43

Step 4 - Installing the controller-drive tray |

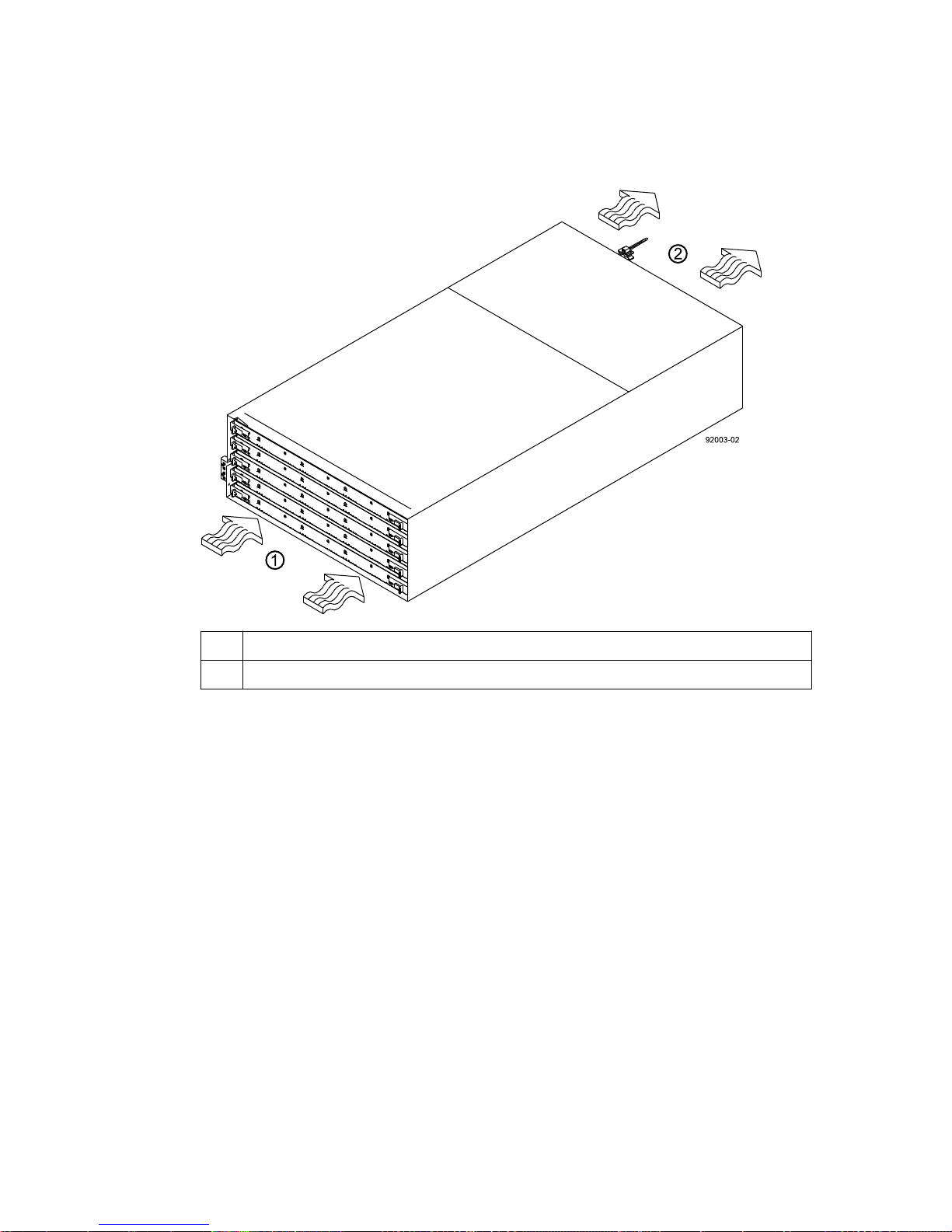

1 81 cm (32 in.) clearance in front of the cabinet 2 61 cm (24 in.) clearance behind the cabinet

Note: Fans pull air through the controller-drive tray from front to back across the drives.

2. Lower the feet on the cabinet to keep the cabinet from moving.

3. Before removing the controller-drive tray and all of the contents from the shipping carton, locate

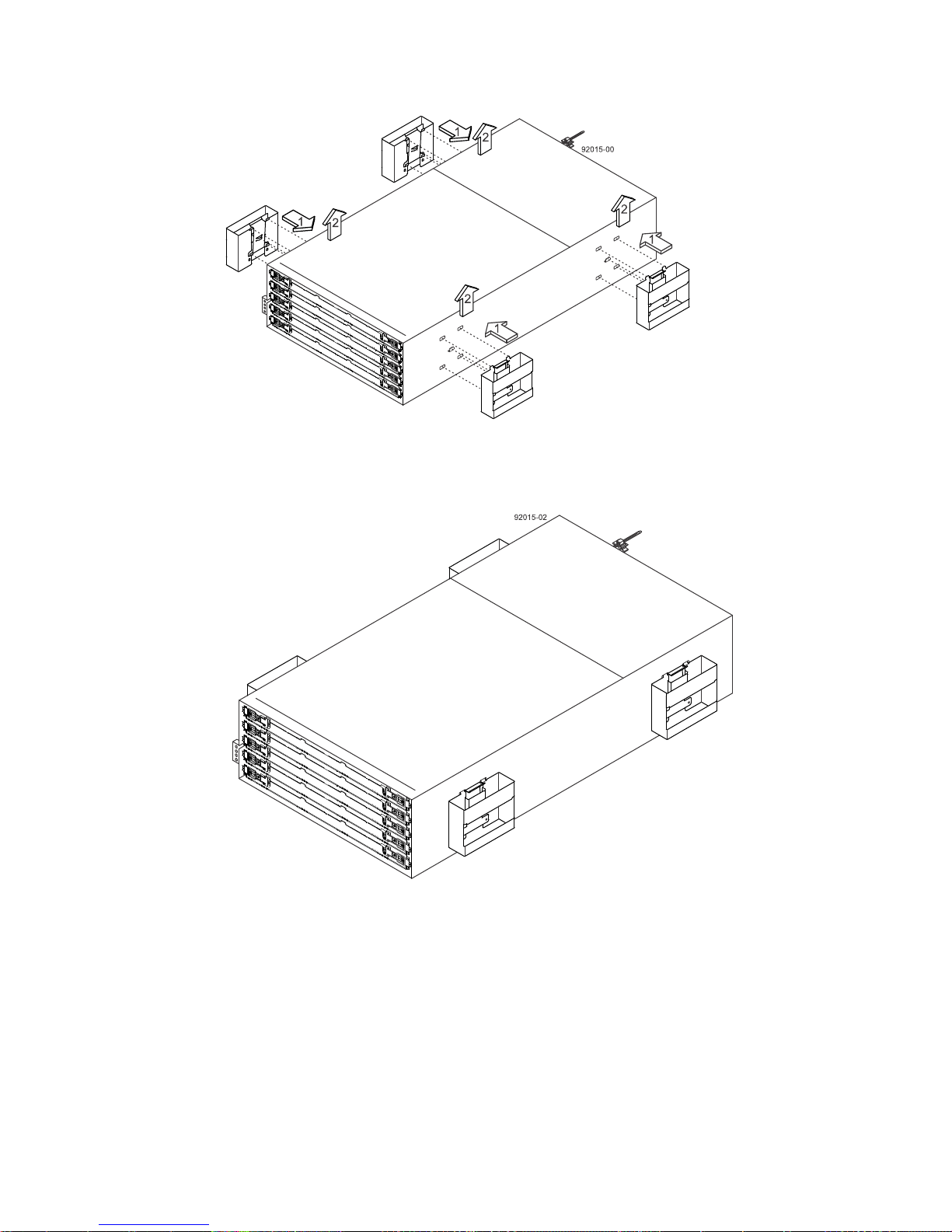

the tray handles and attach them to the controller-drive tray:

a. Align the handle just under the thumb latch. b. Push the handle up until it clicks in place with the thumb latch.

Page 44

44 | E2700 Controller-Drive Tray and Related Drive Trays Installation Guide

4. With the help of at least three other persons, remove the controller-drive tray and all of the

contents from the shipping carton, using the four controller-drive tray handles (two to a side) as shown in the following figure. Set the controller-drive tray aside.

Warning: (W10)Risk of bodily injury – Four or more persons are required to safely lift the

component.

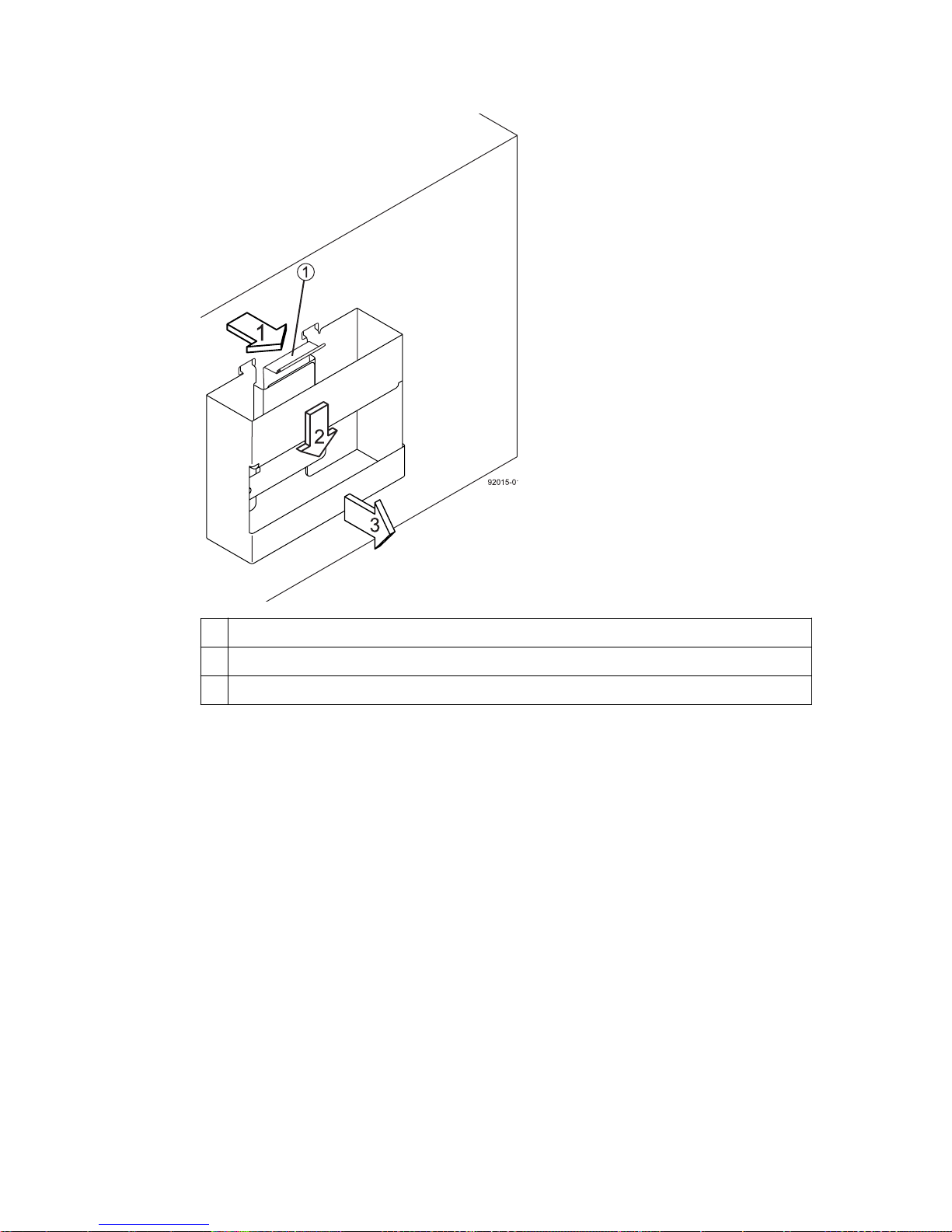

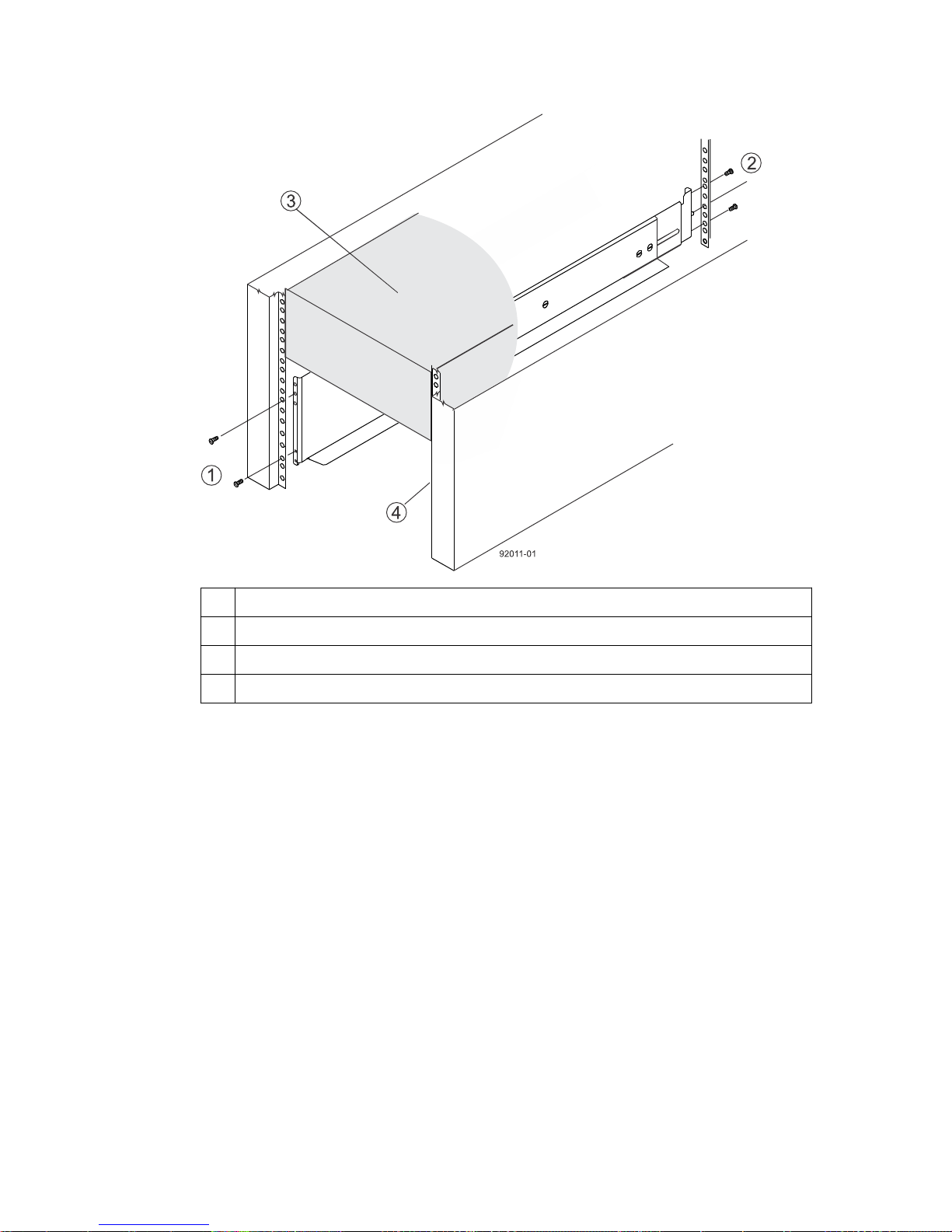

5. Position the mounting rails in the cabinet as shown in the following figure.

Screws for securing the mounting rail to the cabinet (front)

Page 45

Step 4 - Installing the controller-drive tray |

2 Screws for securing the mounting rail to the cabinet (rear) 3 Existing tray 4 Industry standard cabinet

• If you are installing the mounting rails above an existing tray, position the mounting rails directly above the tray.

• If you are installing the mounting rails below an existing tray, allow 17.8-cm (7-in.) vertical clearance for the controller-drive tray.

To attach the mounting rails to the cabinet, perform one of the following actions:

• If you are using the long, fixed-size mounting rails, go to step 7.

• If you are using the shorter adjustable mounting rails, go to step 8.

Attach the long, fixed-size rails to the cabinet.

a. Ensure that the adjustment screws on the mounting rail are loose so that the mounting rail can

extend or contract as needed.

Front of the mounting rail 2 Two M5 screws for the rear EIA support rail 3 Front of the cabinet 4 Two M5 screws for the front EIA support rail 5 Adjustment screws 6 Rear hold-down screw 7 Cabinet mounting holes on the front EIA support rail 8 Cabinet mounting holes on the rear EIA support rail 9 Mounting rail lip

b. Remove the rear hold-down screw. It protrudes from the inside of the rail and prevents you

from sliding the controller-drive tray onto the rails.

Page 46

46 | E2700 Controller-Drive Tray and Related Drive Trays Installation Guide

c. Place the mounting rail inside the cabinet, and extend the mounting rail until the flanges on

the mounting rail touch the inside of the cabinet.

d. Insert one M5 screw through the front of the cabinet, and screw it into the top captured nut in

the mounting rail.

e. Insert two M5 screws through the rear of the cabinet, and screw them into the captured nuts in

the rear flange in the mounting rail.

f. Counting up from the bottom of the mounting rail, place the bottom of the screw of the rear

bracket in the 8th hole of the cabinet so that the top of the rear bracket is in the 11th hole. The

distance between the two holes should be 1U or 4.45 cm (1.75 in). g. Tighten the adjustment screws on the mounting rail. h. Repeat these steps to install the second mounting rail.

i. Insert one M5 screw through the front of the mounting rail. You use this screw to attach the

controller-drive tray to the cabinet. Attach the shorter, adjustable size mounting rails to the cabinet.

Front of the mounting rail 2 Rear of the mounting rail 3 Rail fix bar 4 Two M5 screws for the front EIA support rail 5 Two clips for the front EIA support rail

Page 47

Step 4 - Installing the controller-drive tray |

6 Rear bracket

a. Ensure that the adjustment screws on the mounting rail are loose but not detached so that the

mounting rail can extend or contract as needed.

b. Place the mounting rail inside the cabinet, and extend the mounting rail until the flanges on

the mounting rail touch the inside of the cabinet.

c. Insert two M5 screws through the front of the cabinet, and screw them into the second and

fourth threaded holes from the top captured nut in the mounting rail.

1 M5 screws

d. Insert two M5 screws through the rear of the cabinet, and screw them into the captured nuts in

the rear flange in the mounting rail.

e. Counting up from the bottom of the mounting rail, place the bottom screw of the rear bracket

in the 8th hole of the cabinet so that the top of the rear bracket is in the 11th hole. The distance between the two holes should be 1U or 4.45 cm (1.75 in).

f. Tighten the adjustment screws on the mounting rail. g. Repeat these steps to install the second mounting rail. h. Insert one M5 screw through the front of the mounting rail. This screw attaches the controller-

drive tray to the cabinet.

Page 48

| E2700 Controller-Drive Tray and Related Drive Trays Installation Guide

1 Top cabinet mounting hole on the rear EIA support rail 2 Bottom cabinet mounting hole on the rear EIA support rail

9. Remove the bezel from the front of the controller-drive tray.

10. With the help of at least three other persons, slide the rear of the controller-drive tray onto the

mounting rails. The controller-drive tray is correctly aligned when the mounting holes on the front flanges of the controller-drive tray align with the mounting holes on the front of the mounting rails.

Warning: (W10) Risk of bodily injury – Four or more persons are required to safely lift the

component.

11. After the controller-drive tray is correctly aligned, remove the enclosure lift handles as shown in

the figure:

a. Use your thumb to unlatch and remove the rear controller-drive tray lift handles (two to a

side).

b. Use the front controller-drive tray lift handles to slide the drive tray all the way into the

cabinet.

c. After the drive tray is secure in the cabinet, use your thumb to unlatch and remove the front

controller-drive tray lift handles (two to a side).

d. Insert the remainder of the tray into the cabinet.

Page 49

Step 4 - Installing the controller-drive tray |

1 Pull the thumb latch away from the controller-drive tray to detach the hook. 2 Shift the handle down to release the other four hooks. 3 Move the handle away from the controller-drive tray.

12. Secure the front of the controller-drive tray to the cabinet. Use the four screws to attach the flange

on each side of the front of the controller-drive tray to the mounting rails.

a. Insert two M5 screws through the bottom holes of a flange on the controller-drive tray so that

the screws go through the EIA support rail and engage the bottom captured nuts in the mounting rail. Tighten the screws.

You had attached the second and fourth threaded holes in step

8.c

b. Repeat this step for the second flange.

13. Secure the side of the controller-drive tray to the mounting rails.

a. Tighten the thumbscrew on the rear mounting bracket that you installed in step

7.f

to secure

the controller-drive tray to the mounting rails.

b. Repeat this step for the other side.

Note: Ensure that each drive drawer in the controller-drive tray is securely latched to ensure

proper air flow to the drives.

14. Attach the bezel onto the front of the controller-drive tray.

Page 50

| E2700 Controller-Drive Tray and Related Drive Trays Installation Guide

Procedure - Installing drives in the E2760 controller-drive tray

About this task

The controller-drive tray is shipped with the drive drawers installed, but the drives are not installed. Follow the steps in this procedure to install the drives.

Attention: Risk of equipment malfunction – To avoid exceeding the functional and

Attention: Risk of equipment malfunction – All 60-drive trays have a limit of five solid state

drives (SSDs) per drawer. If you exceed this limit for SSDs in a particular drawer, the power source in the drawer could fail.

If you are installing fewer than 60 drives, if you have SSDs, or if your drives have different capacities, do the following:

• Install the drives in the front four slots (shown in the figure as slots 1,4, 7, and 10) of each drawer

• Distribute any remaining drives across the drawers.

• Distribute any SSDs evenly across the drawers.

• Do not install more than five SSDs in each drawer (no more than 25 SSDs in each tray). The

Attention: Risk of equipment damage – If you want to move the 60-drive tray to a new location

after installing the drives, you must remove all of the drives from the drive tray following proper

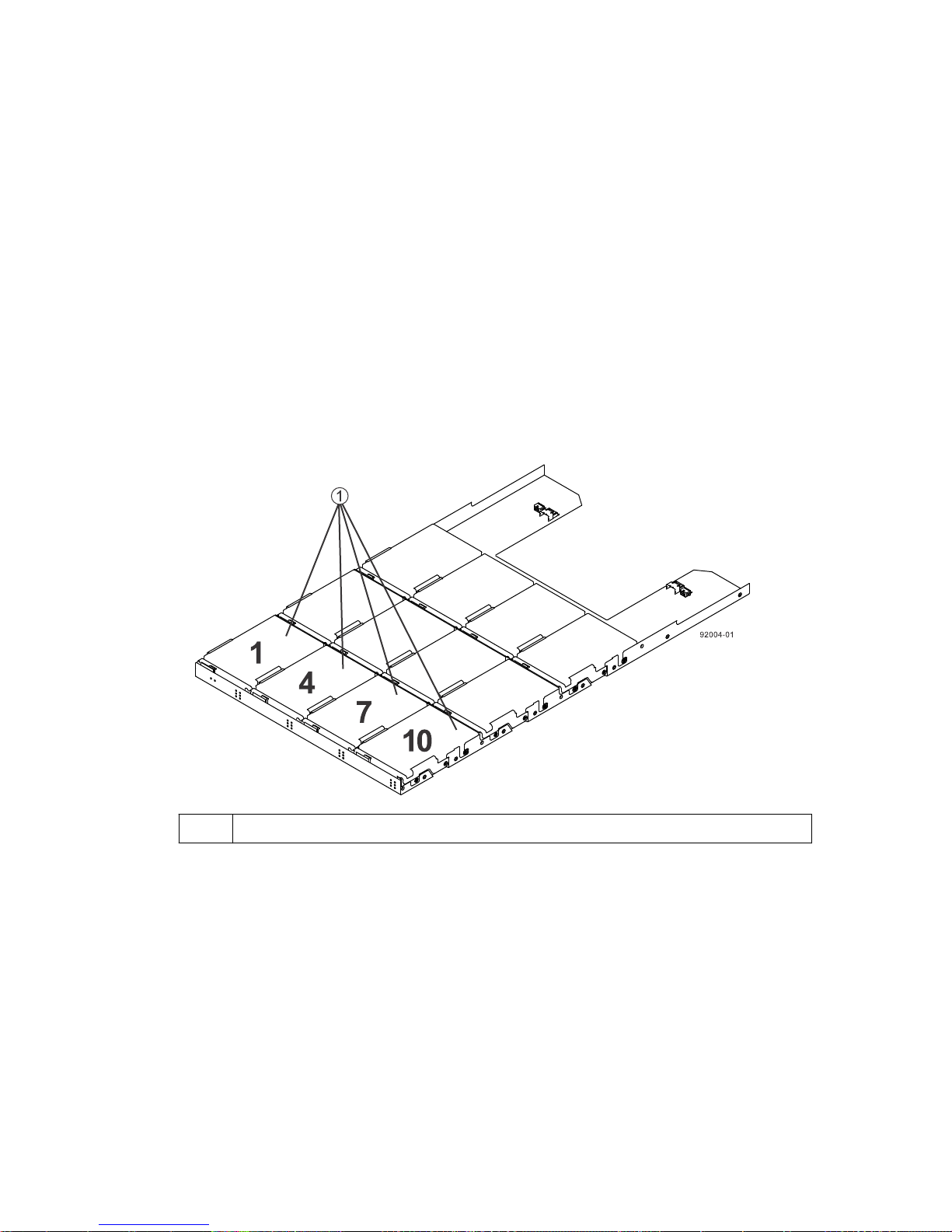

Slots requiring drives in each drawer

to maintain adequate airflow for cooling. You must install at least 20 drives in the tray.

You must install an equal number of each type of drive in each drawer to use the Drawer Loss Protection (DLP) feature in SANtricity software. If you have extra drives, you can install them, but they will not be used for DLP.

power source in the drawer can fail.

Page 51

Step 4 - Installing the controller-drive tray |

drive-removal procedures. Never ship a 60-drive tray with drives installed. See

Removing drives from a 60-drive tray

for instructions on how to remove the drives from the 60-

Procedure -

drive tray.

Steps

1. Unlatch the top drive drawer by pulling out on both levers at the front of the drawer.

2. Using the extended levers, carefully pull the drive drawer out until it stops. Do not completely

remove the drive drawer from the controller-drive tray. Starting with the first drive, raise the drive handle to the vertical position.

4. Align the two raised buttons on the drive with the notches on the drawer.

5. Starting with the leftmost slot at the front, align the two raised buttons on the drive with the

notches on the drawer. Then, pressing gently on the top of the drive, rotate the drive handle down until the drive snaps into place.

Page 52

52 | E2700 Controller-Drive Tray and Related Drive Trays Installation Guide

Repeat Step

Slide the drawer back into the drive tray by pushing it from the center and closing both levers.

Attention: Risk of equipment malfunction – Make sure to completely close the drive drawer

by pushing both levers. You must completely close the drive drawer to allow proper airflow and prevent overheating.

8. Attach the bezel to the front of the drive tray.

through Step 5 to install all of the drives.

Procedure - Removing drives from a 60-drive tray

If you need to move or ship a 60-drive controller-drive tray or a 60-drive expansion tray, you must remove all drives from all drawers.

Step

1. Perform the following steps to remove all of the drives from the drive drawer:

a. Raise the drive handle to vertical. b. Use the handle to lift the drive from the drive drawer.

Page 53

Step 4 - Installing the controller-drive tray | 53

c. Place the drive in static-free packaging and away from magnetic devices.

Attention: Possible loss of data access – Magnetic fields can destroy all the data on the

drive and cause irreparable damage to the drive circuitry. To avoid loss of data access and damage to the drives, always keep drives away from magnetic devices.

Page 54

Step 5 - Connecting the controller-drive tray to the hosts

Key terms

Topology

The logical layout of the components of a computer system or network and their interconnections. Topology deals with questions of what components are directly connected to other components from the standpoint of being able to communicate. It does not deal with questions of physical location of components or interconnecting cables. (

Direct topology

A topology that does not use a switch.

Switch or fabric topology

The Dictionary of Storage Networking Terminology

)

A topology that uses a switch.

Things to know - Storage array configuration specifications for the controller-drive tray

Item

Number of controllers One in a simplex configuration, two in a duplex configuration Number of host connectors per

controller

Maximum SAS HBA logins per controller

Maximum Fibre Channel logins per controller

Maximum iSCSI sessions per controller

Specification

• Two, four, or six SAS host connectors

• Two SAS and either two or four Fibre Channel host connectors

• Two SAS and two iSCSI Base-T host connectors

• Two SAS and either two or four iSCSI optical host connectors

128

1024

1024 2048 with a four-port iSCSI optical HIC per controller

Supported Combined Cache and Processor GB Memory Sizes per controller

Maximum number of drive slots supported

Maximum number of hosts per storage partition

4 or 8

192

256

Page 55

Step 5 - Connecting the controller-drive tray to the hosts | 55

Item Specification

Maximum number of volumes per storage array

Maximum number of storage partitions

Maximum number of volumes per storage partition

Cluster support

512

128

256

• Windows Server 2008 and Windows Server 2012 operating systems: Windows Hardware Certification Kit (HCK) testing.

• Solaris 10U11 and Solaris 11.1 (x86) operating systems: Sun Cluster Open Storage Program certification

Things to know - Host channels

Attention: Possible hardware damage – To prevent electrostatic discharge damage to the tray,

use proper antistatic protection when you handle tray components.

• Each controller has two native SAS host ports.

• In addition, you can have additional host ports located on a host interface card (HIC). The following types of HICs are supported:

◦ Two or Four SAS connectors at 12 Gb/s ◦ Two or Four Fibre Channel connectors at 16 Gb/s ◦ Two iSCSI Base-T connectors at 10 Gb/s ◦ Two or four iSCSI optical host connectors at 10 Gb/s

• Host channels on the E2712 and E2724 controllers with no HIC - Rear view

1 2 HD mini-SAS native host channel 2

HD mini-SAS native host channel 1

Page 56

| E2700 Controller-Drive Tray and Related Drive Trays Installation Guide

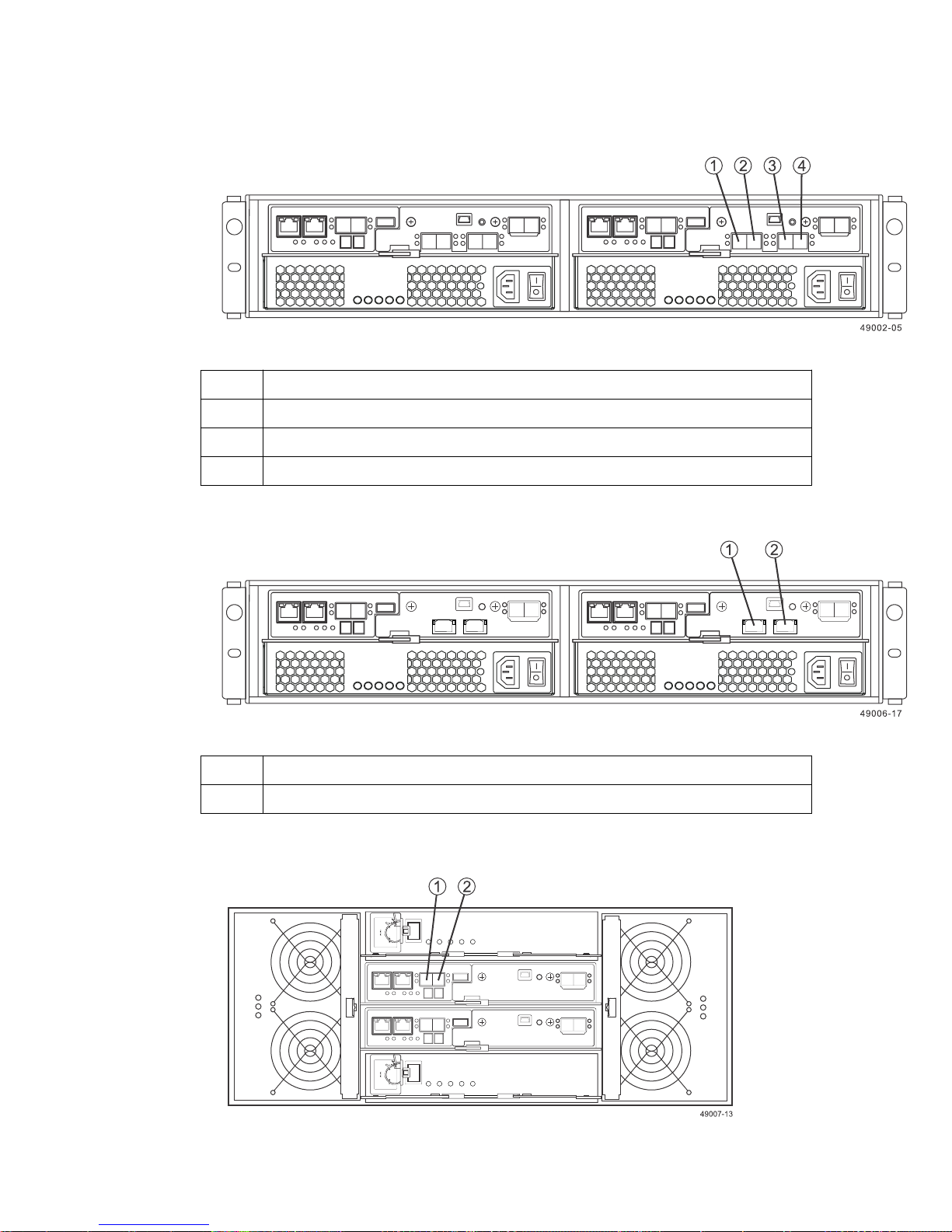

• Host channels on the E2712 and E2724 controllers with a four-port SAS HIC - Rear view

HD mini-SAS HIC channel 3 2 HD mini-SAS HIC channel 4 3 HD mini-SAS HIC channel 5 4 HD mini-SAS HIC channel 6

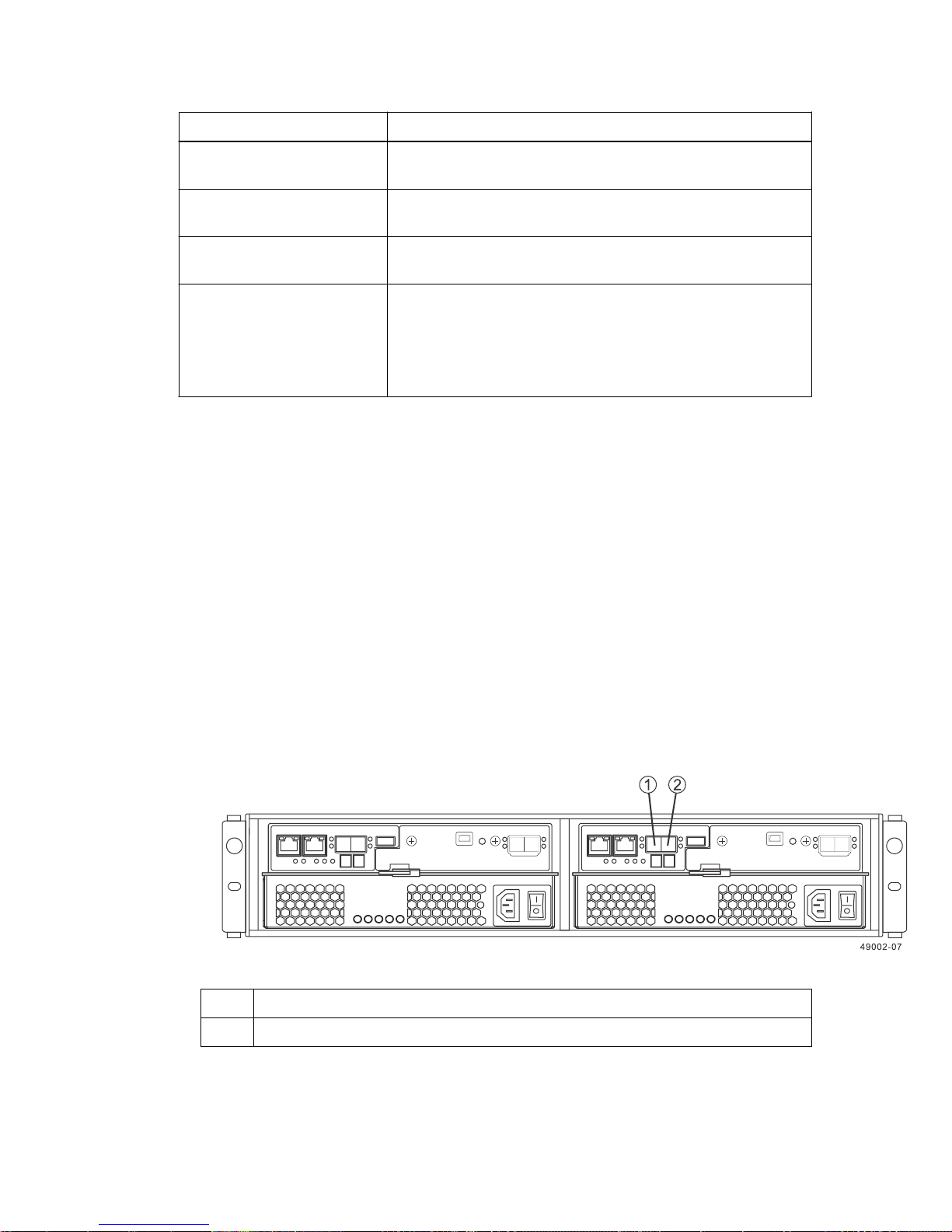

• Host channels on the E2712 and E2724 controllers with a two-port iSCSI HIC - Rear view

HD mini-SAS HIC channel 3 2 HD mini-SAS HIC channel 4

• Host channels on the E2760 controller with no HIC - Rear view

Page 57

Step 5 - Connecting the controller-drive tray to the hosts | 57

1 HD mini-SAS native host channel 1 2 HD mini-SAS native host channel 2

• Host channels on the E2760 controller with a two-port SAS HIC - Rear view

HD mini-SAS HIC channel 3 2 HD mini-SAS HIC channel 4

• Host channels on the E2760 controller with a four-port SAS HIC - Rear view

HD mini-SAS HIC channel 3 2 HD mini-SAS HIC channel 4 3 HD mini-SAS HIC channel 5 4 HD mini-SAS HIC channel 6

Page 58

| E2700 Controller-Drive Tray and Related Drive Trays Installation Guide

Procedure - Connecting host cables on a controller-drive tray

About this task

Important: Ensure that you have installed the host bus adapters (HBAs). See

host bus adapters for the controller-drive tray

install the HBA and how to use the supplied configuration utilities.

The type of HICs (SAS, iSCSI, or Fibre Channel) must match the type of the HBAs or match the type of switch interface to which you connect them.

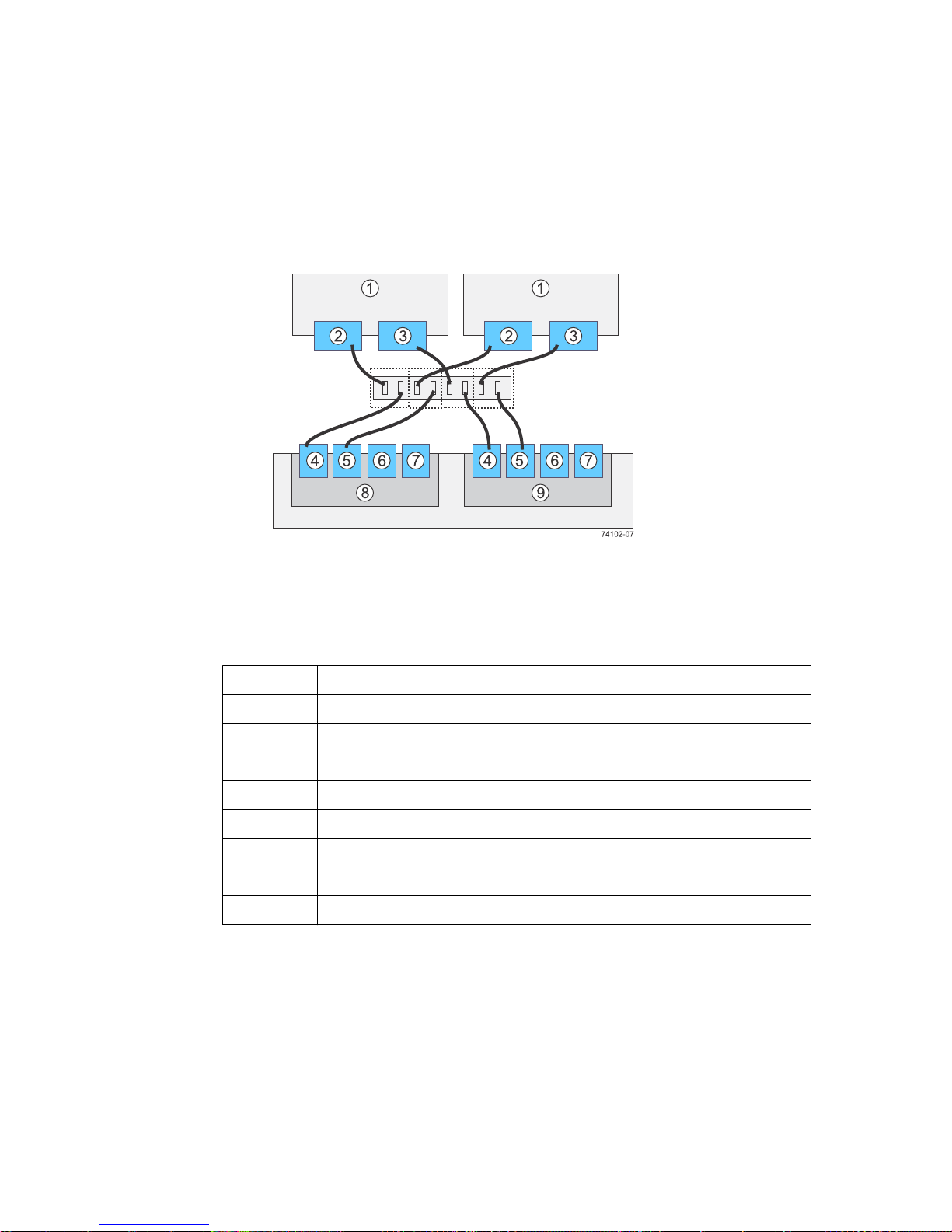

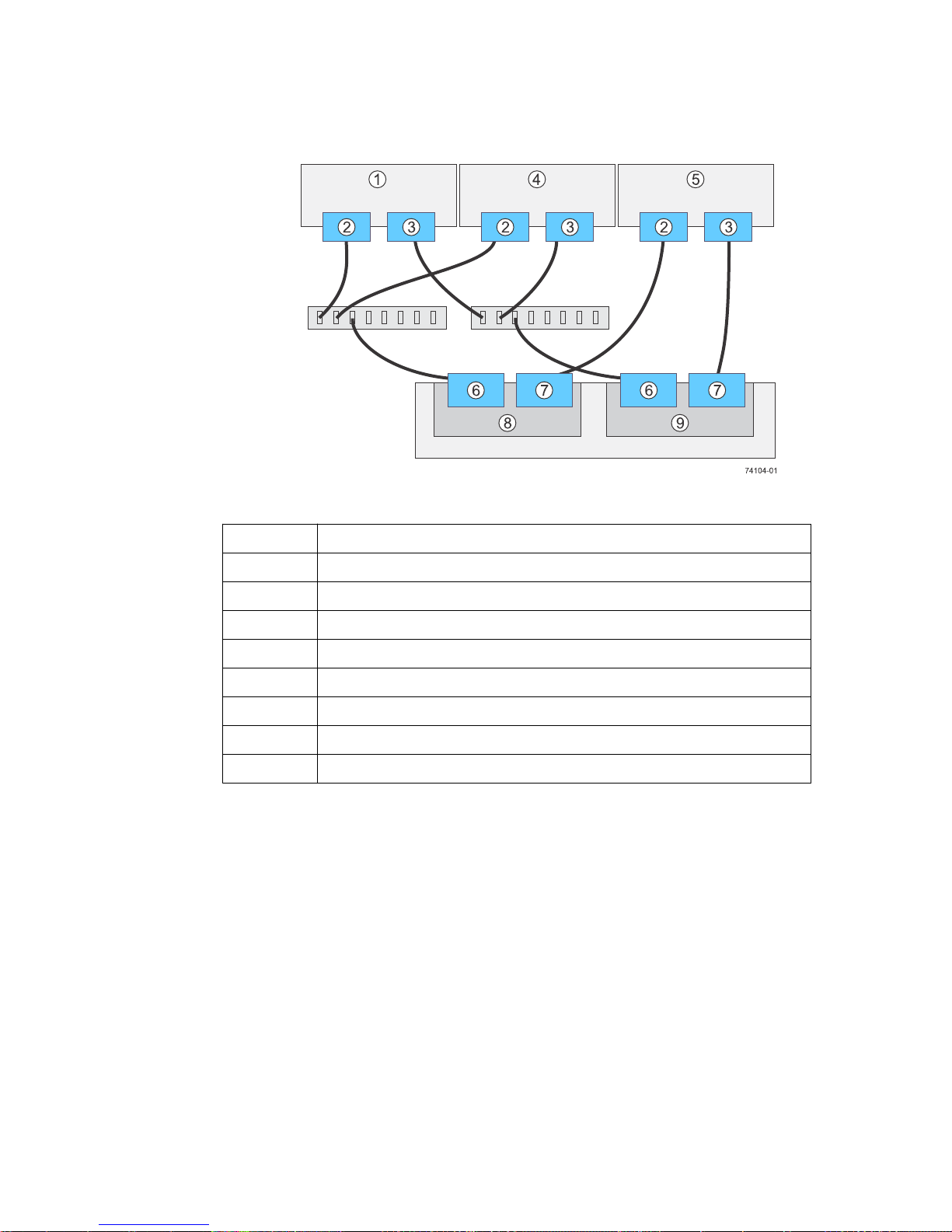

See the examples in the following section for example cabling patterns.

Steps

Perform one of the following actions:

• If your configuration contains either a Fibre Channel host interface card or an iSCSI host interface card and uses optical cables, start with the first host channel of each controller, and plug one end of the cable into the SFP transceiver in the host channel, go to step

61.

• If your configuration contains a SAS host interface card or uses copper cables, go to step 2 on page 61.

The following four figures show valid host-to-controller-drive tray configurations.

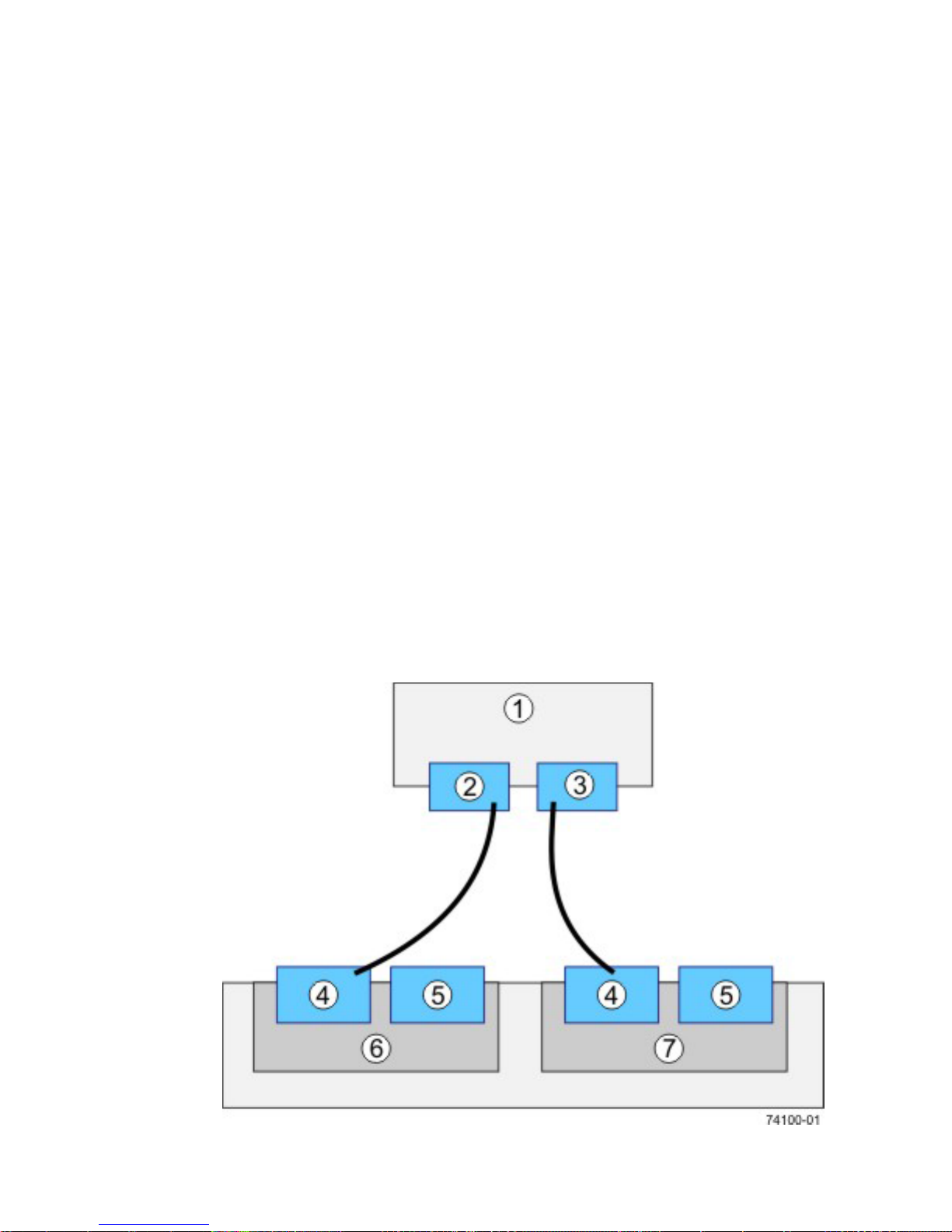

• Direct topology – One host and a dual controller-drive tray

on page 31 for additional information about how to

Step 3 - Installing the

on page

Page 59

Step 5 - Connecting the controller-drive tray to the hosts | 59

1 Host 2 HBA 1 3 HBA 2 4 Host port 1 5 Host port 2 8 Controller A 9 Controller B

•

Direct topology – Two hosts and a dual controller-drive tray for maximum redundancy

1 2 HBA 1 3 HBA 2 4 Host port 1 5 Host port 2 8 Controller A 9 Controller B

Hosts

Page 60

60 | E2700 Controller-Drive Tray and Related Drive Trays Installation Guide

• Switch or fabric topology - Two hosts and a dual controller-drive tray with a four-port

connection and a zoned switch

Hosts 2 HBA 1 or NIC 1 3 HBA 2 or NIC 2 4 Host port 1 5 Host port 2 6 Host port 3 7 Host port 4 8 Controller A 9 Controller B

Page 61

Step 5 - Connecting the controller-drive tray to the hosts |

• Mixed topology - Three hosts and a dual controller-drive tray

Hosts 2 HBA 1 or NIC 1 3 HBA 2 or NIC 2 4 Host 2 5 Host 3 6 Host port 1 7 Host port 2 8 Controller A 9 Controller B

2. Plug either end of the host interface cable into the controller.

3. Plug the other end of the cable into an HBA in the host (direct topology) or into a switch (fabric

topology).

4. Affix a label to each end of the cable with this information. A label is very important if you need

to disconnect cables to service a controller. Include this information on the labels:

• The host name and the HBA port (for direct topology)

• The switch name and the port (for fabric topology)

• The controller ID (for example, controller A )

• The host channel ID (for example, host channel 1) Example label abbreviation – Assume that a cable is connected between port 1 in HBA 1 of a

host named Engineering and host channel 1 of controller A. A label abbreviation can be as follows.

Page 62

62 | E2700 Controller-Drive Tray and Related Drive Trays Installation Guide

5. Repeat these steps for each controller and host channel that you intend to use.

Page 63

Step 6 - Installing the drive trays for the controllerdrive tray configurations

Things to know - General installation of drive trays

Note: If you are installing the drive tray in a cabinet with other trays, ensure that the combined

power requirements of the drive tray and the other trays do not exceed the power capacity of your cabinet.

If you are performing a hot add of a tray to an existing storage array, refer to the

Guide

• Special site preparation is not required for any of these drive trays beyond what is normally found in a computer lab environment.

• The power supplies meet standard voltage requirements for both domestic and worldwide operation.

• Keep as much weight as possible in the bottom half of the cabinet.

Refer to the

Site Preparation Guide

for important considerations about cabinet installation.

Hardware Cabling

Procedure - Installing the DE1600 and DE5600 drive trays

About this task

Warning: (W08) Risk of bodily injury – Two persons are required to safely lift the component. Warning: (W05) Risk of bodily injury – If the bottom half of the cabinet is empty, do not install

You can install the drive tray into an industry-standard cabinet. This procedure describes how to install the mounting rails into an industry-standard cabinet.

Attention: Possible hardware damage – To prevent electrostatic discharge damage to the tray,

use proper antistatic protection when handling tray components.

Steps

1. Ensure that the cabinet is in the final location and that you meet the clearance requirements as

shown.

• DE1600 drive tray – Airflow and clearance requirements

Page 64

| E2700 Controller-Drive Tray and Related Drive Trays Installation Guide

1 76 cm (30 in.) clearance in front of the cabinet 2 61 cm (24 in.) clearance behind the cabinet

• DE5600 drive tray – Airflow and clearance requirements

76 cm (30 in.) clearance in front of the cabinet

2 61 cm (24 in.) clearance behind the cabinet

Note: Fans pull air through the tray from front to back across the drives.

2. Lower the feet on the cabinet to keep the cabinet from moving.

3. Remove the drive tray and all contents from the shipping carton.

4. Position the mounting rails in the cabinet, as follows: For more information, refer to the

installation instructions that are included with your mounting rails.

• If you are installing the mounting rails above an existing tray, position the mounting rails

directly above the tray.

Page 65

Step 6 - Installing the drive trays for the controller-drive tray configurations | 65

• If you are installing the mounting rails below an existing tray, allow either 8.7-cm (3.4-in.)

vertical clearance for the DE1600 drive tray or 8.8-cm (3.5-in.) vertical clearance for the DE5600 drive tray.

1 Mounting rail 2 Existing tray 3 Clearance above and below the existing tray 4 Screws for securing the mounting rail to the cabinet (front and rear) 5 Industry-standard cabinet

5. Attach the mounting rails to the cabinet.

a. Ensure that the adjustment screws on the mounting rail are loose so that the mounting rail can

extend or contract as needed.

Page 66

66 | E2700 Controller-Drive Tray and Related Drive Trays Installation Guide

1 Cabinet mounting holes 2 Adjustment screws for locking the mounting rail length 3 Mounting rails 4 Clip for securing the rear of the drive tray

b. Place the mounting rail inside the cabinet, and extend the mounting rail until the flanges on

the mounting rail touch the inside of the cabinet.

c. Ensure that the alignment spacers on the front flange of the mounting rail fit into the mounting

holes in the cabinet. The front flange of each mounting rail has two alignment spacers. The alignment spacers are

designed to fit into the mounting holes in the cabinet. The alignment spacers help position and hold the mounting rail.

Note: If the cabinet in which you are installing this tray has square holes, there are larger

spacers that can be used to mount the rail.

Page 67

Step 6 - Installing the drive trays for the controller-drive tray configurations | 67

1 Alignment spacers

d. Insert one M5 screw through the front of the cabinet and into the top captured nut in the

mounting rail. Tighten the screw.

e. Insert two M5 screws through the rear of the cabinet and into the captured nuts in the rear

flange in the mounting rail. Tighten the screws.

f. Tighten the adjustment screws on the mounting rail.

g. Repeat these steps to install the second mounting rail.

6. With the help of one other person, slide the rear of the drive tray onto the mounting rails. The rear

edge of the drive tray must fit into the clip on the mounting rail. The drive tray is correctly aligned when these conditions are met:

• The mounting holes on the front flanges of the drive tray align with the mounting holes on the

front of the mounting rails. See item 4 in the following figure.

• The rear edge of the drive tray sheet metal fits into the clip on the mounting rail.

• The holes in the drive tray sheet metal for the rear hold-down screws align with the captured

nuts in the side of the mounting rails.

Page 68

68 | E2700 Controller-Drive Tray and Related Drive Trays Installation Guide

1 Mounting rail 2 Clip 3 Partial view of the drive tray rear sheet metal 4 Mounting holes

7. Secure the front of the drive tray to the cabinet. Use the two screws to attach the flange on each

side of the front of the drive tray to the mounting rails.

a. Insert one M5 screw through the bottom hole of a flange on the drive tray so that the screw

goes through the cabinet rail and engages the bottom captured nut in the mounting rail. Tighten the screw.

b. Repeat this step for the second flange.

• DE1600 drive tray

Page 69

Step 6 - Installing the drive trays for the controller-drive tray configurations | 69

1 Screw 2 Mounting hole

• DE5600 drive tray

Page 70

70 | E2700 Controller-Drive Tray and Related Drive Trays Installation Guide

1 Screw

Note: The rear end contains two controllers. The top of the is the side with the labels.

8. Secure the side of the drive tray to the mounting rails by performing these steps:

a. Insert one M4 screw through the side sheet metal of the drive tray into the captured nut on the

side of the mounting rail. Tighten the screw.

b. Repeat this step for the other side.

Attach the plastic end caps onto the front of the drive tray.

a. Put the top of the end cap on the hinge tab that is part of the drive tray mounting flange. b. Gently press on the bottom of the end cap until it snaps into place over the retainer on the

bottom of the drive tray mounting flange.

•

Attaching the end caps to the DE1600 drive tray

1 2 Retainer

• Attaching the end caps to the DE5600 drive tray

Hinge tab

Page 71

Step 6 - Installing the drive trays for the controller-drive tray configurations |

1 Hinge tab 2 Retainer

Procedure - Installing drives in the DE1600 and DE5600 drive trays

About this task

In some situations, the drive tray might be delivered without the drives installed. Follow the steps in this procedure to install the drives.

Attention: Risk of equipment malfunction – To avoid exceeding the functional and

environmental limits, install only drives that have been provided or approved by NetApp. Drives might be shipped but not installed. System integrators, resellers, system administrators, or users can install the drives.

Note: For the DE1600 drive tray, the installation order of the drives is from top to bottom and from

left to right. For the DE5600 drive tray, the installation order is from left to right. The installation order is important because the drives might already contain configuration information that depends upon the correct sequence of the drives in the tray.

Steps

1. Beginning with the first drive slot (the upper-left slot of the DE1600 drive tray or the left slot of

the DE5600 drive tray), place the drive in the slot guides, and slide the drive all the way into the slot.

2. Push the drive handle to the right (DE1600 drive tray) or down (DE5600 drive tray).

• Installing a drive in the DE1600 drive tray

Drive handle

• Installing a drive in the DE5600 drive tray

Page 72

| E2700 Controller-Drive Tray and Related Drive Trays Installation Guide

1 Drive handle

Note: In some applications, the drive handle might have the hinge on the right.

3. For the DE1600 drive tray, install the second drive beneath the first drive. For the DE5600 drive

tray, install the second drive to the right of the first drive.

4. For the DE1600 drive tray, install the other drives from top to bottom and then from left to right.

For the DE5600 drive tray, install the other drives to the right.

Procedure - Installing the DE6600 drive tray

About this task

Warning: (W10) Risk of bodily injury – Four or more persons are required to safely lift the

component.

Attention: Risk of equipment malfunction – To avoid possible equipment damage and ensure

safe and efficient servicing of the equipment, install DE6600 drive trays towards the bottom of a cabinet.

Warning: (W05) Risk of bodily injury – If the bottom half of the cabinet is empty, do not install

You can install the high-density, 6-Gb SAS SBB 2.0-compliant DE6600 drive tray into an industrystandard cabinet, provided it has a depth of 100 cm (40 in.). A minimum depth of 76 cm (30 in.) between the front EIA support rails and the rear EIA support rails is required.

This procedure describes how to install the mounting rails into an industry-standard cabinet.

Attention: Possible hardware damage – To prevent electrostatic discharge damage to the tray,

use proper antistatic protection when handling tray components.

Page 73

Step 6 - Installing the drive trays for the controller-drive tray configurations | 73

Steps

1. Make sure that the cabinet is in the final location. Make sure that you meet the airflow and

clearance requirements shown in the following figure.

1 91 cm (36 in.) clearance in front of the cabinet 2 61 cm (24 in.) clearance behind the cabinet

Note: Fans pull air through the drive tray from front to back across the drives.

2. Lower the feet on the cabinet to keep the cabinet from moving.

3. Before removing the drive tray and all of the contents from the shipping carton, locate the tray

handles and attach them to the drive tray.

a. Align the handle just under the thumb latch. b. Push the handle up until it clicks in place with the thumb latch.

Page 74

| E2700 Controller-Drive Tray and Related Drive Trays Installation Guide

With the help of at least three other persons, remove the drive tray and all of the contents from the

shipping carton, using the four drive tray handles (two to a side) as shown in the following figure. Set the drive tray aside.

5. Position the mounting rails in the cabinet.

• If you are installing the mounting rails above an existing tray, position the mounting rails

directly above the tray.

• If you are installing the mounting rails below an existing tray, allow 17.8 cm (7 in.) vertical

clearance for a DE6600 drive tray.

Page 75

Step 6 - Installing the drive trays for the controller-drive tray configurations | 75

1 Screws for securing the mounting rail to the cabinet (front) 2 Screws for securing the mounting rail to the cabinet (rear) 3 Existing tray 4 Industry-standard cabinet

6. To attach the mounting rails to the cabinet, do one of the following:

• If you are using the long fixed-size mounting rails, go to step 7.

• If you are using the shorter adjustable mounting rails, go to step 8.

7. Attach the long fixed-size mounting rails to the cabinet.

a. Make sure that the adjustment screws on the mounting rail are loose so that the mounting rail

can extend or contract as needed.

Page 76

| E2700 Controller-Drive Tray and Related Drive Trays Installation Guide

1 Front of the mounting rail 2 Two M5 screws for the rear EIA support rail 3 Front of the cabinet 4 Two M5 screws for the front EIA support rail 5 Adjustment screws 6 Rear hold-down screw 7 Cabinet mounting holes on the front EIA support rail 8 Cabinet mounting holes on the rear EIA support rail 9 Mounting rail lip

b. Remove the rear hold-down screw. It protrudes from the inside of the rail and prevents you

from sliding the drive tray onto the rails.

c. Place the mounting rail inside the cabinet, and extend the mounting rail until the flanges on

the mounting rail touch the inside of the cabinet.

Note: If you are mounting the DE6600 drive tray in a cabinet with square holes, use the

square hole-to-round hold adapters in the rail kit to align the screws in the holes. The square hole-to-round hold adapters are round washers with shallow shoulders that fit snugly into the square holes in the rack.

d. Insert one M5 screw through the front of the cabinet, and screw it into the top captured nut in

the mounting rail.

e. Insert two M5 screws through the rear of the cabinet, and screw them into the captured nuts in

the rear flange in the mounting rail.

f. Counting up from the bottom of the mounting rail, place the bottom of the rear bracket in the

8th hole of the cabinet, so that the top of the rear bracket is in the 11th hole. The distance

between the two holes should be 1U or 4.45 cm (1.75 in). g. Tighten the adjustment screws on the mounting rail. h. Repeat these steps to install the second mounting rail.

Page 77

Step 6 - Installing the drive trays for the controller-drive tray configurations |

i. Insert one M5 screw through the front of the mounting rail. You use this screw to attach the

drive tray to the cabinet.

8. Attach the shorter, adjustable size mounting rails to the cabinet.

1 Front of the mounting rail 2 Rear of the mounting rail 3 Rail fix bar 4 Two M5 screws for the front EIA support rail 5 Two clips for the front EIA support rail 6 Rear bracket

a. Make sure that the adjustment screws on the mounting rail are loose so that the mounting rail

can extend or contract as needed. The adjustment screws are on the other side of the previous

figure.

b. Place the mounting rail inside the cabinet, and extend the mounting rail until the flanges on

the mounting rail touch the inside of the cabinet.

c. Insert one M5 screw through the front of the cabinet, and screw it into the top captured nut in

the mounting rail.

Page 78

78 | E2700 Controller-Drive Tray and Related Drive Trays Installation Guide

1 M5 screws

d. Insert two M5 screws through the rear of the cabinet, and screw them into the captured nuts in

the rear flange in the mounting rail.

e. Counting up from the bottom of the mounting rail, place the bottom of the rear bracket in the

8th hole of the cabinet, so that the top of the rear bracket is in the 11th hole. The distance

between the two holes should be 1U or 4.45 cm (1.75 in).

f. Tighten the adjustment screws on the mounting rail.

g. Repeat these steps to install the second mounting rail.

Page 79

Step 6 - Installing the drive trays for the controller-drive tray configurations | 79

1 Top cabinet mounting hole on the rear EIA support rail 2 Bottom cabinet mounting hole on the rear EIA support rail

9. Remove the bezel from the front of the drive tray.

10. With the help of at least three other persons, slide the rear of the drive tray onto the mounting

rails. The drive tray is correctly aligned when the mounting holes on the front flanges of the drive tray align with the mounting holes on the front of the mounting rails.

Warning: (W10) Risk of bodily injury – Four or more persons are required to safely lift the

component.

11. After the controller-drive tray is correctly aligned, remove the enclosure lift handles as shown in

the following figure:

a. Use your thumb to unlatch and remove the rear enclosure lift handles (two to a side). b. Use the front enclosure lift handles to slide the drive tray all the way into the cabinet. c. After the drive tray is secure in the cabinet, use your thumb to unlatch and remove the front

enclosure lift handles (two to a side).

Page 80

| E2700 Controller-Drive Tray and Related Drive Trays Installation Guide

1 Pull the thumb latch away from the controller-drive tray to detach the hook. 2 Shift the handle down to release the other four hooks. 3 Move the handle away from the controller-drive tray.

12. Secure the front of the drive tray to the cabinet. Use the four screws to attach the flange on each

side of the front of the drive tray to the mounting rails.

a. Insert two M5 screws through the bottom holes of a flange on the drive tray so that the screws

go through the EIA support rail and engage the bottom captured nuts in the mounting rail.

Tighten the screws.

You had attached the second and fourth threaded holes in step 8c.

b. Repeat substep a for the second flange.

13. Secure the side of the drive tray to the mounting rails.

a. Tighten the thumbscrew on the rear mounting bracket that you installed in step 8e to secure

the drive tray to the mounting rails.

b. Repeat substep a for the other side.

Note: Make sure that each drive drawer in the drive tray is securely fastened to ensure proper

air flow to the drives.

Page 81

Step 6 - Installing the drive trays for the controller-drive tray configurations |

Procedure - Installing the drives in the DE6600 drive tray

About this task

The DE6600 drive tray is shipped with the drive drawers installed, but the drives are not installed.

Attention: Risk of equipment malfunction – To avoid exceeding the functional and

environmental limits, install only drives that have been provided or approved by NetApp.

Attention: Risk of equipment malfunction – All DE6600 drive trays have a limit of five solid

state drives (SSDs) per drawer. If you exceed this limit for SSDs in a particular drawer, the power source in the drawer could fail.

If you are installing fewer than 60 drives, if you have SSDs, or if your drives have different capacities, do the following:

• Install the drives in the front four slots (shown in the figure as slots 1,4, 7, and 10) of each drawer

• Distribute any remaining drives across the drawers.

• Distribute any SSDs evenly across the drawers.

• Do not install more than five SSDs in each drawer (no more than 25 SSDs in each tray) or else the

Attention: Risk of equipment damage – If you want to move the 60-drive tray to a new location

after installing the drives, you must remove all of the drives from the drive tray following proper drive-removal procedures. Never ship a 60-drive tray with drives installed. See

Removing drives from a 60-drive tray

drive tray.

Slots requiring drives in each drawer

to maintain adequate airflow for cooling. You must install at least 20 drives in the tray.

power source in the drawer can fail.

Procedure -

for instructions on how to remove the drives from the 60-

Page 82

82 | E2700 Controller-Drive Tray and Related Drive Trays Installation Guide

Steps

1. Unlatch the drive drawer by pulling out on both levers at the front of the drawer.

2. Using the extended levers, carefully pull the drive drawer out until it stops. Do not completely

remove the drive drawer from the controller-drive tray.

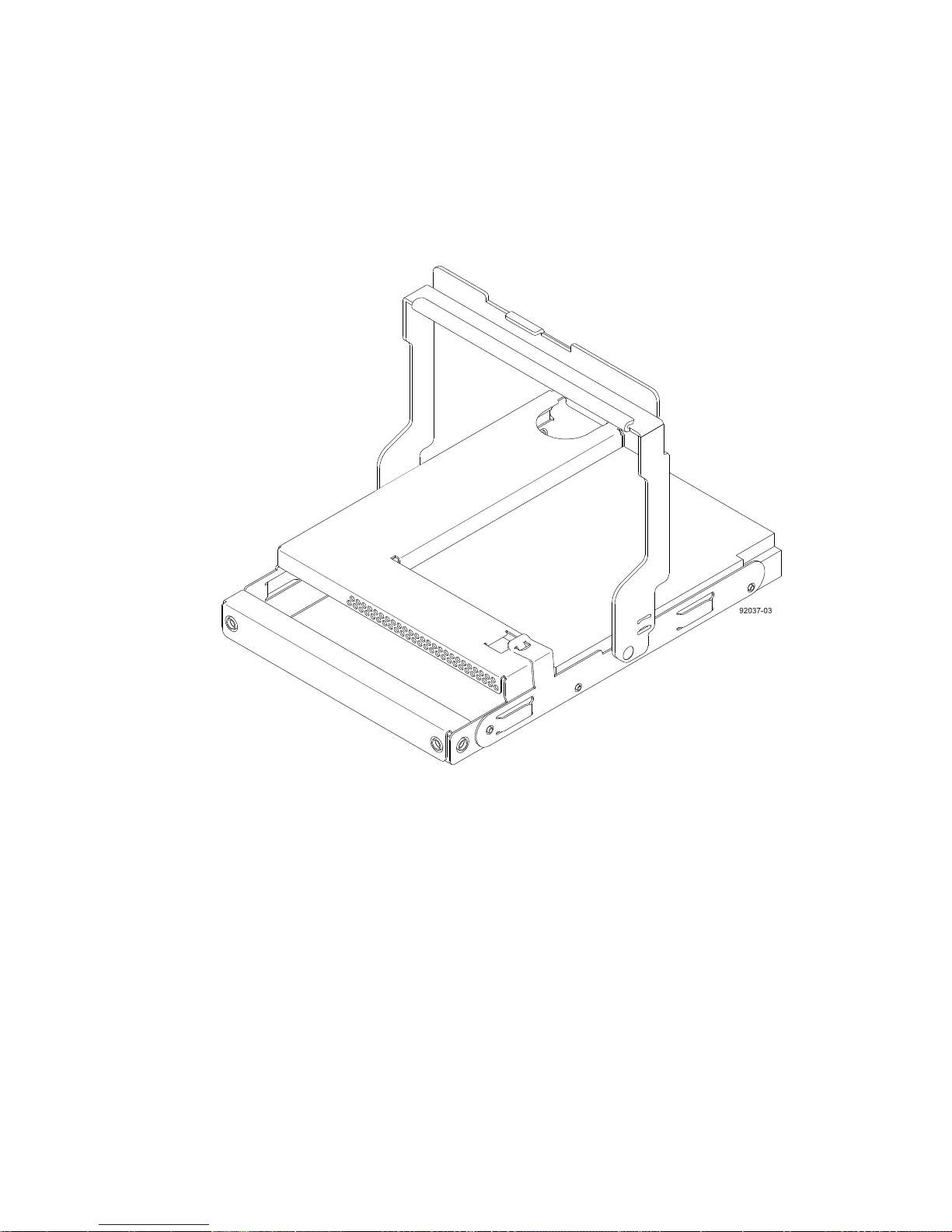

3. Starting with the first drive, raise the drive handle to the vertical position.

4. Align the two raised buttons on the drive with the notches on the drawer.

5. Starting with the leftmost slot at the front, align the two raised buttons on the drive with the

notches on the drawer. Then, pressing gently on the top of the drive, rotate the drive handle down until the drive snaps into place.

Page 83

Step 6 - Installing the drive trays for the controller-drive tray configurations |

Repeat Step

Slide the drawer back into the drive tray by pushing it from the center and closing both levers.

Attention: Risk of equipment malfunction – Make sure to completely close the drive drawer

by pushing both levers. You must completely close the drive drawer to allow proper airflow and prevent overheating.

8. Attach the bezel to the front of the drive tray.

through Step 5 to install all of the drives.

Things to know - Connecting the power cords

• For each AC power connector on the drive tray, make sure that you use a separate power source in the cabinet. Connecting to independent power sources maintains power redundancy.

• To ensure proper cooling and ensure availability, the drive tray always uses two power supplies.

• You can use the power cords shipped with the drive tray with typical outlets used in the destination country, such as a wall receptacle or an uninterrupted power supply (UPS). These power cords, however, are not intended for use in most EIA-compliant cabinets.

Note: Make sure that you do not turn on the power to the drive tray until this installation guide

instructs you to do so.

Procedure - Connecting the power cords

Steps

1. Make sure that the circuit breakers in the cabinet are turned off.

2. Make sure that both of the power switches on the drive trays are turned off.

3. Connect the primary power cords from the cabinet to the external power source.

Page 84

49 0 07 -0 1

1 3

2 4

Step 7 - Connecting the controller-drive tray to the drive trays

Use this step to cable the controller-drive tray and related drive trays. For additional information, see the

Hardware Cabling Guide

Key terms

Drive channel

The path for the transfer of data between controllers and the drives in the storage array.

Things to know - E2700 controller-drive tray

• The controller-drive trays can connect to the DE1600 drive tray, the DE5600 drive tray, and the DE6600 drive tray for expansion.

• For any one controller-drive tray, you must not exceed the limit of 15 connected drive trays or the limit for the total number of drive slots in the storage array, which is 192. In a E2760 configuration that consists solely of DE6600 drive trays, only 180 drives are supported. The drive slot limit includes drive slots in the controller-drive tray.

Note: Ensure that you do not turn on the power to the drive tray until this installation guide

instructs you to do so. For the correct procedure for turning on the power, see

the power and checking for problems in a controller-drive tray configuration

• Drive tray expansion ports on the E2760 controller-drive tray

Step 10 - Turning on

on page 97.

1 2 Controller canister B 3 SAS expansion ports (CH1 and CH2) 4 SAS expansion ports (CH1 and CH2)

• Drive tray expansion ports on the E2712 and E2724 controller-drive trays

Controller canister A

Page 85

Step 7 - Connecting the controller-drive tray to the drive trays |

1 Controller canister A 2 Controller canister B 3 SAS expansion ports (CH1 and CH2) 4 SAS expansion ports (CH1 and CH2)

Things to know - Drive trays

• Each DE1600 drive tray can contain a maximum of twelve 8.89-cm (3.5-in.) drives.

• Each DE5600 drive tray can contain a maximum of twenty-four 6.35-cm (2.5-in.) drives.

• Each DE6600 drive tray can contain a maximum of sixty 8.89-cm (3.5-in.) or 6.35-cm (2.5-in.) drives.

• Each ESM in the DE1600 drive tray, the DE5600 drive tray, or the DE6600 drive tray contains a pair of SAS In connectors and one SAS Expansion (Out) connector.

Note: The drive limit might be lower than 192 for some configurations of the E2760 controller-

drive tray. You are notified through the Major Event Log (MEL) if you attempt to install drive slots in excess of the limit for your storage array. If this occurs, contact technical support .

• DE1600 and DE5600 drive trays - Rear view

ESM A 2 SAS IN connector 3 SAS IN connector 4 SAS Expansion (OUT) connector 5 ESM B

• DE6600 drive tray - Rear view

Page 86

| E2700 Controller-Drive Tray and Related Drive Trays Installation Guide

1 ESM A 2 ESM B 3 SAS IN port 4 SAS IN port 5 SAS OUT ports

Things to know - Cabling configurations

The figures in this section show representative cabling configurations. The configurations shown guarantee that redundant data paths exist between the controller-drive tray and all attached drive trays in a storage array. You can attach the E2712 controller-drive tray, the E2724 controller-drive tray or the E2760 controller-drive tray to DE1600 drive trays, DE5600 drive trays, DE6600 drive trays, or various combinations of those three drive tray models.

You need four mini SAS-HD-to-mini SAS cables to attach one or two drive trays to the controllerdrive tray. For each additional drive tray, you need two more mini SAS-to-mini SAS cables. These general rules apply:

• All cables connect a SAS Expansion (Out) port at one end to a SAS In port at the other end. Never connect a SAS Expansion (Out) port to another SAS Expansion (Out) port. Never connect a SAS In port to another SAS In port.

• You can use either of the two SAS IN ports on an ESM for a connection, but it is best to follow the conventions described in the documentation so your storage management software represents the storage array consistently.

• The drive trays in the chain of connections from controller A are in the reverse order from those whose connections start from controller B. That is, in each drive tray stack the last drive tray in the chain from controller A must be the first drive tray in the chain from controller B.

On all E2700 controller-drive tray models, the expansion connectors to the drive trays are always on the right side of the controllers from the rear view. On all E2700 drive tray models, the input connectors from the controllers to the drive trays are always in the middle of the ESMs and the expansion connectors are on the right side of the ESMs from the rear view.

Note: Some SAS ports might have a black plastic plug installed. Remove the plug before you

attach a cable to the port.

Page 87

Step 7 - Connecting the controller-drive tray to the drive trays |

Note: If the storage array includes DE6600 drive trays, install those drive trays beginning from the

bottom of the rack so that the rack does not become top-heavy. A top-heavy rack has a greater risk of falling over.

• Side-by-side ESMs in the DE1600 drive tray and the DE5600 drive tray

1 ESM A 2 SAS In Port 1 3 SAS In Port 2

4 SAS Out (Expansion) Port 5 ESM B

• Stacked ESMs in the DE6600 drive tray

ESM A 2 ESM B 3 SAS In Port 4 SAS In Port 5 SAS Out Ports

As you install each cable, attach labels to the cable with the following information:

• The controller ID (for example, controller A )

• The ESM ID (for example, ESM A)

Page 88

88 | E2700 Controller-Drive Tray and Related Drive Trays Installation Guide

• The ESM connector (In or Out)

• The drive tray ID For example, if you are connecting controller A to the SAS In port on ESM A in drive tray 1, the

label on the controller end of the cable has this information:

CtA-Dch1, Dm1-ESM_A (left), In – Controller End

The label on the drive tray end of the cable has information:

Dm1-ESM_A (left), In, CtrlA

If you are connecting an ESM (Out) port to an ESM (In) port, the label on the first drive tray has information:

Dm1-ESM_A (left), OUT, DM1 ESM_B (left)

E2700 controllers share two expansion SAS domains. The dual expansion ports allow external bandwidth capability, as each port contains four PHYs on each E2700 controller.

You can connect a controller tray to drive trays using one of these patterns:

• Single stack In a single stack pattern the expansion channels from each controller are paired by connecting

them to the same ESM. At least one expansion port from each controller must be connected to each expansion channel on the ESM. For improved band-width to the expansion trays, connect two ports from each controller to each expansion channel, one to the top of the stack and the other to the bottom of the stack.

When there is only one drive tray, connect both controller expansion ports to the SAS IN ports on the same ESM in a single stack to maximize performance.

• Dual stack Dual stack cabling requires that both expansion ports on each controller are used for drive-side

cabling in order to create two logically separate stacks. Compared to single stack, dual stack delivers the maximum possible bandwidth performance out of expansion enclosure when you scale beyond one expansion enclosure.

When there is more than one drive tray, use a dual stack pattern to maximize performance. The intention is to create two stacks, each stack cabled in either a top-down pattern or a bottom up pattern. When an even number of expansion trays are used, the two stacks should each contain the same number of expansion trays. When an odd number of expansion trays are used, one stack will have one more tray than the other.

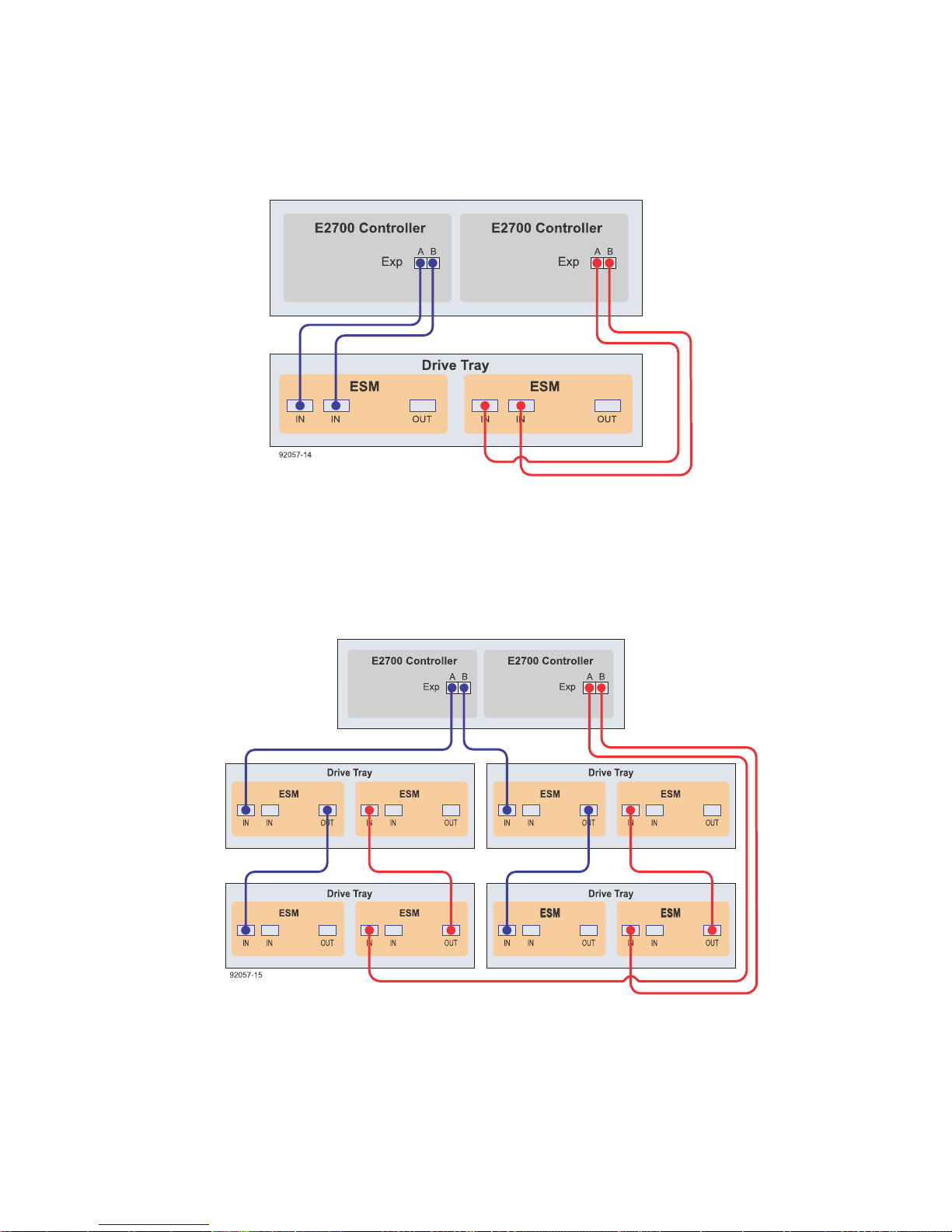

• One E2712 or E2724 controller-drive tray and one drive tray in a single stack

Page 89

Step 7 - Connecting the controller-drive tray to the drive trays |

• One E2712 or E2724 controller-drive tray and four drive trays

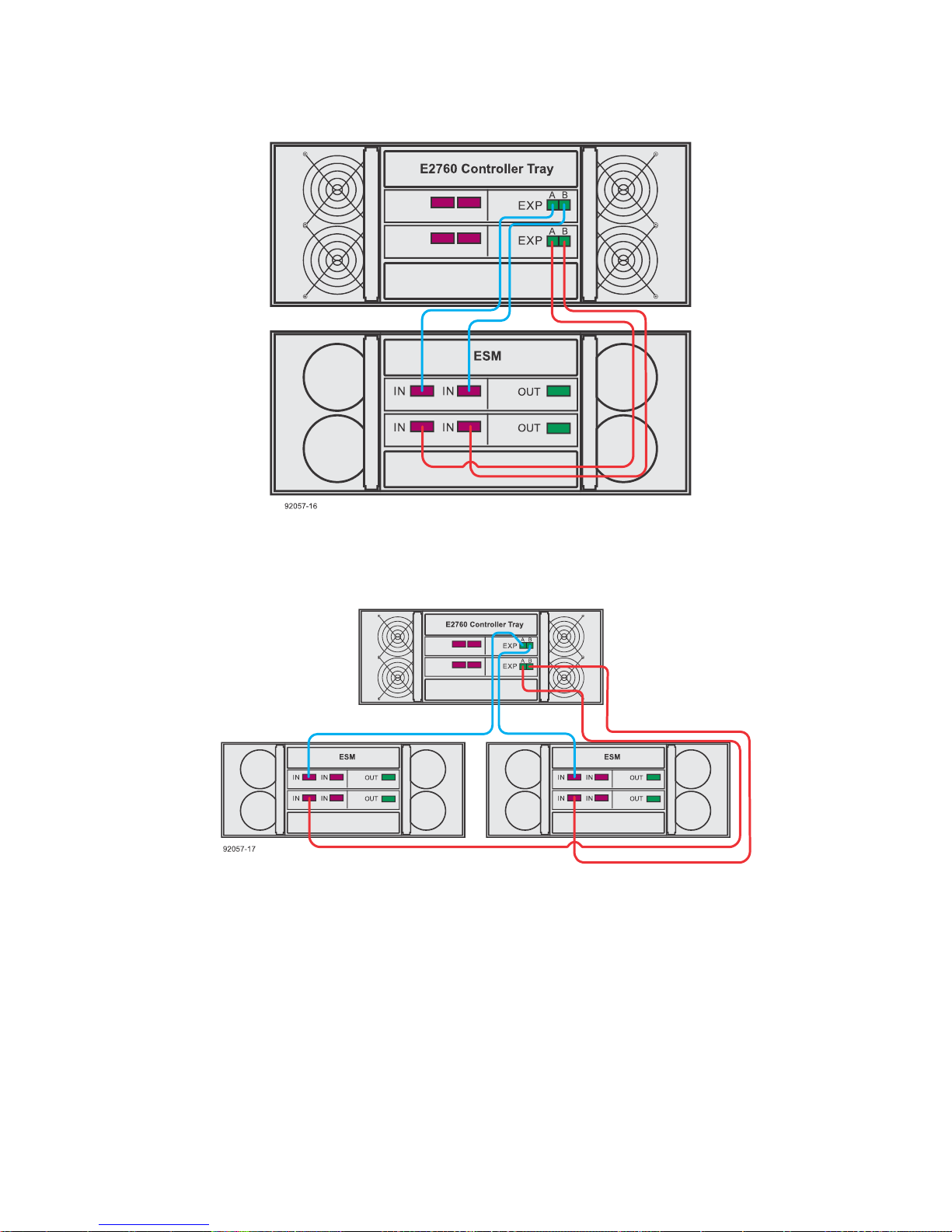

• One E2760 controller-drive tray and one DE6600 drive tray in a single stack

Page 90

90 | E2700 Controller-Drive Tray and Related Drive Trays Installation Guide

• One E2760 controller-drive tray and two DE6600 drive trays

Page 91

Step 8 - Connecting the Ethernet cables

Use this step if you are using out-of-band management for your storage array. If you use in-band management, you can ignore this step and continue with page 93.

Key terms

In-band management

A method to manage a storage array in which a storage management station sends commands to the storage array through the host input/output (I/O) connection to the controller. The SMagent must be installed for this method to work correctly.

Out-of-band management

A method to manage a storage array in which a storage management station sends commands to the storage array through the Ethernet connections to the controller. This is the recommended management method.

Step 9 - Connecting the power cords

Things to know - Connecting Ethernet cables

This topic describes Ethernet management connections. It does not describe the Ethernet iSCSI connections that might be used through a host interface card connection.

Attention: Risk of security breach – Connect the Ethernet ports on the controller-drive tray to a

private network segment behind a firewall. If the Ethernet connection is not protected by a firewall, your storage array might be at risk of being accessed from outside of your network.

The figure shows a controller with Ethernet port 1 and Ethernet port 2.

Note: Ethernet port 2 on each controller is reserved for access by technical support.

Because the controllers support the Auto-MDIX feature, you do not need an Ethernet crossover cable.

Page 92

92 | E2700 Controller-Drive Tray and Related Drive Trays Installation Guide

Procedure - Connecting Ethernet cables

About this task

Perform these steps to connect Ethernet cables for out-of-band management.

Steps

Connect one end of an Ethernet cable into the Ethernet port 1 on controller A.

Connect the other end of the cable to the applicable network connection.

Repeat these steps for controller B.

Page 93

Step 9 - Connecting the power cords

Use the following information to connect the power cords in your storage array.

Things to know - AC power cords

• For each AC power connector on the drive tray, make sure that you use a separate power source in the cabinet. Connecting to independent power sources maintains power redundancy.

• To ensure proper cooling, do not operate a drive tray with one of its power supplies removed, unless instructed to do so by the Recovery Guru.

• You can use the power cords shipped with the controller-drive tray with typical outlets used in the destination country, such as a wall receptacle or an uninterrupted power supply (UPS). These power cords, however, are not intended for use in most EIA-compliant cabinets.

Things to know - DC power cords

Warning: (W14) Risk of bodily injury – A qualified service person is required to make the DC

power connection according to NEC and CEC guidelines.

• DC power cable

1 2 Return (positive), blue wire 3 Ground, green/yellow wire 4 DC power connector

Supply (negative), brown wire, –48 VDC

• Each power-fan canister has two DC power connectors. Be sure to use a separate power source for each power-fan canister in the drive tray to maintain power redundancy. You can, optionally, connect each DC power connector on the same power-fan canister to a different source for additional redundancy.

• A two-pole 30-amp circuit breaker is required between the DC power source and the drive tray for over-current and short-circuit protection.

Page 94

| E2700 Controller-Drive Tray and Related Drive Trays Installation Guide

Procedure - Connecting AC power cords

Steps

1. Ensure that the circuit breakers in the cabinet are turned off.

2. Ensure that both of the power switches on the controller-drive tray are turned off.

• Power switches on the E2712 and E2724 controller-drive trays

• Power switches on the E2760 controller-drive tray

3. Connect the primary power cords from the cabinet to the external power source.

4. Connect either a cabinet interconnect power cord, the power cords provided with the drive tray, or

the power cords specific to your particular cabinet to the AC power connector on each power canister in the drive tray.

Power switches

5. If you are installing other drive trays in the cabinet, connect a power cord to each power canister

in the drive trays.

Page 95

Step 9 - Connecting the power cords |

Procedure - Connecting DC power cords

About this task

Warning: (W14) Risk of bodily injury – A qualified service person is required to make the DC

power connection according to NEC and CEC guidelines.

Important: Make sure that you do not turn on the power to the controller-drive tray or the

connected drive trays until this documentation instructs you to do so.

Attention: Before turning off any power switches on a DC-powered controller-drive tray, you must

disconnect the two-pole 20-amp circuit breaker.

Steps

Disconnect the two-pole 20-amp circuit breaker for the storage array.

Make sure that all of the DC power switches on the DC-powered controller-drive tray are turned

off.

• Power switches on the E2712 or the E2724 controller-drive tray

Power switches

• Power switches on the E2760 controller-drive tray

Power switches

3. Make sure that all of the DC power switches on the DC-powered drive trays are turned off.

4. Connect the DC power connector cables to the DC power connectors on the rear of the controller-

drive tray and the drive trays.

Page 96

96 | E2700 Controller-Drive Tray and Related Drive Trays Installation Guide

Note: The three source wires on the DC power connector cable (–48 VDC) connect the

controller-drive tray to centralized DC power plant equipment, typically through a bus bar located above the cabinet.

Note: You do not have to connect the second DC power on each of the drive tray’s DC power-

fan canisters. The second DC power connection is for additional redundancy only and can be connected to a second DC power bus.

5. Have a qualified service person connect the other end of the DC power connector cables to the

DC power plant equipment as follows:

a. Connect the brown –48 VDC supply wire to the negative terminal. b. Connect the blue return wire to the positive terminal. c. Connect the green/yellow ground wire to the ground terminal.

Page 97

Step 10 - Turning on the power and checking for problems in a controller-drive tray configuration

After you complete this task, you can install the software and perform basic configuration tasks on your storage array. Continue with either the appropriate Express Guide or the

Installation Reference

Center

, available from the

NetApp E-Series and EF-Series Systems Documentation

Procedure - Turning on the power to the storage array and checking for problems in a controller-drive tray configuration

About this task

You must turn on the power to all of the connected drive trays before you turn on power for the controller-drive trays. Performing this action ensures that the controllers recognize each attached drive tray.

SANtricity Software

Note: While the power is being applied to the trays, the LEDs on the front and the rear of the trays

come on and go off intermittently.

Steps

1. Turn on both power switches on each drive tray that is attached to the controller-drive tray.

Depending on your configuration, it can take several minutes for each drive tray to complete the power-on process.

2. Check the ESM Power LED and the Host Link Active LEDs on the drive trays to verify that the

power was successfully applied to all of the drive trays. You must wait for all the drives to come online (persistent green LEDs) before turning on the power to the controller-drive tray.

3. Turn on both power switches on the rear of the controller-drive tray.

Depending on your configuration, it can take up to ten minutes for the controller-drive tray to complete the power-on process. The controllers reboot several times during the initial startup sequence, which causes the fans to ramp up and down and the LEDs to flash on and off.

4. Check the LEDs on the front and the rear of the controller-drive trays and the attached drive trays.

5. If you see any amber LEDs, make a note of their location.

Page 98

| E2700 Controller-Drive Tray and Related Drive Trays Installation Guide

Things to know - LEDs on the controller-drive tray

• LEDs on the left end cap

Table 9: LEDs on the left end cap

Location

1 Controller-

2 Service Action

3 Controller-

4 Power Green Power is present. Power is not present. 5 Standby Power Green The controller-drive tray is

• LEDs on the drive

LED Color On Off

Drive Tray Locate

Required

Drive Tray OverTemperature

White Identifies a controller-drive

tray that you are trying to find.

Amber A component within the

controller-drive tray needs attention.

Amber The temperature of the

controller-drive tray has reached an unsafe level.

in Standby Power mode.

Normal status.

The controller-drive tray is not in Standby Power mode.

Page 99

Step 10 - Turning on the power and checking for problems in a controller-drive tray configuration | 99

Table 10: LEDs on the drive

Location

LED Color On Blinking Off

1 Drive

Power

2 Drive

Service Action Required

3 Drive

Service Action Allowed

• Drive states represented by LEDs

Green The power is

turned on, and the drive is operating normally.

Amber An error has

occurred.

Blue The drive

canister can be removed safely from the controllerdrive tray.

Drive I/O activity is taking place.

The power is turned off.

Normal status.

The drive canister cannot be removed safely from the controller-drive tray.

Table 11: Drive states represented by LEDs

Drive state

Power is not applied. Off Off Normal operation – The power is turned on,

but drive I/O activity is not occurring.

Drive Power LED (Green)

Drive Service Action Required LED (Amber)

On Off

Page 100

100 | E2700 Controller-Drive Tray and Related Drive Trays Installation Guide

Drive state Drive Power LED

(Green)

Normal operation – Drive I/O activity is

Blinking Off

occurring. Service action required – A fault condition

On On

exists, and the drive is offline.

• LEDs on the controller canister main faceplate

Table 12: LEDs on the controller canister main faceplate

Drive Service Action Required LED (Amber)

Location

LED Color On Off

1 Ethernet

Connector 1 Link Rate LED

2 Ethernet

Connector 1 Link Active LED

3 Ethernet

Connector 2 Link Rate LED

4 Ethernet

Connector 2 Link Active LED

5 Host Link 1

Service Action Required LED

Green There is a 1000 Gb/s

rate.

Green The link is up (LED

blinks when there is activity).

Green There is a 1000 Gb/s

rate.

Green The link is up (the LED

blinks when there is activity).

Amber At least one of the four

PHYs is working, but another PHY cannot establish the same link to the device connected to the Host IN port connector.

There is a 10BASE-T rate.

The link is not active.

There is a 10BASE-T rate.

The link is not active.

No link error has occurred.
