NetApp DE6600 Quick Install Manual

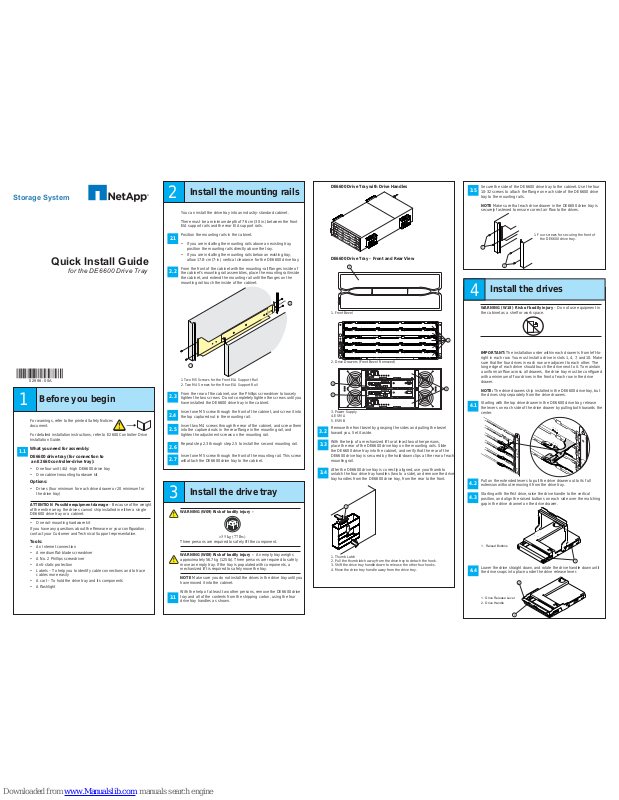

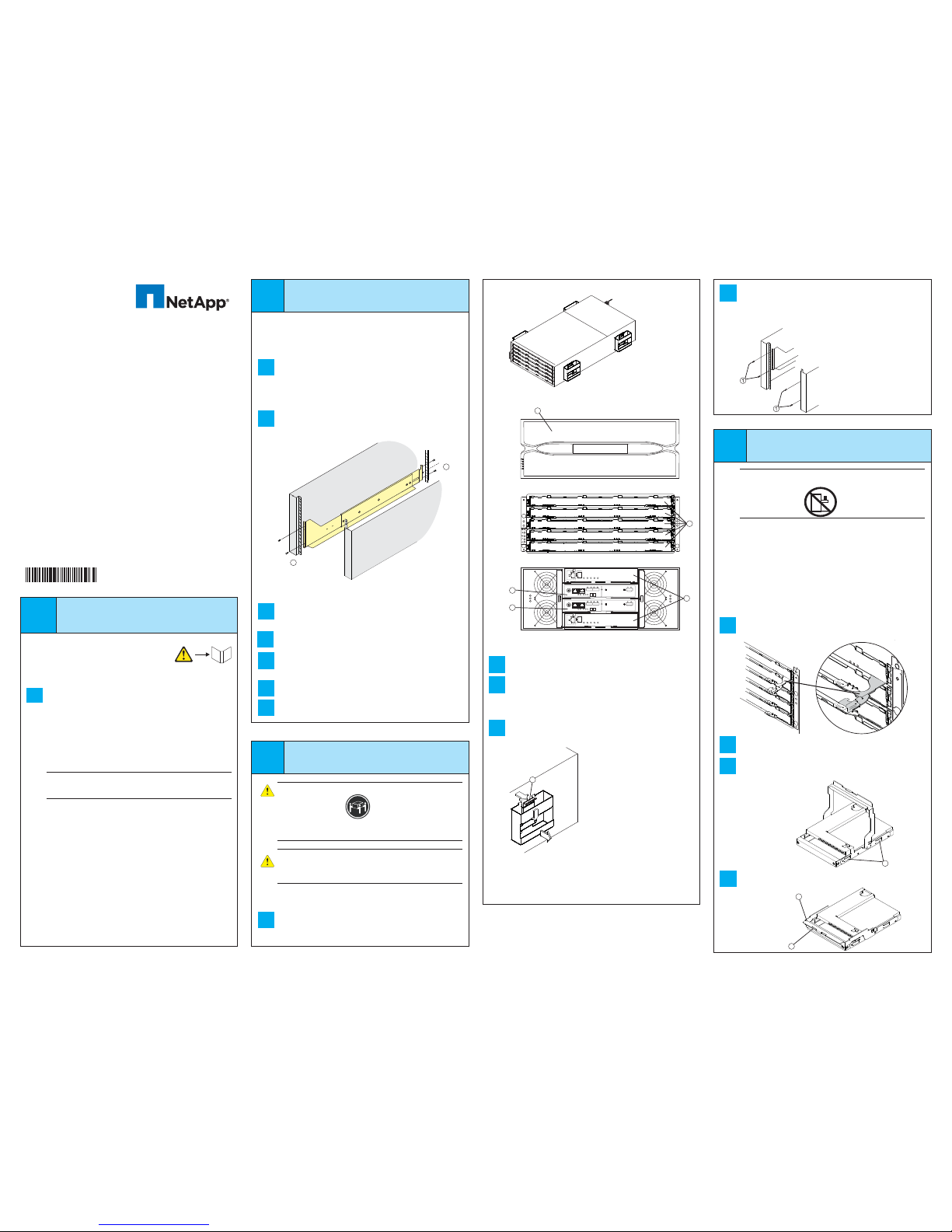

Page 1

Before you begin

Install the mounting rails

You can install the drive tray into an industry-standard cabinet. There must be a minimum depth of 76 cm (30 in.) between the front

EIA support rails and the rear EIA support rails. Position the mounting rails in the cabinet.

• If you are installing the mounting rails above an existing tray, position the mounting rails directly above the tray.

• If you are installing the mounting rails below an existing tray, allow 17.8-cm (7-in.) vertical clearance for the DE6600 drive tray.

From the front of the cabinet with the mounting-rail ﬂ anges inside of the cabinet’s mounting rail assemblies, place the mounting rail inside the cabinet, and extend the mounting rail until the ﬂ anges on the mounting rail touch the inside of the cabinet.

2.1

For warnings, refer to the printed Safety Notices document.

For detailed installation instructions, refer to E2600 Controller-Drive Installation Guide.

What you need for assembly: DE6600 drive tray (for connection to

an E2660 controller-drive tray):

• One four-unit (4U) -high DE6600 drive tray

• One cabinet-mounting hardware kit

Options:

• Drives (four minimum for each drive drawer or 20 minimum for the drive tray)

ATTE NTI ON Possible equipment damage – Because of the weight of the entire array, the drives cannot ship installed in either a single DE6600 drive tray or a cabinet.

• One rail-mounting hardware kit

If you have any questions about the ﬁ rmware or your conﬁ guration, contact your Customer and Technical Support representative.

Tools:

• An Internet connection

• A medium ﬂ at-blade screwdriver

• A No. 2 Phillips screwdriver

• Anti-static protection

• Labels – To help you to identify cable connections and to trace cables more easily

• A cart – To hold the drive tray and its components

• A ﬂ ashlight

1.1

2.2

3.4

3.3

3. Power Supply

4. ESM A

5. ESM B

1. Two M5 Screws for the Front EIA Support Rail

2. Two M4 Screws for the Rear EIA Support Rail

From the rear of the cabinet, use the Phillips screwdriver to loosely tighten the two screws. Do not completely tighten the screws until you have installed the DE6600 drive tray in the cabinet.

Insert one M5 screw through the front of the cabinet, and screw it into the top captured nut in the mounting rail.

Insert two M4 screws through the rear of the cabinet, and screw them into the captured nuts in the rear ﬂ ange in the mounting rail, and tighten the adjustment screws on the mounting rail.

Repeat step 2.3 through step 2.5 to install the second mounting rail.

Insert one M5 screw through the front of the mounting rail. This screw will attach the DE6600 drive tray to the cabinet.

DE6600 Drive Tray with Drive Handles

DE6600 Drive Tray – Front and Rear View

2.3

2.4

2.5

1. Front Bezel

2. Drive Drawers (Front Bezel Removed)

8 8

Quick Install Guide

for the DE6600 Drive Tray

52998- 00A

Storage System

2.6

2.7

Install the drive tray

WARNING (W09) Risk of bodily injury –

>35 kg (77 lbs)

Three persons are required to safely lift the component.

WARNING (W08) Risk of bodily injury – An empty tray weighs approximately 56.7 kg (125 lb). Three persons are required to safely move an empty tray. If the tray is populated with components, a mechanized lift is required to safely move the tray.

NOTE Make sure you do not install the drives in the drive tray until you have moved it into the cabinet.

With the help of at least two other persons, remove the DE6600 drive tray and all of the contents from the shipping carton, using the four drive tray handles as shown.

3.1

Remove the front bezel by grasping the sides and pulling the bezel toward you. Set it aside.

With the help of a mechanized lift or at least two other persons, place the rear of the DE6600 drive tray on the mounting rails. Slide the DE6600 drive tray into the cabinet, and verify that the rear of the DE6600 drive tray is secured by the hold-down clips at the rear of each mounting rail.

After the DE6600 drive tray is correctly aligned, use your thumb to unlatch the four drive tray handles (two to a side), and remove the drive tray handles from the DE6600 drive tray, from the rear to the front.

1. Thumb Latch

2. Pull the thumb latch away from the drive tray to detach the hook.

3. Shift the drive tray handle down to release the other four hooks.

4. Move the drive tray handle away from the drive tray.

3.2

Secure the side of the DE6600 drive tray to the cabinet. Use the four 10-32 screws to attach the ﬂ ange on each side of the DE6600 drive tray to the mounting rails.

NOTE Make sure that each drive drawer in the DE6600 drive tray is securely fastened to ensure correct air ﬂ ow to the drives.

1. Four screws for securing the front of the DE6600 drive tray.

3.5

WARNING (W 18) Risk of bodily injury – Do not use equipment in

the cabinet as a shelf or work space.

IMPORTANT: The installation order within each drawer is from left-toright in each row. You must install a drive in slots 1, 4, 7, and 10. Make sure that the four drives in each row are adjacent to each other. The long edge of each dirive should touch the drive next to it. To maintain a uniform airﬂ ow across all drawers, the drive tray must be conﬁ gured with a minimum of four drives in the front of each row in the drive drawer.

NOTE: The drive drawers ship installed in the DE6600 drive tray, but the drives ship separately from the drive drawers.

Install the drives

4.1

Starting with the top drive drawer in the DE6600 drive tray, release the levers on each side of the drive drawer by pulling both towards the center.

4.3

Pull on the extended levers to pull the drive drawer out to its full extension without removing it from the drive tray.

Starting with the ﬁ rst drive, raise the drive handle to the vertical position, and align the raised buttons on each side over the matching gap in the drive channel on the drive drawer.

4.2

1. Raised Buttons

Lower the drive straight down, and rotate the drive handle down until the drive snaps into place under the drive release lever.

4.4

1. Drive Release Lever

2. Drive Handle

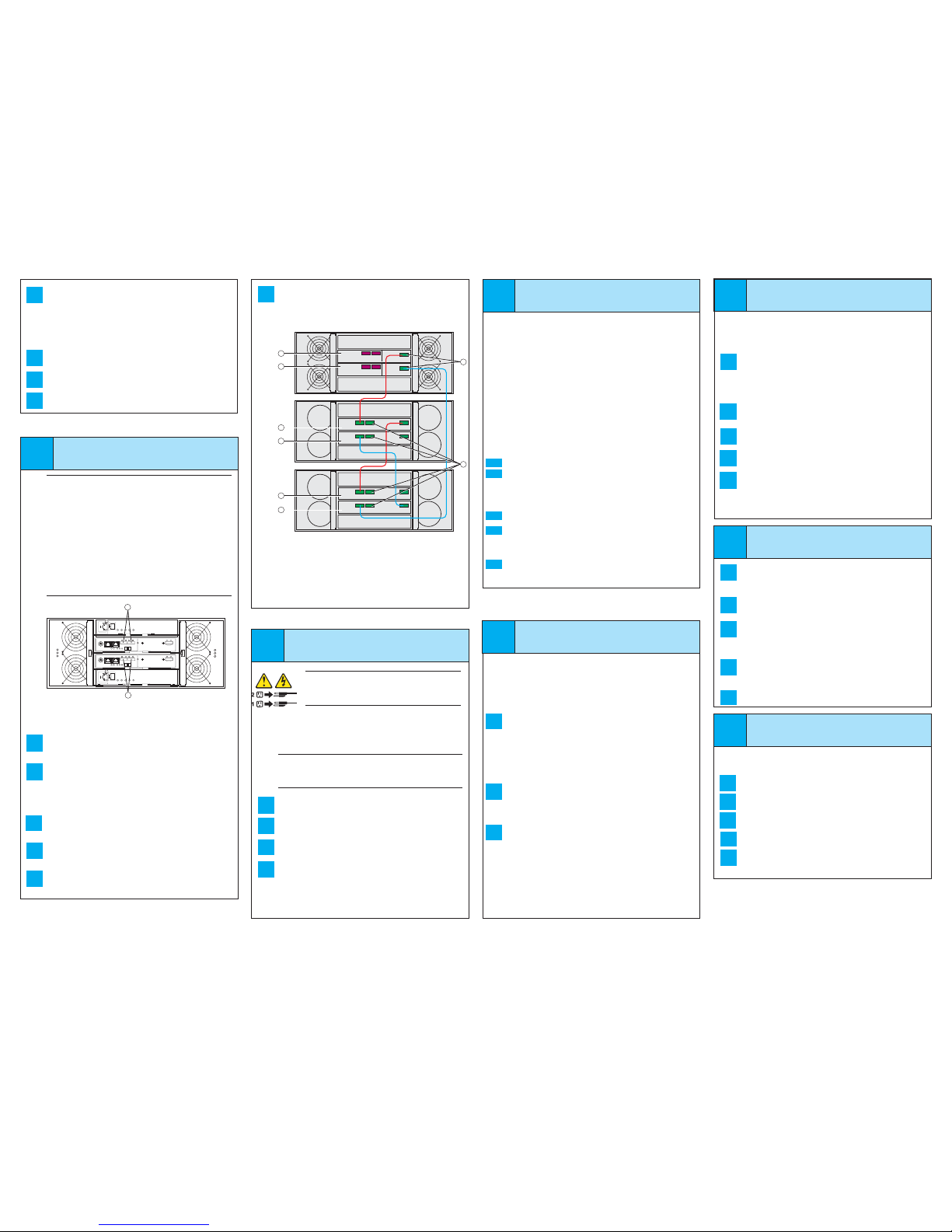

Page 2

Discover the storage array

Determine the management method

In the AMW, select the Setup tab. If the storage array is in the Optimal state, perform these tasks:

Conﬁ gure the storage array.

Deﬁ ne the hosts.

Create new storage partitions.

Select the Support tab, and click the Gather Support Information link.

To set or change a password, in the AMW, select either the

Set a Storage Array Password link under the Setup tab, or select Storage Array >> Security >> Set Password.

11.1

11.2

11.3

11.4

11.5

Conﬁ gure the storage array

In the AMW, select the Setup tab, and select the Rename Storage Array link to name the storage array. You can use up to 30 alphanumeric characters, hyphens (-), pound signs (#), and underscores (_).

Also on the Setup tab, click the Locate Storage Array link to ﬁ nd the storage array in the cabinet. A white LED blinks on the front of the selected storage array. Physically label the storage array with its name.

Click the Storage & Copy Services tab to see the storage array’s conﬁ guration.

If the storage array is not in the Optimal state, click the Needs Attention link. Follow the steps in the Recovery Guru.

Select the Summary tab, and select Storage Array Proﬁ le. By clicking the tabs, ﬁ nd the controller ﬁ rmware version , NVSRAM,

ESM ﬁ rmware version, drive product ID, and record them. Close the storage array proﬁ le.

Perform a basic setup

You must follow the power sequence in the order shown. To establish power redundancy for trays with two power supplies, use at least two different power distribution units (PDUs) in the cabinet. Split the power connections from each tray into the separate PDUs. Then connect the PDUs to external power receptacles that are on different circuits.

IMPORTANT You must turn on the power to all connected drives before you turn on the power for the controller-drive tray. Performing this action makes sure that the controllers recognize each attached DE6600 drive tray.

Turn on the power

ATTE NTI ON Risk of bodily injury – Each tray has more

than one power cord. To remove all electrical current from the devices, make sure that all of the power cords are disconnected from the power source.

March 2012

NetApp Inc. 495 East Java Drive Sunnyvale, CA 94089 U.S .A. Telephone: + (408) 822-6000 Fax: +1 (408) 822-4501 Support telephone: +1 (888) 4 -NETAPP Document comments: [email protected] om Information Web: http://w ww.netapp.com

Connect the cables

1. Controller A of the E2660 Controller-Drive Tray

2. Controller B of the E2660 Controller-Drive Tray

3. ESM A on the DE6600 Drive Trays

4. ESM B on the DE6600 Drive Trays

5. ESM SAS IN Connector, Two per DE6600 Drive Tray

6. SAS Expansion Connectors on Controller A and Controller B

For more information about cabling conﬁ gurations, refer to either

E2660 Controller-Drive Tray Installation Guide or Hardware Cabling Guide.

EXP

ESM A

SAS IN

EXP

ESM B

EXP

SAS IN

EXP

Controller A

Controller B

EXP

ESM A

SAS IN

EXP

ESM B

8 8

1. SAS In Connectors on Controller A

2. SAS In Connectors on Controller B

On the second DE6600 drive tray, connect the SAS expansion connector of ESM B to one of the SAS IN connectors on ESM B of the ﬁ rst DE6600 drive tray.

5.6

Before performing this step, make sure that you have correctly conﬁ gured the storage array IP addresses as described in the Initial

Conﬁ guration and Software Installation Guide for SANtricity ES Storage Manager.

Start the SANtricity ES Storage Manager software from your management station either by typing SMclient and pressing Enter (UNIX OSs), or by navigating to the directory that contains the SMclient.exe ﬁ le, typing SMclient and pressing Enter (Windows OSs). The client software starts and shows the Enterprise Management Window (EMW).

Select Tools >> Automatic Discovery from the EMW to discover the storage array.

In the conﬁ guration dialog, click OK to start the automatic discovery.

Click the Devices tab of the EMW to see the storage arrays.

Double-click the storage array that you want to manage. The associated Array Management Window (AMW) is launched.

NOTE To add a storage array from outside the local subnetwork, use the manual discovery method. From the EMW, click the Add Storage

Arrays link, and follow the instructions.

9.5

9.4

9.3

9.2

9.1

Install the other drives in rows from left-to-right, front-to-back, until the drive drawer is fully populated.

NOTE The maximum number of drives in a standard conﬁ guration cannot exceed 180. The total number of DE6600 drive trays in a standard conﬁ guration is 2. The total number of trays in the storage array (including the controller-drive tray and all of the attached drive trays) must not exceed 3.

Push the drive drawer all the way back into the drive tray, and close the levers on each side of the drive drawer.

Continue with the next drive drawer, by repeating step 4.1 through step 4.6 for each drive drawer in the conﬁ guration.

When all the drives have been installed, attach the front bezel onto the front of the DE6600 drive tray.

4.7

4.6

4.5

4.8

10.1

10.2

10.3

10.4

10.5

Install the software

8.1

8.2

8.3

Two types of computers are associated with the storage array.

• Hosts send I/O to the storage array.

• Management stations manage the storage array. The type of operating system that the management station runs is the

directory that you need to locate on the DVD. At this time, check the BIOS and device driver versions for your current

Fibre Channel HBA, SAS HBA, or iSCSI Network Interface Card (NIC). If necessary, update them before proceeding. For HBAs, obtain the BIOS and device drivers directly from the vendor.

For Microsoft Windows installations,

• Install the StorPort device driver.

• Install the MPIO multi-path driver on the host. On the SANtricity ES Storage Manager Installation DVD, locate the

appropriate operating system (OS) directory.

• Review the appropriate operating system and device driver readme ﬁ les included on the SANtricity ES Storage Manager Installation DVD for additional information.

Launch the SMIA executable ﬁ le. Follow the instructions in the wizard, and select one of these installation methods:

• For the Management Station designated as a monitor (for monitoring and sending alert notiﬁ cations), select Management

Station (full installation), and, when prompted, click Automatically Start Monitor.

• For the Management Station that you will use to manage the storage array, select Management Station, and, when prompted, select Do Not Automatically Start the Monitor.

• For all I/O hosts attached to the storage array, select Host and

Do Not Automatically Start the Monitor.

Both management methods are speciﬁ c to the installation steps in Section 9. This section and those that follow concern conﬁ guration of the entire storage array.

• In-band management – Managing a storage array by using a storage management station to send commands through the host input/output (I/O) connection to the controller.

• Out-of-band management – Managing a storage array by using a storage management station to send commands through the Ethernet connections on each controller.

7.c1

7.b2

7.b1

7.a 2

7.a1

For more information, refer to the “Deciding on the Management Method” step in the Initial Conﬁ guration and Software Installation Guide for SANtricity™ ES Storage Manager.

For Out-of-band management, use one of the methods below to conﬁ gure the controllers for network connectivity:

Without a DHCP server Connect separate Ethernet cables to each controller.

Manually conﬁ gure the network settings on the controllers, using the guidelines and procedures from the “Manually Conﬁ guring the Controllers” step in the Initial Conﬁ guration and Software Installation Guide for SANtricity ES Storage Manager.

With a DHCP server Connect separate Ethernet cables to each controller.

Assign static IP addresses to the controllers.

NOTE This method applies only to IPv4 networks.

Stateless Address Autoconﬁ guration

Connect separate Ethernet cables to each controller. NOTE This method applies only to IPv6 networks and does not require

either a DHCP server or a router.

Steps to connect one DE6600 drive tray to an E2660 controller-drive tray:

Starting with the E2660 controller-drive tray, connect the SAS expansion connector of controller A to one of the SAS IN connectors on ESM A of the ﬁ rst DE6600 drive tray.

On the E2660 controller-drive tray, connect the SAS expansion connector of controller B to one of the SAS IN connectors on ESM B of the ﬁ rst DE6600 drive tray.

Steps to connect a second DE6600 drive tray to a E2660 controller-drive tray:

Starting with the E2660 controller-drive tray, connect the SAS expansion connector of controller A to one of the SAS IN connectors on ESM A of the ﬁ rst DE6600 drive tray.

5.2

5.1

5.3

Turn off all of the Power switches from the rear of the storage array, and make sure that all of the power cords are connected.

If the main circuit breaker switches in the cabinet are not already turned on, turn on the circuit breaker switches.

Turn on the Power switch on each power-fan canister in all of the newly installed drive trays.

Turn on the Power switch on each power-fan canister in the controller-drive tray.

NOTE When turning off the power to the storage array, perform the procedure in the reverse order. Turn off the power ﬁ rst to the E2660 controller-drive tray, and then turn off the power to the DE6600 drive trays.

6.3

6.2

6.1

6.4

ATTENTION Potential damage to equipment (Network Telecommunications Equipment (NEBS) Ethernet cable installations only) – The intra-building port(s) (Ethernet maintenance

ports) of this equipment is suitable for connection to intra-building or unexposed wiring or cabling only. The intra-building port(s) of this equipment must not be metallically connected to interfaces that connect to the Outside Plant (OSP) or its wiring. These interfaces are designed for use as intra-building interfaces only (Type 2 or Type 4 ports as described in GR-1089-CORE) and require isolation from the exposed OSP cabling. The addition of Primary Protectors is not sufﬁ cient protection in order to connect these interfaces metallically to OSP wiring.

The cable shall be Shielded Twisted Pair (STP) and must be grounded at both ends to meet the intra-building lightning requirements from section 4.6.9.2 of GR-1089-CORE, Issue #5.

5.4

On the E2660 controller-drive tray, connect the SAS expansion connector of controller B to one of the SAS IN connectors on ESM B of the second DE6600 drive tray.

On the ﬁ rst DE6600 drive tray, connect the SAS expansion connector of ESM A to one of the SAS IN connectors on ESM A of the second DE6600 drive tray.

5.5
