Page 1

0 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18

480 GB

DS2246

LINK LINKLINK LINK

0a 0b 0c 0d

e0be0a

e0e e0fe0c e0d

LINKLINKLINK LINK

L N K

X2067

INTLNK

LNK ACT

X3149A

210-06615+A0

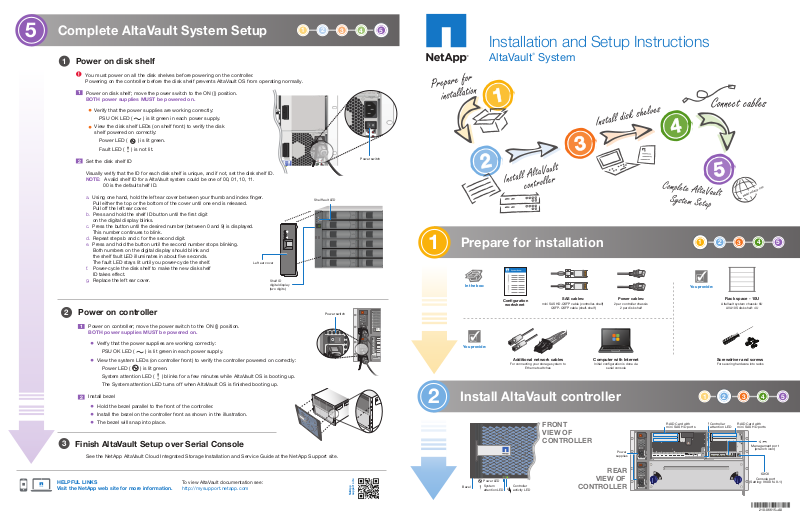

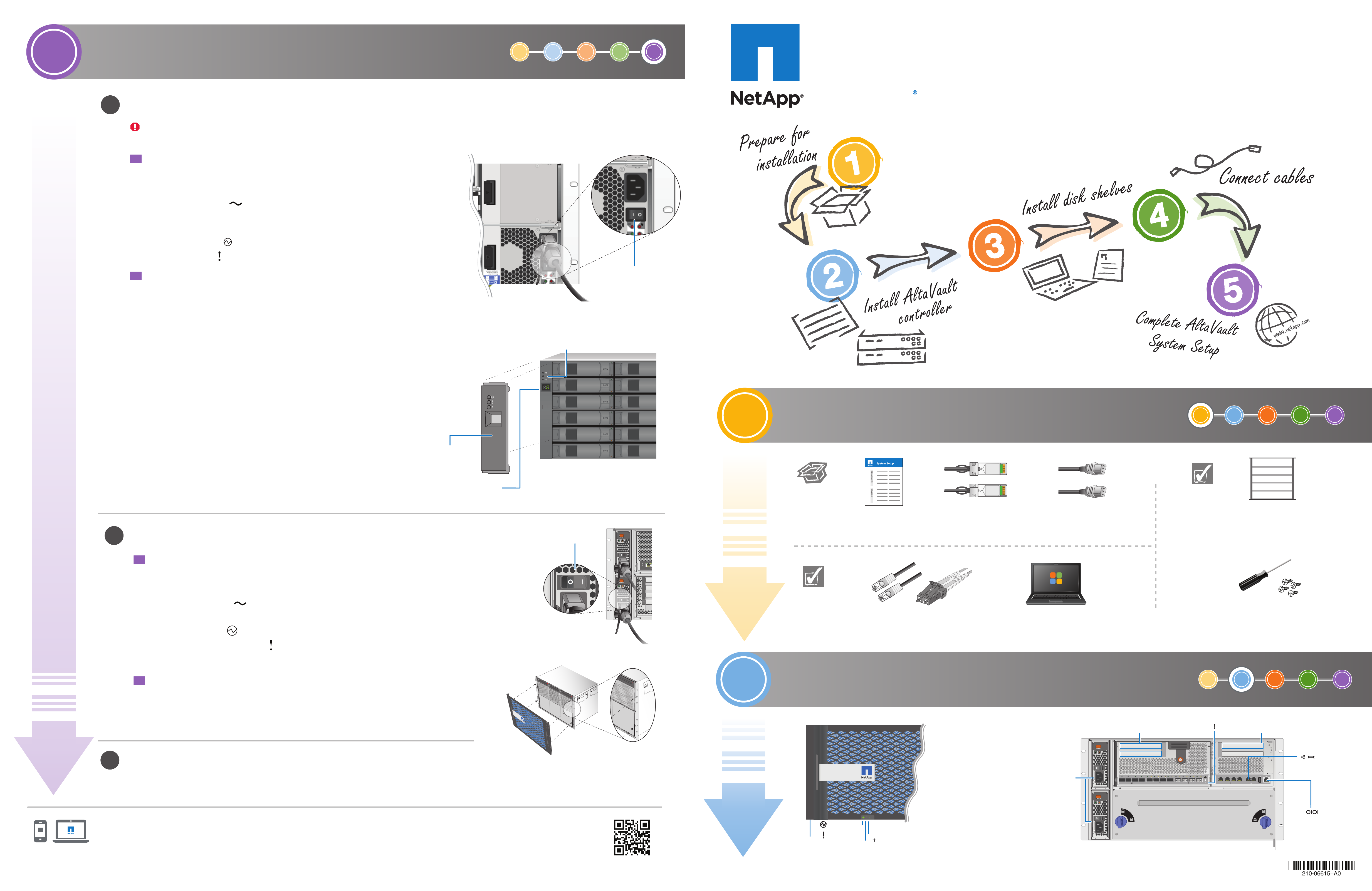

Complete AltaVault System Setup

Installation and Setup Instructions

Power on disk shelf

You must power on all the disk shelves before powering on the controller. Powering on the controller before the disk shelf prevents AltaVault OS from operating normally.

Power on disk shelf; move the power switch to the ON (|) position.

BOTH power supplies MUST be powered on.

Verify that the power supplies are working correctly:

•

PSU OK LED ( ) is lit green in each power supply.

View the disk shelf LEDs (on shelf front) to verify the disk

•

shelf powered on correctly:

Power LED ( ) is lit green.

Fault LED ( ) is not lit.

AltaVault System

Set the disk shelf ID

Visually verify that the ID for each disk shelf is unique, and if not, set the disk shelf ID.

NOTE: A valid shelf ID for a AltaVault system could be one of 00, 01, 10, 11.

00 is the default shelf ID.

a. Using one hand, hold the left ear cover between your thumb and index nger.

Pull either the top or the bottom of the cover until one end is released. Pull off the left ear cover.

b. Press and hold the shelf ID button until the rst digit

on the digital display blinks.

c. Press the button until the desired number (between 0 and 9) is displayed.

This number continues to blink.

d. Repeat steps b and c for the second digit. e. Press and hold the button until the second number stops blinking.

Both numbers on the digital display should blink and the shelf fault LED illuminates in about ve seconds.

Shelf fault LED

480 GB

Power switch

480 GB

Prepare for installation

4 5

The fault LED stays lit until you power-cycle the shelf.

f. Power-cycle the disk shelf to make the new disk shelf

ID takes effect.

g. Replace the left ear cover.

Power on controller

Power on controller; move the power switch to the ON (|) position.

BOTH power supplies MUST be powered on.

Verify that the power supplies are working correctly:

•

PSU OK LED ( ) is lit green in each power supply.

Left ear cover

Shelf ID digital display (two digits)

Power switch

In the box:

Conﬁguration

worksheet

You provide:

mini SAS HD-QSFP cable (controller-shelf)

QSFP-QSFP cable (shelf-shelf)

SAS cables:

Power cables:

2 per controller chassis

2 per disk shelf

You provide:

Rack space - 10U

AltaVault system chassis: 6U

AVA10S disk shelf: 4U

View the system LEDs (on controller front) to verify the controller powered on correctly:

•

Power LED ( ) is lit green.

System attention LED ( ) blinks for a few minutes while AltaVault OS is booting up.

The System attention LED turns off when AltaVault OS is nished booting up.

Install bezel

Hold the bezel parallel to the front of the controller.

•

Install the bezel on the controller front as shown in the illustration.

•

The bezel will snap into place.

•

Finish AltaVault Setup over Serial Console

See the NetApp AltaVault Cloud Integrated Storage Installation and Service Guide at the NetApp Support site.

Additional network cables

For connecting your storage system to

Ethernet switches

Computer with Internet

Initial conguration is done via

serial console

Install AltaVault controller

FRONT VIEW OF CONTROLLER

Power

supplies

Screwdriver and screws

For securing hardware into racks

RAID Card with mini SAS HD ports

LNK

LNK LNK

LNK L

e0b e0c

LNK LNK

LNK

e0d

0e|0e

X2067

LNK

0g|0ge0h|0h

0f|0f

Controller attention LED

X3149A

e i

e k

e j

RAID Card with mini SAS HD ports

Management port

4 5

(wrench icon)

HELPFUL LINKS Visit the NetApp web site for more information.

To view AltaVault documentation see:

http://mysupport.netapp.com

NetApp

support site

Bezel

Power LED

System attention LED

Controller

activity LED

REAR

VIEW OF

CONTROLLER

Console port

(Setting: 9600 N-8-1)

Page 2

X2067

X3149A

e i

e j

e k

e i

LNK LNK

e0b e0c

e0d

LNK

LNK LNK

LNK

0e|0e

0f|0f

0g|0ge0h|0h

e i

e j

e k

e i

Install AltaVault controller

4 5

Connect cables

Install controller in rack or cabinet

NOTE: Controller and disk shelves are shipped in separate boxes.

Alternatively, you can mid-mount the chassis using the mid-mount brackets provided in the rail kit.

Install the mounting rails (provided in rail kit) following the instructions in rail kit.

Use chassis handles while lifting.

•

Mount the chassis in the rack.

Secure chassis to rack using appropriate screws (not provided).

CAUTION

LIFTING HAZARD

95 lbs. (43.1 kg)

Optional 2-Post

Mid-mount Brackets

Connect controller to networks

Connect the management port (wrench

•

icon) on your controller to the Ethernet switch in your management network, using a network cable.

See your network administrator for help connecting to your switches.

Connect 10GigE ports or GigE ports for

•

data connection.

To host

1 3 5 7

1000/100/10M LNK/

1211141316156587109214

1000/100/10M LNK/

2 4 6 8

To Ethernet switch

To Ethernet switch 1

1211141316156587109214

9 11 13 15

10 12 14 16

1000/100/10M LNK/

Network cable

1 3 5 7

9 11 13 15

2 4 6 8

10 12 14 16

To management port (wrench icon) on

controller

GigE ports

GigE or 10GigE cables

10GigE ports

LNK

e0a

LNK

e0b

LNK

e0c

LNK

e0d

Install disk shelves

FRONT VIEW OF DISK SHELF

4 5

Connect controller to a computer

Serial console is needed to congure IP address for management port. Once this is done, further conguration can be done using a web browser and connecting to the management IP address.

Connect controller to shelf

NOTE: For optimal system performance, it is required that you

cable your storage system as described here.

Windows client

Latch release

VLAN

1 3 5 7

9 11 13 15

2 4 6 8

10 12 14 16

Management subnet

AltaVault system

LNK

0h|0h

e j

e i

CLICK

Management

port

e i

e k

Console port

To controller

mini SAS HD port

Shelf LEDs: power shelf fault activity

Shelf ID digital display

(two digits)

Left ear cover

REAR VIEW OF DISK SHELF

Power supply LEDs :

PSU ok DC fault

AC fault Fan fault

24 Disk drives

Two I/O modules (IOM6)

IOM fault LED

Disk activity and fault LEDs

SAS ports SAS port link LEDs

Right ear cover

SAS cabling instructions

To controller: Ensure that latch release is facing up. To disk shelf: Ensure that latch release is facing down.

Insert this end of the SAS cable into the mini SAS HD port on the controller.

- Y

ou hear a distinct click when the c

able latches securely in the port.

- Tug on the cable to make sure the cable is latched securely.

- Re-attach the cable if you do not hear the click sound

Pull latch release to remove SAS cable.

or if the cable is loose.

Conﬁguration

AltaVault controller: 1

•

Up to 3 AVA10S shelves

•

1 Meter mini SAS to QSFP+

5 Meter mini SAS to QSFP+

Latch release

CLICK

To disk shelf SAS

port

X3149A

LNK

LNKL

LNK

e0b e0c

LNK LNK

LNK

e0d

X2067

LNK

0g|0ge0h|0h

0f|0f

0e|0e

e i

e k

e j

e i

NOTE:

For conguring more than one shelf, see the NetApp AltaVault Cloud Integrated Storage Installation and Service Guide.

Two power supplies with integrated fans

Disk shelf

Connect power cords

•

Install shelf in rack or cabinet

Two power supplies MUST be installed in each disk shelf.

Controller

•

DO NOT remove HDDs from the disk shelf during installation. Excessive handling of the drives can lead to internal damage.

NOTE: You can install the shelf above or below the controller.

The distance between the shelf and controller is dependent on the length of the SAS cables you plan to use.

Two power supplies MUST be installed in each controller chassis.

- Ensure the power switch on each power supply is in the OFF position (O).

Cable both power supplies for each disk shelf.

- Ensure the power switch on each

Install the mounting rails (provided in rail kit) following the instructions in rail kit. Be cautious while lifting.

Mount the disk shelf in the rack.

Secure shelf to rack using appropriate screws (not provided).

CAUTION

3.0TB

LIFTING HAZARD

3.0TB

power supply is in the OFF position (O).

Cable both power supplies for each

controller chassis.

DO NOT power on the controller at this point.

Power switch

Use retaining clips

80-100 lbs. (36-45 kg)

Alternatively, you can mid-mount the shelf using the mid-mount brackets provided in the rail kit.

Power switch
