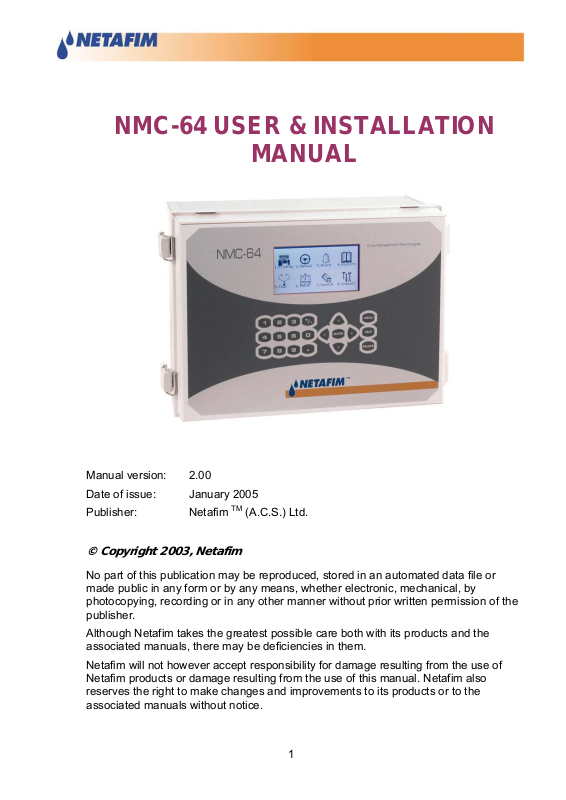

Page 1

NMC-64 USER & INSTALLATION

MANUAL

Manual version: 2.00

Date of issue: January 2005

Publisher: Netafim

No part of this publication may be reproduced, stored in an automated data file or made public in any form or by any means, whether electronic, mechanical, by photocopying, recording or in any other manner without prior written permission of the publisher.

Although Netafim takes the greatest possible care both with its products and the associated manuals, there may be deficiencies in them.

Netafim will not however accept responsibility for damage resulting from the use of Netafim products or damage resulting from the use of this manual. Netafim also reserves the right to make changes and improvements to its products or to the associated manuals without notice.

(A.C.S.) Ltd.

Page 2

NMC-64 Irrigation

Table of contents ........................................................................................................1

Introduction.................................................................................................................6

General Description............................................................................................................. 6

Main Features....................................................................................................................... 6

Operation of the NMC-64..................................................................................................... 7

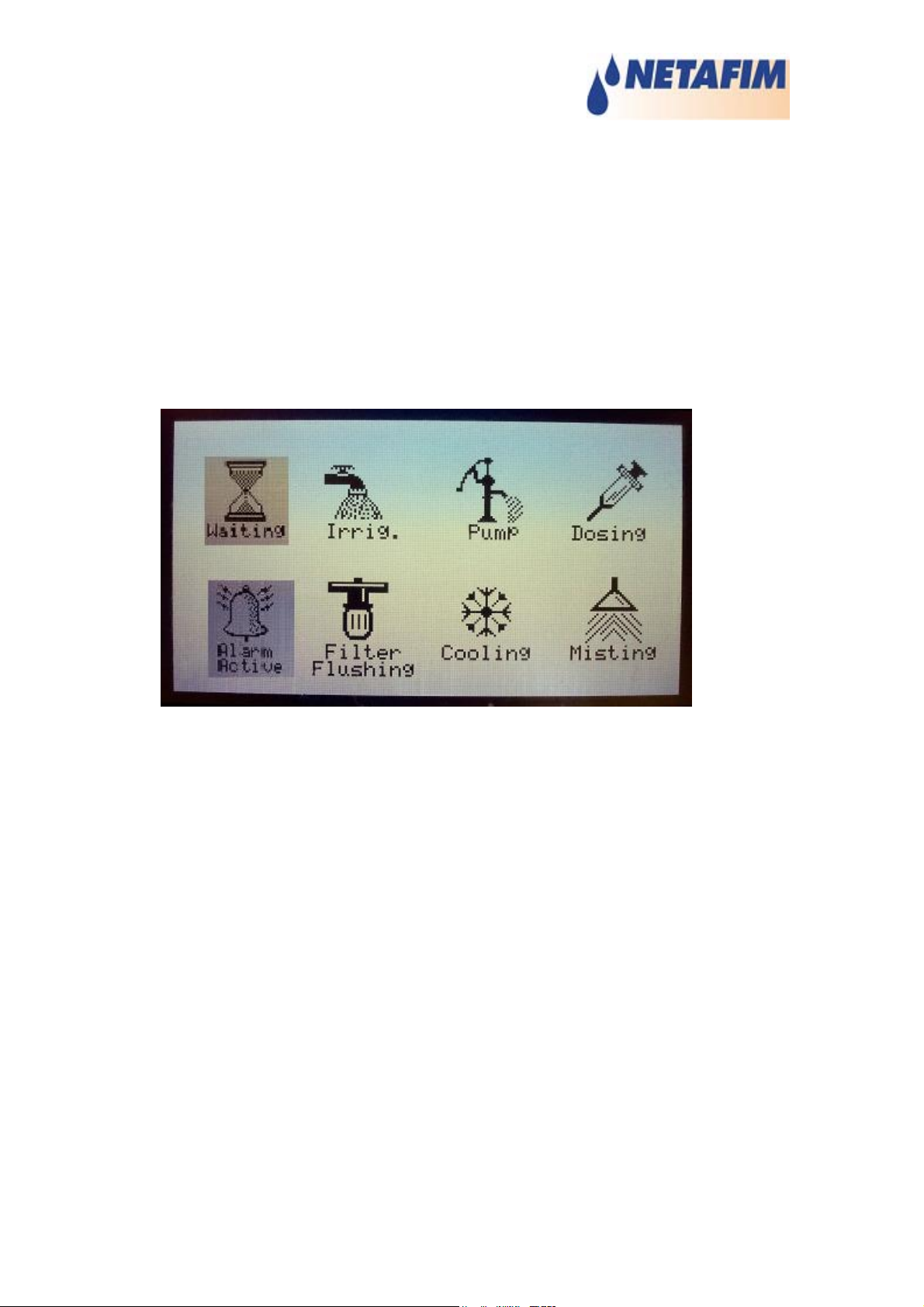

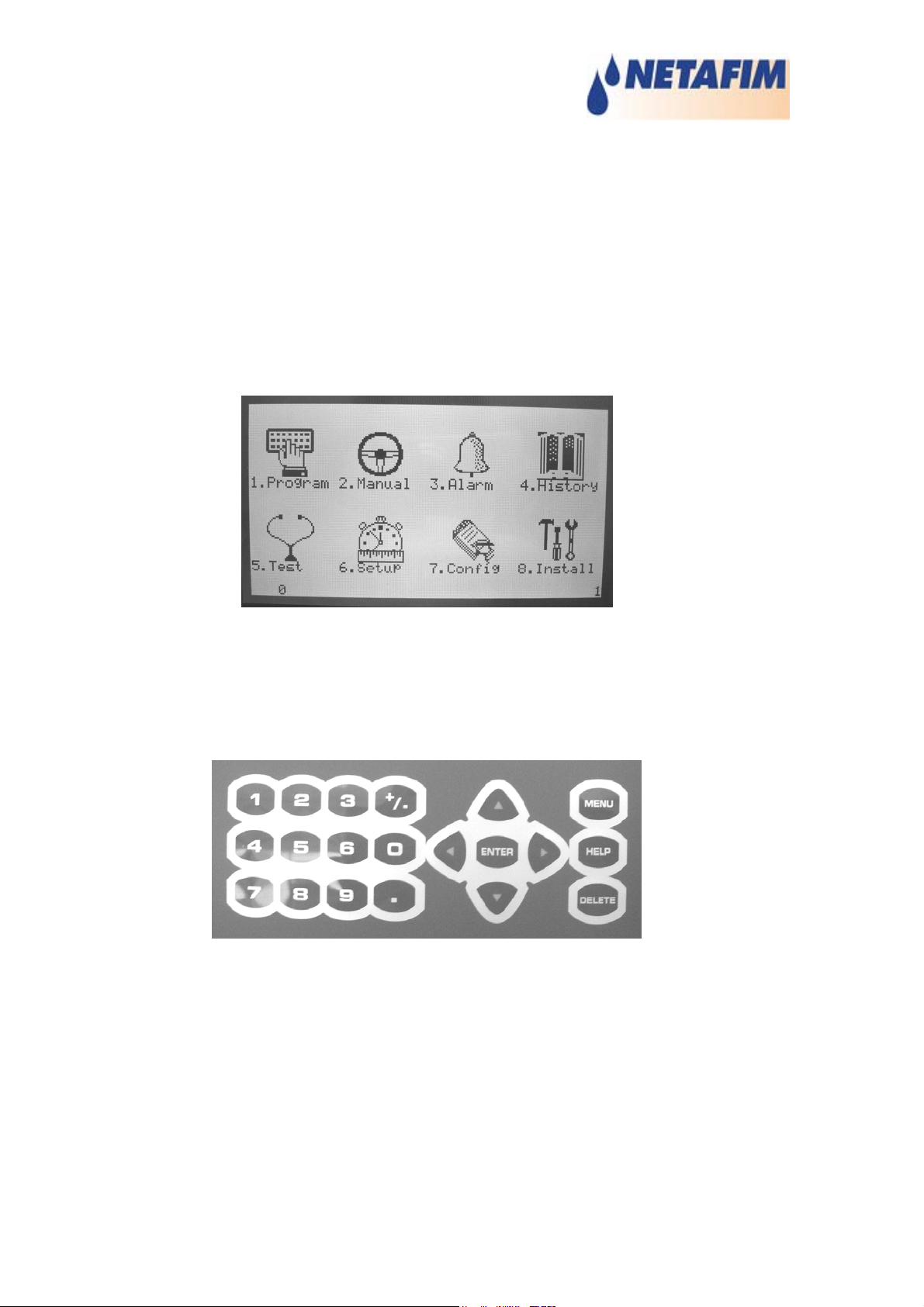

Main Menu Screen........................................................................................................................... 8

Use of the keypad: .......................................................................................................................... 8

Use of keypad buttons: .................................................................................................................. 9

Hot Screens........................................................................................................................ 10

Hot Screen 0 .................................................................................................................................. 10

Hot Screen 1 .................................................................................................................................. 11

Hot Screen 2 - Irrigation Process ................................................................................................ 11

Hot Screen 3 - Program Status. ................................................................................................... 12

Hot Screen 4 - Water / EC/pH / Fert. ............................................................................................ 13

Hot Screen 5 - Filter Flushing Status.......................................................................................... 14

Hot Screen 6 - Temperature and humidity.................................................................................. 15

Hot Screen 7 – Weather station................................................................................................... 16

Software.....................................................................................................................17

Getting started ................................................................................................................... 17

1. Program .......................................................................................................................... 18

1.1 IRRIGATION ............................................................................................................................. 19

1.2 WATER RUN TIME................................................................................................................... 22

1.3 DOSING .................................................................................................................................... 23

1.4 CONDITION .............................................................................................................................. 25

1.5 AGITATOR ............................................................................................................................... 26

1.6 SELECTOR............................................................................................................................... 26

1.7 FILTER FLUSHING .................................................................................................................. 27

1.8 COOLING ................................................................................................................................. 28

1.10 WATER HEATING.................................................................................................................. 33

2. MANUAL ......................................................................................................................... 34

2.1 PAUSE IRRIGATION................................................................................................................ 34

2.2 START/STOP PROGRAM ....................................................................................................... 34

Page 3

User & Installation Manual Table Of Contents

2.3 START/STOP VALVE...............................................................................................................35

2.4 FILTER FLUSHING...................................................................................................................35

3. ALARM ............................................................................................................................ 36

3.1 ALARM RESET.........................................................................................................................36

3.2 HISTORY...................................................................................................................................37

3.3 ALARM DEFINITION ................................................................................................................37

3.4 ALARM SETTING .....................................................................................................................39

4. HISTORY ......................................................................................................................... 40

4.1 IRRIGATION LOG.....................................................................................................................40

4.2 UNCOMPLETED IRRIGATION.................................................................................................41

4.3 UNCOMPLETED PROGRAMS.................................................................................................42

4.4 DAILY IRRIGATION..................................................................................................................42

4.5 IRRIGATION ACCUMULATION...............................................................................................43

4.6 AUX METER ACCUMULATION...............................................................................................44

4.7 ACCUMULATION RESET ........................................................................................................44

4.8 FILTERS....................................................................................................................................45

4.9 COOLING ..................................................................................................................................45

4.10 SENSORS LOG ......................................................................................................................46

4.11 EVENT LOG............................................................................................................................47

4.12 SYSTEM LOG .........................................................................................................................47

5. TEST................................................................................................................................48

5.1 RELAYS ....................................................................................................................................48

5.2 DIGITAL INPUT.........................................................................................................................49

5.3 ANALOG INPUT .......................................................................................................................49

5.4 TEMPERATURE .......................................................................................................................50

5.5 HUMIDITY .................................................................................................................................50

5.6 HARDWARE CHECK LIST.......................................................................................................51

6. SETUP ............................................................................................................................. 52

5.1 TIME & DATE............................................................................................................................52

6.2 SYSTEM SETUP.......................................................................................................................53

6.3 TEMPERATURE CALIBRATION .............................................................................................55

6.4 HUMIDITY CALIBRATION .......................................................................................................55

6.5 EC/pH CALIBRATION ..............................................................................................................55

6.6 WEATHER STATION CALIBRATION......................................................................................56

6.7 SENSORS LOGGING ...............................................................................................................56

6.8 WRITE TO DATA PLUG ...........................................................................................................57

6.9 READ FROM DATA PLUG.......................................................................................................57

Page 4

NMC-64 Irrigation

7. CONFIGURATION .......................................................................................................... 58

7.1 DEVICE DELAY CONFIGURATION........................................................................................ 58

7.2 PUMP CONFIGURATION ........................................................................................................ 59

7.3 VALVE CONFIGURATION....................................................................................................... 60

7.4 VALVE FLOW RATE................................................................................................................ 60

7.5 WATER METER ....................................................................................................................... 61

7.6 DOSING CHANNEL CONFIGURATION.................................................................................. 61

7.7 DOSING CONFIGURATION .................................................................................................... 63

7.8 EC/pH RANGE DEFINITION.................................................................................................... 64

7.9 COOLING CONFIGURATION.................................................................................................. 64

7.10 MISTING CONFIGURATION.................................................................................................. 64

8. INSTALLATION .............................................................................................................. 66

8.1 DEVICE LAYOUT..................................................................................................................... 66

8.2 Available Devices.................................................................................................................... 67

8.3/4 DIGITAL INPUTS 1-2 ............................................................................................................ 67

8.5/6 ANALOG INPUT 1-2.............................................................................................................. 68

Hardware....................................................................................................................69

General Specifications ...................................................................................................... 69

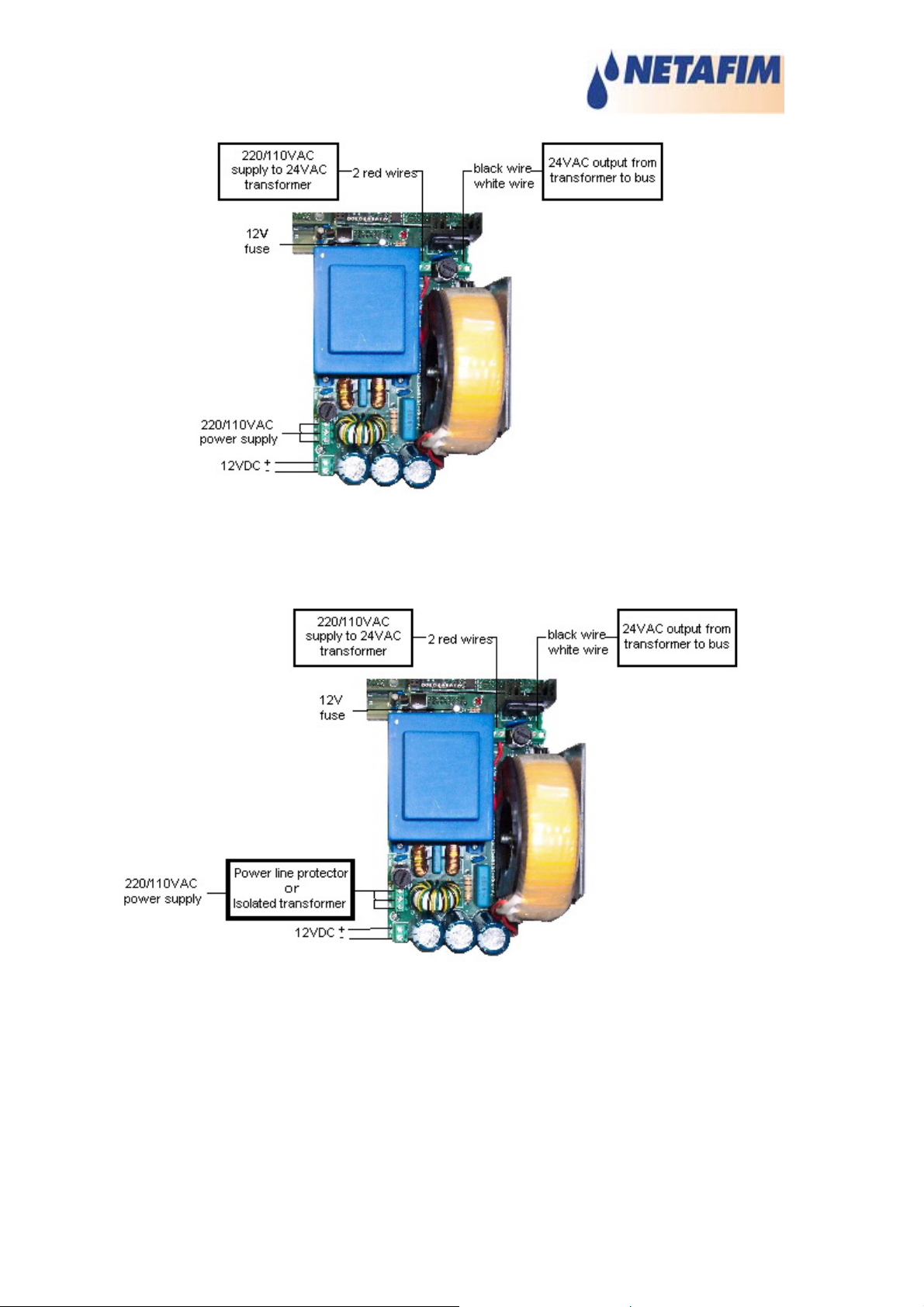

Power Supply ..................................................................................................................... 69

Specifications................................................................................................................................69

Dry Contact Output Card .................................................................................................. 71

Specifications................................................................................................................................71

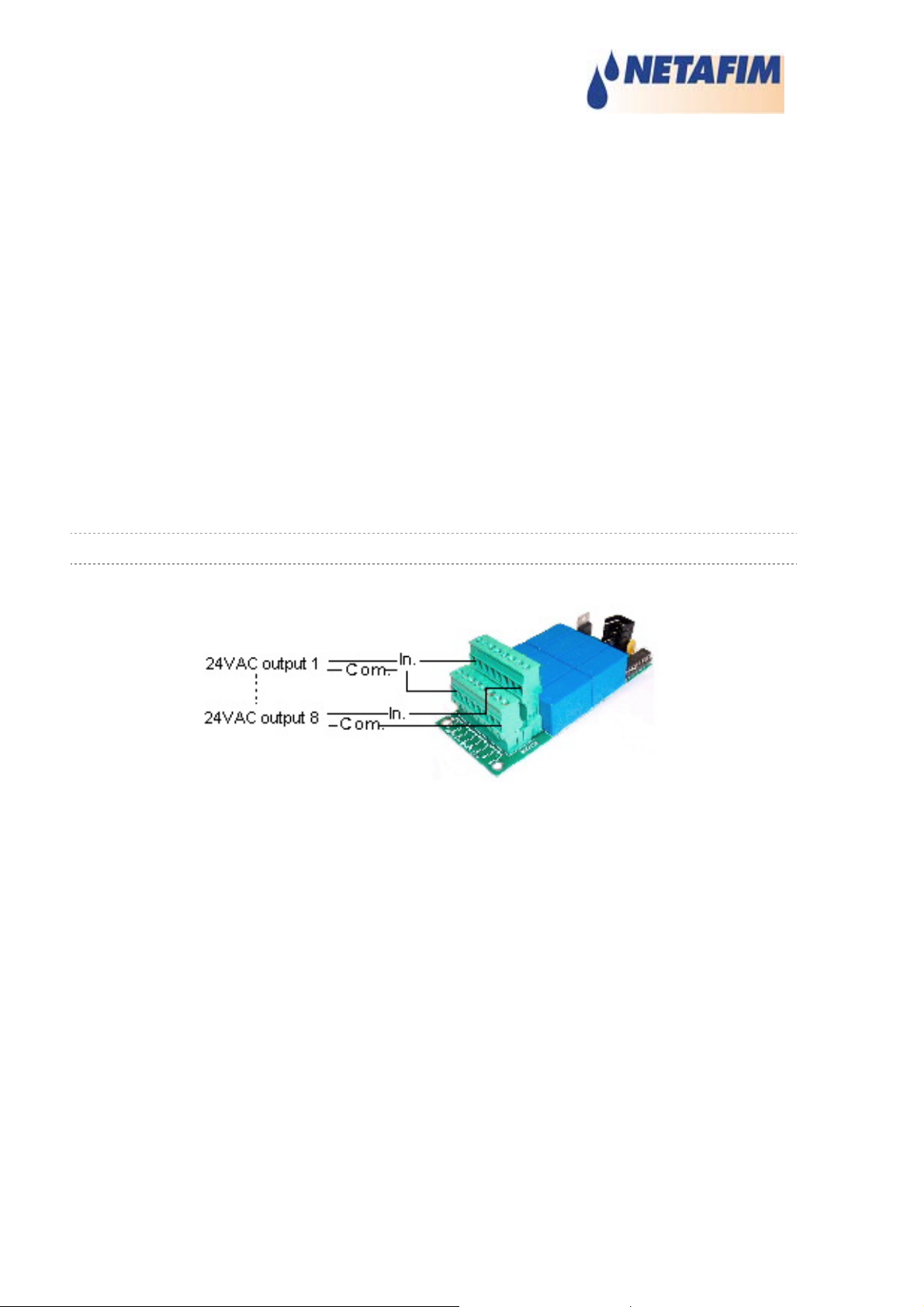

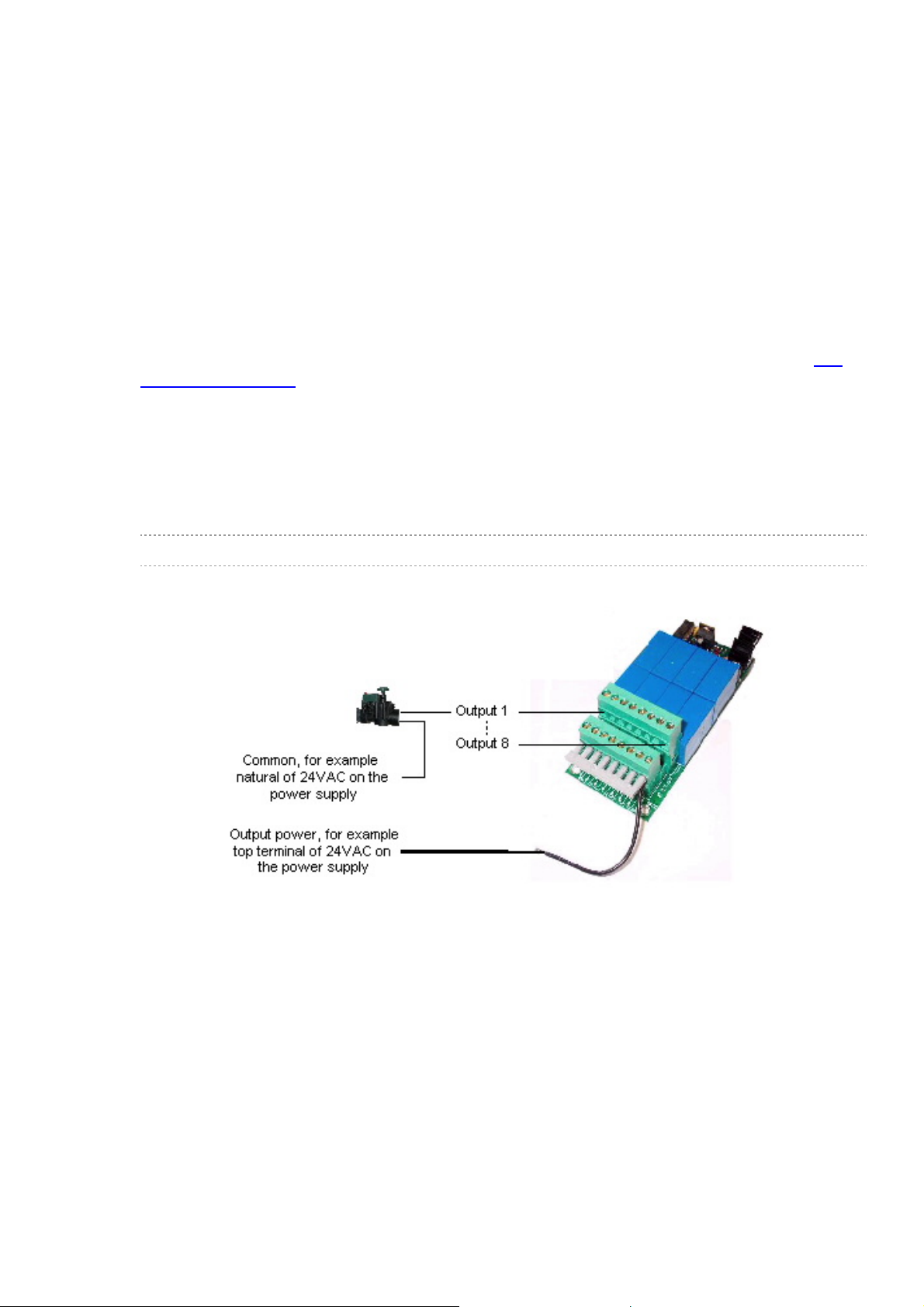

24AVC Output Card ........................................................................................................... 72

Specifications................................................................................................................................72

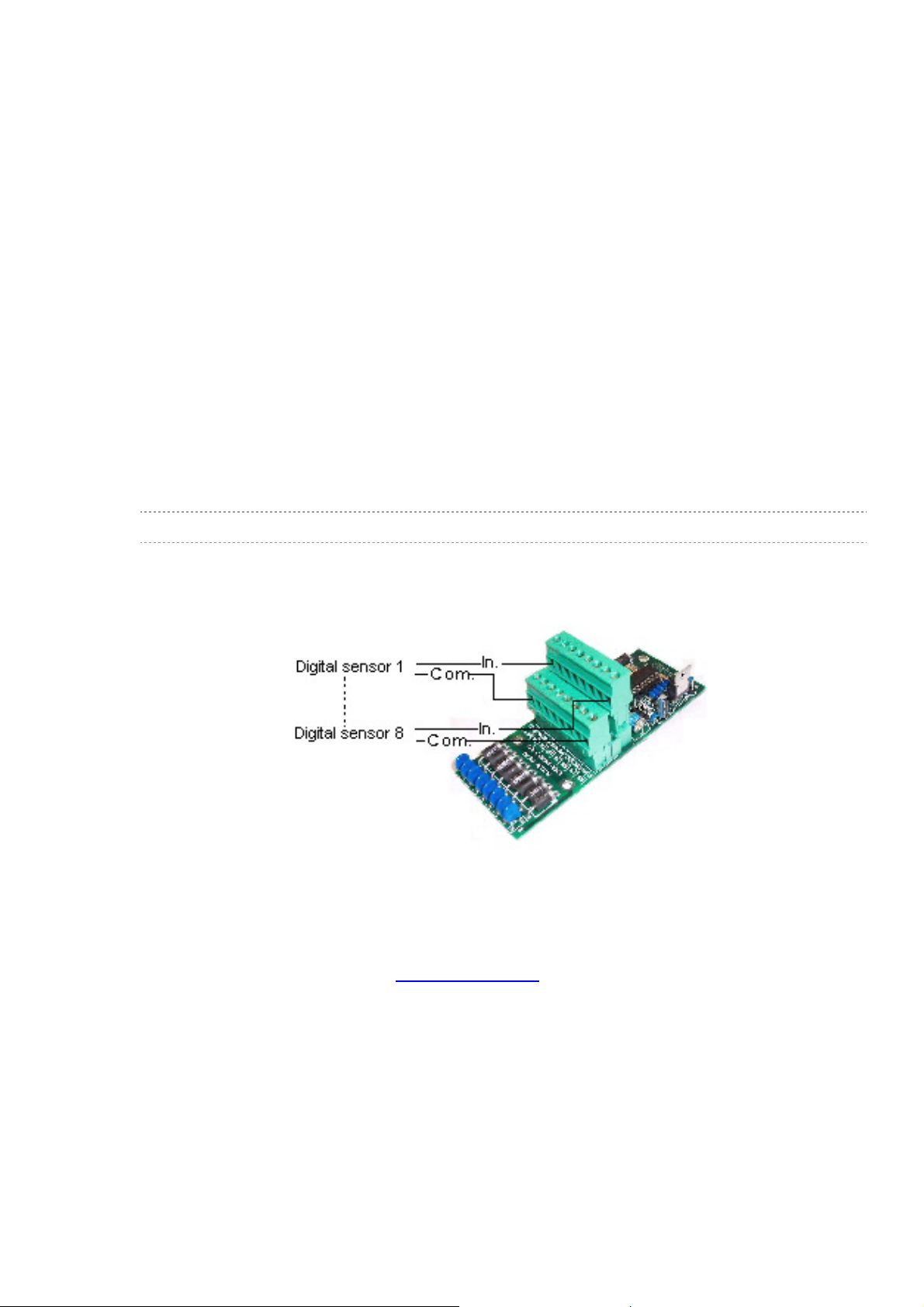

Digital Input Card............................................................................................................... 73

Specifications................................................................................................................................73

Analog Input Card.............................................................................................................. 74

Specifications................................................................................................................................75

Troubleshooting........................................................................................................77

LED’s indication......................................................................................................... 77

Problems and trouble shooting: ...................................................................................... 78

ALARM LIST ....................................................................................................................... 80

Appendix....................................................................................................................81

Cold Start procedure ......................................................................................................... 81

VERSION............................................................................................................................. 81

Short Circuit Control ......................................................................................................... 82

Page 5

User & Installation Manual Table Of Contents

General Description: .....................................................................................................................82

Functionality: .................................................................................................................................82

Reset:..............................................................................................................................................82

Short-Circuit Threshold Level (A/D): ...........................................................................................82

Plug & Play ......................................................................................................................... 83

Limitation table .................................................................................................................. 85

Priority specifications ....................................................................................................... 86

Electrical grounding .......................................................................................................... 86

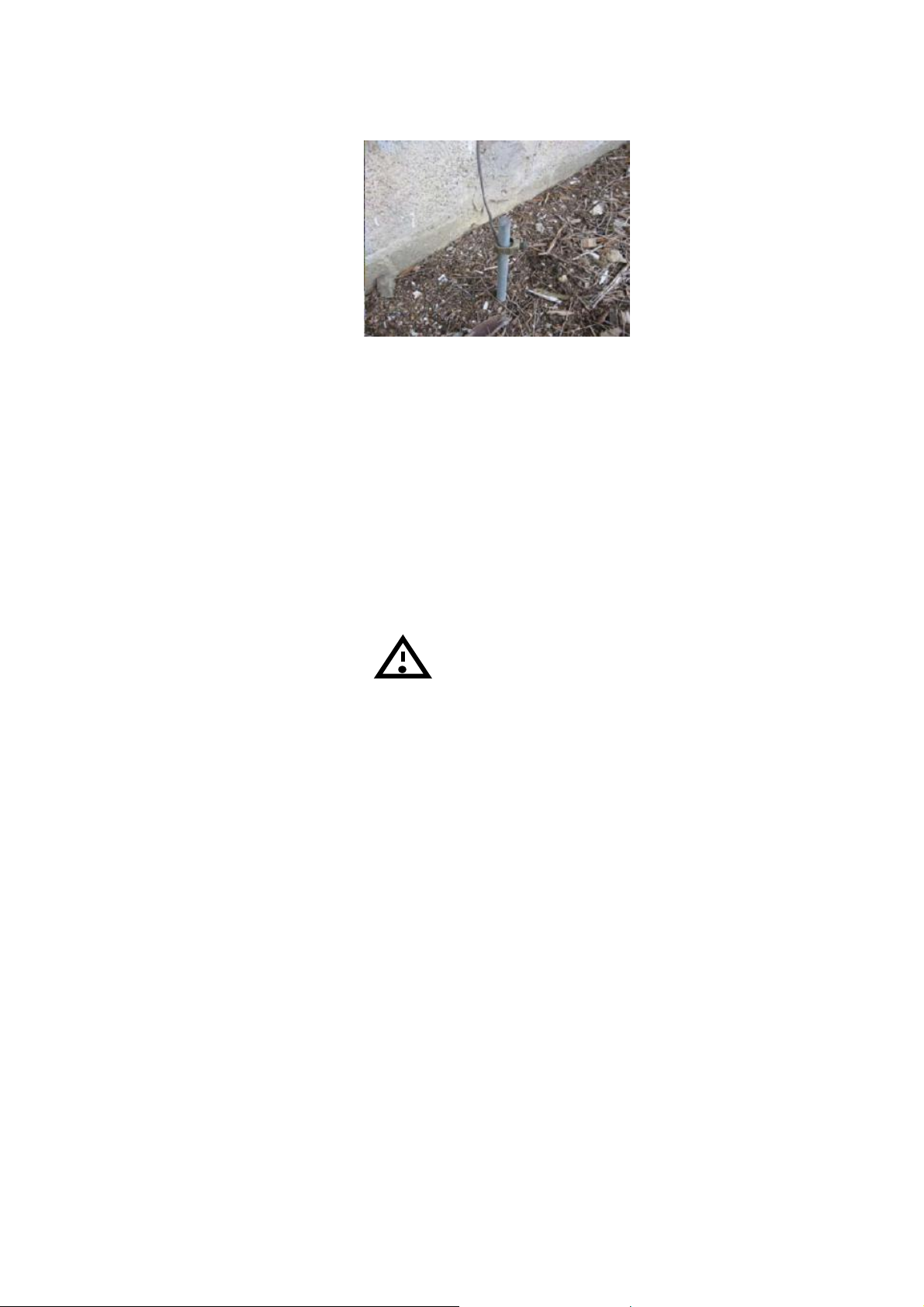

Ground Rods..................................................................................................................................86

Ground Wire ...................................................................................................................................88

Ground Clamps..............................................................................................................................88

What Should Be Grounded?.........................................................................................................89

Lightning Protection......................................................................................................................89

ELECTRICAL CONNECTIONS........................................................................................... 90

SENSORS AND SHIELD WIRING ...................................................................................... 91

EC/pH correction adjustment ........................................................................................... 92

EC Transmitter & Sensor connection and calibration.................................................... 93

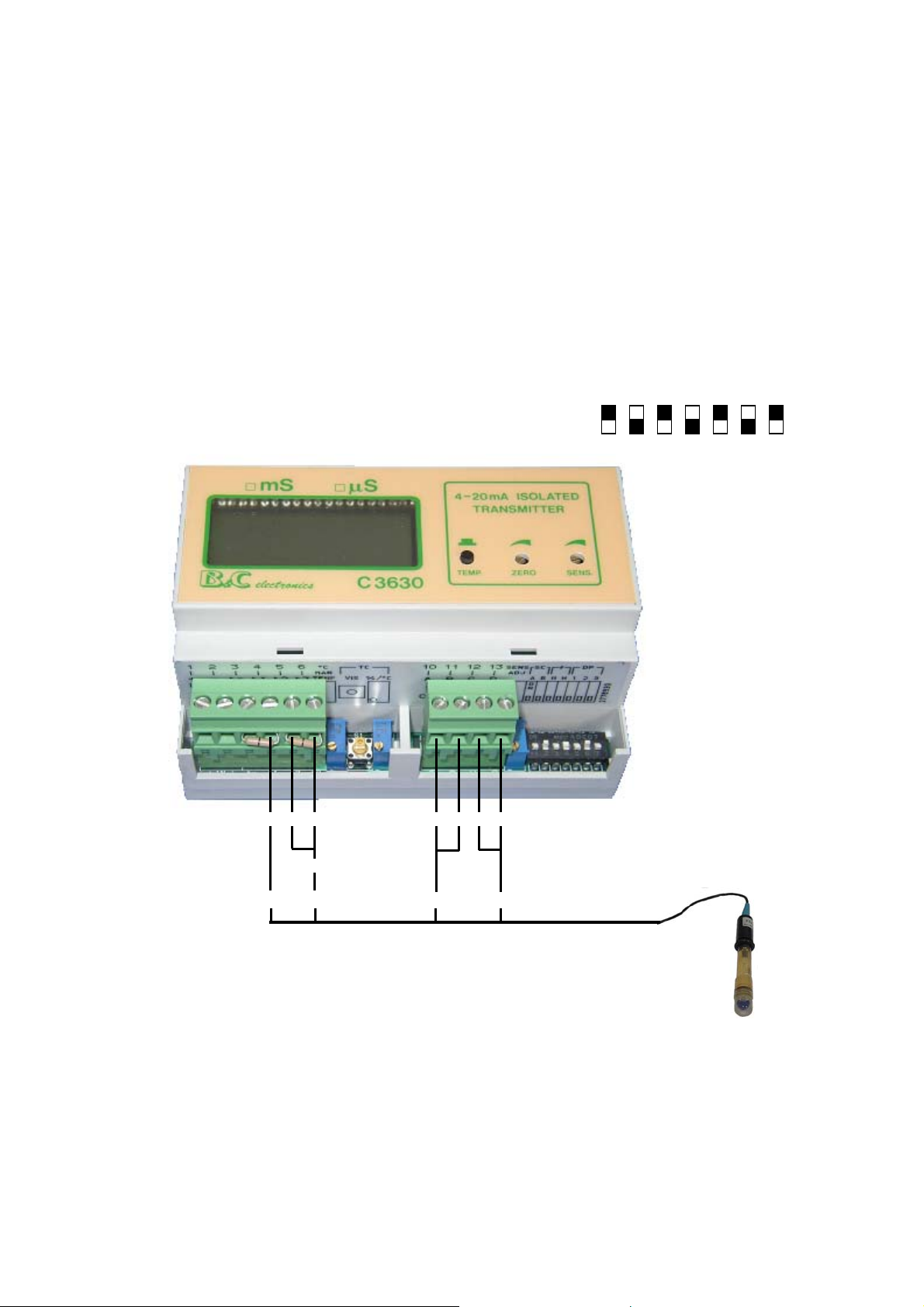

Connecting EC sensor to Transmitter:........................................................................................93

EC Transmitter Calibration ...........................................................................................................93

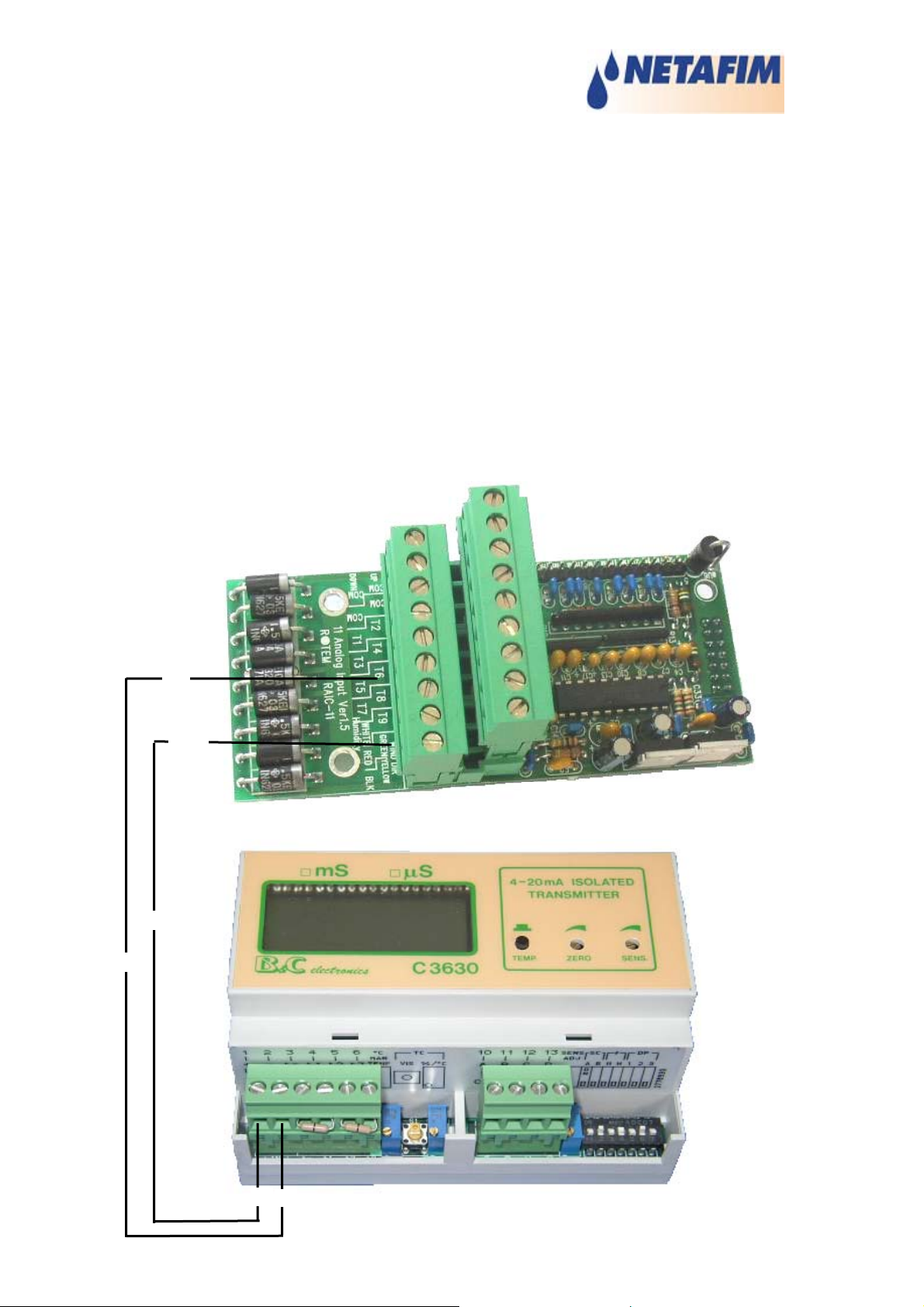

Connecting EC transmitter to NMC-64 controller ......................................................................94

pH Transmitter & Sensor connection and calibration.................................................... 96

Connecting pH sensor to Transmitter:........................................................................................96

pH Transmitter Calibration ...........................................................................................................97

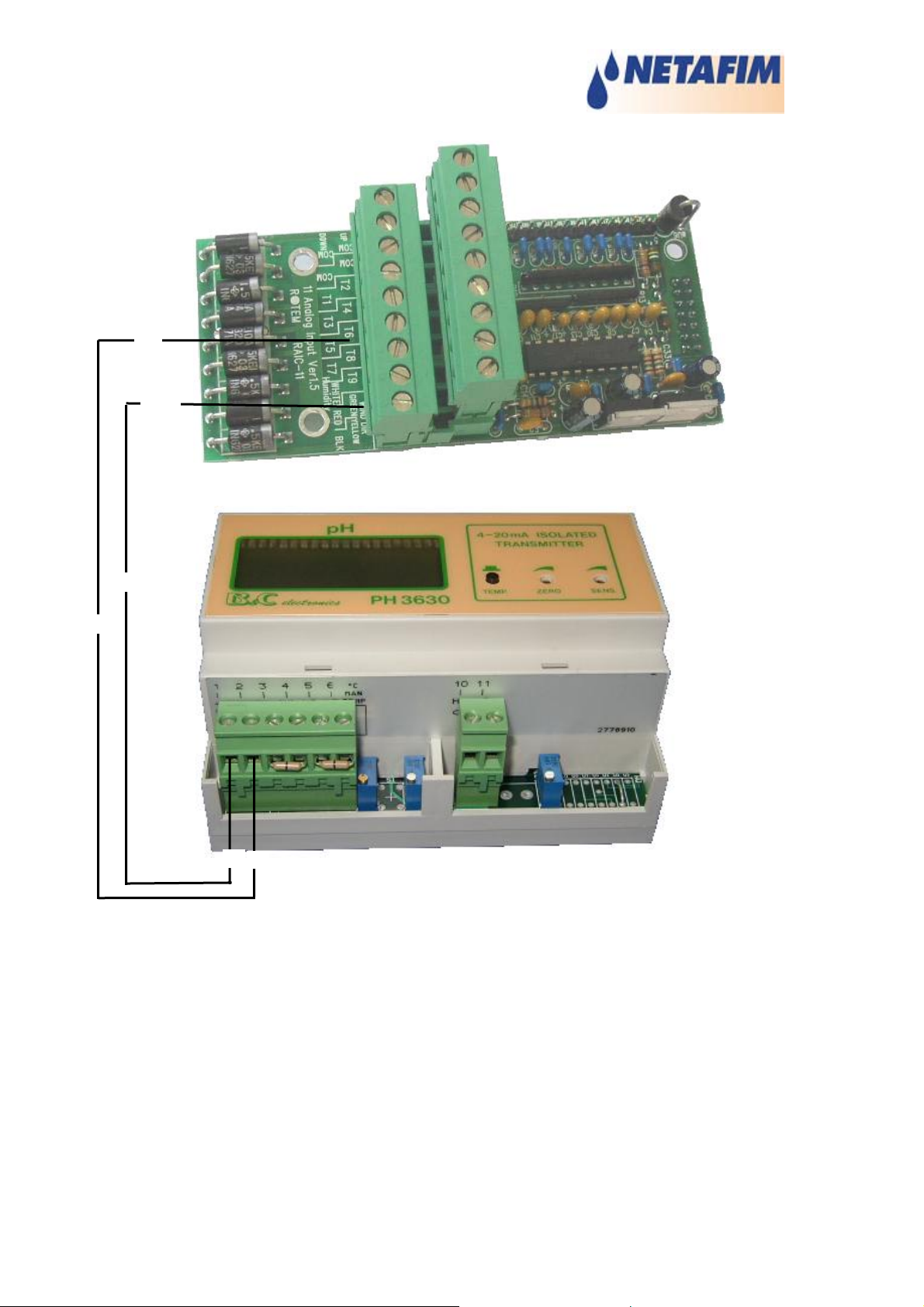

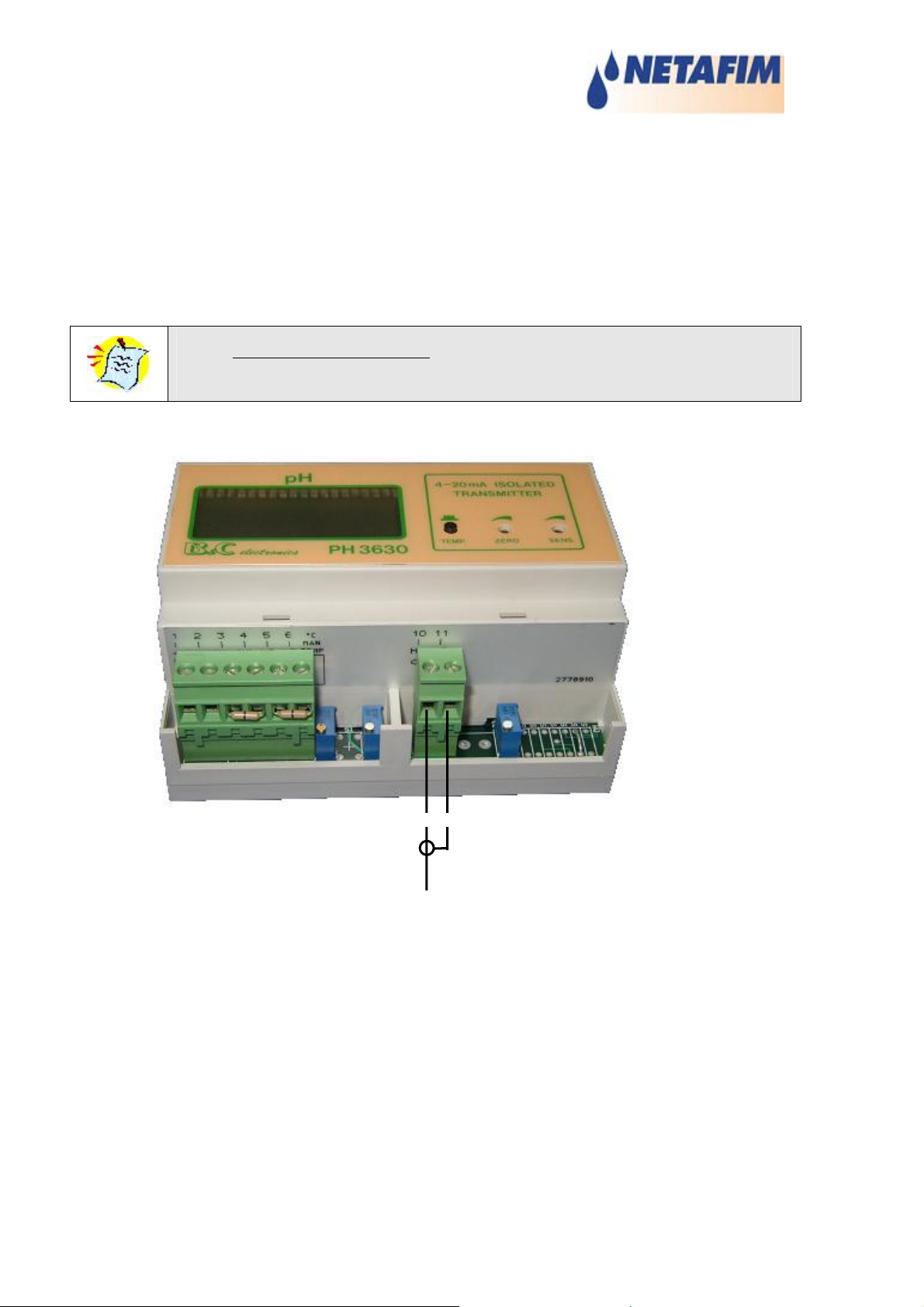

Connecting pH transmitter to NMC-64 controller.......................................................................97

NMC-64 pH definitions and calibration........................................................................................99

Netafim Limited Warranty ............................................................................................... 100

Page 6

NMC-64 Irrigation

Introduction

The Netafim NMC-64 process controller manages irrigation, fertigation, misting, and cooling systems. This manual describes the programming and operating procedures. Prior to using the controller in your facility, you will need to complete its installation, please see

Once the controller is configured all relevant menus will be available for use.

General Description

• The Netafim NMC-64 is a top of the line irrigation controller made of the latest and most updated technology.

• The NMC-64 is a modular flexible controller with many customizable features:

 Output Card Options for 24VAC, Dry Contact.

 Input Cards for analog and digital sensors.

Getting started for further instructions.

 Sensors for EC, pH, Temperature, Humidity, wind speed & direction etc.

 Local or Remote Communication to PC.

• The new and advanced large LCD graphic screen (40x16 lines) makes the NMC64 user friendly and easy to operate and program.

• The NMC-64 is modular and can be expanded by adding additional I/O cards.

Main Features

• Large graphics - LCD 16x40 characters

• 15 irrigation programs

• 60 floating runtime programs

• Flow control (high and low flow, uncontrolled water flow)

• Up to 8 dosing channels, optionally with dosing meters

• Fertigation by quantity, time, ratio (L/M3) and EC/pH

• Filter flushing: up to 24 filters

• Cooling / Humidification program

• Misting program

• History of water & fertigation quantities

• Fault and event list registration

• PC communication and HMI

Page 7

User & Installation Manual Introduction

• Outputs & inputs test

• Plug & Play Hardware with automatic checklist

• Data Plug for backing up settings and setup (Optional)

• Up to 64 outputs (Cards of 8 outputs each)

• Up to 16 Digital Inputs (Cards of 8 inputs each)

• Up to 22 Analog Inputs (Cards of 11 inputs each)

Operation of the NMC-64

Operating the NMC-64 is very simple and defined to be intuitive.

Use the following guideline for easy operation:

• To change specific settings navigate the cursor (flashing underline mark) using the arrows until it is under the relevant setting. According to type of field (value, list of options, etc’) change setting as follows:

 Value - use the numeric keys to change the value and press ENTER to confirm.

 List of Options - press Enter to open the List of Options, use the arrow keys to

navigate and press Enter again to confirm.

 HH:MM:SS - set hours, press the Enter key to move to the minutes, set the

minutes, press the Enter again to move to the seconds.

 Factors - use the left and right arrows to change the factor up and down

respectively.

 To erase typing mistakes use the DELETE key.

Remember to confirm changes by pressing the ENTER key or the downarrow.

If you don’t confirm the new value will be lost and the controller will keep the previous value.

Page 8

NMC-64 Irrigation

Main Menu Screen

Press the MENU key a few times until you reach the Main Menu screen.

The main menu screen consists of eight icons. The navigation between icons is done using the arrow keys; the selected icon will be highlighted and can be entered by pressing the Enter button. Alternatively, you can press the indicated numeric key next to each icon.

For example, push the ‘3’ key to go directly to the Alarm Menu. to go back to the main menu screen simply press menu button.

Use of the keypad:

Main menu screen

Keypad picture

Page 9

User & Installation Manual Introduction

Use of keypad buttons:

Help

(Back)

Delete

Arrow

+/- Key

‘.’ Key

Numbers

Using the Help key you can access help screens and graphs. If not

indicated otherwise press the ‘Menu’ key to exit the ‘Help’ menu.

The Menu key is used to exit screens and menus you are currently in. When in the main menu screen pressing the Menu key will enter

the hot key screens.

The Delete key enables to erase typing mistakes.

The Arrow keys move the cursor around the menus and in some

cases can be used to change values.

The +/- key changes between positive and negative values and marks the check boxes when selecting options.

In the History screen the +/- key can be used to change between quantities and time format.

The ‘.’ Key enables to enter a decimal point.

The Numeric keys enable you to enter numbers and make selections

in the numbered menus.

Enter

Several of the numeric keys perform special Hot Key functions.

The Enter key acknowledges your entry or menu selection.

Page 10

NMC-64 Irrigation

Hot Screens

The NMC-64 incorporates 8 keys that enable you to access quick information of actual and future processes as well as general conditions.

To enter the Hot Screens go to the Main Menu screen and press the Menu button, you will enter you default Hot Screen. To navigate between the various Hot Screens simply press one of the buttons (0-7) from any of the Hot Screens.

Hot Screen 0

Hot screen 0 displays icons of the active processes.

• Wait – The controller is idle; no processes are taking place.

• Irrig. – Irrigation process is active.

• Pump – one or more of the pumps are active.

• Dosing – dosing process is active

• Alarm – one or more alarms are active.

• Filter flushing – Filter flushing process is active.

• Cooling – cooling process is active, meaning its conditions are met. This doesn’t

necessarily mean a cooling valve is opened.

• Misting – misting process is active, meaning one or more misting valves are open.

Page 11

User & Installation Manual Introduction

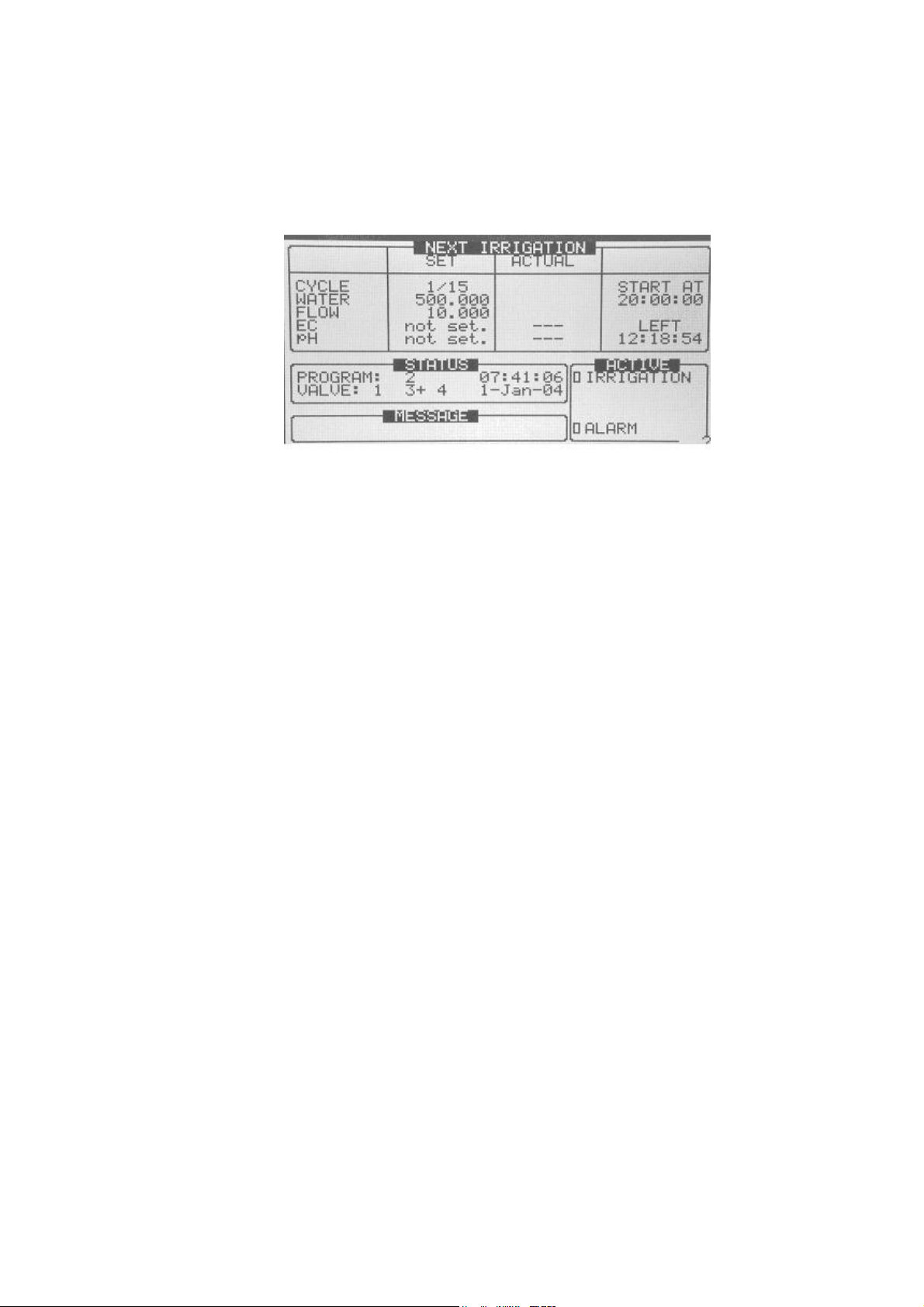

Hot Screen 1

Hot screen 1 displays a summary of active processes, irrigation programs, important messages, and the time and date.

• NEXT IRRIGATION – Displays next irrigation data:

• CYCLE – Displays how many cycles are set, which cycle is currently active

and how many are remaining.

• WATER – Displays the set water quantity/time, actual/given water quantity/time and left water quantity/time.

• FLOW - Displays the set/nominal flow rate and actual/measured flow rate.

• EC – Displays the set/required EC and the actual/measured EC values.

• PH - Displays the set/required PH and the actual/measured PH values.

• STATUS – Displays current time & date, active or next program and valve (if more

than three valves are active will show the first three with a + mark next to the last one to indicate that thee are more valves operative).

• MESSAGES – Displays active alarms.

• ACTIVE – Displays active processes.

Hot Screen 2 - Irrigation Process

Hot Screen 2 displays active irrigation status and is relevant only during irrigation.

The upper section shows active program, valve and start time.

Page 12

NMC-64 Irrigation

IRRIGATION PROCESS

Prog:1 Valve:1 Time:10:00

Functions Program Actual Flow Valve

Water Fert.1 Fert.2 Fert.3

00:10 00:01 5.000 On

2.00 0.09 60.000 On

• Functions - Active functions for current irrigation.

• Program - Total quantity or time to be given during the current irrigation.

• Actual – Actual quantity or time already delivered.

• Flow – Actual flow rate of the device/function.

• Status – Current status of the device/function.

Hot Screen 3 - Program Status.

Hot screen 3 shows detailed information regarding all of the irrigation programs.

PROGRAM STATUS

Date: 4-Feb-04 Time: 22:00

End

Wait

Program 1 2 3

Status Next Start Total Cycle Act Cycle Left Cycle Valve # Run Time # Fert. Prog.

End Wait -- 23:00 -- 2 3 -- 2 1 -- 0 2 -- 1 -- 1 1 -- 1 1 ---

Page 13

User & Installation Manual Introduction

• Status - Cycle status:

• End - All of the cycles are done.

• Wait - In between cycles (Delay Time).

• Irrig - Irrigation is active.

• Next Start - When Status is "Wait" row will show the time for next irrigation.

• Total Cycle - Total number of cycles to be given for the current period.

• Act Cycle - Number of cycles already given for the current period.

• Left Cycle - Remaining number of cycles to be given for the current period.

Example: Program 2 in the table above has to perform 3 cycles, 1 has already been given and 2 are remaining.

If a starting time of a future program already passed, The “Next Start” displays the passed starting time while the status is “Wait”.

Hot Screen 4 - Water / EC/pH / Fert.

Hot screen 4 shows fertigation process and is useful for checking whether the fertigation is operating properly.

WATER EC/pH

Status Wait Nom. Flow 0.000 Act. Flow 9.500

Open(%) Min(%) prg(%) Max(%)

Fert.1 45 32 42 85

EC pH Target --- --Actual --- ---

• WATER:

• Status - Water status:

• Wait – Irrigating process is not active.

• Irrig. - Irrigation process active.

Page 14

NMC-64 Irrigation

• Nom. Flow - Displays the nominal/set flow rate (m³/h or gallon/h).

• Act. Flow - Displays the actual/measured flow rate (m³/h or gallon/h).

• EC/pH:

• Target - Desired value for the EC/pH.

• Actual - Measured EC/pH values.

• THE LOWER SECTION REFERS TO FERTILIZER ACTIVITY:

• Open (%) - Opening percentage of the fertilizer channel.

• Min (%) - Minimum allowed opening percentage.

• Prg (%) – calculated opening percentage of the channel.

• Max (%) – Maximum opening percentage of the channel.

The Prg. (%) and Min/Max (%) are calculated according to the fertilizer channel flow rate, allowed deviation and actual/measured water flow rate.

When EC/pH control is active the Open (%) will change according to the difference between the actual and the calculated EC/pH values.

If the Open (%) is close to the Min (%) or Max (%) it means that there is a big deviation between the fertilizer program settings to the actual injection ratio. The Open (%) cannot be higher than the Max(%) and cannot be lower than the Min (%), if it is identical to one of them than the NMC-64 controller will not be able to reach desired EC/pH values and the fertilizer program setting must be rechecked.

Hot Screen 5 - Filter Flushing Status

Hot screen 5 shows filter-flushing information.

FILTER FLUSHING STATUS

Item

Flush Status Time To Next Flush Delta Pressure Flushing Filter No. Remaining Filters Qty. Delay / Flush Time

On 00:00:00 Off 3 1 05:00

Page 15

User & Installation Manual Introduction

• Flush Status - Indication whether filter flushing is active (On/Off/Waiting).

• Time To Next Flush (hh:mm:ss) – Remaining time until next filter flushing will

occur. This time is only counted when irrigation is active.

• Delta Pressure - Delta pressure status (On/Off).

• Flushing Filter No. – Shows how many filters have been flushed.

• Remaining filters Qty. – shows how many filters are still to be flushed.

• Delay / Flush Time:

• Delay – Delay time between flushing one filter to the next.

• Flush Time – Remaining flush time for filter being currently flushed.

Hot Screen 6 - Temperature and humidity

Hot screen 6 shows temperature and humidity levels as well as the average value of all temperature and humidity sensors.

CLIMATE

Num. Temp. Humidity

1 2 3 4 5 6 7 8

AVG.

28.8 83.0

29.2 <NONE> <NONE> <NONE> <NONE> <NONE> <NONE> <NONE> <NONE> <NONE> <NONE> <NONE> <NONE> <NONE>

29.0 83.0

Page 16

NMC-64 Irrigation

Hot Screen 7 – Weather station

Hot screen 7 shows the measured values of the weather station sensors (outside conditions).

ךסמה לש טוטרש ףיסוהל

Page 17

User & Installation Maunal Software

Software

Getting started

This paragraph briefly explains how to get started with the NMC-64 software setup procedure. For further explanations please see the detailed instructions per table.

For initial configuration of the controller start with Menu 8. Install.

Later steps might depend on earlier ones; therefore it is essential to go through all the steps.

The following chart may be used for assistance.

Table

Table description

Installation

8.1 Device Layout Assign an output (Relay) to each device.

NMC64

8.2 Device Definition Shows which and how many devices have been defined (Read only screen).

8.3 + 8.4 Digital Input Assign inputs to digital sensors, for example water meters, Dry contact, etc’.

8.5 + 8.6 Analog Input Assign inputs to analog sensors, for example EC/pH, temp sensors etc’.

Configuration

7.1 Device Delay

configuration

7.2 Pump Configuration Set pump capacity, delays and connect it to the relevant

7.3 Valve Configuration Configure each valve to a main valve and water meter.

7.4 Valve Flow Rate Define valve flow rate.

7.5 Water meter Define volume per pulse of each water meter.

7.6 Dosing Channel

Configuration

7.7 Dosing Configuration Define whether fertigation is according to EC/pH and set

Define startup and shutdown order of the various devices.

processes.

Define dosing channel definitions; pump type, operation method, ratio etc’.

injection definitions.

Setup

6.1 Time and Date Set your locale time and date.

6.2 System setup Define system definitions such as measurement units, PC

communication etc’.

6.5 EC/pH calibration Adjust the calibration factor so that the Value is similar to the

value shown on the EC&pH transmitters

Page 18

NMC-64 Irrigation

Table

Table description

Test

5.1 Relays Verify the functionality of each output/device.

Program

1.2 Water Run Time Define water programs; method (quantity/time), total water

1.3 Dosing Define fertilizer programs; method (proportional quantity/time,

1.1 Irrigation Define irrigation program; start times, number of cycles, time

Manual start

2.3 Manual Start Valve Manually start each valve and verify that the set nominal flow

2.2 Manual Start Program Manually start the programs to check whether they are operative

NMC64

quantity/time, water before and water after. Notice: water before/after are deducted from total water quantity/time.

total quantity/time), quantities/time per channel and EC/pH set points.

between cycles, participant valves, run-time programs, fertilizer program, etc’.

rate is similar to the measured one.

as set/expected. The program can manually be shut down after proper operation has been verified.

1. Program

When in the Main Menu screen simply place the cursor on the program icon and press Enter or directly press numeric key number indicated next to the relevant program.

PROGRAM

1. IRRIGATION

2. WATER RUN TIME

3. FERTILIZER PROGRAM

4. FILTER FLUSHING

5. WATER HEATING

6. COOLING

7. MISTING

8. AGITATOR

9. SELECTOR

Page 19

User & Installation Maunal Software

To enter any of the menus, press the corresponding numeric key or scroll to the desired item using the up/down arrow keys and press Enter; a new window will appear. The first menu under PROGRAM is IRRIGATION.

1.1 IRRIGATION

The Irrigation Program screen consists of all settings for automatic irrigation starts. It depends heavily on the Water Run Time and Dosing Program screens and therefore they must be filled before irrigation can actually take place.

The NMC-64 consists of 15 irrigation programs.

IRRIGATION PROGRAM

Program: 1 Priority 1 Const. 40%

Start Time Cycles Delay(Min.)

Valve #: Run Time #: Fert.Prog #:

Day: 04/06 Dose/Water

09:30 13:20 1 2 0 40

2 4+5 7 5 1 2 1 2 1 1 2 3

1 2 3 4 5 6 F W - F W F

• Program – Select a program by entering the program number and confirm by pressing Enter.

• Priority - Priority determines the order in which programs will take place. If start time is the same, higher priority programs come first. Higher priority programs do not stop currently operative programs.

If start time and priority are same, lower irrigation program number takes place first.

Priority ranges between 0 and 15, 15 being the highest.

• Const / Daily / Cond.:

• CONST. – Increase or decrease the amount of water for all valves included in

this program. 0% means the quantities will be as specified in the Water Run Time program, 100% will be twice the amount and –50% will be half the amount specified in the Water Run Time Program. To decrease enter the required percentage of change, press +/- key and than confirm with the Enter key. The percentage of change will be active until specified otherwise by the user.

Page 20

NMC-64 Irrigation

• DAILY – Increase or decrease the amount of water for all valves included in this program. 0% means the quantities will be as specified in the Water Run Time program, 100% will be twice the amount and –50% will be half the amount specified in the Water Run Time Program. To decrease enter the required percentage of change, press +/- key and than confirm with the Enter key. The percentage of change will be active only for the present day and will be automatically changed back to zero on End Day time.

CONST. % and DAILY % does not change Quantity / time of water before and water after settings nor dosing quantities.

• Cond. – Choose a Condition program to start / stop irrigations. Irrigations will be started and stopped according to the settings of the relevant Condition program (see CONDITION program for additional information).

The Condition program has the third priority after active irrigation and uncompleted irrigation (see paragraph

Priority specifications for additional information).

It is impossible to set same Condition program for two different programs.

For example: In the table above if the program was started manually or due to a Dry

Contact the irrigation in days 2 and 3 will take place as usual, meaning irrigation will be given as set in the associated Run Time Programs and fertilizer will be injected as set in the associated Fertilizer Programs.

• Start time (hh:mm) - Enter up to 6 start times (periods) per day for each program.

• Cycles - Set the number of irrigation cycles for each period. The first cycle starts at

the specified start time; subsequent cycles will start after the specified delay time.

• Delay - Time between start of a cycle until the beginning of the next cycle. For example if the set Run Time is 30 minutes and the Delay is 45 minutes the second cycle will start 15 minutes after the end of the first cycle.

• Valve # - The NMC-64 can operate valves in any required order; set the valve number, press enter, the following window will appear:

Select ‘–‘ (minus) and press ENTER to set the valve to operate alone or ‘+’ (plus) to operate together with the next valve. Several valves can be set to work together, as a group. Valves set, as a group will have the same Run Time program and the same Dosing Program. Each irrigation program can include a maximum of

Page 21

User & Installation Maunal Software

40 valves in any required order (all of them together, one after the other, a few groups, etc’).

• Run Time # – attach a Run Time Program to a valve or a group of valves. When setting valves to work individually, a Run Time Program should be set for each valve. When setting a few valves to work together (“+” mark between them) a Run Time Program should only be set for the first valve, the rest of the valves will follow this setting.

the quantity set in the Run Time Program will be the quantity given for all valves set to operate together, not per valve (for further specifications of the Run Time Program see 1.2 WATER RUN TIME).

• Dosing Program - attach a Dosing Program to a valve or a group of valves. When setting valves to work individually, a Dosing Program should be set for each valve. When setting a few valves to work together (“+” mark between them) a Dosing Program should only be set for the first valve, the rest of the valves will follow this setting.

• Day (xx/xx) – enables to define whether the program should irrigate, fertigate or be turned off on different days. The right setting enables to define the day’s cycle. The left setting enables to define the current day of the cycle.

Dose

WATER

NONE

Select one of Dose, Water or None and press ENTER. Dose means fertigation (water + dosing), Water means irrigation without dosing and None means the program is idle in that day.

Day: 04/06 1 2 3 4 5 6

Dose/Water D - W - D -

In the example above “Day: 04/06” the cycle days is 6, the current day is day 4. Day 2 and 5 are set to fertigate, day 3 is set to irrigate water only, and on days 2, 4 and 6 the program is idle.

When starting irrigation manually or due to Dry Contact the program will be activated regularly even if in Cyc. Day the Fert./Water definitions are set to WATER or NONE for the current day.

Page 22

NMC-64 Irrigation

Setting an irrigation that is longer than 24H:

An active irrigation will not change when the irrigation is longer than 24 hours there will be no changes in current sequence according to Cycle Days.

Example 1: If cycle days is 1 and the irrigation length is 30 hours, the irrigation will repeat itself every 30 hours, so that it will be continues irrigation.

Example 2: In order to perform an irrigation that is longer than 24 hours with stops in between, the day cycle should be more than 1. In the example above, if irrigation Run Time is set to 30 hours the program will operate as follows:

1. Fertigate for 30 hours

2. 1 day without irrigation.

3. Irrigate water only for 30 hours.

4. 1 day without irrigation.

5. Fertigate for 30 hours

6. 1 day without irrigation.

1.2 WATER RUN TIME

WATER RUN TIME

Prog. Method Water Before After

Table 1.2 has 60 “floating” programs that can be later connected to a valve or a group of valves through the Irrigation Program. Irrigation can be set by time (HH:MM:SS) or quantity (m3 or Gallon), choice per Run Time program. Each program includes water, water before and water after definitions.

QTY. 4.0 0.1 0.5 TIME 1:02:00 0:10:05 0:20:05 QTY. 3.0 0.1 0.5 QTY. 2.0 0.1 0.5 QTY. 4.5 0.1 0.5

• Method – Select the method with the Up/Down arrow keys and press ENTER to confirm.

QTY.

TIME

Page 23

User & Installation Maunal Software

• Water – set Quantity / Time for each program (Liter or gallon). The water setting is the total quantity / time including the Before and After settings.

• Before – set Quantity / Time without dosing at the begging of each irrigation cycle.

• After – set Quantity / Time without dosing at the end of each irrigation cycle.

Before and After settings are deducted from the Water settings therefore Water quantity / time must be larger or equal to the Before and After settings.

1.3 DOSING

FERTILIZER PROGRAM

Prog Method -1- -2- -3- -EC- -pH-

10.

P.Qty 5.0 3.2 2.4 0.00 0.00 P.TIME 00:10 00:10 00:30 0.00 0.00 TIME 00:10 00:10 00:30 0.00 0.00 QTY 5.0 3.2 2.0 0.00 0.00 P.Qty 0.0 0.0 0.0 0.00 0.00 P.Qty 0.0 0.0 0.0 0.00 0.00 P.Qty 0.0 0.0 0.0 0.00 0.00 P.Qty 0.0 0.0 0.0 0.00 0.00 P.Qty 0.0 0.0 0.0 0.00 0.00 P.Qty 0.0 0.0 0.0 0.00 0.00

The NMC-64 includes 10 predefined dosing programs. Each program can operate according to one of four methods. Each channel can be set to give a different amount, overlapping between the various channels is possible.

Dosing programs can later be assigned to a valve or a group of valves in table

1.1

IRRIGATION

• Method – select one of four methods:

1. P.Qty (1/1000) - Proportional quantity. Each dosing channel can be set to to

give a different amount. The set amount is 1 part (Liter or Gallon) fertilizer/Acid per 1000 parts (m

/h or 1000 Gallons) of water.

• For example:

• Channel -1- is set to 5.0 (liters or gallons).

Page 24

NMC-64 Irrigation

• Set water quantity is 3.5 (m3/h or 1000 gallons).

The actual meaning of this setting is that 5.0 (liters or gallons) of fertilizer will be mixed with each cubic meter (1000 gallons respectively) of water passing through the system. The total quantity of fertilizer that will be given is 5.0 * 3.5 = 17.5 liters (Gallons).

2. P.Time (hh:mm) - Proportional time. Each dosing channel is independently given the time to fertilize. The NMC-64 divides this time equally within the given irrigation time (quantity) set in

• For example:

• Dosing channel -1- is set to 00:10, dosing channel -2- is set to 01:00.

• Set irrigation time is 03:00 hours.

The NMC-64 will proportionally divide the set fertigation time for each dosing channel across the set irrigation time (quantity). Dosing channel -1- will be on for a few pulses, their total time will be 10 min. Dosing channel -2- will be on for a few pulses (not necessarily the same amount), their total time will be 30 min.

1.2 WATER RUN TIME.

3. Time. (hh:mm) - Each dosing channel is given the time to fertilize. The dosing will be done in one bulk that will start after the water before time (quantity) set in

1.3 DOSING program.

4. Qty. (Liters or Gallons) - Quantity. Each dosing channel is given the amount to be injected. The dosing will be done in one bulk that will start after the water before time (quantity) set in

To choose a method, place the cursor on the METHOD column, press Enter, a small window will appear:

P.QTY (1/1000)

P. TIME (hh:mm)

TIME (hh:mm)

QTY. (Liter)

Select the method with the arrow keys and press ENTER to confirm.

• EC - Enter the target EC value.

1.3 DOSING program.

• pH – Enter the target pH value

Page 25

User & Installation Maunal Software

The EC/pH columns will not be visible if EC/pH control is marked ‘No’ in menu 7.7 DOSING CONFIGURATION.

1.4 CONDITION

Condition program enables to start and / or stop irrigation according to dry contacts.

CONDITION PROGRAM

1 2 3 4 5 6 7 8 9

• From (hh:mm) – Set the start time of the condition program.

• To (hh:mm) – Set the end time of the condition program

The condition program will only be operative in the defined window of opportunity (between start “From” to end “To” times). Each condition program can be operative on different hours.

From To Start Trigger Stop hh:mm hh:mm Dry Cont. Type Dry Cont.

08:00 16:00 Dry Con 1 One Shot Dry Con 2 06:00 20:00 Dry Con 4 Multi Shot -----09:00 18:00 Dry Con 1 Only If On ------

--:-- --:-- <NONE> One Shot <NONE>

• Start Dry Con. – Set the dry contact number for starting the irrigation.

• Trigger Type – Choose one of three trigger types:

1. One Shot – if the Start Dry Contact is closed for more than 20 seconds the associated irrigation program will be started. The contact must open and close to initiate another irrigation.

2. Multi shot – if the Start Dry Contact is closed for more than 20 seconds the associated irrigation program will be started. If the contact is still closed when the irrigation has finished another irrigation will be initiated.

Page 26

NMC-64 Irrigation

Notice that the Start Dry Contact doesn’t necessarily have to open and close in order to initiate another irrigation, is simply has to be closed when the irrigation has finished.

3. Only If On - the associated Irrigation program will be turned on providing the Start Dry Contact has been closed for more than 20 second and will remain on as long as the contact is closed.

• Stop Dry Con. – Set the dry contact number for stoping the irrigation. Since the Stop Dry Contact is “stronger” than the Start Dry Contact the associated irrigation program will not be started as long as the Stop Dry Contact is closed.

1.5 AGITATOR

The agitator is used to mix the fertilizers and acid in the storage tanks in order to prevent the occurrence of sediment.

AGITATOR

On Off mm:ss mm:ss

Dosing Active Dosing Not Active

01:00 10:00 02:00 30:00

• Dosing Active – definition of the On and Off times of the agitator when dosing is taking place:

• On – Define the required mixing time.

• Off – Define the required time between mixing.

• Dosing Not Active - definition of the On and Off times of the agitator when dosing

is not taking place:

• On – Define the required mixing time.

• Off – Define the required time between mixing.

1.6 SELECTOR

Enables the use of various fertilizer stock tanks. Every Fertilizer Program can be connected to one (or more) selectors output, using these outputs you can choose which storage set will be connected to each Fertilizer Program.

Page 27

User & Installation Maunal Software

SELECTOR

Dosing

Prog.

1 2 3 4 5

S1 S2 S3 S4 S5

√ · · · ·

· √ · · ·

· · √ · ·

· · · √ ·

· · · · √

Assign Selector to a Fertilizer Program using the +/- keys.

1.7 FILTER FLUSHING

Enables to define the required process for filter flushing.

Notice that there are a few steps that should be defined prior to this screen:

• Table

 Stop irrigation during filter flushing - yes/no

 Stop fertilizing during filter flushing - yes/no

6.1 SYSTEM SETUP –

FILTER FLUSHING PROGRAM

Time Between Flush (hh:mm) Flushing (mm:ss) Delay (mm:ss) Delta Pressure Delay Delta Pressure (sec.) Delta Pressure Reiteration Dwell Time Main Filter (s)

06:00 01:00 00:30

YES

6 3 0

Time Between Flushing (hh:mm) - Time interval between two consecutive Flushing cycles. The time is only counted during irrigation.

Example: If time between flushing is set to 01:00 it means that after 1 hour of irrigation a flushing cycle will be activated.

• Flushing Time (mm:ss) – Flushing time of each Filter (output).

• Delay Between Filters (mm:ss) - The delay time between flushing of one filter to

the next. This time is usually used to enable buildup of pressure.

Page 28

NMC-64 Irrigation

• Delta Pressure – Define whether filter flushing can be operated due to Delta Pressure dry contact (Yes / No).

• Delay Delta Pressure (mm:ss) – define the time that the Delta Pressure dry contact input must be closed for before a filter flushing cycle will be initiated. This time is usually used to prevent unnecessary flushes from taking place.

• Delta Pressure Reiteration – number of consecutive filter flushing cycles due to Delta Pressure that can take place without any breaks before the NMC-64 will generate an alarm indicating that the Delta pressure sensor is defective. The NMC64 will than ignore the Delta pressure input and will continue flushing only according to the set Time between Flushing until the alarm is reset.

• Dwell Time Main Filter Valve (Sec) – define how much time before the filter flushing cycle is started the main filter valve must be on for. This output is typically used to control a pressure-sustaining valve or to start a booster pump.

1.8 COOLING

The cooling / humidification program is used to keep the greenhouse temperature below a set value and / or the humidity above a set value. Each program can be set to maintain temperature or humidity as its first priority.

There are 5 Cooling programs available with 2 periods in each program. The periods can be defined to overlap thus creating “dynamic” cooling or humidification.

Different temp. and humidity sensors can be connected to each program.

There are a few steps that should be defined prior to this screen:

Table 7.9 COOLING CONFIGURATION.

COOLING/HUMIDIFICATION PROGRAM

Program: 5 Status: Cooling

From To Above t° Below RH On Off

09:00 18:00 26.0 75

00:03 0:03:00

09:00 18:00 32.0 85

00:04 0:01:00

Cool# 1 2 3

Temp. Sens. : 0 0 Hum. Sens. : 1

Page 29

User & Installation Maunal Software

There are 5 Cooling programs available with 2 periods in each program. The periods can be defined to overlap thus creating “dynamic” cooling or humidification.

Different temp. and humidity sensors can be connected to each program.

• Program – choose the required program 1 to 5.

• Status – define whether the programs first priority is maintaining temperature or

humidity:

• Cooling – the program’s priority is temperature. If the two periods are overlapping, and there are different settings in each period dynamic cooling will take place.

• Example:

• Period 1 is set between 06:00 to 16:00, Above temp is 30

is 90%, On is 00:00:30 and Off is 00:05:00.

• Period 2 is set between 08:00 to 18:00, Above temp is 40 is 80%, On is 00:01:00 and Off is 00:10:00.

• Time is 07:00, the temperature is 35

and the humidity is 65% the

cooling valve will be open for 30 seconds every 5 minutes.

• Time is 12:00, the temperature is 30

and the humidity is 65% the

cooling valve will be open for 30 seconds every 5 minutes.

• Time is 10:00, the temperature is 40

and the humidity is 50% the

cooling valve will be open for 1 minute every 10 minutes.

• Time is 15:00, the temperature is 35

and the humidity is 60% the

cooling valve will be open for 45 seconds every 7-½ minutes.

• Time is 17:00, the temperature is 35

and the humidity is 60% the

cooling valve will not be opened.

• If the temperature is 35

and the humidity is 85% the cooling valve will

not be opened.

, Below RH

If the time is relevant only for a certain period only its settings will define operation.

If humidity is above the lowest value of the two periods cooling will not take place.

• Humidification - the program’s priority is humidity. If the two periods are overlapping, and there are different settings in each period dynamic humidification will take place.

Page 30

NMC-64 Irrigation

• Example:

• Period 1 is set between 08:00 to 17:00, Below RH is 80%, Above temp

is 30

, On is 00:00:30 and Off is 00:05:00.

• Period 2 is set between 08:00 to 17:00, Below RH is 70%, Above temp

, On is 00:01:00 and Off is 00:10:00.

is 25

• If the humidity is 80% (or higher) and the temperature is 35

(or higher)

the cooling valve will be open for 30 seconds every 5 minutes.

• If the humidity is 70% (or lower) and the temperature is 35

(or higher)

the cooling valve will be open for 1 minute every 10 minutes.

• If the humidity is 75% and the temperature is 35o (or higher) the cooling valve will be open for 45 seconds every 7-½ minutes.

• If the humidity is 85% and the temperature is 28

the cooling valve will

not be opened.

If the temperature is below the highest value of the two periods humidification will not take place.

• From (hh:mm) – Set the start time of the Cooling / Humidification program.

• To (hh:mm) – Set the end time of the Cooling / Humidification program

The Cooling program will only be operative in the defined window of opportunity (between start “From” to end “To” times). Each Cooling / Humidification program can be operative on different hours.

• Above t

/ Below RH –

(when status is cooling) - Start cooling above this temperature.

Cooling will stop if the temperature drops below the internal dead-band of

. For example if set to 30o cooling will start when the temperature is

0.5 above 30

and will stop when it drops below 29.5o.

• Below RH (when status is humidification) - Start humidification below this humidity. Humidification will stop if the humidity goes above the internal deadband of 1%. For example if set to 80% humidification will start when the humidity is below 80% and will stop when it is above 81%.

• Below RH / Above t

–

• Below RH (when status is cooling) - Stop cooling above this humidity. Cooling will be resumed when the humidity drops below the internal deadband of 1%. For example if set to 80% cooling will stop when the humidity is above 80% and will be resumed when the humidity drops below 79%.

Page 31

User & Installation Maunal Software

• Above t

(when status is humidification) – Stop humidification when the temperature is below this temperature. Humidification will be resumed when the temperature goes above the internal dead-band of 0.5o. For example if set to 25 will be resumed when it goes above 25.5

humidification will stop when the temperature drops below 25o and

• On – define the On time of the Cooling valve.

• Off – define the Off time of the Cooling valve.

If On = 0, there is a constant rest.

If Off = 0, there is a constant work (In the time frame).

• Cool # - assign cooling valves to this program. The assigned cooling valves will be operated sequentially in groups. The size of the groups (maximum cooling parallel) is defined in screen 6.2 SYSTEM SETUP.

• Temp. Sens. – assign Up to 2 temperature sensors for this program.

• Hum. Sens. – assign up to one humidity sensor to this program.

If there is a malfunction in one of the temperature sensors, a message will be displayed and that sensor will be taken out of the average temperature calculation. If all the temperature sensors are out of order, the controller will operate according to the first active line.

If you would like to operate the program by time only, set as follows:

Set Status to cooling or humidification (not important). Set the Above t°. and Below RH to 0. Define required On and Off times and the program will work accordingly within the set time frame.

1.9 MISTING

The misting program is a time schedule used to open / close a misting valve or any other device that is operated sequentially.

Up to 40 misting programs can be pre-set.

Notice that there are a few steps that should be defined prior to this screen:

• Table

7.10 MISTING CONFIGURATION.

Page 32

NMC-64 Irrigation

MISTING PROGRAM

Prg No.

1 2 3 4 5 6 7 8 9 10

Start End On Off No. hh:mm hh:mm hh:mm:ss hh:mm:ss

1 08:00 11:30 03:00 0:10:00 2 11:30 16:00 04:00 0:02:00 3 08:30 17:00 03:00 0:15:00 4 16:00 20:00 02:00 0:15:00 5 00:00 00:00 00:00 0:00:00 6 00:00 00:00 00:00 0:00:00 0 00:00 00:00 00:00 0:00:00 0 00:00 00:00 00:00 0:00:00 0 00:00 00:00 00:00 0:00:00 0 00:00 00:00 00:00 0:00:00

• Mist No. – assign a mist valve to the program.

It is possible to associate the same misting valve to several programs.

• Start (hh:mm) – Set the start time of the Misting program.

• End (hh:mm) – Set the end time of the Misting program

The Misting program will only be operative in the defined window of opportunity (between Start to End times). Each Misting program can be operative on different hours.

• On – define the On time of the Misting valve.

• Off – define the Off time of the Misting valve.

If On = 0, there is a constant rest.

If Off = 0, there is a constant work (In the time frame).

The table is sorted according to mist number in first priority and start time in second priority.

The Mist No. will always appear in groups in an increasing order so that the orientation is quick and easy.

Each mist group has an inside start time sorting so that a later start is "push to the end of the group.

00:00 is a legal hour.

Page 33

User & Installation Maunal Software

If you delete a row (by zeroing the Mist .No.) it will be pushed to the end of the table and the rest of the rows will jump one step up. Pressing the menu key does this sorting.

 When misting is on, the misting, the main valve and pump operate.

 When misting is off, only the pump continues to operate.

1.10 WATER HEATING

WATER HEATING

From Time To Time Water Temperature Difference Temp. Sensor #1 Temp. Sensor #2

00:00 06:00

25.0

2.0 1 3

The Water Heating operates according to temperature only within a set time frame and can be used to increase irrigation water temperature or prevent frost.

• From Time (hh:mm) – Set the start time of the water heating program.

• To Time (hh:mm) – Set the end time of the water heating program.

The water-heating program will only be operative in the defined window of opportunity (between start “From Time” to end “To Time”).

• Water Temperature - Water heating will be activated when the temperature drops below this value.

• Difference – dead-band for stopping water heating. When the water temperature reaches the set Water Temperature + Difference water heating will be stopped.

For Example: Water temperature is 25ºC and the difference is 2ºC.

Water heating will start at 25ºc and will stop at 27

Minimum difference is 0.3ºC and the default is 0.5ºC.

• Temp. Sensor 1/2 – assign up to 2 temperature sensors. If you assign 2 sensors, the NMC-64 will operate according to their average.

Page 34

NMC-64 Irrigation

2. MANUAL

MANUAL OPERATION

1. PAUSE SYSTEM

2. START/STOP PROGRAM

3. START/STOP VALVE

4. FLUSH FILTER

Choose one of 4 manual operations from the MAIN MENU / MANUAL OPERATION.

2.1 PAUSE IRRIGATION

PAUSE SYSTEM

Pause Irrigation? NO

Pause all irrigations (Yes/No). When the system is released from Pause mode it will complete all irrigations that should have taken place in the time the system was paused.

2.2 START/STOP PROGRAM

START STOP PROGRAM

Program: 1

Enter a program number to start and press Enter.

START/STOP PROGRAM

Do You Really Want

To Start Program 1?

YES NO

Select Yes to confirm your choice and start the relevant program.

When you enter the Start/Stop screen and a program is active you will be asked whether you wish to stop the relevant program, choose Yes if you wish to do so.

Page 35

User & Installation Maunal Software

2.3 START/STOP VALVE

START/STOP VALVE

Valve Run Time # Dosing Program

2 1 1

Enter a Valve number, Run Time program and (optional) Dosing program. Press the menu button to open the confirmation screen.

START/STOP VALVE

Do You Really Want

To Start/Stop Valve 2?

Yes No

Select Yes if you wish to start the relevant valve.

2.4 FILTER FLUSHING

FILTER FLUSHING

Flush Now? NO

To flush filters manually, follow the prompts and select a function with the arrow keys and press Enter.

You can flush all filters or individual filters. (Without Pump or Main valve operation)

(The filter number cannot be higher than the number defined in table 8.1)

Page 36

NMC-64 Irrigation

3. ALARM

ALARM

1. ALARM RESET

2. HISTORY

3. VALVE FLOW/ALARM

4. ALARM DEFINITION

5. ALARM SETTING

The alarm menu enables to define alarms, alarm actions and reset active alarm. It also provides history of notifications.

3.1 ALARM RESET

This table shows active alarms and faults. The Upper section enables the user to cancel faults and reset alarms.

Period of Automatic Reset enables the user to set a period of time that the NMC-64 will try to reset the alarms automatically and complete the uncompleted processes.

ALARM RESET

Reset Now? ► Period Of Automatic Reset ► Complete Irrig. On Reset ►

No 24 h YES

ACTIVE ALARMS

No. Message Date Time

1 Relay Card# 7 Fail 23/Mar 13:53:44

Page 37

User & Installation Maunal Software

3 3 3

3.2 HISTORY

Every alarm from the last reset will have a record on this table (Up to 250 alarms).

HISTORY

Message Date Time

1 2

Shortage ? 08/Sep 10:01:34 Relay Card No. 1 Fail 23/Mar 13:35:44

3.3 ALARM DEFINITION

ALARM DEFINITION

Water Fill up (min) Water Leak (m3 / Gal.) Water Leak Period (hh:mm) Dosing Channel Leak Delay (s) Dosing Channel Leak (Pulse) Delta EC Low Delta EC High Delta pH Low Delta pH High Missing Pulses For No Flow

10.000 00:30

0.50

Max Consecutive Flow Alarms No. Of Short Circ. To Pause Short Circuit Control

300

• Water Fill Up (Min.) - Time for line fill up. The system will ignore high flow and will not generate a High Flow alarm during this period.

• Water Leak (m3 / Gal.) - Quantity of water to trigger a water leak alarm. The quantity is either in m3 or gallon depending on the choice of volume units.

• Water Leak Period (hh:mm) - Time frame to measure the Water Leak quantity. If it takes the system more time than indicated here to measure the Water Leak quantity the system will not generate an alarm.

• Dosing Channel Leak Delay (s) – Delay after dosing channel is stopped before the system starts measuring Dosing Channel Leak. This feature is usually used to cope with problems regarding hydraulic pumps that work with fertilizer meters.

Page 38

NMC-64 Irrigation

• Dosing Channel Leak (Pulse) - Number of pulses generated by the dosing meter when dosing channel should be idle before the system will generate a dosing leak alarm.

• Delta EC Low - If measured EC value is lower than target value + Delta EC Low system will generate a Low EC pH Alarm.

• Delta EC High - If measured EC value is higher than target value + Delta EC High system will generate a High EC Alarm.

• Delta pH Low - If measured pH value is lower than target value + Delta pH Low system will generate a Low pH Alarm.

• Delta pH High – If measured pH value is higher than target value + Delta pH High system will generate a High pH Alarm.

• Missing Pulses For No Flow – Number of missing pulses before system will generate a No Flow Alarm.

• Max Consecutive Flow Alarms – Number of consecutive flow alarms of same type (high flow, low flow etc’) before the system is stopped. This setting is used to pause the system when there is a general malfunction that occurs in a few valves (or valve groups).

• Num. Of Short Circ. To Pause – Number of short circuits alarms measured before the system is paused. This setting is used to pause the system when there is a general malfunction that occurs in a few outputs.

• Short Circuit Control – Define the A/D threshold value to be considered as a short circuit (for further instructions see

Appendix > Short Circuit Control).

Page 39

User & Installation Maunal Software

3.4 ALARM SETTING

ALARM SETTING

Description Irri. Fert. Delay

Mm:ss

High Flow Low Flow No Flow D. Ch. Leak D. Ch. Fault Ext. Pause EC High/Fail EC Low Ph High PH low/Fail

STOP CONT STOP STOP PAUSE STOP STOP STOP STOP STOP

STOP STOP STOP STOP IRRIG STOP STOP STOP STOP STOP

01:00 01:00 30:00 01:00 01:00 01:00 01:00 01:00 01:00 01:00

Alarm Active

YES YES YES YES YES YES YES YES YES YES

The setting table enables to define required response for faults recognized by the NMC-64:

• STOP – Stop Irrigation and/or Dosing for current valve (or valve group) and continue to the next valve.

• CONT – Continue Irrigation and/or Dosing for the valve (or group of valve) that caused the alarm.

• Delay (mm:ss) – Define the period the fault must be measured for before the NMC-64 will take action.

• Alarm Active – Define whether the alarm output should be activated due to the relevant alarm.

An alarm will be generated on the NMC-64 screen even if the NMC has been set to continue or the alarm output has been set as not active (or not defined at all).

Page 40

NMC-64 Irrigation

4. HISTORY

The history menu provides extensive information regarding measurements and processes done by the NMC-64.

HISTORY

1. IRRIGATION Log

2. UNCOMPLETED IRRIGATION

3. UNCOMPLETED PROGRAMS

4. DAILY IRRIGATION

5. IRRIGATION ACCUMULATION

6. AUX METER ACCUMULATION

7. ACCUMULATION RESET

8. FILTERS

9. COOLING

10. SENSORS LOG

11. EVENT LOG

12. SYSTEM LOG

4.1 IRRIGATION LOG

The Irrigation Log table registers up to 100 rows of last irrigations.

IRRIGATION LOG

Date Time V1 Water Duration Flow Chan. 1 Chan. 2

29/Dec 09:40 1 5/Jan 10:00 2

Each row includes information regarding water quantity, irrigation duration, average flow and dosing quantities per channel.

5.0 0.00 20.0 10

10.0 0.00 20.0 20

To view dosing quantities or time simply press the ‘+/-‘ key.

Water quantity is measured in cubic meter or gallons, duration is measured by time, flow is measured in cubic meter or gallon per hour, and fertilizer quantity is measured in liters or gallons.

Page 41

User & Installation Maunal Software

4.2 UNCOMPLETED IRRIGATION

The Uncompleted Irrigation table provides information of irrigations that where started but did not complete the irrigation due to a fault. To understand way an irrigation was not completed it is advisable to cross-reference between this table and table

ALARM > HISTORY.

The Uncompleted Irrigation table consists of up to 200 lines.

UNCOMPLETED IRRIGATION

3.2

No.

Date Time Prog Vl. Run Dose Program Left hh:mm No. No. No. Prog Qty. Qty.

27-Dec-03 10:03 1 2 2 2 2.000 0.780

28-Dec-03 15:04 93 1 1 1 1.000 0.810

28-Dec-03 15:05 92 3 1 2 2.000 0.590

28-Dec-03 15:08 2 4 1 2 2.000 0.620

Each raw includes information regarding when irrigation was stopped and entered the uncompleted irrigations table.

• Date – date current line entered the uncompleted irrigation table.

• Time – time current line entered the uncompleted irrigation table.

• Prog. No. – indicated the program number.

• 92 – the program that entered the table was started manually.

• 93 – the relevant irrigation has entered the uncompleted irrigations table for

the second time (or more) consecutively.

• Vl. No. - indicates the associated valve. If a group of valves defined to irrigate together where stopped, only the first valve is written but a ‘+’ sign is entered next to it to indicate that there are more valves associated.

• The NMC-64 will attempt to complete the irrigations from current day (until end day time) upon manual or automatic alarm reset.

• Valve column of irrigations that are to be completed will be highlighted.

• Valve column of irrigations that are currently being completed will be

blinking.

• Run No. – indicates the associated run time program.

• Dose Prog. – indicates the associated dosing program.

• Prog. Qty. – planned quantity according to run time program.

• Left Qty. – uncompleted quantity.

Page 42

NMC-64 Irrigation

In order to manually stop an uncompleted irrigation you must go to table 2.3

START/STOP VALVE because the activation is according to single valves.

4.3 UNCOMPLETED PROGRAMS

The Uncompleted Programs table provides information of programs that could not be completed. It is important to understand the difference between this table and the Uncompleted Irrigations table; this table consists only of irrigation cycles that haven’t been started and could not be completed during current day. This can happen due to wrong setup of the system (more tasks than could be completed) or because the system was not active for a long period of time, for example due to power failure, and could not complete its tasks.

UNCOMPLETED PROGRAMS

No. Date Time Prog Start Prog Left

hh:mm No. Time Cyc. Cyc.

27-Dec-04 10:03 1 15:51 5 2

28-Dec-03 15:04 93 22:00 2 1

28-Dec-03 15:05 92 23:00 2 2

Uncompleted program table consists of 200 lines.

4.4 DAILY IRRIGATION

Enables to view history of irrigation quantities or time per valve.

DAILY IRRIGATION

How Many Days Ago? 1 Day Ago

Press ENTER to open the list of choice, move with the arrow keys to the relevant day and confirm your choice by pressing the ENTER button. For Example 1 day ago means you would like to view Yesterdays history and Today means you would like to view accumulated history since last End Day.

Page 43

User & Installation Maunal Software

Date : 15-Jan-05

DAILY IRRIGATION

Vl. Water Fert-1 Fert-2 Fert-3

0.00 0.00 0.00 0.00

The relevant date you are currently viewing will be displayed at the top of the screen.

Daily Irrigation table contains all water (m3 or gallon) and fertilizer (liter or gallon) quantities that were irrigated on the relevant day.

To change view between quantities and time simply press the ‘+/-‘ key.

4.5 IRRIGATION ACCUMULATION

The Irrigation Accumulation table enables to accumulate water and dosing quantities for required periods. The accumulation of each valve can be reset separately in table

4.7 ACCUMULATION RESET.

IRRIGATION ACCUMULATION

Valve Date Water Chan. 1 Chan. 2 Chan. 3

28-Dec-04 13.92 51.35 27.12 51.34

03-Jan-05 98.24 19.22 19.22 19.22

To change view between quantities and time simply press the ‘+/-‘ key.

Water quantity is measured in cubic meter or gallons, fertilizer quantity is measured in liters or gallons

Page 44

NMC-64 Irrigation

4.6 AUX METER ACCUMULATION

The Auxiliary Meter Accumulation table enables to accumulate quantities from meters that don’t have designated software. For example in order to measure the drain water quantity or to measure the cooling system’s consumption.

These water meters are accumulators only and are not a part of the irrigation control.

AUX METER ACCUMULATION

Meter Quantity Date

1 2 3

89.500

100.500

865.000

28-Dec-04

08-Jan-05

The quantities displayed are in liters (gallons) up to 9999.999

To reset an auxiliary meter refer to table

4.7 ACCUMULATION RESET.

4.7 ACCUMULATION RESET

ACCUMULATION RESET

Reset Valve Quantity For?

Reset Aux Meter For?

To reset accumulation of an individual valve or of all valves press the Enter key, choose the relevant option using the arrow keys and confirm by pressing the Enter key.

All Valves

Meter 01

When resetting a valve (or all valves) its history will be erased from the following tables:

 Daily Irrigation

 Irrigation Accumulation

Page 45

User & Installation Maunal Software

To reset an individual Auxiliary Meter or all Auxiliary meters press the Enter key, choose the relevant option using the arrow keys and confirm by pressing the Enter key.

When resetting an Aux Meter (or all Aux Meters) its history will be erased from the Aux Meter Accumulation table.

4.8 FILTERS

Filters history table provides daily information of the number and cause of flushing.

FILTERS

Flushed by

Date Delta P. Time Manual

28-Dec-04 5 2 0

29-Dec-04 6 0 1

30-Dec-04 9 0 0

31-Dec-04 7 1 2

4.9 COOLING

Enables to view history of cooling activities or time per valve.

DAILY IRRIGATION

How Many Days Ago? 1 Day Ago

Page 46

NMC-64 Irrigation

Date : 15-Jan-05

COOLING

Prog.

No.

1 2

From To Cycles Hh:mm hh:mm

10:12 11:23 11

13:26 15:52 67

4.10 SENSORS LOG

Sensors Log table includes history avrage measurements of sensors that are logged. To define which sensors should be logged and the averaging interval refer to table

SENSORS LOGGING.

SENSORS LOG

Avg. Avg. EC pH

Date Time

Temp Hum

14\Mar 17:00

31.9 31.2 40.1

6.7

14\Mar 18:00 14\Mar 19:00 14\Mar 20:00 14\Mar 21:00

31.9 31.2 40.1

32.0 31.3 40.0

31.0 31.2 39.0

Sensors Log table contains up to 10,000 details. Date and time are 2 details in every line and each sensor is an additional detail.

For example: logging of 2 sensors uses 4 details; 2 for time and date and 1 for each sensor. In this case the table will consist of maximum 2,500 lines.

Page 47

User & Installation Maunal Software

4.11 EVENT LOG

The table provides information of the all processes performed by the NMC-64 including there time and date.

EVENTS LOG

No. Event Date Time

1 2 3 4 5

The table consists of the last 999 events.

Cold Start 12/Mar 11:25:36 Power Off 12/Mar 11:33:46 Power On 13/Mar 11:34:57 Current Break Off 14/Mar 13:05:03 Current Break On 14/Mar 13:10:25

4.12 SYSTEM LOG

The table provides information of the all system changes.

A system change can be for example a change of a table from the controller or through the PC communication, and can also be a power off.

EVENTS LOG

No. Event Date Time

1 2

Cold Start 12/Mar 11:25:36

Power Off 12/Mar 11:33:46 3 4 5

The table consists of the last 999 events.

Power On 13/Mar 11:34:57

Current Break Off 14/Mar 13:05:03

Current Break On 14/Mar 13:10:25

Page 48

NMC-64 Irrigation

5. TEST

TEST

1. RELAYS

2. DIGITAL INPUT

3. ANALOG INPUT

4. TEMPERATURE

5. HUMIDITY

6. HARDWARE CHECK LIST

The Test menu provides a quick means to verify functionality.

5.1 RELAYS

The Relays Test screen enables to check current output status and verify proper operation.

RELAYS

OUTPUT# STATUS

1 2 3 4 5 6 7 8

VALVE 1 MAN VALVE 2 OFF VALVE 3 OFF VALVE 4 OFF VALVE 5 OFF VALVE 6 OFF VALVE 7 OFF VALVE 8 OFF

The setting automatically changes between ON and Off. To manually test relay functionality, move the cursor to it with the arrow keys and press Enter. Press Enter again to return to automatic operation.

• OFF – The output is not active.

• ON – The output is automatically turned on by the relevant program.

• Man – Manual operation of the output. The manual operation resets after 7

minutes it is idle to prevent the user from forgetting to set it back to automatic operation.

Page 49

User & Installation Maunal Software

5.2 DIGITAL INPUT

The Digital Input test screen enables to verify proper operation of digital inputs and sensors.

Digital inputs show either a 0 or a 1; they reflect the status of inputs.

ANALOG INPUT

Channel Card No. 1 Card No. 2

1 2 3 4 5 6 7 8

0 0 0 0 0 0 0 0

---

5.3 ANALOG INPUT

Analog inputs will have values from 0 to 1023; refer to the table below to see what that value represents for each sensor.

ANALOG INPUT

Channel Card No. 1 Card No. 2

1 2 3 4 5

1023 1023 1023 1023 1023

- - -

6 7 8

9 10 11

1023 1023

2 0 0

1014

- - -

Page 50

NMC-64 Irrigation

5.4 TEMPERATURE

This table shows the current temperature sensor readings in degrees (Celsius or Fahrenheit depending on definition in screen

TEMPERATURE

No. Value

32.20

31.34

---

6.2 SYSTEM SETUP).

---

5.5 HUMIDITY

This table shows the current humidity sensor readings in % relative humidity.

HUMIDITY

NO. Value

1 2 3 4 5

33.80

40.02

---

Page 51

User & Installation Maunal Software

5.6 HARDWARE CHECK LIST

The Hardware Check List displays which and how many output and input cards are connected, their location and number.

CHECK LIST

DESCRIPTION FOUND

Analog Input Digital Input Analog Output Relay cards

To update the hardware checklist disconnect the NMC-64 from the power supply or perform a cold start.

COM.

Relay

1→8

The bottom row shows 24VAC output cards, dry contact output cards and power supply. The upper row shows dry contact output cards, analog and digital input cards, and communication card.

_ _ _

Relay

9→16

1 2 0 7

D.In

No.2

Relay

17→24

Relay

48←41

Relay

25→32

A.In

No.1

Relay

33→40

D.In

No.1

P.S.

Page 52

NMC-64 Irrigation

6. SETUP

The SETUP menu provides clock, calibration, plug storage/retrieval and language settings.

SETUP

1. TIME & DATE

2. SYSTEM SETUP

3. TEMPERATURE CALIBRATION

4. HUMIDITY CALIBRATION

5. EC/pH CLIBRATION

6. WEATHER STATION CALIBRATION

7. SENSORS LOGGING

8. WRITE TO DATA PLUG

9. READ FROM DATA PLUG

5.1 TIME & DATE

Time & Date screen enables to set the current time and date as well as the end of the crop daytime.

To adjust the time and date, simply place the cursor on the setting you wish to modify, change the numbers using the keypad and press Enter to save your changes.

TIME AND DATE

Currant Time Date End day Time ►

• End Day Time - Select the start time of a new day 00:00 to 23:00.

At End Day time:

18:31:04

27-Dec-03

00:00

• All the alarms are reset.

• All the uncompleted irrigations are reset. Irrigation cycles that haven’t been

completed will move to the uncompleted programs.

• All the valves that are registered in the uncompleted table (4.2) and did not complete the irrigation are switched from wait position to do not continue (Move to history).

Page 53

User & Installation Maunal Software

C°

1 1

NO NO

• Cycle days in table 1.1 Irrigation Program are moved one day ahead.

• The daily % change is zeroed (the constant % change stays the same).

• All the irrigations are restarting.

• Currently active cycle will continue with its current settings until completed.

6.2 SYSTEM SETUP

System Setup screen includes all general system settings.

SYSTEM SETUP

Language ►

English

Temperature Unit ► Volume Unit ►

Metric Maximum Cooling Parallel Maximum Misting Parallel

STOP IRRIGATION

During Filter Flushing? ►

During Cooling Process? ► During Misting Process? ►

STOP DOSING

During Filter Cleaning? ► NO

VALVE

Delay Between Valves (sec) 5

MAIN SCREEN

Default Hot Key Number 1

HISTORY

History Resolution 1 HOUR

COMMUNICATION

Controller number Baud Rate

9600

Page 54

NMC-64 Irrigation

• SYSTEM SETUP

• Language – Choose controller language.

• Temperature Unit - Celsius or Fahrenheit.

• Volume Unit - Metric (Liter) or Imperial (Gallon).

• Maximum Cooling Parallel – Define the maximum number of cooling valves

to be operated simultaneously. The maximum number is 20.

• Maximum Misting Parallel – Define the maximum number of misting valves to be operated simultaneously. The maximum number is 20.

• STOP IRRIGATION

• During Filter Flushing – Define whether irrigation should be stopped during

filter flushing.

• During Cooling Process – Define whether irrigation should be stopped during cooling.

• During Misting Process – Define whether irrigation should be stopped during misting.

• STOP DOSING

• During Filter Flushing – Define whether dosing should be stopped during

filter flushing.

• VALVE

• Delay Between Valves – Define the required delay between closing a valve

until opening the next one. If you wish to open and close the valves simultaneously set to zero.

• MAIN SCREEN

• Default Hotkey Number – Define the required default hotkey number.

• HISTORY

• History Resolution - Set the history collection rate of the sensors.

• COMMUNICATION

• Controller Number - Select the controller number for communication. The

controller number in the controller and in the PC should match for the communication to work.

• Baud Rate - Select the baud rate for communication. The Baud rate in the controller and in the PC must match for communication to work properly.

Page 55

User & Installation Maunal Software

6.3 TEMPERATURE CALIBRATION

Temperature sensor’s Calibration.

Use the arrow keys to increase/decrease the factor in order to adjust the values.

TEMPERATURE CALIBRATION

Sensor Temp Factor

1 2 3 4 5 6 7 8

29.82 0.00

28.34 0.00 N/A 0.00 N/A 0.00 N/A 0.00 N/A 0.00 N/A 0.00 N/A 0.00

6.4 HUMIDITY CALIBRATION

Same calibration shown for temperature applies to Humidity sensors.

6.5 EC/pH CALIBRATION

EC/pH calibration enables to adjust between the EC/pH transmitters to the NMC-64.

EC pH CALIBRATION

Sensor value Factor

EC pH

1.46 -0.06

7.21 0.18

Use the arrow keys to increase/decrease the factor until the values shown in the NMC-64 are equal to the values indicated in the transmitter’s screens.

Page 56

NMC-64 Irrigation

6.6 WEATHER STATION CALIBRATION

Calibrate the outside conditions sensors.

WEATHER STATION CALIBRATION

Value Factor

Temperature Humidity Wind Direction

29.33 -1.3

56.2 2.2 359 9

Use the arrow keys to increase/decrease the factor in order to adjust the values.

6.7 SENSORS LOGGING

Sensors Logging screen enables to define which sensors should be logged.

SENSORS LOGGING SETUP

Data To Collect Yes/No

Avg. Temp Temp-1 Temp-2 Temp-3 Temp-4 Temp-5 Temp-6 Temp-7 Temp-8 Avg. Hum

√ . . . . . . .

√

To select an item move the cursor to it and mark it using the ‘+/-‘ key. Selections are marked with √.

When you change the Sensors logging setup, the sensors history table resets and starts over.

Page 57

User & Installation Maunal Software

6.8 WRITE TO DATA PLUG

The Data-plug can be used to save controller settings, and restore when needed.

Place the Data-plug in its socket and confirm your choice.

ACTION WILL OVERWRITE

EXISTING DATA PLUGE

ARE YOU SURE?

YES NO

When writing to data-plug new program will overwrite old program on data-plug.

6.9 READ FROM DATA PLUG

Place the plug in its socket and upload the program from the data-plug to the controller.

ACTION WILL OVERWRITE

YOUR CONTROLLER DATA

ARE YOU SURE?

YES NO

When reading from data-plug the program on the data-plug will overwrite existing controller program.

Page 58

NMC-64 Irrigation

7. CONFIGURATION

CONFIGURATION

1. DEVICE DELAY CONFIGURATION

2. PUMP CONFIGURATION

3. VALVE CONFIGURATION

4. VALVE FLOW RATE

5. WATER METER

6. DOSING CHANNEL CONFIGURATION

7. DOSING CONFIGURATION

8. EC/pH SENSOR RANGE

9. COOLING CONFIGURATION

10. MISTING CONFIGURATION

7.1 DEVICE DELAY CONFIGURATION

Device Delay Configuration screen enables to define startup and shutdown order the irrigation process.

DEVICE DELAY CONFIGURATION

On Off

mm:ss mm:ss

Pump Main Valve Valve

Example – according to the settings above the pump will be turned on first, after 45 seconds the main valve and 15 seconds later (1 minute from procedure start) the valve.

--:-- 01:00 00:45 00:15 01:00 --:--

It is recommended that the device that should be started (stopped) first be defined as zero (will appear as --:--).

Page 59

User & Installation Maunal Software

7.2 PUMP CONFIGURATION

Pump configuration screen enables to define the capacity of the various pumps, their startup and shutdown delays, and configure them to the processes.

PUMP CONFIGURATION

Pump

No.

1 10.000 01:00 02:00 YES YES NO

2 20.000 01:30 04:00 YES NO YES

When a few pumps are connected to the irrigation process the NMC-64 automatically calculates which pump (or pumps) should be started. The calculation is done by summing up the nominal flow of all valves defined to work together and starting the minimal number of pumps required to supply the calculated flow rate. If a few pumps should be started the NMC-64 will start from the smallest to the largest and will turn them off from the largest to the smallest.

• Pump No. – pump number.

• Capacity – define pump capacity. This will be the maximum pump capacity, above

which the NMC-64 will turn on another pump (if available).

• Stability – define stability time. Stability time is the startup time required for current pump before next pump can be started up. Stability time is usually used to prevent voltage drop down and water hammer.

Capacity

m3/h

Stability

mm:ss

Off Delay

Irrig. Cooling Misting

mm:ss

• Off Delay – define off delay. Off delay will be the delay time for current pump to stop after last pump has stopped. This delay is usually used to prevent water hammer.

• Irrig. (Yes/No) – define whether the pump is connected to the irrigation process.

• Cooling – define whether the pump is connected to the cooling process.

• Misting – define whether the pump is connected to the misting process.

Only one pump can be connected to the cooling process, and one pump to the misting process.

Page 60

NMC-64 Irrigation

7.3 VALVE CONFIGURATION

VALVE CONFIGURATION

Valve

No.

Pump Main

Valve

Water Meter

1 1

Associate proper equipment with each valve. The numbers on the left are valve numbers. In the example above, valve number 1 is associated with pump 1, main valve 2 and water meter 1.

7.4 VALVE FLOW RATE

VALVE FLOW RATE

Valve No.

1 2 3 4 5 6

Nominal Minimum Maximum m3/h m3/h m3/h

5.000 3.750 6.250

The NMC-64 uses cubic meters per hour when measuring the valve flow rate. The minimum and maximum levels set on this window are levels at which the NMC-64 will shut down valves and activate the alarm for low or high flow rates. The nominal level is the actual rate a valve should produce. Enter appropriate values of water flow for each valve.

Minimum/maximum levels are by default set to 25% below/above of the nominal level.

Page 61

User & Installation Maunal Software

7.5 WATER METER

WATER METER

Description Ratio

Water Meter 1 (M3/Pulse) Water Meter 2 (M3/Pulse) Water Meter 3 (M3/Pulse) water collect 1 (M3/Pulse) water collect 2 (M3/Pulse) water collect 3 (M3/Pulse)

0.00

Set this ratio according to the ratio on the water meter so that the NMC-64 will know how much water runs through the water meter or is collected in a pulse.

7.6 DOSING CHANNEL CONFIGURATION

FERTILIZER SETTING

No. Pump Method Ratio React High (%) Low (%)

1 2

Venturi Time 16.6 EC 30 30 Venturi Time 16.6 EC 30 30

Venturi Time 6.2 PH 30 30

• Pump - Select the type of dosing pump:

• Venturi –

• Hydraulic –

• Electric –

 When working with hydraulic pump, the method can only be

Liter/Pulse

 When working with hydraulic pump EC/pH control is not possible.

• Method - Select the operating method:

• Liter/Pulse – define whether the dosing channel is connected to a dosing

meter and therefore dosing flow rate should be volume per pulse of the dosing meter in liter (gallons) per pulse.

Page 62

NMC-64 Irrigation

• Time (cc/sec) – define whether the calculated flow rate of the dosing channel is in CC (gallon) of fertilizer per second.

• Time (Liter/min) – define whether the calculated flow rate of the dosing channel is in liters (gallons) per minute.

• Time (Liter/Hour) – define whether the calculated flow rate of the dosing channel is in liters (gallons) per Hour.

• Ratio – define calculated flow rate or volume per pulse (depending on chosen method) of the dosing channel.

• React - Set whether the channel should be set to increase

• EC – the channel is used to increase measured EC.

• pH – the channel is used to decrease measured pH.

• Passive – the channel is idle to changes in measured EC/pH.

• HO – the channel is used to increase measured pH.

If EC & pH control is off, or channel is used for proportional injection only (for example in order to inject chemicals) set reaction to passive.

• High % - set a limiting injection percentage. This percentage will limit the deviation from set dosing recipe when NMC-64 is injecting more than defined in order to try and reach the target EC/pH values.

• Low % - set a limiting injection percentage. This percentage will limit the deviation from set dosing recipe when NMC-64 is injecting less than defined in order to try and reach the target EC/pH values.

If only EC/pH protection is required, with no correction, set fertilizer’s reaction to passive and EC/pH control (

7.7 DOSING CONFIGURATION) to active. EC/pH control

will not take place but deviations in EC/pH measured levels will trigger the high / low EC/pH alarms.

When working with dosing meters dosing meter 1 is automatically related to dosing channel 1, dosing meter 2 to dosing channel 2, etc’.

Page 63

User & Installation Maunal Software

7.7 DOSING CONFIGURATION

EC pH SETTING

EC Control pH Control Minimum Pulse Time(sec) Delay Pulse Time(sec) Coarse Tuning (1-Slow, 10-Fast) Fine Tuning (1-Slow, 10-Fast) Control Cycle (sec) EC pH Averaging (0-Low, 20-High)

NO NO

0.8

0.8 5 2 6 2

• EC Control – define whether EC control should be operative.

• pH Control – define whether pH control should be operative.

• Minimum On Time (sec) – define the minimum time the dosing regulator may be

opened for. This feature is used to protect the regulator for excessively being turned on and off. The minimum allowed On time is 0.8 seconds.

• Minimum Off Time - define the minimum time the dosing regulator may be turned off for. This feature is used to protect the regulator for excessively being turned on and off.

• Coarse Tuning (1-Slow, 10-Fast) - Coarse tuning is used to adjust speed and aggressiveness of EC/pH control. A higher value will result in faster correction but might lead to over shutting (see

EC/pH correction adjustment for further

information).

• Fine Tuning (1-Slow, 10-Fast) - Fine-tuning is used to fine tune EC/pH control (see

EC/pH correction adjustment for further information).

• Control Cycle (sec) – define the control cycle for EC/pH control. This should be the time it takes the system since it injected fertilizer / acid until the change in recognized by the system.

• EC pH Averaging (0-Low, 20-High) - averaging factor for EC/pH measurement. EC/pH averaging should be used to enable correction when injection is not homogonous.

Page 64

NMC-64 Irrigation

7.8 EC/pH RANGE DEFINITION

EC/pH RANGE DEFINITION

Sensor 4 mA 20 mA

EC(mS)

0 20 0 14

Define the range of the EC/pH transmitters.

7.9 COOLING CONFIGURATION

The cooling configuration screen will only be visible after one (or more) cooling valves have been defined in table

COOLING CONFIGURATION

Cool No.

Main Valve

0 0 0 0

8.1 DEVICE LAYOUT)

• Main Valve – configure a main valve to each cooling valve. This setting is not necessary in case the cooling doesn’t have a main valve.

7.10 MISTING CONFIGURATION

MISTING CONFIGURATION

Mist. No.

Main Valve

0 0 0 0

Page 65

User & Installation Maunal Software

• Main Valve – configure a main valve to each misting valve. This setting is not necessary in case the cooling doesn’t have a main valve.

Page 66

NMC-64 Irrigation

8. INSTALLATION

8.1 DEVICE LAYOUT

Device layout screen enables to assign functions to each output (relay).

Place the cursor on the Function column, use the arrow keys to reach the relevant line, press Enter, a list of choice including all available devices will appear, choose the required device and confirm by pressing Enter. The cursor will jump to the No. column, define the number of the device in the controller and press enter to confirm.

If you wish to define a few devices of the same type, lets say valves 1 to 10. simply define the first one and press enter a few times until you reach the required amount. The NMC-64 automatically continues with the same device until told otherwise or until reaching the system limitation for that device.

DEVICE LAYOUT

Relay Function No.

1 2 3 4 5 6 7 8 9 10 11 12 21 22 23

VALVE VALVE VALVE VALVE VALVE VALVE AGITATOR COOLING FERT BOOST FILTER FILTER FERT FERT MAIN PUMP

1 2 3 4 5 6 1 1 1 1 2 1 2 1 1

ALARM

After making changes, be sure to exit and return again to check for errors. The NMC-64 will delete and replace conflicting assignments with ‘---‘.

Page 67

User & Installation Maunal Software

8.2 Available Devices

The Available Devices screen enables to view what type and how many devices are currently defined. This screen automatically updates depending on the devices set in screen

8.1 DEVICE LAYOUT.

OUTPUT DEFINITION

TYPE Qty

Pumps Main Valves Filters Fertilizers Alarm Valves Misting Cooling Fert. Boosters Agitator Selectors Water Heating Main Filter Valve

1 1 3 3 1

0 0 1 2 1 1 1

8.3/4 DIGITAL INPUTS 1-2

Place the cursor on the relevant line and press Enter, a list of choice will open. Choose the required sensor and press Enter to confirm.

Page 68

NMC-64 Irrigation

DIGITAL INPUT 1

In Input Function

1 2 3 5 6 7 8 9 10

Water Meter Fertilizer Meter Program 1 Operate Stop System Pressostat Delta Pressure Drainage Qty Dry Contact Water Collent

8.5/6 ANALOG INPUT 1-2

Place the cursor on the Input Function column, use the arrow keys to reach the relevant line, press Enter, a list of choice including all available analog sensors will appear, choose the required sensor and confirm by pressing Enter. The cursor will jump to the No. column, define the number of the sensor in the controller and press enter to confirm.

ANALOG INPUT No. 1

Channel Input Function N0.

1 2 3 5 6 7 8

9 10 11

Temp. Sensor 1 Humidity Sensor 1 Evaporation 1 Drainage EC 1 EC Sensor 1 pH Sensor 1 pH Sensor 2 pH Sensor 3 < None > 0 < None > 0

Page 69

User & Installation manual Hardware

Hardware

General Specifications

Housing

Plastic housing with a screw on lid IP 66

Dimensions (LxWxH) 400x300x130

Ambient conditions

Operating temperature range 0ºC to + 60ºC

Storage temperature range -10ºC to + 70ºC

Power Supply

The power supply card receives line voltage (220 / 110VAC) and provides voltages for various users:

• 12VDC to the CPU and relays.

• 5VDC to digital inputs, 3VDC to analog inputs, etc’.

• 24VAC to 24VAC output cards.

Specifications

Mains voltage single phase 230VAC / 110VAC

Mains frequency 50/60Hz Maximum power consumption 50VA

Mains voltage Minimum 200VAC Maximum 250VAC

Main Fuse 1A

Available power for peripheral equipment

24VAC 80VA / 3.2A

Primary fuse 1.25A

Thermal fuse 9A

Page 70

NMC-64 Irrigation

Power supply without external protection

Power supply with external power supply protection

Page 71

User & Installation manual Hardware

Dry Contact Output Card

The NMC-64 consists of maximum 8 output cards, all of which (or some) can be dry contact output cards; each card consists of 8 outputs, in total maximum 64 dry contact outputs.

The dry contact output card can be used to drive devices of various voltages depending on what is connected to it. When more than 40 outputs of type 24VAC are required the dry contact output card can be configured as seen in drawing below (

contact connection).

The dry contact output card consists of surge and lightening protection circuits and doesn’t need the addition of external protections under normal conditions.

Specifications

8-64 N.O. low power relay Dry Contact Output 5 Amps

Dry

Maximum Output Changing Rate 0.4 Sec

Dry contact connections

Page 72

NMC-64 Irrigation

24AVC Output Card

The NMC-64 consists of maximum 8 output cards, 5 of which can be 24VAC output cards; each card consists of 8 outputs, in total maximum 40 outputs 24VAC.

The 24VAC output card is used to drive devices that require a 24VAC power supply. The bottom row consists of the common connections and the upper row of the outputs.

It is possible to connect the common of several devices to the same connector nevertheless it is recommended to try and spread the commons in an even manner.

The 24VAC output card consists of surge and lightening protection circuits and doesn’t need the addition of external protections under normal conditions.

Specifications

8-40 N.O. low power relay 24VAC Output 5 Amps

Maximum Output Changing Rate 0.4 Sec

24VAC output card connections

Page 73

User & Installation manual Hardware

Digital Input Card

The NMC-64 consists of maximum 2 digital input cards; each card consists of 8 inputs, in total maximum 16 digital inputs.

The digital input cards are used to measure discrete sensors. The bottom row consists of the common connections and the upper row of the inputs.

It is possible to connect the common of several sensors to the same connector nevertheless it is recommended to try and spread the commons in an even manner.

The digital inputs card consists of surge and lightening protection circuits and doesn’t need the addition of external protections.

Specifications

8-16 digital inputs dry contact 5V/2mAmp

Maximum Pulse Input Rate 100 Pulse/Sec

Digital sensors connection

See Appendix > Plug & Play > card identification and definition in the controller.

Digital Input Card for additional information regarding

Page 74

NMC-64 Irrigation

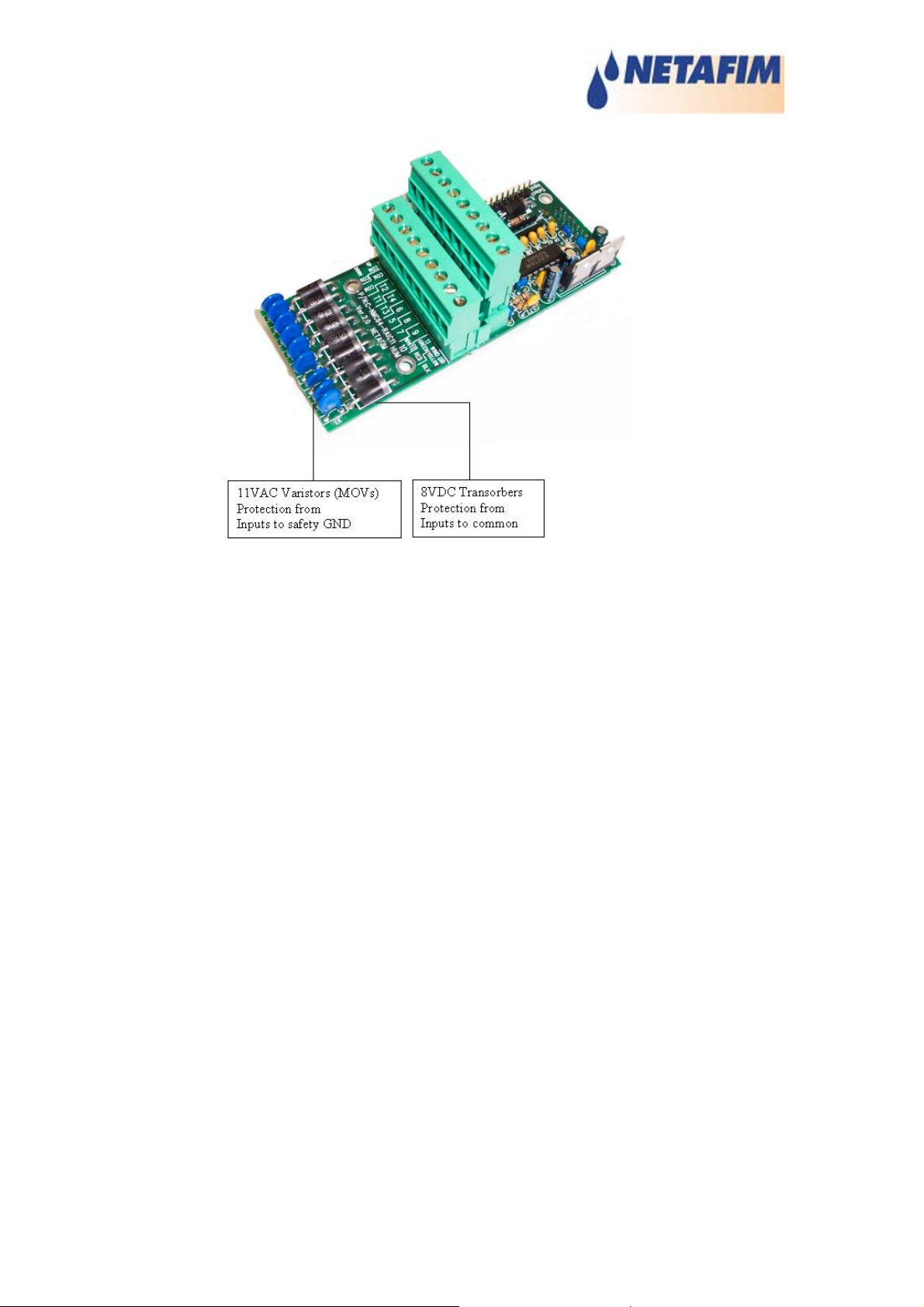

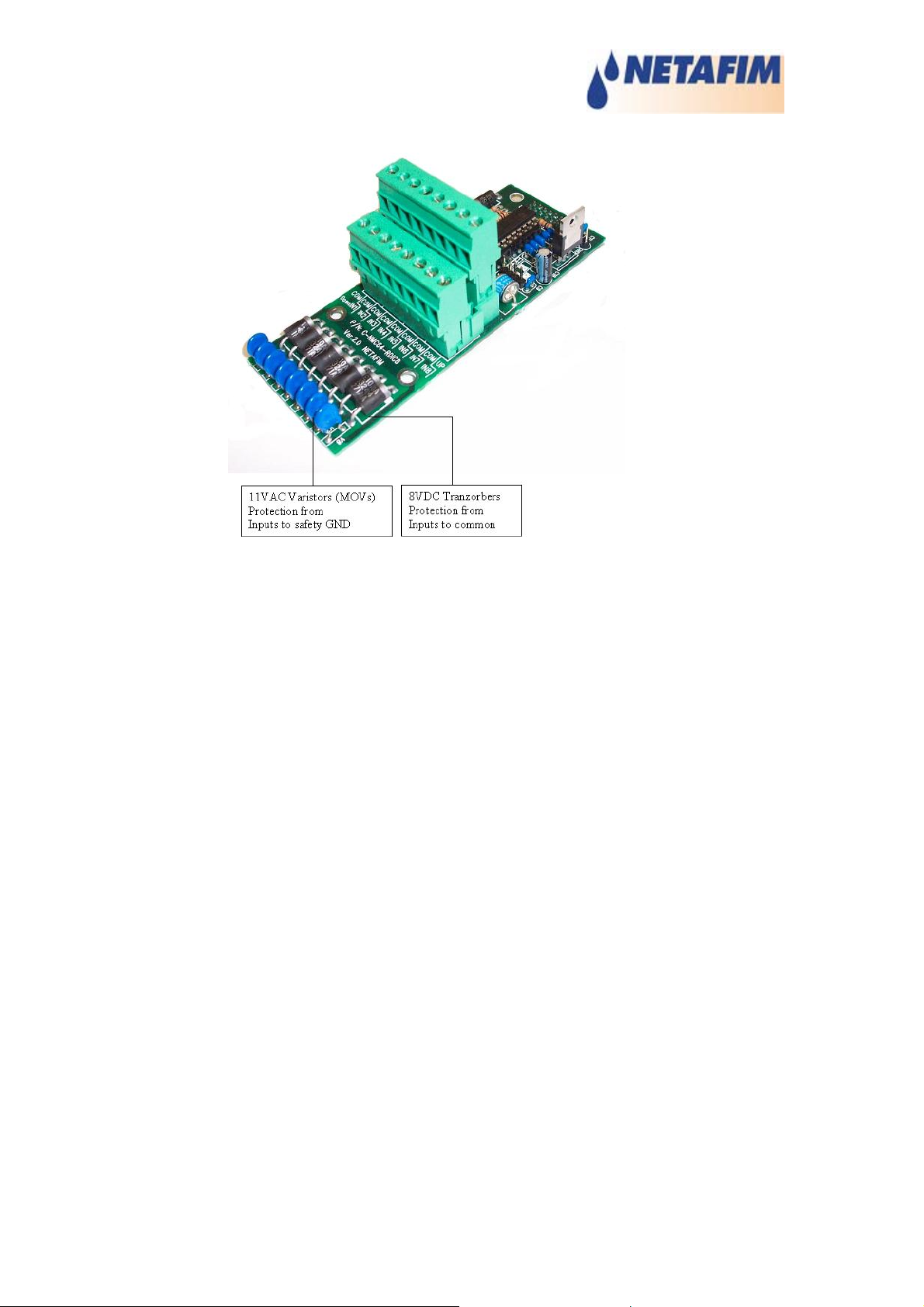

Digital input card protections

Analog Input Card

The NMC-64 consists of maximum 2 analog input cards; each card consists of 11 inputs, in total 22 analog inputs.

• Inputs 1 – 4 can be connected to temperature sensors only.

• Inputs 5 – 6 can be connected to temperature or 4-20 mA sensors (jumper

selectable).

• Inputs 7 – 9 can be connected to temperature or humidity sensors (jumper selectable).

• Input 10 can be connected humidity sensor.

• Input 11 can be connected to wind direction sensor.

The analog inputs card consists of surge and lightening protection circuits and doesn’t need the addition of external protections.

Page 75

User & Installation manual Hardware

Specifications

Temperature inputs (RTS-2) 30 kOhm thermistor

EC/pH inputs 4-20mA

Humidity inputs (RHS-2) 0-:-3V

Wind direction input Potentiometer

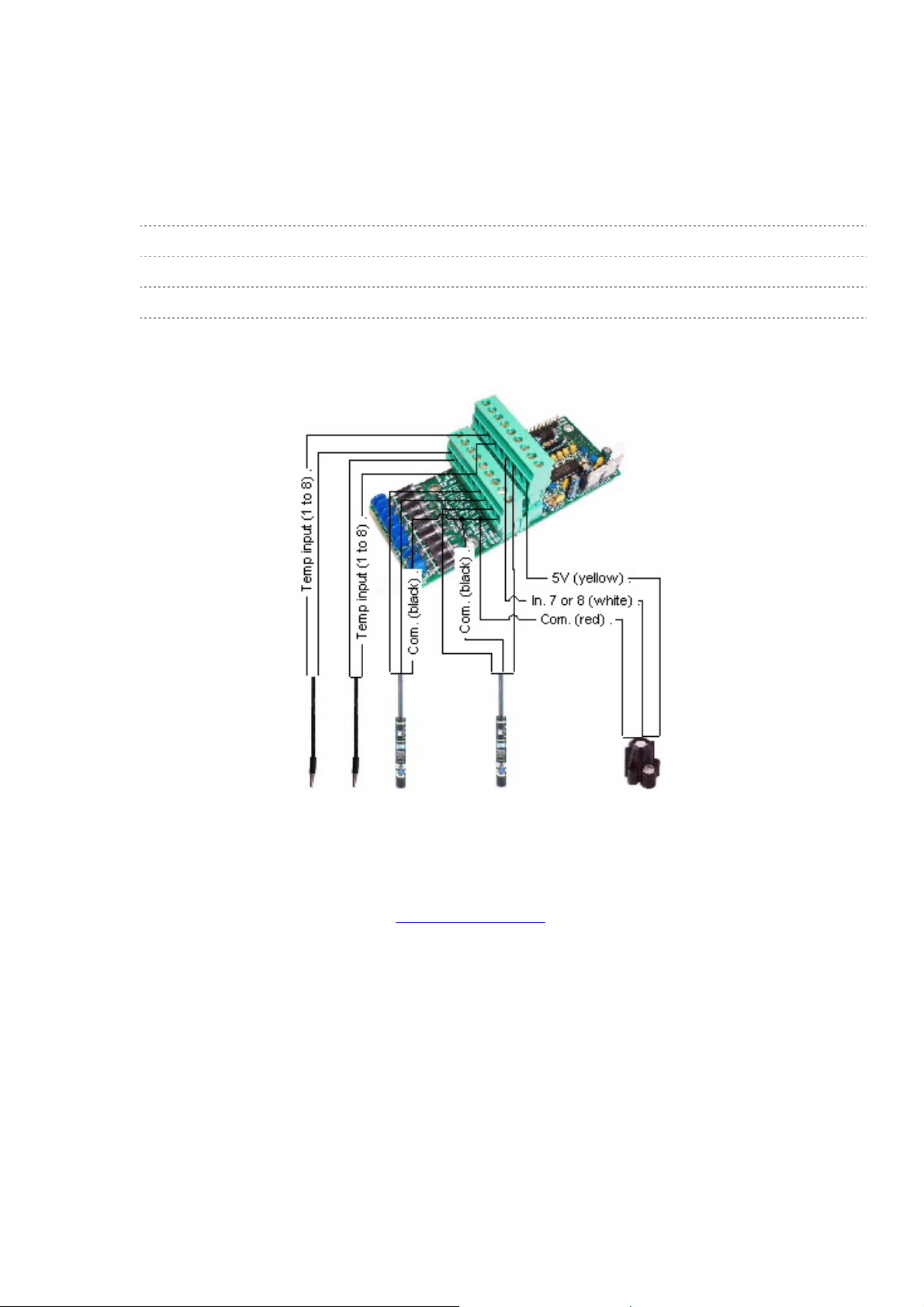

Analog sensors connection

See Appendix > Plug & Play > card identification and definition in the controller.

Analog Input Card for additional information regarding

Page 76

NMC-64 Irrigation

Analog input card protection

Page 77

User & Installation manual Troubleshooting

Troubleshooting

LED’s indication

Several LED’s in the system can indicate the essence of a current problem.

CPU LED- In normal operation the LED will blink to indicate a watchdog update.

•

When the led isn’t blinking for a few seconds the system will reset. If the led hasn’t resumed blinking (LED OFF) than there is a major fault, probably in the CPU board.

•

OUTPUT LED- In normal operation the LED will blink to indicate a relays

update; every blink indicates that the main CPU updated the relays status and that communication between the cards is OK. In case of a malfunction, in communication or power, the led will stop blinking.

•

Communication LED’s- 2 communication LED’s indicate communication

between NMC-64 and PC / modem. When the LED’s aren’t blinking there is no communication between the NMC-64 and the PC / modem.

Page 78

NMC-64 Irrigation

Problems and trouble shooting:

# Problem description Troubleshooting

Check led blinking. If the led on the output cards aren’t blinking, then the problem is probably that the I2C bus is pulled down by one of the cards.

Relays are not working, there are no sensor readings, and there is no communication with the hardware.

One of the output cards isn’t working at all.

(LED is switched off)

Alarm messages:

 Temp Sensor Shorted.

 Temp Sensor Opened.

 Temp Sensor User Err.

 Out Temp Sen. Shorted

 Out Temp Sen. Opened

 Out Temp Sen. Fail

Disconnect the output cards and digital input cards one by one and check whether the LED’s of the remaining cards starts blinking or the sensor’s readings are correct.

If you can’t find the faulty card it is probable that the CPU card is faulty, contact the Netafim dealer closest to you.

The reason for this problem is probably a short circuit in one of the relay coils. The short activates a thermal fuse on the power supply card.

Replace the relay card.

The reason for these problems could be that one of the sensors is shorted or disconnected.

Check the alarm messages to see sensor’s number and failure description; “Opened” or “Shorted”.

Connect Ohmmeter between the black and red wires of the temperature sensor and check if there is 30 kOhm. There are variations in the readings of the ohmmeter according to temperature. If the temperature is higher then 25°C the resistance will decrease and if the temperature is lower then 25°C the resistance will increase.

For example:

37.5 kOhm - in 20°C

24.1 kOhm - in 30°C

Page 79

User & Installation manual Troubleshooting

# Problem description Troubleshooting

Alarm message::

 Digital Input Card Missing

There is a short circuit and the controller doesn’t recognize which output is creating it. This will usually occur more then once, an event “Short Circ. Relay # “ (with no relay number) should appear in the table

4.12 SYSTEM LOG.

Check the digital inputs using table 5.2

DIGITAL INPUT TEST

If there is a problem with a digital input card, replace it (see also

Play .

This can occur in two different cases:

 There are no short circuits in the

system - the short circuit threshold value is too. In this case raise the shrt circuit threshold value (table

3.3 ALARM DEFINITION).

 A short circuit occurs in a device

that is connected in a distance – the addition to the system’s electric current load (A/D) is too small for the system to detect exactly which output is resposible. In this case the short circuit threshold value can be lowered so the system is more sensitive.

This can occur in two different cases:

Pappendix > Plug &

The controller detects a short circuit but it does not point to the correct device.

 There are no short circuits in the

system - the short circuit threshold value is too. In this case raise the shrt circuit threshold value (table

3.3 ALARM DEFINITION).

 A short circuit occurs in a device

that is connected in a distance – the addition to the system’s electric current load (A/D) equals that of a device near the system and the system cannot identify which is the short circuited device. In this case operate the devices manually and detect the defected device using

5.1 RELAYS.

table

Page 80

NMC-64 Irrigation

ALARM LIST

# Alarm Group

1 Temp Sns# Shorted (1 to 8) 2 Temp Sns# Opened (1 to 8)

3 Temp Sensor # Fail (1 to 8)

4 Out Temp Sen. Shorted

5 Out Temp Sen. Opened

6 Out Temp Sen. Fail

7 Relay Card # Fail (1 to 8)

8 Analog In # Fail (1 to 2)

9 Digital In # Fail (1 to 2)

10 Clock Failure

11 CPU Card Failure

12 Memory Failure

13 EC Sensor Fail

14 pH Sensor Fail

15 High Flow

16 Low Flow

17 Water Leak (1 to 3)

18 Dosing channel # leak (1 to 8)

19 Dosing chan. # Fault (1 to 8)

20 External Pause

21 Delta Pressure

22 EC High

23 EC Low

24 pH High

25 pH Low

26 No Flow

27 Flow alarm

28 Short Circuit

Hardware related alarms. The alarm message will appear on the main screen and will be registered in the history table. These alarms will not stop irrigation.

Alarms related to systems that operate with EC/pH control.

If these alarms turn on the controller will switch to proportional irrigation with no EC/pH control.

User defined alarms (tables

ALARM SETTING).

3.3 ALARM DEFINITION, 3.4

Page 81

User & Installation manual Appendix

Appendix

Cold Start procedure

Cold Start resets the NMC-64 to the original factory settings. This procedure should be performed after replacing a software version, when reinstalling the controller or when instructed by Netafim technician.

To perform a cold start:

1. Disconnect the NMC-64 power supply.

2. Turn power on, press and hold the delete key until cold start pop-up screen appears.

3. If you choose No, the NMC-64 will continue to its usual power up procedure; settings will remain untouched.

4. if you choose Yes NMC-64 will perform cold start procedure; controller will start with Ram and EPROM cleaning procedure. All controller settings will be erased and restored back to default factory settings. All history will be erased.

5. After cold start procedure has ended NMC-64 will return to the main screen; to use NMC-64 controller start installation from beginning.

It is recommended to save NMC-64 settings to Data-plug and / or PC before starting the cold start procedure. This will enable to restore previous settings and setup if required.

VERSION

To check controller version enter the main screen and press the Help button. To exit the Version screen press the Enter key.

Page 82

NMC-64 Irrigation

Short Circuit Control

General Description:

The NMC-64 uses a fuse to prevent damage due to high current short circuits; if a high current short circuit occurs the fuse either burns (in the plastic box version) or pops (in the metal box version).

In order to enable the NMC-64 to continue operating functioning devices the NMC-64 incorporates a short circuit detection mechanism. When a short circuit is detected the NMC-64 performs a test procedure to detect the faulty outputs, an alarm indicating that a short circuit was detected is given and an events indicating which outputs are faulty are registered.

Functionality:

When a short circuit is detected the system starts searching for the specific device which is causing it. The relay cards are shut down one after the other starting from card # 8 down to card # 1. When detecting a card that has a short circuit the relays are tested one after the other and those that have a short circuit are disabled.

Once a short circuit occurs an alarm is generated (one for all devices) and an event is given (

4.12 SYSTEM LOG) for each device that is detected with a short circuit.

Reset:

Outputs that are short-circuited (market “AL” in table 5.1 TEST > RELAYS ) are not turned on automatically and can not be manually turned on. After fixing the shortcircuit reset the alarm (table

3.1 ALARM RESET), the outputs are now functional.

Short-Circuit Threshold Level (A/D):

The NMC-64 CPU uses the short circuit detection mechanism to measure the 24VAC current load and translates it to an A/D reading of 0-999. The short-circuit threshold is user defined and depends on various parameters; 24VAC transformer size, number of devices to be operated simultaneously, power consumption per device, distance between controller to devices, cables dimension and resistance, etc’.

Setting Short-Circuit Threshold Level:

• Operate the maximum amount of devices to be used load possible).

simultaneously (maximum

• View measured A/D load on lower side of table

• Calculating desired threshold level:

• If the measured A/D value is up to 60 add 30.

5.1 RELAYS and write it down.

Page 83

User & Installation manual Appendix

• If the measured A/D value is 60 to 300 add about 50%.

• If the measured A/D value is above 300 add 150.

• Set the calculated value on table

Setting a higher value will result in a less sensitive system; system will detect short circuits in devices that are near the system but it will not be sensitive to devices that are further away.

The system will not always be able to detect short circuits in devices that are far away from the system (dependent on the cable length, resistance, etc’). Such short circuits generate a lower A/D reading, which might even be less then a reading of an operative device that is near the system.

To disable the short-circuit control set the value to 999.

Plug & Play

Input/Output cards identification

3.3 ALARM DEFINITION “Short Output Level”.

• After Cold Start, the controller zeroes the cards data that is in the memory and researches the system.

• After identifying the cards, the controller saves the results.

• Once a minute, the controller runs a check on all the cards and makes sure that

the cards are connected and working properly.

• In case a card is missing or failed, the controller displays a message on the screen. If the card is found within a minute, the message disappears, if not, the message turns to an alarm.

• After RESET ALARM the controller turns off the alarm and refers to the missing card as not existing.

• In order to add a card you must turn off the power, place the card and turn the power back on. The controller searches for new cards in every power renewal and adds the new cards to the list.

• The new cards are now considered as cards that must always be found.

• Alarms for cards do not reset automatically. Reset the alarm manually from the

controller or the P.C.

Page 84

NMC-64 Irrigation

Analog Input Card:

• If only one card is present it will always be number 1, regardless of its position.

• When add a card to a system that already has one Analog input card, the new card

will be number 2 regardless of its position.

• Two cards installed in the system (After Cold Start), are numbered from right to left.

Digital Input Card:

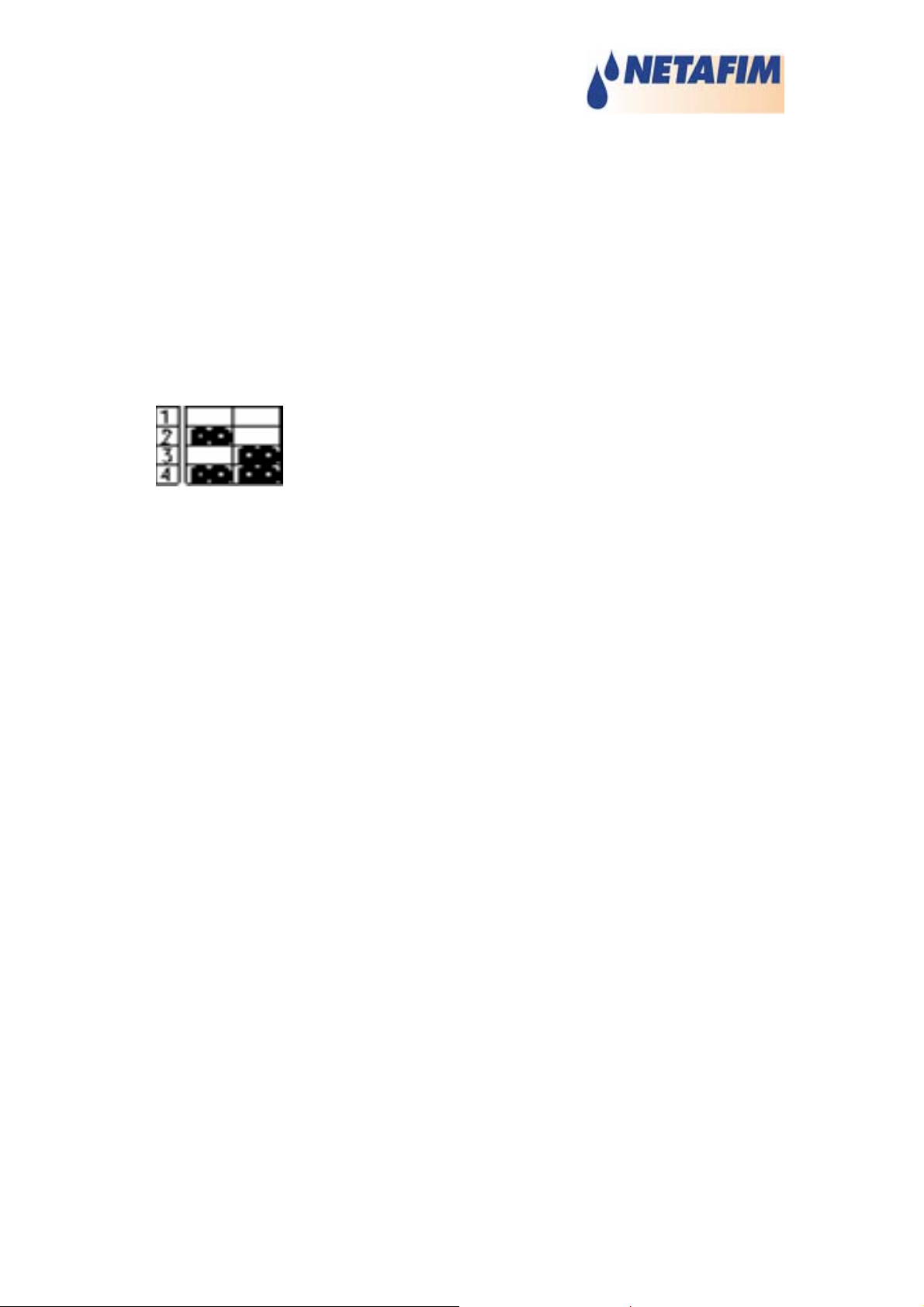

• Cards numbering is according to the jumpers setting on the cards.

• If you add a new card with an identical number to one already in, the controller

sends a message of a numbering conflict and will disregard the new card. Turn off the power and change the new card’s number (Jumper).

• If after Cold Start there are 2 cards with identical numbers, the controller will recognize the right-sided one and will ignore the left one. Turn off the power and change the jumper position on the left-sided card.

Jumpers 3-4 are not in use

Page 85

User & Installation manual Appendix

Limitation table

Device Max No. Remarks

Devices

Pumps

Main Valves 3

Filters 24

Fertilizers 8

Alarm 1

Valves 60

Misting 40

Cooling 16

Fert. Booster 1

Agitator 3

Selector 7

Water Heater 1

Main Valve 1

Programs

Irrigation programs 15

Fertilizer programs 10

Run-Time programs 60

Filter Flushing programs 1

Water Heating programs 1

Cooling programs 5

Misting programs 40

Agitator programs 1

Selector programs 1

Page 86

NMC-64 Irrigation

Priority specifications

Irrigation Priority from High to Low (1 – High, 6 – Low)

1. Active program or valve.

2. Operating from uncompleted irrigation table.

3. Condition operation.

4. Manual valve operation.

5. Manual program operation.

6. Programs by Start Time; 10 – high priority, 0 – low priority. If Priority is the same, by lower program number is started first.

Electrical grounding

Electrical equipment can be destroyed or slowly damaged by voltage spikes, lightning hits, etc’. Proper electrical grounding in combination with the NMC-64 internal protections is essential to protect the system, reduce the risk of damage and prolong its lifetime.

Correct selection and installation of equipment will protect your system and reduce the risk of human injury.

Proper grounding provides an easy path for electrical current to return to its source. A grounding system should tie all non-current carrying conductors to earth ground (0 volts). The grounding system should present a minimum resistance to current flow. Make sure all items used are in proper condition, for example, a corroded wire clamp attaching a ground wire to a ground rod might add 100 ohms or more resistance to a system.

Less than 5 ohm will be considered as a good ground.

Ground Rods

Ground rods are used to efficiently connect the system to earth where current may be dissipated in the soil.

• Material:

Ground rods should be copper clad or galvanized steel.

• Diameter:

Minimum 5/8”, preferably 3/4”. Generally the larger the rod diameter, the lower it’s resistance to current flow.

Page 87

User & Installation manual Appendix

• Length:

Minimum 2.5 meters (8 feet), preferably 3-meter (10-foot). A longer ground rod will reach a soil with higher moisture content. Moist soil carries current much better than drier soil.

• Single grounding:

It is important that there is only one grounding location where a rod or series of rods are connected to each other using a ground wire.

Independent ground rods will increase the risk of current, from a lightning strike for example, being dissipated through one rod and reentering the system through an adjacent rod.

• Location;

Close to the main circuit breaker panel and in moist soil. For example in an area that is usually wet from a drip or a low spot where water drains. Make sure the area is well protected from damage by lawnmowers, tractors, etc’.

Page 88

NMC-64 Irrigation

• Rod installation

Drive the rod into the earth until about 10 cm (4 inches) is left above grade. If it is impossible to drive the rod to the proper depth, it is acceptable to lay the rod horizontally, 80 cm (2.5 feet) below grade.

In case the rod is exposed to damage, for example by lawnmowers or tractors it can be installed in a hole, about 20 cm (8 inches) deep so that the rod is about 10 cm under grade and 10 cm above hole level.

The National Electric Code (NEC) mandates two ground rods unless you can show less than 10 ohms resistance with one rod.

Ground Wire

The ground wire is a large copper wire that connects the main circuit breaker panel to the ground rod.

• Material:

Ground rods should be copper clad or galvanized steel.

• Diameter:

Typically, 16 mm (6-gauge) copper wire is sufficient. If the wire run is greater than 20 feet, 20 mm (4-gauge) wire should be used.

• Length:

Minimum 2.5 meters (8 feet), preferably 3-meter (10-foot). A longer ground rod will reach a soil with higher moisture content. Moist soil carries current much better than drier soil.

The ground wire should be protected from damage by lawnmowers, tractors, etc’. It should be buried minimum 15 cm (6 inches) under grade for protection and enter the house as soon as possible. It is important that the wire not be cut; it should remain continuous.

Ground Clamps

Ground wires should not be merely wrapped around a ground rod. Ground clamps are used to attach a ground wire to a ground rod. The most common clamp is known as an acorn clamp.

Make sure the ground clamps you select are rated for outdoor use. Do not use pipe clamps rated for inside water lines or hose clamps to attach the ground wire.

Page 89

User & Installation manual Appendix

Ground connection

What Should Be Grounded?

Any equipment that is or could become energized, even accidentally, should be grounded. Current from lightning, strikes objects in a random fashion. Accounts of lightning strikes reveal scenarios most of us could not predict.

Electric circuits should be wired with a 3-wire conductor consisting of hot, neutral and grounding wires. The grounding wire should be attached cleanly and securely to devices or systems to be grounded. The other end of the grounding wire should be attached to the ground bus on the main panel.

Lightning Protection

1. Connect the shield to the ground at one end (controller side) of long shielded

wires such as for temperature and humidity sensors. When extending cables for temperature sensors and humidity sensors also connect the shield through the extension.

2. Run a heavy wire directly from the ground terminal to the ground rod, which must also be connected to the electrical service ground. The Ground should be less than 5 ohm resistance.

3. Do not use light wires for these ground connections. They must carry heavy lightning currents, sometimes exceeding thousands of amperes. The galvanized plate of the NMC-64 is the ground reference for it. You may connect the heavy ground wire using spare screws on it. Do not use the shielding of sensor and low voltage wiring as lightning grounds.

4. Ensure that all ground connections go to a single local point. When lightning strikes, grounds a foot or two apart will be at significantly different voltages. If you have several electronic boxes with individual grounds, connect all these together to a single point. This should continue to the ground rod or the electrical service. In particular, avoid grounding any controls remotely through shield wiring.

Page 90

NMC-64 Irrigation

ELECTRICAL CONNECTIONS

1. Install electronic equipment in a separate ventilated control room that is protected from extreme temperatures and dirty environments. Place the controls so that the operators can conveniently use the control and read indicators and displays.

2. Give your installation a professional appearance, with all wiring in conduit or neatly installed. Keep low voltage wires separate from high voltage wires.

3. Use shielded wiring for low-level signals. For buried wiring (building to building runs) use high grade jell filled cables that are impervious to moisture.

4. Seal cable entry points and control boxes to prevent contamination and corrosion. If you use silicon sealant with acetic acid cure, keep the control open and ventilated until cured. Otherwise, the acetic acid will attack the metal parts, including circuitry.

Page 91

User & Installation manual Appendix

SENSORS AND SHIELD WIRING

1. Do not use shields to create a path for lightning. For long shield wires, such as

building to building runs, connect the shield to ground at one end only, to

reduce the chance of conducting lightning from one building to another.

2. When splicing sensors to longer wires, ensure that the splice is waterproof. Use adhesive lined heat shrink (marine grade) to make waterproof connections.

3. Use a good compression connector for splicing. This is better than soldering. Do not simply twist wires together and then cover with electrical tape. This also includes wiring for the shield.

4. Keep sensor wiring separate from other power distribution and high voltage wiring. Ensure that lightning on other wiring will not transfer to the sensors.

5. Install outside temperature sensors so that the sun will not cause false readings, and so that exhaust air from the building will not affect the sensor.

Caution, risk of danger (read the manual)

Caution, risk of an electric shock.

Protective conductor terminal.

Earth (ground) terminal.

WARNING: Controller contains HIGH VOLTAGE, which can cause injury or death. Disconnect power supply before opening enclosure attempting connections. The connection of the mains power supply to the controller, pump starts and relay contacts that contain HIGH VOLTAGE should be performed by a licensed electrical contractor in accordance with all local, state and national elect

rical codes.

and

Page 92

NMC-64 Irrigation

EC/pH correction adjustment

In order to set your system for optimal dosage the NMC-64 incorporates an advance PID algorithm that is suited specifically for that purpose.

Set your dosage as follows:

• Set a runtime program with sufficient time, 30 minutes or so (

TIME).

• Manually start a valve associated with the above set runtime program, no need to attach a dosing program (

To prevent damage during system tune up make sure you choose a valve that is not irrigating an active crop section.

• Manually open one of the fertilizer channels through table 5.1 TEST > RELAYS and measure the time until the NMC-64 recognizes the change (the EC should start going up). Make the same test for an acid channel.

• Manually stop the open valve.

• Choose the longest time of the two, add about 15% to it and set it as the control

cycle (table 7.7 DOSING CONFIGURATION).

• Put the coarse and fine-tuning to 1 (table 7.7 DOSING CONFIGURATION).

• Set a dosing program with reasonable settings (table

• Start the valve again, this time with the above set dosing program.

• While the system is fertigating and after verifying that there are no large

irregularities between set and actual flow start increasing the coarse tuning value until the system gets to an accuracy of about 0.3 to 0.4 to each direction. Than start increasing the fine-tuning until reaching the best possible accuracy.

2.3 START/STOP VALVE).

1.3 DOSING PROGRM).

1.2 WATER RUN

• After reaching a good accuracy stop the valve and start it again with fresh water only for a few minutes, until the system is flushed.

• Start the valve again, this time with the same dosing program you used before and check how long it takes the system to stabilize. If it takes it a long time try slightly increasing the coarse and fine-tuning.

Make sure you don’t set the coarse and fine tuning to strong as this will result in an unstable injection (overshoots and down shoots).

Page 93

User & Installation manual Appendix

EC Transmitter & Sensor connection and calibration

Connecting EC sensor to Transmitter:

1. Remove resistors from connectors 3-4 and 5-6.

2. Connect Green wire to connector 4.

3. Connect Red wire to connectors 5 and 6.

4. Connect Black wire to connectors 10 and 11.

5. Connect White wire to connectors 12 and 13.

6. Adjust the Dip-switches (white is ON) as follow:

4 6 5

1110

100Ώ

Green

Red

Black White

EC Transmitter Calibration

• Remove the sensor from its socket and wipe fluids off it.

• Using the ZERO, bring the reading to 0 (no calibration fluid is needed here).

• Insert the sensor into the calibration fluid (Milwaukee 1413 µS/cm solution).

Page 94

NMC-64 Irrigation

• Calibrate with the SENS until the EC reading is as on the calibration fluid and

according to 25

(example – using Milwaukee 1413 µS/cm solution transmitter

should be calibrated to show a value of 1.41 mS).

• Insert the sensor back to the socket and tighten it.

• Repeat sensor calibration once every two months.

Connecting EC transmitter to NMC-64 controller

Connect EC transmitter to NMC-64 analog input card as follows:

• EC transmitter’s connector 1 to analog card’s connector Red.

• EC transmitter’s connector 2 to analog card’s connector T5.

• Check that analog card’s jumper 1 (from left) is set to 4-20mA.

Red

12VDC

Input

Page 95

User & Installation manual Appendix

NMC-64 EC definitions and calibration

• Table

8.5 ANALOG INPUT 1 :

Define EC sensor No. 1 on input number 5.

• Table

7.8 EC/pH RANGE DEFINITION :

Define table as follows:

Sensor 4 mA 20 mA

EC (Ms) 0 20 pH 0 14

• Table 6.5 EC/pH CALIBRATION :

Change factor by pressing on the right and left arrows until value displayed on controller screen is identical to the value displayed on transmitter screen:

Sensor Value Factor

EC 1.41 0.00 pH 7.00 0.00

Page 96

NMC-64 Irrigation

pH Transmitter & Sensor connection and calibration

Connecting pH sensor to Transmitter:

• Connect wire (HI) to connector 10.

• Connect shield (LO) to connector 11.

 Do not remove resistors from connectors 3-4 and 5-6.

 Do not switch between shield and wire connections.

10 11

Shield

Wire

Page 97

User & Installation manual Appendix

pH Transmitter Calibration

The calibration procedure requires calibration fluids of two levels, the recommended values are: pH 7 for the high-level calibration fluid and pH 4 for the low-level calibration fluid. If calibration fluids of these values are not available other calibration values can be used.

• Remove the sensor from its socket and wipe fluids off it.

• Insert the sensor into the higher-level calibration fluid, for instance with a pH value

of 7 (Milwaukee pH 7.01 buffer).

• Using the ZERO (and according to measured temp) adjust the reading to fit the pH value as on the calibration fluid (example – if temp is 25C°, the pH value shall be

7.01).

• Wipe the sensor and insert it to the lower value calibration fluid, for instance with pH 4 (Milwaukee pH 4.01 buffer).

• Calibrate with the SENS until the pH reading is as on the calibration fluid, according to 25 shall be 4.01).

• Carefully insert the sensor back to its socket.

• Repeat sensor calibration every two weeks.

The pH should not be dry, make sure to put it in fluid immediately after calibrating.

C (example – using 4.01 buffer and temp is 25C°, the pH value

Connecting pH transmitter to NMC-64 controller

• Connect pH transmitter to NMC-64 analog input card as follows:

• pH transmitter’s connector 1 to analog card’s connector Red.

• pH transmitter’s connector 2 to analog card’s connector T6.

• Check that analog card’s jumper 2 (from left) is set to 4-20mA.

Page 98

NMC-64 Irrigation

Red

12VDC

Input

Page 99

User & Installation manual Appendix

NMC-64 pH definitions and calibration

• Table 8.5 ANALOG INPUT 1 :

Define pH sensor No. 1 on input number 6.

• Table 7.8 EC/pH RANGE DEFINITION :

Define table as follows:

Sensor 4 mA 20 mA

EC (Ms) 0 20 pH 0 14

• Table

6.5 EC/pH CALIBRATION :

Change factor by pressing on the right and left arrows until value displayed on controller screen is identical to the value displayed on transmitter screen:

Sensor Value Factor

EC 1.41 0.00 pH 7.00 0.00

Page 100

NMC-64 Irrigation

Netafim Limited Warranty

100

Netafim NMC-64 Installation Manual

Specifications and Main Features

Frequently Asked Questions

User Manual

Table of contents

Introduction

General Description

Main Features

Operation of the NMC-64

Main Menu Screen

Use of the keypad:

Use of keypad buttons:

Hot Screens

Hot Screen 0

Hot Screen 1

Hot Screen 2 - Irrigation Process

Hot Screen 3 - Program Status.

Hot Screen 4 - Water / EC/pH / Fert.

Hot Screen 5 - Filter Flushing Status

Hot Screen 6 - Temperature and humidity

Hot Screen 7 – Weather station

Software

Getting started

1. Program

1.1 IRRIGATION
