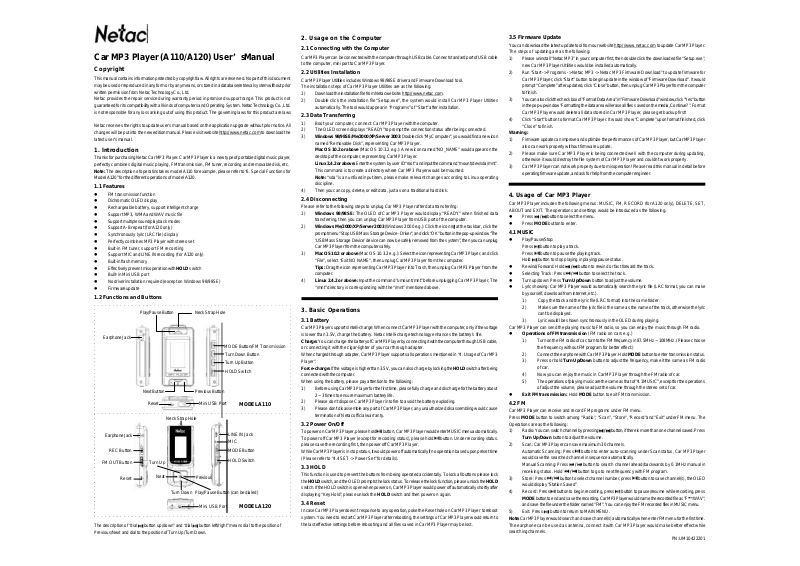

Car MP3 Player (A110/A120) User’s Manual

Copyright

This manual contains information protected by copyright law. All rights are reserved. No part of this document
may be used or reproduced in any form or by any means, or stored in a database/retrieval system without prior
written permission from Netac Technology Co., Ltd.
Netac provides the repair service during warranty period in promised support range. This product is not
guaranteed for its compatibility with all kinds of computers and Operating System. Netac Technology Co., Ltd.
is not responsible for any loss arising out of using this product. The governing laws for this product are laws

Netac reserves the rights to update user’s manual based on the application upgrade without prior notice. All
changes will be put into the new edition manual. Please visit website http://www.netac.com to download the
latest user’s manual.

1. Introduction

Thanks for purchasing Netac Car MP3 Player. Car MP3 Player is a new type of portable digital music player,
perfectly combines digital music playing, FM transmission, FM tuner, recording and removable disk, etc.

Note: The description of operatins takes model A110 for example, please refer to “6. Special Functions for
Model A120” for the different operations of model A120.

1.1 Features

l FM transmission fun ction
l Dichromatic OLED display
l Rechargeable battery, support intelligent charge
l Support MP3, WMA and WAV music file
l Support multiple sound/pl ayback modes
l Support A-B repeat (for A120 only)
l Synchronou sly lyric (LRC file) displ ay
l Perfectly combines MP3 Player with stereo set
l Built-in FM tuner, support FM recording
l Support MIC and LINE IN recording (for A1 20 only)
l Built-in flash memory
l Effectively prevent misoperation with HOLD switch
l Built-in Mini USB port
l No driver installation required (except on Windows 98/98SE)
l Firmware update

1.2 Functions and Buttons

Play/Pause Button

Earphone Jack

Reset

Neck Strap Hole

Earphone Jack

REC Button

FM OUT Button

Reset

The description of “dial button up/down” and “dial button left/right” means dial to the position of
Previous/Next and dial to the position of Turn Up/Turn Down.

Turn Up

Next

Neck Strap Hole

Previous ButtonNext Button

Mini USB Port

Previous

Turn Down

Play/Pause Button (can be dialed)

Mini USB Port

MODE Button/FM Transmission

Turn Down Button

Turn Up Button

HOLD Switch

MODEL A110

LINE IN Jack
MIC

MODE Button
HOLD Switch

MODEL A120

2. Usage on the Computer

2.1 Connecting with the Computer

Car MP3 Player can be connected with the computer through USB cable. Connect standard port of USB cable
to the computer, mini port to Car MP3 Player.

2.2 Utilities Installation

Car MP3 Player Utilities includes Windows 98/98SE driver and Firmware Download tool.
The installation steps of Car MP3 Player Utilities are as the following:

1) Download the installation file from Netac website: http://www.netac.com.

2) Double click the installation file “Setup.exe”, the system would install Car MP3 Player Utilities
automatically. The tool would appear in “Programs” of “Start” after installation.

2.3 Data Transferring

1) Boot your computer, connect Car MP3 Player with the computer.

2) The OLED screen displays “READY” to prompt the connection status after being connected.

3) Windows 98/98SE/Me/2000/XP/Server 2003: Double click “My Computer”, you would find a new icon
named “Removable Disk”, representing Car MP3 Player.
Mac OS 10.2 or above (Mac OS 10.3.2 e.g.): A new icon named “NO_NAME” would appear on the
desktop of the computer, representing Car MP3 Player.
Linux 2.4.2 or above: Enter the system by user ID “root” and input the command “mount /dev/sda /mnt”.
This command is to create a directory where Car MP3 Player would be mounted.

Note: “sda” is an unfixed input item, please make relevant changes according to Linux operating
discipline.

4) Then you can copy, delete, or edit data, just as on a traditional hard disk.

2.4 Disconnecting

Please refer to the following steps to unplug Car MP3 Player after data transferring:

1) Windows 98/98SE: The OLED of Car MP3 Player would display “READY” when finished data
transferring, then you can unplug Car MP3 Player from USB port of the computer.

2) Windows Me/2000/XP/Server 2003 (Windows 2000 e.g.): Click the icon at the taskbar, click the
prompt menu “Stop USB Mass Storage Device - Driver”, and click “OK” button in the pop-up window “The
‘USB Mass Storage Device’ device can now be safely removed from the system”, then you can unplug
Car MP3 Player from the computer safely.

3) Mac OS 10.2 or above (Mac OS 10.3.2 e.g.): Select the icon representing Car MP3 Player, and click
“File”, select “Exit NO NAME”, then unplug Car MP3 Player from the computer.

Tips: Drag the icon representing Car MP3 Player into Trash, then unplug Car MP3 Player from the
computer.

4) Linux 2.4.2 or above: Input the command “umount /mnt” before unplugging Car MP3 Player, The
“/mnt” directory is corresponding with the “/mnt” mentioned above.

3. Basic Operations

3.1 Battery

Car MP3 Player supports Intelli-charge: When connect Car MP3 Player with the computer, only if the voltage
is lower than 3.5V, charge the battery. Netac Intelli-charge technology enhances the battery’s life.
Charge: You can charge the battery of Car MP3 Player by connecting it with the computer through USB cable,
or connecting it with the cigar-lighter of your car through adapter.
When charged through adapter, Car MP3 Player supports all operations mentioned in “4. Usage of Car MP3
Player”.
Force-charge: If the voltage is higher than 3.5V, you can also charge by locking the HOLD switch after being
connected with the computer.
When using the battery, please pay attention to the following:

1) Before using Car MP3 Player for the first time, please fully charge and discharge for the battery about
2 ~ 3 times to ensure maximum battery life.

2) Please don’t dispose Car MP3 Player into fire to avoid the battery exploding.

3) Please don’t disassemble any part of Car MP3 Player, any unauthorized disassembling would cause
termination of Netac official warranty.

3.2 Power On/Off

To power on Car MP3 Player, please hold button, Car MP3 Player would enter MUSIC menu automatically.
To power off Car MP3 Player (except for recording status), please hold button. Under recording status.
please save the recording first, then power off Car MP3 Player.
While Car MP3 Player is in stop status, it would power off automatically if no operation based upon preset time
(Please refer to “4.4 SET -> Power Set” for details).

3.3 HOLD

This function is used to prevent the buttons from being operated accidentally. To lock all buttons please lock
the HOLD switch, and the OLED prompts the lock status. To release the lock function, please unlock the HOLD
switch. If the HOLD switch is open when power on, Car MP3 Player would power off automatically shortly after
displaying “Key Hold”, please unlock the HOLD switch and then power on again.

3.4 Reset

In case Car MP3 Player doesn’t response to any operation, poke the Reset hole on Car MP3 Player to reboot
system. You need to restart Car MP3 Player after rebooting, the settings of Car MP3 Player would return to
the last effective settings before rebooting and all files saved in Car MP3 Player may be lost.

3.5 Firmware Update

You can download the latest update tool from our website http://www.netac.com to update Car MP3 Player.
The steps of updating are as the following:

1) Please uninstall “Netac MP3” in your computer first, then double click the downloaded file “Setup.exe”,
new Car MP3 Player Utilities would be installed automatically.

2) Run “Start -> Programs -> Netac MP3 -> Netac MP3 Firmware Download” to update firmware for
Car MP3 Player, click “Start” button to begin update in the window of “Firmware Download”. It would
prompt “Complete” after updated, click “Close” button, then unplug Car MP3 Player from the computer
to finish.

3) You can also click the check box of “Format Data Area” in “Firmware Download” window, click “Yes” button
in the pop-up window “Formatting the data area will erase all files saved on the media, Continue?”. Format
Car MP3 Player would delete all data stored in Car MP3 Player, please get backup first!

4) Click “Start” button to format Car MP3 Player. It would show “Complete” upon format finished, click
“Close” to finish.

Warning:

1) Firmware update can improve and optimize the performances of Car MP3 Player, but Car MP3 Player
also can work properly without firmware update.

2) Please make sure Car MP3 Player is being connected well with the computer during updating,
otherwise it would destroy the file system of Car MP3 Player and couldn’t work properly.

3) Car MP3 Player can not work properly due to misoperation! Please read this manual in detail before
operating firmware update, and ask for help from the computer engineer.

4. Usage of Car MP3 Player

Car MP3 Player includes the following menus: MUSIC, FM, RECORD (for A120 only), DELETE, SET,
ABOUT and EXIT. The operations and settings would be introduced as the following.

l Press / button to select the menu.
l Press MODE button to enter.

4.1 MUSIC

l Play/Pause/Stop:

Press button to play a track.
Press button to pause the playing track.
Hold button to stop playing in playing/pause status.

l Rewind/Forward: Hold / button to rewind or fast forward the track.
l Selecting Track: Press / button to select the track.
l Turn up/down: Press Turn Up/Down button to adjust the volume.
l Lyric showing: Car MP3 Player would automatically search the lyric file (LRC format, you can make

by yourself, download from internet, etc.).

1) Copy the track and the lyric file (LRC format) into the same folder.

2) Make sure the name of the lyric file is the same as the name of the track, otherwise the lyric

can’t be displayed.

3) Lyric wouldl be shown synchronously in the OLED during playing.

Car MP3 Player can send the playing music to FM radio, so you can enjoy the music through FM radio.
l Operations of FM transmission (FM radio on cars e.g.)

1) Turn on the FM radio of car, turn to the FM frequency in 87.5MHz ~ 108MHz. (Please choose

the frequency without FM program for better effect.)

2) Connect the earphone with Car MP3 Player. Hold MODE button to enter transmission status.

3) Press or hold Turn Up/Down button to adjust the frequency, make it the same as FM radio

of car.

4) Now you can enjoy the music in Car MP3 Player through the FM radio of car.

5) The operations of playing music are the same as that of “4.1 MUSIC”, except for the operations

of adjust the volume, please adjust the volume through the stereo set of car.

l Exit FM transmission: Hold MODE button to exit FM transmission.

4.2 FM

Car MP3 Player can receive and record FM programs under FM menu.
Press MODE button to switch among “Radio”, “Scan”, “Store”, “Record”and “Exit” under FM menu. The
Operations are as the following:

1) Radio: You can switch channel by pressing / button, if there is more than one channel saved. Press
Turn Up/Down button to adjust the volume.

2) Scan: Car MP3 Player can save maximum 30 channels.
Automatic Scanning: Press button to enter auto-scanning under Scan status, Car MP3 Player
would save the searched channel in sequence automatically.
Manual Scanning: Press / button to search channel ahead/backwards by 0.1MHz manual in
receiving status. Hold / button to go to next frequency with FM program.

3) Store: Press / button to select channel number, press button to save channel(s), the OLED
would display “Station Saved”.

4) Record: Press button to begin recording, press button to pause/resume while recording, press
MODE button to end and save the recording. Car MP3 Player would name the recorded file as “F***.WAV”,
and save the file under the folder named “FM”. You can enjoy the FM recorded files in MUSIC menu.

5) Exit: Press button to return to MAIN MENU.

Note: Car MP3 Player would search and save channel(s) automatically when enter FM menu for the first time.
The earphone can be used as antenna, connect it with Car MP3 Player would make better effect while
searching channels.

PN: UM10422201

4.3 DELETE

l Press MODE button to enter, press / button to select what kind of file you want to delete. “Music”

includes music file, FM recorded file and LINE IN recorded file. “Voice” includes MIC recorded file.

l Press MODE button to enter sub menu, press / button to select “Yes” or “No”.
l Select “Yes”, and press MODE button to delete, the OLED would display “SUCCESS”.
l Select “No”, press MODE button to choose the file until last one.
l Select “Exit”, press MODE button to return to sub menu.

4.4 SET

l Press / button to select item, press MODE button to enter.
l Press / button to set the value, press MODE button to confirm and return to SET menu.

You can set the following items in “SET” menu:

Descriptions

Items

There are 6 equalizer modes: NORMAL, ROCK, JAZZ, CLASSIC, POP, BASS.

EQ

There are 6 play modes: NORMAL, REPEAT ONE, REPEAT ALL, SHUFFLE, SHUF &
REPE, INTRO.

PlayMode

Note: Under “I NTRO” mode, Car MP3 Player would play the first eight seconds of every track.

Car MP3 Player would start screen savings if there is no operation during the time which is

Screen

set as 10, 20, 30, 40, 50 seconds and ∞. You can press any button to exit the screen savings.

Savings

“∞” presents the screen savings wouldn’t started.
Car MP3 Player would power off automatically if there is no operation in stop status during the
time which is set as DISABLE, 5MINS and 10MINS. “DISABLE” presents Car MP3 Player

Power Set

can not power off automatically.
Set the earphone is soundable or silent while FM transmitting.

FM Out

The display language of menu & lyric: ENGLISH&GBK, ENGLISH&BIG5, 中文＆简体, 中文
＆繁體, ENGLISH&KOR, ENGLISH&JNP and ENGLISH&EUR, select EXIT (退出) to return

Language

to SET menu.
Set all items as default value.

Default

Select “Exit”, and press MODE button to return to MAIN MENU.

Exit

4.5 ABOUT

Press MODE button to enter to browse the system information, which includes company,version (software
verstion/hardware version) and capacity (free/total capacity). Press MODE button to exit ABOUT menu.

4.6 EXIT

Select “EXIT” in MAIN MENU, and press MODE button to exit MAIN MENU.

5. Others

5.1 Remarks

1. “V***.WAV/F***.WAV/L***.WAV” are titles for MIC, FM and LINE IN recorded files in Car MP3 Player.
“*” presents as 0~9.

2. The folders named “VOICE”, “FM” and “LINE” are auto-generated default folders for saving MIC, FM
and LINE IN recorded files.

5.2 Specifications

The actual useable capacity may not be identical as labeled.
Netac reserves the rights to make changes on any specification without prior notice.

Items

Dimension
Weight
OLED
Power Supply

MP3, WMA

FM Transmission

FM
Files Format

Working Temperature
Storage and
Transportation Temperature
Relative Humidity
under Working

Descriptions

59.5mm x 32mm x 13.8mm (A110) 76mm x 32.5mm x 14.5mm (A120)
30g approximately (A110) 33g approximately (A120)
Dichromatic OLED (128 x 64)
Powered by lithium battery, USB port or adapter charged for it
Earphone Output
MP3 Bit Rate
WMA Bit Rate
Frequency Response
Stereo Imbalance Degree
Transmitting Frequency Range
Transmitting Effective Range
Radio Frequency Range
Preservable Stations
MP3, WMA, WAV

-10°C ~ 55°C

-40°C ~ 70°C

20% ~ 90% (40°C)

6mW + 6mW, 32ohm
8Kbps ~ 320Kbps
32Kbps ~ 192Kbps
20Hz ~ 20KHz
±0.5dB

87.5MHz ~ 108MHz
5m ~ 10m
76MHz ~ 108MHz
30

Items

Relative Humidity under
Storage and Transportation
Atmospheric Pressure
Menu display Language
Computer

Operating System

5.3 FAQ

If you meet difficulties in using Car MP3 Player, use the following guide for help. Should any problem persist,
contact with Netac Customer Service.

Symptoms

Fail to power on.
Power off shortly
after power on.

No sound output.
Keystroke void.
Fail to connect

with the computer.

Fail to
download.

Cannot record.
The volume of the

earphone is too loud
while transmitting.

Car MP3 Player
can’t work after
update failing.

Descriptions

20% ~ 90% (40°C)
86 KPa ~ 106 KPa

English, Simplified Chinese and Traditional Chinese
IBM PC, Compatible Notebook or Mac with USB port.
Windows 98/98SE/Me/2000/XP/Server 2003, Mac OS 10.2 or above,
Linux 2.4.2 or above.

Possible Reasons Analysis

Low battery.
Low battery.
HOLD switch locked.
The volume is 0.
Earphone isn’t connected well.
HOLD switch locked.
USB Cable isn’t connected correctly.
The driver of Car MP3 Player hasn’t
been installed on Windows 98/98SE.

Low battery.
Space insufficient.

Disconnecting Car MP3 Player with
the computer while updating.

Remedy

Charge battery.
Charge battery.
Unlock HOLD switch.
Turn up the volume.
Connect earphone correctly.
Unlock the HOLD switch.
Connect USB Cable correctly.
Install the driver (refer to “2.2 Utilities
Installation”) .
Check whether the system settings are
accordance with requirements.
Format Car MP3 Player and try again.
Charge battery.
Delete some files.
The volume is defaulted as 20 if the earphone
is soundable while transmitting, please set
the earphone as silent if feeling bad.
It would destroy the system file of Car MP3
Player if disconnecting Car MP3 Player with
the computer while updating. Please make
sure the connection while updating.

6. Special Functions for Model A120

6.1 RECORD

Under RECORD menu, you can enjoy the MIC recorded file by selecting “VOICE”, the operations are the
same as that of playing music. The operations for recording are as the following.

1) FM Recording: Select “Record” under FM menu, press button to begin recording, press
button to pause/resume while recording, press REC button to end and save the recording. Car MP3
Player would name the recording file as “F***.WAV”.
MIC Recording: Select “MIC Rec”, press MODE button to enter and begin MIC recording. Under
MUSIC menu, you can enter MIC recording by hold REC button while Car MP3 Player is in stop status.
LINE IN Recording: Under RECORD menu, Car MP3 Player can record audio signal from audio/
video device via LINE IN cable.

l Connect 2.5mm plug of LINE IN cable to Car MP3 Player, and 3.5mm plug to audio output socket

of audio/video device.

l Select “LINE IN Rec” and press MODE button to enter and start recording.
l You can listen synchronously with Car MP3 Player earphone during recording, yet light electrical

noise may occur, pause recording can’t stop you from listening in.

2) Press button to pause/resume recording, and press REC button to end recording.

3) Car MP3 Player can rename and save for the recorded file when finish recording.

Locations for Saving

“VOICE” folder under root directory
“FM” folder under root directory
“LINE” folder under root directory

6.2 A-B Repeating

Whi le playing tracks, press REC button twice to decide A (start) sp ot and B (end) spot while in playing status,
Car MP3 Player would play the track between A and B repeatedly. Press REC button again to exit A-B repeat.

6.3 FM Transmission

Start/End FM tra nsmission: Hold FM OU T button to start/end FM transmission.

The othe r operation for FM transmission is the same as that of model A110.

6.4 Contradistinction of Keystroke

Model A 110 Model A 120

Press Previous/Next button Dial button up/down
Press Volu me +/- button Dial button left/ri ght

Playing Menu

RECORD menu
MUSIC menu
MUSIC menu

7. RMA Service

1. Self check: (Over 50% claimed fault can be fixed easily)
A) Please check the manual on our website http://www.netac.com to double check the failure

symptoms you are facing.

B) Please check if there is any latest update of software or firmware to your product, especially

format tools.

C) If you didn’t purchase directly from Netac, please return the goods to the vendor where you

purchased from for repair or replacement.

ANY PHYSICAL DAMAGE, MISUSAGE, OR UNAURHORIZED DISASSEMBLING OF ANY PART OF
THE PRODUCTS WILL LEAD TO WARRANTY VOID. By default, the product is only for personal and office
use.

2. Obtain RMA (Return Merchandise Authorization) number from Netac (Only for Authorized Dealers).
A) We send you a RMA Request Form by Email upon request.
B) Please fill in all related items, like items number, failure symptom, purchase date and invoice

number on RMA Request Form, Email or Fax back to Netac.

C) Upon receiving the filled RMA Request form, we will check the form and warranty period. A

RMA number will be issued within 2 working days.

D) Any RMA number is only valid for 14 days, other than that a new application needs to be filled

again.

ANY RETURN WITHOUT PRE-APPROVED RMA NUMBER WILL BE REJECTED OR DELAYED. IT IS
A MUST-HAVE FOR ALL RETURNS OR REPAIRING OR EXHCNAGE OR MISSING ISSUES.

3. How to send the defective product(s) to Netac.

The “Netac RMA REQUEST FORM” must NOT be enclosed in the RMA package sent to Netac, but the RMA
number is REQUIRED to be written on the top of the box when you send it/them back. The defective product(s)
sent to Netac without RMA number will NOT be received, repaired and/or returned.

A) Netac doesn’t accept any collect shipment. All RMA shipment must be prepaid.
B) Don’t make any shipment until having the Shipping Instruction from Netac. please ask further

advice from Netac Customer Service Dept. as below before you send out the defective products.

4. Contact information
Email: [e-mail]
Contact: Byele Yu, Alick Liu (Customer Service Dept.)
Contact phone: [phone]
Business Hour: 08:30 - 17:40 Beijing Time, Mon.- Fri.

8. Contact Netac

Netac Technology Co., Ltd.
6F, Incubator Building,
China Academy of Science & Tech Development,
No.1 High-tech South St.,
Shenzhen, China 518057
Tel: [phone] (Switchboard)

[phone], 26727510, 26727500 (Technical Support)
Fax: [phone]
Website: http://www.netac.com
Email: [e-mail] (Sales)

[e-mail] (Technical Support)
[e-mail] (Feed back)
