Net1 R-90 User Manual

R-90 Series

Important Notice

Due to the nature of wireless communications, transmission and reception of data can never be guaranteed.
Data may be delayed, corrupted (i.e., have errors) or be totally lost. Although significant delays or losses of
data are rare when wireless devices such as the router are used in a normal manner with a well-constructed
network, the router should not be used in situations where failure to transmit or receive data could result in
damage of any kind to the user or any other party, including but not limited to personal injury, death or loss
of property. Axesstel accepts no responsibility for damages of any kind resulting from delays or errors in
data transmitted or received using the Axesstel router or for failure of the Axesstel router to transmit or
receive such data.

Safety Precautions

Do not operate the router:

• In areas where blasting is in progress

• Where explosive atmospheres may be present

• Near medical equipment

• Near life support equipment or any equipment that may be susceptible to any form of radio

interference. In such areas, the router MUST BE POWERED OFF. The Axesstel router can transmit
signals that could interfere with this equipment.

Do not operate the router in any aircraft, whether the aircraft is on the ground or in flight. In aircraft, the
router MUST BE POWERED OFF. When operating, the router can transmit signals that could interfere with
various onboard systems.

Note: Some airlines may permit the use of cellular phones while the aircraft is on the ground and the door is
open. The router may be used at this time.

The driver or operator of any vehicle should not operate the router while in control of a vehicle. Doing so will
detract from the driver or operator’s control and operation of that vehicle. In some states and provinces,
operating such communications devices while in control of a vehicle is an offense

.

Limitation of Liability

The information in this manual is subject to change without notice and does not represent a commitment on
the part of Axesstel.

AXESSTEL SPECIFICALLY DISCLAIMS LIABILITY FOR ANY AND ALL DIRECT, INDIRECT, SPECIAL,
GENERAL, INCIDENTAL, CONSEQUENTIAL, PUNITIVE OR EXEMPLARY DAMAGES INCLUDING, BUT
NOT LIMITED TO, LOSS OF PROFITS OR REVENUE OR ANTICIPATED PROFITS OR REVENUE
ARISING OUT OF THE USE OR INABILITY TO USE ANY AXESSTEL PRODUCT, EVEN IF AXESSTEL
HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES OR THEY ARE FORESEEABLE OR
FOR CLAIMS BY ANY THIRD PARTY.

Notwithstanding the foregoing, in no event shall Axesstel aggregate liability arising under or in connection
with the Axesstel product, regardless of the number of events, occurrences, or claims giving rise to liability

.

2

R-90 Series

TABLE OF CONTENTS

1 Introduction ......................................................................................................... 4

2 Product Overview ................................................................................................. 4

2.1 Placement of your R-90 ................................................................................. 5

3 Using your Router ................................................................................................. 6

3.1 Package Contents ......................................................................................... 6

3.2 Router Interfaces ......................................................................................... 6

3.3 Power LED ................................................................................................... 6

3.4 Signal Strength LED ...................................................................................... 7

3.5 Connect LED ................................................................................................ 7

3.6 1x/EV-DO LED .............................................................................................. 7

3.7 Wi-Fi LED ..................................................................................................... 7

3.8 Other Features ............................................................................................. 7

3.9 Setting up your hardware .............................................................................. 8

3.10Connecting and Configuring your Router ........................................................ 8

4 Web Manager Options ........................................................................................... 9

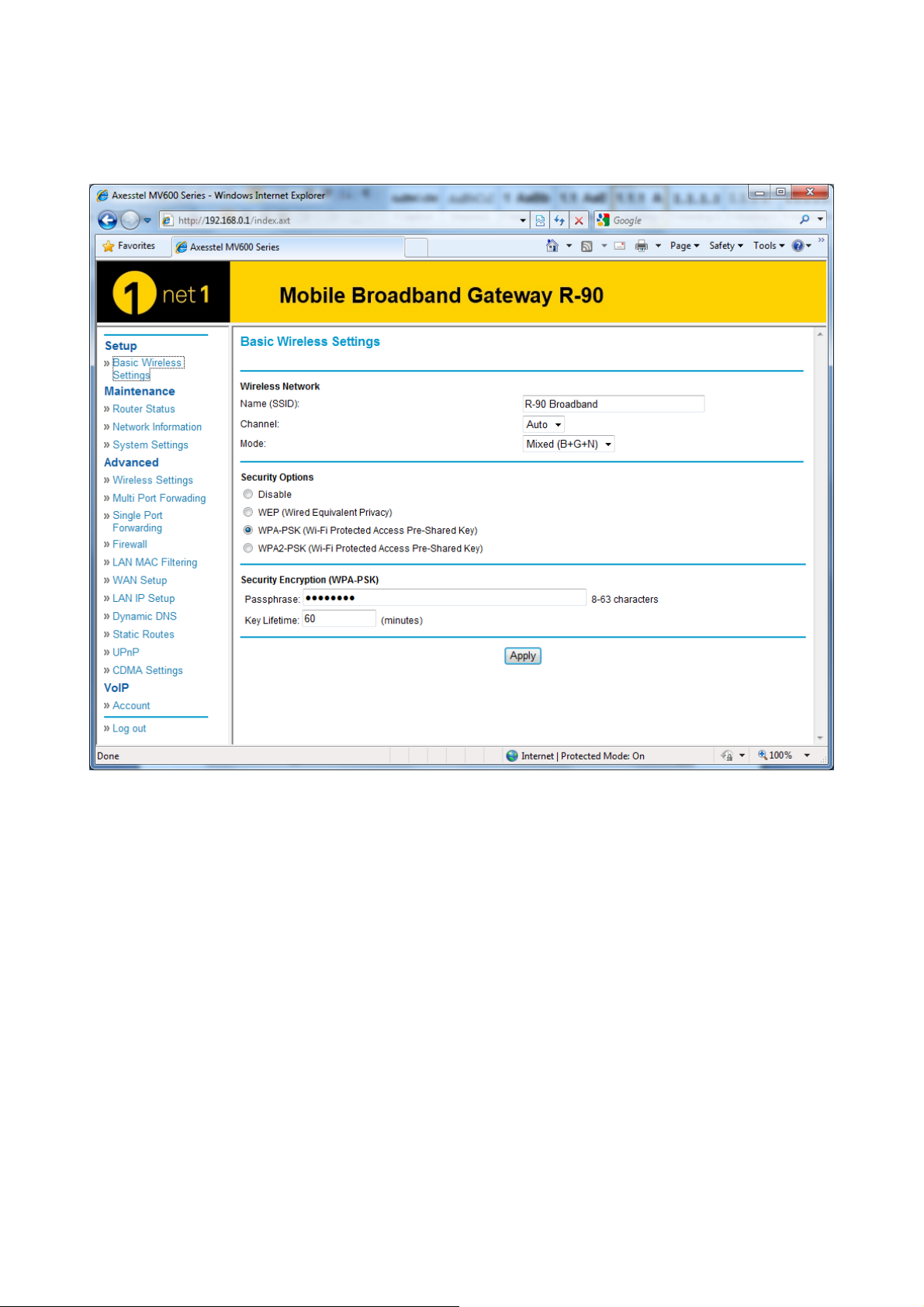

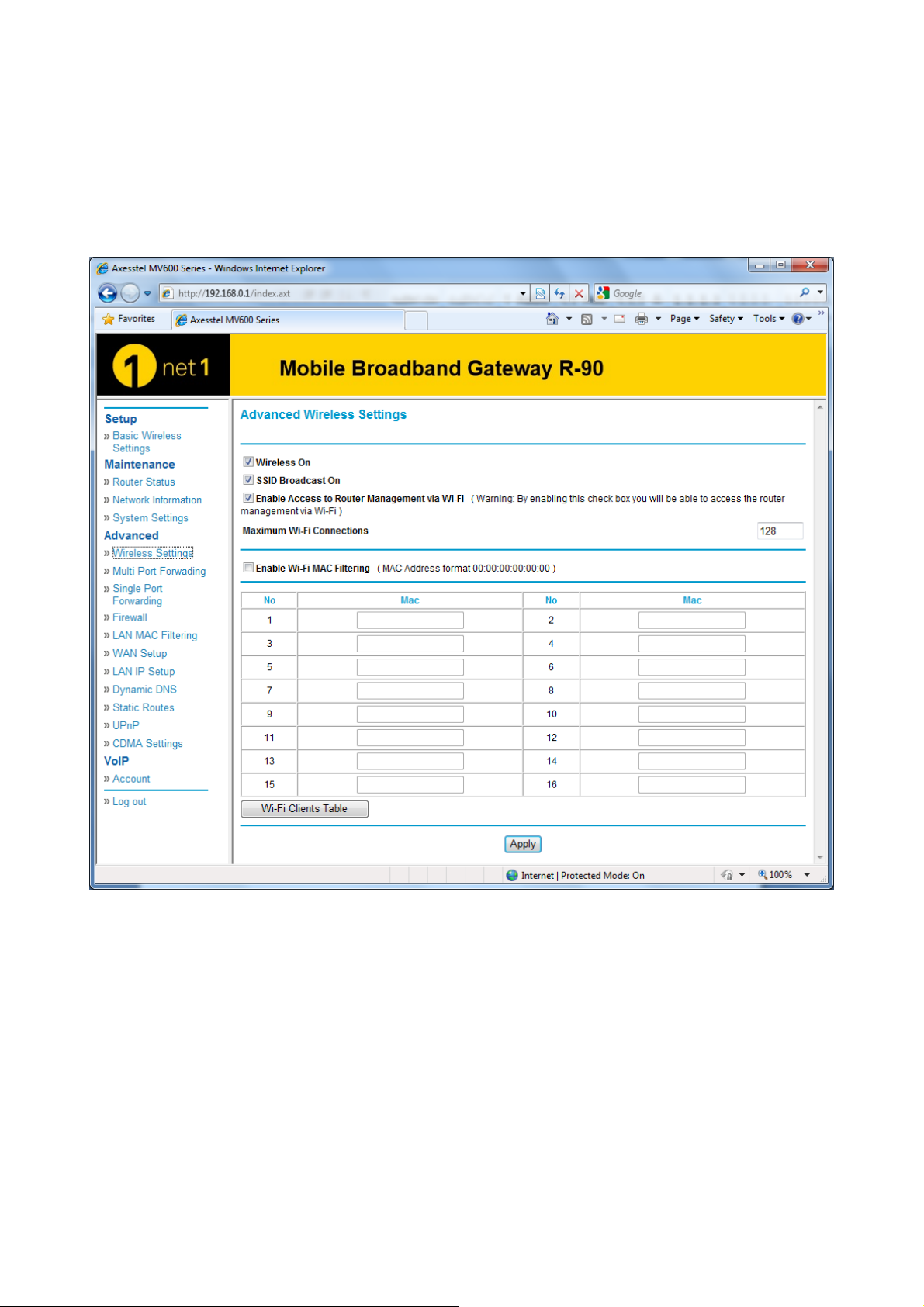

4.1 Basic Wireless Settings ................................................................................. 12

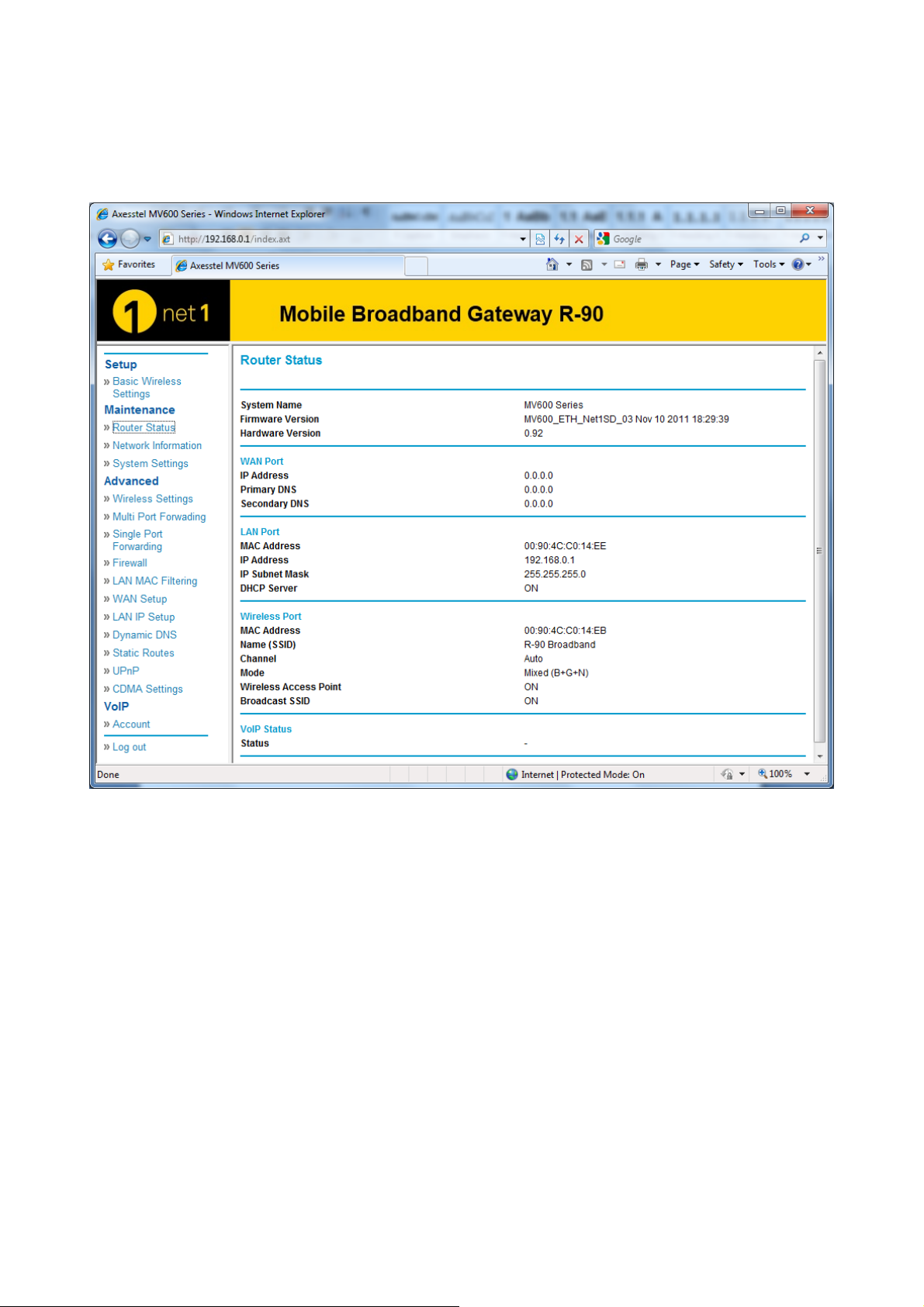

4.2 Router Status .............................................................................................. 14

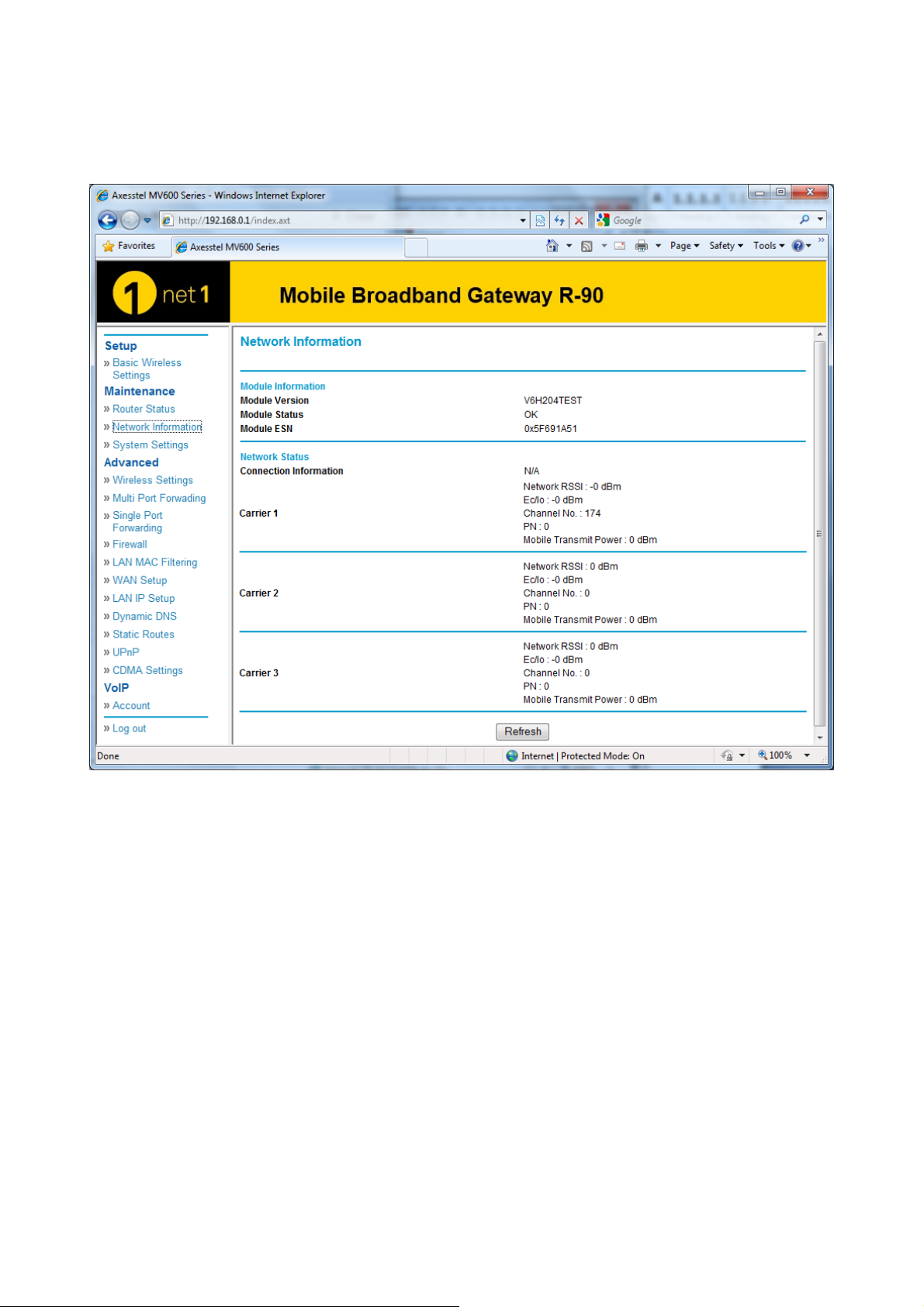

4.3 Network Information .................................................................................... 15

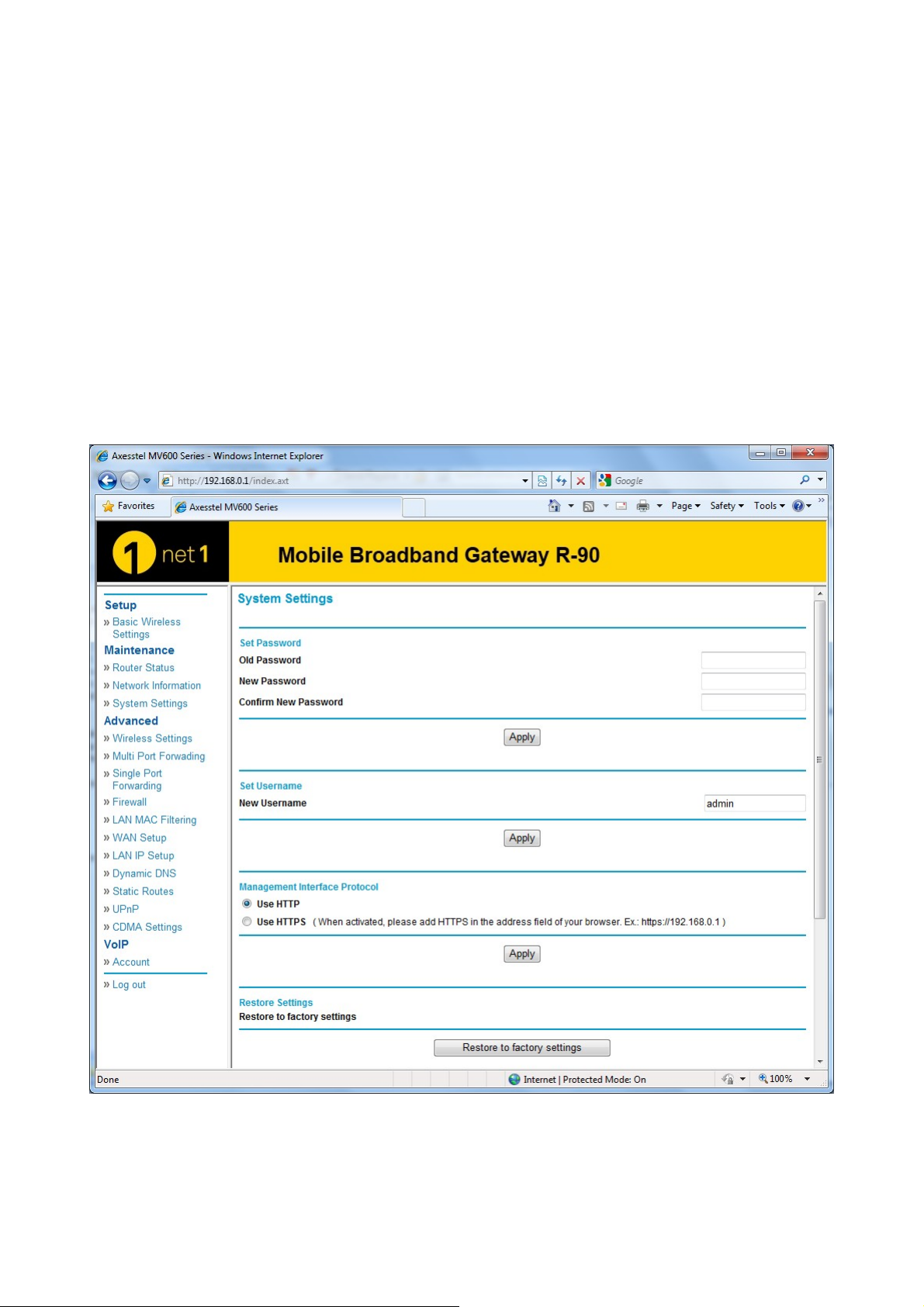

4.4 System Settings ........................................................................................... 16

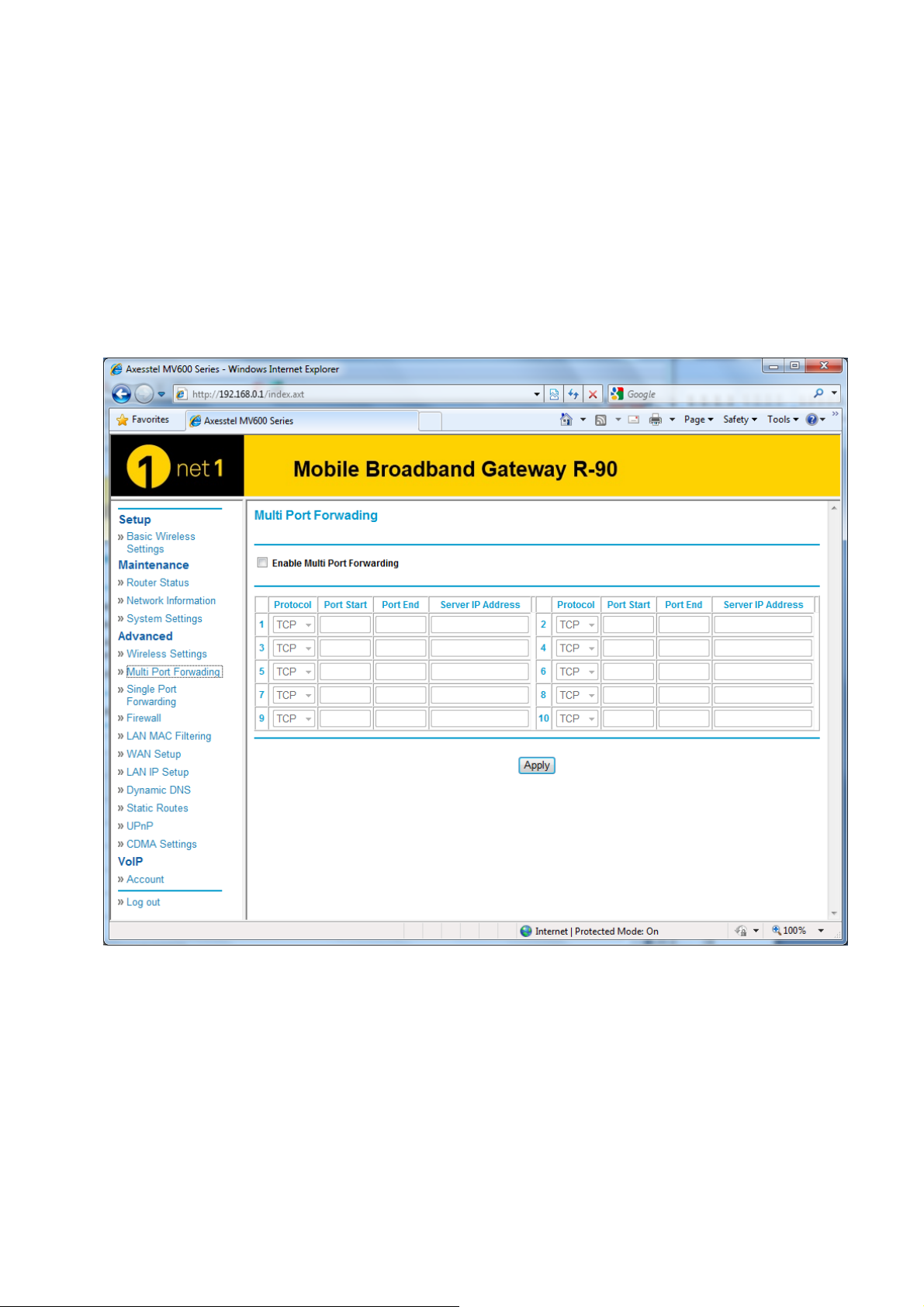

4.5 Multi Port Forwarding ................................................................................... 18

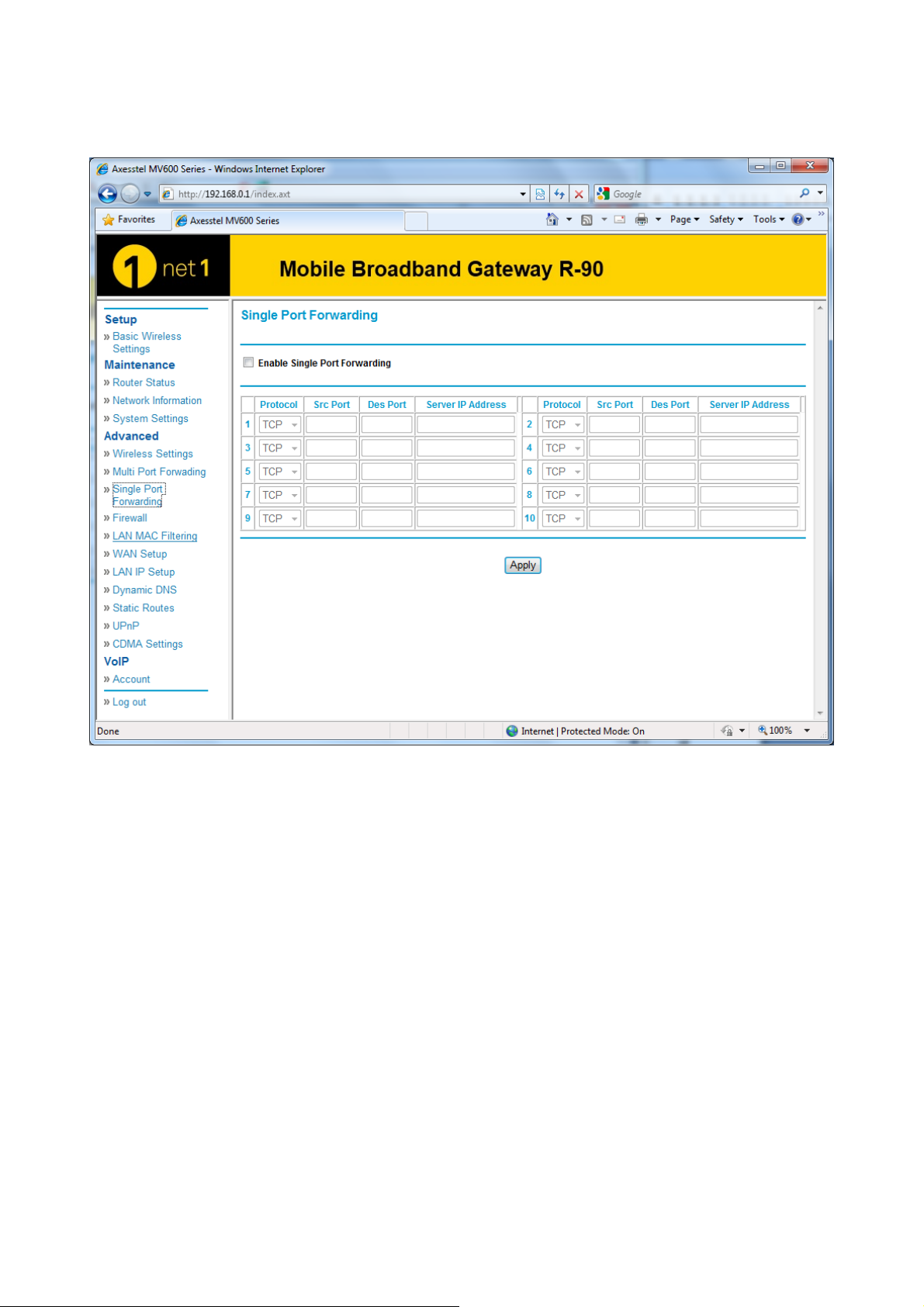

4.6 Single Port Forwarding ................................................................................. 19

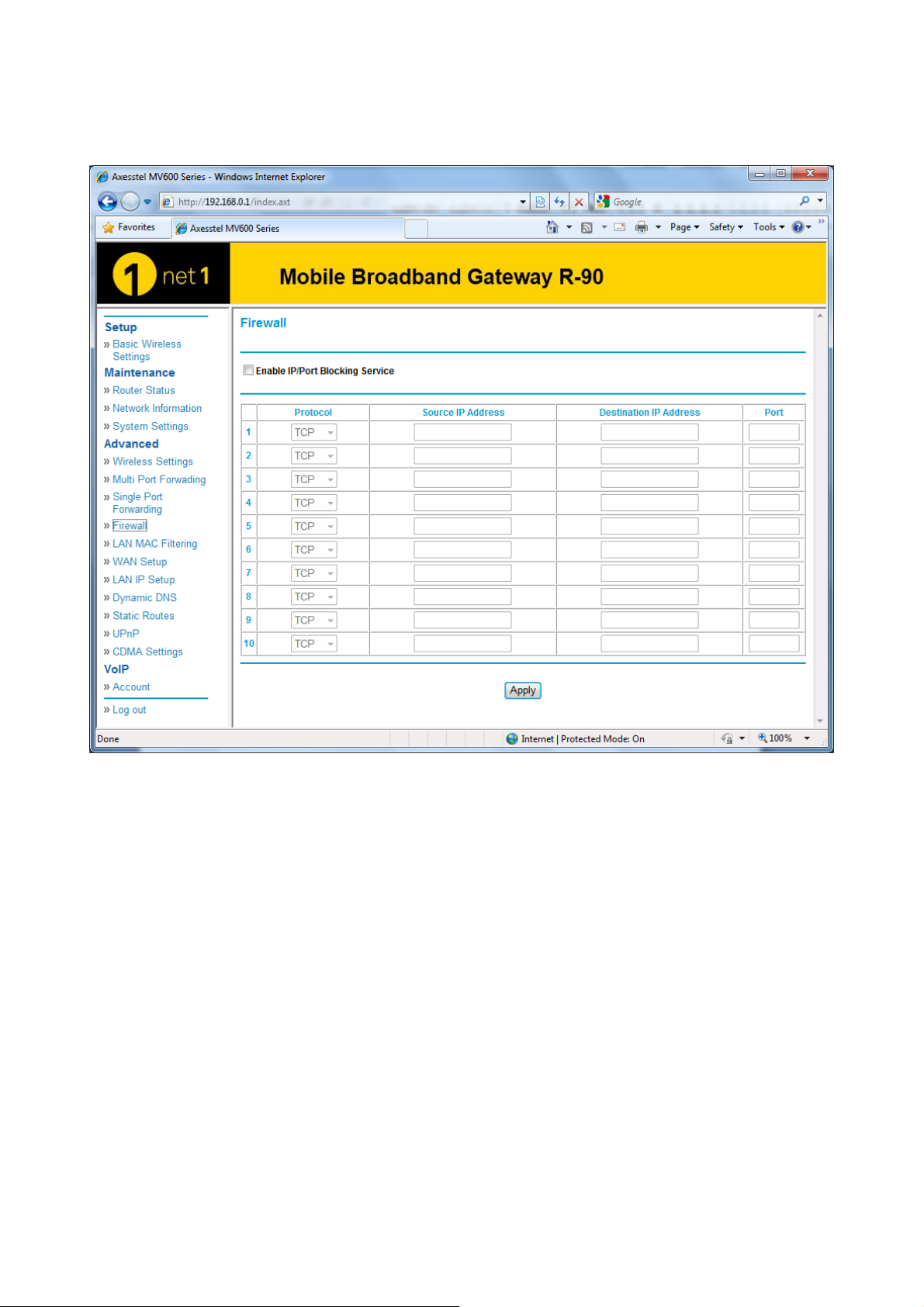

4.7 Firewall ....................................................................................................... 20

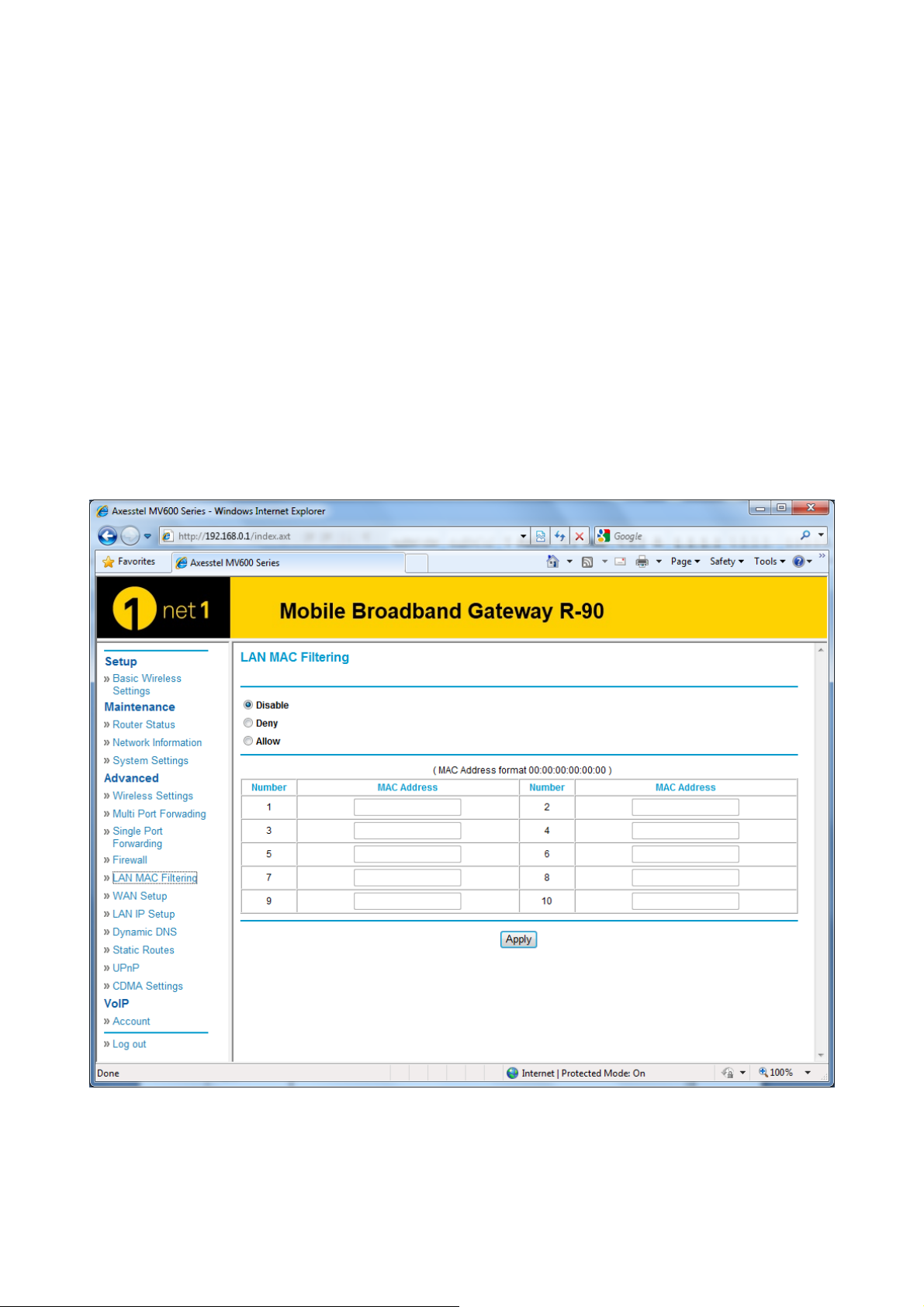

4.8 LAN MAC Filtering ........................................................................................ 21

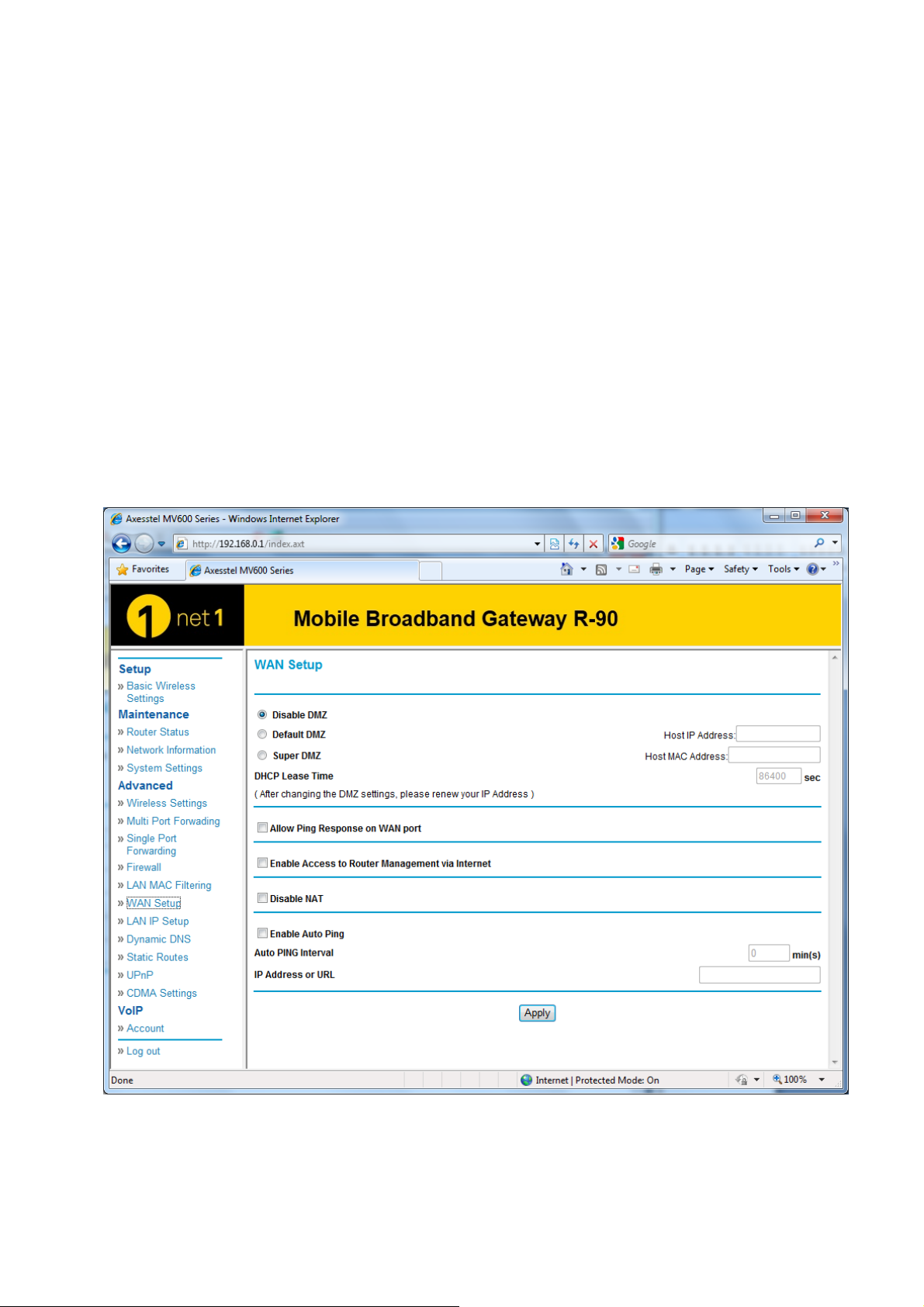

4.9 WAN Setup ................................................................................................. 22

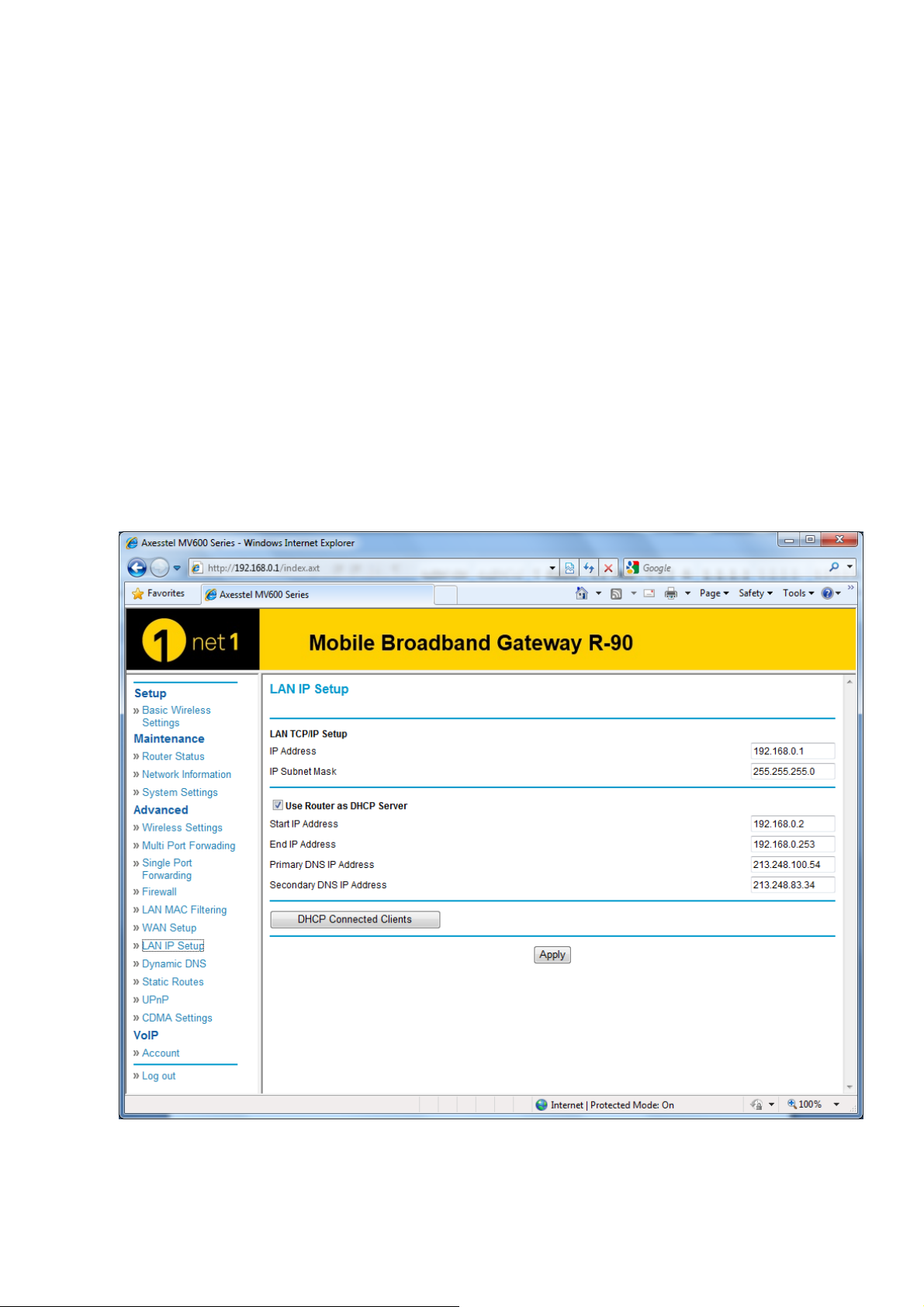

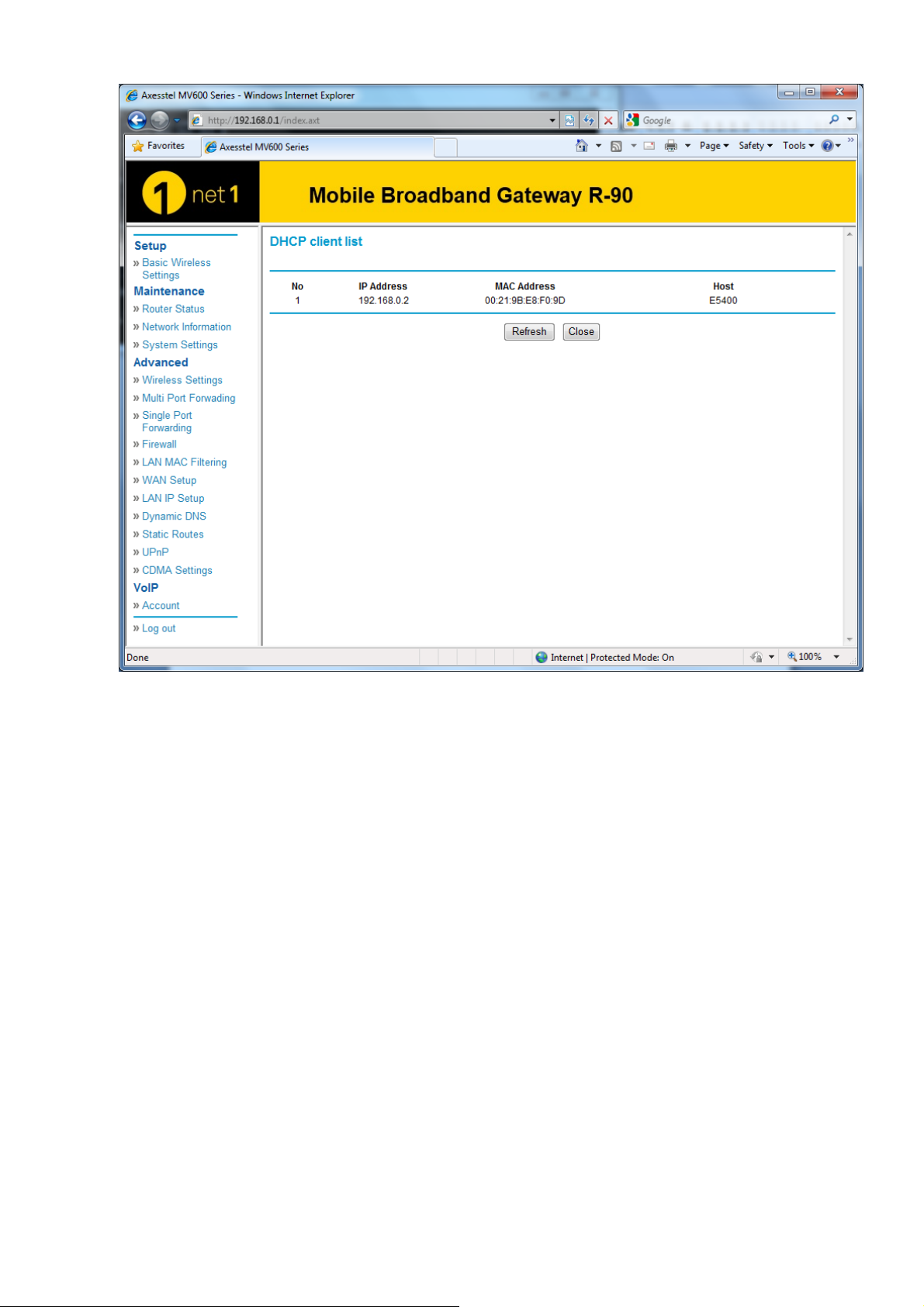

4.10LAN IP Setup............................................................................................... 23

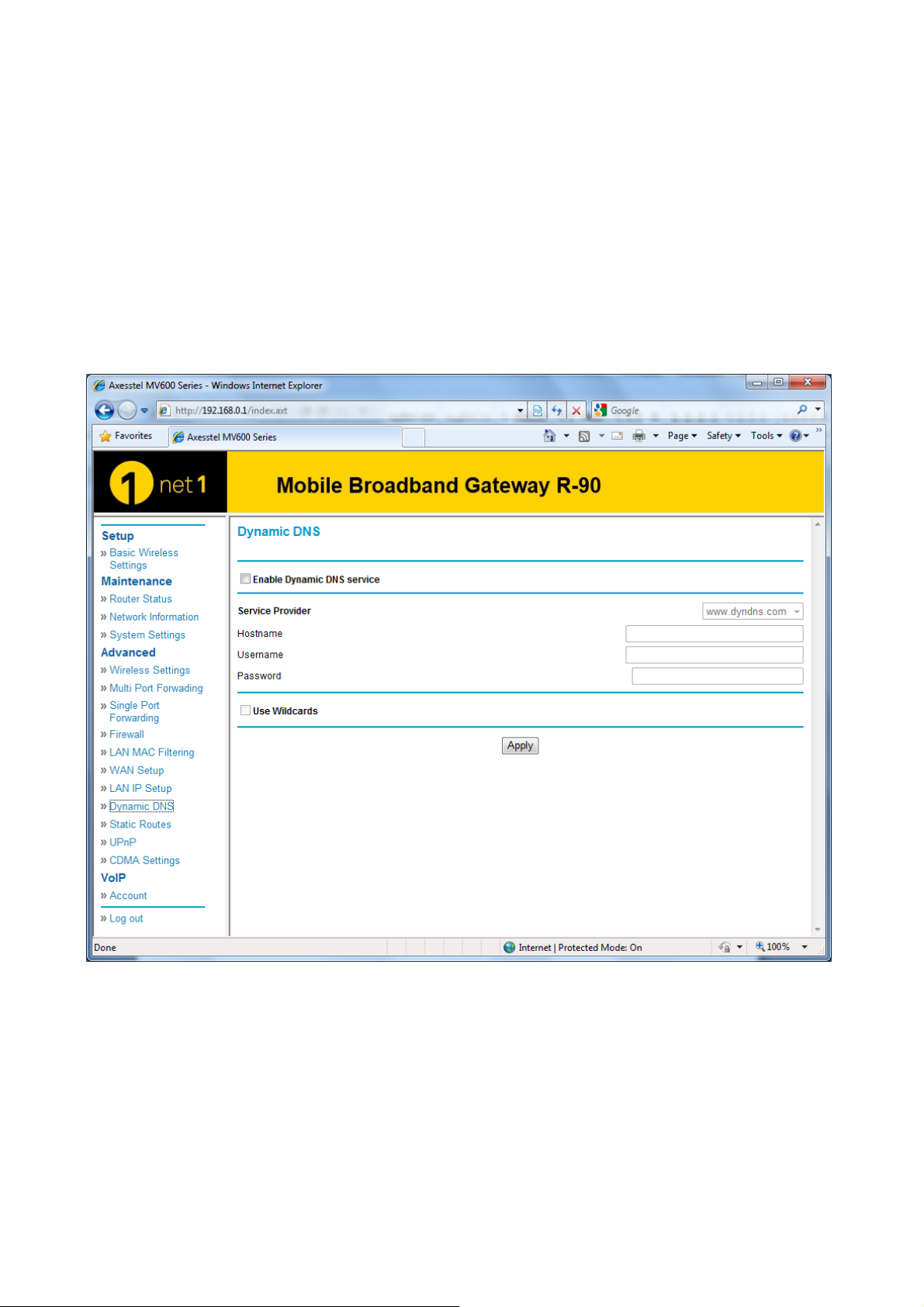

4.11Dynamic DNS .............................................................................................. 25

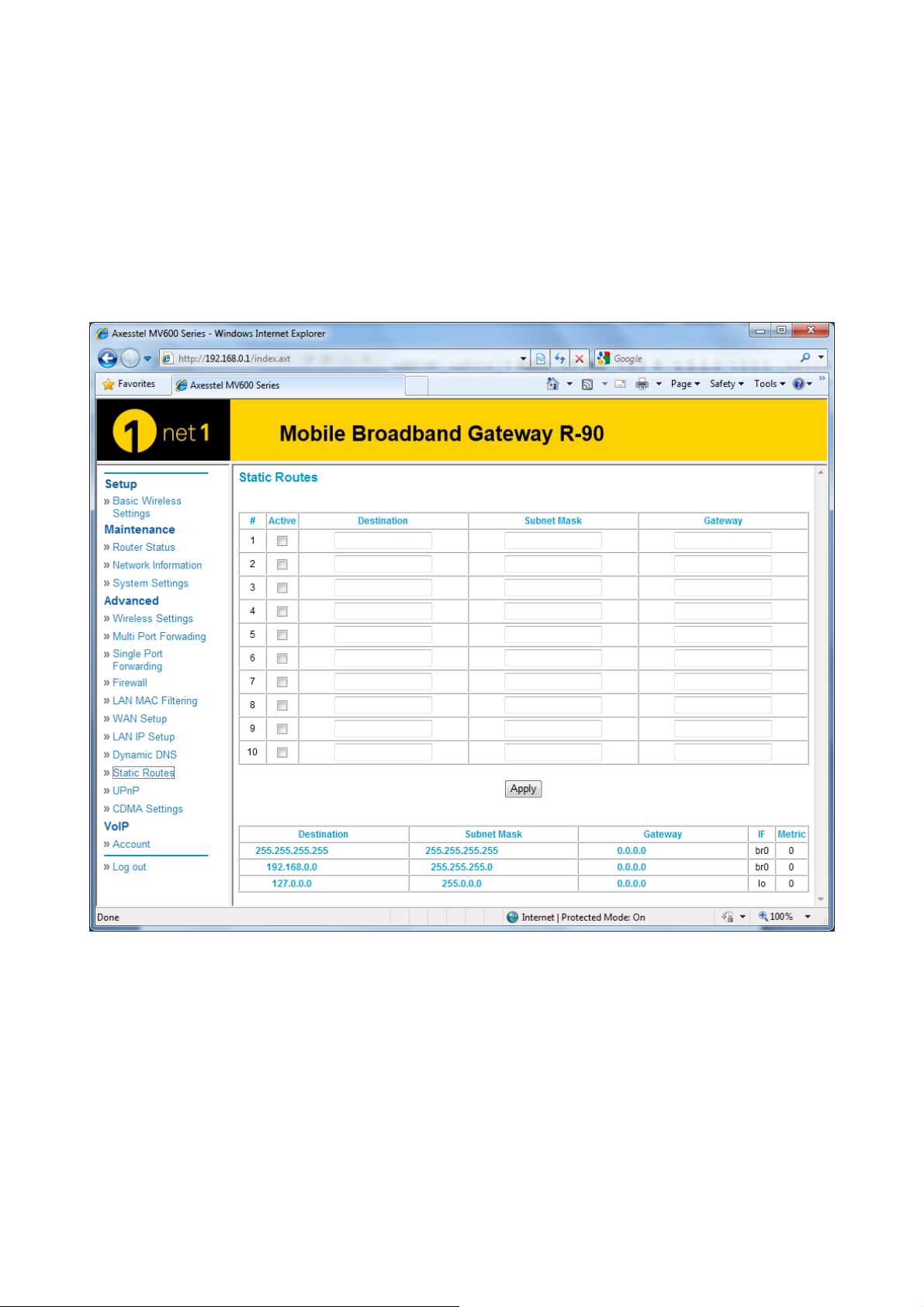

4.12Static Routes ............................................................................................... 26

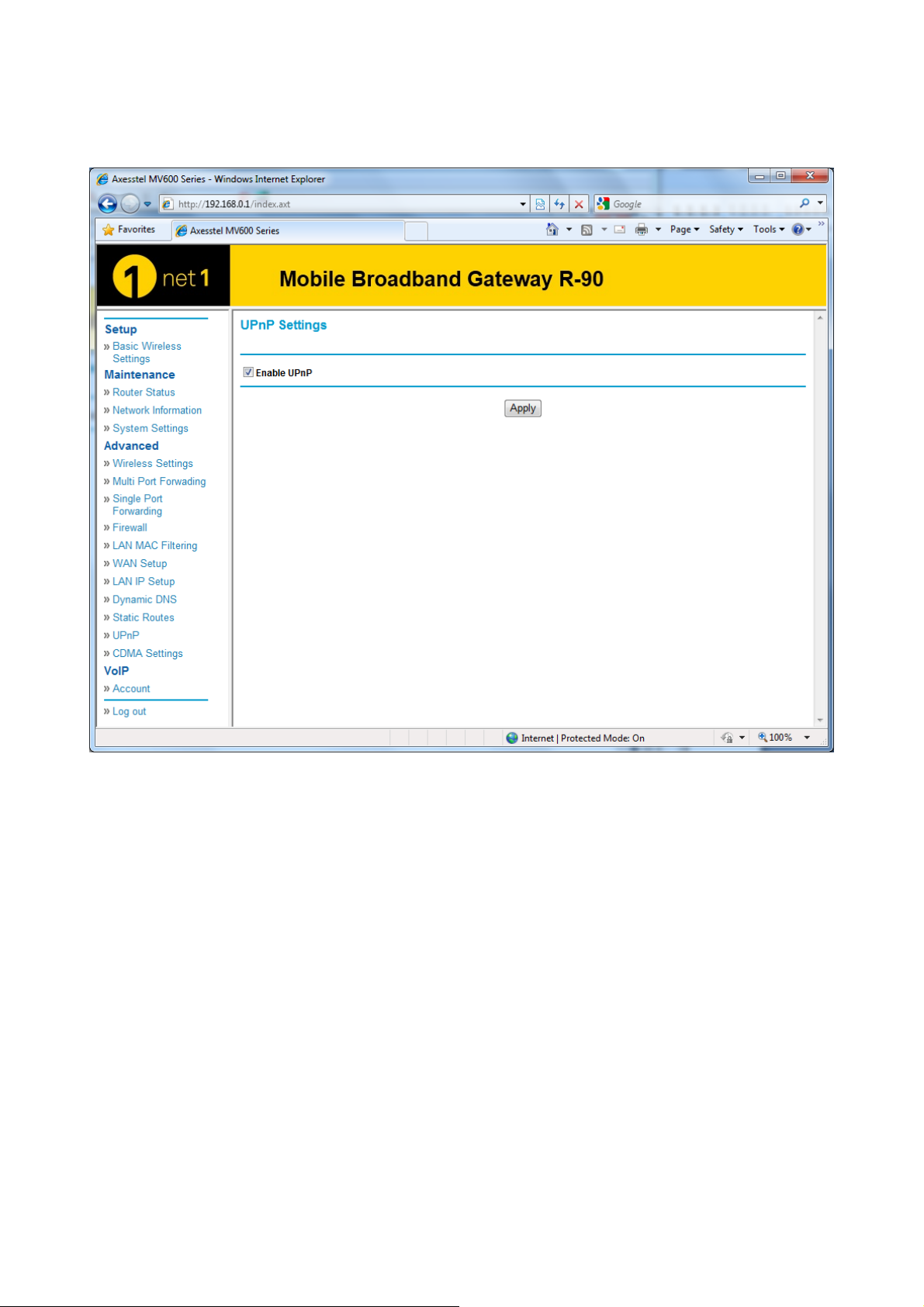

4.13UPnP Settings ............................................................................................. 27

4.14CDMA Settings ............................................................................................ 28

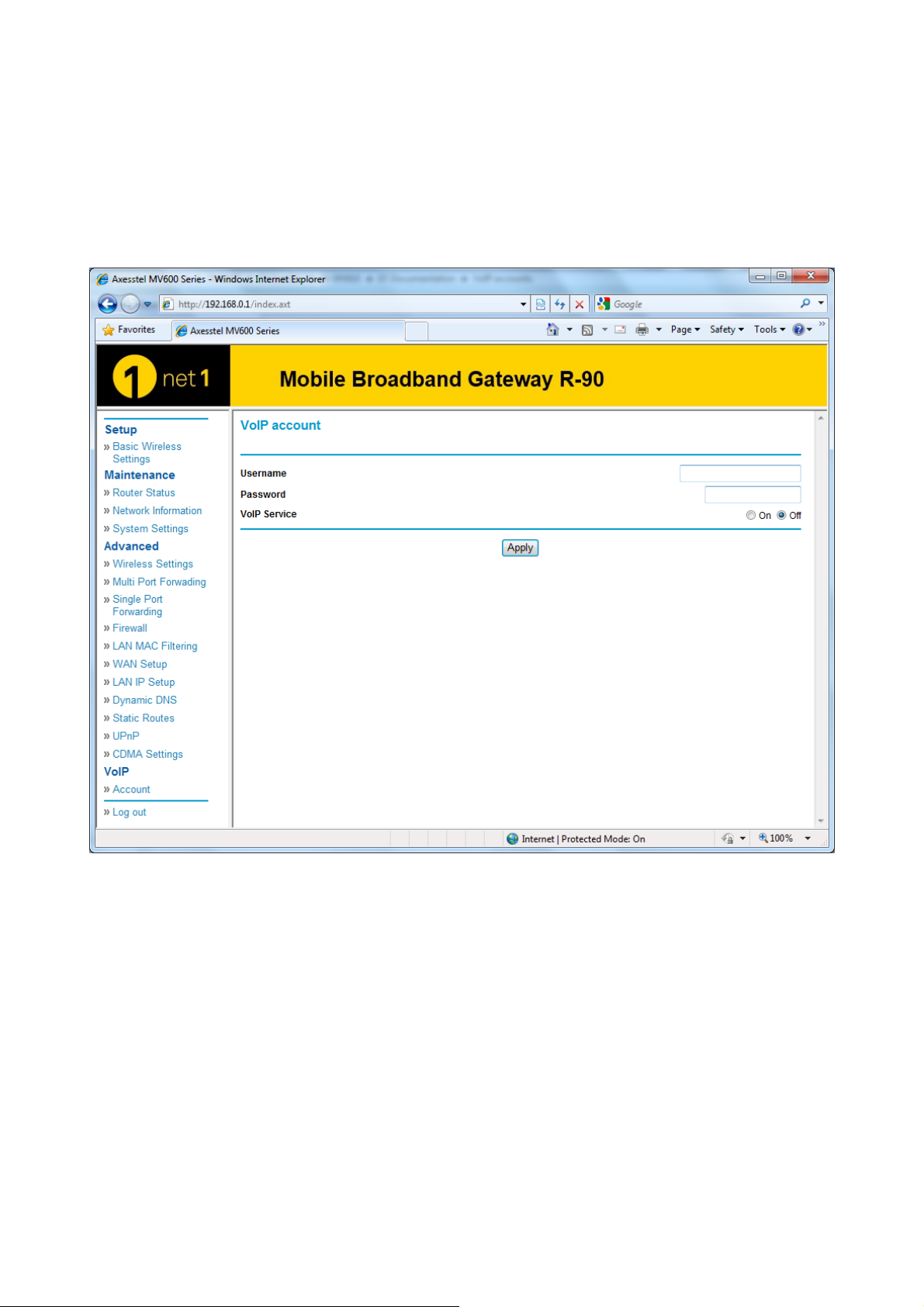

4.15VoIP Account Settings .................................................................................. 29

5 VoIP Call Functions .............................................................................................. 30

5.1 Activating Voice over IP ............................................................................... 30

5.2 Placing Voice Calls ....................................................................................... 30

5.3 Receiving Voice Calls ................................................................................... 30

5.4 Call Forwarding ........................................................................................... 30

5.5 Restricting Caller Line Identification .............................................................. 31

6 Troubleshooting .................................................................................................. 32

7 Technical Specification ......................................................................................... 33

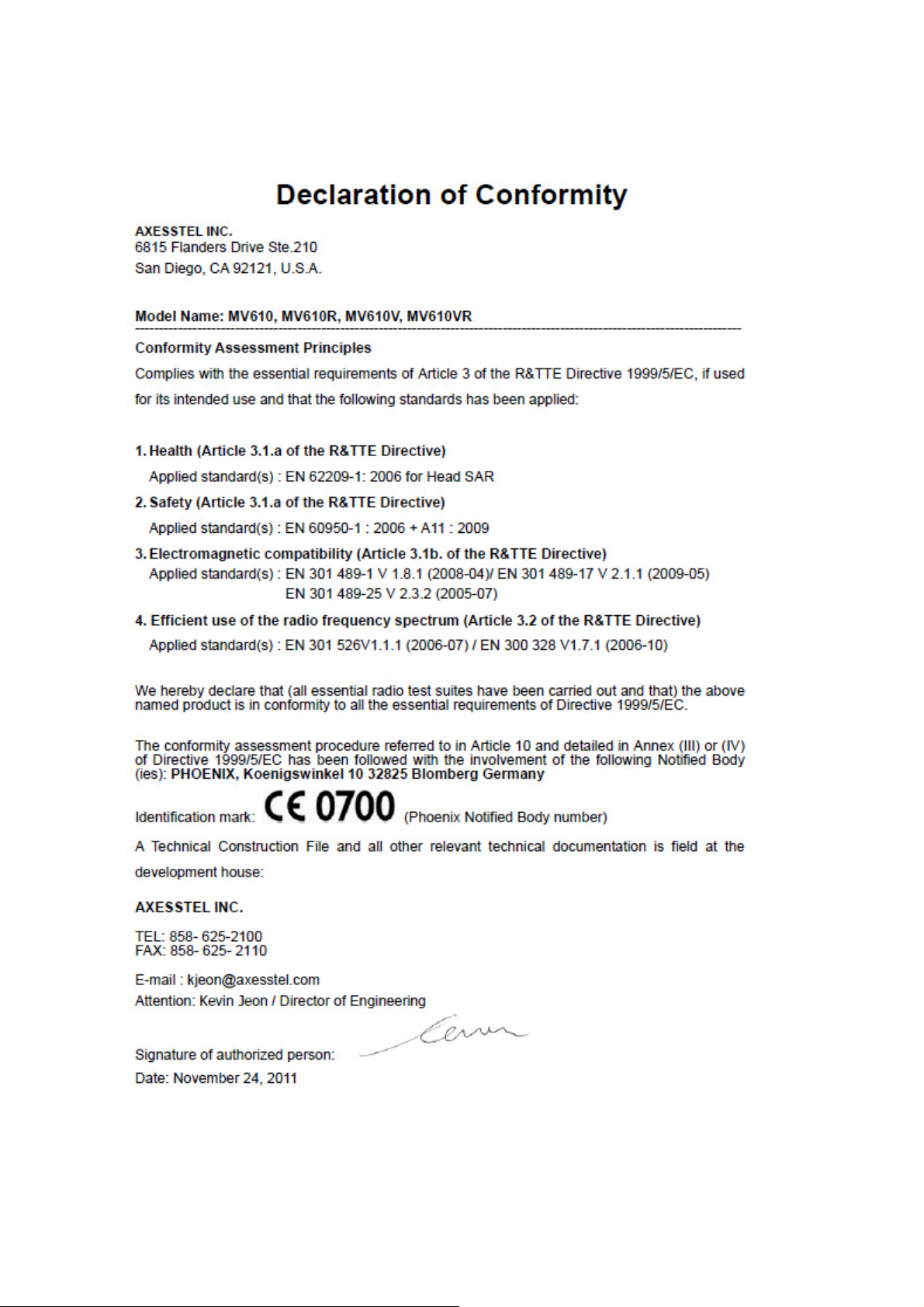

8 Certification ........................................................................................................ 34



3

R-90 Series

1 Introduction

Thank you for purchasing the Net1 R-90 EV-DO router with Voice over IP (VoIP). This user manual will help
you setup, configure and outline best practices for maximizing your wireless home network performance with
the router.

2 Product Overview

In minutes, you will be able to connect your computers to the Internet, share your Internet connection and
network your computers. And you will be able to make a call using VoIP. The following is a list of features
that make your new Net1 EV-DO router an ideal solution for your home or small office network.
Implementation of these features depends on the particular service provider and account features you have
chosen.
Some features described in this manual may not be supported by your service provider or may not be
available with your network account. For details of the services and accounts available, contact your service
provider.

VoIP Calling

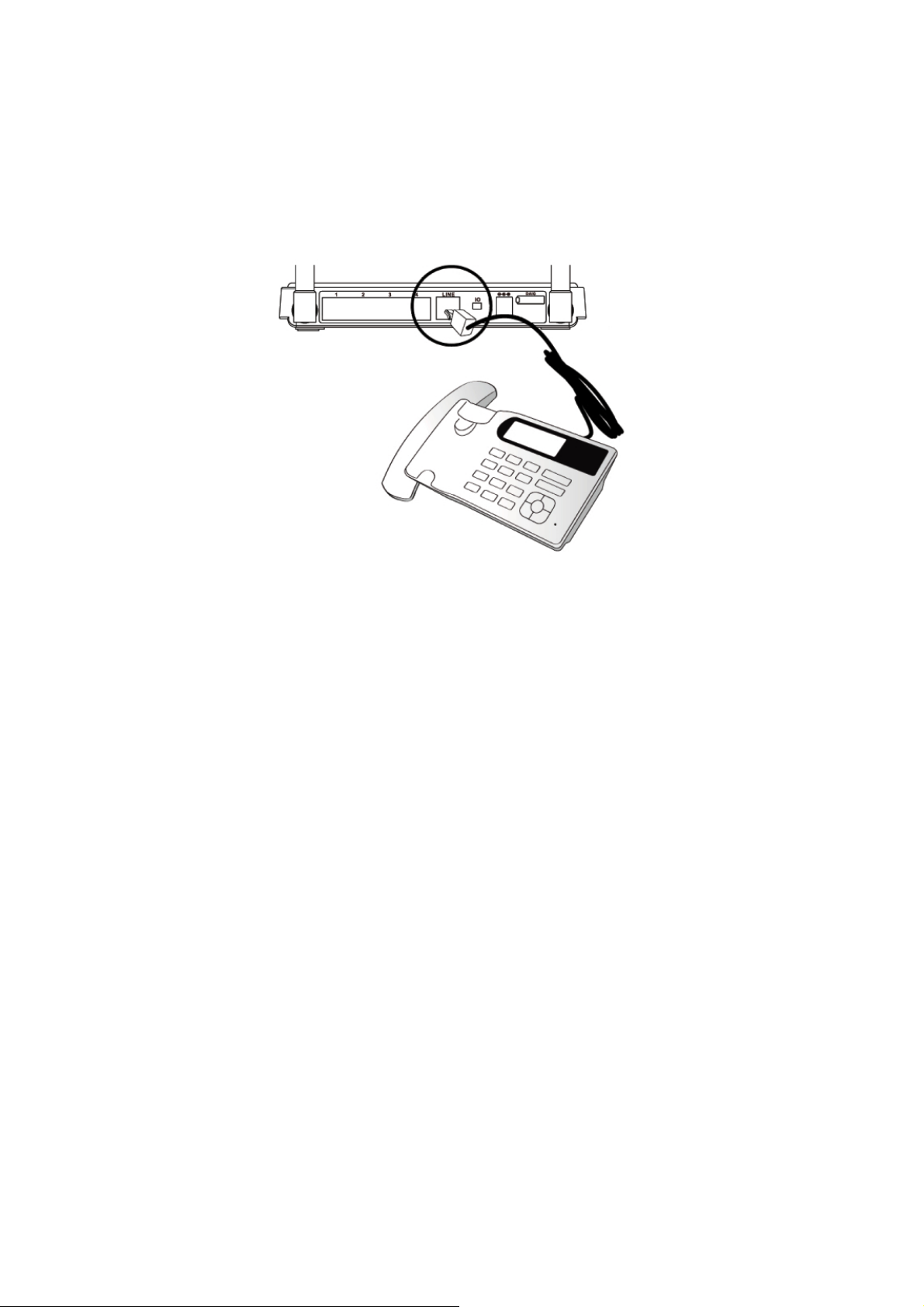

Your router (R-90) features a Voice over Internet Protocol (VoIP) function that allows you to make voice calls
over a VoIP network by simply connecting a wired, landline phone to your network-connected router

.

Plug-and-Play

• Your router was factory-set for compatibility with a particular service provider. Thus, your router
operates on radio channels and enables services specific to your network service provider. Once
your router has been activated on your service provider’s network, you can connect to the Internet.
After your router is activated, connect it to your computer using the Ethernet (RJ-45) cable or via Wi­Fi. You are now ready to use the Internet.

Web-Based Advanced User Interface

You can easily setup the router’s advanced functions through your web browser and without having to install
additional software onto your computer. There are no drivers to install and, you can easily make changes
and perform setup functions from any computer that is connected to your R-90

• NAT IP Address Sharing

• Support for VPN Pass Through

• Built in Dynamic Host Configuration Protocol (DHCP)

• Integrated 802.11b/g/n Wireless Access Point

• MAC Address Filtering

Integrated 10/100 4-Port Switch

The R-90 has a built-in, 4-port network switch to allow your wired computers to share printers, data and MP3
files, digital photos, and much more. The switch features automatic detection so it will adjust to the speed of
connected devices. The switch will transfer data between computers and the Internet simultaneously without
interrupting or consuming resources.

Integrated 802.11 b/g/n Wireless Access Point

The R-90 supports Wi-Fi modes b/g and n. Your router as default is set to Wi-Fi mode g. To use mode n
you can change this by logging into the web interface (instructions are in section 3.10). Although, please
ensure that your Wi-Fi card supports n mode.

4

R-90 Series

2.1 Placement of your R-90

Place your R-90, the central connection point of your network, as close as possible to windows or in rooms
at the outer side of your house. If you also use the Wi-Fi feature of the R-90, it should be placed near the
centre of your wireless network devices.
To achieve the best wireless network coverage:
♦ Ensure that your R-90’s networking antennas are parallel to each other, and are positioned vertically

(toward the ceiling). If your R-90 itself is positioned vertically, point the antennas as much as possible in
an upward direction. In multi-storey homes, place the R-90 on an upper floor.

♦ Avoid placing your R-90 near devices that may emit radio “noise,” such as microwave ovens. Dense

objects can interfere with wireless communication

♦ If your wireless signal seems weak in some areas, try to move the R-90 to another location while

observing the signal strength indicator

5

R-90 Series

3 Using your Router

3.1 Package Contents

• R-90 EV-DO Rev B router

• Antennas

• RJ-45 Ethernet Networking Cable

• Power Supply (230V)

• Car Charger (12V)

• Quick Installation Guide

• CD with Complete User Manual

3.2 Router Interfaces

The R-90 is designed to be placed on a desktop or wall mounted. All the ports at the back of the router are
for better organization and utility. The LED indicators are easily visible on the top of the router to provide you
with information about network activity and status

.

3.3 Power LED

LED Colour AC Mode Battery Mode

OFF No Power No Power

Blue Solid Adaptor Connected Fully Charged

Blue Blinking

(3s)

Blue Blinking

(1s)

In Charging -

- Low Level Charged

6

R-90 Series

3.4 Signal Strength LED

This LED indicates the signal strength of the CDMA network serving the router.

LED Colour Status

OFF No CDMA signal
Blue Strongest Level

Blue Blinking

(3s)

Blue Blinking

(1s)

Medium Level

Low Level

3.5 Connect LED

This LED informs you that the router is connected to a wireless network and that your user ID and password
have been validated.

LED Colour Status

OFF No connection
Blue - In Data use: Connected

- In VoIP call use: In use

3.6 1x/EV-DO LED

This LED informs you that the router is tuned to the wireless network. Your router is programmed to search
and use an EV-DO network.

LED Colour Status

OFF No Network
Blue EV-DO

3.7 Wi-Fi LED

This LED indicates the status of your Wi-Fi connection.

LED Colour Status

OFF No Wi-Fi
Blue Solid Wi-Fi network within R-90 activated
Blue Blinking Data passing through Wi-Fi

3.8 Other Features

(6) Network connections to Computers (RJ-45/Ethernet)

(7) Phone line (RJ-11)

(8) Power On/Off Switch

(9) Power Jack

7

3.9 Setting up your hardware

1 Make sure your router is not connected to any power source and that all the LEDs are OFF.

R-90 Series

2 How to setup the antennas for maximized performance

① Antennas are located on both sides of the router.
② Attach the antennas to the back of the router
③ Hand tighten the antennas so that they are securely attached to the router

:

3 Locate the power supply that is included with your router. Plug the power supply’s small connector into

the power port on the router (6). Plug the power supply into an empty power outlet.

4 Switch on the router (8). Look at the Power LED on top of the router and make sure the lights are ON.

5 Wait for a few seconds while the router searches for network service. When the router finds a suitable

network, the Signal LED turns blue and will flash dependent upon the strength of the acquired signal.
Refer to the Signal Strength LED description for more details.

6 Locate the Ethernet cable that is included with your router. Plug one end of this cable into ANY

Ethernet port on your router. Plug the other end of the cable into the networking port on your computer.
Alternatively connect to the router through Wi-Fi (see below).

3.10 Connecting and Configuring your Router

Each router is factory built for use with a particular service provider. Thus, each router is set to use particular
radio channels and to enable services specific to a provider.
Once your router has been activated with the network, connect your computer to the router using the
provided Ethernet (RJ-45) cable or Wi-Fi. You are now ready to use the Internet.

When connecting through Wi-Fi you must enter the unique password for your router. This can be found on
the sticker on the bottom of your router.

8

R-90 Series

4 Web Manager Options

The Web Manager User Interface is a web-based tool that you can use to setup the router. You can

also use it to manage advanced functions of your router. From the User Interface, you can perform
these tasks:

• View the router’s current settings and status

• Change Wi-Fi name, encryption and password

• Configure the router's router and VoIP account log-in function to connect to your Service Provider

using the settings that they provided you

• Change current network settings such as the internal IP address, IP address pool, DHCP settings and
more

• Set the router’s firewall to work with specific applications (port forwarding)

• Setup security features such as client restrictions, MAC address filtering, WEP and WPA

• Enable the DMZ feature for a single computer on your network

• Change the router’s internal password

• Reboot the router

• Back up your configuration settings

• Reset the router’s default settings

• Update the router’s firmware

To log into the Web Manager, please follow the steps below:

1. Open your web browser and
enter http:// 192.168.0.1 in the

address bar

.

2. A Login page will appear.
When prompted for User
name and password, enter
the following name and
password.

User Name: admin
Password: admin

* If you have changed the
user name and the
password, enter the new
user name and password.

If you enter an incorrect user
name or password three
times then you will be
greeted with this error
message
If you have forgotten your
username and
password, please press the
reset button at the bottom of
the modem and use defaults

9

R-90 Series

shown above.
If another user is already
logged into the web interface
then you will receive this
error message. Please wait
until the other person has
logged out.

3. After entering the correct user name and password you will be asked if you want to change the user name
and password of the web page. It is advisable that you change your user name and password for enhanced
security

10

R-90 Series

4. Once you click OK the following screen will appear and you can then enter your new User Name and
Password. Once you have done this please press the apply button. Your router will reboot and you will need
to login using your new login credentials

11
