UX2000 SBC XO SIP Trunk Lync Server 2010 Configuration Guide
1
NET Unified Communications
Configuration Guide
UX2000 SBC, XO Communication SIP Trunk
Lync Server 2010
Network Equipment Technologies, Inc.
6900 Paseo Padre Parkway
Fremont, California 94555
Copyright © 2011 Networ k Equipment Technologies, Inc., All rights reserved.
This is a NET internal development document. It does not nec ess arily describe accurately t he design
or operation of any NET product or ser vice and it does not create any expre ss or implied warranty.
NET’s sole warranty is cont ained in its Product Warranty . The End User Documentation shipp ed with
NET’s products constitutes the sole Specifications referr ed to in the Product Warranty . NET a ss umes
no responsibility for any us e of the information contained in this document or for any infringem ent of
patents or other rights of third parties that may result. Netw or k ing products cannot be tested in a ll
possible uses, configurati ons or i mp lementations, and interoperability with other products cann ot be
guaranteed. The customer is solely responsible for verifying the suitability of NET’s products for use in
its network. This document and NET’s specifications ar e subject to change without notice.
UX2000 SBC XO SIP Trunk Lync Server 2010 Configuration Guide
2
Author(s)
Date
Revision
Comment
NET August 17, 2011 1.0 Initial Version
Contents
1 REFERENCES AND VERSIONS 6
2 PURPOSE 7
3 COMPLETING SIP TRUNK TASK ON UX2000 8
3.1 Prerequisites 8
3.2 Initial Task configuration 8
3.3 Root Certificate 9
3.4 UX Certificate 10
3.5 SIP Signaling Endpoints 12
4 CONFIGURING PUBLIC ETHERNET PORT AND IP ADDRESSING 13
4.1 Configuring the Public Ethernet Port 13
4.2 Selecting Unused Ethernet Port 14
4.3 Configuring the IP Defa ult Route 16
4.4 Configure Internal Private IP Static Route 17
UX2000 SBC XO SIP Trunk Lync Server 2010 Configuration Guide
3
5 LYNC SERVER 2010 CONFIGURATION 19
5.1 Adding UX2000 SBC to Lync Server Topology 19
5.2 Adding the UX2000 into Lync Server Routing 21
5.3 Configuring Assigned DIDs to Lync Users 23
5.4 Creating Analog Contacts with XO SIP Trunk DIDs 24
6 UX2000 TELEPHONY ROUTING PROCESS 25
6.1 Signaling Groups 26
6.2 Call Routing Table 26
6.3 Translation Tables 27
7 MEDIA CONFIGURATION 30
8 ENABLING MEDIA TRANSCODING 32
9 ANALOG SUPPORT 33
9.1 Differences Betwe en PSTN and Analog Call Rout i ng 34
9.2 Analog Configuration 39
9.2.1 SIP Server Table 39
9.2.2 Analog Translation Table 41
9.2.3 Signaling Group 43
9.2.4 Modify Lync Server 2010 Routing Table to Add ATA Route 45
9.2.5 Add Translation Table for ATA 47
9.2.6 Add Route Table for ATA 48
10 TROUBLESHOOTING 50
10.1 Visual Analysis 50
10.1.1 Current SG Status and Call Activity 50
10.1.2 Current Alarms 51
10.2 Viewing Debug Logs 51
10.3 Sending Debug Logs to a Syslog Collector 51
Figure 1 Typical Lync Server 2010 to XO SIP Trunk Deployment .................................................................... 7
UX2000 SBC XO SIP Trunk Lync Server 2010 Configuration Guide
4
Figure 2 Initial Task Configuration .................................................................................................................. 9
Figure 3 Importing Root Certificate PEM Format ......................................................................................... 10
Figure 4 Generating UX Certificate Request ................................................................................................. 11
Figure 5 Importing UX Certificate PEM Format ............................................................................................ 12
Figure 6 Setting Up SIP Signalling Endpoints ................................................................................................ 13
Figure 7 Node Interfaces ............................................................................................................................... 14
Figure 8 Ethernet Port Configuration ............................................................................................................ 15
Figure 9 IP Default Route .............................................................................................................................. 16
Figure 10 Public IP Default Route ................................................................................................................. 17
Figure 11 Internal Static IP Route 1 .............................................................................................................. 18
Figure 12 Internal Static Route 2 .................................................................................................................. 18
Figure 13 Adding New IP/PSTN Gateway in Lync Server 2010 Topology ...................................................... 19
Figure 14 Edit Mediation Server Dialog ........................................................................................................ 20
Figure 15 Lync Server Control Panel Route Selection ................................................................................... 21
Figure 16 Available PSTN Gateways .............................................................................................................. 22
Figure 17 PSTN Gateway and PSTN Usages .................................................................................................. 23
Figure 18 Lync User DID Setting .................................................................................................................... 24
Figure 19 Adding Analog Contact .................................................................................................................. 25
Figure 20 UX2000 Routing Process ............................................................................................................... 25
Figure 21 Signaling Group ............................................................................................................................. 26
Figure 22 Call Routing Table ......................................................................................................................... 27
Figure 23 Translation Tables ......................................................................................................................... 28
Figure 24 Tranlation Table that Removes + and 1 ........................................................................................ 29
Figure 25 Translation Table that Adds + and 1 ............................................................................................. 30
Figure 26 Media Profiles Showing Enabled Codecs ...................................................................................... 30
Figure 27 Typical G711Alaw Codec Settings ................................................................................................. 31
Figure 28 Media List Containing G711Alaw and G711Ulaw ......................................................................... 31
Figure 29 Media List (cont) Showing Digit Relay Settings
............................................................................. 32
Figure 30 Signaling Group Showing Media List Selection ............................................................................. 32
Figure 31 Media Trancoding Configuration .................................................................................................. 33
Figure 32 PSTN to Lync Client Call Flow ........................................................................................................ 34
Figure 33 PSTN to Analog Call Flow .............................................................................................................. 35
Figure 34 Lync Client to PSTN Call Flow ........................................................................................................ 36
Figure 35 Lync Client to Analog Call Flow ..................................................................................................... 36
Figure 36 Analog to Analog Call Flow ........................................................................................................... 37
Figure 37 Analog to PSTN Call Flow .............................................................................................................. 38
Figure 38 Analog to Lync Client Call Flow ..................................................................................................... 39
Figure 39 ATA SIP Server Table Name ........................................................................................................... 40
Figure 40 SIP Server Configuration Dialog .................................................................................................... 41
Figure 41 Translation Table Name for ATA Routing ...................................................................................... 42
Figure 42 Completed Translation Table Dialog for ATA Routing .................................................................. 43
Figure 43 SIP SG Configuration Dialog .......................................................................................................... 44
Figure 44 Adding ATA Route ......................................................................................................................... 46
Figure 45 Route Table Ordering for calls to ATA ........................................................................................... 47

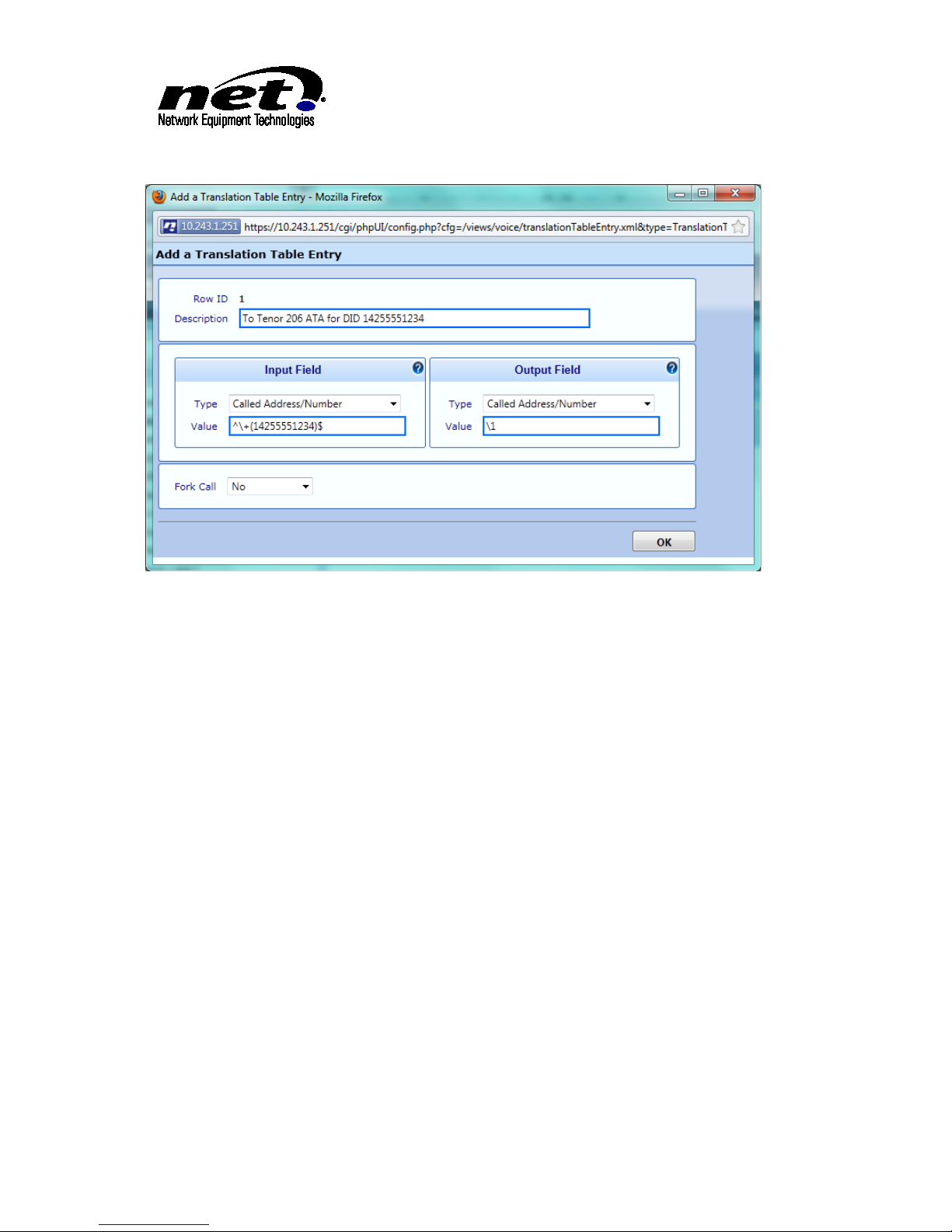

Figure 46 Translation Table to Add + to Called Number ............................................................................... 47
Figure 47 Creating a Route Table for the ATA .............................................................................................. 48
UX2000 SBC XO SIP Trunk Lync Server 2010 Configuration Guide
5
Figure 48 Routing Entry for Calls From ATA to Lync Server 2010 ................................................................. 49
Figure 49 XO SIP Trunk Down ....................................................................................................................... 50
Figure 50 Alarm Status .................................................................................................................................. 51
Figure 51 Debug Logs .................................................................................................................................... 51
Figure 52 Syslog Collector Configuration ...................................................................................................... 52
UX2000 SBC XO SIP Trunk Lync Server 2010 Configuration Guide
6
1 References and Versions
The following references will provide additional information on NET’s Unified Communications Products
Net Product Documentation Hub:
https://support.net.com/display/ALLDOC/NET+Product+Documentation;jsessionid=BA930EB97FD04F91A
5C84BA74B9DAE35
UX2000 Specific:
https://support.net.com/display/UXDOC/Home
Tenor Quickstart Guide:
https://support.net.com/download/attachments/3407913/TenorAFQuickStart.pdf?version=3&modificati
onDate=1303316655000
Tested Versions:
UX2000: 1.2.0v39
Lync Server 2010: 4.0.7577.0
UX2000 SBC XO SIP Trunk Lync Server 2010 Configuration Guide
7
2 Purpose
This guide is for configuring the necessary options for interconnecting NET’s UX2000 SBC between XO’s
SIP Trunk offerings and Microsoft’s Lync Server 2010 over the public internet. The UX2000 provides a
secure method of isolating the internal corporate data network from the publicly reachable SIP Trunk
offerings. The UX2000 is located between the Public Internet and the internal WAN/LAN network as
shown below:
Figure 1 Typical Lync Server 2010 to XO SIP Trunk Deployment
UX2000 SBC XO SIP Trunk Lync Server 2010 Configuration Guide
8
3 Completing SIP Trunk Task on UX2000
Configuring the UX2000 is done through the UX2000s integrated web server. This guide assumes that the
operator has already done the initial configuration positioning the UX2000 on the IP network. To start the
configuration process use a standard web browser to connect to the IP or FQDN address of the UX2000.
Supply the username and password to complete the login process.
3.1 Prerequisites
The following will be required to complete the configuration of the UX2000 SIP Trunk Task:
a. Access to the Certificate Authority to download the root certificate and sign and download the user
certificate for the proper TLS operation between the UX2000 and the Lync 2010 Server(s)
b. FQDN of the Lync 2010 Mediation Server or Server pool
c. IP Address(s) of the XO Communications SIP Signalling destination server
d. FQDN of the UX2000
3.2 Initial Task configuration
The Initial Task configuration is a step by step process that will complete the steps to position the UX2000
between XO’s SIP Trunk and Microsoft’s Lync Server 2010. This task will install the necessary TLS
Certificates and create SIP components and call routing basics.
UX2000 SBC XO SIP Trunk Lync Server 2010 Configuration Guide
9
Figure 2 Initial Task Configuratio n
3.3 Root Certificate
Using the web browser navigate to the Task tab and click on the ‘Microsoft UC Setup/Lync 2010 Setup’
link on the left pane. This will start the task to setup the UX2000 to be configured between the XO SIP
Trunk and the Lync Server 2010 components.
The page that loads will have 4 sub tabs located in the right configuration pane. Click on the ‘Trusted CAs’
tab and then the left box with the red up arrow icon. This will prompt for the import of the Root
Certificate. There are 2 options for the import type, DER and PEM. DER is used to import a binary type
format certificate and will open a file explorer to import the certificate. The PEM type is used to import an
ASCII type format. To use the PEM type, first open the certificate file with a text editor such as Microsoft
Notepad and then copy and paste into the text box as shown:
UX2000 SBC XO SIP Trunk Lync Server 2010 Configuration Guide
10
Figure 3 Importing Root Certificate PEM Format
3.4 UX Certificate
Click on the ‘Generate CSR’ tab. Complete the dialog below with the minimum of the FQDN of the
UX2000 in the ‘Common Name’ field . Once the dialog is populated click ‘OK’. This will create the
unsigned certificate that will have to be submitted to the Certificate Authority to be signed. This
submission process varies per installation and is out of the scope of this document.
UX2000 SBC XO SIP Trunk Lync Server 2010 Configuration Guide
11
Figure 4 Generating UX Certificate Request
Once the certificate is signed from the Certificate Authority click on the ‘UX Certificate’ tab. Click on the
green ‘+’ sign. This will load a dialog similar to the Root Certificate import process. Select either the DER
or PEM format in the dropdown to match the file format of the UX Certificate to complete the process.
Shown below is the PEM format import process:
UX2000 SBC XO SIP Trunk Lync Server 2010 Configuration Guide
12
Figure 5 Importing UX Certificate PEM Format
3.5 SIP Signaling Endpoints
Click on the last tab ‘Lync 2010 Setup’ to configure the SIP Endpoints in UX. This process will setup the UX
to interface to the XO Sip Trunk and to the Lync 2010 Server(s). The task will configure the SIP Server
tables and the SIP Signaling groups associated with each entity along with the basic routing between each
endpoint:
Scenario Information
Scenario Description: Provide a description that will associate to the setup of the SIP Trunk
Gateway Scenario: Select from the dropdown ‘SIP Trunking’
SIP Properties
No of Channels: Provide the total number of simultaneous calls expected to the SIP Trunking Provider
Lync Server Pool
Server Pool Host: The FQDN of the Server or Server pool that the UX will communicate with
Port Number: The IP Port that the Server or Server pool listens on for SIP messages from the UX
Border Element Servers
Border Element Server: IP or FQDN Address of the XO server that the UX will communicate with
Port Number: The IP Port that the XO server listens on for SIP messages from the UX
Use Secondary Border Element Server: Select from the dropdown if a second server will be
configured
Secondary Border Element Server: IP or FQDN Address of the secondary XO server that the UX
will communicate with
Port Number: The IP Port that the secondary XO server listens on for SIP messages from the UX
UX2000 SBC XO SIP Trunk Lync Server 2010 Configuration Guide
13
Once the page has been configured click ‘Apply’ to finish the dialog.
Figure 6 Setting Up SIP Signalling Endpoints
4 Configuring Public Ethernet Port and IP Addressing
The UX2000 SBC mediates between a company’s internal IP network for SIP signalling and SIP media and
the external public IP network to the XO SIP signalling and media servers. The internal IP addressing is
setup during the initial installation of the UX2000 SBC and is outside the scope of this Configuration
Guide.
4.1 Configuring the Public Ethernet Port
There are 5 Ethernet ports on the front of the UX2000 SBC. The far left (Admin) is reserved for
administrative use during the initial configuration. The 4 other ports can be used for normal SIP signalling
and media. Port 1 will be configured during the initial setup of the UX2000 SBC and will normally be used
for the company’s internal IP network.
UX2000 SBC XO SIP Trunk Lync Server 2010 Configuration Guide
14
Perquisites:
a. Select unused Ethernet Port
b. Public IP Address for UX2000 SBC
c. Public IP Subnet Mask for UX2000 SBC
d. Public IP Default Route for UX2000 SBC
e. Private IP Static Route if Needed
4.2 Selecting Unused Ethernet Port
From the Settings Tab/Node Interfaces/Ports display select an Ethernet that is not currently used. These
are shown below:
Figure 7 Node Interfaces
In Figure 7 Ethernet port 4 will be used for the Public IP connection. Click the Right Arrow next to Lan4 to
open the Configuration Dialog. Supply the following information:
UX2000 SBC XO SIP Trunk Lync Server 2010 Configuration Guide
15
Port Alias: Name for the Ethernet Port
Description: Provide a description of the Ethernet Port
Configured Speed: Leave this at ‘Auto’ unless the Ethernet port will be connected to a device that
can not automatically negotiate the highest speed
Configured Duplexity: Leave this at ‘Auto’ unless the Ethernet port will be connected to a device
that can not automatically negotiate the port duplex settings
Networking Mode: Select ‘Routed’ from the drop down
Primary Address: Supply the IP Address assigned to the UX2000 SBC
Primary Netmask: Supply the Netmask associated with the IP Address of the UX2000 SBC
Configure Secondary Address: Ensure this is set to ‘No’
Click ‘Apply’ to complete the configuration dialog.
Figure 8 Ethernet Port Configuration
UX2000 SBC XO SIP Trunk Lync Server 2010 Configuration Guide
16
4.3 Configuring the IP Default Route
The IP Default route is required so that the UX2000 SBC will know where to send IP packets into the
public IP network. From the Settings/Protocols/IP/Static Routes click on the green ‘+’ sign to add the
route. This will open the dialog for the IP Route. Complete the dialog with the following information:
Figure 9 IP Default Route
Destination IP: Enter ‘0.0.0.0’
Mask: Enter ‘0.0.0.0’
Gateway: Enter the IP Address of the IP Default Router
Metric: Enter ‘1’
Once configured click ‘OK’ to apply the configuration.
UX2000 SBC XO SIP Trunk Lync Server 2010 Configuration Guide
17
Figure 10 Public IP Default Route
4.4 Configure Internal Private IP Static Route
Internal IP Static Routes may be required if the UX2000 SBC needs to communicate with multiple internal
private IP addresses. These static routes have to be deterministic because there can be only one default
route and this is used on the public side. If there are multiple internal networks then multiple static
routes will be required. The examples below show static routes for a private 10.0.0.0 network and a
private 192.168.0.0 network:
UX2000 SBC XO SIP Trunk Lync Server 2010 Configuration Guide
18
Figure 11 Internal Static IP Route 1
Figure 12 Internal Static Route 2
UX2000 SBC XO SIP Trunk Lync Server 2010 Configuration Guide
19
5 Lync Server 2010 Configuration
Lync Server 2010 will need to be configured to support the UX2000 SBC in order to communicate with the
XO SIP Trunk. This section covers the addition of the UX2000 into the Lync Server topology and adding the
UX2000 to the Lync Server 2010 routing. XO SIP Trunk DIDs will be assigned to a Lync users account and
the commands will be shown how to add an analog contact with a XO SIP Trunk DID.
This section assumes that the Lync Server components have been installed along with Lync users. The
user should be familiar with Lync Server Topology Builder, Lync Server Control Panel and Lync Server
management Shell. This section does not cover the basic installation of Lync Server 2010.
5.1 Adding UX2000 SBC to Lync Server Topology
The Lync Server topology needs to be modified by adding the UX2000 SBC as a Gateway device. The
Gateway device will be the interface to the XO SIP Trunk.
Open Lync Server Topology builder and load the current topology. Expand the topology and click on the
‘PSTN Gateways’ link in the left hand pane. This will provide the link in the right hand pane ‘New IP/PSTN
Gateway’. Click on this to open the dialog below:
Figure 13 Adding New IP/PSTN Gate way in Lync Server 2010 Topology
UX2000 SBC XO SIP Trunk Lync Server 2010 Configuration Guide
20
Populate the following into the dialog:
Gateway FQDN or IP Address: For this config enter the FQDN of the UX2000 SBC since TLS is going
to be used between the Lync Server 2010 and the UX2000 SBC ‘ux.krisno.com’
Listening port for the IP/PSTN gateway: Enter ‘5067’
SIP Transport Protocol: Ensure the radio button for TLS is selected
Once the dialog is complete click ‘OK’.
Click on the ‘+’ sign next to the Mediation Pools to expand and the click on the configured Mediation
Server. Click on the ‘Edit Properties’ link in the right hand pane to open the edit dialog as shown below:
Figure 14 Edit Mediation Server Dialog
Click on the gateway FQDN ‘ux.krisno.com’ in the none associated gateway table. Once selected click the
‘Add’ button. This will move the move the ‘ux.krisno.com’ FQDN to the bottom table for associated
gateways. Click ‘OK’ to complete the dialog.
UX2000 SBC XO SIP Trunk Lync Server 2010 Configuration Guide
21
The topology has been modified with the gateway added and associated with the Mediation Server.
Publish the topology to compete the task.
5.2 Adding the UX2000 into Lync Server Routing
In order for Lync Server 2010 to send calls to the XO SIP Trunk the UX2000 SBC will have to be added to
the Routing. Open Lync Server Control Panel and click on the Voice Routing link on the left hand pane.
Click on the Route tab on top of the right hand pane to show the dialog below:
Figure 15 Lync Server Control Panel Route Selection
Click on the ‘Add’ button next to ‘Associated gateways’ table. This will bring up a list of available gateways
and select the FQDN for the UX2000 SBC as shown below:
UX2000 SBC XO SIP Trunk Lync Server 2010 Configuration Guide
22
Figure 16 Available PSTN Gateways
Ensure the UX2000 SBC is highlighted in the dialog and click ‘OK’.
Scroll down to the ‘Associated PSTN Usages’. Click on the ‘Select’ button to bring up the list of available
PSTN Usages. Select the proper PSTN Usages from the list and click ‘OK’.
With the PSTN Gateway selected and the PSTN Usages selected the dialog should be similar to below:
UX2000 SBC XO SIP Trunk Lync Server 2010 Configuration Guide
23
Figure 17 PSTN Gateway and PSTN Usages
At this point commit these changes to the topology.
5.3 Configuring Assigned DIDs to Lync Users
In order for Lync users to be called directly from the PSTN, the Lync users will have to have the XO SIP
Trunk DID numbers assigned. This is done in the User section of Lync Server Control Panel.
Open the specific Lync user in Lync Server Control panel that will have a DID assigned to it. Configure the
DID in the Line URI configuration as shown below:
UX2000 SBC XO SIP Trunk Lync Server 2010 Configuration Guide
24
Figure 18 Lync User DID Setting
Click ‘Commit’ to complete the changes.
5.4 Creating Analog Contacts with XO SIP Trunk DIDs
In order for analog devices to be called directly from the PSTN, the analog devices will have to have the
proper XO SIP Trunk DID assigned to it.
This section does not go into details on configuring analog devices. Please see the Lync Server 2010
documentation for further details.
Open Lync Server Management Shell. Below is an example of how to create an analog contact as a fax
machine and a XO SIP Trunk DID number of 14255554321:
UX2000 SBC XO SIP Trunk Lync Server 2010 Configuration Guide
25
Figure 19 Adding Analog Contact
6 UX2000 Telephony Routing Process
The telephone routing process in the UX2000 moves calls received on one Signaling Group (SG) to an
outbound SG. While the call is moving the number or name may be translated and additional lookups can
be done to ensure the call is routed properly.
Incoming Signaling Group
Receives Call and Sends Call
to Assigned Route Table
Translation Table
Manipulates
Information
Elements
Outbound Signaling Group
Sends Call to Next Hop
Incoming Call
Outgoing Call
Route Table Sends Call Information
Elements to the Translation Table
for Modification as Needed
Route Table Sends Call To Outbound
Signaling Group with Modified
Information Elements
Figure 20 UX2000 Routing Process
UX2000 SBC XO SIP Trunk Lync Server 2010 Configuration Guide
26
6.1 Signaling Groups
The SG is the first place an incoming call will reach the UX2000. The Signaling group will direct the call to
the Routing Table as shown below:
Figure 21 Signaling Group
6.2 Call Routing Table
The Call Routing Table will send the Called and Calling Party information elements to a Translation Table
so that they can be modified if required to match the destination systems format. Once the translations
have been completed the Route Table will then route the call to the applicable SG for the destination
system.
UX2000 SBC XO SIP Trunk Lync Server 2010 Configuration Guide
27
Figure 22 Call Routing Table
6.3 Translation Tables
Translation tables are used to modify the called and calling party information elements among other
elements that are pertinent to proper call handling between the origination and destination servers. The
basic translations rely on the use of Regular Expressions as the numbers/names are changed from what is
received to what is sent to the destination. Translation tables must have a matching entry format in order
for the call to be routed to that route. If there are no matching Translation table entries the call will be
returned back to the Routing table so the next Route entry can be tried for a match. This will happen as
long as there are Routes in the Route table to try. If all Routes have been tried with no matches in the
Translation table(s) the call will fail.
UX2000 SBC XO SIP Trunk Lync Server 2010 Configuration Guide
28
Figure 23 Translation Tables
Most translation table entries for a SIP Trunking application will be used for matching Lync Server 2010
requirement for called and calling numbers to be in E.164 format. Below are examples to match XO
number format to Lync Server 2010 number format.
This example is used to translate a called number from Lync 2010 Server in E.164 format to a US 10 digit
number for routing into the XO SIP Trunk:
Input Field
Type: Called Address/Number – Used to capture the numeric portion of the Dialed Number
Value: ^\+1(\d{10})$ - Regular Expression that looks for the +1 at the start of the Dialed Number
and then captures the 10 digits that follows between the open and close parenthesis
Output Field
Type: Called Address Number – Identifies the Information Element that the Input Field Type
should be translated to
Value: \1 – Identifies the open and close parenthesis that should be carried over from the Input
Value Field
UX2000 SBC XO SIP Trunk Lync Server 2010 Configuration Guide
29
Figure 24 Tranlation Table that Removes + and 1
This example is used to modify a called number from the XO SIP Trunk into an E.164 format that Lync
2010 Server will accept:
Input Field
Type: Called Address/Number – Used to capture the numeric portion of the Dialed Number
Value: ^(\d{10})$ - Regular Expression that looks for the +1 at the start of the Dialed Number and
then captures the 10 digits that follows between the open and close parenthesis
Output Field
Type: Called Address Number – Identifies the Information Element that the Input Field Type
should be translated to
Value: +1\1 – Prepends ‘+1’ and Identifies the open and close parenthesis that should be carried
over from the Input Value Field
UX2000 SBC XO SIP Trunk Lync Server 2010 Configuration Guide
30
Figure 25 Translation Table that Adds + a nd 1
7 Media Configuration
The UX2000 initial configuration task from Section 1 of this guide will setup the required media settings
for both the Lync 2010 Server and the XO SIP Trunk. Media lists will be created and applied to the
appropriate SGs. Below are examples of a typical Media configuration:
Figure 26 Media Profiles Showing Enabled Codecs
UX2000 SBC XO SIP Trunk Lync Server 2010 Configuration Guide
31
Figure 27 Typical G711Alaw Codec Settings
Figure 28 Media List Containing G711Alaw and G711Ulaw
UX2000 SBC XO SIP Trunk Lync Server 2010 Configuration Guide
32
Figure 29 Media List (cont) Show ing Digit Relay Settings
Figure 30 Signaling Group Showing Media List Selection
8 Enabling Media Transcoding
Media Transcoding can be used for changing both codec and DTMF digit transfer methods. Since Lync
2010 Server does not support both G.729 and inband DTMF digit transfer methods the UX2000 can be
UX2000 SBC XO SIP Trunk Lync Server 2010 Configuration Guide
33
configured to transcode one list to another list between the XO SIP Trunk and Lync 2010 Server. In order
for this to work properly there has to be a Media List for the XO SIP Trunk with G.729 and/or Inband DMF
digit transfer settings and another Media List with G711 (A or U law as required) with RFC2833 digit
transfer.
The actual Transcoding configuration setting is done at the Route Table. The example below is for a call
originating on the Lync 2010 Server using G711 and the matching Route table entry for XO has
Transcoding enabled and calls out the Media list that is used for the XO SIP Trunk:
Figure 31 Media Trancoding Configuration
9 Analog Support
Lync Server 2010 supports analog devices such as phones and fax machines in its topology. The devices
can be configured with DID numbers so that they can be dialed directly from the PSTN. The analog
devices are configured to home to a configured SBC or gateway in the Lync Server 2010 topology. This
means that the configuration on the homed device needs to be able to route calls to the analog devices
from Lync Server 2010 while also routing calls to the SIP Trunk.
UX2000 SBC XO SIP Trunk Lync Server 2010 Configuration Guide
34
9.1 Differences Between PSTN and Analog Call Routing
When analog devices are part of the Lync Server 2010 topology the UX2000 will have to be able to
recognize a call to an analog ATA from Lync Server 2010 and route these differently than calls to the SIP
Trunk. Calls from the SIP Trunk will all go to the Lync 2010 Server. The Route table in the UX2000 will have
to have knowledge of all analog numbers so these calls can be routed to an ATA instead of to the SIP
Trunk. All other numbers that are not recognized as analog devices will then be routed to the PSTN
through the XO SIP Trunk.
Figure 32 PSTN to Lync Client Call Flow
UX2000 SBC XO SIP Trunk Lync Server 2010 Configuration Guide
35
Figure 33 PSTN to Analog Call Flow
UX2000 SBC XO SIP Trunk Lync Server 2010 Configuration Guide
36
Figure 34 Lync Client to PSTN Call Flow
Figure 35 Lync Client to Analog Call Flow
UX2000 SBC XO SIP Trunk Lync Server 2010 Configuration Guide
37
Figure 36 Analog to Analog Call Flow
UX2000 SBC XO SIP Trunk Lync Server 2010 Configuration Guide
38
Figure 37 Analog to PSTN Call Flow
UX2000 SBC XO SIP Trunk Lync Server 2010 Configuration Guide
39
Figure 38 Analog to Lync Client Call Flow
9.2 Analog Configuration
To support Analog devices additional configuration will be required. For each ATA an additional SIP Server
table and Signaling Group and Route table will be needed. The routing will be to send all calls from the
Analog devices to the Lync Server 2010. Also since the UX2000 does not currently support Analog
connections a separate ATA will be required.
9.2.1 SIP Server Table
The SIP Server table for the ATA is configured so that the UX2000 will know where to send analog calls to.
The SIP Server table is configured under Settings/SIP/SIP Server Tables. Click on the green ‘+’ to add the
name of the ATA. In the example below an ATA with the name of ‘Tenor 206’ has been added:
UX2000 SBC XO SIP Trunk Lync Server 2010 Configuration Guide
40
Figure 39 ATA SIP Server Table Name
Once the SIP Server Table Name has been created for the ATA, click on the name in the list on the left
pane. From here click the right facing arrow (right arrow will turn down as dialog opens) next to the SIP
Server name in the right hand pane to open the configuration dialog as shown below:
UX2000 SBC XO SIP Trunk Lync Server 2010 Configuration Guide
41
Figure 40 SIP Server Configuration Dialog
Provide the following information to complete the dialog:
Priority: Leave default
Host: FQDN or IP Address of ATA
Port: SIP Signaling Listen Port of the ATA
Protocol: IP Protocol that will be used to reach the ATA
The rest of the settings can stay default for a basic install.
9.2.2 Analog Translation Table
Add a Translation table that will be used to route to an ATA with Settings/Translation Table. The example
below is adding a Translation table entry for a DID number assigned to the Tenor 206 ATA:
UX2000 SBC XO SIP Trunk Lync Server 2010 Configuration Guide
42
Figure 41 Translation Table Name for ATA Routing
Click on the entry in the Translation table listing and then on the green ‘+’ sign in the right hand pane to
open the configuration dialog for this DID entry::
Enter the following information in the dialog:
Description: Enter a description so this will be recognized as the ATA route
Input Field
Type: Select ‘Called Address/Name’ from the dropdown
Value: Enter the number to route to this ATA as
^\+(14255551234)$
Output Field
Type: Select ‘Called Address/Name’ from the dropdown
Value: Enter \1 to route the contents of the Input Field
When the dialog is populated it should look similar to below:
UX2000 SBC XO SIP Trunk Lync Server 2010 Configuration Guide
43
Figure 42 Completed Translation Table Dialog for ATA Routing
9.2.3 Signaling Group
The Signaling Group for the ATA is configured at Settings/Signaling Groups. Click on the ‘Add SIP SG’ link
in the top of the right hand pane to add the name of the SIP SG. The example bellows shows a SG with the
name of ‘Tenor 206’ with the basic configuration changes made from the default dialog:
UX2000 SBC XO SIP Trunk Lync Server 2010 Configuration Guide
44
Figure 43 SIP SG Configuration Dialog
Description: Tenor 206
No. of Channels: This is related to the number of calls the ATA can support
SIP Server Table: Select from the dropdown the name of the SIP Server table configured in the
previous step
Listen Ports: The port(s) that the SG will listen to for SIP Signaling from the ATA
Federated IP/FQDN: The IP Address of the ATA or Network Address of the ATA IP Network. This is
used to ensure the SG listens only to the originating ATA for SIP signalling
Click ‘OK’ to complete the dialog.
UX2000 SBC XO SIP Trunk Lync Server 2010 Configuration Guide
45
9.2.4 Modify Lync Server 2010 Routing Table to Add ATA Route
With the SIP Server, Translation Table and SG configured, the Routing table that routes calls from Lync
Server 2010 needs to be modified so that the calls for the ATA will be routed properly. This is done by
adding the ATA routes into the table.
Open the Lync Server 2010 Routing table by clicking on Settings/Call Routing Table. Click on the Call
Routing table for calls coming from Lync Server 2010, in this configuration it is the ‘Lync Server 2010
Routing’ entry. Once the table is opened click on the green ‘+’ sign to add the route to the table.
Configure the following to complete the dialog:
Description: Add a description to associate with this route
Number/Name Translation Table: Select the proper Translation Table from the dropdown, in this
case select the Translation configured above
Destination Signaling Group: Click ‘Add’ and then select the SG for the ATA
The completed dialog is shown below:
UX2000 SBC XO SIP Trunk Lync Server 2010 Configuration Guide
46
Figure 44 Adding ATA Route
Click ‘OK’ to complete the dialog and then click ‘Resequence’ at the top of the Route Table entries. In the
dialog that opens click on the route for the ATA and then click ‘Up’ to move this route to the top of the
table. This will ensure that the Route table will analyse the routes for the ATA first before the call is
routed to the XO SIP Trunk:
UX2000 SBC XO SIP Trunk Lync Server 2010 Configuration Guide
47
Figure 45 Route Table Ordering for calls to ATA
9.2.5 Add Translation Table for ATA
All Calls from the ATA will have to be routed to Lync Server 2010. A Translation table may be required to
match the default number format on the Lync Server 2010 (E.164). The Translation table below is used to
add a ‘+’ to the called number from the ATA:
Figure 46 Translation Table to Add + to Called Number
UX2000 SBC XO SIP Trunk Lync Server 2010 Configuration Guide
48
9.2.6 Add Route Table for ATA
In order for calls to route from the ATA to Lync Server 2010 an ATA Route table needs to be added. This
will allow the selection of the proper Translation table and route from the UX2000 to Lync Server 2010.
Click on Settings/Call Routing Table and then on the green ‘+’ sign in the right hand pane. Enter a name
for the route table dialog as shown below:
Figure 47 Creating a Route Table for the ATA
Click ‘OK’ to complete the dialog.
Once Route Table is added, complete the configuration dialog with the following information:
Description: Enter description to associate with the route
Number/Name Translation Table: Select the Translation Table from above
Destination Signaling Group: Click ‘Add’ and select the SG for the Lync Server 2010 Server
The completed dialog is shown below:
UX2000 SBC XO SIP Trunk Lync Server 2010 Configuration Guide
49
Figure 48 Routing Entry for Calls From ATA to Lync Server 2010
Click ‘OK’ to complete the dialog.
UX2000 SBC XO SIP Trunk Lync Server 2010 Configuration Guide
50
10 Troubleshooting
The UX2000 provides various ways to troubleshoot call issues. The first is through visual analysis of
configured systems and active and certain archived alarms through the Monitor page. And the UX2000
can generate debug logs to be viewed locally, downloaded to a text editor or the debug logs can be sent
to a Syslog collector.
10.1 Visual Analysis
Clicking on the ‘Monitor’ tab will bring up a real time view of the current status of the configured SGs and
also a real time view of call status. Also, the current alarms will be shown in the ‘Alarm Window’ at the
bottom of the screen and the highest unacknowledged alarm color will show in the ‘Monitor’ tab.
10.1.1 Current SG Status and Call Activity
The top portion of the ‘Monitor’ display will show the current status of the SGs and their associated
channels. If a SG is down the SG will be colored Red as shown below for the XO SG:
Figure 49 XO SIP Trunk Down
There are many reasons a SG may be down. The far end equipment may be off line, there could be a
routing issue or there could be a configuration problem. The visual Monitor will provide a quick view on
where to start trouble shooting.
UX2000 SBC XO SIP Trunk Lync Server 2010 Configuration Guide
51
10.1.2 Current Alarms
The current alarms will also indicate problems. The alarms shown below posted as the XO SG went out of
service:
Figure 50 Alarm Status
10.2 Viewing Debug Logs
The UX2000 will continually record the last hour and 15 minutes of debug logs. These are split into 15
minute logs and can be viewed by clicking on the ‘Logs’ tab as shown below:
Figure 51 Debug Logs
The logs are ordered with the current log being written on top. When the current log reaches the end of
the recording period it will be rotated down from the top and a new log will start to write.
To view one of these logs click the blue box to the left of the file name. This will open a web based text
box that can be scrolled through to find certain debug information.
To download the log to either save or open in a text editor, click on the ‘Download’ link to the right of the
file information. This will open a dialog to either save to a file or open.
10.3 Sending Debug Logs to a Syslog Collector
To send debug information to a Syslog server, click ‘Settings/Logging Configuration/Remote Log Servers’.
Click on the green ‘+’ sign to add a Syslog collector. Complete the dialog with the following information:
Global Log Level: Set to the level required
Log Destination: Enter the FQDN or IP Address of the Syslog Collector
UX2000 SBC XO SIP Trunk Lync Server 2010 Configuration Guide
52
Click ‘OK’ to complete the dialog. This will start sending the debug log information to the Syslog collector.
Different levels of collection may be required to shown applicable trouble shooting information
Figure 52 Syslog Collector Configuration
Loading...
