Nest Easel

Adjustable Height Easel w/Storage Bin

Assembly Instructions

Page 3

WOW

Nest Easel

Adjustable Height Easel w/Storage Bin

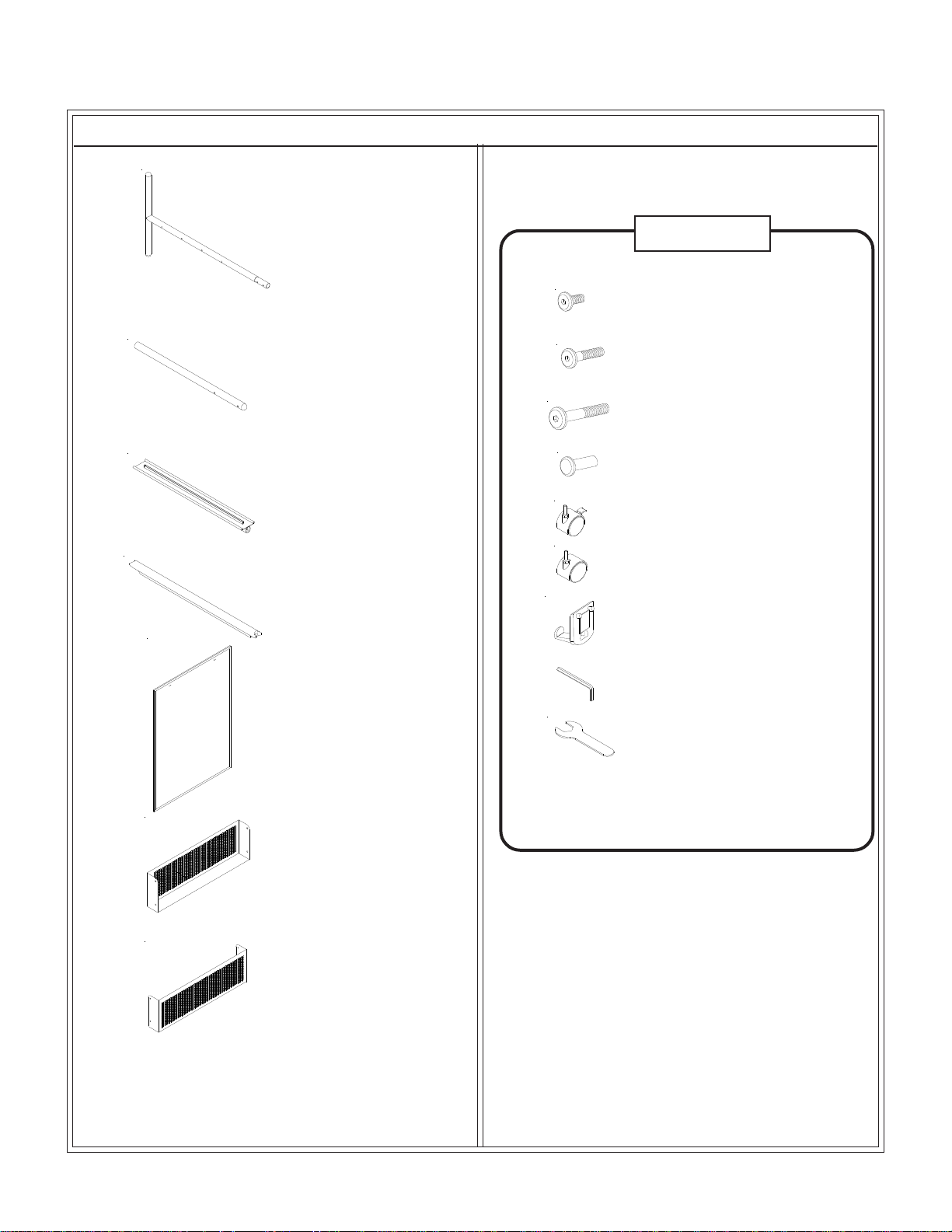

Part Drawing Description Qty

P-1 Lower Leg 2 EA

P-2 Upper Leg 2 EA

P-3 MiddleTray 1 EA

Hardware List

A 9/16” Socket Screw 4 EA

A1 1-3/32” Socket Screw 4 EA

B 2-3/8” Socket Screw 4 EA

C Interior Threaded Post 4 EA

D 2” Locking Caster(for front) 2 EA

P-4 Top Support 1 EA

P-5 Markerboard 1 EA

P-6 Bookrack-Back 1 EA

P-7 Bookrack-Front 1 EA

E 2” Caster(for Back) 2 EA

F Plastic Chart Support 4 EA

G Allen Wrench 2 EA

H Caster Wrench 1 EA

Page 4

Nest Easel

Assembly Diagram

Illustration # 1

EAD THROUGH INSTRUCTIONS FROM BEGINNING

TO END

To Assemble:

Identify and Separate all the

BEFORE

STARTING TO ASSEMBLE UNIT

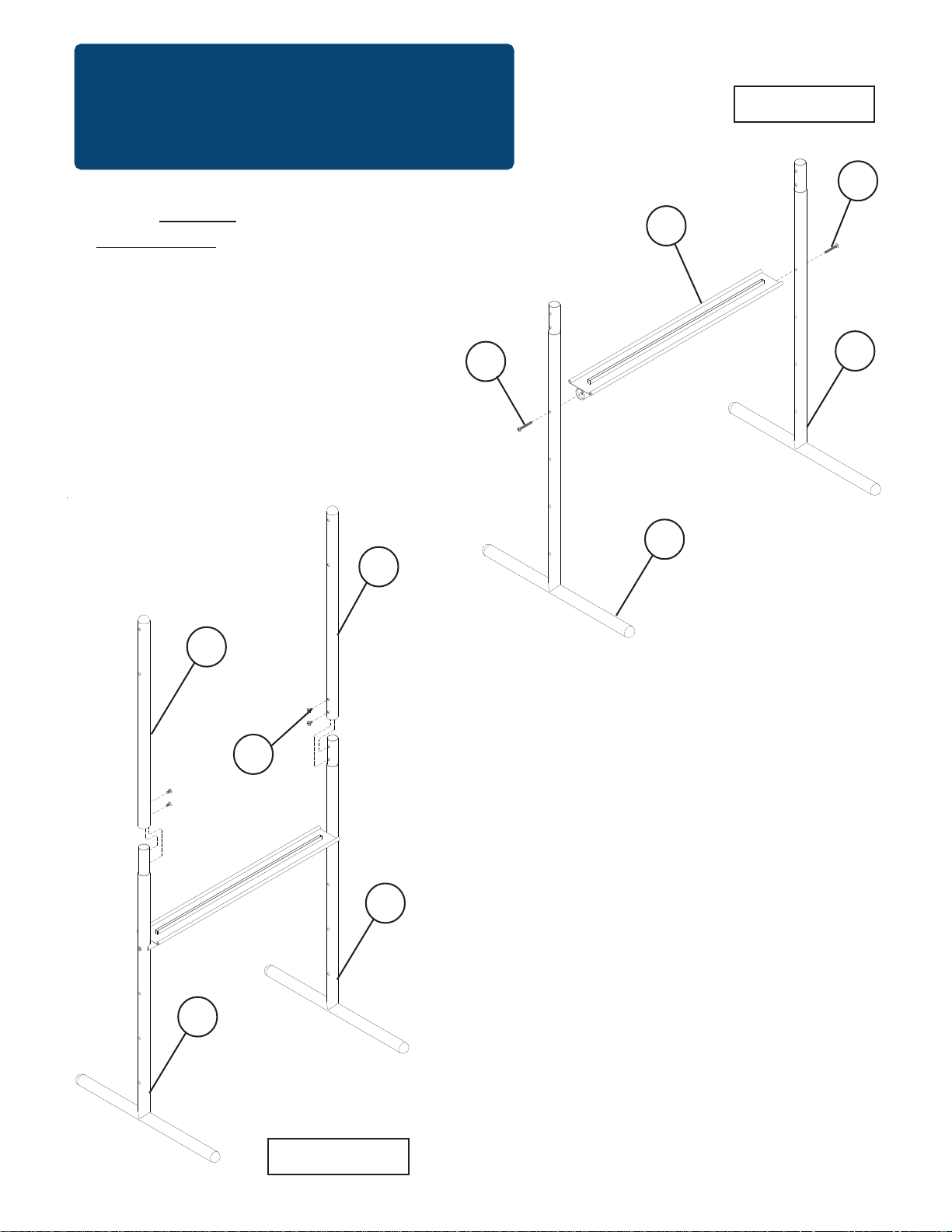

Parts and Hardware. Attach Middle T ray (P-3) to 2 Lower

2. Legs (P-1) at desired height using 2

Socket Screws (B) as shown in illustration # 1.

(Finger tighten only)

Illustration # 2

P-2

P-3

P-1

P-2

P-1

Attach 2 each Upper Legs (P-2) to the 2

each Lower Legs (P-1) using 4 Socket Screws (A) as shown in illustration # 2.

(Finger tighten only)

P-1

Illustration # 2

Page 5

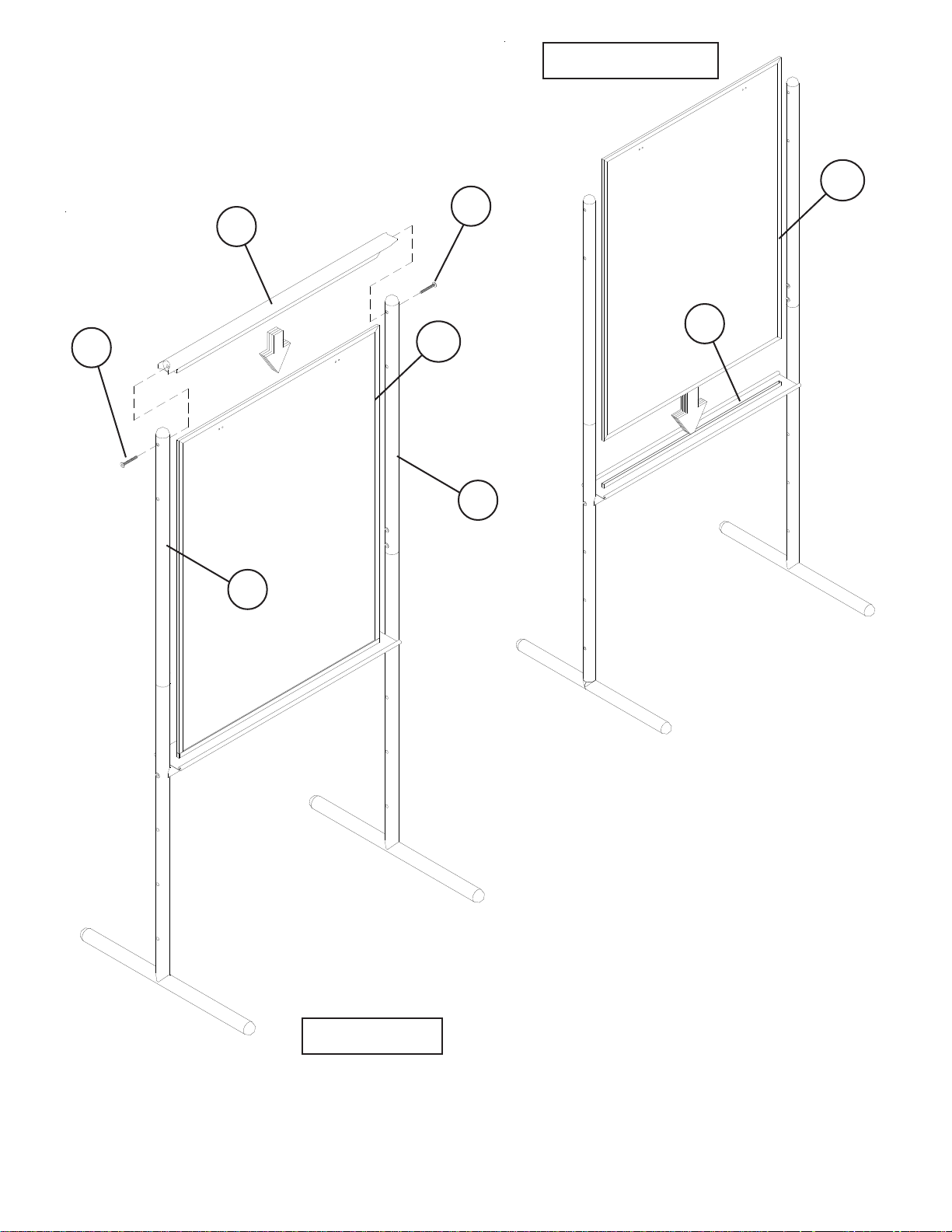

Insert Markerboard (P-5) into Middle T ray (P-3) as

4. shown in illustration # 3.

P-4

P-5

Illustration # 3

P-5

P-3

P-2

Illustration # 4

Slide T op Support (P-4) over Markerboard (P-5) and secure to the 2 Upper Legs(P-2) using 2 each Socket Screws(B) as shown in illustration # 4. (Finger tighten only)

Page 6

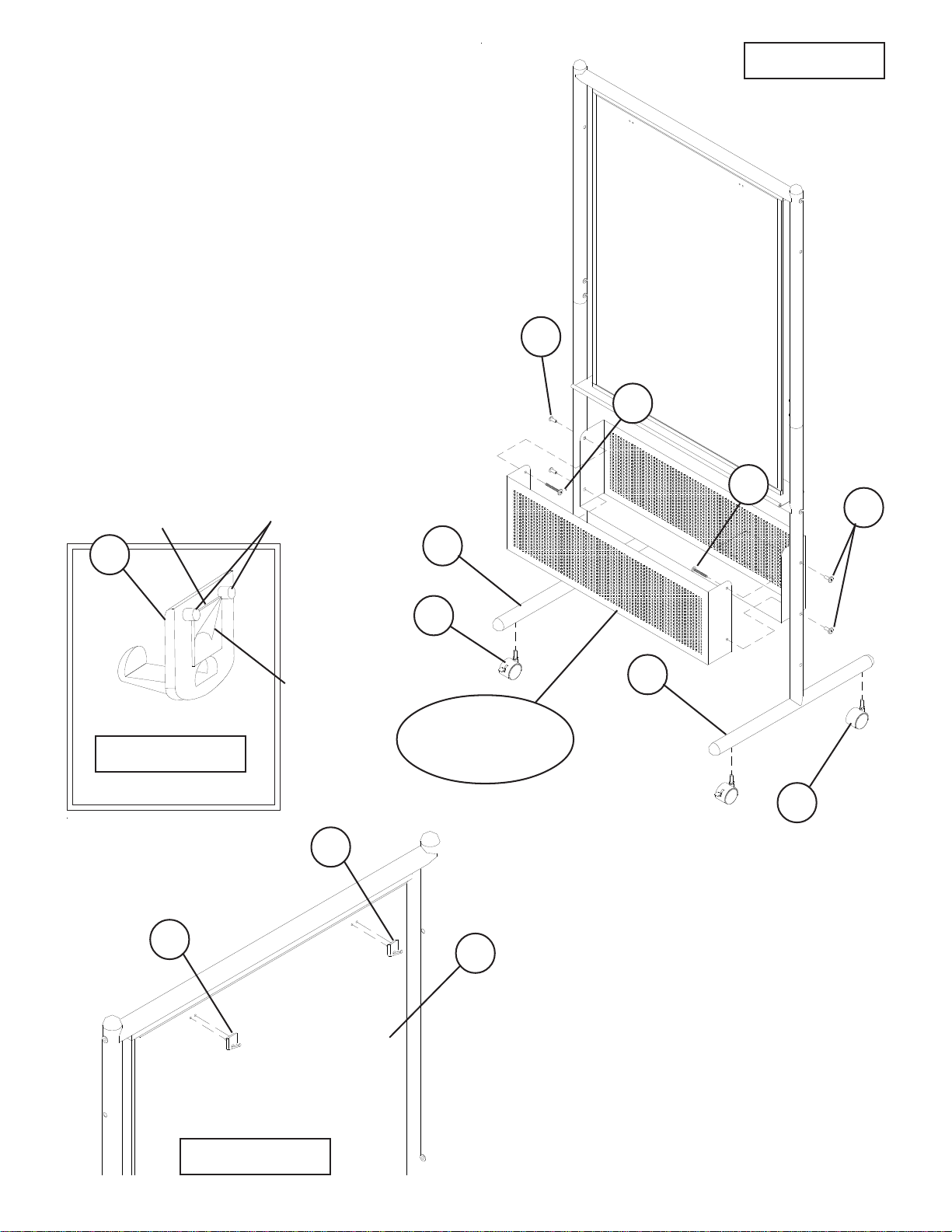

Attach Book Rack Front Panel (P-7) and

6. Book Rack Back Panel (P-6)to the 2 Lower Leg Frames (P-1) using 4 Socket Screws (A1) and 4 Interior Threaded Posts (C) as shown in illustration # 5.

Attach 2 Locking Casters (D) in the front and 2 Casters (E) in the back of the unit as shown in illustration # 5. Tighten the Casters using Caster Wrench (G).

(Tighten all Screws at this time)

Peel the paper from the back

of adhesive pad on Plastic Chart Support (F).

(See Illustration # 6-A)

Illustration # 5

Adhesive

Pad

Illustration # 6-A

Pins

Paper

P-1

See page 7 for

High and Low

Book Rack

Settings

Attach 2 Plastic Chart Supports on each

P-5

side of board: Insert 2 pins on back side of Chart Support (F) through holes in markerboard (P-5) as shown in illustration # 6-B.

Illustration # 6-B

Press Plastic Chart Support (F) firmly to

10. the Markerboard surface.

Page 7

Nest Easel

Adjustable Height Easel w/Storage Bin

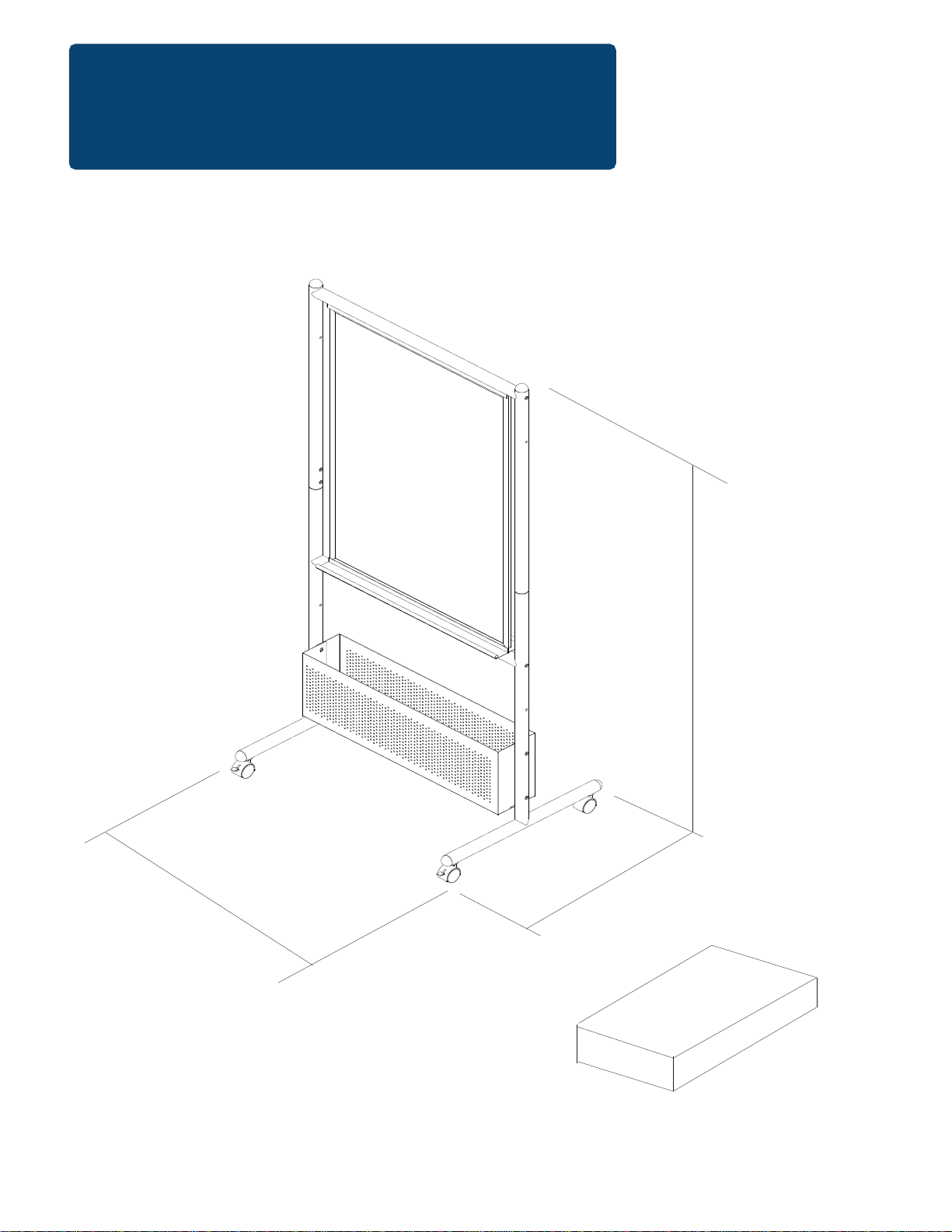

Dry Erase Board Size

28 3/4” X 40 3/4”

34 3/4”

10”

6”

31 3/4”

24”

72”

Shipping Information

4.8 Cubic Feet

56 lbs.

6”

44”
