nest 06C User Manual

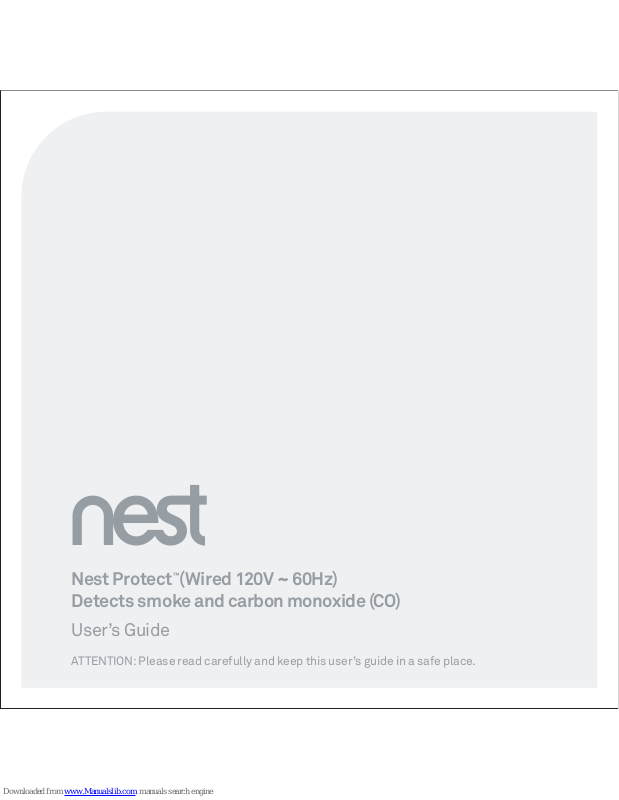

Nest Protect™(Wired 120V ~ 60Hz)
Detects smoke and carbon monoxide (CO)

User’s Guide

ATTENTION: Please read carefully and keep this user’s guide in a safe place.

32

TABLE OF CONTENTS

Meet your Nes t Protect . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4

Setup and ins tallation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6

Location i n your home . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8

Placemen t on the ceiling or wall . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10

Heads-Up and Emergency Alarms . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .16

Daily Use and Emer gency Preparatio n . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .18

General Maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .20

Safety . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24

Limited Warranty . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .34

First, a word about privacy.

We’re committed to being open and honest about how
we use data. We will always ask for permission before
sharing personally identifiable information like your
email address, and we keep your data safe with the
same security tools banks use. Go to nest.com/privacy
to learn more about our Privacy Policy.

Want to see how it’s done? Go to nest.com/installprotect for ins tallation videos and tips.

4 mounting screws

Nest Protect

Backplate

120V connector

3 wire nuts

5.3 in

(13.5 c m)

1.5 i n

(3.9 cm)

54

MEET YOUR NEST PROTECT

REQUIREMENTS

You need Wi-Fi, an iOS or A ndroid phone or
tablet, an d a free Nest Account i n order to
use some Nes t Protect featur es: spoken room
names, wireless mobile notifications, and
soft ware updates. During se tup, Wi-Fi and
a free Nest A ccount are require d for wireless
interconn ect and room naming. Af ter all the
Nest Prot ects in your home are co nnected,
they can comm unicate with each othe r
without Wi-Fi.

The horn enables
Nest Prot ect to alert
you with a loud
emergency sound.

The speaker al lows
Nest Prot ect to speak
with a human voic e.

The light ring c hanges
color to aler t you.

Push the Nest b utton to
hush alarms or r un a test.

Micro-USB connector
(not for norma l use).

AC connect or pins for
the 120V connector.

Backup battery
compartment: Three
AA Energ izer® Ultimate
Lithium batteries (L91).

Nest Prot ect is designed to det ect smoke and
carbon mon oxide in a residential env ironment.
It has multiple se nsors to help it under stand
what’s happen ing in your home, including
a Split-Spectrum S ensor to detect a wi de range
of slow-smolder ing and fast-flaming fires.

This guide cov ers the installat ion of Nest Protec t
(Wired) - Mo del number 06C.

Inside the box yo u’ll find:

Already added New

76

1. Get the Nest app

Before you i nstall your Nest Prot ect on the
ceiling or wall, y ou’ll need to set it up with
the Nest app. D ownload the app from the
Apple App Store™ or Google Pl ay™ and create
a free Nest A ccount. You can use a phone or
tablet for s etup.

SETUP AND INSTALLATION
(Professional installation recommended)

3. Have more Nest Protects?

The Nest app w ill ask you if you have addition al
Nest Prot ects to set up. If so, it ’ll take you
through a fas ter setup. Be sure to keep a ll your
Nest Prot ects together until t hey’re all set up
and ready to b e installed.

2. Se t up Nes t Protect

The Nest app w ill guide you through each
step: scanning t he Nest Protect QR c ode,
connect ing it to the Internet, an d connecting
it to other Ne st Protects in your h ome. Go to
nest.com/installprotect to wat ch the video.

The instal lation of a smoke and CO alar m
should be made by a q ualified technician,
and all wiring use d to install this alarm
should be made in a ccordance with ar ticles
210, and 300.3B of the National Ele ctrical
Code ANSI/ NFPA 70, NFPA 72, and/or
applicable c odes in your local jurisdi ction.

For additional installation instructions and
safet y warnings, refer to page 24.

Tip: Your Nest Pro tect came packe d in a plastic co ver.
Keep the cov er on so your Nest Pr otect stay s clean
until you ins tall it.

Tip: Lay ever ything out on a t able for easy s etup.

Breaker box

BEDROOM

MASTER

BEDROOM

LIVING/
FAMILY

ROOM

KITCHEN

GARAGEBASEMENT

HALL

ATTIC

98

5. Turn off power

Protect y ourself and avoid blowing a f use.
Switch of f the correct circ uit breaker for the
room where y ou are installing Nest P rotect
or remove the f use from the fuse box .

WARNING

ELECTRICAL SHOCK HAZA RD
Failure to tur n off the power m ay result in
serious el ectrical sh ock, injury an d death.

Tip: To double che ck Nest Protec t’s room name,
press the N est button o nce. You’ll hear the loc ation
you assign ed it during setu p. It’ll say somet hing like,
“Ready in th e bedroom.”

Location in your home

The National Fire Protection Association
(NFPA) recomme nds installing a sm oke alarm
in the followin g areas:

• On ever y floor, including finished at tics
and basements.

• Inside an d outside every sl eeping area.

• At the top o f the first-to-second floor
stairwa y and on the basement ceil ing near
the entr y of the stairs.

• In home s with more than 1,000 square fe et
(93 m

2

) on one level, a dditional alarms may

be required.

Nest Prot ect should be install ed at
least 10 feet (3 m) away fro m cooktops
or cooking appliances.

Nest Prot ect should NOT be insta lled
in unfinished at tics or garages.

4. Test before you install

Once you’re don e setting up all of your Nes t
Protect s, make sure they’ve b een added to
your Nest Ac count. Push the Nest bu tton on
one Nest Pro tect and follow the ins tructions.
All of your Nes t Protects should sp eak up.
Now you can inst all them on the ceiling or w all.

12 in

(30.5 cm)

Maximum

BEST
HERE

4 in

(10 cm)

Minimum

4 in

(10 cm)

Minimum

NOT IN

THIS AREA

CEILING

SIDE
WALL

OKAY
HERE

NEST LOGO
IS UPRIGHT

NOT IN

THIS AREA

ANYWHERE IN

THIS AREA

NOT IN

THIS AREA

ANYWHERE IN

THIS AREA

NEST LOGO
IS UPRIGHT

4

in

(10cm)

4

in

(10cm)

3

ft

(0.9 m)

3

ft

(0.9 m)

3

ft

(0.9 m)

Figure 1

Figure 2

Figure 3

Figure 4

1

22

1110

7. Remove the old backplate

Unscrew the backplate from the electrical
box. Save the s crews to install the Nes t
backplate later.

6. Remove your old smoke alarm

To prevent electrical shock, make sure the
green power l ight is off on the alarm . You
may have to twis t the alarm to release i t.
Carefully r emove it to keep from dam aging
your ceiling or wal l.

Placement on the ceiling or wall

Installing o n the ceiling is recommen ded.
Mark where the s crews will go using the
base as a guide . Make sure it’s at least
4 inches (10 cm) away from the wall .

Placement on a sloped c eiling

If you have a slope d, peaked or cathedra l
ceiling, Nes t Protect should be 4 in ches to
3 feet (10 cm – 1 m) from the highe st point.

Tip: Your old smoke al arm might make a lou d noise
when you dis connect it.

White:

Neutral line

Black:
Power line

Bare copper

Red/orange/yellow:
Interconnect

3/8 in (1 cm)

The exposed wire should be straight.

1312

Tip: All smoke a larms prefe r to live in a dust fr ee area,
so remove an y dust before y ou install Nes t Protect.

9. Att ach the Nest connector

Hold the white wir e ends together, cap them
with a wire nut an d twist clockwise u ntil it’s
secure. Do th e same with the black wir es.
There’s no need f or the red/orange/yello w
wire. Simply cap i t with a wire nut and twist
until secure.

8. Remove the old connector

Unscrew the wir e nuts to detach the 120V
connect or from your old smoke alarm .

10. Install the Nest backplate

Screw the Nes t backplate to the ex isting
electric al box, reusing the exis ting screws.
You can also screw th e backplate direc tly
into the wall or ce iling with the Nest screw s.

11. Connect power

Plug the 120V connect or into the back of
your Nest Pro tect.

Breaker box

1

1

2

2

1514

12. Install your Nest Protect

First, tuc k any excess wiring into the e lectrical
box. Line up the t hree tabs on the back of y our
Nest Prot ect with the notches o n the backplate.
Hold Nest Pr otect against the bac kplate and
turn it clock wise. Continue turning u ntil it’s
square with th e wall or ceiling. Install th e rest
of your Nest Pr otects if you have mor e.

13. Switch power back on or replace
the fuse

14. Press to test

Press the Ne st button on one Ne st Protect.
It will tell you wh at to do next. Ever y
Nest Prot ect in the house should sp eak
up, confirming that they’re connected to
each other.

Tip: If you ever n eed to remove it (f or cleaning or
battery replacement), turn off power to your
Nest Pro tect at the brea ker box or remove th e
fuse firs t. Then turn coun terclockwi se until it
disconnects from the backplate.

WHAT YOU HEAR

ALERTSSILENCING

WHAT IT MEANS WHAT TO DO

“HEADS-UP. THERE’S

SMOKE IN THE [R OOM
NAME]. THE ALARM
MAY SOUND.”

Smoke leve ls are rising. Put out the s ource of the

smoke. The n use the Nest
app or pres s the Nest
butto n to hush the aler t.

Open a wind ow or door
to get fre sh air. Then use
the Nest ap p or press
the Nest bu tton to hush
the alert.

Get out of the house
immediately.

Make sure you ’re safe and
have put ou t the source of
smoke or carbon monoxide.

1) O perate reset/silence

button (Nest button).

2) Call y our fire dept. or 911.

3) Mov e to fresh air.

4) Do no t reenter the

premise s until the
emergency services tell
you to. Refe r to page 30
for complete instructions.

Carbon monoxide
levels hav e been high
for a while.

You’ve hushe d an alert.
Nest Pro tect will now
keep quiet , unless smoke
or carbon monoxide
remains at critical levels.

The carb on monoxide in
the room ha s reached
critical levels.

“HEADS-UP. THERE’S

CARBON MONOXIDE IN
THE [ROOM NAME]. T HE
ALARM M AY SOUND.”

(

Alarm sound)

“EMERGENCY. THERE’S

CARBON MONOXIDE IN
[ROOM NAME]. MOVE TO
FRESH AIR.”

(Alarm sound)
“EMERGENCY. THERE’S

SMOKE IN [ROOM NAME]”

“SMOKE AL ARM HUSHED.”

“CARBON MONOXIDE

ALARM H USHED.”

“THE AL ARM IS OVER.”

YELLOW pulses.

YELLOW pulses.

RED pulses .

RED pulses .

YELLOW or
RED pulses .

GREEN pulses.

WHAT YOU SEE

HEADSUP AND EMERGENCY AL ARMS

The smoke in t he
room has reached
critical levels.

Make sure you ’re safe and
have put ou t the source or
smoke or carbon monoxide.

Smoke or carbon
monoxide levels
are decreasing.

1716

HEADSUP AND EMERGENCY AL ARMS

ALERTS

When Nest Pr otect has somethin g to say, it
will speak to yo u in words and light up instead
of just beep ing. Nest Protect ha s two kinds of
voice aler ts: Heads-Up and Emergen cy Alarms.

When smoke or ca rbon monoxide level s are
heightened but haven’t yet reached Emergency
Alarm level s, Nest Protec t can sound a Heads-Up
as an early warn ing. Nest Protect wil l pulse
yellow and tell y ou where there’s smoke or
carbon monoxide.

You’ll get an Emergency A larm when smoke or
carbon mon oxide reach critic al levels. Nest
Protect w ill pulse red, sound a loud al arm, and
tell you what ro om the emergency is in . If there’s
both smoke and C O present, the smoke al arm
will take priority.

SILENCING

Heads-Up aler ts and some Emergen cy Alarms
can be hushe d by using the Nest app or
pressing th e Nest button. In som e cases, the
smoke level may be t oo high for the Emergenc y
Alarm to be hu shed. Only silence an alar m
once you have ch ecked conditions at th e Nest
Protect t hat first sounded the al arm. Do not
silence Nes t Protect by disconn ecting it from
line voltage a nd removing the bat teries. This
will disable the al arm so it cannot sens e smoke
or carbon mo noxide, leaving you at risk .

Because th ere are many differ ent types of fires ,
you may experience an Emergency Alarm without
having first ex perienced a Heads-Up a lert.
This means tha t critical levels of sm oke or CO
occurre d extremely quickly an d Nest Protect
has to sound th e Emergency Alarm.

HAVE MORE THA N ONE NEST PROTEC T?

After all t he Nest Protect s in your home are
connect ed to each other, if there’s a Heads-Up
or an Emergenc y Alarm in one room, the y’ll all
tell you what th e danger is and which room it ’s in.

If multiple Nest P rotects are inte rconnected,
a Heads-Up aler t or Emergency Alar m can be
silenced onl y at the Nest Protect t hat originally
sounded the al ert. You’ll need to go to that ro om
to hush all the Nes t Protects in your ho me.
Always check the conditions near the Nest
Protect that first detected the smoke or carbon
monoxide be fore silencing it.

DAILY USEEMERGENCY

PREPARATION

GREEN light above
the Nest logo.

You turn off the
room lights for
the night , and
the GREEN light
pulses on ce.

WHITE light.

BLUE rotates.

Sleep well t hanks to
Nightly Promise.

Press th e Nest butt on.
Nest Protect will walk
you throug h next step s.

Nest Pro tect is worki ng.
The gree n light means
AC power is co nnected.

Nest Protect has tested
its sensors and batteries
to confirm t hey are
working correctly.

Pathligh t lights your wa y at
night as you p ass under it .
It can also b e set to stay o n.

To set up or run
a manual tes t.

“READY. PRESS T O TEST.”

WHAT YOU HEAR WHAT IT MEANS WHAT TO DOWHAT YOU SEE

DAILY USE AND EMERGENCY PREPARATION

WARNING

• DO NOT s tand close to the alar m when
the horn is soun ding. Exposure at clo se
range may be har mful to your hearing.
When testin g, step away before the
horn starts sounding.

• If th e alarm ever fails to tes t correctly,
have it repla ced immediately! If the al arm
is not working p roperly, it cannot aler t you
to a problem.

• DO NO T use a match, cigaret te or any other
makeshif t fire to test the smoke alar m.

• To test the C O alarm, NEVER use vehi cle
exhaust! Ex haust may cause perm anent
damage and will vo id your warranty.

• NE VER use an open flame of any k ind
to test this al arm. You might accidentall y
damage or set fir e to the unit or to
your home.

1918

DAILY USE

POWER

Nest Prot ect (Wired 120V) has a smal l green light
located at t he top of the Nest but ton. It will be on
as long as Nes t Protect is get ting AC power from
the electr ical wires.

If there’s a wiring pr oblem or power outage, t he
green light w ill turn off and Nest P rotect will
switch to bac kup batteries. You’ll also s ee a
yellow (inste ad of green) Nightly Pro mise light
when you turn of f the lights for the n ight.

NIGHTLY PROMISE

Nest Prot ect continuously te sts itself, so
you don’t have to wo nder if it’s working.
Nightly Promi se reports on eve ry Nest Protec t
in your home.

When you turn ou t the lights for the night ,
Nest Prot ect will glow green for a m oment - that
means ever ything is working . If it glows yellow,
one of the Nes t Protects in your hom e needs
your atten tion. For instance, t he batteries are
low, Wi-Fi is down, or ther e’s an issue with the
sensors. J ust push the Nest but ton or use the
Nest app to se e what’s wrong.

PATHLIGHT

Usually Nest P rotect has its lig ht turned off, but
it can light yo ur way as you walk underneath i t
in the dark. You can ena ble or disable Pathlight
and set its b rightness with the Ne st app. Nest
Protect ( Wired 120V) also allows you t o set
Pathlight to “Always On” if y ou want a night light.
It will turn on whe n it’s dark and stay on until i t’s
light again.

DAILY USE AND EMERGENCY PREPARATION

EMERGENCY PREPARATION

TESTING

Perfor m a manual test of your wired N est
Protect a t least monthly. During a tes t, all
interconnec ted Nest Protects in your home
check their sensors, power, Wi-Fi conne ction,
emergency horn, speaker and microphone.

When you run a te st, Nest Protec t will give you
a countdown be fore sounding the alar m so you
have time to move away f rom the loud noise.

Test procedure:

1. Start a tes t by pressing the Nest b utton twice.

2. N est Protect will say : “This is only a test.
The alarm will s ound.”

3. Ensure that the a larm sounds and the light
illuminates on e ach Nest Protect .

4. O nce the Nest Protec t has made sure it’s
working, it ’ll tell you every thing’s okay. If you
have interco nnected Nest Pro tects, all of
them should speak.

2120

3

2

1

3

2

1

2. Twist Nest Prote ct counterclock wise until
it disconnects from the backplate.

3. Detach the p ower connector
from the bac k of Nest Protect
and open the battery door.

4. Replace the ba tteries.
Align the + pos itive and

- negative en ds with the
markings in the b attery
compartment.

5. Close the bat tery compar tment.
Do not forc e the door closed.

6. Reatt ach the power connect or.

7. Push Nest Pro tect onto the backp late and
turn it clock wise until you feel it gr ip.

8. Turn power to Nest Pro tect back on at the
breaker box.

9. Press the Nes t button twice.

SERVICING

1. Before send ing Nest Protect fo r service,
visit nest.com/support

2. If your Nest P rotect needs se rvicing,
first contac t our support team to ge t
a return number

3. Send your Nest P rotect to:

Nest Lab s

(YOUR RETURN NUMBER)
4 East Stow R oad
Marlton, NJ 08 053 USA

GENERAL MAINTENANCE

CLEANIN G YOUR NEST PROTEC T

Nest Prot ect has been designe d to be as
maintenance free as possible, but you should
keep it clean. A s with any smoke alarm,
dust buildup on th e outside or inside of Nes t
Protect c an stop it from worki ng properly.

To clean Nest Prote ct:

1. Turn off power to Nest Pr otect at the
breaker box (se e p.9)

2. Remove it fro m the wall or the ceiling (turn
countercl ockwise until it com es off the
backplat e and detach the power c onnector).

3. Wipe the out side with a clean, slightly
damp cloth. Do n’t use any soaps or solve nts.

4. Place Nes t Protect on a sof t, dry cloth with
the Nest but ton facing down. Ope n the
batter y compartmen t door and remove the
batter ies. Remove the screws an d lift off
the back. Be c areful to not lose the s crews.

5. Gently vacu um the inside. Make sure
to clean all the way a round the mesh
sides of the smo ke chamber (the large
metal circle).

Note: Never u se detergents or sol vents (like
glass cle aner) on your Nest Prote ct and do
not spray air fr esheners, hair spray o r other
aerosols n ear it. Do not get water in side the
alarm or paint o ver it.

REPLAC ING THE BACKUP BATTE RIES

In case of a power o utage, Nest Prote ct will
use three A A Energizer® Ultimate L ithium
batteries (L91) for backup. These batteries
can be purch ased at your local ret ailer.

1. Turn off power to Nes t Protect at the
breaker box (se e p.9)

WARNING

• Use onl y batteries spec ified by Nest.
Use of a diff erent batter y model will
have a detrime ntal effect on t he smoke
alarm operation.

• Never d isconnect a wired al arm to stop
an unwanted ala rm (caused by cooking
smoke, etc.) Remo ving power disables the
alarm so it c annot sense smoke or carb on

monoxide (CO). Inste ad open a window or
fan the smoke away f rom the unit.

• The b atteries cannot w ork until you install
the batte ries in the correct p osition
(Match + to + and - to -).

• Onc e Nest Protect has e xpired you’ll no
longer be protected from smoke or CO if
you don’t repl ace it.

GENERAL MAINTENANCE

YELLOW pulses. Low battery. Change the batteries

of Nest Pr otect now.

“THE BATT ERY IS LOW IN

THE [ROOM NAME].
REPLACE THE BATT ERY
NOW.” Single chir p
every 6 0 seconds.

Nest Protect has tested
its sens ors and there i s
a problem.

Clean acc ording to
instructions on page 20.
If the prob lem persist s,
replace Nest Protect.

“THE SENSOR S HAVE

FAILED IN THE [RO OM
NAME]. REPLA CE NEST
PROTECT NO W.” Single
chirp ever y 60 secon ds.

Nest Pro tect has exp ired
and reached the end of
its life.

Replace N est Protec t now.

“NEST PROT ECT HAS

EXPIRED. REP LACE IT
NOW.” Two chirps ever y
60 seconds.

There’s a pro blem with
the horn of N est Protec t.

Replace N est Protec t now.

“NEST PROT ECT CAN’T

SOUND THE AL ARM IN
THE [ROOM NAME].”Two
chirps eve ry 60 sec onds.

YELLOW pulses. Change the batteries

of Nest Pr otect soon .

Low battery.

“THE BATT ERY IS LOW IN

THE [ROOM NAME].
REPLACE THE BATT ERY
SOO N.”

YELLOW pulses.

YELLOW pulses.

WHAT YOU HEAR WHAT IT MEANS WHAT TO DOWHAT YOU SEE

GENERAL MAINTENANCE

YELLOW pulses.

2322

interfe rence can be overco me by adding more
Nest Prot ects that can rout e wireless signals
around obstructions.

WIRELESS IN TERCONNECT

Nest Prot ects connect wir elessly to each other
so that when on e speaks, they all speak . That
means when on e Nest Protect rais es any kind
of alert, e very Nest Prote ct in the house will
tell you which r oom the smoke or CO is in. For
example, if you’re in t he bedroom and the alar m
goes off in t he basement, the Nes t Protect in
the bedroo m will tell you where the smoke o r
CO is. To silence the aler t, go to the room wher e
the alarm was t riggered. All of the Ne st Protects
in the house can b e hushed from there. Ei ther
press the bu tton on the Nest Pro tect or use use
the Nest app to h ush the alarm.

Nest Prot ect - Wired 120V (model numbers 05C
and 06C) and Nes t Protect - Batt ery (model
numbers 05A an d 06A) and are compatib le and
can be inter connected wirele ssly. Nest Protect
wireless int erconnect will not wo rk with other
smoke or CO alar ms from other brands .

Nest Prot ect’s 120V connector does no t have
a red/orange/y ellow wire for intercon nect
because i t connects wirele ssly. There’s no need
to connec t any Nest Protect wir e to the red/
orange/yellow interconnect wire coming from
the ceiling or wal l.

Nest Prot ects can typic ally communicate with
each other if t hey’re 50 feet (15 m) or less apart
inside a home. So me features of a home may
reduce Nest Protect’s wireless interconnect
range, includin g the number of floors, numb er
and size of rooms , furniture, type o f building
materials , suspended ceilings, du ctwork, large
metal appli ances and metal stu ds. This kind of

GENERAL MAINTENANCE

EX PIRAT ION

Like any smoke and CO a larm, Nest Protec t
has a limited li fe. You w ill need to replace
Nest Prot ect after 10 years with a b rand new
Nest Prot ect. You can check the date
of replacement written on the back of
Nest Prot ect to see when it will exp ire.

About two w eeks before it expir es, Nest Protec t
will light up with a y ellow light. Press the
Nest but ton and it will say, “Nest Prot ect has
expired. Rep lace it now.” Buy a new alarm and
recycle th e expired one. Make sure you te st
your new Nest P rotect once it’s ins talled.

RECYCLING AND D ISPOSAL

Once Nest P rotect has expire d you will
need to rec ycle it according to lo cal
regulati ons. Please visit nest.com /recycle
for more information.

RESET TING NEST PROT ECT

You can reset Nes t Protect to eras e all your
settings a nd reset the wireles s interconnect ion
with other Ne st Protects. You may want t o do
this when you mov e to a new home. Follow the
steps belo w on each Nest Protec t you want
to reset.

1. Press and hold t he Nest button. Nes t will
chime and glow blu e.

2. Keep holding the bu tton until Nest Pro tect
begins to say i ts version number. Then
release the button.

3. Nest Prote ct will start a ver bal countdown
and tell you it ’s erasing all settings . You ca n
cancel the r eset by pressing the N est button
during the countdown.

4. After a few se conds it will resta rt.

Your Nest Protec t will still detect smo ke and
carbon mon oxide after being re set.

Go to nest.com/protect/reset for complete
reset instructions.

WARNING

• T he range and proper ope ration of any
wireless de vice will vary depen ding on
its surroundings .

• Ne st Protect alarm s are not to be used
outdoor s or to transmit betwe en buildings.
The alarms wi ll not communicate prop erly
in those condi tions.

• Me tal objects and met allic wallpaper
may interf ere with signals from w ireless
alarms. Test your Ne st Protects wit h metal
doors ope ned and closed.

Note: Nest P rotect can be use d as a single
station or multiple station alarm.

2524

ALARM LIMITATIONS

LIMITATIONS OF SMOKE ALA RMS

Alarms re duce deaths resulting f rom home fires
worldwide. Howe ver smoke alarms can only
work if they are p roperly located, i nstalled and
maintaine d, and if smoke reaches the al arms.

• Smoke al arms may not waken all individ uals.
Make sure you cre ate an escape plan and
you practi ce fire drills with all memb ers of
the f amily.

• Smoke al arms cannot work witho ut power.
If they are powe red by batteries , the smoke
alarms cann ot work if the batter ies are
missing, dea d or disconnected. If th ey are
wired, the smo ke alarms cannot work durin g
a long power out age and once the backup
batter y is dead. Nest Prot ect will warn you
in advance whe n batteries are ru nning low
so that you can r eplace them.

• Smoke wil l not be able to reach smoke se nsor
while the dust co ver is in place. The dust c over
must be remo ved.

• Smoke al arms cannot detec t fires if the smoke
does not re ach the alarms. For examp le, if a
door is close d, smoke may not reach the sm oke
alarm. This is w hy you should have a smoke
alarm in each b edroom and in the hallways as
bedroom do ors may be closed at nigh t.

• Smoke al arms may not be heard. Alt hough
the smoke alar m comes with a loud horn of
85 decibels , it may not be heard if : 1) people
have consume d alcohol or drugs, 2) the
alarm is drown ed by noise from stere o, TV,
traffic, a ir conditioner or other a ppliances,

3) residents a re hearing impaired or have h igh
frequenc y hearing loss assoc iated with aging.
Special smoke a larms should be insta lled for
those who are h earing impaired.

SAFETY

• This sm oke alarm is not intended t o
alert hearing impaired residents. Alarms
specifica lly designed for the he aring impaired,
which featur e devices like flashing st robe
lights or low f requency device s are available to
alert the h earing impaired in case o f fire.

• This sm oke alarm alone is not a suit able
substitute for complete fire detection
systems in pl aces housing many peo ple—
like apartmen t buildings, condominiums,
hotels, motels, dormitories, hospitals,
long-term health care facilities, nursing
homes, day ca re facilities, or gro up homes
of any kind—eve n if they were once single­family homes . It is not a suitable subst itute
for complete fire detection systems in
warehouses, industrial facilities, commercial
buildings, and sp ecial-purpose non­residential buildings which require special
fire detec tion and alarm system s. Depending
on the building co des in your area, this smoke
alarm may be us ed to provide addition al
protection in these facilities.

LIMITATIONS OF CARBON MONOXIDE CO ALARMS

• NE VER ignore your carbon m onoxide alarm if it
alarms. Ref er to “What to do in case of a c arbon
monoxide alarm” for more information. Failure
to do so can re sult in injury or death.

• This C O alarm is designed fo r use inside a
single-family hom e or apartment. I t is not
meant to be us ed in common lobbies, hal lways,
or basemen ts of multi-family buildings unles s
working CO al arms are also instal led in each
family living un it. CO alarms in common a reas
may not be hear d from inside individua l family
living units.

• This C O alarm alone is not a suit able substitute
for complete detection systems in places
which house man y people, like hotels or
dormitori es, unless a CO alarm is al so placed
in each unit.

• DO NOT u se this CO alarm in warehou ses,
industrial or c ommercial buildings, sp ecial
purpose non -residential buildings, o r airplanes.
This CO alarm i s specifically design ed for
residenti al use, and may not provide a dequate
protection in non-residential applications.

• Som e individuals are more s ensitive to CO
than other s, including people with c ardiac or
respiratory problems, infants, unborn babies,
pregnant mo thers, or elderly pe ople can be
more quickly an d severely affec ted by CO.
Members of sensitive populations should
consult their d octors for advic e on taking
additional precautions.

• The s ilence feature is for yo ur convenience
only and will not c orrect a CO proble m. Always
check your home for a potential problem after
any alarm. Failur e to do so can result in injur y
or death.

2726

occupancy (small facility), including basements
and excluding cr awl spaces and unfinished a ttics
(5) *In the living are a(s) of a guest suite
(6) In the living area (s) of a r esidential board and
care occupancy”

(Reprint ed with perm ission fro m NFPA 72®, National Fir e Alarm
& Signalin g Code Copyr ight © 2013 Nationa l Fire Prote ction
Association, Quincy, MA 02269. This reprinted material is
not the co mplete and of ficial posi tion of the Nat ional Fire
Protec tion Asso ciation, on th e referen ced subjec t which is
repres ented only by t he standar d in its entir ety.) (Nation al
Fire Alar m & Signaling C ode® and NFPA 72® are r egistere d
trademarks of the National Fire Protection Association, Inc.,
Quincy, MA 0226 9.)

SMOKE DETECTION
Are more smoke alarms desirable?

The require d number of smoke alarms migh t
not provid e reliable early warning pr otection
for those ar eas separated by a doo r from
the areas pr otected by the requir ed smoke
alarms. For t his reason, the use of addi tional
smoke alarms f or those areas for incr eased
protection is recommended. The additional
areas includ e the dining room, and hallways
not prote cted by the required sm oke alarms.
The installation of smoke alarms in kitchens,
attics (finis hed or unfinished), or garage s is
not normally r ecommended, bec ause these
locations occasionally experience conditions
that can res ult in improper operatio n. As Nest
Protect i s also a Carbon Monoxid e alarm, it is
not recomm ended to install it in a f urnace room
or a utilit y room if it contains a wat er heater or
a furnace. It s hould be 15-20 fe et from these
appliances t o avoid transient con ditions and/or
perceived nuisance alarms .

INSTALLATION CODE

THIS EQUIPMENT SHO ULD BE INSTALLED IN
ACCORDANCE W ITH THE NATIONAL FIRE
PROTECTI ON ASSOCIATION’S STANDARD 72
(National Fire Protection Association,
Batterymarch Park, Quincy, MA 02269).

Note: Specific r equirements for Sm oke Alarm

installa tion vary bet ween countries, st ates, and
regions. Ch eck with your local s afety agency o r Fire
Depart ment for current r equirements in your ar ea.

WARNING

This produc t is intended for use in ord inary
indoor loca tions of family living unit s. It
is not design ed to measure complian ce
with Occup ational Safety and H ealth
Administration (OSHA) commercial or
industrial standards.

WHERE TO INS TALL YOUR SMOKE ALA RMS

For your inform ation, the National Fire A larm
and Signaling C ode, NFPA 72, reads as follows:
“29.5.1 *Required Detection.”
“ *Where requ ired by applicable laws, c odes,
or standar ds for a specific ty pe of occupancy,
approved single- and multiple-station smoke
alarms shall b e installed as follows:
(1) *In all sleeping rooms and gue st rooms
(2) *Outside of e ach separate dwelling uni t
sleeping are a, within 21 ft (6.4 m) of any door
to a sleeping ro om, the distance mea sured
along a path of tr avel
(3) On every leve l of a dwelling unit, including
basements
(4) On every leve l of a residential boar d and care

WHERE NOT TO IN STALL YOUR SMOKE AL ARMS

For best pe rformance, AVOID inst alling a smoke
alarm in thes e areas:

• Where combustion particles are produced.

Burning material creates combustion particles
which could ca use your smoke alarm to go
off unnec essarily. Areas to avo id include
poorly ventilated kitchens, garages, boats,
recreational vehicles, and furnace rooms.
Keep a smoke alar m at least 20 feet (6 m)
from from th e source of combust ion particles
(stove, furnace, water heater, space heater)
if possible. In a reas where a 20-foot (6 m)
distance i s not possible – in mobile, o r smaller
homes, for ex ample – it is recommen ded
a smoke alarm to b e placed as far fro m
these fuel-bur ning sources as pos sible. The
placement recommendations are intended
to keep a smoke det ector at a reason able
distance f rom a fuel-burning sourc e, reducing
“unwanted” alarms. Unwanted alarms can
occur if a smoke al arm is placed direc tly next
to a fuel-burning so urce. Ventilate thes e areas
as much as pos sible.

• In air streams near kitchens. Air curren ts can

draw cooking s moke into the sensor of a sm oke
alarm near the kitchen.

• In ver y damp, humid or steam y areas, or
directly near bathrooms with showers. Keep
a smoke alarm at le ast 10 feet (3 m) away from
showers, saunas, dishwashers, etc.

• Where temperatures are regularly below
40˚F (4˚C) or above 100˚ F (38˚C) including
unheated buildings, outdoor rooms, porches,
or unfinished at tics or basemen ts.

• In ver y dusty, dirty, or gr easy areas. Do n ot
install a smo ke alarm directly over t he stove

or range. Clean a l aundry room unit f requently
to keep it fre e of dust or lint.

• Near fr esh air vents, ceil ing fans, or in ver y
drafty areas. Drafts c an blow smoke away from
a smoke alarm, pr eventing it from re aching
the sensor.

• In insec t infested ar eas. Insect s can clog openings
to the sensor a nd cause unwanted ala rms.

• Less t han 12 inches (30.5 cm) away from
fluorescent lights. Electric al “noise” can
interfere with the sensor.

• In “dead air” sp aces. “Dead air” s paces may
prevent smo ke from reaching a smoke al arm.

WHERE NOT TO IN STALL YOUR CO ALA RMS

• Kee p carbon monoxide al arm at least 10 ft (3 m)
away from any co oking appliance includi ng
stovetop, oven, microwave, etc.

• Th is alarm should not be ins talled in location s
where the normal ambient temperature is
below 40°F (4.4°C) or exce eds 100°F (37.8°C).

EXA MPLES OF WHEN YOUR SMO KE ALARM
MAY NOT BE EFFECT IVE

Your alarm may not be ef fective in prot ecting
against fire in c ertain cases:

• Smok ing in bed

• Leavin g children unsupervised

• Cleanin g with flammable liquids, like ga soline.

• When s omeone’s clothes have caug ht on fire

• Fire s where the smoke is preven ted from
reaching the al arm due to a closed door o r
other obstruction

• Incen diary fires where the fi re grows so
rapidly that an o ccupant can’t get out , even
with alarms in p roper locations

2928

CARBON MONOXIDE CO PRECAUTIONS

WHAT IS CARBON M ONOXIDE?

Carbon Mon oxide (CO) is an invisible, odorle ss,
tastele ss gas produced when f uels do not burn
completel y, or ar e exposed to heat (usually fir e).
These fue ls include: wood, coal, ch arcoal, oil
natural gas, ga soline, kerosene, and pr opane.
Common appli ances are often so urces of
CO such as oil or ga s burning furnaces, gas
ovens, wood-b urning fireplaces, and c harcoal
grills. If the y are not properly main tained, are
improperly ventilated or malfunction, CO levels
can rise quick ly. CO is a real danger now that
homes are mor e energy effic ient. “Air-tight”
homes with ad ded insulation, seale d windows,
and other wea therproofing can “ trap” CO
inside. Elect rical appliances t ypically do not
produce CO. T he Nest Protect C O sensor meets
the alarm re sponse time requireme nts of the
American N ational Standard A NSI/UL 2034.
Standar d alarm times are as follo ws:

• At 70ppm, t he unit must alarm within
60-240 minutes.

• At 150ppm, the un it must alarm within
10-50 minutes.

• At 40p pm, the unit must alarm wit hin
4 to 15 minutes.

WARNING

This carbo n monoxide alarm is desi gned
to detect c arbon monoxide fr om any
source of co mbustion. It is NOT desig ned
to detect a ny other gas.

• The alarm c annot be operated fr om power
derived fr om a square wave, modified sq uare
wave or modified s ine wave, inverter. These
types o f inverters are som etimes used to
supply power to t he structure in of f grid
installa tions, such as solar or win d derived
power sourc es. These power sourc es produce
high peak volt ages that will damage the a larm

• Never discon nect the power from an
AC powered unit t o stop an unwanted alarm .
Doing so will dis able the unit and remove your
protect ion. In the case of a true unwa nted alarm
open a window or f an the smoke away from the
unit. The ala rm will reset automati cally when it
returns to normal operation.

• Improper wiri ng of the power connect or or
the wiring leadin g to the power connect or
will cause dama ge to the alarm and may lead
to a non-functi oning alarm. You must test to
ensure proper installation.

AC INSTALLATION WARNINGS

ELECTRICAL SHOCK HAZARD

• Turn off power to the a rea where you will
install this un it at the circuit breaker o r fuse
box before beginning installation. Failure
to turn off t he power before inst allation
may result in ser ious electrical sho ck, injury
or death.

• Do not res tore power until all alarm s are
completely installed. Restoring power before
installa tion is complete may resu lt in serious
electric al shock, injury or de ath.

• Turn off the power to t he area where the
alarm is inst alled before remov ing it from
the mounting br acket. Failure to turn of f the
power first may r esult in serious elec trical
shock, injur y or death.

• If any unit in the ser ies does not alarm,
TURN OFF POWER and r echeck connect ions.
If it does not a larm when you restor e power,
replace it immediately.

• Attemptin g to disconnect the pow er connector
from the unit wh en the power is on may result
in electric al shock, serious injur y or death.

• Failure to meet a ny of the above requireme nts
could damage t he units and cause them to
malfunction, removing your protection.

• Improper wiri ng of the power connect or or
the wiring leadin g to the power connect or will
cause damag e to the alarm and may lead to a
non-functioning al arm.

• This unit must b e powered by a 24-hour,
120V AC pure sine wave, 60Hz 0.1A circuit.
Be sure the cir cuit cannot be turned o ff by
a switch, dimmer, or gro und fault circuit
interrupt er. Failur e to connect this unit to a
24-hour circuit ma y prevent it from prov iding
constant protection.

CAUTION

The alarm onl y indicates the presen ce
of carbon mo noxide gas at the sensor.
Carbon mon oxide gas may be present
inother area s.

Individuals w ith certain me dical problems should
consider usin g detection devi ces with lower COHb
alarming capabilities and consider warning
devices whi ch provide audible and v isual signals for
carbon monoxide concentrations under 30ppm.

SYMPTOMS OF CO POISONING

The following s ymptoms are relate d to CARBON
MONOXIDE POISONING an d are to be discussed
with ALL members of the household:

• Mild Exposure: Slight headache, nausea,

vomiting, fatigue (often described as
‘Flu-like’ symp toms).

• Medium Exposure: Severe throbbing

headache, dr owsiness, confusion , fast
heart rate.

• Extreme Exposure: Unconsciousness,

convulsions, cardiorespiratory failure, death.

• Many ca ses of reporte d CARBON MONOXIDE
POISONING indic ate that while victims
are aware they ar e not well, they becom e
so disorient ed they are unable to save
themselves by either exiting the building or
calling for as sistance. Young children and
household p ets are typical ly the first affec ted.

3130

more inform ation about CO safet y and this
equipment. M ake sure that motor vehicle s
are not, and ha ve not been, operatin g in an
attach ed garage or adjacent to t he residence.

This informa tion is available as a label p rovided
in the box. St ick it in a spot where ever yone can
see it, like the r efrigerator.

THE FOLLOW ING CONDITIONS CA N RESULT IN
TRANSIENT CO SITUATIONS

1. Excessiv e spillage or reverse v enting of fuel
burning applian ces caused by:
I) Outdo or ambient conditions s uch as wind

direction a nd/or velocity, including high
gusts of win d; heavy air in the vent pipe s
(cold/humid air wi th extended peri ods
between cycles).

II) Negative pressure differential resulting

from the use o f exhaust fans.

III) Simultaneous operation of several fuel

burning appliances competing for limited
internal air.

IV) Ven t pipe connection vib rating loose from

clothes dryers, furnaces, or water heaters.

V) O bstructions in or unc onventional vent pipe

designs which a mplify the above sit uations.

2. Extend ed operation of unvent ed fuel burning

devices (ran ge, oven, fireplace, et c.).

3. Temperature inversions which can trap

exhaust gas es near the ground.

4. Car idling in an open o r closed attache d

garage, or nea r a home.

5. NEVER bring a cha rcoal grill inside and

ALWAYS operate a por table generator
outside, a s afe distance from th e house,
and well away from w indows.

WHAT TO DO IN CASE O F A CARBON
MONOXIDEAL ARM

WARNING

Actuation o f your CO alarm indicate s the
presenc e of carbon monoxide (CO) whic h
can KILL YOU.

If alarm signa l sounds:

1) Operate res et/silence butto n (Press
Nest button);

2) Call your emer gency servic es [fire dept. or 911];

PHONE NUMBER:

3) Immediately move t o fresh air – outdoors o r
by an open door/wind ow. Do a head count to
check that all p ersons are accoun ted for. Do
not reent er the premises nor move away f rom
the open door/window until the emergency
servi ces responders hav e arrived, the
premises hav e been aired out, and your a larm
remains in its n ormal condition.

4) After fol lowing steps 1 – 3, if your alar m
reactiv ates within a 24-hour peri od, repeat step s
1 – 3 and call a qualifie d appliance technici an

PHONE NUMBER:

to investigat e for sources of CO fr om
fuel burning e quipment and appliance s,
and inspec t for proper operati on of this
equipment. I f problems are identifie d
during this inspe ction have the equipmen t
serviced immediately. Note any combustion
equipment no t inspected by the te chnician
and consult the manufacturers’ instructions,
or contac t the manufacturer s directly, for

FIRE SAFETY PRECAUTIONS

CREATE AN ES CAPE PLAN TO P RACTICE

Be prepare d when your smoke/CO alarm
sounds its al arm. Develop a family es cape
plan, discus s it with all household me mbers,
and practi ce it regularly.

• Make s ure everyone is fam iliar with the sound
of your smoke/ CO al arm and explain what th e
sound means.

• Det ermine TWO exits fr om each room and
have an escap e route to the outside f rom
each exit.

• Teach all the members in your household to
check door s for heat with the back o f your
hand befor e opening them, and to use the
alternate ex it if the door is hot. Make sur e
they do not ope n the door if it is hot.

• Teach household members to crawl along
the floor to avoi d dangerous smoke, fumes
and gases.

• Det ermine a safe meeting pl ace for all
household members to regroup at outside
the building.

PRACTICE FIRE SAFETY

Practic e your escape plan at le ast twice a year,
making sure tha t everyone is involv ed – from kids
to grandpar ents. Practice t he escape plan with
children, inclu ding holding one at night when t hey
are sleeping . If children or others do n ot wake
up to the sound of t he smoke alarm, or if there
are infant s or family members with m obility
limitation s, make sure that someon e is assigned
to help them fo r the fire drill and in the event
of an emergency. Current studies have shown
smoke alarms m ay not awaken all sleeping
individuals , and that it is the respo nsibility of
individuals i n the household that are c apable of

assisting o thers to provide as sistance to thos e
who may not be awake ned by the alarm sound,
or to those who m ay be incapable of safe ly
evacuating the area unassisted.

WHAT TO DO IN CASE O F FIRE

• Get o ut now.

• Don’t p anic; stay calm.

• Oper ate your safety pl an as previously
planned.

• Aler t small children in the home a nd those
who may need ex tra assistan ce.

• Leave t he building as quickly as pos sible.
Touch doors with th e back of your hand and
make sure they ar e not hot before openin g
them. Use an alte rnate exit, if nece ssary.
In case of smoke, c rawl along the floor, and
DO NOT stop to c ollect anything. C lose the
doors behin d you.

• Meet a t a pre-arranged meet ing place outside
the building.

• Once o utside, do a head count , and call the
fire department.

• DO NOT r eenter the house, unles s a fire
official s ays it’s safe to reente r.

3332

CALIFORNIA STATE FIRE MARSHAL

As state d by the California St ate Fire Marshal
“Early warning fir e detection is bes t achieved
by the instal lation of fire detec tion equipment
in all rooms and ar eas of the household a s
follows: A smoke ala rm installed in each
separate s leeping area (in the vicini ty of, but
outside of th e bedrooms), and heat or smoke
detecto rs in the living rooms, din ing rooms,
bedrooms, kitchens, hallways, attics, furnace
rooms, clo sets, utility an d storage rooms,
basements and attached garages”.

MOBILE NOTIFICATIONS

WARNING

Nest Protect phone and tablet notifications
require a func tional Wi-Fi connect ion.
They’re only a s reliable as your home’s
Wi-Fi networ k and aren’t a substit ute for a
third par ty emergency mo nitoring servi ce.

This user ’s guide and the pr oducts de scribed he rein are
copyrig hted, with al l rights res erved. Un der these co pyright
laws, no pa rt of this ins tallatio n guide may be co pied for use
without the written consent of Nest.

Nest Lab s. 3400 Hillvie w Ave. Palo Alto, CA 94 304

Apple and t he Apple log o are trade marks of App le Inc., reg istered
in the U.S. and o ther countr ies. App St ore is a serv ice mark of
Apple Inc . Google Pla y is a trademar k of Google In c.

FEDERAL COMMUNICATIONS
COMMISSION FCC COMPLIANCE

This equipmen t has been tested and f ound
to comply with t he limits for a Class B dig ital
device, pur suant to part 15 of the FCC
Rules. Thes e limits are designed to p rovide
reasonable protection against harmful
interference in a residential installation.
This equipmen t generates, uses and c an
radiate radi o frequency energ y and, if not
installed a nd used in accordanc e with the
instructions, may cause harmful interference
to radio communications. However, there
is no guarant ee that interfere nce will not
occur in a par ticular install ation. If this
equipment do es cause harmful inter ference
to radio or tele vision reception, w hich can
be determin ed by turning the equipment
off and on, t he user is encouraged t o try to
correc t the interferenc e by one or more of the
following measures:

• Reor ient or relocate the re ceiving antenna.

• Incre ase the separation b etween the
equipment and receiver.

• Conn ect the equipment into a n outlet on
a circuit dif ferent from that to w hich the
receiver is connected.

• Cons ult the dealer or an experie nced radio/
TV technician for help.

This device c omplies with part 15 of FCC
rules. Oper ation is subject to the f ollowing
two conditions:

1. This dev ice may not cause harm ful

interference.

2. This device must ac cept any interfer ence

received, including interference that may
cause undesired operation.

Changes or modifications that are not expressly
approved by the manufac turer could void the
user’s author ity to operate th e equipment.

RF EXPOSURE INFORMATION:

This equipmen t complies with FCC radi ation
exposure limi ts set forth for a n uncontrolled
environmen t. In order to avoid the pos sibility
of exceeding t he FCC radio frequen cy exposure
limits, human p roximity to the ant enna shall not
be less than 20 cm d uring normal operatio n.
