Page 1
NESCHEN HOTLAM 1650 DOUBLE H
FOR LARGE FORMAT LAMINATORS
OPERATING INSTRUCTIONS
Version 01-2020
ENGLISH
Page 2
2
TABLE OF CONTENTS
Introduction ...................................................................................................................................................................... 3
Applications ...................................................................................................................................................................... 4
Description of the main parts of the Neschen laminator ...................................................................... 5
Control panel left ........................................................................................................................................................... 5
Main switch – Positions ............................................................................................................................................ 5
Control panel – right / settings .......................................................................................................................... 6-8
Silicone paper and laminated prints ................................................................................................................. 8
Fuses and footswitch connector .......................................................................................................................... 8
Roll carrier/shaft ........................................................................................................................................................... 8
Applying a material roll to the shaft ................................................................................................................... 9
Work safety ........................................................................................................................................................................ 9
Safety guidelines .......................................................................................................................................................... 10
Safety signs at the Neschen laminator ............................................................................................................ 11
Fire protection ................................................................................................................................................................ 11
Disposing of the machine or of individual parts ........................................................................................ 12
Maintenance .................................................................................................................................................................... 12
Warranty terms and conditions ........................................................................................................................... 12
Technical Specifications ......................................................................................................................................... 13
Page 3
3
1. INTRODUCTION
Dear customers,
We are pleased that you have chosen a Neschen laminator and hope that you will
increase your productivity with this machine. This electrically driven device is equipped
with rotating rollers and moving components, so safety principles relevant to
occupational health and safety must be adhered to.
Before using the Neschen Laminator, the user (the company) must ensure that all
operators of the unit, maintenance personnel and their supervisors are familiar with
this operating instruction. Furthermore, it must be ensured that the generally binding
regulations on occupational safety and the prevention of accidents in the user's country
of origin are known. The operating instructions must be available at all times to the
personnel using the laminator. Improper operation may result in damage not covered
by the product warranty.
These operating instructions contain the technical specifications of the laminator as
well as information on start-up and operation. The important information on
occupational safety and maintenance should be considered as an integral part of the
laminator. Production staff should be familiarized with and understand the information
in this manual. In particular, information regarding safety measures must be observed.
In order to ensure a satisfactory level of knowledge, regular refresher courses should
be held after the initial training.
If you do not understand any of the information in this manual, please contact your
local dealer. We recommend that you make a copy of this manual and keep the original
in a safe place in case the copy is lost or damaged. While working on the machine,
follow the safety precautions to avoid personal injury or injury to bystanders or damage
to other equipment.
We assure you that we are careful and diligent in the production of the Neschen
Laminator and we are convinced that you will be happy with your machine, provided
that all the guidelines have been followed.
NESCHEN
Page 4
4
2. APPLICATIONS
1. The Neschen laminator for large formats is suitable for the application of
laminating and carrier foils by pressure or heat on large format prints, plates,
boards and similar products up to a width of 1650 mm.
2. Although the laminator is designed for large formats it can also be used for
laminating smaller formats starting from A5.
3. The laminator design allows unlimited length of laminated prints.
4. When processing larger formats (larger A0 or corresponding to the maximum
working width of the machine) additional support by another person is required.
5. The flexible use and easy handling of the Neschen Laminator allows working
with cuts and rolls. The user chooses the appropriate laminating technology, e.
g. sheet lamination or laminating from roll or reel to reel.
6. Any changes made to this laminator without the manufacturer’s permission will
relieve the vendor from its liability for any damage or injury!
7. If the laminator’s features allow the device to be used for other purposes not
listed here, the user must consult such applications with the vendor.
8. Follow the safety precautions while working on the machine to avoid personal
injury or injury to bystanders.
9. Notes which require special attention are marked with the following safety
symbol in these operating instructions:
Page 5
5

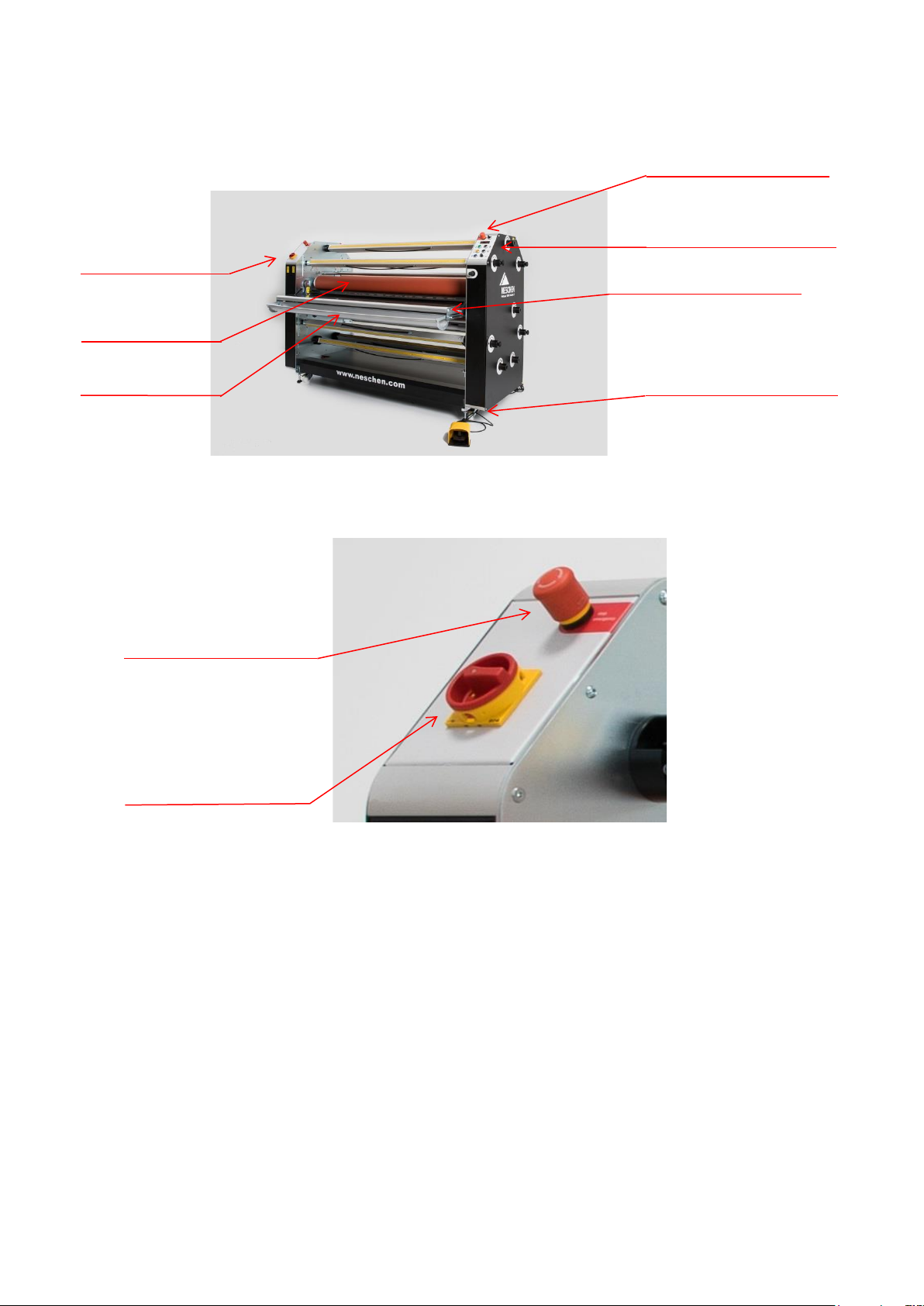

3. DESCRIPTION OF MAIN PARTS OF THE NESCHEN LAMINATOR
4. CONTROLPANELS - LEFT
Emergency STOP button – If the emergency STOP button is activated, the machine
switches off completely. Depending on the circumstances, you can switch the
machine on again. The emergency stop switch is deactivated by turning (or pressing
- depending on the system used).
5. MAIN SWITCH – POSITIONS
OFF – the laminator is switched off.
ON – the laminator is switched on.
Left control panel
Main roller
Emergency STOPP-
Right control panel
Footswitch connector
Emergency STOP
button
Main switch
Pull-out trough
Feed table
Page 6
6

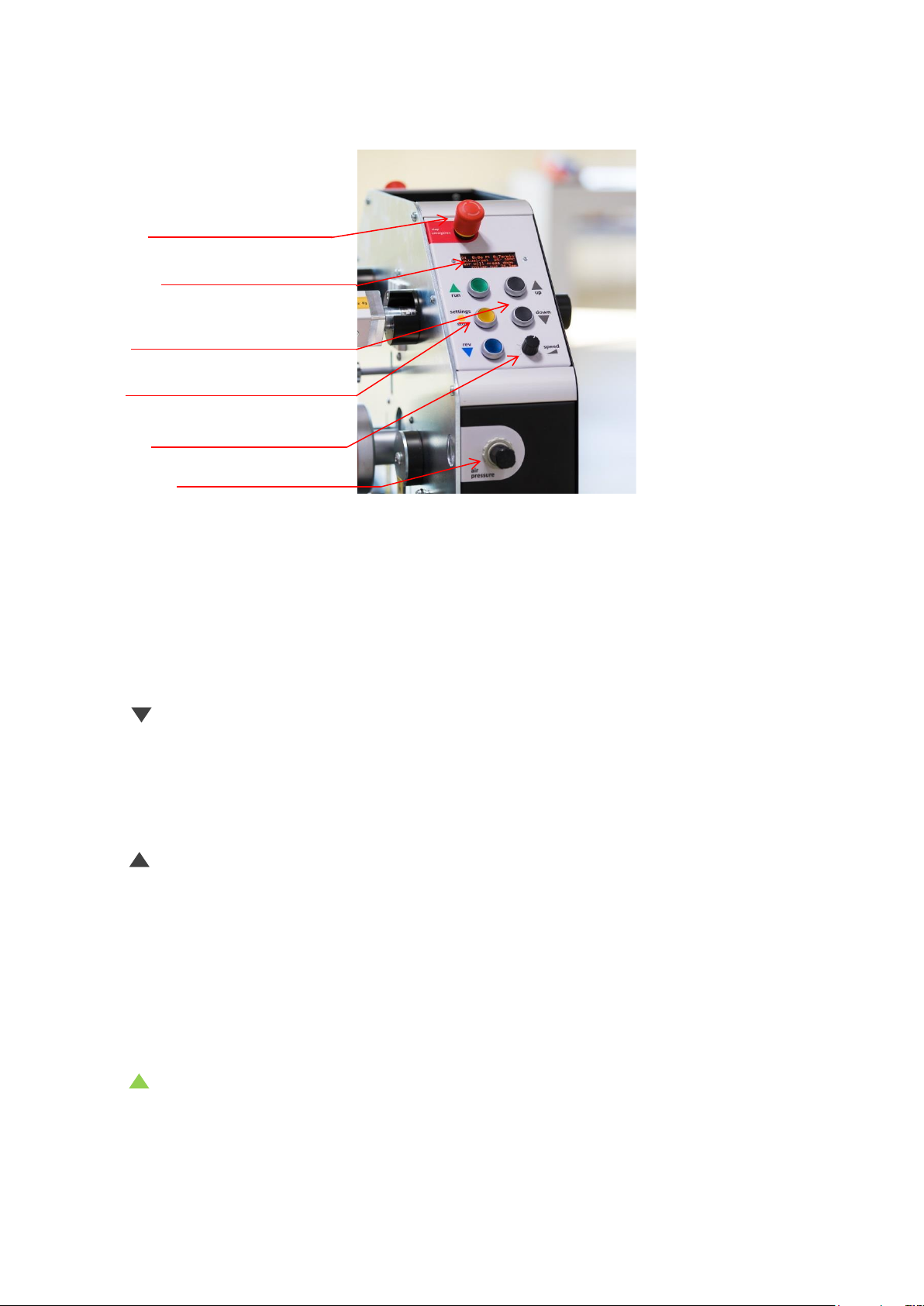

6. CONTROL PANELS – RIGHT
Emergency STOP button – Function is identical to that of the left control panel
The upper roller can move up and down with distances from 0 to 40 mm.
Note: The height adjustment only works if the direction of rotation, forward or
backward, has not been selected (the direction button does not light up). The height
adjustment is controlled by the following buttons:
down – the top roller moves downwards. The key must be held down. When
released, the roller stops immediately. If the upper roller touches the material or
the lower roller, it stops automatically, a warning signal sounds and lights go on
and the machine cannot move further down - only an upward movement is still
possible. If a light barrier is interrupted during downward movement, a warning
signal sounds but the roller moves further downwards.
up – The top roller moves upwards. The key must be held down. When released,
the roller stops immediately. As soon as the roller reaches its maximum height of
40 mm, it stops automatically and can only be moved downwards.
Roler rotation – the lower roller is driven by an electric motor. With the ColdLam,
the revolutions can be controlled continuously in the range from 0 to 8 m/min and
the HotLam in the range from 0 to 12 m/min.
Rotary knob for rotation – Potentiometer for speed control. The desired speed is
set in meters per minute.
run – roller rotation for forward movement – The direction of rotation is indicated
by the corresponding key light. The Neschen laminators have a modern,
intelligent start function that allows the laminator to be started slowly and evenly
until the speed set by the rotary knob is reached. The speed does not depend on
the load. Note: If the roller speed is set to 0, the laminator does not start up but
waits until the operator sets a speed other than 0.
Emergency STOP button
Display
Electr. roller adjustment
Roller rotation / settings
Pressure setting
Standard 1.5 Bar ( +- 0.5 )
Speed control
Page 7
7
If the machine is equipped with a footswitch and this is operated, the machine works in
run direction with a speed of 1m/min and a signal tone is on. Light barriers are ignored.
slow – The rear panel works in the same way as the footswitch. When activated,
the machine moves in run direction at a speed of 1m/min with a signal tone. Light
barriers are ignored in the process.
rev – Adjustment of the rollers in backward movement (same functions as
forwards movement)
stop / settings – stops the rotation and the run direction. If the light barrier is
interrupted while the machine is running, a signal sounds and the machine stops.
Note: If the operator changes the direction of rotation while the machine is running,
he must first press the stop button and then select the desired direction of rotation.

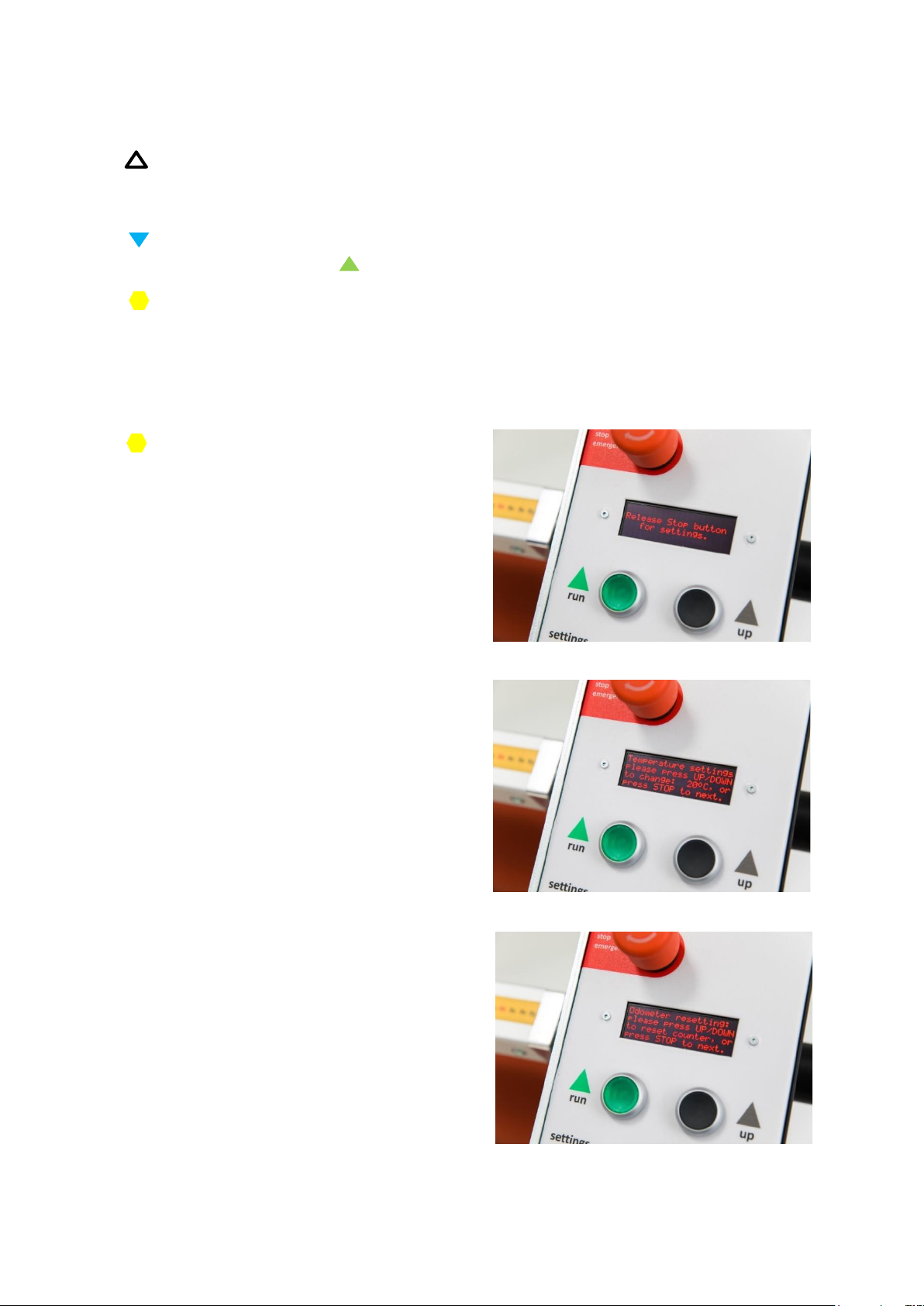

stop / settings – keep the button
pressed for 3 seconds to get to settings
The first menu item is the temperature
setting. The desired setpoint
temperature is set by pressing the UP /
DOWN buttons. Pressing the STOP
button saves the setting and the user
gets to the next menu.
The next menu item is the meter
counter. If the user wants to set it to
zero, one of the UP / DOWN buttons
must be pressed. Press the STOP
button to get to the next setting.
Page 8
8

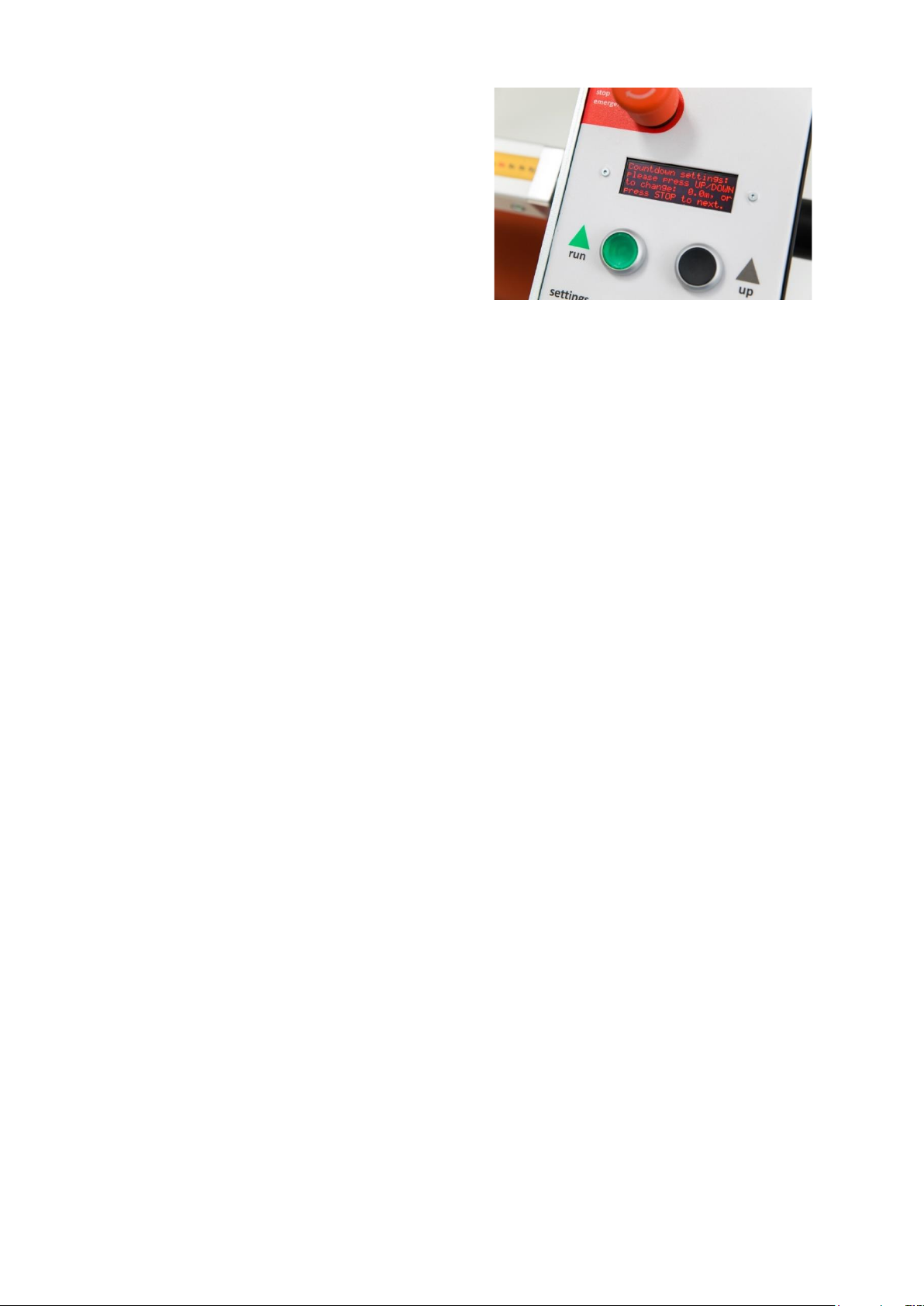

In the countdown menu, the machine
can be given a fixed meter value in full
meters. The machine then stops
automatically after the length has
elapsed.
Important - to produce again without
automatic stop, the value in the menu
must be reset to zero.
BUTTON FOR PRESSURE REGULATION – to adjust the pressure of the main roller. In the
lower position, the pneumatic system presses the main roller downwards with a
force of 1000 to 4500N. In the upper position, the pneumatic system automatically
reduces the pressure of the main roller to 500N.
As standard pressure setting for one-sided coatings (print and film) 1.5 bar (+- 0.5
bar) should be used.
7. SILIKON PAPER AND LAMINATED PRINTS
Shaft rotation – the shafts for silicone paper and laminated prints (end products) are
driven by electric motors. The machine synchronizes their revolutions with the
rotational speed of the main rollers. The resistance on all shafts can be changed by
turning the brake. The stronger the brake, the greater the resistance of the shafts
and vice versa.
8. FUSES AND FOOTSWITCH CONNECTOR
The Neschen laminators have three fuses. Their parameters and how to replace
them is described in the Maintenance & Repair section.
9. ROLL CARRIER/SHAFT
Laminating and printing materials are rolled up on a paper tube with an inner
diameter of 76.2 mm. The shafts of the Neschen Laminator are designed for these
tubes.
If the material is unrolled too loosely or too tightly, the braking force can be adjusted
by applying or releasing the brake on the right-hand side of the machine. By
applying the brake, the braking force is increased and by loosening it is reduced.
The resistance of the shaft can be adjusted by adjusting the clutch on the righthand side if silicone paper is not wound, or too tightly or loosely.
Page 9
9
10. APPLYING A MATERIAL ROLL TO THE SHAFT
1. Remove the shaft from the laminator. Shafts are attached to the right side of
the laminator. Turn the carrier until the lock is released. The positions for
material underneath the feed table are secured with a twist lock. Before
removing the shaft, loosen the lock. First remove the shaft located on the side
of the lock.
2. Insert the roll of material into the shaft. Heavy rolls should be loaded by two
persons.
3. Reattach the shaft in the machine by carrying out the procedure from point 1
in reverse order.
11. WORK SAFETY
SAFETY DEVICES ON THE NESCHEN LAMINATOR:
Emergency-STOP-button
Light barriers
WHEN USING THE NESCHEN LAMINATOR
THE FOLLOWING MUST BE OBSERVED:
Do not use the laminator if there is a constructional or mechanical fault;
Do not use the laminator under the influence of alcohol, drugs or medication,
as your reactivity and alertness may be limited;
Do not switch on the laminator if unauthorized persons are within the danger
zone;
Remove waste from the hazardous area while the laminator is in operation;
Do not touch any moving parts;
Always stay at the control panel while the laminator is in operation;
Do not remove any safety devices from the laminator and do not interfere
with their function;
No maintenance or cleaning work during operation;
Always observe the safety instructions - see under Safety instructions.
Page 10
10
12. SAFETY GUIDELINES
Rotating or moving parts of the laminator and electrical parts can cause serious and even
fatal injuries. Assembly, cabling and starting as well as maintenance and repairs should only
be carried out by qualified and appropriately trained personnel.
The laminator may only be operated by mentally and physically healthy
persons over the age of 18 years who have been intensively trained (and
tested) and are authorized to operate the laminator.
Demanding repairs and work on the electrical system may only be carried out
by qualified personnel or the manufacturer.
Operators and maintenance personnel must be familiar with the contents of
the operating instructions.
Adjustments, maintenance and cleaning of the laminator must be carried out
when the machine is idle. The main switch is switched off and the machine is
disconnected from the mains.
Only start the laminator when the covers are applied.
Never touch any moving parts of the laminator.
Apply Safety instructions - pictograms - to the laminator in a way that is easy
to read.
Work only under good lighting conditions.
Before starting work, check the safety devices on the laminator and ensure
that they are functioning correctly.
Do not work at the laminator when tired.
Have damaged parts of the laminator replaced by authorised personnel only.
Use only original parts.
Turn off the laminator in case of strong vibration, noise or other unusual signs
and inform the supervisor.
Do not wear loose clothing (e. g. tie) or long hair to avoid getting caught
between the laminator rollers.
When working at the laminator, always stand firmly on the ground.
Special care must be taken after switching on the laminator and putting the
rollers into operation.
Immediately switch off the unit and inform the supervisor if damage to the
insulation, smell of fire or a loud noise occurs during work at the laminator, if
the machine jerks after switching on, if individual parts of the electrical system
are overheated, if sparks occur or if current flow is present. .
If such hazards occur or if there is a danger for the operator, switch off the
laminator by actuating the emergency STOP switch.
If someone recognizes that the operator of the laminator is at risk, they can
activate the emergency STOP switch..
After finishing work at the laminator, lift the top roller, switch off the laminator
and disconnect the power supply.
Page 11
11
13. SAFETY SIGNS AT THE NESCHEN LAMINATOR
The pictograms must be affixed to the laminator in a clearly legible manner at all
times. Damaged pictograms must be replaced.
Pictograms and their meaning. Safety pictograms on the laminator indicate risks,
as do the warnings in this manual.
Risk of burns due to
hot components
14. FIRE PROTECTION
Since the laminator is not factory-fitted with fire extinguishers, the user must
ensure that fire extinguishers are installed in the building.
Never extinguish a burning or live laminator with a water or foam extinguisher.
There is danger of electric shock!
Never extinguish burning electrical parts with a water extinguisher!
Recommended fire extinguishers: powder extinguishers, snow extinguishers
and halon extinguishers.
In case of fire, follow the instructions for the relevant workplace.
The operator
must read the
safety
instructions.
Disconnect the
laminator from the
power supply
before carrying out
any repair work,
adjustments,
cleaning and
maintenance.
Close all covers
correctly before
starting.
Do not touch any
moving parts on the
laminator.
Page 12
12
15. DISPOSAL OF THE MACHINE OR INDIVIDUAL PARTS
For disposal of the laminator at the end of its service life, the applicable
environmental protection guidelines must be followed and available recycling
options must be used.
Separate plastic parts and recycle them.
Separate and sort metal parts and dispose of them as scrap metal.
16. MAINTENANCE
MAINTENENCE
Neschen Laminators are stable and resistant and require little maintenance. For
trouble-free operation and a long service life, the following must be observed:
1. Use isopropyl alcohol to clean the roller surfaces. Clean other surfaces with
a diluted cleaning solution and a damp cloth. Never use solvents or
abrasives.
2. Disconnect the laminator from the power supply before any cleaning or
maintenance.
3. Protect the roller surfaces from damage caused by sharp objects (cutting
blades, scissors, sharp edges, penetration of solids, tools, etc.) and dust. The
laminator runs for many years without any problems with perfect roller
surfaces.
4. Do not press the rollers unnecessarily against each other to avoid pressure
marks.
5. The external compressor must be drained at least once a month. If this is not
dewatered, the impression cylinders may be damaged.
17. WARRANTY TERMS AND CONDITIONS
1. The manufacturer grants a warranty period of 12 months from the date of
purchase for Neschen products.
#
2. Contact your seller for detailed warranty terms and conditions.
3. Damage to the product caused by improper handling or non-compliance with
the operating instructions is not considered to be a product defect.
2
4. Damage to the product caused by improper handling or non-compliance with
the operating instructions is not considered to be a product defect.
5. Normal wear and tear due to the use of the machine is also not considered
a product defect.
6. Please address product liability claims directly to your seller.
Page 13
13
18. TECHNICAL SPECIFICATIONS
Maximum Working Width
1650 mm
Maximum Speed
8 m/Min.
Nip pressure
3,1N/mm²
Maximum Substrate Thikness
40 mm
Roller Heating
heated top- & bottom roller
Maximum Roller Temperature
160 °C
Width
2175 mm
Height
1390 mm
Depth
850 mm
Depth (incl. In-feed table)
1275 mm
Table Height
870 mm on casting wheels, adjustable up
to 950 mm
Machine Weight
820 kg
Shipping Weight
900 kg
Shipping Dimensions
Width 2300 mm
Height 1750 mm
Depth 950 mm
Electrical Requirements
3P+N/PE 400VAC/50-60 Hz;9000W 32A
1P+N/PE 208VAC/50-60 Hz 9000W 50A
Ambient Temperature
05-40 °C
Atmospheric Humidity
>80 %
Altitude
Max.2000 m
Loading...
