9. 3 NO LIQUID COMES OUT – CAPSULE / INJECTOR BLOCKED?16
9. 4 VARIOUS17
2
1.SAFETY PRECAUTIONS
1.
Read allinstructions and keep these safety instructions. Any type of
misuse of the appliance may resultina potential injury.
2.
Connect the appliance to amains power socket with anearth
connectiononly. Mainsvoltage must be the same as the detailson
the ratingplate. The use of incorrect connectionwill negate the
guarantee and may be hazardous.
3.
This appliance is intended to be used inhousehold only. Itis not
intended to be usedinfollowing applications, and the guarantee will
notapply for:
–staff kitchen areasin shops,offices and other workingenvir-
onments;
–farm houses;
–by clients in hotels, motelsand other residential type envir-
onments;
–bed and breakfasttype environments;
4.
Your appliance isintended for domestic use inside the home only at
analtitude below3400 m.
5.
In case of any inappropriate use or failure to comply with the
instructions, the manufacturer accepts no responsibility and the
guaranteemay notapply.
6.
We recommend usingthe NESCAFÉ®DolceGusto®capsules
designed andtested for the NESCAFÉ®DolceGusto®machine. They
were designed to interacttogether – the interaction provides the incupquality thatNESCAFÉ®DolceGusto®is known for. Each
capsule is designed to prepare a perfect cup, and cannot be reused.
7.
Do notremove hot capsulesby hand. Always use capsule holder
handle to dispose of used capsules.
8.
Alwaysuse the appliance on aflat, stable, heat resistant surface
away from sources ofheator water splashes. This appliance shall
notbe placed in a cabinetwhen in use.
9.
To protect againstfire, electric shock and injury to persons do not
immerse the power cord, plugs or the appliance in water or other
liquid.Avoid spillage on the plug. Never touch the power cord with
wethands. Do notoverfill the water tank.
10.
In case of anemergency remove the plug from the mains power
socketimmediately.
11.
Close supervision is necessary when the appliance is used near
children.Keep the appliance /power cord / capsule holder outof
reachof children. Childrenshould be supervised to ensure that they
donot play with the appliance. Never leave the appliance without
surveillance while making a beverage.
12.
This appliance is notintended for use by children or persons with
reducedphysical, sensory or mentalcapabilities, or lack of
experience and knowledge, unless they have been given supervision
or instruction concerning use of the appliance by a person
responsible for their safety. Persons who have a limited or no
understandingofthe operation and use of this appliance must first
readand fully understand the contents ofthe user manual, and
where appropriate seek additional guidance on its operation
and use from the person responsible for their safety.
13.
Do notuse the appliance withoutthe drip tray and drip grid,
exceptwhen a very tall mugisused. Do not use the appliance
for hotwater preparation.
14.
For health reasons, alwaysfill the water tank with fresh
drinking water.
15.
After use of the appliance always remove the capsule and
cleanthe capsule holder. Empty and clean the drip tray daily
and also the capsule bin (when available). Food allergy
sufferersmustrinse the appliance according to cleaning
procedure.
16.
The heating element surface is subject to residual heatafter
use andplastic housings may feel warm to touch several
minutesuponuse.
17.
Unplug from the mains power socket when notin use.
18.
Unplug from the mains power socket before cleaning. Allow to
cool before putting on or takingoff parts, before cleaning the
appliance.Never clean wet or immerse appliance inany fluid.
Never clean the appliance with running water.Never use
detergentsto cleanthe appliance. Cleanthe appliance only
usingsoft sponges/brushes. The water tank should be cleaned
witha cleanfood-safe brush.
19.
Never turn the machine upside down.
20.
Ifaway for prolonged periods, on holiday, etc. the appliance
mustbe emptied, cleaned and unplugged. Rinse before reuse.
Operate the rinse cycle before re-usingyour appliance.
21.
Do notturn off the appliance duringthe descaling process.
Rinsethe water tank and cleanthe appliance to avoid any
residual descaling agent.
22.
Any operation, cleaningand care other than normal use must
beundertaken by after-sales service centres designatedby
NESCAFÉ®DolceGusto®hotline. Do notdismantle appliance
and do notputanything into openings.
23.
In case of intensive use without allowingsufficient cooling
time, the appliance will stop functioning temporarily with the
red indicator lightblinking. This is to protect your appliance
from overheating. Switch the appliance off for 20 minutes to let
itcool down.
24.
Do notoperate any appliance with a damaged cord or plug. If
the power cord isdamaged, itmust be replaced by the
manufacturer, itsservice agent or similarly qualified persons
inorder to avoida hazard. Do not operate any appliance that
malfunctionsor has been damagedinany manner. Unplug
cordimmediately. Return the damagedappliance to the
nearestauthorised service facility designated by
NESCAFÉ®DolceGusto®hotline.
25.
The use of accessory attachments notrecommended by the
appliance manufacturer may result in fire, electric shock or
injury to persons.
26.
Do notlet the cord hang over theedge of a table or counter, or touch
hotsurfaces or sharp edges. Do notallow the cord to dangle (risk of
trippingup). Never touch the cord with wet hands.
27.
Do notplace on or near a hot gasor electric burner, or ina heated
oven.
28.
To disconnect, removethe plugfrom the mainspower socket. Do not
unplug by pulling the cord.
29.
Alwaysinsert the capsule holder in the machine to prepare a
beverage.Do not pull outthe capsule holder before the indicator
stopsblinking. The appliance will not work if the capsule holder is
notinserted.
30.
Machines equipped with a locking handle: Scalding may occur ifthe
lockinghandle isopened during the brewing cycles. Do not pull up
the lockinghandle before the lights on the machine stop flashing.
31.
Do notputfingers under the outlet during beverage preparation.
32.
Do nottouch the injector of the machine head.
33.
Never carry the appliance by the machine head.
34.
The capsule holder is equipped with a permanent magnet. Avoid
placingthe capsule holder near appliances and objectsthat can be
damaged by magnetism, e.g. credit cards, USB drives and other data
devices, video tapes, television and computer monitors with picture
tubes, mechanical clocks, hearing aids andloud speakers.
35.
Patients with pacemakers or defibrillators: Do not hold the capsule
holder directly over the pacemaker or defibrillator.
36.
Ifthe mains power socket does notmatch the plug on the appliance,
have the plug replacedwith a suitable type by aftersales service
centresdesignated by NESCAFÉ®DolceGusto®hotline.
37.
Packaging ismade ofrecyclable materials. Contactyour local
council/ authority for further information on recycling programs.
Your appliance contains valuable materialswhich can be recovered
or recycled.
38.
For additional guidance on how to use the appliance, refer to the
user manual on www.dolce-gusto.com or call
NESCAFÉ®DolceGusto®hotline number.
39.
Keep the appliance and its cord out ofreach of childrenaged less
than8 years. Childrenshall notplay with the appliance.
40.
This appliance canbe used by children aged from 8 yearsand above
and persons with reducedphysical, sensory or mental capabilities or
lackofexperience and knowledge if they have been given
supervisionor instruction concerning use of the appliance in a safe
way and ifthey understand the hazards involved.
41.
Cleaningand user maintenance shall notbe made by children
unlessthey are older than8 and supervised by anadult.
EUROPEANMARKETS ONLY:
Thinkof the environment!
Your appliance contains valuable materials which
canbe recovered or recycled.
Leave it ata local civic waste collection point or at
anapprovedservice centre, where itwill be disposed
of properly. EuropeanDirective 2012/19/EU on Waste
Electrical and Electronic Equipment (WEEE), stipulatesthatused household appliances mustnotbe
disposed of in normalunsorted municipal waste. Old
appliances mustbe collected separately to optimise
the sorting and recyclingoftheir parts and to reduce
the impact on human health and the environment.
The guarantee does not cover appliances that donotwork or do not
workproperlybecause they have notbeen maintained and/or
descaled.
To reduce the risk of fire or electric shock, do not remove
the cover. No user serviceable partsinside. Repair should
be done by authorized service personnel only!
1
1313141516
2
STOP
67911 12810345
2.MACHINE OVERVIEW
1.
Water tank
2.
Selection lever
3.
"Cold" position
4.
Stop
5.
"Hot" position
6.
Volume selector
7.
Indicator light
8.
XL volume function
9.
Volume display
10.
Capsule holder
11.
Injector
12.
Rinsing tool
13.
Locking handle
14.
Cleaning needle
15.
Drip tray
16.
Drip grid
ECONOMY MODE:
After 1 minutes of non-usage.
Please be aware that the appliance is still using
electricity whilst in eco-mode (0.4 W/hour).
TECHNICAL DATA
GB/IE/SG
220-240 V, 50/60 Hz, 1340-1600 W
max. 15 bar
1 L
~2.5 kg
5–45 °C
41–113 °F
A = 17.6 cm
B = 36.8 cm
C = 22.2 cm
5
3.BEVERAGE EXAMPLES
Adjust driptraySelect volumeChoosehot or cold
ESPRESSOCAPPUCCINOCHOCOCINOCAPPUCCINO ICE
TwoCap sulesOneCap sule
TwoCap sules
TwoCap sules
6
4.RECOMMENDATIONS FOR SAFE USE
Never addhotwater tothe water tank!
For rinsingandbeverage preparation only usefresh
drinkingwater.
Donottouch plugwith wet hands. Do nottouch
machine withwet hands!
Always keep themachine upright!After finishingpreparation the indicator light
Never use awet sponge. Only use a soft damp
cloth to clean thetopof themachine.
blinks red for for a few seconds. During that time
donot open locking handle!
Donottouch usedcapsule after beverage preparation!Hotsurface, risk of burns!
Donotuse the rinsing tool for teaor hot water preparation.
IF LEFT UNUSED FOR MORE THAN2 DAYS: Fill
water tank with fresh drinkingwater andinsert it
intomachine. Rinse machine, therefore follow
instructions in7. “Cleaning” on page 12, beginningwithstep4.
7
STOP
STOP

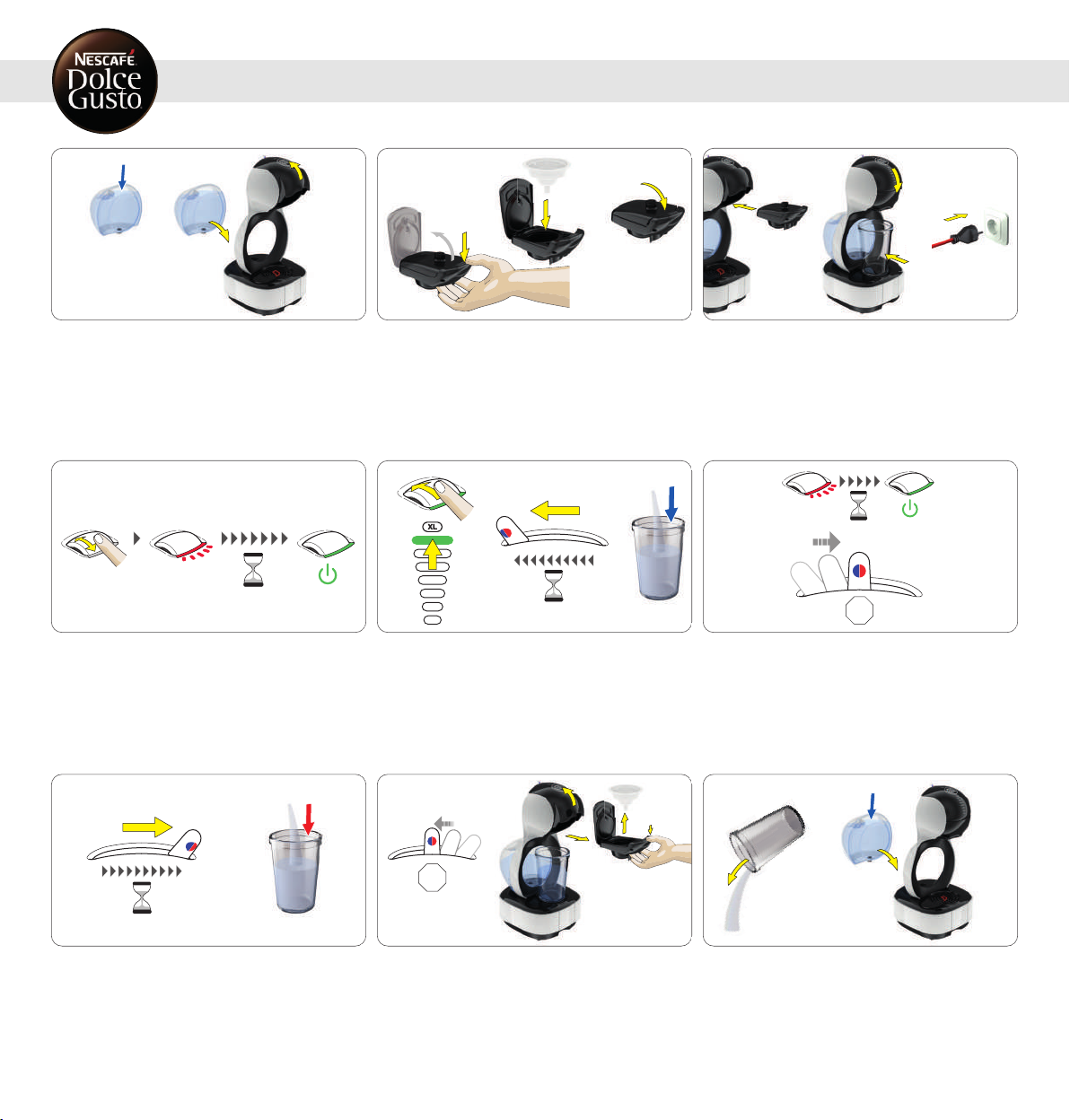

5.FIRST USE
1
Rinse water tank manually with freshdrinking water. Fill
water tank with fresh drinkingwater. Insert water tank into
machine. Open locking handle.
4
Switch onmachineby scrolling thevolume selector. Indicator light starts blinking red whilemachineis heatingup for
approximately 40 seconds. Afterwards indicatorlights
steady green. Machine is ready tobe used.
2
Takecapsule holder andpress locking tab toopenit. Make
sure that rinsingtool is incapsule holder. Close capsule
holder.
5
Setvolume display to 7withvolume selector. Push selectionlever to the"COLD" position. Machine starts rinsing.
3
Insertcapsule holder intomachine. Close locking handle.
Placeanempty large container underneaththecoffee outlet. Ensure to use the correct mainsvoltage as givenin 2.
“MACHINEOVERVIEW” on page 5. Connectpower plug to
mains power socket.
6
Waituntil water flow stops.Indicator lightblinks redfor a
few seconds, andchangesto steady green. Lever moves
back to the "Stop" position.
7
Pushselection lever to the "HOT" position. Machine starts
rinsing.
8
Waituntil the lever movesto the "STOP" position. Open
locking handle. Pull out capsule holder. Open capsule
holder. Remove rinsing tool. Keepit in asafe place for later
cleaningor descaling. Reinsert capsule holder.
8
9
Empty container. Fill water tank withfresh drinkingwater.
Insertwater tankinto machine. Machine isready to be
used.
STOP
6.PREPARING A BEVERAGE
6. 1ONE CAPSULE (E. G. LUNGO)
1
2
3
Adjustdriptray position.Place cupwith correctcupsize on
driptray. See 3."BEVERAGE EXAMPLES" or package. Check
ifthe water tank contains enoughfresh drinkingwater.
4
Opencapsule holder. Make sure rinsing tool is not inside.
Insertcapsule incapsule holder. Close capsuleholder.
Insertit back into machine.Close lockinghandle.
7
Openlocking handle.Pull outcapsule holder. Machine
switcheson automatically. Indicator lightstarts blinking
red while machine is heatingup for approximately 40
seconds.Afterwards indicator lights steady green. Machine
is ready to be used.
5
Pushselection lever to the "HOT" or "COLD" position as
recommendedon capsule packs. Beverage preparation
starts. Waituntil extractionstops. Extractioncanbe
stoppedat any time manually by moving the lever back to
the "STOP" position.
8
Use volume selector to setvolume display in accordance
with the number ofbars shownon capsule, orselect
amount of bars toyour owntaste. Choose XL beverage for
anextra big cup. Wait around 1.5 minif you want to prepare
a secondextra bigcup.
6
After finishingpreparation the indicator lightblinks red for a
few seconds, andchangesto steady green. Lever moves
back to the "Stop" position.During that timedonot open
lockinghandle!
9
After extractionis finishedremove cup from drip tray.
Openlocking handle.Pull outcapsule holder. Open capsule
holder. Remove used capsule.Put usedcapsule in dustbin.
Pay attentionnotto throw away capsule holder.
9
Rinse capsuleholder with freshdrinking water from both
sides. Dry capsule holder. Insert itback intomachine.
Enjoy your beverage!
6.PREPARING A BEVERAGE
STOP
6. 2TWO CAPSULES (E. G. CAPPUCCINO)
1
2
3
Adjustdriptray position.Place cupwith correctcupsize on
driptray. See 3."BEVERAGE EXAMPLES" or package. Check
ifthe water tank contains enoughfresh drinkingwater.
4
Opencapsule holder. Make sure rinsing tool is not inside.
Insertfirst capsule in capsuleholder. Close capsule holder.
Insertit back into machine.Close lockinghandle.
7
Openlocking handle.Pull outcapsule holder. Machine
switcheson automatically. Indicator lightstarts blinking
red while machine is heatingup for approximately 40
seconds.Afterwards indicator lights steady green. Machine
is ready to be used.
5
Pushselection lever to the "HOT" or "COLD" position as
recommendedon capsule packs. Beverage preparation
starts. Waituntil extractionstops. Extractioncanbe
stoppedat any time manually by moving the lever back to
the "STOP" position.
8
Use volume selector to setvolume display in accordance
with the number ofbars shownon capsule, orselect
amount of bars toyour owntaste. Choose XL beverage for
anextra big cup. Wait around 1.5 minif you want to prepare
a secondextra bigcup.
6
After finishingpreparation the indicator lightblinks red for a
few seconds, andchangesto steady green. Lever moves
back to the "Stop" position.During that timedonot open
lockinghandle!
9
Openlocking handle.Pull outcapsule holder. Open capsule
holder. Remove used capsule.Put usedcapsule in dustbin.
Pay attentionnotto throw away capsule holder.
Use volume selector to setvolume display in accordance
with the number ofbars shownon capsule, orselect
amount of bars toyour owntaste.
10
Insertsecond capsule incapsule holder. Close capsule
holder. Insert itback into machine. Closelockinghandle.
STOP
6.PREPARING A BEVERAGE
6. 2TWO CAPSULES (E. G. CAPPUCCINO)
10
11
12
Pushselection lever to the "HOT" or "COLD" position as
recommendedon capsule packs. Beverage preparation
starts. Waituntil extractionstops. Extractioncanbe
stoppedat any time manually by moving the lever back to
the "STOP" position.
13
Openlocking handle.Pull outcapsule holder. Open capsule
holder. Remove used capsule.Put usedcapsule in dustbin.
Pay attentionnotto throw away capsule holder.
After finishingpreparation the indicator lightblinks red for a
few seconds, andchangesto steady green. Lever moves
back to the "Stop" position.During that timedonot open
lockinghandle!
14
Rinse capsuleholder with freshdrinking water from both
sides. Dry capsule holder. Insert itback intomachine.
Enjoy your beverage!
After extractionis finishedremove cup from drip tray.
11
STOP
7.CLEANING
1
Rinse and clean water tank. Usea clean food-safe brush
and washing-up liquid as needed. Afterwards refill with
freshdrinkingwater and insert it into machine.The water
tankis notdishwasher proof!
Rinse driptrayand rinsingtool with fresh drinkingwater.
Clean drip tray with cleanfood-safe brush. The drip tray is
notdishwasher proof!
5
Machine switches on automatically. Indicator light starts
blinkingred while machine is heating up for approximately
40seconds.Afterwards indicator lights steady green.
Machine is ready to be used.Place anempty large containerunderneath the coffee outlet.
3
Clean with washing-upliquidand freshdrinking water both
sides ofcapsule holder. Alternatively washin dishwasher.
Dry itafterwards.
6
Setvolume display to 7withvolume selector. Push selectionlever to the"HOT" position.
7
Waituntil the lever movesto the "STOP" position. Water
flowstops. Empty and cleancontainer. Warning: Hotwater!
Handlewith care!
8
Openlocking handle.Pull outcapsule holder. Remove rinsingtool. Keep itin a safe place for later cleaning or descaling.If any, remove water from water tank.
12
9
Unplug power plug!Clean machine witha softdamp cloth.
Dry itafterwards with asoft dry cloth.
www.dolce-gusto.com
0.5 L
0,5 L
8.DESCALING AT LEAST EVERY 3–4 MONTHS
Use NESCAFÉ®DolceGusto®liquid
descaler. To order, callthe
NESCAFÉ®DolceGusto®hotline or goon
the NESCAFÉ®DolceGusto®website.
1
Ifthe indicator lighthas changed from steady green to
steady orange (descalingsignal), or thebeverage comes
outslower thanusual (evenin droplets), or if it iscooler
thanusual, the machine has to bedescaled.
4
Donotuse vinegar for descaling!Avoidcontactof descaling liquid withany
partof the machine.
2
Ifany, remove water from water tank.
5
3
Mix 0.5liter fresh drinkingwater with descaler ina measuring cup. Pourdescaling solution into water tank and
insertwater tankinto machine.
6
Openlocking handle.Putrinsing toolinto capsule holder.
Insertcapsule holder intomachine. Close locking handle.
Placeanempty large container underneaththecoffee outlet.
Make sure the machine isswitched off(indicator light has
turnedoff).
13
Pushand hold selectionlever to the“HOT”position for 10
seconds.Bar display lights vanish progressively.
STOP
STOP
STOP
STOP
8.DESCALING AT LEAST EVERY 3–4 MONTHS
7
Pushselection lever to the "HOT" position. Machine
descales in start-stop operation for approximately 2
minutes. Lever comesback tothe middle position.
10
Empty and clean container. Rinse andcleanwater tank. Use
a cleanfood-safe brush and washing-up liquid as needed.
Afterwards refillwith freshdrinking water and insert itinto
machine.
8
Pushselection lever to the "COLD" position. Machine
descales continuously. Lever comes back to themiddle position.
11
Pushselection lever to the "HOT" position. Wait until the
lever moves to the"STOP" position. Water flowstops.
9
For abetter effect ofthe descaler, the machine enters a
waitingtime of2 minutes. Bar display lights vanish progressively.
12
Pushselection lever to the "COLD" position. Waituntil the
lever moves to the"STOP" position. Water flowstops.
13
Remove container. Empty and clean container. Pull out capsuleholder. Remove rinsingtool.Keep it ina safe place for
latercleaningor descaling. Rinse capsule holder with fresh
drinkingwater from bothsides. Reinsert capsuleholder.
14
Clean machinewitha soft damp cloth.Dry itafterwards
with asoftdry cloth. Place drip grid on driptray. Then
insertdriptray atdesiredposition.
14
9.TROUBLESHOOTING
STOP
9. 1INDICATOR LIGHT TURNED TO ORANGE COLOUR
1
INDICATOR LIGHT TURNED TO ORANGECOLOUR
Thismeans thatthe machine needs to be descaled. To do
so, please follow the descalinginstructions. See 8. “Descaling at leastevery 3–4 months” onpage 13.
9. 2NO LIQUID COMES OUT – NO WATER?
1
Noliquid comesout: Beverage preparation stops part way
duringdelivery or does notstart at all. Volumedisplay
flashes and indicator light blinks red andgreenrapidly.
Pushselection lever to the "STOP" position.
2
Check ifthe water tank contains enough fresh drinking
water. Ifnot, refill withfresh drinkingwater and push selectionlever to the"HOT" position respectively "COLD" to continue preparation.If the water tank is full proceed as
describedin “NOLIQUID COMESOUT – CAPSULE /
INJECTOR BLOCKED? ” onpage 16.
Noliquid comesout: The capsule may be blocked andunder
pressure.
3
Rinse the machine: Follow instructions in 5.“FIRST USE” on
page8. Clean with washing-upliquid and freshdrinking
water both sides of capsule holder. Rinse driptray with
freshdrinkingwater and clean itwitha clean food-safe
brush.
Always keep themachine upright! Tostoppreparation, push
selectionlever to the"STOP" position.
4
Remove and tiltdrip tray. Take outcleaningneedle. Keep
