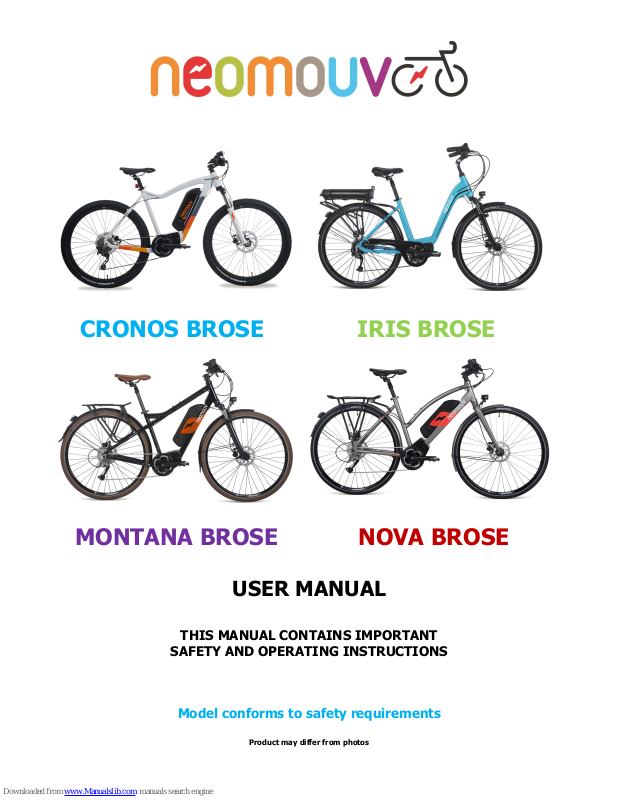

neomouv Montana Brose, Iris Brose, Cronos Brose, Nova Brose User Manual

CRONOS BROSE IRIS BROSE

MONTANA BROSE NOVA BROSE

USER MANUAL

THIS MANUAL CONTAINS IMPORTANT

SAFETY AND OPERATING INSTRUCTIONS

Model conforms to safety requirements

Product may differ from photos

BROSE Manual

2

CONTENTS

1 - PRESENTATION ..................................................................................................................................... 3

2 - ADJUSTMENTS/ASSEMBLY: .............................................................................................................. 4

2.1 Adjusting the saddle: ............................................................................................................................... 4

2.1.1 Angle: ............................................................................................................................................... 4

2.1.2 Height: .............................................................................................................................................. 4

2.2 Adjusting the fork .................................................................................................................................... 5

2.3 Adjusting the brakes: ............................................................................................................................... 5

2.4 Mounting and dismounting the wheels: ................................................................................................... 6

2.4.1 Front wheel: ...................................................................................................................................... 6

2.4.2 Rear wheel: ....................................................................................................................................... 6

2.5 Lights: ...................................................................................................................................................... 7

3 - USING THE E-BIKE: .............................................................................................................................. 8

3.1 3.1 Gearshift: ...................................................................................................................................... 8

3.2 3.2 Electronic gear shifting: ................................................................................................................ 8

3.3 3.2 Display and controls: ................................................................................................................... 9

3.4 Electric assistance: ................................................................................................................................. 12

3.4.1 Operation: ....................................................................................................................................... 12

3.4.2 Performance:................................................................................................................................... 12

3.4.3 Technical specifications of the power-assistance system:.............................................................. 13

3.5 The electric motor: ................................................................................................................................. 13

4 - CHARGING THE BATTERY: ............................................................................................................. 14

4.1 4.1 NEOMOUV Lithium Ion 36-volt charger ................................................................................... 14

4.1.1 Precautions (safety instructions): ................................................................................................... 15

4.1.2 Protecting the charger: .................................................................................................................... 15

4.2 Battery .................................................................................................................................................... 16

4.2.1 Recommendations / precautions to take with your battery: ........................................................... 17

5 - ADVICE FOR INCREASING BATTERY LIFE PER CHARGE: .................................................. 18

6 - UPKEEP AND MAINTENANCE: ........................................................................................................ 19

6.1 Upkeep: .................................................................................................................................................. 19

6.2 Lubrication: ............................................................................................................................................ 19

6.3 Maintenance: .......................................................................................................................................... 19

7 - SAFETY – RECOMMENDATIONS: .................................................................................................. 20

8 - TECHNICAL DATA .............................................................................................................................. 21

9 - DECLARATION OF CE CONFORMITY .......................................................................................... 21

10 - CERTIFICATE OF CONFORMITY ................................................................................................... 21

11- TERMS OF WARRANTY ..................................................................................................................... 22

BROSE Manual

3

1 - PRESENTATION

E-Bike Presentation:

Notes:

• The symbol  indicates important advice or essential safety measures. Follow the various instructions.

• Some adjustment and assembly/disassembly operations require special tools and expertise; perform

these only if you have the skills to do so, otherwise consult your authorised dealer or a specialist.

• The symbol  indicates the tools you will need to carry out adjustments.

• Your e-bike has a serial number engraved on the frame by the fork.

 MAXIMUM LOAD: 120 KG. FOR YOUR SAFETY, YOU SHOULD NOT EXCEED THE MAXIMUM LOAD WHEN

USING YOUR BICYCLE.

Display

BROSE electric

motor

Battery

Serial number

BROSE Manual

4

2 - ADJUSTMENTS/ASSEMBLY:

Adapt the bike to your height

2.1 Adjusting the saddle:

 6 mm Allen key

2.1.1 Angle:

Loosen the nut under the saddle.

Adjust the angle of the saddle in order to find your most comfortable position. Tighten the nut, with a
maximum tightening torque of 13 Nm.

2.1.2 Height:

The power-assisted bicycle enables you to opt for a lower saddle position than on a classic bike. With power
assistance, you expend less effort and can be seated in a lower position for improved safety. The required
user (cyclist) height for optimal utilisation of the bike ranges from 1.65 to 1.90 m. Adjust your saddle height to
the optimal sitting position as follows:

Loosen the quick-release seat clamp.

Wearing suitable cycling shoes, sit on the saddle, place one of the pedals in the lowest position, rest one heel
on the pedal, and your leg should rest normally on the pedal without being stretched. Raise or lower the
saddle to get the correct height. While pedalling backwards, you should not have to move your hips from side
to side.

To calculate the height, you can also use the SH (Seat Height) formula = 0.885xIL (inside leg measurement). To
measure your inside leg, stand barefoot with your feet five centimetres apart. Without applying too much
pressure, place a pole or stick at horizontally at groin height and then measure the height from the stick to the
ground. This will give you the IL (inside leg) measurement.

Tighten the quick-release clamp.

Nut

Quick-release

clamp

BROSE Manual

5

 THE SEAT POST SHOULD NOT BE EXTENDED BEYOND THE ENGRAVED SAFETY MARK (VERTICAL BARS).

2.2 Adjusting the fork

The fork of the Iris Brose, Montana Brose and Cronos Brose is adjustable and lockable. Locking is carried out
by using the thumbwheel at the top of the fork.

2.3 Adjusting the brakes:

Your BROSE e-bike is equipped with front and rear hydraulic disc brakes. The maintenance of this system
must be carried out by a specialist. Nevertheless, here are a few recommendations:

- Periodically check the condition of the lining on the brake pads. It is important to avoid leaving this
until the last minute as if the lining is damaged, the disc rubs against the metal of the pads which
damages them.
Here are 2 ways to monitor the wear and tear on your pads:

o By sound: the braking sound will be more metallic when the lining is worn.
o By sight: you can see the thickness of the lining when looking from the front of the calliper.

Regularly check the condition of the discs to ensure they are clean and not too worn. Only use alcohol or
water to clean the discs.

- Completely avoid any contact with greasy substances on the disc and the pads.

The pads must

always be changed should this occur (they are porous and will absorb the greasy substance).

 AS A GENERAL RULE, THE HYDRAULIC DISC BRAKING SYSTEM SHOULD NOT BE ADJUSTED BY NON-EXPERTS. WE

RECOMMEND THAT YOU CALL A SPECIALIST SHOULD YOU HAVE ANY DOUBTS ABOUT WHAT TO DO.

Safety

mark

Disc

Pad

BROSE Manual

6

2.4 Mounting and dismounting the wheels:

 AS A GENERAL RULE, NEVER OPERATE THE BRAKE LEVERS WHEN A WHEEL IS OFF THE BIKE. THE WHEEL WILL BE

VERY DIFFICULT TO REMOUNT SHOULD THIS HAPPEN.

2.4.1 Front wheel:

Dismounting the front wheel:

- First, you must loosen the wheel’s fastenings.

- Once this has been done, slide the wheel forward to remove it.

- Insert a piece of plastic in the calliper (between the two pads).

Mounting the front wheel:

- Carry out the mounting operations in inverse order. Check the tightness of the wheel attachment and
its alignment.

- Once the wheel is in place, operate the brake handle 3-4 times. This allows the pads to settle correctly.

- Check that the brake disc is properly centred and rotates without friction.

- Check that the wheel brakes are working properly.

2.4.2 Rear wheel:

Dismounting the rear wheel:

- First, you must loosen the wheel’s fastenings.

- Once this has been done, slide the wheel forward and remove the chain from the axle to remove it.

- Insert a piece of plastic in the calliper (between the two pads).

Mounting the rear wheel:

- Remove the piece of plastic from the calliper.

- Take the wheel and place the chain on the small pinion on the right-hand side, then place the wheel

between the brake pads.

- Moving backwards, insert the wheel axle into the housing on the left and right of the frame. Attach the
washers and the wheel nuts. Tighten the nuts by hand initially until they make contact with the frame.

Checking the alignment of the wheel:

- Centre the wheel in relation to the frame.

- Check the centring and positioning in line with the front wheel, as well as the positioning of the chain.

- Screw on the wheel nuts on both sides without tightening them.

- Check the positioning, centring, and position of the chain again.

BROSE Manual

7

Checking the brake adjustment:

- Operate the brake handle 3-4 times. This allows the pads to settle correctly.

- Check that the brake disc is properly centred and rotates without friction.

- Check that the wheel brakes are working properly.

Alternately and progressively tighten the wheel nuts on each side (max. tightening torque 25 Nm).
Replace the nut covers.

2.5 Lights:

Your Cronos Brose is equipped with:

 A front light (2 x 2032 batteries) which is activated by a switch on the back of the light.
 A battery-operated rear red light (2 x LR03 batteries) which is activated by a switch on the

bottom of the light.

Your Iris Brose, Montana Brose or Nova Brose is equipped with:

 Fixed front and rear lighting: The lights are activated by pressing the UP and MODE buttons on

the control pad simultaneously.

 ALWAYS KEEP YOUR LIGHTS CLEAN AND IN GOOD CONDITION.

 LIGHTS ARE OBLIGATORY AT NIGHT.

BROSE Manual

8

3 - USING THE E-BIKE:

3.1 Gearshift:

The gearshift of your Montana Brose and Nova Brose is composed of:

 A rear derailleur
 and 9 sprockets with 11 to 32 teeth;

 A derailleur and 42 teeth at the front

The gearshift of your Iris Brose is composed of:

 A rear derailleur
 And 8 sprockets with 12 to 32 teeth;

 A derailleur and 42 teeth at the front

The gearshift of your Cronos Brose is composed of:

 A rear derailleur
 And 10 sprockets with 11 to 32 teeth;

 A derailleur and 42 teeth at the front

To change gears, use the two triggers located next to the right handle on the handlebars.

3.2 Electronic gear shifting:

Your bike is equipped with 4 levels of electronic assistance:

1 OFF Position = the position at which power assistance is off.
2 CRUISE Position = economic. In this position, your e-bike will consume less energy, but the power

may not be enough to tackle an incline.
3 TOUR Position = medium assistance
4 SPORT Position = maximum power. On this position, your e-bike provides you with the most

assistance but also consumes the most energy.

To scroll through the assistance levels, press the UP and DOWN buttons.

The power selector is located close to the left handle on the handlebar.

Two triggers to raise

or lower the gear

Gear level

indicator

BROSE Manual

9

3.3 Display and controls:

Display

To turn the system on or off, press the ON/OFF button at the top of the display. When you press the OFF
button, the system simply goes to into standby mode. When you start moving your e-bike in this standby
mode, the system will restart immediately and automatically without you having to do anything.

To shut down the system completely, you must use the switch located on the battery.

The MENU button can be used to scroll through the different usage data.

3 assistance modes:

Cruise / Tour / Sport

Walking assistance

Speed in km/h (or mph)

Battery capacity

Usage data:

• Clock (12/24 h)

• Trip distance

• Travel time

• Average speed

• Total distance travelled

• Total utilization time

•

Instantaneous power

(Watts)

MENU

ON/OFF

BROSE Manual

10

Controls

The UP and DOWN buttons can be used to scroll through the assistance levels.
The MENU button can be used to scroll through the different usage data.

Walking assistance (or start-up aid)
Set the assistance level to OFF
Press the DOWN arrow for more than 1 sec

Clock settings:

Scroll through the usage data until you come to the clock.
Press the MENU button for more than 2 secs. The hour setting will flash.
Use the UP and DOWN arrows to set the hour.
To accept, press the MENU button. The minutes setting will flash.
Use the UP and DOWN arrows to set the minutes.
To accept, press the MENU button.

Reset usage data to zero

Reset trip information to zero: scroll through the usage data until you come to one for trip information

(distance, time, calories or average speed).
Press the MENU button for more than 2 secs.

Reset total utilisation time to zero: scroll through the usage data until you come to total utilisation time
(symbol ∑).

Press the MENU button for more than 2 secs.

It is not possible to reset the total distance travelled.

MENU

UP

DOWN

BROSE Manual

11

Display holder

USB socket

Your display holder has a USB socket that can be used to recharge your electronic devices.

Removing the display from the holder

Your display can be removed from the holder from the top. To do this, make sure that the system is
completely switched off. Make sure that the safety screw under the display support is not tight. Then press
the push button at the top of the holder to release the display.

(The safety screw under the holder is there to ensure that the display does not come off too easily).

To put the display back on the holder, slide it into the tracks from the top.

BROSE Manual

12

3.4 Electric assistance:

3.4.1 Operation:

Your bicycle is an electrically-assisted bicycle: it is equipped with an electric motor, which is located in the
crankset casing. This motor starts automatically (if the ignition is on and the battery is charged) when and
only when you are pedalling.
The power-assisted start-up is activated by three sensors: a torque sensor that measures the pressure on the

pedals, a rotation sensor, and a speed sensor

The motor also stops as soon as you reach the speed limit of 25 km/h.

3.4.2 Performance:

The power-assisted speed of your e-bike is limited to 25 km/h.
At this speed the motor's power supply is automatically cut off.

The battery life per charge of your bike depends on several factors:

 Weight transported:

The expected performance of your bike is based on an average load of 75 kg.

 External temperature:

The expected performance of your bike is based on an external temperature of roughly 20°C.
Performance decreases below this temperature, but is only really discernible below 5°C.

 Battery wear:

Your battery is designed to deliver stable performance for 750 recharge cycles (or an average use of 3
years). The battery will still be operational after those 750 cycles but its performance and therefore
range per charge will decrease proportionally.

 But the battery life per charge mainly depends on how you use the bike:

The theoretical battery life per charge is based on almost continuous use of the motor over flat or
slightly undulating ground (10 to 20% slopes). If your travel is on flat ground and includes a number
of descents (even if slight), your battery life is increased. If you are ascending inclines of more than
5% (the motor “struggles" above a grade of 8%), your battery life will diminish proportionally.

BROSE Manual

13

3.4.3 Technical specifications of the power-assistance system:

Motor: Crankset - Brose – 250 watts – 90 Nm
Battery: Lithium Ion cells 36 V – 480 Wh or 630 Wh (Nova Brose/Cronos Brose/ Montana Brose) or 480 Wh,

580 Wh, 630 Wh or 700 Wh for the Iris Brose

Life cycle: 750 complete charge/discharge cycles under normal load conditions.
Battery life per charge: from 70 to 80 km (480 Wh battery) / 80 to 100 km (580 Wh battery) / 100 to 110

km (630 Wh battery) / 110 to 130 km (700 Wh battery)
(for a user weighing 75 kg at a speed of 18 km/h on a journey in Eco mode).

3.5 The electric motor:

Located in the crankset is a BROSE 250-watt electric motor. It requires no maintenance on your part and has
the benefit of a two-year manufacturer's warranty. After 3 years or 25,000 kilometres, we advise you to get it
checked by an authorised dealer or specialist. Although it is designed to resist water, we do not recommend
cleaning it with a high-pressure jet.

Crankset

motor

BROSE Manual

14

4 - CHARGING THE BATTERY:

4.1 NEOMOUV Lithium Ion 36-volt charger

CHARGER FEATURES

(Nova Brose/Cronos Brose/ Montana Brose)

CHARGER FEATURES

(Iris Brose)

The charger that comes with your bike is compliant with CE manufacturing standards, and with the IEC/EN
60335-1 environmental protection standards. It has been specially designed to recharge the battery of your
electric bike. It will fully recharge your battery in 4 to 6 hours dependent on the ambient temperature and
wear of the battery. This charging time, referred to as “slow”, is deliberate in order to preserve the life of your
battery.
It is easy to operate: plug the charger’s output jack into your battery’s socket, then plug it into the mains.
Your charger has an LED charging diode that shows the battery charge level. It is red when the battery is
charging and changes to greed once the battery had been charged.

48-volt model

JCLC084V42M

Smart charger for a Lithium Ion battery

Voltage

AC100V-240V

Frequency

47-63 Hz

Charging voltage (load)

42 V+/- 0.2 V

Output current

2.0 A

LED power indicator: red

Charging

LED charge indicator: green

Charged or

disconnected from the

battery

Efficiency (at full load)

100 %

Operating temperature range

Between 10° C and 35°

C

Humidity

<+ 90 %

Safety standard

EN60335 –1- A2 –2006

Weight

460 g

Dimensions

165x73x47 mm

36-volt model

STC-8127LC

Smart charger for a Lithium Ion battery

Voltage

AC220 -240 V

Frequency

50-60 Hz

Charging voltage (load)

42 V

Output current

2.0 A

LED power indicator: red

Charging

LED charge indicator: green

Charged or disconnected

from the battery

Efficiency (at full load)

100 %

Operating temperature range

Between 10° C and 35°

C

Humidity

<+ 90 %

Safety standard

EN60335 –1 : 2012 +
A11 + A13

Weight

300 g

Dimensions

125x62x35 mm

BROSE Manual

15

An LED light on the top of the charger shows the battery charge level. It is red when the battery is charging
and changes to green once the battery has been charged.

4.1.1 Precautions (safety instructions):

• Do not connect the charger plug to the mains with wet hands (risk of electrocution).

• All charging must be carried out in a ventilated area.

• Always check that the charger is compatible with the local power supply.

• Do not place the apparatus in a damp environment or near a flammable or explosive substance while it

is charging (any charge producing heat involves the risk of fire or explosion).

• Do not store the apparatus while it is hot.

• Do not charge a faulty or worn-out battery.

• Do not leave a plugged-in charger and its connections within the reach of children.

• Do not attempt to disassemble the charger.

4.1.2 Protecting the charger:

• Do not expose it to rain.

• Do not leave the charger disconnected from the power supply (220 volts) but plugged into the battery.

• Do not submerge the charger.

• Do not place any objects on the charger or cover it.

• Look after the charger’s input and output cables.

• To protect the charger after a long charging period (more than 24 hours), disconnect the electrical

connection and let the device rest in a dry and ventilated space.

• Avoid leaving the charger connected to the mains for more than 24 hours.

•

 WARNING! For your safety, opening the charger is prohibited (risk of electric shock –

high voltage). Contact your dealer should any faults occur with your charger.

 For your safety, also look at the pictograms on the back of the charger.

1) Compliance with CR standards

2) Double insulation

3) Do not throw out with household waste

4) Comply with the polarity

Green LED: battery charged

BROSE Manual

16

4.2 Battery

Your battery has a serial number. This is located underneath the battery.

Your battery is assembled in a special container. We strongly recommend that you do not attempt to open or
disassemble it. Any breaking of the warranty label will automatically render the warranty null and

void.

To remove the battery from its housing, you must open the lock using the key and push the battery to the
right of the bike.

To put the battery back, you must first position the base correctly and then rock the battery back into its
housing.

You can charge your battery while it is on the bike or remove it from its holder and then charge it always
using the plug located at the back of it.
For safe charging, first connect the charger to the battery and then connect the charger's standard plug to the
mains (220V/50 Hz).
Check that the charger is working correctly (see section 4.1).

Battery lock

Serial No.

Warranty label

BROSE Manual

17

4.2.1 Recommendations / precautions to take with your battery:

• Avoid any proximity to sources of heat.

• Avoid any short circuits on the motor’s charging and plug connections.

• Only use the battery for its intended purpose.

• Do not expose the battery to temperatures higher than 40°C and lower than –20° C.

• Never drop the battery; put it in a stable place.

• Warning! There is a risk of short circuiting and overheating in the event of any impact on batteries that

are particularly fragile.

• Always check that the charger is compatible with the local power supply.

• When charging is finished, it is recommended that you disconnect the charger from the battery.

• During periods when the bike is not in use, store the battery in a cool, dry place at a

temperature above 10° C and lower than 40° C.

• Never leave your battery completely discharged for longer than 3 days, as this may

damage it.

• In case of prolonged non-use, you must recharge the battery once every two months.

• Never leave the battery exposed to the sun for long periods of time.

• Never let a child play with or handle the battery.

• Never charge the battery in the rain or in damp surroundings.

• Never open the battery. Opening it may lead to a significant risk of electrocution and void the

warranty.

• Never spray the battery directly with water or any other liquid.

• Never submerge the battery.

• Only use the charger provided to charge your battery. Using any other charger that is not adapted for

the battery may result in an accident.

 WARNING! IN CASE OF VERY INFREQUENT USE OF THE BATTERY (ONCE EVERY 2 MONTHS ONLY), THE

BATTERY

’S CAPACITY WILL DIMINISH MUCH MORE RAPIDLY THAN WITH REGULAR USE. THE BATTERY’S ENERGY

COMES FROM A CHEMICAL REACTION THAT REQUIRES SUFFICIENTLY REGULAR ACTIVATION TO MAINTAIN ITS
EFFECTIVENESS.

 WARNING! YOU MUST NOT THROW YOUR BATTERY OR CHARGER OUT WITH YOUR HOUSEHOLD

WASTE. A SELECTIVE COLLECTION SYSTEM FOR THIS TYPE OF PRODUCT HAS BEEN SET UP IN MOST
TOWNS: YOU CAN CONTACT YOUR LOCAL COUNCIL FOR FURTHER INFORMATION. ELECTRICAL AND

ELECTRONIC PRODUCTS CONTAIN TOXIC SUBSTANCES THAT ARE HARMFUL TO THE ENVIRONMENT AND
HUMAN HEALTH AND THEREFORE MUST BE RECYCLED.

Your battery is recyclable after use. Return it to your dealer.

Also read carefully the indications listed on the battery:

The battery provided with your e-bike conforms with:

• Standards EN61000-6-1 et EN61000-6-3;

• Directive UN38.3 on the transport of dangerous goods;

• Directive 2006/66/EC.

BROSE Manual

18

5 - ADVICE FOR INCREASING BATTERY LIFE PER CHARGE:

In order to conserve your battery's energy and thus increase the range of your bike, we would like to offer
you a few tips.

• At start-up: set power assistance to position 1 and choose a medium development on the derailleur.

If your route is uphill, position the derailleur on the small development and use the 6 km/h position.

• In traffic jams: set power assistance to position 1 and your derailleur to small or medium

development according to the frequency of the stops you will have to make.

• Hill start: before you stop, set your derailleur to small development, and set the power assistance

according to the incline.

• Climbing a tougher hill: if you are climbing a hill and the speed reduces too much, you can opt for

more powerful assistance. You will then feel the power assistance increase. If this is insufficient, set
your derailleur to the small development (your energy consumption will be greater and your battery
range will be reduced).

• Route without stops: if your route has no obstacles (no traffic lights, traffic jams or rough roads),

you can set your bike to cruising speed. Pick your assistance level and set the derailleur to the large
development. This will allow you to go faster while saving energy.

• Descending: you stop pedalling (freewheeling) or you pedal normally but without effort while

adapting your speed selection and you let yourself move steadily.

• To prolong battery power: start up in position 1. Once your bike has started, set your assistance

level and set the derailleur to the large development. Maintain a constant speed. Your battery charge
will last longer.

BROSE Manual

19

6 - UPKEEP AND MAINTENANCE:

6.1 Upkeep:

To keep your bike in good working order, maintain it regularly:

- Replace the brake pads as soon as they become worn.

- Clean your bike regularly with a sponge and soapy water.

- Do not use detergent or petrol, or a high-pressure jet spray.

- Clean and lubricate the bearings every 6 months.

When you are cleaning your bike, take particular care:

- To clean, rinse, and dry the different parts of the bike, and wipe off any standing water to
avoid the risk of early corrosion.

6.2 Lubrication:

Lubricate lightly and regularly (about once a month):

- The chain

6.3 Maintenance:

Like any mechanical component, a bicycle is also subject to stress and wear.
Different materials and components may react differently to wear or erosion.

If the lifespan of a component has been exceeded, it may break suddenly, potentially causing injury to the
rider. Cracks, scratches, and discolouration in areas that are subjected to high stress indicate that the
component has exceeded its lifespan and should be replaced.

 DO NOT USE LUBRICANTS ON THE SURFACE OF THE WHEEL RIMS OR ON THE TYRES, OR ON THE FRONT AND REAR

BRAKE SHOES.

 CHECK THE CONDITION AND CORRECT FUNCTIONING OF THE SIGNALLING DEVICES (E.G., BULBS, ETC.), AND

CLEAN THEM IF NECESSARY WITH A DRY CLOTH.

BROSE Manual

20

7 - SAFETY – RECOMMENDATIONS:

Regularly check the following points:

The tightness of the wheel nuts (25 Nm for the front, 25 NM for the rear).
Tyre wear (replace the tyre as soon as the wear indicator has been reached) and adjust the pressure to
between 60 and 65 psi (2.8 to 4.5 bars). Your bicycle’s tyres are compatible with the rim base, so no
modifications must be made to these. only the appropriate spare parts (tires, inner tubes, brake friction
elements, etc.) are to be used. Contact your dealer for more information.
Check the tightness of the handlebars (6 Nm), pedals (20 Nm), and saddle (6 Nm).

Because of its weight and motor inertia, allow ample distance for braking your e-bike, especially in wet
weather.

On public roads, everybody who is rides a bike must respect and apply the provisions of the highway code of
the country they are in as well as the legal requirements for this type of transport. (e.g., lights, signalling,
wearing a helmet (recommended), reflective devices, etc.).

For the safe use of your bike, we recommend periodically checking and inspecting: the brakes (wear of the
pads), the condition of the wheel rims and spokes (wear of the wheel rims and spokes), the condition of the
tyres, the steering (fastenings, tightness of the wheel nuts) and all other parts specific to your vehicle. The
wheel rims must be smooth, without any cracks, breakage, or deformities. If you notice any anomaly with the
wheel rims, please get them checked immediately.
WARNING! Like any mechanical component, a bicycle is also subject to high levels of stress and wear.
Different materials and components may react differently to wear or erosion. If the predicted lifespan of a
component has been exceeded, it may break suddenly, potentially causing injury to the rider. Cracks,
scratches, and discolouration in areas that are subjected to high stress indicate that the component has
exceeded its lifespan and should be replaced.

For your safety, it is equally important to replace any critical components that are showing signs of wear or
any other problem (e.g., tyres, wheel rims, etc.) with original parts. Contact your dealer.

 DO NOT SIT ON THE BIKE WHEN IT IS ON ITS STAND, AS THERE IS A RISK THAT IT MAY BREAK AND YOU

COULD HAVE AN ABRUPT FALL.

Stay alert; do not spend too much time looking at the bike’s display while you are driving.
For your safety, it is recommended to routinely have the bike lights on.

We strongly recommend that you wear a helmet.

Wearing a high-visibility vest is mandatory when riding in rural areas, in traffic at night, or on days when the
visibility is poor.

BROSE Manual

21

8 - TECHNICAL DATA

FITTINGS MAX. TIGHTENING TORQUE

Motor locking ring 30

Pedals 20

Front wheel axle 25

Rear wheel axle 25

Seatpost 6

Stem and handlebar 6

Saddle angle 13

CHARACTERISTICS

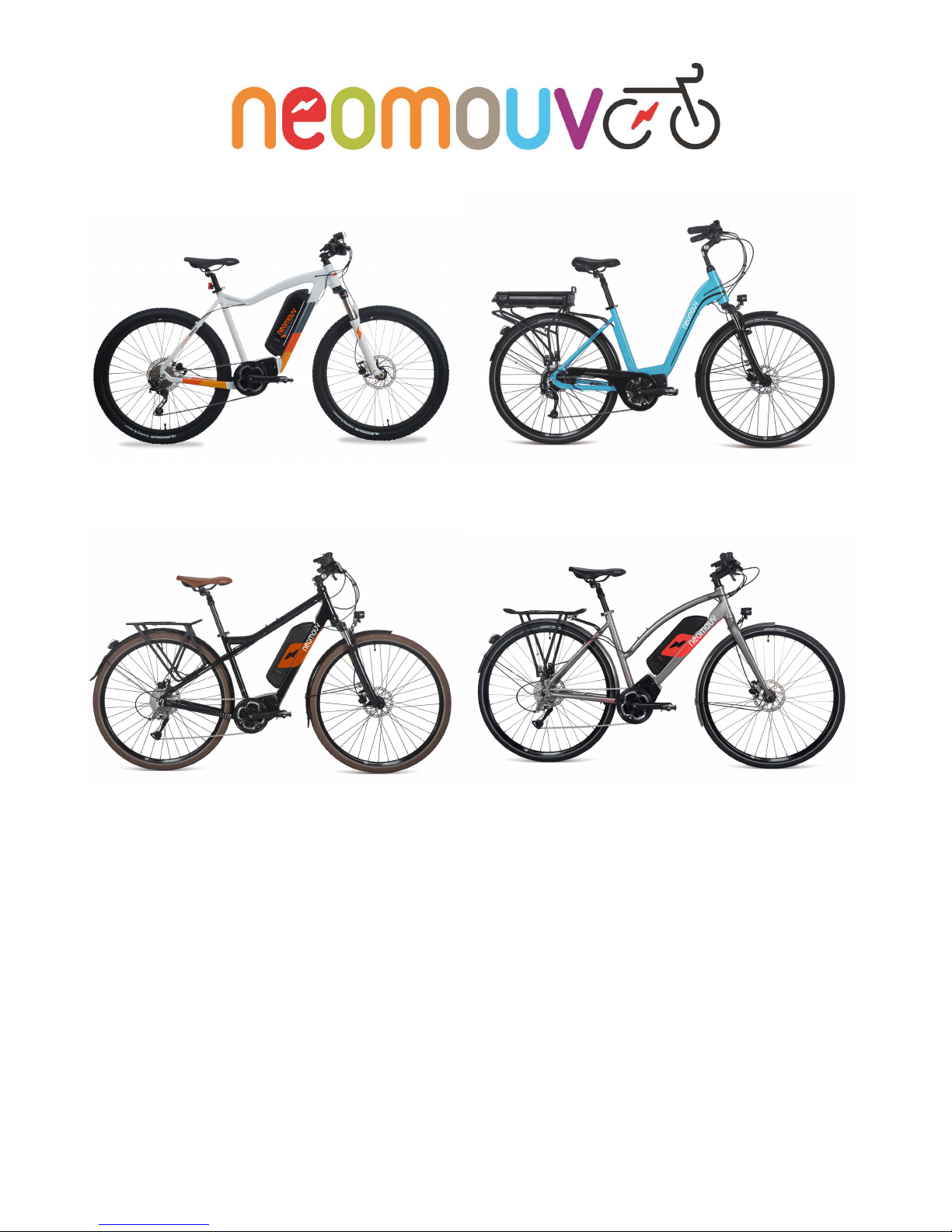

MODEL Cronos Brose/ Iris Brose/ Montana Brose/ Nova Brose

Total weight (battery included) (kg) 22kg/ 25kg/ 22kg/ 23.5kg

Maximum load allowed 120 kg

Maximum speed in assistance mode 25 km

Battery range 70 to 80 km (480 Wh)

80 to 100 km for (580 Wh)
100 to 110 km for (630 Wh)
110 to 130 km for (700 Wh)

(for a user weighing 75 kg riding at an average speed of 18 km/h in Eco mode)

Battery: Lithium Ion cells
750 cycles

Voltage (v) 36 V

Motor: Brose – 90 Nm

Nominal yield (w) 250 watts

Charger voltage 42 V

Type dimensions 27.5’’/ 26 or 28’’/ 28’’/ 28’’

Tyre pressure 2.8 to 4.5 bars

SHIMANO derailleur 10V: 11 – 32T/ 8V: 12-32T/ 9V: 11-32T/ 9V: 11-32T

9 - DECLARATION OF CE CONFORMITY

Available on our website, under the heading “Downloads”

10 - CERTIFICATE OF CONFORMITY

Available on our website, under the heading “Downloads”

BROSE Manual

22

11 - TERMS OF WARRANTY

Keep your receipt as it is your proof of purchase.

Keep the original of your warranty certificate that has been duly completed, signed and stamped by the
dealer.
In the event of a complaint, the buyer must return the bike in its entirety (keys, battery, charger) to the shop
where it was purchased, along with the aforementioned certificate.
Repairs can only be made at the point of sale where you purchased your e-bike or by an authorised agent
(contact us at the address below for a list). Failure to respect these terms or modification of the technical
specifications will automatically void the warranty.

The warranty will be declined if damage is due:

• To a lack of upkeep, or faulty or incomplete assembly;

• To abnormal use (carrying a passenger, overloading, jumps) even if fleetingly;

• To poor adjustments by the user.

The warranty does not include normal wear and tear to parts such as: brake pads, cables, chain, bulbs, tyres,
inner tubes, etc. The warranty is not valid for use in competition.

Length of warranty:

• 5 years for the frame

• 2 years for the other parts

• 2 years for the battery

Any periods of immobilisation lasting longer than 7 days during the warranty period will extend the warranty
by the duration of this period of immobilisation. The warranty does not entitle you to any compensation in cash
or kind for the immobilisation of the bike during the warranty period.
Moreover, you will also benefit from the legal guarantee, in accordance with the provisions of the civil code.
The warranty and after-sales service are provided by the point of sale at which the bike was purchased. They
can also provide you with any information you may need on the use and maintenance of your bike.

The warranty does not cover damage due to misuse, failure to respect safe practices, or accidents, nor does it
cover improper or commercial use of the bike.
This bike is for personal and non-professional use only.

Each electronic component is completely sealed. Opening one of these components (battery, screen, motor,
controller, etc.) may affect the physical integrity of the individual or the system. Opening or modifying one of
the components will void the bike's warranty.
The warranty does not cover parts that are cracked or broken or show traces of visible impact

WARNING! Do not confuse maintenance and warranty. Maintenance overhauls and adjustments cannot be
carried out for free under warranty.

Fill out your CERTIFICATE OF WARRANTY ON OUR WEBSITE www.neomouv.fr

BROSE Manual

23

SAS NEOMOUV

ZI Ouest - Allée des quatre Journaux

72200 LA FLECHE

[email protected]

SAS with capital of 1 200 000 € - RCS Le Mans 518 158 183

SIRET 518 158 183 00013 – APE 4649Z – TVA INT FR 91 518158183

NEOMOUV - reproduction is prohibited. NEOMOUV is a registered trademark. The manufacturer reserves the right to

modify the characteristics of its products in order to make technical improvements or comply with new regulations.
