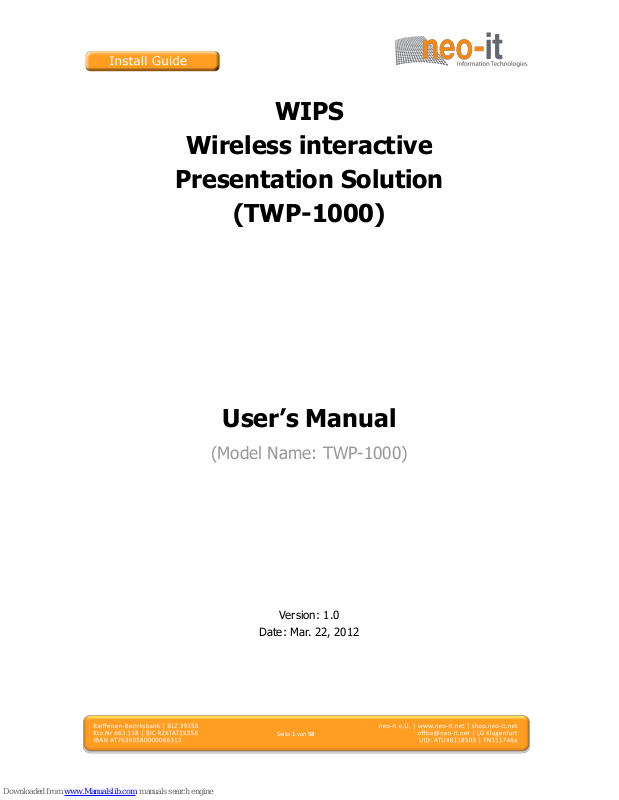

Page 1
Seite 1 von 58
WIPS
Wireless interactive
Presentation Solution
(TWP-1000)
User’s Manual
(Model Name: TWP-1000)
Version: 1.0
Date: Mar. 22, 2012
Page 2
Seite 2 von 58
Table of Contents
1.
Overview
.....................................................................................................
4
2. Package
Contents
....................................................................................
5
3. USB Token
Contents
...............................................................................
5
4. Physical
Details
........................................................................................ 6
5. What You Might
Need
............................................................................
8
6.
Quick Installation
....................................................................................
8
7. WiPG-1000 Receiver
Device
................................................................ 9
8. DoWiFi for
Windows
.............................................................................
12
8.1 Install the
application
.....................................................................
12
8.2 Start the
application
........................................................................
13
8.3
Quick Connect
.....................................................................................
13
8.4
Connect
to WiFi
Network
...............................................................
13

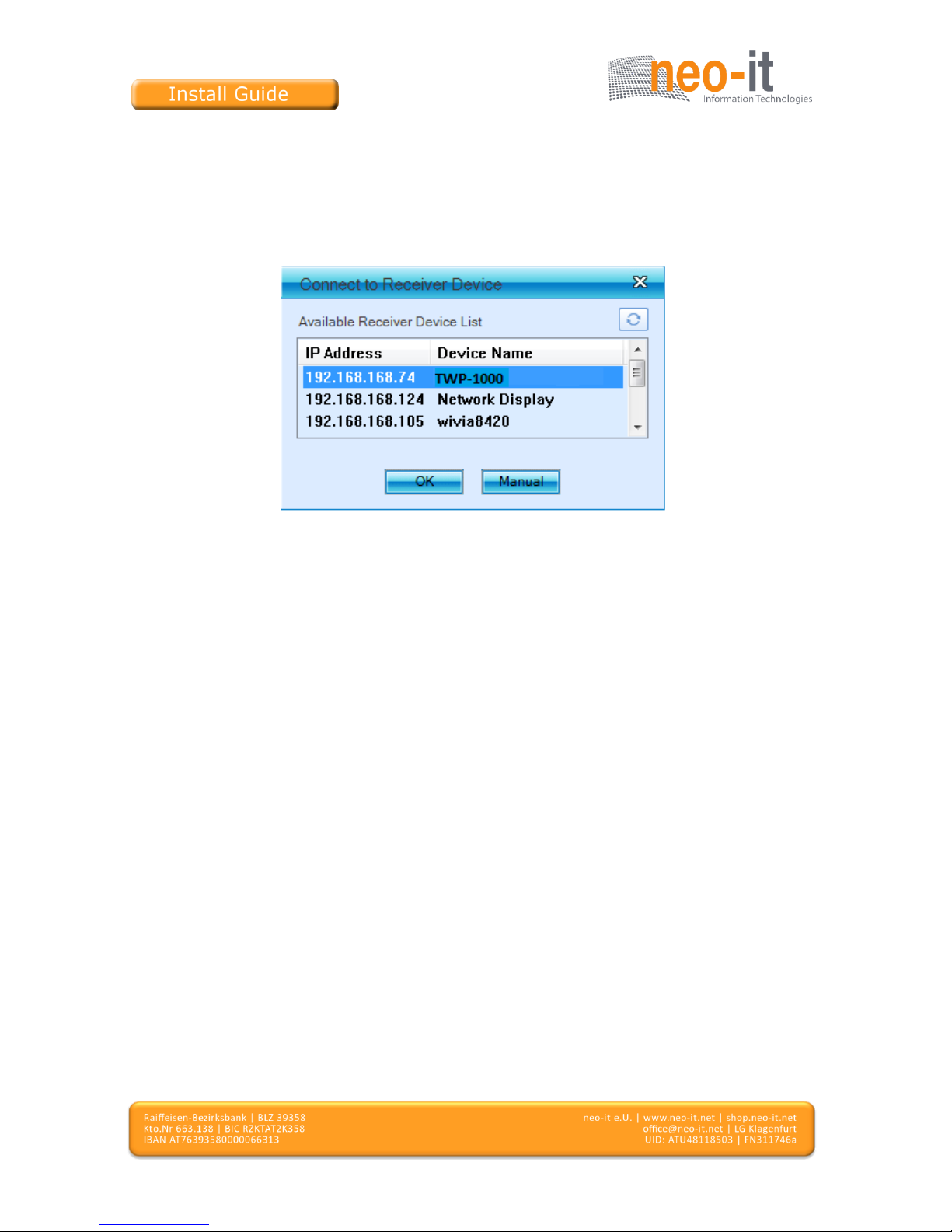

8.5
Connect
to Receiver
Device
........................................................... 14
8.6
Login
.......................................................................................................
14
8.7 Main User
Interface
..........................................................................
15
8.8 Screen
Projection
.............................................................................. 15
8.9 Audio
Projection
................................................................................ 16
8.10 Menu .................................................................................................. 16
8.10.1 Show Receiver
Information
..................................................
17
8.10.2 Web
Admin
...................................................................................
18

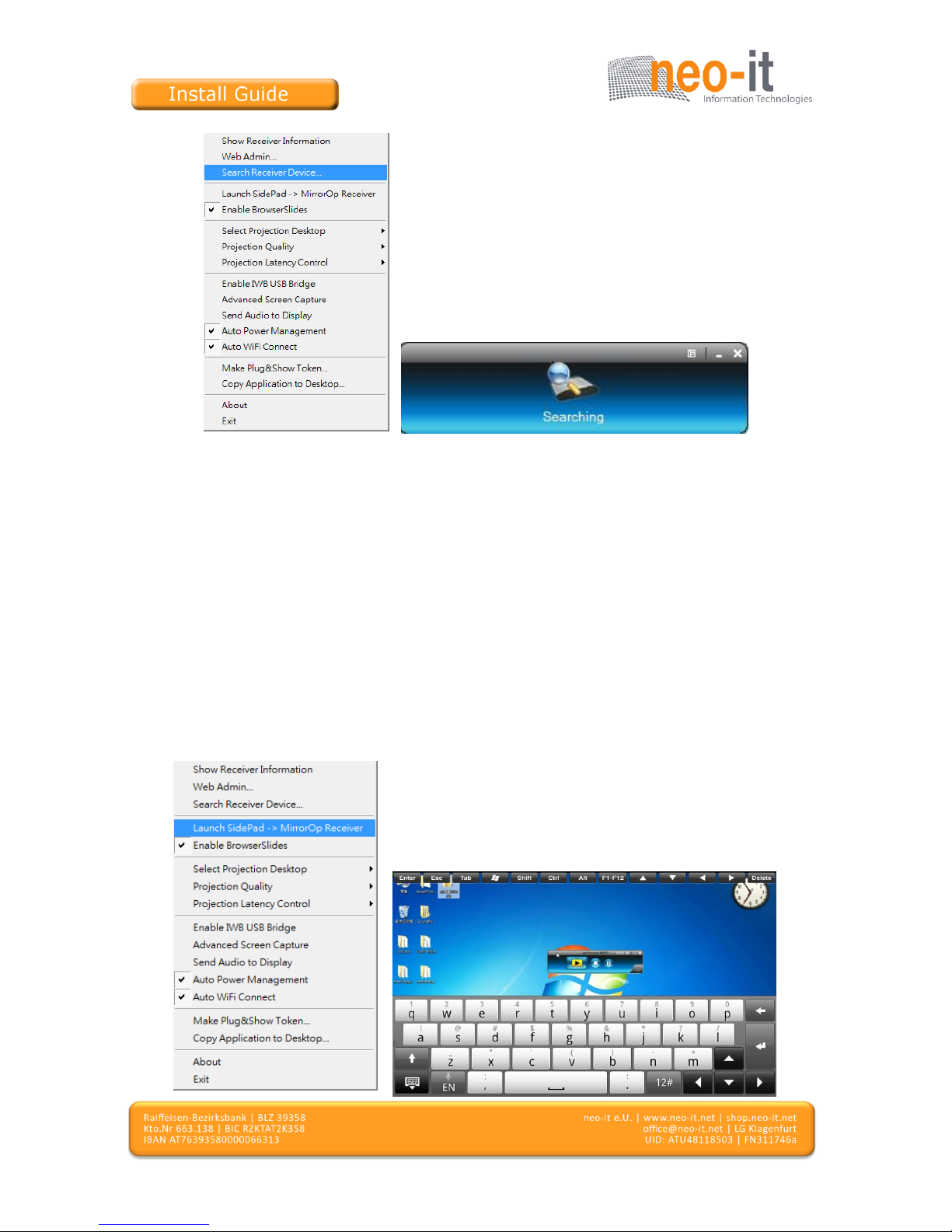

8.10.3 Search Receiver
Device
...........................................................
18
8.10.4
Launch
SidePad -> MirrorOp
Receiver
.............................. 19
8.10.5 Enable
BrowserSlides
..............................................................
20
8.10.6 Select Projection Desktop (Win XP/Vista/7) .................
20
8.10.7 Projection
Quality
.....................................................................
21

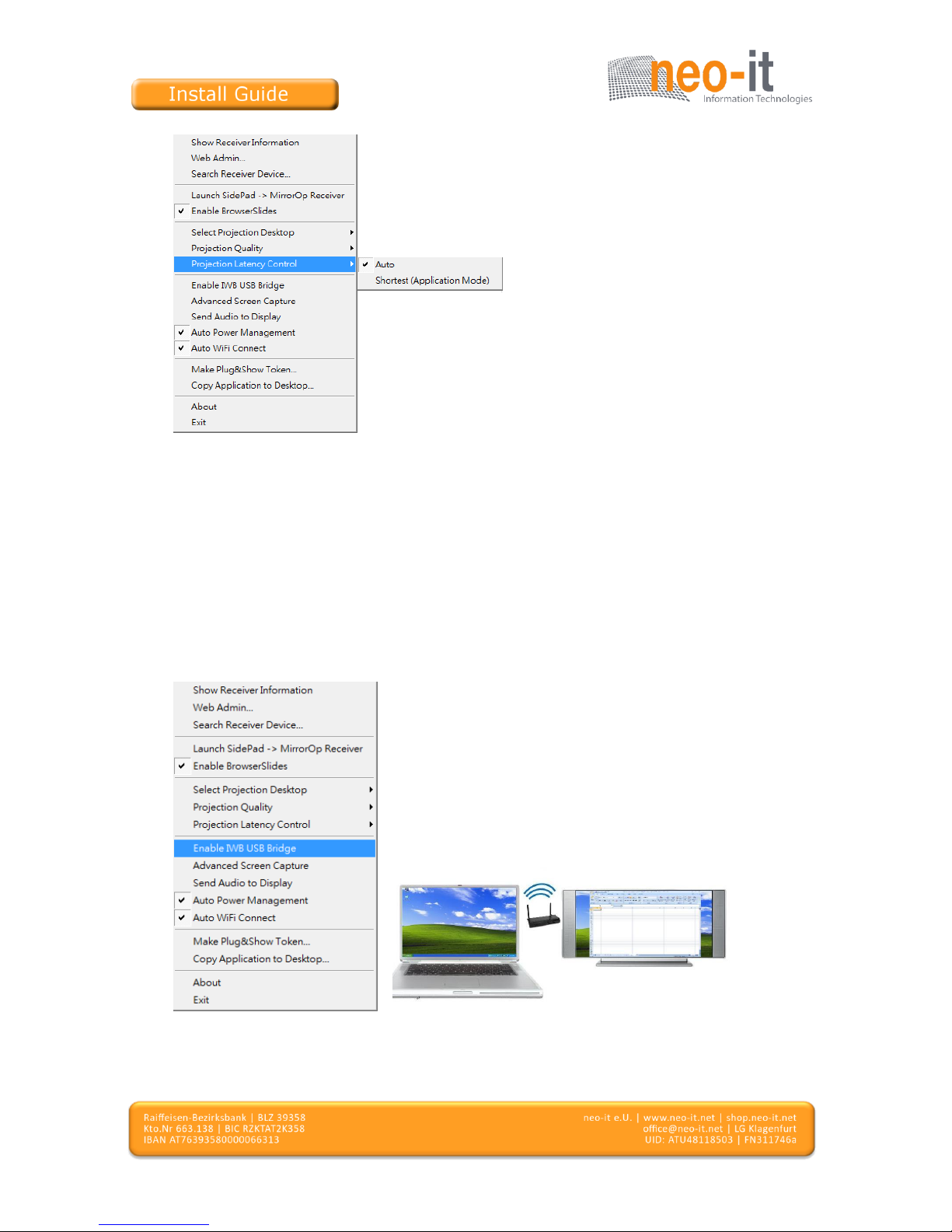

8.10.8 Projection Latency
Control
.................................................... 21
8.10.9 Enable USB IWB
Bridge
..........................................................
22
8.10.10 Advanced Screen
Capture
...................................................... 22
8.10.11 Send Audio to
Display
..............................................................
23
8.10.12 Auto Power
Manager
...............................................................
24
8.10.13 Auto WiFi
Connect
.....................................................................
25
8.10.14 Make wePresent WiPG-1000
Token
................................... 25
8.10.15 Copy Application to
desktop
.................................................
26
8.10.16
About
..............................................................................................
27
Page 3
Seite 3 von 58
8.10.17
Exit
.................................................................................................. 27
9. DoWiFi for
Mac
....................................................................................... 28
9.1 Install the
application
.....................................................................
28
9.2 Start the
application
........................................................................
29
9.3
Quick Connect
.....................................................................................
29
9.4
Connect
to WiFi
Network
...............................................................
29
9.5
Connect
to Receiver
Device
........................................................... 30
9.6
Login
.......................................................................................................
30
9.7 Main User
Interface
..........................................................................
31
9.8 Screen
Projection
.............................................................................. 31
9.9 Audio
Projection
................................................................................ 32
9.10 Menu .................................................................................................. 32
9.10.1 Show Receiver
Information
..................................................
33
9.10.2 Web
Admin
...................................................................................
34
9.10.3 Search Receiver
Device
...........................................................
34
9.10.4
Launch
SidePad -> MirrorOp
Receiver
.............................. 35
9.10.5 Enable
BrowserSlides
..............................................................
35
9.10.6 Projection
Quality
.....................................................................
36
9.10.7 Projection Latency
Control
.................................................... 36
9.10.8 Send Audio to
Display
..............................................................
37
9.10.9 Auto WiFi
Connect
.....................................................................
37
9.10.10
About
..............................................................................................
37
9.10.11
Exit
.................................................................................................. 37
10. Web
Management
.............................................................................
38
10.1 Home
Page
.......................................................................................
38

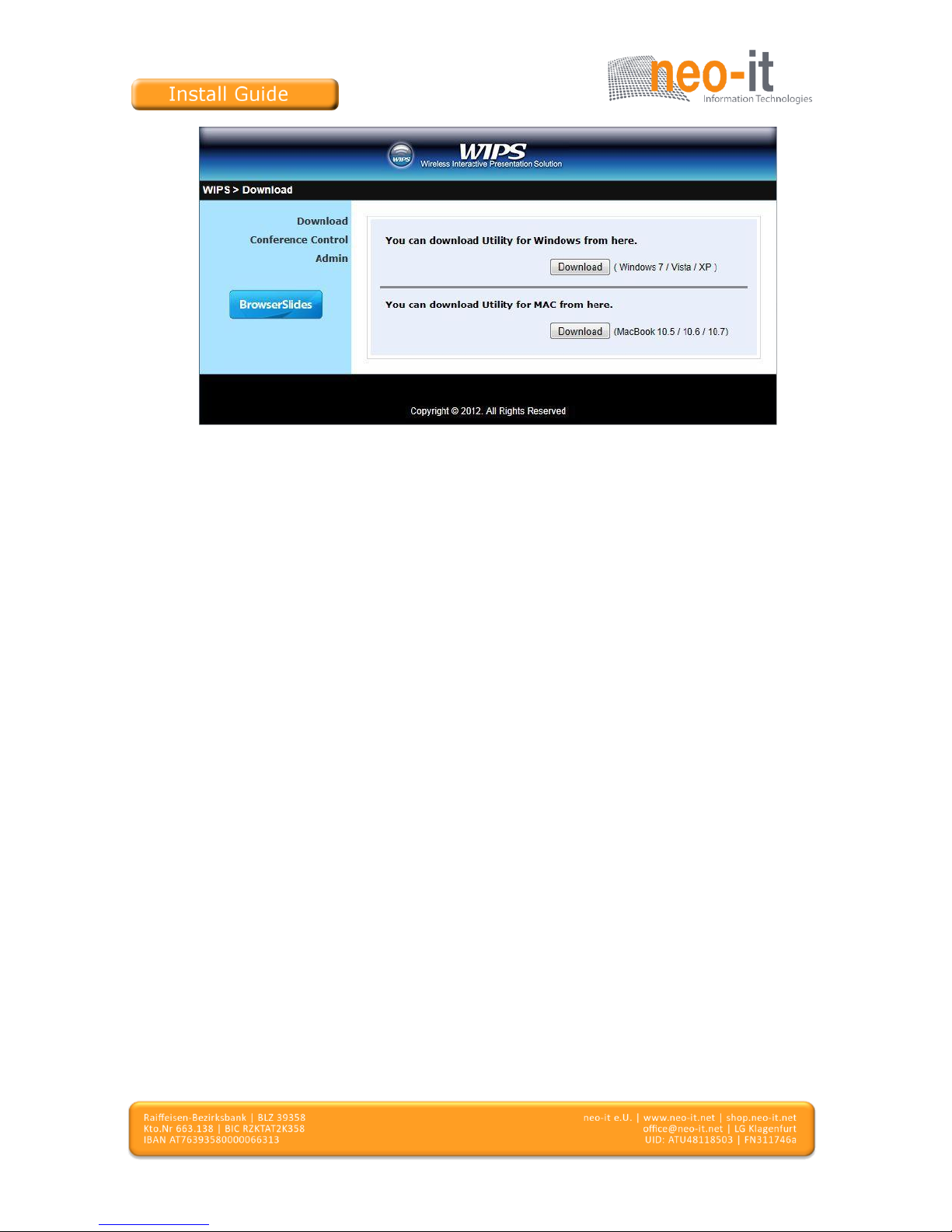

10.2
Download
.........................................................................................
38
10.3 Conference
Control
....................................................................... 39
10.4
BrowserSlides
................................................................................. 40
10.5
Admin
.................................................................................................
41

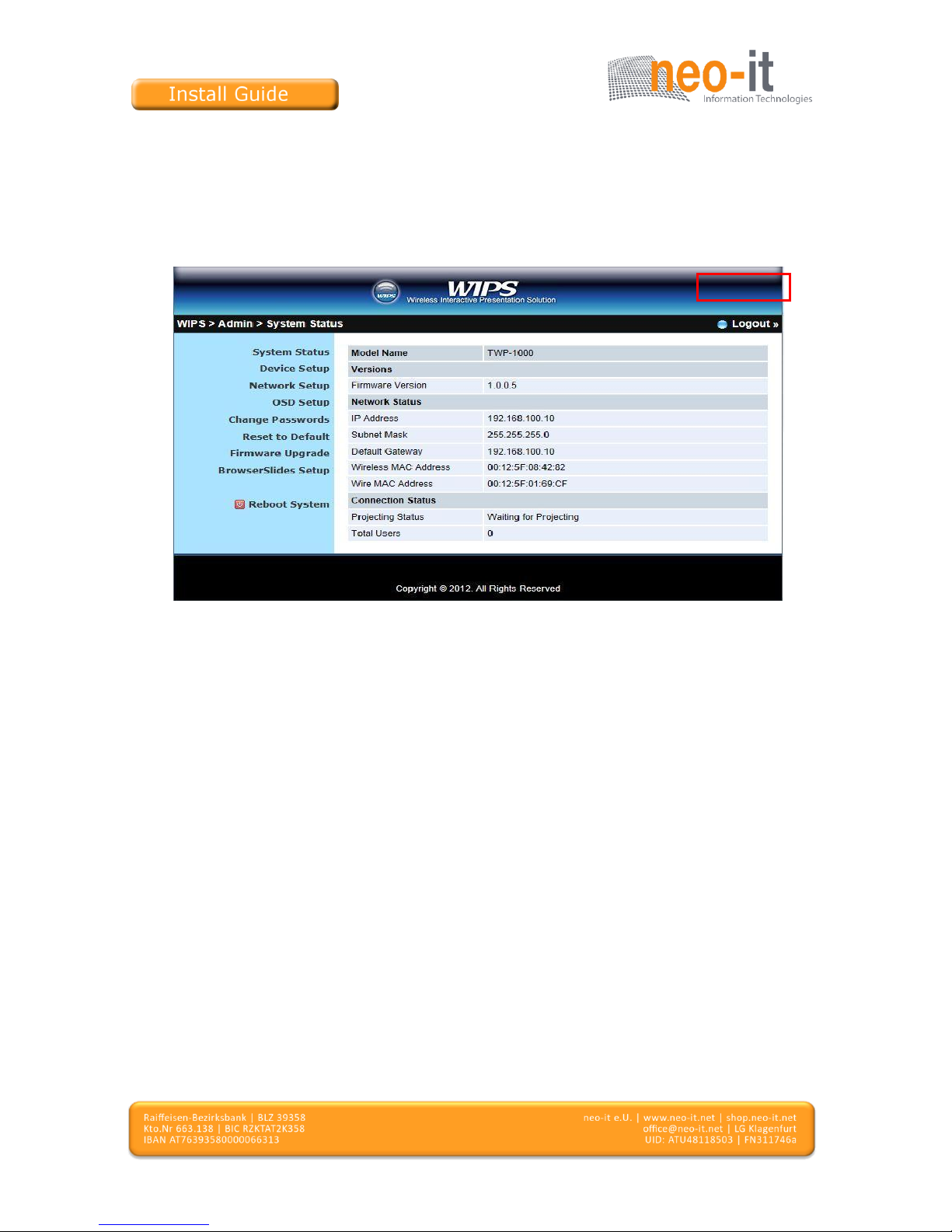

10.5.1 System
Status
.............................................................................
41
10.5.2
Device Setup
...............................................................................
42
10.5.3 Network Setup ........................................................................... 43
10.5.4 OSD
Setup
.................................................................................... 45
10.5.5
Change Passwords
.................................................................... 46
10.5.6 Reset to
Default
......................................................................... 47

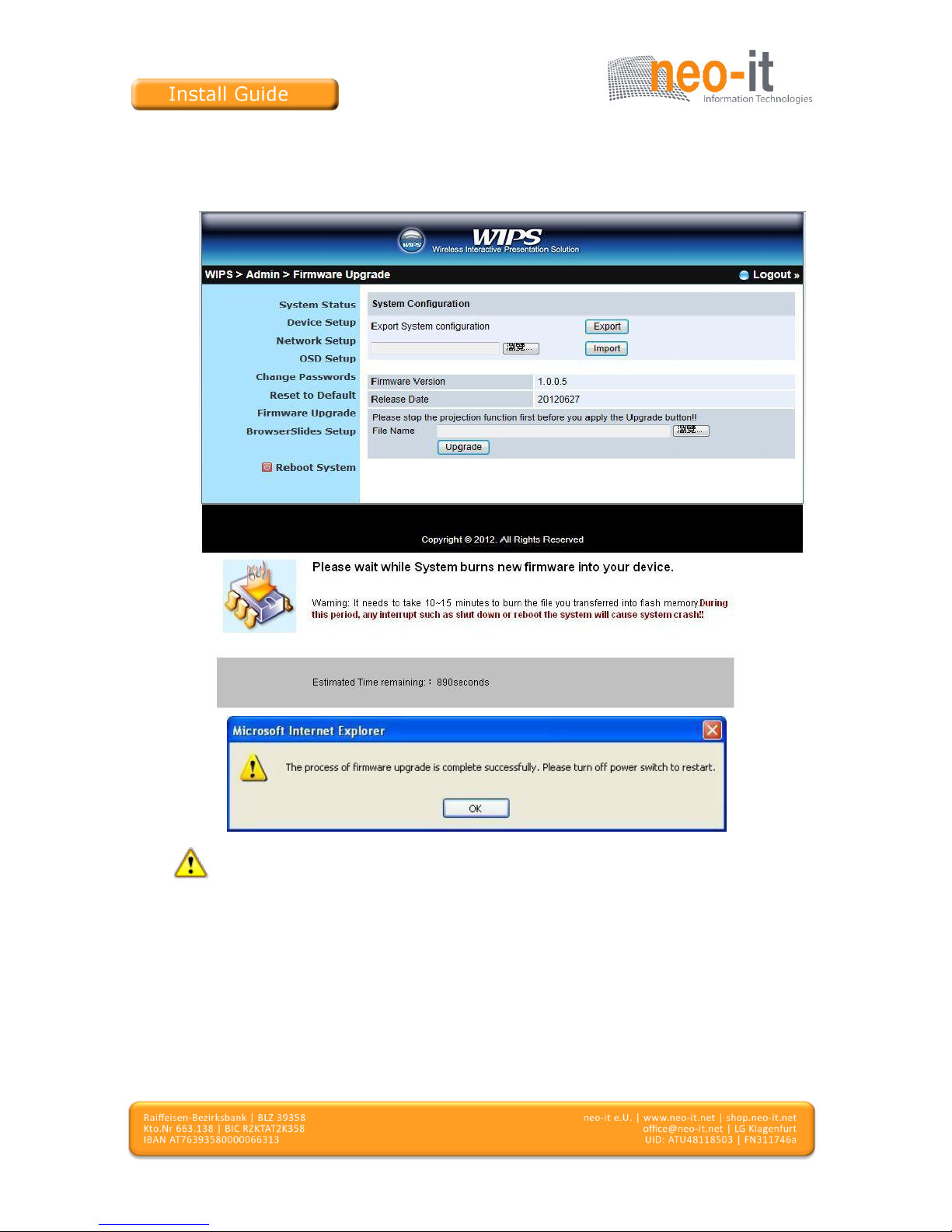

10.5.7 Firmware
Upgrade
.................................................................... 47

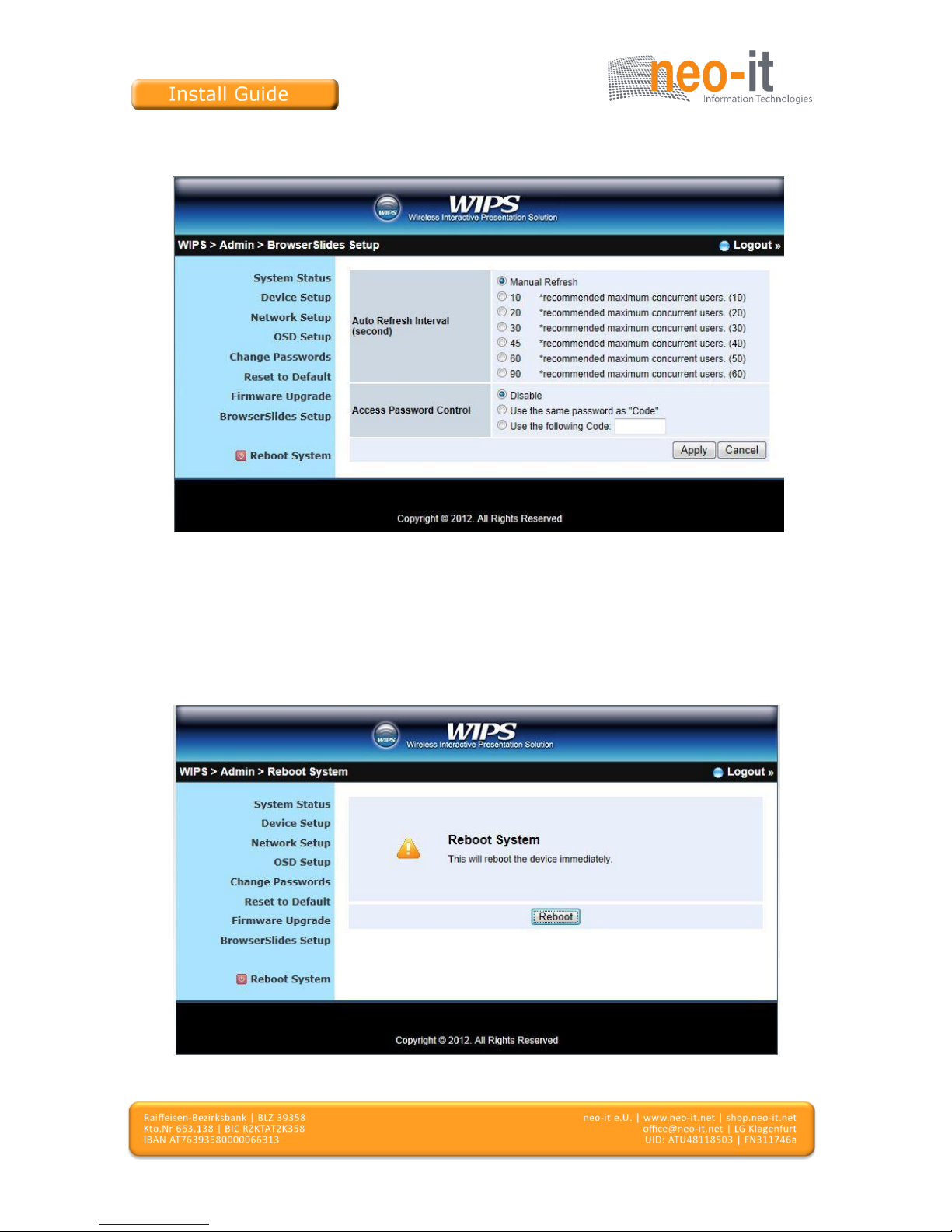

10.5.8 BrowserSlides
Setup
................................................................ 48
Page 4
Seite 4 von 58
10.5.9 Reboot
System
........................................................................... 49
10.5.10
Logout
............................................................................................
50
Page 5
Seite 5 von 58
1.Overview
WIPS TWP-1000 is professional wireless presentation gateway. By enabling the
Revolutionary “interactive” and “wireless” functions, you can throw your
presentations wirelessly from a PC, Mac, iPad, iPhone, or Android devices to a
projector! And use your pad, tab or phone to control your PC/Mac, or view the
presenting slides!

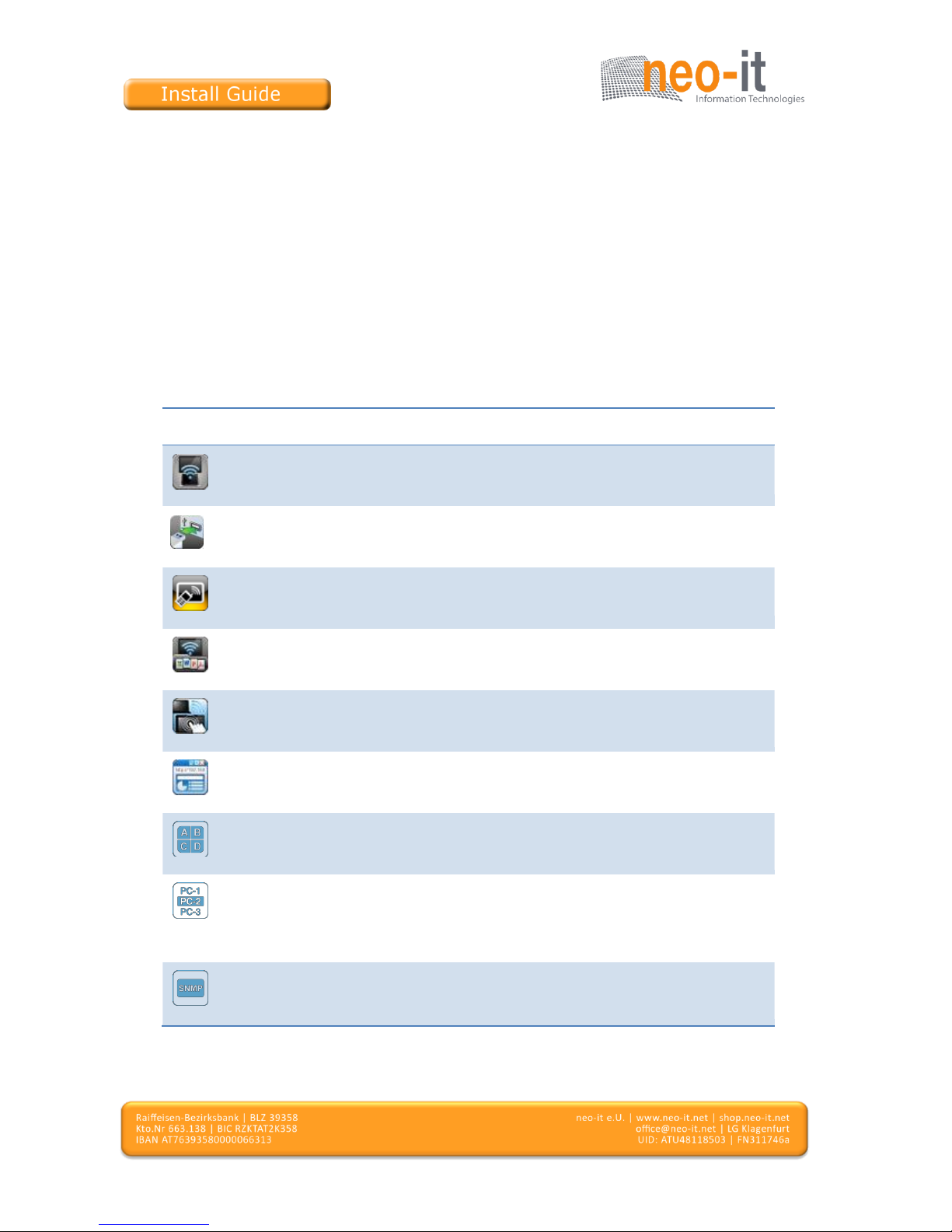

TWP-1000 Features Highlight:
Icon
Feature
Description
DoWiFi
No more wires … Display-over-WiFi for Windows
& Mac
Plug&Show
No software installation required. Just plug in the
USB drive to your PC.
MobiShow
Interactive PPT presentation via iPhone/iPad or
Android devices
WiFi-Doc
High quality presentation via iPhone/iPad or
Android devices
SidePad
Control the presentation on PC or Mac via
iPhone/iPad or Android devices
BrowserSlides
Broadcast slides to your devices with WiFi and
web browser
4-to-1 projection
Project four PC/Mac screens to one projector at
once.
Conference Control
Open WIPS web page to control screen projection
centrally. Or use mouse/keyboard to select a PC
to show from WIPS's UI.
SNMP Manager
Use the SNMP manager to manage WIPS devices
across the network.
Page 6
Seite 6 von 58
Basic Features
Wireless screen and audio projection
Remote desktop control feature
Support Windows Win7, Vista, XP
Support Mac version 10.5 and above
Plug and Show! No installation required … just plug in the
accompanied token to a USB port, and hassle free presentation can be
started in seconds. (Windows)
MobiShow Supportive for iOS/Android/Blackberry/Windows Mobile 5/6
handheld devices
WiFi-Doc Supportive for iOS/Android mobile devices
Up to 30FPS high speed 4-to-1 Split Screen Projection. Turn one
projector into four, increase meeting productivity right away.
Conference control! Allows moderators to streamline grand
meetings.
Provide session security login, wireless WEP/WPA key and Gatekeeper
function to protect presentation contents and keep good security to
office networks.
Web management including software download and device settings
Support WiFi AP-Client Mode
2.Package Contents
WIPS TWP-1000 Box
WIPS TWP-1000 USB Token
Power Adapter (DC +5V, 2.5A)
2 WiFi Antenna
3.USB Token Contents
Windows Installer (WIPS Windows Installer)
MAC Installer (WIPS Mac Installer)
VAC Driver (For Windows XP Audio Projection)
VDD Driver (For Windows Virtual Extended Screen)
USBoIP Driver (For USB IWB Bridge)
Utility
Page 7
Seite 7 von 58
PtG Converter (For MobiShow PtG function)
SNMP Manager (For SNMP Management)
4.Physical Details

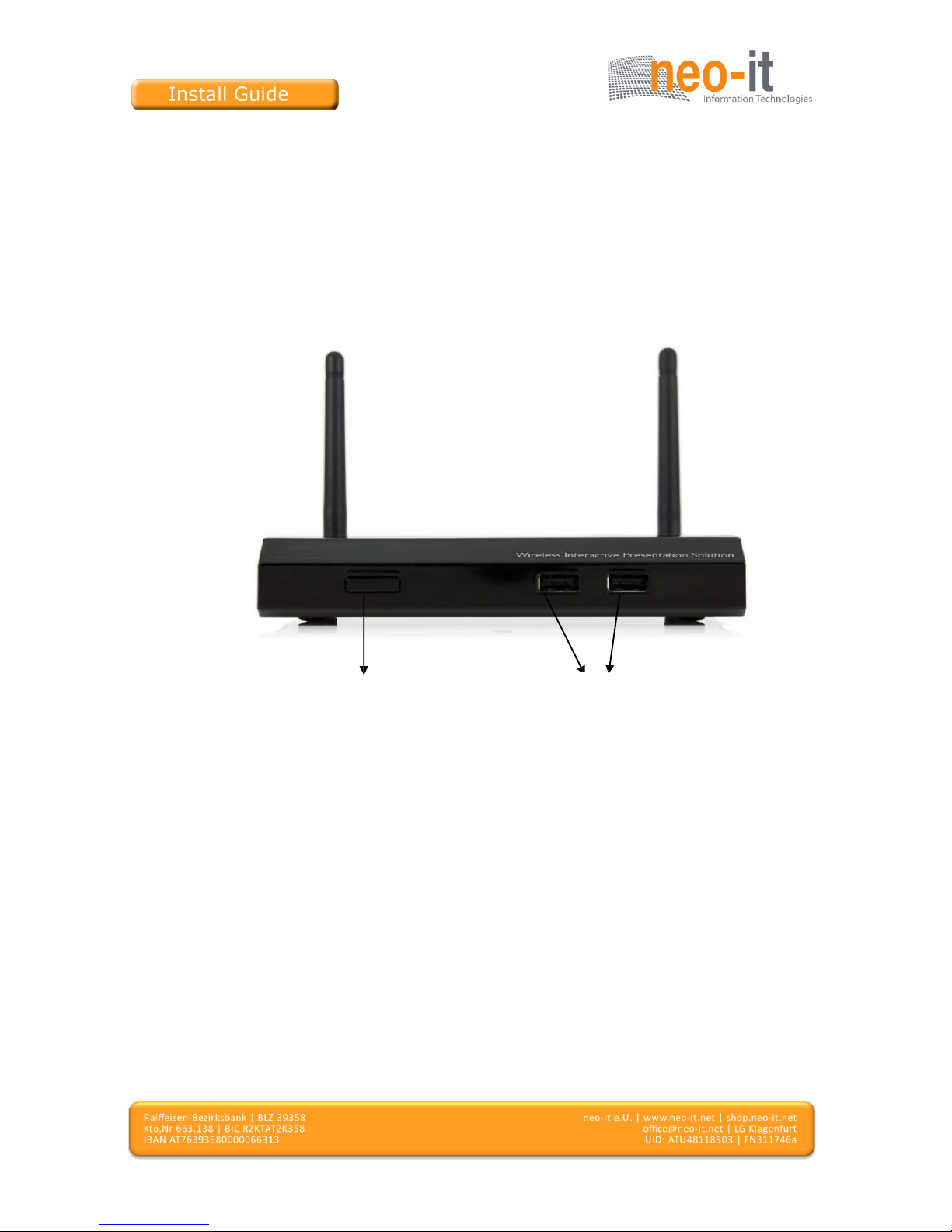

Front Panel
Power Button and LED USB Port
Description
Power Button and LED Power on/off button.
LED Indicator: System Loading(Red),
Ready(Yellow)
USB Port (Front) USB port for USB mouse and keyboard
Page 8
Seite 8 von 58

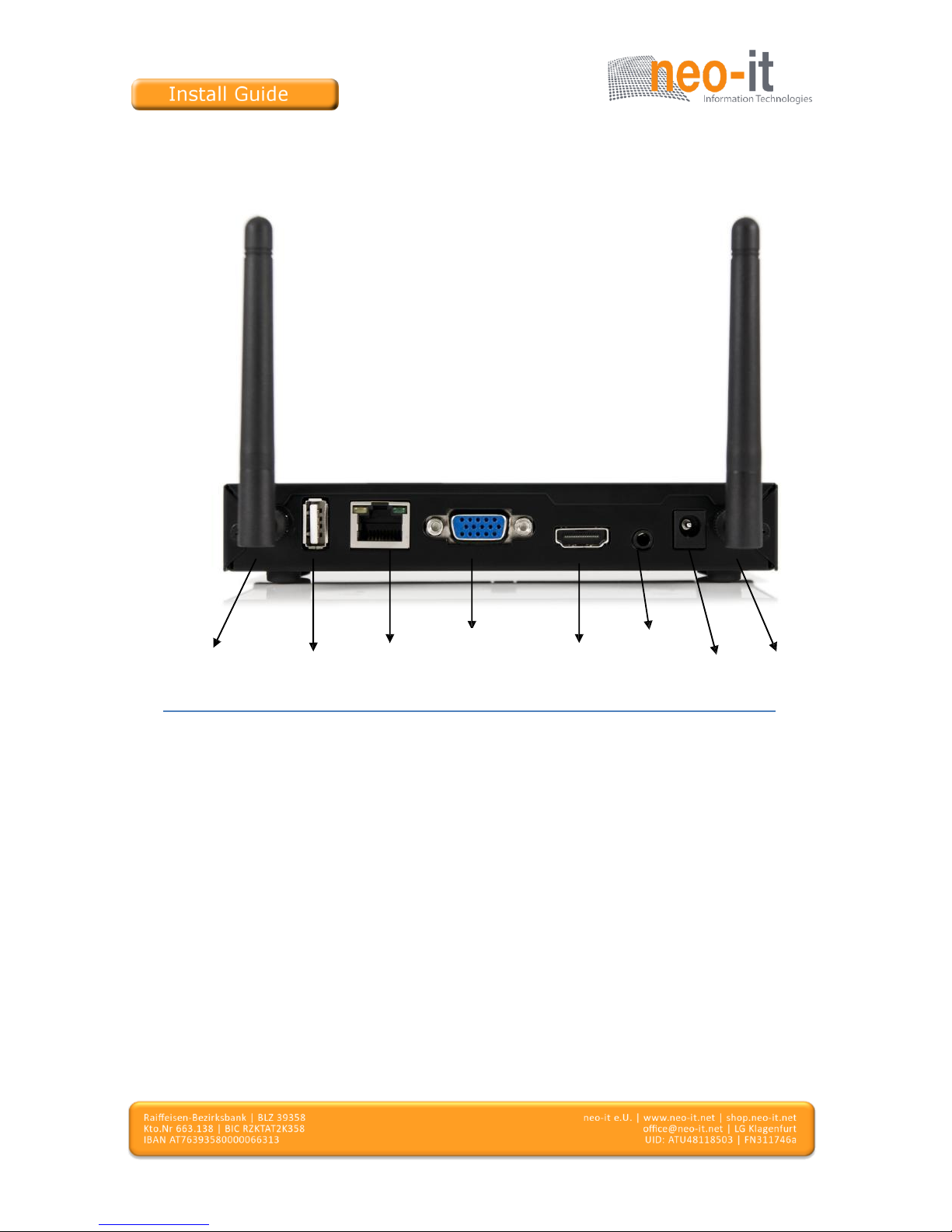

Rear Panel
Antenna
USB Port
RJ-45
VGA Connector
HDMI
Audio Jack
Power Jack
Antenna
Description
Antenna WiFi Antenna
USB Port (Rear) USB port for USB IWB device (HID type)
RJ-45 10/100M RJ-45 port
VGA Connector VGA connector
HDMI HDMI Connector
Audio Jack Audio Jack (3.5mm)
Power Jack Power Jack (5V/2.5A)
Page 9
Seite 9 von 58

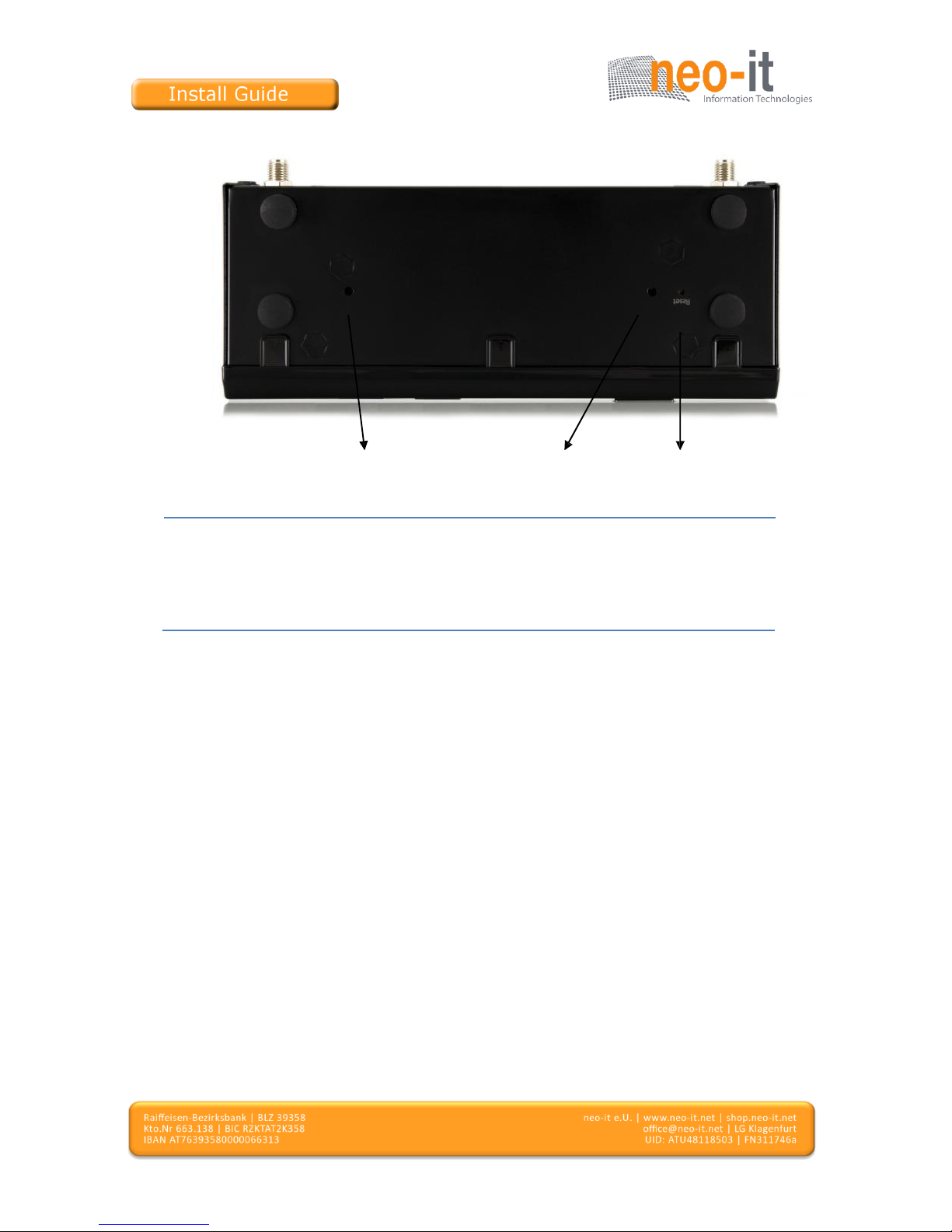

Bottom Side
Screw
hole
(Optional kit for Wall Mount)
Description
Screw Hole Screw Hole for Wall Mount Kit
Reset Button
Reset Button Press reset button and power on the device to
execute Hardware Reset.
5.What You Might Need
Projector or HDTV with VGA/HDMI interface
Windows or Mac PC/Laptop
Apple iPhone, iPad or iPod-touch device
Android Phone or Tablet device
Speaker (Optional, for audio projection feature)
USB Mouse and Keyboard (Optional, for remote desktop feature)
USB HID IWB Device (Optional, for IWB over IP feature)
6.Quick Installation

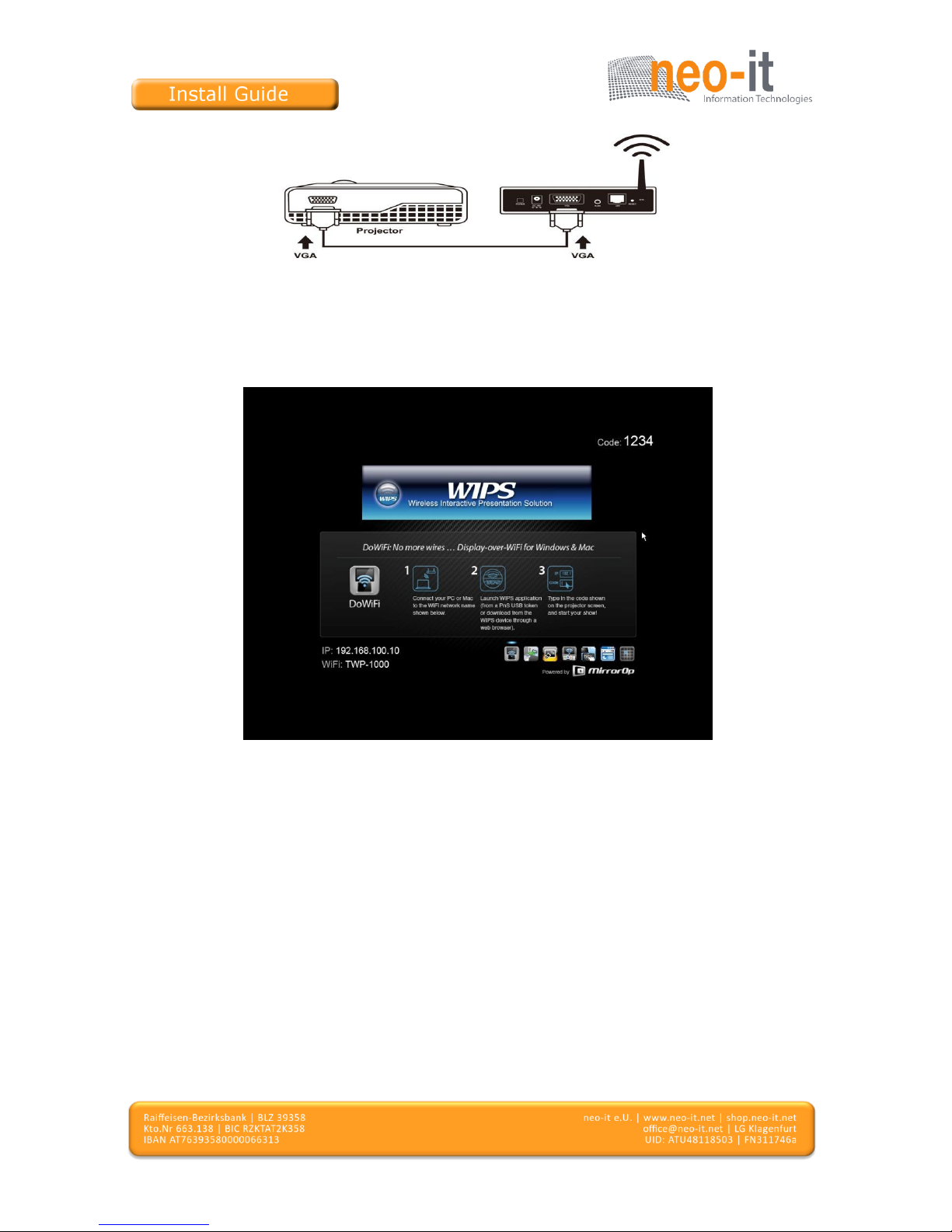

1) Connect WIPS TWP-1000 device to Projector through VGA port and turn on
projector power.
Page 10
Seite 10 von 58
2) Connect the power adaptor to TWP-1000 device and press the power button
to turn on TWP-1000 device.
It will show the default standby screen as below on projector when
system is ready.
3) Attach the speaker cable to TWP-1000 phone jack for audio output
4) Attach the USB mouse and keyboard to TWP-1000 front USB port for OSD
control and remote desktop control
5) Attach the USB IWB cable to TWP-1000 rear USB port for IWB control
7.TWP-1000 Receiver Device
1) Connect WIPS TWP-1000 device to Projector through VGA port and turn on
projector power.

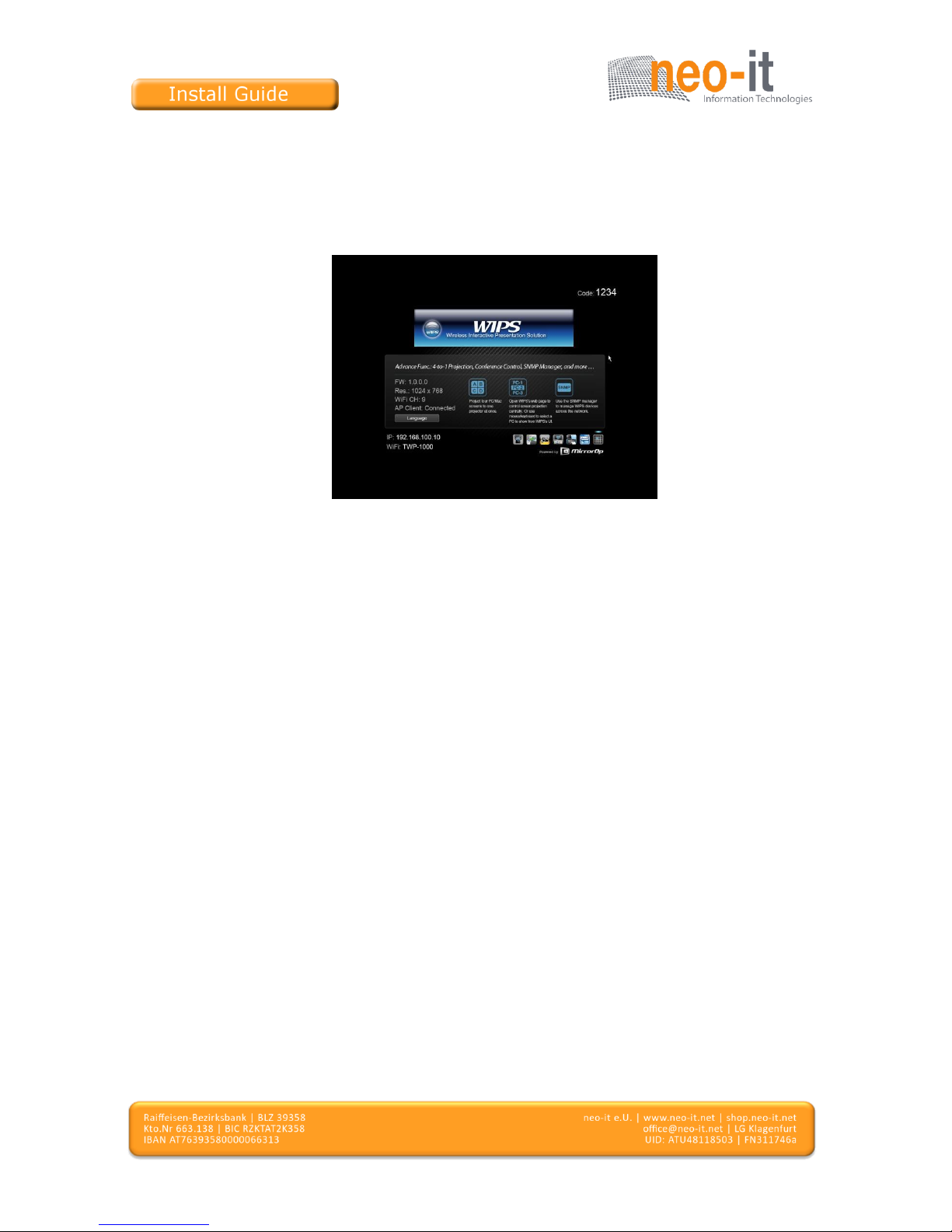

2) It will show the Quick Guide Information, WiFi Network Name, IP Address
and Code on standby screen.
Page 11
Seite 11 von 58

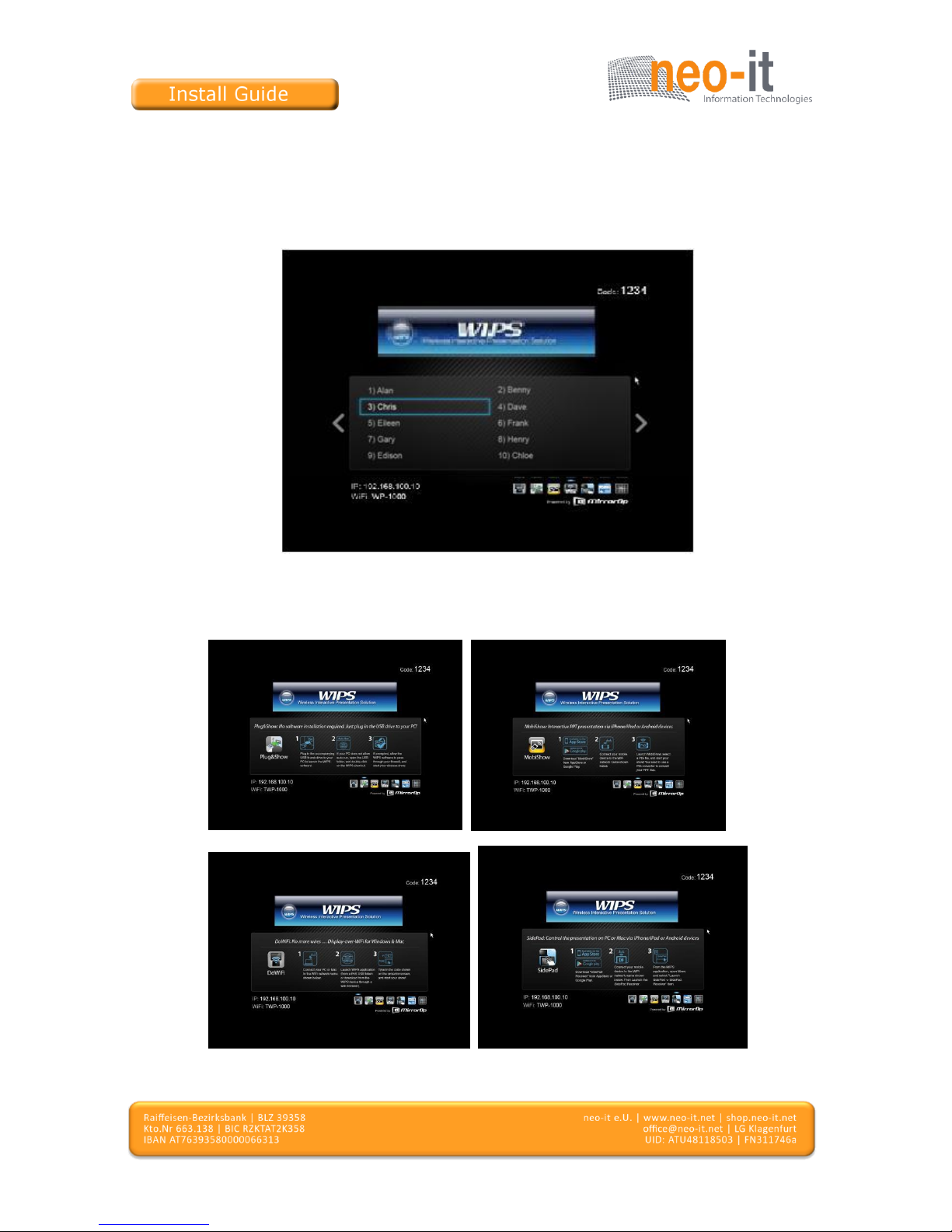

3) If there is sender connected to TWP-1000 device, it will show the PC-List on
standby screen, conference moderator can use the USB mouse/keyboard to
select the PC and control it remotely.
4) You can also click the feature Icon to browse the Quick Guide for each
feature.
5) If you need more advance information, please click the “Advance” icon, you
Page 12
Seite 12 von 58
can find the FW version, resolution and WiFi security information.
Meanwhile, you can also change the Quick Guide Language
(EN/SC/TC/JP/KO) here.
6) System will enter the Screen Saver mode if none is connected, it will restore
to standby status immediately when there is any sender connected.
Page 13
Seite 13 von 58
8.DoWiFi for Windows
8.1 Install the application

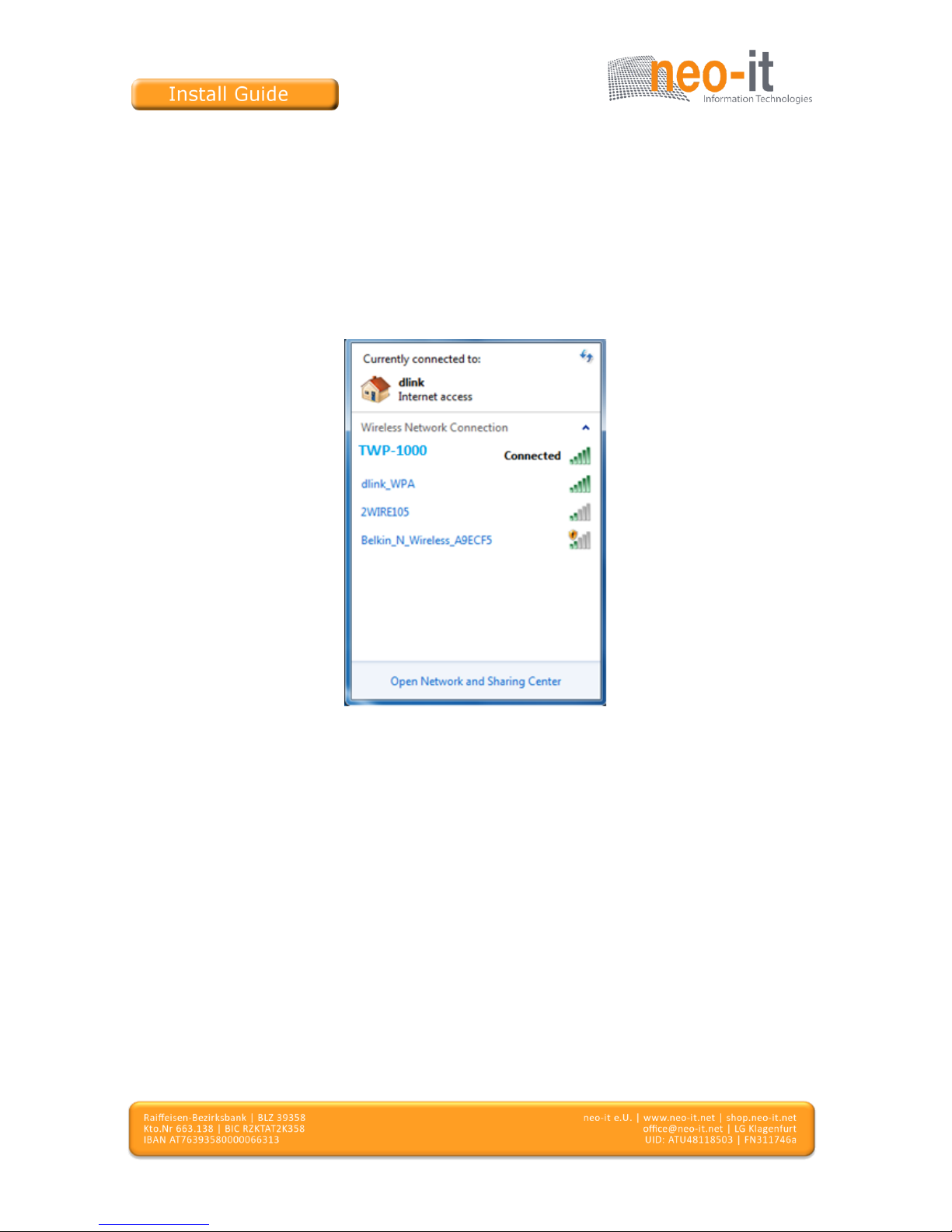

1) Make sure your PC WiFi is enabled already, and connect your PC to WIPS
TWP-1000 box through WiFi.

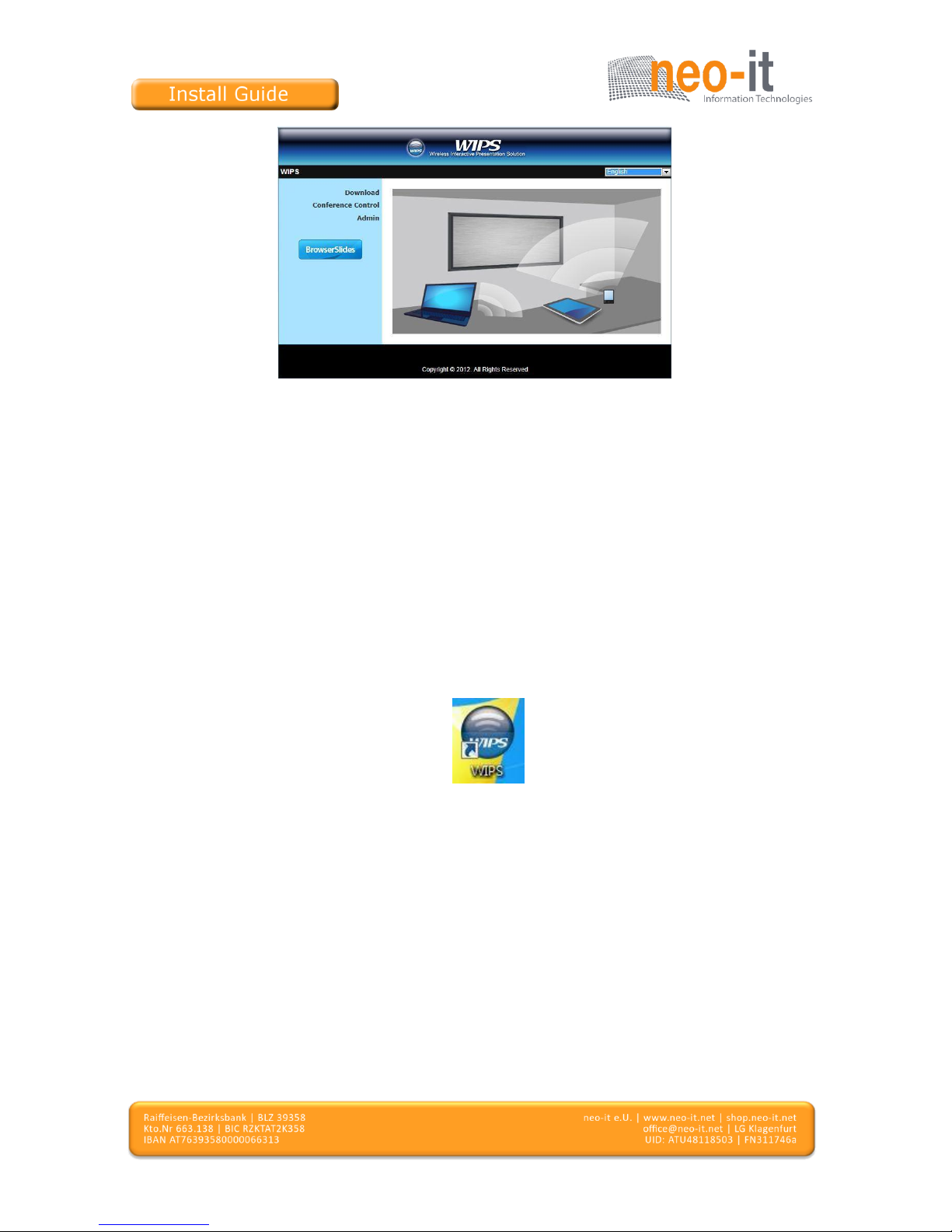

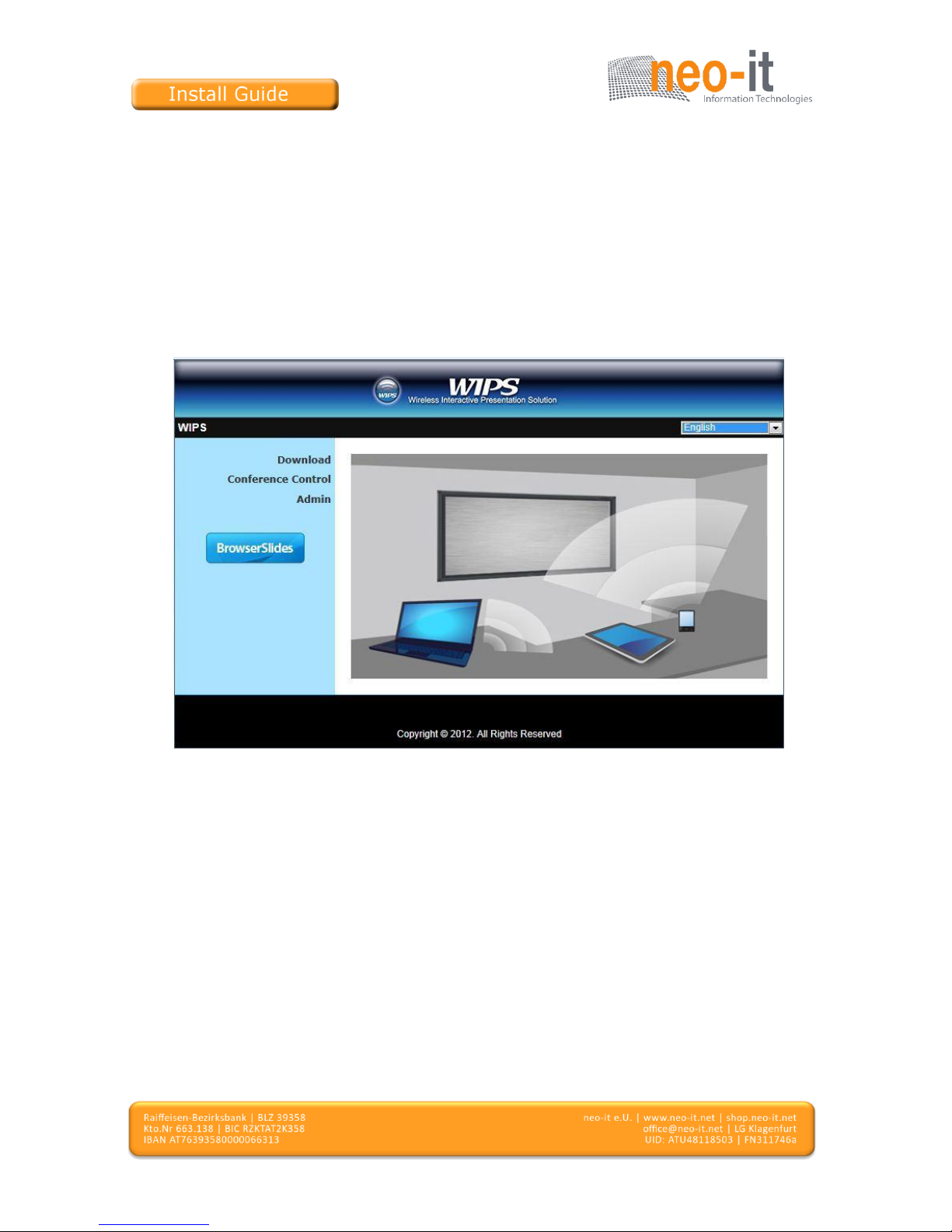

2) Open your browser and enter the IP address shown on the left corner of
projector screen to access the WIPS TWP-1000 web home page. (Default
IP: 192.168.100.10)
3) Download the client software for “Windows 7/Vista / XP” and install on your
PC. (Ps. You can also launch the application from PnS token directly.)
Page 14
Seite 14 von 58

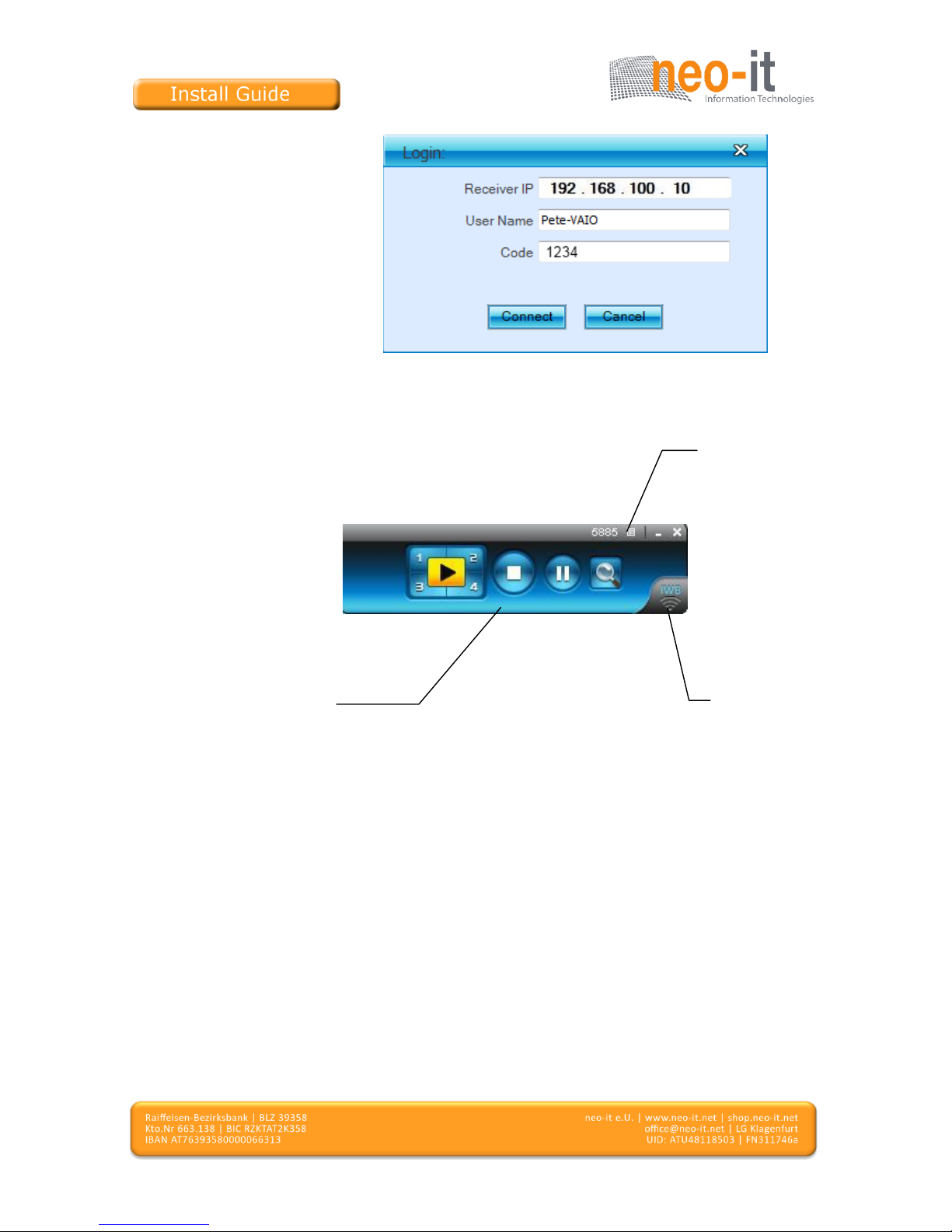

4) Launch WIPS client and connect to TWP-1000 receiver.
(Make sure your personal firewall allows WIPS TWP-1000 software to pass
through.)
8.2 Start the application
5) Click WIPS icon on desktop to execute the application, or launch the
application from PnS token directly.
6) It will start to search WIPS TWP-1000 receiver automatically.
Page 15
Seite 15 von 58

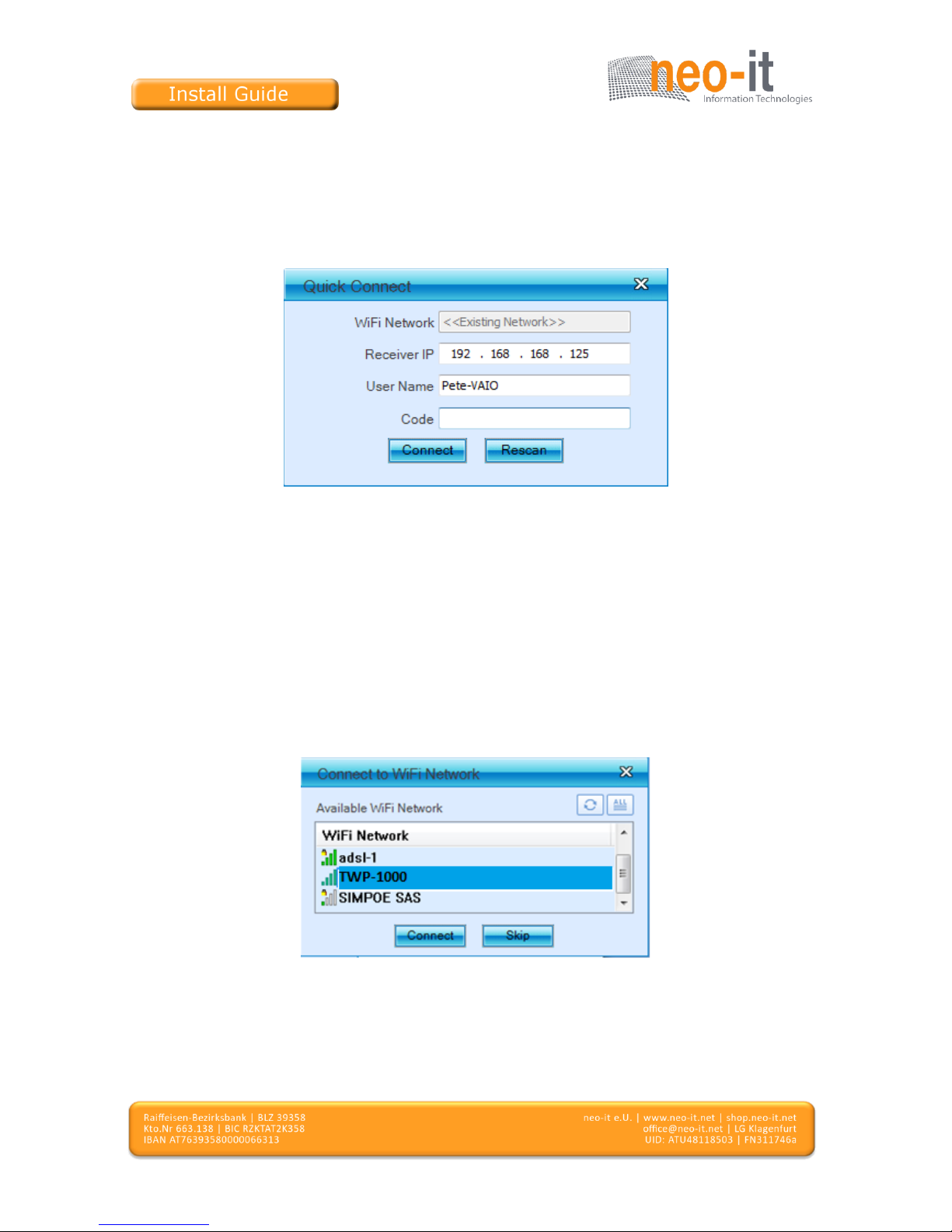

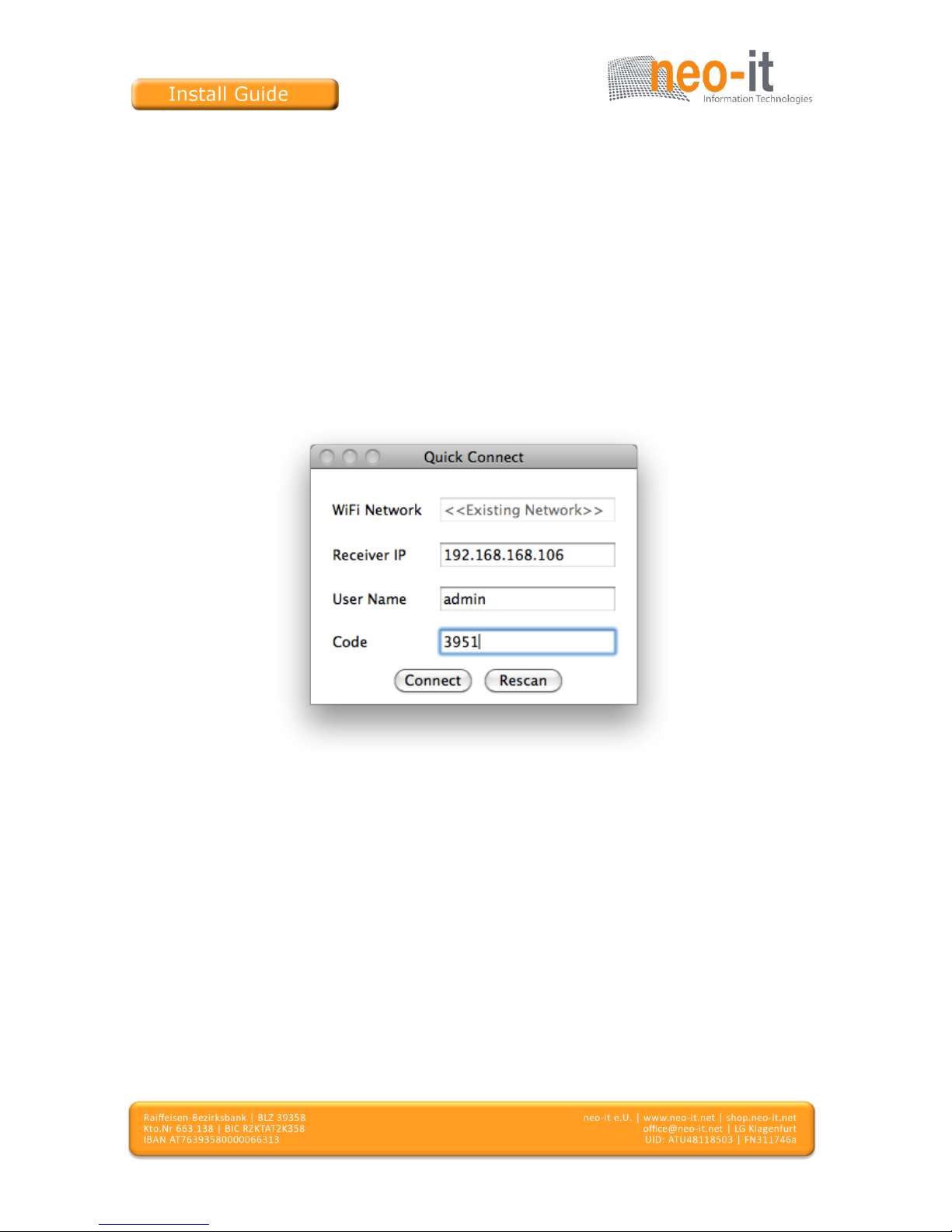

8.3 Quick Connect
1) WIPS will memorize the last successful connection profile and open the
quick connect dialog, you can enter the code and press the “Connect”
button to connect this TWP-1000 directly.
2) If you want to connect to another TWP-1000 receiver, please press the
“Rescan” button.
8.4 Connect to WiFi Network
1) WIPS will search the available WiFi Network and list the TWP-1000 WiFi
Device. You can select a network and press the “Connect” button to connect
the selected WiFi Device.
2) You can press the “Refresh” button to search again or press the “All” button
to list all available WiFi Network name.
3) If you don’t like to change the WiFi Network and keep the connection to
current network, you can press the “Skip” button.
Page 16
Seite 16 von 58
8.5 Connect to Receiver Device
1) WIPS will search and list the TWP-1000 receiver Device. You can select the
target receiver device and press the “OK” button to connect the selected
receiver device.
2) You can press the “Refresh” button to search again.
3) If you can’t find the target receiver device from the list, you can press the
“Manual” button to enter the receiver IP address manually and connect.
8.6 Login
1) When it connects to a “Code” protection enabled TWP-1000 receiver, you
have to enter the “Code” and press the “Connect” button to login the
receiver.
(You can find the CODE from the right-upper of OSD standby screen)
Page 17
Seite 17 von 58
2) If you want to connect to another receiver or cancel the login, please press
the “Cancel” button.
8.7Main User Interface
Menu Area
Control Area for Screen
Projection Feature
Status Indicator
Page 18
Seite 18 von 58

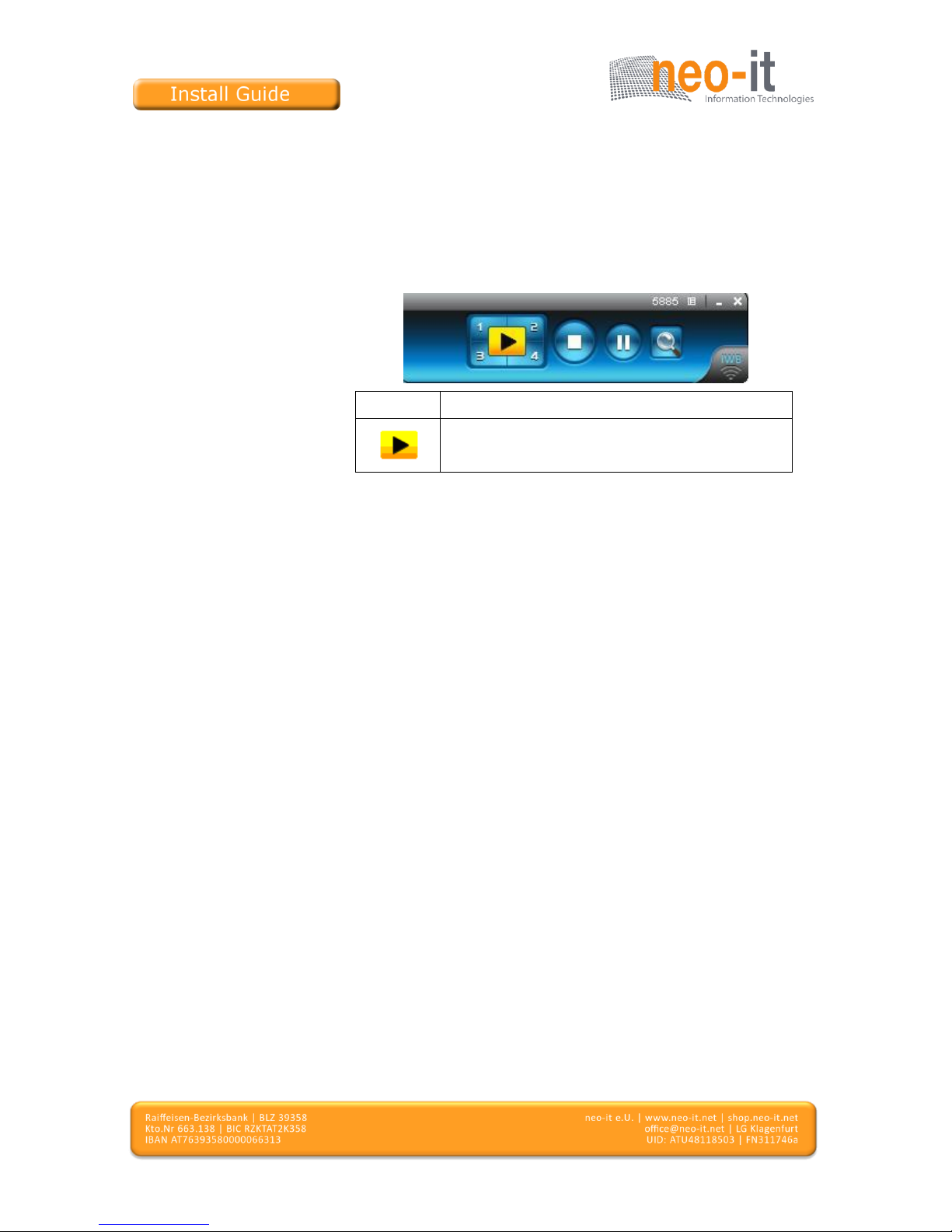

8.8 Screen Projection
1) Click the “Play” button for full or split screen, you can project the main
screen on to the display immediately, click the “Pause” button, you can
freeze you projection screen, and click the “Stop” button to stop projecting
your screen.
Button
Description
Full Screen projection
Page 19
Seite 19 von 58

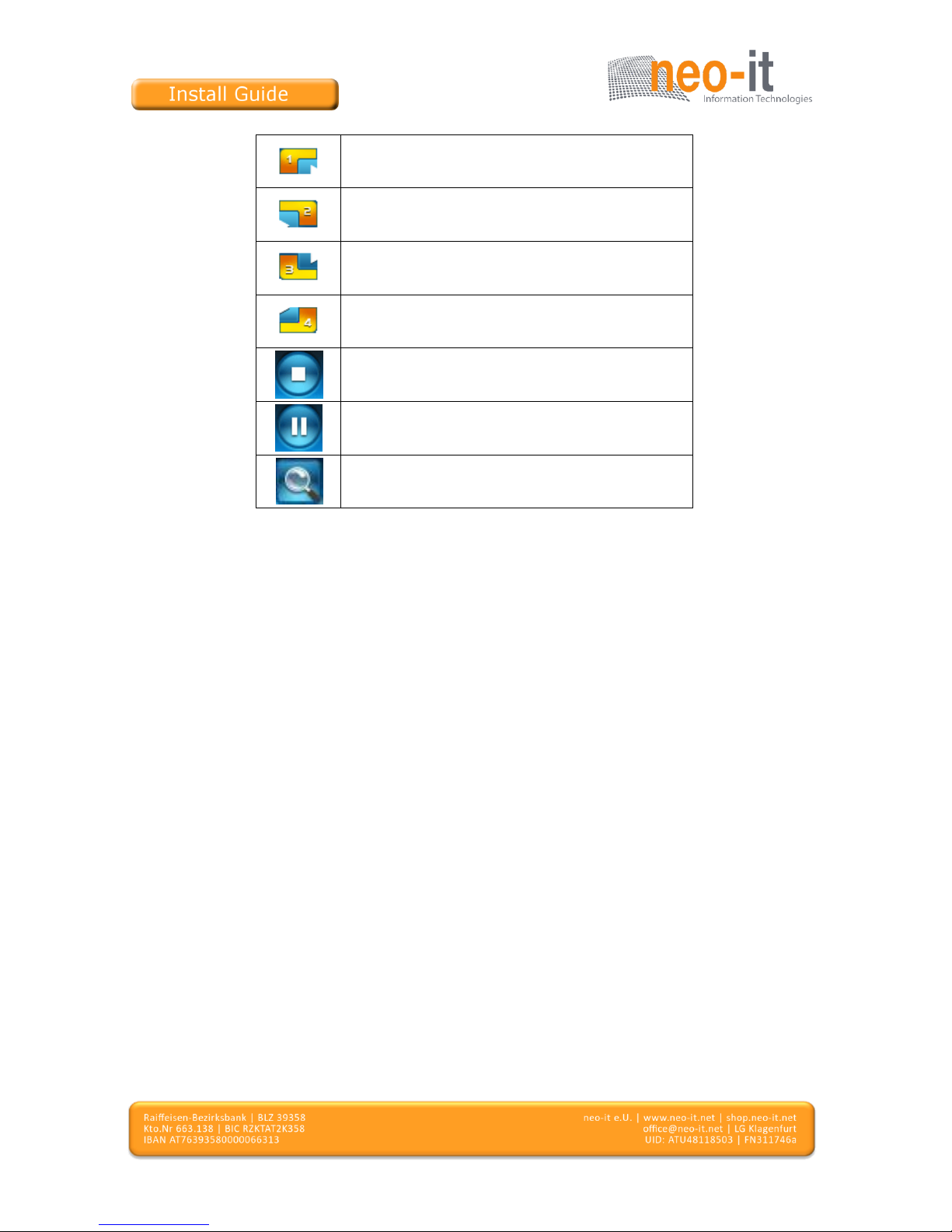

Project to Split #1
Project to Split #2
Project to Split #3
Project to Split #4
Stop projecting
Pause projecting
Enable the Windows Magnifier function
8.9 Audio Projection
1) When you are doing the full screen projection, you can also choose to
project the audio to WP-1000 receiver for the multimedia or video scenario.
2) To enable or disable the audio projection feature, please change the setting
from WIPS menu. (Menu -> Send audio to display)
Note: For Windows XP system, please install the Audio driver (“VAC.exe”,
Virtual Audio Control Driver) on your computer first, you can find the
software from USB Token. (Windows Vista and Win7 is not necessary to
install VAC)
Page 20
Seite 20 von 58

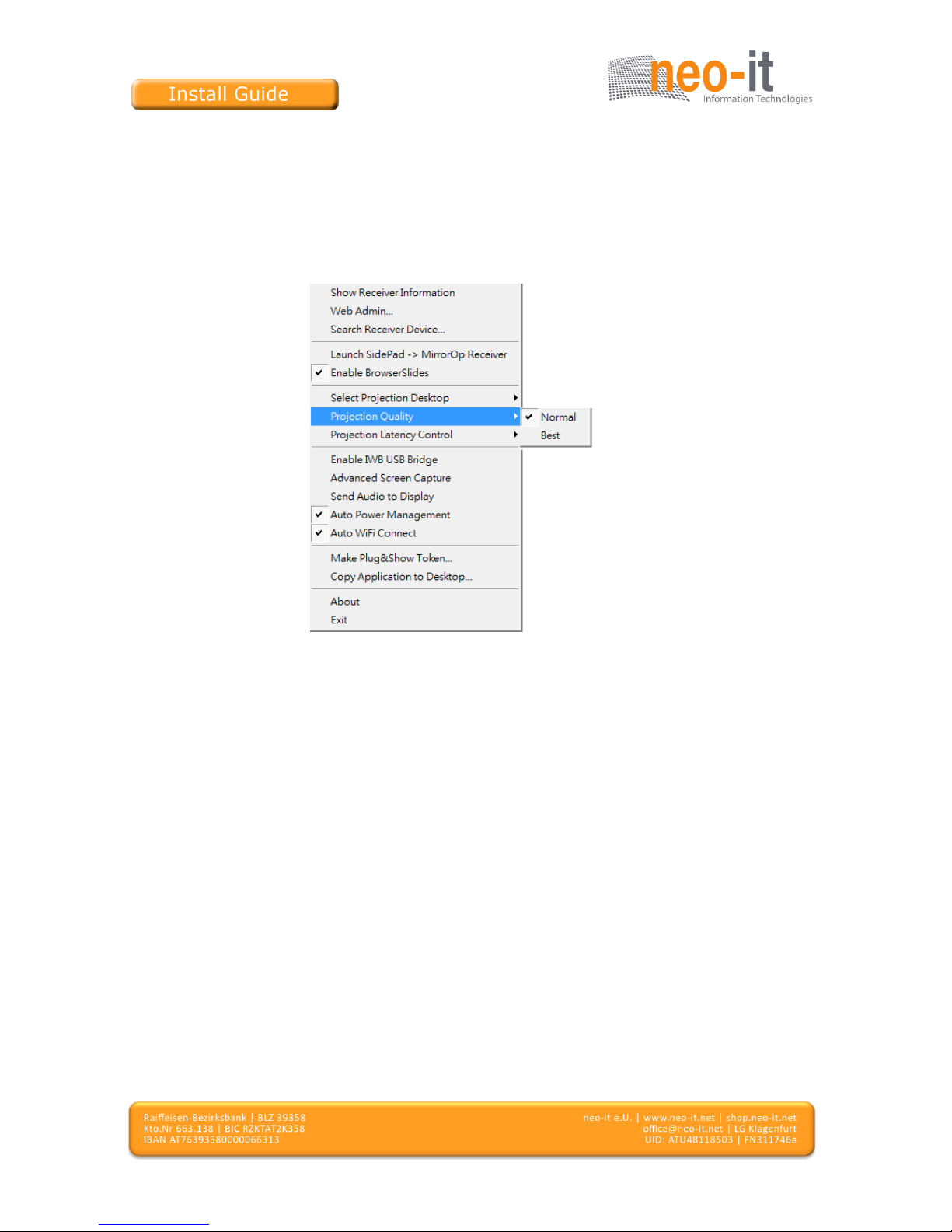

8.10 Menu
1) Press “Menu” button from the main UI, you will find the menu to enable the
additional feature or to change the application options.
2)
Item Description
Show Receiver Information Show Receiver Information on desktop
Web Admin Open web admin page
Search Receiver Search another receiver device
Launch SidePad ->
MirrorOp Receiver
Launch SidePad sender
Enable BrowserSlides Enable BrowserSlides feature
Select Projection Desktop Select different projection desktop
Projection Quality Change projection quality
Projection Latency Control Change projection latency option
Enable IWB USB Bridge Enable IWB USB bridge
Advanced Screen Capture Enable advance screen capture
Send Audio to Display Enable audio projection
Auto Power Management Enable Auto Power management feature
Auto WiFi Connect Enable Auto WiFi connect feature
Make Plug&Show Token Make Plug&Show USB token
Copy Application to
Desktop
Copy the application to desktop
Page 21
Seite 21 von 58
About About this application
Exit Exit the application

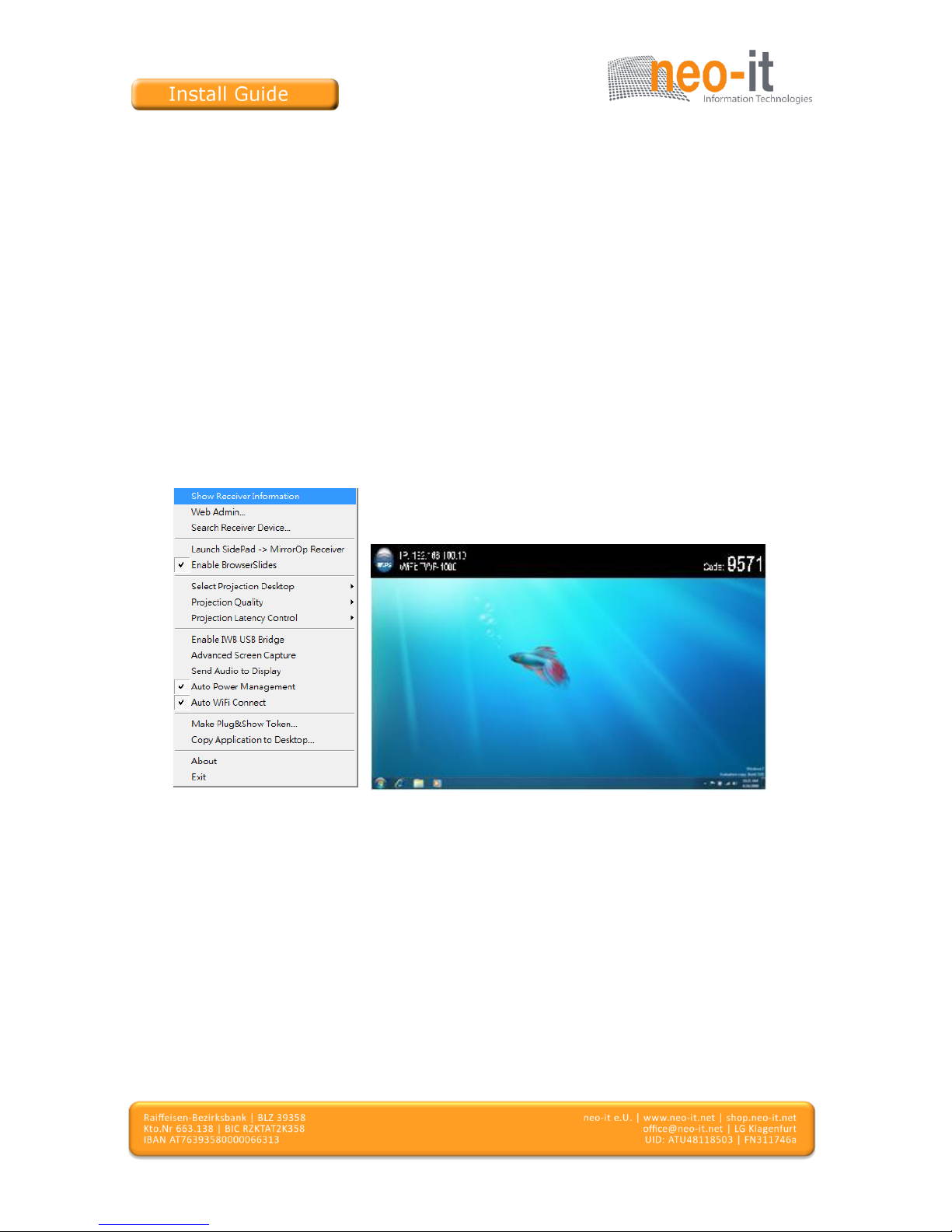

8.10.1
Show Receiver Information
1) Click “Show Receiver Information”, it will display the Receiver Information,
such as WiFi Name, IP Address and code on the upper of desktop, it will
close automatically after 30 seconds or you can also click on the area to
close this window manually.

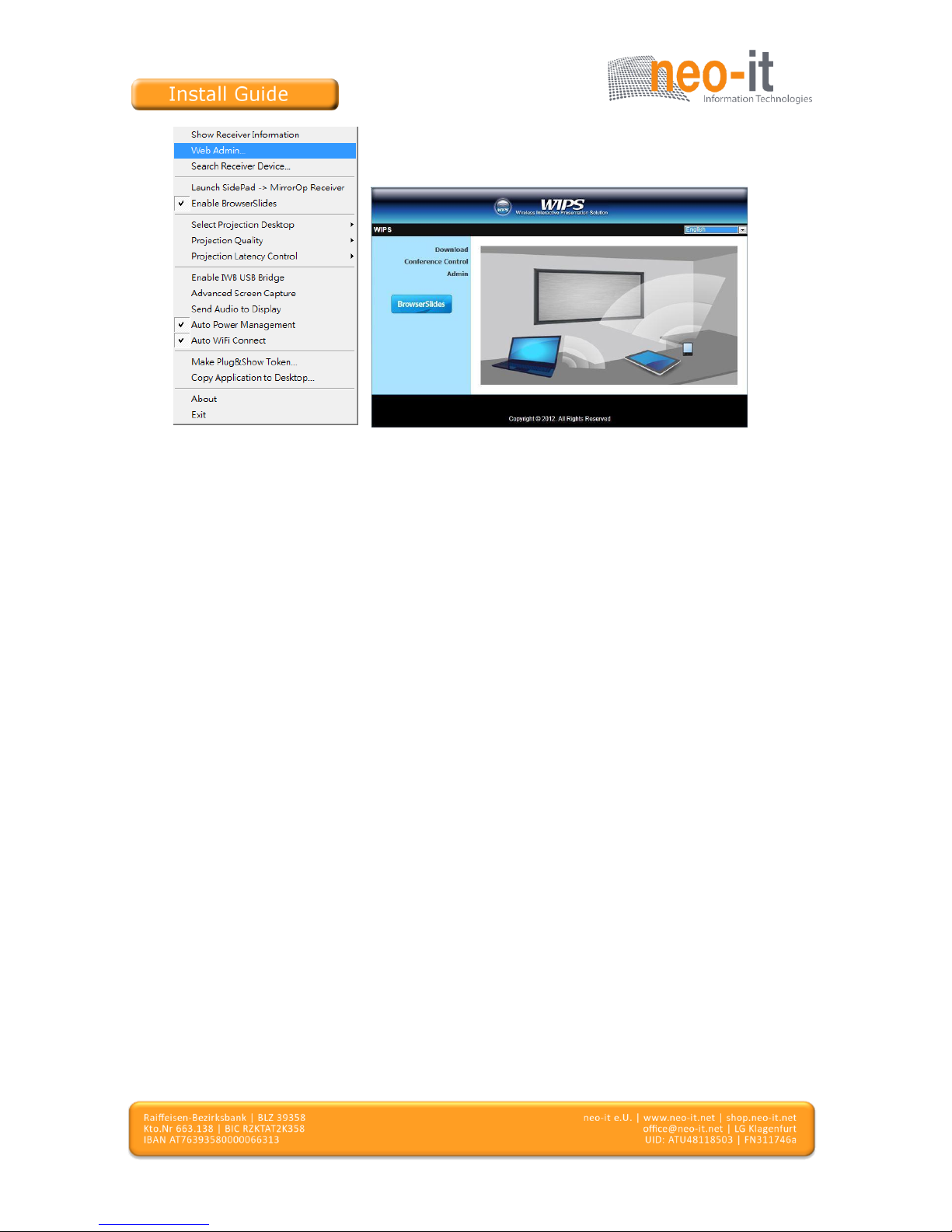

8.10.2
Web Admin
1) Click “Web Admin”, it will open the browser and connect to the receiver web
admin page automatically.
(You can find the details of web admin page from another chapter.)
Page 22
Seite 22 von 58
8.10.3
Search Receiver Device
1) Click “Search Receiver Device”, it will disconnect from current receiver and
search the receiver again.
Page 23
Seite 23 von 58
8.10.4

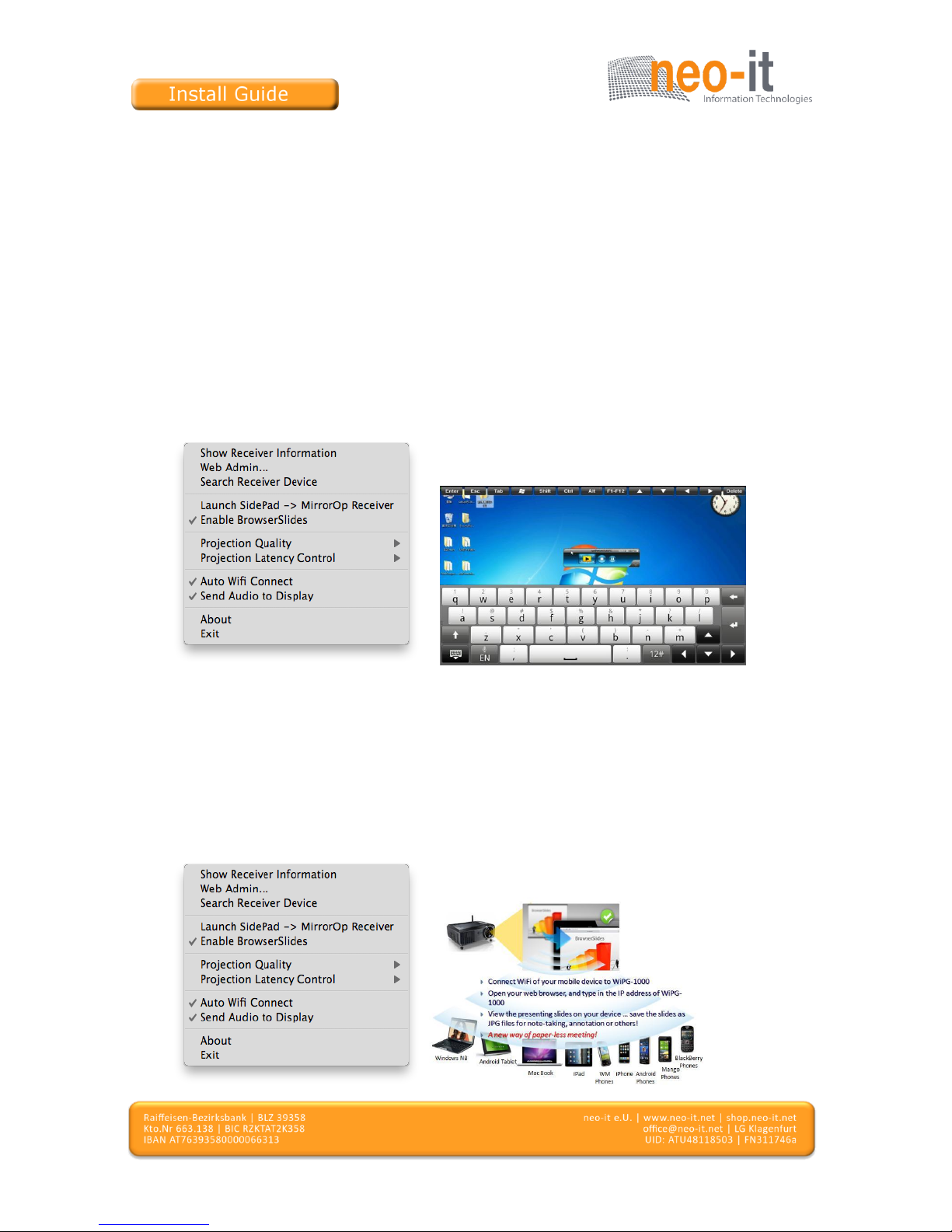

Launch SidePad -> MirrorOp Receiver
1) Open the main menu of the TWP-1000 application(Win/Mac), and choose
the item, “Launch SidePad -> MirrorOp Receiver (SidePad)”
Note: You have to download the “MirrorOp receiver” on your Android/iOS
device, then connect the Android/iOS to WP-1000 device through WiFi and
Launch “‘MirrorOp Receiver”.
2) In seconds, you shall see the PC desktop shown on the iOS Device. Use
two fingers to pinch or one finger to pan the desktop image and control it by
single or double clicks!
Page 24
Seite 24 von 58

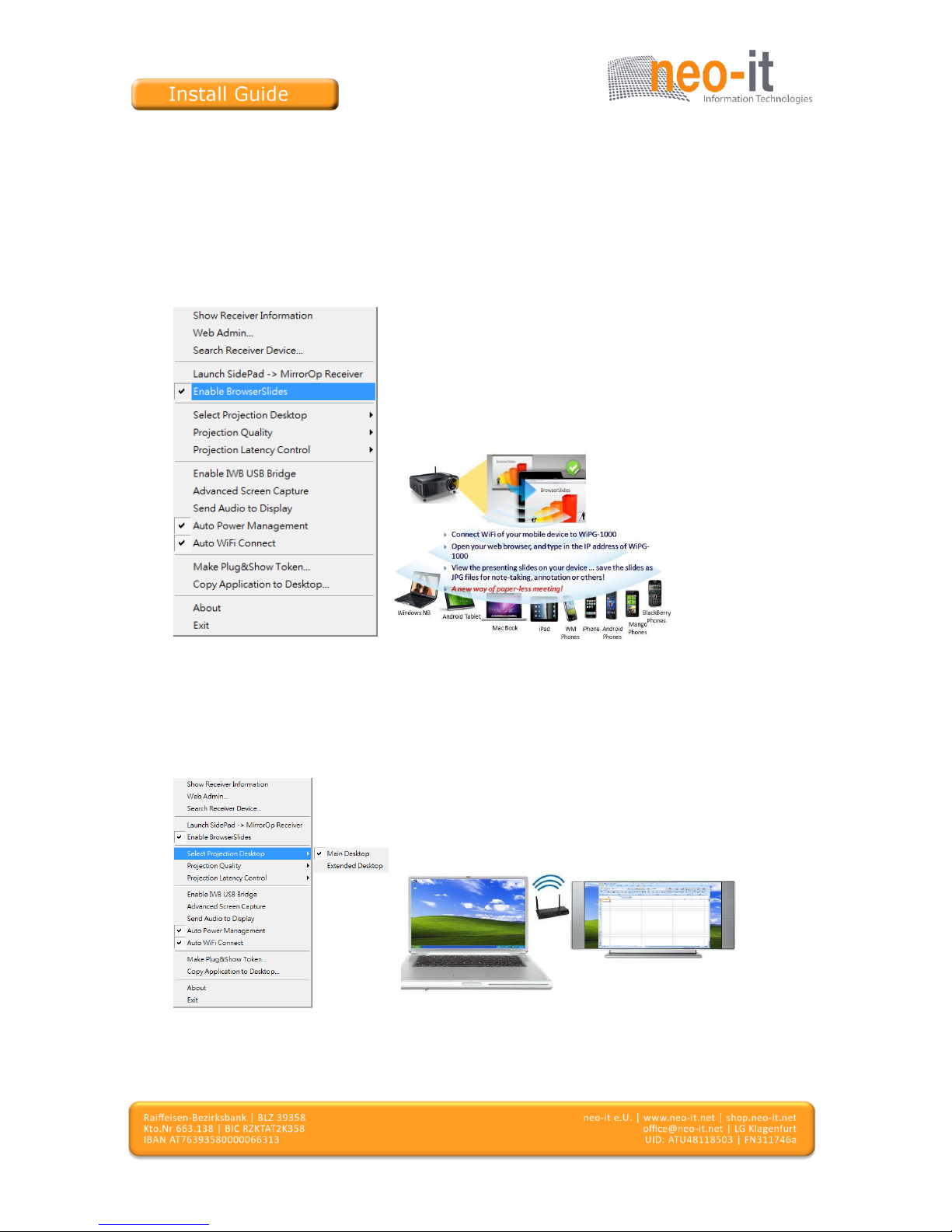

8.10.5
Enable BrowserSlides
1) Click the “Enable BrowserSlides”, it will start to broadcast your slides to the
browser on connected mobile devices.
Note: Audience need to connect to WP-1000 WiFi Network, open the
browser and click the “BrowserSlides” button to start receiving the slides.
8.10.6
Select Projection Desktop (Win XP/Vista/7)
1) Click the “Select Projection Source” then you can select to project the main
screen of desktop or the virtual extended screen.
Note: For Windows XP system, you need to install “VDD.exe” driver first, you
can find it from USB token.
For Windows 7/Vista Starter edition, it can’t support extended screen.
Page 25
Seite 25 von 58
8.10.7
Projection Quality
1) Click the “Projection Quality”, choose “Normal” for faster projection speed
with lower screen image quality, and “Best” for clear screen image quality
but slower projection speed.
8.10.8
Projection Latency Control
1) The Projection Latency Control provides the option to support “Auto” latency
control and “Shortest (Application Mode)”.
2) For the “Auto” mode, it will trigger the longer latency but much smooth
performance when you are watching video, and change back to shortest
latency mode when it detect you are moving the mouse cursor.
3) For the “Shortest (Application Mode)”, it will always keep the shortest
latency to provide the most responsive operation performance.
Page 26
Seite 26 von 58
8.10.9
Enable USB IWB Bridge
1) Click the “Enable USB IWB Bridge”, it will enable the USB IWB Bridge
feature.
2) When you start the full screen projection, it will bridge the IWB device to
your PC wirelessly.
Note: You have to install the USBoIP driver first. You can find the driver from
USB token.
Page 27
Seite 27 von 58

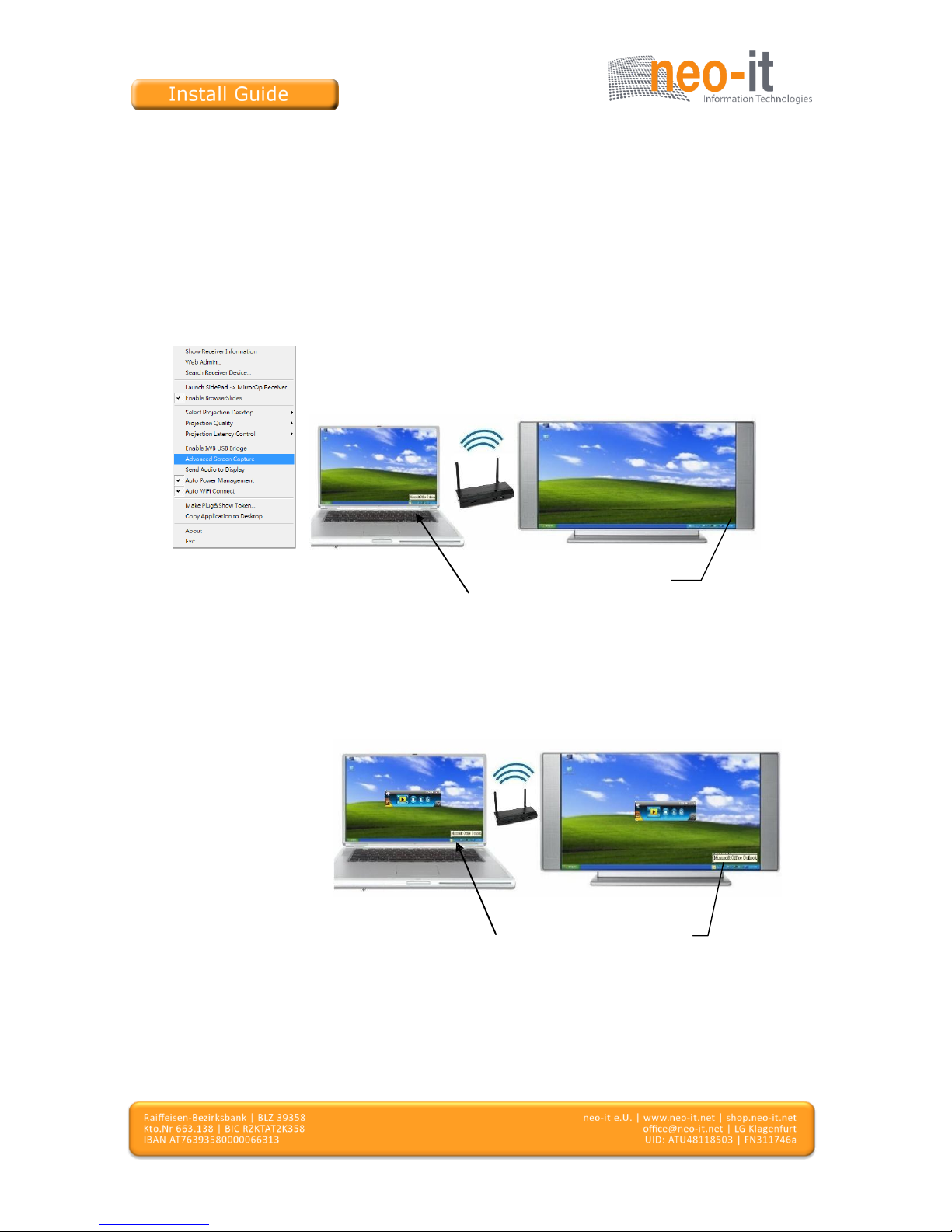

8.10.10 Advanced Screen Capture
1) Click the “Advanced Screen Capture”, you will be able to see tip windows
and other layered windows (include the main UI) on the connected display.
However, the mouse cursor may blink from time to time when you are
projecting your PC screen!
Disable “Advanced Screen Capture”.
Tip windows is not
shown in projector
Enable “Advanced Screen Capture”.
Tip windows is shown
in projector
Page 28
Seite 28 von 58
8.10.11 Send Audio to Display
1) Click “Send Audio to Display” to start the audio projection feature. It will
mute your local speaker during the projection and restore it when it closes
the application.
2) Note: For Windows XP system, you have to install the Audio driver.

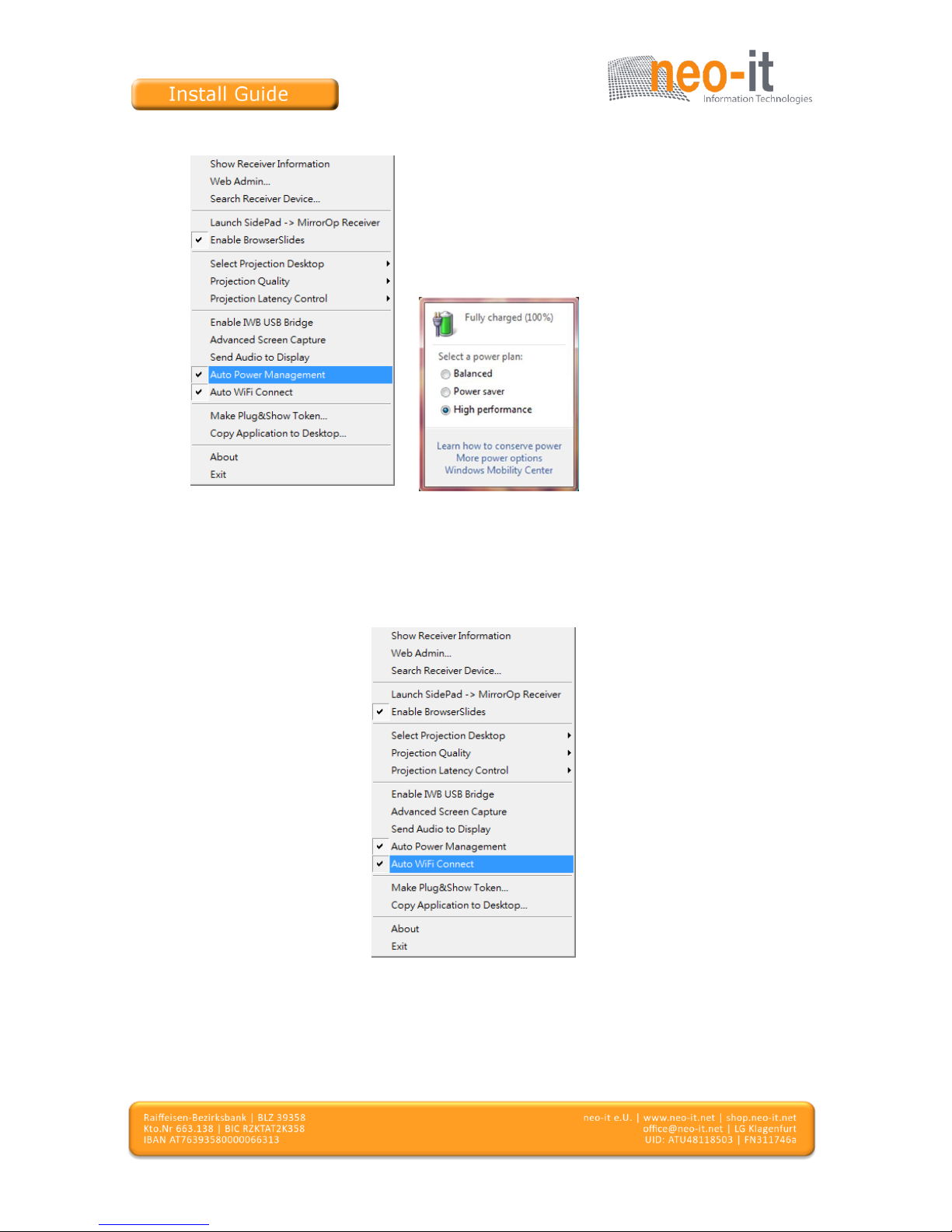

(VAC.exe) You can find the driver from USB token.
8.10.12 Auto Power Manager
1) To make the highest projection performance, application will turn the PC’s
windows power scheme from current settings to “highest performance”,
however, you can click the “Auto Power Manage” to enable or disable this
function and restore you power scheme immediately.
Page 29
Seite 29 von 58
8.10.13 Auto WiFi Connect
1) Click “Auto WiFi Connect” to enable the WiFi connect feature through
TWP-1000 application.

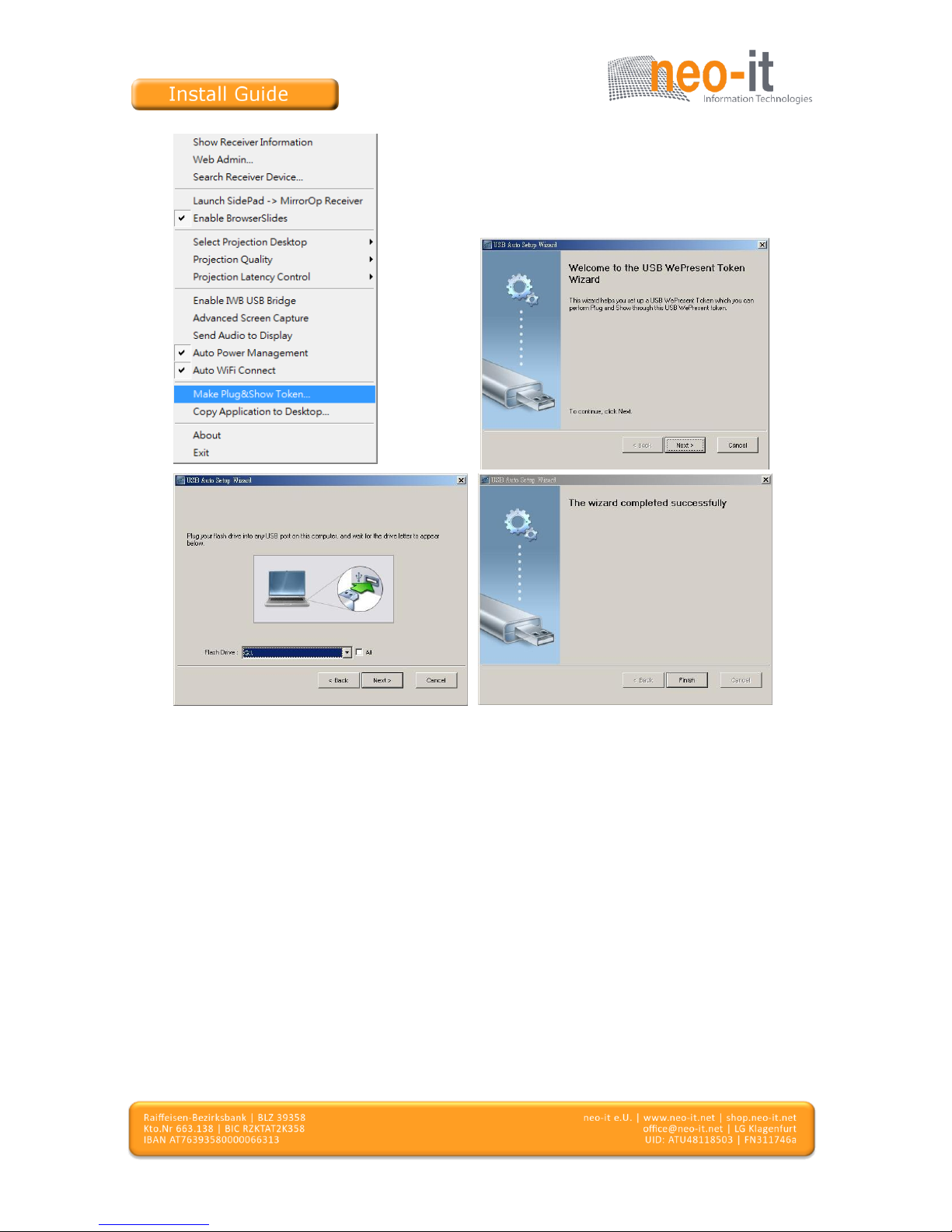

8.10.14 Make WIPS TWP-1000 Token
1) Click “Make WIPS TWP-1000 Token” to make a USB WIPS TWP-1000 Token,
you can insert a USB thumb drive and follows the wizard to make the Token.
Page 30
Seite 30 von 58
8.10.15 Copy Application to desktop
1) Click the “Copy Application to desktop”, it will copy the application to your
desktop immediately even you don’t have the system privilege
Page 31
Seite 31 von 58

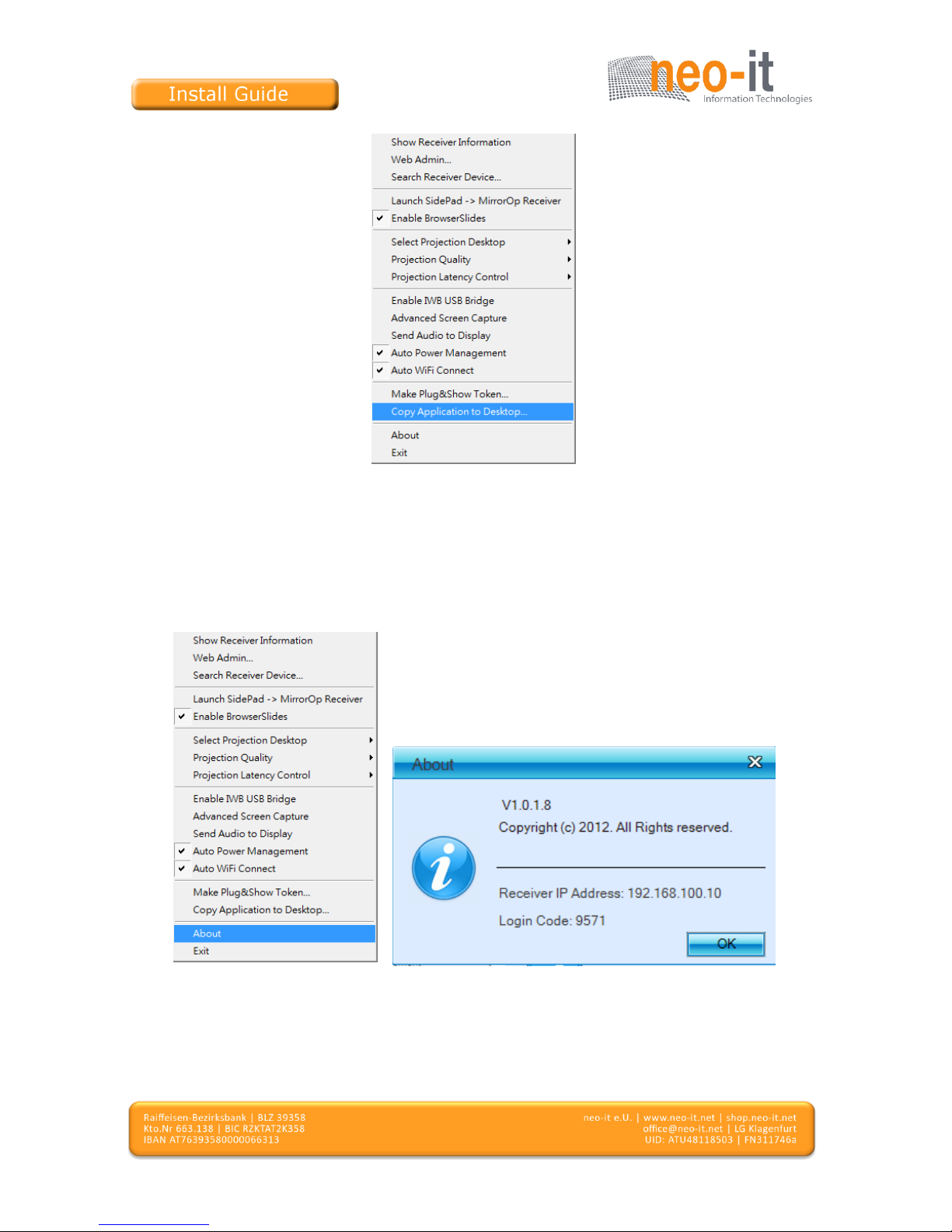

8.10.16 About
1) Click “About” to show system information. It includes product model name,
Client version, IP address and other information.
Page 32
Seite 32 von 58

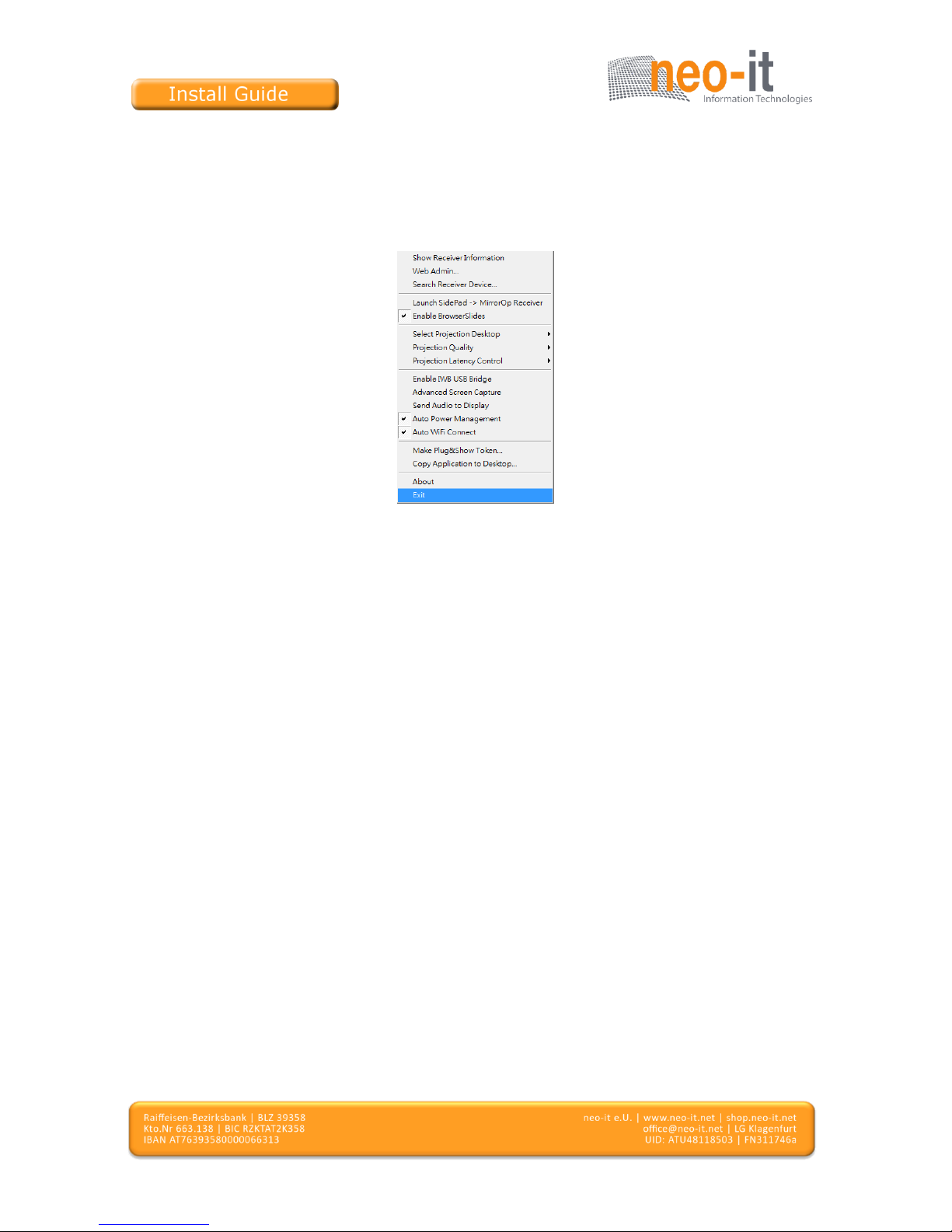

8.10.17 Exit
1) Click “Exit” to exit this application. It will stop current playing status and
close the application immediate.
9. DoWiFi for Mac
9.1 Install the application
1) Make sure your PC WiFi is enabled already, and connect your PC to WIPS
TWP-1000 box through WiFi.
2) Open your browser and enter the IP address shown on the left corner of
projector screen to access the WIPS TWP-1000 web home page. (Default
IP: 192.168.100.10)

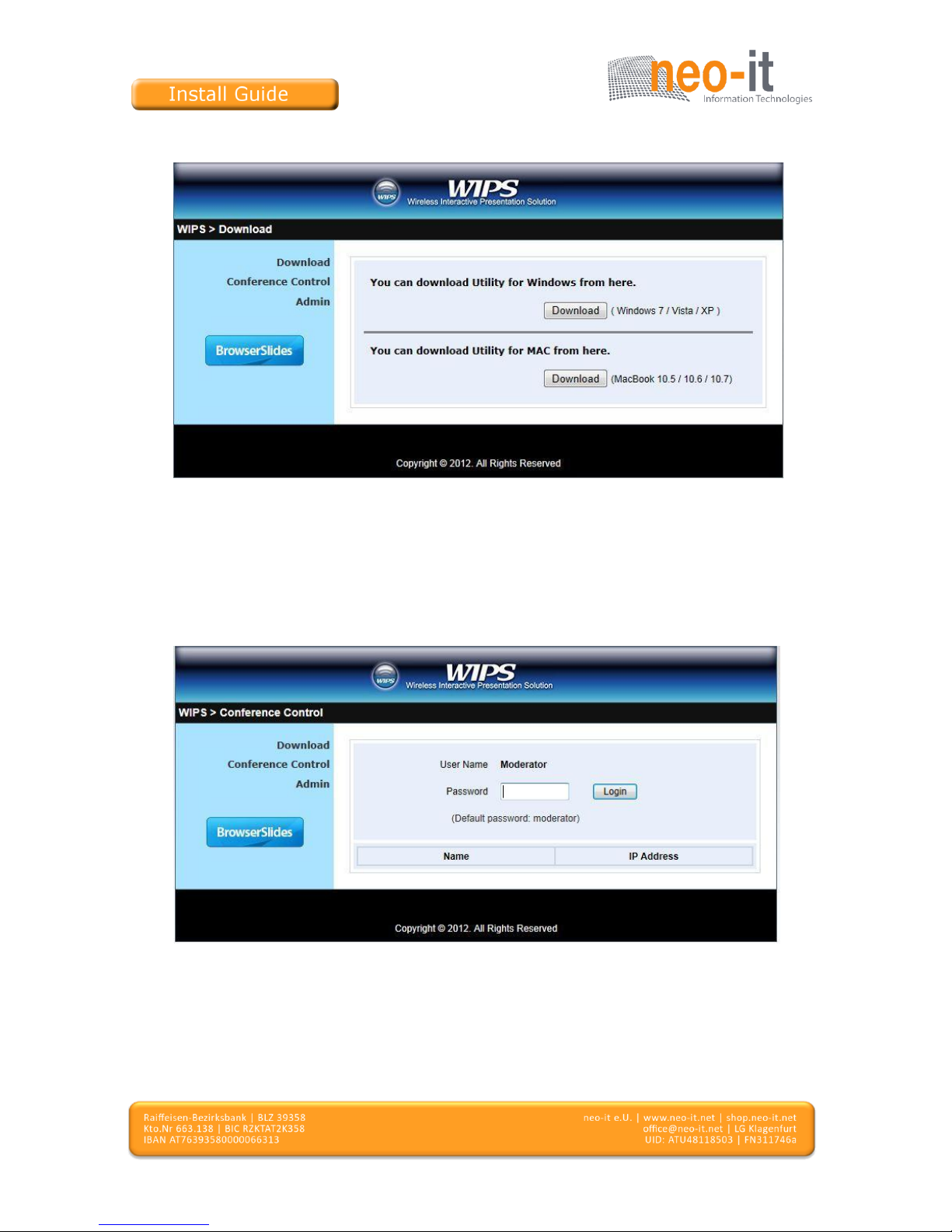

3) Download the client software for “Mac” and install on your PC.
Page 33
Seite 33 von 58
4) Launch TWP-1000 client and connect to TWP-1000 receiver.
Page 34
Seite 34 von 58
9.2 Start the application
1) Click WIPS TWP-1000 from Application folder to execute the application.
2) It will start to search WIPS TWP-1000 receiver automatically.
9.3 Quick Connect
1) TWP-1000 will memorize the last successful connection profile and open the
quick connect dialog, you can enter the code and press the “Connect”
button to connect this WP-1000 directly.
2) If you want to connect to another TWP-1000 receiver, please press the
“Rescan” button.

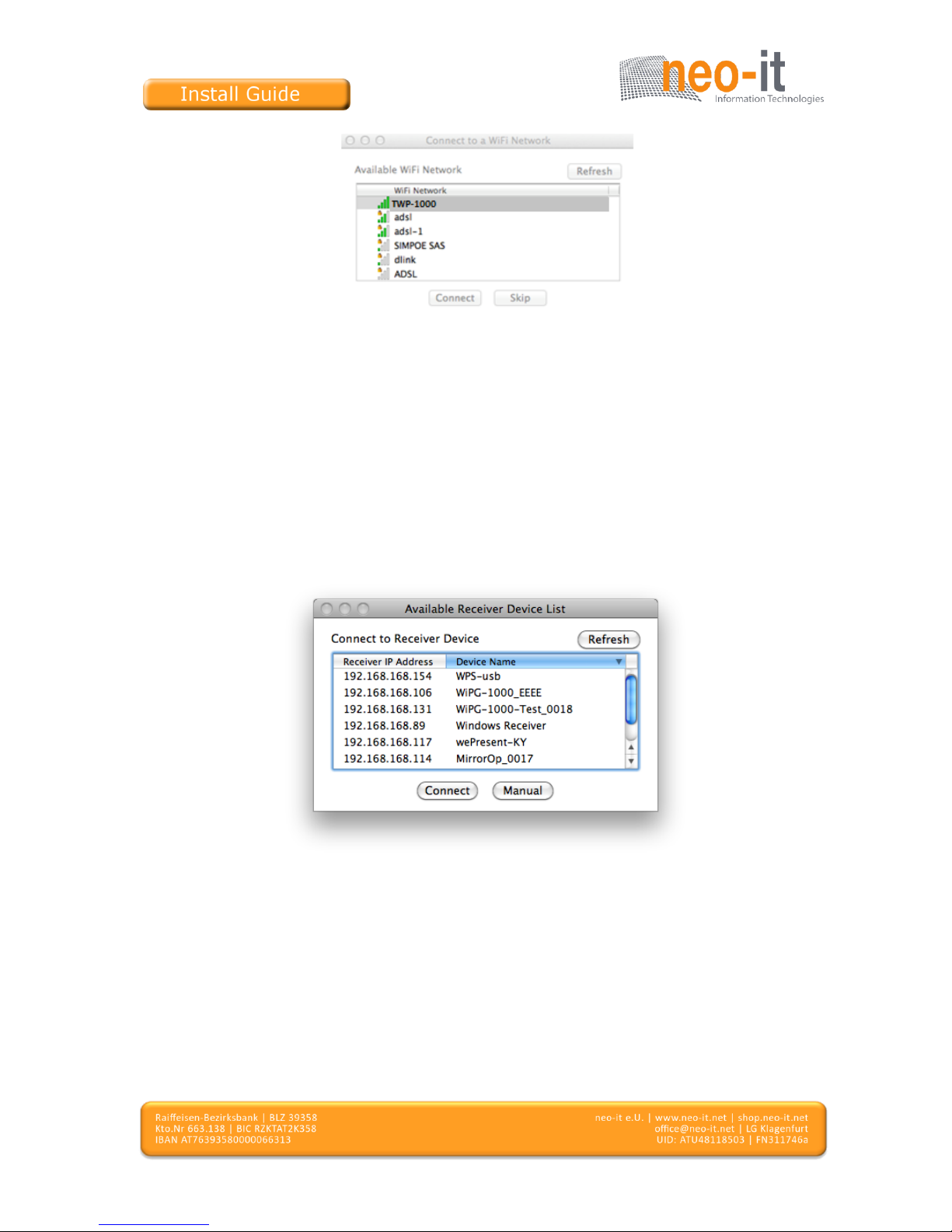

9.4 Connect to WiFi Network
1) TWP-1000 will search the available WiFi Network and list the TWP-1000
WiFi Device. You can select a network and press the “Connect” button to
connect the selected WiFi Device.
Page 35
Seite 35 von 58
2) You can press the “Refresh” button to search again.
3) If you don’t like to change the WiFi Network and keep the connection to current network,
you can press the “Skip” button.
9.5 Connect to Receiver Device
1) TWP-1000 will search and list the TWP-1000 receiver Device. You can select the target
receiver device and press the “Connect” button to connect the selected receiver device.
2) You can press the “Refresh” button to search again.
3) If you can’t find the target receiver device from the list, you can press the
“Manual” button to enter the receiver IP address manually and connect.

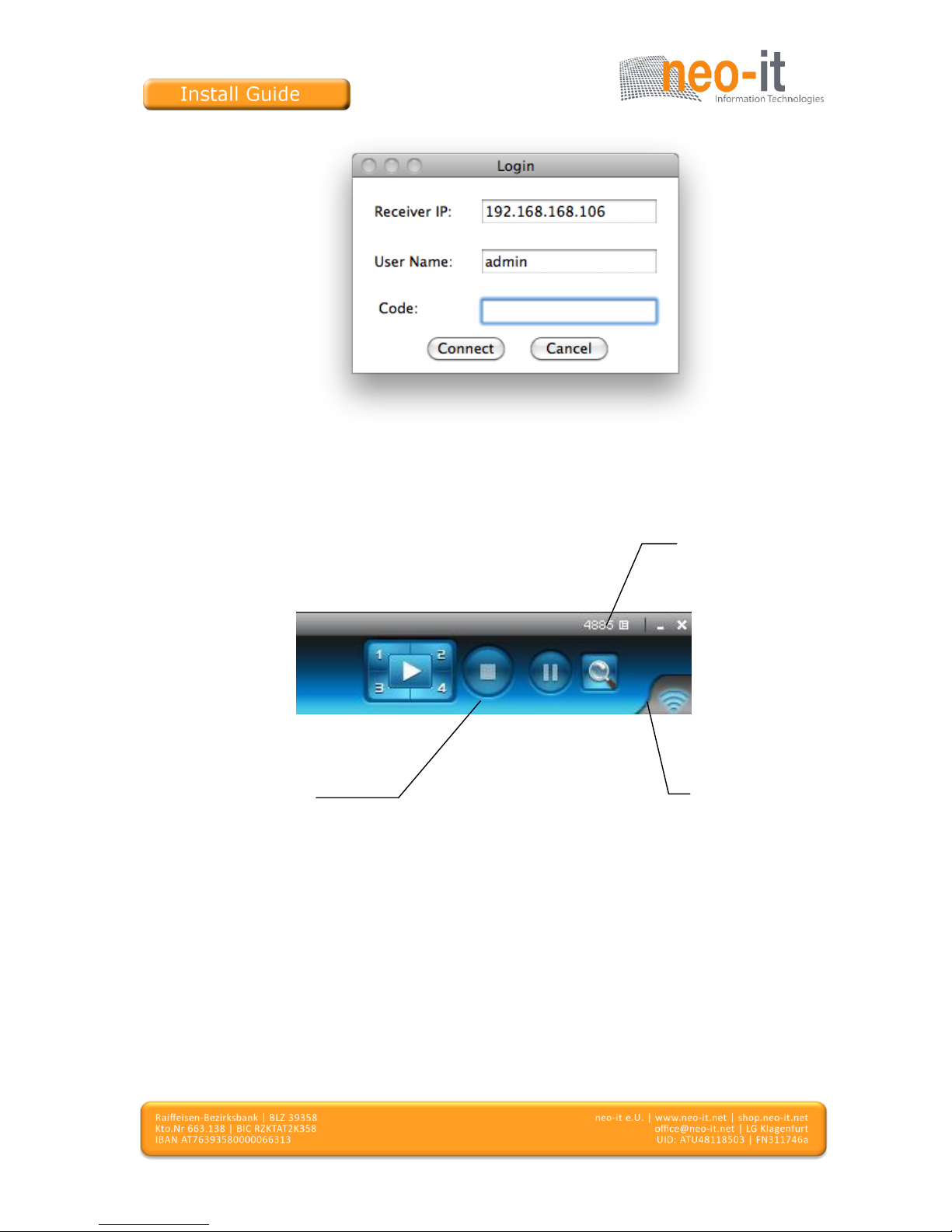

9.6 Login
1) When it connects to a “Code” protection enabled TWP-1000 receiver, you have to enter the
“Code” and press the “Connect” button to login the receiver.
(You can find the CODE from the right-upper of OSD standby screen)
Page 36
Seite 36 von 58
2) If you want to connect to another receiver or cancel the login, please press
the “Cancel” button.
9.7 Main User Interface
Menu Area
Control Area for
Screen
Projection
Feature
Status Indicator
Page 37
Seite 37 von 58

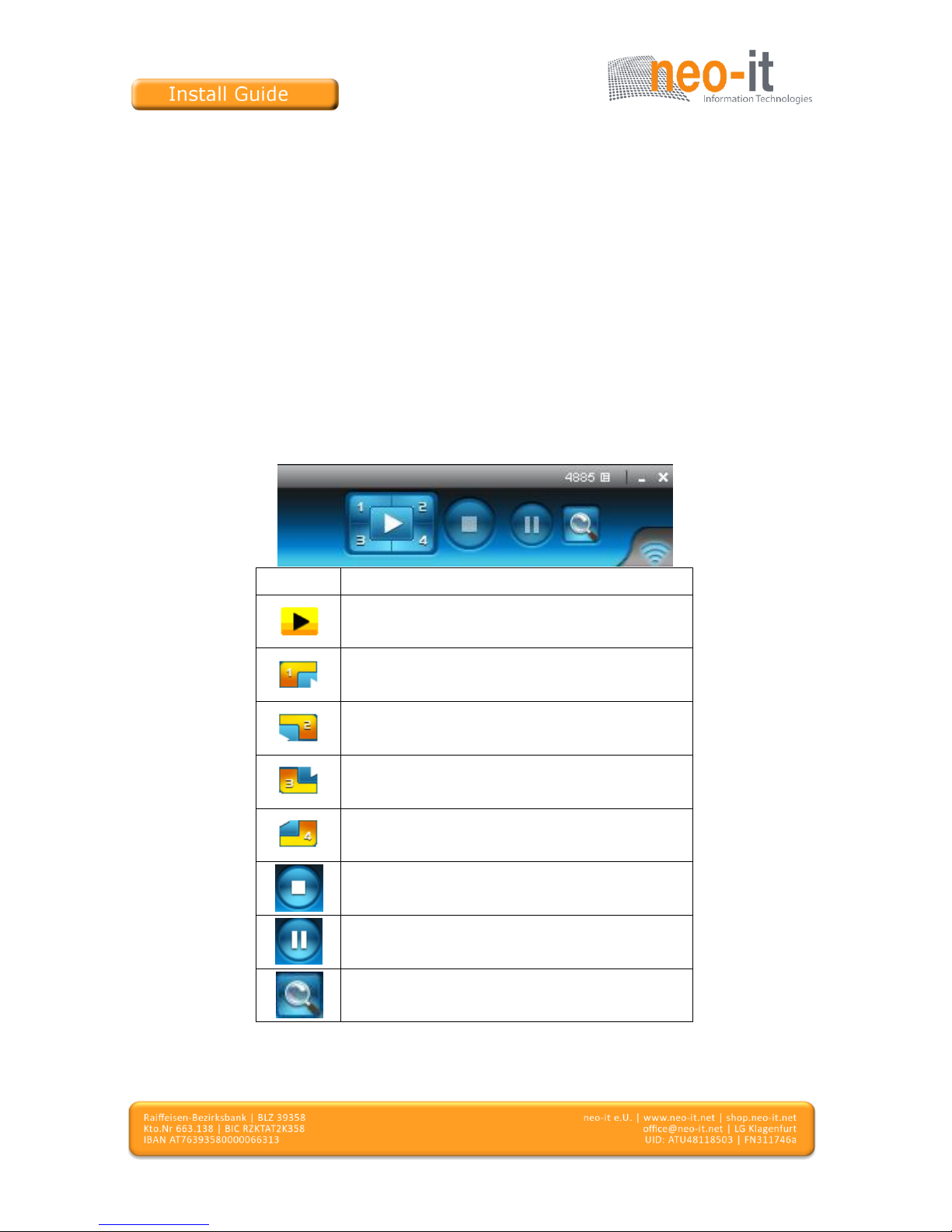

9.8 Screen Projection
1) Click the “Play” button for full or split screen, you can
project the main screen on to the display immediately,
click the “Pause” button, you can freeze you projection
screen, and click the “Stop” button to stop projecting
your screen.
Button
Description
Full Screen projection
Project to Split #1
Project to Split #2
Project to Split #3
Project to Split #4
Stop projecting
Pause projecting
Enable the Mac Magnifier function
Page 38
Seite 38 von 58
9.9 Audio Projection
1) When you are doing the full screen projection, you can also choose to
project the audio to TWP-1000 receiver for the multimedia or video
scenario.
2) To enable or disable the audio projection feature, please change the setting
from TWP-1000 menu. (Menu -> Send audio to display)
Note: Please install the SoundFlower on your computer first, you can
find the software from USB Token.

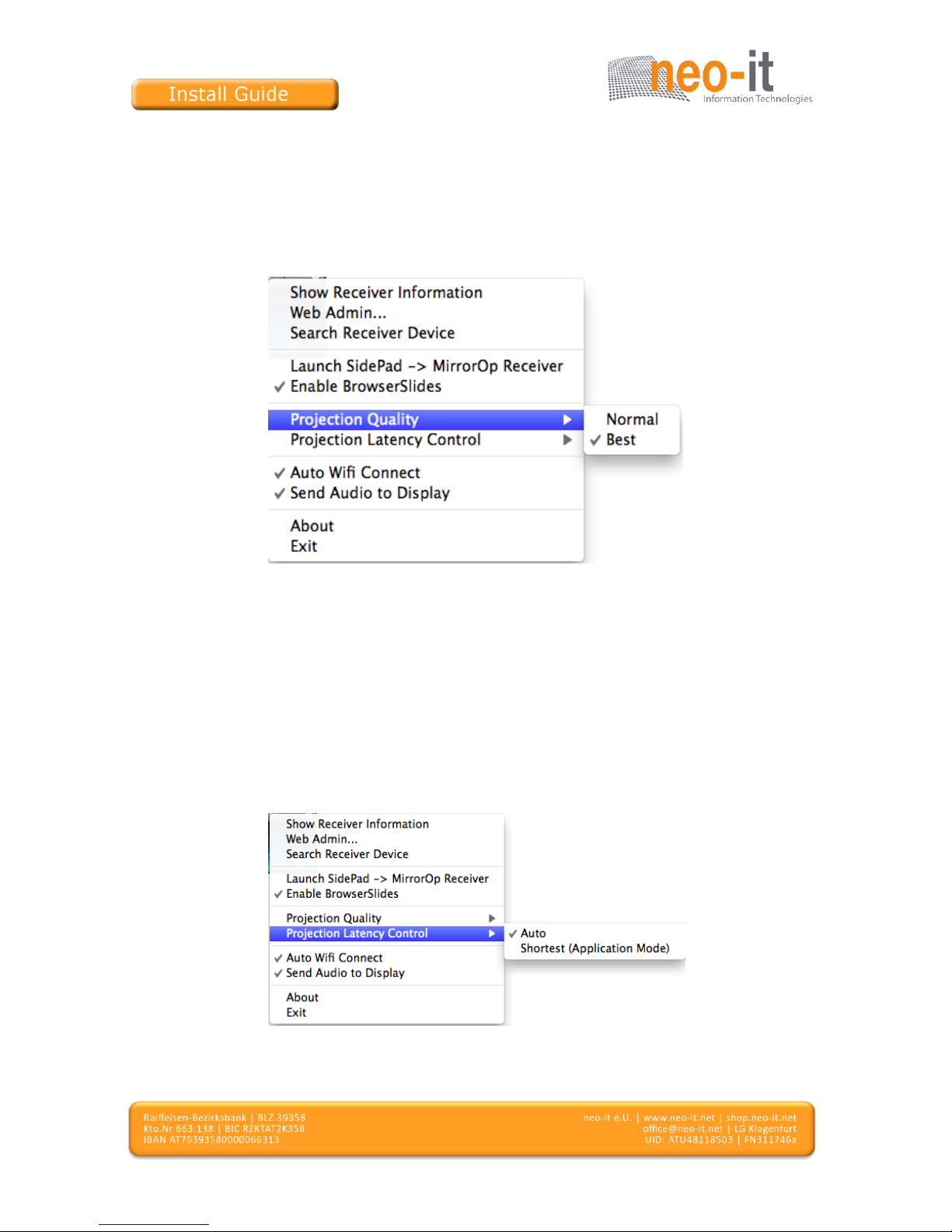

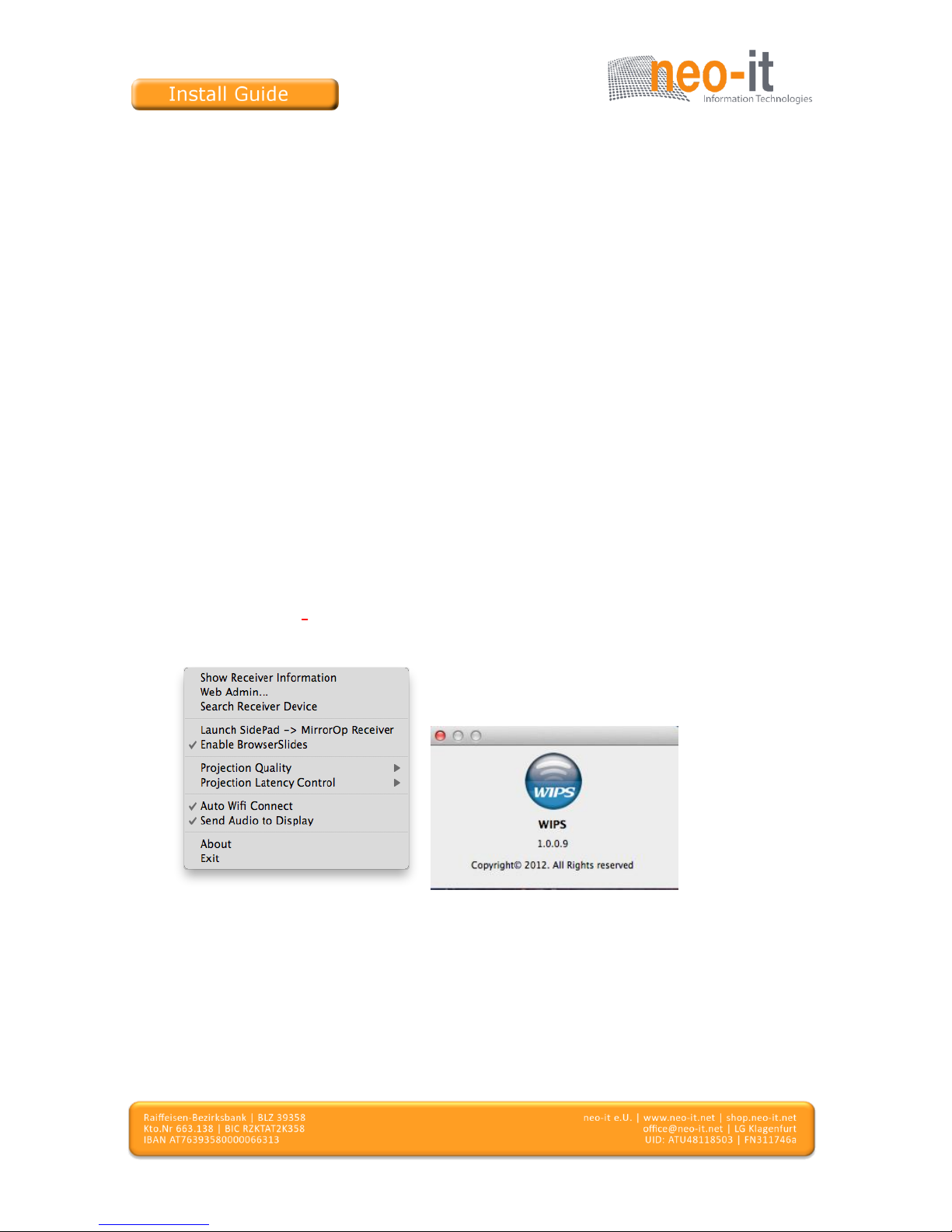

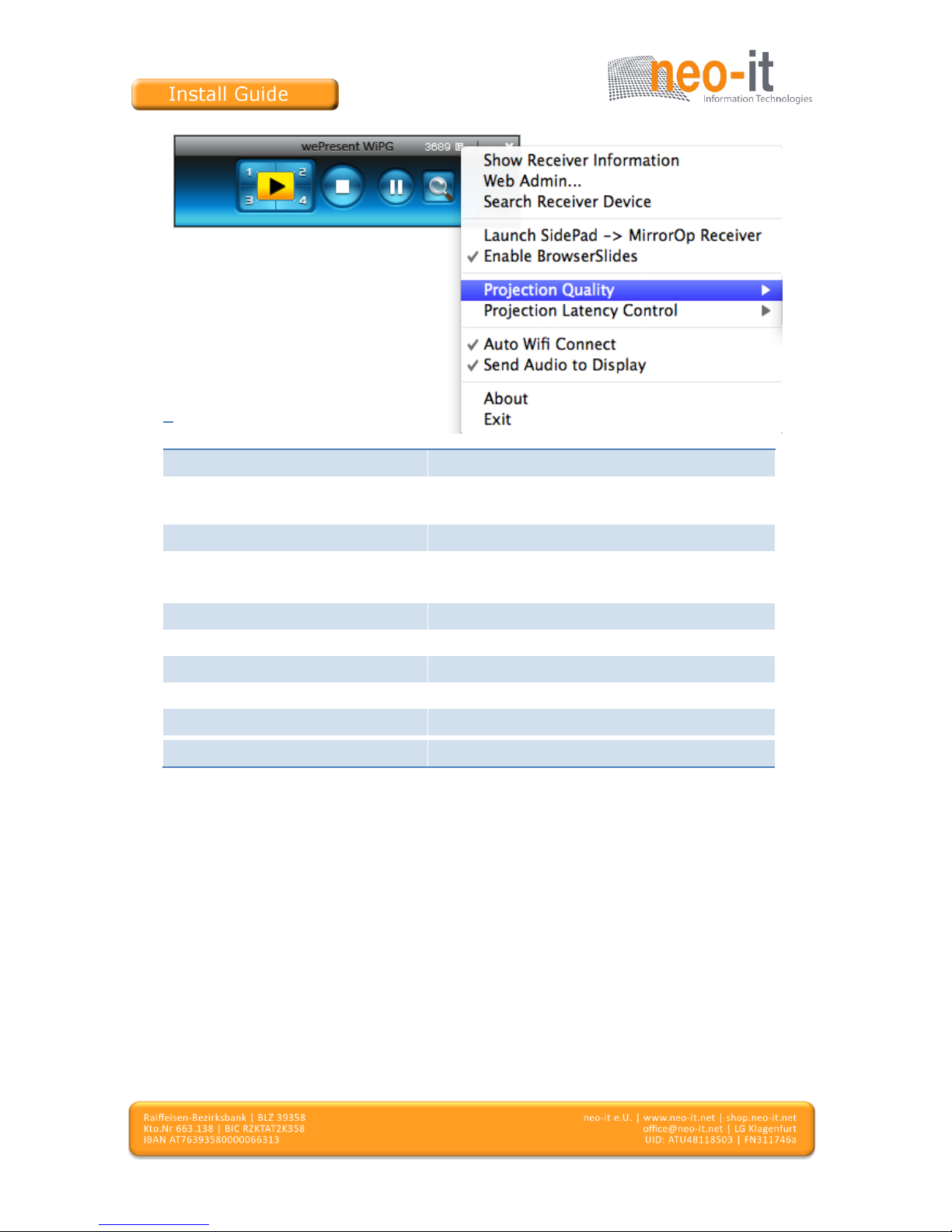

9.10 Menu
1) Press “Menu” button from the main UI, you will find the menu to enable the
additional feature or to change the application options.
Page 39
Seite 39 von 58
Item Description
Show Receiver Information Show Receiver Information on desktop
Web Admin Open web admin page

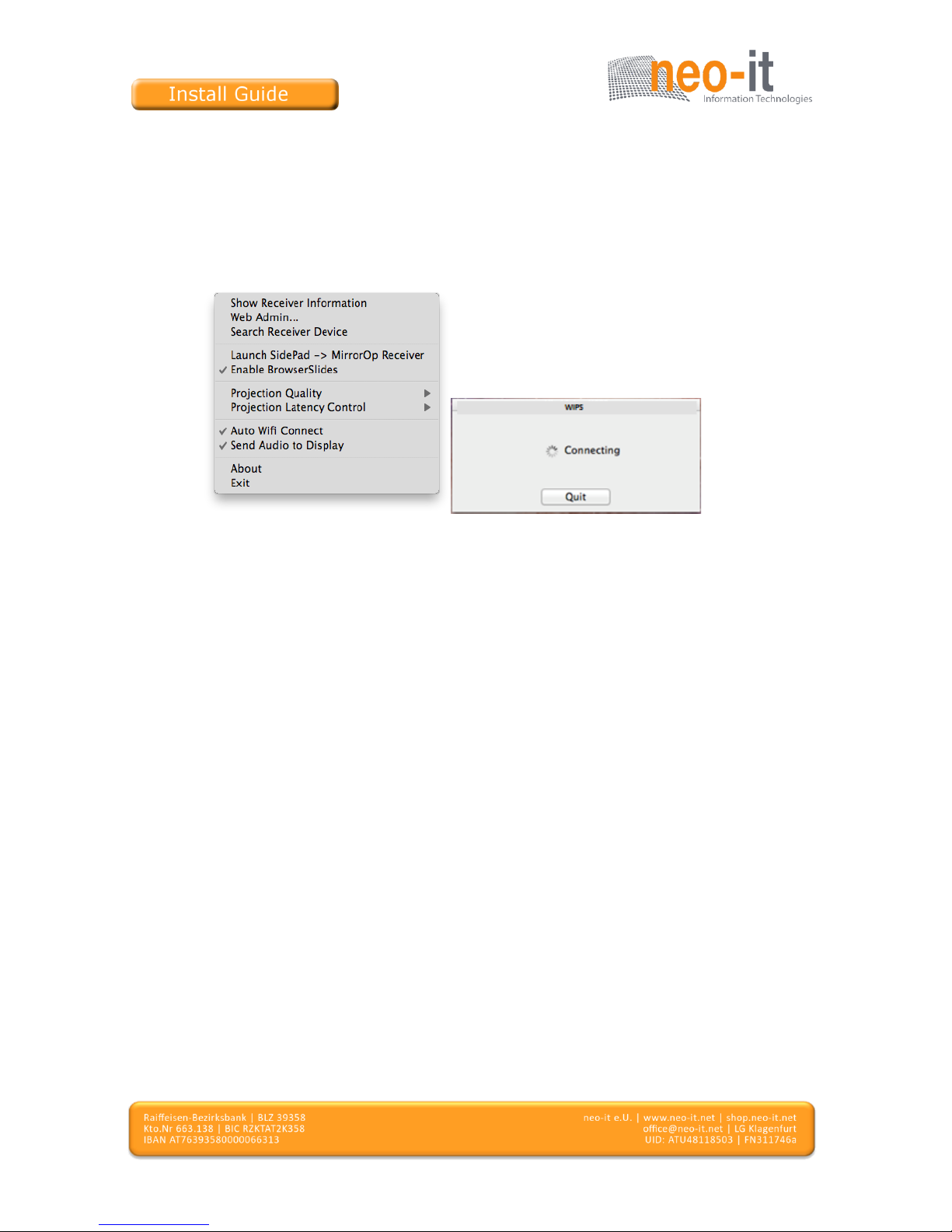

Search Receiver Search another receiver device
Launch SidePad ->
MirrorOp Receiver
Launch SidePad sender
Enable BrowserSlides Enable BrowserSlides feature
Projection Quality Change projection quality
Projection Latency Control Change projection latency option
Send Audio to Display Enable audio projection
Auto WiFi Connect Enable Auto WiFi connect feature
About About this application
Exit Exit the application
Page 40
Seite 40 von 58
9.10.1
Show Receiver Information
1) Click “Show Receiver Information”, it will display the Receiver Information,
such as WiFi Name, IP Address and code.
2)
Page 41
Seite 41 von 58
9.10.2

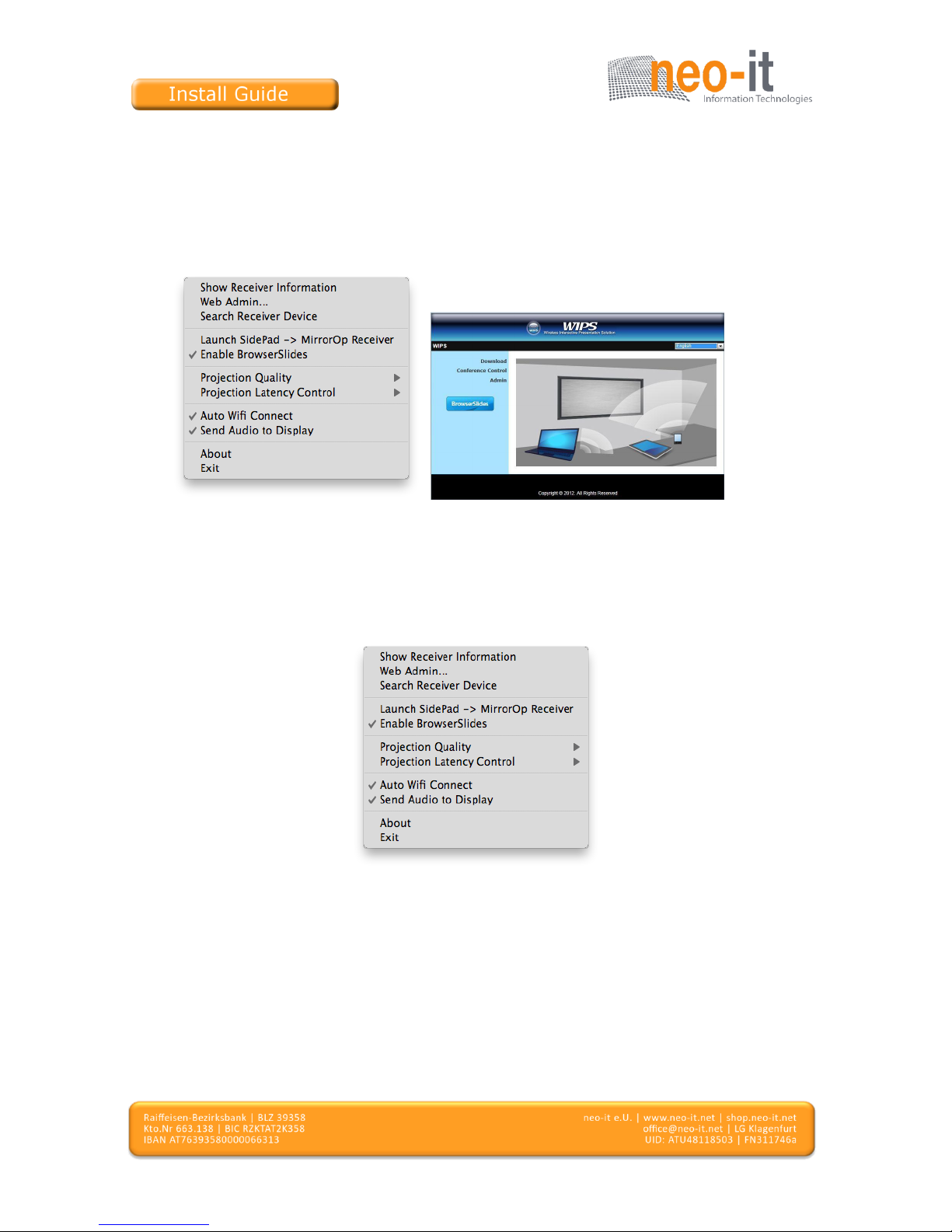

Web Admin
1) Click “Web Admin”, it will open the browser and connect to the receiver web
admin page automatically.
(You can find the details of web admin page from another chapter.)
9.10.3
Search Receiver Device
1) Click “Search Receiver Device”, it will disconnect from current receiver and
search the receiver again.
Page 42
Seite 42 von 58
9.10.4
Launch SidePad -> MirrorOp Receiver
1) Open the main menu of the TWP-1000 application(Win/Mac), and choose
the item, “Launch SidePad -> MirrorOp Receiver (SidePad)”
Note: You have to download the “MirrorOp receiver” on your Android/iOS
device, then connect the Android/iOS to TWP-1000 device through WiFi and
Launch “‘MirrorOp Receiver”.
2) In seconds, you shall see the PC desktop shown on the iOS Device. Use
two fingers to pinch or one finger to pan the desktop image and control it by
single or double clicks!
9.10.5
Enable BrowserSlides
1) Click the “Enable BrowserSlides”, it will start to broadcast your slides to the
browser on connected mobile devices.
Note: Audience need to connect to TWP-1000 WiFi Network, open the
browser and click the “BrowserSlides” button to start receiving the slides.
Page 43
Seite 43 von 58
9.10.6
Projection Quality
1) Click the “Projection Quality”, choose “Normal” for faster projection speed
with lower screen image quality, and “Best” for clear screen image quality
but slower projection speed.
9.10.7
Projection Latency Control
1) The Projection Latency Control provides the option to support “Auto” latency
control and “Shortest (Application Mode)”.
2) For the “Auto” mode, it will trigger the longer latency but much smooth
performance when you are watching video.
3) For the “Shortest (Application Mode)”, it will always keep the shortest
latency to provide the most responsive operation performance.
Page 44
Seite 44 von 58
9.10.8
Send Audio to Display
1) Click “Send Audio to Display” to start the audio projection feature. It will
mute your local speaker during the projection and restore it when it closes
the application.
Note: You have to install the SoundFlower Audio driver. You can find the
driver from USB token.
9.10.9
Auto WiFi Connect
1) Click “Auto WiFi Connect” to enable the WiFi connect feature through
TWP-1000 application.
9.10.10 About
1) Click “About” to show system information. It includes product model name,
Client version and other information.
9.10.11 Exit
1) Click “Exit” to exit this application. It will stop current playing status and
close the application immediate.
Page 45
Seite 45 von 58
10. Web Management
10.1 Home Page
1) Make sure your PC connect to WIPS TWP-1000 box successfully.
2) Enter the receiver IP address on browser; you can find the IP address on the
projector screen. (Default IP is 192.168.100.10)
10.2 Download
1) Select “Download” function.
2) Please select the “Win 7 / Windows Vista / XP” or “Mac Utility” and execute
the installation program.
Note: Please disable the “Smart Screen Filter” on IE browser; otherwise
you might not able to download the file.
Page 46
Seite 46 von 58

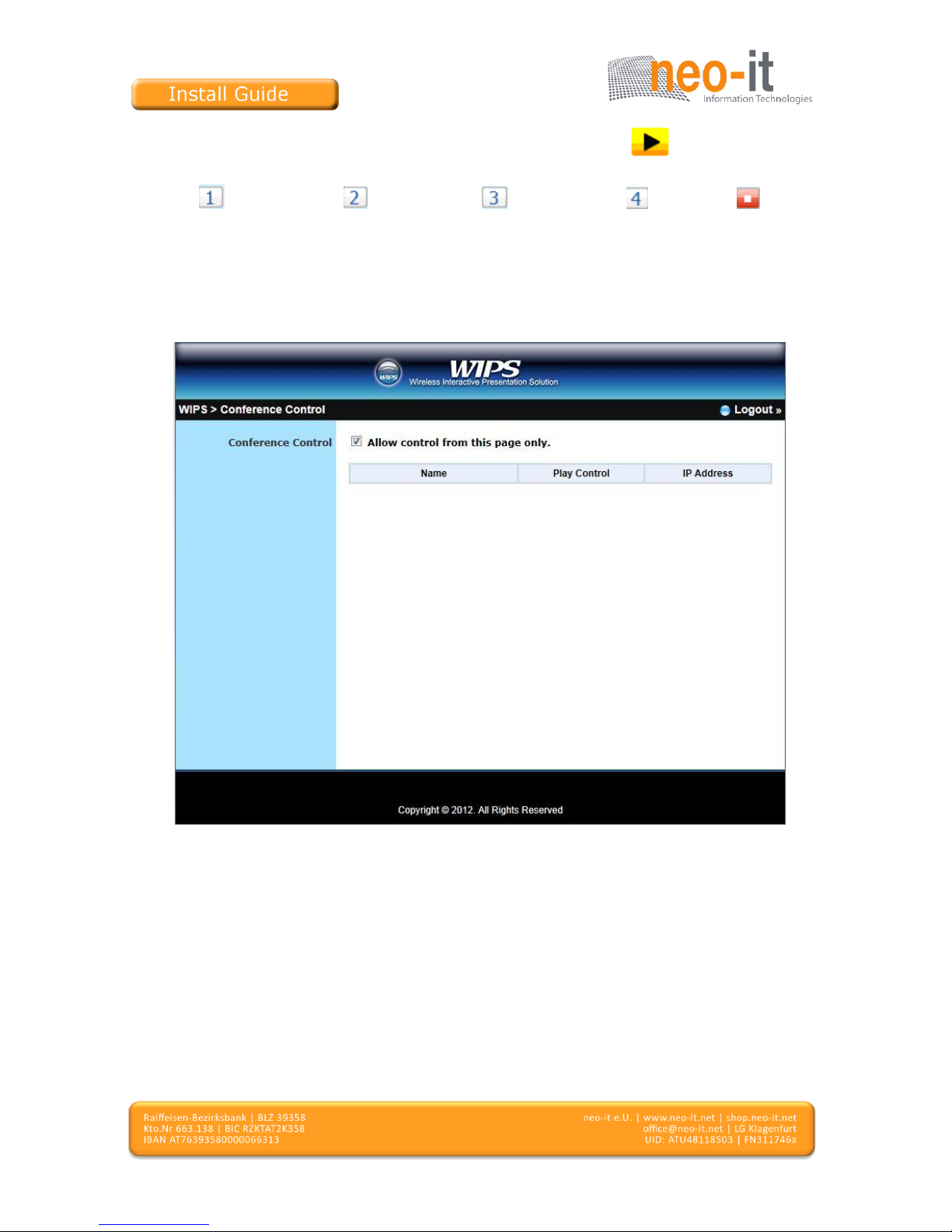

10.3 Conference Control
1) Select “Conference Control” function, it will show current connected sender
list.
2) Enter password and then press [Login]. (default password: moderator)
3) After login, you can see a User List on the screen which indicates all of users
connected to WIPS TWP-1000 box.
4) There are three columns, “Computer Name”, “Play Control” and “IP
Address”.
Page 47
Seite 47 von 58
5) Play Control，There are six buttons, including Play(Full) , Play Split #1
, Play Split #2 ,Play Split #3 , Play Split #4 and Stop .
6) Uncheck the “Allow Control from this page only”, it will disable the
centralized control and user can project the screen to TWP-1000 freely.
Page 48
Seite 48 von 58

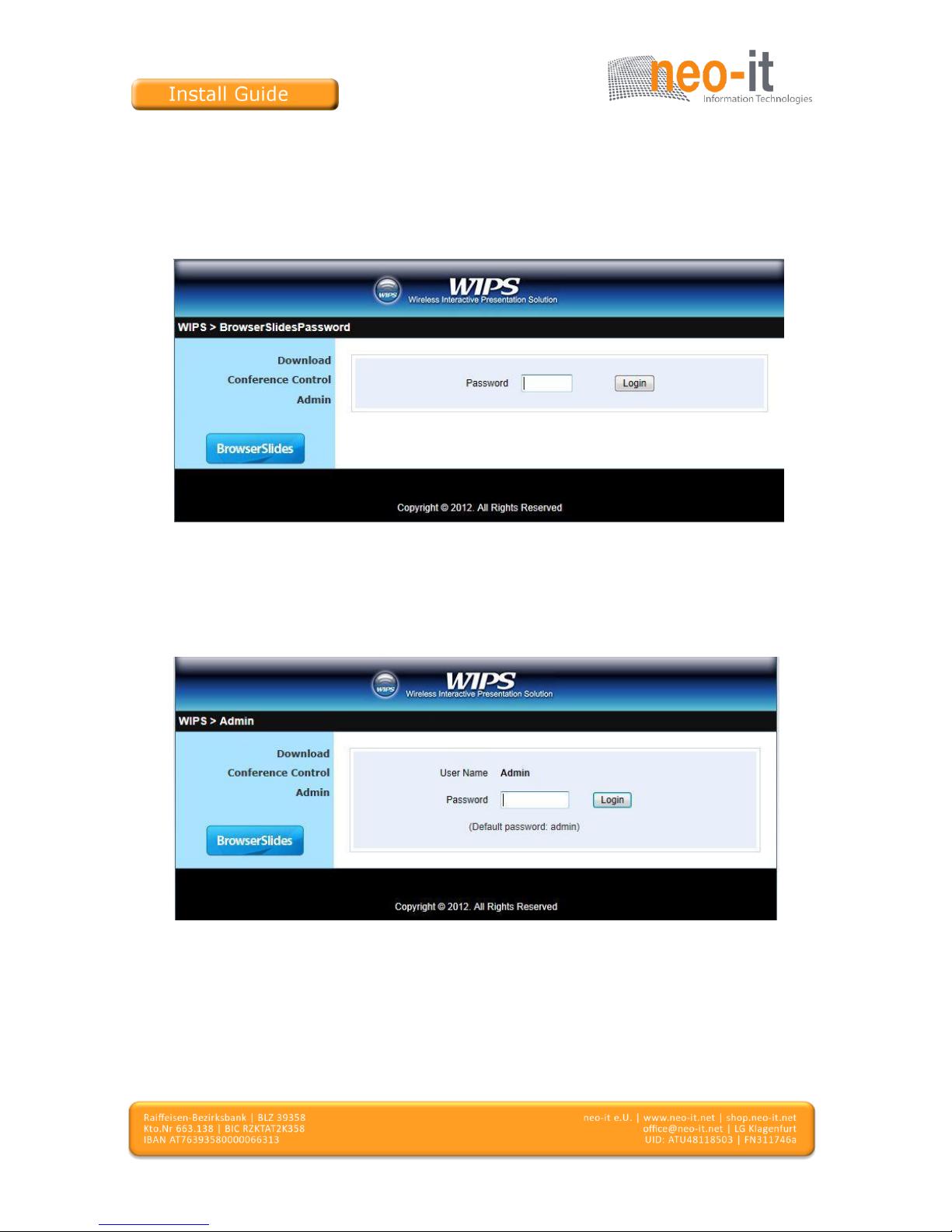

10.4 BrowserSlides
1) Press the “BrowserSlides” button to enter the BrowserSlides page.
2) Enter the password if necessary. (Default password: Same as Code)
3) Start to receive the projecting slides.
10.5 Admin
1) Click [Admin] and then enter the password to login web admin page.
(Default Password: admin)
Page 49
Seite 49 von 58

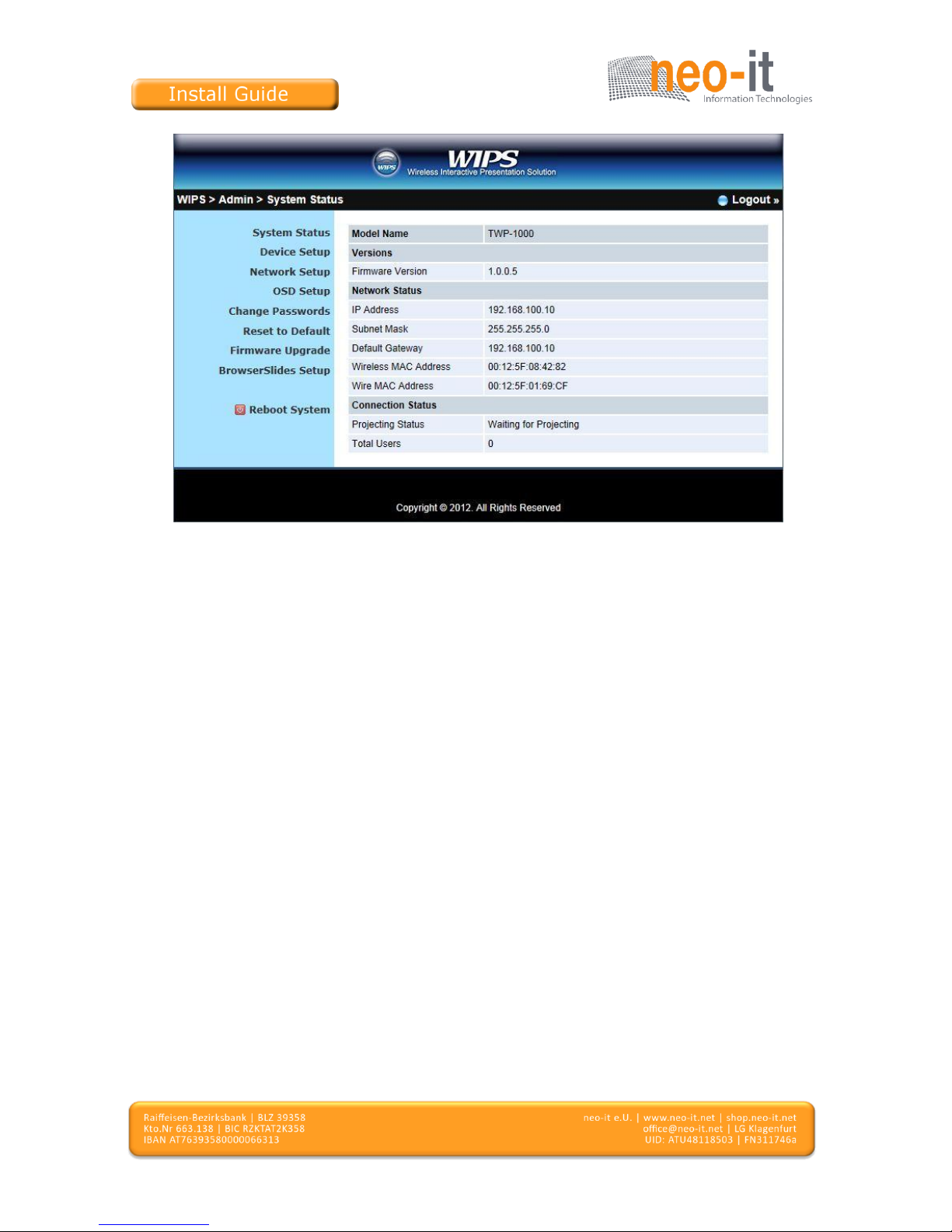

10.5.1 System Status
1) Click [System Status], it will show current system status.
Model Name: Product model name
Versions:
Firmware version no.: Product firmware version number.
Network Status:
IP address：IP address of TWP-1000 device.
Subnet Mask：subnet mask
Default Gateway：default gateway
Wireless MAC address：wireless MAC address
Wire MAC address：wire MAC address
Connection Status:
Projecting status: “Waiting for projecting” or “Projecting”
Total Users: It shows how many users login to WIPS TWP-1000.
Page 50
Seite 50 von 58

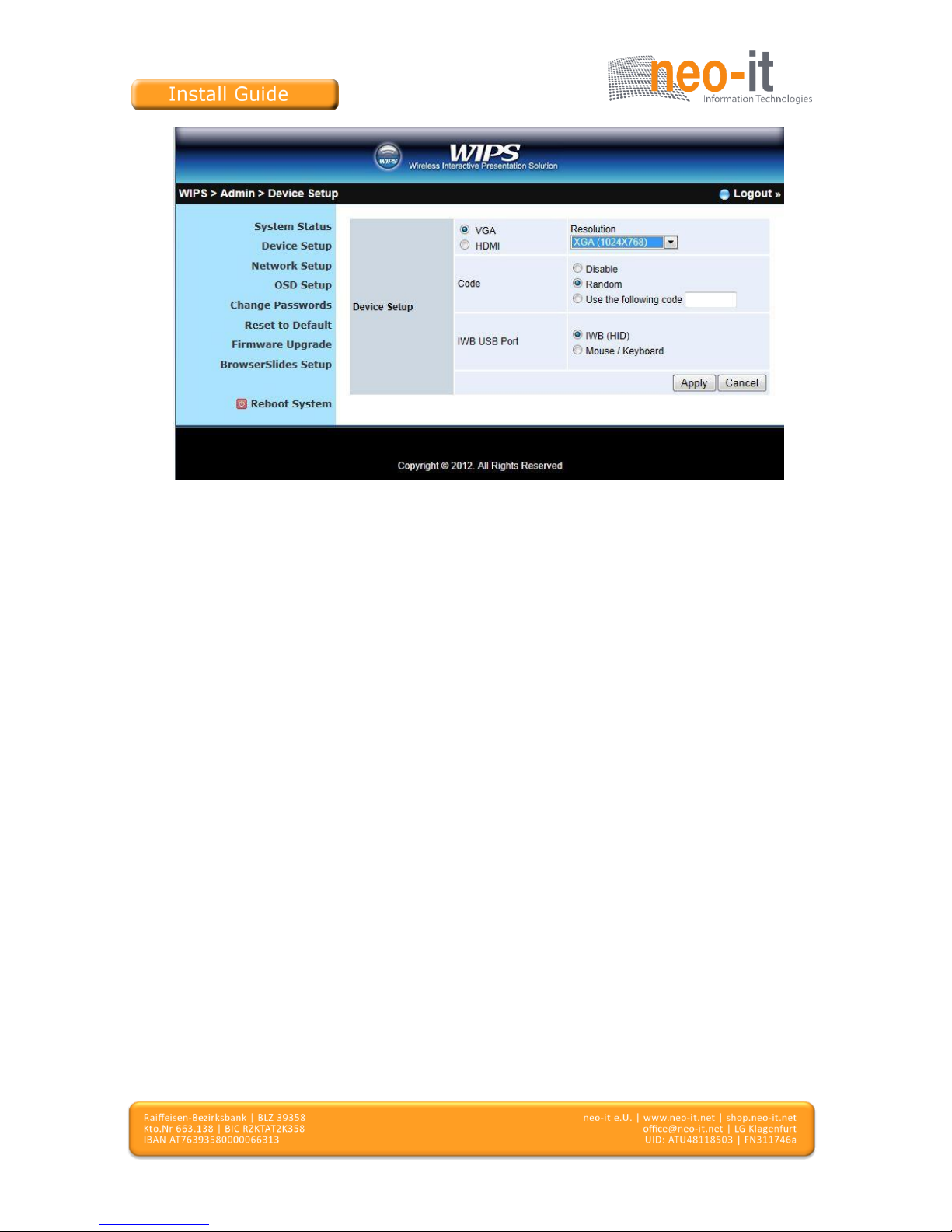

10.5.2 Device Setup
1) Click [Device Setup] button, it will show the device setting items,
Choose <VGA> or <HDMI> output option
<Resolution>:
HDMI: 720p, 1080i, 1080p
VGA: UXGA(1600*1200), WXGA+(1440*900), WXGA(1360*768,
1280x768, 1280x800) ,XGA(1024*768), and SVGA(800*600). The
default value is XGA(1024*768).
<Code>: You can select “Disable”, “Random”, or “Use the following
code” to set a specified 4-characters Number.
<IWB USB Port>: You can configure the IWB USB port to support
“IWB (HID)” device or “Mouse/Keyboard” device
<Apply>：Confirmation and Save modifications
<Cancel>: Cancel all the modifications
Page 51
Seite 51 von 58

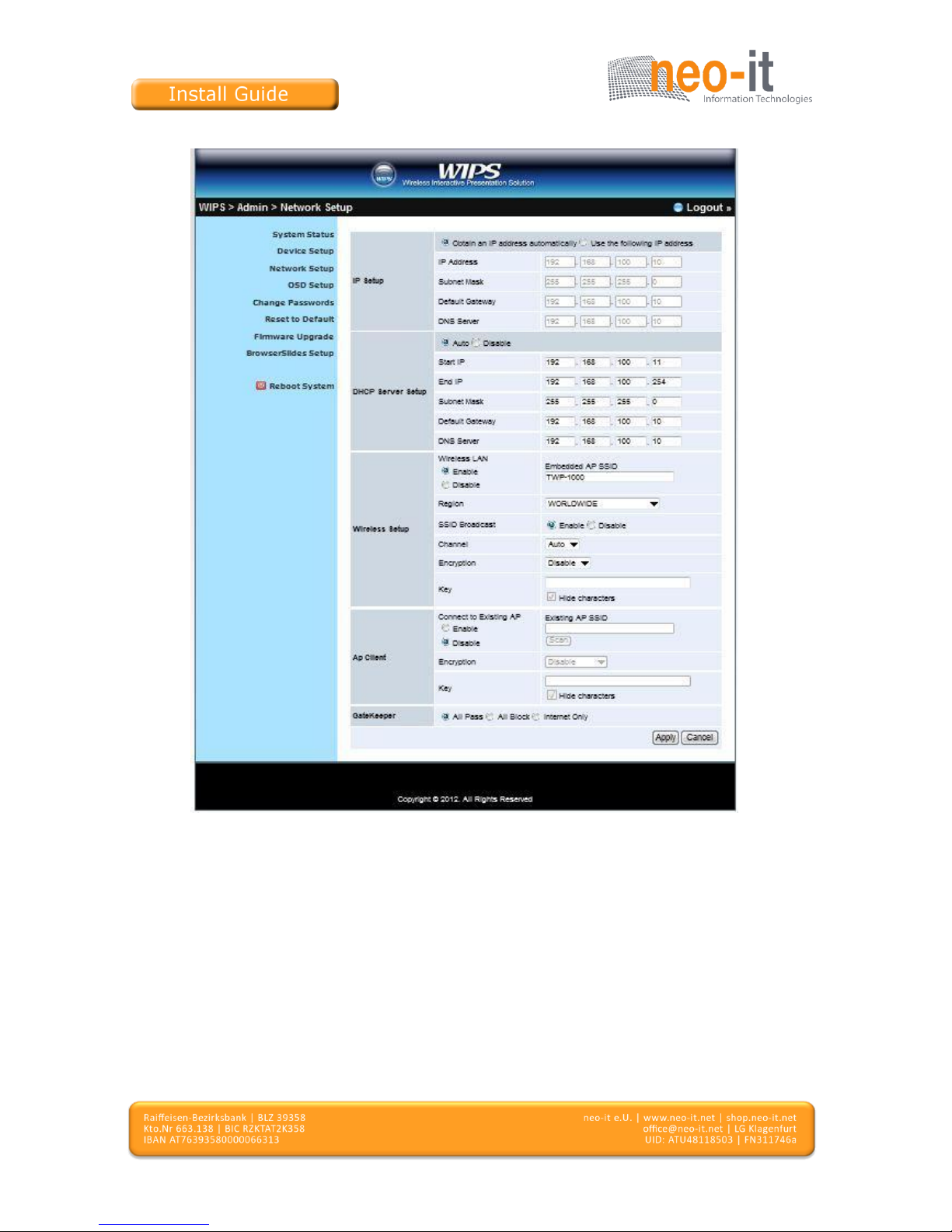

10.5.3 Network Setup
1) Click [Network Setup] button, it will show the network setting items,
<Note: Auto-Configuration Network Setup on TWP-1000>
The default setting of the WIPS TWP-1000 box is DHCP client. When the WIPS
TWP-1000 box is connected to a LAN that already has a DHCP server present,
the WIPS TWP-1000 box takes an IP address assigned to it by the server. When
the WIPS TWP-1000 box is connected to a LAN that does not have a DHCP
server, the TWIPS TWP-1000 box becomes the DHCP server in the network.
< IP Setup>
You can select “obtain IP address automatically” or “Use the following
IP address”
IP Address: The default value is 192.168.100.10.
Subnet Mask: The default value is 255.255.255.0
Default Gateway: The default value is 192.168.100.10
DNS Server: The default value is 192.168.100.10
<DHCP Server Setup>
You can select “auto(Enable/Disable DHCP Server” or “Disable”)
Start IP: The start IP address of DHCP Server.
End IP: The end IP address of DHCP Server
Subnet Mask: The default value is 255.255.255.0
Default Gateway: The default value is 192.168.100.10
DNS Server: The default value is 192.168.100.10
Page 52
Seite 52 von 58
< Wireless Setup>
Wireless LAN: The default value is “Enable”
Region: default value is “Worldwide”.
SSID: SSID string, max. Length is 32 bytes.
SSID Broadcast: The default value is “Enable”
Channel: to set fixed channel or Auto. The “Auto” means after power
on WIPS TWP-1000, it will scan all of wireless channel and select clear
one channel automatically.
Encryption: you can select “Disable” or one of WEP/WPA/WPA2 64bit
or 128bit in ASCII or HEX string.
Key: If Encryption is enabled, you have to set key value according to
the encryption mode you selected.
< AP Client>
Connect to Existing AP: Input the SSID of Home WiFi AP you want to
connect.
Encryption: you can select “Disable” or one of WEP/WPA/WPA2 64bit
or 128bit in ASCII or HEX string.
Key: If Encryption is enabled, you have to set key value according to
the encryption mode you selected.
Press Apply button, and follow the reboot instruction to make it work.
< Gatekeeper>
Gatekeeper is designed for ensuring the enterprise network security within
WIPS TWP-1000 box
All Block can block Guest Users(through wireless) to access all office
network(LAN),
All Allow can pass Guest Users(through wireless) to access all office
network
Internet Only can block Guest Users (through wireless) from office
network (LAN) but still reserve internet connection capability.
<Apply >: press button to select this mode.
<Cancel>: press button to abort action.
<Back>: Back to Operating mode main menu.
Page 53
Seite 53 von 58

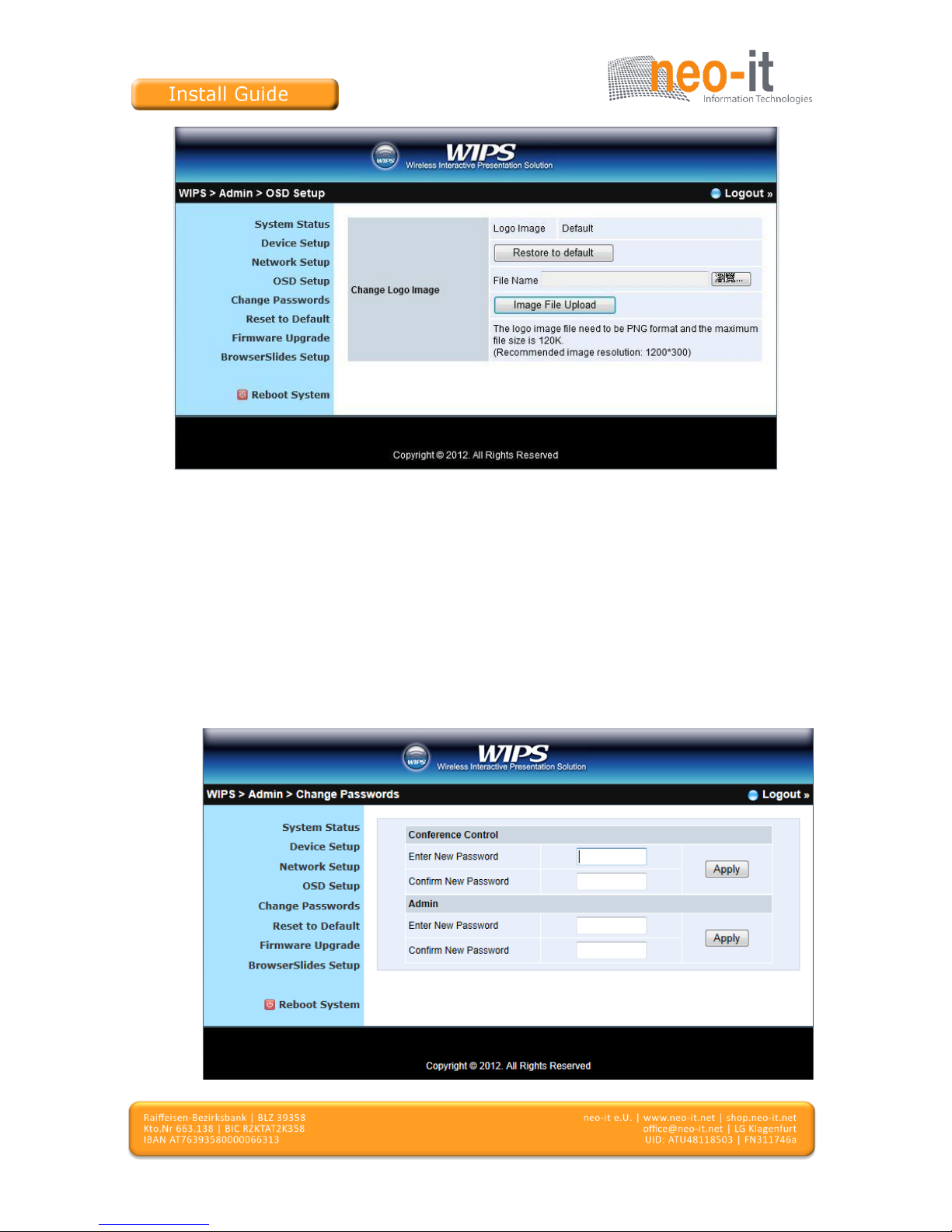

10.5.4 OSD Setup
1) Click [OSD Setup] button, you can change the standby Logo image
Change Logo Image
<Reset to default>: Restore to default Logo image.
<Image File Upload>: Upload the customized Logo Image.
Page 54
Seite 54 von 58
10.5.5 Change Passwords
1) Click [Change Password] button, you can change the password
setting. (Length: up to 8 characters)
<Enter New Password>: enter new password you want to change
for each category.
<Confirm New Password>: Confirm the new password again.
<Apply>: Confirm and Save modifications.
Page 55
Seite 55 von 58

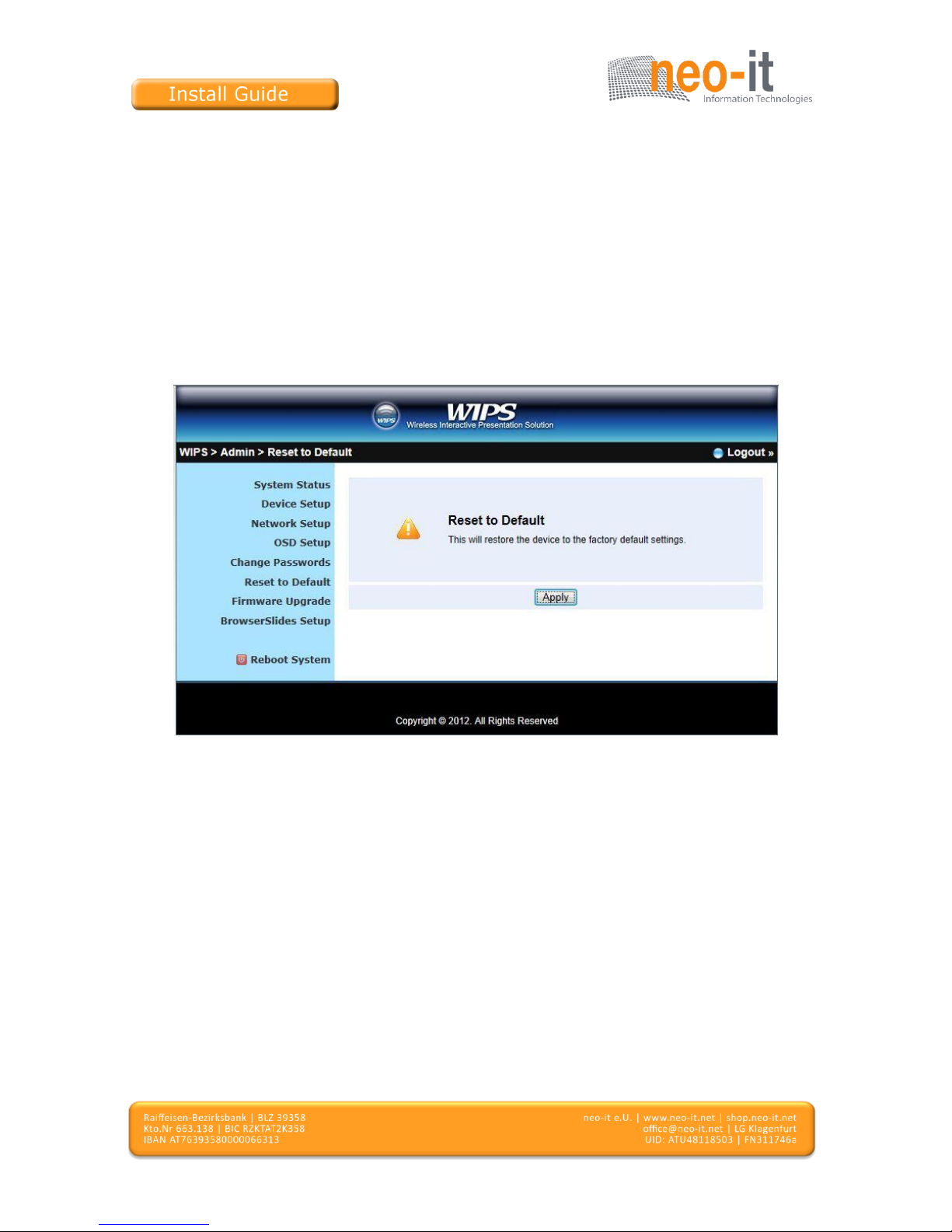

10.5.6 Reset to Default
1) Click [Reset to Default] button to restore factory default settings.
<Apply>: Confirm and take action.
*** To execute the Hardware Factory Reset to Default, Please follow
below procedures.
1. Press [Reset] button and Hold.
2. Turn on WIPS TWP-1000 box.
3. Wait for over 10 seconds and relief [Reset] button.
4. It will take effect to restore factory default settings.
10.5.7 Firmware Upgrade
1) Click [Firmware Upgrade] button to import/export system configuration and
upgrade firmware.
2) System Configuration Import and Export
Export: Export the system configuration to a configuration file
Import: Import the system configuration file to TWP-1000
3) Firmware Upgrade
A. Firstly, you have to get latest firmware image file from your vendor.
B. Click <Browse> to specify file name you want to upgrade.
C. Click <Upgrade> to start.
Page 56
Seite 56 von 58
D. A warning message shown and count down counter on the screen.
E. After a few minutes, a complete message shown on the screen.
F. Restart WIPS TWP-1000 box to take effect.
Warning: Don’t power off WIPS TWP-1000 while firmware upgrade in
progress, otherwise will cause your Box doesn’t work and have to return device
to your vendor for fixing.
10.5.8 BrowserSlides Setup
1) Click [BrowserSlides Setup] button to setup the BrowserSlides Feature.
2) Auto Refresh Interval: choose “Manual Refresh”, “10”, “20”, or “30” seconds
3) Access Password Control: choose “Disable”, “Use the same password as
Page 57
Seite 57 von 58
Code” or “Use the following Code”
10.5.9 Reboot System
1) Click [Reboot System] button, you can restart the system
<Reboot>: reboot system automatically.
Page 58
Seite 58 von 58
10.5.10 Logout
1) Click [Reboot System] button, you can logout the TWP-1000
Loading...
