Neo ELYOS V150, GALEO user Manual

Digital Music & MP4 Player

USER’S MANUAL

Contents

Precautions ·································································································································································03
Characteristics ····························································································································································05
About the Player ························································································································································06
Screen Description ·····················································································································································07
Basic Operation··························································································································································10
System Menu······························································································································································12
Listen to Music···························································································································································14
Voice REC ··································································································································································17
Resources Manager····················································································································································18
Picture Browse ···························································································································································19
FM Tuner····································································································································································19
E-Book········································································································································································21
Game Function ···························································································································································22
SD Card ······································································································································································22
USB Disk····································································································································································23
Transfer and Play Video File·····································································································································24
Upgrade Player Driver···············································································································································26
Troubleshooting ·························································································································································28
Specifications ·····························································································································································29

- 2 -

Precautions 01

This manual contains important safe measurements and correct operational information, so please read all the
information carefully before you use the device in order to avoid any unexpected accidents.

 Do not put the player in the condition of high temperature, humidity or dust.
 Do not put the player in high temperature place (over 40℃), especially not in the cars with windo w

closed in summer.

 Do not knock or hit the player, especially do not shake TFT screen in order to avoid TFT being

damaged or displayed abnormally.

 Select suitable volume, turn down or stop use when you feel tingle in ears.
 Battery service lift may be various from different using conditions, manufacturer and manufacturing

time.

 Do not disconnect the player abruptly during the formatting or uploading and downloading, otherwise,

it will cause the program error.

 We will not be responsible for any obligation for any memory loss caused by product damage, repair or

other reasons. Please operate correctly as per the manual.

 The player, no matter is powered on or not, once connected with the USB port of sta rted computer, can

be charged.

 Do not dismantle the player personally or use alcohol, thinner or be nzene to clean the surface of the

player.

 Do not use the player in the electronics-prohibited area, such as in the plane.
 Do not use the player when driving or walking in order to avoid traffic accidents.
 Please charge in the following conditions:

- 3 -

A. Battery electricity icon displays no electricity.
B. Further power on the player when the system is powered off automatically, but it powers off soon.
C. No response with the pressing keys.

※Our Company reserves the right for the improvement of the product. It is subject to any change on the
specifications and designs without further notice!

- 4 -

Characteristics 03

2.2-inch 260K full-color TFT display (320X240), (can select the 220X17 6)

Multi music formats as MP3, WMA and WAV, good timber and real audio frequency display

MPEG-4 video format play, full-screen play display, exterior-sound speaker play

High-definition JPEG picture browse function

Built-in hi-fi 8 Ohm speaker

Microphone record and line-in record

Energy-saving setting, brightness adjustable, customerized power o ff time

Good timber, support 3D EQ surrounding effect, customerized EQ

Support multi languages

USB2.0 ultra-high speed transmission as 5M/S

Listen to music while reading E-book, with bookmark function

Listen to music while playing games

Portable U-disk function, support Firmware Upgrade

A-B repeat

Mini-SD card adapter

- 5 -

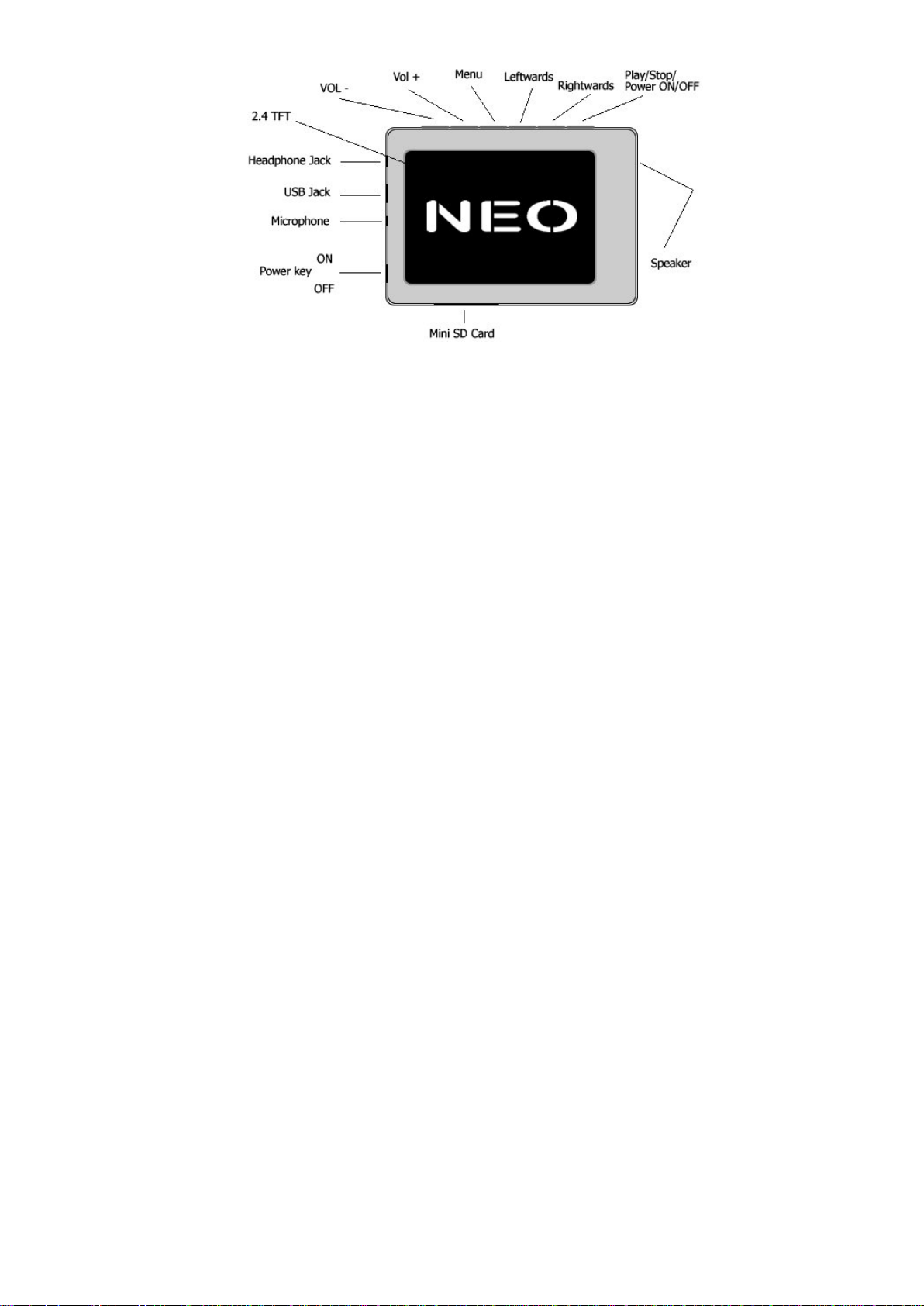

About the Player 04

- 6 -

Screen Description 05

■Music Play

■REC Mode

- 7 -

Microphone Record

- 8 -

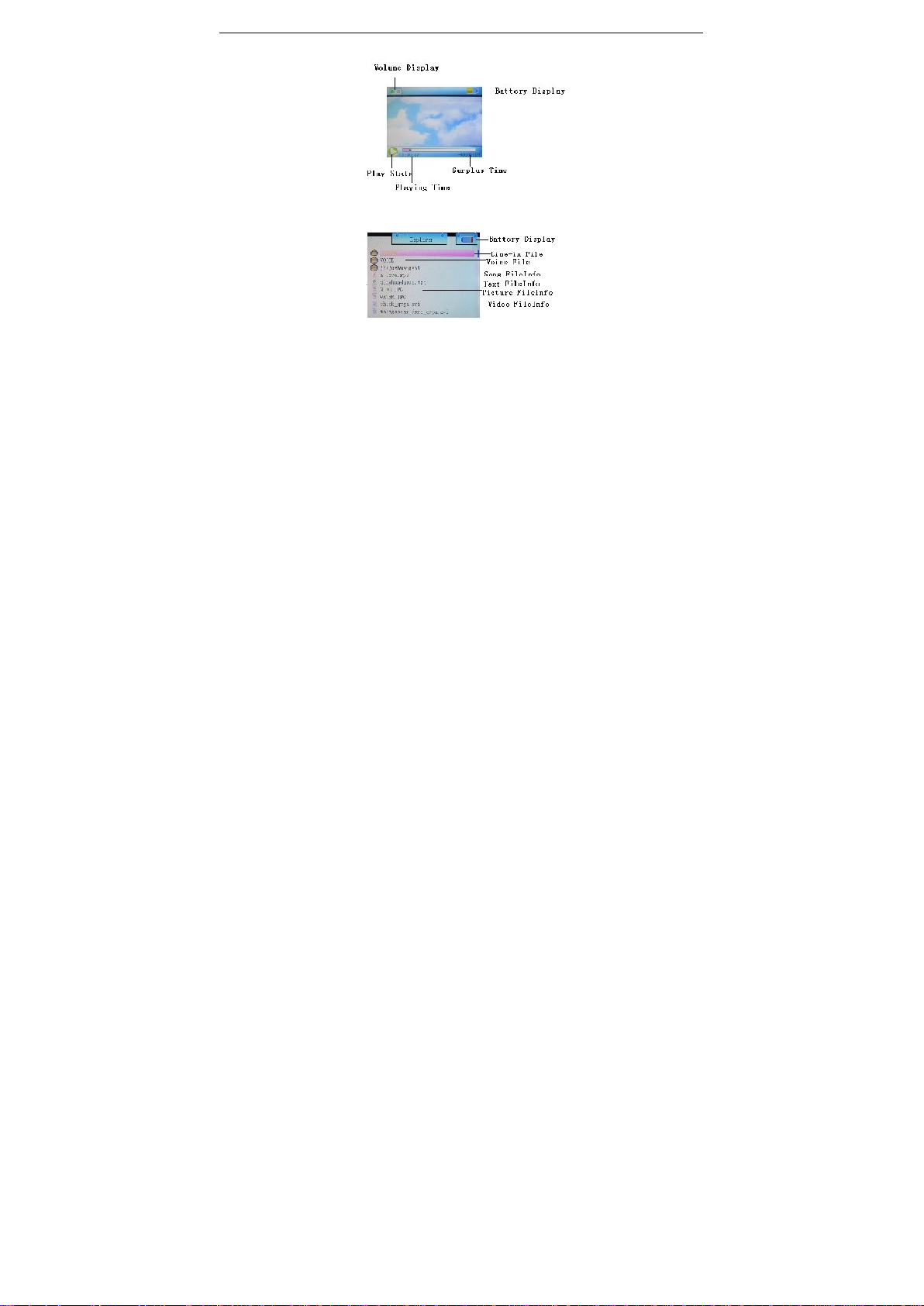

Screen Description 06

■Video Play

■Picture Browse/E-Book/Resources Manager

- 9 -

Basic Operation 07

 Power On/Off
Power On:
Push the power switch to ON position, long press

key for 3 seconds, the player will display the Boot

interface and enter the working mode before the Normal Power Off.

Power Off:
a. In Play state: short press
b.In other modes: press

to pause, further press for 3 seconds to power off.

for 3 seconds to power off.

c. The system will power off automatically if the battery is not enough.

 Hold On/Off
In Video, Music or REC state, you can set the Hold as On to avoid the unexpected operation.
Hold On: long press "
Hold Off: long press "

MENU+ " key to lock the player automatically.

MENU+ " key to unlock the player automatically.

 Power Reset
If your player is blocked during the using, you can push [ON/OFF] power switch to restart the player.

 Connect to Computer and Data File Transmission
After starting the computer, you can connect the player to computer via USB cable to achieve the USB power
supply or USB data transmission. When the player is connected to the computer via USB port, it can be used
as a U disk. It requires you only to drag your favorite music or data into MP3 instead of any 3

rd

procedure.

 Volume Control
you should press

+ and _ to adjust the volume.

- 10 -

 Battery
This player adopts built-in lithium batteries of high capacity.

Full Partially used To be used Used up (time to charge)

The usable time of battery electricity may be various according to different volume, type of playing file and
pressing operation. The player can save battery as per the set [Customerized Power Off Time] or [Display
Setting].

- 11 -

System Menu 09

 Main Interface
After entering the Main Interface, select your desired option among [Music ]/[Video ]/ [FM ]/
[Photo]/[Text]/[Record]/[Navigation]/[Game]/[Setting] circularly by pushing leftwards or rightwards, and
short press the "
to Main Interface

 Setup
In Main Interface, push leftwards or rightwards to select [Settings] option, short press "
Setting interface (shown in right bottom), and select the sub-option to be set by pushing Leftwards or
rightwards.

 Display Setup
①Backlight time: six options of 5 sec., 10 sec., 15 sec., 20 sec., 30 sec., and

always on.

②Lum: five options of +1, +2, +3, +4 and +5, the lower level, the more bright.
③Backlight mode: two options of Normal and Electr icity-saving modes.

 System Setup

MENU" key to enter the o ption menu, long press [MENU] key to exit the submenu and return

MENU" key to enter

- 12 -

Four sub-options: Language, about, Upgrade and Default set.

1.Language Selection: three options of Simplified Chinese, Traditional Chinese, English, korea, japanese,
spanish, french, deutsch, italiano, portuguese, russian.

2.About: player storage memory, remain memory and system software version no., these information are
read-only, short press "

3.Firmware Upgrading
Eject out the dialog box in this menu, it reminds you whether to upgrade the firmware, it will exit if no
firmware upgrading.

4.Defaulted Set
In this menu, eject out the dialog box, confirm whether to resume the defaulted value, select “Yes” or “No”.

 Auto Power Off Time
In this menu, there are six options of Power: Off, 10 min.,15 min., 30 min., 60min. and 120 min.

 Format
In this menu, eject out the dialog box, confirm whether to format the player, select “Yes” or “No”.

MENU" key to exit.

- 13 -

Listen to Music 11

 Play/Stop/Pause
In Music Play menu, connect the earphone with player, select the desired song file by pushing leftwards
or rightwards key, short press "
circularly. During the playing of music, the interface has real audio frequency display.
The player only supports the Lyric Synchronous Display that the file shares the same name as LRC file of
MP3 format, e.g., music file is named as “Angel.mp3”, the LRC file must be named as “Angel.Irc”, what’s
more, they have to be in the same directory, long press "
lyric.

 Music Play Setting Menu

In Music Play state, long press
option, there are multi options, push Leftwards or rightwards key to shift to the desired setup menu. After your
selection, press

 A-B Repeat function
In Music Play state, long press
repeat, A-B will display, the player will repeat between the beginning point and the ending point.

1. Repeat Mode
a. Once Stop after playing all the songs in each directory
b. Repeat 1 Repeat playing a single song.
c. Folder once Play all the songs in the folder.
d. Folder repeat repeatedly play all the songs in the folder.

MENU key to confirm.

MENU" key to begin the playing, then short press key to pause, operate it

_" to change the display frequency and the display

MENU key to return Main Menu and enter the “Music” in “Settings”

+to begin the repeat, A will disp lay on the screen; long press +To end the

- 14 -

e. All once Play randomly the songs in the current folder.
f. All repeat Repeatedly play all the songs.
g. Intro Play all the songs of the first 10 seconds in the current folder.

2. EQ Setup
Normal/3D/Rock/Pop/Classic/bass/Jazz/User EQ, the above eight opt ions will bring you different music
effects; also, you can ed it your favorite EQ effect by [User EQ set] option. The operation is done by leftwards,
rightwards, ""

3. play mode

order
shuffle

 Video playing
While under the video playing menu, press "
long press "rightwards" to fastward playing, long press "leftwards" to backward playing.

MENU keys.

" to stop the video playing, long press "MENU" to exit,

- 15 -

- 16 -

Voice REC 13

 Voice REC
In Main Interface, enter Record state, long press
recording, long press
[MENU] key to save the record and exit the REC mode.

_ key to save the recorded file and enter next Record preparation state. Long press

+ key to start recording, long press + key to pause

 REC Setup
In Stop state of REC mode, long press [MENU] key to exit the Main interface, and enter [Record] opt ion,
adjust the settings among [REC Quality]/[REC Volume].

1. REC Quality: high quality, common quality (the first one has larger REC file and better effect; the

second one is in the opposite)

2. REC Volume: five options of +1, +2, +3, +4 and +5. The higher level, the larger recorded volume.

*The recorded voice files can be found in Music Play menu and played to try the effect.
*If the screen displays “Full Space”, it indicates that there is no space for new recorded file, please delete other
files to release more space.

- 17 -

Resources Manager 14

 Resources Manager
Resources manager is one of the function characteristics, it can make you know the inside file type, structure
and contents more clearly, for convenient management and search of the file content in classifications .

Note:

 Delete File
In Resources Manager, you can select music or video files, press "
“Yes” to delete and “No” to cancel. After the selection, short press "
option.

"key to display delete Dialog box, select

MENU" key to implement the selected

- 18 -

Picture Browse 15

 JPEG Browser
In Main Interface, short press
Push

Leftwards or rightwards key to select the previous or next picture.

 FM (Optional)
Enter FM menu, Press Mode key to select: Manu, Auto, Mem, Pres, Del

Manu: Press "MENU" Key to confirm, press leftwards or rightwards to change the frequent manually, long
press"

MENU" to exit.

Auto: Press "MENU" to enter, the player will automatically search,, Press leftwards or rightwards to select the
station.

Mem: press "
confirm store, the frequent display on screen will replace the frequent that stored before. First Short press

MENU to exit mem, then long press MENU to return FM menu.

MENU" key to enter, press leftwards or rightwards to select the stations, press "MENU" to

MENU key to confirm to enter Picture Browse mode

- 19 -

Del: press "MENU" key to enter, press leftwards or rightwards to se lect the station that you want to delete,
press "

MENU" the confirm, after delete the station’s frequent will display “empty”, First Short press MENU

to exit del, then long press

FM record :
When you listen the FM music, Long press
the Music as file and exit FM record mode.

Note:

In FM mode, the earphone is using as antenna, so please keeping the earphone is connected well.

MENU to return FM menu.

+key to record and pause selecting, long press MENU key to store

- 20 -

E-Book 16

 Download TXT File
Connect the player to computer, select the desired file to download and save the file as TXT format in portable
disk.

 Read File
In Main Interface, enter Text option, push leftwards or rightwards key to select the desired file to read, then
short press

■ Store Bookmark

While in the e-book menu, long press "+" to display the store bookmark, press leftwards or rightwards key to
select the bookmark, and press "
bookmark, press leftwards or rightwards key to se lect the bookmark, and press "
you have stored last time.

MENU key to read. Turn pages by pushing leftwards or rightwards key.

MENU" to save the text in the current page. Long press "_"to pick up the

MENU" to pick up the text

- 21 -

Game Function 17

 Built-in Intellectual Game: Russian Diamond
In System Menu, enter Game mode, short press

 Keys Description
Russian Diamond is operated in horizontal, short press
push leftwards or rightwards to control the movement of diamonds. Press
press

+to fall down much more quickly, and long press _key to fall down a little quickly. Long press MENU

key to exit.

■ SD Card function
While under the music/video/ebook menu, press "MENU" to retrun to the filelist , then press "
brower, there are flash memory and miniSD card directors ,you can press leftwards or rightwards to select .

key to enter Game Setup Interface.

key to shift between Start and Pause functions,

MENU to change the shape. Short

_" to enter the

- 22 -

USB Disk 18

 USB Display Mode
The player has a high-speed USB2.0 port with the transmission speed of 5M/S, and is a standard USB disk,
supports the systems including Windows98 (it needs to install the driver), over Windows2K (it’s unnecessary
to install the driver), Mac OS 10.3 and over, Linux Redhat 8.0 and over. It supports USB power supply and can
be played without battery. After connecting to the PC (several seconds later), the player will display the
On-line mode shown

 Charge Display Mode
If the battery is too low, the display will shows “ Low battery to power off”, then the player w ill be powered off
automatically. You can use the attached charger to charge the battery. During the charging, the battery icon will
display the impulse, after the charging, the battery electricity will shows full grids (Fig.). It requires 3 hours to
charge fully the battery (note: for the first two times, you have to charge for 8 hours).

- 23 -

Convert and Play Video File 19

This player can convert the WMV, RM, AVI, VOB or DAT into AVI video format via the attached video
convert software.

1.Click and run the program of “AV Converter.exe”, shown as follows:

2.click "add ", show dialog as follows:

- 24 -

Convert and Play Video File 19

3.Select and set your desired para meters, select your desired video/audio file and AVI video file routine to be
generated, click [Start to Convert] button, then begin to convert to AVI file.

4.The successfully converted AVI video file can be played in MP4 player. During he operation, enter Video
Play menu, select the correspo nding file, short press [MODE] key to play in video, long press to exit (the
Video Play interface refers to the Screen Description).

- 25 -

Upgrade Player Driver 20

The player can upgrade or resume the damaged player driver via the tool software in the attached disk.

1. For the first upgrading of computer, insert the drive disk into the CD-ROM of computer, then connect the
MP4 player with computer (it requires you to press and hold the
Installation Interface.

2. Implement the next step according to the Dialog box prompt, and select the “Upgrading Tool” folder in the
attached disk in the “Browse” option of the fourth Dialog box, then click Confirm.

3. Operate as per the prompt in dialog box till the accomplishment

4.When the installation of programs required by computer is OK, you can begin the upgrading; select and run
the firmware upgrading tool Consumer.exe (can be found in attached disk), then open the option and select
Rock2*.rfw file (the Interface is as follows).

5.Connect the pla yer to PC via USB cab le (press and hold the MENU key before the On-line operation), then
click [Burnt Firmware] till the Auto Upgrading is achieved.

MENU key), till it appears the program

- 26 -

Note: Firmware upgrade is to improve and optimize the performance of the player. The normal work of the
player would not be affected even if the firmware isn’t upgraded. The wrong operation of upgrading firmware
would cause the device not to work normally! The firmware upgrade software of this player is not applied to
other series of players.

- 27 -

Troubleshooting 21

If the player can not be played normally, please check as follows:

Troubles Causes

It cannot be turned on

The player is blocked Push the power switch to restart the player

It can not be played

It can not upload/download the
file or the disk can not be found
in computer

It can not be recorded Check the enough memory and the electricity

Words on display are deformed Make sure that you have selected the correct language

It can not be used normally after
upgrading

Check whether the player is powered on or not and whether the
machine program is damaged or not

Check whether the machine is powered on or not
Confirm the volume is not in “0” level, check the earphone is
connected well and keep the earphone clean
Format the disk again

Insert USB cable totally well after the Power on. Correctly install
the driver again.

Upgrade again in Windows 2000

- 28 -

Specifications 21

Items Specifications
Dimensions 80×47×12mm (W*H*D)
Weight About 46g
TFT colored display 260K real colored display, Diagram (320*240)
Language support Multiple languages
Data transmission speed High speed USB2.0 (5M Byte/s)

Supportable file format

Supportable video format AVI, RM, VOB, DAT, RMVB etc. (should be converted)
SNR 85dB
Max. output power 10mW in left and right
Storage media Embedded Flash, memory 128MB/256MB/512MB/1GB/2GB,
Power supply 3.7V li-ion battery

Usable time of battery

Working temperature

Supporting operating system

Accessories User’s Manual, earphone, USB cable, installation CD disk

Music: MP3, WMA, WMV, ASF, WAV
REC: WAV Picture: JPEG

Video play: 4 hours
MP3 play: 6hours (power save mode)

℃ to 40℃

5

WINSE/ME/2K/XP, Mac OS 10, Linux 2.4.2 and WIN98 (require to install
the program)

- 29 -
