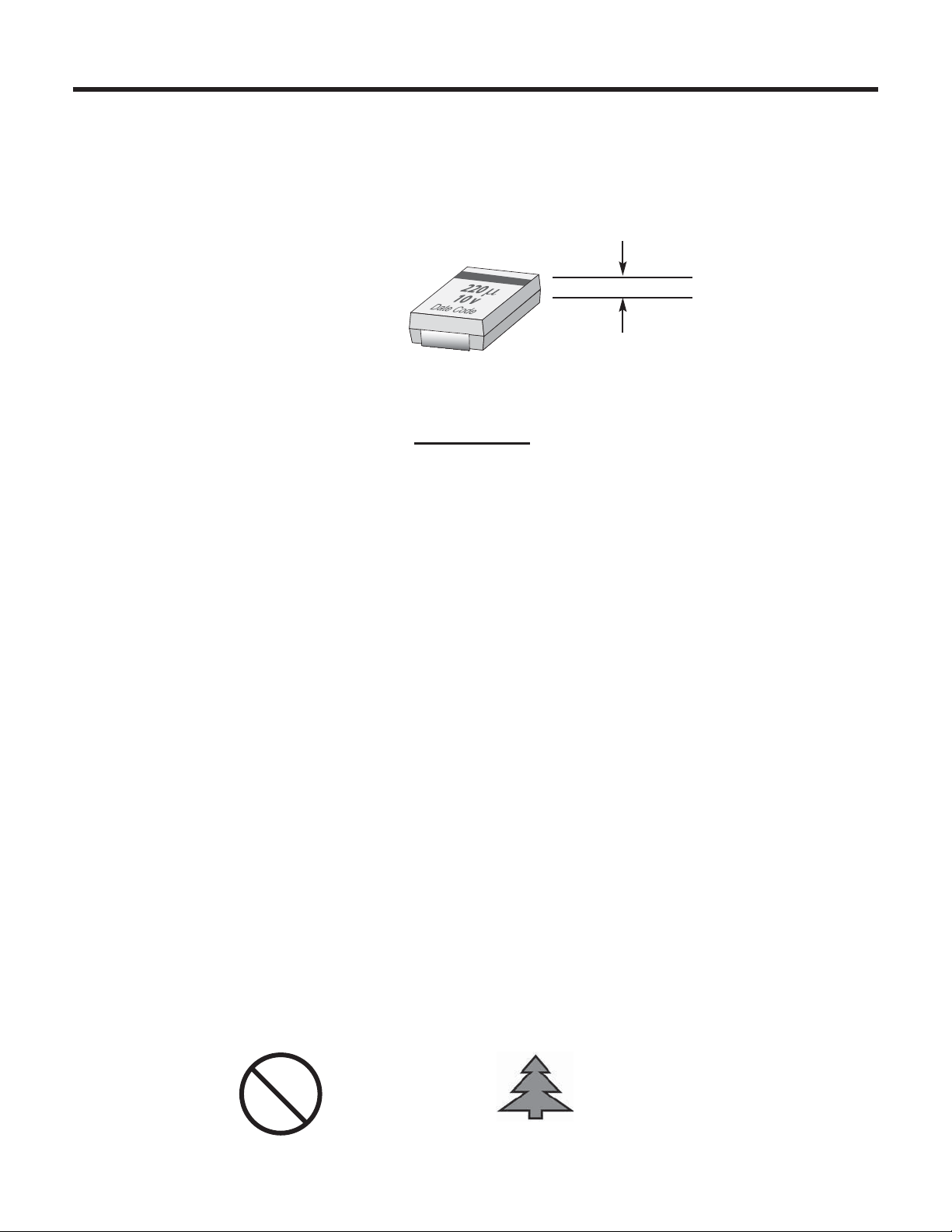

PCT
Low Profile
Surface Mount Tantalum Capacitors
Low Profile
FEATURES
Lead-free, RoHS compliant
nemco
Low Profile
1.2 mm to 2.0 mm
Low Profile Heights. Excellent for PCMCIA applications.
Meets or exceeds EIA 535 BAAC and IECQ standards (QC300801/US0001, IS - 28)
Capacitance range: 0.1 μf to 470 μf
Voltage range 4 to 35 WVDC
Operating temperature range -55°C to +125°C, 2/3 x Vr (linear derating) above +85°C
Surge tested for maximum robustness
Precision molded case with flat surfaces for vacuum pick-up
Laser marking and bold videcon - readable polarity stripe
Compliant terminations
Glue pad on underside for bonding to circuit board prior to soldering
Encapsulant material satisfies the UL 94 VO flammability classification
MSL (moisture sensitivity level) per IPC/Jedec J-STD-020B is level 1
Nemco offers low profile surface mount tantalum capacitors including an 0805 (EIA 2012) size for applications where
component height is a critical concern. These devices are often selected when maximum heights as small as 1.2 to
2.0 millimeters are needed to meet the heights of standard integrated circuits after mounting.
Case sizes AL, BL, CL, DL have the identical footprints of standard A, B, C, D devices.
RoHS
compliant
12
Pb
Lead Free
μ
μ
PCT
Low Profile
Surface Mount Tantalum Capacitors
PART NUMBERS & SPECIFICATIONS
nemco
@
125°C)
@
125°C)
tan δESR
max. @ 100Khz
(%) max. (Ω)
Capacitance Case DCL
F) Size Nemco Part No. (μA) max.
(
4 V DC@85°C (2.4 V DC
2.2 XL PCT2.2 / 4XL _ 0.5 6 25.0
2.2 AL PCT2.2 / 4AL _ 0.5 6 25.0
3.3 XL PCT3.3 / 4XL _ 0.5 6 20.0
3.3 AL PCT3.3 / 4AL _ 0.5 6 18.0
4.7 XL PCT4.7 / 4XL _ 0.5 6 12.0
4.7 AL PCT4.7 / 4AL _ 0.5 6 10.0
6.8 XL PCT6.8 / 4XL _ 0.5 6 5.2
6.8 AL PCT6.8 / 4AL _ 0.5 6 8.0
6.8 BL PCT6.8 / 4BL _ 0.5 6 6.0
10.0 XL PCT10 / 4XL _ 0.5 6 7.0
10.0 AL PCT10 / 4AL _ 0.5 6 6.0
10.0 BL PCT10 / 4BL _ 0.6 6 5.0
15.0 XL PCT15 / 4XL _ 0.6 8 4.0
15.0 AL PCT15 / 4AL _ 0.6 8 4.0
15.0 BL PCT15 / 4BL _ 0.6 6 2.0
22.0 XL PCT22 / 4XL _ 0.9 8 3.8
22.0 AL PCT22 / 4AL _ 0.9 8 3.5
22.0 BL PCT22 / 4BL _ 0.9 6 1.9
33.0 AL PCT33 / 4AL _ 1.3 8 1.7
33.0 BL PCT33 / 4BL _ 1.3 6 1.7
33.0 CL PCT33 / 4CL _ 1.3 6 0.6
47.0 BL PCT47 / 4BL _ 1.9 10 2.0
47.0 CL PCT47 / 4CL _ 1.9 6 0.5
68.0 BL PCT68 / 4BL _ 2.7 15 1.5
68.0 CL PCT68 / 4CL _ 2.7 6 0.4
100.0 BL PCT100 / 4BL _ 4.0 14 1.4
100.0 CL PCT100 / 4CL _ 4.0 6 1.3
150.0 CL PCT150 / 4CL _ 6.0 6 1.3
150.0 DL PCT150 / 4DL _ 6.0 6 0.4
220.0 CL PCT220 / 4CL _ 8.8 8 1.2
220.0 DL PCT220 / 4DL _ 8.8 8 0.3
330.0 DL PCT330 / 4DL _ 13.2 12 0.4
470.0 DL PCT470 / 4DL _ 18.8 14 0.9
680.0 DL PCT680 / 4DL _ 27.2 25 0.2
6.3 V DC@85°C (4 V DC
1.5 XL PCT1.5 / 6XL _ 0.5 6 25.0
1.5 AL PCT1.5 / 6AL _ 0.5 6 25.0
2.2 XL PCT2.2 / 6XL _ 0.5 6 20.0
2.2 AL PCT2.2 / 6AL _ 0.5 6 18.0
3.3 XL PCT3.3 / 6XL _ 0.5 6 12.0
3.3 AL PCT3.3 / 6AL _ 0.5 6 9.0
4.7 XL PCT4.7 / 6XL _ 0.5 6 7.0
4.7 AL PCT4.7 / 6AL _ 0.5 6 7.5
4.7 BL PCT4.7 / 6BL _ 0.5 6 6.0
6.8 XL PCT6.8 / 6XL _ 0.5 8 7.0
6.8 AL PCT6.8 / 6AL _ 0.5 6 2.6
6.8 BL PCT6.8 / 6BL _ 0.5 6 5.0
10.0 XL PCT10 / 6XL _ 0.6 8 6.0
10.0 AL PCT10 / 6AL _ 0.6 8 4.0
10.0 BL PCT10 / 6BL _ 0.6 6 4.0
15.0 XL PCT15 / 6XL _ 0.9 8 4.1
15.0 AL PCT15 / 6AL _ 0.9 8 4.0
15.0 BL PCT15 / 6BL _ 1.0 6 3.5
22.0 AL PCT22 / 6AL _ 1.3 10 1.8
22.0 BL PCT22 / 6BL _ 1.4 8 2.5
22.0 CL PCT22 / 6CL _ 1.3 6 0.6
@
125°C)
tan δESR
max. @ 100Khz
(%) max. (Ω)
@
125°C)
Capacitance Case DCL
F) Size Nemco Part No. (μA) max.
(
6.3 V DC@85°C cont. (4 V DC
33.0 BL PCT33 / 6BL _ 2.1 10 2.5
33.0 CL PCT33 / 6CL _ 2.1 6 1.8
47.0 BL PCT47 / 6BL _ 2.8 10 1.6
47.0 CL PCT47 / 6CL _ 3.0 6 1.5
68.0 CL PCT68 / 6CL _ 4.3 6 1.5
100.0 CL PCT100 / 6CL _ 6.3 6 0.9
100.0 DL PCT100 / 6DL _ 6.3 6 0.9
150.0 CL PCT150 / 6CL _ 9.0 8 0.3
150.0 DL PCT150 / 6DL _ 9.0 6 0.4
220.0 DL PCT220 / 6DL _ 13.9 10 0.9
330.0 DL PCT330 / 6DL _ 20.8 8 0.4
470.0 DL PCT470 / 6DL _ 28.2 20 0.2
10 V DC@85°C (7 V DC
1.0 XL PCT1 / 10XL _ 0.5 4 25.0
1.0 AL PCT1 / 10AL _ 0.5 4 25.0
1.5 XL PCT1.5 / 10XL _ 0.5 6 20.0
1.5 AL PCT1.5 / 10AL _ 0.5 6 20.0
2.2 XL PCT2.2 / 10XL _ 0.5 6 15.0
2.2 AL PCT2.2 / 10AL _ 0.5 6 12.0
3.3 XL PCT3.3 / 10XL _ 0.5 6 8.0
3.3 AL PCT3.3 / 10AL _ 0.5 6 8.0
3.3 BL PCT3.3 / 10BL _ 0.5 6 6.0
4.7 XL PCT4.7 / 10XL _ 0.5 6 9.0
4.7 AL PCT4.7 / 10AL _ 0.5 6 5.0
4.7 BL PCT4.7 / 10BL _ 0.5 6 5.0
6.8 XL PCT6.8 / 10XL _ 0.7 6 5.2
6.8 AL PCT6.8 / 10AL _ 0.7 6 4.0
6.8 BL PCT6.8 / 10BL _ 0.7 6 4.0
10.0 XL PCT10 / 10XL _ 1.0 20 6.0
10.0 AL PCT10 / 10AL _ 1.0 8 4.0
10.0 BL PCT10 / 10BL _ 1.0 6 3.0
15.0 AL PCT15 / 10AL _ 1.5 6 2.0
15.0 BL PCT15 / 10BL _ 1.5 8 2.8
15.0 CL PCT15 / 10CL _ 1.5 6 0.7
22.0 BL PCT22 / 10BL _ 2.2 8 2.2
22.0 CL PCT22 / 10CL _ 2.2 6 0.6
33.0 CL PCT33 / 10CL _ 3.3 6 1.6
47.0 CL PCT47 / 10CL _ 4.7 6 1.4
47.0 DL PCT47 / 10DL _ 4.7 6 0.5
68.0 CL PCT68 / 10CL _ 6.8 6 1.3
68.0 DL PCT68 / 10DL _ 6.8 6 0.9
100.0 CL PCT100 / 10CL _ 10.0 6 0.4
100.0 DL PCT100 / 10DL _ 10.0 6 0.9
150.0 DL PCT150 / 10DL _ 15.0 6 1.2
220.0 DL PCT220 / 10DL _ 22.0 10 0.5
_ Insert tolerance M (+20%) or K(+10%) to complete the Nemco part number
NEMCO reserves the right to supply a higher voltage rating, tighter tolerance and / or lower ESR in the same case size, to the same reliability standards.
13
PCT
Low Profile
Surface Mount Tantalum Capacitors
nemco
@
125°C)
@
125°C)
tan δESR
max. @ 100Khz
(%) max. (Ω)
Capacitance Case DCL
(μF) Size Nemco Part No. (μA) max.
16 V DC@85°C (10 V DC
0.68 XL PCT.68 / 16XL _ 0.5 4 25.0
0.68 AL PCT.68 / 16AL _ 0.5 4 25.0
1.0 XL PCT1 / 16XL _ 0.5 4 20.0
1.0 AL PCT1 / 16AL _ 0.5 4 15.0
1.0 BL PCT1 / 16BL _ 0.5 4 5.0
1.5 XL PCT1.5 / 16XL _ 0.5 6 10.0
1.5 AL PCT1.5 / 16AL _ 0.5 6 12.0
2.2 XL PCT2.2 / 16XL _ 0.5 6 6.5
2.2 AL PCT2.2 / 16AL _ 0.5 6 6.0
2.2 BL PCT2.2 / 16BL _ 0.5 6 6.5
3.3 XL PCT3.3 / 16XL _ 0.5 8 5.0
3.3 AL PCT3.3 / 16AL _ 0.5 6 5.0
3.3 BL PCT3.3 / 16BL _ 0.5 6 5.0
4.7 AL PCT4.7 / 16AL _ 0.8 8 4.5
4.7 BL PCT4.7 / 16BL _ 0.8 6 4.5
6.8 AL PCT6.8 / 16AL _ 1.1 8 2.4
6.8 BL PCT6.8 / 16BL _ 1.1 6 3.5
10.0 BL PCT10 / 16BL _ 1.6 8 2.2
10.0 CL PCT10 / 16CL _ 1.6 6 2.0
15.0 BL PCT15 / 16BL _ 2.4 6 2.0
15.0 CL PCT15 / 16CL _ 2.4 6 0.7
22.0 CL PCT22 / 16CL _ 3.5 6 1.6
33.0 CL PCT33 / 16CL _ 5.3 6 1.5
33.0 DL PCT33 / 16DL _ 5.3 6 0.9
47.0 CL PCT47 / 16CL _ 7.5 6 0.4
47.0 DL PCT47 / 16DL _ 7.5 6 0.7
68.0 DL PCT68 / 16DL _ 10.9 6 0.9
100.0 DL PCT100 / 16DL _ 16.0 8 0.9
150.0 DL PCT150 / 16DL _ 24.0 15 0.3
20 V DC@85°C (13 V DC
0.1 XL PCT.1 / 20XL _ 0.5 4 25.0
0.1 AL PCT.1 / 20AL _ 0.5 4 25.0
0.15 XL PCT.15 / 20XL _ 0.5 4 25.0
0.15 AL PCT.15 / 20AL _ 0.5 4 25.0
0.22 XL PCT.22 / 20XL _ 0.5 4 25.0
0.22 AL PCT.22 / 20AL _ 0.5 4 25.0
0.33 XL PCT.33 / 20XL _ 0.5 4 25.0
0.33 AL PCT.33 / 20AL _ 0.5 4 25.0
0.47 XL PCT.47 / 20XL _ 0.5 4 25.0
0.47 AL PCT.47 / 20AL _ 0.5 4 25.0
0.68 XL PCT.68 / 20XL _ 0.5 4 20.0
0.68 AL PCT.68 / 20AL _ 0.5 4 25.0
0.68 BL PCT.68 / 20BL _ 0.5 4 15.0
1.0 XL PCT1 / 20XL _ 0.5 4 20.0
1.0 AL PCT1 / 20AL _ 0.5 4 12.0
1.0 BL PCT1 / 20BL _ 0.5 4 9.0
1.5 XL PCT1.5 / 20XL _ 0.5 6 9.6
1.5 AL PCT1.5 / 20AL _ 0.5 6 5.4
1.5 BL PCT1.5 / 20BL _ 0.5 6 6.5
2.2 XL PCT2.2 / 20XL _ 0.5 6 6.0
2.2 AL PCT2.2 / 20AL _ 0.5 6 4.5
2.2 BL PCT2.2 / 20BL _ 0.5 6 6.0
3.3 BL PCT3.3 / 20BL _ 0.7 6 3.0
4.7 BL PCT4.7 / 20BL _ 0.9 6 3.0
6.8 BL PCT6.8 / 20BL _ 1.4 6 2.6
10.0 CL PCT10 / 20CL _ 2.0 6 1.9
15.0 CL PCT15 / 20CL _ 3.0 6 1.7
22.0 CL PCT22 / 20CL _ 4.4 6 1.6
22.0 DL PCT22 / 20DL _ 4.4 6 0.9
33.0 DL PCT33 / 20DL _ 6.6 6 0.6
47.0 DL PCT47 / 20DL _ 9.4 6 0.9
68.0 DL PCT68 / 20DL _ 13.6 6 0.9
@
125°C)
@
125°C)
@
125°C)
tan δESR
max. @ 100Khz
(%) max. (Ω)
Capacitance Case DCL
(μF) Size Nemco Part No. (μA) max.
25 V DC@85°C (17 V DC
0.15 XL PCT.15 / 25XL _ 0.5 4 24.0
0.22 XL PCT.22 / 25XL _ 0.5 4 21.0
0.33 XL PCT.33 / 25XL _ 0.5 4 17.0
0.47 XL PCT.47 / 25XL _ 0.5 4 15.0
0.47 AL PCT.47 / 25AL _ 0.5 4 14.0
0.68 XL PCT.68 / 25XL _ 0.5 4 13.0
0.68 AL PCT.68 / 25AL _ 0.5 4 10.0
1.0 XL PCT1 / 25XL _ 0.5 4 8.0
1.0 AL PCT1 / 25AL _ 0.5 4 8.0
1.5 AL PCT1.5 / 25AL _ 0.5 6 5.4
1.5 BL PCT1.5 / 25BL _ 0.5 6 5.0
2.2 BL PCT2.2 / 25BL _ 0.6 6 4.5
3.3 BL PCT3.3 / 25BL _ 0.8 6 3.5
3.3 CL PCT3.3 / 25CL _ 0.8 6 1.6
4.7 BL PCT4.7 / 25BL _ 1.2 6 3.1
4.7 CL PCT4.7 / 25CL _ 1.2 6 1.2
6.8 CL PCT6.8 / 25CL _ 1.7 6 2.0
10.0 CL PCT10 / 25CL _ 2.5 6 1.8
15.0 DL PCT15 / 25DL _ 3.8 6 1.0
22.0 DL PCT22 / 25DL _ 5.5 6 0.9
33.0 DL PCT33 / 25DL _ 8.3 6 0.5
47.0 DL PCT47 / 25DL _ 11.8 6 0.9
35 V DC@85°C (23 V DC
0.1 XL PCT.1 / 35XL _ 0.5 4 29.0
0.1 AL PCT.1 / 35AL _ 0.5 4 24.0
0.15 XL PCT.15 / 35XL _ 0.5 4 24.0
0.15 AL PCT.15 / 35AL _ 0.5 4 21.0
0.22 XL PCT.22 / 35XL _ 0.5 4 21.0
0.22 AL PCT.22 / 35AL _ 0.5 4 18.0
0.33 XL PCT.33 / 35XL _ 0.5 4 17.0
0.33 AL PCT.33 / 35AL _ 0.5 4 15.0
0.47 XL PCT.47 / 35XL _ 0.5 4 15.0
0.47 AL PCT.47 / 35AL _ 0.5 4 12.0
0.47 BL PCT.47 / 35BL _ 0.5 4 10.0
0.68 AL PCT.68 / 35AL _ 0.5 4 8.0
0.68 BL PCT.68 / 35BL _ 0.5 4 8.0
1.0 AL PCT1 / 35AL _ 0.5 4 7.5
1.0 BL PCT1 / 35BL _ 0.5 4 6.5
1.5 BL PCT1.5 / 35BL _ 0.5 6 5.2
2.2 BL PCT2.2 / 35BL _ 0.8 6 4.2
3.3 CL PCT3.3 / 35CL _ 1.2 6 1.6
4.7 CL PCT4.7 / 35CL _ 1.6 6 2.2
6.8 DL PCT6.8 / 35DL _ 2.3 6 0.9
10.0 DL PCT10 / 35DL _ 3.5 6 1.0
15.0 DL PCT15 / 35DL _ 5.3 6 0.6
22.0 DL PCT22 / 35DL _ 7.7 6 0.5
50 V DC@85°C (33 V DC
0.1 AL PCT.1 / 50AL _ 0.5 4 19.0
0.15 AL PCT.15 / 50AL _ 0.5 4 16.0
0.22 AL PCT.22 / 50AL _ 0.5 4 13.0
0.33 AL PCT.33 / 50AL _ 0.5 4 11.0
0.33 BL PCT.33 / 50BL _ 0.5 4 11.0
0.47 AL PCT.47 / 50AL _ 0.5 4 9.5
0.47 BL PCT.47 / 50BL _ 0.5 4 9.5
1.0 CL PCT1 / 50CL _ 0.5 6 4.4
1.5 CL PCT1.5 / 50CL _ 0.8 6 3.1
3.3 DL PCT3.3 / 50DL _ 1.7 4 1.7
4.7 DL PCT4.7 / 50DL _ 2.4 6 1.2
6.8 DL PCT6.8 / 50DL _ 3.4 6 0.9
_ Insert tolerance M (+20%) or K(+10%) to complete the Nemco part number
NEMCO reserves the right to supply a higher voltage rating, tighter tolerance and / or lower ESR in the same case size, to the same reliability standards.
