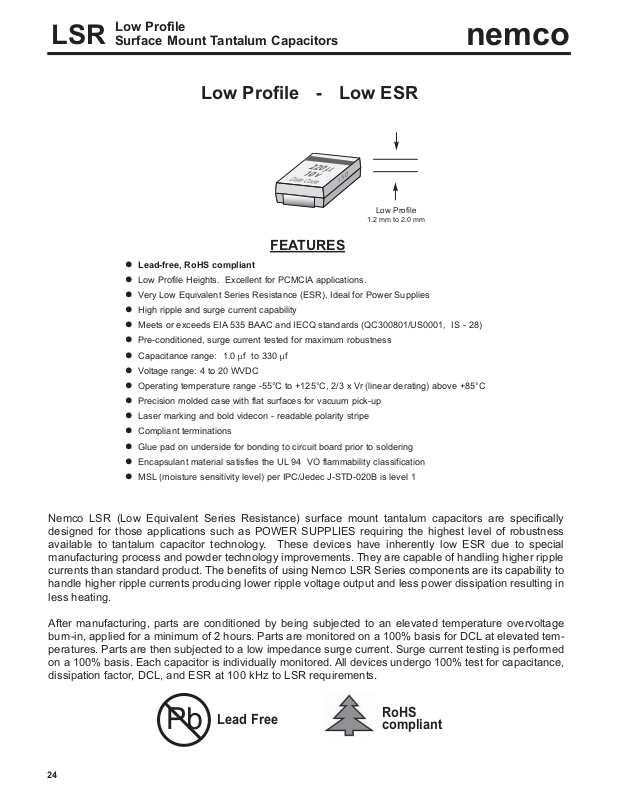

LSR

Low Profile
Surface Mount Tantalum Capacitors

Low Profile - Low ESR

Low Profile

1.2 mm to 2.0 mm

FEATURES

 Lead-free, RoHS compliant

 Low Profile Heights. Excellent for PCMCIA applications.

 Very Low Equivalent Series Resistance (ESR), Ideal for Power Supplies

 High ripple and surge current capability

 Meets or exceeds EIA 535 BAAC and IECQ standards (QC300801/US0001, IS - 28)

 Pre-conditioned, surge current tested for maximum robustness

 Capacitance range: 1.0 μf to 330 μf

 Voltage range: 4 to 20 WVDC

 Operating temperature range -55°C to +125°C, 2/3 x Vr (linear derating) above +85°C

 Precision molded case with flat surfaces for vacuum pick-up

 Laser marking and bold videcon - readable polarity stripe

 Compliant terminations

 Glue pad on underside for bonding to circuit board prior to soldering

 Encapsulant material satisfies the UL 94 VO flammability classification

 MSL (moisture sensitivity level) per IPC/Jedec J-STD-020B is level 1

nemco

Nemco LSR (Low Equivalent Series Resistance) surface mount tantalum capacitors are specifically
designed for those applications such as POWER SUPPLIES requiring the highest level of robustness
available to tantalum capacitor technology. These devices have inherently low ESR due to special
manufacturing process and powder technology improvements. They are capable of handling higher ripple
currents than standard product. The benefits of using Nemco LSR Series components are its capability to
handle higher ripple currents producing lower ripple voltage output and less power dissipation resulting in
less heating.

After manufacturing, parts are conditioned by being subjected to an elevated temperature overvoltage
burn-in, applied for a minimum of 2 hours. Parts are monitored on a 100% basis for DCL at elevated tem­peratures. Parts are then subjected to a low impedance surge current. Surge current testing is performed
on a 100% basis. Each capacitor is individually monitored. All devices undergo 100% test for capacitance,
dissipation factor, DCL, and ESR at 100 kHz to LSR requirements

Pb

24

Lead Free

.

RoHS
compliant

δ

μ

Ω

LSR

Low Profile
Surface Mount Tantalum Capacitors

PART NUMBERS & SPECIFICATIONS

nemco

Capacitance Case DCL

FSize Nemco Part No.μA max.

(microfarads) (milliohms) (microamps)

4 V DC@85°C (2.7 V DC

10.0 XL 3000 LSR10 / 4XL _ 3000 0.5 6 135 122 54

100.0 CL 100 LSR100 / 4CL _ 100 4.0 6 949 854 379

220.0 DL 40 LSR220 / 4DL _ 40 8.8 8 1768 1591 707

220.0 DL 50 LSR220 / 4DL _ 50 8.8 8 1581 1423 632

220.0 DL 75 LSR220 / 4DL _ 75 8.8 8 1291 1162 516

6.3 V DC @85°C (4 V DC

2.2 XL 7000 LSR2.2 / 6XL _7000 0.5 6 89 80 35

4.7 AL 4000 LSR4.7 / 6AL _4000 0.5 6 127 115 51

10.0 XL 1000 LSR10 / 6XL _ 1000 0.6 8 235 211 94

10.0 XL 1500 LSR10 / 6XL _ 1500 0.6 8 191 172 77

10.0 XL 3000 LSR10 / 6XL _ 3000 0.6 8 135 122 54

10.0 BL 1000 LSR10 / 6BL _ 1000 0.6 6 283 255 113

22.0 AL 900 LSR22 / 6AL _ 900 1.4 10 269 242 107

33.0 BL 800 LSR33 / 6BL _ 800 2.1 10 316 285 126

47.0 BL 1200 LSR47 / 6BL _ 1200 2.8 10 258 232 103

68.0 CL 110 LSR68 / 6CL _ 110 4.3 6 905 814 362

68.0 CL 125 LSR68 / 6CL _ 125 4.3 6 849 764 339

68.0 CL 250 LSR68 / 6CL _ 250 4.3 6 600 540 240

100.0 CL 100 LSR100 / 6CL _ 100 6.3 6 949 854 379

100.0 CL 150 LSR100 / 6CL _ 150 6.3 6 775 697 310

100.0 DL 100 LSR100 / 6DL _ 100 6.3 6 1118 1006 447

150.0 DL 40 LSR150 / 6DL _ 40 9.5 6 1768 1591 707

150.0 DL 50 LSR150 / 6DL _ 50 9.5 6 1581 1423 632

220.0 DL 30 LSR220 / 6DL _ 30 13.2 6 2646 2381 1058

220.0 DL 100 LSR220 / 6DL _ 100 13.9 8 1118 1006 447

220.0 DL 150 LSR220 / 6DL _ 150 13.9 10 913 822 365

330.0 DL 100 LSR330 / 6DL _ 100 20.8 12 1118 1006 447

330.0 DL 150 LSR330 / 6DL _ 150 20.8 12 913 822 365

470.0 DL 150 LSR470 / 6DL _ 150 28.2 20 913 822 365

ESR tan

@ 100Khz max. @ 100kHz mA

max. m

@

125°C)

@

125°C)

(%) (milliamps)

Max. Ripple Current

25°C

85°C

125°C

10 V DC @85°C (7 V DC

1.0 XL 9000 LSR1 / 10XL _9000 0.5 4 78 70 31

3.3 BL 1500 LSR3.3 / 10BL _1500 0.5 6 231 208 92

4.7 XL 3000 LSR4.7 / 10XL _3000 0.5 6 135 122 54

4.7 XL 5000 LSR4.7 / 10XL _5000 0.5 6 105 94 42

6.8 BL 1800 LSR6.8 / 10BL _1800 0.7 6 211 190 84

10.0 AL 900 LSR10 / 10BL _ 900 1.0 8 269 242 107

10.0 BL 1000 LSR10 / 10BL _1000 1.0 6 283 255 113

10.0 BL 2000 LSR10 / 10BL _2000 1.0 6 200 180 80

15.0 BL 1200 LSR15 / 10BL _1200 1.5 8 258 232 103

22.0 BL 800 LSR22 / 10BL _ 800 2.2 8 316 285 126

33.0 CL 350 LSR33 / 10CL _ 350 3.3 6 507 456 203

47.0 CL 125 LSR47 / 10CL _ 125 4.7 6 849 764 339

47.0 CL 150 LSR47 / 10CL _ 150 4.7 6 775 697 310

47.0 CL 250 LSR47 / 10CL _ 250 4.7 6 600 540 240

68.0 CL 100 LSR68 / 10CL _ 100 6.8 6 949 854 379

68.0 CL 150 LSR68 / 10CL _ 150 6.8 6 775 697 310

68.0 DL 100 LSR68 / 10DL _ 100 6.8 6 1118 1006 447

68.0 DL 200 LSR68 / 10DL _ 200 6.8 6 791 712 316

100.0 CL 150 LSR100 / 10CL _ 150 10.0 6 775 697 310

100.0 DL 45 LSR100 / 10DL _ 45 10.0 8 2160 1944 864

100.0 DL 100 LSR100 / 10DL _ 100 10.0 6 1118 1006 447

100.0 DL 150 LSR100 / 10DL _ 150 10.0 6 913 822 365

100.0 DL 200 LSR100 / 10DL _ 200 10.0 6 791 712 316

150.0 DL 45 LSR150 / 10DL _ 45 15.0 8 2160 1944 864

150.0 DL 100 LSR150 / 10DL _ 100 15.0 6 1118 1006 447

150.0 DL 150 LSR150 / 10DL _ 150 15.0 6 913 822 365

150.0 DL 200 LSR150 / 10DL _ 200 15.0 6 791 712 316

220.0 DL 100 LSR220 / 10DL _ 100 22.0 10 1118 1006 447

220.0 DL 150 LSR220 / 10DL _ 150 22.0 10 913 822 365

220.0 DL 200 LSR220 / 10DL _ 200 22.0 10 791 712 316

@

125°C)

_

Insert tolerance M (+20%) or K(+10%) to complete the Nemco part number

NEMCO reserves the right to supply a higher voltage rating, tighter tolerance and / or lower ESR in the same case size, to the same reliability standards.
