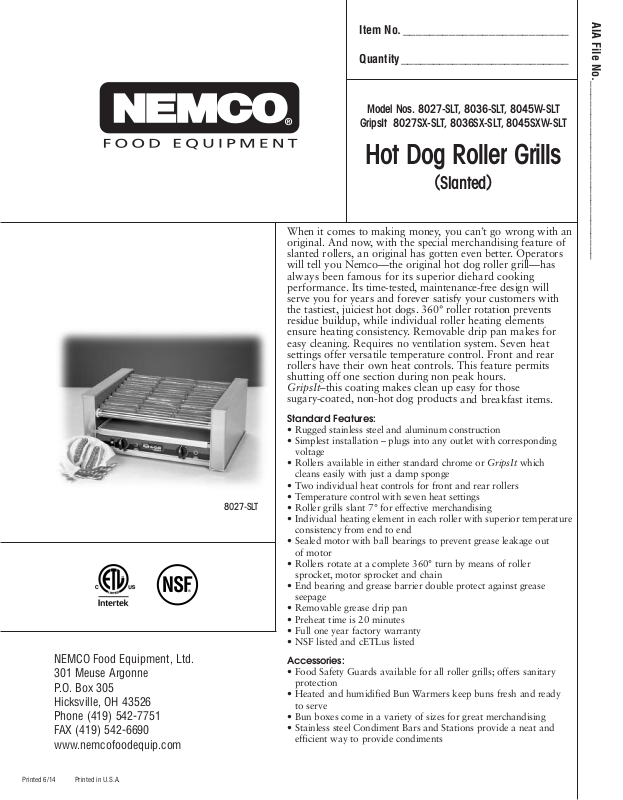

Nemco 8036SXSLT, 8045SXWSLT, 8036SLT220, 8027SLT, 8027SLT220 Specifications
...
Item No._________________________
®
Quantity__________________________
Model Nos. 8027-SLT, 8036-SLT, 8045W-SLT
GripsIt 8027SX-SLT, 8036SX-SLT, 8045SXW-SLT
Hot Dog Roller Grills
AIA File No.___________________________
8027-SLT
(
Slanted
When it comes to making money, you can’t go wrong with an
original. And now, with the special merchandising feature of
slanted rollers, an original has gotten even better. Operators
will tell you Nemco—the original hot dog roller grill—has
always been famous for its superior diehard cooking
performance. Its time-tested, maintenance-free design will
serve you for years and forever satisfy your customers with
the tastiest, juiciest hot dogs. 360° roller rotation prevents
residue buildup, while individual roller heating elements
ensure heating consistency. Removable drip pan makes for
easy cleaning. Requires no ventilation system. Seven heat
settings offer versatile temperature control. Front and rear
rollers have their own heat controls. This feature permits
shutting off one section during non peak hours.
GripsIt–this coating makes
sugary-coated, non-hot dog products
Standard Features:
• Rugged stainless steel and aluminum construction
• Simplest installation – plugs into any outlet with corresponding
voltage
• Rollers available in either standard chrome or
cleans easily with just a damp sponge
• Two individual heat controls for front and rear rollers
• Temperature control with seven heat settings
• Roller grills slant 7° for effective merchandising
• Individual heating element in each roller with superior temperature
consistency from end to end
• Sealed motor with ball bearings to prevent grease leakage out
of motor
• Rollers rotate at a complete 360° turn by means of roller
sprocket, motor sprocket and chain
• End bearing and grease barrier double protect against grease
seepage
• Removable grease drip pan
• Preheat time is 20 minutes
• Full one year factory warranty
• NSF listed and cETJLus listed
clean up easy for those
)
and breakfast items.
GripsIt which
NEMCO Food Equipment, Ltd.
301 Meuse Argonne
P.O. Box 305
Hicksville, OH 43526
Phone (419) 542-7751
FAX (419) 542-6690
www.nemcofoodequip.com
Printed 6/14 Printed in U.S.A.
Accessories:
• Food Safety Guards available for all roller grills; offers sanitary
protection
• Heated and humidified Bun Warmers keep buns fresh and ready
to serve
• Bun boxes come in a variety of sizes for great merchandising
• Stainless steel Condiment Bars and Stations provide a neat and
efficient way to provide condiments
Model Nos.
®
AUTOQUOTES
AU TO Q UO TE S
Chrome 8027-SLT 8036-SLT 8045W-SLT
GripsIt 8027SX-SLT 8036SX-SLT 8045SXW-SLT
WIDTH
DEPTH
HEIGHT
AIA File No.___________________________
Specifications:
Model
No.
8027-SLT,
8027SX-SLT 27 221/4 (56.5) 161/4 (41.3) 101/4 (26.0) 120 950 7.9 (1)5-15 plug 37 (16.8) 44 (20.0)
8027-SLT-220,
8027SX-SLT-220 27 221/4 (56.5) 161/4 (41.3) 101/4 (26.0) 220 950 4.3 (1)6-15 plug 37 (16.8) 44 (20.0)
Hot Dog Width Depth Height Voltage Wattage Nominal # of Cords Unit Shipping
Capacity Inches/(cm) Inches/(cm) Inches/(cm) Amps NEMA Weight Weight
Configuration bs./(kg.) lbs./(kg.)
8036-SLT,
8036SX-SLT 36 291/2 (74.9) 161/4 (41.3) 101/4 (26.0) 120 1500 12.5 (1)5-15 plug 48 (21.8) 55 (23.6)
8036-SLT-220,
8036SX-SLT-220 36 291/2 (74.9) 161/4 (41.3) 101/4 (26.0) 220 1500 6.8 (1)6-15 plug 48 (21.8) 55 (23.6)
8045W-SLT,
8045SXW-SLT 45 351/2 (90.2) 161/4 (41.3) 101/4 (26.0) 120 1800 15 (1)5-15 plug 54 (24.5) 63 (28.2)
8045W-SLT-220,
8045SXW-SLT-220 45 351/2 (90.2) 161/4 (41.3) 101/4 (26.0) 220 1800 8.2 (1)6-15 plug 54 (24.5) 63 (28.2)
GripsIt
(SX) Denotes special non-slip
ypical Specifications
T
Roller Grill shall be stainless steel and heavy-duty aluminum construction and use a non slip GripsIt or
rollers and tubular heating elements. Rollers slant from front to rear of unit by 7° for effective merchandising.
element shall be contained in each roller. Seven setting infinite temperature control provides flexible cooking
holding. Unit shall have a sealed motor with ball bearings for long life. Each roller shall have a PTFE end bearing
coating
chrome
One
and
and
FEP grease barrier combination. The unit shall be equipped with a pilot light, lighted rocker switch and operate
on 120V (60Hz) with (1) or (2) 6’ cor
NEMA 6-15P, or on 230V (50Hz) with a '''''''
d (s) and NEMA 5-15P, 5-/ 20P, on 220V (60Hz) with a 6’ cord and NEMA 6-15P,
d and SCHUKO CEE7-7.
6’ cor
Roller grills
shall carry the approval of
cETLus (120V, 220V), shall be listed with the National Sanitation Foundation (120V), and shall carry the approval
of CE (230V).
NEMCO Food Equipment, Ltd.
301 Meuse Argonne, P.O. Box 305
Hicksville, OH 43526
Phone (419) 542-7751
FAX (419) 542-6690
www.nemcofoodequip.com
Made in U.S.A.
6/14 Printed in U.S.A.
