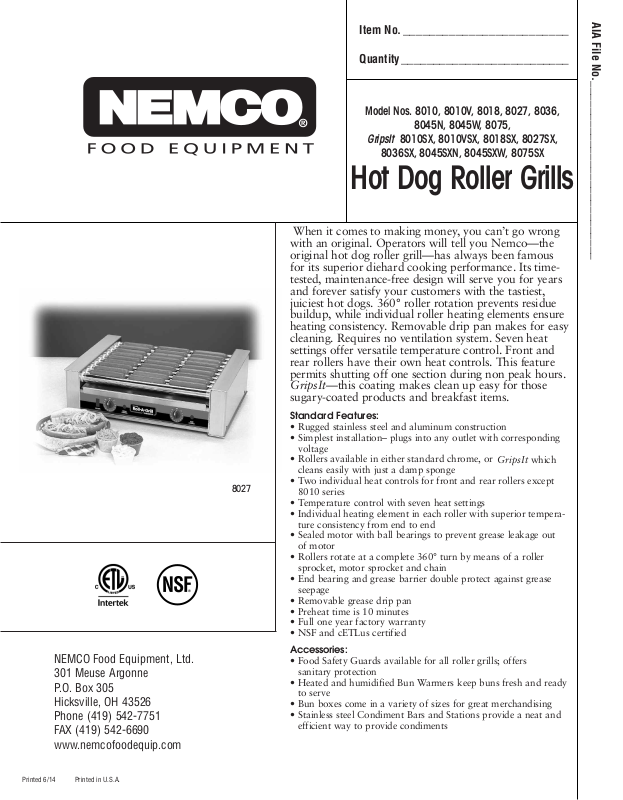

Nemco 8010V User Manual
®
Item No._________________________
Quantity__________________________
Model Nos. 8010, 8010V, 8018, 8027, 8036,
8045N, 8045W, 8075,
GripsIt
8010SX, 8010VSX, 8018SX, 8027SX,
8036SX, 8045SXN, 8045SXW, 8075SX
Hot Dog Roller Grills
When it comes to making money, you can’t go wrong
with an original. Operators will tell you Nemco—the
original hot dog roller grill—has always been famous
for its superior diehard cooking performance. Its timetested, maintenance-free design will serve you for years
and forever satisfy your customers with the tastiest,
juiciest hot dogs. 360° roller rotation prevents residue
buildup, while individual roller heating elements ensure
heating consistency. Removable drip pan makes for easy
cleaning. Requires no ventilation system. Seven heat
settings offer versatile temperature control. Front and
rear rollers have their own heat controls. This feature
permits shutting off one section during non peak hours.
GripsIt—this coating
sugary-coated products
makes clean up easy for those
and breakfast items.
AIA File No.___________________________
NEMCO Food Equipment, Ltd.
301 Meuse Argonne
P.O. Box 305
Hicksville, OH 43526
Phone (419) 542-7751
FAX (419) 542-6690
www.nemcofoodequip.com
8027
Standard Features:
• Rugged stainless steel and aluminum construction
• Simplest installation– plugs into any outlet with corresponding
voltage
• Rollers available in either standard chrome, or
cleans easily with just a damp sponge
• Two individual heat controls for front and rear rollers except
8010 series
• Temperature control with seven heat settings
• Individual heating element in each roller with superior tempera-
ture consistency from end to end
• Sealed motor with ball bearings to prevent grease leakage out
of motor
• Rollers rotate at a complete 360° turn by means of a roller
sprocket, motor sprocket and chain
• End bearing and grease barrier double protect against grease
seepage
• Removable grease drip pan
• Preheat time is 10 minutes
• Full one year factory warranty
• NSF and cETLus certified
Accessories:
• Food Safety Guards available for all roller grills; offers
sanitary protection
• Heated and humidified Bun Warmers keep buns fresh and ready
to serve
• Bun boxes come in a variety of sizes for great merchandising
• Stainless steel Condiment Bars and Stations provide a neat and
efficient way to provide condiments
GripsIt which
Printed 6/14 Printed in U.S.A.
MMooddeell NNooss..
CChhrroommee 88001100 88001100VV 88001188 88002277 88003366 88004455NN 88004455WW 88007755
G
GrriippssIItt
8
8001100SSXX 88001100VVSSXX 88001188SSXX 88002277SSXX 88003366SSXX 88004455SSXXNN 88004455SSXXWW 88007755SSXX
MMooddeel
HHoott DDoogg
CCaappaacciittyy
WWiiddtthh
IInncchheess//((ccmm))
DDeepptthh
IInncchheess//((ccmm))
HHeeiigghhtt
IInncchheess//((ccmm)) VVoollttaaggee WWaattttaaggee
NNoommiinnaall
AAmmppss
## ooff CCoorrddss//
NNEEMMAA
CCoonnffiigguurraattiioonn
UUnniitt
WWeeiigghhtt
llbbss..//((kkgg))
SShhiippppiinngg
WWeeiigghhtt
llbbss..//((kkgg))
8
010, 8010SX
8010-220, 8010SX-220
8010-230, 8010SX-230
10
16 (40.6)
11 (27.9)
7
1/4 (18.4)
120
220
230
330
3
30
330
2.8
1.5
1.4
(1) 5-15 plug
(1) 6-15 plug
(1) SCHUKO
18 (8.2)
2
0 (9.1)
8
018, 8018SX
8018-220, 8018SX-220
8018-230, 8018SX-230
18
18 1/2 (47.0)
16 1/4 (41.3)
7 (17.8)
120
220
230
9
50
950
950
7.9
4.3
4.1
(1) 5-15 plug
(1) 6-15 plug
(1) SCHUKO
29 (13.2)
35 (16.0)
8027, 8027SX
8027-220, 8027SX-220
8027-230, 8027SX-230
27 22 1/4 (56.5) 16 1/4 (41.3) 7 (17.8)
120
220
230
950
950
950
7.9
4.3
4.1
(1) 5-15 plug
(1) 6-15 plug
(1) SCHUKO 33 (15.0) 38 (17.3)
8036, 8036SX
8036-220, 8036SX-220
8036-230, 8036SX-230
36 29 1/2 (74.9) 16 1/4 (41.3) 7 (17.8)
120
220
230
1500
1500
1500
12.5
6.8
6.5
(1) 5-15 plug
(1) 6-15 plug
(1) SCHUKO 44 (20.0) 50 (22.8)
8045N, 8045SXN
8045N-220, 8045SXN-220
8045N-230, 8045SXN-230
45 22 1/4 (56.5) 25 3/4 (65.4) 7 (17.8)
120
220
230
1520
1520
1520
12.7
6.9
6.6
(1) 5-15 plug
(1) 6-15 plug
(1) SCHUKO 52 (23.7) 58 (26.4)
8045W, 8045SXW
8045W-220, 8045SXW-220
8045W-230, 8045SXW-230
45 35 1/2 (90.2) 16 1/4 (41.3) 7 (17.8)
120
220
230
1800
1800
1800
15.0
8.2
7.9
(1) 5-15 plug
(1) 6-15 plug
(1) SCHUKO 51 (23.2) 57 (26.0)
8075, 8075SX
8075-220, 8075SX-220
8075-230, 8075SX-230
75
35 1/2 (90.2)
25 3/4 (65.5)
7 (17.8)
120
220
230
2880
2880
2880
24.0
13.1
12.5
(2) 5-15 plug
(2) 6-15 plug
(2) SCHUKO
75 (34.1)
83 (37.8)
(SX) Denotes special non slip
GripsIt
coating
Typical Specifications
Roller Grill shall be stainless steel and heavy-duty aluminum construction and use a special non slip
GripsIt
, or chrome rollers and tubular heating elements.
be contained in each roller. Seven setting infinite temperature control provides flexible cooking and holding. Unit shall have a sealed motor with
long life. Each roller shall have a PTFE end bearing and FEP grease barrier combination. The unit shall be equipped with a pilot light, lighted rocker
on 120V (60Hz) with (1) or (2) 6’ cord (s) and NEMA 5-15P, 5/20P, on 220V (60Hz) with a 6’ cord and NEMA 6-15P, or on 230V (50Hz) with a 6’ cord
CEE7-7. Roller grills shall carry the approval of cETLus (120V, 220V), shall be listed with the National Sanitation Foundation (120V), and shall carry the
of CE (230V).
NEMCO Food Equipment, Ltd.
301 Meuse Argonne
PO Box 305
Hicksville, OH 43526
Phone (419) 542-7751
Fax (419) 541-6690
www.nemcofoodequip.com
Made in U.S.A. 9/08 Printed in U.S.A
®
NEMCO Food Equipment, Ltd.
301 Meuse Argonne
PO Box 305
Hicksville, OH 43526
Phone (419) 542-7751
Fax (419) 541-6690
www.nemcofoodequip.com
Specifications:
AIA File No.___________________________
D
WIDTH
NN
oo.
EPTH
HEIGHT
shall
for
operate
SCHUKO
approval
One element
ball bearings
switch and
and
Made in U.S.A.
NEMCO Food Equipment, Ltd.
301 Meuse Argonne, P.O. Box 305
Hicksville, OH 43526
Phone (419) 542-7751
FAX (419) 542-6690
www.nemcofoodequip.com
6/14 Printed in U.S.A.
