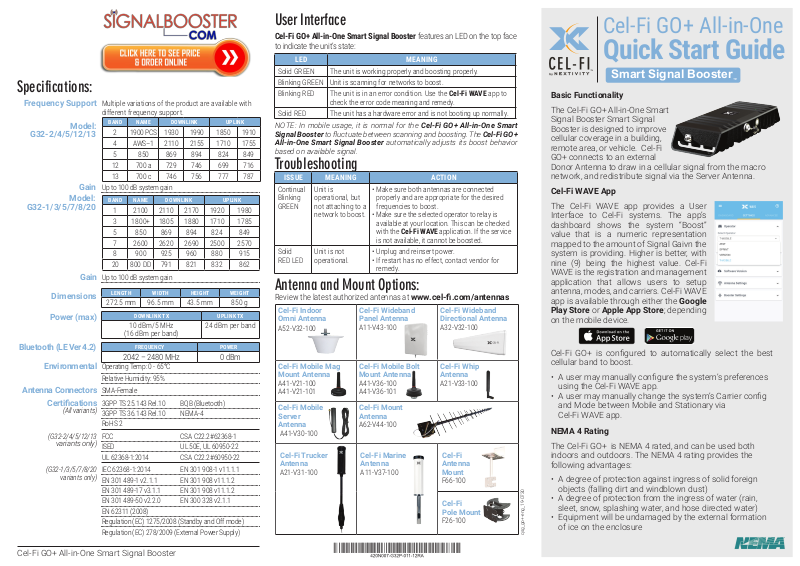

NEMA Cel-Fi Go Plus Quick Start Guide

Specifications:

Multiple variations of the product are available with

Frequency Support

Model:

 G32-2/4/5/12/13

Gain
Model:

G32-1/3/5/7/8/20

Gain

Dimensions

Power (max)

Bluetooth (LE Ver 4.2)

Environmental

Relative Humidity: 95%

Antenna Connectors

 Certications

RoHS 2

(G32-2/4/5/12/13 FCC CSA C22.2#62368-1

UL 62368-1:2014 CSA C22.2#60950-22

(G32-1/3/5/7/8/20 IEC 62368-1:2014 EN 301 908-1 v11.1.1
variants only)

EN 301 489-17 v3.1.1 EN 301 908 v11.1.2
EN 301 489-50 v2.2.0 EN 300 328 v2.1.1
EN 62311 (2008)
Regulation (EC) 1275/2008 (Standby and Off mode)
Regulation (EC) 278/2009 (External Power Supply)

(All variants)

variants only)

different frequency support.

BAND NAME DOWNLINK UPLINK

2 1900 PCS 1930 1990 1850 1910
4 AWS–1 2110 2155 1710 1755

5 850 869 894 824 849
12 700 a 729 746 699 716
13 700 c 746 756 777 787

Up to 100 dB system gain

BAND NAME DOWNLINK UPLINK

1 2100 2110 2170 1920 1980

3 1800+ 1805 1880 1710 1785

5 850 869 894 824 849

7 2600 2620 2690 2500 2570

8 900 925 960 880 915
20 800 DD 791 821 832 862

Up to 100 dB system gain

LENGTH WIDTH HEIGHT WEIGHT

272.5 mm 96.5 mm 43.5 mm 850 g

DOWNLINK TX UPLINK TX

10 dBm/5 MHz

(16 dBm per band)

FREQUENCY POWER

2042 – 2480 MHz 0 dBm

Operating Temp: 0 - 65°C

SMA-Female

3GPP TS 25.143 Rel.10 BQB (Bluetooth)
3GPP TS 36.143 Rel.10 NEMA-4

ISED UL 50E, UL 60950-22

EN 301 489-1 v2.1.1 EN 301 908 v11.1.2

24 dBm per band

User Interface

Cel-Fi GO+ All-in-One Smart Signal Booster features an LED on the top face
to indicate the unit’s state:

LED MEANING

Solid GREEN The unit is working properly and boosting properly.
Blinking GREEN Unit is scanning for networks to boost.
Blinking RED The unit is in an error condition. Use the Cel-Fi WAVE app to

Solid RED The unit has a hardware error and is not booting up normally.

NOTE: In mobile usage, it is normal for the Cel-Fi GO+ All-in-One Smart
Signal Booster to uctuate between scanning and boosting. The Cel-Fi GO+
All-in-One Smart Signal Booster automatically adjusts its boost behavior

based on available signal.

check the error code meaning and remedy.

Troubleshooting

ISSUE MEANING ACTION

Continual
Blinking
GREEN

Solid
RED LED

Unit is
operational, but
not attaching to a
network to boost.

Unit is not
operational.

• Make sure both antennas are connected
properly and are appropriate for the desired
frequencies to boost.

• Make sure the selected operator to relay is
available at your location. This can be checked
with the Cel-Fi WAVE application. If the service
is not available, it cannot be boosted.

• Unplug and reinsert power.

• If restart has no effect, contact vendor for
remedy.

Antenna and Mount Options:

Review the latest authorized antennas at www.cel-.com/antennas

Cel-Fi Indoor
Omni Antenna

A52-V32-100

Cel-Fi Mobile Mag
Mount Antenna

A41-V21-100
A41-V21-101

Cel-Fi Mobile
Server
Antenna

A41-V30-100

Cel-Fi Trucker
Antenna

A21-V31-100

Cel-Fi Wideband
Panel Antenna

A11-V43-100

Cel-Fi Mobile Bolt
Mount Antenna

A41-V36-100
A41-V36-101

Cel-Fi Mount
Antenna

A62-V44-100

Cel-Fi Marine
Antenna

A11-V37-100

Cel-Fi Wideband
Directional Antenna

A32-V32-100

Cel-Fi Whip
Antenna

A21-V33-100

Cel-Fi
Antenna
Mount

F66-100

Cel-Fi
Pole Mount

F26-100

Cel-Fi

GO+ All-in-One

Quick Start Guide

Smart Signal Booster

Basic Functionality

The Cel-Fi GO+ All-in-One Smart
Signal Booster Smart Signal
Booster is designed to improve
cellular coverage in a building,
remote area, or vehicle. Cel-Fi
GO+ connects to an external
Donor Antenna to draw in a cellular signal from the macro
network, and redistribute signal via the Server Antenna.

Cel-Fi WAVE App

The Cel-Fi WAVE app provides a User
Interface to Cel-Fi systems. The app’s
dashboard shows the system “Boost”
value that is a numeric representation
mapped to the amount of Signal Gaivn the
system is providing. Higher is better, with
nine (9) being the highest value. Cel-Fi
WAVE is the registration and management
application that allows users to setup
antenna, modes, and carriers. Cel-Fi WAVE
app is available through either the Google
Play Store or Apple App Store; depending
on the mobile device.

Cel-Fi GO+ is congured to automatically select the best

cellular band to boost.

• A user may manually congure the system’s preferences
using the Cel-Fi WAVE app.

• A user may manually change the system’s Carrier cong
and Mode between Mobile and Stationary via
Cel-Fi WAVE app.

NEMA 4 Rating

The Cel-Fi GO+ is NEMA 4 rated, and can be used both
indoors and outdoors. The NEMA 4 rating provides the
following advantages:

• A degree of protection against ingress of solid foreign
objects (falling dirt and windblown dust)

• A degree of protection from the ingress of water (rain,
sleet, snow, splashing water, and hose directed water)

• Equipment will be undamaged by the external formation

qsg_go+-eng_19-0730

of ice on the enclosure

™

Cel-Fi GO+ All-in-One Smart Signal Booster

Cel-Fi GO+ All-in-One

06:00 PM

Smart Signal Booster
Installation

Before You Begin

Cel-Fi GO+ All-in-One Smart Signal Booster has a Donor Antenna Port and a
Server Antenna Port. They are marked on the device with icons (see illustration).
It is critical that the Donor and Server antennas are connected to the correct port.

IMPORTANT:

location BEFORE permanent mounting.

Best to make sure all cable lengths support the intended mounting

SERVER DONOR

Install

1

Donor
Antenna

Install Server

2

Antenna*

*Sold Separately

3

1

2

3

5

4

1

4

3

2

5

1

3

5

4

3

2

2

Change Between Modes and Carriers

IMPORTANT: Cel-Fi GO+ All-in-One Smart Signal

Booster ships with a mode and operator selected,
but some versions can be changed via Cel-Fi WAVE.

Cel-Fi GO+ All-in-One Smart Signal Booster

Mount
Cel-Fi GO+

Connect Donor

4

& Server Antennas
to the Cel-Fi GO+

Change Modes Between Mobile

(65/70dB)orStationary(100dB)

1. Open Cel-Fi WAVE application

2. Go to settings tab

3. Select Booster Setting

4. Switch between mobile and stationary

An AC or

5

12V Power
Source

1

4

3

5

2

5

2

ChangeCarrier/Operator

1. Open Cel-Fi WAVE application

2. Go to settings tab

3. Select Operator

4. Switch between mobile network operators

» 1-855-846-2654

Activate &

6

Setup with
Cel-Fi WAVE

2

1

5

3

4

1

3

2

4

» [e-mail]

Point & Optimize Antenna

For stationary applications, Cel-FiGO+ X Indoor/
Outdoor Solution with AntennaBoost integrates
the Cel-Fi Antenna with the Cel-Fi WAVE Platform
to provide the best donor signal in the industry.
Nextivity’s proprietary 8-position dial base enables
the antenna to be rotated in 45-degree increments
for best performance, optimized with real time data
from the Cel-Fi WAVE Antenna Position Test.

Antenna Mount

Antenna

Install Tips for Donor Antenna

• Install antenna at least 12 inches from any other antennas for
best performance

• Antenna should be free of obstructions

• Antenna should be away from windows (including sunroof or
other openings)

• Install 8 inches away from any people

• For best performance make sure there is 50 cm of metal
around the base of the antenna

Install Tips for Server Antenna

• For best results, install Donor and Server Antennas such that
there is substantial material between the antennas. This will
create isolation and allow the system to perform at higher gain
without oscillation or feedback

• Keep Donor and Service Antennas separated/isolated from
each other for best performance

• Do not use cable splitters for Donor Antennas

• Follow the installation instructions for your chosen antennas

• The power supply is not NEMA 4 rated

Tips for Mobile Mounting:

• Location should have airow (for cooling) and be secure from
contact with external objects

• Make sure the unit is within cable range of the 12V power
supply on your vehicle

1

1

1

2

2

2

8

8

8

7

7

7

6

6

6

5

5

5

8-Position Dial

» https://www.signalbooster.com/pages/contact-us

Position
Set Screw

3

3

3

4

4

4

Position
Arrow
