cnelson.cora .sales@cnelson.corri
265 N. Lake Winds Parkway
Oak Harbor, OH 43449, U.S.A.
WWW.
Anytime, Anywhere
1 piece welded and polished
stainless steel.
Top to be

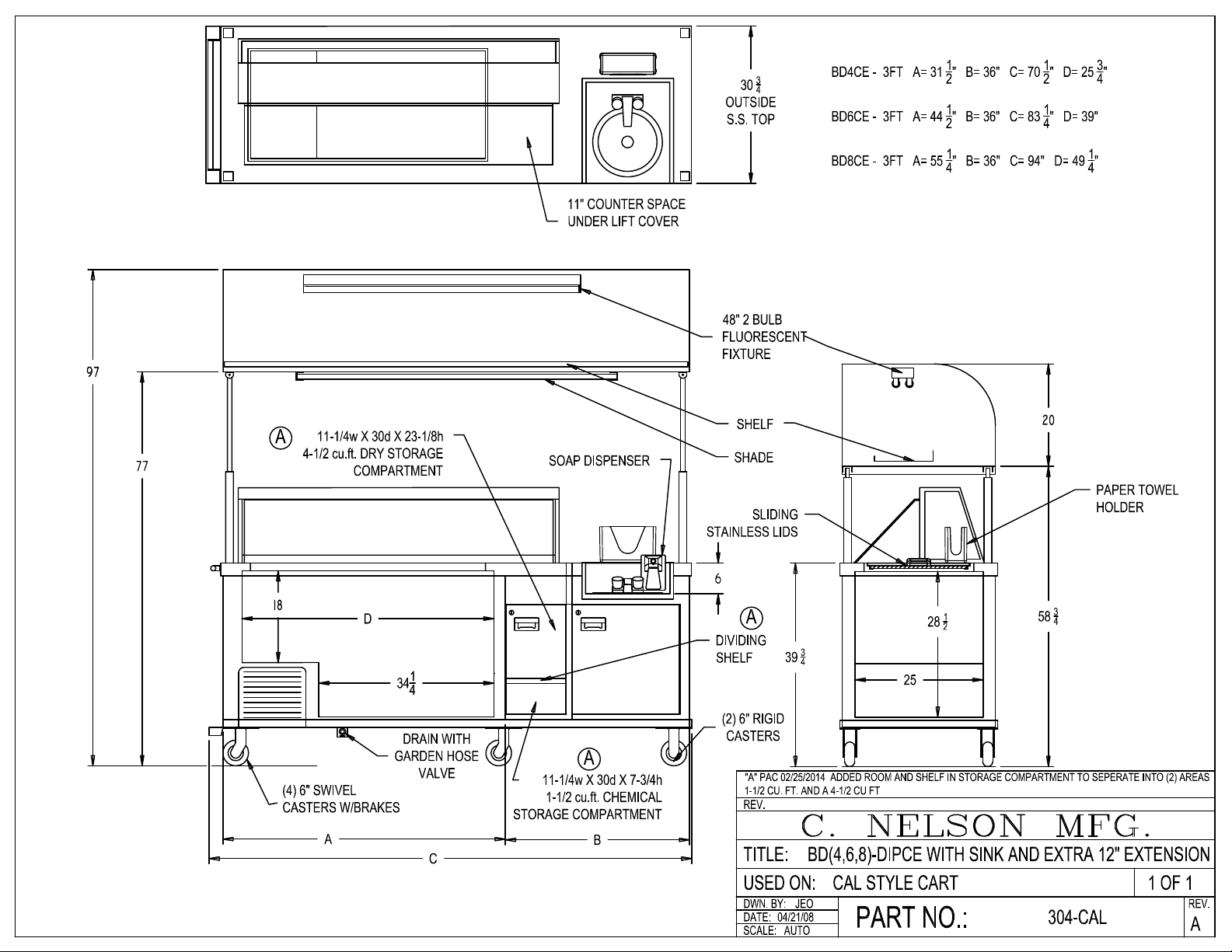

Specifications for Models BD(X)-DIPCE
NELSON
Base frame welded aluminum. All ex-
Finished exterior white HDPE plastic or
posed corners welded and polished.
Caster wheels 6" diameter soft rub-
optional graphics.
ber, (2) swivel w/brake, (2) rigid stan-
Interior of freezer stainless steel. Bottom
dard. Optional 8" casters available.
drain for cleaning.
Storage compartment/sink corn part-
Electronic digital temperature control
ment all stainless steel.
standard, range —30 degrees to +30
NSF & ETL approved for outdoor use.
degrees.
Sink system specifications on 2nd page.

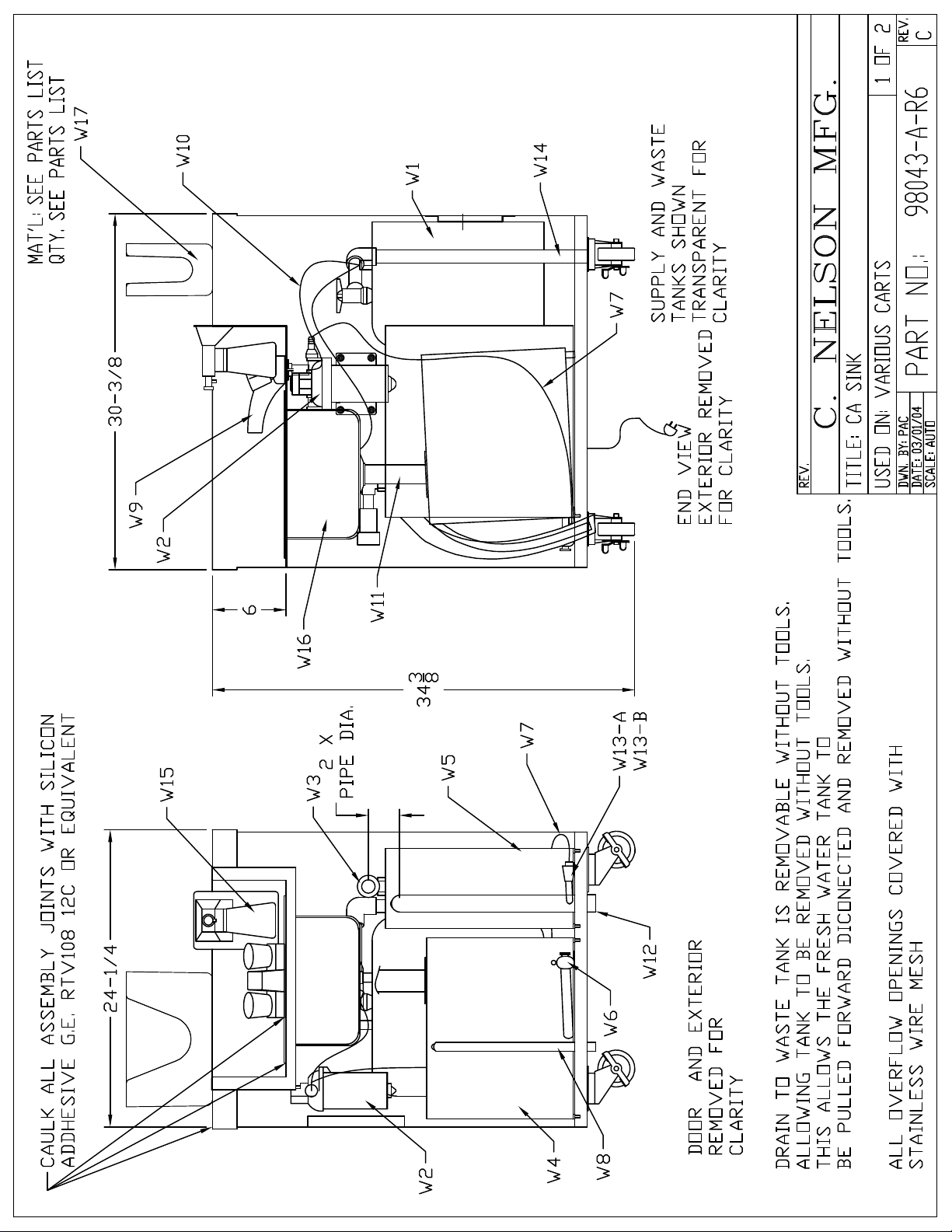

USED ON: CA SINK
98043-A-R6 BOM CALIF STYLE (REV. D)
W1 1 YS0013 WATER HEATER 2-1/2 GALLON RHEEM EGSPC2 UL
W2 1 YZ2071 WATER PUMP SHURflo 8025-733-256 UL,NSF
ITEM # QTY P/N DESCRIPTION MANUFACTURER MFG MODEL LISTINGS
W3 1 YZ2037 FRESH WATER INLET QUICK CONNECT HANSON 4HK NSF
W4 1 (9) GALLON WASTE WATER TANK STAINLESS STEEL C.NELSON MFG 9 GALLON WASTE
W5 1 YZ0376 (5) GALLON CAPACITY FRESH WATER TANK LLDPE WATER TANKS .COM 0260-030 NSF
W6 1 YP0260 SHUT OFF VALVE McMASTER CARR 4876K41 NSF
W7 ** YZ2033 PUMP SUPPLY TUBING 3/8" ID KURIYAMA K3155-06X50 NSF
W8 ** YZ2083 WASTE WATER OVERFLOW/FAUCET SUPPLY 1/2" ID KURIYAMA K3155-08X50 NSF
W9 1 YZ0356 FAUCET GLOBE UNION F4ZZ18CP-JPB3 NSF
W10 2 YZ0363 CONNECTIONS LINES SHURflo 181-201 NSF
W11 1 YZ0365 TAILPIECE GENOVA 138061
W12 1 YZ2032 FRESH WATER OVERFLOW 1"REINFORCED TUBING KURIYAMA K3155-16X100 NSF
1 2 YZ2004 OUTDOOR DUPLEX BOX HUBBLE 5958-0 UL,CSA
2 1 YE02341 DUPLEX RECEPTACLE GFI TYPE LEVITON 7899-A UL,CSA
3 1 YE02340 SWITCH/RECEPTACLE LEVITON 5320-ICP UL,CSA
4 1 YE0210 JUMPER CORD 14 GA WIRE UL
W14 1 HOT WATER OVERFLOW PVC PIPE
W15 1 YZ0347 SOAP DISPENSER McMASTER CARR 2950K61
W16 1 YZ03519 SINK SS 12-1/2X10-1/2X6 DEEP DROP IN TYPE 3-1/2" DRAIN OPEN BK-RESOURCES BK-DIS-1515 NSF
W13-A 1 YP0560
W13-B 1 YP0550 QUICK-CONNECT IN LINE W/SHUTOFF ACETAIL COLDER PRODUCTS CP422 FDA
W17 1 YZ034702 COUNTERTOP FOLDED TOWEL HOLDER U-LINE H-2335
5 1 YZ1015 FLEXIBLE CONDUIT SUPERFLEX LTD 8451 UL,CSA
6 1 YE011003 SJTOOW 14/3 CORD WITH MOLDED PLUG MID-STATE MFG CORP UL,CSA
7 7 304 SS CONSTRUCTION C. NELSON MFG
8 4 YC0117 4" SWIVEL CASTERS W/BRAKE JARVIS 4-30-314GF-2BRK NSF
** QTY AS NEEDED
SHEET 2 OF 2
Continued on reverse.
relief valve –
AGA/ ASME rated and factory
The wall mounting kit provides an
Optional wall mounting kit –
•
able floor space in a small area.
Each kit is designed to be used on
walls with 16" stud centers. All
this easy to install kit. (Note: The
2-1/2 gallon model comes stan-
easy way to mount the unit off the
floor, out of the way for more use-
necessary parts are included in
dard with a wall mounting kit.)
A surface mounted thermostat
Automatic temperature
control –
automatically cycles on and off to
•
maintain the water temperature at
a desired preset level.•Temperature limiting control –
Automatically and safely cuts off
the power in the unlikely event that
Temperature and pressure
the water temperature exceeds
190°F.
•
installed.
1440 Watts thru 6000 Watts
Rheem-Ruud point-of-use electric commercial water heaters are designed to
provide hot water at the consumption point, eliminating costly temperature
loss in long piping runs. Well suited for a wide variety of applications, point-of-
use heaters are small enough for installation in limited spaces under coun-
ters, mop sinks, cabinets, or any remote area where modest quantities of hot
water are required. They are ideally suited for applications in retail stores,
public restrooms, office washrooms, kitchen and mop or bar sinks.
Construction Features:
Available in Sizes Ranging From 2-1/2 – 30 Gallon Tank-Type Models
proprietary steel formulation with a
unique coat of high temperature
porcelain enamel to maximize
corrosion resistance resulting in a
superior tank design. A patented
Long life tank design –
•
R-Tech anode rod provides
advanced technology; equalizing
aggressive water action while
prolonging the effective life of
the anode rod and in turn the
life of the tank.
are designed with a specially
Our patented resistor elements
Long life heating elements –
•
resist corrosion.
sium oxide and copper to
treated, double layer of magne-
provides superior insulating
qualities resulting in reduced
Efficient design –
Rigid polyurethane foam insulation
•
operating costs.
Certifications and Ratings:
• Efficiency – these models meet or exceed thermal efficiency and standby
of all states including California Energy Commission (CEC).
loss requirements of current ASHRAE standards. (Part of the Federally
mandated Energy Policy Act (EPact)). Also exceeds energy efficiency codes
tank water heaters. All models are North Carolina Code compliant.
Underwriters Laboratories (UL) to meet UL standard 174 as electric storage
• Safety and construction – these products are design certified by
CERTIFIED FOR A 150 PSI MAXIMUM WORKING PRESSURE.
voltages
277 and 480
120, 208, 240,
Point-Of-Use Electric Commercial Water Heaters
B
DIAMETER
A
APPROXIMATE
A
C
B
E
D
3/4" T&P
HOT
W
ATER
OUTLET
COLD
WATER
I
NLET
HOT WATER
C
ONNECTION
COLD WATER
C
ONNECTION
3/4" T&P
3-1/2" (89mm)
SHIPPING WEIGHT
E
All dimensions shown in English and Metric)
AB C D
Limit:
°F (87.8°C)
190
High Temperature
Maximum
°F (76.7°C)
Temperature:
170
40°F 60°F 80°F 100°F 120°F
1,440 12.0 NA NA NA NA
1,500 12.5 7.2 6.3 N/A N/A
2,000 16.7 9.6 8.3 7.2 4.2
2,500 20.8 12.0 10.4 NA NA
3,000 25.0 14.4 12.5 10.8 6.3
4,500 NA 21.6 18.8 16.2 9.4
1,440 Y** NA NA NA NA
1,500 YYY** N/A N/A
2,000 YYYYY
2,500 YYYNA NA
3,000 YYYYY
4,500 NA Y Y* Y* Y*
ELEMENT SINGLE PHASE OPERATION ONLY
WATTAGE 120 V 208 V 240 V 277 V 480 V
°F (43.3°C)
Minimum
Temperature:
110
PRODUCT AVAILABILITY
6,000 NA YYYY
*Not available in EGSP6 & EGSP10
ELEMENT SINGLE PHASE OPERATION ONLY – AMPS
WATTAGE 120 V 208 V 240 V 277 V 480 V
ELECTRICAL CHARACTERISTICS
**EGSP2 available only in these configurations
6,000 NA 28.8 25.0 21.7 12.5
(single phase) electrical configuration.
All models employ 1 heating element resulting in a 2-wire outlet
RECOVERY CAPACITIES
ELEMENT (22°C) (33°C) (45°C) (56°C) (67°C)
Recovery in U.S. Gallons/Hr. (GPH) and Liters/Hr. (LPH)
at Various Temperature Rises
15 58 10 38 8 29 6 23 5 19
20 77 14 51 10 38 8 31 7 26
30 115 20 77 15 58 12 46 10 38
GPH LPH GPH LPH GPH LPH GPH LPH GPH LPH
1,440 15 55 10 37 7 28 6 22 5 18
1,500
2,000
WATTAGE
2,500 25 96 17 64 13 48 10 38 8 32
61 230 41 153 30 115 24 92 20 77
3,000
4,500 46 173 30 115 23 86 18 69 15 58
6,000
Point-Of-Use continued.
inches mm inches mm inches mm inches mm inches mm LBS. KGS.
Type:
Thermostat
ANK
T
CAPACITY
GALLONS LITERS
ODEL MIN MAX
DIMENSIONAL INFORMATION (
UMBER WATTS WATTS
EGSP2 1,440 1,500 2.5 9 14 356 9-3/4 248 -——-— ——— 18 8
EGSP6 1,500 6,000 6 23 15-1/8 384 15-3/4 400 12-5/8 321 11-5/8 295 4-1/4 108 41 19
EGSP10 1,500 6,000 10 38 22-7/8 581 15-3/4 400 20-3/8 518 19-3/8 492 4-1/4 108 53 24
EGSP15 1,500 6,000 15 57 24-1/4 616 17-3/4 451 21-7/8 556 19-3/8 492 4-5/8 117 65 29
M
N
EGSP20 1,500 6,000 19.9 75 25-1/8 638 19-3/4 502 22-5/8 575 19-3/8 492 5-1/8 130 76 34
Surface Mounted
Water
Ratings:
Temperature
EGSP30 1,500 6,000 30 114 30 762 21-3/4 533 23 584 23 584 2-3/4 70 115 52
OTE: Basic model numbers are listed. When ordering, specify electrical input and kW to determine specific model number.
N
MODELS:
EGSP6
EGSP10
EGSP15
EGSP20
EGSP30
3/4" NPT
Water
Connections
MODEL:
EGSP2
Water
Connections
1/2" NPT
Recommended Specifications:
Water heater(s) shall be model ______________, manu-
factured by RHEEM-RUUD, having electrical input of
__________ kW and a recovery rate of _____________
GPH at a 100°F temperature rise. Water heater(s) shall
have a storage capacity of ________ gallons. Water
heater(s) shall have the UL seal of certification and be
factory equipped with an AGA/ ASME rated temperature
supported. Water heater(s) shall meet or exceed the
and pressure relief valve. Tank(s) interior shall be coated
with a high temperature porcelain enamel and furnished
a working pressure rating of 150 psi, and shall be com-
with an R-Tech resistored magnesium anode rod rigidly
energy factor requirements of ASHRAE. Tanks shall have
pletely assembled. Water heater(s) shall be equipped
surface mounted thermostat with an integral, manual
with a copper, resistored, “screw-in” type element. Tank
shall be insulated with rigid polyurethane foam
insulation. Water heater(s) shall be equipped with a
Limited Warranty:
reset, high limit control. Water heater(s) shall be covered
by a three year limited warranty against tank leaks.
Information brochure for complete warranty information.
against tank leaks. Please refer to Commercial Warranty
This product features a three year limited warranty
In keeping with its policy of continuous progress and product improvement, Rheem-Ruud reserves the right to make changes without notice.
Rheem Water Heating • 101 Bell Road, Montgomery, Alabama 36117-4305 • www.rheem.com
Rheem Canada Ltd./Ltée,128 Barton Street West, Hamilton, Ontario L8N 3P3
P R I N T E D I N U . S . A 0 8 / 0 8 W P F O R M N O . R R 1 0 2 C E - 4 R e v . 1 0
VALUE
7.0
0.935
18.8
2,720
655
100,000
79
-
35
95
52
125
>1000
Cc:tilted
190 9001 - 2000
-
UNIT
}
METHOD
TYPICAL PROPERTY VALUES
'FIYPELTm LLDPE 3170 UV 8 NATURAL**
LINEAR LOW DENSITY POLYETHYLENE, 7.0 MFI
g/ 10 min
ASTM D792
ASTM D 1238
av\
HYPEL
°
T
-
M
rc)
A
/k
PROPERTY
PHYSICAL
Specific Gravity
Melt Flow (190 °C / 2.16 kg)
psi
psi
MPa
MPa
ft-lb/in
ASTM D638
ASTM D790
MECHANICAL@ 73°F
Flexural Modulus - 1 % Secant
Tensile Strength at Yield
ASTM D785
ASTM D562B
Hardness (Shore D)
ARM Impact 1/8" (Notched) @ -40°C
°F
°C
ASTM D648
THERMAL
264 psi - ASTM, 1.80 MPa - ISO
°F
°C
ASTM D648
66 psi - ASTM, 0.45 MPa - ISO
ESCR (100% IGEPAL)
OTHER
and IX described in table 1 of Sec. 176.170(c), the finished articles are
A,
-
EN TEC
III, IVA, V, VII
Ravago
company
1.11111••=1111111
Polymers, LLC assumes no liability for use of products in infringement of any patent. The foregoing limitation of remedy and
LLC. All data displayed herein has been obtained via testing of injected molded specimens of natural color. Pigmentation may affect
product is limited to use in contact with food only under the conditions of use C through H described in table 2 of Sec. 176.170(c),
and when contacting fatty foods of Types
**When used unmodified for food contact applications, this copolymer will comply with the U.S. Food and Drug Administration Food
Additive Regulation 21 CFR 177.1520(c)3.1a. This section does not include use in packing or holding food during cooking. This
tThe data listed here fall within the normal range of product properties, but they should not be used to establish specification limits
or used alone as a basis for design. This information is not intended as a warranty of any kind. Buyers must make their own
representative test and assume all risks of use, whether used alone or in combination with other products. Entec Polymers, LLC
assumes no obligation or liability of any advice furnished by it or results obtained with respect to these products. All warranties
to have a volume of at least 18.9 liters (5 gallons). The uses cited are subject to good manufacturing practices and any limitations,
which are part of the regulations. The regulations should be consulted for complete details.
expressed or implied including warranties of merchantability for a particular purpose or use are excluded and disclaimed. Entec
certain properties to various degrees.
exclusion of liability is reflected in and is part of the consideration for the price, at which the products are sold by Entec Polymers,
ENTEC ENGINEERED RESINS 405 Park Tower Drive • Manchester, TN 37355 • (931) 728-7009 • Toll Free (800) 459-7009 • www.entecresins.com
•
•
•
Loading...
