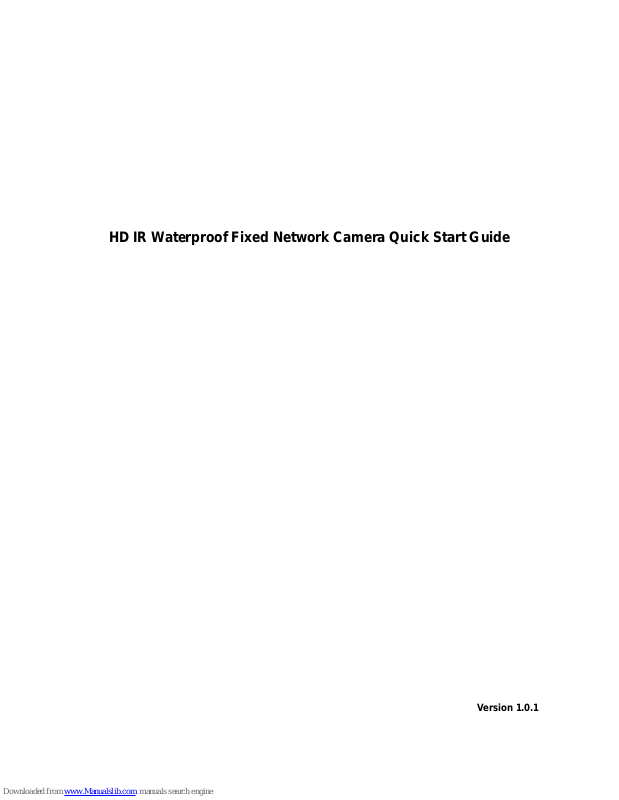

HD IR Waterproof Fixed Network Camera Quick Start Guide
Version 1.0.1
i
Welcome
Thank you for purchasing our network camera!
This quick start guide is designed to be a reference tool for your system.
Please keep this start guide well for future reference.
Please open the accessory bag to check the items one by one in accordance with the list below.
Contact your local retailer ASAP if something is missing or damaged in the bag.
Before your operation please read the following instructions carefully.
1．Electrical safety
All installation and operation here should conform to your local electrical safety codes.
The power shall conform to the requirement in the SELV (Safety Extra Low Voltage) and the Limited
power source is rated 12V DC or 24V AC in the IEC60950-1. (Refer to general introduction) Please
note: Do not connect two power supplying sources to the device at the same time; it may result
in device damage!
We assume no liability or responsibility for all the fires or electrical shock caused by improper handling
or installation.
We are not liable for any problems caused by unauthorized modification or attempted repair.
2．Transportation security
Heavy stress, violent vibration or water splash are not allowed during transportation, storage and
installation.
3．Installation
Do not apply power to the camera before completing installation.
Please install the proper power cut-off device during the installation connection.
Always follow the instruction guide the manufacturer recommended.
4．Qualified engineers needed
All the examination and repair work should be done by the qualified service engineers.
We are not liable for any problems caused by unauthorized modifications or attempted repair.
5．Environment
This series network camera should be installed in a cool, dry place away from direct sunlight,
inflammable, explosive substances and etc.
Please keep it away from the electromagnetic radiation object and environment.
Please make sure the CCD (CMOS) component is out of the radiation of the laser beam device.
Otherwise it may result in CCD (CMOS) optical component damage.
Please keep the sound ventilation.
Do not allow the water and other liquid falling into the camera.
ii
Thunder-proof device is recommended to be adopted to better prevent thunder.
The grounding studs of the product are recommended to be grounded to further enhance the reliability
of the camera.
6. Daily Maintenance
Please shut down the device and then unplug the power cable before you begin daily maintenance
work.
Do not touch the CCD (CMOS) optic component. You can use the blower to clean the dust on the lens
surface.
Always use the dry soft cloth to clean the device. If there is too much dust, please use the water to
dilute the mild detergent first and then use it to clean the device. Finally use the dry cloth to clean the
device.
Please put the dustproof cap to protect the CCD (CMOS) component when you do not use the camera.
Dome enclosure is the optical component, do not touch the enclosure when you are installing the
device or clean the enclosure when you are doing maintenance work. Please use professional optical
clean method to clean the enclosure. Improper enclosure clean method (such as use cloth) may result
in poor IR effect of camera with IR function.
7. Accessories
Be sure to use all the accessories recommended by manufacturer.
Before installation, please open the package and check all the components are included.
Contact your local retailer ASAP if something is broken in your package.
Accessory Name
Amount
Network Camera Unit
1
Quick Start Guide
1
CD
1
iii
Table of Contents
1 Structure ........................................................................................................................ 1
1.1 Multiple-function Combination Cable................................................................. 1
1.2 Framework and Dimension ............................................................................... 2
1.3 Bidirectional talk ................................................................................................ 3
1.3.1 Device-end to PC-end................................................................................. 3
1.3.2 PC-end to the Device-end ........................................................................... 3
1.4 Alarm Setup ...................................................................................................... 4
1.4.1 Alarm IN/OUT Connection .......................................................................... 4
2 Device Installation ......................................................................................................... 6
3 Quick Configuration Tool ............................................................................................... 7
3.1 Overview ........................................................................................................... 7
3.2 Operation .......................................................................................................... 7
4 Web Operation .............................................................................................................. 9
4.1 Network Connection .......................................................................................... 9
4.2 Login and Logout .............................................................................................. 9
Appendix Toxic or Hazardous Materials or Elements ........................................................ 11
1
1 Structure
1.1 Multiple-function Combination Cable

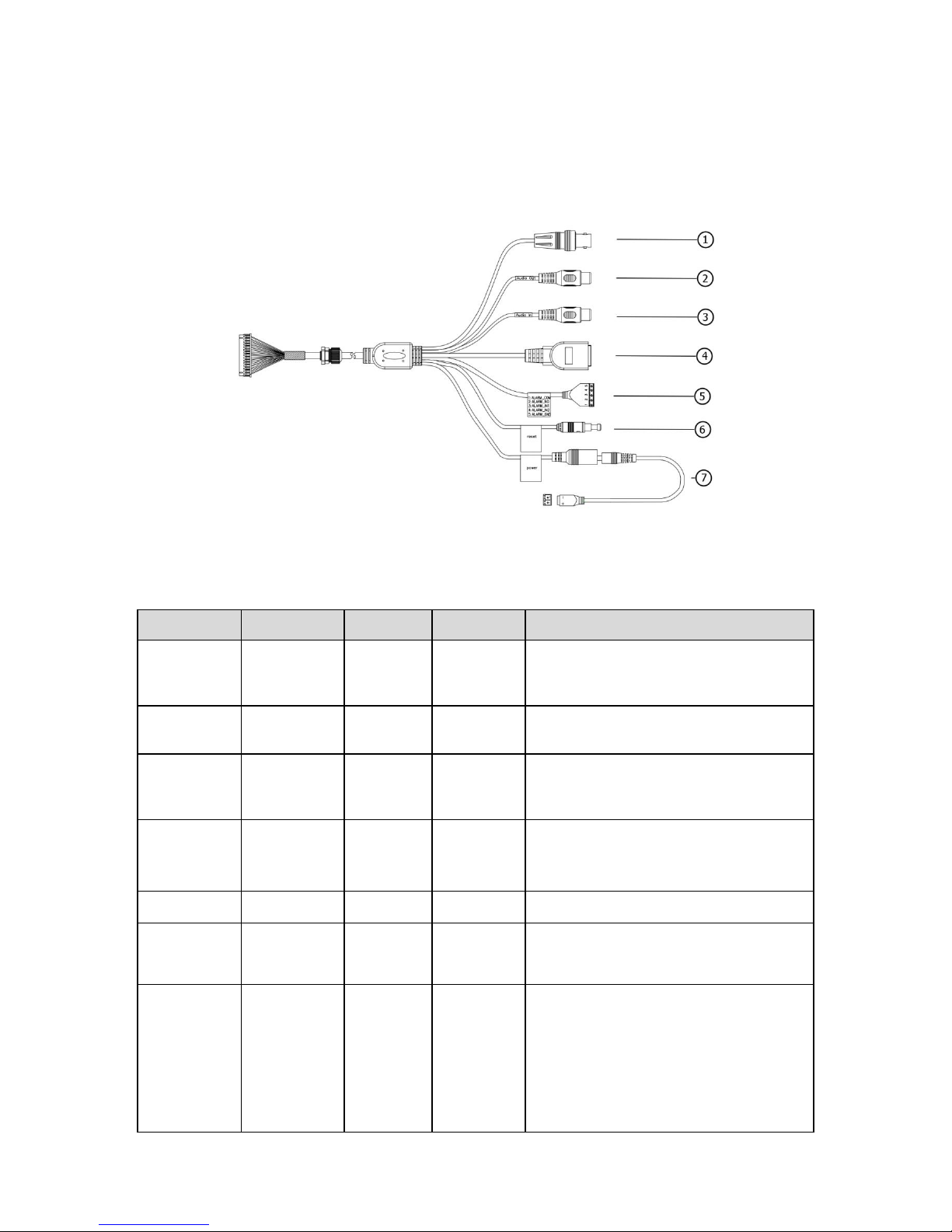

You can refer to the following figure for multiple-function combination cable information. See
Figure 1-1.
Figure 1-1 Multiple-function combination cable
Please refer to the following sheet for detailed information.
No.
Port Name
Function
Connection
Note
1
VIDEO OUT
Video
output
port
BNC
Output analog video signal. It can
connect to the TV monitor to view the
video.
2
AUDIO IN
Audio
input port
RCA
Input audio signal. It can receive the
analog audio signal from the pickup.
3
AUDIO OUT
Audio
output
port
RCA
Output audio signal to the devices such
as the sound box.
4
LAN
Network
port
Ethernet
port
Connect to standard Ethernet
cable.
Support PoE.
5
I/O
I/O port
/
Includes alarm input and output.
6
RESET
Reset
button
/
The reset button is to restore device
factory default setup.
7
POWER
Power
input port
/
Power port. Input DC 12V or AC 24V
power.
Please connect the DC5.5 round port
to 2-pin converter cable when you
are using AC 24V power.
For a standard DC 12V device, DC5.5
round port is not included.
2
Please refer to the follow sheet for detailed pin information.
Port Name
SN
Name
Note
I/O Port
1
ALARM_COM
Alarm output public port.
2
ALARM_NO
Alarm output port. It is to output the alarm signal to the
alarm device.
NO: normal open alarm output port.
3
ALARM_IN1
Alarm input port 1. It is to receive the on-off signal from
the external alarm source.
4
ALARM_IN2
Alarm input port 2. It is to receive the on-off signal from
the external alarm source.
5
GND
Ground port
1.2 Framework and Dimension
Please refer to the following two figures for dimension information. The unit is mm. See Figure 12 and Figure 1-3.
Figure 1-2 Dimension illustration 1
3
Figure 1-3 Dimension illustration 2
1.3 Bidirectional talk
1.3.1 Device-end to PC-end
Device Connection
Step 1: Please connect the speaker or the MIC to the audio input port of the device.
Step 2: Then connect the earphone to the audio output port of the PC.
Step 3: Login the Web and then click the Talk button to enable the bidirectional talk function. You
can see the button becomes orange after you enabled the bidirectional talk function. Click Talk
button again to stop the bidirectional talk function.
Listening Operation
At the device end, speak via the speaker or MIC, and then you can get the audio from the
earphone or sound box at the pc-end.
1.3.2 PC-end to the Device-end
Device Connection
Step 1: Connect the speaker or the MIC to the audio input port of the PC.
Step 2: Then connect the earphone to the audio output port of the device.
Step 3: Login the Web and then click the Talk button to enable the bidirectional talk function. You
can see the button becomes orange after you enabled the audio talk function. Click Talk button
again to stop the bidirectional talk function.
Please note the on-site listening operation is null during the bidirectional talk process.
Listening Operation
4
At the PC-end, speak via the speaker or MIC, and then you can get the audio from the earphone
or sound box at the device-end.
1.4 Alarm Setup

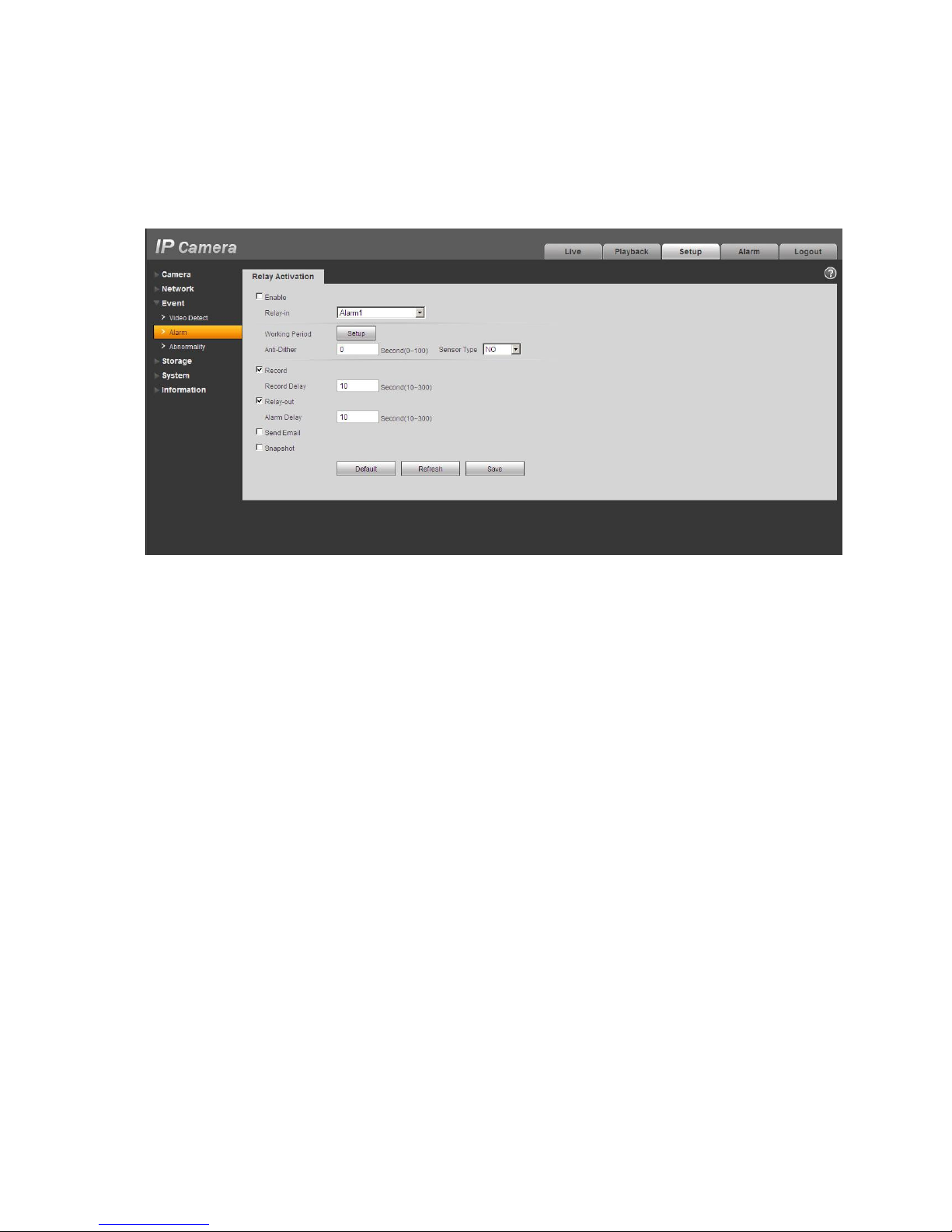

The alarm interface is shown as in Figure 1-4.
Figure 1-4 Alarm
Please follow the steps listed below for local alarm input and output connection.
1) Connect the alarm input device to the alarm input port (No.3 pin or No.4 pin) of the I/O cable.
2) Connect the alarm output device to the alarm output port (No.2 pin) and alarm output public
port (No.1 pin). The alarm output port supports NO (normal open) alarm device only.
3) Open the Web, go to the Figure 1-4. Please set the alarm input 01 port for the first channel of
the I/O cable (No.3 pin). Then you can select the corresponding type (NO/NC.)
4) Set the WEB alarm output. The alarm output 01 is for the alarm output port of the device. It is
the No.2 pin of the I/O cable.
1.4.1 Alarm IN/OUT Connection
Please refer to the following figure for alarm input information. See Figure 1-5.
Alarm input: When the input signal is idle or grounded, the device can collect the different
statuses of the alarm input port. When the input signal is connected to the 5V or is idle, the
device collects the logic “1”. When the input signal is grounded, the device collects the logic “0”.
5
Figure 1-5 Alarm input
Please refer to the following figure for alarm output information. See Figure 1-6.
Port ALARM_COM and Port ALARM_NO composes an on-off button to provide the alarm output.
If the type is NO, this button is normal open. The button becomes off when there is an alarm
output.
Figure 1-6 Alarm output
6
2 Device Installation
Important
Please make sure the installation surface can min support the 3X weight of the camera
and the bracket.
Please follow the steps listed below to install the device. Please refer to Figure 2-1 for reference.
Please line up the installation holes of the bottom of the device to the installation holes in
the front part of the bracket. Then insert the screws to the holes to fasten the device on
the bracket.
Dig four holes in the wall or the surface, and then input the expansion bolts to the holes
and secure.
Put the four fixed holes of the bottom of the bracket to the four holes you just dug in the
wall or surface. Put the four fixed screws to the four holes of the bracket and then secure
firmly. Finally you can fix the bracket on installation surface.
Figure 2-1 Device installation illustration
7
3 Quick Configuration Tool
3.1 Overview
Quick configuration tool can search current IP address, modify IP address. At the same time, you
can use it to upgrade the device.
Please note the tool only applies to the IP addresses in the same segment.
3.2 Operation
Double click the “ConfigTools.exe” icon, you can see an interface is shown as in Figure 3-1.
In the device list interface, you can view device IP address, port number, subnet mask, default
gateway, MAC address and etc.
Figure 3-1 Search interface
Select one IP address and then right click mouse, you can see an interface is shown as in Figure
3-2.
Select the “Open Device Web” item; you can go to the corresponding web login interface.
Figure 3-2 Search interface 2
8
If you want to modify the device IP address without logging in the device web interface, you can
go to the configuration tool main interface to set.
In the configuration tool search interface (Figure 3-1), please select a device IP address and then
double click it to open the login interface. Or you can select an IP address and then click the
Login button to go to the login interface. See Figure 3-3.
In Figure 3-3, you can view device IP address, user name, password and port. Please modify the
corresponding information to login.
Please note the port information here shall be identical with the port value you set in TCP port in
Web Network interface. Otherwise, you cannot login the device.
If you are using device background upgrade port 3800 to login, other setups are all invalid.
Figure 3-3 Login prompt
After you logged in, the configuration tool main interface is shown as below. See Figure 3-4.
Figure 3-4 Main interface
For detailed information and operation instruction of the quick configuration tool, please
refer to the Quick Configuration Tool User’s Manual included in the resources CD.
9
4 Web Operation
This series network camera product supports the Web access and management via PC.
Web includes several modules: monitor channel preview, system configuration, alarm and etc.
4.1 Network Connection
Please follow the steps listed below for network connection.
Make sure the network camera has connected to the network properly.
Please set the IP address, subnet mask and gateway of the PC and the network camera
respectively. Network camera default IP address is 192.168.1.108. Subnet mask is
255.255.255.0. Gateway is 192.168.1.1
Use order ping ***.***.***.***(* network camera address) to check connection is OK or not.
4.2 Login and Logout

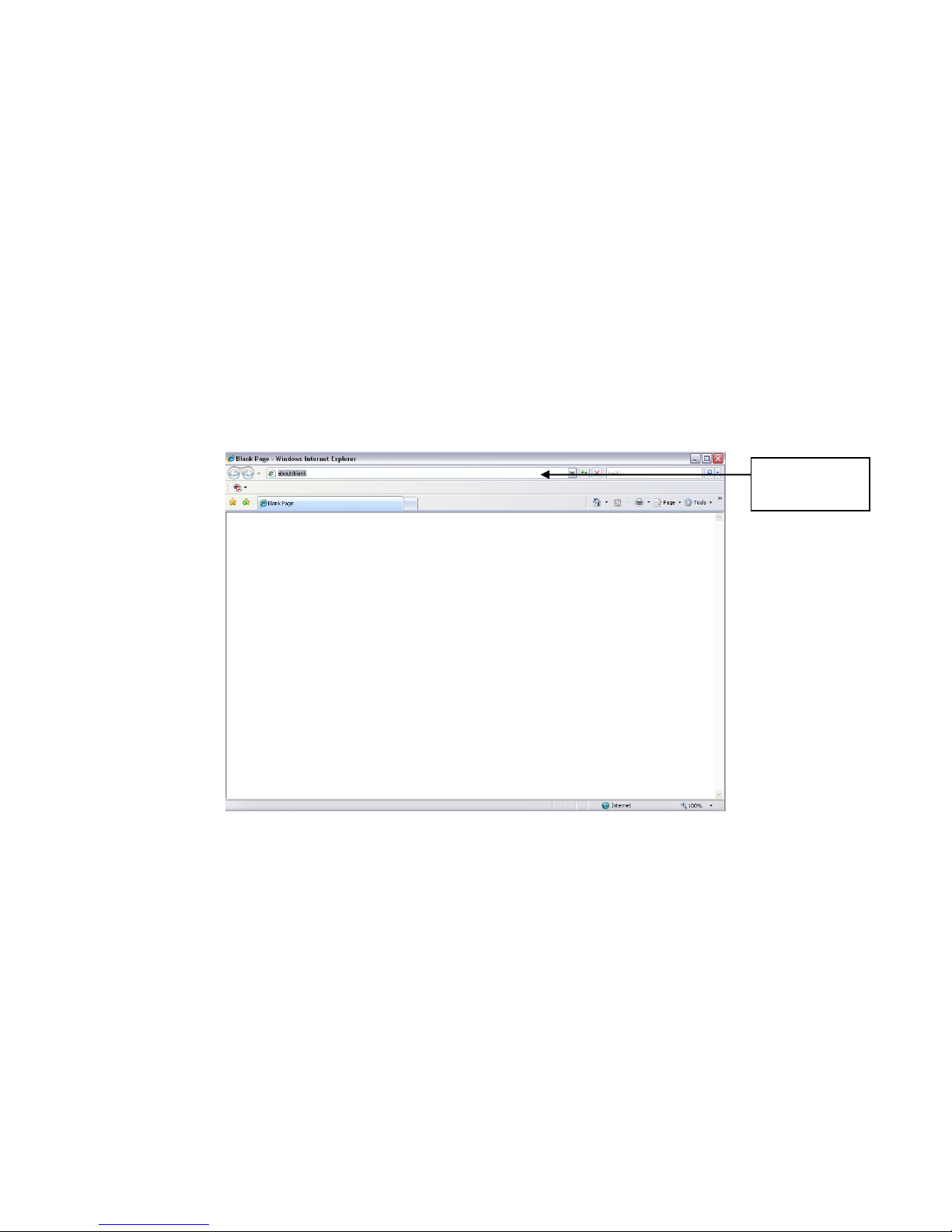

Open IE and input network camera address in the address bar. See Figure 4-1.
Figure 4-1 IP address
The login interface is shown as below. See Figure 4-2.
Please input your user name and password.
Default factory name is admin and password is admin.
Note: For security reasons, please modify your password after you first login.
Input your IP
address here
10
Figure 4-2 Web login
After you successfully logged in, please install WEB plug-in unit. Please refer to the Web
Operation Manual included in the resource CD for detailed operation instruction.
See Figure 4-3.
Figure 4-3 Web monitoring window
11
Appendix Toxic or Hazardous Materials or Elements
Component Name
Toxic or Hazardous Materials or Elements
Pb
Hg
Cd
Cr VI
PBB
PBDE
Circuit Board Component
○ ○ ○ ○ ○
○
Device Construction Material
○ ○ ○ ○ ○
○
Wire and Cable
○ ○ ○ ○ ○
○
Packing Components
○ ○ ○ ○ ○
○
Accessories
○ ○ ○ ○ ○
○
O: Indicates that the concentration of the hazardous substance in all homogeneous materials in
the parts is below the relevant threshold of the SJ/T11363-2006 standard.
X: Indicates that the concentration of the hazardous substance of at least one of all
homogeneous materials in the parts is above the relevant threshold of the SJ/T11363-2006
standard. During the environmental-friendly use period (EFUP) period, the toxic or hazardous
substance or elements contained in products will not leak or mutate so that the use of these
(substances or elements) will not result in any severe environmental pollution, any bodily injury or
damage to any assets. The consumer is not authorized to process such kind of substances or
elements, please return to the corresponding local authorities to process according to your local
government statutes.
Note:
This quick start guide is for reference only. Slight difference may be found in user
interface.
All the designs and software here are subject to change without prior written notice.
If there is any uncertainty or controversy, please refer to the final explanation of us.
Please visit our website or contact your local service engineer for more information.
Loading...
