DENT TOOL KIT CT4448
ORIGINAL INSTRUCTION
Read the operating manual thoroughly before work and keep it
for future reference.
Cannon Tools Limited
Address: 20 Station Road, Rowley Regis, West Midlands, B65 0JU.U.K.

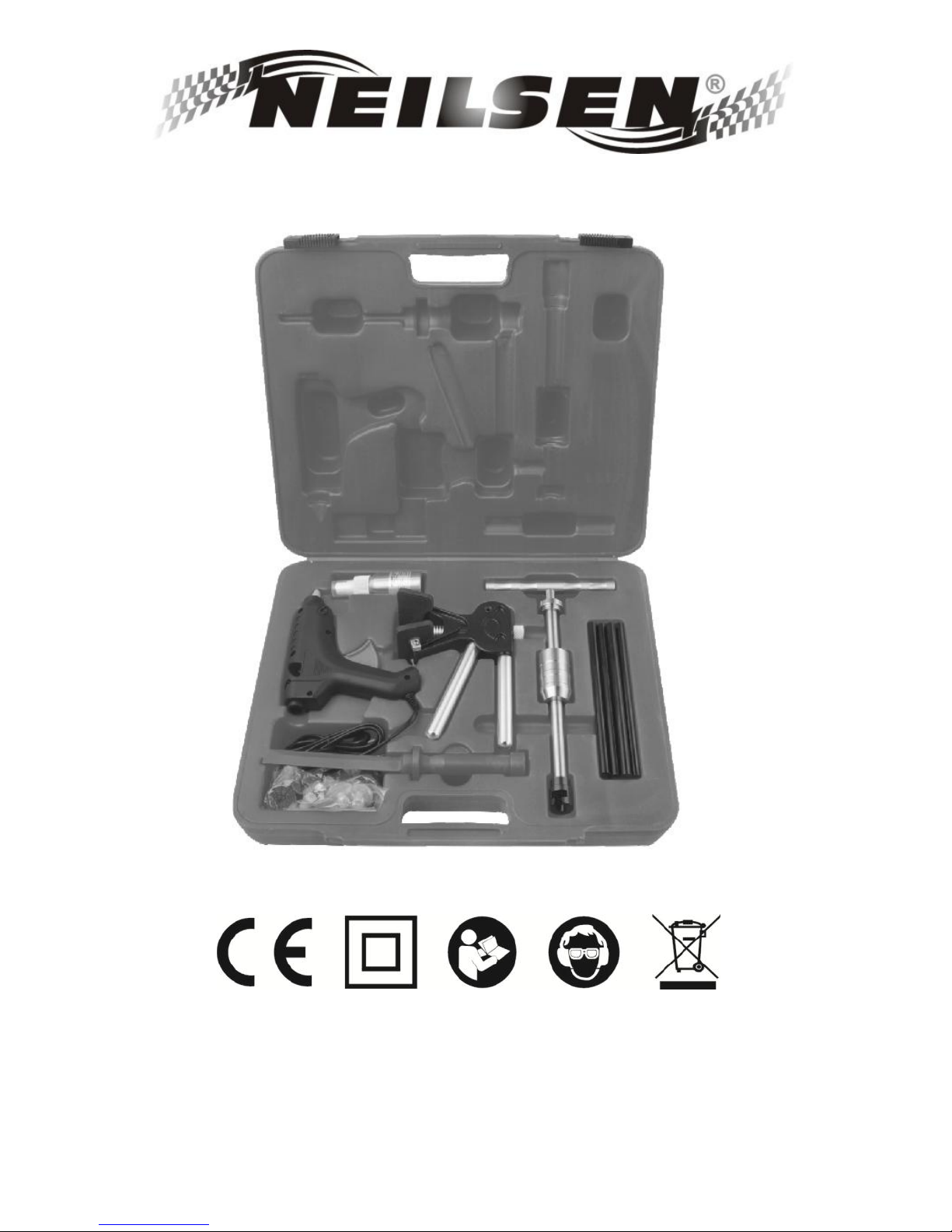

INCLUDES:
1pc glue gun(220-240V~, 50Hz, 40W)
1pc sliding hammer to pull out hard dents
1pc dent lifter (Baby face mini lifter or normal mini lifter) for slight dents on flat surface
1pc glue remover
1pc scraper for gentle removal of dent pads
8pcs black glue sticks (11 x 200mm) with very good performance for best results
19pcs glue tabs in various sizes and shapes
OPERATION AND USE OF ARTICLE
Step1:
The first position in the vehicle collision / dent. Clean the surface of the process. Use only mild
cleaning agents.The use of surface coarse sponge, will cause irreparable damage.
Step2:
Use the glue gun, push the glue stick into the back of the glue gun . Heating the glue gun and
the glue stick melt.
Step3:
Use hot glue gun, put glue on the glue tab, and then place the recess in the dent glue tab.
Step4:

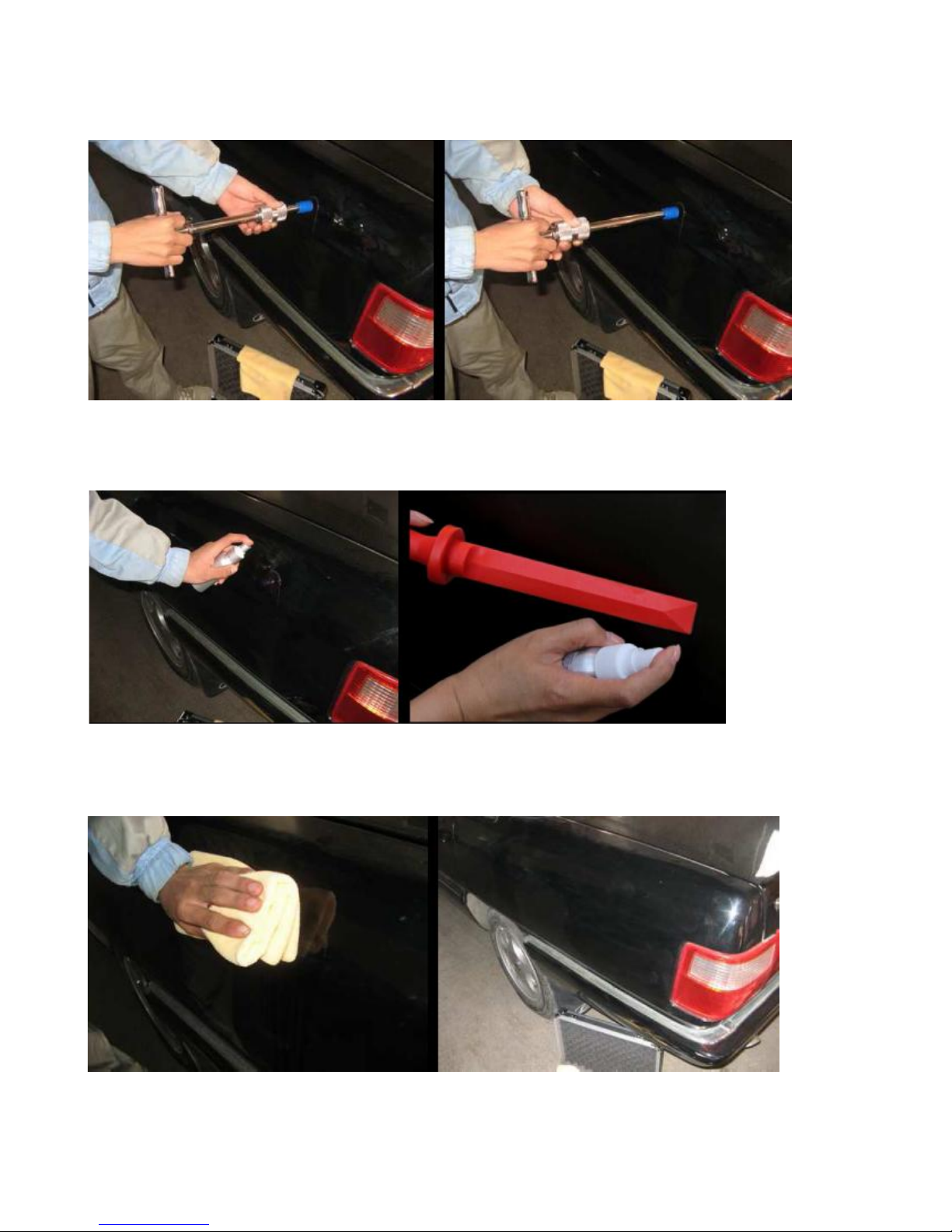

use the T bar slide hammer or dent mini lifter extraction of the bump.what tool you use, also
depends on the size of the dent, up to 30mm diameter is the dent mini lifter,Other use the slide
hammer.
Step5:
When the temperature reaches the right time, do not be too hard. Then pull until the glue tab is
removed.
Step6:
Use the release agent , dissolve glue. Use of the scraper, remove the glue.
Step7:
Finally, use a soft clean cloth wipe again residual glue, make the body to restore new look.
ELECTRICAL INFORMATION
Warning
Mains plug replacement (UK & Ireland only)
If you need to replace the fitted plug of the tool, then follow the instructions below.
Machines that are connected direct to mains supply.
For machines that are double insulated, do not require a connection to earth.
If in doubt consult a qualified electrician

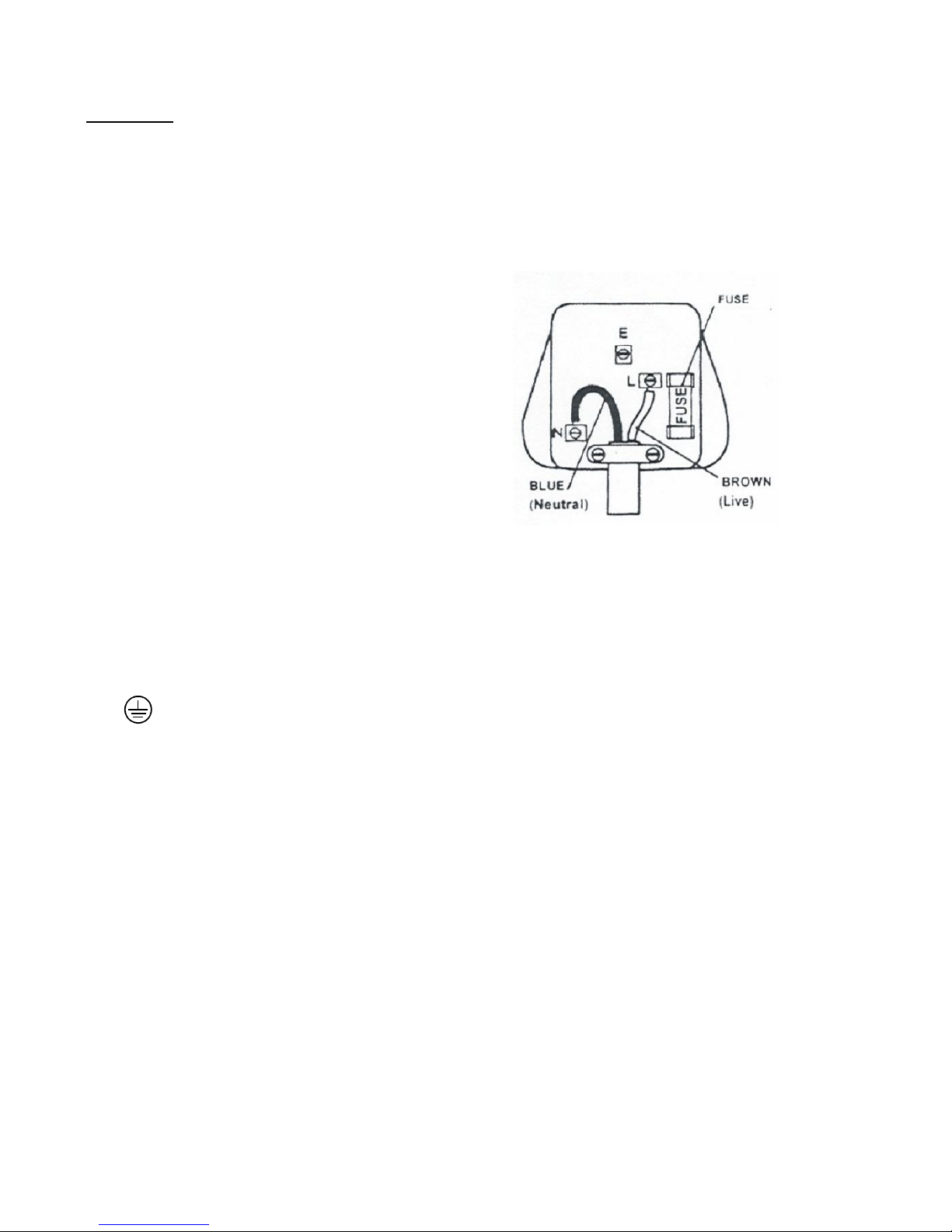

The wires are coloured as follows
Blue Neutral (N)
Brown Live (L)
3amp BS 1363A Fuse
Always secure the wires in the plug terminals carefully make sure no loose strands are left
exposed as they can short circuit and cause injury, fire and or damaged the tool.
Secure the cable in the cord grip firmly.
Never use a light socket. Never connect the live (L) or neutral (N) wires to the earth pin marked
(E).
NOTE: If your mains wires differ from the above consult a qualified electrician. Always make
sure the mains supply is of correct voltage and you use the correct fuse protection.
Regularly inspect all machines electrical connection and wiring condition for damage. Any
faults detected should be immediately rectified before further use of the machine. Always have
the wiring checked by a qualified electrician.
In use ensure all wiring and extension cords are kept clear of any cutting tools, sharp objects
and any other workshop hazards such as wet floors, chemicals, solvents etc.
This machine is protected by a 3 amp fuse make sure the correct fuse is used.
To prevent fire or shock hazards do not expose these products to rain or moisture.
CANNON TOOLS LTD
Add: 20 station road, Rowley Regis, west midlands,B65 0JU.U.K.
Made in China
