Page 1
en Installation and operating
instructions
TUMBLE DRYER
R8580X2GB
Page 2
2
Your new tumble dryer
You have opted for a tumble dryer
manufactured by Neff.
Please take a few minutes to read
and become familiar with the
advantages of your tumble dryer.
To meet the high quality demands
required by Neff, every tumble dryer that
leaves our factory is carefully checked to
ensure that it functions correctly and is in
perfect condition.
For more information on our products,
accessories, replacement parts and
services, see our website www.neff.de
or contact our Customer Service
centres.
If the operating and installation
instructions describe different models,
any differences will be pointed out at
the relevant points in the text.
Read these operating and installation
instructions before operating the tumble
dryer.
Display rules
: Warning!
This combination of symbol and signal
word indicates a possibly dangerous
situation. Not heeding the warning can
cause death or injuries.
Caution!
This signal word indicates a possibly
dangerous situation. Not heeding
the caution can cause property and/or
environmental damage.
Note/tip
Information about the optimum use of
the appliance/any other useful
information.
1. 2. 3. / a) b) c)
The steps are represented by numbers
or letters.
■ / -
Lists are represented by a small box
or a dash.
Page 3
en
3
Contents
en Installation and operating instructions
8 Intended use. . . . . . . . . . . . . . . . .4
( Safety instructions . . . . . . . . . . .4
Electrical safety. . . . . . . . . . . . . . . . . . 4
Safety for children. . . . . . . . . . . . . . . . 5
Appliance safety . . . . . . . . . . . . . . . . . 5
7 Environmental protection . . . . . .7
Packaging/old appliance . . . . . . . . . . 7
Energy-saving tips. . . . . . . . . . . . . . . . 7
Y The main points in brief . . . . . . .8
* Getting to know
your appliance . . . . . . . . . . . . . . .9
Dryer. . . . . . . . . . . . . . . . . . . . . . . . . . 9
Control panel . . . . . . . . . . . . . . . . . . 10
Display panel . . . . . . . . . . . . . . . . . . 11
Z Laundry . . . . . . . . . . . . . . . . . . .12
Preparing the laundry . . . . . . . . . . . . 12
Sorting washing according to: . . . . . 12
/ Programmes and buttons . . . . .13
Programmes . . . . . . . . . . . . . . . . . . . 13
Buttons . . . . . . . . . . . . . . . . . . . . . . . 15
1 Operating the appliance . . . . . .16
Loading laundry
and switching on the dryer . . . . . . . . 16
Setting a programme . . . . . . . . . . . . 16
Starting the programme . . . . . . . . . . 17
Programme sequence . . . . . . . . . . . 17
Changing the programme
or adding laundry . . . . . . . . . . . . . . . 17
Cancelling the programme . . . . . . . . 17
Programme end . . . . . . . . . . . . . . . . 17
Removing laundry
and switching off the dryer . . . . . . . . 17

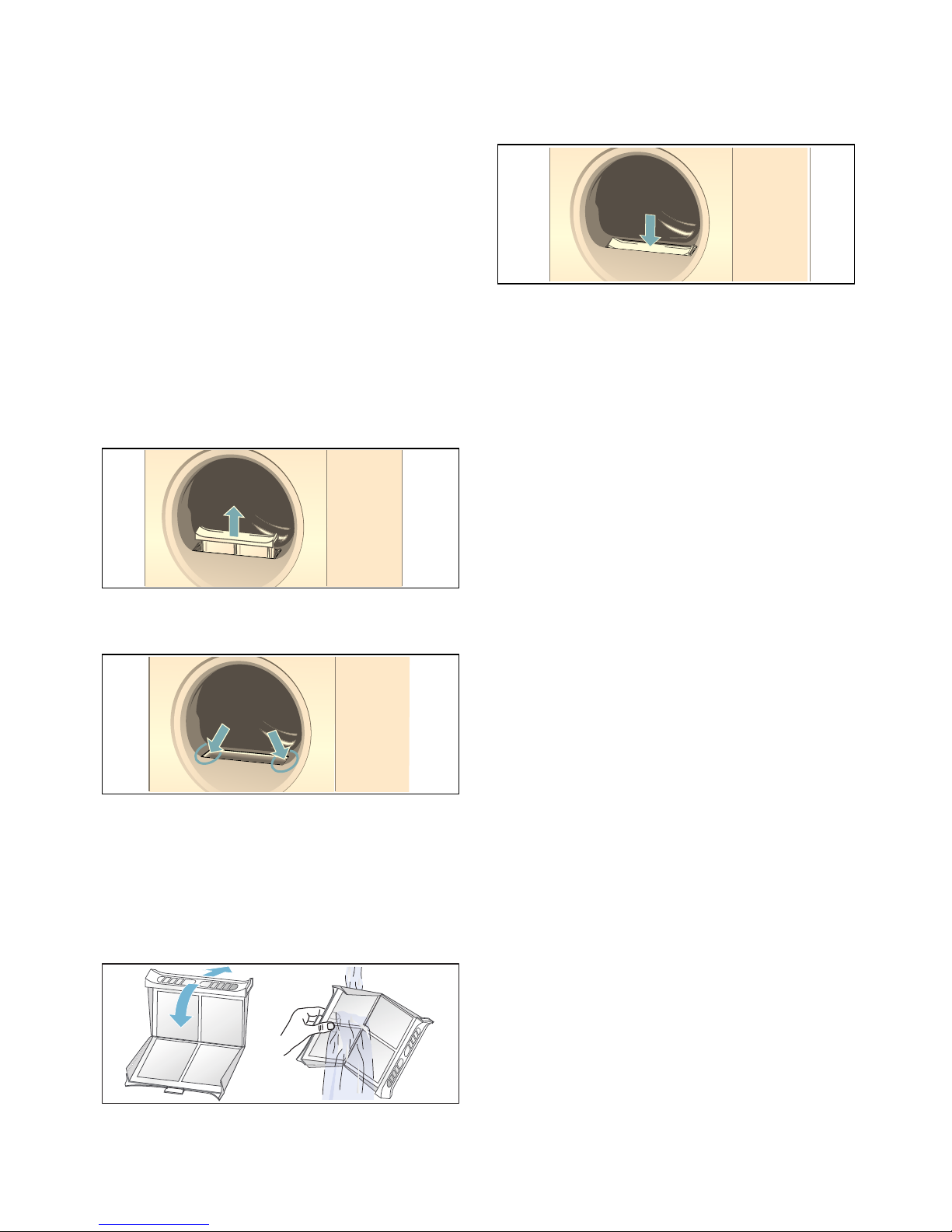

Clean the fluff filter . . . . . . . . . . . . . . 18

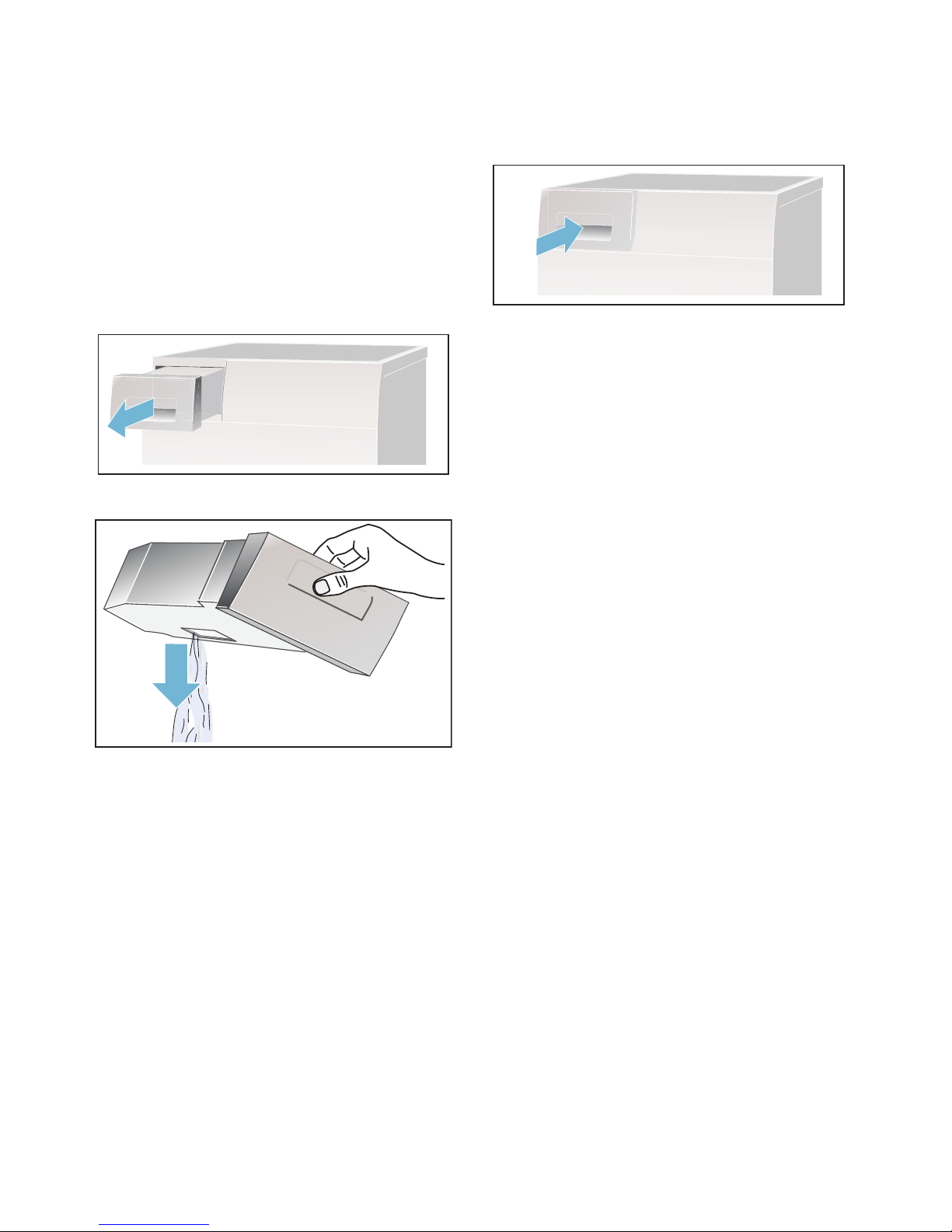

Emptying
the condensate container . . . . . . . . . 19
M Signal setting. . . . . . . . . . . . . . . 20
D Cleaning . . . . . . . . . . . . . . . . . . . 21
Cleaning the dryer
and the control panel . . . . . . . . . . . .21

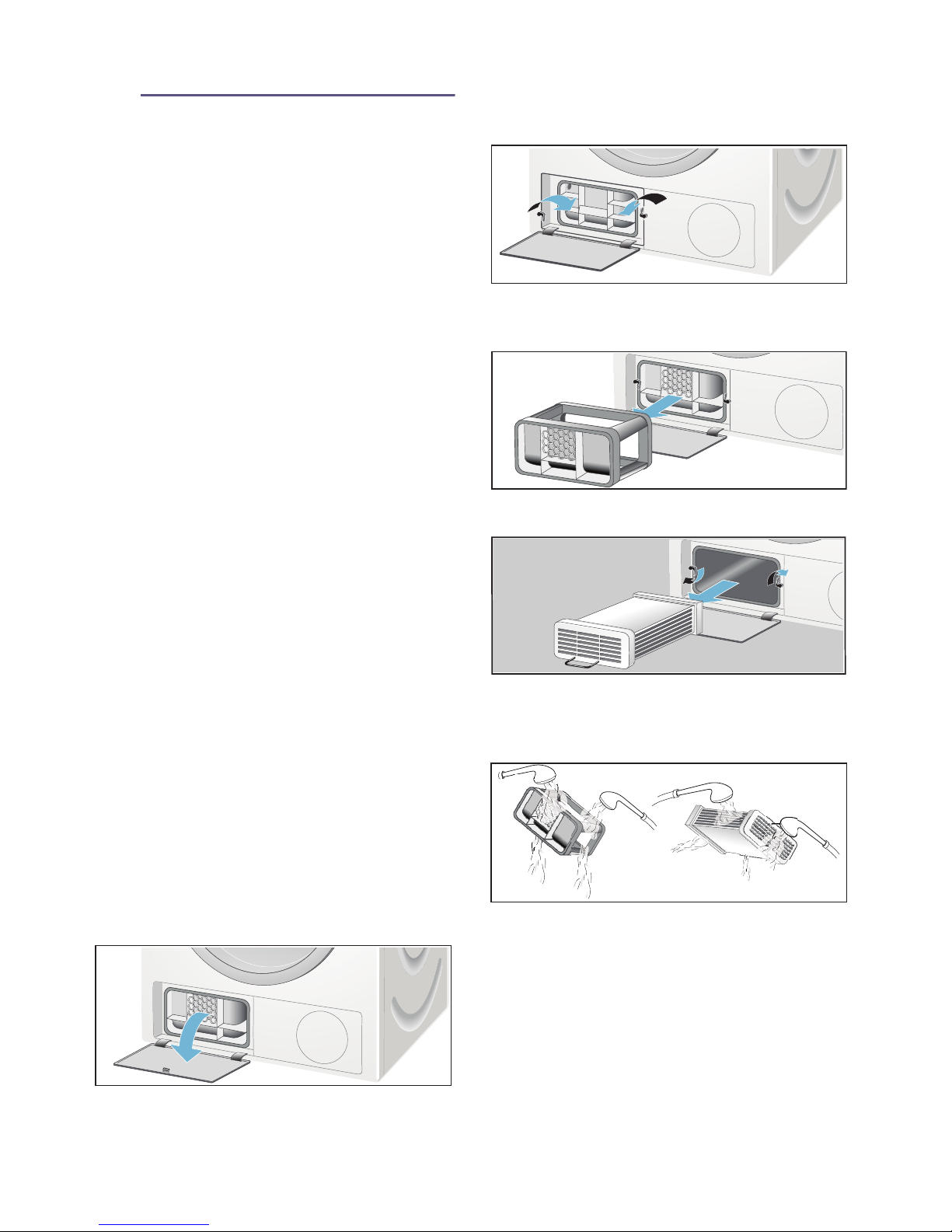

Cleaning the heat exchanger. . . . . . .21
Cleaning the moisture sensor . . . . . .22
3 Faults and what to do
about them . . . . . . . . . . . . . . . . . 23
J After-sales service . . . . . . . . . . 25
[ Consumption values. . . . . . . . . 26
Consumption values table . . . . . . . . .26
Most efficient programme
for cotton fabrics . . . . . . . . . . . . . . . .26
J Technical data . . . . . . . . . . . . . . 27
5 Installation and connection . . . 28
Scope of delivery. . . . . . . . . . . . . . . .28
Installing and connecting
the dryer . . . . . . . . . . . . . . . . . . . . . .28
Optional accessories. . . . . . . . . . . . .29
Transport and frost protection . . . . . .29
Page 4
en Intended use
4
8 Intended use
Intended use
■ For private domestic use only.
■ Only to dry and refresh fabrics that
have a care label specifying that
they are suitable for use in a dryer.
■ The dryer can be operated by
children 8 years old and older, by
persons with reduced physical,
sensory or mental abilities and by
persons with insufficient experience
or knowledge if they are supervised
or have been instructed in its use by
a responsible adult.
■ Keep children under the age of
3 years old away from the dryer.
■ This appliance is intended for use up
to a maximum height of
4000 metres above sea level.
■ Do not let children carry out any
unsupervised cleaning or
maintenance work on the dryer.
■ Keep pets away from the dryer.
( Safety instructions
Safety instructions
Electrical safety
:Warning
Risk of death!
There is a risk of electric shock
as the dryer is operated with
electricity.
You should therefore observe
the following:
■ Never touch or hold the
mains plug with wet hands.
■ Only pull out the mains cable
directly at the plug and never
by the cable, as this could
damage it.
■ Do not use extension cables,
multiple plugs or connectors.
■ Only have the mains cable
replaced by our after-sales
service.
Page 5
Safety instructions en
5
Safety for children
:Warning
Risk of death or injury!
You should therefore observe
the following:
■ Do not leave the dryer
unattended when children or
other people who cannot
assess the risks are nearby.
■ Do not let children play with
the dryer.
■ Children may become
entangled in packaging or
film if allowed to play with
them, or they may pull them
over their heads and
suffocate. Keep packaging,
packaging parts and film out
of the reach of children.
■ Children may lock
themselves in the dryer.
Therefore, when an
appliance has reached the
end of its service life, unplug
it from the mains, cut through
the mains cable and destroy
the lock on the dryer door.
Appliance safety
:Warning
Risk of death!
■ Do not use the dryer if
industrial chemicals have
been used to clean it.
■ Laundry that has come into
contact with solvents, oil,
wax, wax remover, paint,
grease or stain remover may
ignite or cause an explosion
when drying is in progress.
Before drying, rinse the
laundry in hot water with
detergent.
■ Coal dust or flour in the area
around the dryer may cause
an explosion.
■ Only replace defective
components with genuine
spare parts.
Page 6
en Safety instructions
6
Caution!
Risk of material damage to the
dryer or fabrics
■ Only use the dryer for drying
and freshening up fabrics at
home and for fabrics that
have been washed with
water and are suitable for
tumble-drying.
Any other use is not
considered intended use and
is prohibited.
■ Foamed material or foam
rubber may become
deformed or melt during
drying. Do not dry any
laundry that contains foamed
material or rubber.
■ Do not lean or sit on the
dryer door, as the dryer may
tip over.
■ Loose cables or hoses may
cause you to trip. Avoid
tripping hazards.
■ Light things, such as hair,
may be sucked into the air
inlet during operation; keep
these away from the dryer.
■ The last phase of the drying
cycle takes place without any
heat (cooling cycle) to
ensure that the laundry
remains at a temperature
that will not damage it.
:Warning
Risk of burns!
The exterior of the appliance's
rear panel becomes very hot
during operation. Never touch
the hot surface of the
appliance's rear panel. Keep
children away from
the appliance.
Page 7
Environmental protection en
7
7 Environmental
protection
Environmental protection
Packaging/old appliance
)
Dispose of packaging in an
environmentally-responsible manner.
This appliance is designated according
to European directive 2012/19/EC
which governs waste electrical and
electronic equipment (WEEE).
The directive provides a framework for
the collection and recycling of old
appliances, which is valid across
the EU.
Energy-saving tips
■ Spin the laundry before drying.
The drier the laundry, the shorter
the drying time will be, thus
consuming less energy.
■ Load the dryer with the maximum
load.
Note: Do not exceed the maximum
load for the programs, as this
prolongs the drying time and
increases energy consumption.
■ Ventilate the room and keep the air
inlet on the dryer free to ensure air
exchange.
■ Clean the fluff filter after each drying
cycle. If the fluff filter is dirty, the
drying time is prolonged and energy
consumption is increased.
■ Energy saving mode: If the dryer is
not operated for a prolonged period,
it automatically switches off before
the program starts and when the
program has ended to save energy.
The display panel and indicator
lamps go off after a few minutes and
the Start button flashes. To activate
the lighting, press any button, open
or close the dryer door or turn the
program selector.
Page 8
en The main points in brief
8
Y The main points in brief
The main points in brief
--------
--------
--------
1 @ @
Load the laundry and close
the door.
Switch on the dryer. Select a programme and,
if necessary, adjust
the programme default
settings.
2 @ @
Select the start button A. Dry. Unload the laundry.
3 @ @
Switch off the dryer. Empty the condensate
container.
Clean the fluff filter.
Page 9
Getting to know your appliance en
9
* Getting to know your appliance
Getting to know your appliance
Dryer
( Condensate container
0 Control and display panel
8 Drum interior light (depending on the model)
@ Dryer door
H Air inlet
P Fluff filter
X Heat exchanger
#
+
3
;
Page 10
en Getting to know your appliance
10

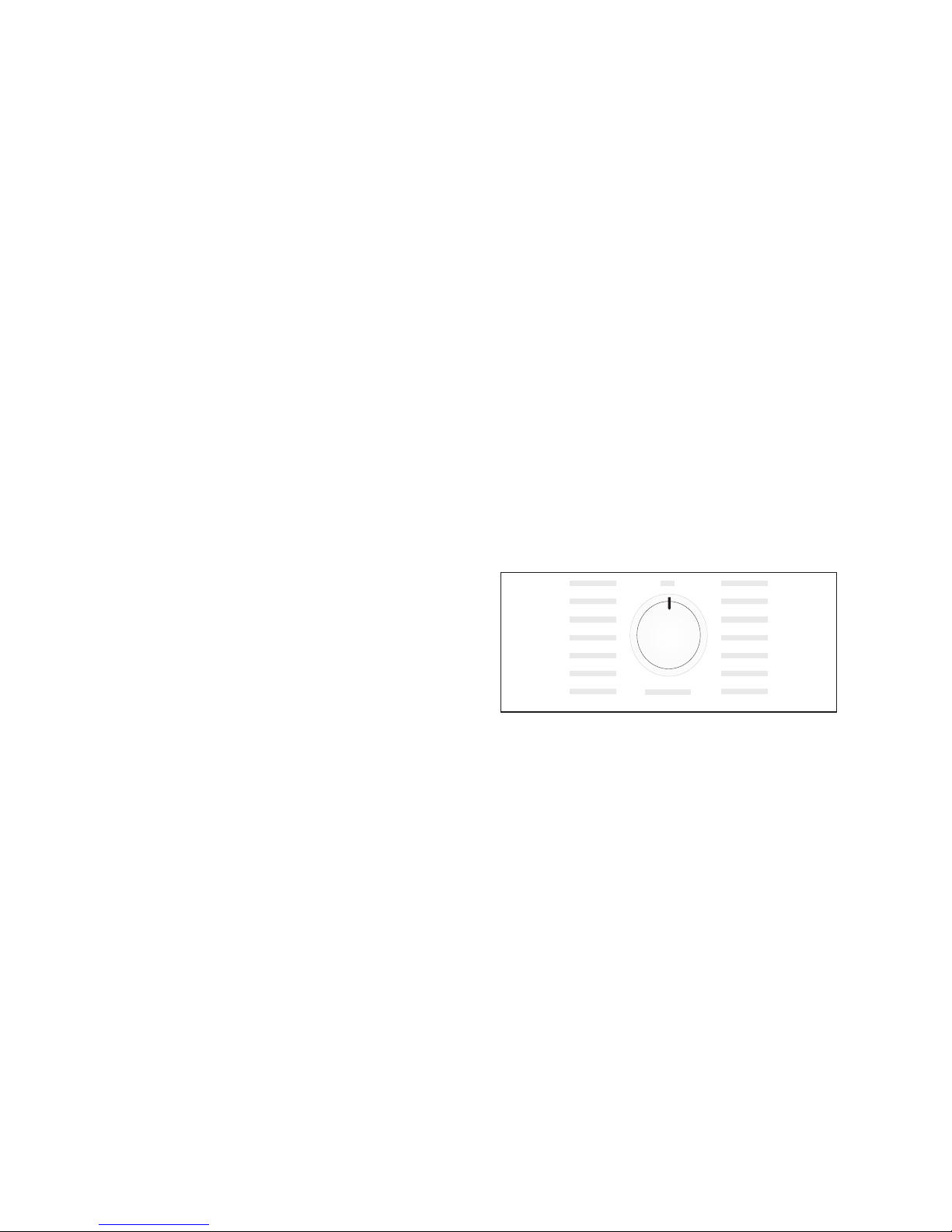

Control panel
Note: All buttons are sensitive and only need to be touched briefly.
VHF
VHF
+
#
( Use the programme selector to switch the dryer on and off and to select
the programme.
0 Programmes ~ Page 13.
8 Start button for starting or interrupting the programme ~ Page 15.
@ Buttons ~ Page 15.
H Display panel with buttons ~ Page 11.
Page 11
Getting to know your appliance en
11

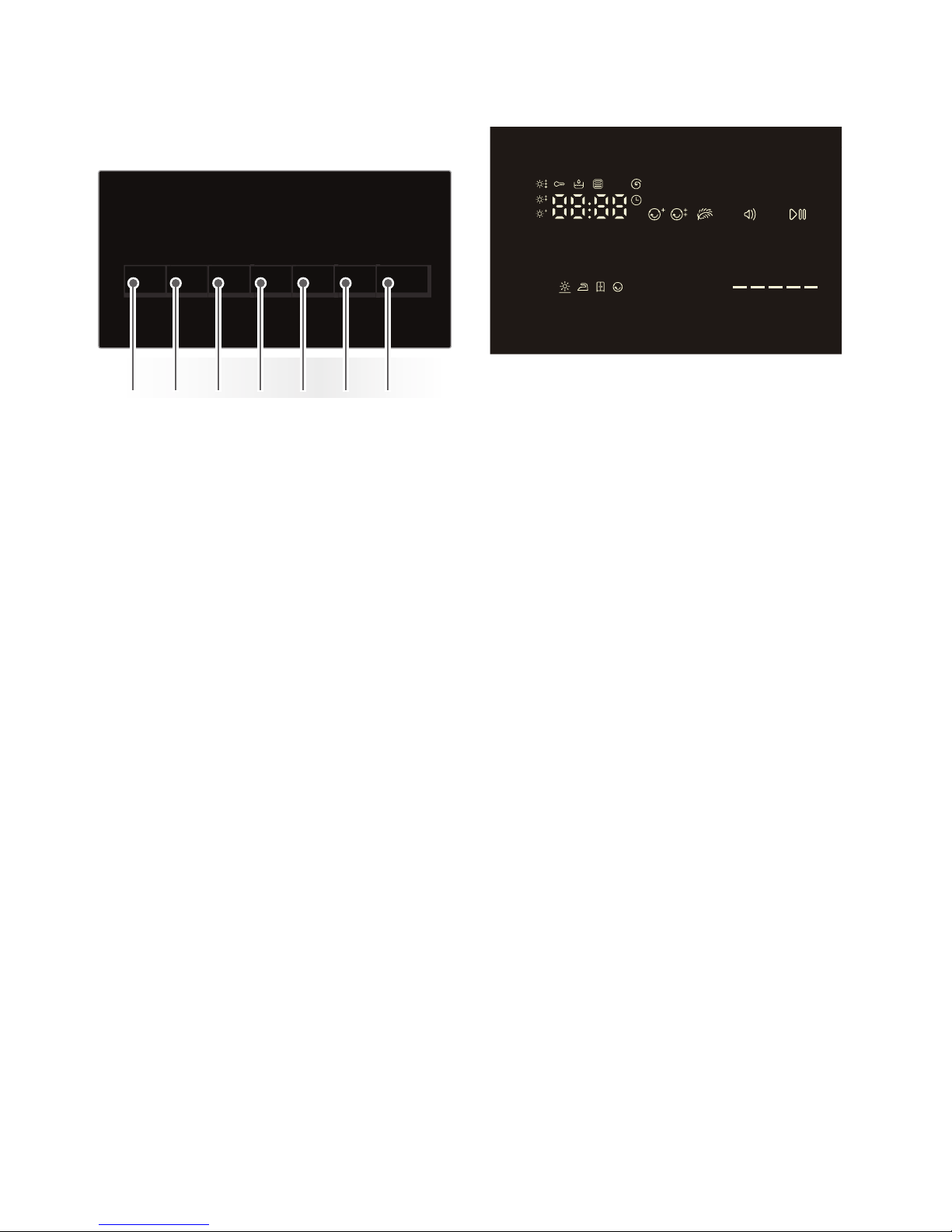

Display panel
Buttons in the display panel
For a detailed description of all buttons,
see ~ Page 15 onwards.
Display panel
( Select the degree of dryness.
0 Select the drying time.
8 Select the Ready in time.
@ Select Anti-Crease.
H Select Low-Heat Drying.
P Switch the signal on or off.
X Select Start/Pause.
#+ ;3
” "Anti-Crease" selected.
– Fine adjustment of the dryness
level.
ñ Time programme selected.
5 "Ready in" time selected.
E Childproof lock selected.
0 Spin speed selected.
s Low-Heat Drying selected.
C Audible signal active.
A Start or Pause selected.
3 hrs Programme delay in hours
when "Ready in" time is
selected.
1:27 Expected programme duration
in hours and minutes.
Ù ö » Q “Ÿš - ˜ -
Programme progress: Dry;
Iron Dry; Cupboard Dry; AntiCrease; End and Pause.
ð Empties the condensate
container; ~ Page 19.
é Cleans the fluff filters;
~ Page 18.
È
Page 12
en Laundry
12
Z Laundry
Laundry
Preparing the laundry
:Warning
Risk of explosion or fire!
Remove any cigarette lighters and
matches from pockets.
Caution!
The dryer drum and fabrics may be
damaged.
Remove all objects from pockets and
take note of the following information:
■ Tie cloth belts, apron strings, etc.
together or use a laundry bag.
■ Close zips, hooks and eyes, and do
up any buttons.
■ To ensure a consistent drying result,
sort the laundry by fabric type and
drying programme.
■ Remove any metal objects, such as
paper clips, from pockets.
■ Knitted fabrics, such as T-shirts and
jerseys, often shrink slightly the first
time they are tumble-dried. Use a
gentle programme.
■ Do not over-dry easy-care laundry.
This increases creasing of the
laundry.
■ When washing laundry that is to be
tumble-dried afterwards, use the
correct amount of fabric softener as
specified in the manufacturer's
instructions.
Sorting washing according to:
c Suitable for tumble drying
a Dry at normal temperature
` Dry at low temperature
b Do not tumble-dry
If you dry thin- and thick-layered fabrics
and fabrics with several layers together,
these will dry to differing degrees. To
achieve an even drying result, you
should therefore only dry laundry of the
same type of fabric and structure
together. If you feel that the laundry is
still too damp afterwards, you can select
a time programme for subsequent
drying ~ Page 13.
Caution!
Risk of material damage to the dryer or
laundry.
Do not dry non-breathable fabrics, such
as rubber-coated laundry.
Page 13
Programmes and buttons en
13
/ Programmes and buttons
Programmes and buttons
Programmes
Programme and fabrics Maximum load and programme
settings/info
Name of the programme
Which fabrics is the programme suitable for?
The maximum load is based on
the dry weight of the fabrics
Possible programme settings
Cottons Extra Dry
Hard-wearing, heat-resistant fabrics that are made of more than one
layer of cotton or linen and do not dry readily.
9 kg
Cottons Cupboard Dry
Normal, hard-wearing and heat-resistant fabrics made of a single
layer of cotton or linen.
9 kg
Cottons Iron Dry
Normal, hard-wearing and heat-resistant fabrics made of a single
layer of cotton or linen that need to be damp after drying and are
suitable for ironing or hanging up.
9 kg
Easy-Care Extra Dry
Synthetic or blended fabrics that are made of more than one layer
and do not dry readily.
3,5 kg
Easy-Care Cupboard Dry
Normal synthetic or blended fabrics made of a single layer.
3,5 kg
Easy-Care Iron Dry
Normal synthetic or blended fabrics made of a single layer that need
to be damp after drying and are suitable for ironing or hanging up.
3,5 kg
Sports
Weatherproof and outdoor clothing with a membrane coating
and water-repellent fabrics.
1.5 kg
Allergy+
Hard-wearing towels made of cotton.
6 kg
Mixed Load
Mixed load consisting of cotton and synthetic fabrics.
3 kg
Page 14
en Programmes and buttons
14
--------
Timed programme warm
All types of fabric; time programme.
Suitable for pre-dried or slightly damp laundry and for drying off
multi-layered, thick laundry.
Notes
■ Only dry wool, sports shoes and soft toys with the basket for
woollens ~ Page 29.
■ In the time programme, the laundry's residual moisture is not
automatically detected. If the laundry is still too damp after
the drying programme, repeat the programme and, if required,
extend the programme length.
3 kg
You can adjust the programme
length using the button for
the drying time.
Timed programme cold
All types of fabric. For freshening up or airing items of laundry that
have not been worn for long.
3 kg
You can adjust the programme
length using the button for
the drying time.
Shirts 15’
For optimum drying results, dry a maximum of 5 shirts at one time.
After drying, iron the laundry or hang it up and leave for a period
of time: Residual moisture is then distributed evenly.
1 kg
Rapid 40’
Synthetics and light cottons.
2 kg
Down
Fabrics, pillows, bedspreads or eiderdowns filled with down.
Dry large items individually.
1.5 kg
Woollens Finish
Fabrics made from wool or a wool blend that are suitable for tumble
drying.
3 kg
Page 15
Programmes and buttons en
15
Buttons
--------
Buttons Explanations and notes
Note: Not all buttons and their functions can be selected in all programmes.
Fine adjust – If the laundry is too damp after drying, you can finely adjust the dryness levels
e.g. Cupboard Dry. The dryness level can be increased with the degree of dryness in
three stages, from – to •.
If you have adjusted the dryness level, the setting for all programmes with
a selectable dryness level is retained even after the dryer is switched off.
Time Dry 5 Adjust the programme length for the time programmes. Between 20 minutes
and 3 hours, in 10-minute increments.
Finished in ñ The programme will end in 1-24 hrs. Set the "Ready in" time in increments of one
hour to delay the start of the programme. The required number of hours after
the programme ends is displayed in the display panel.
Less Ironing Q The drum moves the laundry at regular intervals for 60 or 120 minutes after drying,
in any programme, to prevent creasing.
Low Heat s Reduced temperature for delicate fabrics, e.g. polyacrylic or elastane. Selecting
the button will extend the drying time.
Signal C A signal sounds after the programme has ended.
E 3 sec.
(Childproof lock
3 sec.)
Press and hold the "Ready in" time button and the drying time button at the same
time for 3 seconds to activate or deactivate the childproof lock.
Start/Pause A Starts or pauses the programme.
Page 16
en Operating the appliance
16
1 Operating
the appliance
Operating the appliance
Loading laundry and
switching on the dryer
Note: The dryer must be correctly
positioned and connected, ~ Page 28.
1. Place the laundry in the drum.
2. Turn the programme selector to any
programme to switch the dryer on.
3. Close the dryer door.
Caution!
Possibility of material damage to
the dryer or laundry.
Take care not to trap any laundry in
the door.
Setting a programme
Note: If you have activated the
childproof lock, you must deactivate it
before you can set a programme, see
~ Page 15.
1. Select the required programme;
detailed information on the
programmes can be found from
~ Page 13 onwards.

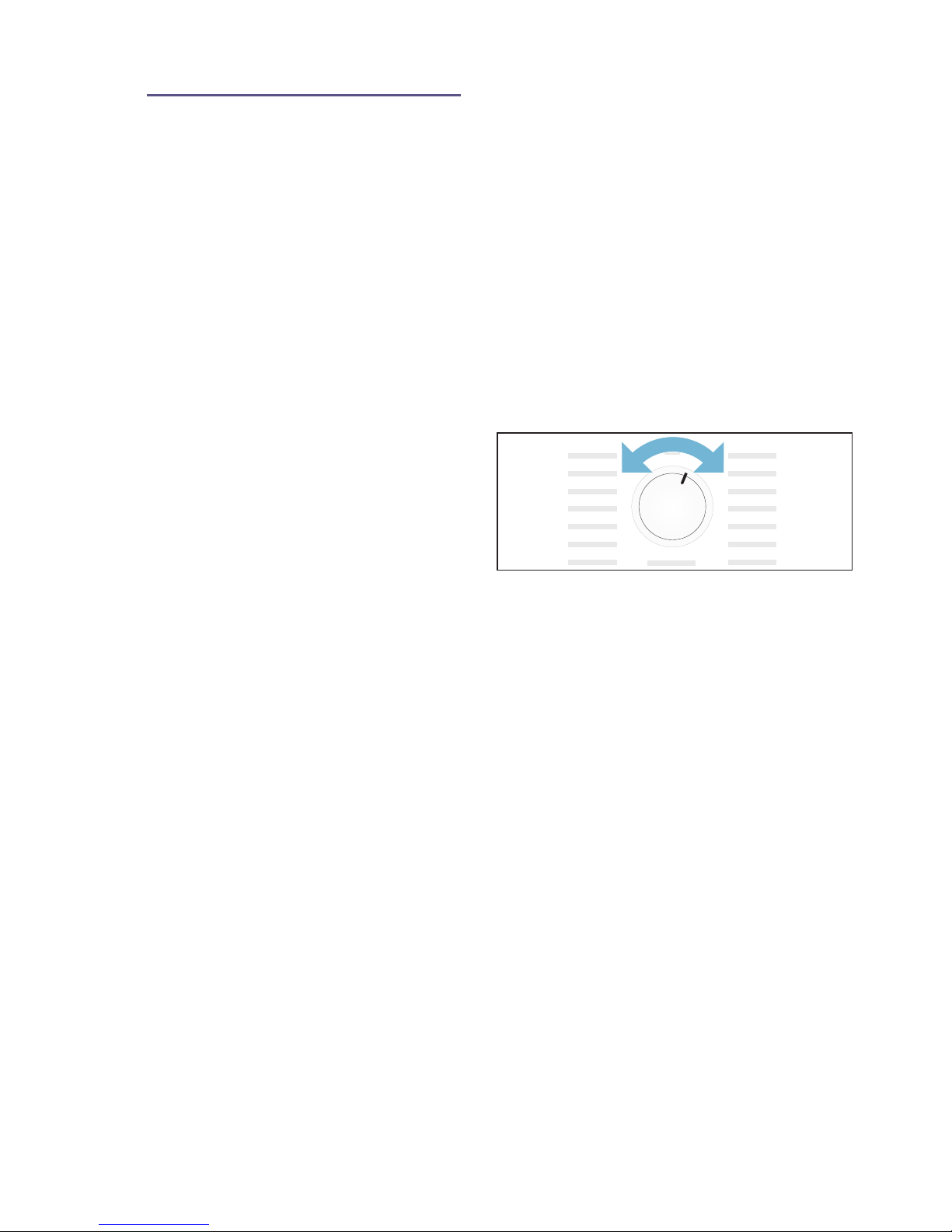

2. Use the programme selector to set
the required programme. The default
programme settings for the selected
programme appear in the display
panel.
Note: Default programme settings
are standard settings that are
already defined when a programme
is selected. After selecting a
programme, you can see the default
programme settings in the display
panel.
3. If required, adjust the default
programme settings. You can find
detailed information on this from
~ Page 13 onwards.
Page 17
Operating the appliance en
17
Starting the programme
Press the Start button.
Note: If you want to lock the
programme to prevent it from being
inadvertently adjusted, you can select
the childproof lock, see ~ Page 15.
Programme sequence
The programme status is displayed in
the display field.
Changing the programme
or adding laundry
You can remove or add laundry
and change or alter the programme at
any time during drying.
1. To pause the programme, open
the dryer door or press the Start
button.
2. Add or remove laundry.
3. Select another programme or an
additional function, if required.
4. Close the dryer door.
5. Press the Start button.
Note: The programme duration in the
display panel is updated depending on
the load and residual moisture in the
laundry. The values displayed may
change after the programme is
changed or the load is adapted.
Cancelling the programme
The programme can be interrupted at
any time; to pause, open the dryer door
or press the Start button.
Caution!
Risk of fire. Laundry may catch fire.
If you cancel the programme, you must
remove the laundry items and spread
them out so that the heat can disperse.
Programme end
“Ÿš appears in the display panel.
Removing laundry and
switching off the dryer
1. Remove the laundry.
2. Turn the programme selector to the
"off" position.
Page 18
en Operating the appliance
18
Clean the fluff filter
Note: During drying, fluff and hair from
the laundry is trapped by the fluff filter. If
the fluff filter is blocked or dirty, this
reduces the flow of air, which prevents
the dryer from achieving its maximum
performance. Clean fluff filters also
reduce energy consumption and the
drying time.
Clean the fluff filter after each drying
cycle:
1. Open the dryer door and remove all
fluff from the door.
2. Remove the fluff filter.
3. Remove the fluff from the recess in
the fluff filter.
Note: Ensure that no fluff falls into
the open shaft.
4. Open the fluff filter and remove all
the fluff.
5. Rinse away the fluff under running
water or clean the fluff filter in the
dishwasher.
6. Dry the fluff filter, close it and reinsert
the fluff filter.
Caution!
The dryer may be damaged.
Do not operate the dryer without a fluff
filter or if the fluff filter is defective.
Page 19
Operating the appliance en
19

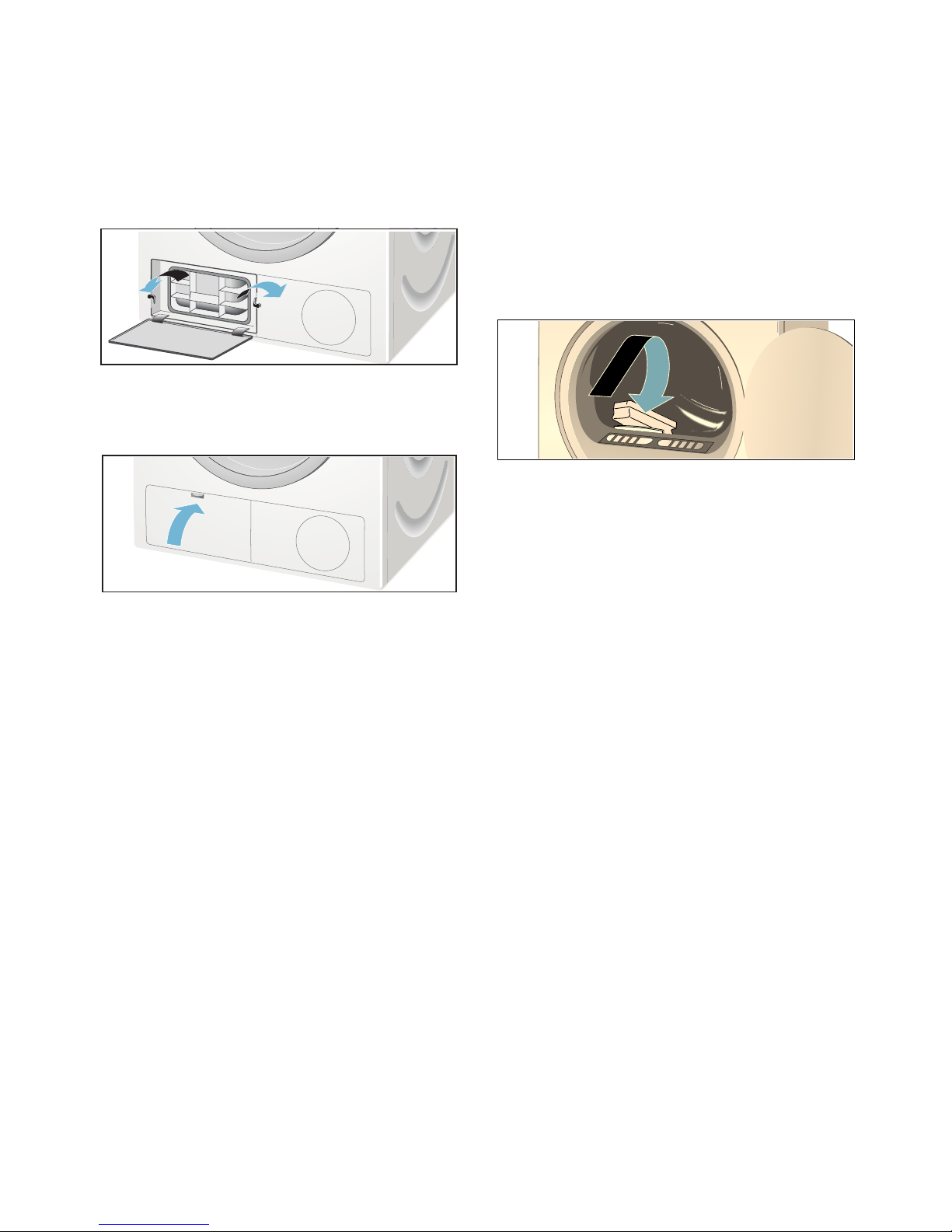

Emptying the condensate
container
Note: After each drying cycle, empty
the condensate container; otherwise the
next drying programme may be
cancelled as a result of the condensate
container being full.
1. Pull out the condensate container
horizontally.
2. Pour out the condensation water.
Caution!
Dirty condensation water may be
harmful to your health and cause
material damage.
Condensation water is not suitable
for drinking and may be
contaminated with fluff. Do not drink
the condensation water or reuse it.
3. Push in the condensate container
until you feel it lock back into place
in the dryer.
Page 20
en Signal setting
20
M Signal setting
Signal setting
You can change the following settings:
■ The spin speed that is used for
spinning your laundry before it is
dried,
■ The volume of the audible signal at
the end of the programme,
■ The volume of the audible button
signals.
You will need to activate the setting
mode in order to change these settings.
Activating setting mode
1. Switch the dryer on.
2. Select the "Cottons" programme in
position 1 and wait for five seconds.
Setting mode is now activated.
The symbols go out in the display panel
and the programme duration is
displayed.
1. Press and hold the Start button and,
at the same time, turn the
programme selector clockwise to
position 2.
2. The spin speed is shown in the
display.
3. Press the "Ready in" time button or
the drying time button to change the
spin speed.
4. Turn the programme selector
clockwise to position 3.

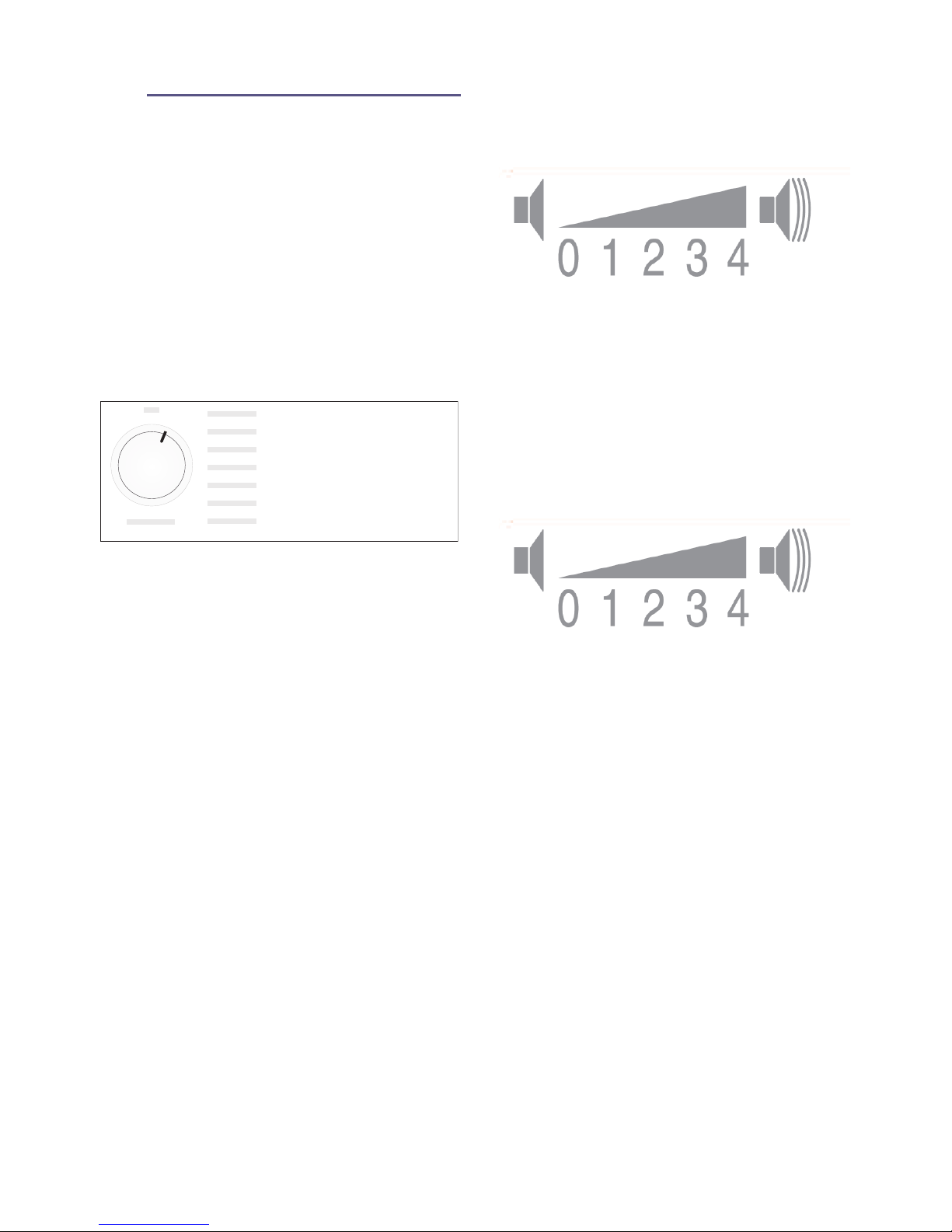

5. The volume of the audible signal at
the end of the programme is shown
in the display.
0 = off, 1 = quiet, 2 = medium,
3 = loud, 4 = very loud
6. Press the "Ready in" time button or
the drying time button to change
the volume.
7. Turn the programme selector
clockwise to position 4.
8. The volume for the audible button
signal is shown in the display.
0 = off, 1 = quiet, 2 = medium,
3 = loud, 4 = very loud
9. Press the "Ready in" time button or
the drying time button to change the
volume.
Exiting setting mode
Turn the programme selector to
the "Off" position once you have set
the required spin speed and the
volume. The settings have now been
saved.
Page 21
Cleaning en
21
D Cleaning
Cleaning
Cleaning the dryer and the
control panel
:Warning
Risk of death!
There is a risk of electric shock as the
dryer is operated with electricity.
Disconnect the dryer from the mains
before cleaning.
Clean the dryer using only water and a
soft, damp cloth.
Remove all detergent residue, spray
residue or other residues immediately.
Do not use cleaning agents or agents
for pre-treating laundry (e.g. prewash
sprays, stain removers). Do not use
high-pressure cleaners or steam jet
cleaners to clean your appliance.
Cleaning the heat exchanger
Notes
■ Clean the heat exchanger several
times a month if you use the dryer
more than twice a week.
■ If there is debris in the heat
exchanger, this will increase the
amount of time required for drying
and will compromise the drying
results.
1. Allow the dryer to cool down and
place an absorbent cloth beneath
the maintenance flap.
Note: Residual water may leak out.
2. Open the maintenance flap fully.
3. Turn both locking levers towards
each other.
4. Remove the top cap from the heat
exchanger.
5. Remove the heat exchanger.
6. Flush water through the heat
exchanger from all sides to
completely remove all fluff.
Caution!
There is a risk of damage to the heat
exchanger.
Only use water to clean the heat
exchanger, and do not use any hard
objects or objects with sharp edges
to remove the fluff.
7. Remove all fluff from the seals on
the dryer and on the heat exchanger.
8. Allow all the water to drip off.
Page 22
en Cleaning
22
9. First insert the heat exchanger, and
then fit the heat exchanger's top cap
in place.
10.Turn both locking levers back and
close the maintenance flap until it
locks into place.
11.Close the maintenance flap and
press on it until you feel it click in
place.
Cleaning the moisture sensor
Note: The dryer is equipped with a
stainless-steel moisture sensor. The
moisture sensor measures how damp
the laundry is.
After long periods of use, a fine layer of
limescale can form on the moisture
sensors. This must be removed
regularly.
Open the door and clean the moisture
sensor with a rough sponge.
Caution!
The moisture sensor may be damaged.
Do not clean the moisture sensor with
steel wool and abrasive materials.
Page 23
Faults and what to do about them en
23
3 Faults and what to do about them
Faults and what to do about them
Faults Cause/remedy
ð in the display panel
and drying has been
interrupted.
■ Empty the condensate container; ~ Page 19 and the dryer; ~ Page 29.
■ If the optional condensation drain is installed, the drain hose may be
blocked. Check the hose for deposits and flush the hose out.
é in the display panel. Clean the fluff filter and/or the heat exchanger, then select the Start button
~ Page 18;~ Page 21.
Dryer does not start. ■ Mains plug plugged in or fuse checked?
■ Programme selected? Select a programme.
■ Dryer door open? Close the door.
■ Is the childproof lock activated? Deactivate the child-proof lock.
■ "Ready in" time selected? Programme starts after a delay.
Display panel goes off
and Start button flashes.
Not a fault. Energy-saving mode is active ~ Page 7.
Creasing. ■ Creasing occurs when you have exceeded the maximum load or selected
the wrong programme for the type of fabric. All the required information
can be found in the programme table.
■ Remove clothes immediately after drying; creasing may occur if they are
left in the drum.
Water is leaking out. Not a fault; the dryer may be positioned on an incline. Level the dryer.
Laundry is not dried correctly or is still too damp.
■ After the end of the programme, warm laundry feels damper than it actually
is. Spread the laundry out and allow the heat to disperse.
■ Finely adjust the dryness level – this extends the drying time but does not
increase the temperature. Your laundry becomes drier ~ Page 15.
■ Select a programme with a longer drying time or increase the drying level.
This does not increase the temperature.
■ Select a time programme for subsequent drying of laundry that is still damp
~ Page 15.
■ If you have exceeded the maximum load for the programme, the laundry
may not be dried properly.
■ Clean the moisture sensor in the drum. A fine layer of limescale may
adversely affect the performance of the sensors and your washing will not
dry properly ~ Page 13.
■ Drying has been interrupted as a result of a power cut, because
the condensate container is full or because the maximum drying time has
been exceeded.
Note: See also the laundry tips ~ Page 22.
* Depending on the model
Page 24
en Faults and what to do about them
24
Note: If you cannot rectify the fault yourself by turning the dryer off and on, please
contact our after-sales service.
Drying time too long? ■ The fluff filter may be dirty and cause a longer drying time. Clean the fluff
filter.
■ If the air inlet on the dryer is blocked or not freely accessible, this may
increase the drying time. Make sure that the air inlet remains unobstructed.
■ If the ambient temperature is higher than 35 °C, this may extend the drying
time.
■ Insufficient air circulation in the room may increase the drying time.
Ventilate the room.
Humidity in the room
increases.
Not a fault. Make sure the room is sufficiently ventilated.
Power cut. The drying programme is interrupted. Remove the laundry and spread it out,
or restart the programme.
Faults Cause/remedy
* Depending on the model
Page 25
After-sales service en
25
J After-sales service
After-sales service
After-sales service
If you cannot rectify the fault yourself
(faults, what to do?), please contact our
after-sales service. We will always find
an appropriate solution to avoid
unnecessary visits by engineers.
The contact information for your nearest
after-sales service can be found here or
in the enclosed after-sales service
directory.
Please provide after-sales service with
the dryer's product number (E-no.) and
production number (FD).
You can find this information on the
inside of the dryer door or on the rear of
the dryer.
Trust the expertise of the
manufacturer.
Contact us. You can therefore be sure
that the repair is carried out by trained
service technicians who carry original
spare parts.
(1U )'
Page 26
en Consumption values
26
[ Consumption values
Consumption values
Consumption values table
Most efficient programme for cotton fabrics
The following "standard cottons programme" (identified with ü) is suitable for
drying normal, wet cotton laundry and is most efficient in terms of its combined
energy consumption for drying wet cotton laundry.
Programme Spin speed which is
used for spinning
the laundry
Duration** Energy consumption**
Cottons 9 kg 4.5 kg 9 kg 4.5 kg
Cupboard Dry* 1400 rpm 129 min 69 min 4.36 kWh 2.31 kWh
1000 rpm 150 min 80 min 5.23 kWh 2.77 kWh
800 rpm 171 min 91 min 6.02 kWh 3.19 kWh
Iron Dry* 1400 rpm 106 min 54 min 2.61 kWh 1.38 kWh
1000 rpm 127 min 65 min 4.01 kWh 2.12 kWh
800 rpm 147 min 76 min 4.50 kWh 2.38 kWh
Easy-Care 3.5 kg 3.5 kg
Cupboard Dry* 800 rpm 46 min 1.42 kWh
600 rpm 56 min 1.74 kWh
For testing in accordance with applicable standard EN61121 the dryer shall be used with external
drain set.
* Programme setting for testing in accordance with the applicable EN 61121 standard.
** The values may differ from those specified, depending on the type of fabric, composition of laundry to
be dried, residual moisture in the fabric and the amount of laundry being loaded.
Standard programmes for cottons in accordance with current EU regulation 932/2012
Programme Load Energy consumption Programme length
ü Cottons Cupboard Dry 9 kg/4.5 kg 5.23 kWh/2.77 kWh 150 min./80 min.
Programme setting for testing and energy labelling in accordance with Directive 2010/30/EU.
Page 27
Technical data en
27
J Technical data
Technical data
Dimensions:
85 x 60 x 60 cm
Height x width x depth
Weight:
Approx. 45 kg
Maximum load:
9 kg
Condensate container:
4.6 l
Connected voltage:
220 - 240 V
Connected load:
Max. 2600 W
Fuse:
13 A
Drum interior light
*
Ambient temperature:
5 - 35 °C
Power consumption when
switched off:
0.10 W
Power consumption when
ready for use (left-on mode):
0.75 W
* Depending on the model
Page 28
en Installation and connection
28
5 Installation
and connection
Installation and connection
Scope of delivery
■ Dryer
■ Installation and operating
instructions
■ Basket for woollens
*
■ Condensation drain*
Installing and connecting
the dryer
:Warning
Risk of death!
There is a risk of electric shock as the
dryer is operated with electricity.
■ Check the dryer for visible damage.
You must not operate the dryer if it is
damaged.
■ Before connecting the dryer to the
power supply, ensure that the
electric voltage specified on the
rating plate matches the voltage of
your socket.
■ Only use earth-leakage circuit
breakers with the following symbol:
z.
■ Ensure that the mains cable is not
kinked or trapped, and that it does
not come into contact with heat
sources or sharp edges.
:Warning
Children may lock themselves in the
dryer, putting their lives at risk!
Do not set up the dryer behind a door
or sliding door, as this may obstruct the
dryer door or prevent it from opening.
Caution!
Risk of injury
■ Due to the heavy weight of the dryer,
you may injure yourself if you lift it.
Do not lift the dryer on your own.
■ You could cut your hands on the
sharp edges of the dryer. Do not
hold the dryer by the sharp edges.
■ Protruding parts on the dryer may
break off when it is lifted or pushed.
Do not move the dryer by holding
onto protruding parts.
Caution!
Risk of material damage to the dryer or
fabrics.
■ Check the dryer for damage caused
during transportation. Never operate
a dryer if it is damaged.
■ Any residual water in the dryer may
freeze and damage the dryer. Do not
install the dryer in rooms that are at
risk of frost.
During installation, ensure that:
■ The dryer is placed on a clean, level
and firm surface,
■ The mains plug can be accessed at
all times,
■ The air inlet on the dryer is kept clear
and there is sufficient ventilation,
■ The area around the dryer is kept
clean and
■ The dryer is levelled using the
threaded feet. Use a spirit level to do
this.
* Depending on the model
Page 29
Installation and connection en
29
Optional accessories
Order optional accessories* from aftersales service:
■ Washer-dryer stack connection set:
To save space, the dryer can be
placed on top of a suitable washing
machine of the same width and
depth.
The dryer must be secured to the
washing machine using this
connection set.
Order number with pull-out worktop:
WTZ11400;
Order number without pull-out
worktop: WTZ20410.
■ Platform:
For easier loading and unloading,
use a platform to raise your dryer.
Transport laundry with the integrated
clothes basket integrated in the
platform's pull-out drawer.
Order number: WMZ20500.
■ Basket for woollens:
Dry individual woollen items, sports
shoes and soft toys in the basket for
woollens.
Order number: WMZ20600.
Transport and frost protection
To empty the condensate container:
1. Use the programme selector to
select any programme.
2. Press the Start button.
3. Wait for 5 minutes.
Note: The condensation is drained.
4. Empty the condensate container
again.
5. Switch off the dryer.
Caution!
Any residual water may leak out and
cause material damage.
Transport the dryer in an upright
position.
* Depending on the model
Page 30
6
Page 31
6
Page 32
*9001060599*
9001060599 9504
Repair order and advice in the event of faults
You can find the contact information for all
countries in the attached after-sales service
directory:
GB 0344 892 8989 Calls charged at local or
mobile rate.
IE 01450 2655 0.03 € per minute at peak.
Off peak 0.0088 € per minute.
Loading...
