Neff K5920L0GB User Manual

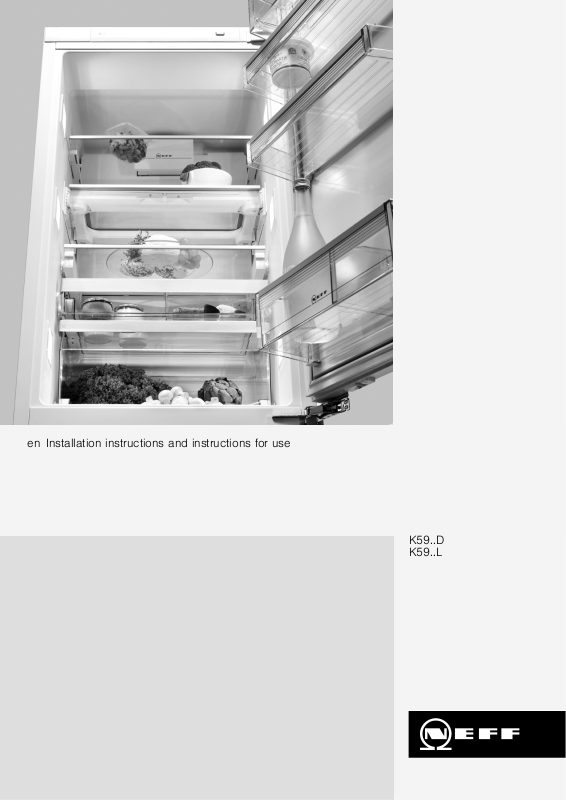

en Installation instructions and instructions for use

K59..D K59..L

en Table of Contents

enInstallation instructions and instructions for use

Safety and warning information ......................... 3

Information concerning disposal ....................... 4

Scope of delivery .................................................. 4

Installing the appliance ....................................... 5

Installation dimensions ........................................ 6

Door opening angle ............................................. 6

Aligning the appliance ......................................... 7

Connecting the appliance ................................... 7

Removing appliance doors and handles ......... 8

Getting to know your appliance ........................ 9

Switching the appliance on ............................. 11

Setting the temperature unit ............................ 11

Setting the temperature .................................... 11

Alarm function .................................................... 12

Usable capacity ................................................. 12

Freezer compartment ....................................... 12

Max. freezing capacity ...................................... 12

Freezing fresh food ........................................... 13

Super freezing .................................................... 13

Thawing frozen food ......................................... 14

Refrigerator compartment ............................... 14

Super cooling ..................................................... 14

Ice and water dispenser .................................. 15

Switching on and off the ice and water

dispenser ............................................................ 16

Water filter ........................................................... 16

Specification and performance data sheet .. 17

Features of the freezer compartment ............ 18

Interior fittings of refrigerator compartment . 18

Variable interior design .................................... 19

Switching off and disconnecting

the appliance ..................................................... 19

Defrosting ........................................................... 19

Cleaning the appliance .................................... 20

Light ..................................................................... 21

Tips for saving energy ...................................... 22

Operating noises ............................................... 22

Eliminating minor faults yourself ..................... 23

Appliance self-test ............................................. 25

Customer service .............................................. 25

m Safety and warning

information

Before you switch ON the appliance

Please read the operating and installation instructions carefully! They contain important information on how to install, use and maintain the appliance.

The manufacturer is not liable if you fail to comply with the instructions and warnings. Retain all documents for subsequent use or for the next owner.

Technical safety

This appliance contains a small quantity of environmentally-friendly but flammable R600a refrigerant. Ensure that the tubing of the refrigerant circuit is not damaged during transportation and installation. Leaking refrigerant may cause eye injuries or ignite.

If damage has occurred

■ Keep naked flames and/or ignition

sources away from the appliance,

■ thoroughly ventilate the room for several

minutes,

■ switch off the appliance and pull out the

mains plug,

■ inform customer service.

The more refrigerant an appliance contains, the larger the room must be in which the appliance is situated. Leaking refrigerant can form a flammable gas-air mixture in rooms which are too small. The room must be at least 1 m³ per 8 g of refrigerant. The amount of refrigerant in your appliance is indicated on the rating plate inside the appliance.

If the power cord of this appliance is damaged, it must be replaced by the manufacturer, customer service or a similarly qualified person. Improper installations and repairs may put the user at considerable risk.

Repairs may be performed by the manufacturer, customer service or a similarly qualified person only.

Only original parts supplied by the manufacturer may be used. The manufacturer guarantees that only these parts satisfy the safety requirements.

A extension cable may be purchased from customer service only.

Important information when using the appliance

■ Never use electrical appliances inside the

appliance (e.g. heater, electric ice maker, etc.). Explosion hazard!

■ Never defrost or clean the appliance with

a steam cleaner! The steam may penetrate electrical parts and cause a short-circuit. Risk of electric shock!

■ Do not use pointed and sharp-edged

implements to remove frost or layers of ice. You could damage the refrigerant tubes. Leaking refrigerant may cause eye injuries or ignite.

■ Do not store products which contain

flammable propellants (e.g. spray cans) or explosive substances in the appliance. Explosion hazard!

■ Do not stand on or lean heavily against

base of appliance, drawers or doors, etc

■ For cleaning pull out mains plug or switch

off fuse. Do not pull out the mains plug by tugging on the power cord.

■ Store high-percentage alcohol tightly

closed and standing up.

■ Keep plastic parts and the door seal free

of oil and grease. Otherwise, parts and door seal will become porous.

■ Never cover or block the ventilation

openings of the appliance!

■ Avoiding placing children and

vulnerable people at risk:

At risk are children, people who have limited physical, mental or sensory abilities, as well as people who have inadequate knowledge concerning safe operation of the appliance.

Ensure that children and vulnerable people have understood the hazards.

A person responsible for safety must supervise or instruct children and vulnerable people who are using the appliance.

Only children from 8 years and above may use the appliance.

Supervise children who are cleaning and maintaining the appliance.

Never allow children to play with the appliance.

■ Do not store bottled or canned drinks

(especially carbonated drinks) in the freezer compartment. Bottles and cans may burst!



■ Never put frozen food straight from the

freezer compartment into your mouth. Risk of low-temperature burns!

■ Avoid prolonged touching of frozen food,

ice or the evaporator pipes, etc. Risk of low-temperature burns!

Children in the household

■ Keep children away from packaging and

its parts. Danger of suffocation from folding cartons and plastic film!

■ Do not allow children to play with the

appliance!

■ If the appliance features a lock:

keep the key out of the reach of children!

General regulations

The appliance is suitable

■ for refrigerating and freezing food,

■ for making ice,

■ for dispensing drinking water.

This appliance is intended for use in the home and the home environment.

The appliance is suppressed according to EU Directive 2004/108/EC.

The refrigeration circuit has been checked for leaks.

This product complies with the relevant safety regulations for electrical appliances (EN 60335-2-24).

Information concerning disposal

* Disposal of packaging

The packaging protects your appliance from damage during transit. All utilised materials are environmentally safe and recyclable. Please help us by disposing of the packaging in an environmentally friendly manner.

Please ask your dealer or inquire at your local authority about current means of disposal.

* Disposal of your old appliance

Old appliances are not worthless rubbish! Valuable raw materials can be reclaimed by recycling old appliances.

This appliance is labelled in accordance with European Directive 2012/19/EU concerning used electrical and electronic appliances (waste electrical and electronic equipment - WEEE). The guideline determines the framework for the return and recycling of used appliances as applicable throughout the EU.

m Warning

Redundant appliances

1. Pull out the mains plug.

2. Cut off the power cord and discard with the mains plug.

3. Do not take out the trays and receptacles: children are therefore prevented from climbing in!

4. Do not allow children to play with the appliance once it has spent its useful life. Danger of suffocation!

Refrigerators contain refrigerant and gases in the insulation. Refrigerant and gases must be disposed of professionally. Ensure that tubing of the refrigerant circuit is not damaged prior to proper disposal.

Scope of delivery

After unpacking all parts, check for any damage in transit.

If you have any complaints, please contact the dealer from whom you purchased the appliance or our customer service.

The delivery consists of the following parts:

■ Free-standing appliance

■ Interior fittings (depending on model)

■ Bag containing installation materials

■ Operating instructions

■ Installation manual

■ Customer service booklet

■ Warranty enclosure

■ Information on the energy consumption and noises

Installing the appliance

Observe ambient temperature and ventilation

Transporting

The appliances are heavy and must be secured during transportation and installation.

Because of the weight / dimensions of the appliance and to minimise the risk of injuries and damage to the appliance at least two persons are necessary to set-up the appliance securely.

Installation location

Install the appliance in a dry, well ventilated room. The installation location should neither be exposed to direct sunlight nor near a heat source, e.g. a cooker, radiator, etc. If installation next to a heat source is unavoidable, use a suitable insulating plate or observe the following minimum distances to a heat source:

■ 3 cm to electric or gas cookers.

■ 30 cm to an oil or coal-fired cooker.

If installing the appliance next to another refrigerator or freezer, ensure a minimum lateral distance of 25 mm to prevent the formation of condensation.

If a panel or cupboard is installed above the appliance, ensure that a gap of 30 mm is left so that the appliance can be pulled out of the recess if required.

The air heated on the rear side of the appliance must be allowed to escape unhindered.

Subsurface

Ambient temperature

The climate class can be found on the rating plate. The climate class indicates within which ambient temperatures the appliance can be operated. The rating plate is located in the refrigerator compartment at the bottom right side.

Climate class Permitted ambient temperature SN +10 °C to 32 °C N +16 °C to 32 °C ST +16 °C to 38 °C T +16 °C to 43 °C

Note

The appliance is fully functional within the room temperature limits of the indicated climatic class. If an appliance of climatic class SN is operated at colder room temperatures, the appliance will not be damaged up to a temperature of +5 °C.

Ventilation

Never cover the ventilation openings on the rear of the appliance. Conduction of the heated air must not be obstructed. Otherwise, the refrigeration unit must work harder. This increases power consumption.

Place the enclosed spacers in the designated holders on the back of the appliance. This ensures that there is a minimum distance between the appliance and the wall.

m Caution

The appliance is very heavy.

Model with dispenser: 143 kg The floor of the installation location must not give way;

if required, reinforce floor. To ensure that the doors can open all the way, observe

lateral minimum distances when installing the appliance in a corner or recess (see chapter “Installation dimensions”).

If the depth of the adjacent kitchen equipment is more than 60 cm, observe lateral minimum distances in order to utilise the full door opening angle (see chapter “Door opening angle“).

Installation dimensions

Door opening angle

343

1031

160°

90°

791

725

610

464

1159

160°

90°

Aligning the appliance

To ensure that the appliance functions correctly, it must be set level with a spirit level.

If the appliance is not level, water may flow out of the ice maker, ice cubes may be irregular or the doors may not close properly.

To align the appliance:

1. Place the appliance in the designated location.

2. Align front feet with a hexagon wrench.

3. Align rear feet with an Allen key.

Connecting the appliance

Have a technician install and connect the appliance according to the enclosed installation instructions.

Do not remove the transportation protection devices from the shelves and storage compartments until the appliance has been installed.

Always connect the water before the power. Apart from statutory national regulations, you should

stick to the connection terms relating to the local electricity and water companies.

After installing the appliance, wait at least 1 hour until the appliance starts up. During transportation the oil in the compressor may have flowed into the refrigeration system.

Before switching on the appliance for the first time, clean the interior of the appliance (see chapter “Cleaning the appliance”).

Water connection

The water may be connected only by a competent fitter according to the local regulations of the appropriate water supply company.

m Caution

Use only the enclosed hose set for connection to the drinking water mains. Do not use existing or already used hose sets.

Connect the appliance to a drinking water line only:

■ Minimum pressure: 0.2 Mpa (2 bar)

■ Maximum pressure: 0.8 Mpa (8 bar)

■ Pressure over 0.8 MPa (8 bar): install a pressure

limiter between drinking water connection and hose set

Note

The maximum outside diameter of the water mains (without connecting pieces) is 10 mm.

Electrical connection

Do not use extension cables or distributors. This appliance must be connected to a permanently installed socket.

The socket must be near the appliance and also freely accessible following installation of the appliance.

The appliance complies with the protection class I. Connect the appliance to 220-240 V/50 Hz alternating current via a correctly installed socket with protective conductor. The socket must be fused with a 10 A to 16 A fuse or higher.

For appliances operated in non-European countries, the identification plate should be checked whether the electric supply and the current model stated match the values of your mains supply. The rating plate is situated in the bottom right-hand side of the appliance. The power cord may be replaced by a technician only.

m Warning

Never connect the appliance to electronic energy saver plugs.

Our appliances can be used with mains and sinecontrolled inverters. Mains-controlled inverters are used for photovoltaic systems which are connected directly to the national grid. Sine-controlled inverters must be used for isolated applications (e.g. on ships or in mountain lodges) which are not connected directly to the national grid.

Removing appliance doors and handles

If the appliance will not fit through the house door, the appliance doors and handles can be unscrewed.

m Caution

Only customer service may unscrew the appliance doors.
