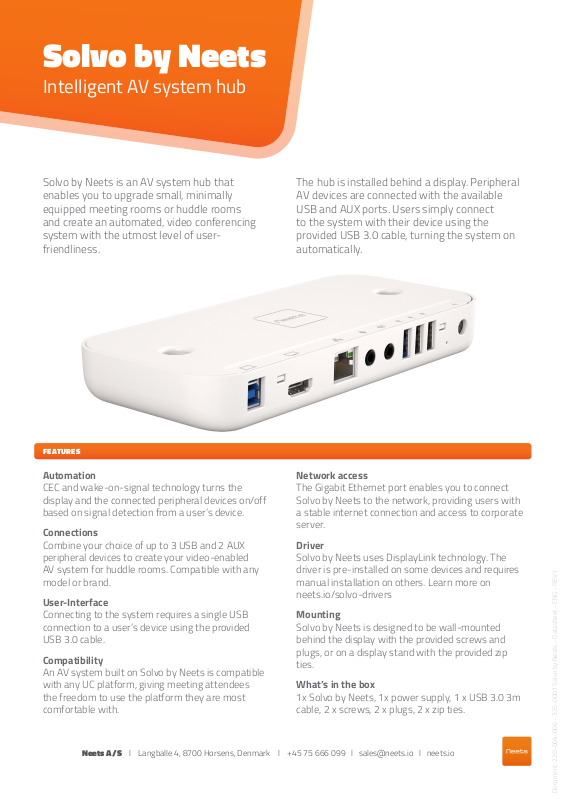

Solvo by Neets
Intelligent AV system hub
Solvo by Neets is an AV system hub that
enables you to upgrade small, minimally
equipped meeting rooms or huddle rooms
and create an automated, video conferencing
system with the utmost level of userfriendliness.
FEATURES
The hub is installed behind a display. Peripheral
AV devices are connected with the available
USB and AUX ports. Users simply connect
to the system with their device using the
provided USB 3.0 cable, turning the system on
automatically.
Automation
CEC and wake-on-signal technology turns the
display and the connected peripheral devices on/off
based on signal detection from a user’s device.
Connections
Combine your choice of up to 3 USB and 2 AUX
peripheral devices to create your video-enabled
AV system for huddle rooms. Compatible with any
model or brand.
User-Interface
Connecting to the system requires a single USB
connection to a user’s device using the provided
USB 3.0 cable.
Compatibility
An AV system built on Solvo by Neets is compatible
with any UC platform, giving meeting attendees
the freedom to use the platform they are most
comfortable with.
Network access
The Gigabit Ethernet port enables you to connect
Solvo by Neets to the network, providing users with
a stable internet connection and access to corporate
server.
Driver
Solvo by Neets uses DisplayLink technology. The
driver is pre-installed on some devices and requires
manual installation on others. Learn more on
neets.io/solvo-drivers
Mounting
Solvo by Neets is designed to be wall-mounted
behind the display with the provided screws and
plugs, or on a display stand with the provided zip
ties.
What’s in the box
1x Solvo by Neets, 1x power supply, 1 x USB 3.0 3m
cable, 2 x screws, 2 x plugs, 2 x zip ties.
Neets A/S l Langballe 4, 8700 Horsens, Denmark l +45 75 666 099 l sales@neets.io l neets.io
Document: 220-004-006 - 325-0001 Solvo by Neets - Datasheet - ENG - REV1
TECHNICAL SPECIFICATIONS
Product Number
325-0001
Video
Up to 4K/UHD (3840x2160), 30fps - DisplayLink
technology
Compliance - HDMI 1.4, HDCP 2.0, EDID
Connections
1 x USB-B (3.0)
1 x USB-A (3.0)
2 x USB-A (2.0)
1 X HDMI type A (CEC compatible)
5VDC Power inlet, 5.5x2.5mm - DC input
Audio Out (Analog) - 3.5mm stereo jack
Audio In (Analog) - 3.5mm stereo jack
Gigabit Ethernet - RJ45 ethernet port
Other interfaces
Status Indicator - 1x LED (RG Light Emitting Diode)
Power Supply
External PSU - 100-240VAC (50/60Hz); 5VDC/3A
Consumption - Type: <5W (Max: 15W)
Dimension/Weight
Length: 185 mm
Width: 85 mm
Height: 23 mm
Weight: 200g
Mounting/Installation
Wall mounting - 2x 4x40mm Screw w. plug
Bracket/Frame Mounting - 2x 4,5x200mm zip ties
Material/Color
ABS Moulded Plastic
White (RAL9016), matt
Approval/Certification
CE regulations - EN 55035:2017 | EN 55032:2012
FCC regulations - FCC Part 15, Class A
Environment
For indoor use
Operational temperature: 10 °C to 30 °C
Operational humidity: 10 – 90 %
Neets A/S l Langballe 4, 8700 Horsens, Denmark l +45 75 666 099 l sales@neets.io l neets.io
Document: 220-004-006 - 325-0001 Solvo by Neets - Datasheet - ENG - REV1
