Neets MiniConnect, MC1 User guide

Installation guide

Neets MiniConnect™

Thank you!

Thank you for including the Neets MiniConnect
as part of your user experience strategy.

Specifications

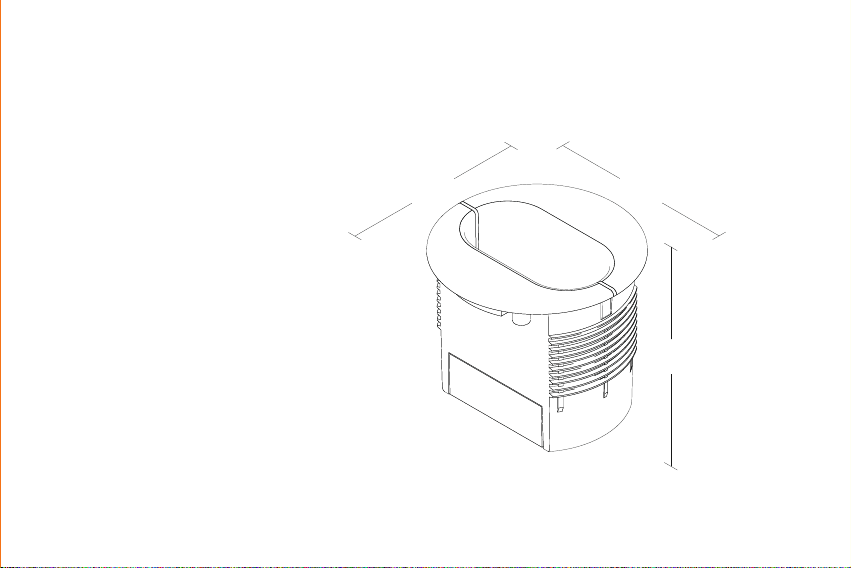

Physical dimensions:

H: 92 mm
W: 110 mm
D: 110 mm

Internal dimensions:

W: 83 mm
D: 42 mm

Weight:

Product: 225 g
Shipping: 410 g

Compliancy:

CE

Table surface:

Mounting depth max.: 50 mm

Recommended cable dimension:

Max. 6 mm

Recommended cable housing:

No less than 10 mm

D: 110 mm

W: 110 mm

H: 92 mm

2

What’s in the box

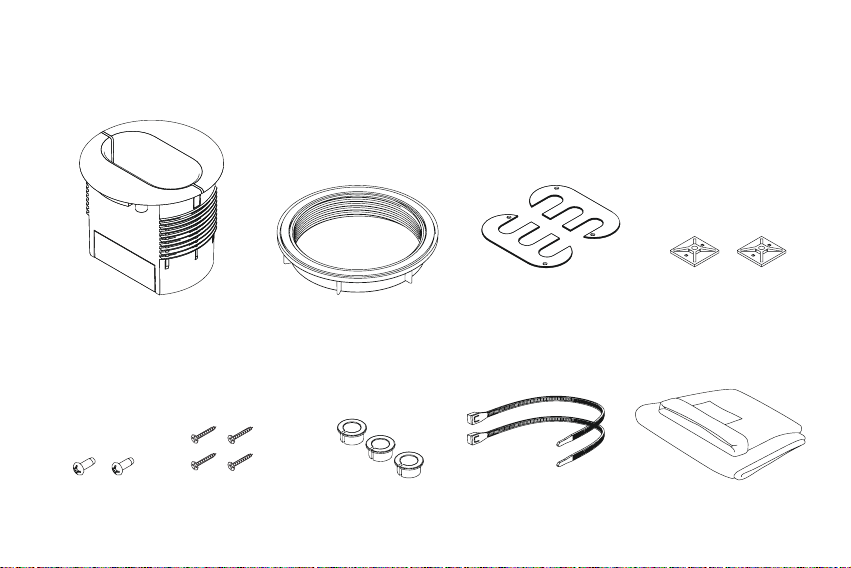

MiniConnect Tension ring Cable ribs Cable tie holders

cable ribs

3

Screws for
cable tie holder

Cable bushings Cable tieScrews for

Cable bag

How to install

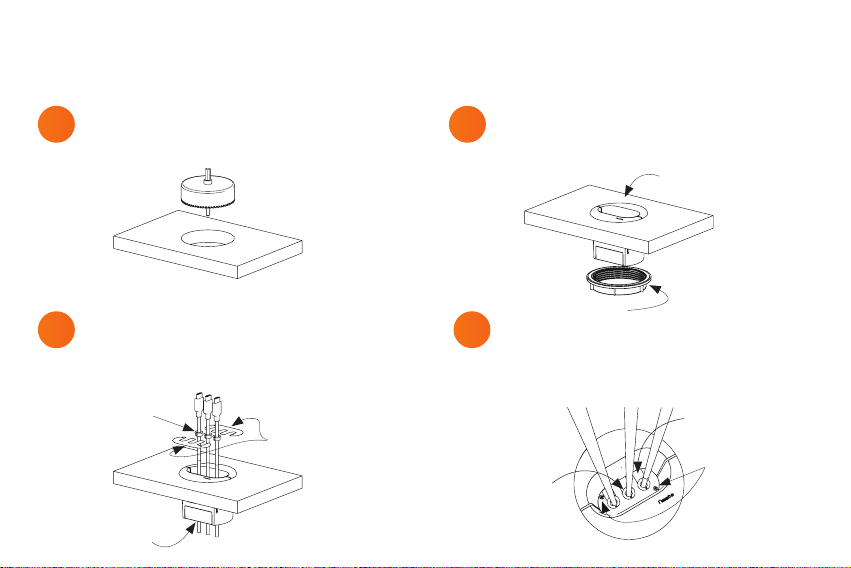

Drill a hole in your table using a Ø102 mm

1

2

holesaw.

Insert the cables from the bottom (1). Then

3 4

mount the cable bushings onto the cables
(2), and the cable ribs on each side (3).

2

3

1

1 Note: Cables are not included.

Place the MiniConnect into the hole (1)
and screw on the tension ring (2).

1

2

Drop the cable ribs down through the
MiniConnect (1), and press the cable bushings
into cable ribs (2). Then mount the two screws
in the bottom (3).

2

1

3

4

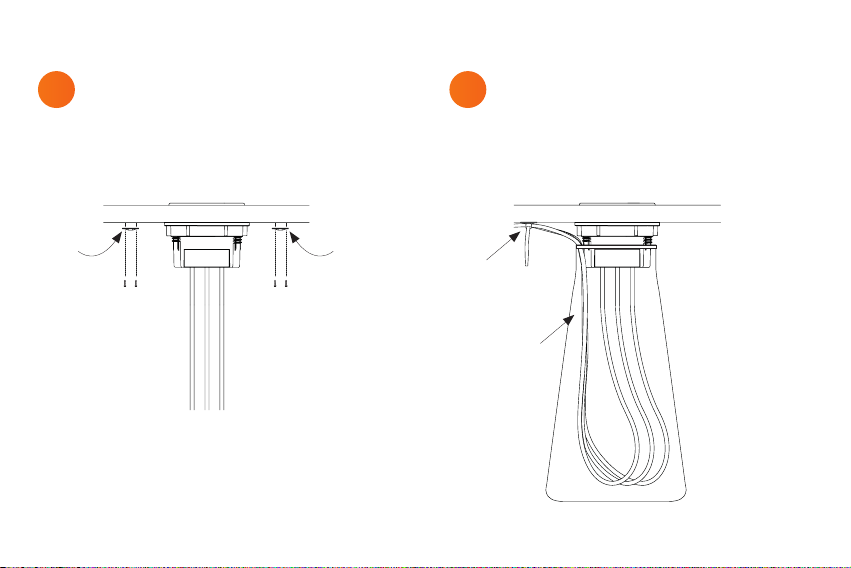

Mount one or both cable tie holders

5 6

underneath the table, using the
supplied screws (1).

Put the cables in the cable bag, and
attach the cable bag, using the velcro
(1). Use a cable tie to secure the
cables to the cable tie holder (2).

1 1

5

2

1

Caution

Read thi s installa tion guide . Read and unde rstand a ll instruc tions befo re
insta lling the pro duct. Foll ow all steps in t he guide whe n installi ng the
product. Do not use tools or attachments that are not recommended, as
they may be hazardous.

Copyright

All information contained in this guide is the intellectual property and cop­yrigh ted materi al of Neets. A ll rights a re reserv ed. You may not allo w any
third p arty acce ss to content , informa tion or data i n this manual w ithout
Neets ’ express w ritten con sent.

Changes

Neets reserve the right to change the specifications and functions of this
product without prior notice. You can always find the newest version of this
document at www.neets.dk

6

Learn more at neets.dk

Visit our website neets.dk for additional information
about the product.
