Installation guide
Neets Touch Panel 4”
Thank you!
Thank you for including the Neets Touch
Panel as part of the user interface strategy
for your customer.
Specifications
Physical Dimensions:
H: 115 mm
W: 77 mm
D: 41,4 mm
In wall: 25,4 mm
On wall: 16,5 mm
Shipping dimensions:
60 mm x 165 mm x 135 mm (HxWxD)
Weight:
Product: 0,16 Kg
Wall Bracket: 0,09 Kg
Shipping: 0,36 Kg
Connections:
RJ45 with POE – For Power and Ethernet communication
Micro USB – For application and firmware upgrade only
Switches:
Pen hole switch:
1: Recover
2: Home
3: Reboot
4: Settings
Touch Screen:
2-point capacitive touch screen
Scratch resistant glass-on-glass touch screen
Display:
4” IPS Display,
Resolution: 800x480 pixels
Brightness: 400 nits (cd/m2)
Sensors:
Proximity sensor – For automatic display activation
Ambient Light sensor – For automatic backlight dimming
Power:
Power Over Ethernet (POE), IEEE802.3af, 48V
Environment:
Operating Temp: 0 to 40 C / 32 to 104 F
Storage Temp: 0 to 60 C / 32 to 140 F
Operation moisture: Humidity: 10% to 90% RH
Compliancy:
CE, FCC
Doc. 313-005-003 Rev. 1
2
What’s in the box
4” Touch Panel
3
Wall mount bracket
Cloth
2 x Screws for mounting
in US back-box
4 x Wall plugs4 x Screws
USB OTG adapter (for application
and firmware upgrade)
Ejector pin for
menu settings
4
Front
5
Proximity and light
sensor
1 115 mm
1 77 mm
Back
Recover
Home
Magnets Settings
Reboot
USB
Magnet
LAN/POE
Magnet
6
Steps
1 Touch Panel position
2 Bracket details
3 Mounting the bracket
4 Connect LAN/PoE
7
5 Mount Touch Panel on bracket
6 Connect PoE injector
7 First start up
1
Touch Panel position
The Touch Panel is designed to wall
mount in horizontal orientation, and
depending on how tall the users are we
recommend locating the center of the
touch panel between 145 cm. – 165 cm.
(57” – 65”) above the finish floor.
165 cm / 65 in.
145 cm / 57 in.
8
2
Bracket details
The Touch Panel is designed to mount
into a 1-gang back box in EU, US or DK
standards or can be mounted without a
back box.
When using EU or DK 1-gang back boxes
use the threads and screws that are
already in the back box and secure the
mounting bracket with the screws.
When using US 1-gang back boxes use
the threads that are already in the back
box and secure the mounting bracket
with the fitting screws supplied with the
touch panel.
When using an old style DK standard back
box use the holes marked with “W” for
mounting directly on the wall.
To mount the Touch Panel without back
box use holes marked with “W”.
9
The numbers on the bracket
refers to the back box it is
intended for.
2
W W
1
EU 1-gang back box
2
DK 1-gang back box
3
US 1-gang back box
Holes for mounting
W
directly into the wall
Alignment holes –
A
do not use these for screws
A
1
A
W W
332
1
10
3
Mounting the bracket
When mounting the Touch Panel into a
1-gang back box follow the steps below.
In case you are not mounting on a back
box skip step 1.
Before you start make sure the wall is
even to prevent distorting the bracket.

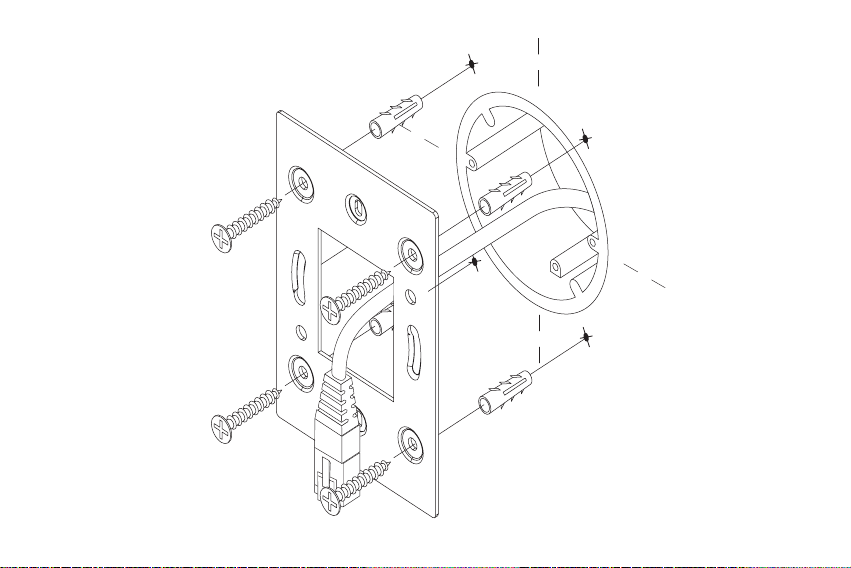

Mount the bracket onto the back box
1
using the screws and screw holes for the
specific type of back box (see page 10)
2
Level the bracket on the wall
(When mounting onto a back box do this
before tightening the screws)
Mark the center of the W-holes in the
3
bracket
11
Remove the bracket again
4
Drill and insert wall plugs
5
Mount the bracket and tighten the screws
6
into the wall
12
4
Connect LAN / PoE
Connect the LAN/PoE cable from the
wall to the Touch Panel.
13
5
Mount Touch Panel on bracket
Place the Touch Panel onto the bracket.
Make sure it is placed correctly and
the alignment holes are free to fix the
Touch Panel to all four magnets.
14
6
Connect PoE injector
15
Power outlet
P
O
E
L
A
N
LAN switch
7
First start up
The Touch Panel will automatically
power on when power is applied.
Wait for the unit to start up and
follow the instructions.
For a complete configuration guide
please go to:
www.neets.dk/products/touchpanels/
You will find the instructions for
firmware updates the same place.
16
Removing the Touch Panel
Using two hands grasp on each
side of the Touch Panel and pull
straight out from the wall.
17
Warning
This equipment should be operated only f rom the included power supply. To
remove power from the equipment safely, remove all power cords from the
rear of the equipment, or the desktop power module (if detachable), or from
the powe r source rec eptacle (wa ll plug).
Power co rds should be r outed so tha t they are not l ikely to be ste pped on or
pinche d by items plac ed upon or aga inst them.
Do not def eat the saf ety purpo se of a polariz ed or ground ing-type pl ug.
A polar ized plug has t wo blades wi th one wider t han the oth er. A ground
ing-ty pe plug has tw o blades and a t hird groun ding prong. T he wide blade
or the th ird prong is pr ovided for y our safety. I f the provid ed plug does no t
fit int o your outlet , consult an e lectric ian for repla cement of the o bsolete
outle t. Unplug thi s apparat us during ligh tning stor ms or when unus ed for
long periods of time.
Refer all servicing to qualified service personnel. There are no user-serv ice
able pa rts insid e. To prevent the r isk of shock, d o not attemp t to servi ce this
equipment yourself because opening or removing covers may expose you to
dangerous voltage or other hazards. Contact your local Neets reseller or
distributor.
If the eq uipment has s lots or hole s in the enclos ure, these a re provide d to
prevent overheating of sensitive components inside. The se openings must
never be blocked by other obje cts.
Do not use this equipment near w ater.
To reduce th e risk of fire o r electri c shock, do not e xpose thi s apparat us to
rain or m oisture an d objects f illed with li quids.
Unplug t he product b efore clea ning. Clean o nly with a dr y cloth and no t
cleani ng fluid or aer osols. Suc h product s
could en ter the unit a nd cause dama ge, fire, or e lectric s hock. Some s ub
stan ces may also ma r the finish o f the produc t.
-
-
Caution
Read th ese instru ctions. R ead and under stand all s afety an d operating
instructions before using the equipment. Keep these Instructions.
The saf ety instr uctions s hould be kept fo r future re ference. He ed all warn-
ings. F ollow all war nings and ins tructi ons marked on t he equipmen t or in
the user information. Avoid attachments. Do not use tools or att achments
that are not recommended, as they may be hazardous.
FCC Class A Notice
This equipment has been tested and found to comply with the limits for a Class
A digital device, pursuant to part 15 of the FCC Rules. Operation is subject to
the following two conditions:
1. This device may not cause harmful interference.
2. This device must accept any interference received, including interference
-
that may cause undesired operation.
The Class A limits are designed to provide reasonable protection against harm
ful interference when the equipment is operated in a commercial environment.
This equipment generates, uses, and can radiate radio frequency energy and,
if not installed and used in accordance with the instruction manual, may cause
harmful interference to radio communications. Operation of this equipment in
a residential area is likely to cause harmful interference, in which case the user
will be required to correct the interference at his own expense.
FCC regulations state that any unauthorized changes or modifications to this
equipment, not expressly approved by the manufacturer, could void the user’s
authority to operate this equipment.
-
Learn more at neets.dk
Visit our website neets.dk for additional information
about the product and the latest firmware.
